Tractor flail mower 160 cm (63 in) TIGRE-160, medium-heavy side-shift hammer flail mulcher for 40-90 hp tractors

Not available  Notify me
Code TIGRE160PTO - EAN 8053470230981
2.295,00€VAT incl.
Free shipping
Loading...
2.295,00€VAT incl.
Free shipping
View all details.
CUTTING WIDTH
160 180 200

reviews

2.295,00€VAT incl.

VIDEO

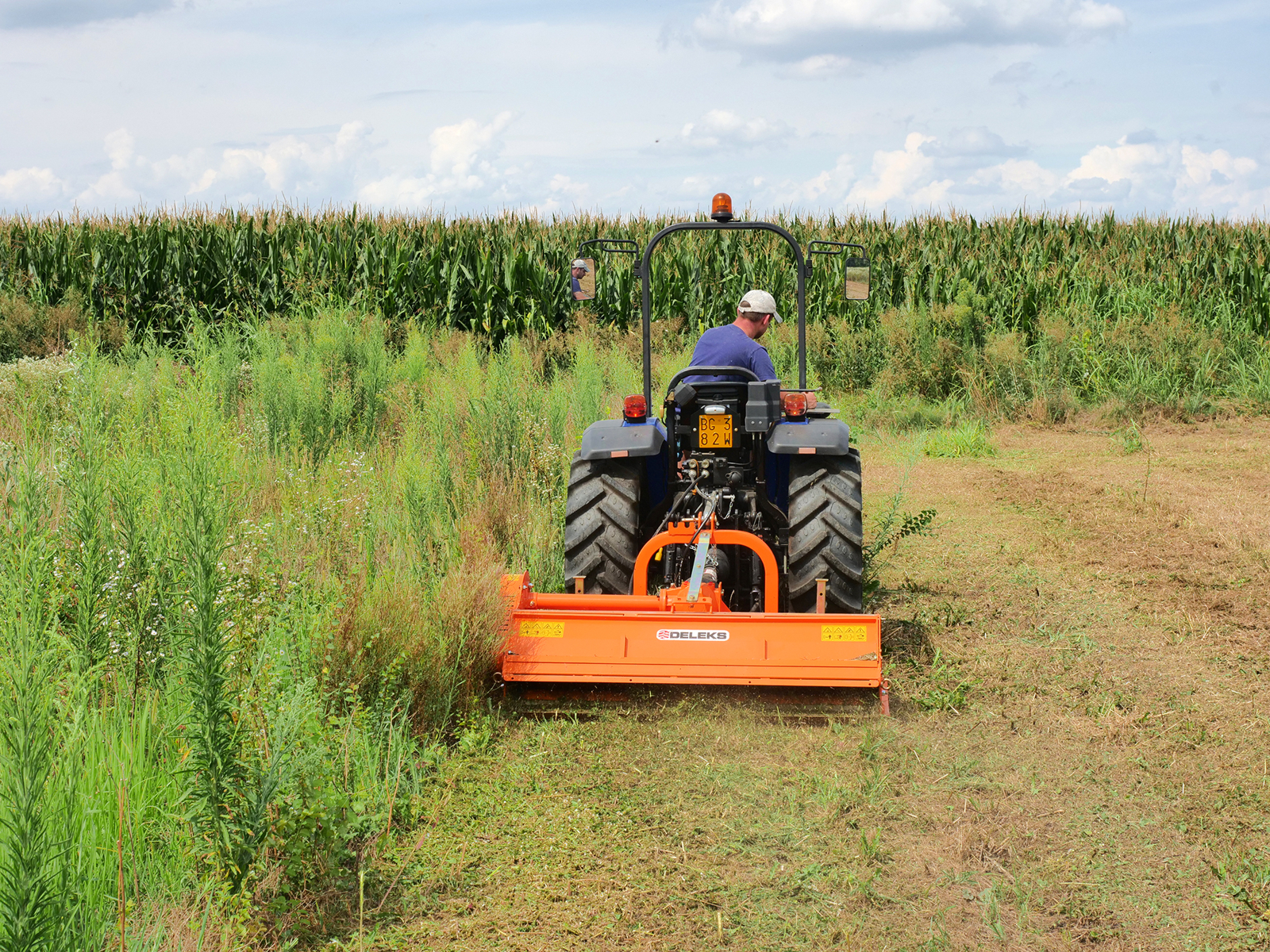

Field test
Field test

DETAILS

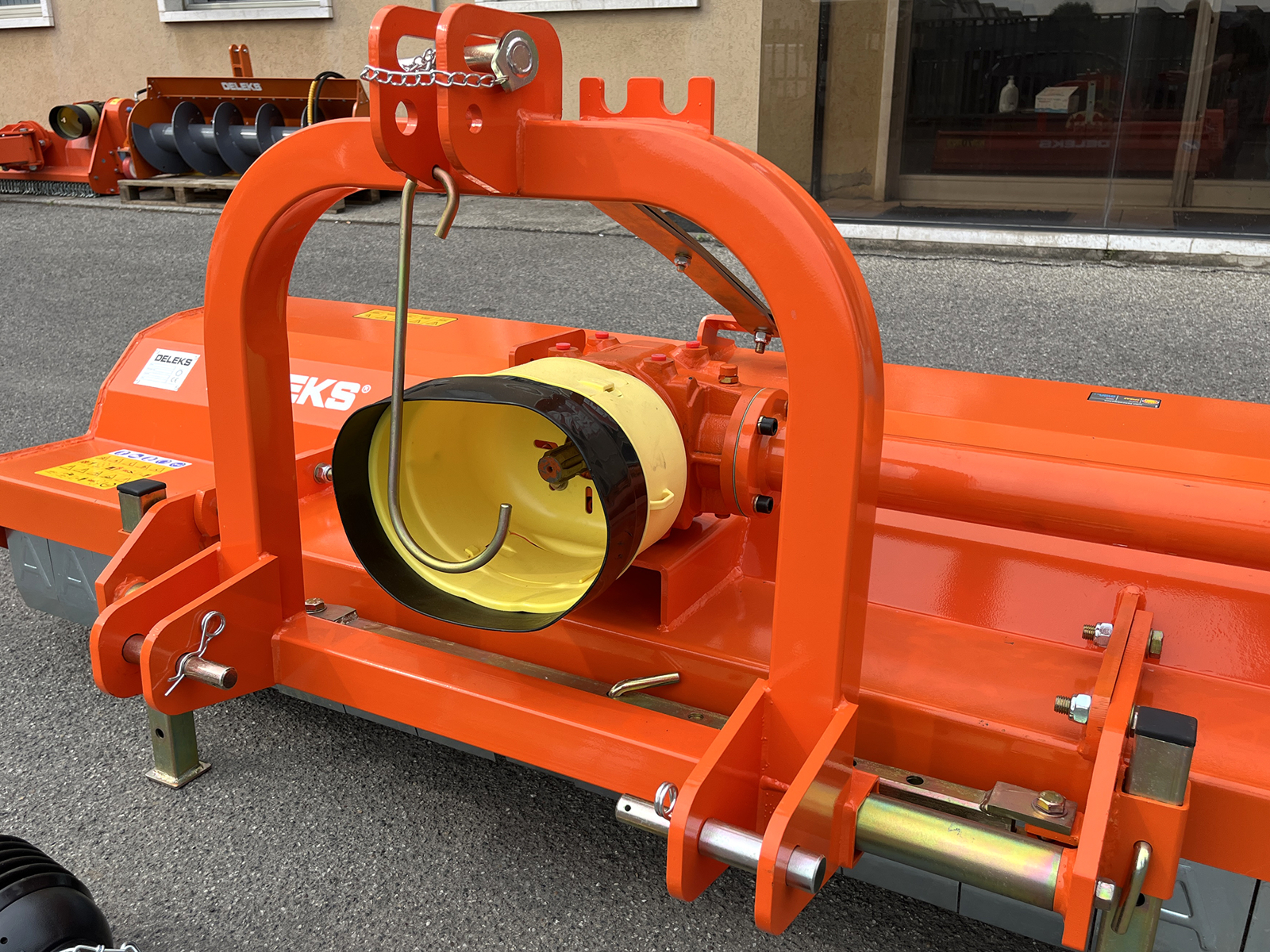

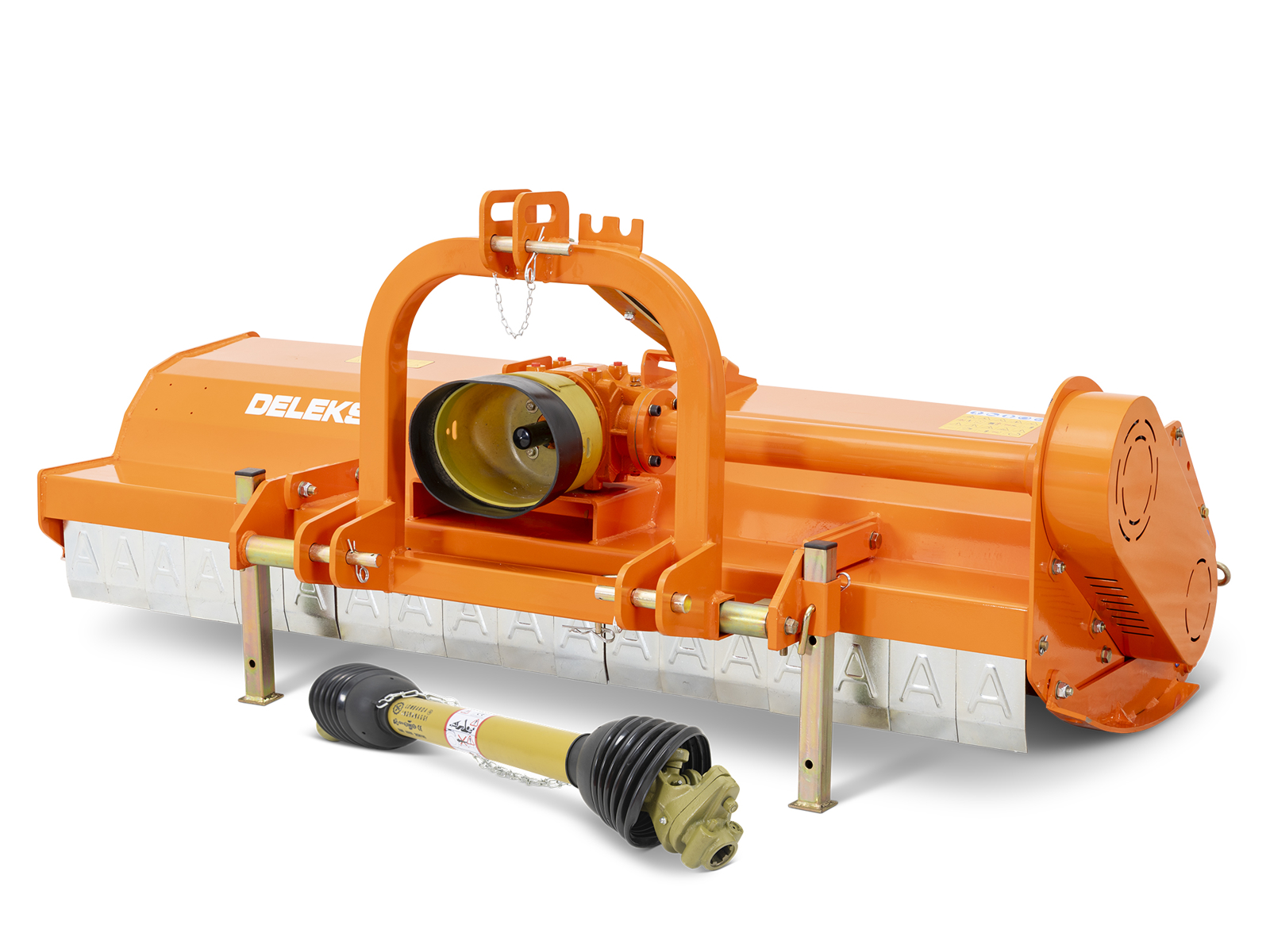

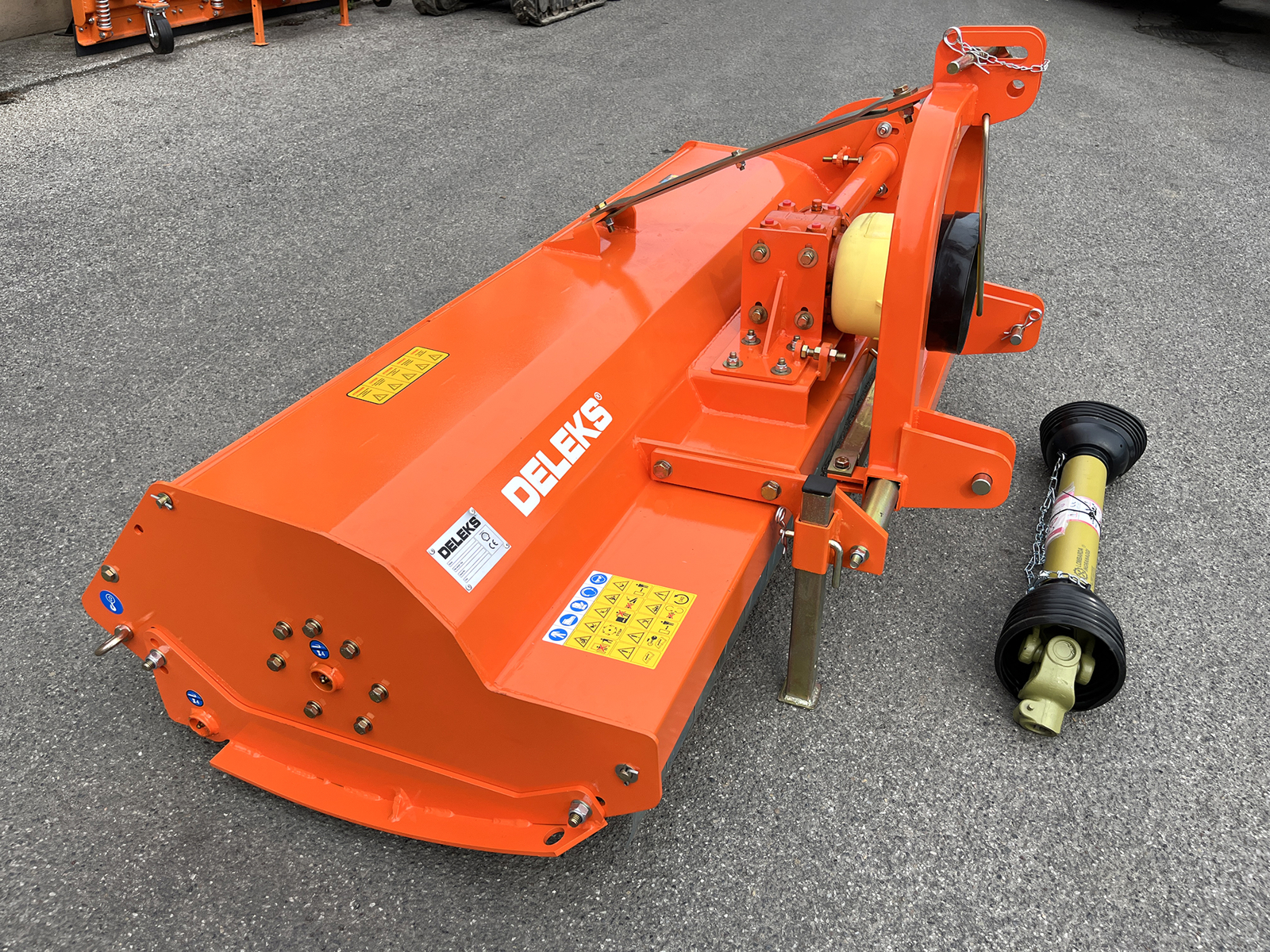

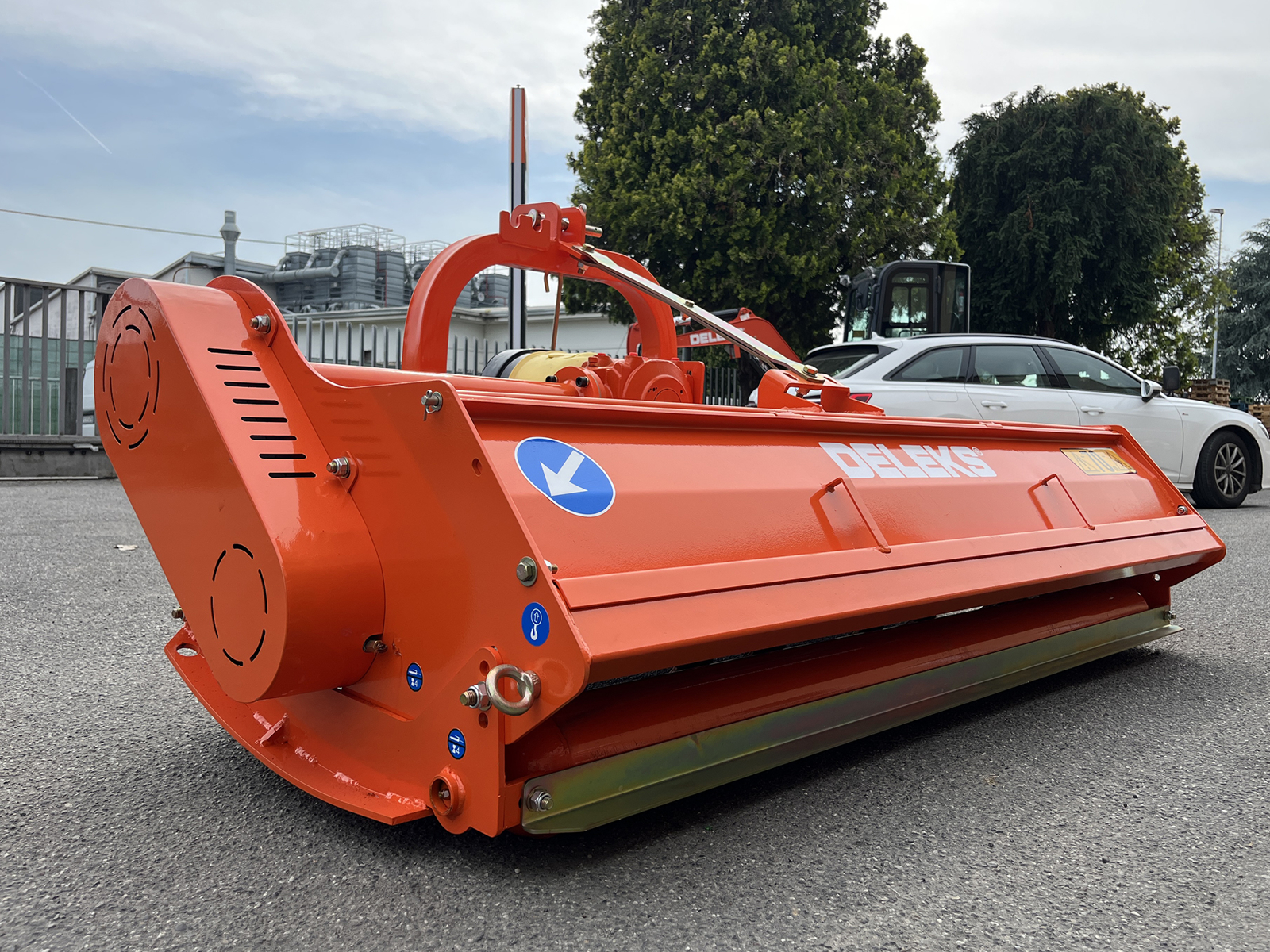

Tractor flail mower with a 160 cm (63 in) cut, from the DELEKS® medium-heavy series: the TIGRE-160 is the side-shift hammer flail mulcher for wheeled or tracked tractors from 40 to 90 hp, such as New Holland, John Deere, Landini, Deutz-Fahr, Lamborghini and Kubota. The electronically balanced rotor, 160 mm (6.3 in) in diameter, carries 24 hammer flails of 820 g (1.8 lb) and pulverises grass, brambles, vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick. The 27 cm (11 in) side shift is manual, with hydraulic as an option; the rear hood opens for servicing and the oversized rear roller has a mud scraper. CMR Group 540 rpm gearbox with freewheel and a 3-year warranty, 4-belt drive, 382 kg (842 lb). CAC-certified, it comes complete with a CE-approved PTO shaft with shear bolt, a 2-year warranty and free delivery within the EU.


Which tractors it fits

The TIGRE-160 cuts 160 cm (63 in) with an overall width of 177 cm (70 in) and is designed for wheeled or tracked tractors from 40 to 90 hp with a 540 rpm PTO and a universal category 1 or 2 three-point linkage (19-22 or 25-28 mm pins, lower link spacing from 550 to 660 mm): New Holland T4F and TK4000, John Deere 4 and 5 Series, Landini Rex and Trekker, Deutz-Fahr, Goldoni Star, Lamborghini Ego, Kubota L series, Solis and equivalent tractors. It works on the flat and on slopes. The gearbox sits 790 mm from the left-hand side and 805 mm from the right-hand side. As a rule of thumb the mower should be 15 to 20 cm (6 to 8 in) wider than the tractor's outer track, so it covers the wheel marks.

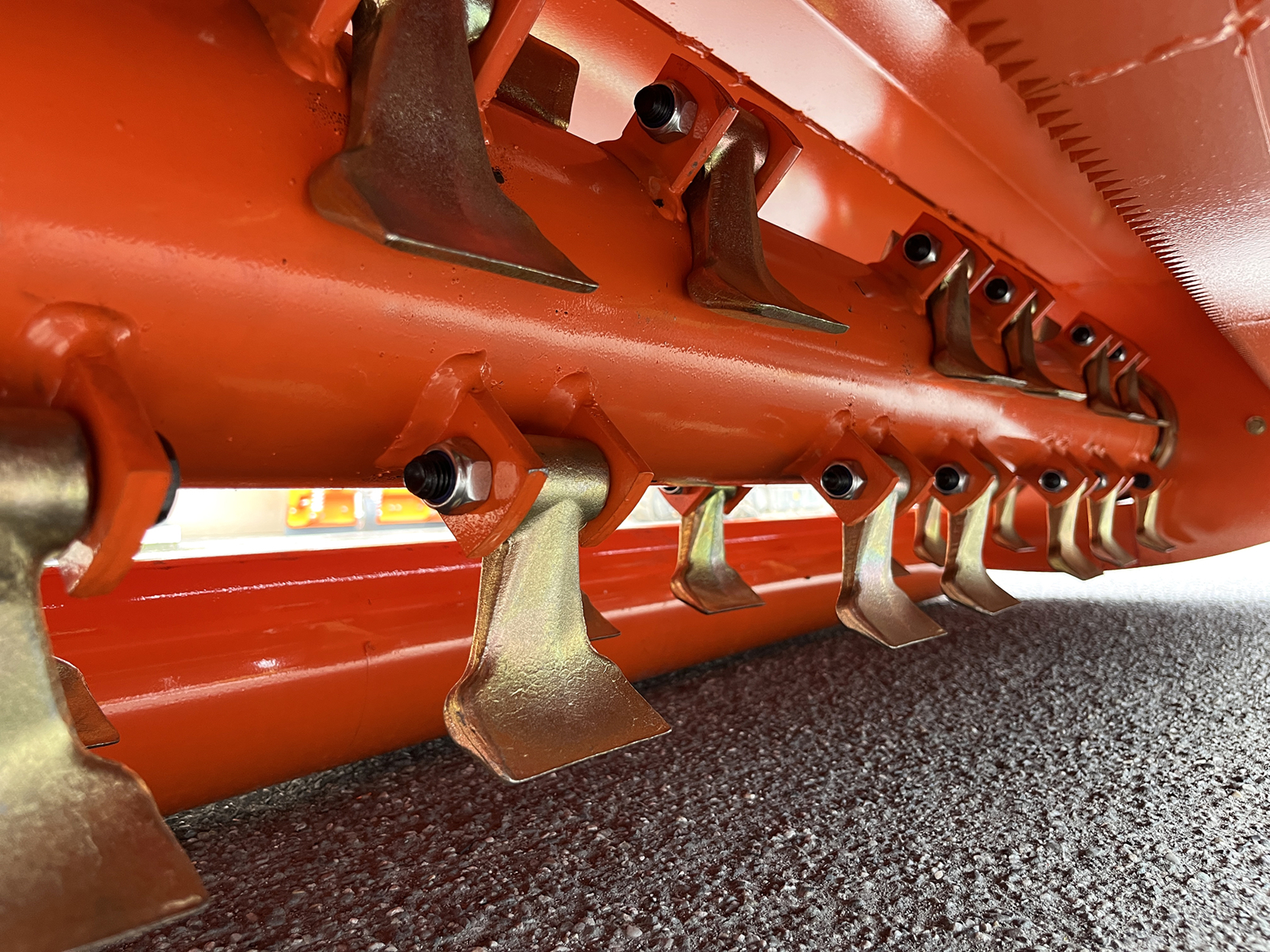

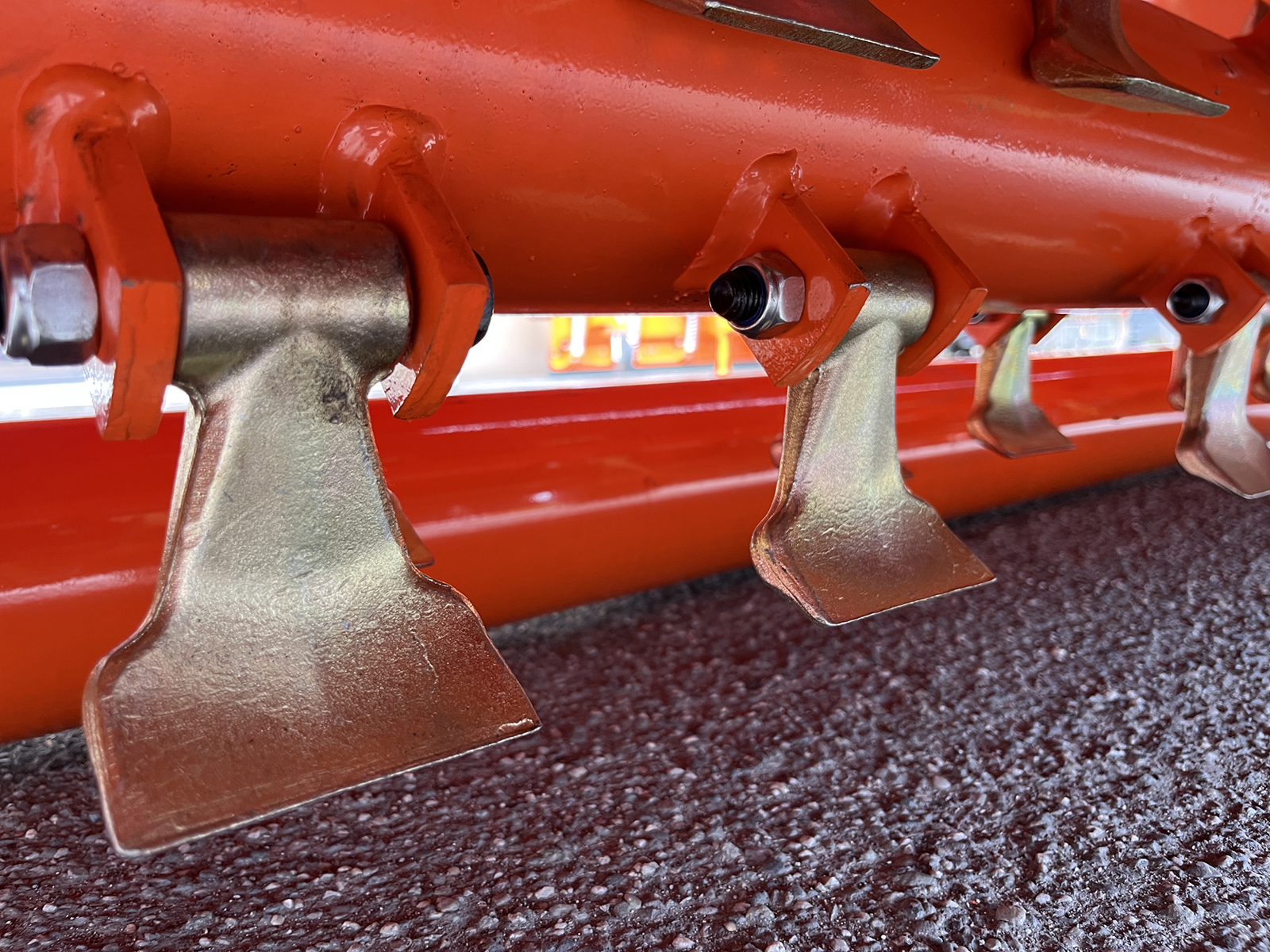

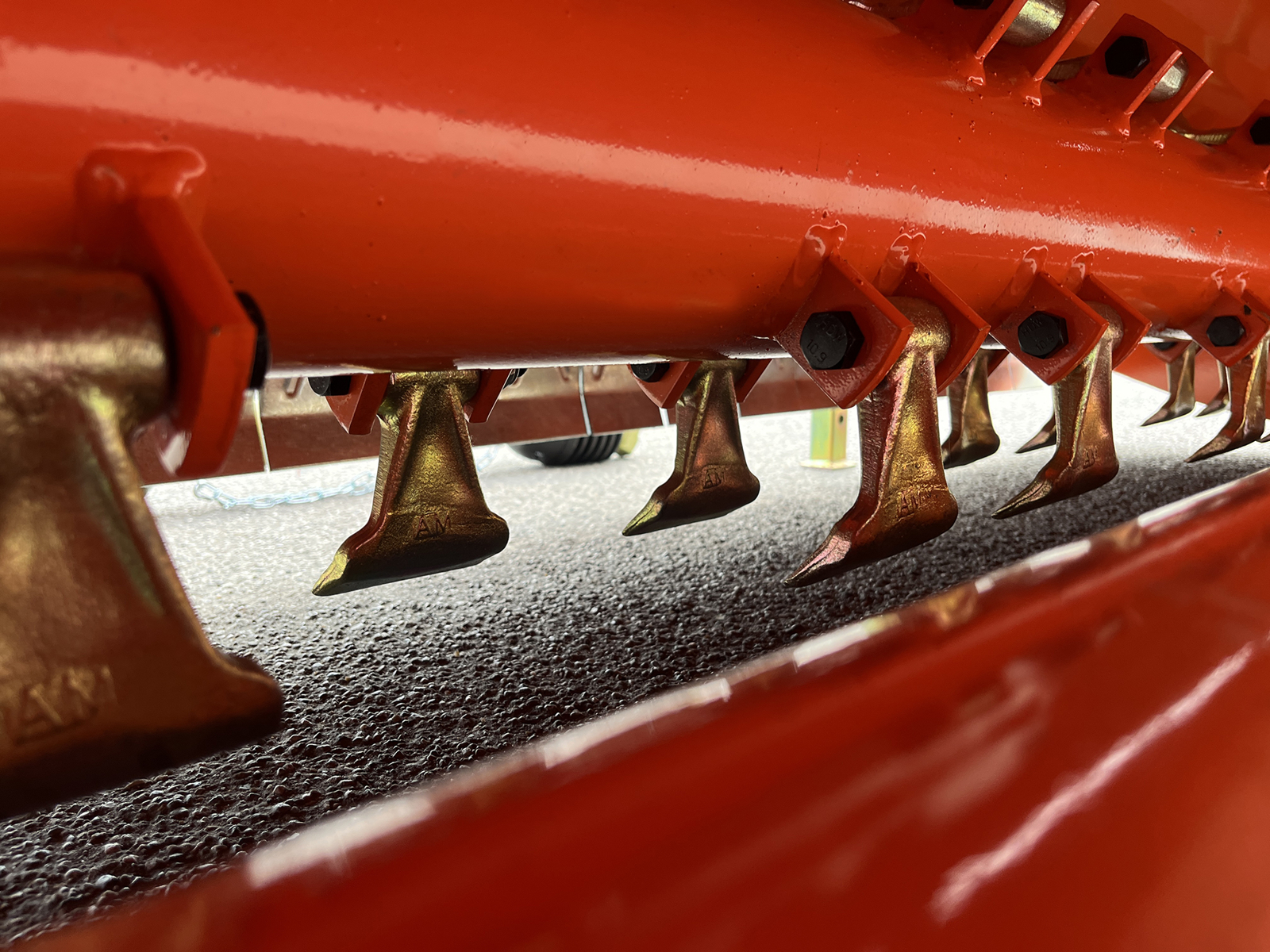

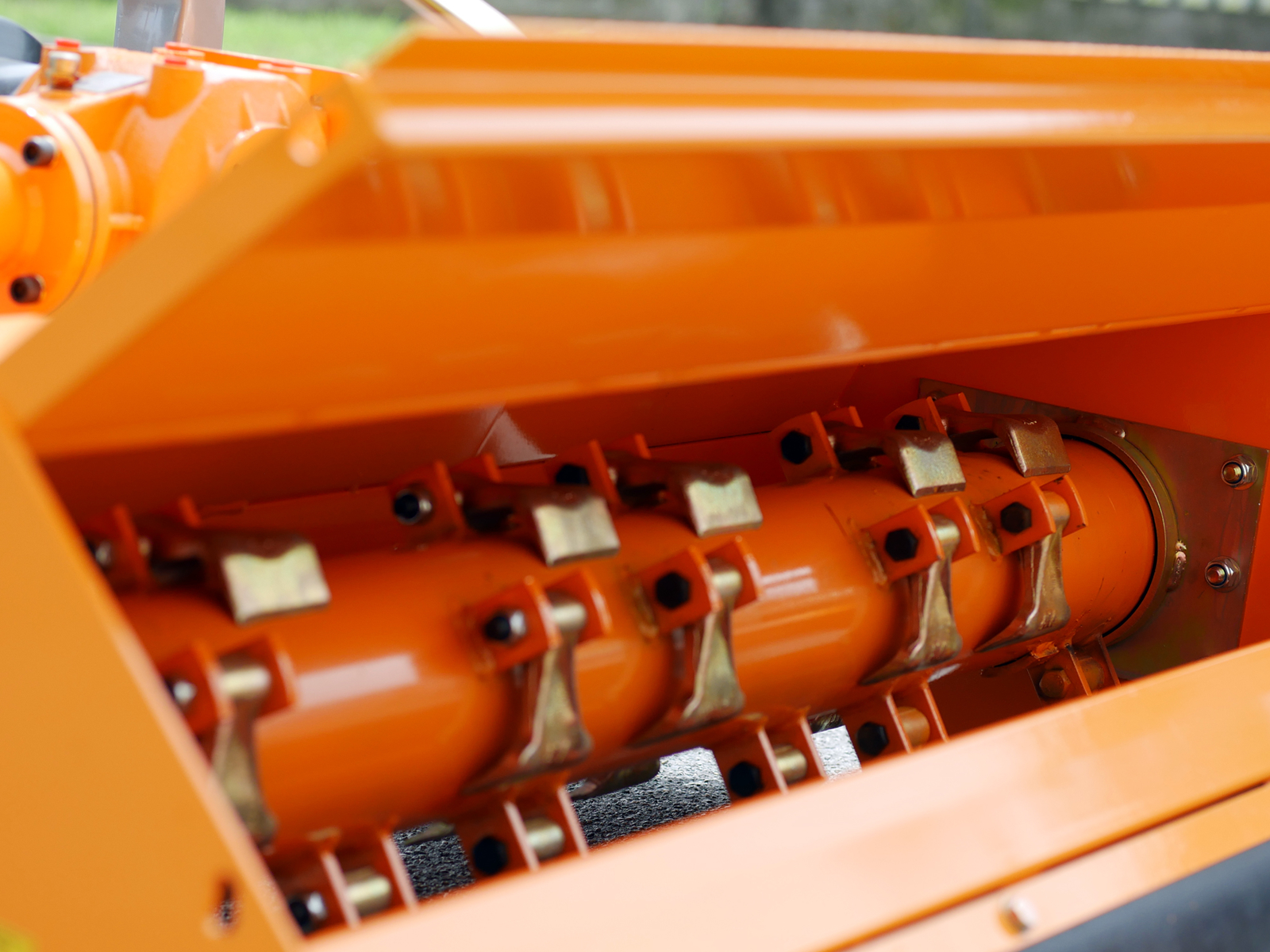

160 mm (6.3 in) rotor with 24 hammer flails

The rotor is 160 mm (6.3 in) in diameter, with an 8 mm (5/16 in) tube wall and reinforced end supports; it is electronically balanced and spins at 2,050 rpm on SKF bearings. The 24 hammer flails of 820 g (1.8 lb) are thick and heavy: they pulverise grass, brambles, vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick. On request the TIGRE-160 can be fitted with blades instead, using the COLTELLI30T kit.


Side shift of 27 cm (11 in): manual, hydraulic as an option

The TIGRE-160 has side shift: the mower moves up to 27 cm (11 in) to one side of the tractor, to work offset, under the canopy, tight to a row or along a ditch. As standard the side shift is manual and is set with the machine stopped; with the IDRTIGRE option it becomes hydraulic and is worked from the seat with the tractor's spool valve, even on the move.

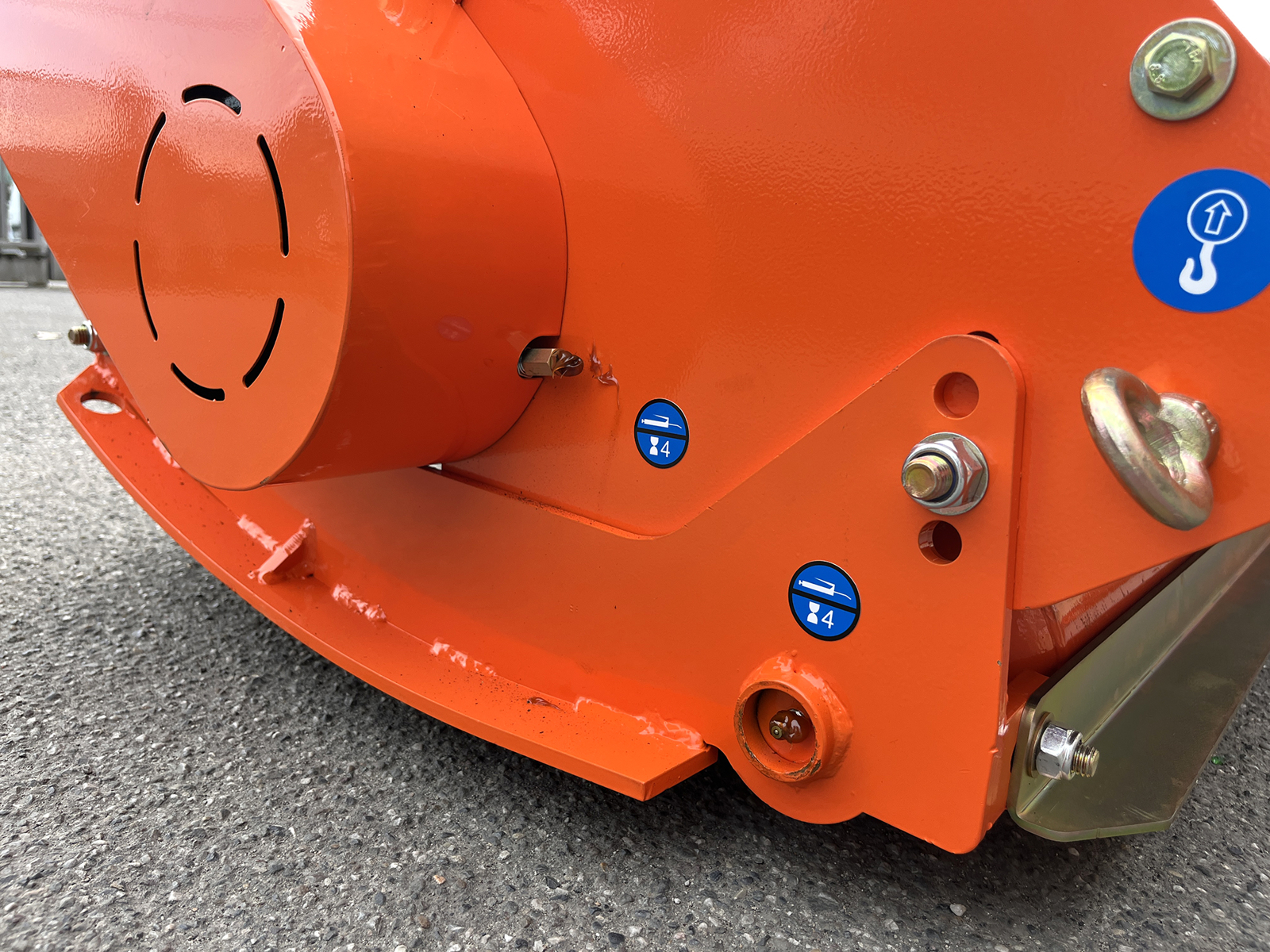

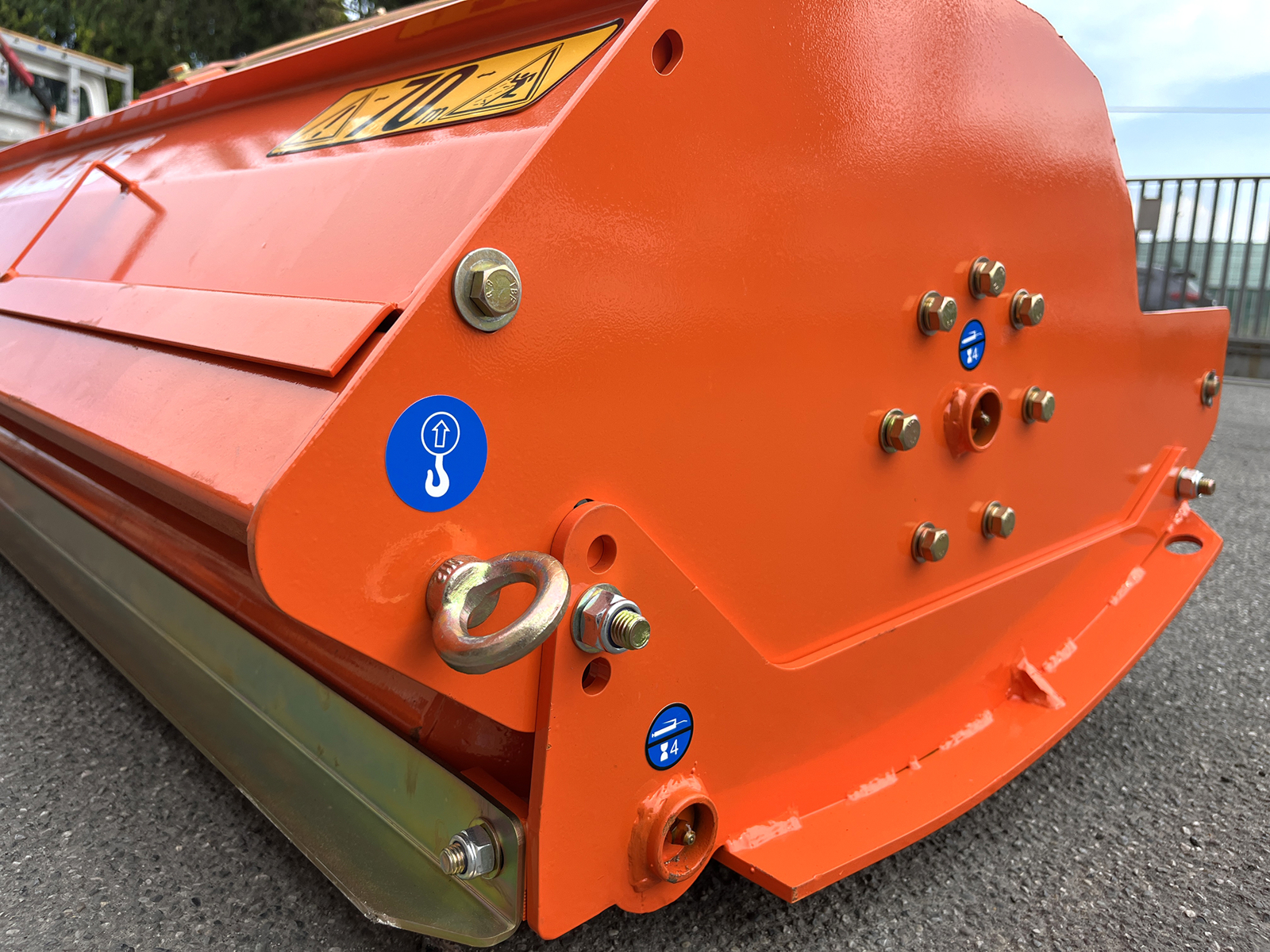

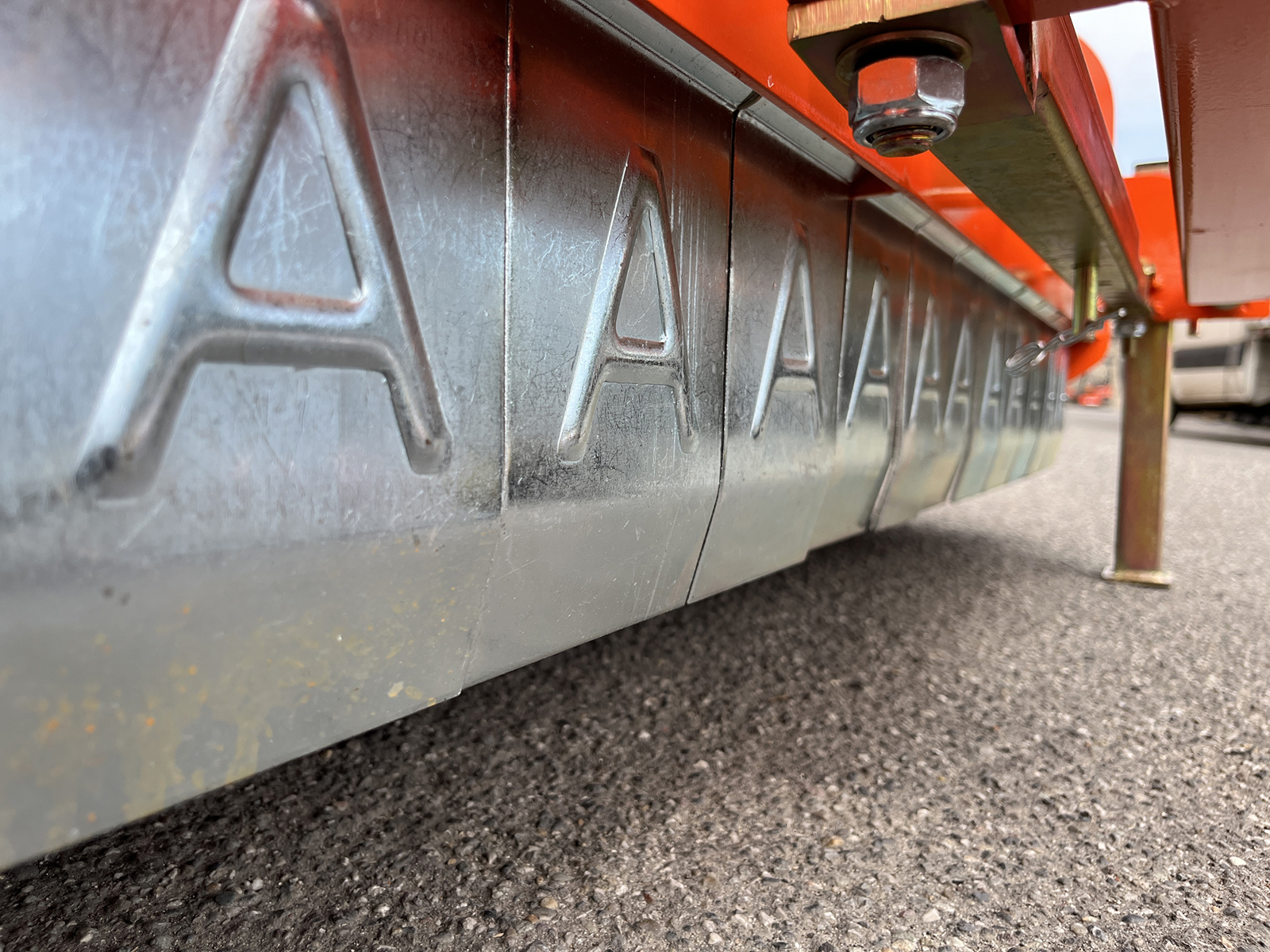

Opening hood, roller with mud scraper and cutting height

The rear hood opens for servicing. The oversized rear roller, 140 mm (5.5 in) in diameter, has a mud scraper that keeps it clear of soil; together with the 8 mm side skids it sets the cutting height from 5 to 65 mm (0.2 to 2.6 in).

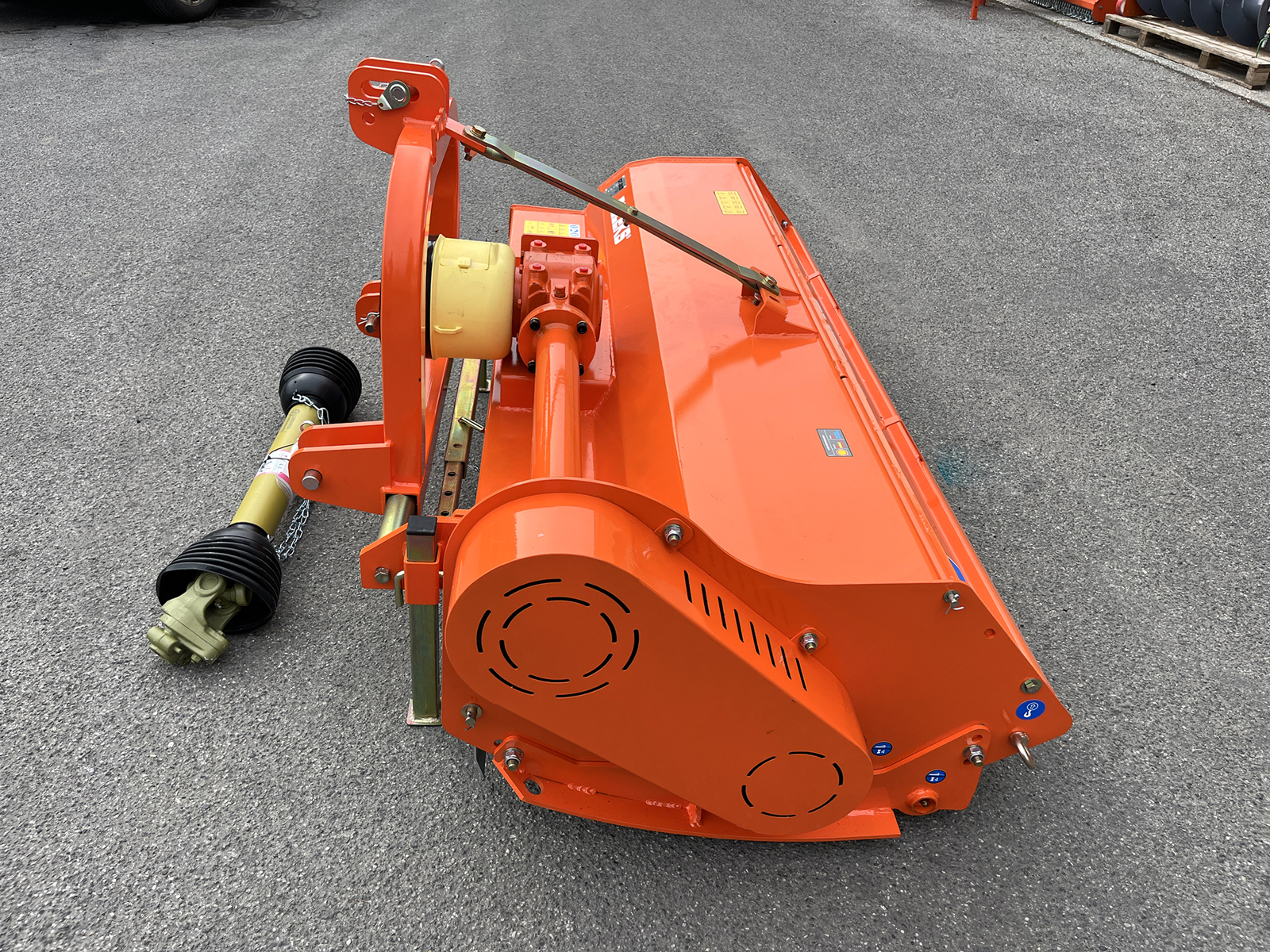

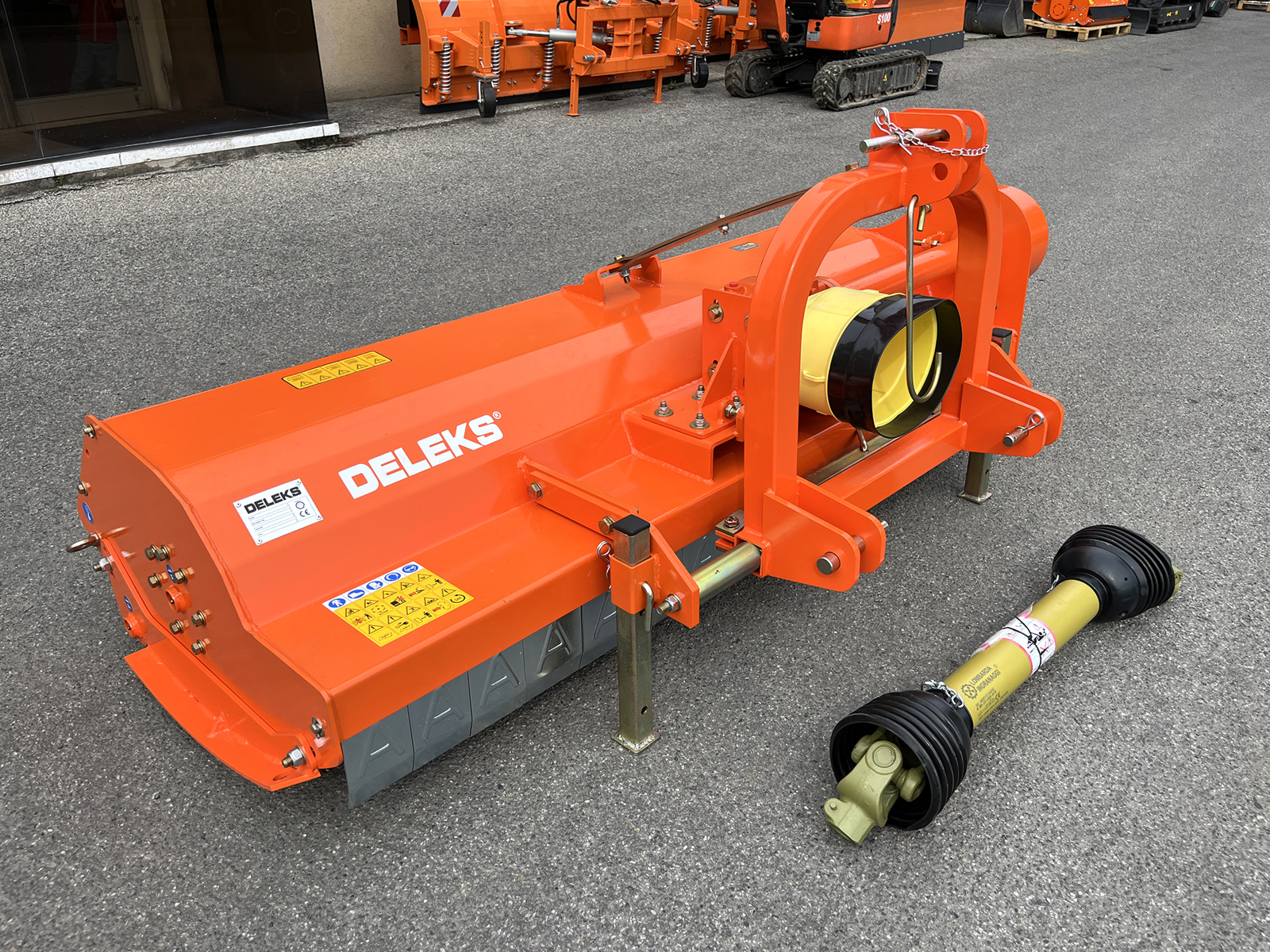

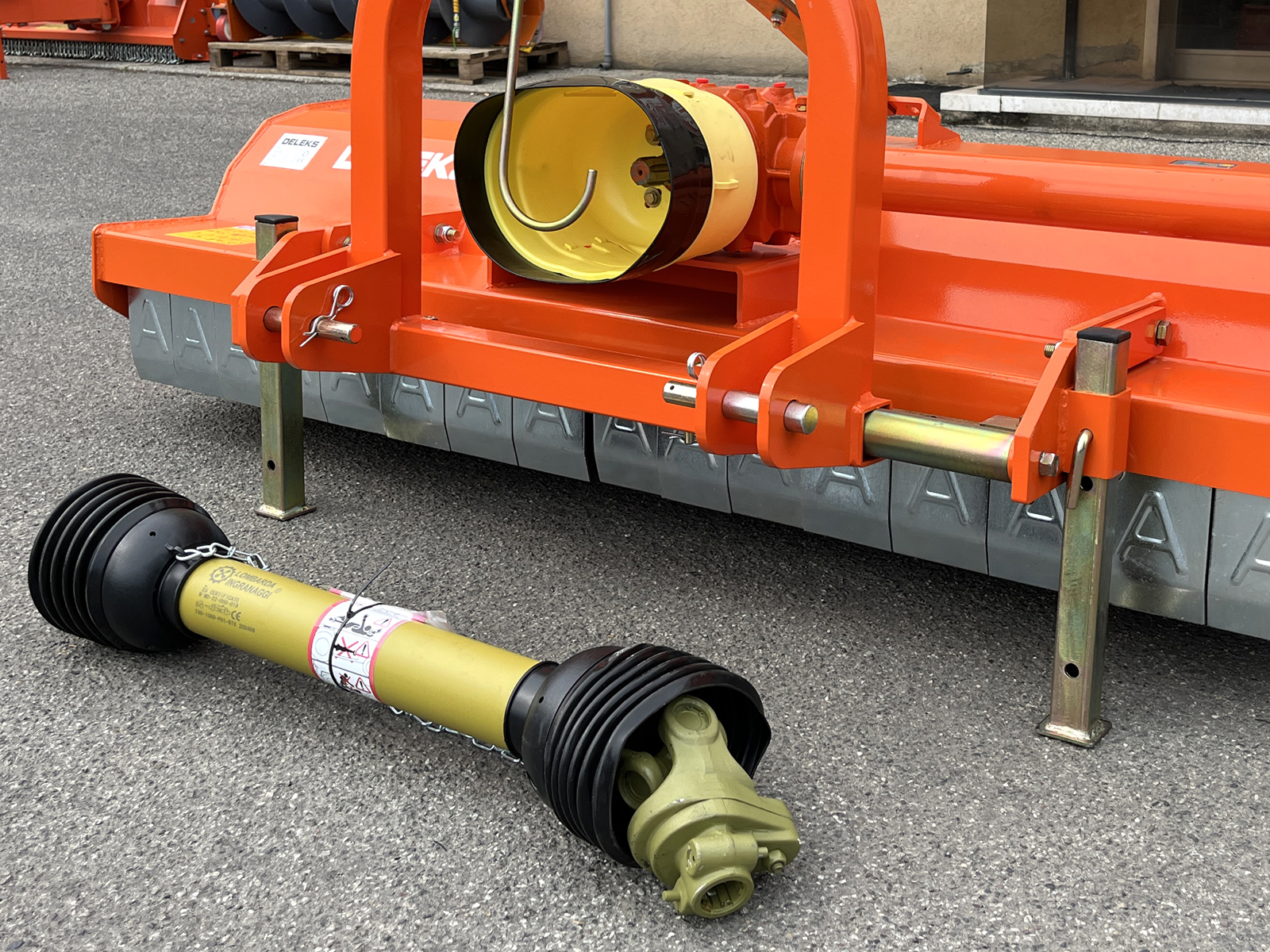

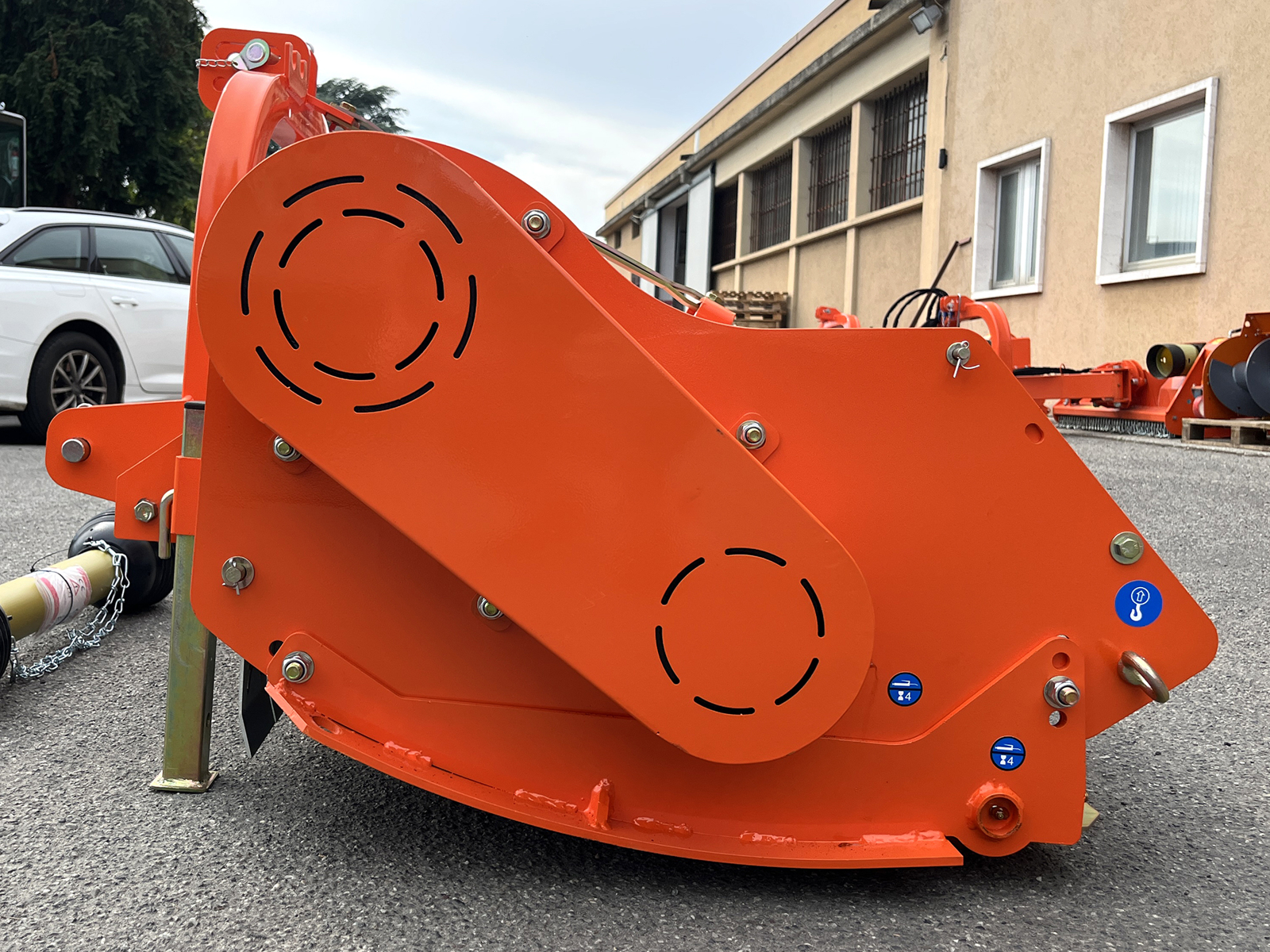

Gearbox with freewheel, 4 belts and PTO shaft

The CMR Group gearbox for a 540 rpm PTO has a freewheel and a 3-year warranty: when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. Drive reaches the rotor through 4 V-belts; the tensioner is adjustable and belt tension is set from the outside. The CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt, is included: the bolt shears under overload and protects the driveline.


Dimensions, weight and delivery

Working width 1,600 mm (63.0 in), overall width 1,770 mm (69.7 in), length 1,220 mm (48.0 in), height 915 mm (36.0 in), weight 382 kg (842 lb), frame side plates 6 mm thick. It ships in packaging measuring 180 × 100 × 75 cm (71 × 39 × 30 in), 467 kg (1030 lb) gross, 1.35 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is CAC-certified (Conformity Assessment Center) and carries a 2-year warranty.

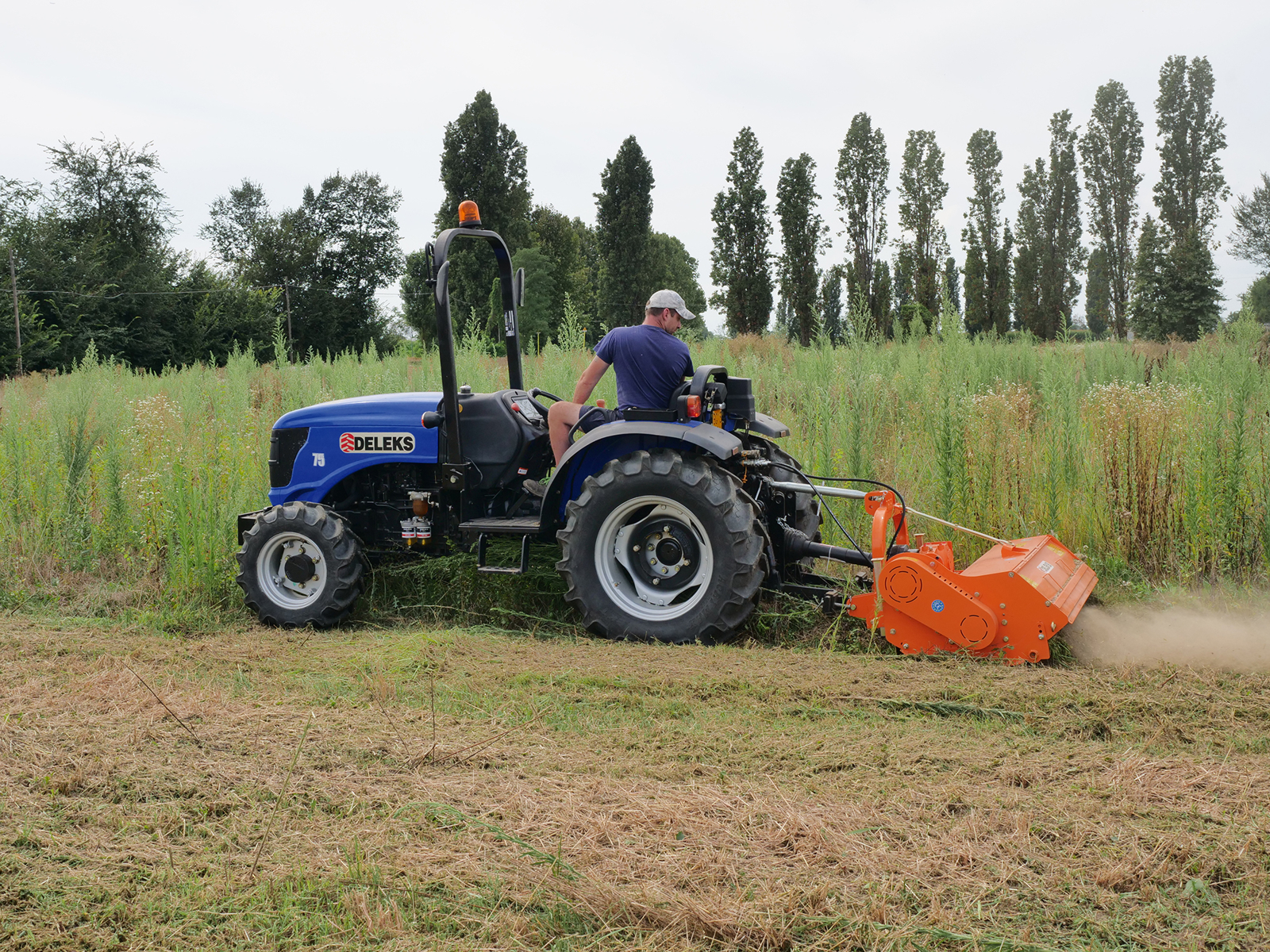

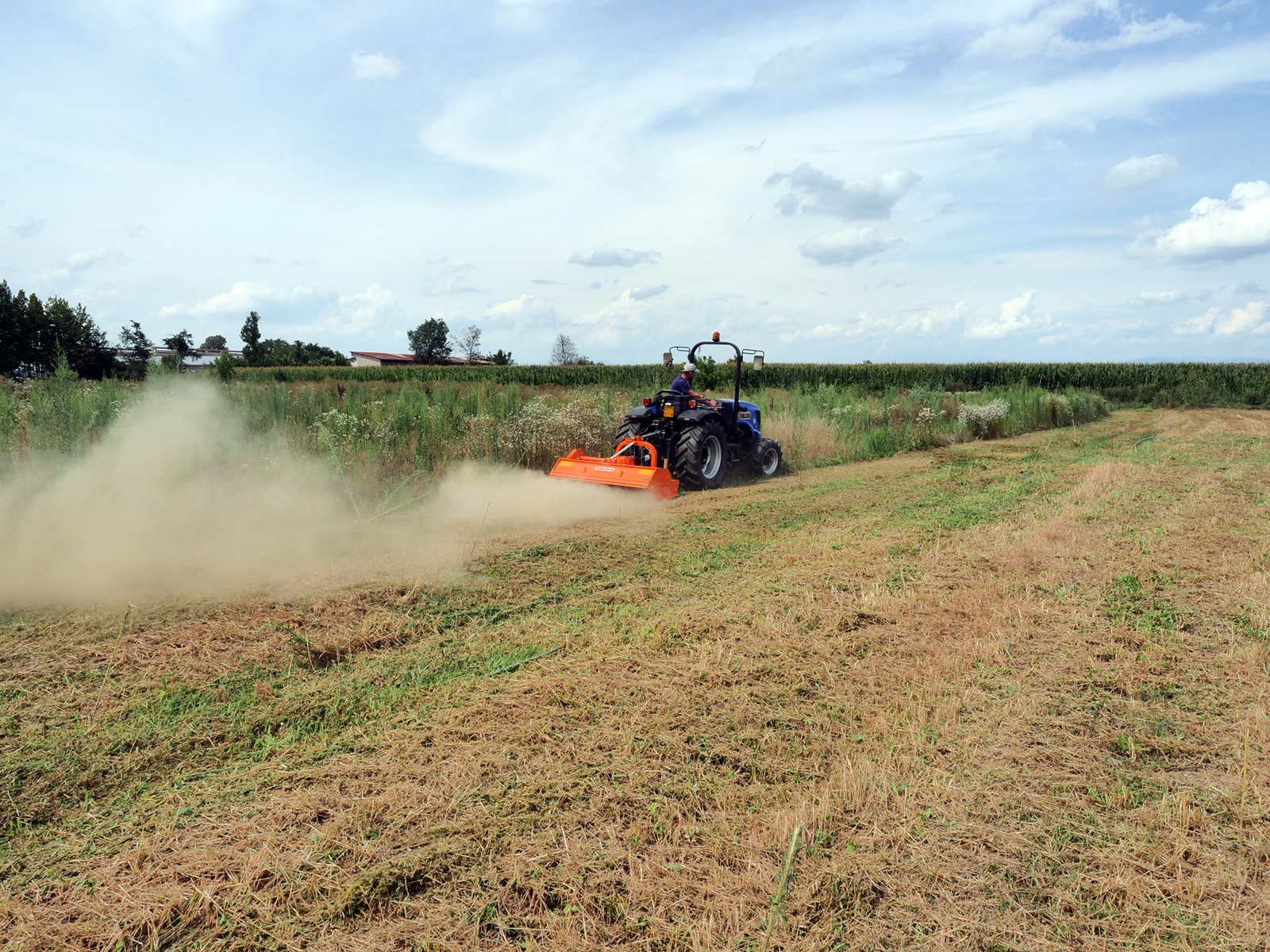

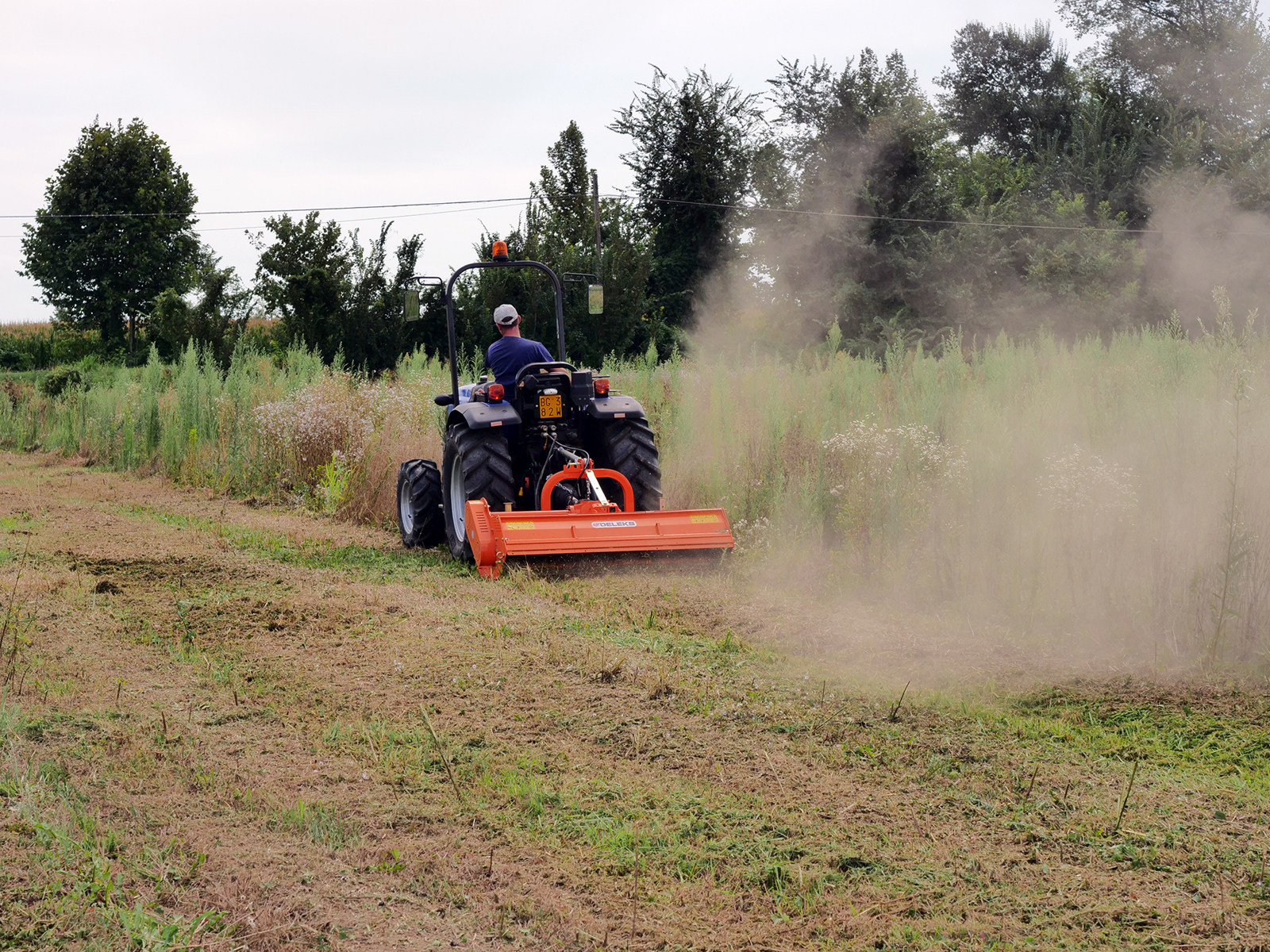

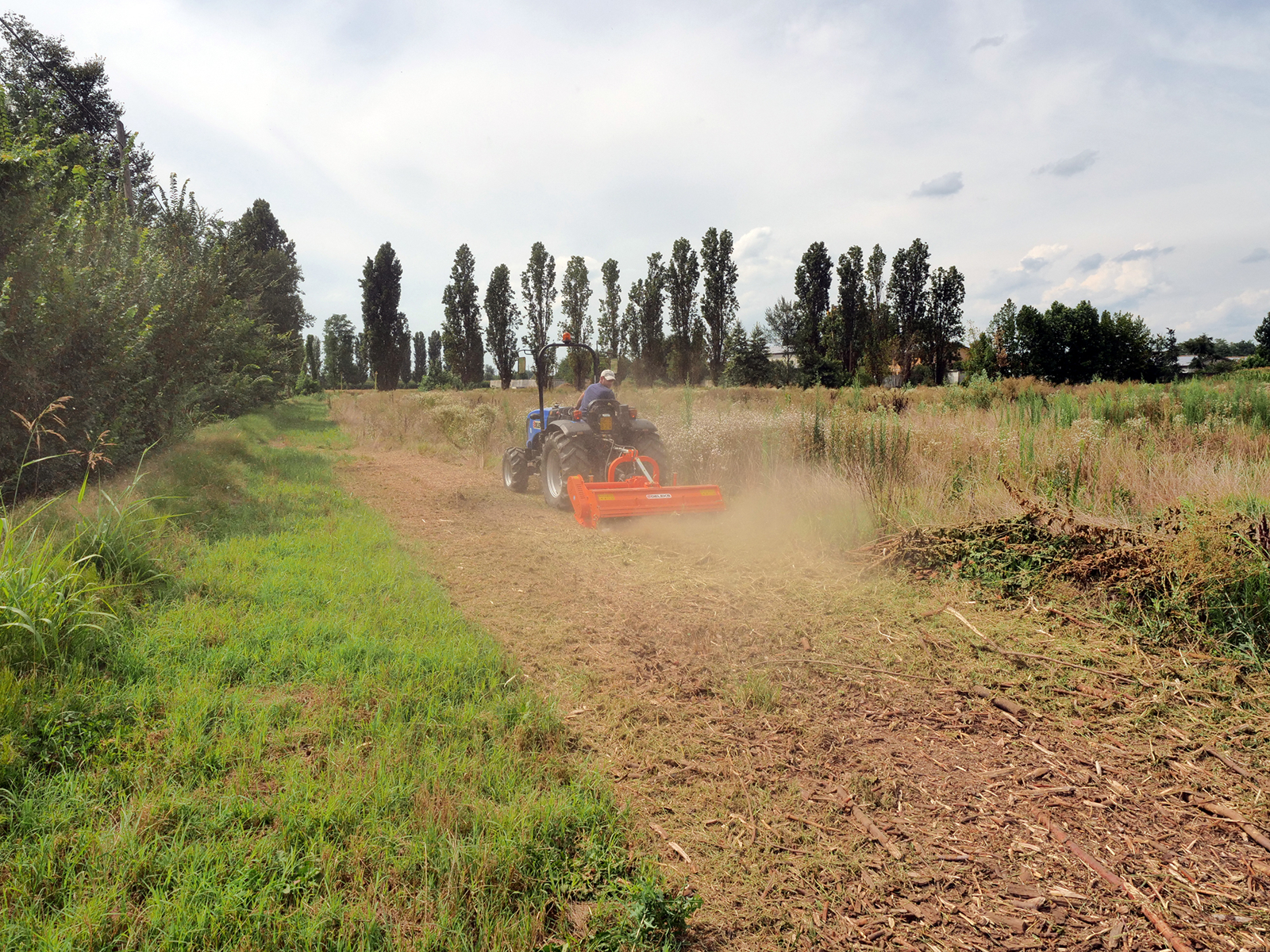

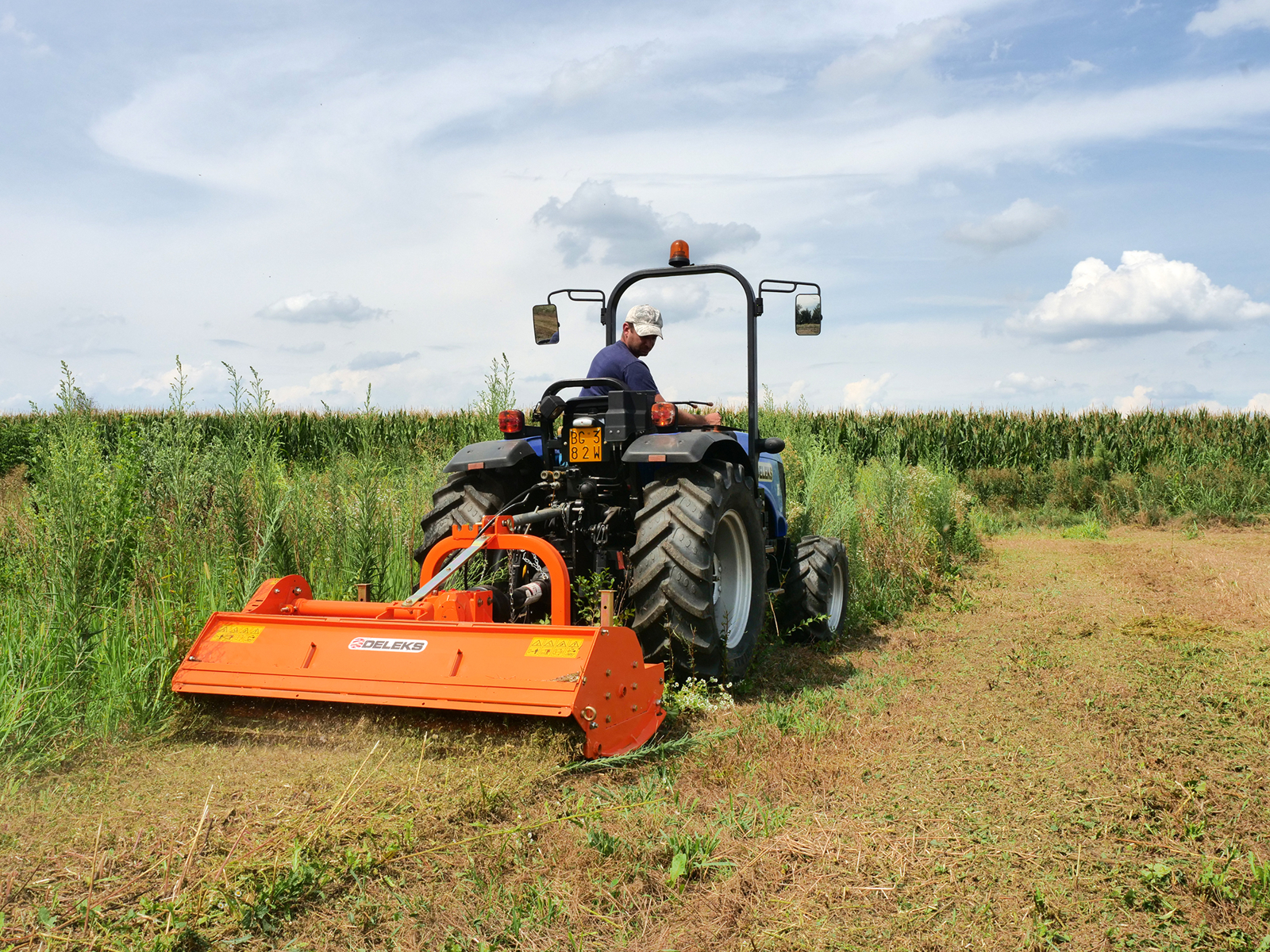

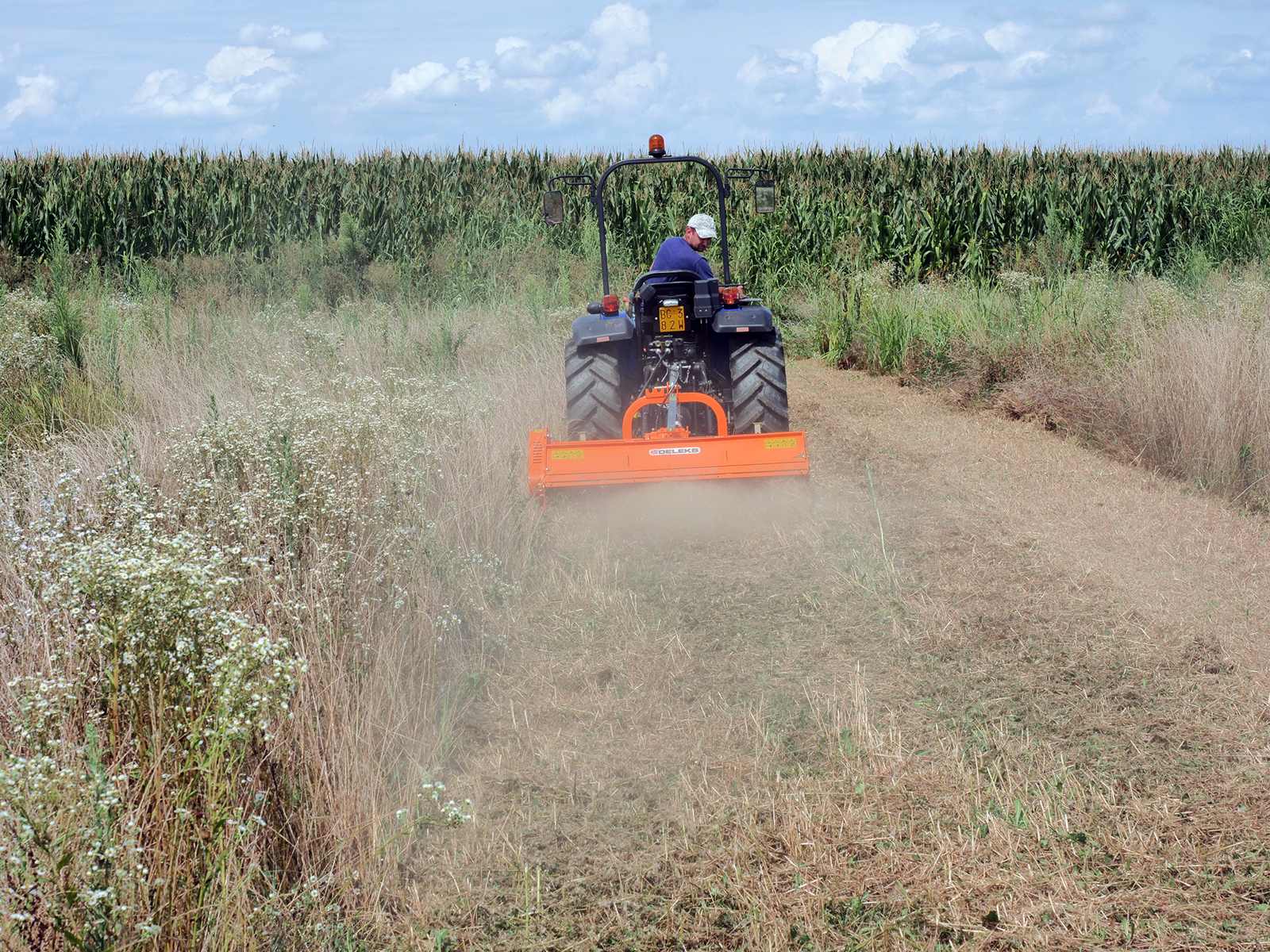

Where it works

  • Vineyards, orchards and olive groves: vine prunings and other prunings up to 4-5 cm (1.6-2 in), grass between the rows
  • Open fields: stubble and crop residues of every kind
  • Rough ground, field margins and headlands: long grass, brambles and reeds
  • Ditches, fence lines and rows: working offset with the side shift
  • On the flat and on slopes, with wheeled or tracked tractors from 40 to 90 hp

Options and spares

From this page you can add to your order the kit of 10 hammer flails (MAZZE10T), the 10 nuts and bolts for the flails (DB10T), the kit of 30 blades (COLTELLI30T), the spare set of 4 belts (CINGHIE4T), spare pins for the category 1-2 three-point linkage (3PERNI12), the universal PTO adapter (RID1), hydraulic side shift in place of the manual one (IDRTIGRE), the 680 mm (26.8 in) top link (BE0124) and the 730 mm (28.7 in) top link (BE0125). Other spares are identified on the exploded diagrams with our technical team.


FAQ

What size tractor does the TIGRE-160 need?
From 40 to 90 hp, with a 540 rpm PTO and a category 1 or 2 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 382 kg (842 lb).

Which TIGRE for a 50 hp tractor?
The TIGRE-160, for tractors from 40 to 90 hp, or the TIGRE-180, from 50 to 90 hp. The TIGRE-200 needs at least 60 hp.

What size branches will it shred?
Vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick, as well as grass, leaves and brambles. For branches up to 8 cm (3.1 in) there is the heavy series.

Hammer flails or blades?
It comes with 24 hammer flails of 820 g (1.8 lb); on request it can be fitted with blades, using the COLTELLI30T kit.

Is the side shift hydraulic?
As standard it is manual, 27 cm (11 in), and is set with the machine stopped. Hydraulic side shift is an option (IDRTIGRE): it is worked from the seat, even on the move.

How do you set the cutting height?
From 5 to 65 mm (0.2 to 2.6 in), with the rear roller and the side skids.

Is the PTO shaft included?
Yes: a CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt.

How does it differ from the heavy series?
The heavy series has flails of 1,100 to 1,600 g (2.4 to 3.5 lb), weighs 480 to 900 kg (1,058 to 1,984 lb) and shreds branches up to 8 cm (3.1 in): it needs 50 hp or more. The TIGRE-160, with 820 g (1.8 lb) flails and 382 kg (842 lb), shreds up to 4-5 cm (1.6-2 in).


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric
Working width 1600.0 mm
Overall width 1770.0 mm
Min / Max cutting height 5.0 - 65.0 mm
Weight 382.0 kg
Overall height 915.0 mm
Tractor Power Range 40 - 90 Hp
3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
Position of the gearbox 790.0 mm from left side / 805.0 mm from right side
Hood height 495.0 mm
Spacing between the 2 lower points 550.0 - 660.0 mm
Number of Hammers 24
Maximum cutting diameter 40.0 - 50.0 mm
Overall length 1220.0 mm
Distance between pto attachment and ground 400.0 mm
Main hood thickness 4.0 mm
Sides thickness 6.0 mm
Side plates thickness 8.0 mm
Transmission: Drive method V-Belts
Transmission: Gearbox DELEKS - 3 years warranty
Transmission: PTO 540 r/min
Transmission: Rotation of gearbox Right side
Transmission: Free wheel √
Transmission: RPM Rotor speed 2050 rpm
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925
Transmission: Top pulley ø 189.0 mm
Transmission: Lower pulley ø 150.0 mm
Transmission: V-Belts quantity 4
Transmission: V-Belts size 17x1250
Rotor: diameter 160.00 mm
Rotor: bearings type and size SKF 6309
Rotor: balancing Electronic
Rotor: sheet thickness 8.0 mm

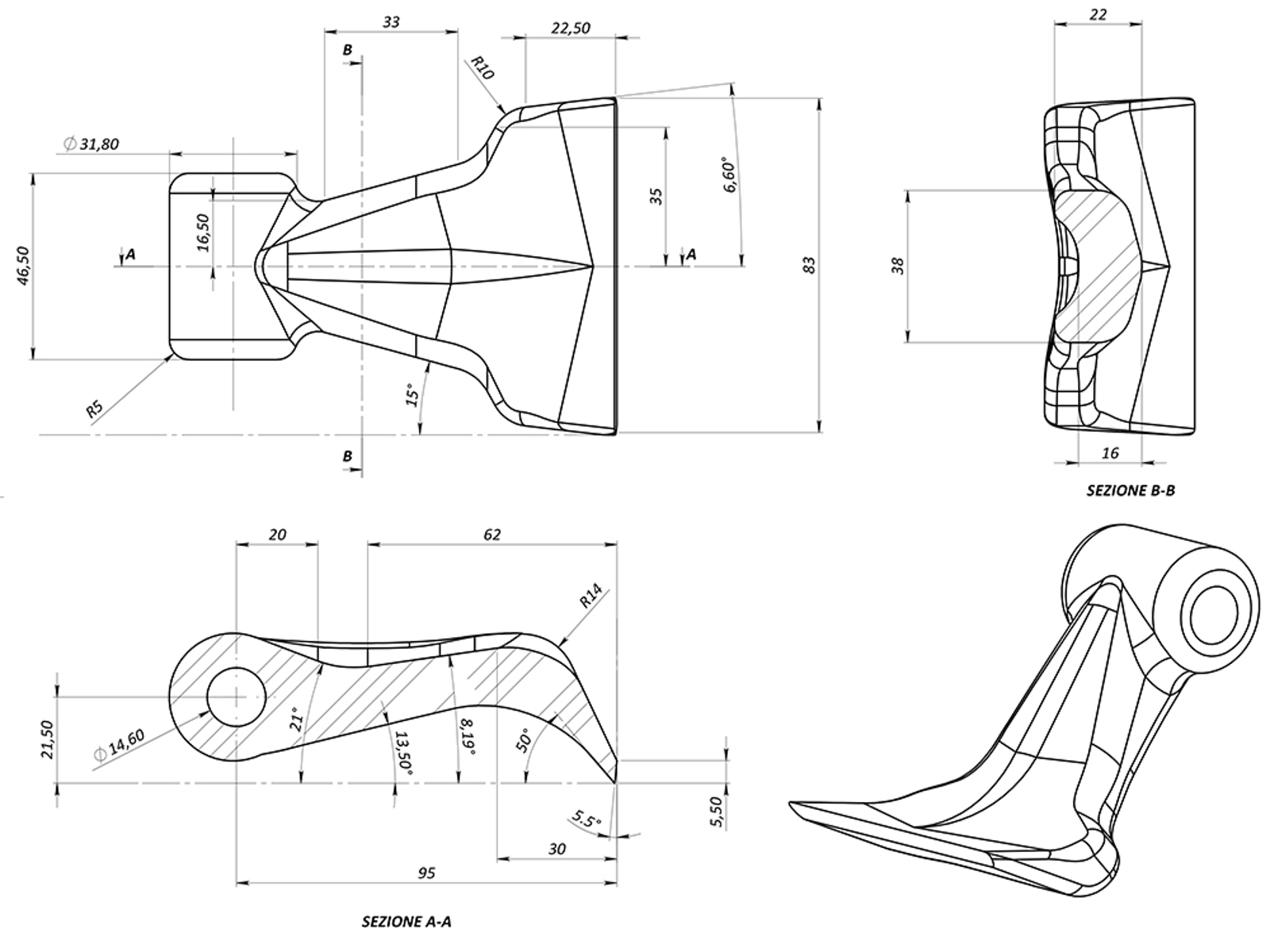

Hammers: Weight 820.0 g
Hammer: øhole 15.0 mm
Hammer: base width 82.0 mm
Hammer: top width 45.0 mm
Hammer: Diagonal 95.0 mm
Rear roller: diameter 140.0 mm
Rear roller: sheet thickness 5.0 mm
Rear roller: bearings type and size 6205
Pto shaft CE 6x1000 mm + shear bolt
Hood length 880.0 mm
Effective Displacement 270.0 mm (Manual/Hydr.)
Gross shipping weight 467 kg
Package volume 1.35 m3
Packing sizes 1800.0*1000.0*750.0 mm

Certifications

SSAB Laser 355MC   Download PDF
ARVEDI / TUBINDUSTRIA: Certification   Download PDF

Technical charts

Shell Spirax S2 A 80W-90: Specifications   Download PDF
