DETAILS

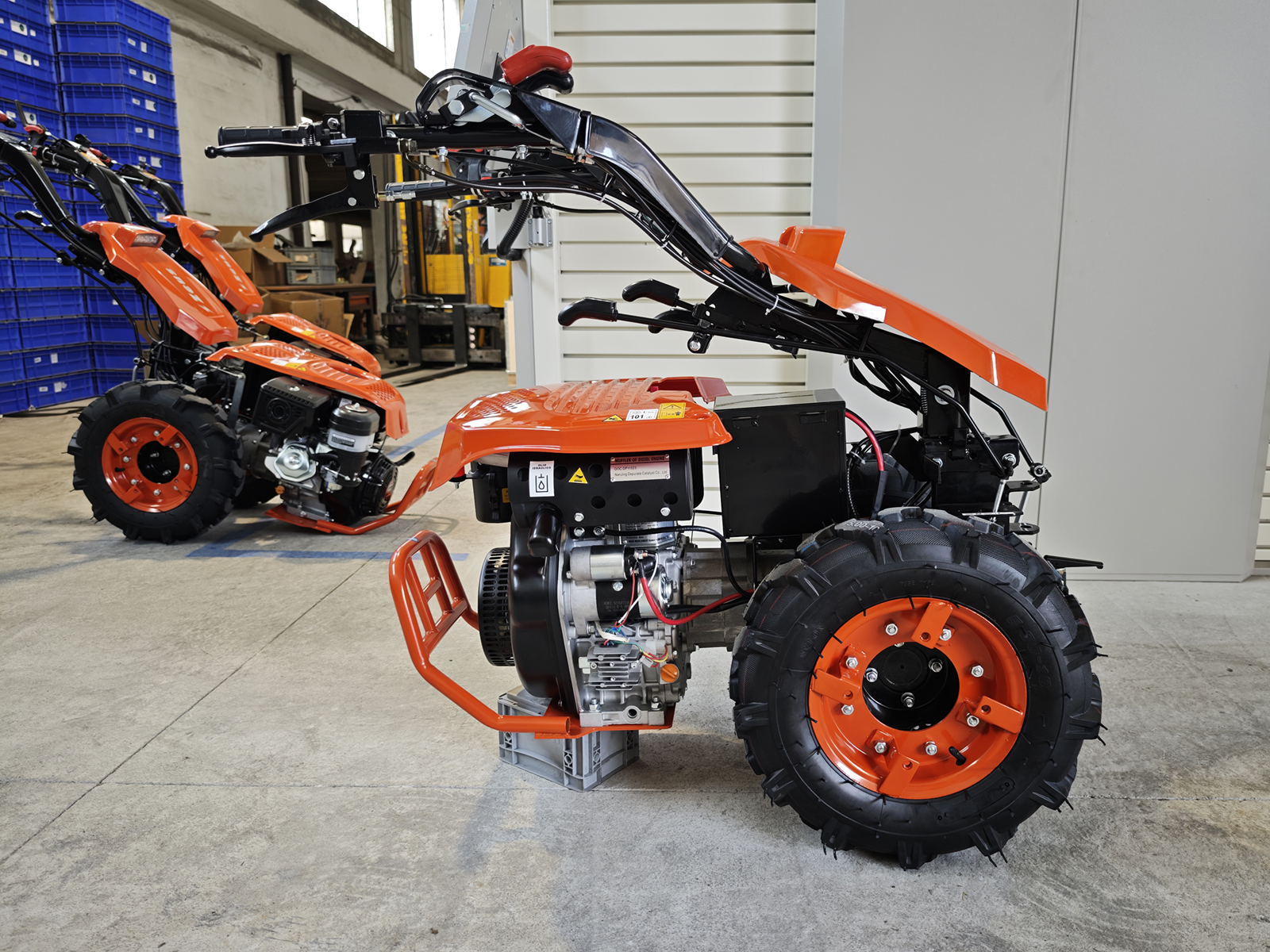

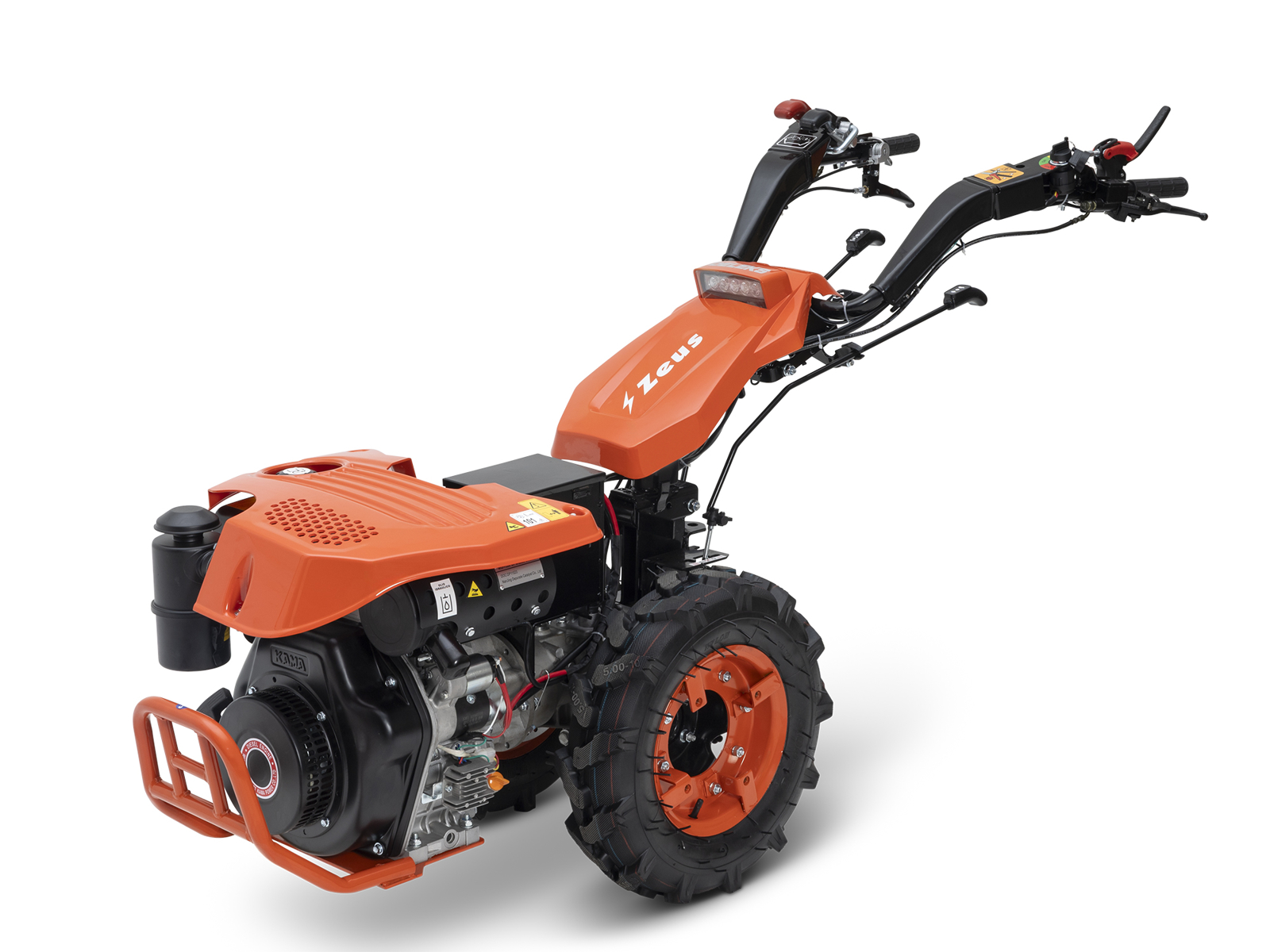

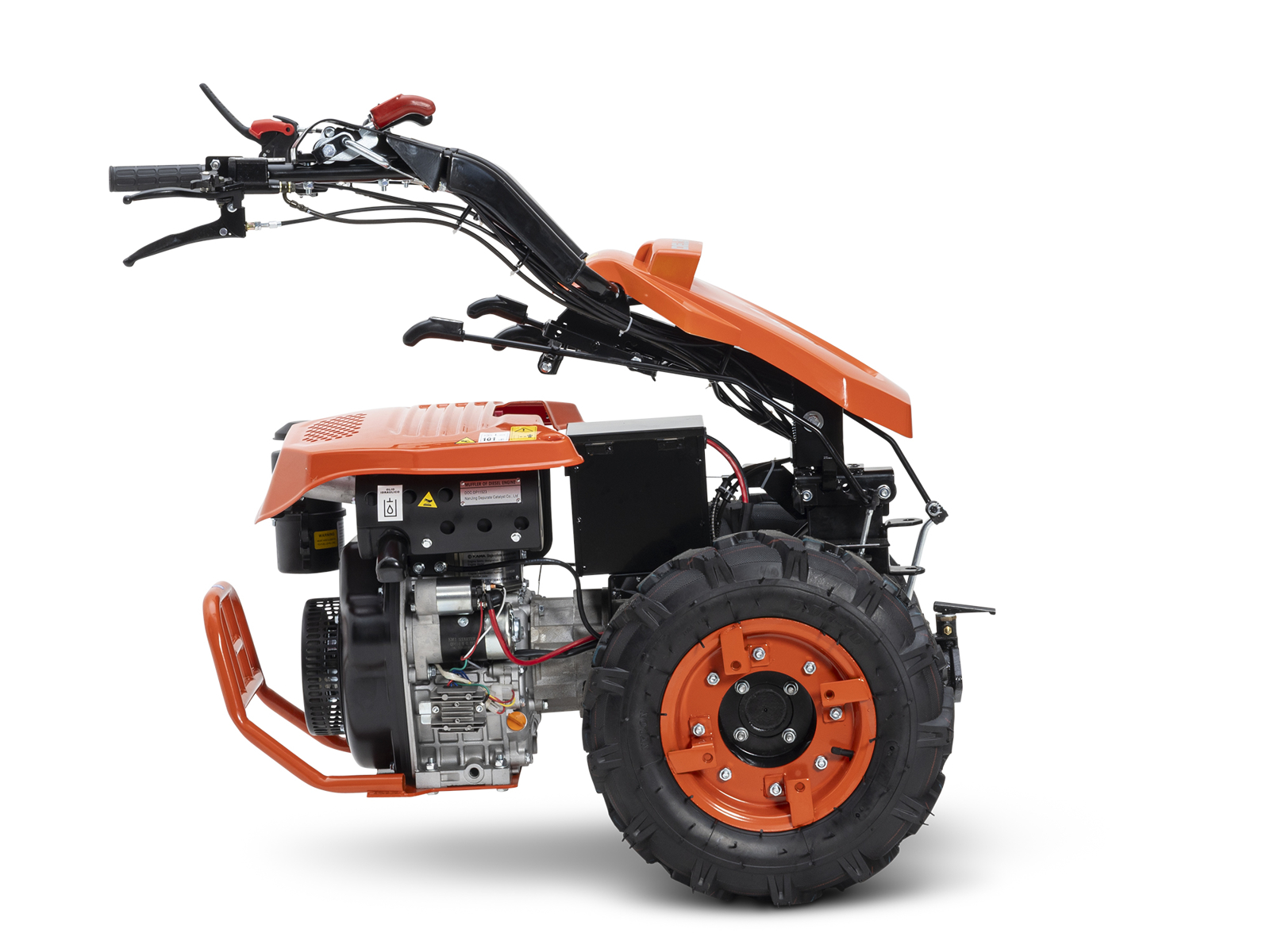

Heavy-duty professional two-wheel tractor with a 418 cc Kama 186FA diesel engine giving 9 hp, the most popular model in the ZEUS range: electric key start, 3+2 gearbox with quick reverse, differential lock and twin disc brakes. The 3-tooth BCS-type quick hitch comes as standard: it takes BCS, Ferrari and Pasquali attachments straight on and, with the adapter, fine-spline (millerighe) attachments too. It weighs 130 kg (287 lb) and sips fuel on long days; free delivery within the EU, delivered ready to use.

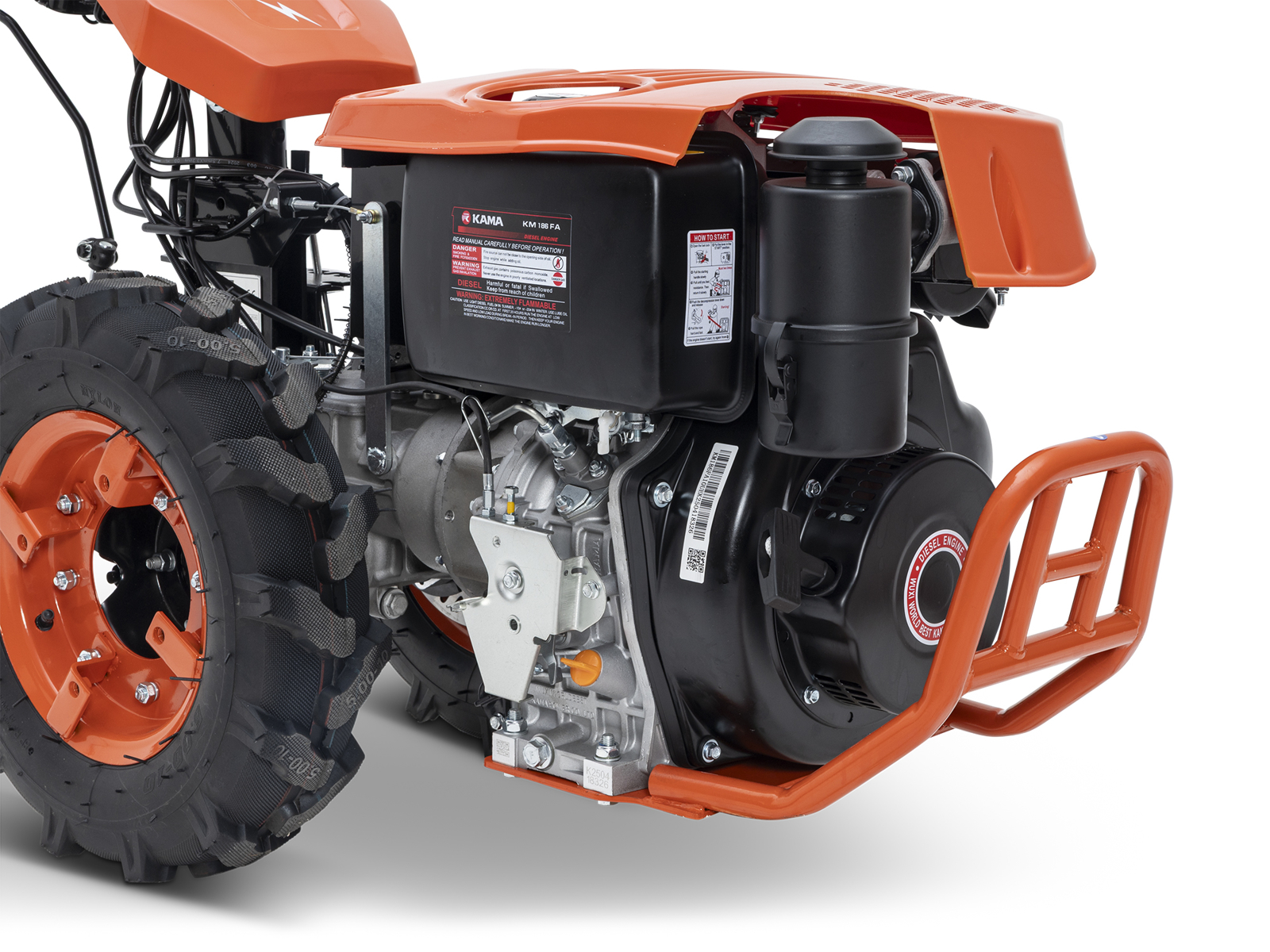

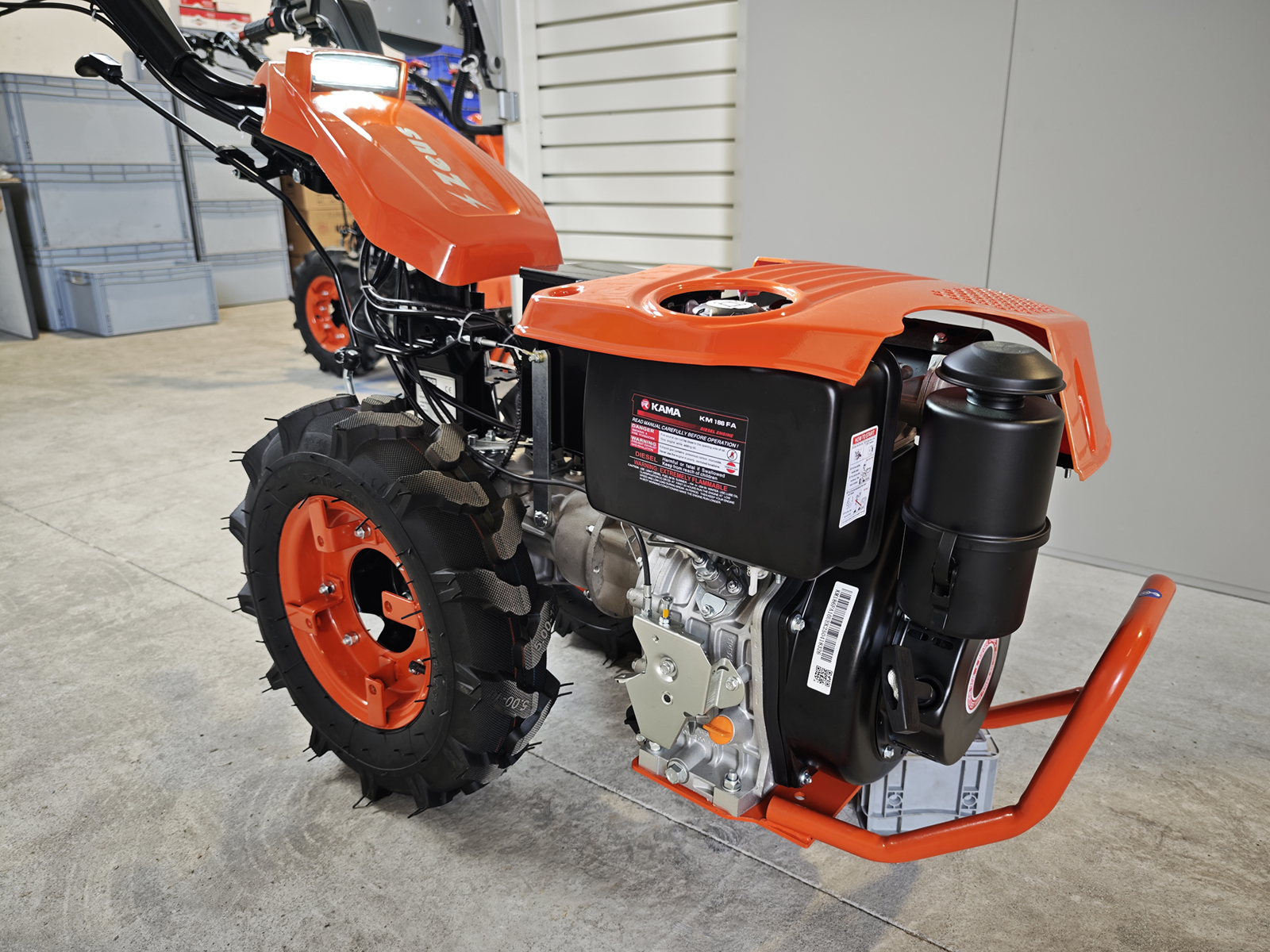

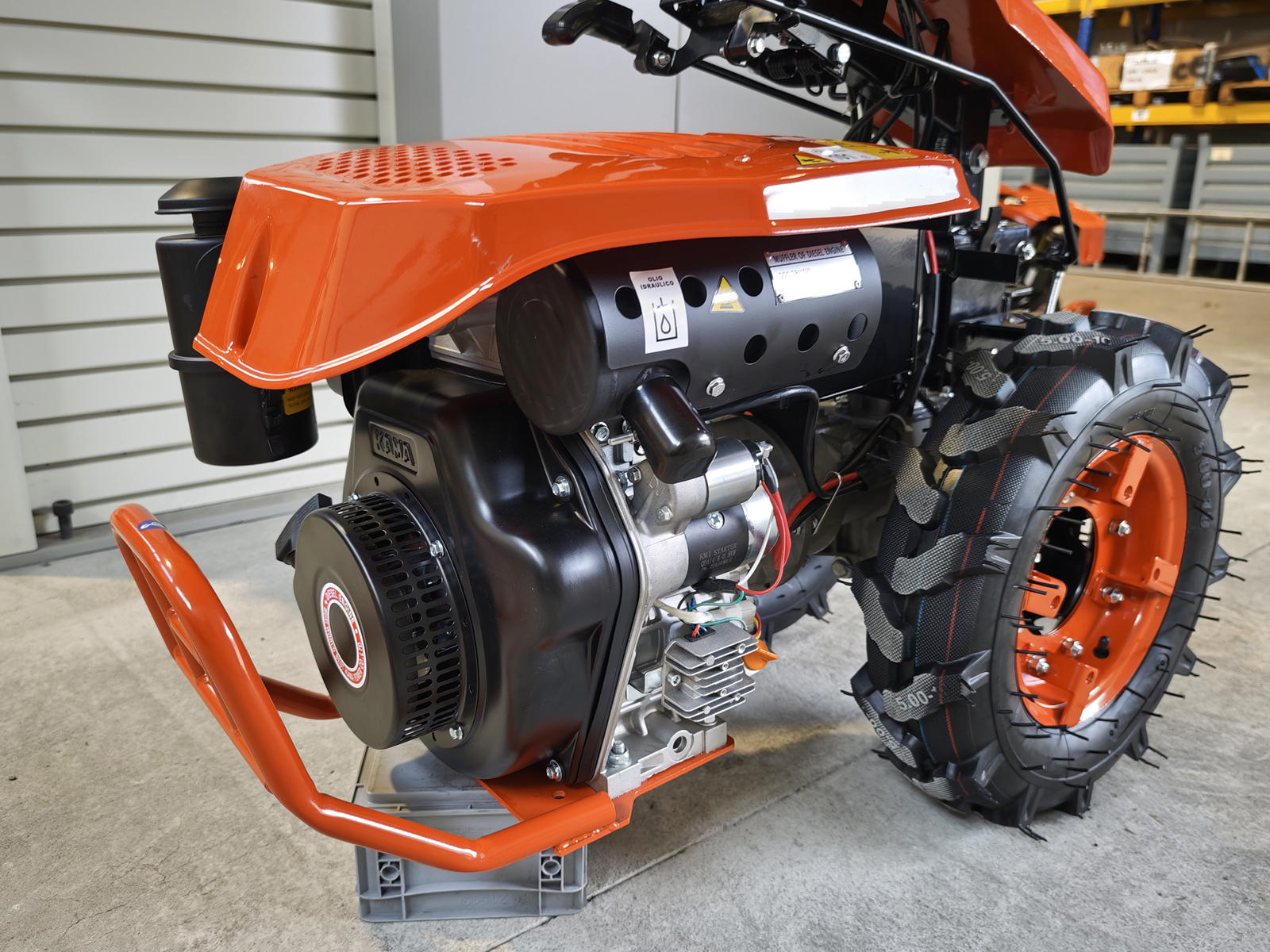

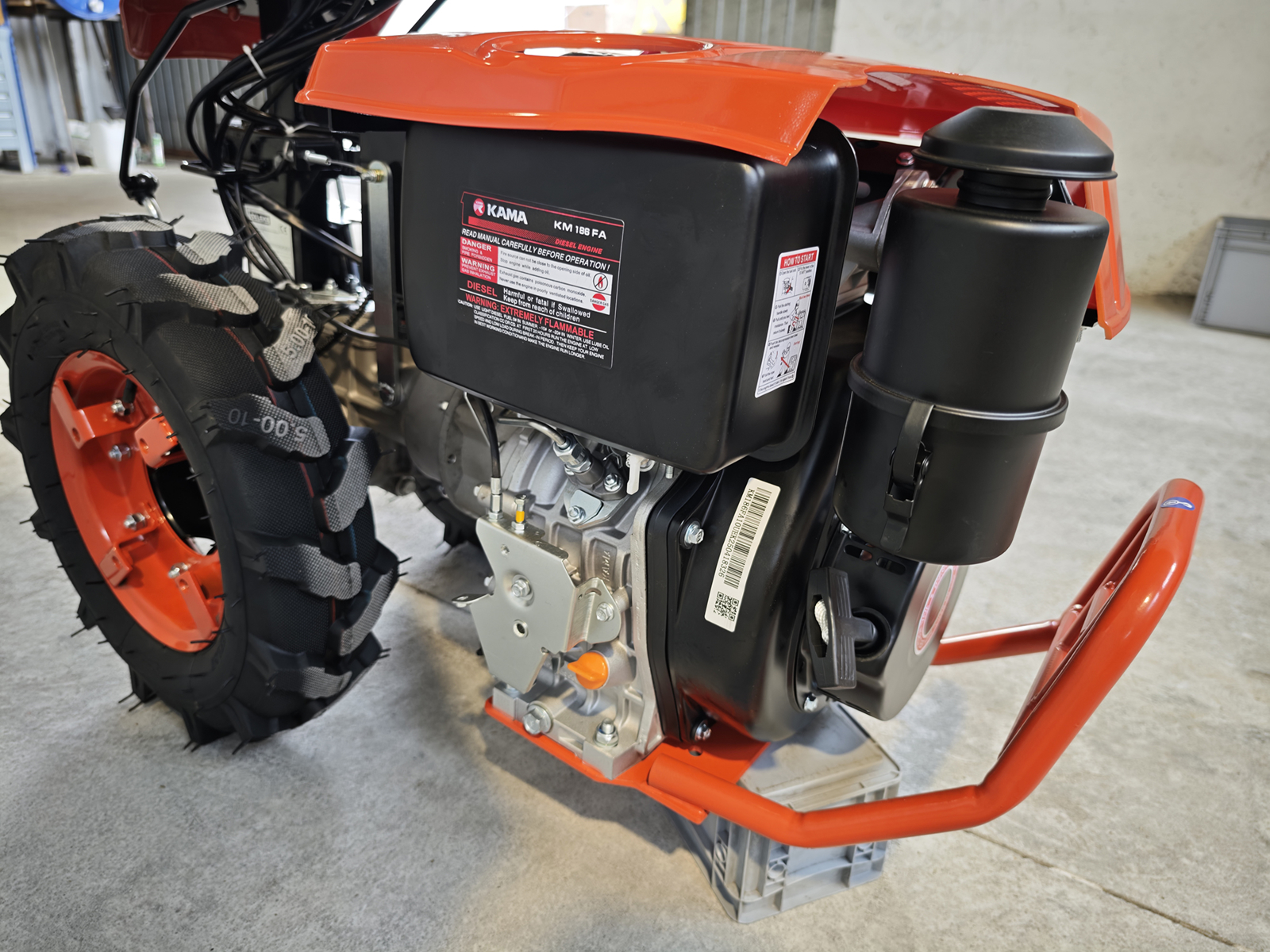

Kama 9 hp diesel, the most popular choice
The 418 cc Kama 186FA diesel gives 9 hp and holds its revs under load, with the rotavator and the flail mower working for hours: it uses less fuel than the petrol, runs cooler and burns the diesel most farms already have. Electric key start, with a recoil starter as back-up. It drives every attachment in the range, just like the petrol model.

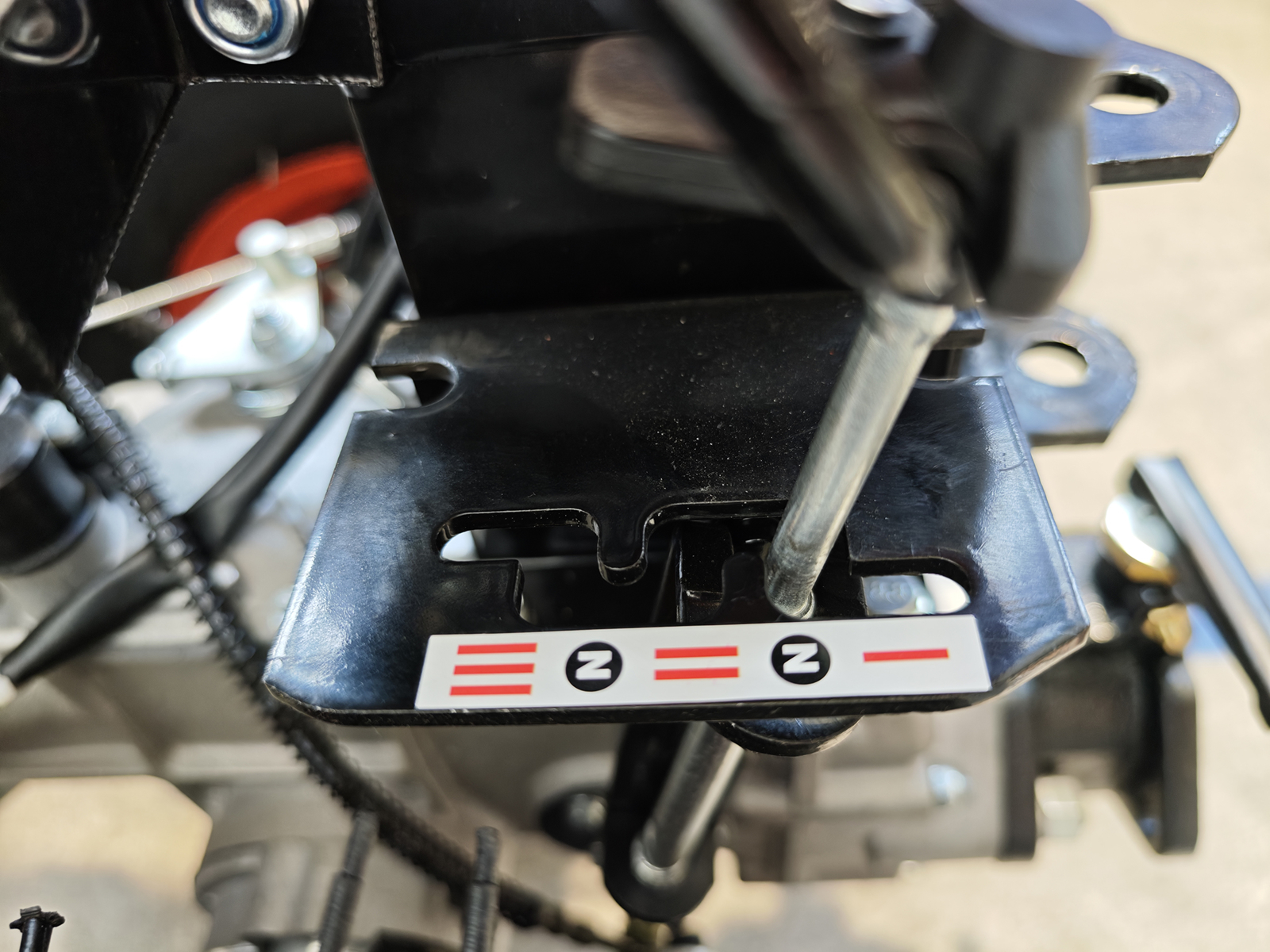

3+2 gearbox with quick reverse
Three forward gears and two reverse, with speeds from 1.5 to 11.2 km/h (0.9 to 7 mph): first for rotavating and ploughing, third for moving about and towing the trailer. The quick reverse changes direction without changing gear. The gears run in an oil bath and the 990 rpm PTO, turning clockwise, is independent of the drive.

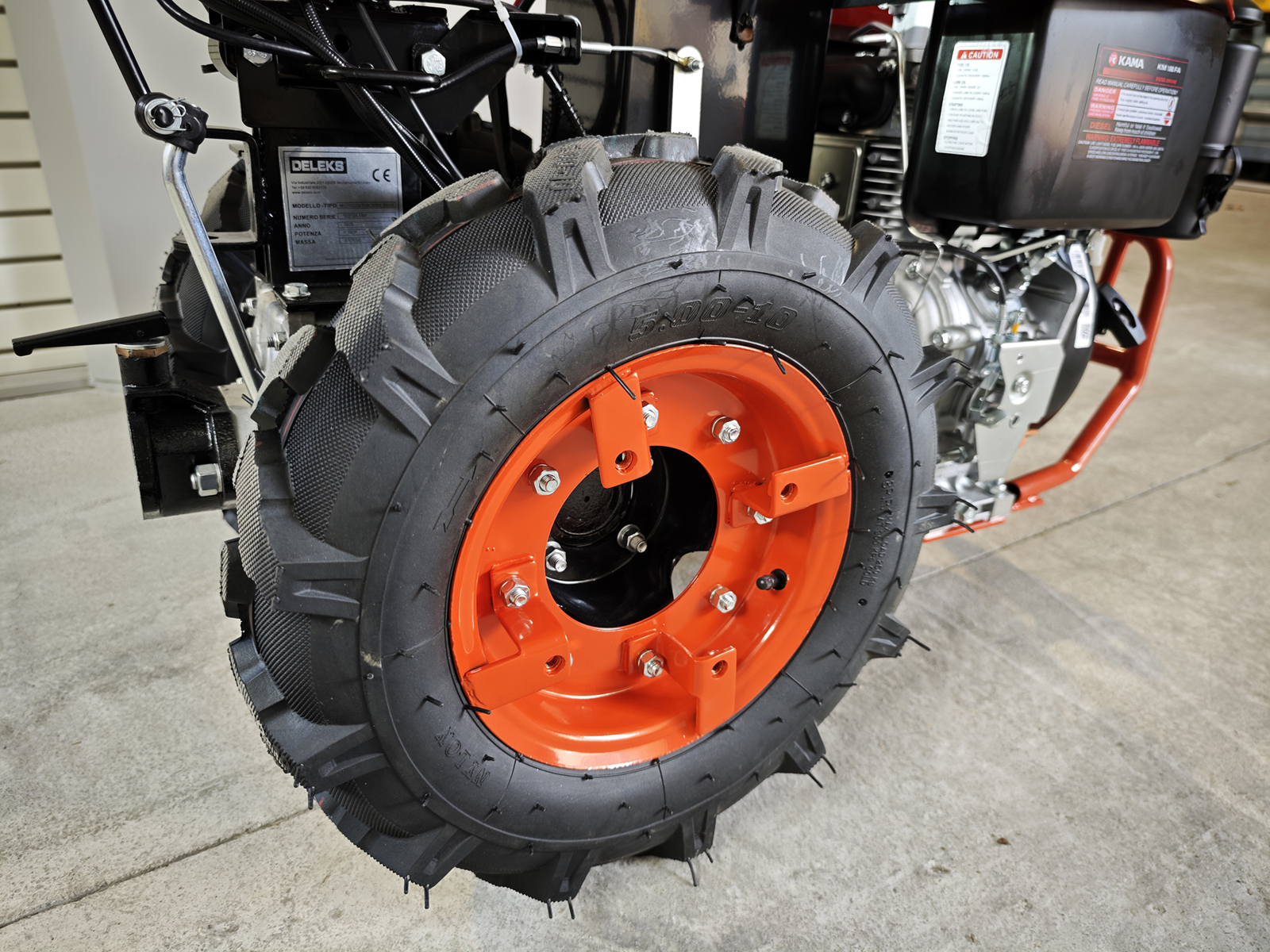

Drive, differential lock and brakes

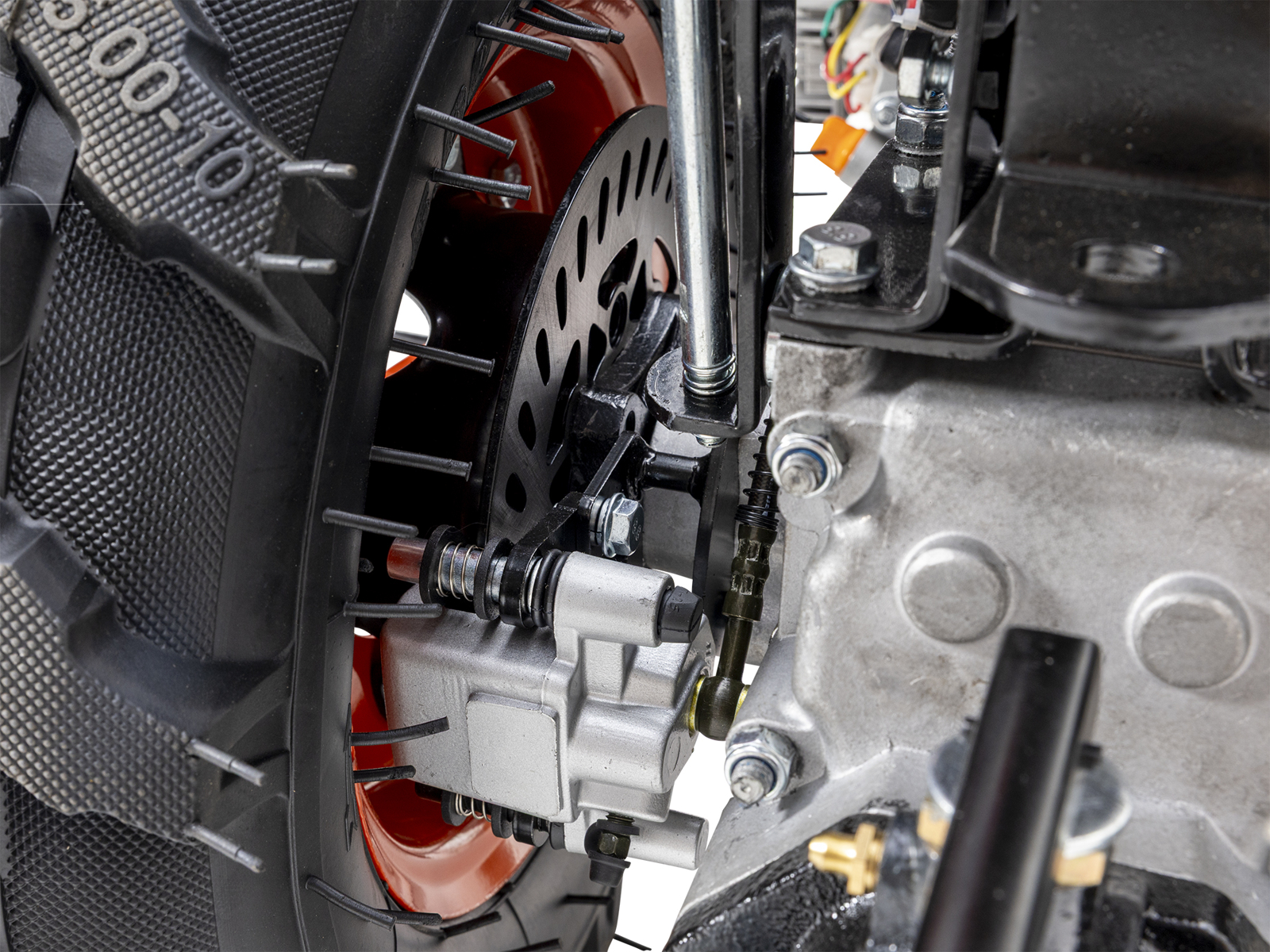

The differential lock goes in when a wheel loses grip, on rough ground, on a slope or in mud, and comes out again to turn at the end of the row. The twin disc brakes, fitted as standard, hold the machine downhill and in tight turns with a loaded trailer; the 130 kg (287 lb) of weight help the rotavator bite into hard ground.

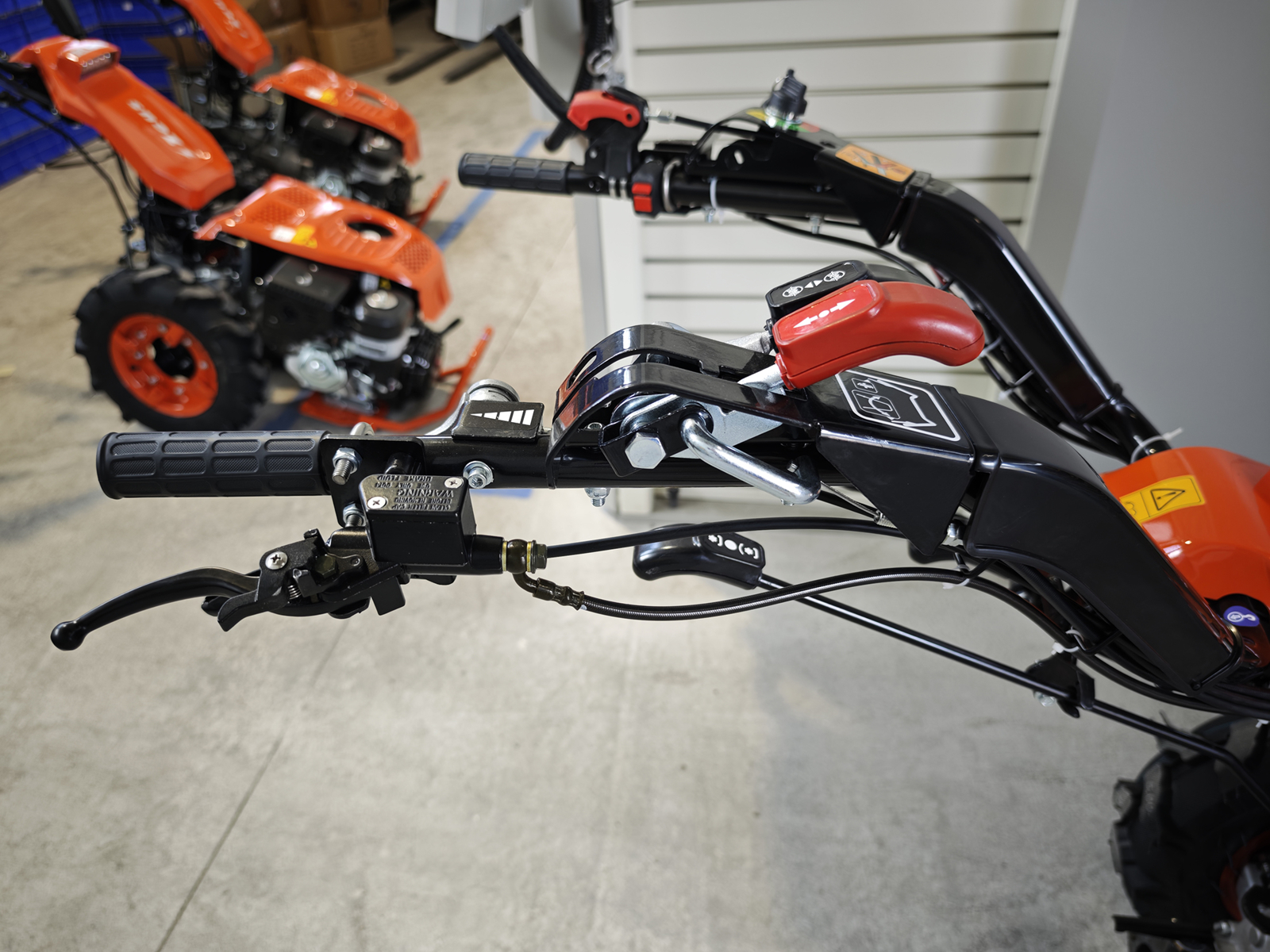

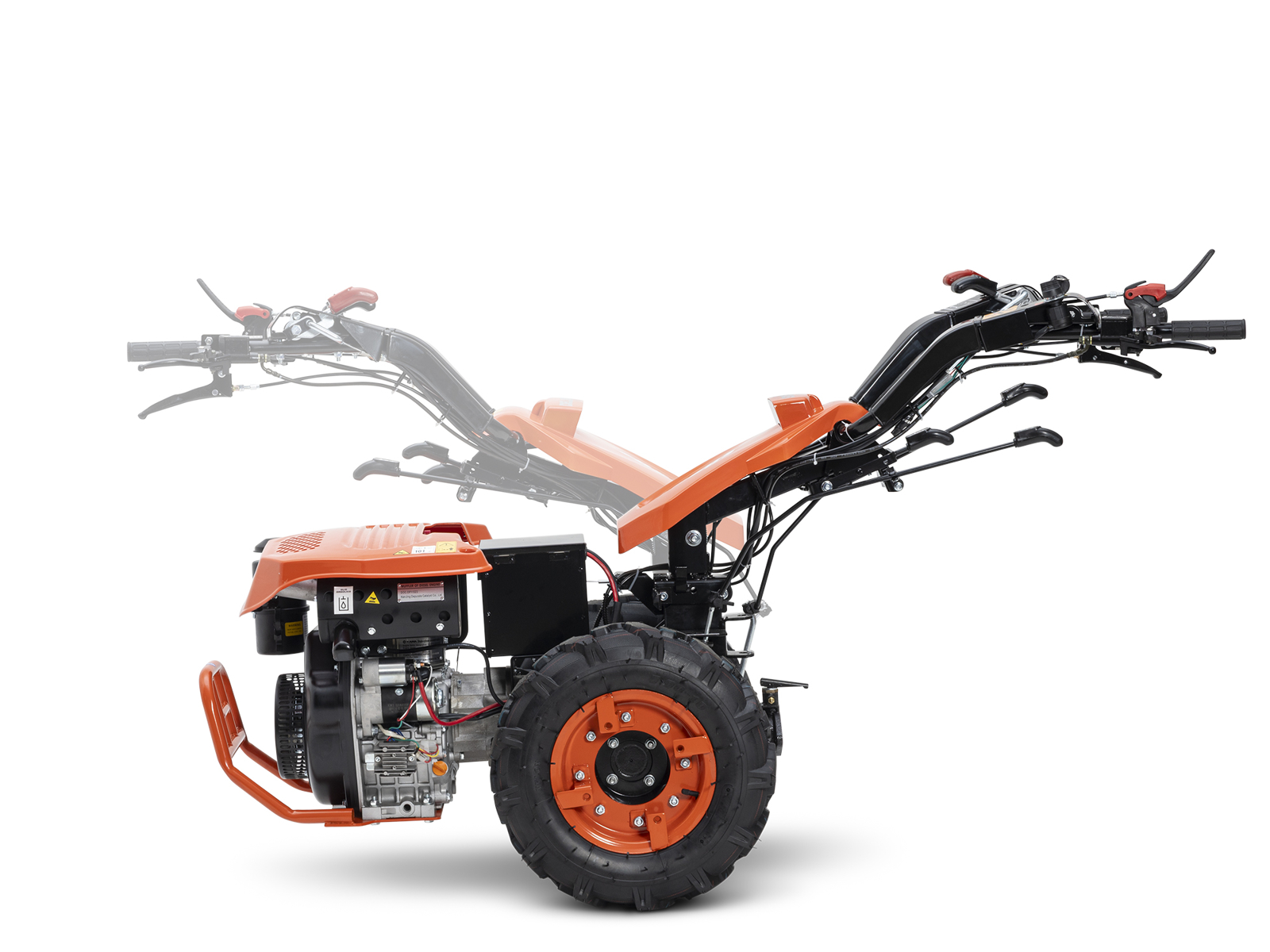

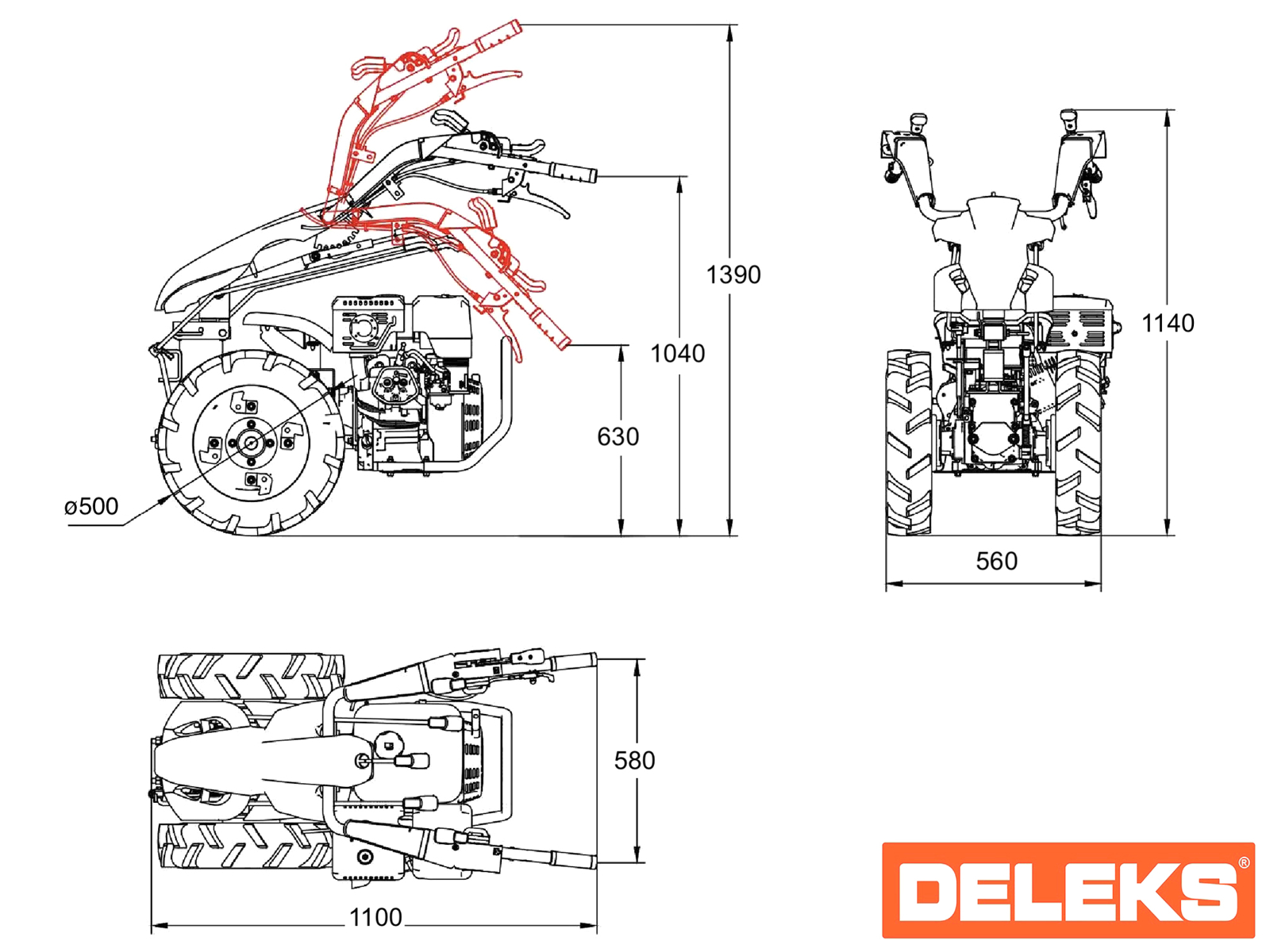

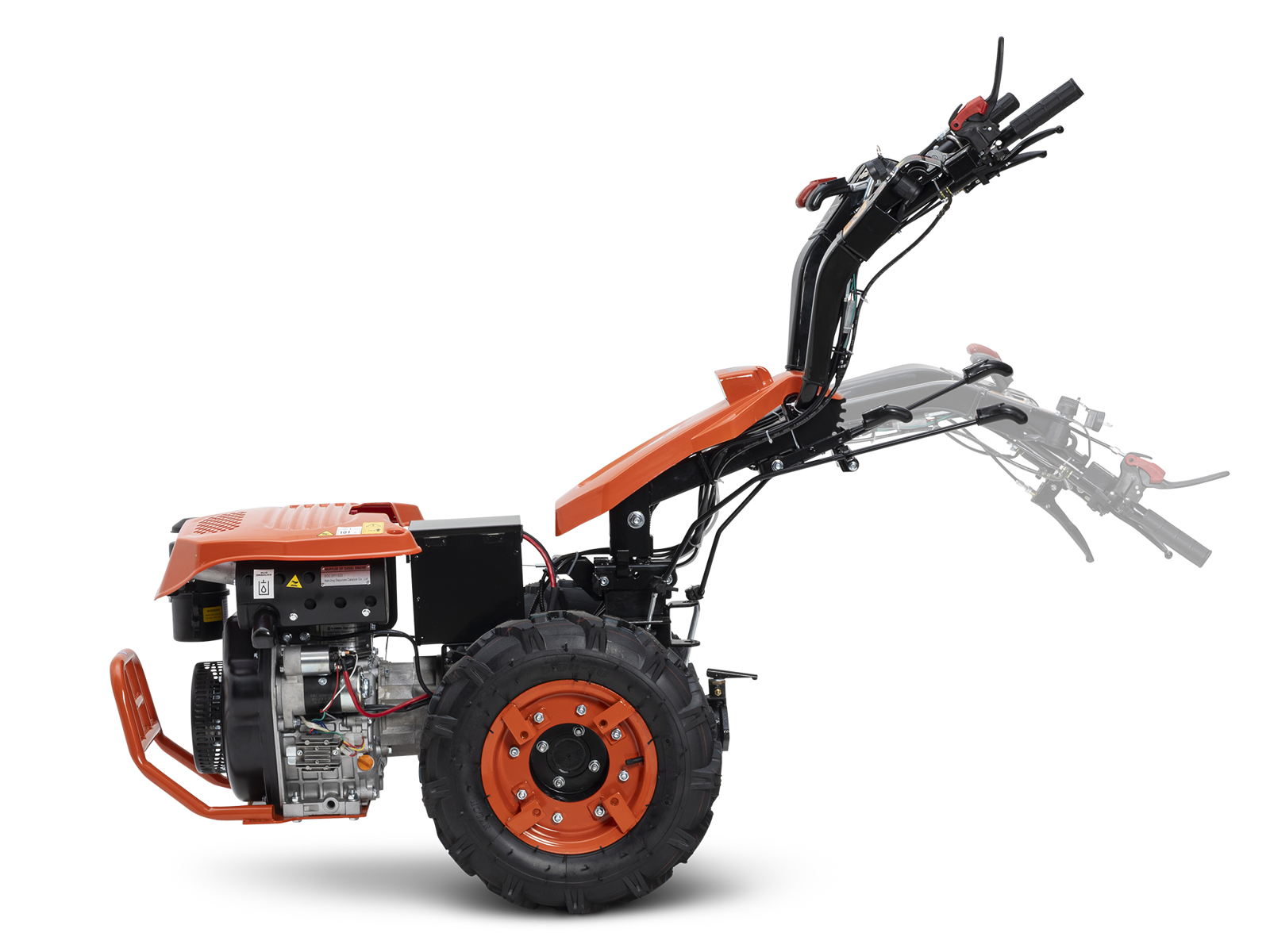

Handlebars reversible through 180°

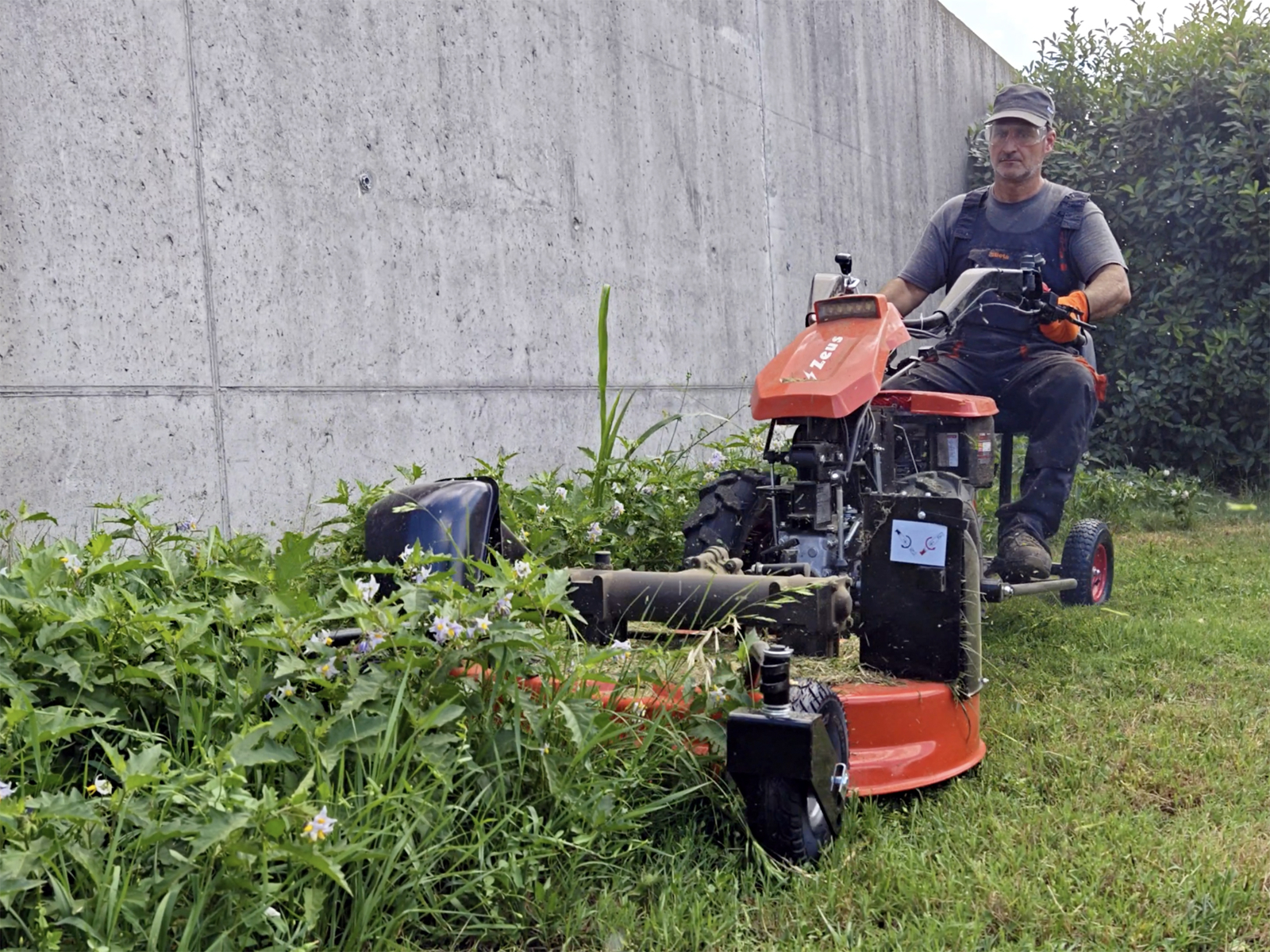

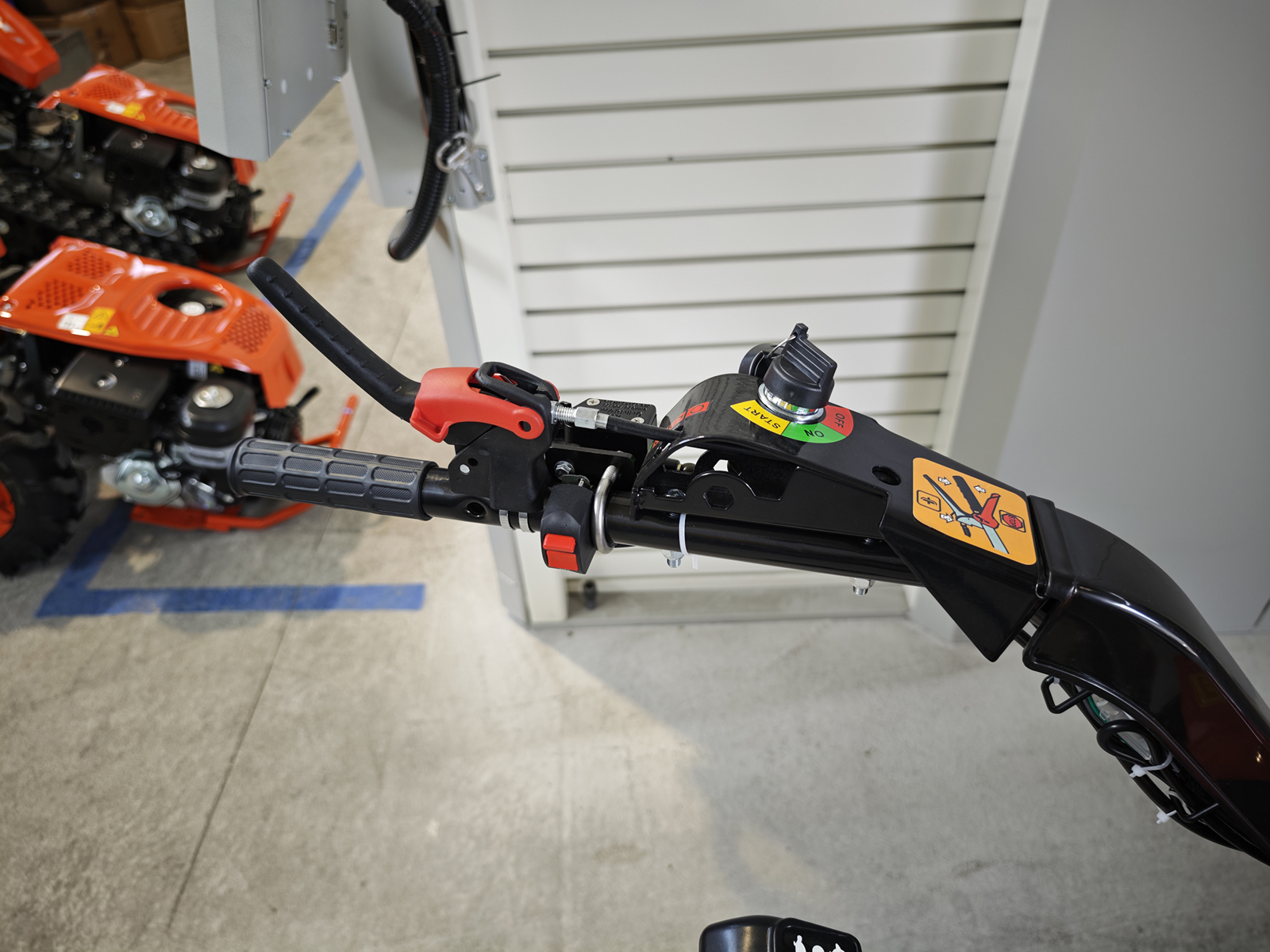

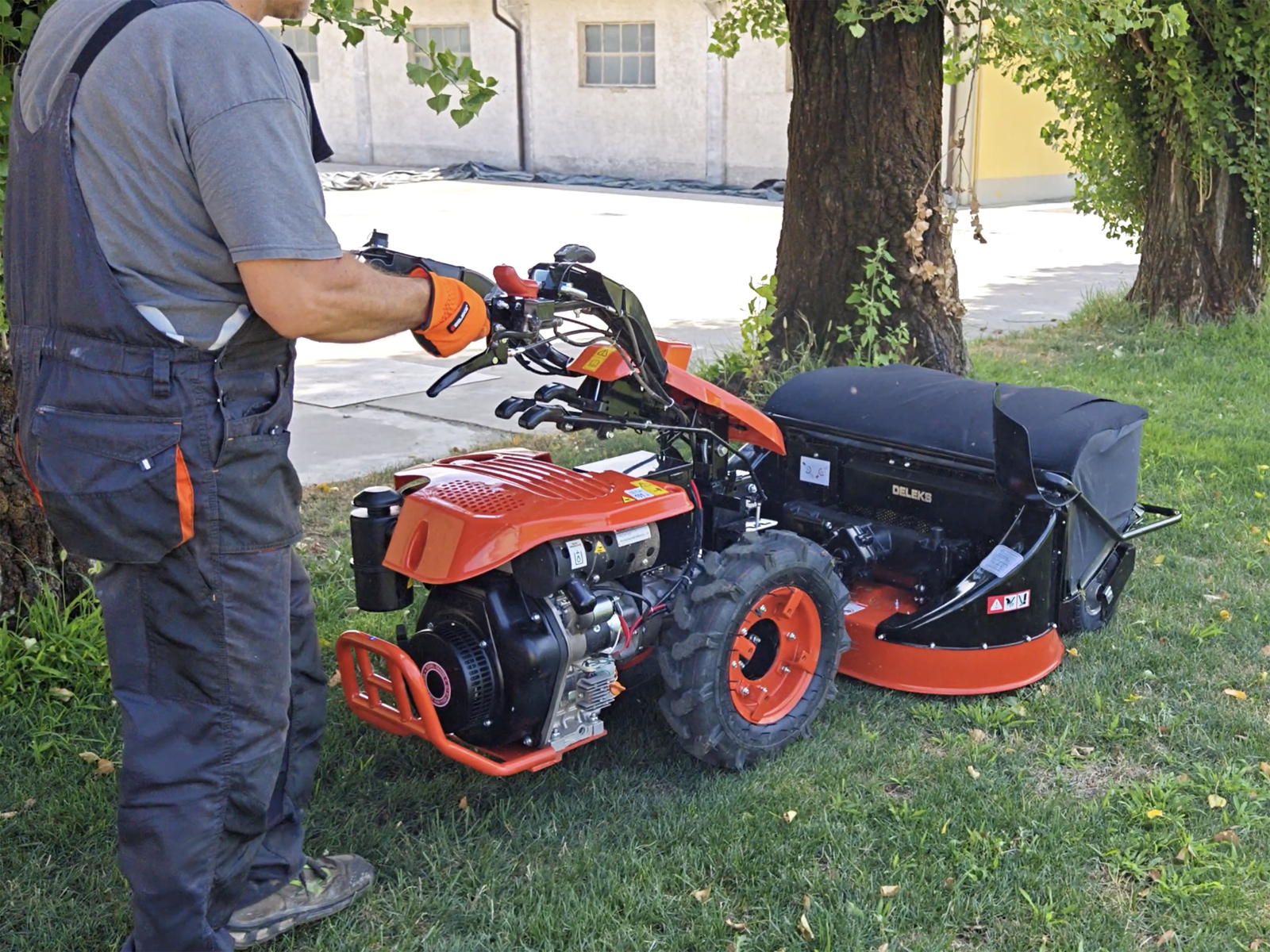

The handlebars swing through 180°: with rear attachments (rotavator, plough, ridger) you work one way, with front attachments (cutter bar, flail mower, sweeper, snow blower) the other. They adjust for height and sideways, so you do not tread on freshly worked soil and the machine suits the operator's height.

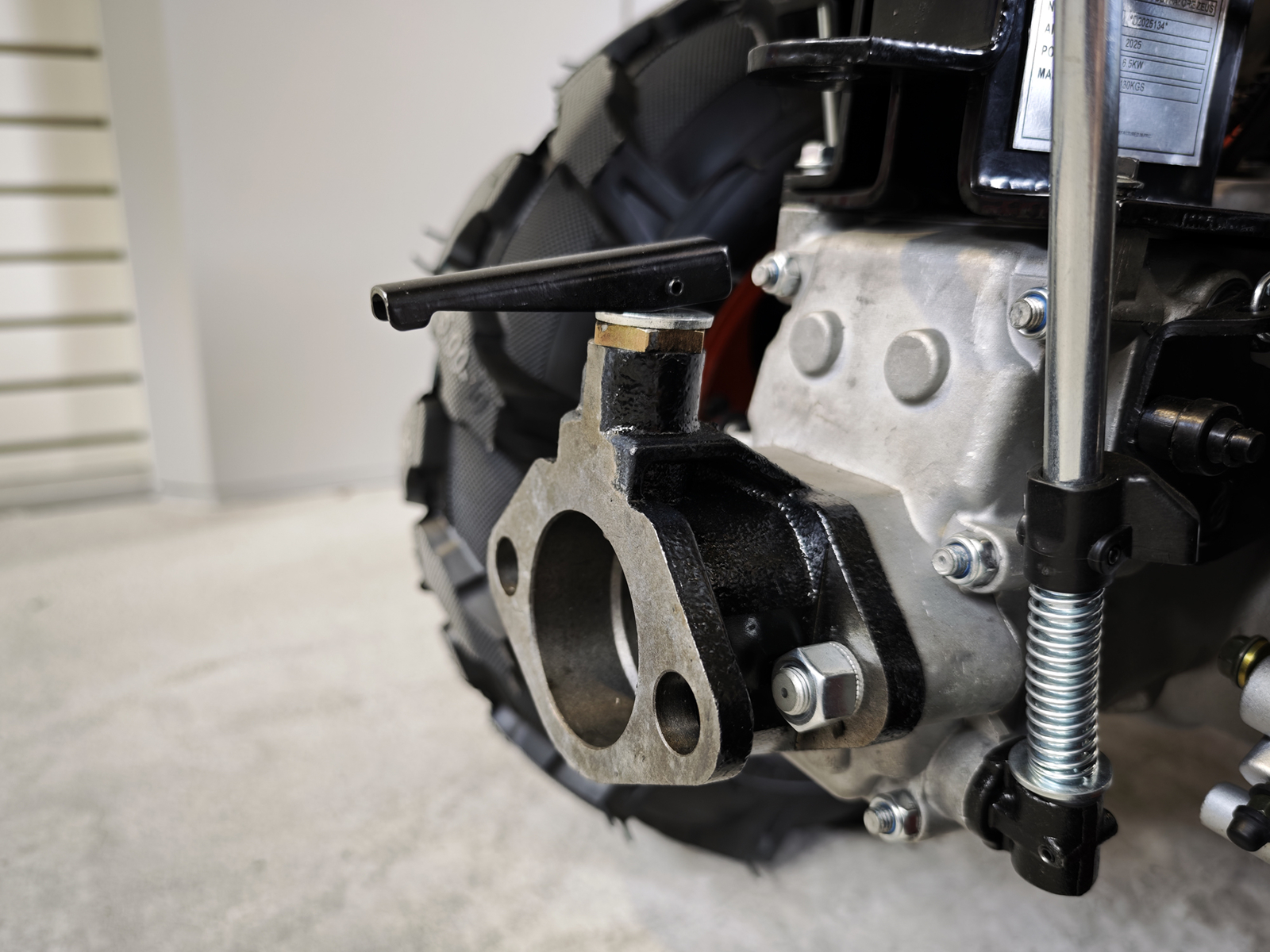

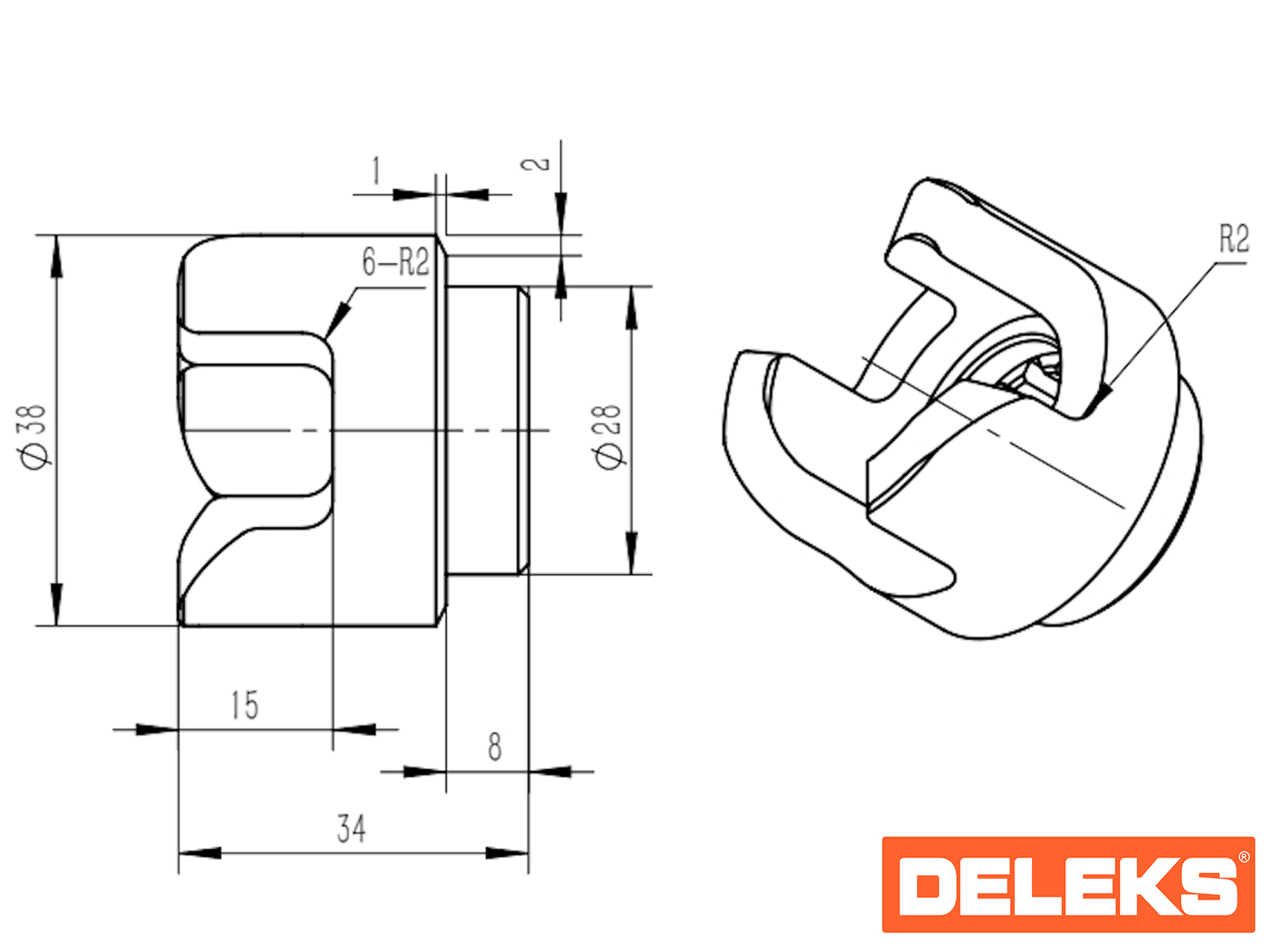

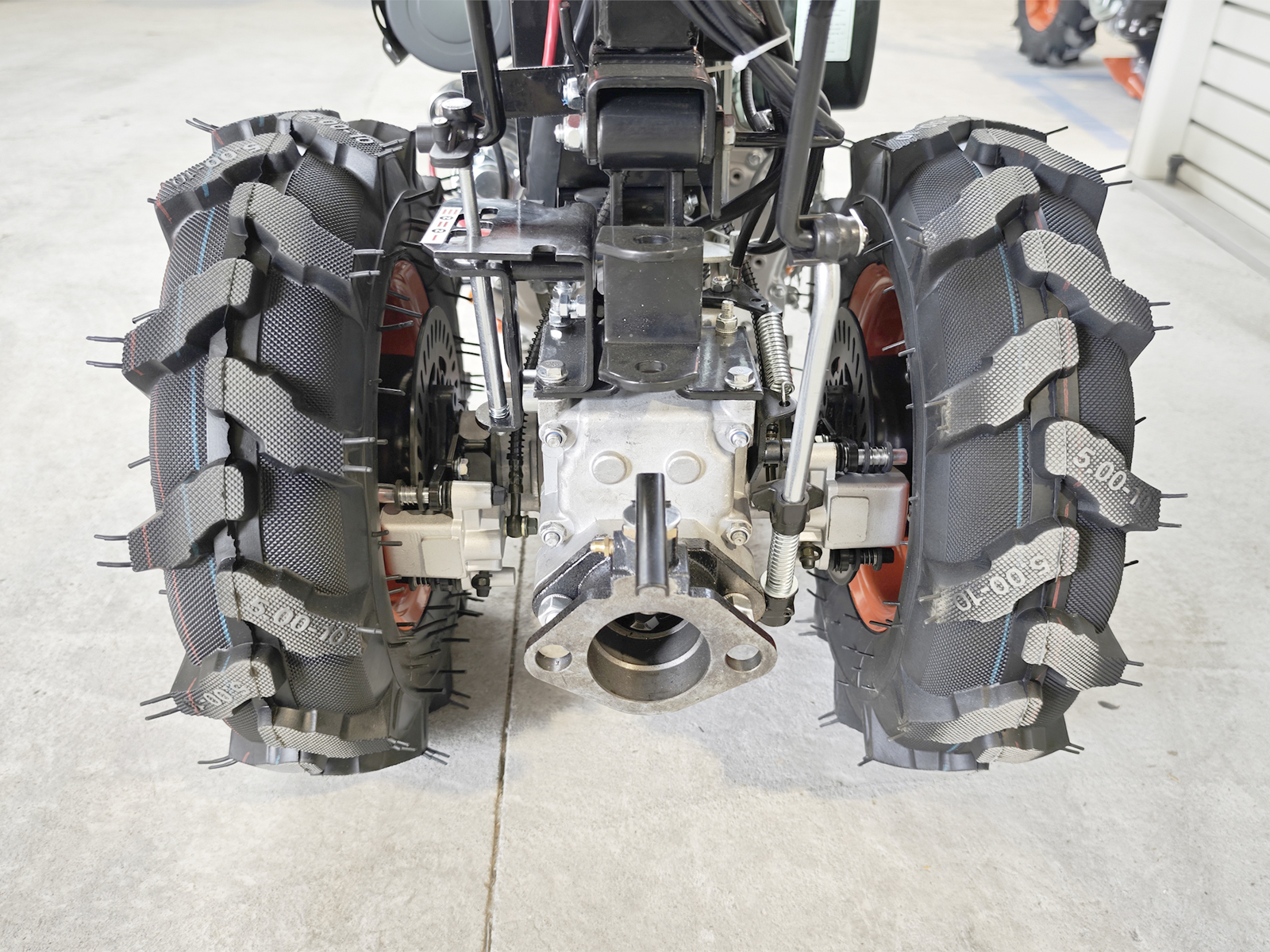

3-tooth BCS-type quick hitch, fine-spline with adapter
The female half of the 3-tooth quick hitch comes fitted to the tractor; every DELEKS® attachment already has its male half and changes over in seconds, with no tools. It is the same hitch as BCS, Ferrari and Pasquali, so attachments from those makes fit straight on; for fine-spline (millerighe) attachments there is the adapter. If you already own attachments of another make, you only need to buy the tractor.
Pre-delivery check and shipping
Before shipping, the DELEKS® logistics centre checks the assembly, the engine and gearbox oil levels, the greasing and the controls, then secures the machine in a sealed wooden crate for transport. Delivery is free within the EU and the tractor arrives ready to use.
Fields of application

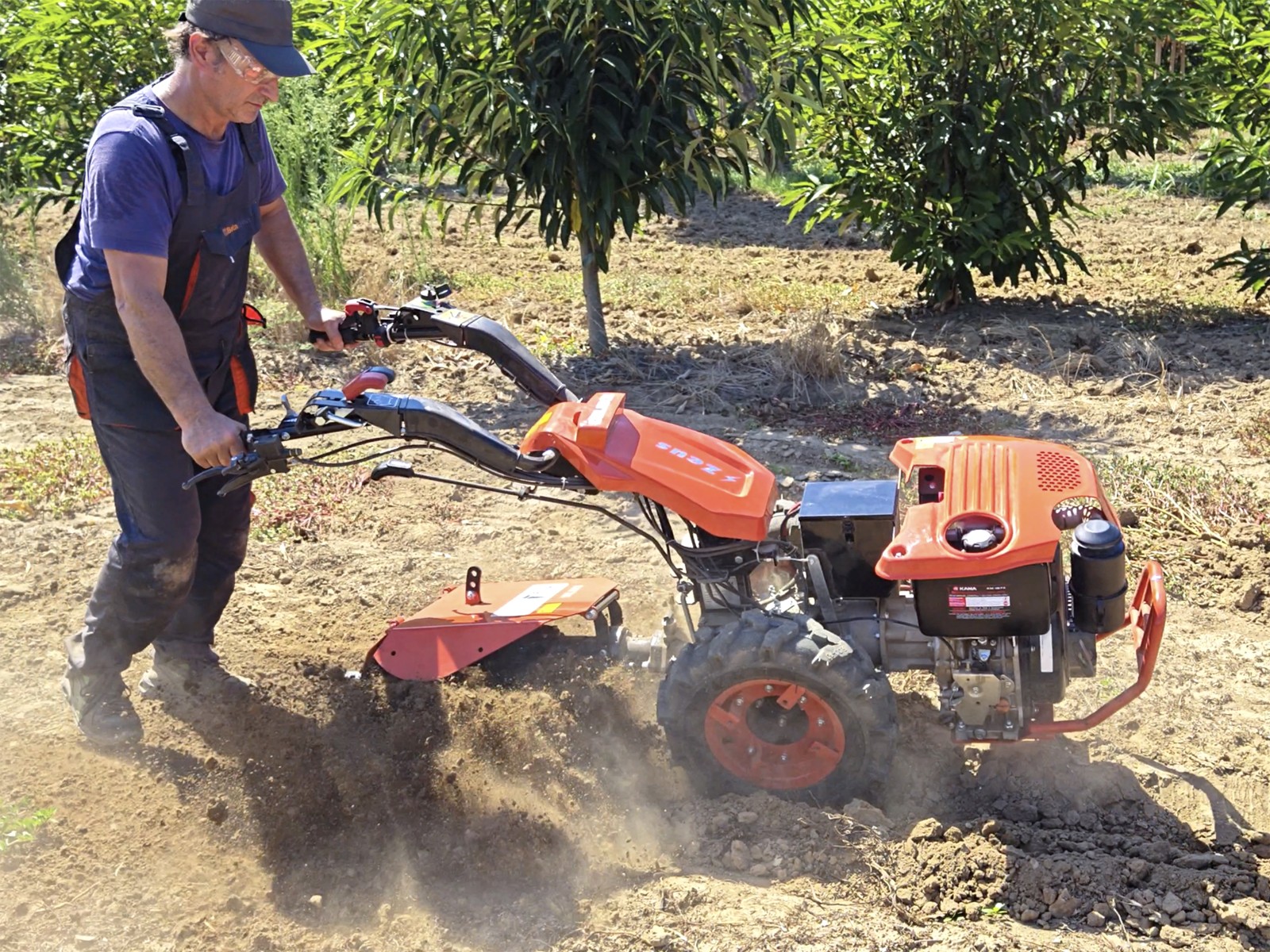

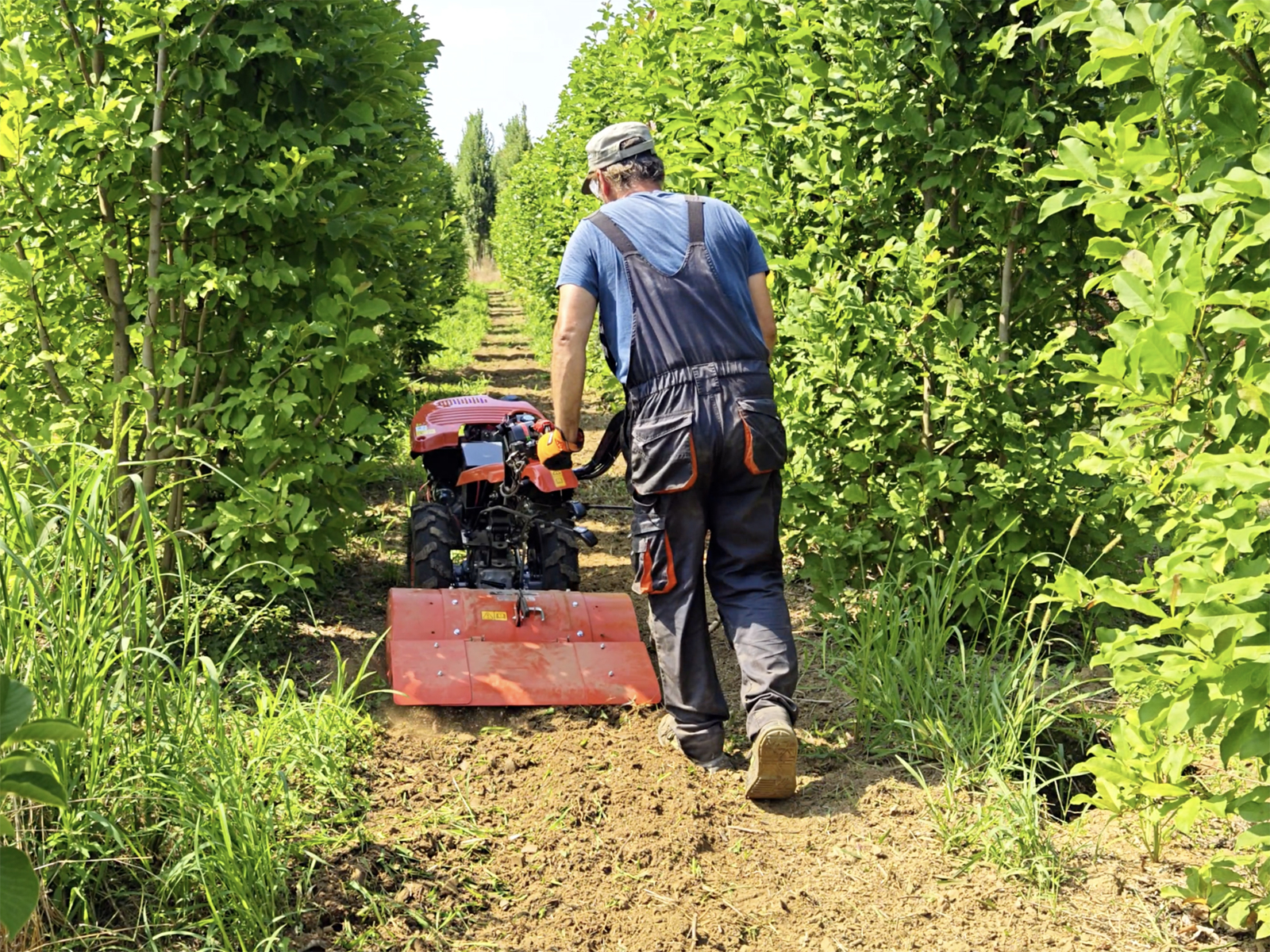

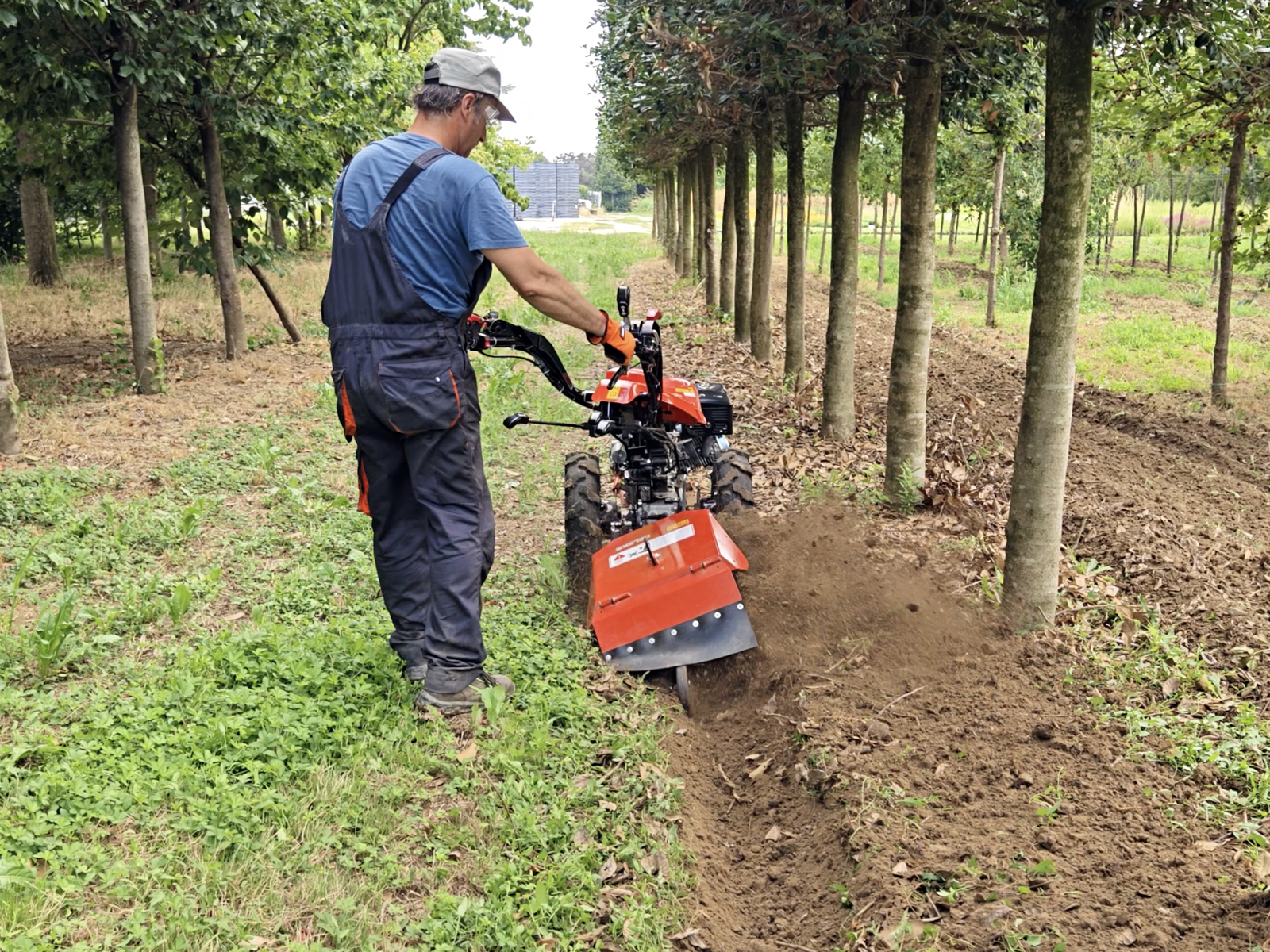

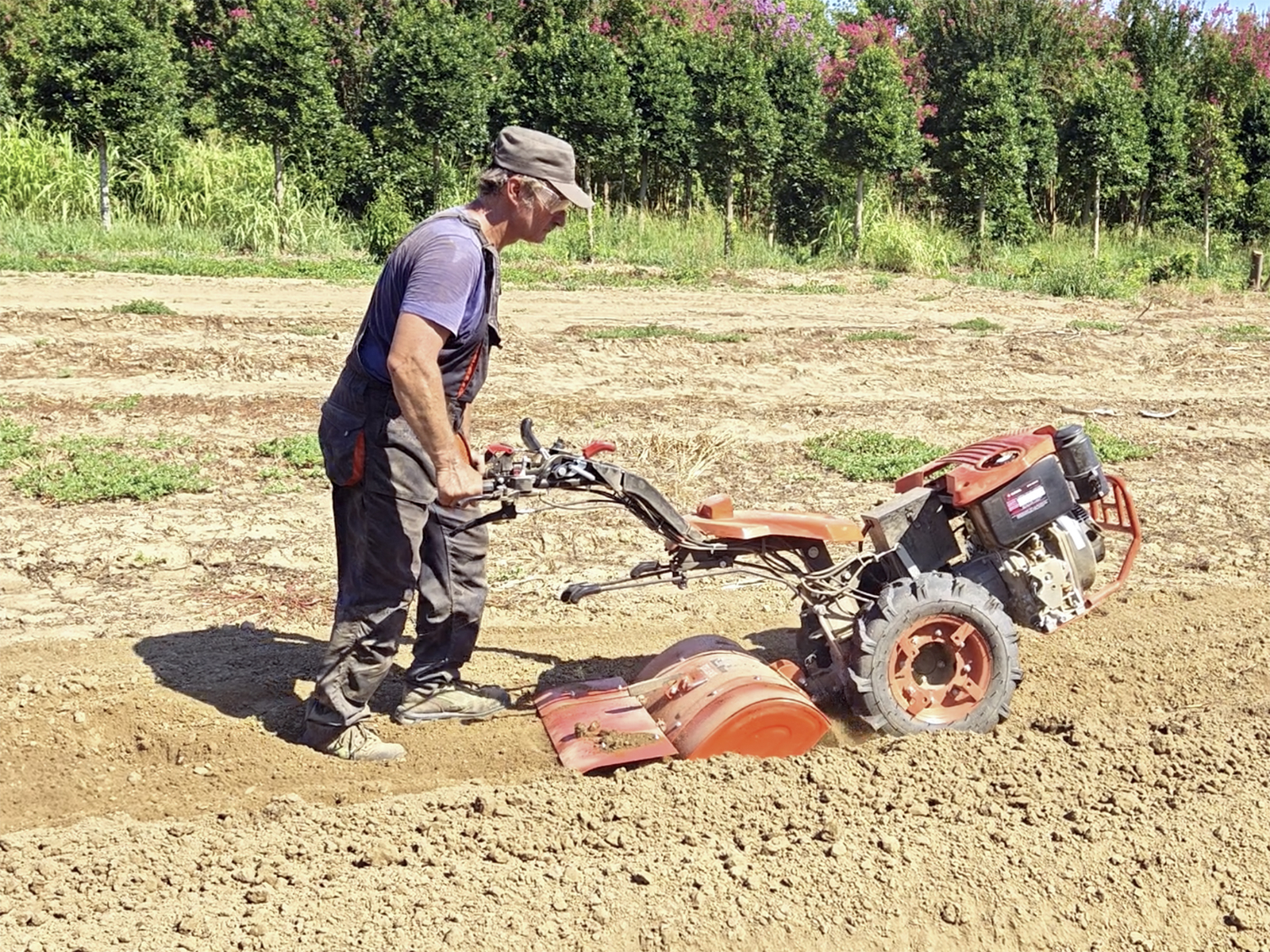

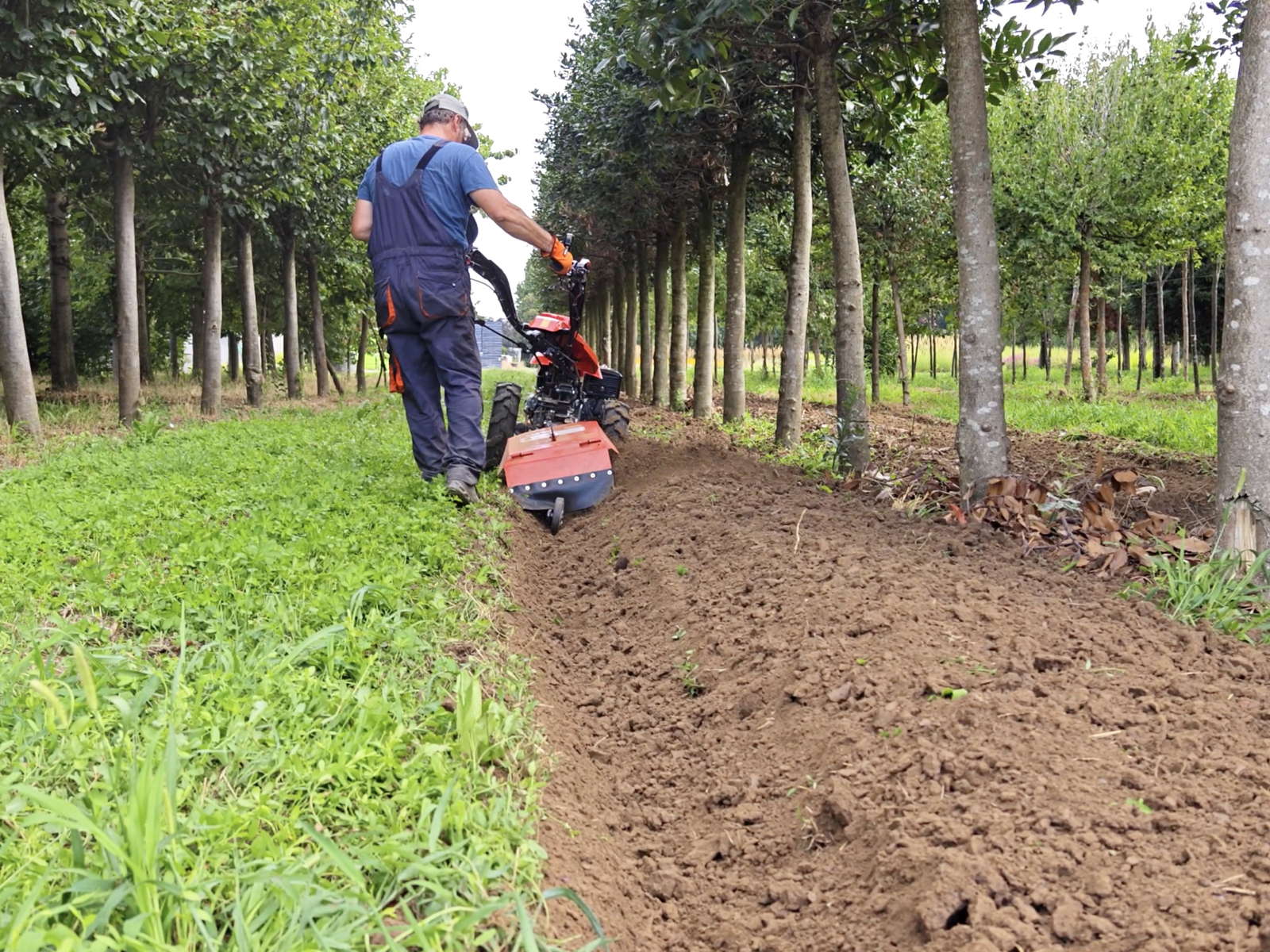

- Vegetable plots, gardens and smallholdings: rotavating, seedbed preparation, ridging

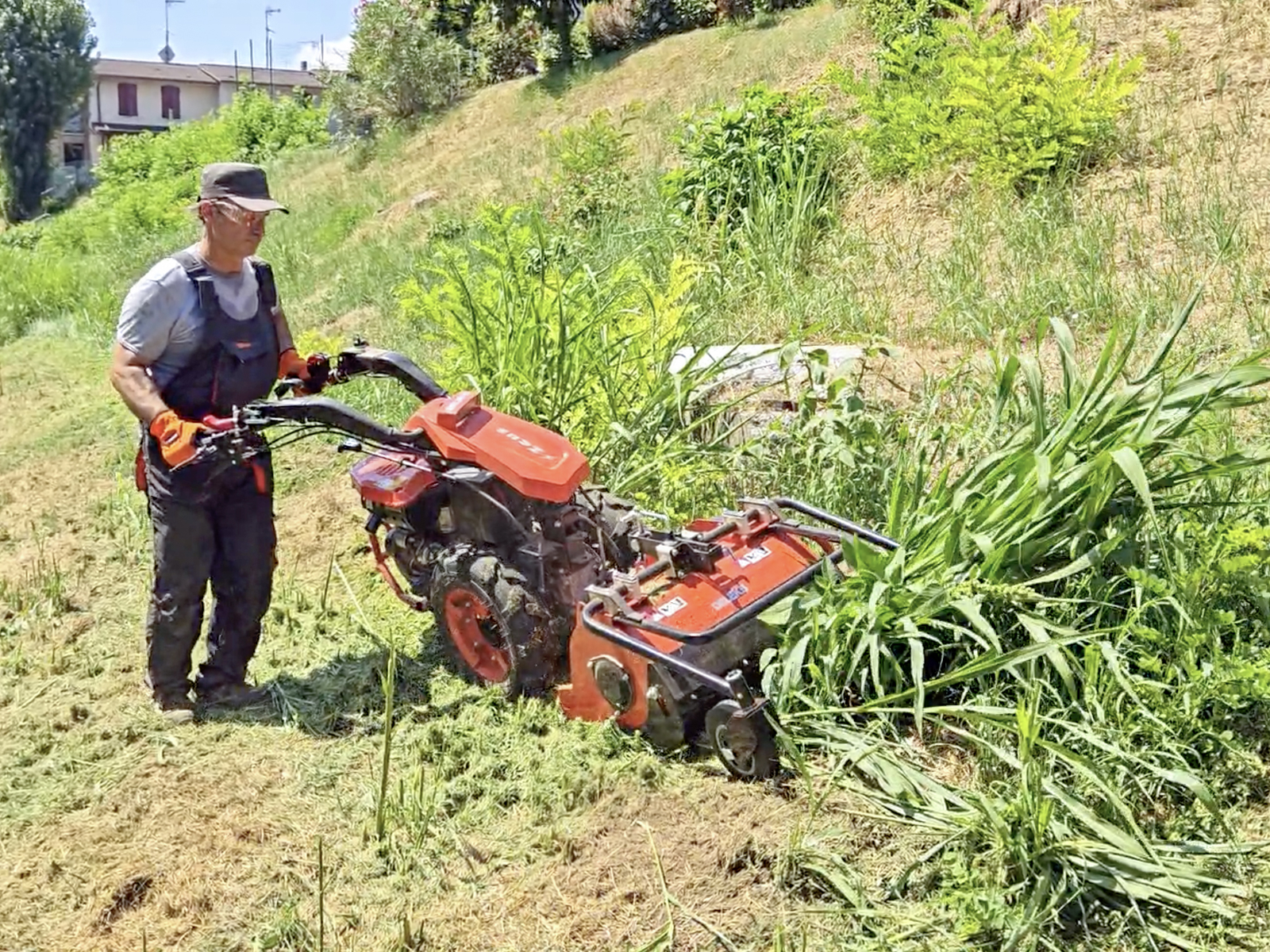

- Orchards, vineyards and olive groves: mowing with the cutter bar, flail mowing between the rows

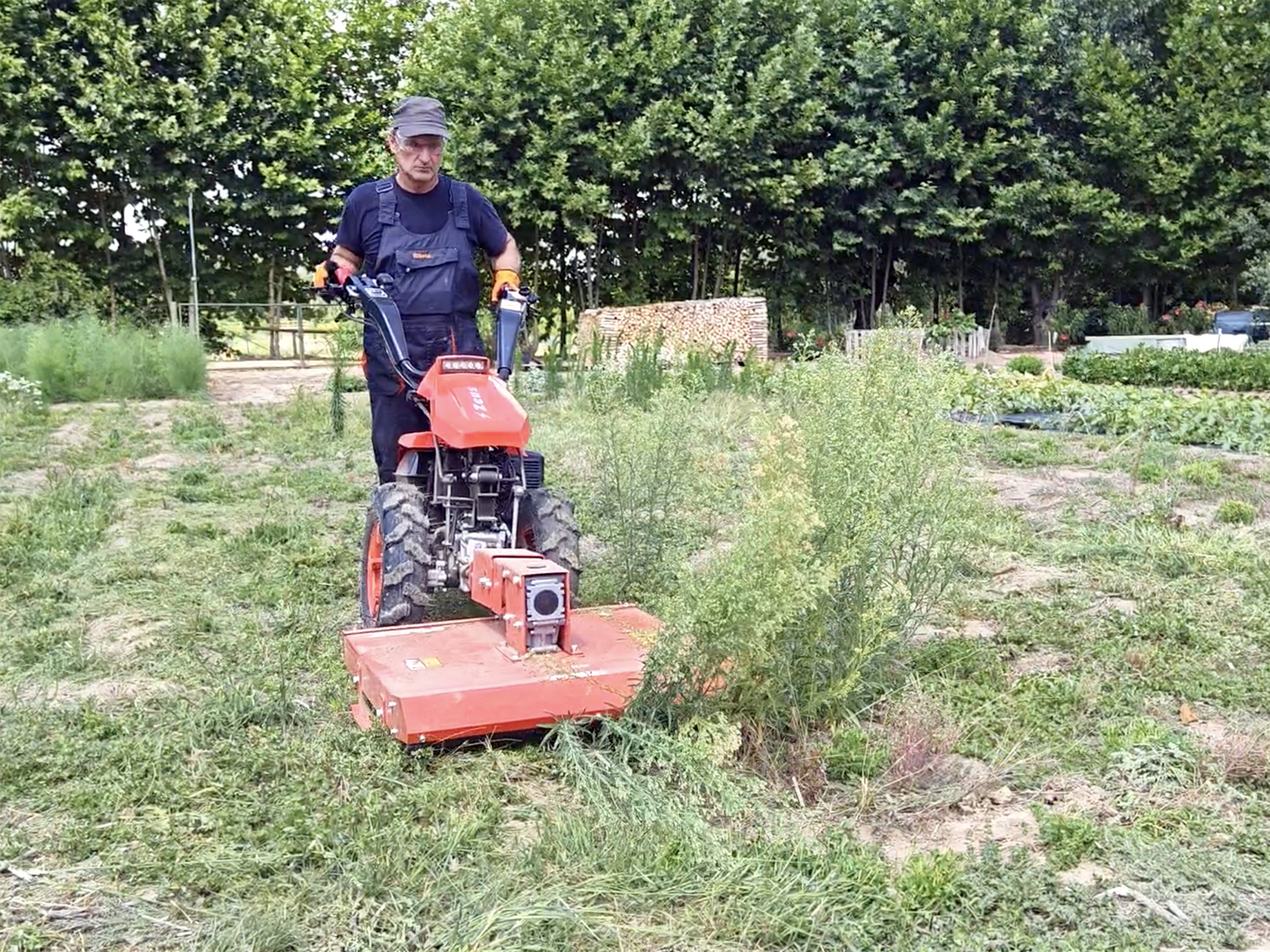

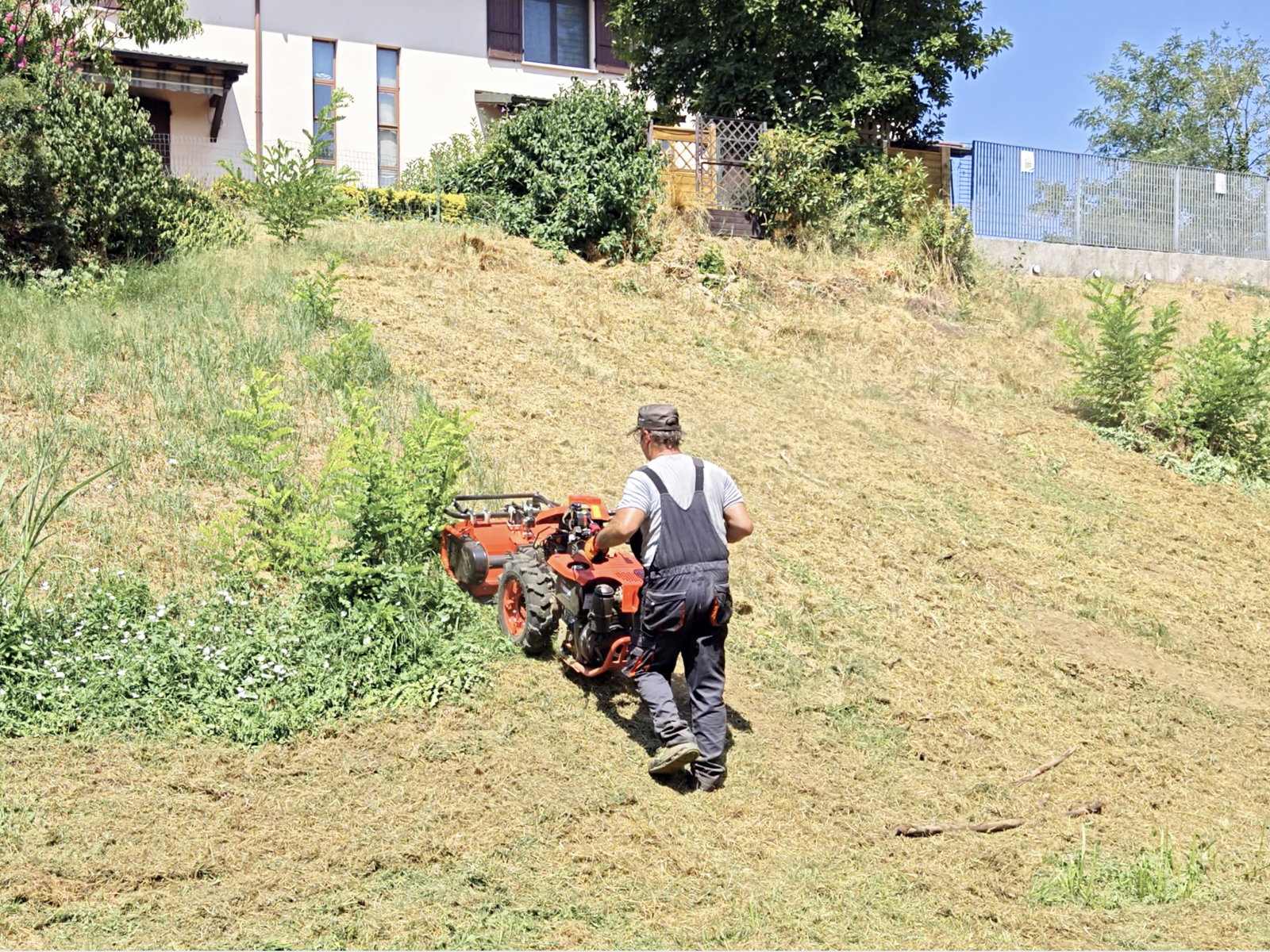

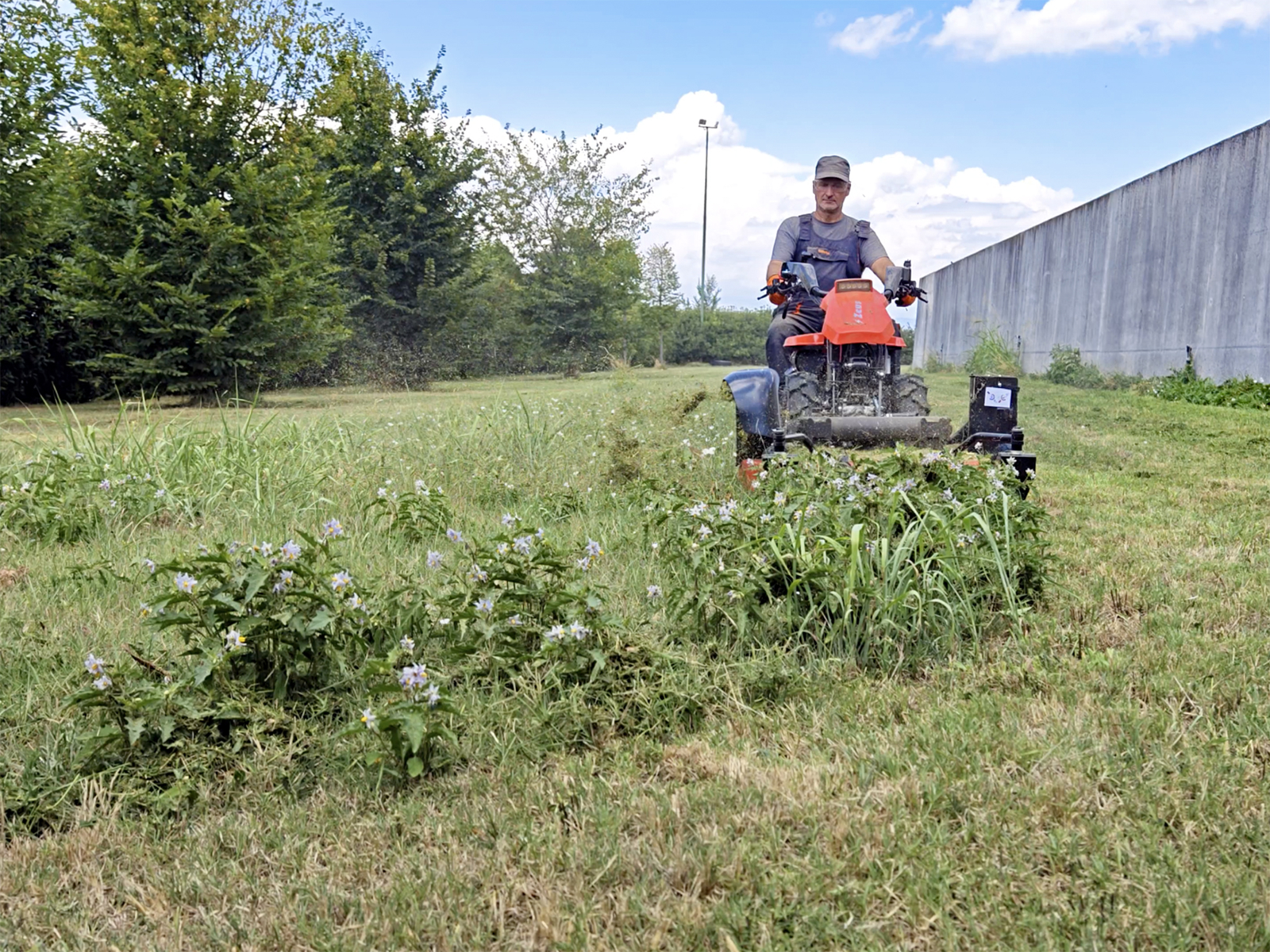

- Rough ground and verges: flail mower for tall grass and weeds

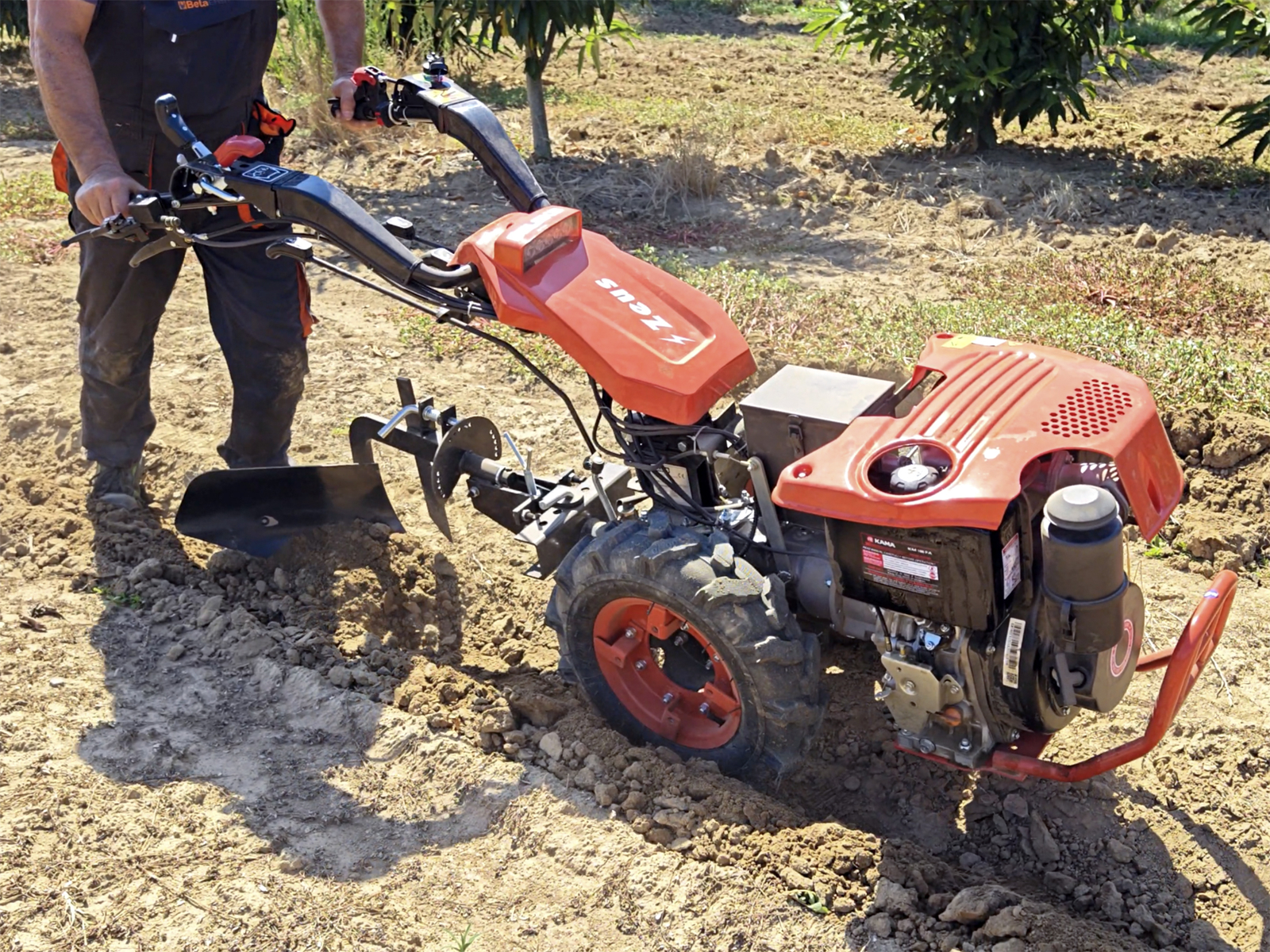

- Ploughing and turning in crop residues at the end of the season

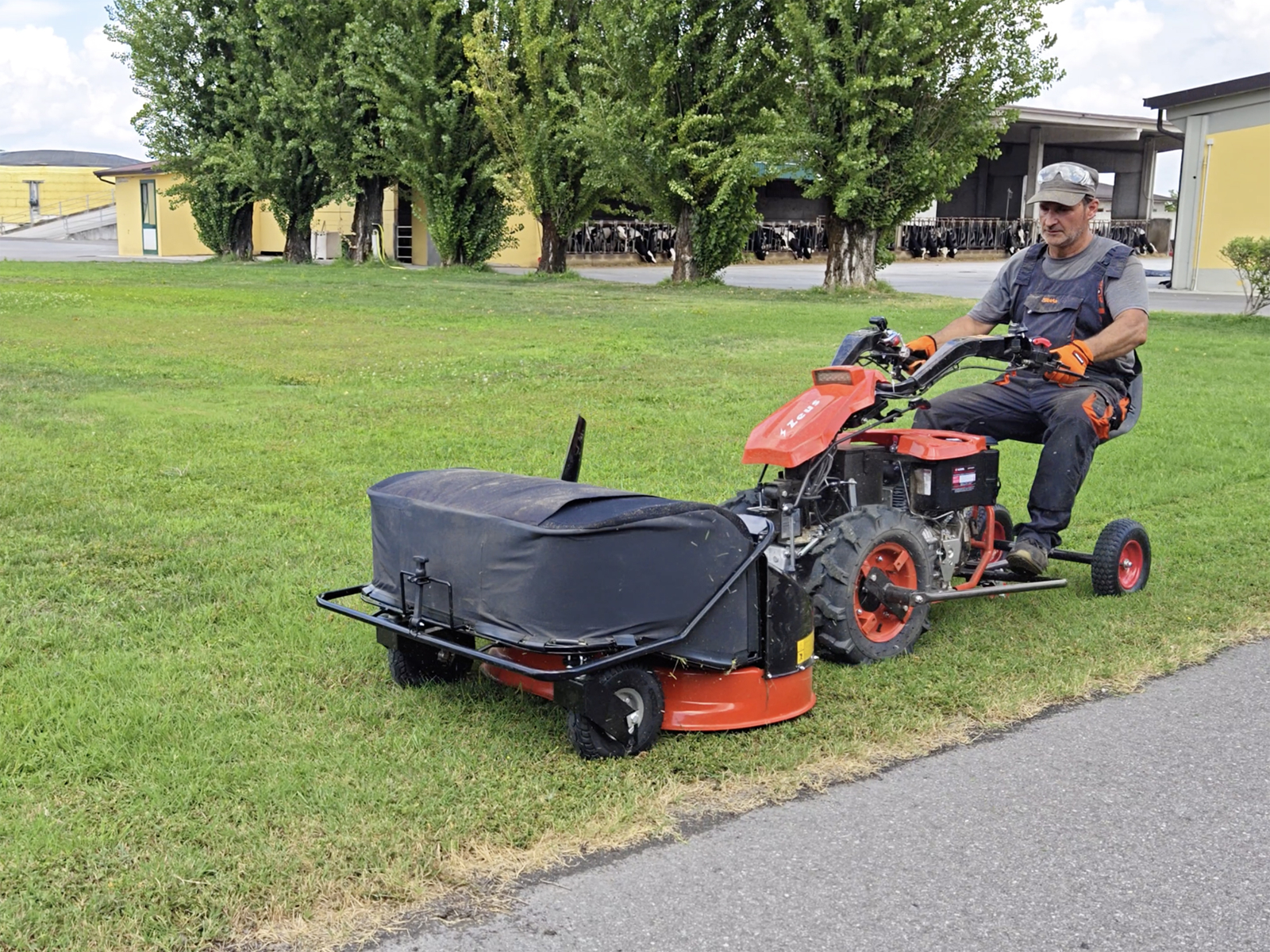

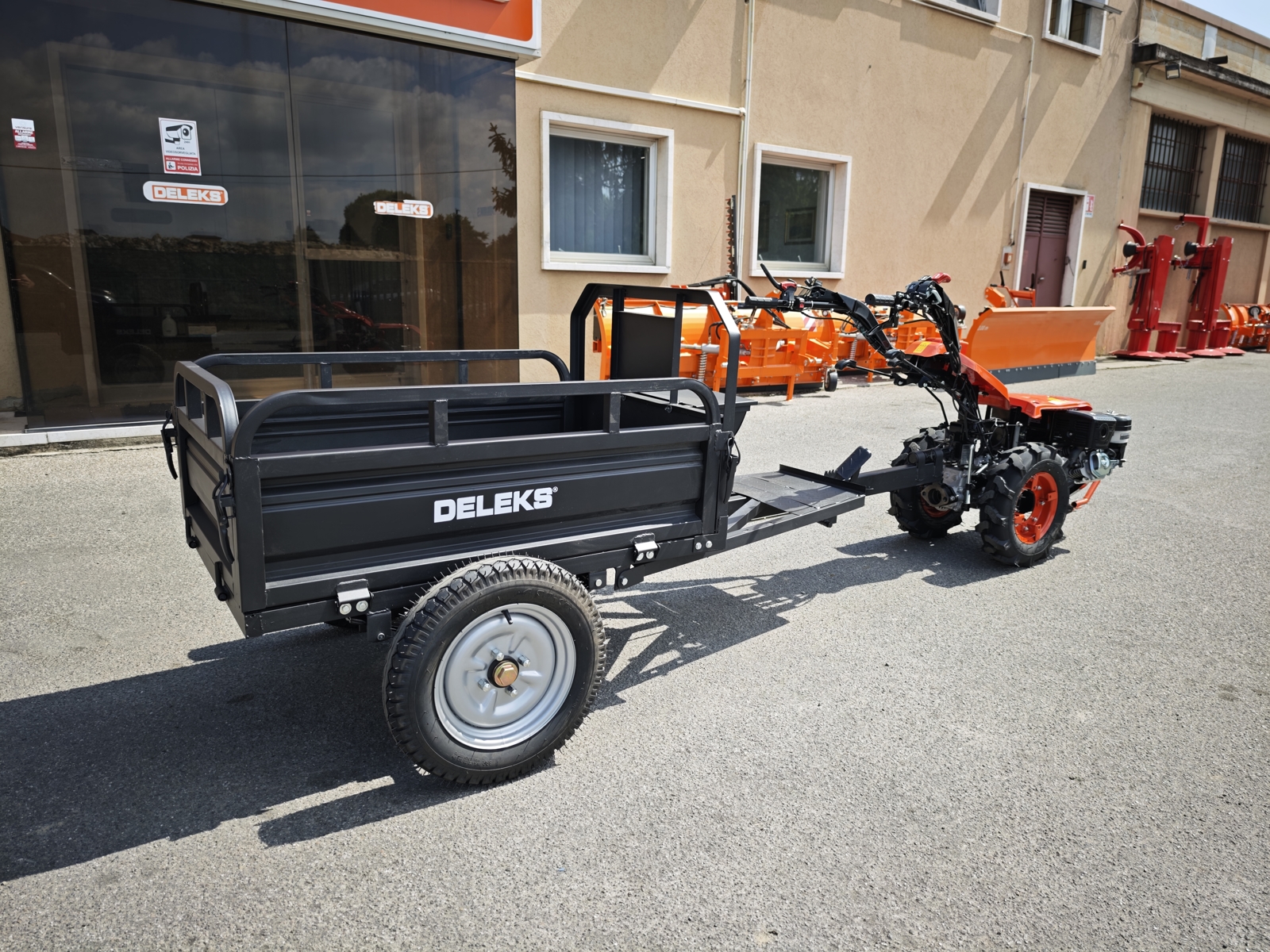

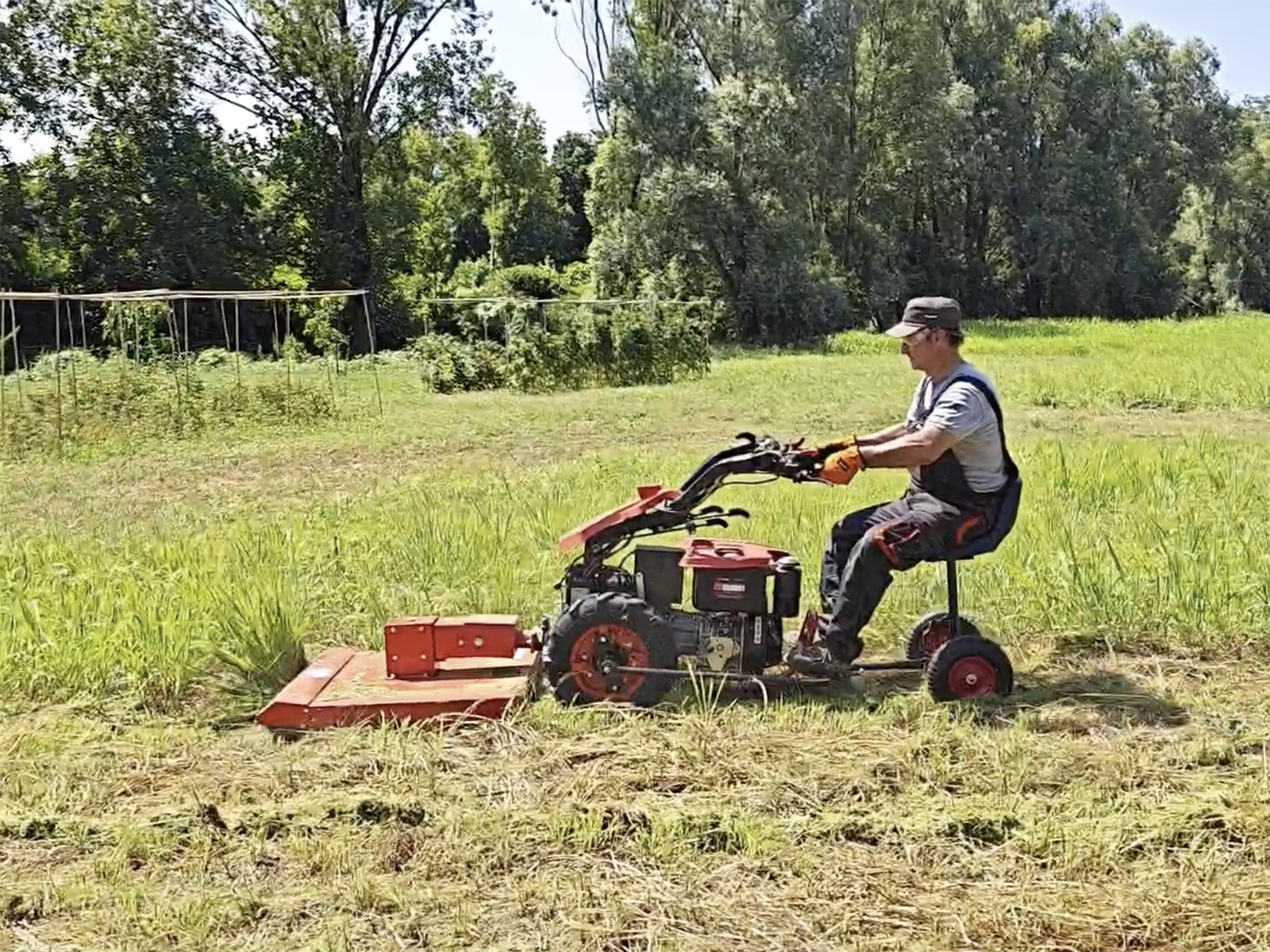

- Haulage with trailer and seat, snow with blower or blade
Options and attachments

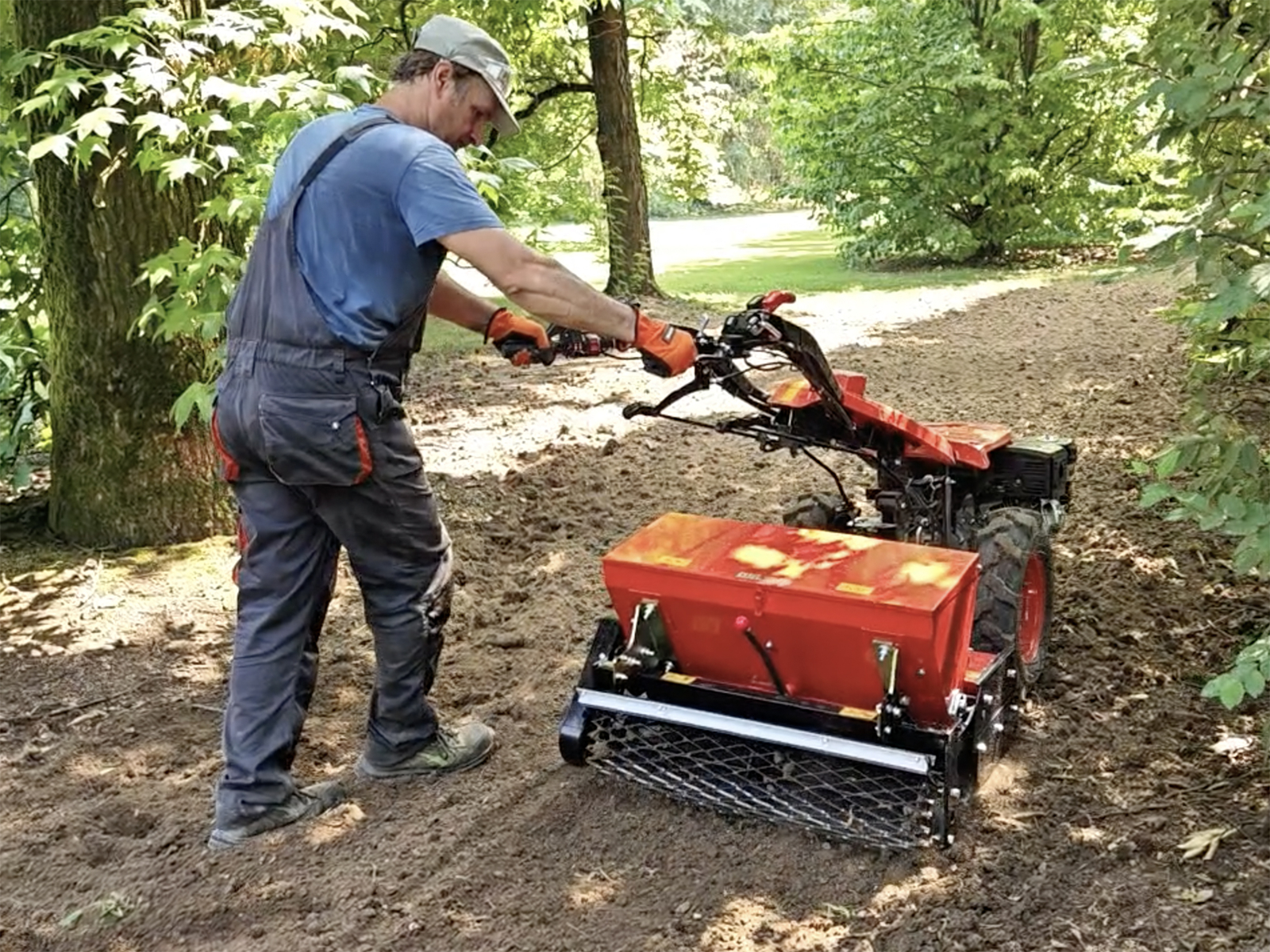

Rotavator, cutter bar, flail mower, ploughs, ridger, potato digger, cultivator, rotary harrow with seeder, trailer, steel wheels, PTO extension and snow blower can be added to the order or later. Ordered together with the tractor they get 10% off up to €150 and 5% off above.
FAQ
Why is the diesel the most popular?
It uses less fuel, runs cooler on long days and holds its revs under load; with 9 hp it drives the 100 cm (39 in) rotavator, the 100 cm flail mower, the 120 cm (47 in) cutter bar and the plough. If you want more power in reserve, choose the 14 hp petrol (ZEUSL).
Can I use the BCS, Ferrari or Pasquali attachments I already have?
Yes, they have the same 3-tooth hitch; fine-spline ones need the adapter. If in doubt, ask the DELEKS® team first.
Does it start in winter?
Yes: electric key start, with a recoil starter as back-up.
How does it arrive and what do I need to do first?
It arrives in a wooden crate with oil and lubricants already checked: set the handlebars to the working position, fill up with diesel and off you go.
Does any attachment come with it?
No: the tractor comes with the female quick hitch; attachments are chosen from the options.
DELEKS® spare parts and service
Genuine spare parts ship from the DELEKS® warehouses in Europe: tines, blades, knives, belts, filters, control cables and the other wearing parts are normally in stock, for routine and for unscheduled maintenance. The technical service helps you find the right part from the exploded drawings, service the machine and choose the attachments that suit your work. The product comes with the EC declaration of conformity, the invoice and the use and maintenance manual, also emailed when the order ships. Two-year warranty, free delivery within the EU and free returns on attachments that do not fit your two-wheel tractor.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 130.0 kg |
| Transmission: Rotation of gearbox | Clockwise |
| Engine | Kama 186FA 9Hp 418cc diesel |
| Starter | E-start and Pull cord |
| RPM | 990 |
| Max speed | 1.5 - 3.0 - 11.2 Km/h |
| Gross shipping weight | 152 kg |
| Package volume | 0.78 m3 |
| Packing sizes | 1150*710*950.0 mm |
