Heavy-duty flail mower for tractors 220 cm (87 in) CERVO-220, hammer flail mulcher with hydraulic side shift for 70-100 hp tractors

Not available  Notify me
Code CERVO220PTO - EAN 8057724861907
Suggested price 3.750,00€VAT incl.
3.250,00€VAT incl.
Free shipping
Loading...
Suggested price 3.750,00€VAT incl.
3.250,00€VAT incl.
Free shipping
View all details.

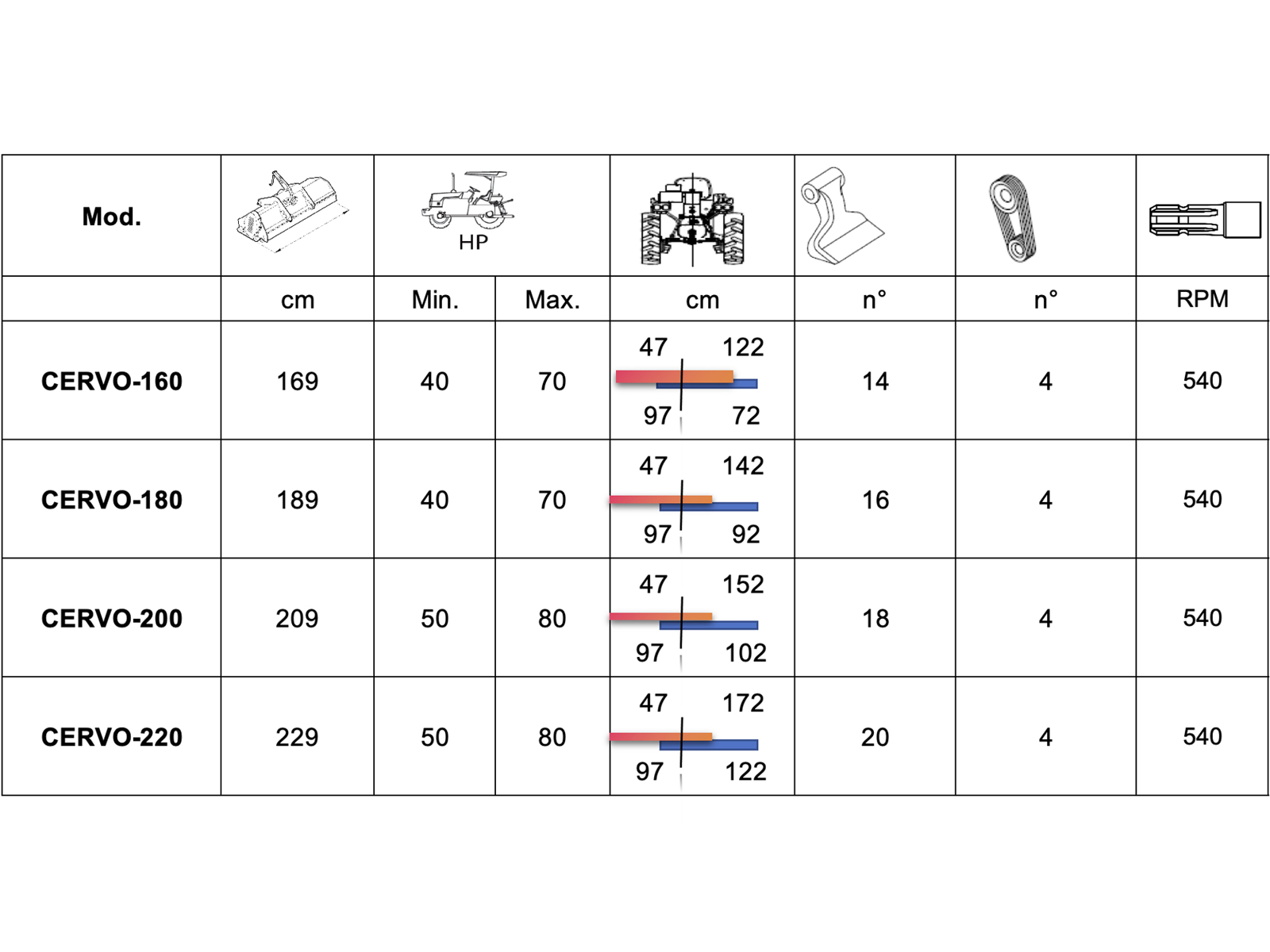

CUTTING WIDTH
160 180 200 220

reviews

Suggested price 3.750,00€VAT incl.
3.250,00€VAT incl.

DETAILS

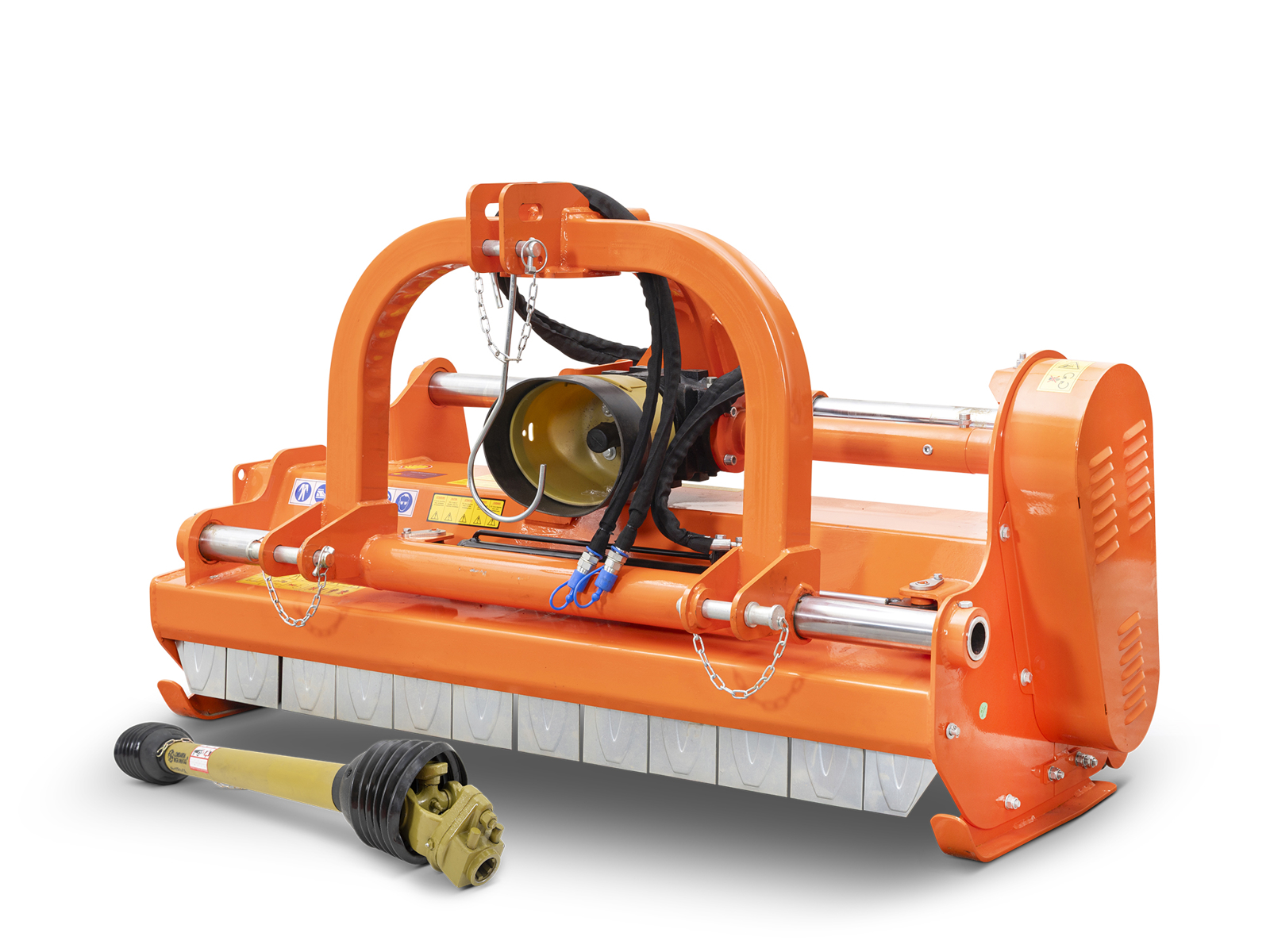

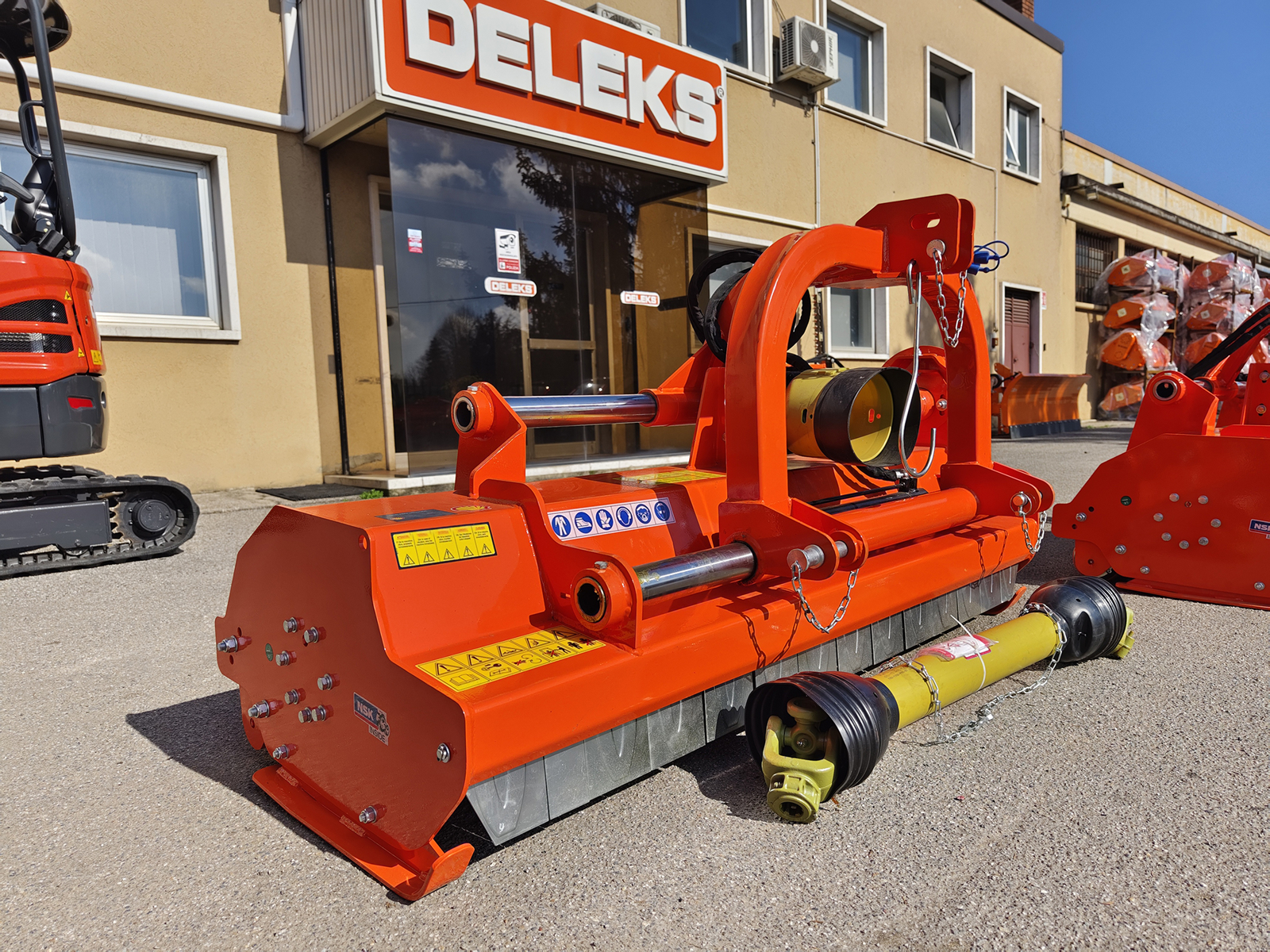

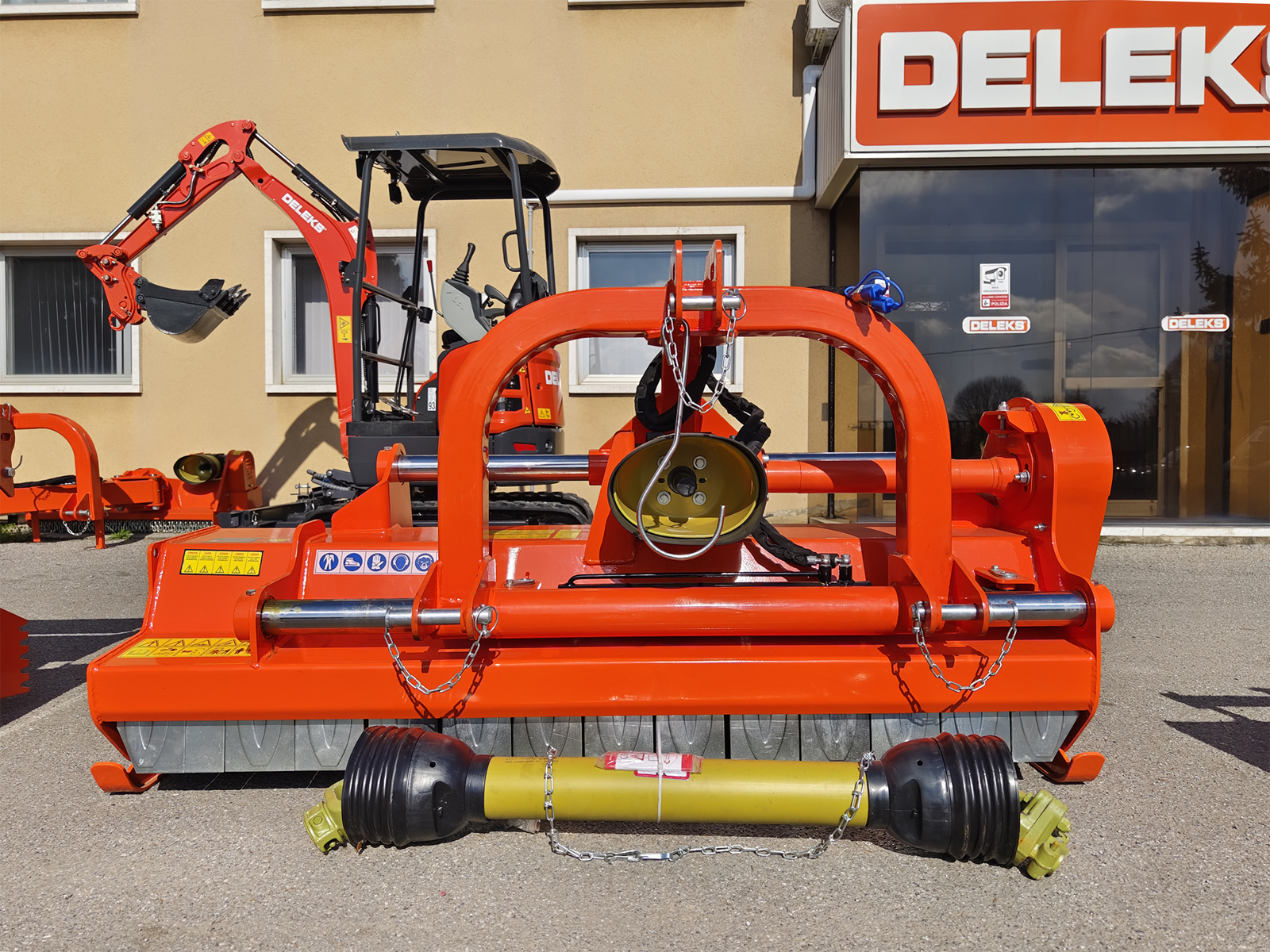

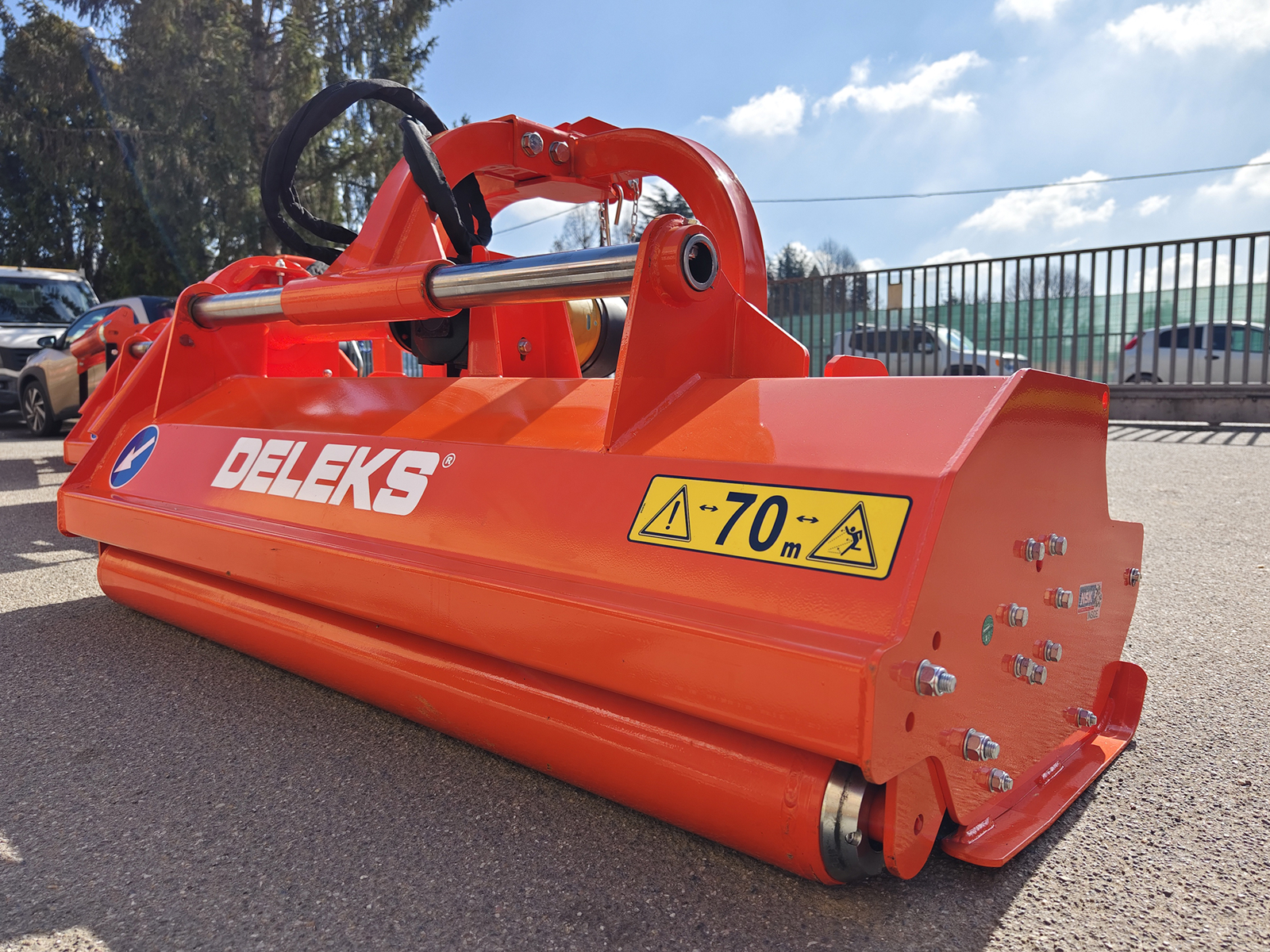

Heavy-duty flail mower for tractors with a 220 cm (87 in) cut: the DELEKS® CERVO-220 is the hammer flail mulcher from the heavy series for wheeled or tracked tractors from 70 to 100 hp, such as New Holland, John Deere, Landini, Deutz-Fahr, Massey Ferguson and Kubota. The electronically balanced 152 mm (6 in) rotor carries 20 hammer flails of 1,100 g (2.4 lb) with a 14 cm (5.5 in) wide base and shreds long grass, brambles, scrub, vine prunings and other prunings up to 6-7 cm (2.4-2.8 in) thick. The hood is double-skinned, the 40 cm (16 in) hydraulic side shift is worked from the seat and the oversized rear roller sets the cutting height. 540 rpm gearbox with freewheel and a 3-year warranty, 4-belt drive, 560 kg (1,235 lb). TÜV-certified, it comes complete with a CE-approved PTO shaft with shear bolt, a 2-year warranty and free delivery within the EU.


Which tractors it fits

The CERVO-220 cuts 220 cm (87 in) with an overall width of 235 cm (93 in) and is built for wheeled or tracked tractors from 70 to 100 hp with a 540 rpm PTO and a universal category 2 three-point linkage (25-28 mm pins, lower link spacing from 740 to 890 mm): New Holland, John Deere 5 Series, Landini Rex, Deutz-Fahr, Massey Ferguson, Lamborghini, Kubota, Solis and equivalent tractors. It works on the flat and on slopes, centred or offset to the tractor. The gearbox sits 800 mm from the left-hand side and 1,400 mm from the right-hand side, 550 mm above the ground. As a rule of thumb the mower should be 15 to 20 cm (6 to 8 in) wider than the tractor's outer track, so it covers the wheel marks.

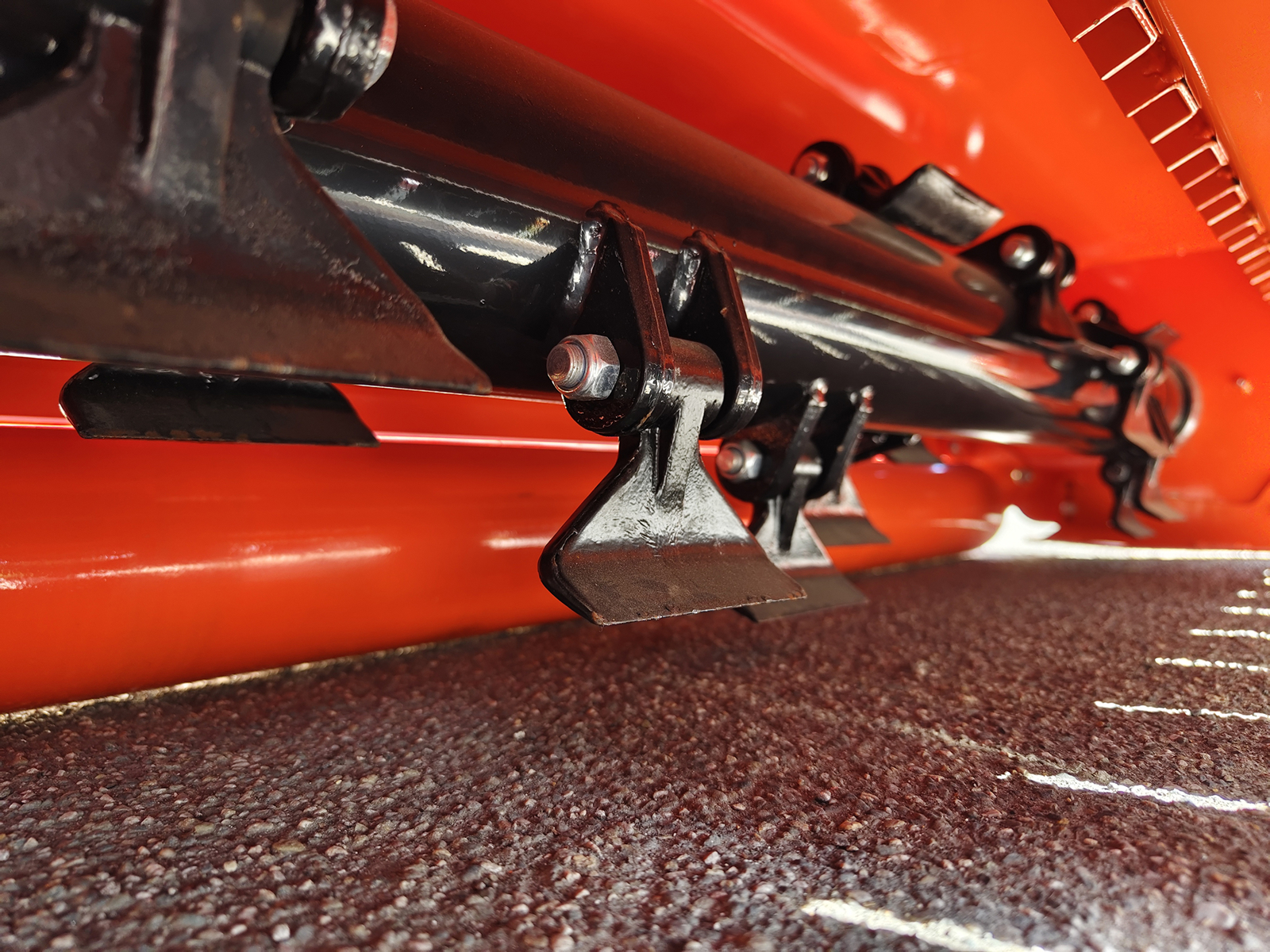

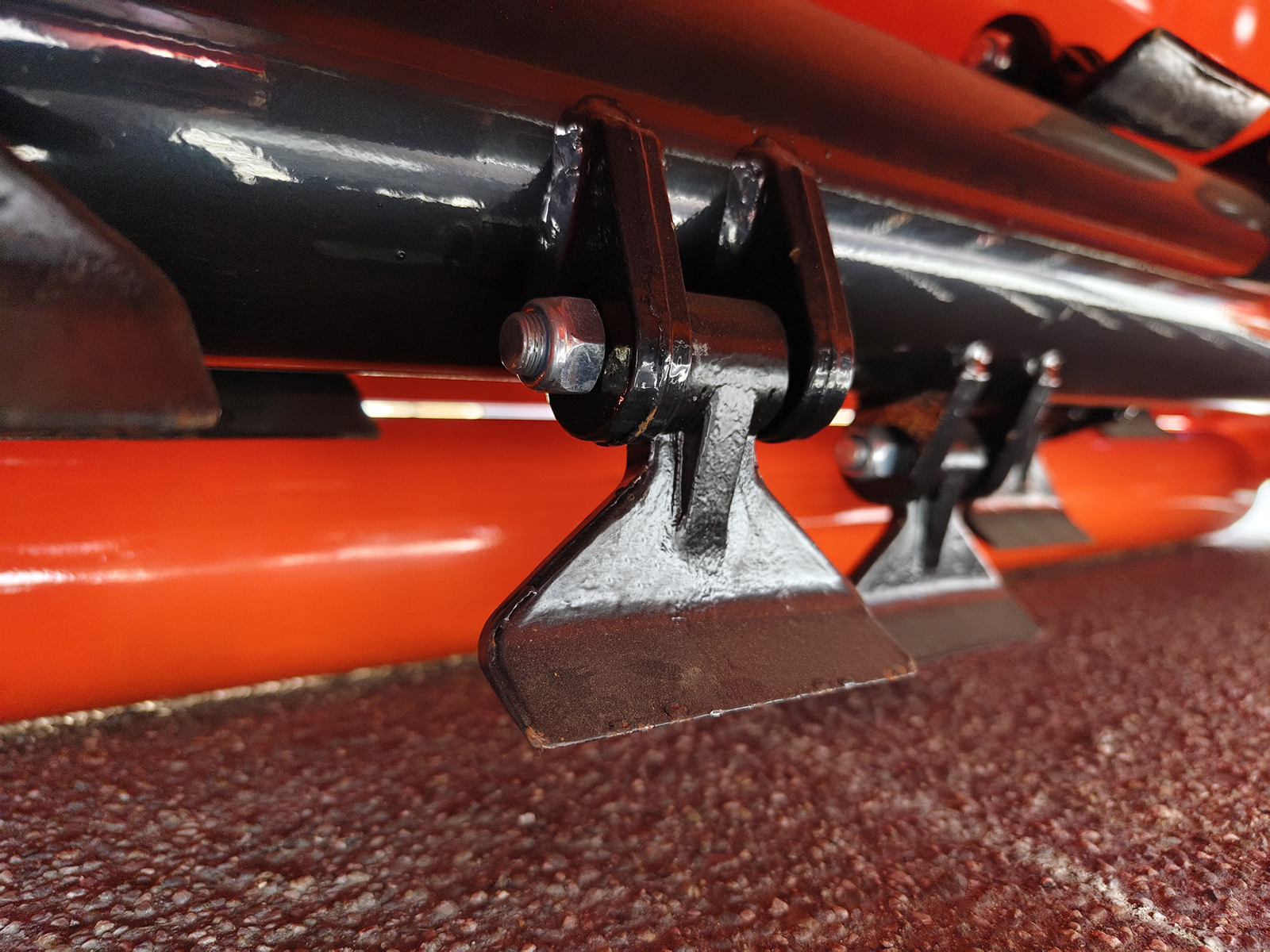

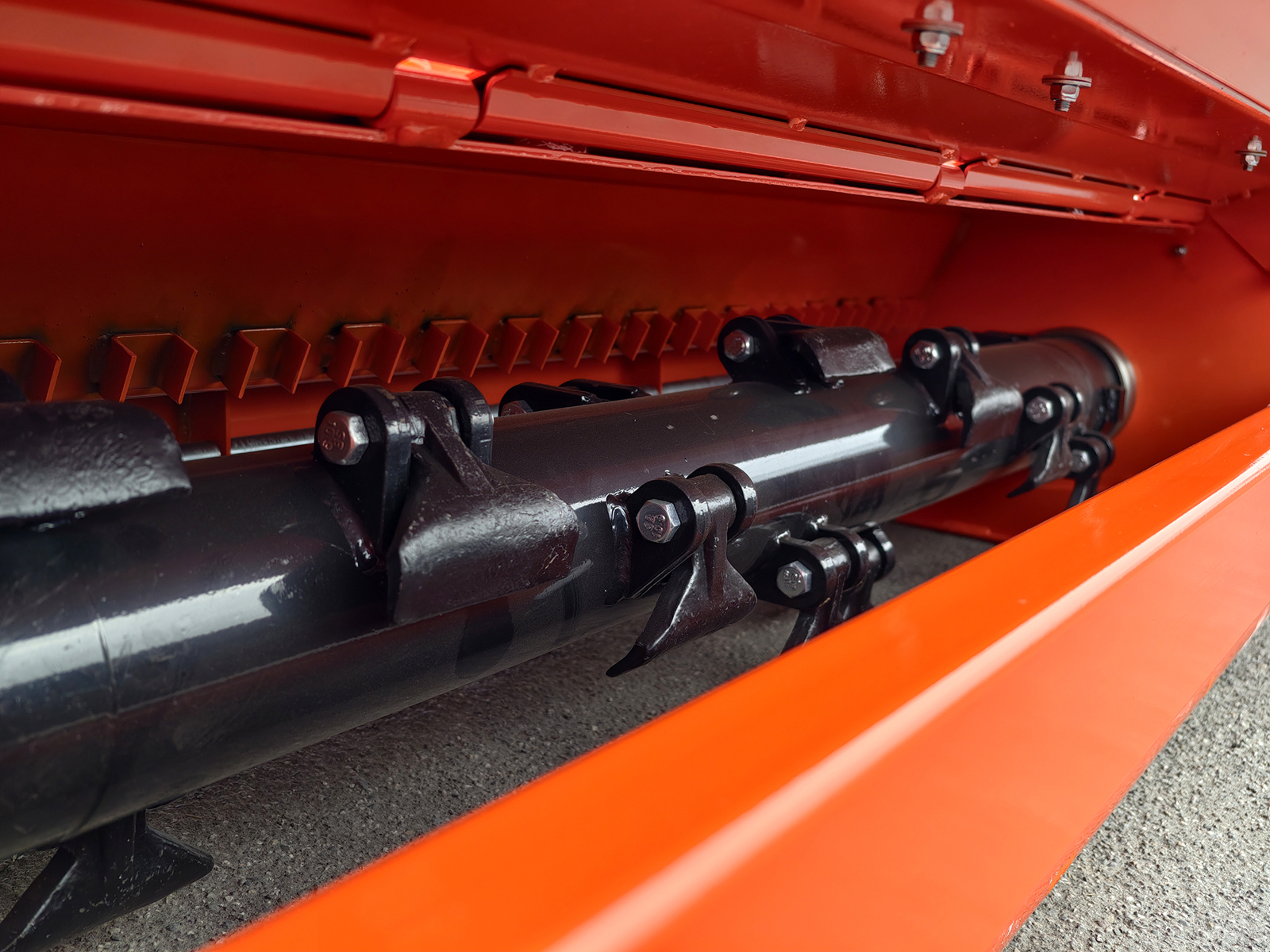

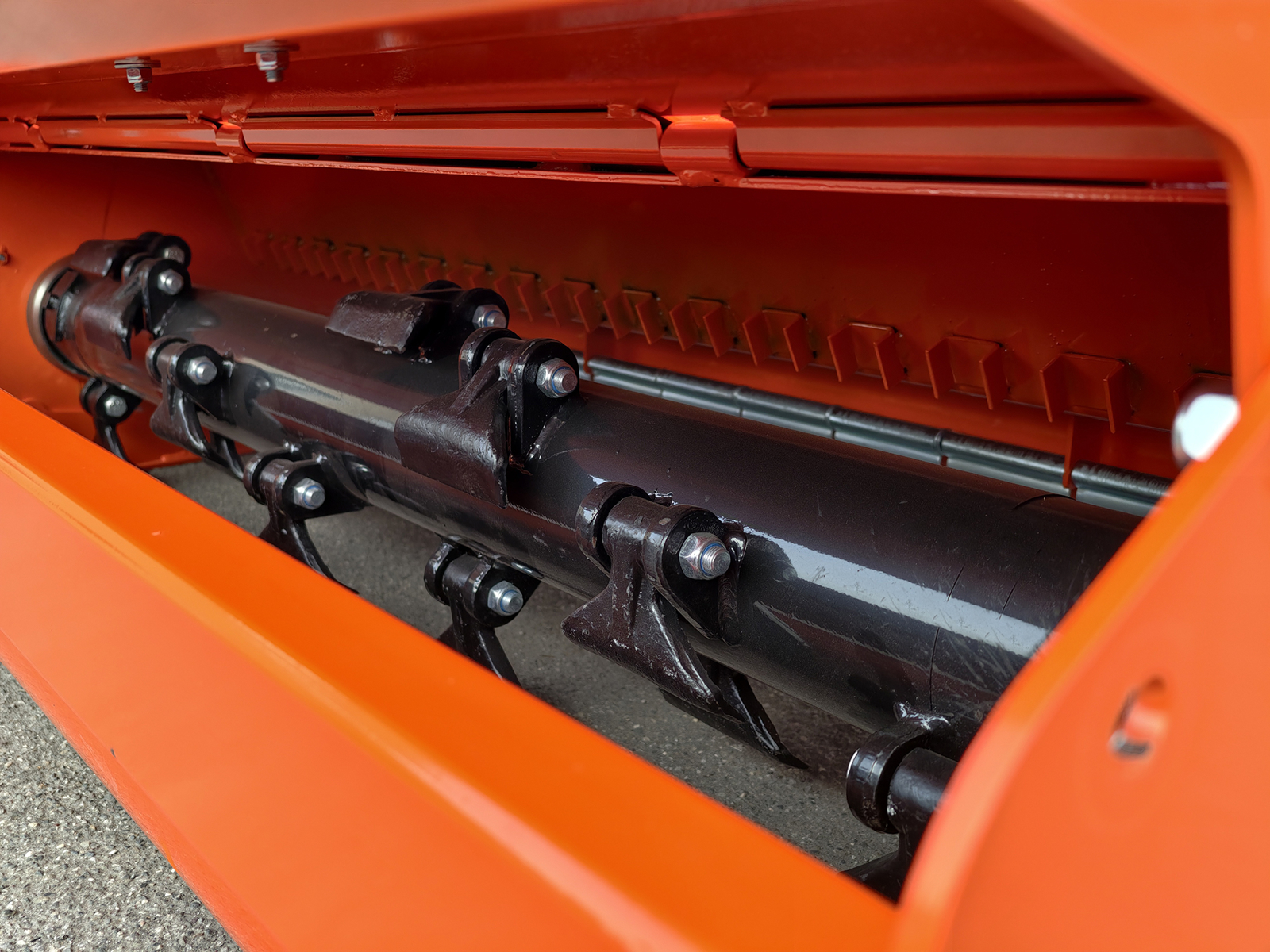

152 mm (6 in) rotor with 20 hammer flails of 1,100 g (2.4 lb)

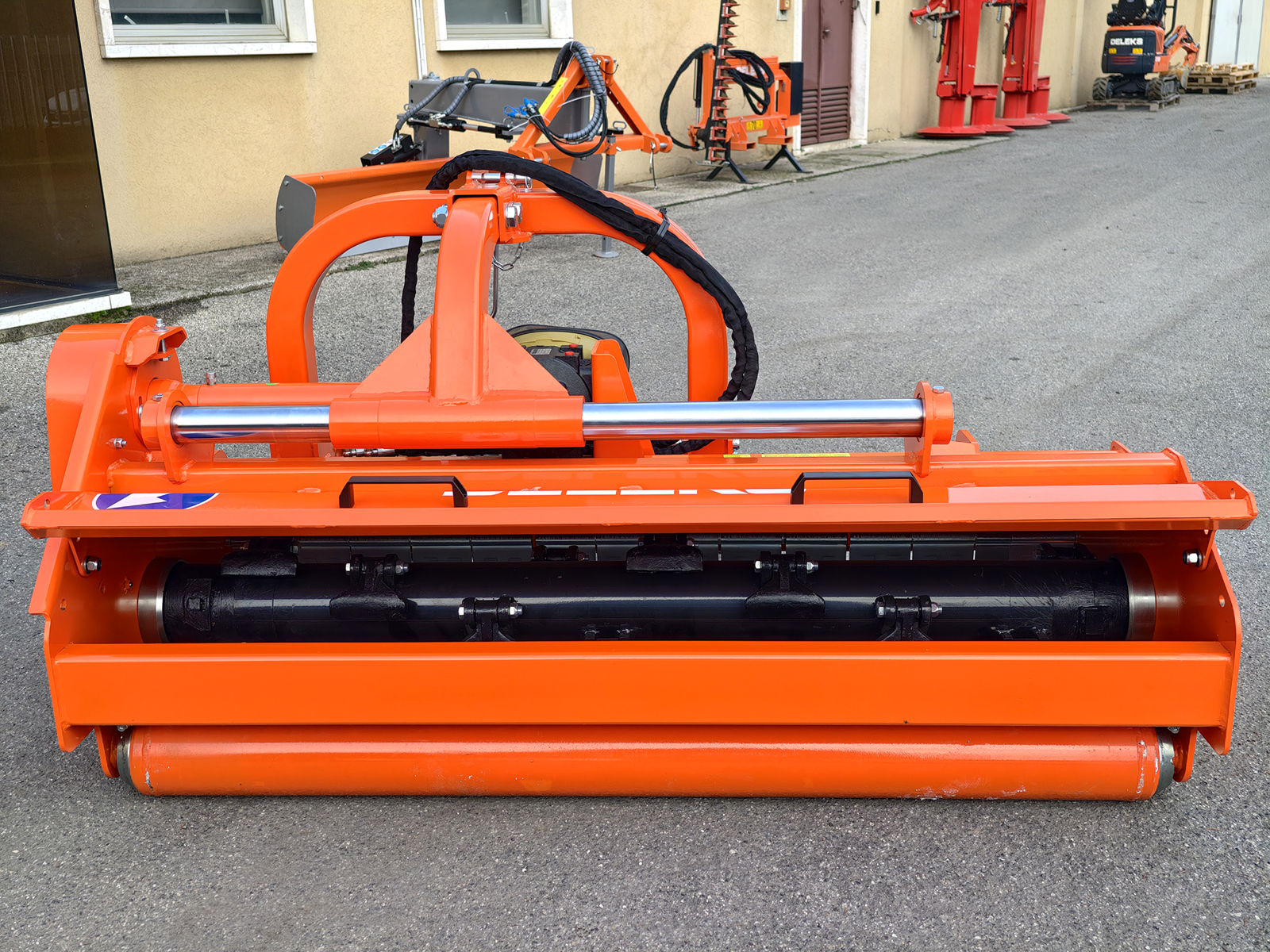

The rotor is 152 mm (6 in) in diameter, with an 8 mm (5/16 in) tube wall; it is electronically balanced and spins at 2,140 rpm. The 20 hammer flails weigh 1,100 g (2.4 lb) each and have a 140 mm (5.5 in) wide base: they shred long grass, brambles, scrub, vine prunings and other prunings up to 6-7 cm (2.4-2.8 in) thick, depending on the type and condition of the material. Inside the shredding chamber a row of counter-knives is welded to the hood: the material carried round by the rotor meets the counter-knives and is chopped again before it leaves. On request the CERVO-220 can be fitted with triple blades instead of the hammer flails, using the COLTELLI60TORO kit.

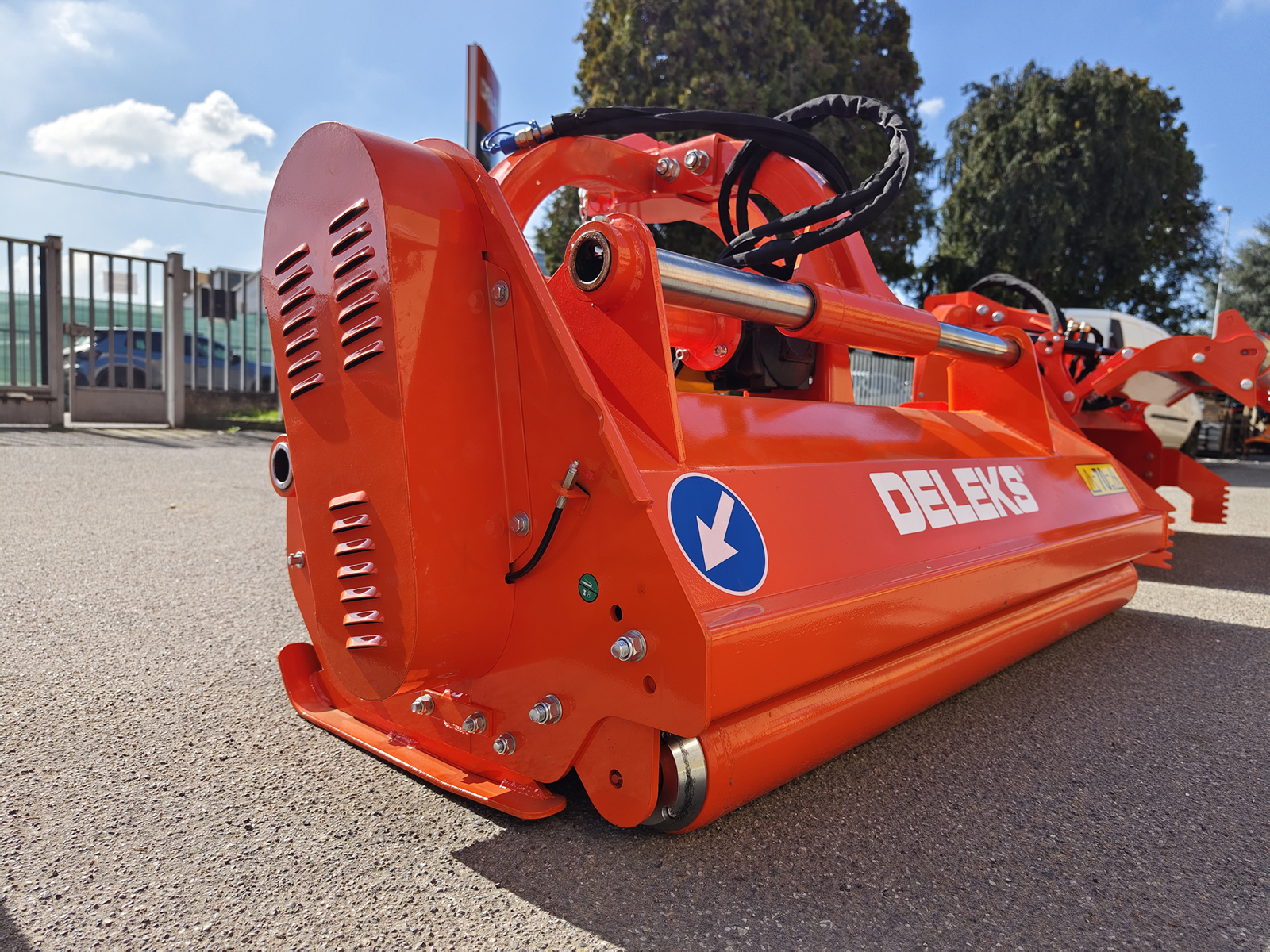

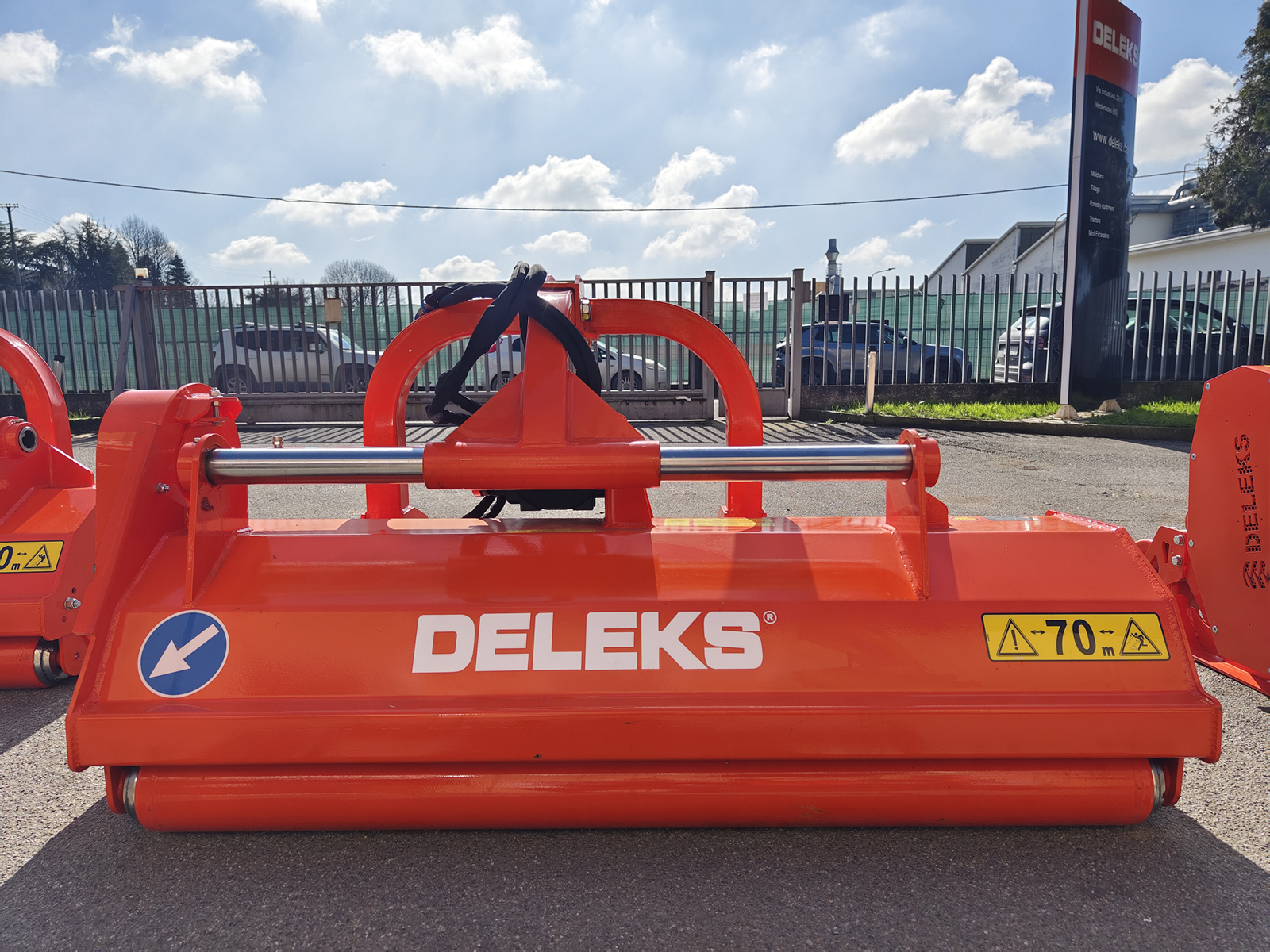

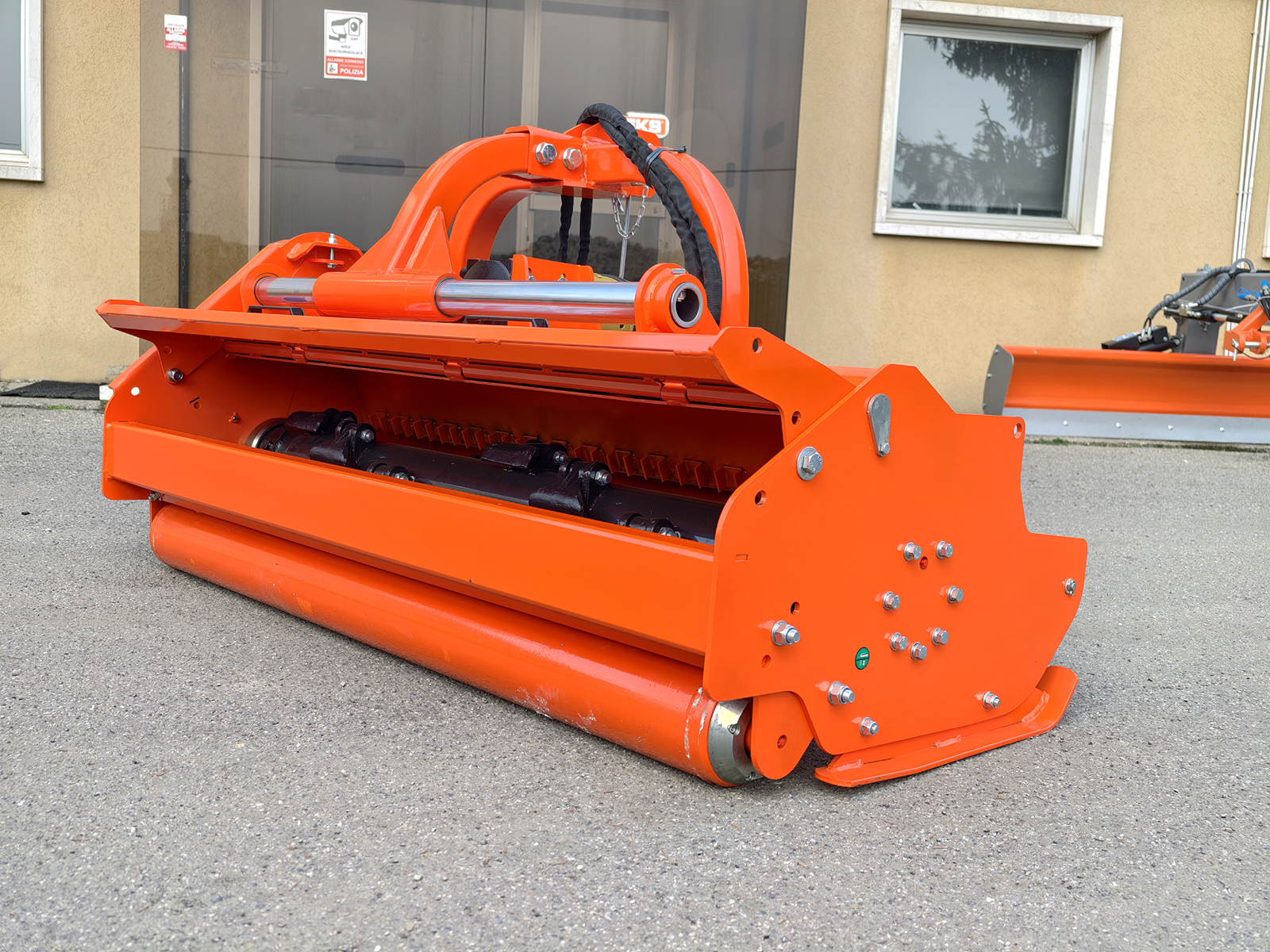

Double-skin hood, oversized roller and cutting height

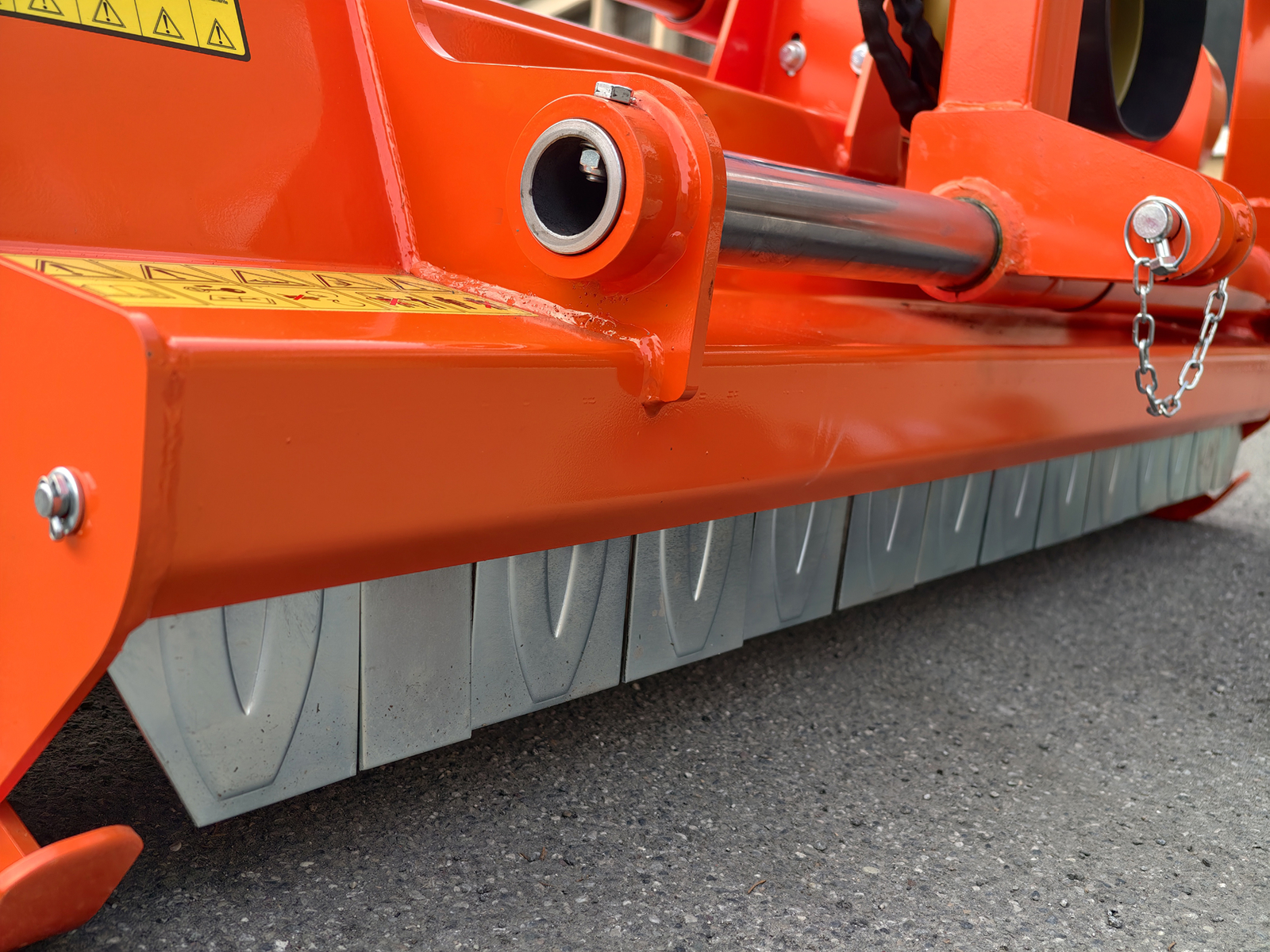

The CERVO-220 is built with a double-skin hood: the reinforced structure protects the body of the machine from knocks and from the stresses of shredding. The frame is 5 mm thick, with 8 mm side plates and 6 mm side skids. The oversized rear roller, 152 mm (6 in) in diameter, carries the machine and, with the side skids, sets the cutting height from 5 to 55 mm (0.2 to 2.2 in). The rear panel opens: it gives access to the shredding chamber and the rotor for inspection, cleaning and servicing.

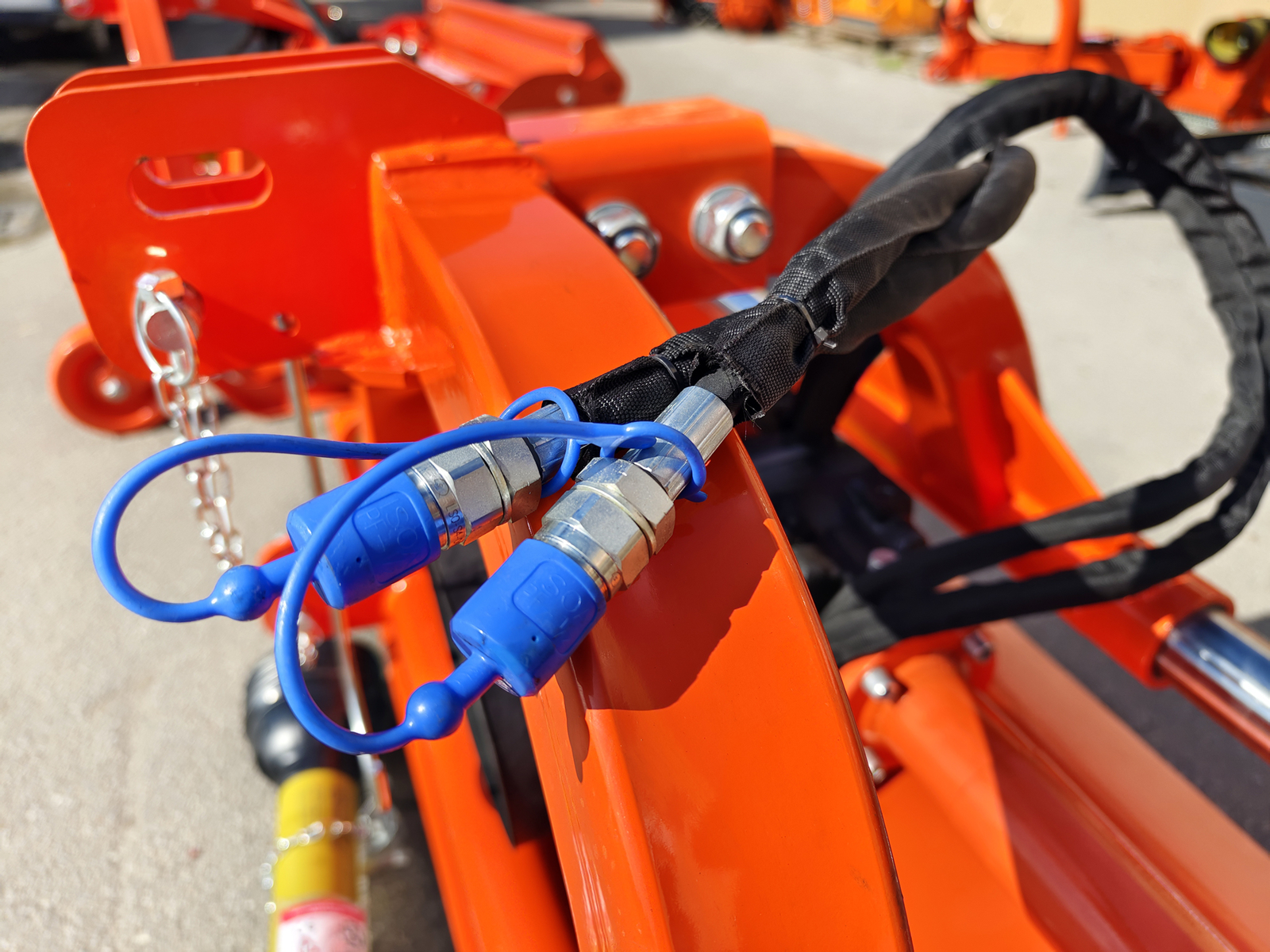

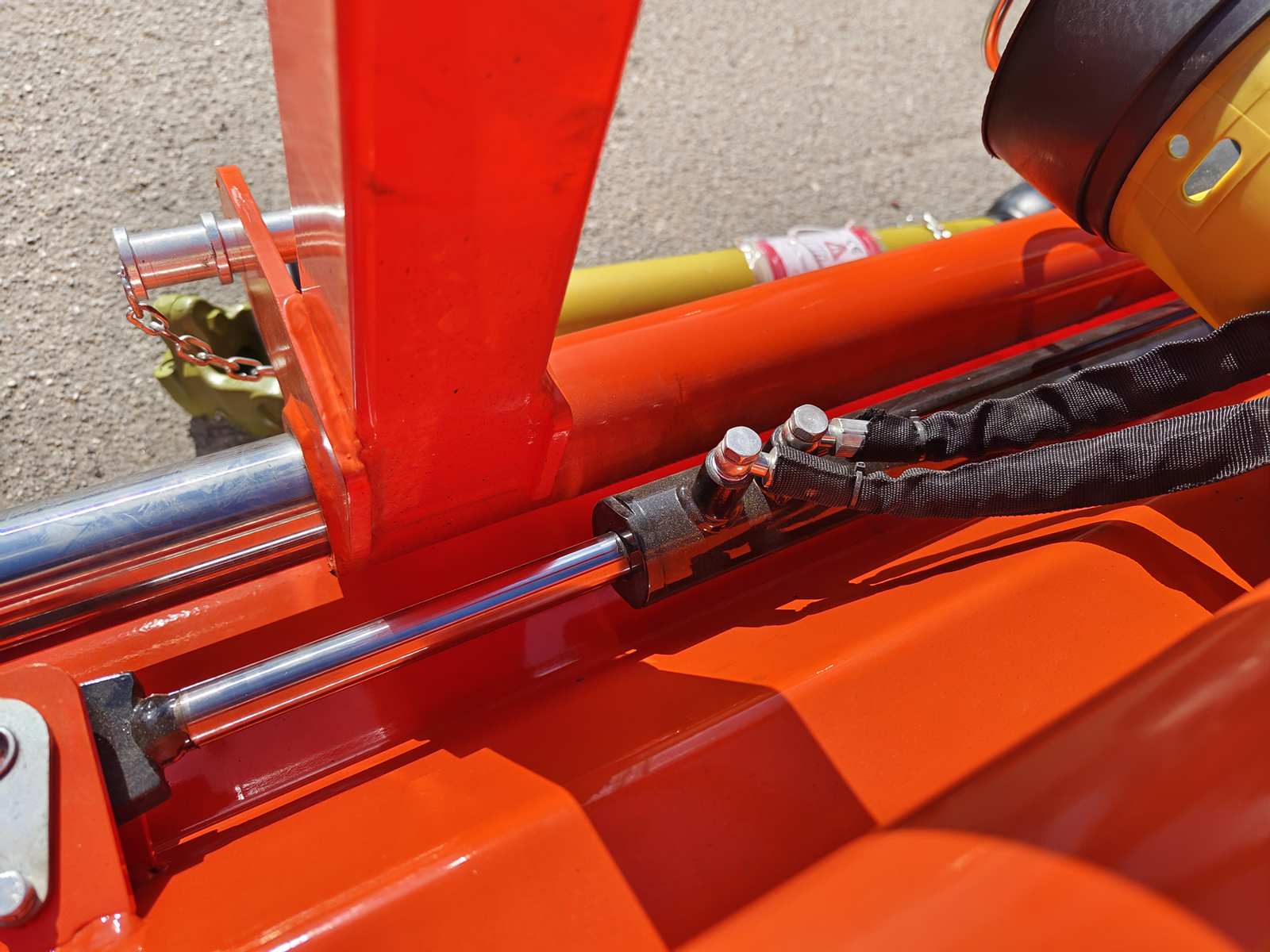

Hydraulic side shift of 40 cm (16 in)

The 40 cm (16 in) hydraulic side shift is worked from the seat with the tractor's spool valve: the mower runs centred or offset, along field edges, tight to the rows and wherever you need it out to one side of the tractor. It comes with 2 hydraulic hoses, 2.5 m (8 ft) long, with ½ in agricultural quick-release couplings.

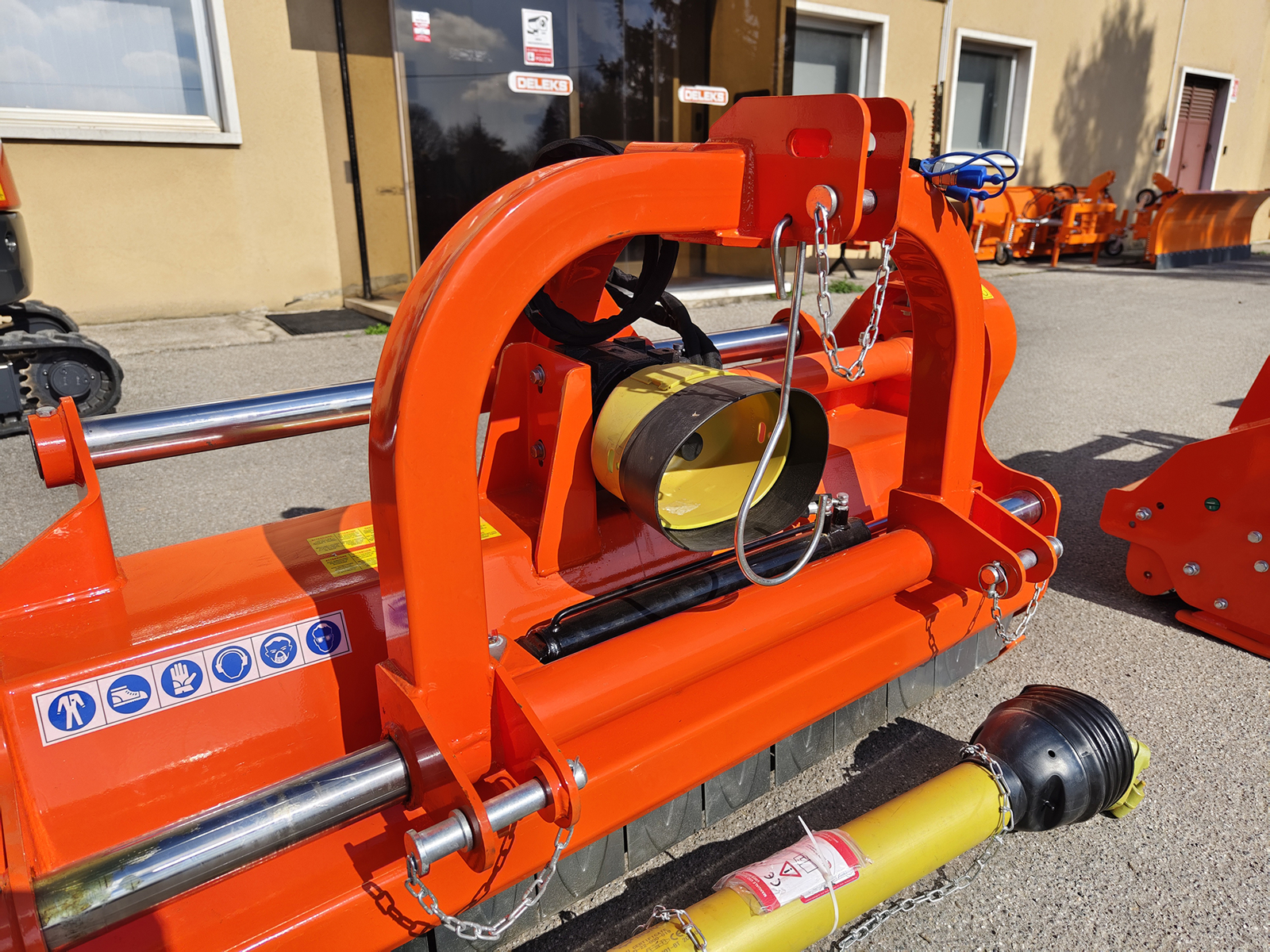

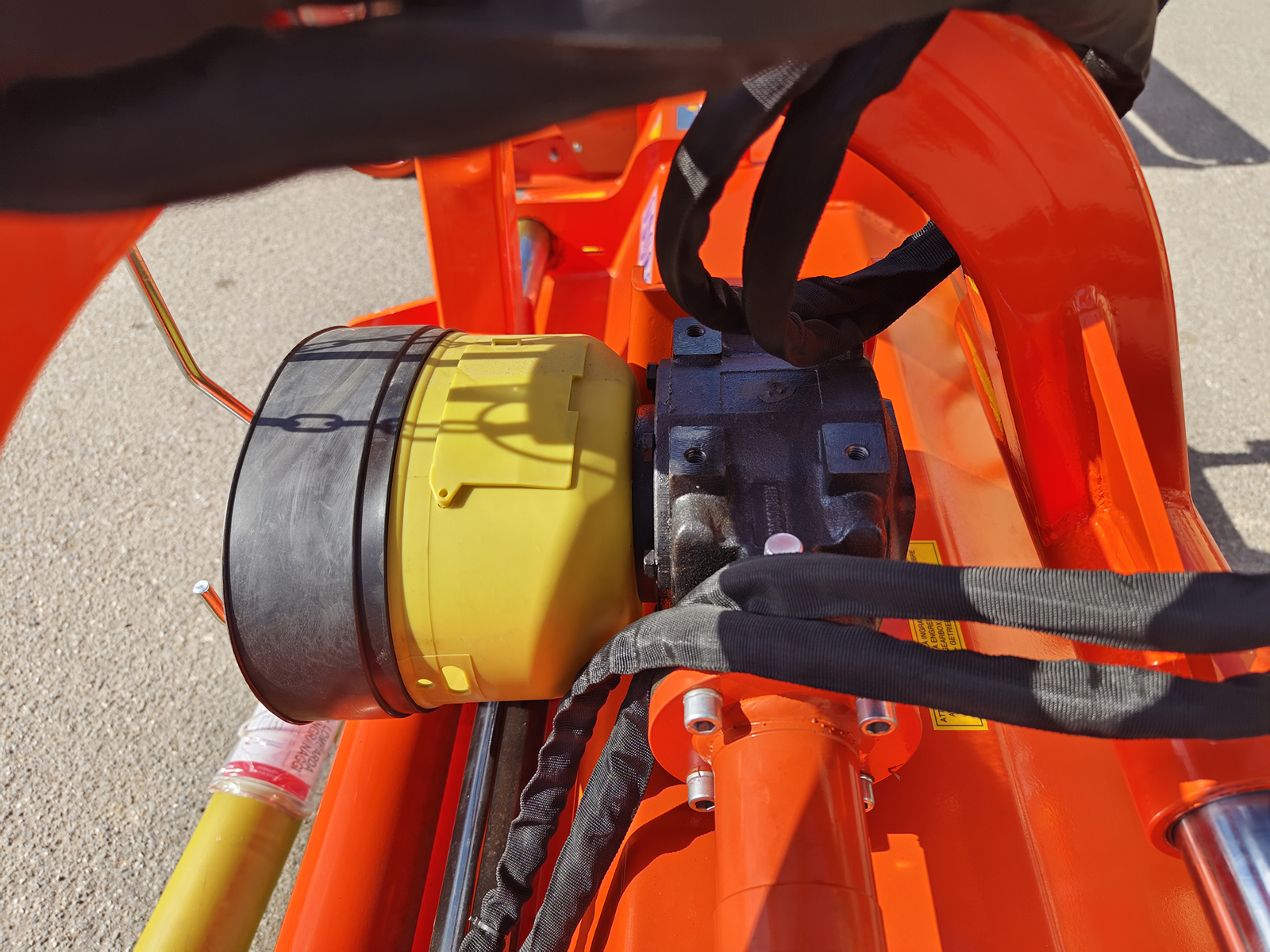

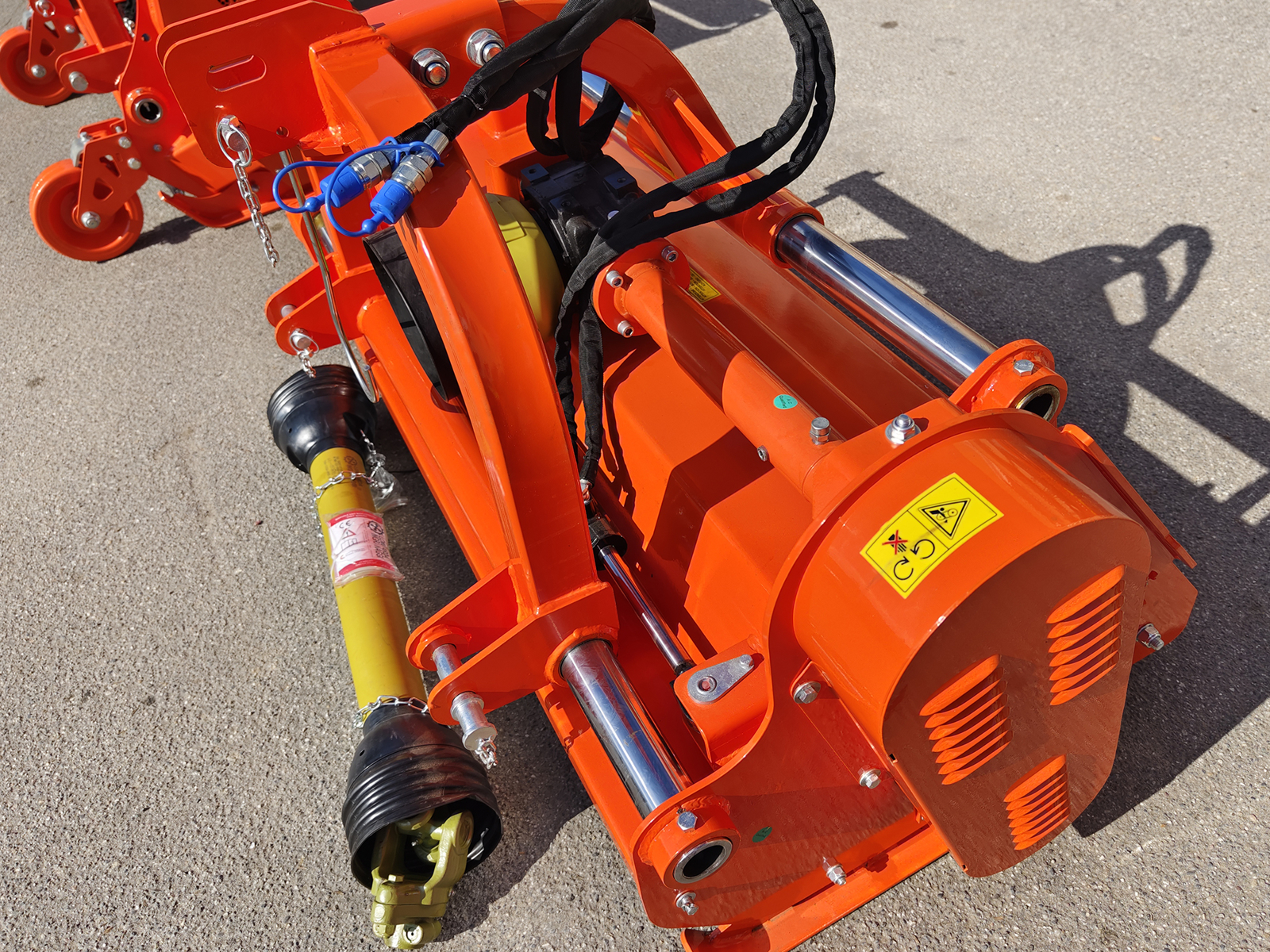

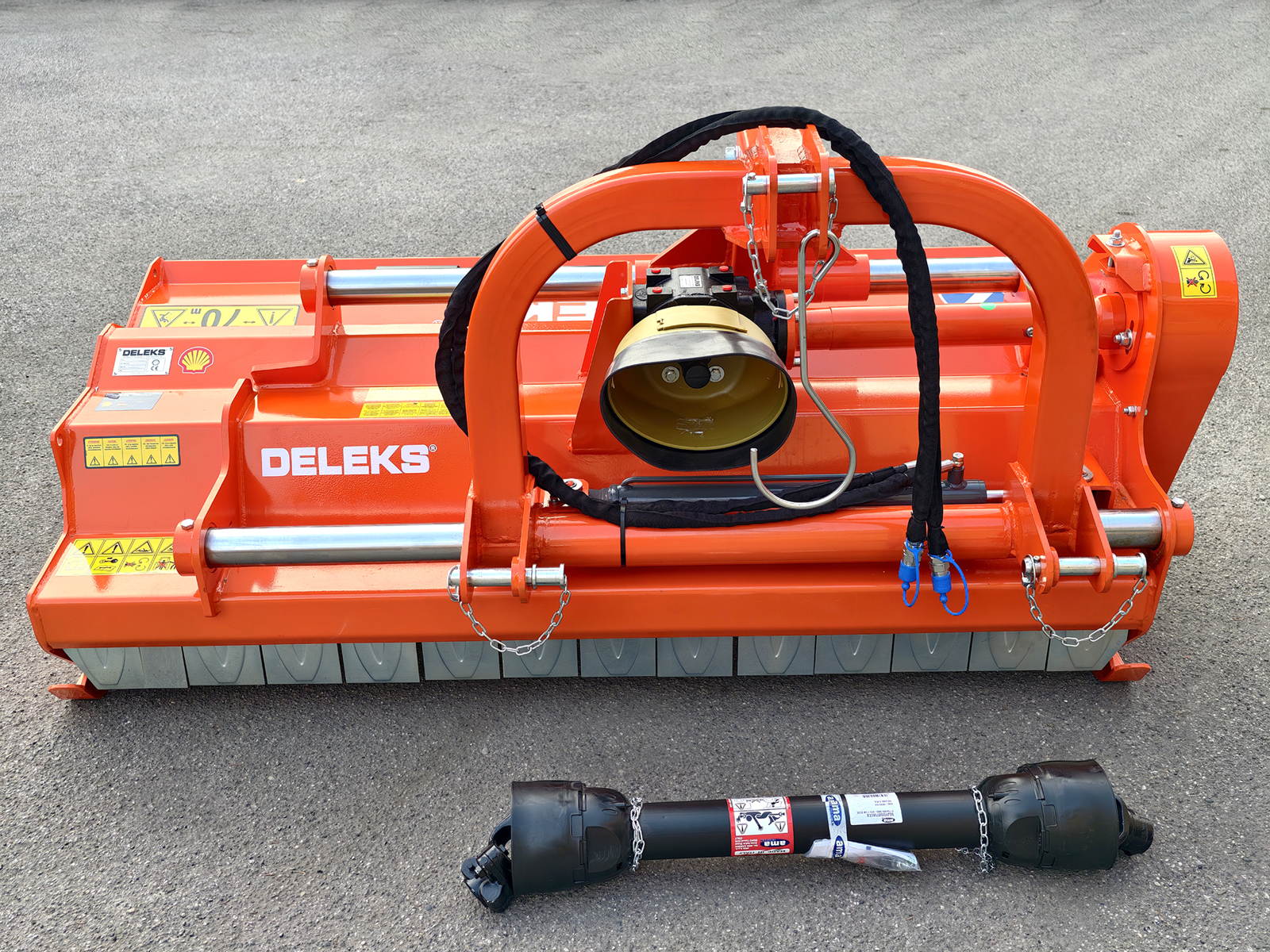

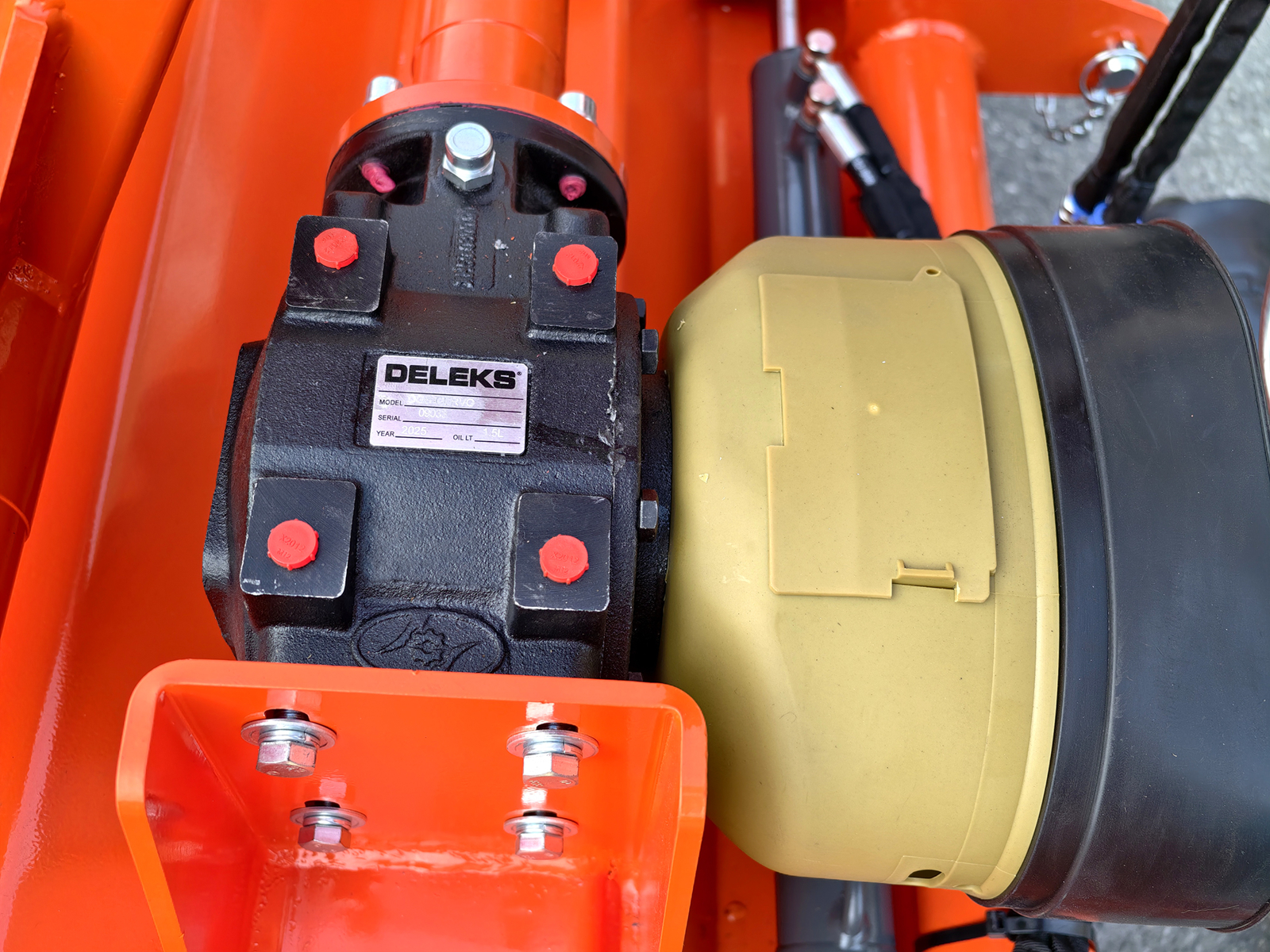

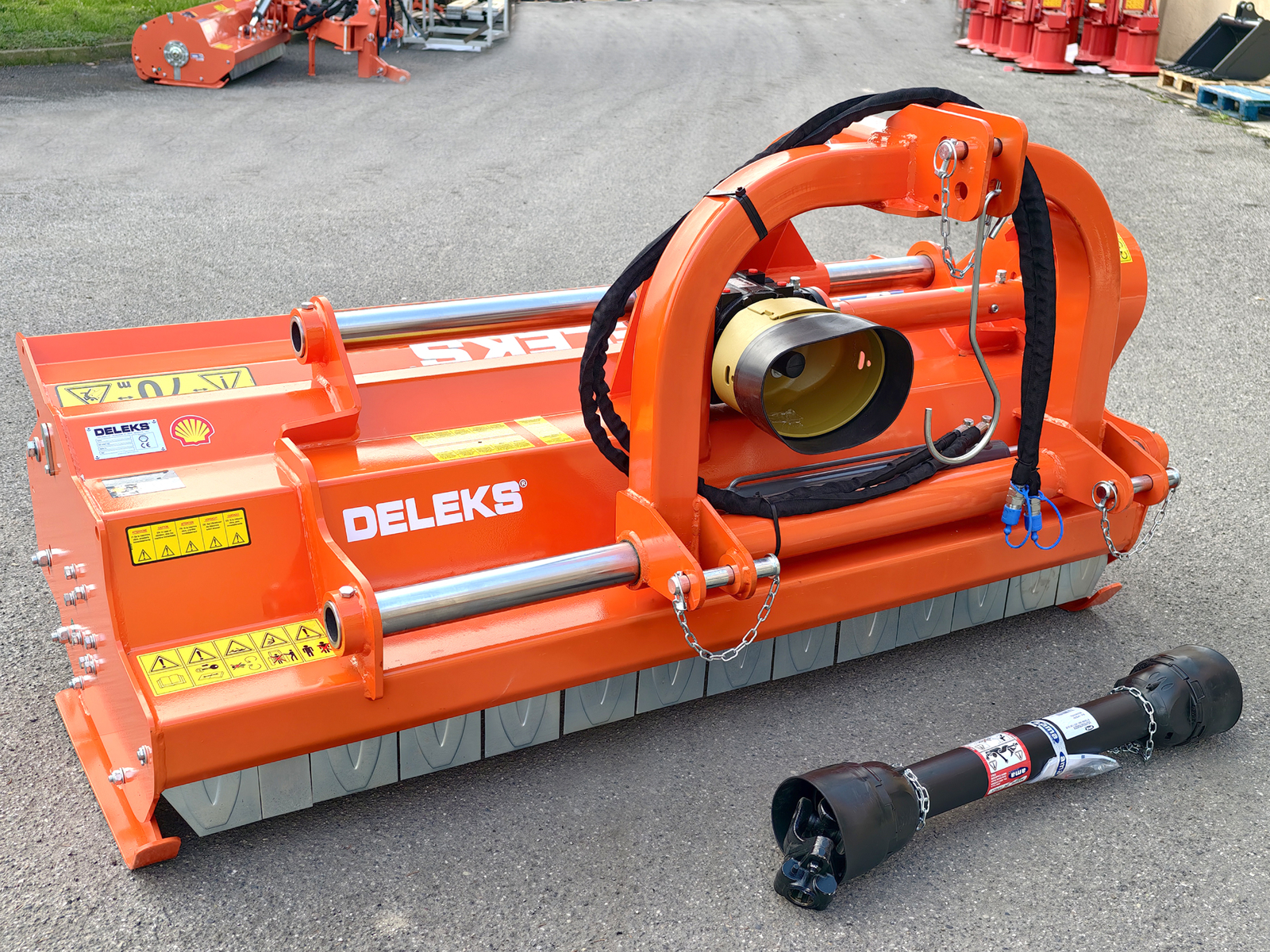

Gearbox with freewheel, 4 belts and PTO shaft

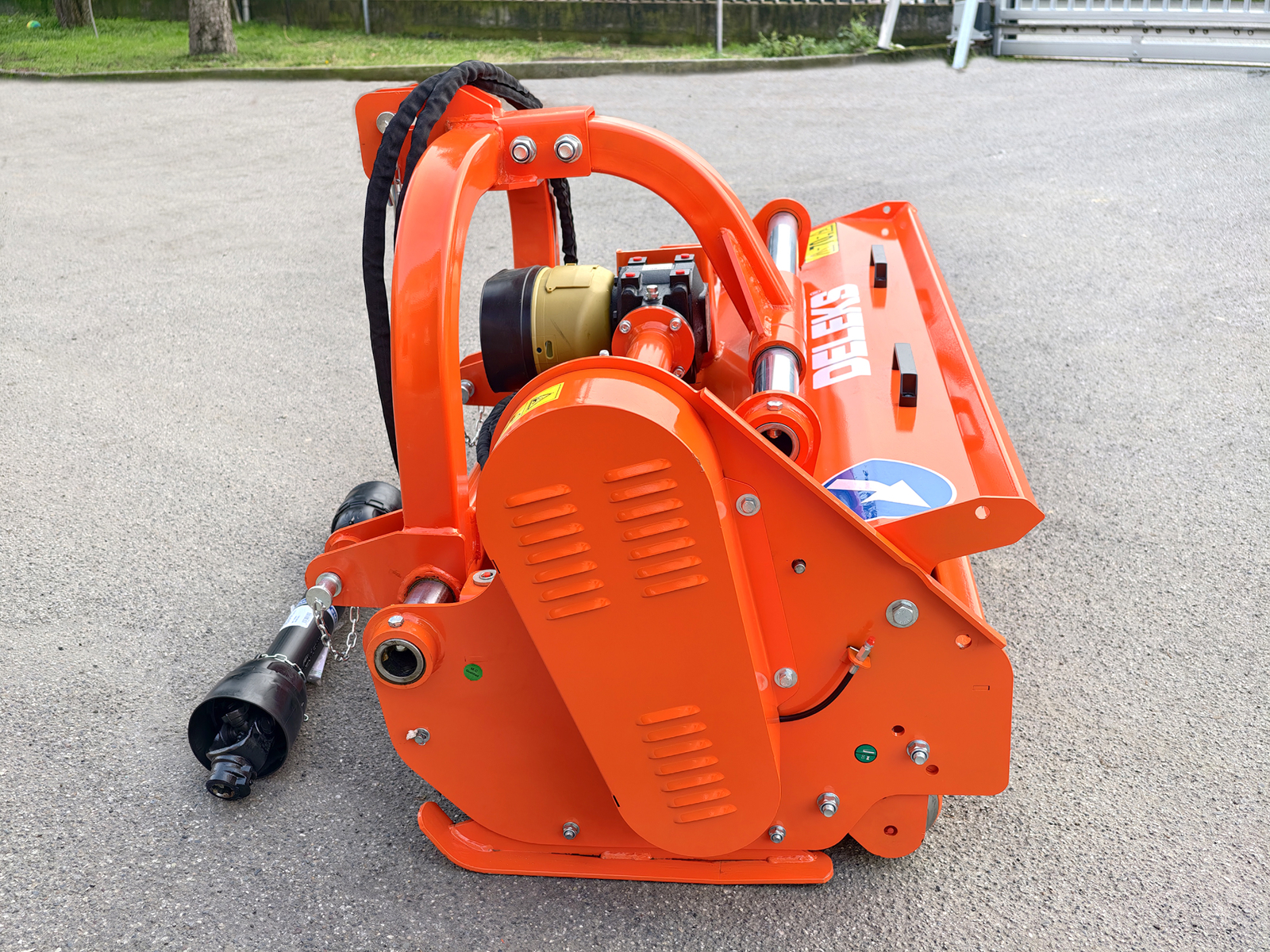

The gearbox for a 540 rpm PTO has a freewheel and a 3-year warranty: when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. Drive reaches the rotor through 4 V-belts, 17x1270, on the side of the machine; belt tension is set from the outside, with the adjustable tensioner. The CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt, is included: the bolt shears under overload and protects the driveline.

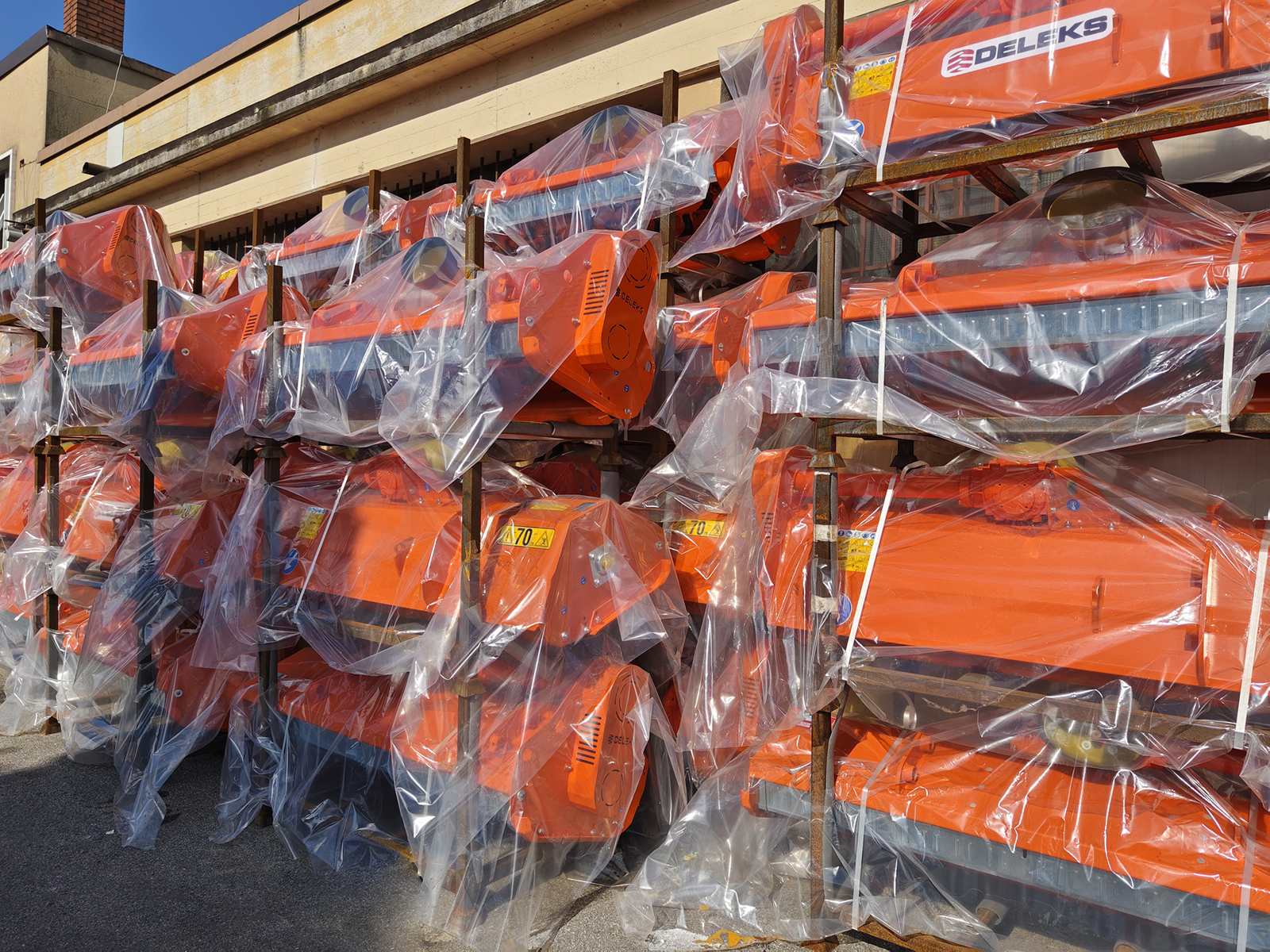

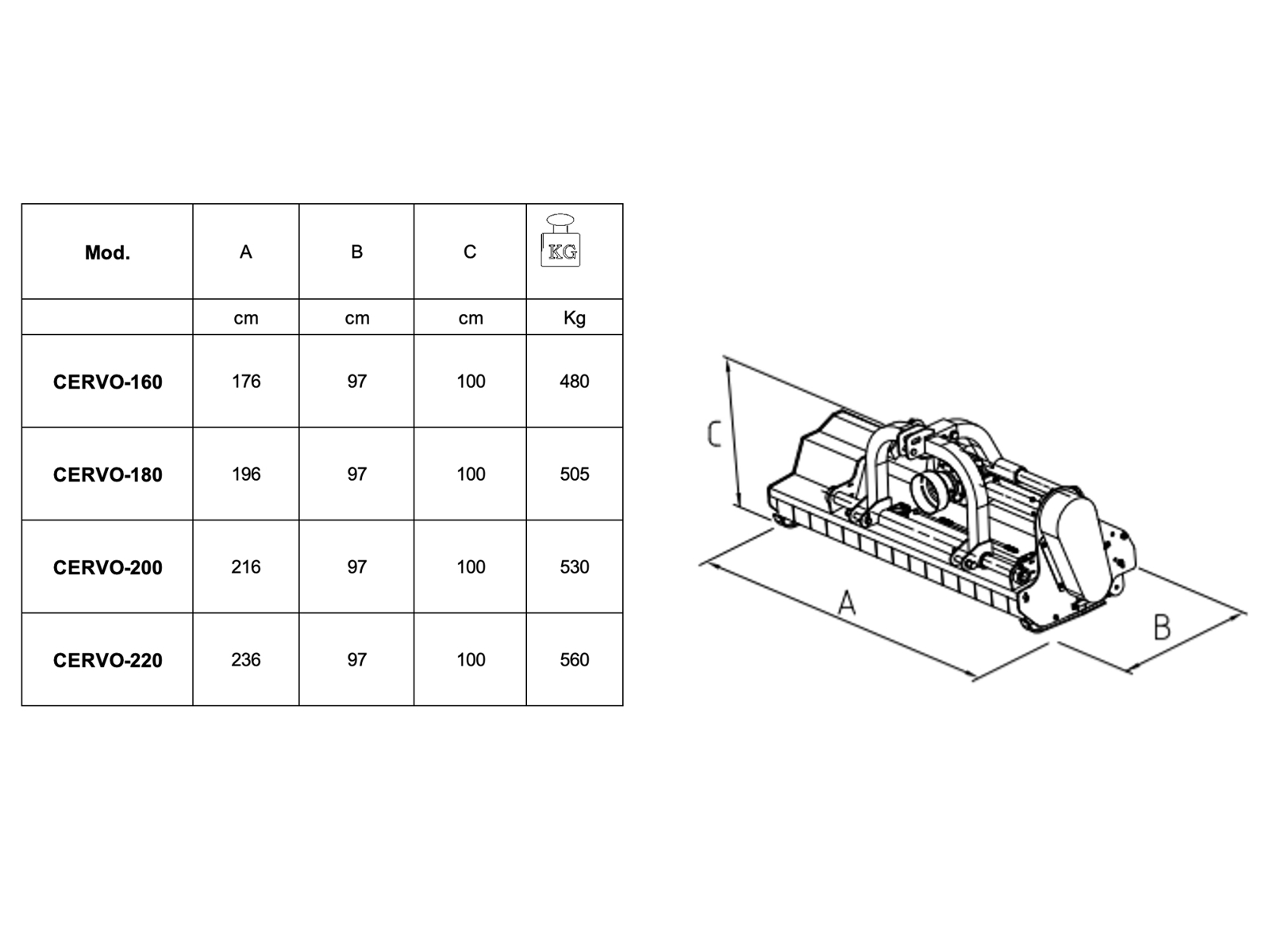

Dimensions, weight and delivery

Working width 2,200 mm (86.6 in), overall width 2,350 mm (92.5 in), length 1,030 mm (40.6 in), height 1,050 mm (41.3 in), weight 560 kg (1,235 lb). It ships on a Euro pallet, protected by a steel crate, in packaging measuring 235 × 105 × 105 cm (93 × 41 × 41 in), 716 kg (1,579 lb) gross, 2.59 m³, with free delivery within the EU: before dispatch DELEKS® checks the oil and grease levels. To keep the package compact, the three-point headstock travels dismantled and has to be fitted before use. For delivery, the address must be accessible to an articulated lorry (a 24-tonne artic) and you need a forklift to unload the pallet. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.


Where it works

  • Vineyards, orchards and olive groves: vine prunings and other prunings up to 6-7 cm (2.4-2.8 in), grass between the rows
  • Rough ground and land being reclaimed: long grass, brambles and scrub
  • Field edges, ditches and rows: working offset with the hydraulic side shift
  • Open fields: stubble and crop residues
  • On the flat and on slopes, with wheeled or tracked tractors from 70 to 100 hp

Options and spares

From this page you can add to your order the kit of 10 hammer flails (MAZZE10A), the 10 nuts and bolts for the flails (DB10A), the kit of 60 blades (COLTELLI60TORO), the spare set of 4 belts (CINGHIE4A), the DISC-603T hydraulic inter-row disc (code DISC603T), the universal PTO adapter (RID1), the 680 mm (26.8 in) top link (BE0124) and the 730 mm (28.7 in) top link (BE0125). Other spares are identified on the exploded diagrams with our technical team.


FAQ

What size tractor does the CERVO-220 need?
From 70 to 100 hp, with a 540 rpm PTO and a category 2 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 560 kg (1,235 lb).

What size branches will it shred?
Vine prunings, other prunings and woody material up to 6-7 cm (2.4-2.8 in) thick, depending on the type and condition of the material, as well as long grass, brambles and scrub. For saplings and branches up to 15 cm (6 in) there is the GORILLA forestry mulcher.

Hammer flails or blades?
It comes with 20 hammer flails of 1,100 g (2.4 lb); on request it can be fitted with triple blades, using the COLTELLI60TORO kit.

How does the side shift work?
It is hydraulic, 40 cm (16 in): you work it from the seat with the tractor's spool valve, even on the move.

How do you set the cutting height?

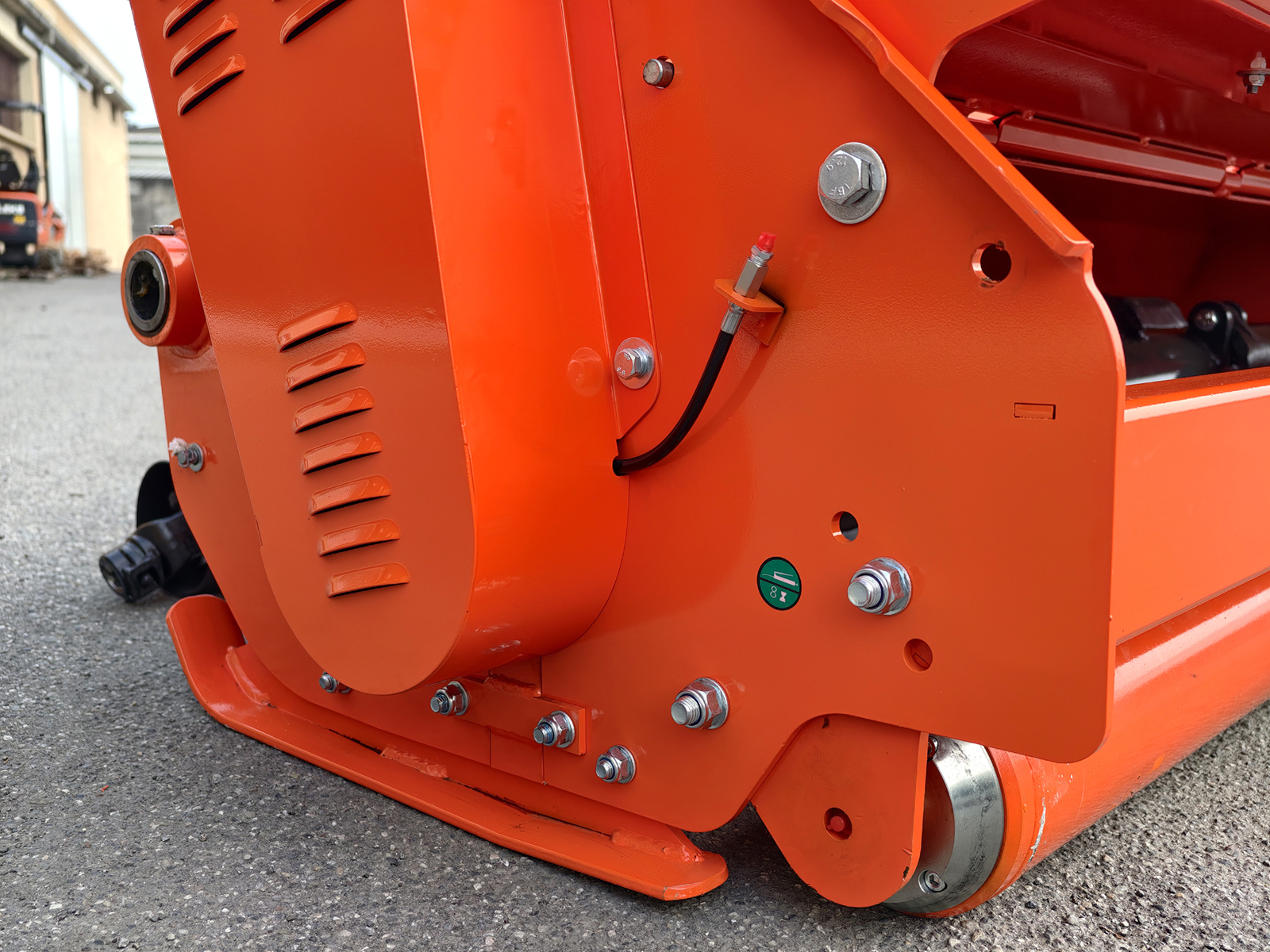

From 5 to 55 mm (0.2 to 2.2 in), with the oversized rear roller and the side skids.

Is the PTO shaft included?

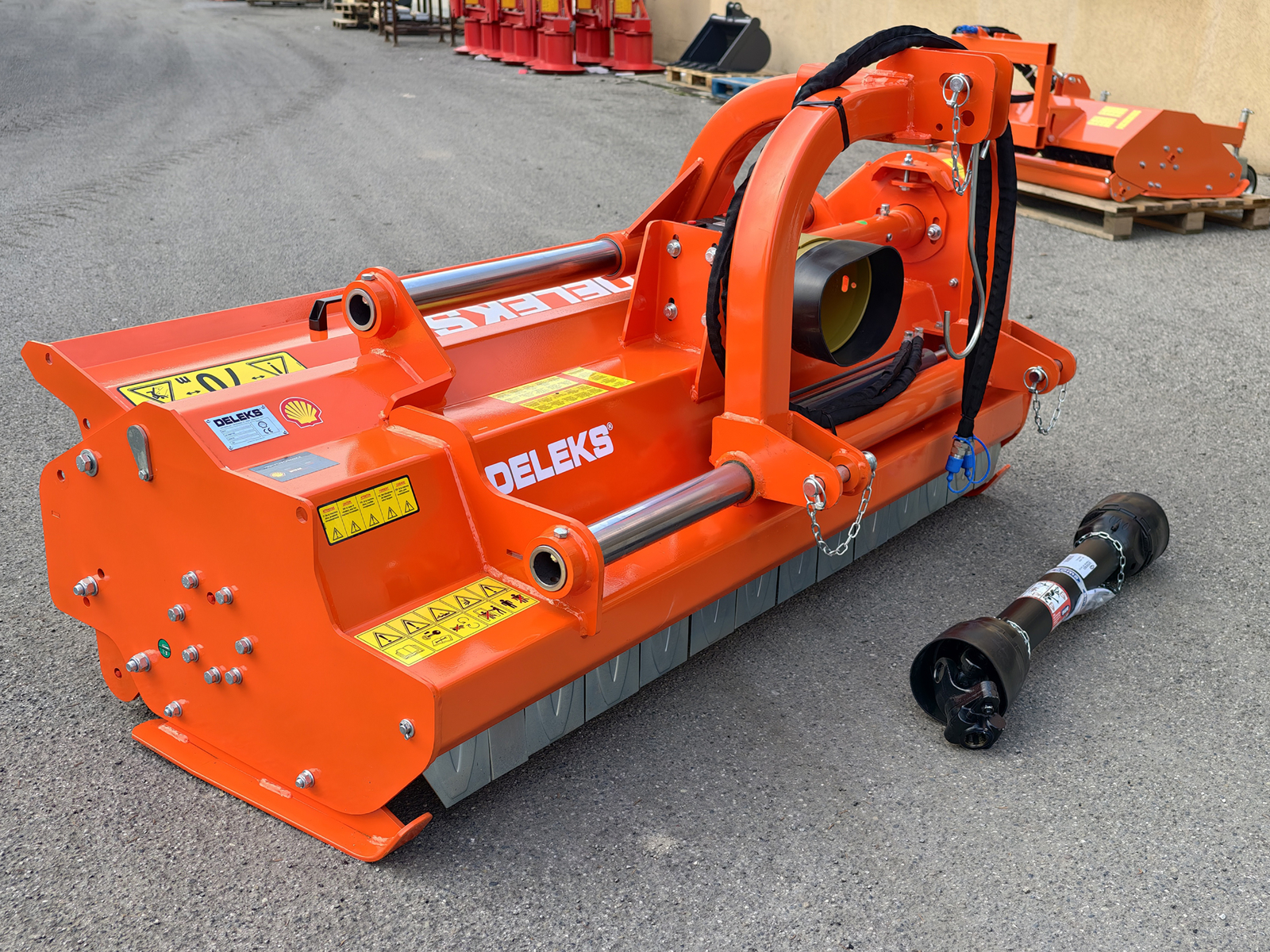

Yes: a CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt.

How does it differ from the TORO?
The TORO is wider, from 200 to 240 cm (79 to 94 in), and heavier, from 690 to 770 kg (1,521 to 1,698 lb): 170 mm (6.7 in) rotor, 5 belts, 50 cm (20 in) hydraulic side shift, for tractors up to 120 hp. The CERVO runs from 160 to 220 cm (63 to 87 in) and from 480 to 560 kg (1,058 to 1,235 lb), for tractors from 50 to 100 hp.

How does it differ from the medium series?
The medium-series flail mowers have flails of 820 g (1.8 lb), weigh 285 to 428 kg (628 to 944 lb) and shred branches up to 4-5 cm (1.6-2 in). The CERVO-220 has flails of 1,100 g (2.4 lb), weighs 560 kg (1,235 lb) and shreds up to 6-7 cm (2.4-2.8 in).


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric
Working width 2200.0 mm
Overall width 2350.0 mm
Min / Max cutting height 5.0 - 55.0 mm
Weight 560.0 kg
Overall height 1050.0 mm
Tractor Power Range 70 - 100 Hp
3 point linkage Cat. 2 (ø 25.0-28.0mm)
Position of the gearbox 800.0 mm from left side / 1400.0 mm from right side
Hood height 500.0 mm
Spacing between the 2 lower points 740.0 - 890.0 mm
Number of Hammers 20
Maximum cutting diameter 60.0 - 80.0 mm
Overall length 1030.0 mm
Distance between pto attachment and ground 550.0 mm
Main hood thickness 5.0 mm
Sides thickness 8.0 mm
Side plates thickness 6.0 mm
Transmission: Drive method V-Belts
Transmission: Gearbox JCTT - 3 years warranty
Transmission: PTO 540 r/min
Transmission: Rotation of gearbox Right side
Transmission: Free wheel √
Transmission: RPM Rotor speed 2140 rpm
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925
Transmission: V-Belts quantity 4
Transmission: V-Belts size 17x1270
Rotor: diameter 152.0 mm

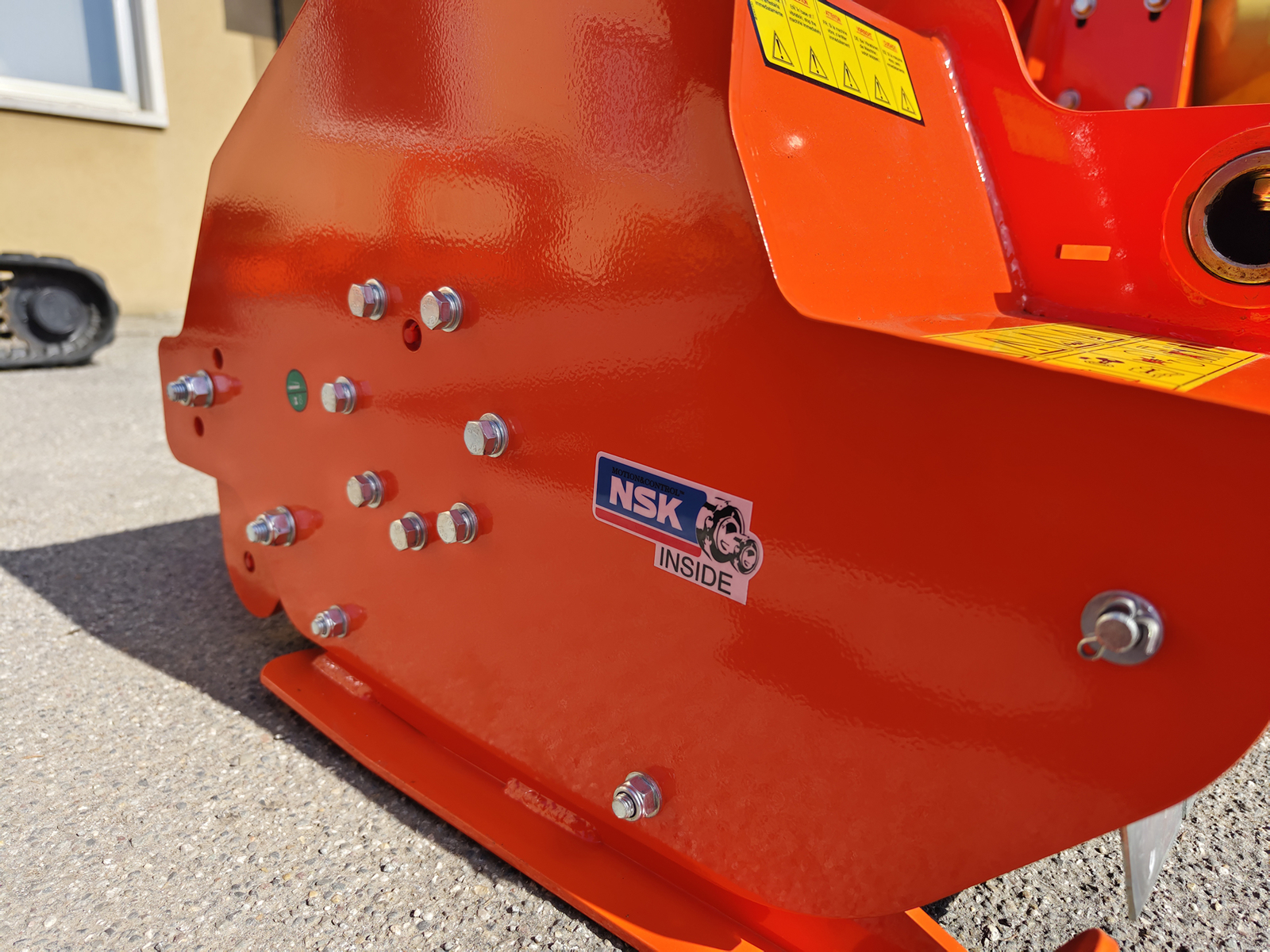

Rotor: bearings type and size 40x90
Rotor: balancing Electronic
Rotor: sheet thickness 8.0 mm
Hammers: Weight 1100.0 g
Hammer: øhole 16.0 mm
Hammer: base width 140.0 mm
Hammer: top width 40.0 mm
Hammer: Diagonal 97.0 mm
Rear roller: diameter 152.0 mm
Rear roller: sheet thickness 6.0 mm
Rear roller: bearings type and size 90x40 mm - GB276-6308
Hydraulic Hoses 2500.0 mm / connections 1/2" AGRI, WP-400 bar
Pto shaft CE 6x1000 mm + shear bolt
Hood length 1000.0 mm
Effective Displacement 400.0 mm (Hydraulic)
Gross shipping weight 716 kg
Package volume 2.59 m3
Packing sizes 2350.0*1050.0*1050.0 mm

Certifications

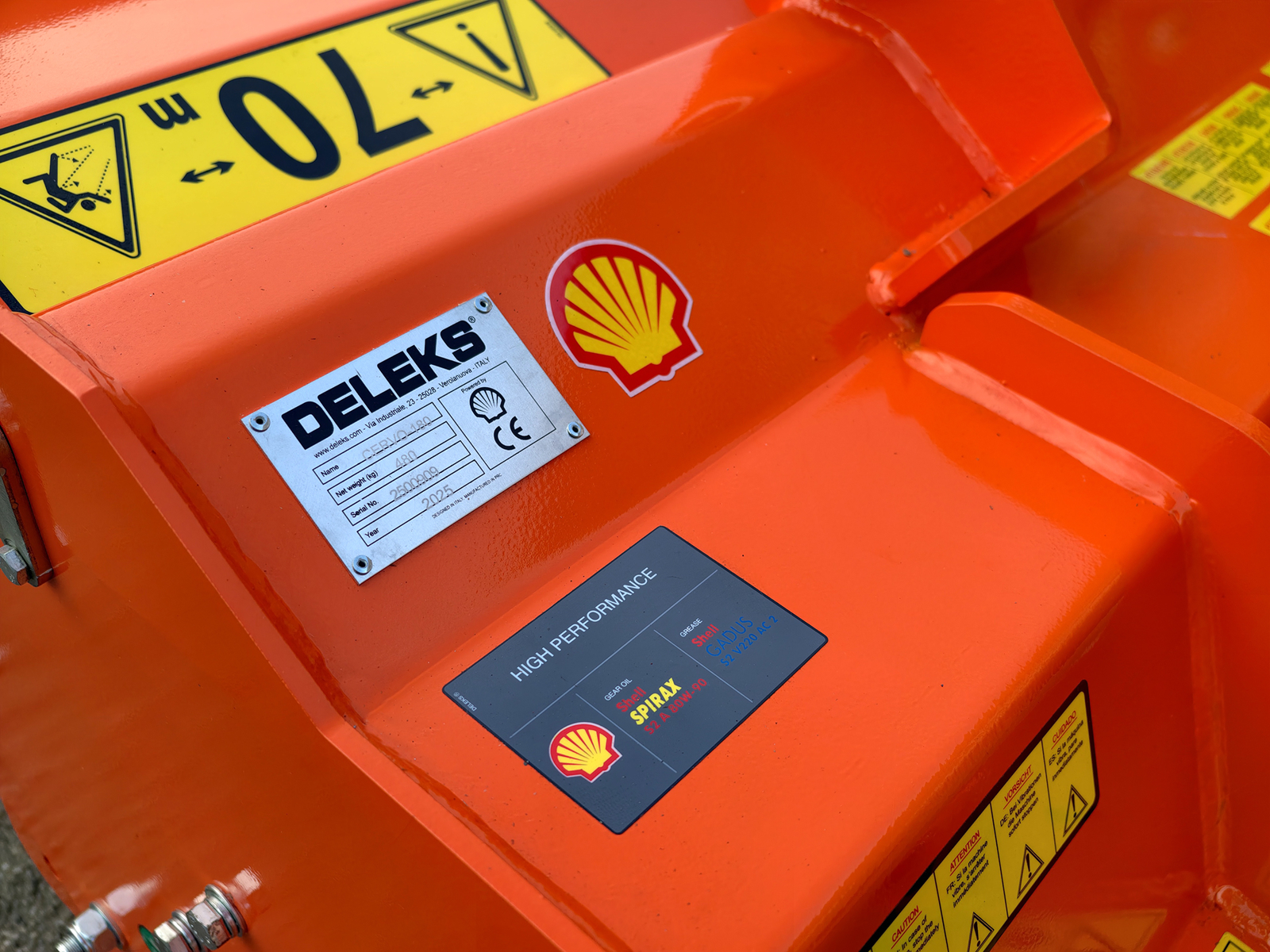

Shell Spirax S2 A 80W-90: Specifications   Download PDF
ARVEDI / TUBINDUSTRIA: Certification   Download PDF
SSAB Laser 355MC   Download PDF
