Ripper for miniexcavator S180

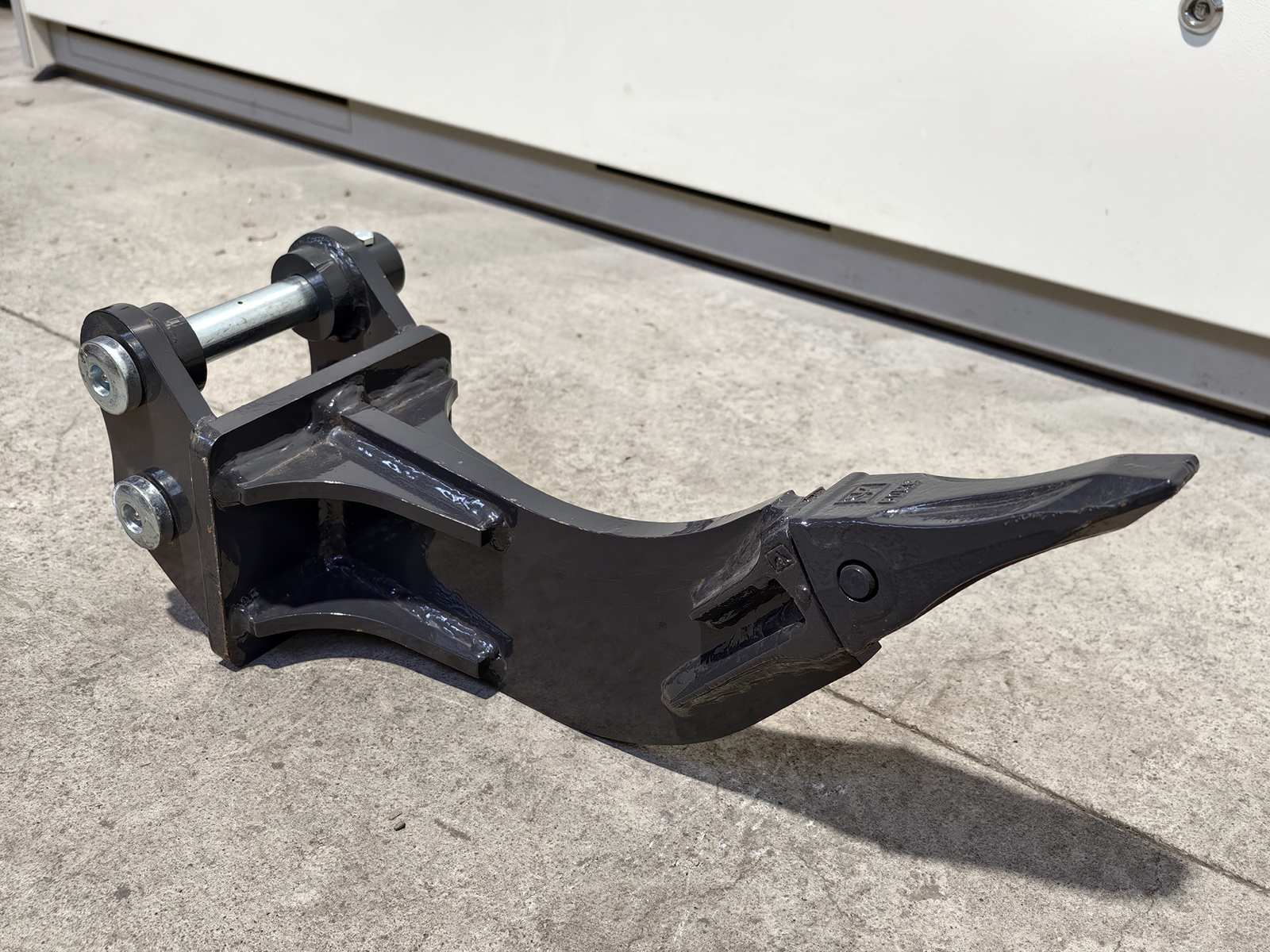

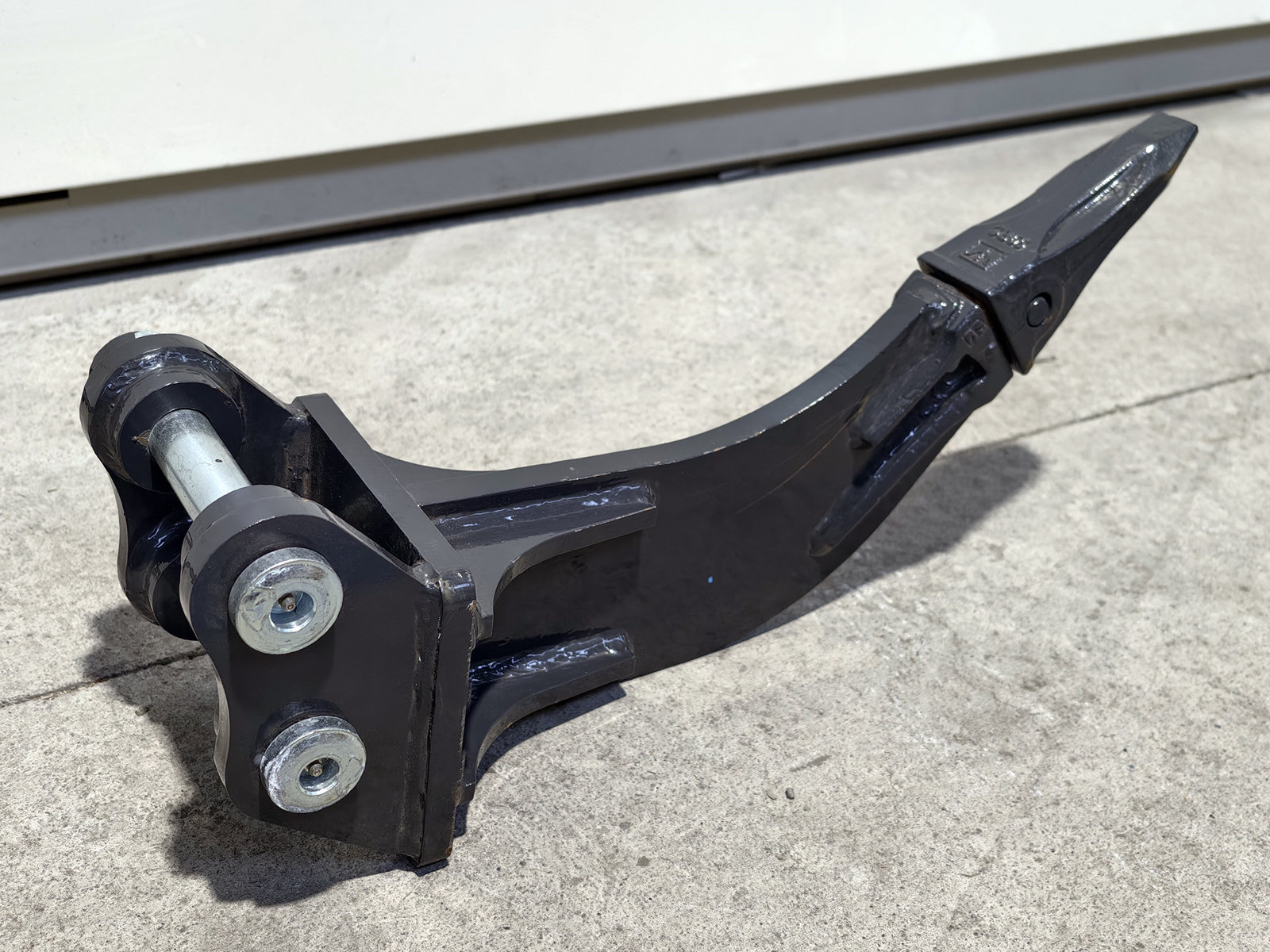

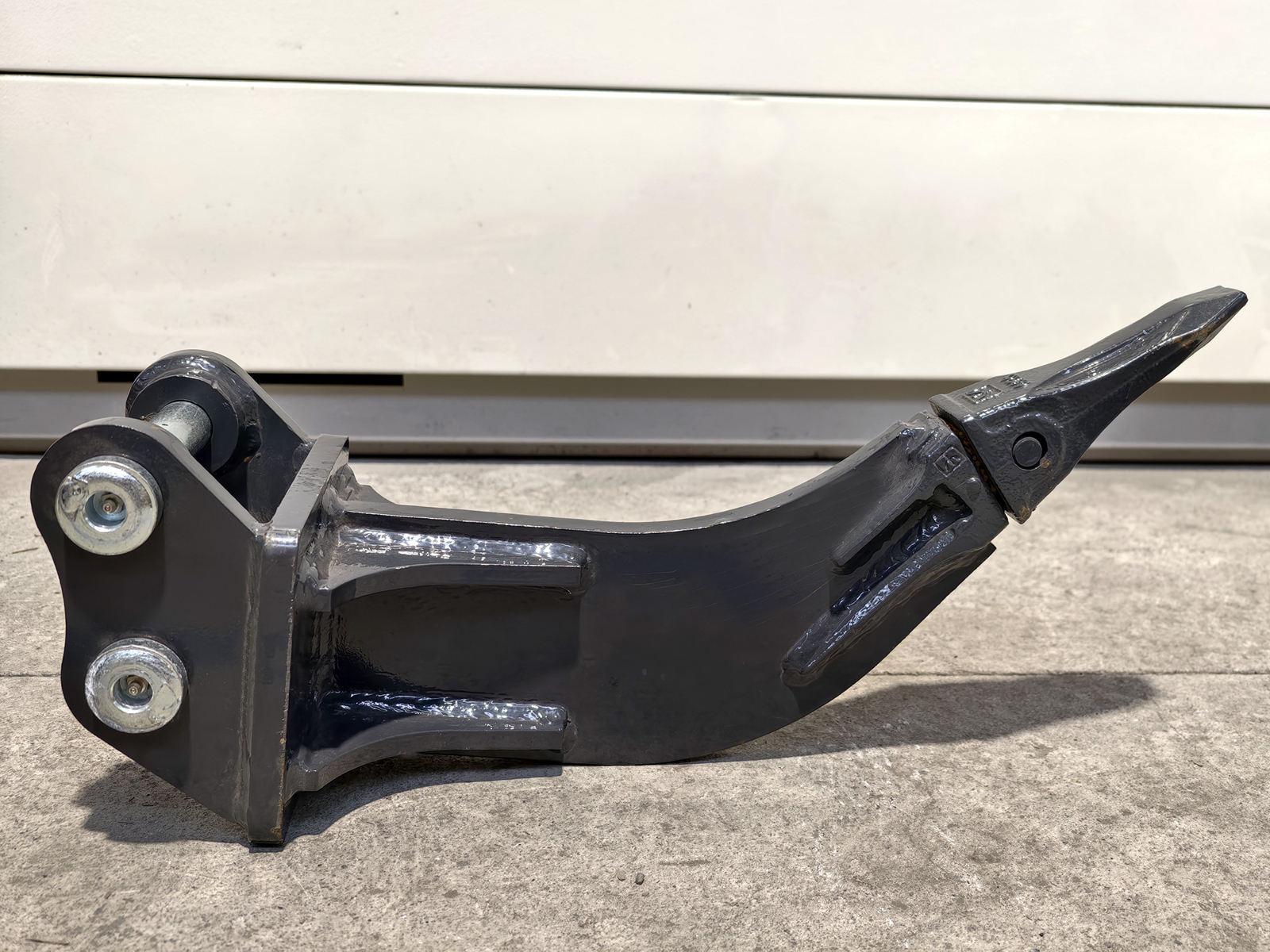

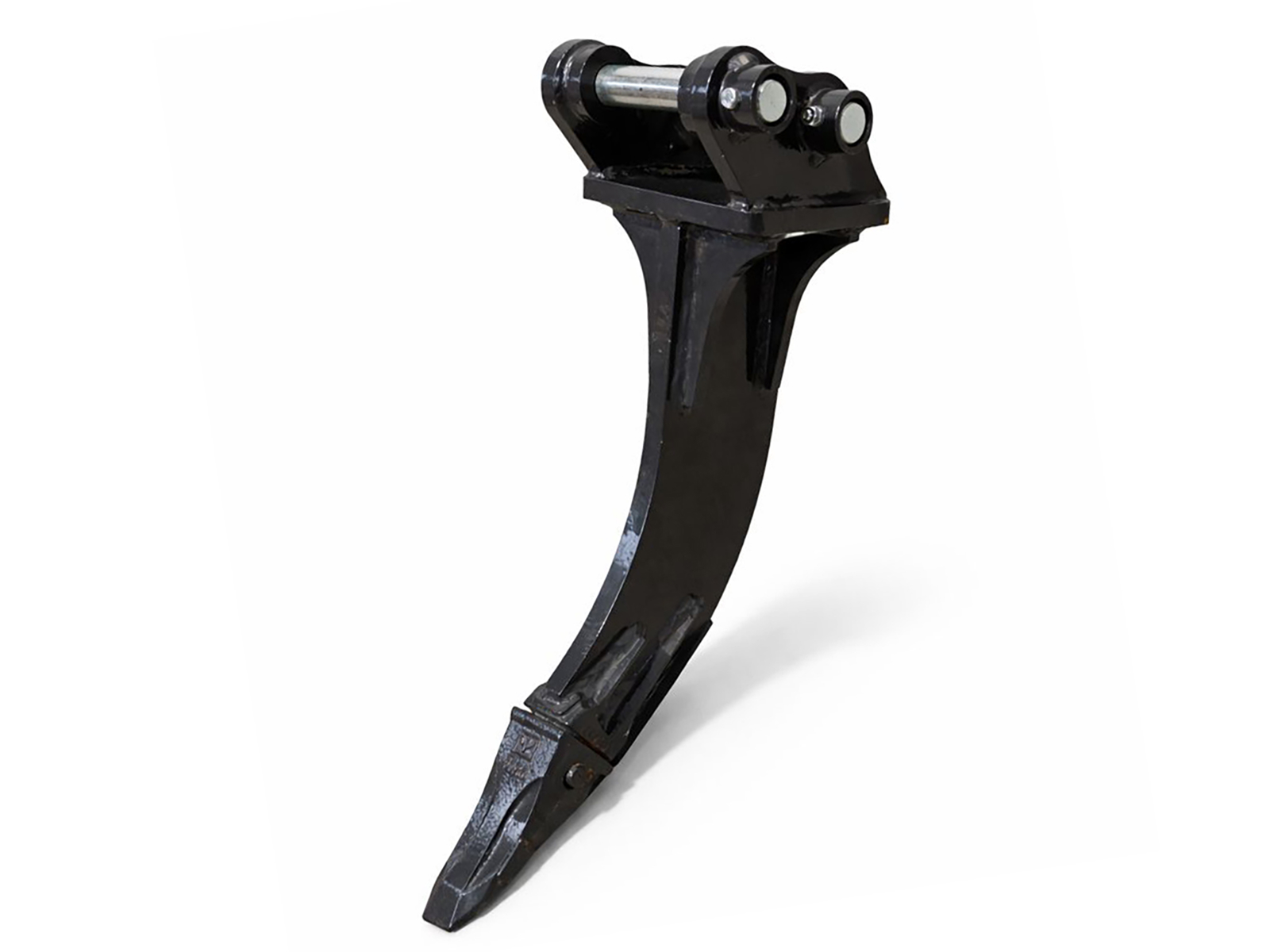

Ripper for DELEKS® S180 mini excavator, designed for ripping operations on high-resistance and compact materials.

Structure manufactured from high-strength steel, with reinforced tooth shank and stiffening plates in the attachment area, ensuring high structural rigidity and resistance to concentrated stresses.

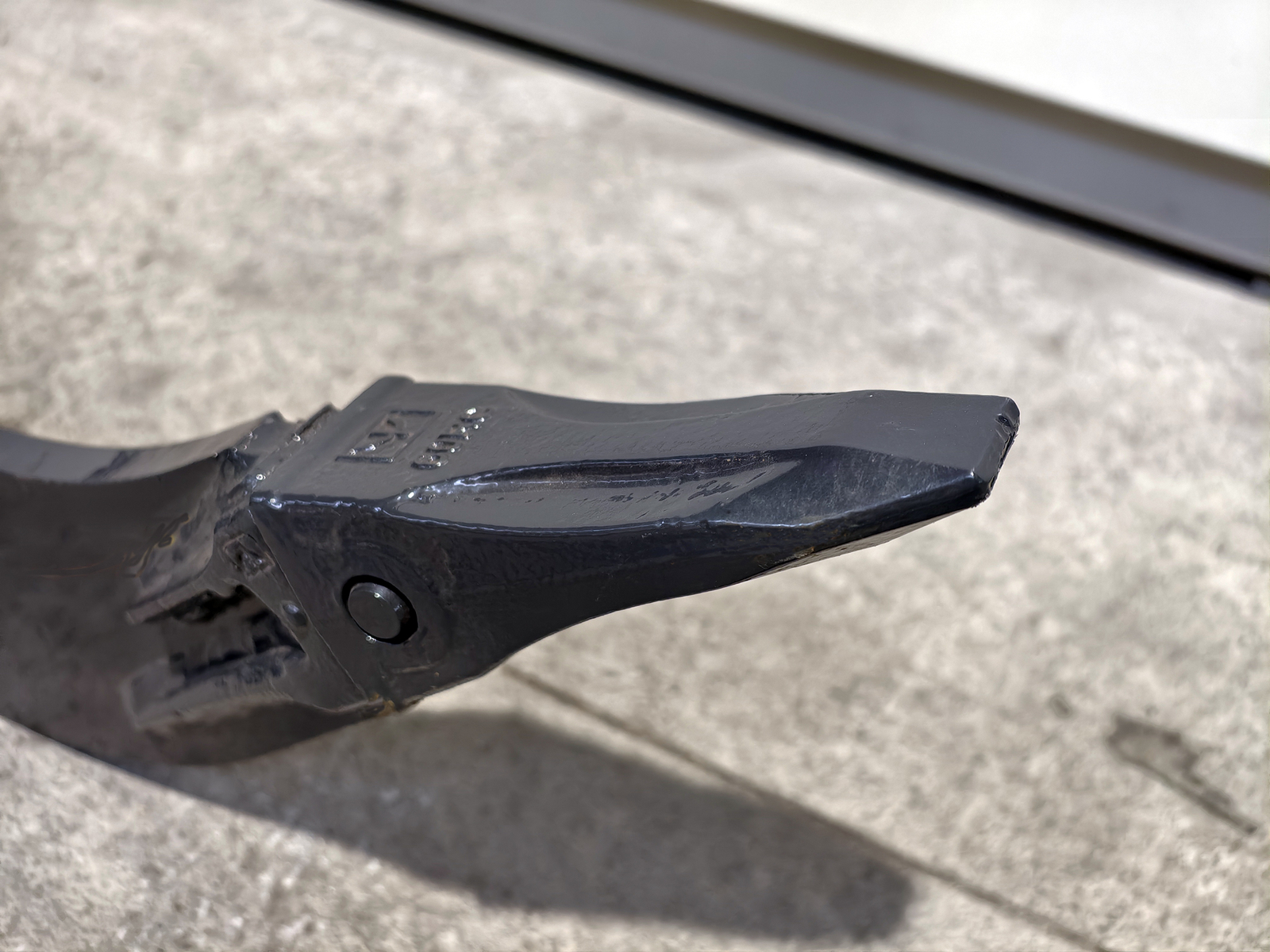

The ripper is equipped with a replaceable tip, allowing fast restoration of operating performance and reduced wear costs. Lateral reinforcement supports improve tooth stability during penetration and ensure optimal force transmission to the ground.

The slim profile and tooth curvature are designed to concentrate force at a precise point, maximizing penetration capability and reducing stress on the machine’s hydraulic system.

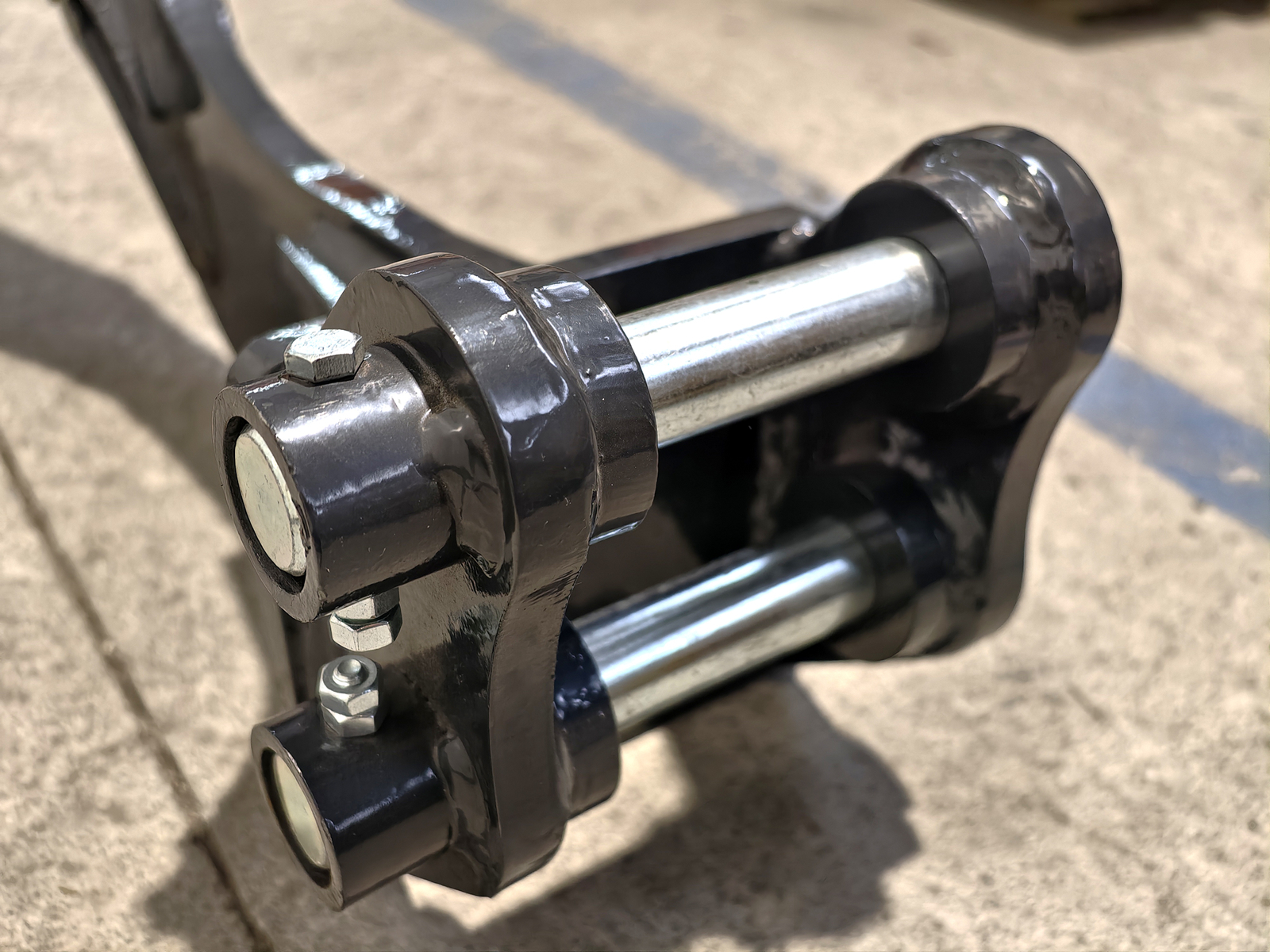

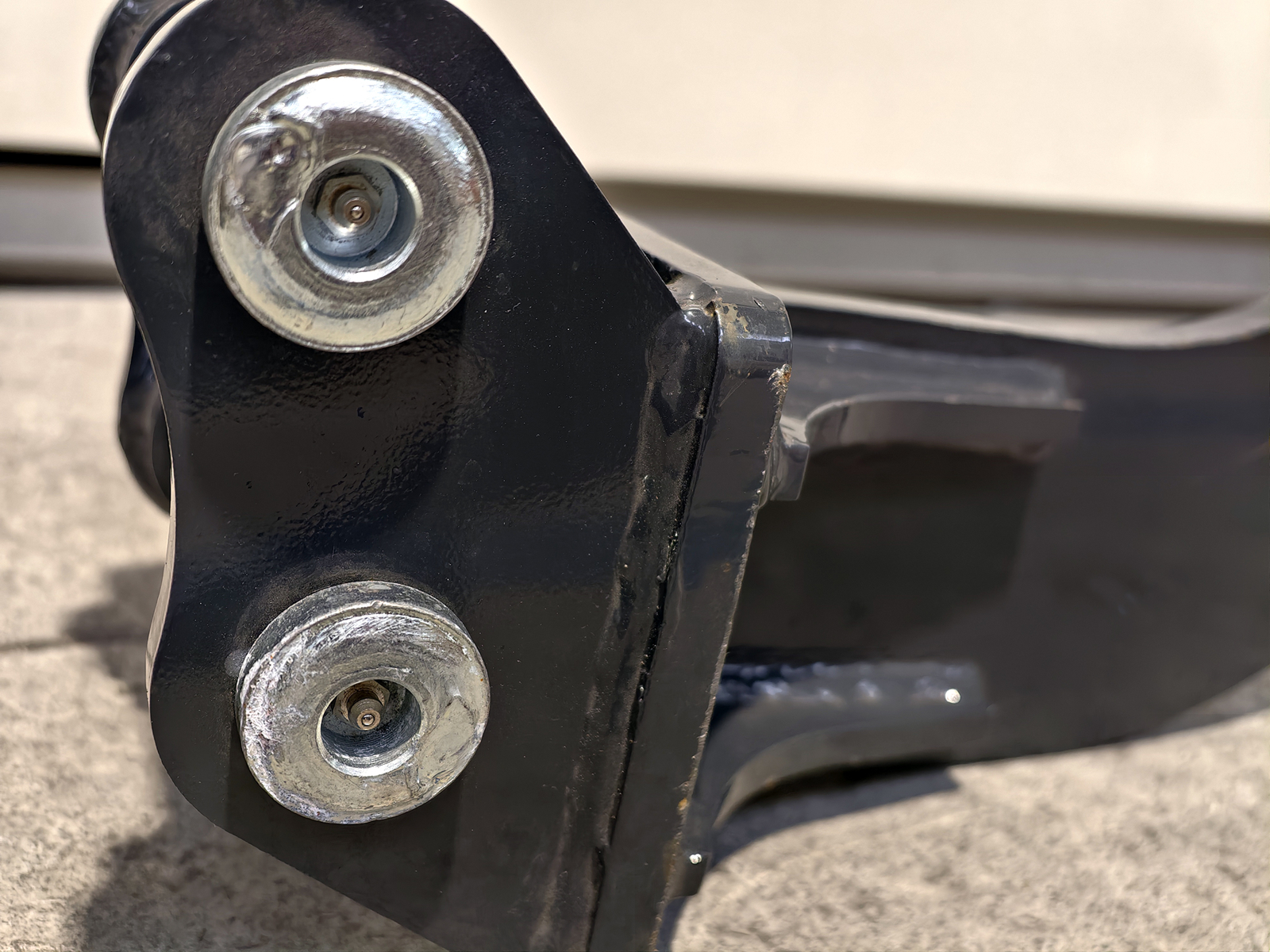

Supplied complete with a pair of Ø30 mm mounting pins with grease nipples, ensuring correct installation and proper lubrication during operation.

Suitable for:

• breaking compact layers and sub-bases

• operations on hard and stabilized ground

• work on roots, stumps and small to medium-sized rocks

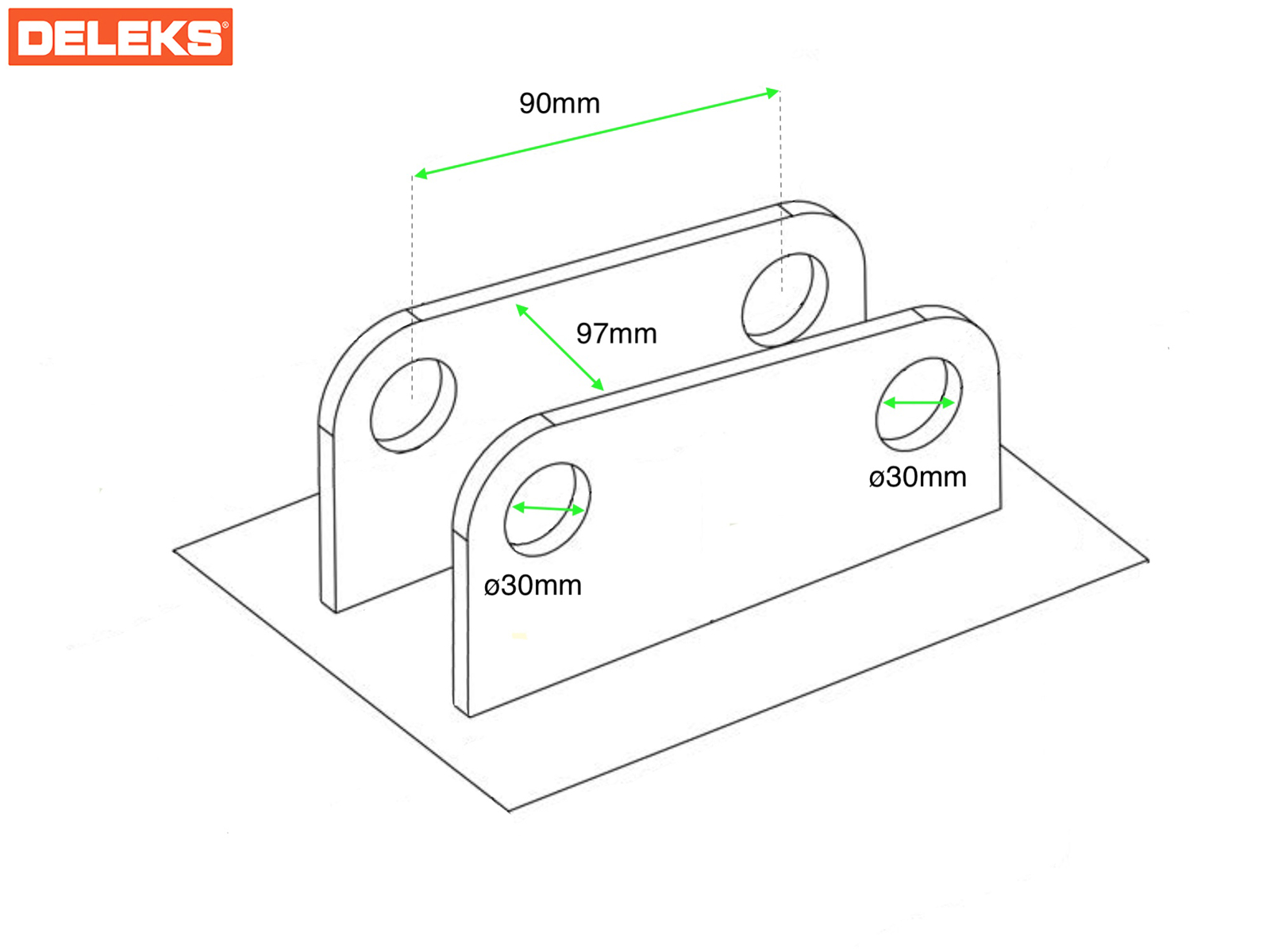

Attachment dimensions are shown in the product images.
