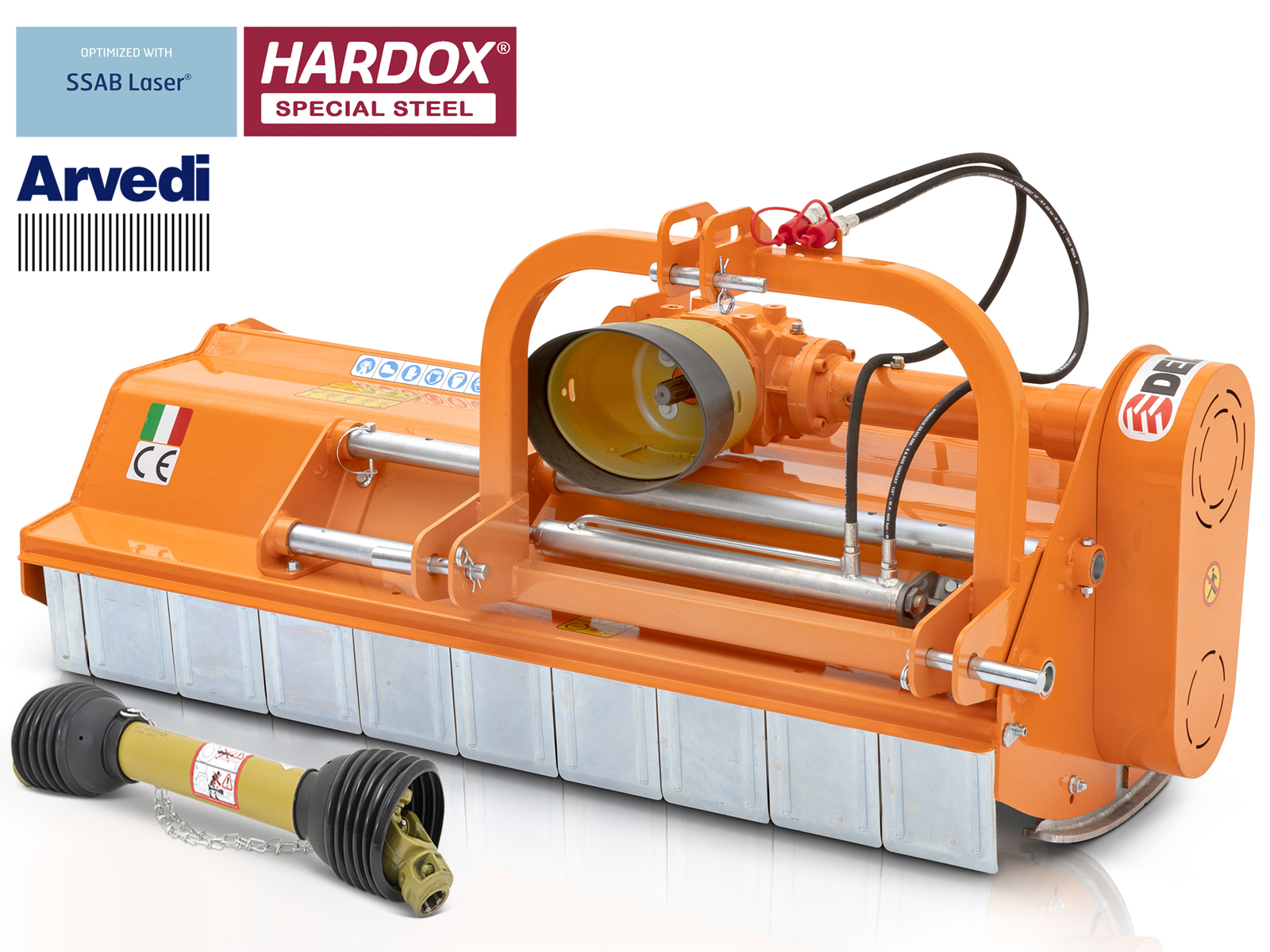

Hydraulic side-shift hammer flail mower 140 cm (55 in) LEOPARD-140-SPH, flail mulcher for 30-70 hp tractors

Not available  Notify me
Code LEOPARD140SPHPTO - EAN 8053470235474
2.730,00€VAT incl.
Free shipping
Loading...
2.730,00€VAT incl.

VIDEO

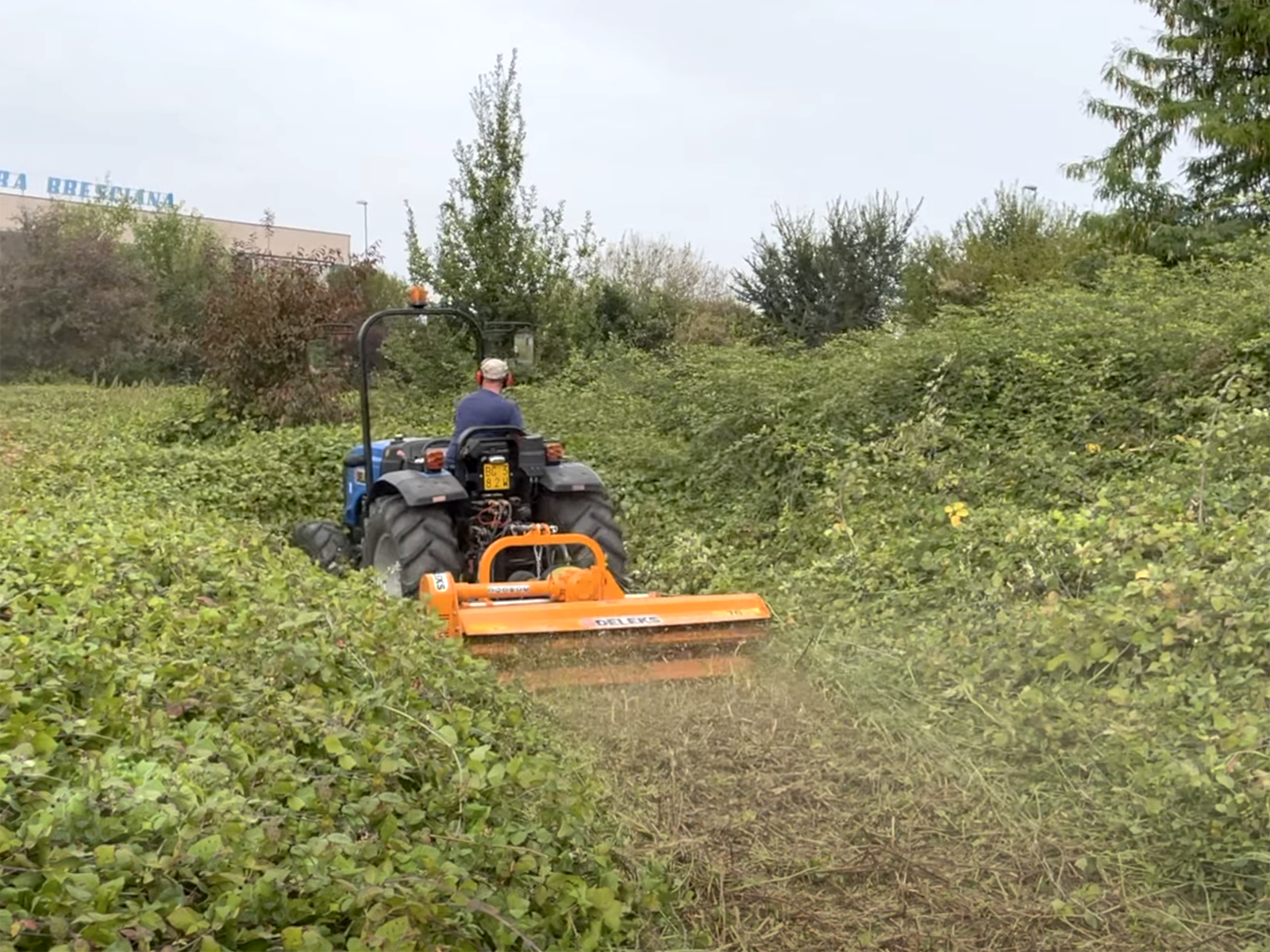

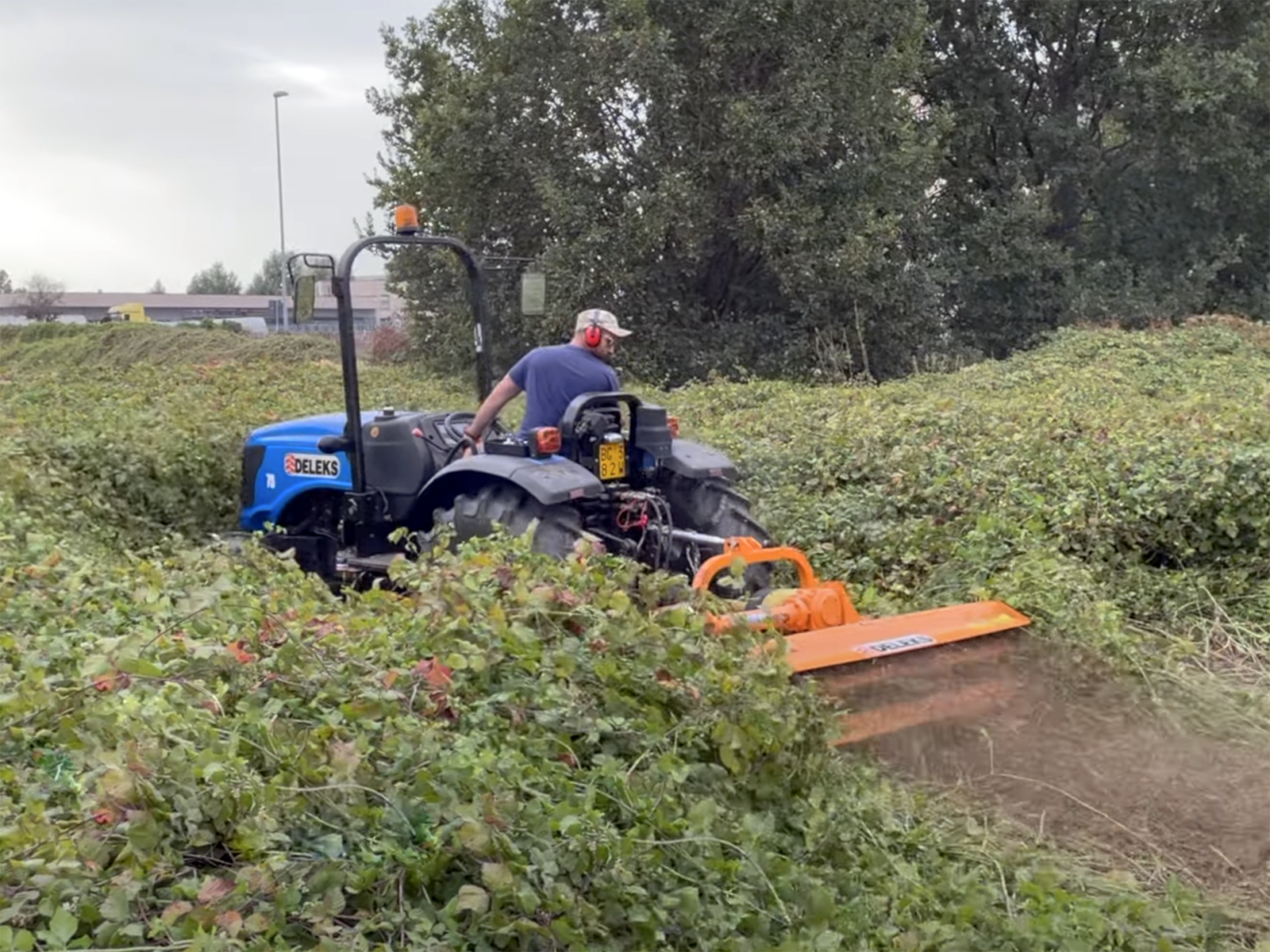

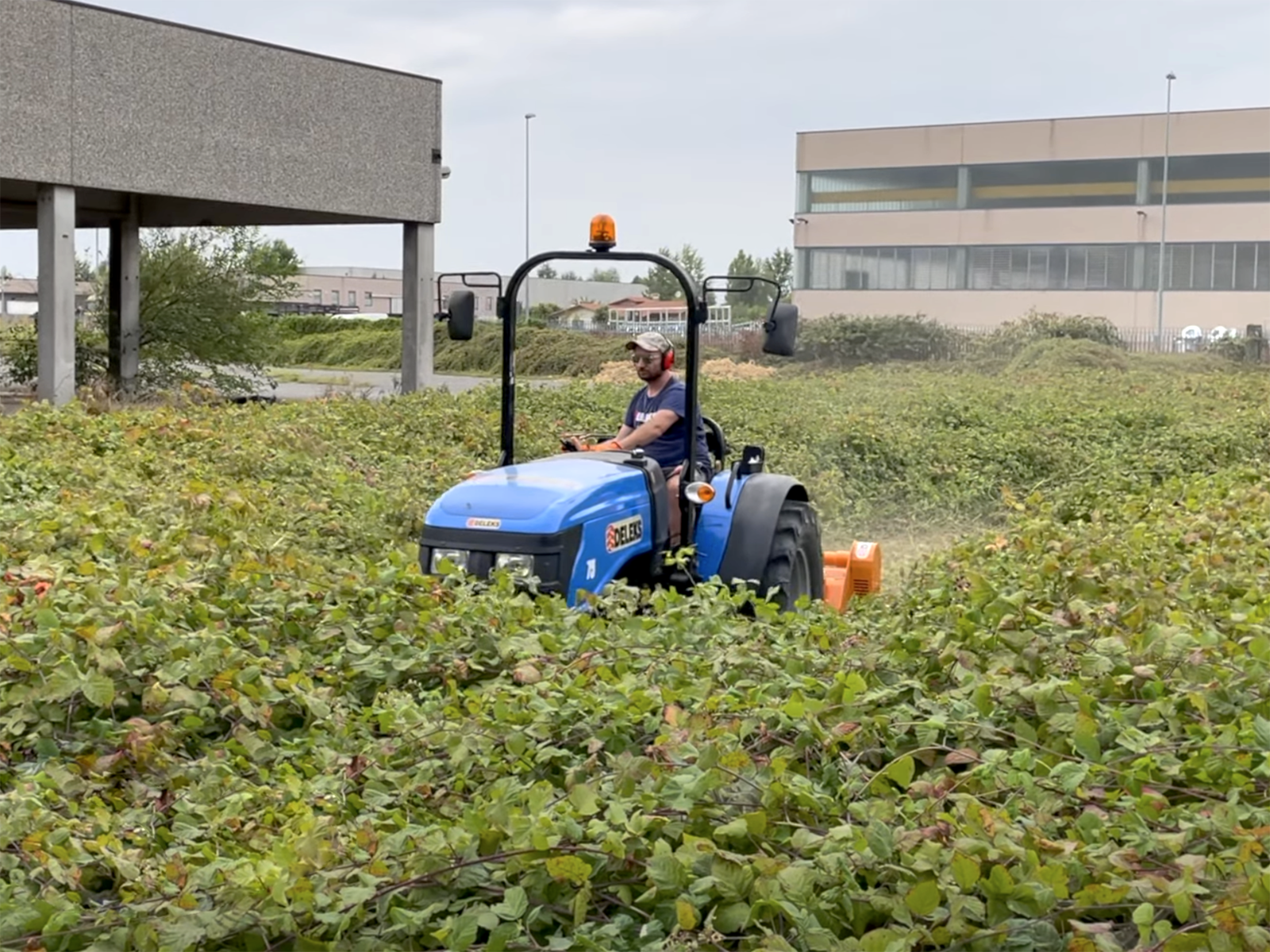

Field test
Field test
Review by Edd China (Wheeler Dealers)
Review by Edd China (Wheeler Dealers)
Field test by Edd China
Field test by Edd China

DETAILS

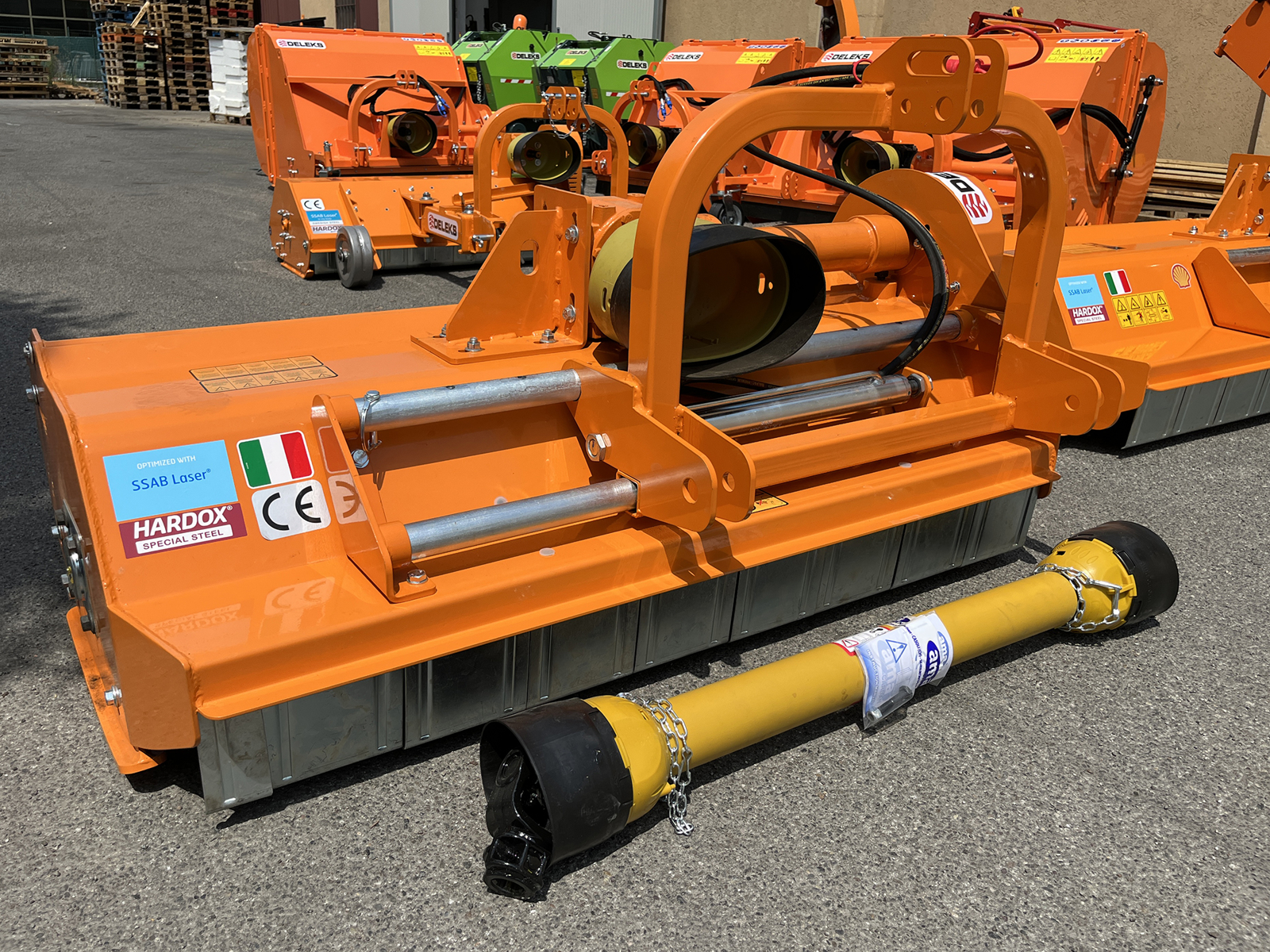

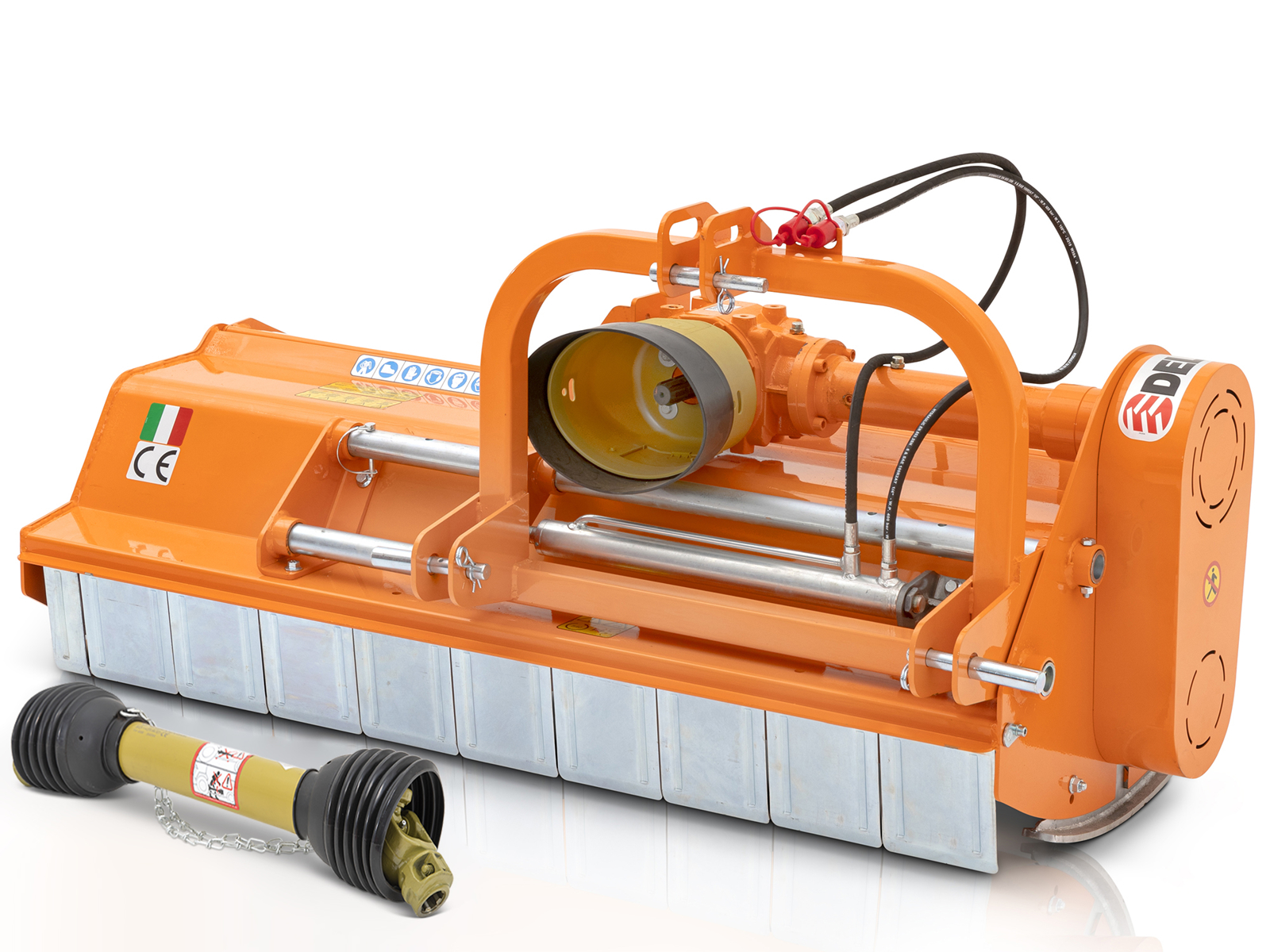

Hammer flail mower for tractors with a 140 cm (55 in) cut and 31 cm (12 in) of hydraulic side shift as standard, from the DELEKS® medium series: the LEOPARD-140-SPH is the side-shift flail mulcher with a double HARDOX skin for tractors from 30 to 70 hp, such as Antonio Carraro, Goldoni, Kubota, Landini and Same, moved from the seat as you work along rows, fences, ditches and field edges. The side shift comes complete with a pair of hoses and ½ in quick-release couplings. The electronically balanced rotor carries 20 forged hammer flails of 820 g (1.8 lb) and shreds grass, leaves, vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick; the 20 cm (8 in) high front opening lets long grass in and the rear hood opens so you can work faster. DELEKS® 540 rpm gearbox with freewheel and a 3-year warranty, 4-belt drive, SSAB steel frame with a double HARDOX skin, 315 kg (694 lb). Made in Italy, built by DELEKS, it comes complete with a CE-approved PTO shaft, a 2-year warranty and free delivery within the EU.

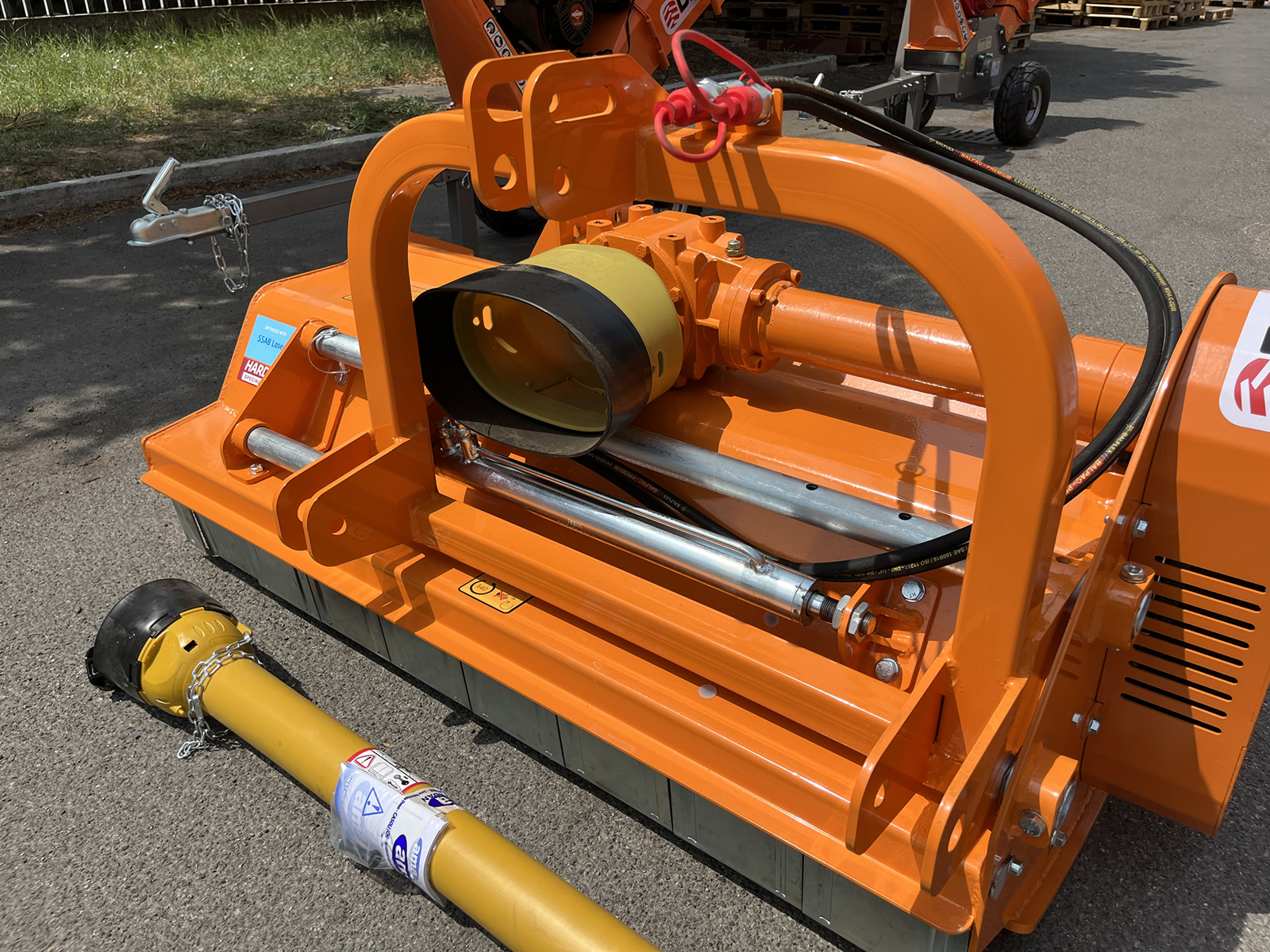

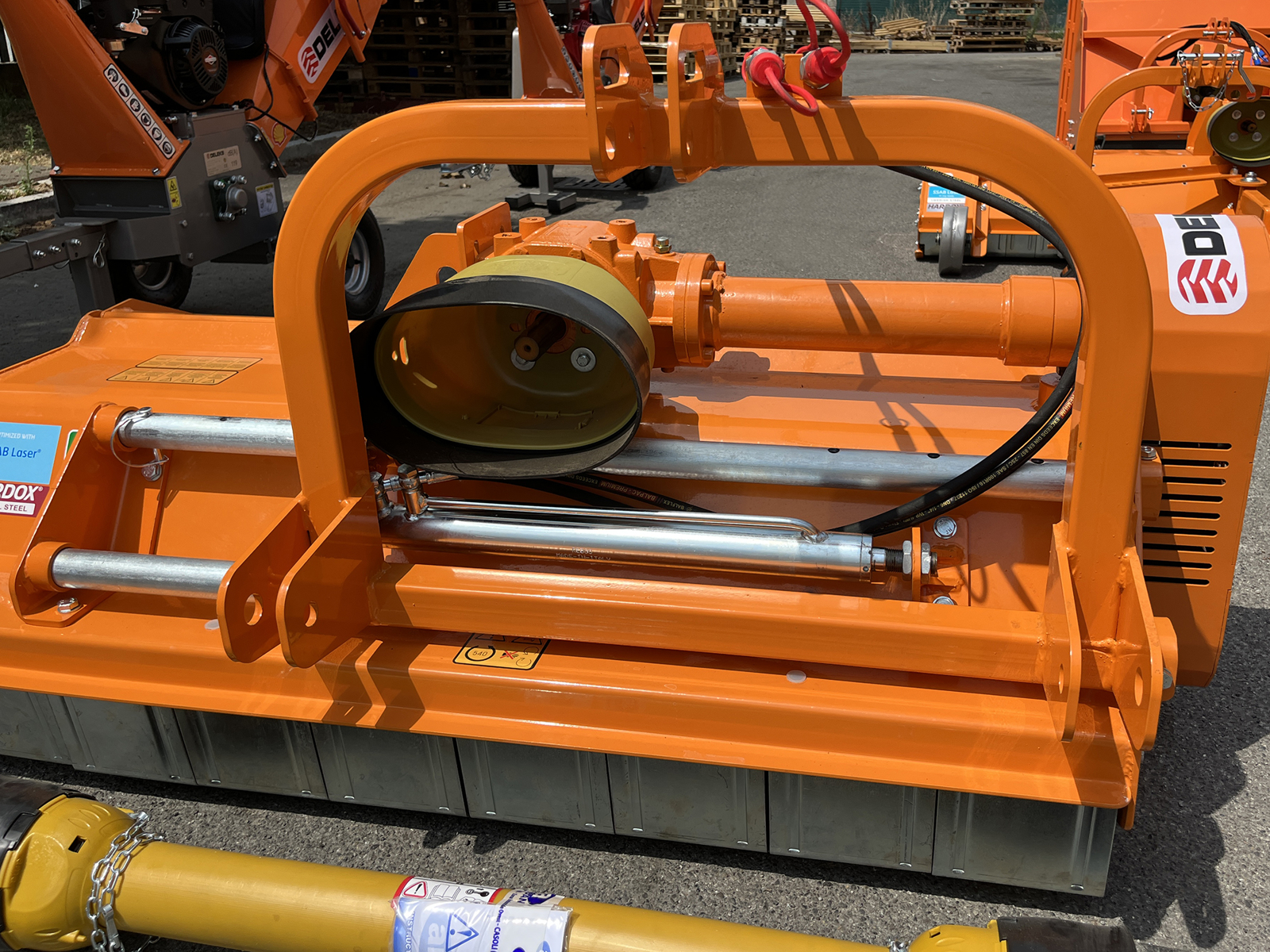

Hydraulic side shift of 31 cm (12 in), as standard

Hydraulic side shift of the headstock is standard, with 31 cm (12 in) of travel: you work it from the seat with the tractor's spool valve, even on the move. It brings the mower in to the row and away from posts and stumps, to mow under the canopy, along fences and ditches and on field edges, keeping the tractor's wheels away from the edge. It arrives fitted, with the pair of hoses and standard ½ in agricultural quick-release couplings; the tractor needs a pair of rear hydraulic outlets (one double-acting spool valve).


Which tractors it fits

The LEOPARD-140-SPH cuts 140 cm (55 in) with an overall width of 154 cm (61 in) and is built for tractors from 30 to 70 hp with a 540 rpm PTO and a universal category 1 or 2 three-point linkage (19-22 or 25-28 mm pins, lower link spacing from 560 to 950 mm): Antonio Carraro, Goldoni, Kubota, Landini, Same, Lamborghini, Solis and equivalent tractors. It is the narrowest in the series: the size for the rows of orchards and olive groves. As a rule of thumb the mower should be 15 to 20 cm (6 to 8 in) wider than the tractor's outer track, so it covers the wheel marks.

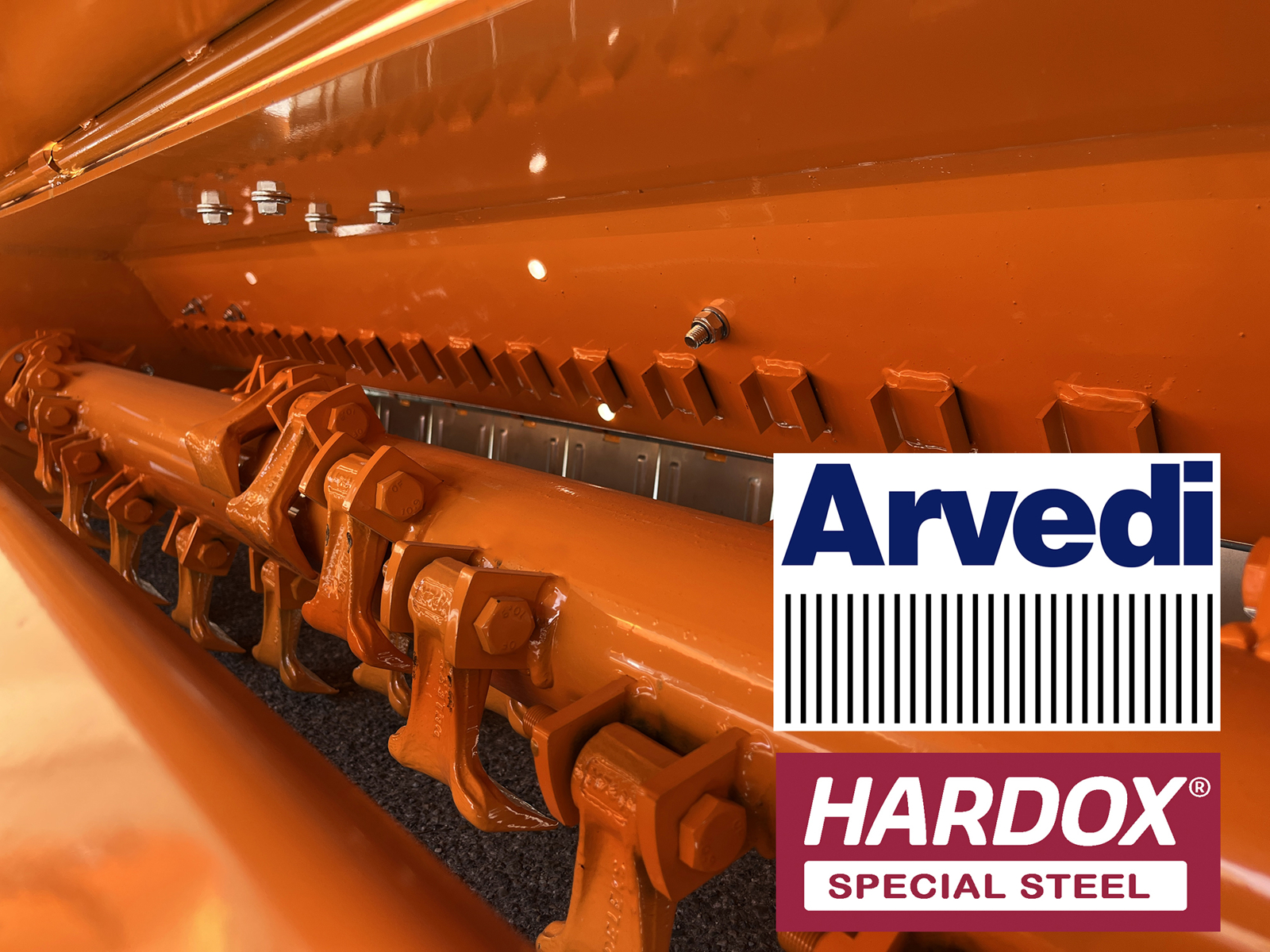

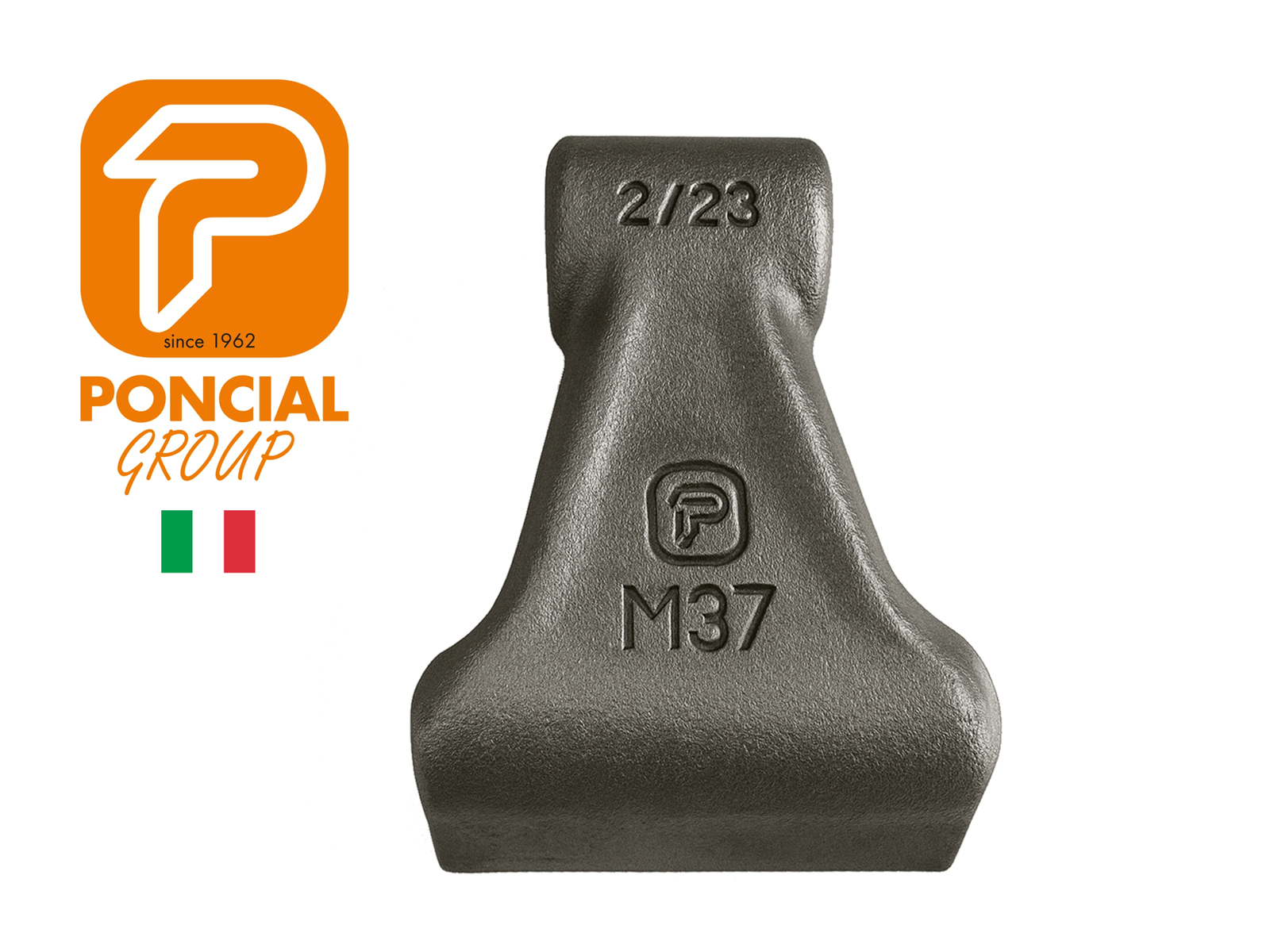

Rotor with 20 forged hammer flails of 820 g (1.8 lb)

The rotor is built from ARVEDI S355 steel tube, 8 mm (5/16 in) thick and 115 mm (4.5 in) in diameter, electronically balanced, and spins at 2,300 rpm on self-aligning SKF bearings. The 20 forged Poncial flails, Made in Italy, weigh 820 g (1.8 lb) each and sit in 2 helical rows on brackets in HARDOX wear-resistant steel: they pulverise grass, leaves, brambles, vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick. The kit of 30 blades (COLTELLI30T) is available as an option, as an alternative to the hammer flails.

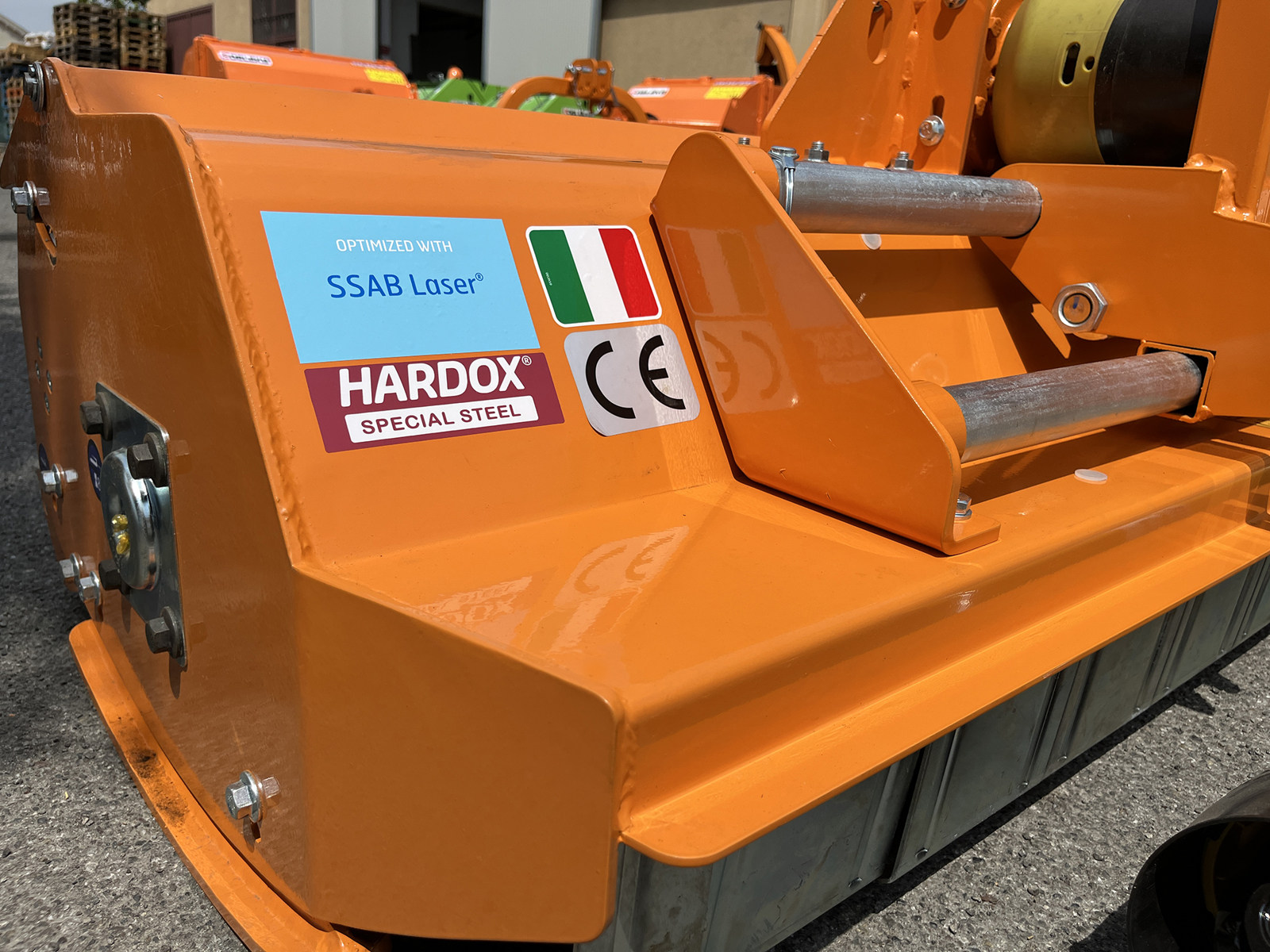

Double HARDOX skin, high front opening and opening hood

The body is double-skinned: the 4 mm SSAB steel shell is backed by a second 6 mm skin in HARDOX wear-resistant steel. The front opening is 20 cm (8 in) high, so long grass is not flattened before it reaches the rotor. The rear hood opens: closed, the material stays in the chamber for longer and is pulverised, for a mulching effect; open, it lowers the pressure in the chamber and lets you travel faster. The hood also opens for servicing.


Roller, skids and cutting height

Cutting height is set from 10 to 45 mm (0.4 to 1.8 in) with the 140 mm (5.5 in) rear roller and the 6 mm side skids: low on grass, higher on stony or uneven ground.

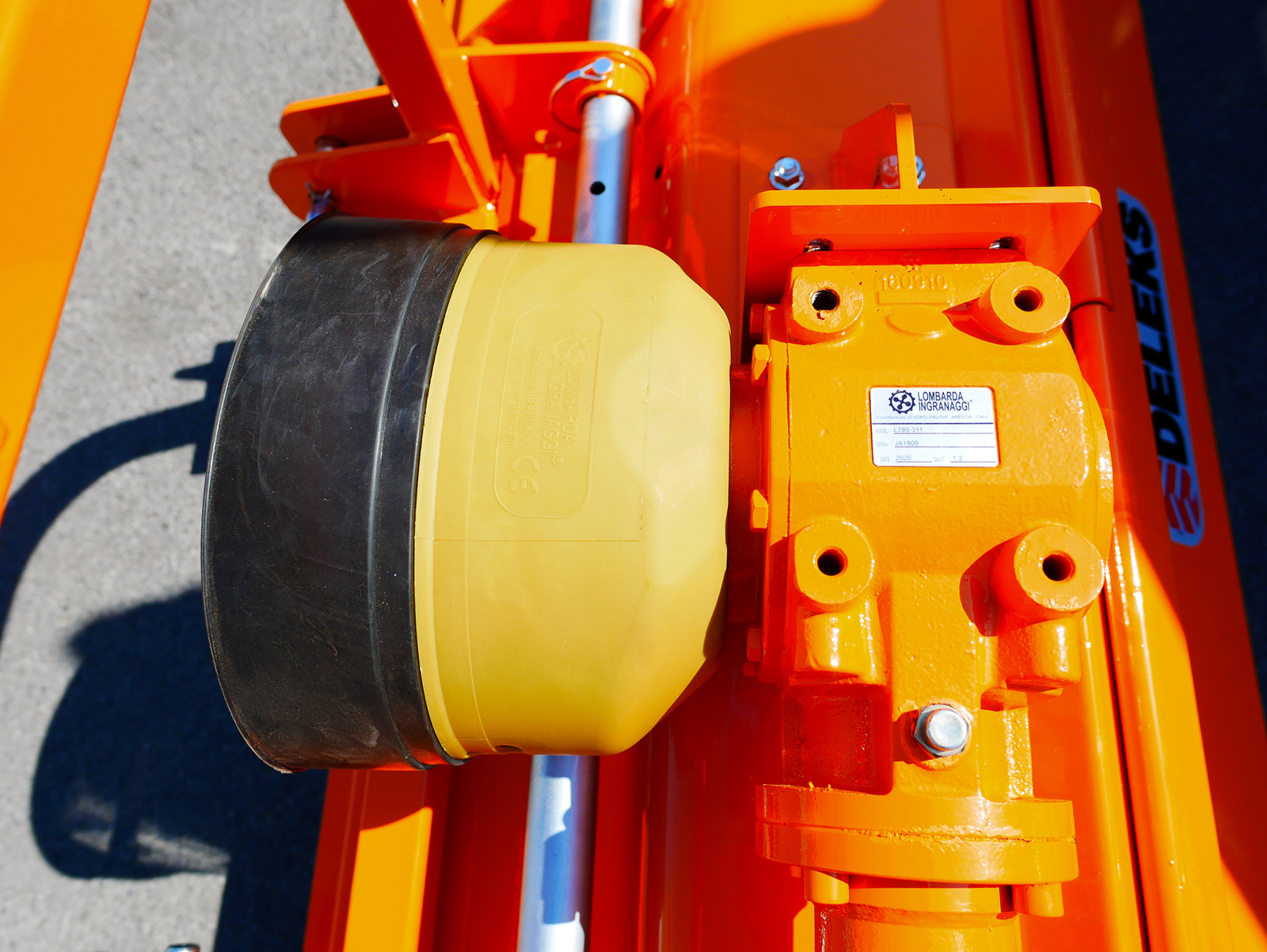

Gearbox with freewheel, 4 belts and PTO shaft

The DELEKS® gearbox for a 540 rpm PTO is uprated, with a built-in freewheel and a 3-year warranty: when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. Drive reaches the rotor through 4 BX43 V-belts; the tensioner is adjustable and belt tension is set from the outside. The CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, is included.


SSAB steel frame, Made in Italy

The frame is made entirely from Swedish SSAB steel, 4 mm thick with 6 mm side plates, and the second skin is HARDOX; the flail brackets are HARDOX too, and the rotor bearings are SKF. The LEOPARD-140-SPH is Made in Italy, built by DELEKS. For this product the sheet steel is bought in Italy and worked at a production plant in the European Union.

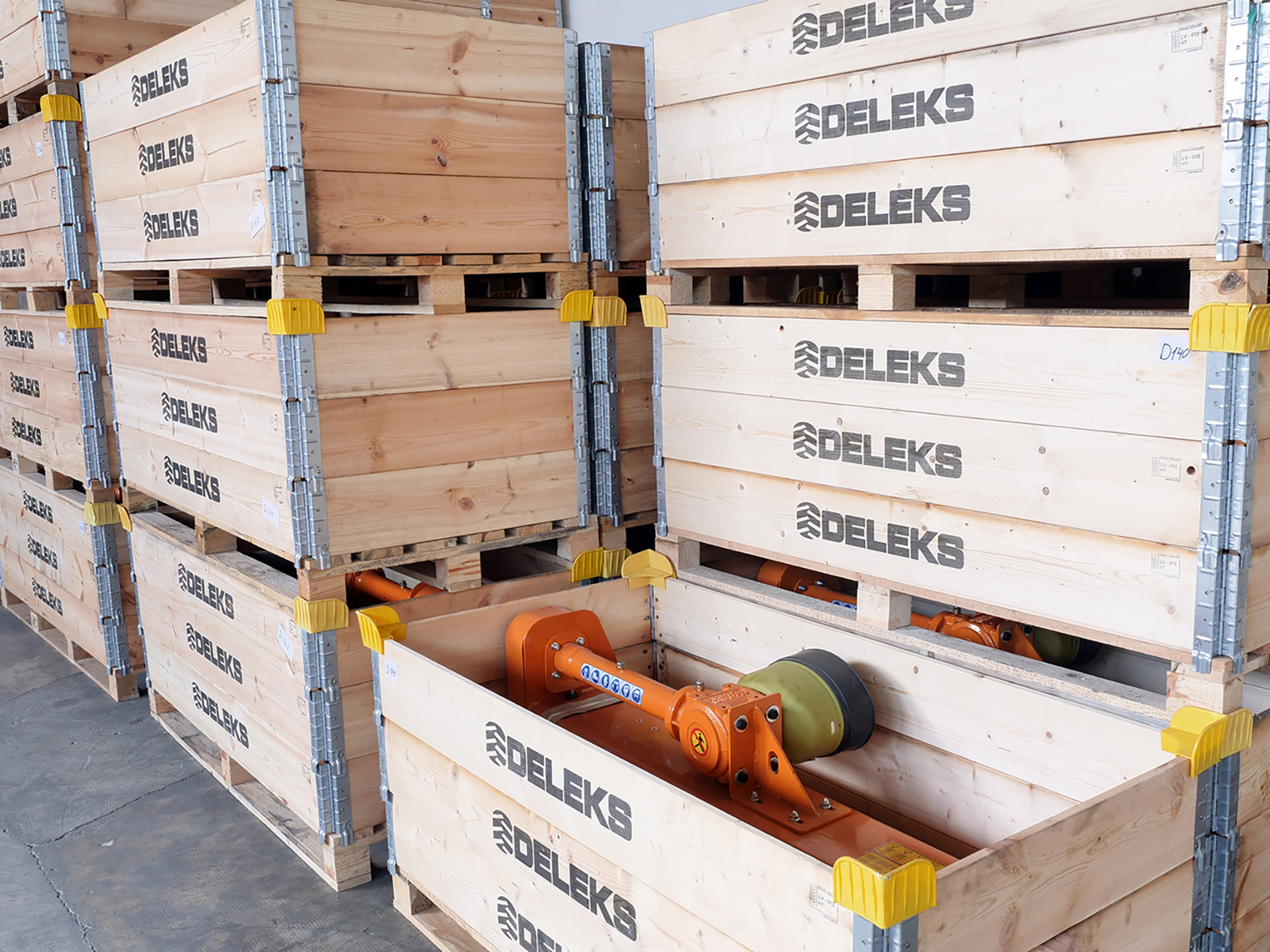

Dimensions, weight and delivery

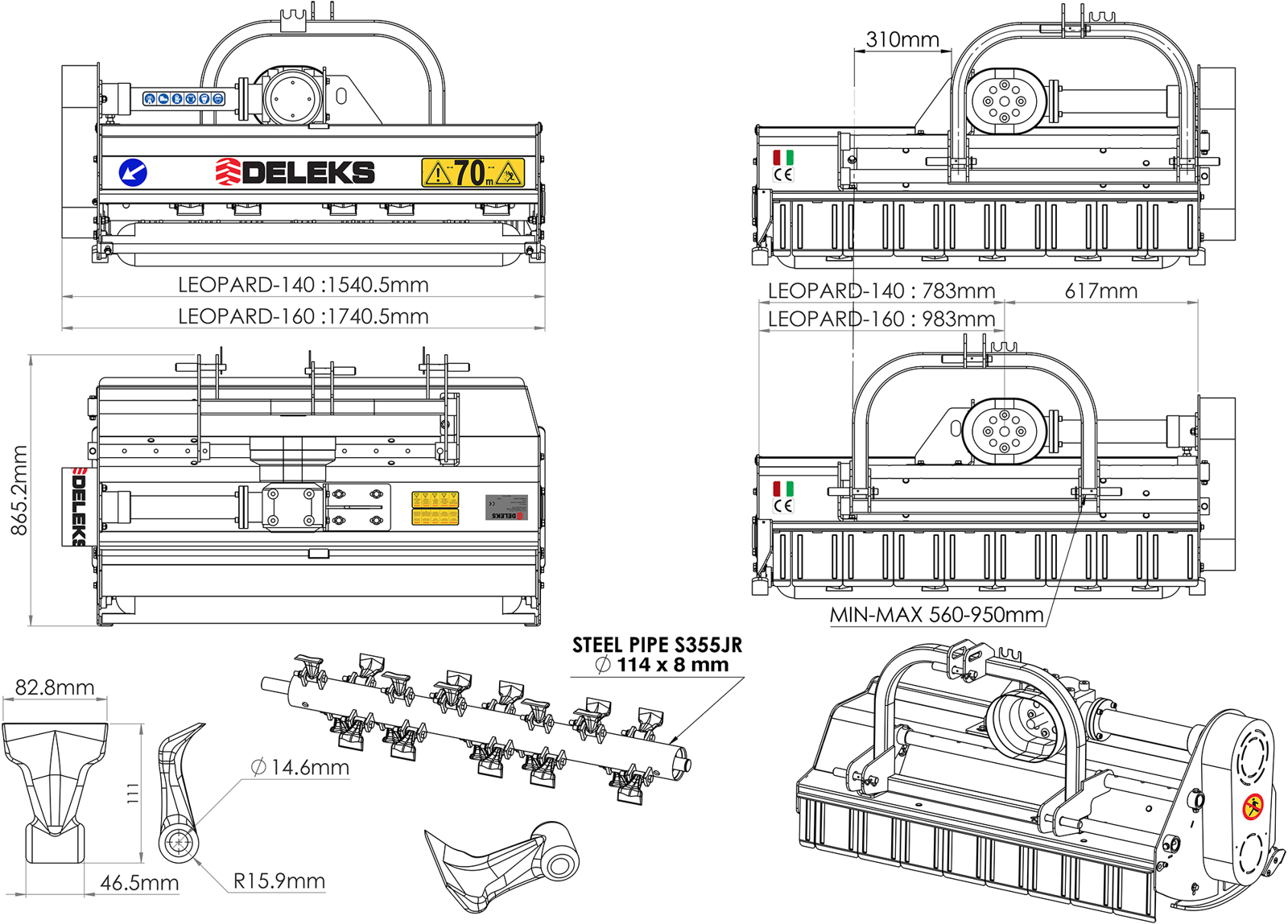

Working width 1,400 mm (55.1 in), overall width 1,540.5 mm (60.6 in), length 865 mm (34.1 in), height 800 mm (31.5 in), weight 315 kg (694 lb). It ships in packaging measuring 158 × 90 × 80 cm (62 × 35 × 31 in), 382 kg (842 lb) gross, 1.14 m³, with free delivery within the EU. It complies with the EC Machinery Directive and carries a 2-year warranty.

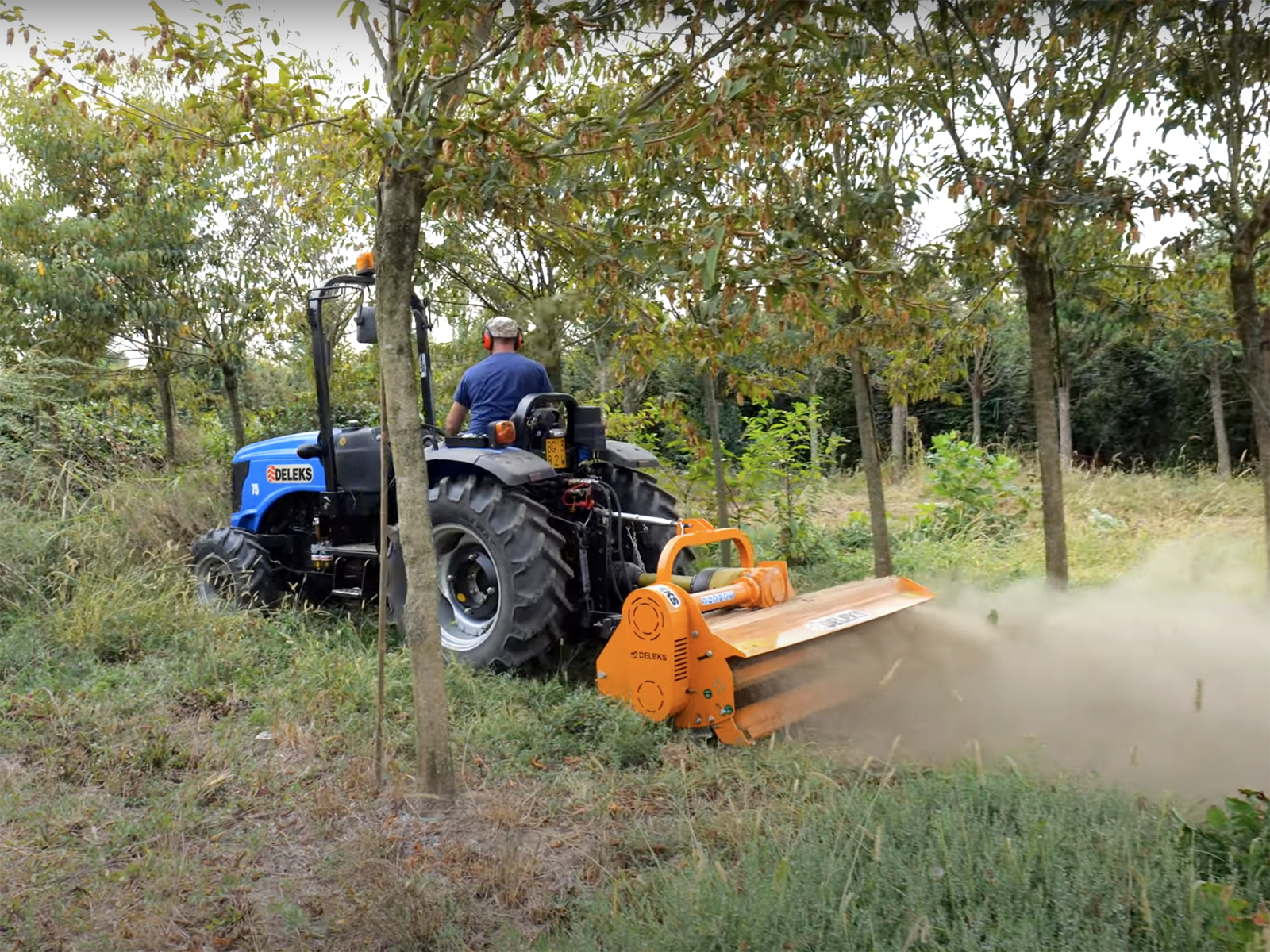

Where it works

  • Vineyards, orchards and olive groves: grass between the rows and under the canopy, prunings up to 4-5 cm (1.6-2 in)
  • Rows, fence lines and ditches: the mower moves in and out from the seat
  • Field edges and headlands: working offset, with the tractor kept away from the edge
  • Rough ground and open fields: long grass, brambles, stubble and crop residues
  • Farms running tractors from 30 to 70 hp

Options and spares

From this page you can add to your order the kit of 10 hammer flails (MAZZE10T), the 10 nuts and bolts for the flails (DB10T), the kit of 30 blades (COLTELLI30T), the spare set of 4 belts (CINGHIE4LEOPARD), spare pins for the category 1-2 three-point linkage (3PERNI12), the universal PTO adapter (RID1), the 680 mm (26.8 in) top link (BE0124) and the 730 mm (28.7 in) top link (BE0125). Other spares are identified on the exploded diagrams with our technical team.


FAQ

How does the hydraulic side shift work?
A hydraulic ram moves the mower up to 31 cm (12 in) sideways; you work it from the seat with a double-acting spool valve on the tractor, even on the move. Hoses and ½ in quick-release couplings are standard.

What does the tractor need?
30 to 70 hp, a 540 rpm PTO, a category 1 or 2 three-point linkage, enough lift capacity for the mower's 315 kg (694 lb) and a pair of rear hydraulic outlets for the side shift.

How does it differ from the LEOPARD-SP?
The LEOPARD-140-SP has the same 31 cm (12 in) side shift, but manual: you set it with the machine stopped before you start. With the LEOPARD-140-SPH you shift from the seat as you work.

What size branches will it shred?
Vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick, as well as grass, leaves and brambles. For branches up to 8 cm (3.1 in) there is the heavy series.

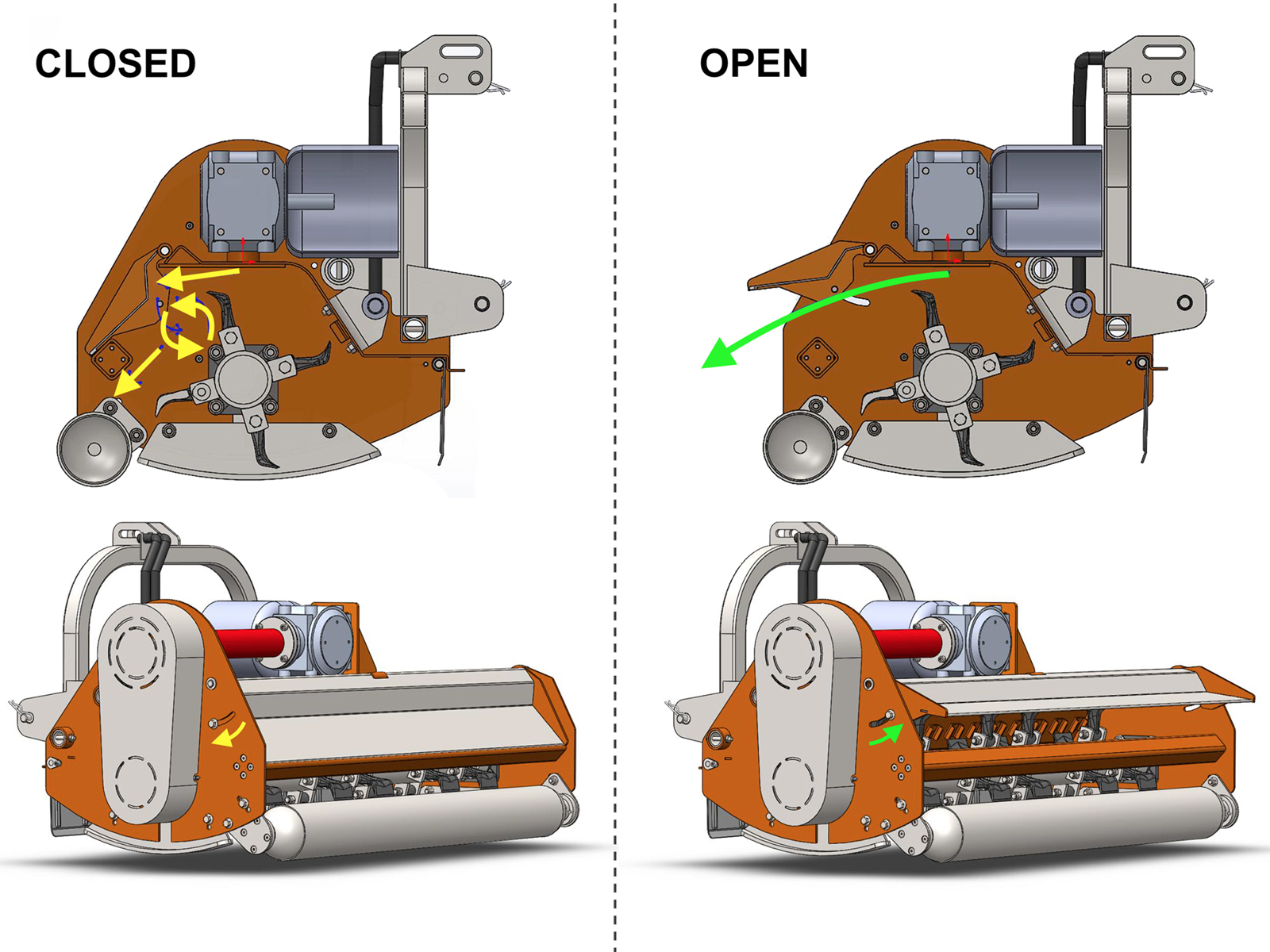

What is the opening hood for?
Closed, it keeps the material in the chamber and pulverises it, for a mulching effect; open, it lowers the pressure in the chamber and lets you travel faster. It also opens for servicing.

Hammer flails or blades?
It comes with 20 forged hammer flails of 820 g (1.8 lb), suited to grass, brambles and prunings. The kit of 30 blades (COLTELLI30T) is available as an option.

How do you set the cutting height?
From 10 to 45 mm (0.4 to 1.8 in), with the rear roller and the side skids.

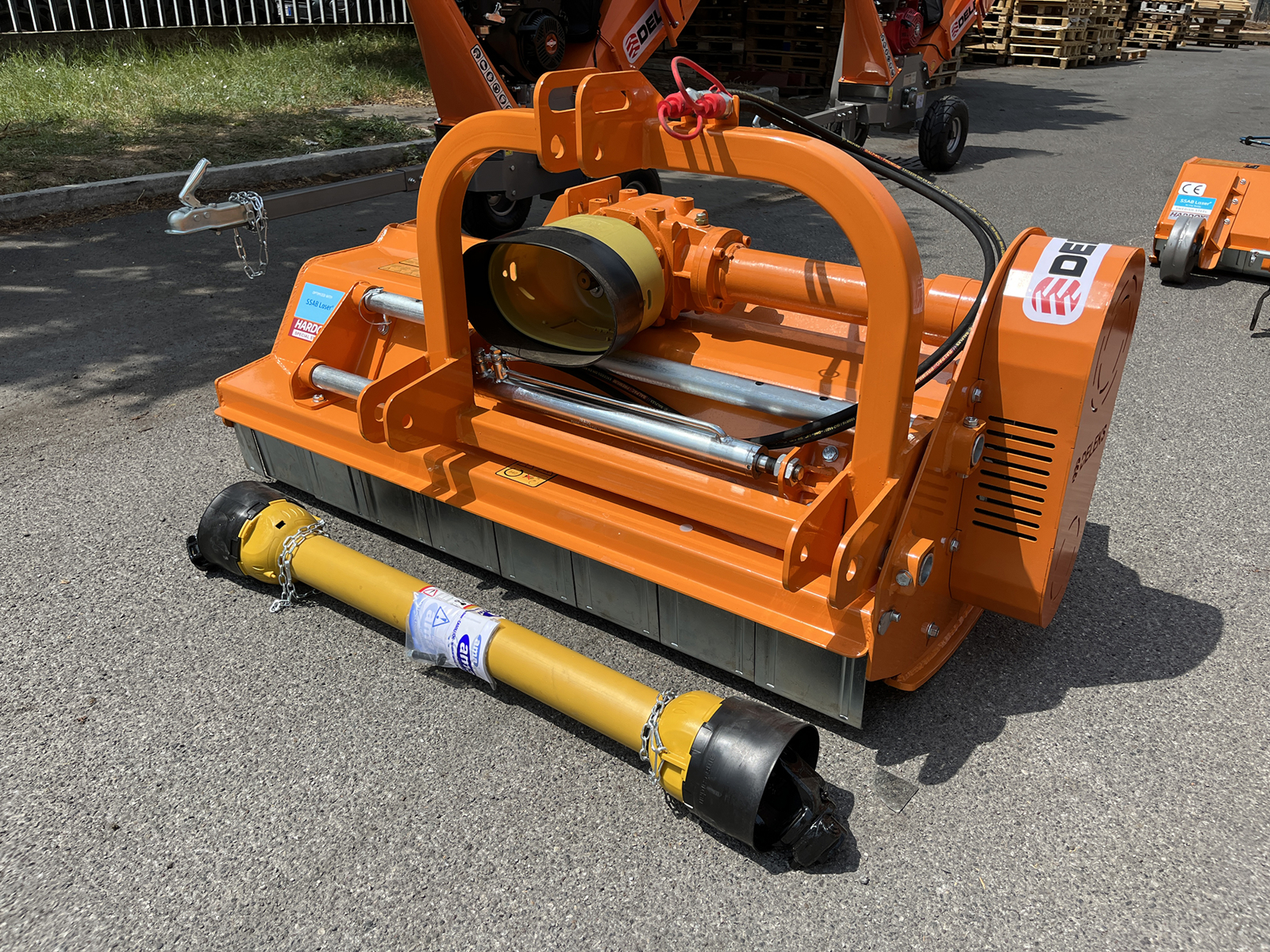

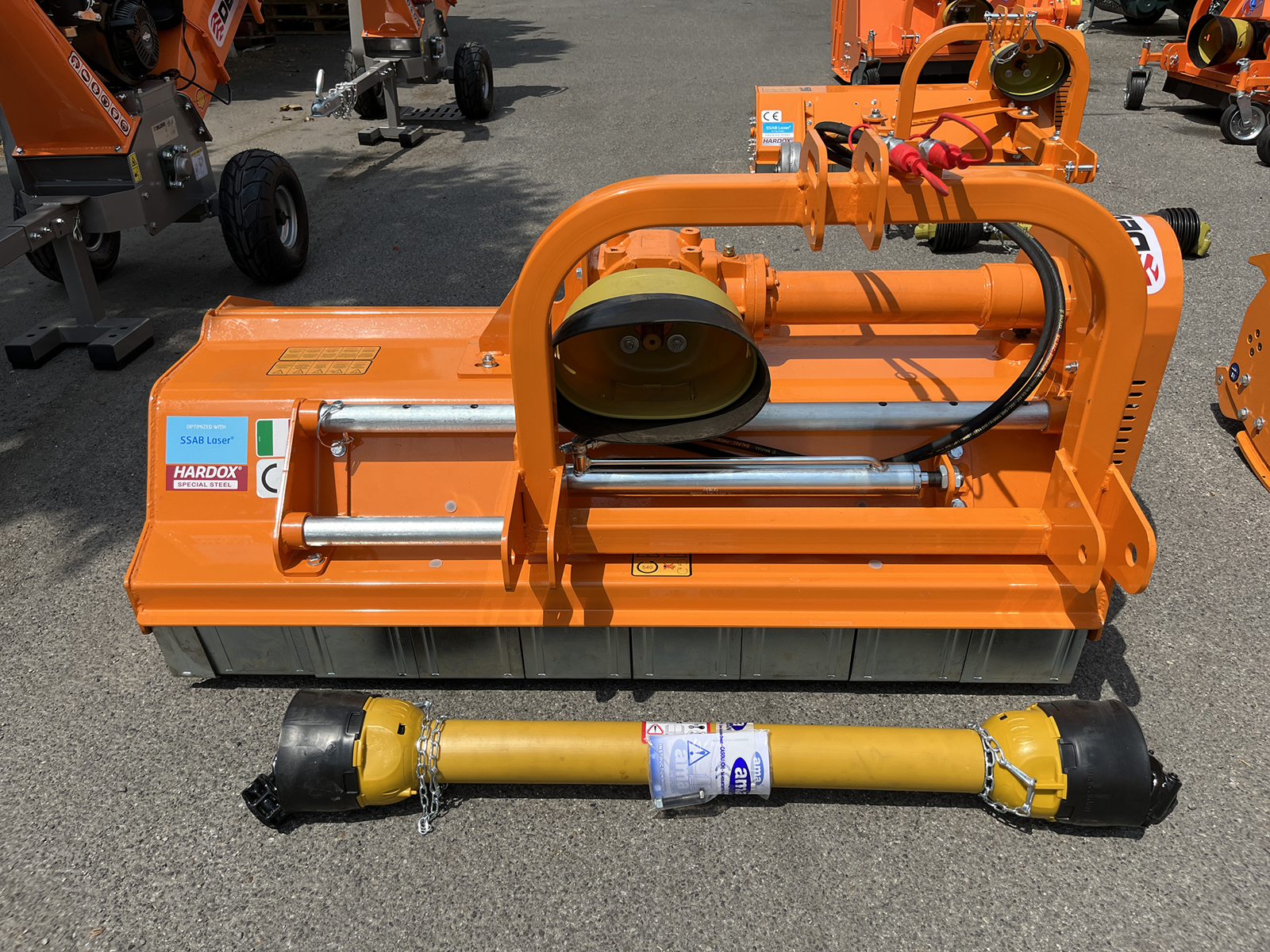

Is the PTO shaft included?
Yes: a CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric
Working width 1400.0 mm
Overall width 1540.5 mm
Min / Max cutting height 10.0 - 45.0 mm
Weight 315.0 kg
Overall height 800.0 mm
Tractor Power Range 30 - 70 Hp
3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
Hood height 460.00 mm
Spacing between the 2 lower points 560.0 - 950.0 mm
Number of Hammers 20
Maximum cutting diameter 40.0 - 50.0 mm
Overall length 865.0 mm
Distance between pto attachment and ground 520.0 mm
Main hood thickness 4.0 + 6.0 mm
Sides thickness 6.0 mm
Side plates thickness 6.0 mm
Transmission: Drive method V-Belts
Transmission: Gearbox DELEKS (Italy) (3 year warranty)
Transmission: PTO 540 r/min
Transmission: Rotation of gearbox Right side
Transmission: Free wheel √
Transmission: RPM Rotor speed 2300 rpm
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925
Transmission: Top pulley ø 180.0 mm
Transmission: Lower pulley ø 130.0 mm
Transmission: V-Belts quantity 4
Transmission: V-Belts size BX43
Rotor: diameter 115.0 mm
Rotor: bearings type and size SKF 2208-TVH
Rotor: balancing Electronic
Rotor: sheet thickness 8.0 mm
Hammers: Weight 820.0 g
Hammer: øhole 15.0 mm
Hammer: base width 82.0 mm
Hammer: top width 45.0 mm
Hammer: Diagonal 95.0 mm
Rear roller: diameter 140.0 mm
Rear roller: sheet thickness 5.0 mm
Rear roller: bearings type and size FL206
Pto shaft CE 6x1000 mm
Effective Displacement 310.0 mm (Hydr.)
Gross shipping weight 382 kg
Package volume 1.14 m3
Packing sizes 1580.0*900.0*800.0 mm

Certifications

SSAB Laser 355MC   Download PDF
Hardox   Download PDF
ARVEDI / TUBINDUSTRIA: Certification   Download PDF

Technical charts

Shell Spirax S2 A 80W-90: Specifications   Download PDF
