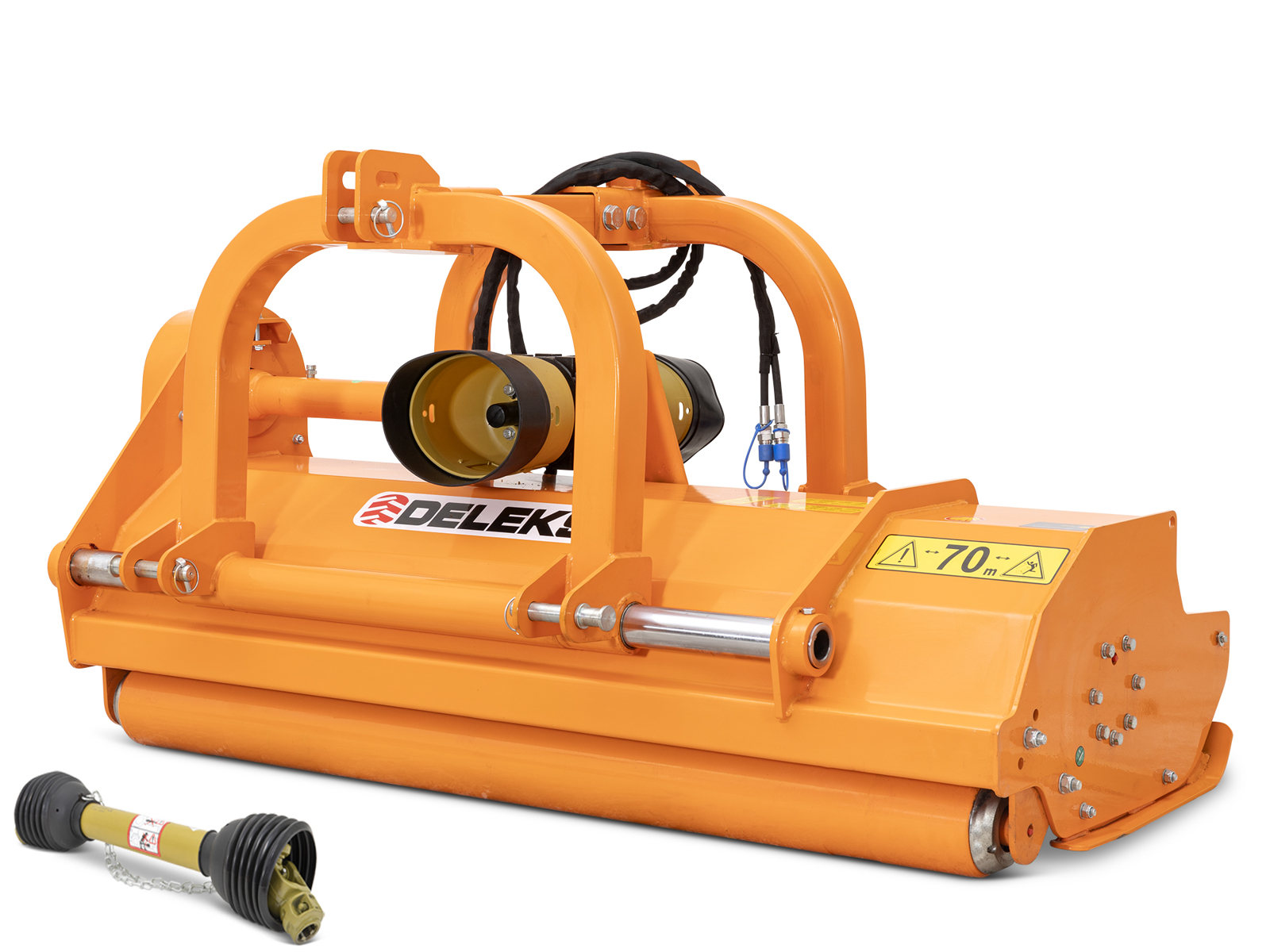

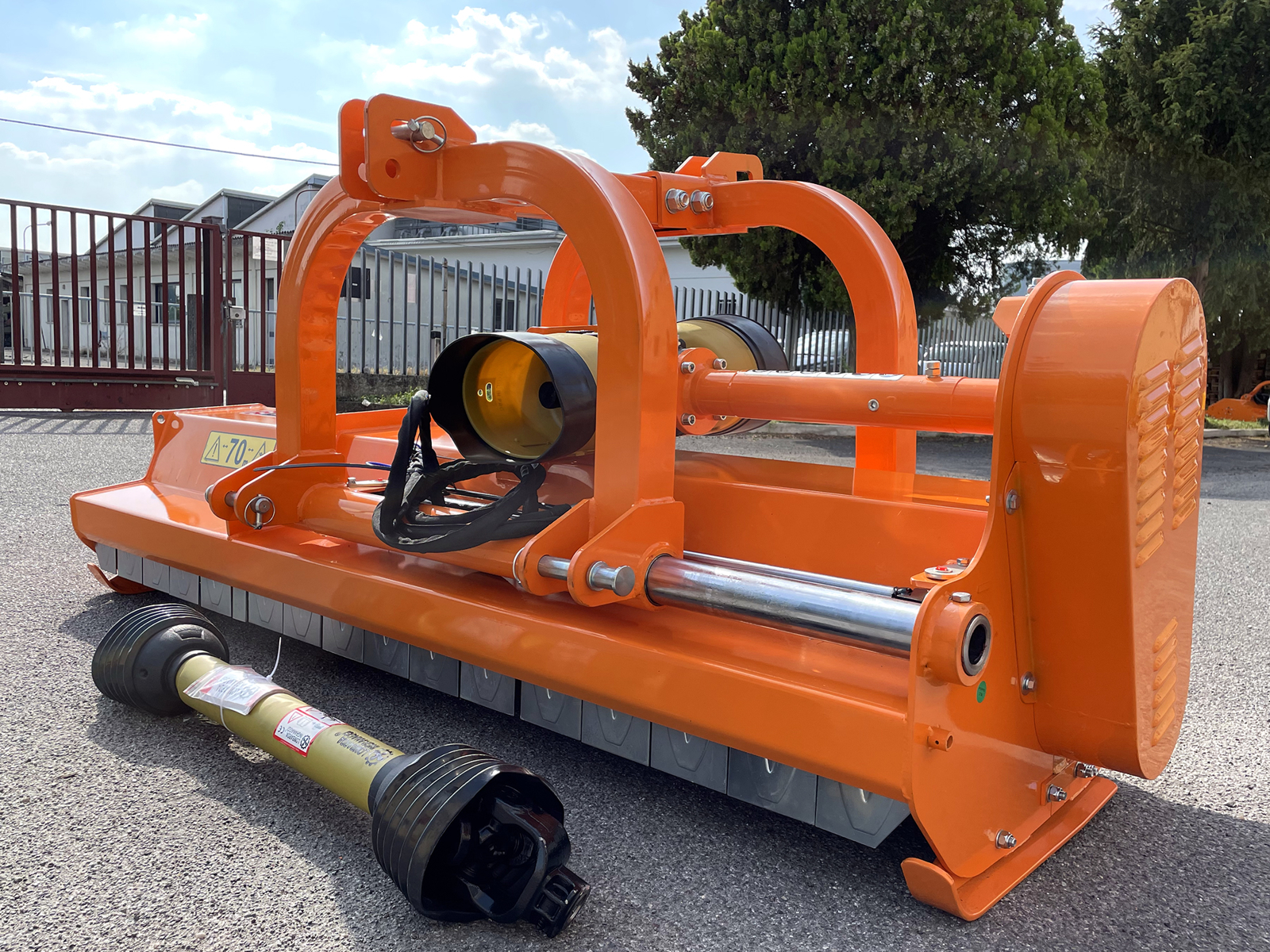

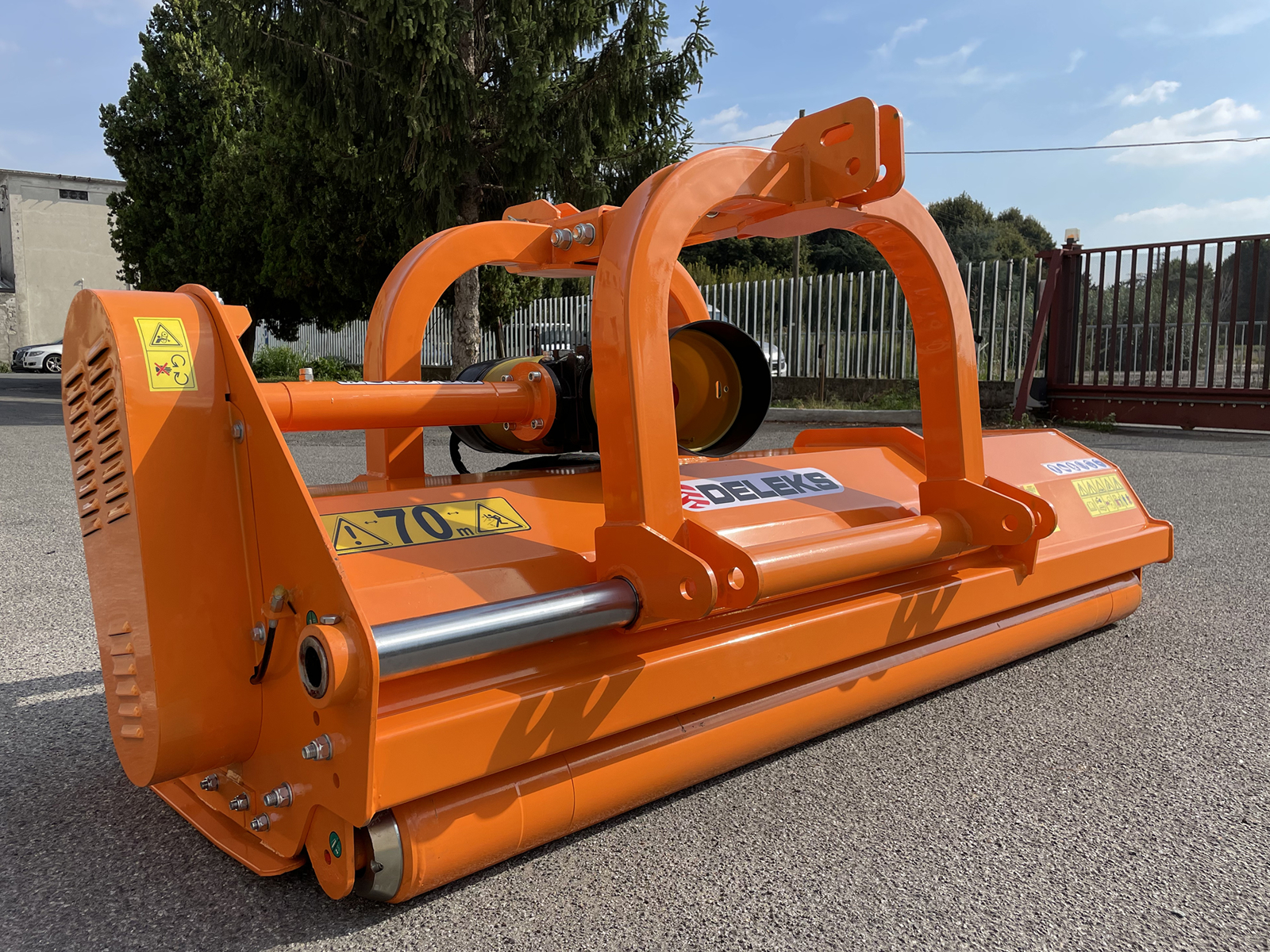

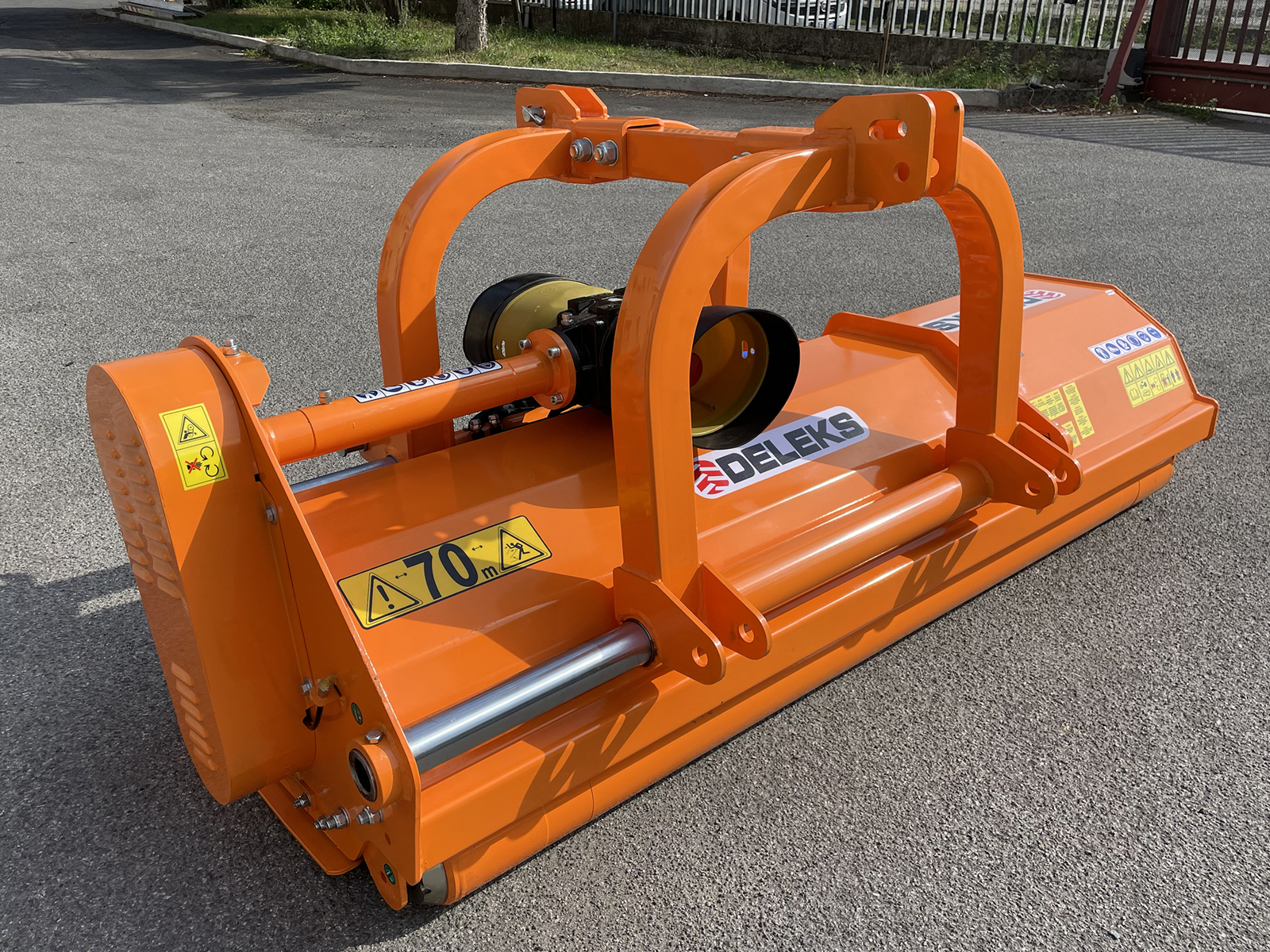

Front and rear flail mower 160 cm (63 in) GRIZZLY-160, heavy-duty hammer flail mulcher for reverse-drive tractors or tractors with a front linkage, 50-100 hp
DETAILS
Front and rear flail mower with a 160 cm (63 in) cut: the DELEKS® GRIZZLY-160 is the heavy-series hammer flail mulcher that mounts in front of the tractor or behind it, for reverse-drive tractors, tractors with a front linkage and conventional tractors from 50 to 100 hp. The DELEKS® double-shaft gearbox, 540 + 540 rpm, with freewheel and a 3-year warranty, lets you run it front or rear; for a 1,000 rpm PTO there is the optional gearbox. The electronically balanced 152 mm (6 in) rotor carries 14 hammer flails of 1,100 g (2.4 lb) and pulverises grass, leaves, brambles and vine and olive prunings up to 6-7 cm (2.4-2.8 in) thick. Double-skin hood, 40 cm (16 in) hydraulic side shift, oversized rear roller, 4-belt drive, 520 kg (1,146 lb). TÜV-certified, it comes complete with a CE-approved PTO shaft, a 2-year warranty and free delivery within the EU.
Front or rear: which tractors it fits
The GRIZZLY-160 runs in front of the tractor or behind it: on the front linkage, on reverse-drive tractors or, like a conventional flail mower, on the rear linkage. It cuts 160 cm (63 in) with an overall width of 175 cm (69 in) and fits tractors of every make from 50 to 100 hp, with a universal category 2 three-point linkage (25-28 mm pins, lower link spacing from 740 to 890 mm). It works on the flat and on slopes. The gearbox sits 750 mm from the left-hand side and 850 mm from the right-hand side, 550 mm above the ground.

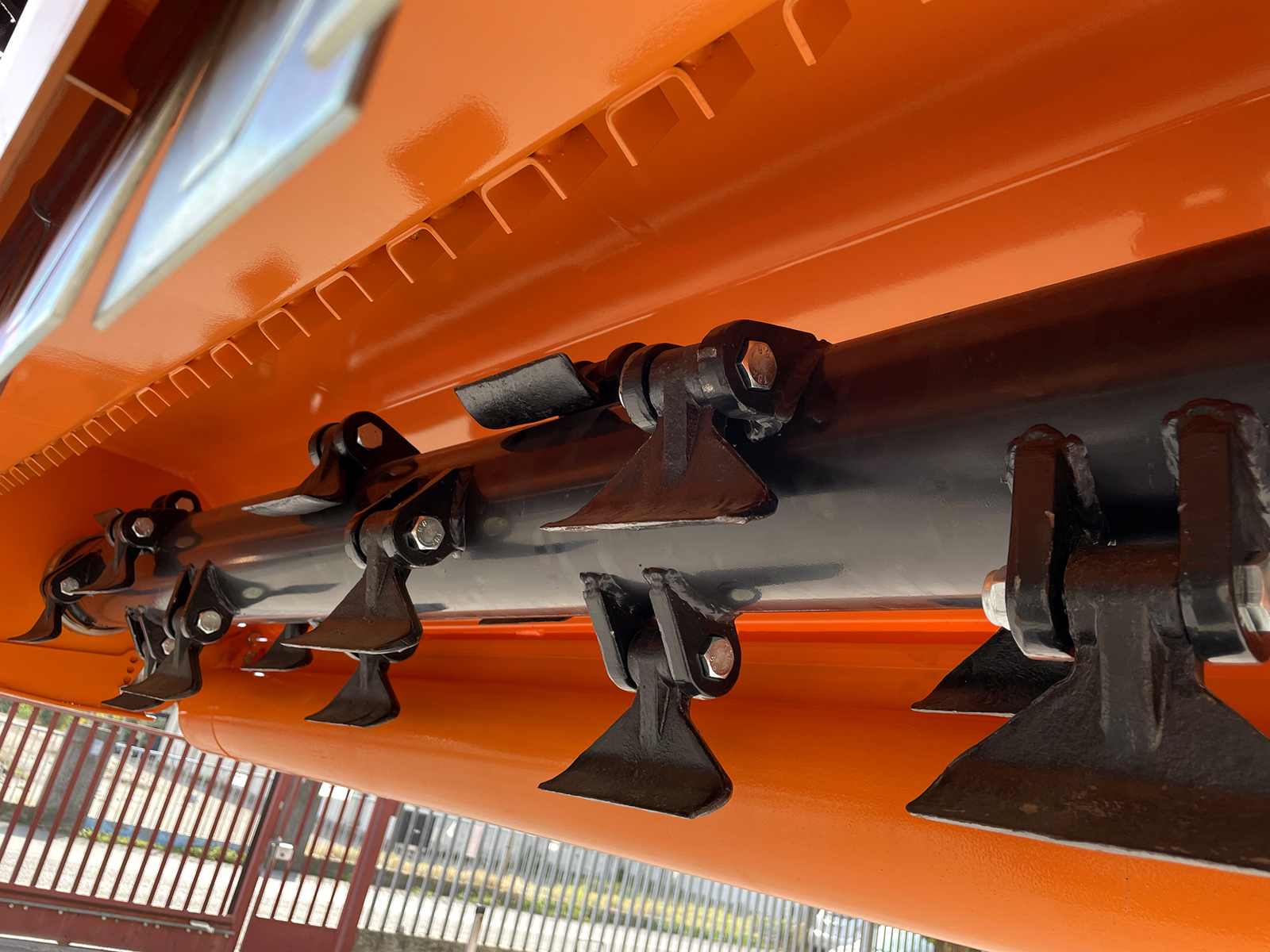

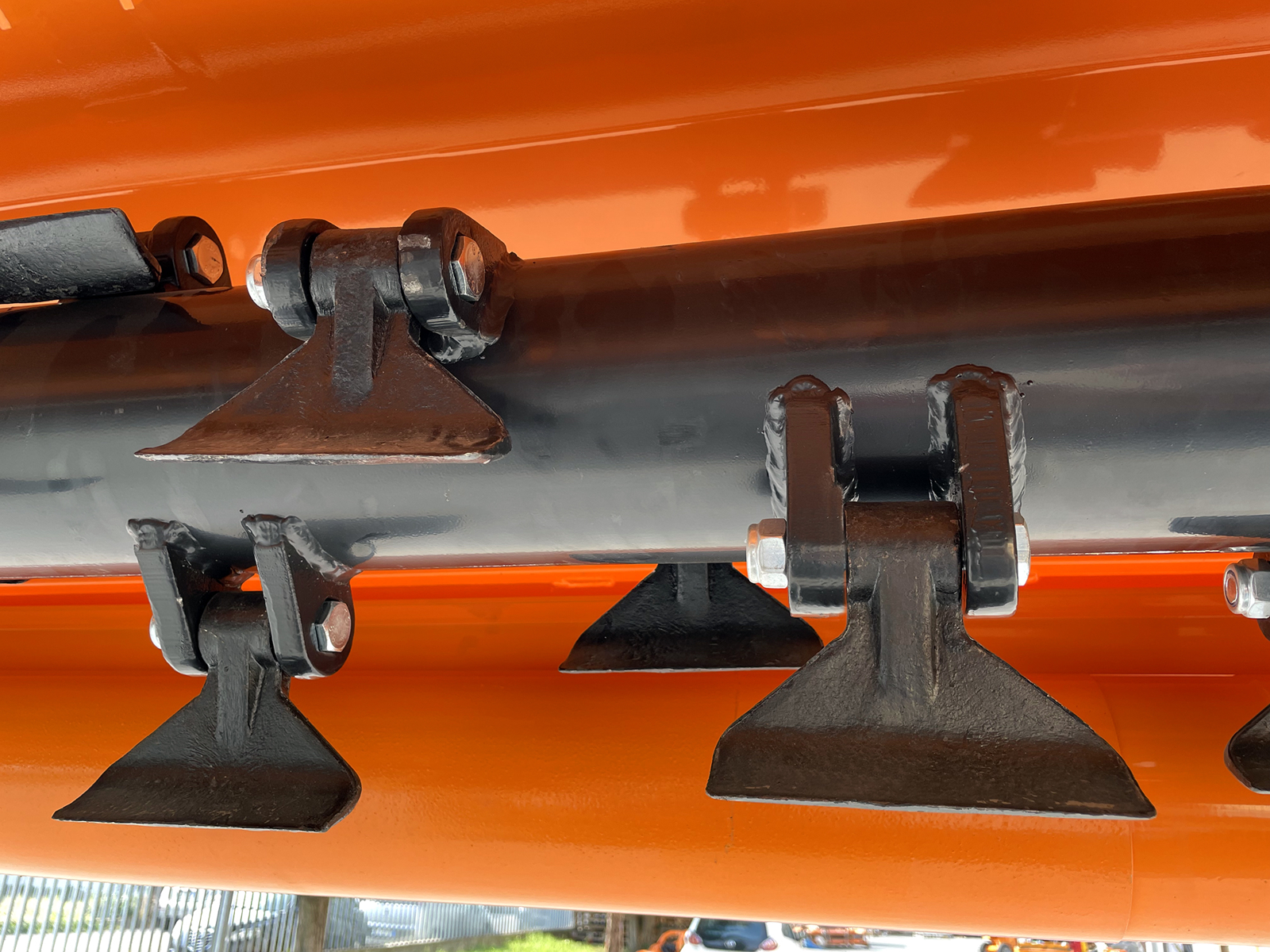

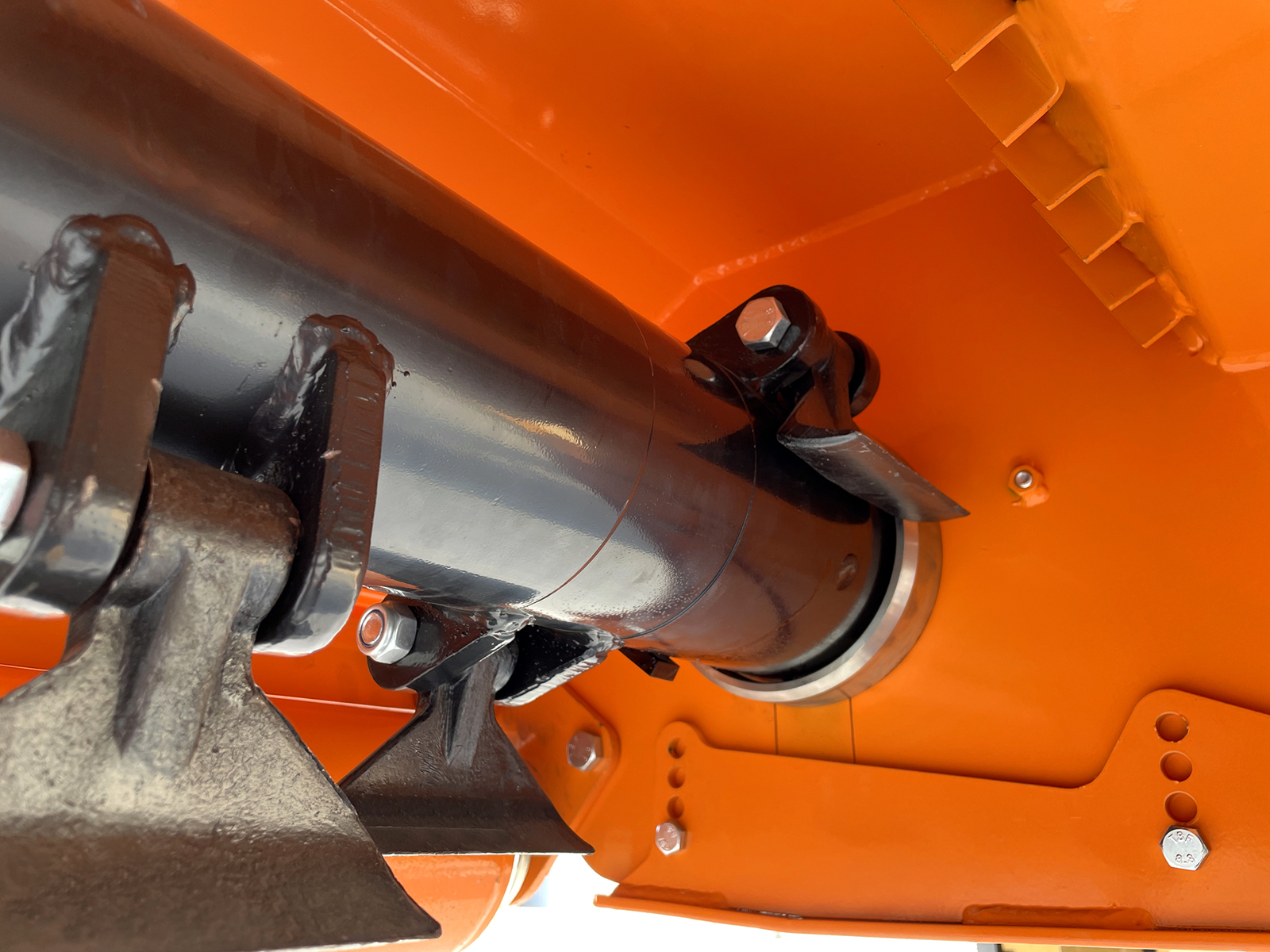

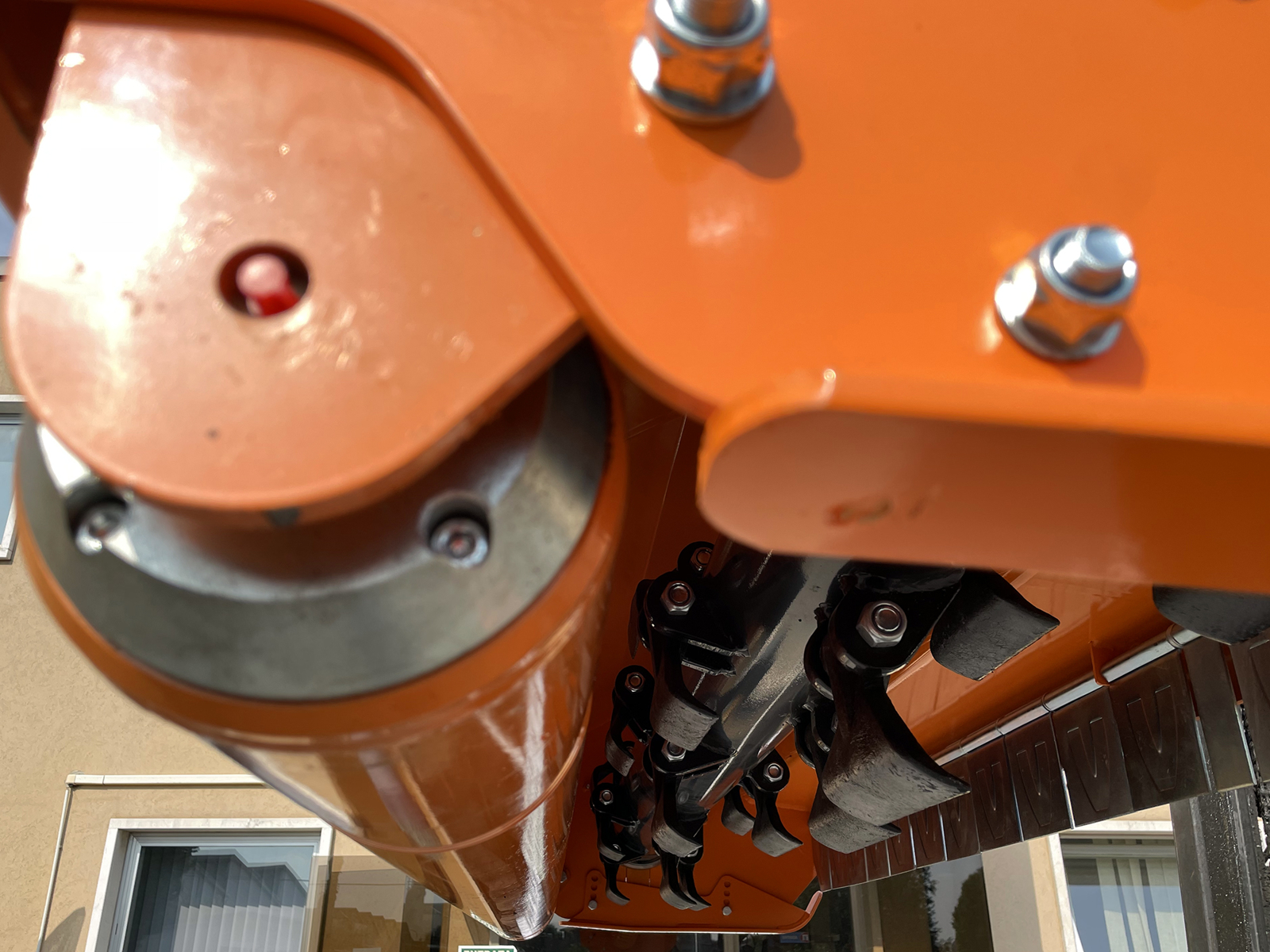

152 mm (6 in) rotor with 14 hammer flails of 1,100 g (2.4 lb)
The rotor is 152 mm (6 in) in diameter, with an 8 mm (5/16 in) tube wall; it is electronically balanced and spins at 2,140 rpm. The 14 hammer flails weigh 1,100 g (2.4 lb) each and have a 140 mm (5.5 in) wide base: they pulverise grass, leaves, brambles and vine and olive prunings up to 6-7 cm (2.4-2.8 in) thick. On request the GRIZZLY-160 can be fitted with triple blades instead of the hammer flails, using the COLTELLI60TORO kit.

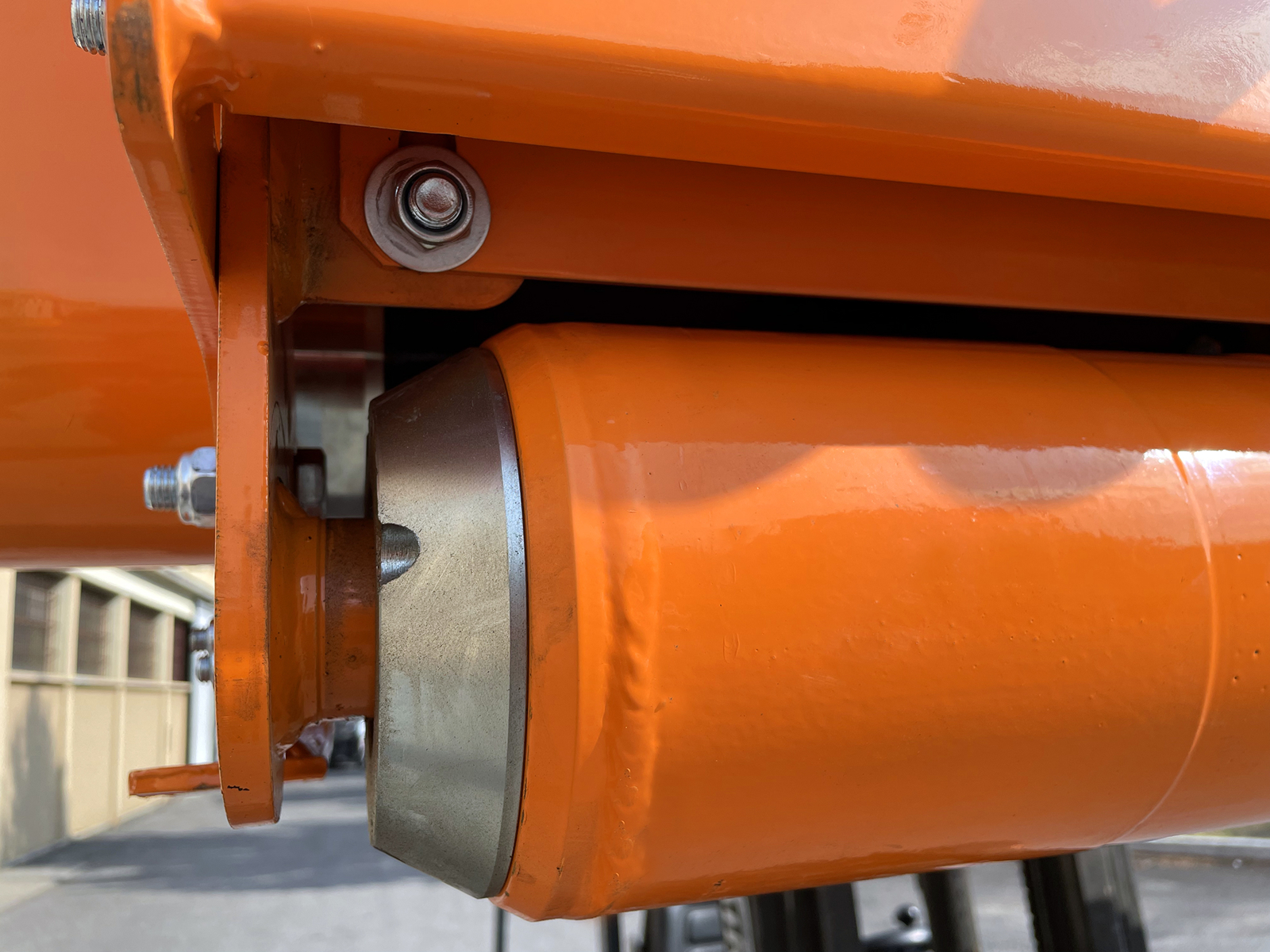

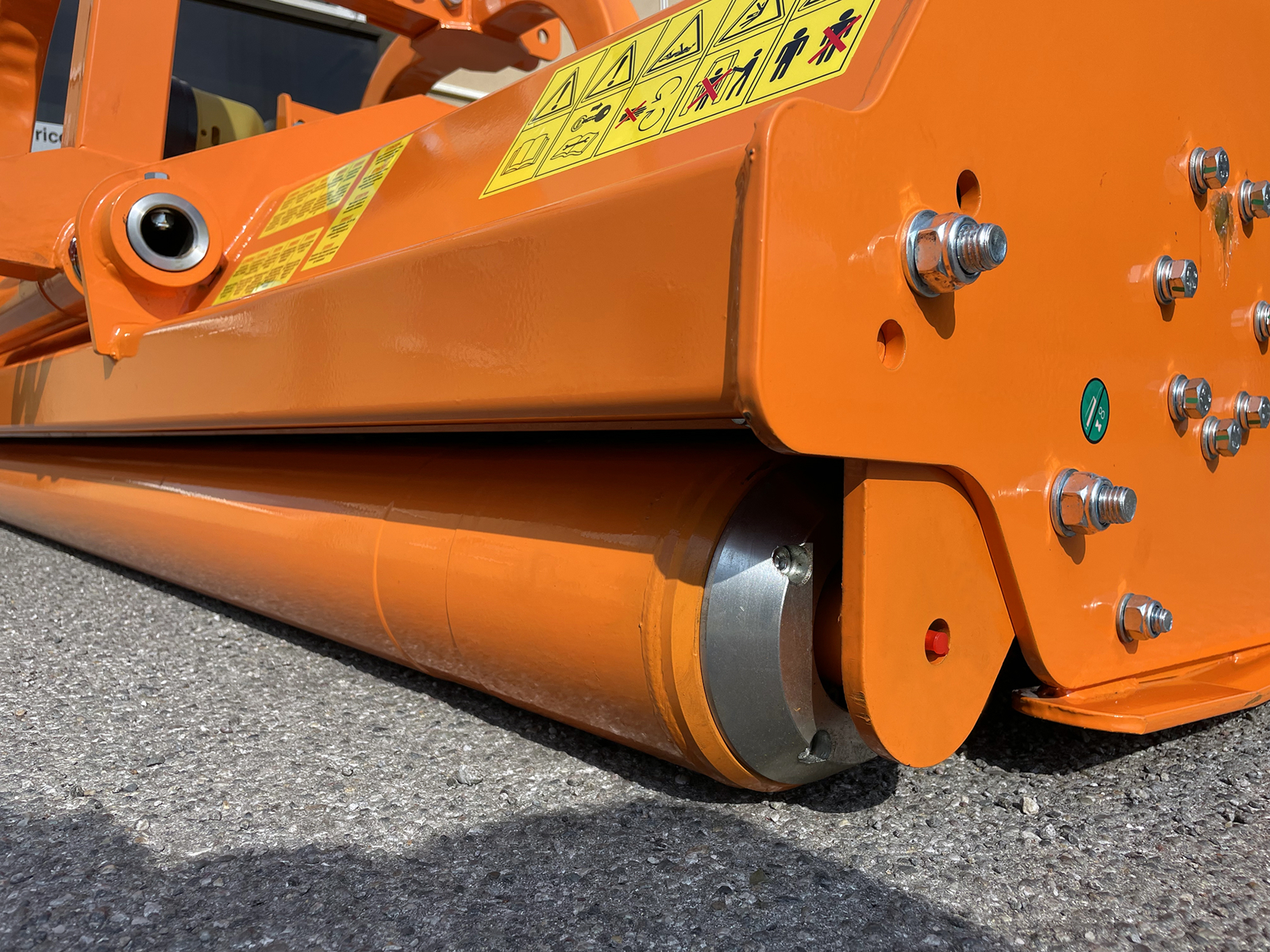

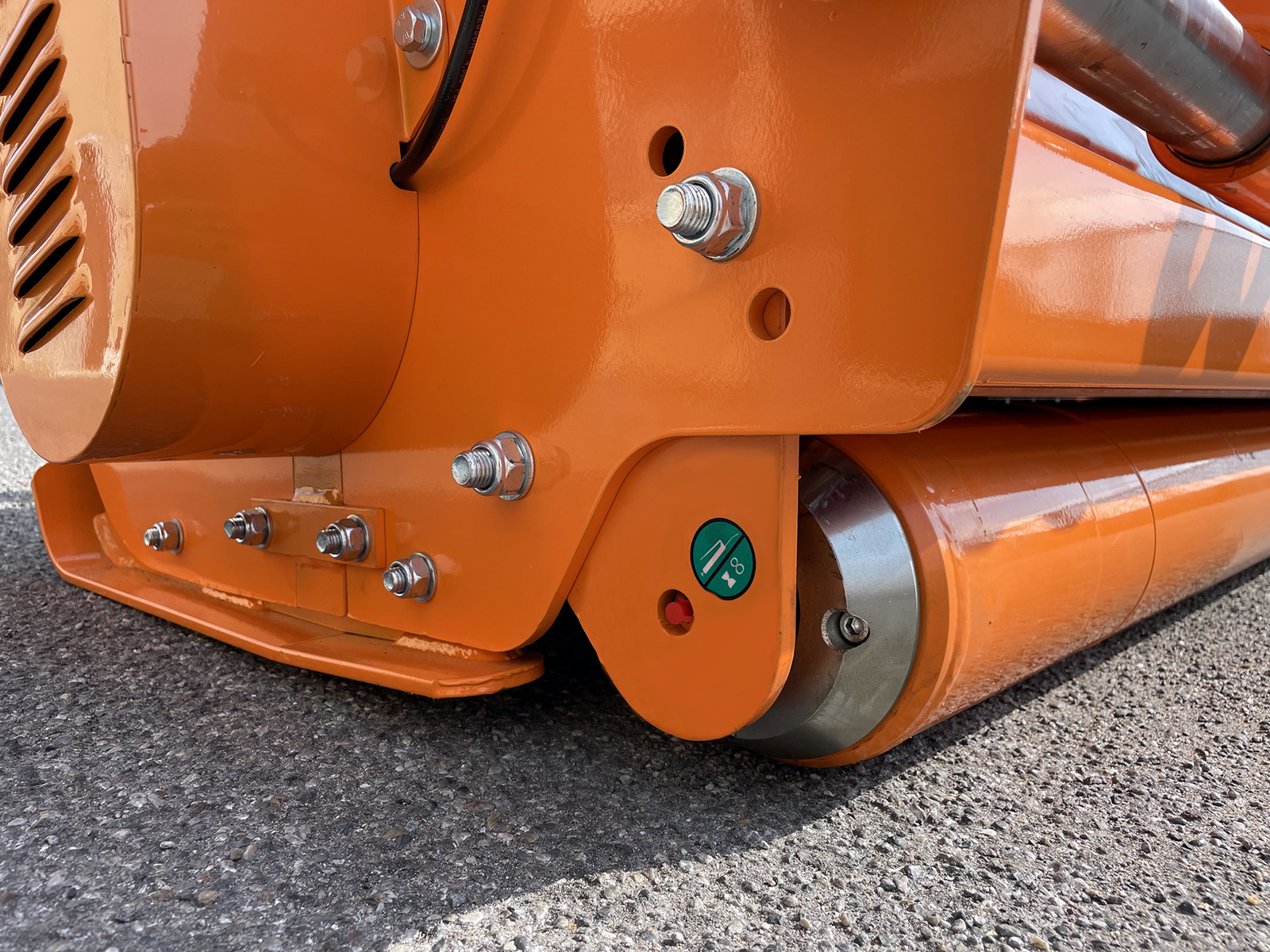

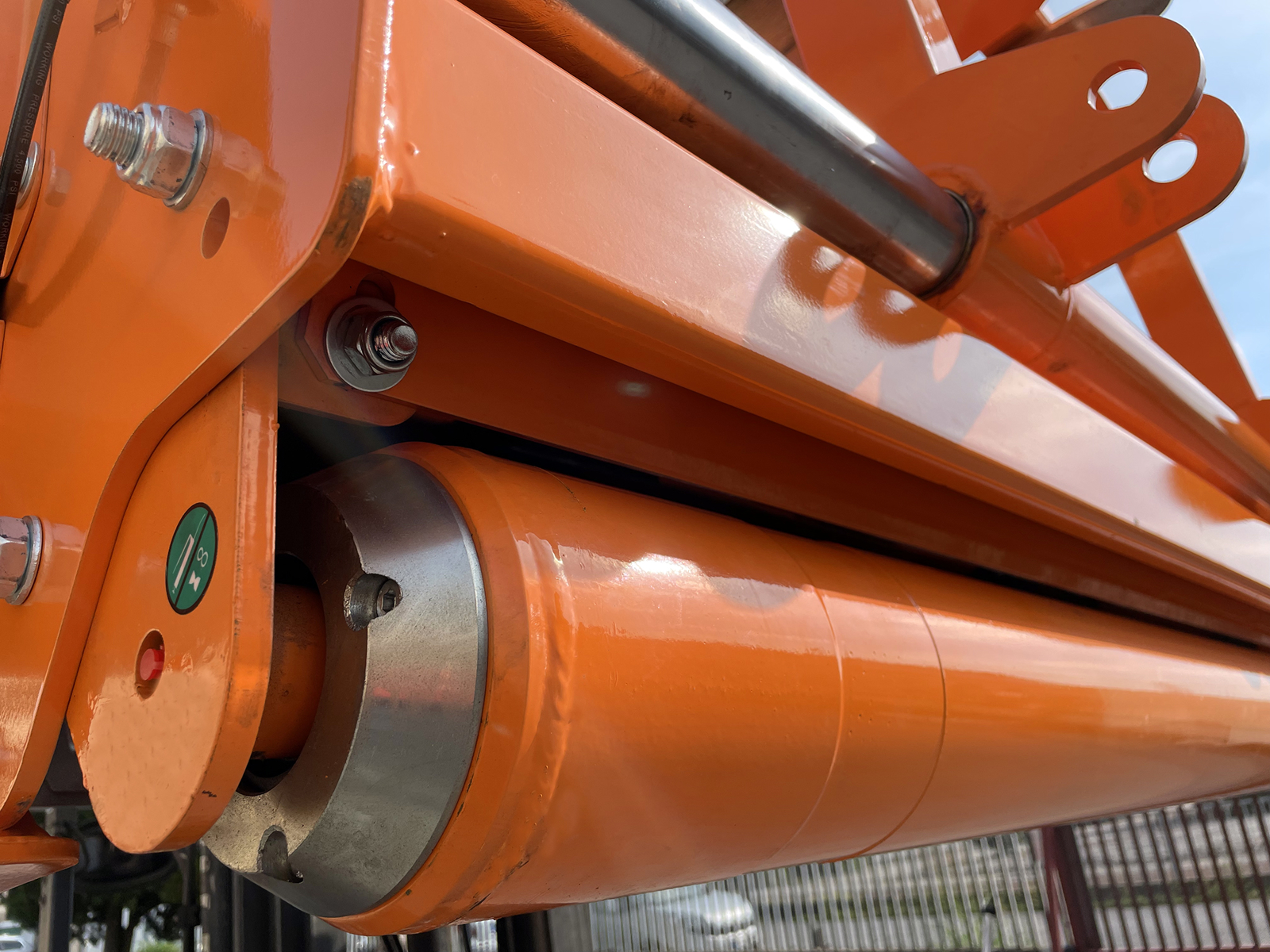

Double-skin hood, oversized roller and cutting height
The GRIZZLY-160 is built with a double-skin hood: the reinforced structure protects the body of the machine from knocks and from the stresses of shredding. The frame is 5 mm thick, with 8 mm side plates and 6 mm side skids. The oversized rear roller, 152 mm (6 in) in diameter, carries the machine and, with the side skids, sets the cutting height from 5 to 55 mm (0.2 to 2.2 in).

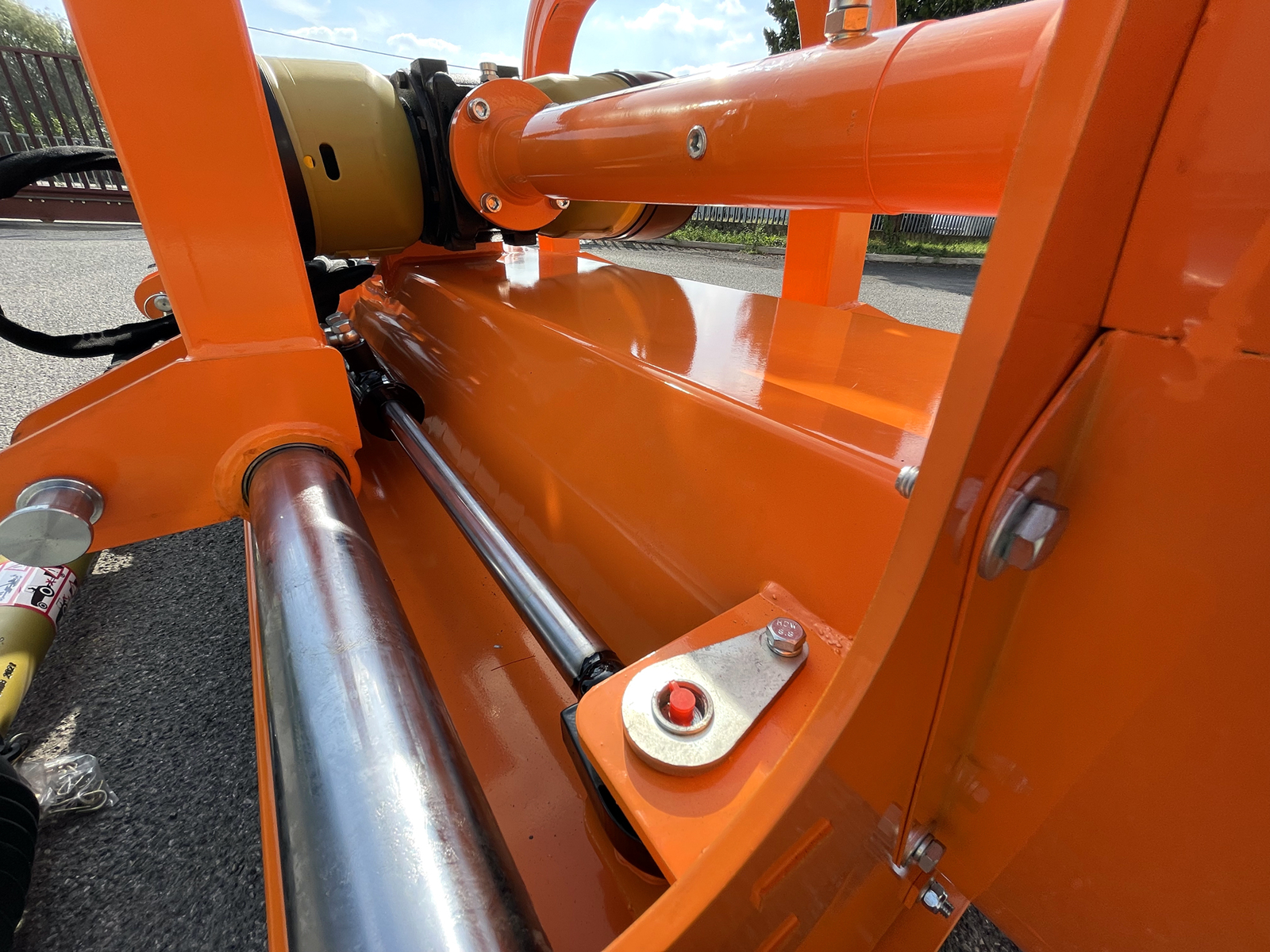

Hydraulic side shift of 40 cm (16 in)
The 40 cm (16 in) hydraulic side shift is worked from the seat with the tractor's spool valve: the mower runs centred or offset, along field edges, tight to the rows and wherever you need it out to one side of the tractor. It comes with 2 hydraulic hoses, 2.5 m (8 ft) long, with ½ in agricultural quick-release couplings.

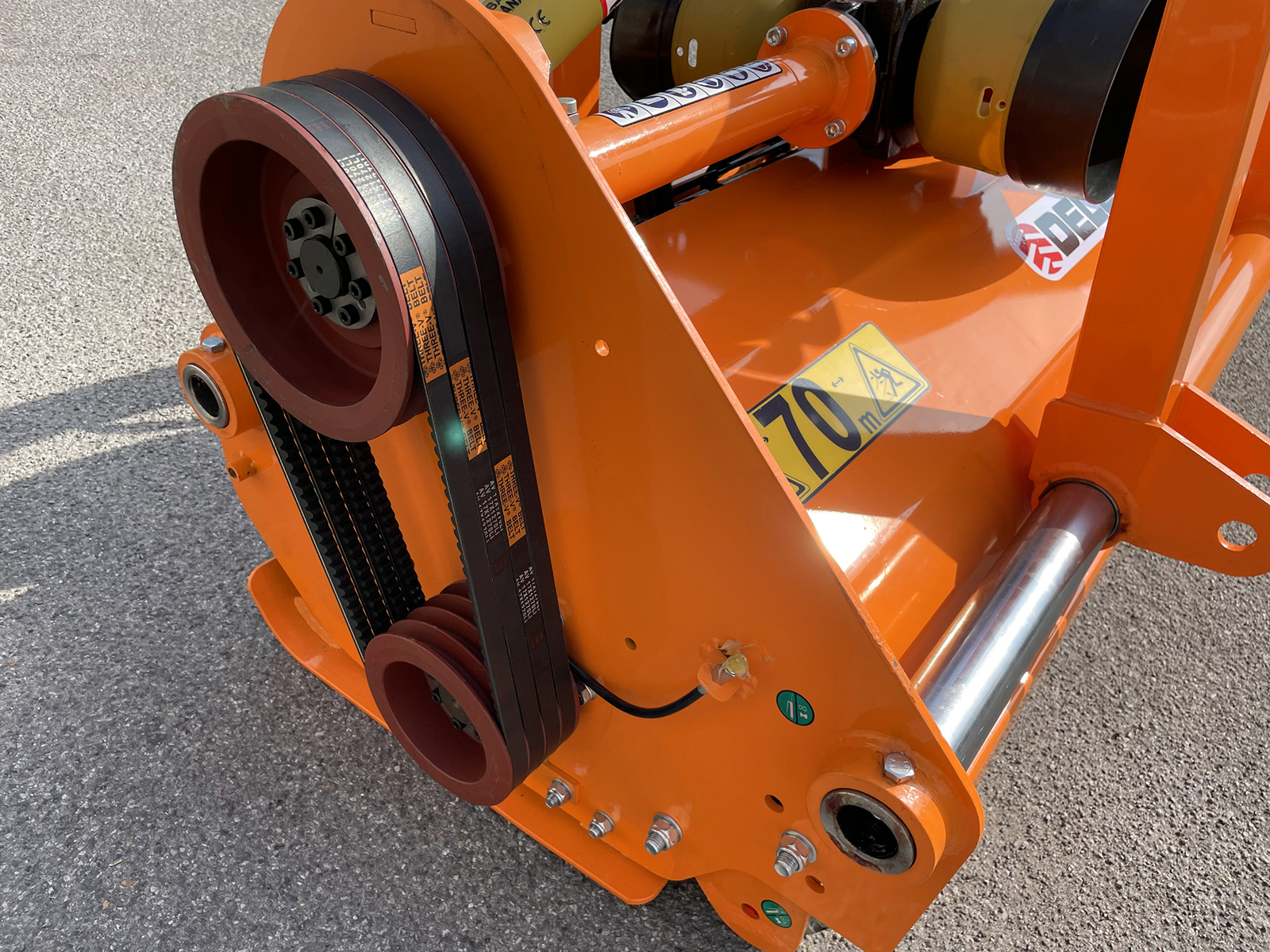

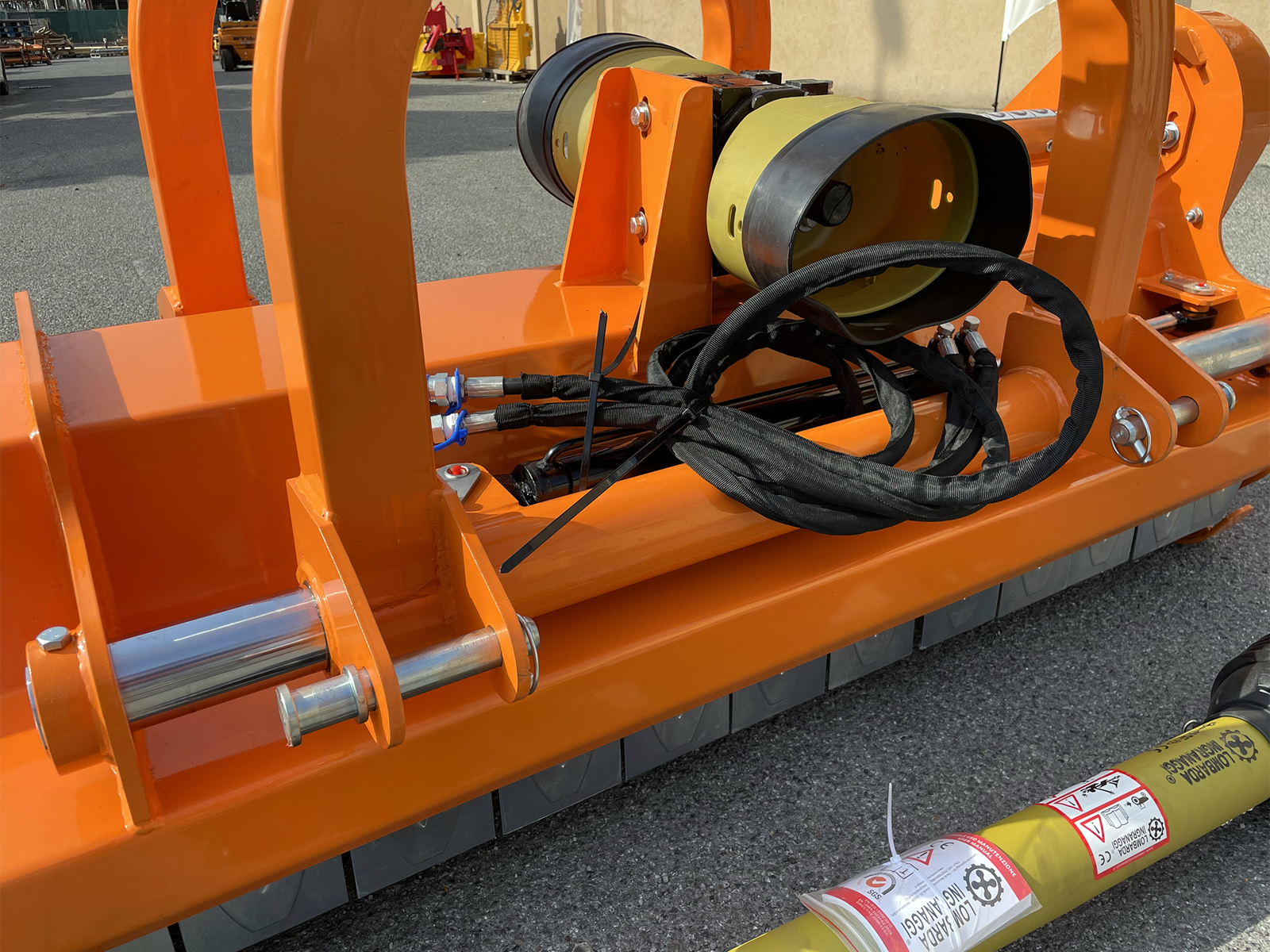

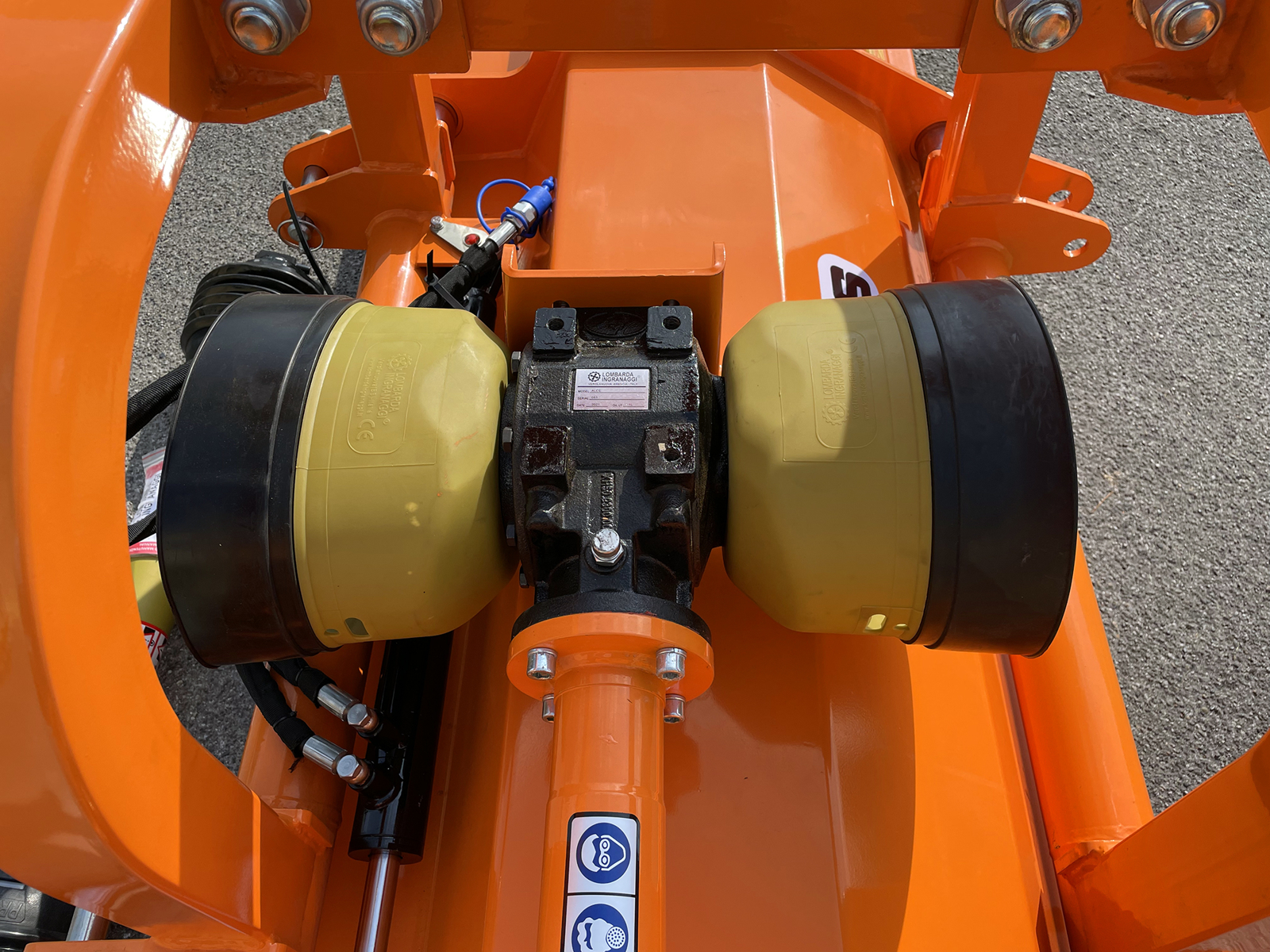

Double-shaft gearbox, 4 belts and PTO shaft
The DELEKS® gearbox has a double shaft, 540 + 540 rpm, with freewheel and a 3-year warranty: that is why the GRIZZLY-160 works both front and rear. With the freewheel, when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. For tractors with a 1,000 rpm PTO the 1,000 rpm gearbox is available as an option (SOSTMOLT1000). Drive reaches the rotor through 4 V-belts, 17x1270; tension is set from the outside, with the adjustable tensioner. The CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt, is included: the bolt shears under overload and protects the driveline.
Dimensions, weight and delivery
Working width 1,600 mm (63 in), overall width 1,750 mm (68.9 in), length 1,030 mm (40.6 in), height 1,050 mm (41.3 in), weight 520 kg (1,146 lb). It ships on a pallet in packaging measuring 175 × 105 × 105 cm (69 × 41 × 41 in), 638 kg (1,407 lb) gross, 1.93 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.
Where it works
- Reverse-drive tractors and front linkages: mowing out front, with the machine always in view
- Vineyards, orchards and olive groves: prunings up to 6-7 cm (2.4-2.8 in), grass and leaves between the rows
- Rough ground: long grass and brambles, shredded before the tractor's wheels run over them
- Field edges, ditches and rows: working offset with the hydraulic side shift
- Conventional rear mounting, on the flat and on slopes, with tractors from 50 to 100 hp
Options and spares
From this page you can add to your order the kit of 10 hammer flails (MAZZE10A), the 10 nuts and bolts for the flails (DB10A), the kit of 60 blades (COLTELLI60TORO), the spare set of 4 belts (CINGHIE4A), the gearbox for a 1,000 rpm PTO in place of the 540 rpm one (SOSTMOLT1000), the universal PTO adapter (RID1), the 680 mm (26.8 in) top link (BE0124) and the 730 mm (28.7 in) top link (BE0125). Other spares are identified on the exploded diagrams with our technical team.
FAQ
Can it be mounted in front of the tractor?
Yes: the DELEKS® double-shaft gearbox, 540 + 540 rpm, lets you run it out front, on the front linkage or on a reverse-drive tractor, or at the rear like a conventional flail mower.
Does it suit a 1,000 rpm PTO?
As standard the gearbox is 540 rpm; the 1,000 rpm gearbox (SOSTMOLT1000) can be ordered as an option.
What size tractor does the GRIZZLY-160 need?
From 50 to 100 hp, with a 540 rpm PTO and a category 2 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 520 kg (1,146 lb).
What size branches will it shred?
Vine and olive prunings and brambles up to 6-7 cm (2.4-2.8 in) thick, as well as grass and leaves.
Hammer flails or blades?
It comes with 14 hammer flails of 1,100 g (2.4 lb); on request it can be fitted with triple blades, using the COLTELLI60TORO kit.
How does the side shift work?
It is hydraulic, 40 cm (16 in): you work it from the seat with the tractor's spool valve, even on the move.
Is the PTO shaft included?
Yes: a CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt.
How does it differ from the CERVO?
Rotor, flails, double-skin hood and dimensions are the same. The GRIZZLY has the double-shaft gearbox and also works out front; the CERVO is the mower from the same series for rear mounting.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1600.0 mm |
| Overall width | 1750.0 mm |
| Min / Max cutting height | 5.0 - 55.0 mm |
| Weight | 520.0 kg |
| Overall height | 1050.0 mm |
| Tractor Power Range | 50 - 100 Hp |
| 3 point linkage | Cat. 2 (ø 25.0-28.0mm) |
| Position of the gearbox | 750.0 mm from left side / 850.0 mm from right side |
| Hood height | 500.0 mm |
| Spacing between the 2 lower points | 740.0 - 890.0 mm |
| Number of Hammers | 14 |
| Maximum cutting diameter | 40.0 - 50.0 mm |
| Overall length | 1030.0 mm |
| Distance between pto attachment and ground | 550.0 mm |
| Main hood thickness | 5.0 mm |
| Sides thickness | 8.0 mm |
| Side plates thickness | 6.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: Gearbox | DELEKS 540 r/min - 3 years warranty |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: RPM Rotor speed | 2140 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Transmission: V-Belts quantity | 4 |
| Transmission: V-Belts size | 17x1270 |
| Rotor: diameter | 152.0 mm |
| Rotor: bearings type and size | 40x90 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |
| Hammers: Weight | 1100.0 g |
| Hammer: øhole | 16.0 mm |
| Hammer: base width | 140.0 mm |
| Hammer: top width | 40.0 mm |
| Hammer: Diagonal | 97.0 mm |
| Rear roller: diameter | 152.0 mm |
| Rear roller: sheet thickness | 6.0 mm |
| Rear roller: bearings type and size | 90x40 mm - GB276-6308 |
| Hydraulic Hoses | 2500.0 mm / connections 1/2" AGRI, WP-400 bar |
| Pto shaft | CE 6x1000 mm + shear bolt |
| Hood length | 1000.0 mm |
| Effective Displacement | 400.0 mm (Hydraulic) |
| Gross shipping weight | 638 kg |
| Package volume | 1.93 m3 |
| Packing sizes | 1750.0*1050.0*1050.0 mm |
