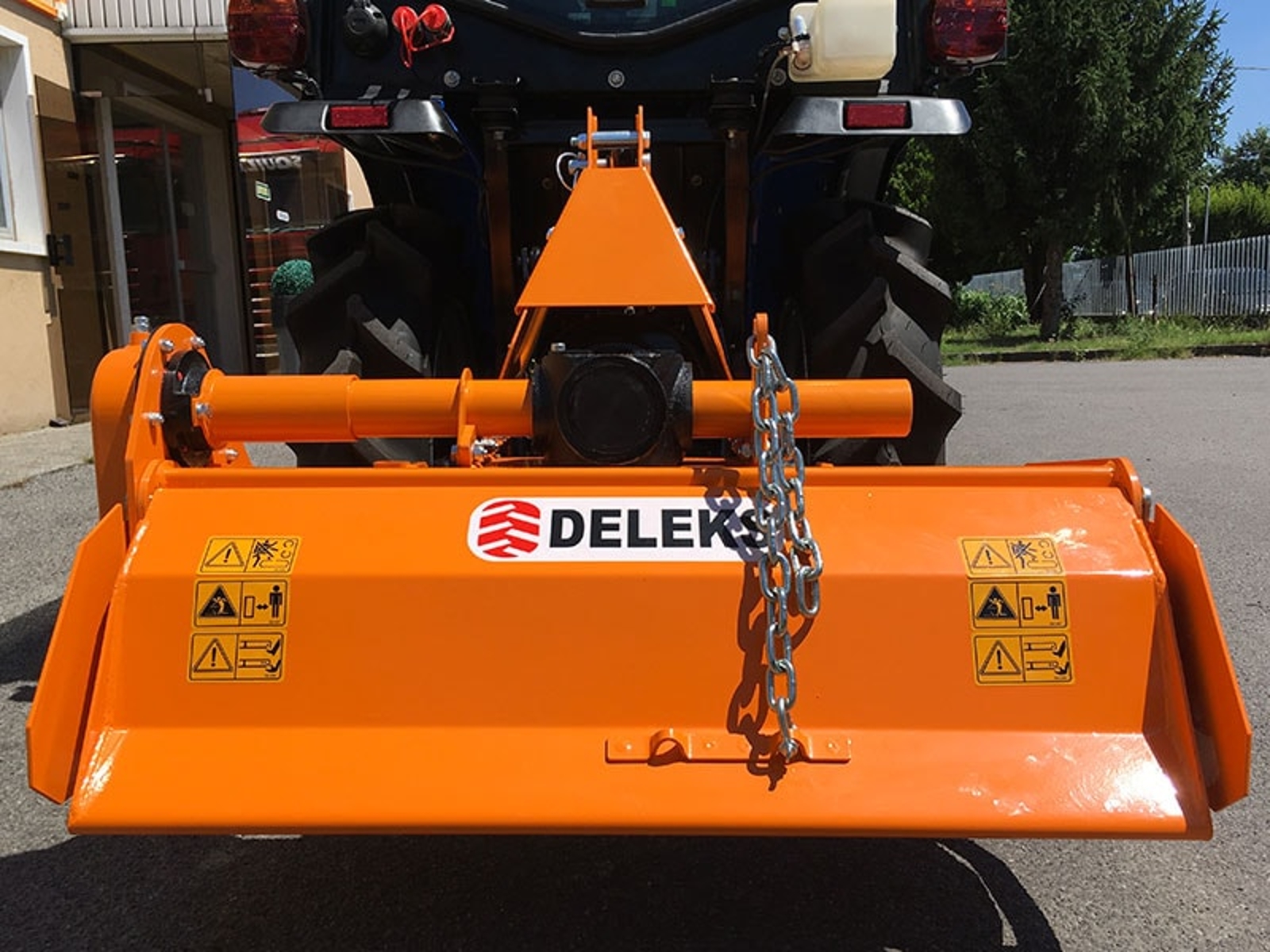

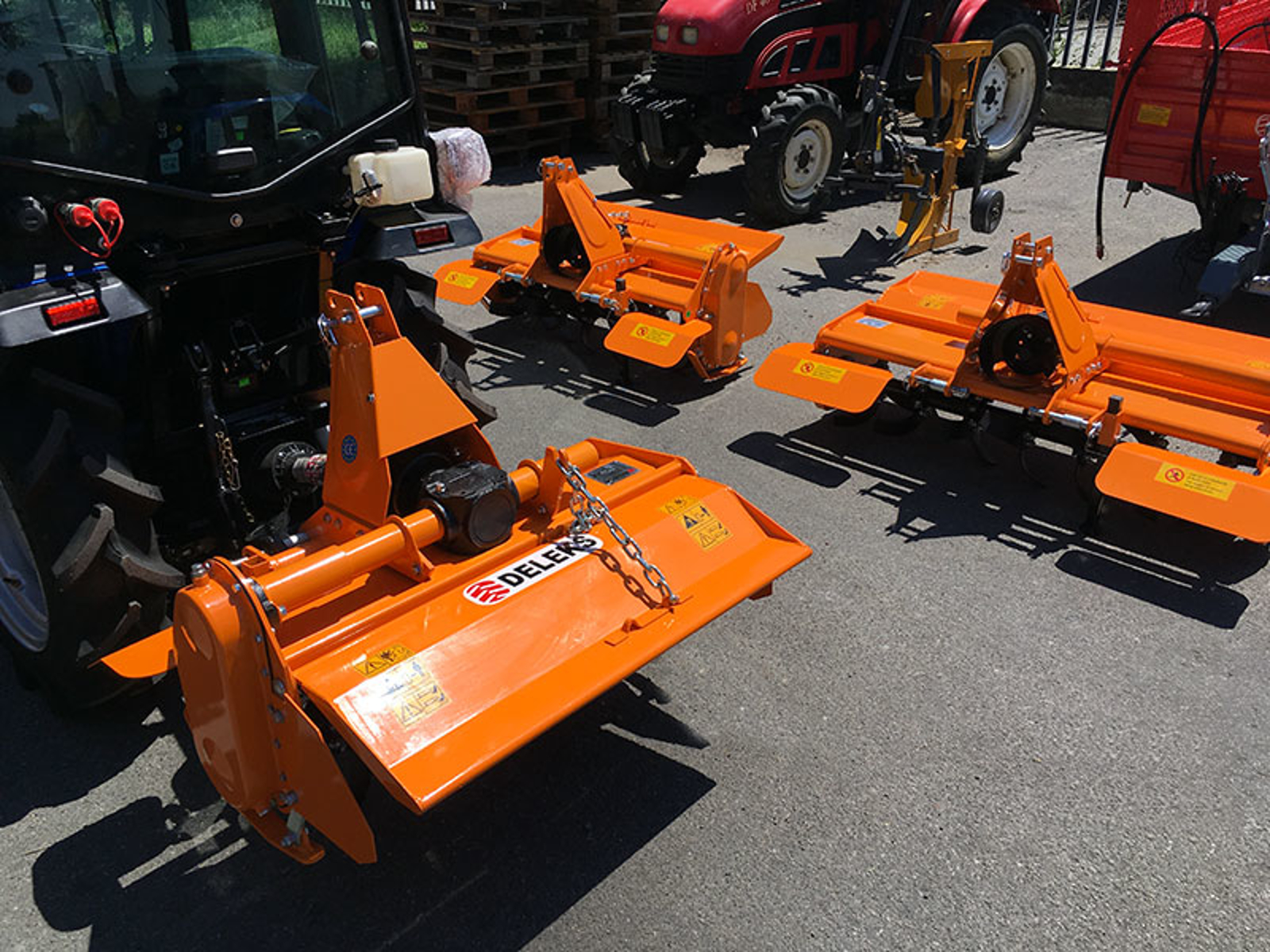

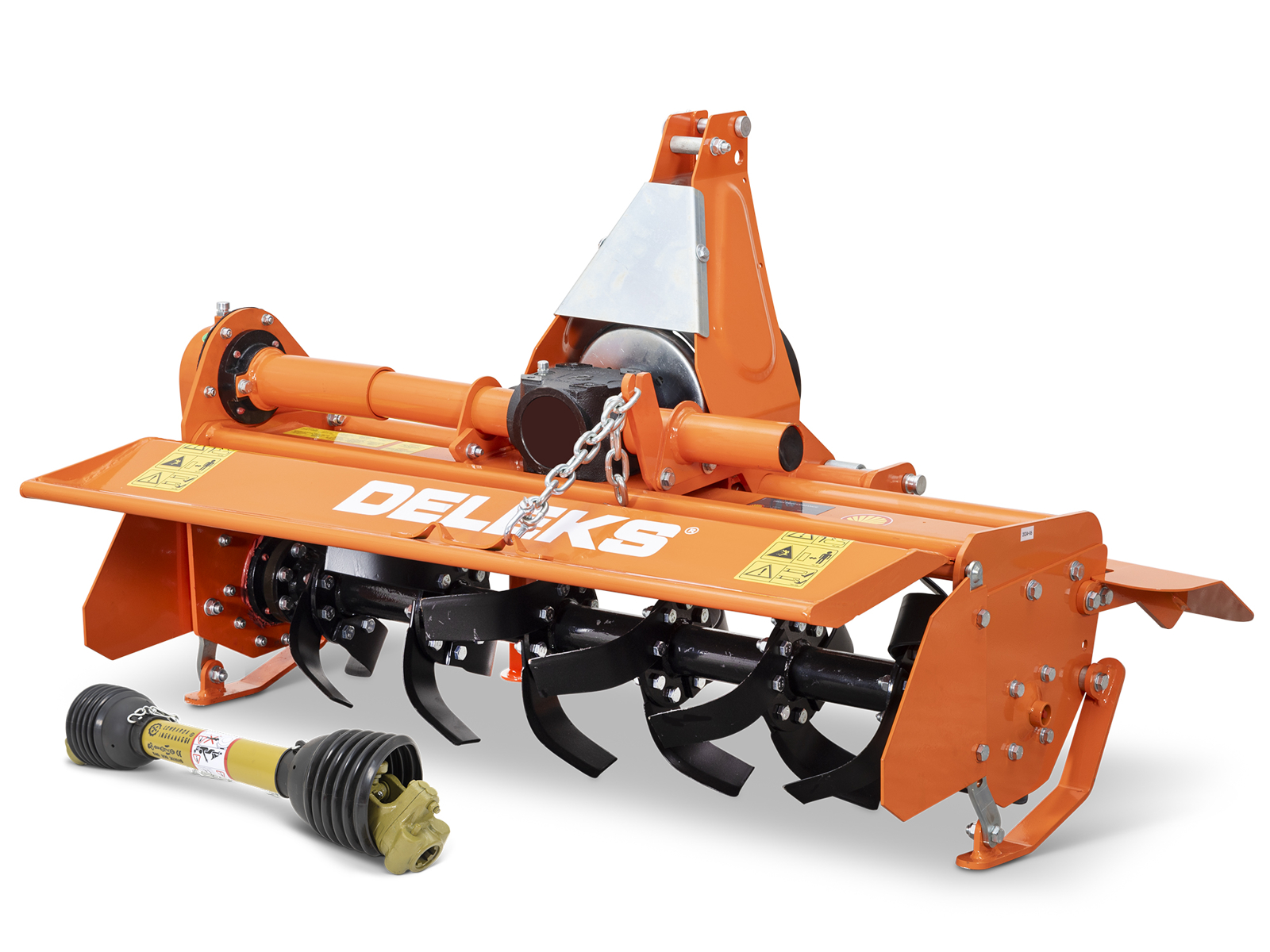

Rotavator for compact tractors 115 cm (45 in) DFL-115, light series 14-35 hp, side shift
DETAILS
Rotavator for compact tractors with 115 cm (45.3 in) working width, from the DELEKS® light series: the middle size of the light range, for compact tractors from 14 to 35 hp with a Cat. 1 three-point linkage, such as Kubota B and BX, Iseki TM, Yanmar, Solis and most other compact tractors. Rotary tiller with side chain drive, 540 rpm gearbox with a three-year warranty, 24 forged tines on 6 flanges, 120 mm (4.7 in) of manual side shift and an adjustable rear bonnet. It weighs 148 kg (326 lb), works 12 to 16 cm (4.7–6.3 in) deep and comes complete with its CE PTO shaft; free delivery within the EU.

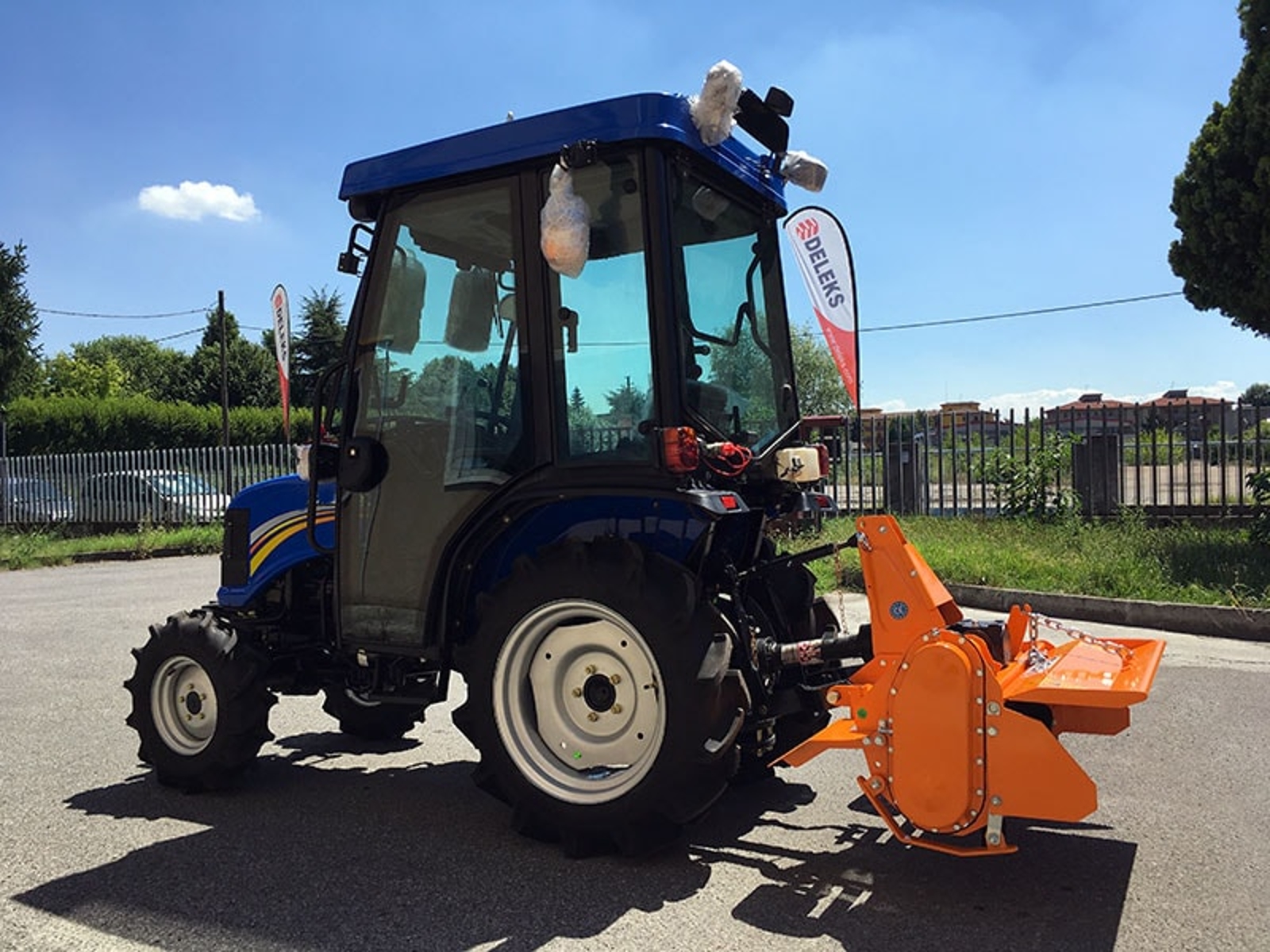

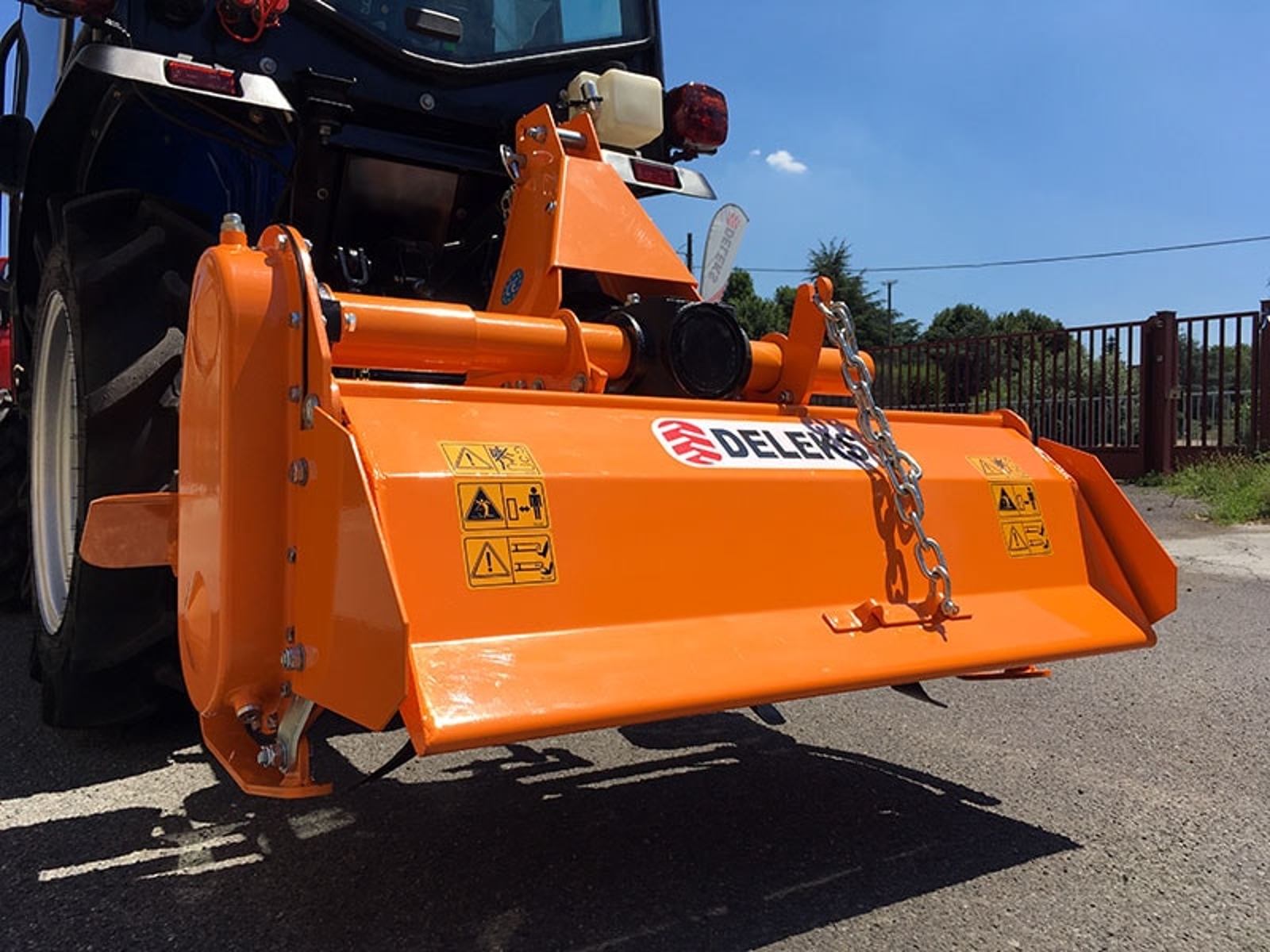

Which tractors it suits
With 115 cm (45.3 in) of working width and 128 cm (50.4 in) overall, the DFL-115 covers the track of compact orchard tractors and the wider small tractors, and at 148 kg (326 lb) it stays light on the lift. It needs 14-35 hp at the 540 rpm PTO and a Cat. 1 three-point linkage (ø 19–22 mm pins, lower-link spacing adjustable from 305 to 520 mm / 12–20.5 in). It is not suitable for quick-hitch frames on the lift arms. For tractors with a reverse-rotation PTO there is the reverse-rotation option: we turn the gearbox over before dispatch and the rotavator arrives ready to fit.

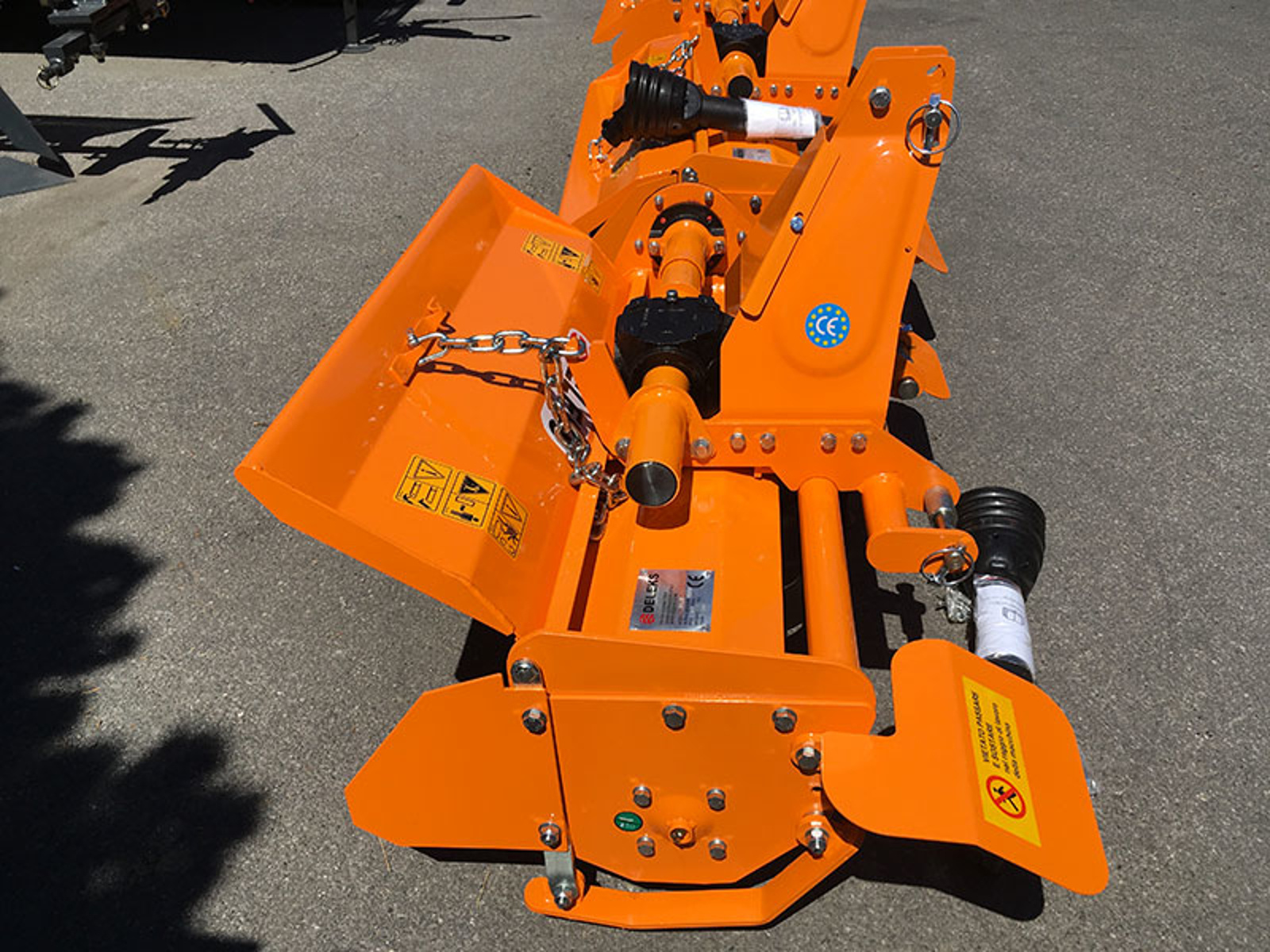

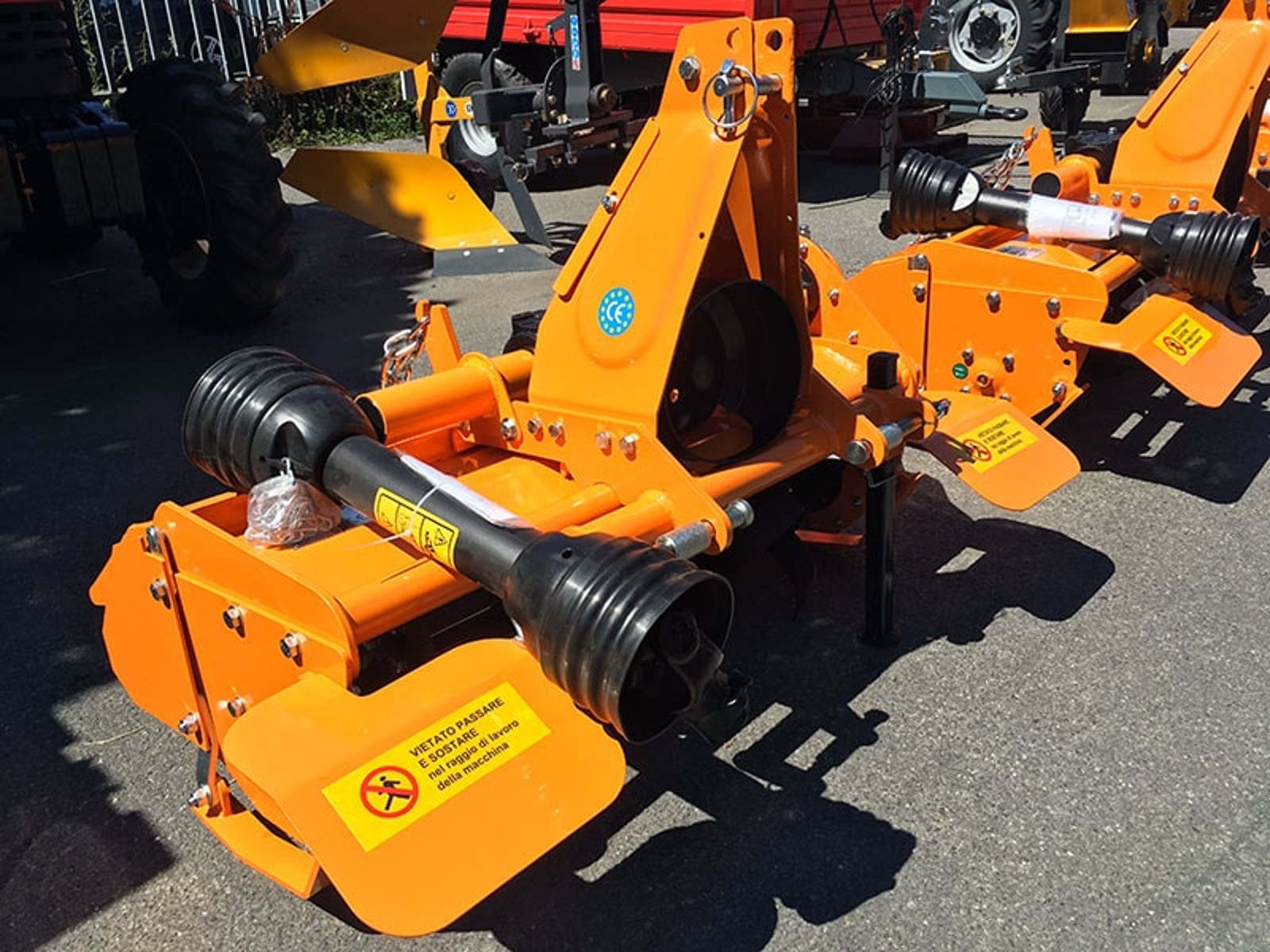

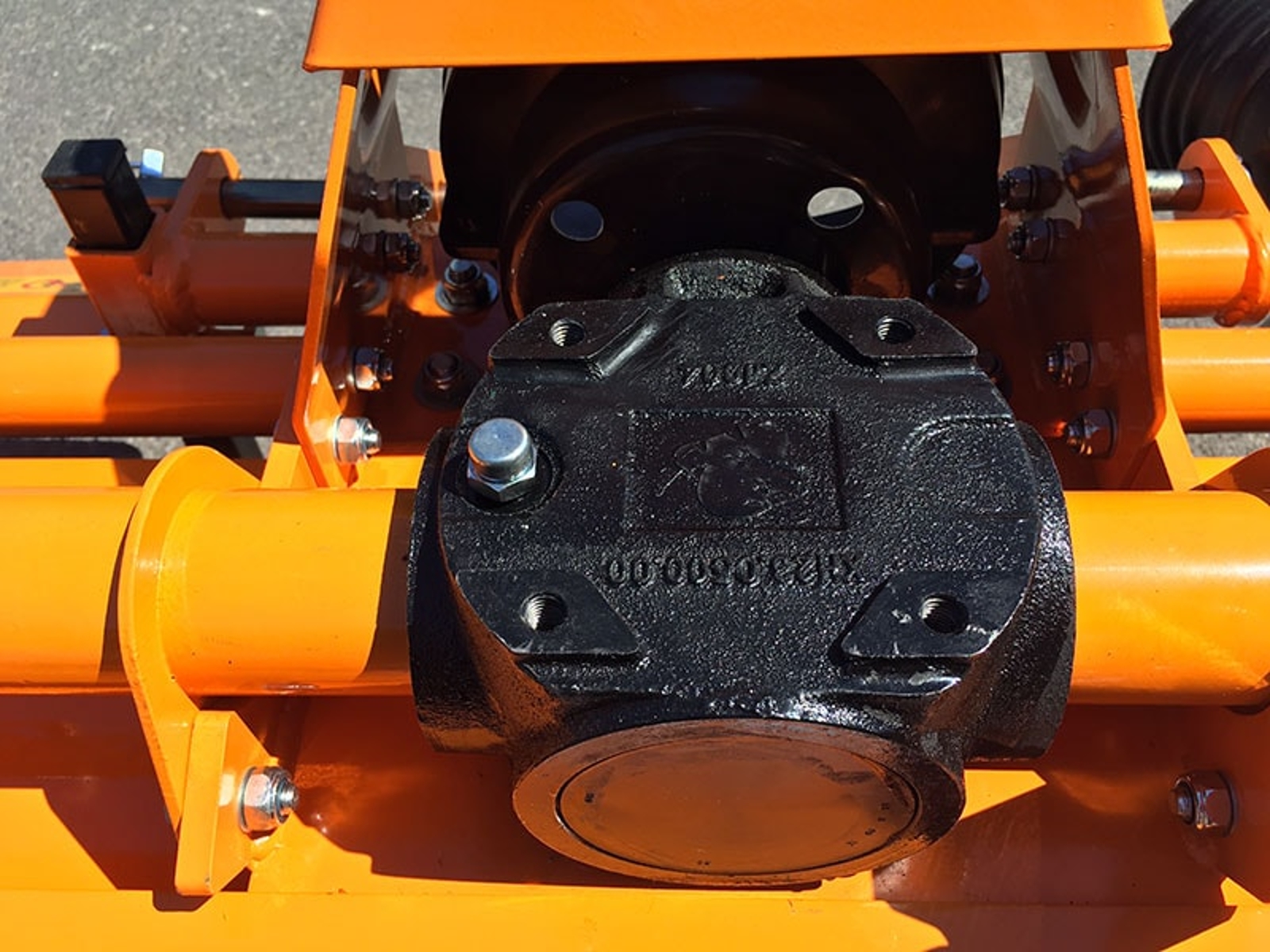

Chain drive and 540 rpm gearbox

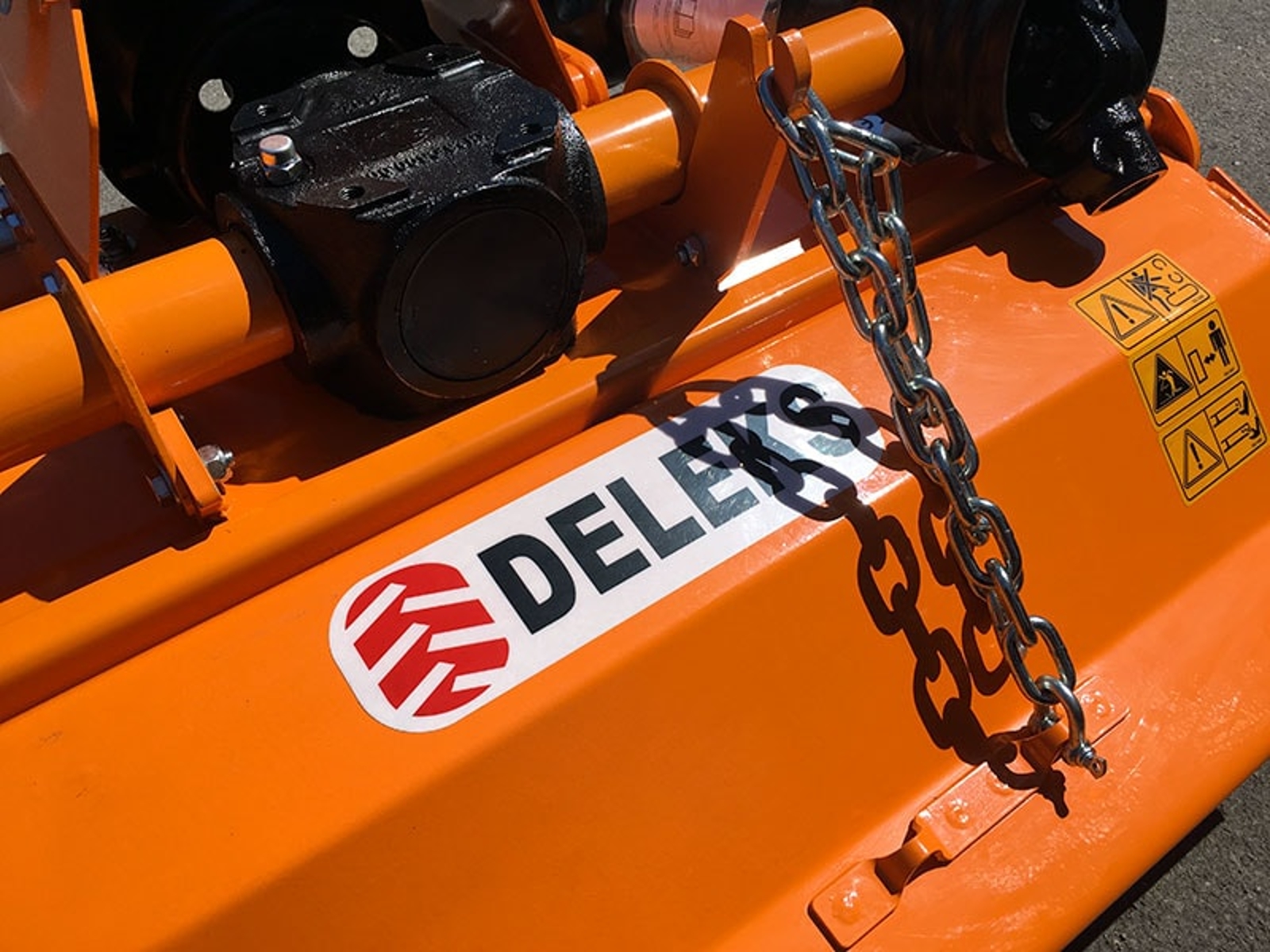

The DELEKS® 540 rpm gearbox carries a three-year warranty and arrives filled with SAE 120 oil; a side chain drive takes the power from the gearbox to the rotor, the simplest layout to check and repair on a light rotavator. The rotor turns at 280 rpm, the right speed to break the clod down with a low-powered tractor. The CE PTO shaft (category 4, 700 mm / 27.6 in) with single-disc friction clutch Ø 160 mm (6.3 in, type F0) is included and can be shortened, if needed, following the manual.

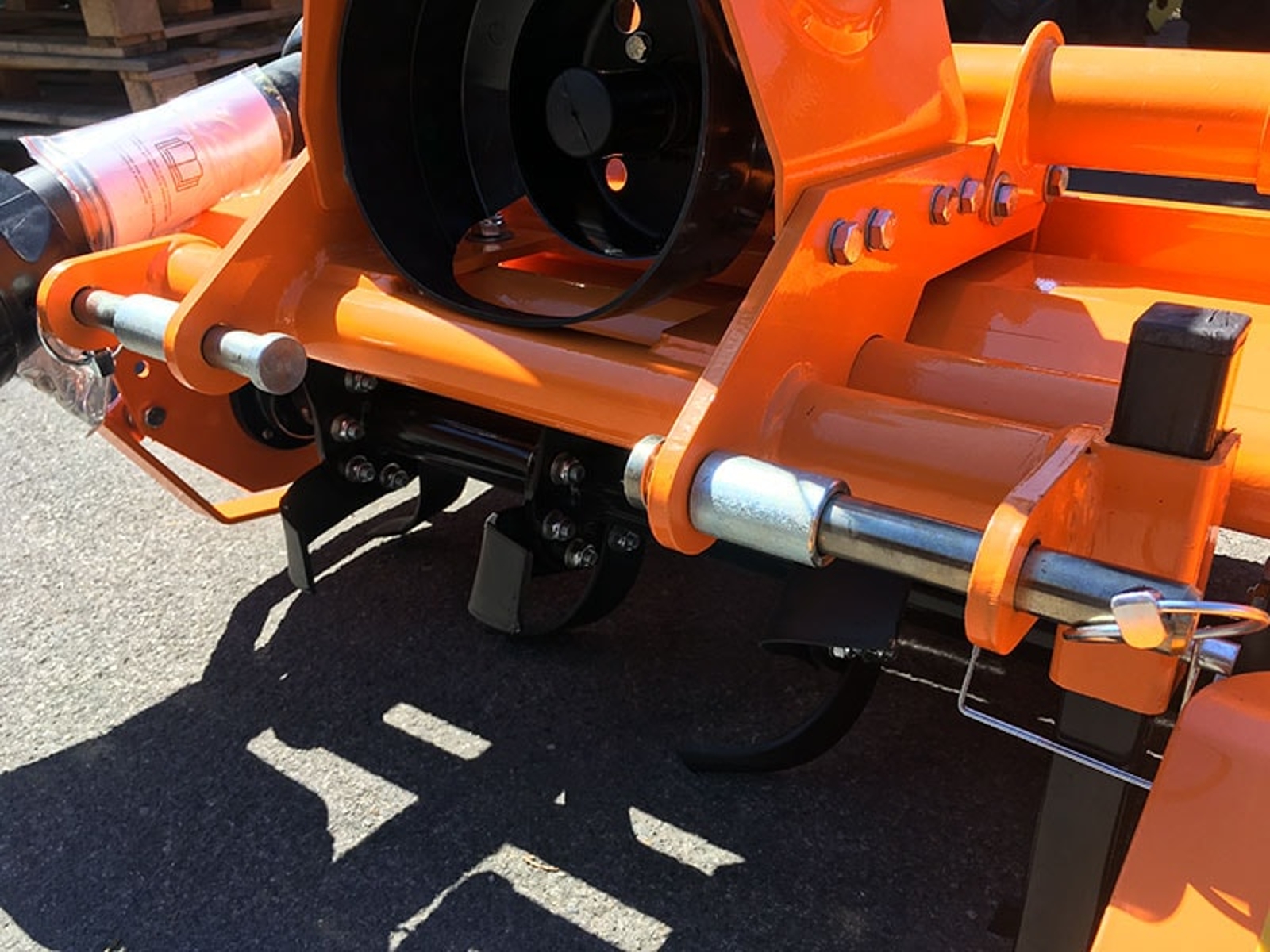

Rotor and forged tines

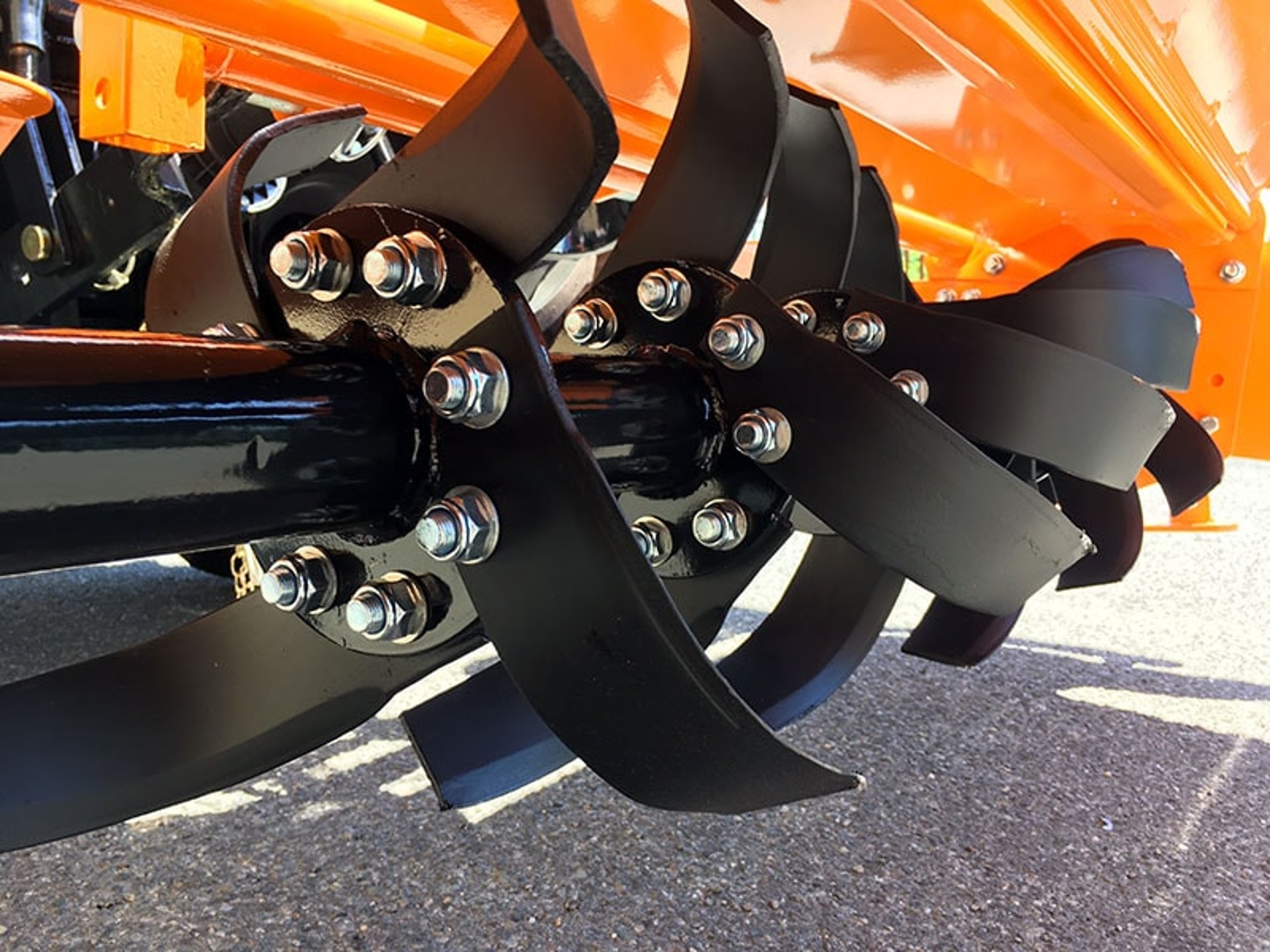

The rotor measures 370 mm (14.6 in) across with the tines fitted, on a 64 mm shaft with 6207 bearings and 6 mm side plates. The 24 forged tines (4 per flange, 180 × 67 mm, 6 mm thick, 230 mm curve, 570 g each) are held by two bolts each (ø 13 mm holes, 45 mm centres) and are changed one at a time; the same spare fits every DFL and DFM rotavator. Working depth 120 to 160 mm (4.7–6.3 in).

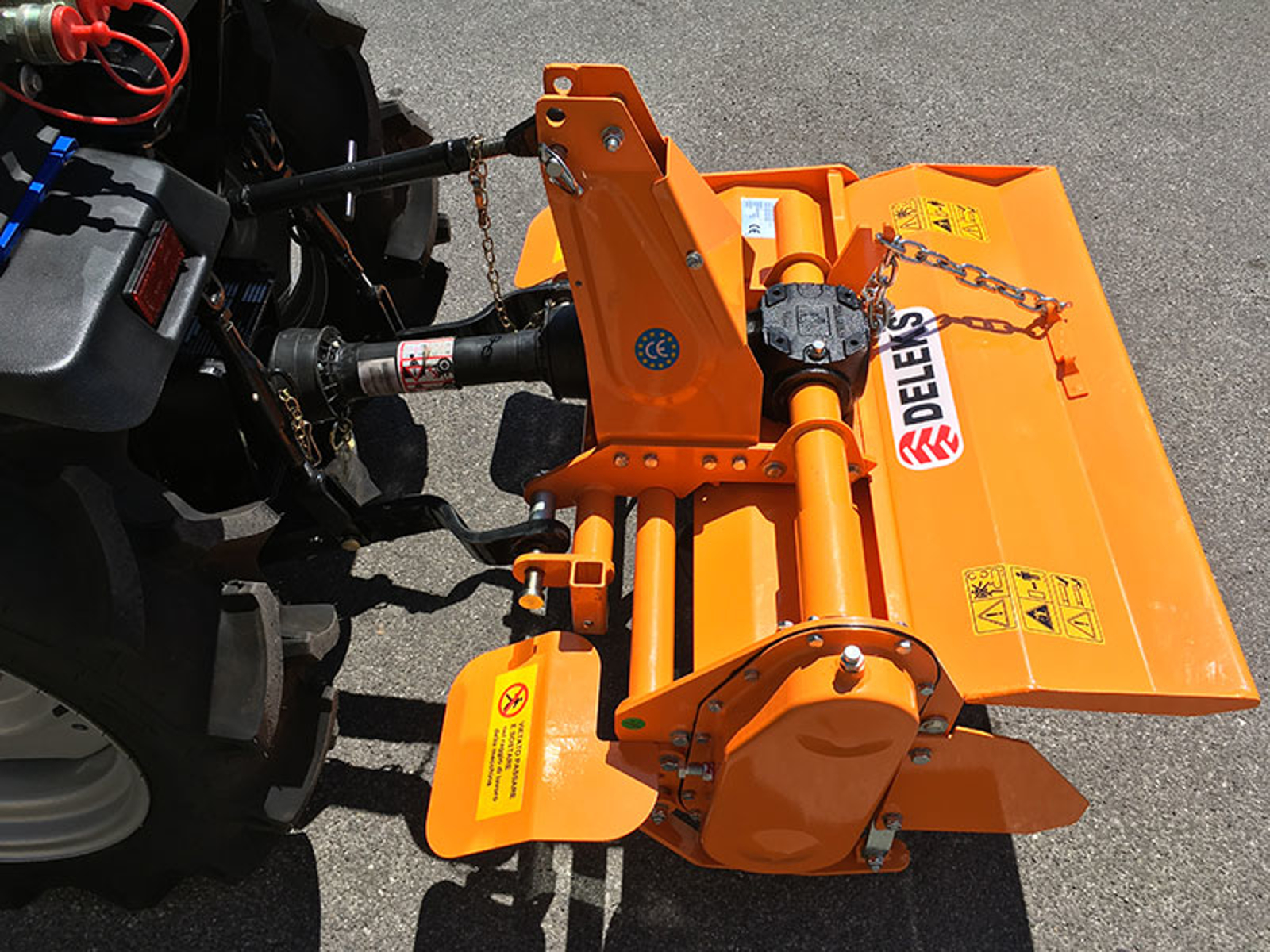

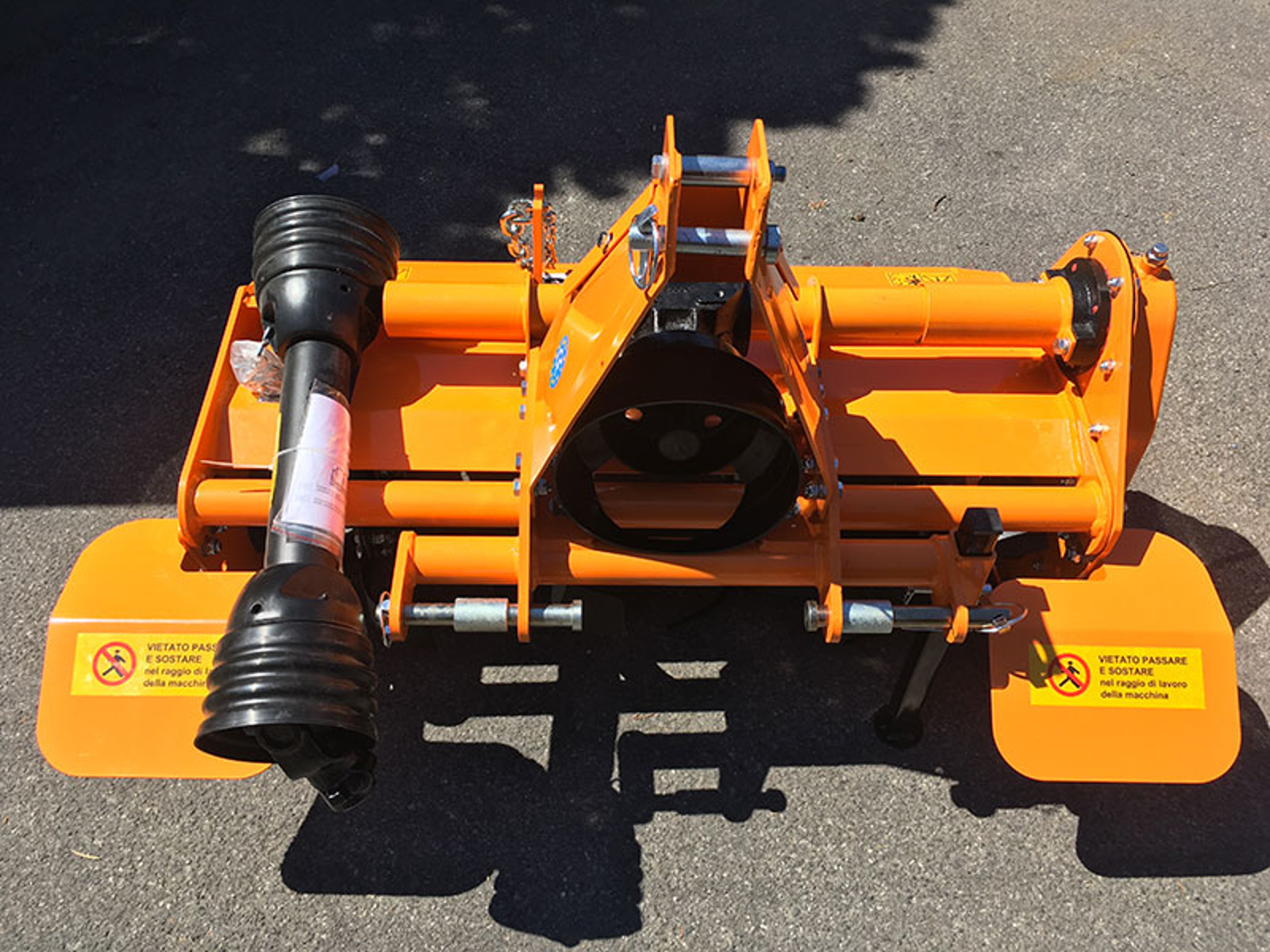

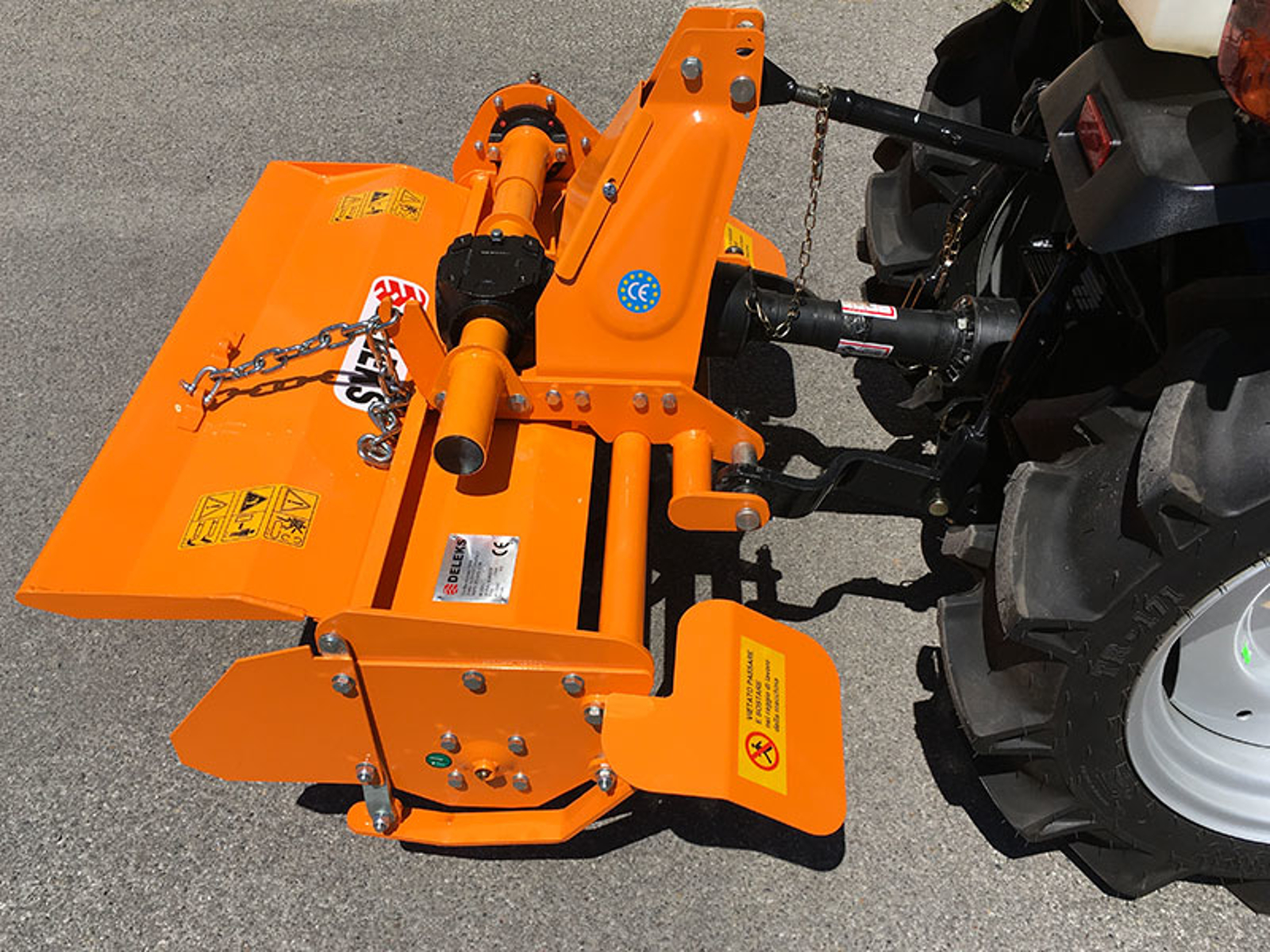

120 mm side shift and adjustable bonnet

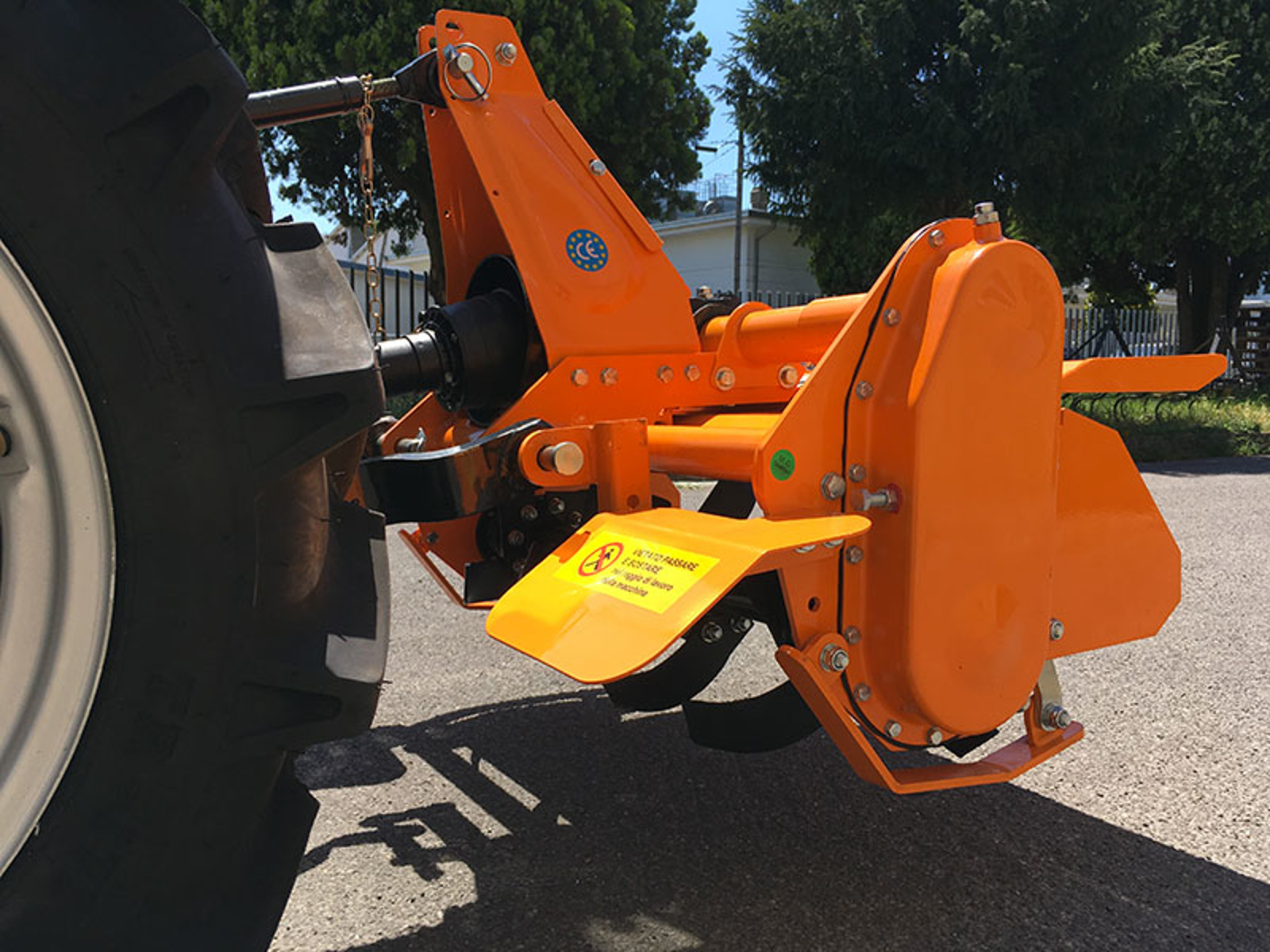

The three-point linkage shifts sideways by 120 mm (4.7 in) mechanically, with no levers or hydraulics: slacken the two U-bolts that clamp the linkage-and-gearbox assembly to the frame, slide it by hand and tighten up again. It lets you work close to the row or the edge of a bed without steering the tractor over, and centre the rotavator behind the wheels. The rear bonnet is adjustable: closed it holds the soil back and breaks it finer, open it lets clods and trash out.

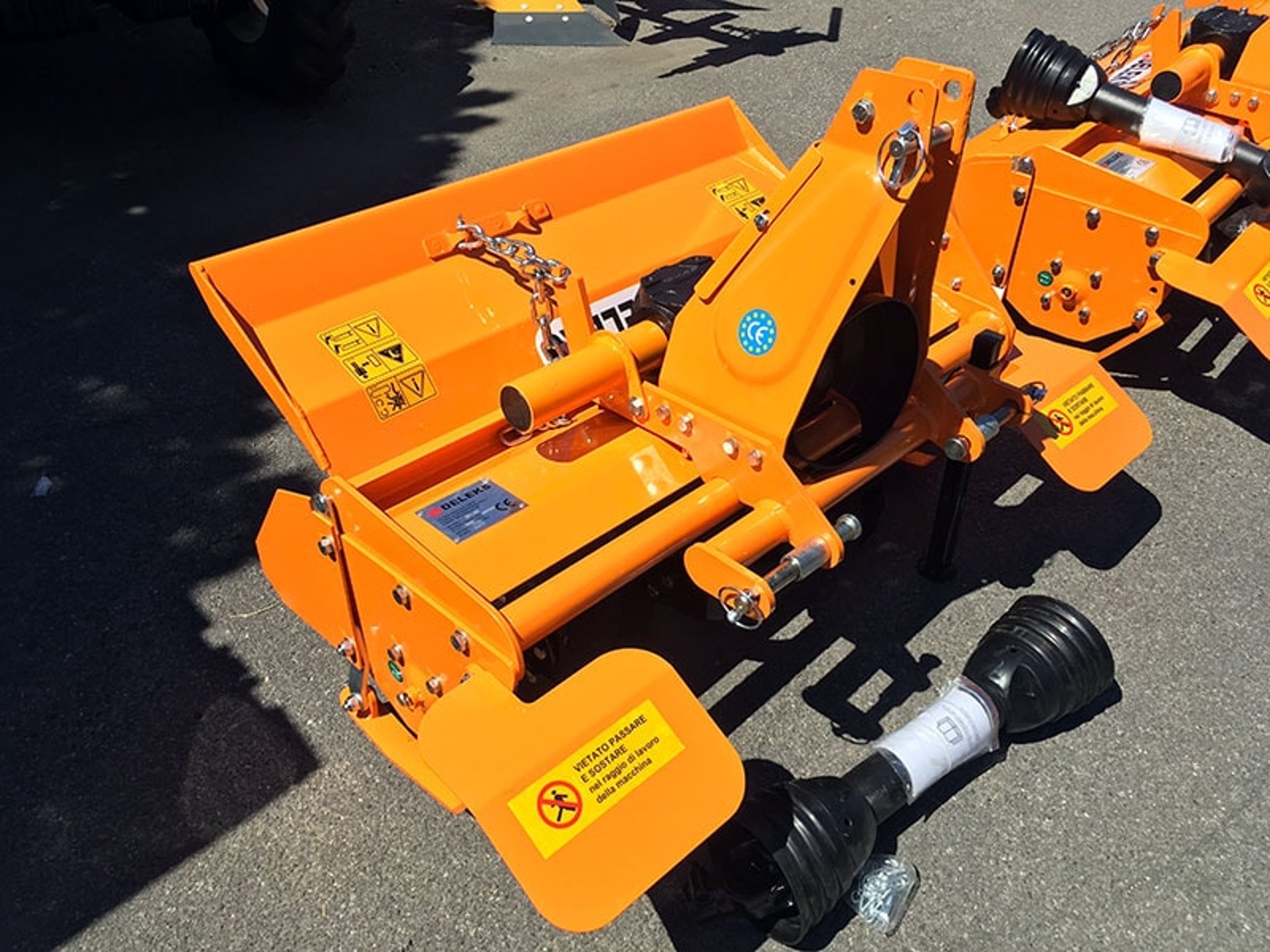

Dimensions, weight and delivery
Working width 1150 mm (45.3 in), overall width 1280 mm (50.4 in), length 680 mm, height 800 mm, weight 148 kg (326 lb); the gearbox sits 490 mm off the ground. It ships on a pallet (196 kg / 432 lb gross) with free delivery within the EU. The machine is CE and TÜV Austria certified, with the risk assessment carried out by E.C.O. Spa of Faenza (Italy), and comes with a two-year warranty.
Where it works
- Vegetable plot, polytunnel and small fields: preparing seedbeds and planting beds, working in fertiliser and residues
- Vineyards and orchards: working the alleyway right up to the row with the side shift
- Gardening and nurseries: renovating lawns and beds, tilthing the soil before sowing
- 14–25 hp compact tractors that need to cover the whole track with a light rotavator
Options and spares
The reverse-rotation kit for tractors with a reverse PTO is an option to request with your order. On this page you will also find the set of 10 forged tines, the drive chain, Cat. 1 pins, tine nuts and bolts, the PTO reduction adaptor and spare PTO shafts and clutches: order them with the rotavator or later on.
FAQ
How do I choose between DFL-95, DFL-115 and DFL-135?
By the tractor's track: the rotavator has to cover it to wipe out the wheel marks. The DFL-115 is the right size for most 14–25 hp compact tractors; under 14 hp or with a narrow track go down to the DFL-95, from 18 hp up you can go to the DFL-135.
Does it work with a reverse-rotation PTO?
Yes, with the reverse-rotation option: we turn the gearbox over before dispatch and the rotavator arrives ready for tractors with a reverse-rotation PTO.
Is the PTO shaft included?
Yes: the CE PTO shaft (category 4, 700 mm / 27.6 in) with single-disc friction clutch Ø 160 mm (6.3 in, type F0) is included and can be shortened following the manual if the tractor's linkage sits very close.
What oil goes in the gearbox, and what maintenance does it need?
The gearbox arrives filled with SAE 120 oil (ISO 72925): at the start of the season check the oil level, tine wear and bolt tightness. Worn tines are replaced with the set of 10.
Can I fit it with a quick-hitch frame?
No: the DFL-115 hooks onto the lift arms with Cat. 1 pins and quick-hitch frames are not compatible.
DELEKS® spares and support
Genuine spares ship from the DELEKS® warehouses in Europe: tines, chains, pins, bearings, PTO shafts, clutches and the other wearing parts are normally in stock, for routine servicing and for repairs. The technical team helps you pick the right part from the exploded drawings, service the machine and choose the rotavator and the accessories that suit your tractor. The rotavator comes with the EC declaration of conformity, the invoice and the use and maintenance manual, also emailed when the order ships. Two-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1150.0 mm |
| Overall width | 1280.0 mm |
| Weight | 148.0 kg |
| Overall height | 800.0 mm |
| Tractor Power Range | 14 - 35 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Position of the gearbox | 560.0 mm from left side / 590.0 mm from right side |
| Spacing between the 2 lower points | 305.0 - 520.0 mm |
| Overall length | 680.0 mm |
| Distance between pto attachment and ground | 490.0 mm |
| Transmission: Drive method | Chain |
| Transmission: Gearbox | DELEKS 540 r/min (3 year warranty) |
| Transmission: Rotation of gearbox | Right side (left side on request) |
| Transmission: RPM Rotor speed | 280 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Rotor: diameter | 64.0 mm |
| Rotor: bearings type and size | "GB276-6207(R) GB276-6207(L)" |
| Rotor: sheet thickness | 6.0 mm |
| Working Depth Range | 120.0 - 160.0 mm |
| Pto shaft | CE 4x700 mm + single-disc friction clutch Ø160 mm (F0) |
| Rotor: diameter with blades | 370.0 mm |
| Rotor: flanges | 6 |
| Number of Blades per flange | 4 |
| Blades: quantity | 24 |
| Blades: height/width | 180.0 / 67.0 mm |
| Blades: curve length | 230.0 mm |
| Blades: distance between holes | 45.0 mm |
| Blades: diameter of the holes | 13.0 mm |
| Blades: thickness | 6.0 mm |
| Effective Displacement | 120.0 mm manual |
| Blades: weight | 570.0 g |
| Gross shipping weight | 196 kg |
| Package volume | 0.67 m3 |
| Packing sizes | 800.0*1290.0*650.0 mm |
