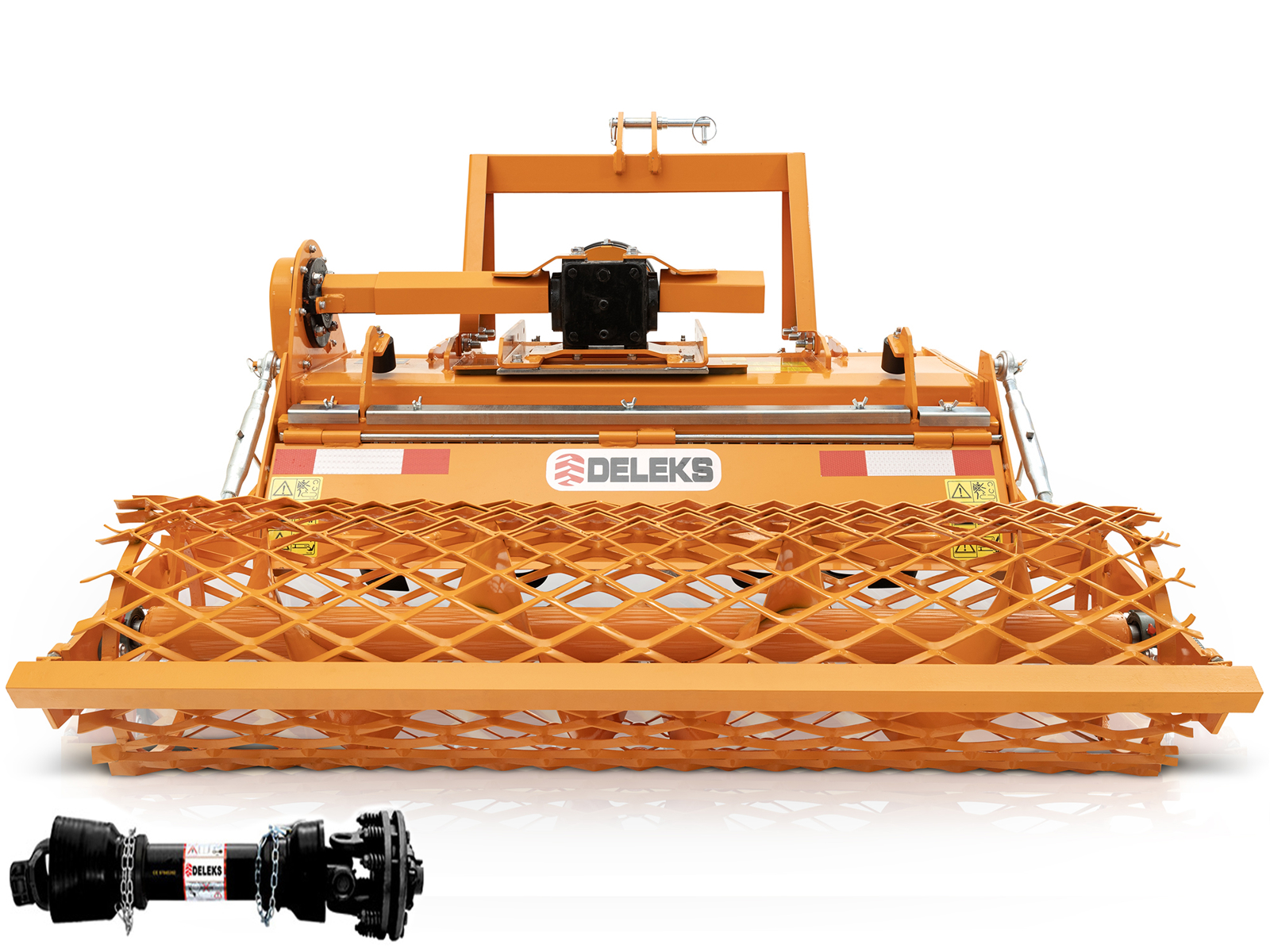

Tractor stone burier 155 cm DFU-160 with mesh roller, stone burying rotavator for 30-50 hp tractors

Available
Code DFU160PTO - EAN 8053470230844
2.390,00€VAT incl.
Free shipping
Loading...
2.390,00€VAT incl.
Free shipping
View all details.

reviews

2.390,00€VAT incl.
 REQUEST INFORMATION

VIDEO
Field test
Field test

DETAILS

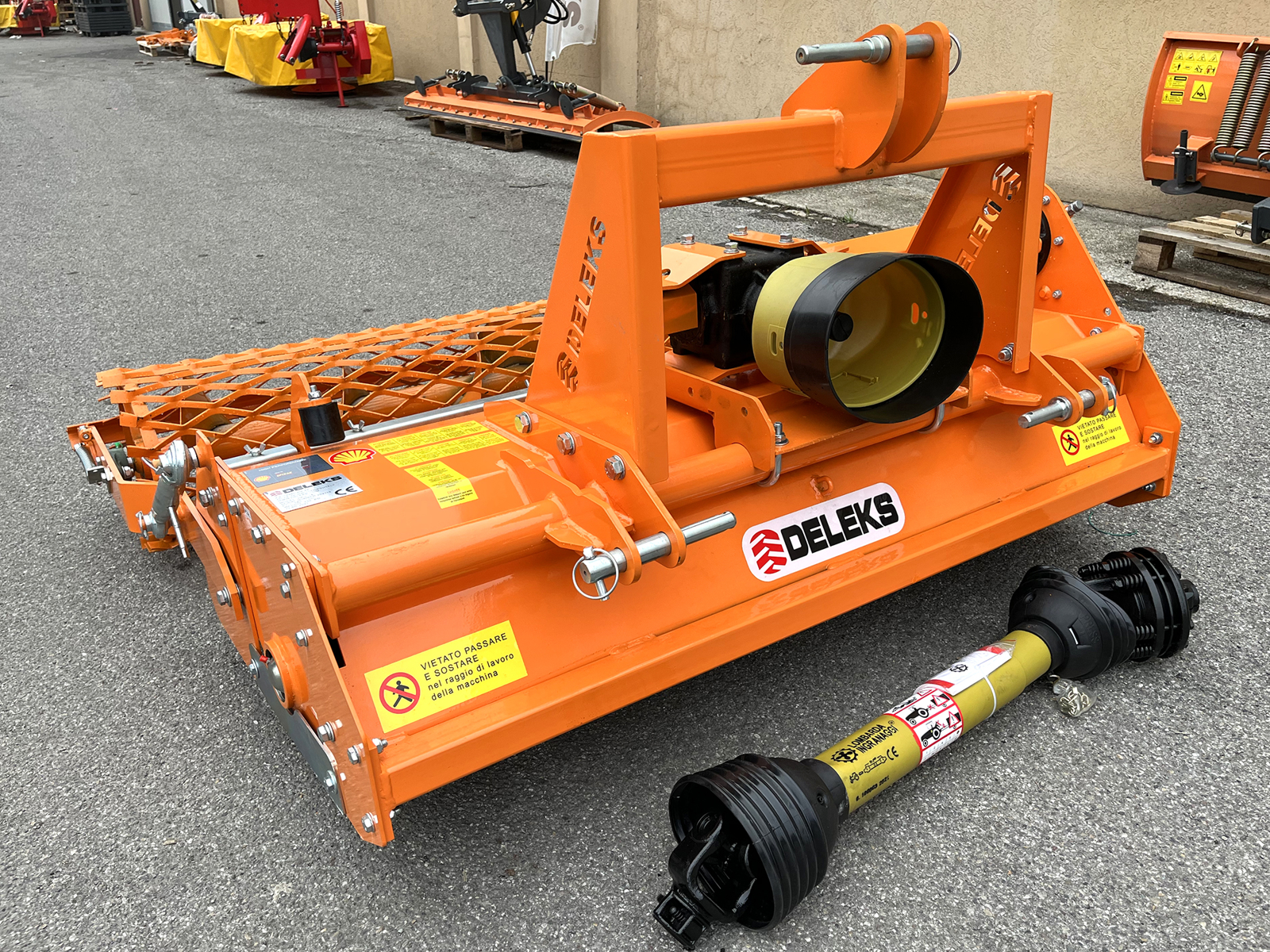

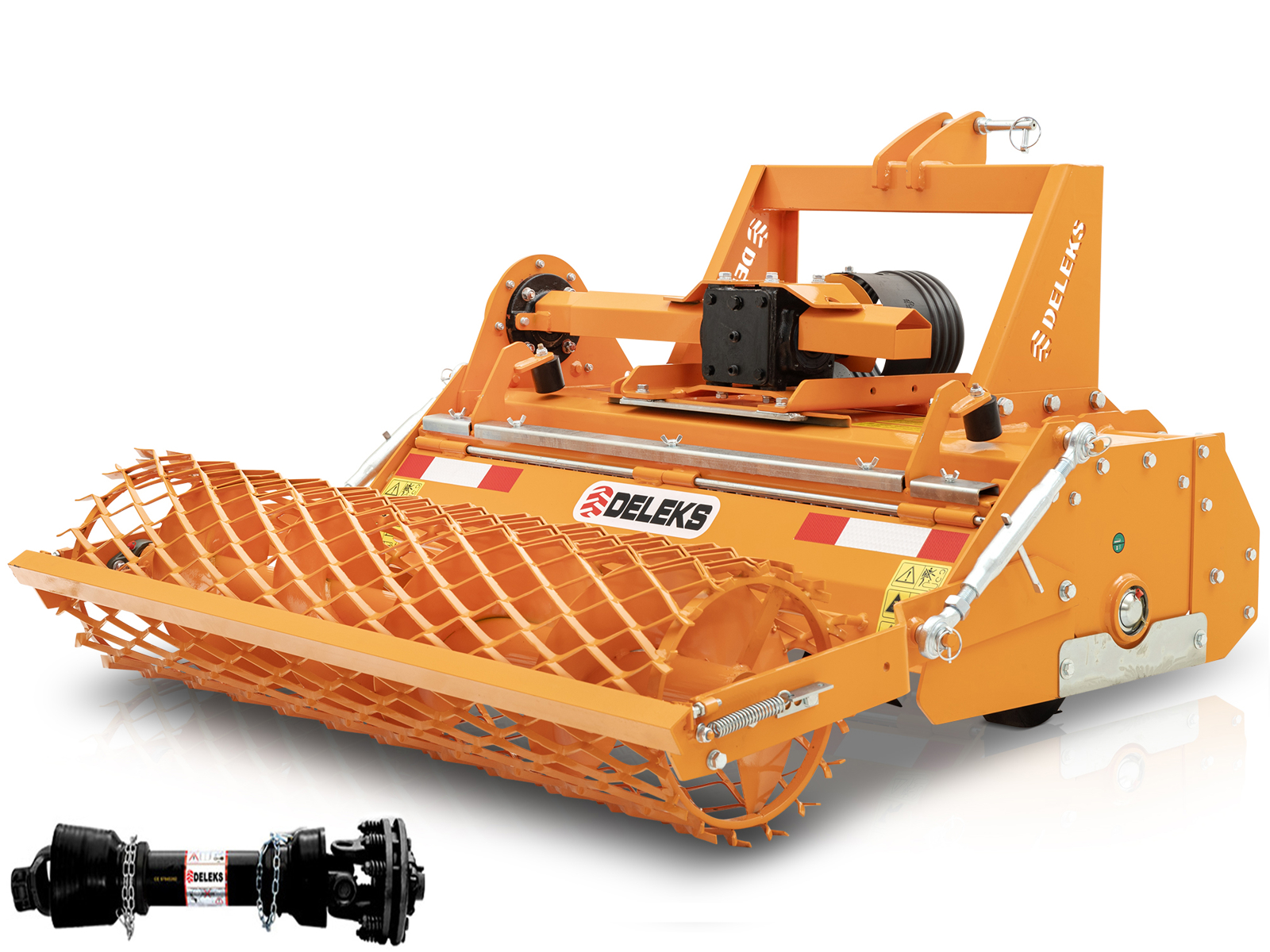

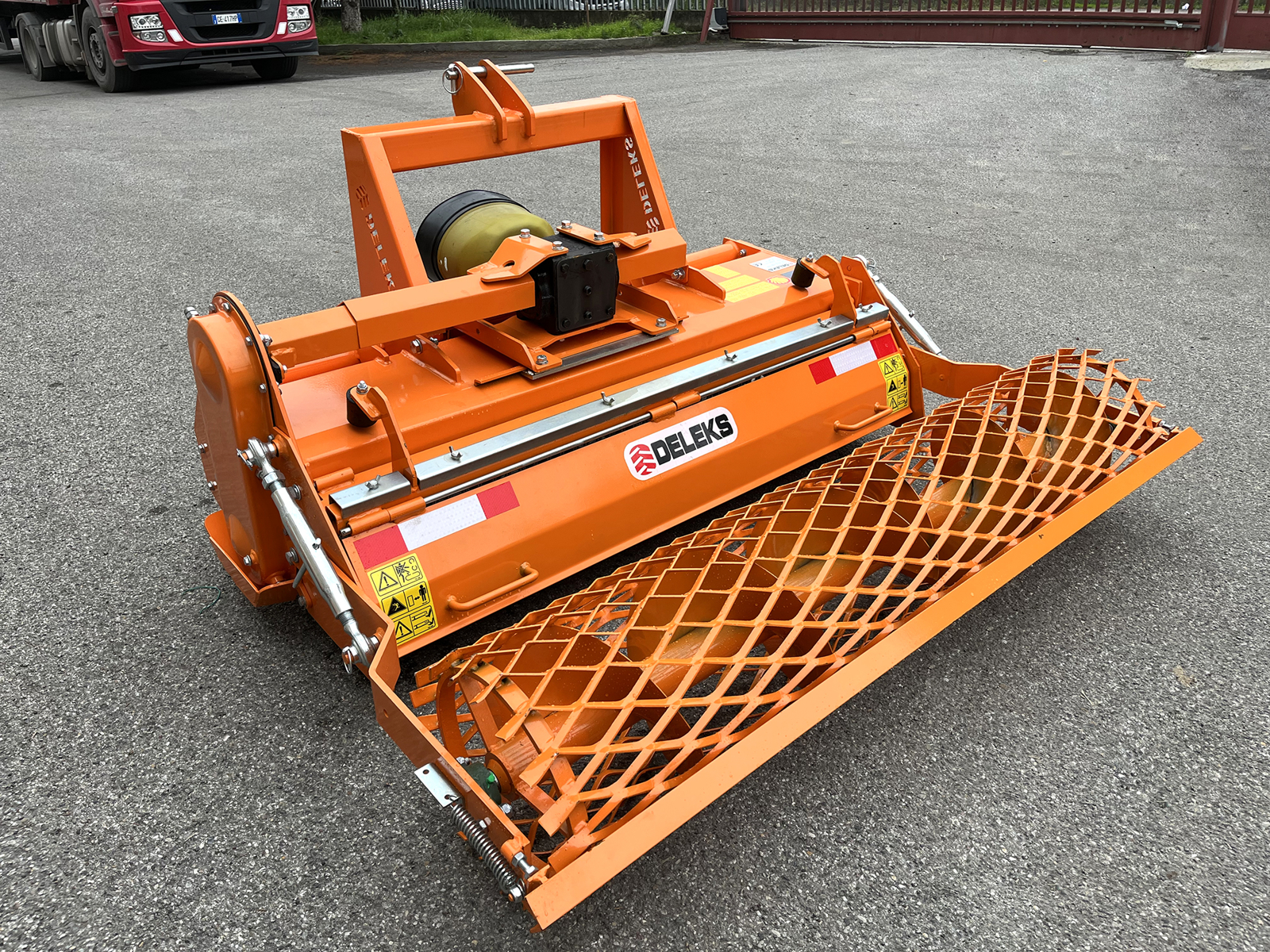

Tractor stone burier with 155 cm (61 in) working width and rear mesh roller, DELEKS® DFU series: the stone burying rotavator for 30–50 hp tractors with a Cat. 1 or 2 three-point linkage, such as Kubota L, Solis, New Holland Boomer and T3F, John Deere 3 series, Antonio Carraro Tigrone, Goldoni and Same Solaris. Reverse-rotation rotor with 32 forged blades on 9 flanges, screening grid, side chain drive in an oil bath, DELEKS® 540 rpm gearbox with a three-year warranty, 350 kg (772 lb) frame with 10 mm side plates. In a single pass it buries stones, clods and debris under a layer of fine soil and leaves the seedbed ready for turf or vegetables; it comes complete with its CE PTO shaft (category 6, 1,000 mm / 39 in) with twin-disc friction clutch Ø 180 mm (7.1 in); free delivery within the EU.


Which tractors it suits

The DFU-160 works 155 cm (61 in) wide with an overall width of 178 cm (70 in) and is built for 30–50 hp wheeled or tracked tractors with a Cat. 1 or 2 three-point linkage (19–22 and 25–28 mm pins): Kubota L, Solis, New Holland Boomer 30-40 and T3F, John Deere 3 series, Antonio Carraro Tigrone, Goldoni, Same Solaris and Frutteto, Landini Mistral, Lamborghini Ego and most tractors from 30 to 50 hp. The gearbox is central, 470 mm (18.5 in) off the ground, and the 350 kg (772 lb) weight is within reach of the lift on tractors of this class; with the roller on the ground part of the weight rests on the soil rather than on the tractor. The PTO shaft comes in its standard length and can be shortened following the manual if the tractor's linkage sits very close. The linkage offsets sideways by 12 cm (4.7 in) with manual adjustment, to work right up to walls, hedges and rows.


How a stone burier works

The rotor turns the opposite way to a normal rotavator, against the direction of travel: the blades lift the soil from below and throw it forwards and upwards against the screening grid that closes the bonnet. Fine soil passes between the bars of the grid and falls first; stones, clods, roots and debris too large to pass slide down to the bottom and are covered by the fine soil that falls on top. One pass leaves a seedbed with the stones buried and a fine, level surface ready for seeding turf, planting or bedding out: that is the difference from a conventional rotavator, which mixes the whole profile and brings the stones back up. With the rotor at 216 rpm and the tractor at 2–4 km/h (1.2–2.5 mph) the stone burier works up to 20 cm (7.9 in) deep; on very hard ground a first shallower pass works best.


Mesh roller and depth adjustment

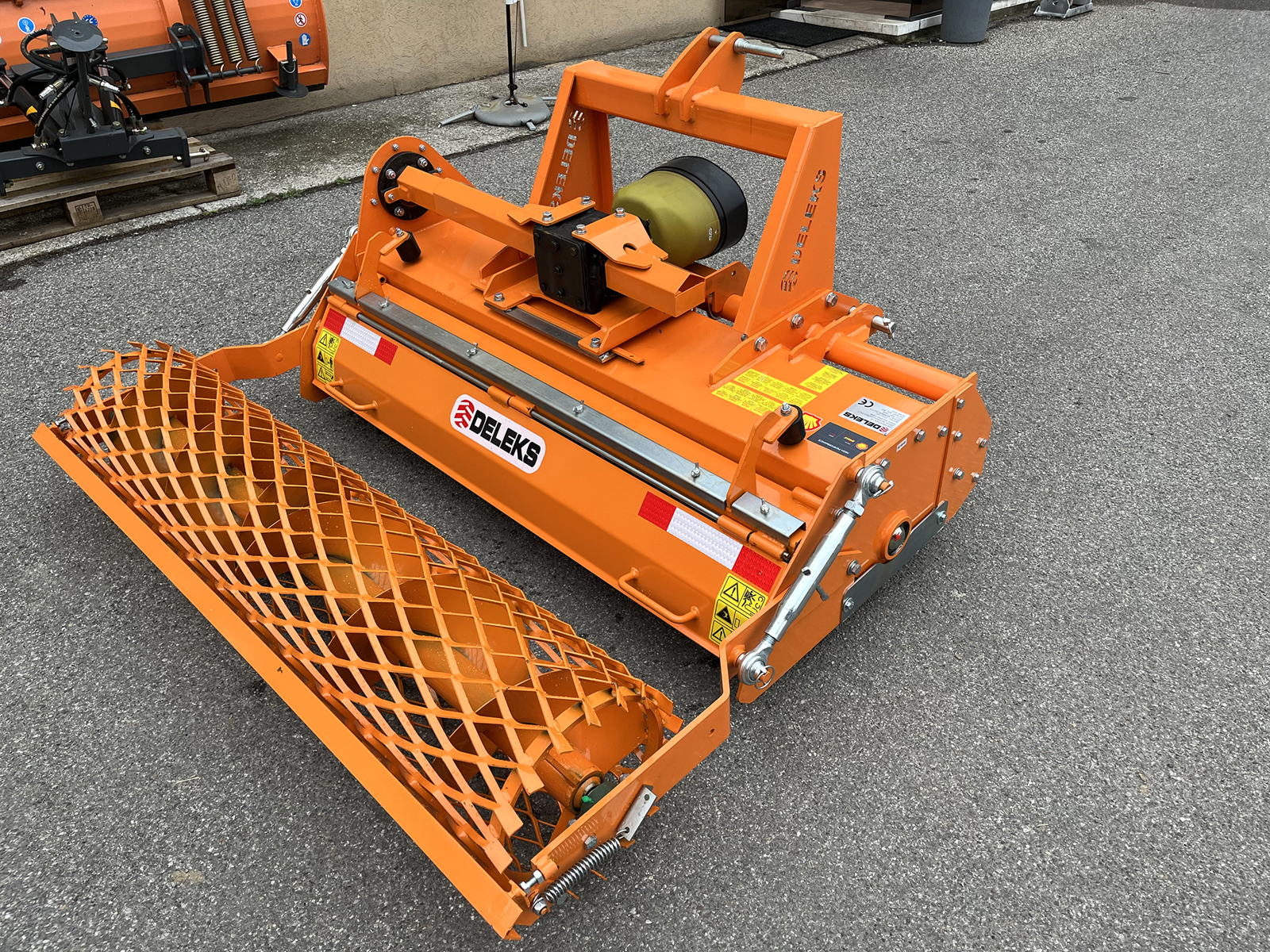

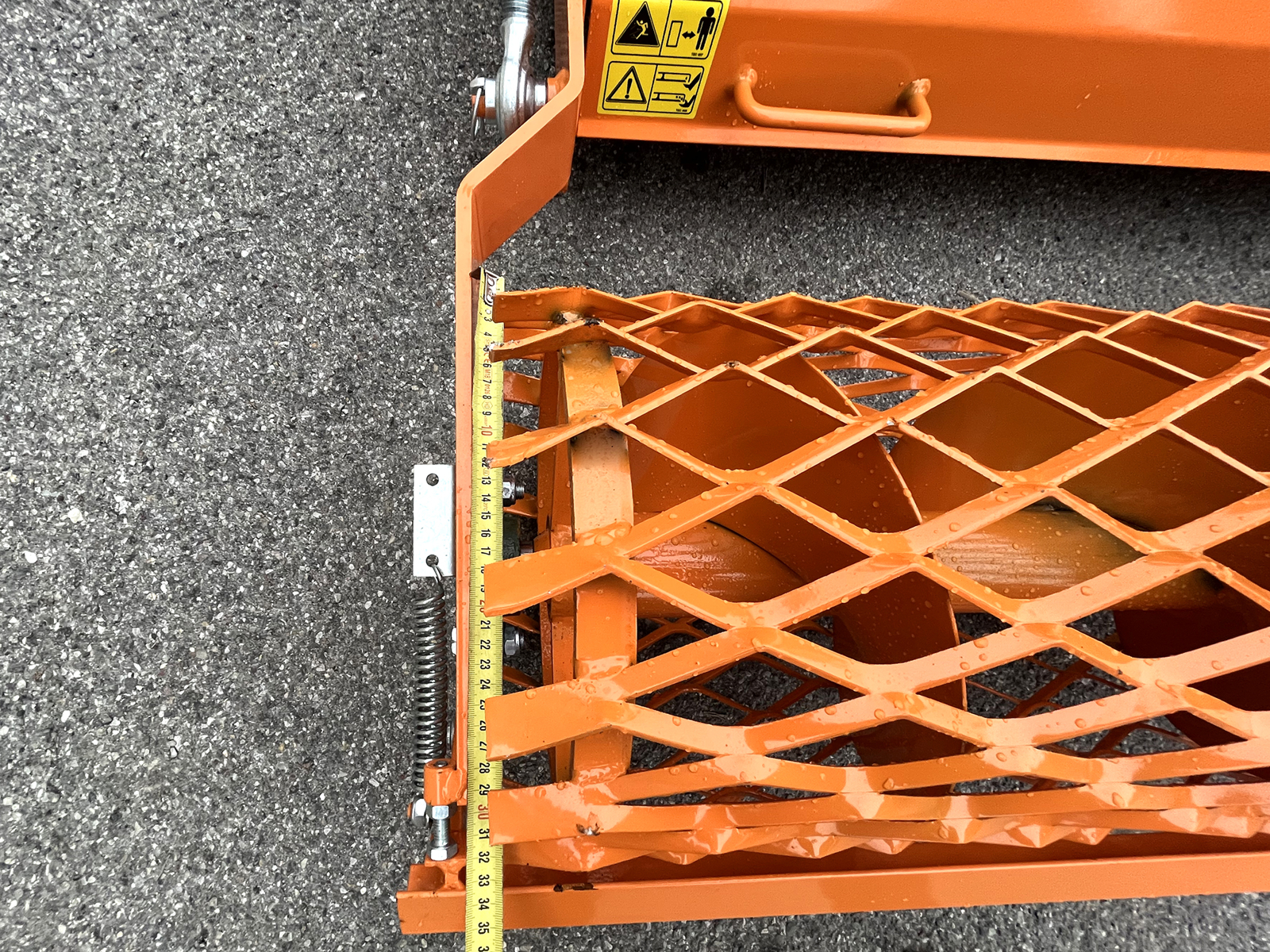

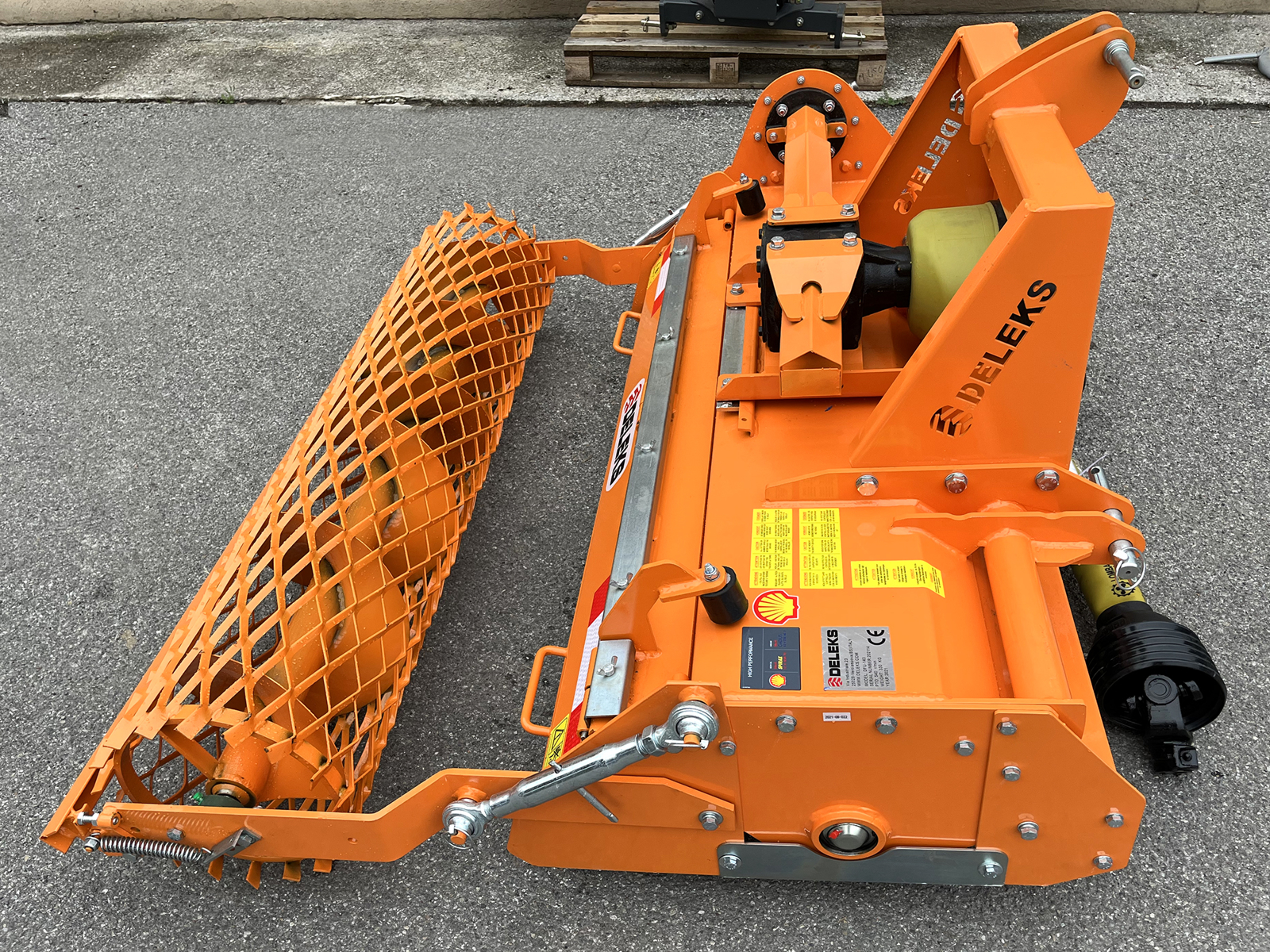

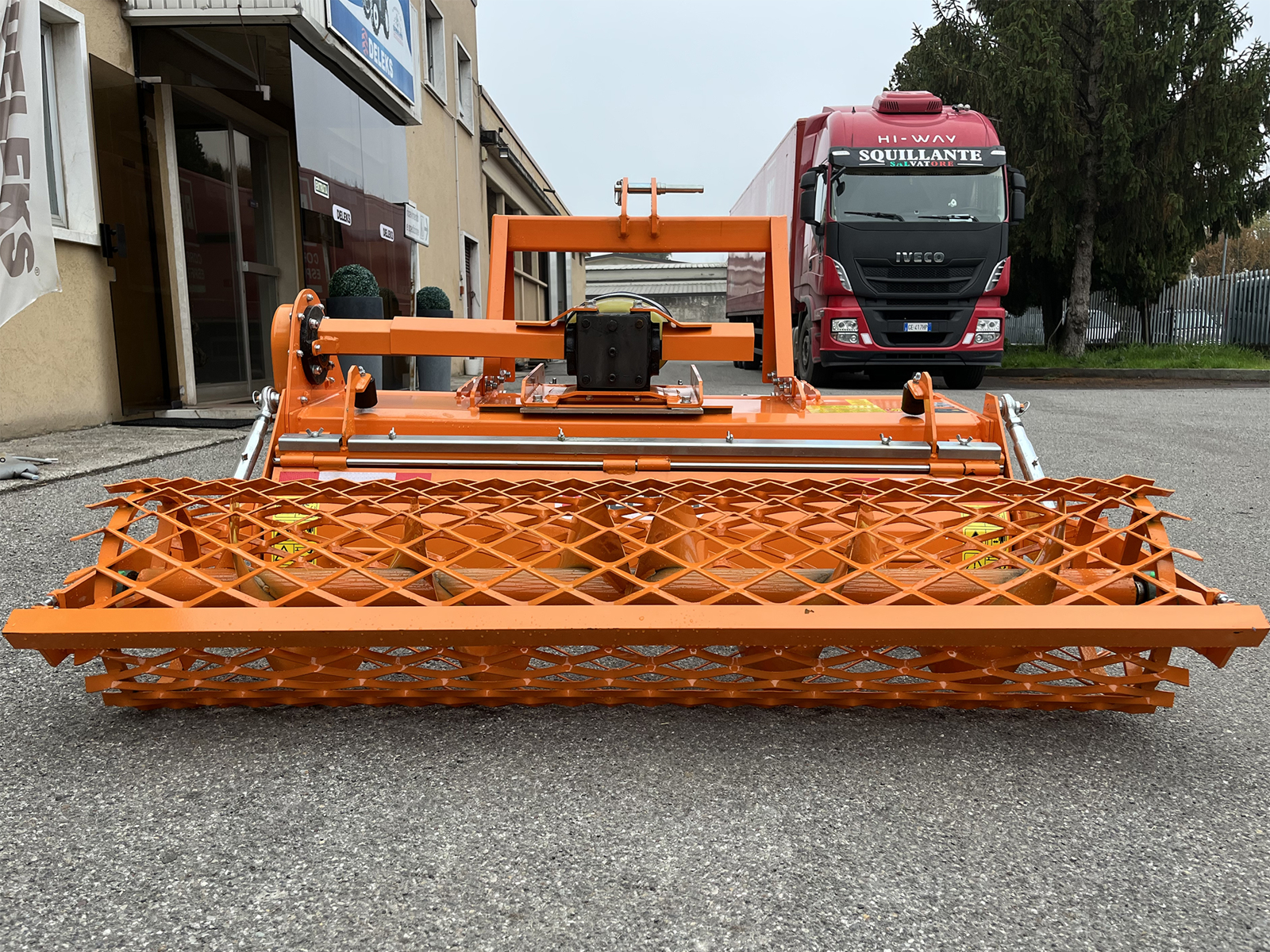

The rear mesh roller carries the stone burier and sets the working depth: it is adjusted with threaded screw rods on the roller arms, with no tools, and levels and lightly firms the surface behind the rotor, leaving the ground ready for seeding without capping. The mesh lets the fine soil through and cleans itself even on damp ground. The rear bonnet adjusts in height: closed it holds the soil longer in the screening chamber and refines more, open it lets the clods out sooner on light soils.


Chain drive and PTO shaft with clutch

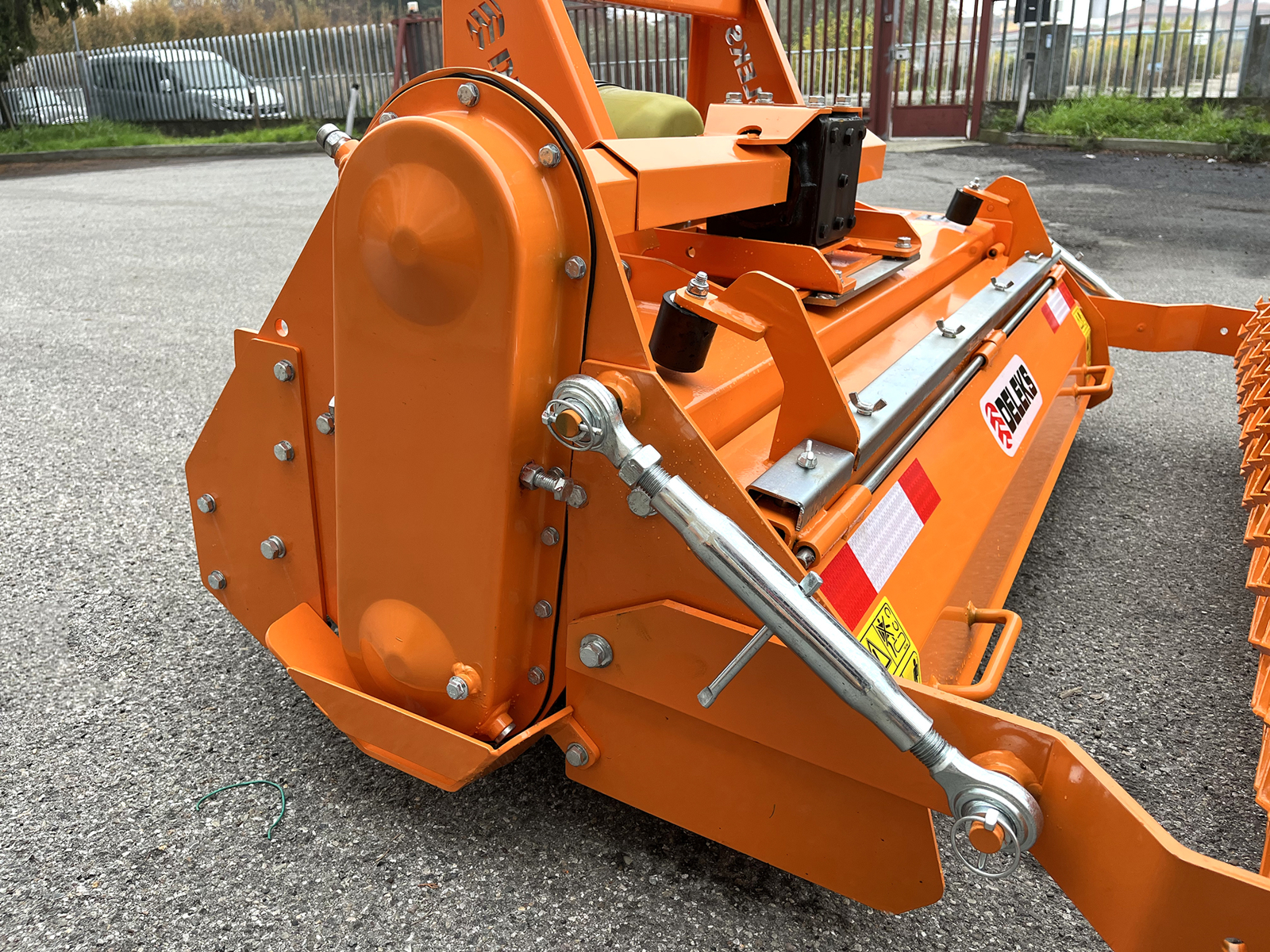

The DELEKS® 540 rpm gearbox has a three-year warranty and runs on SAE 120 oil; from the gearbox the drive reaches the rotor through a side chain in an oil bath, enclosed in its casing, which can be tensioned and replaced as a spare. The CE PTO shaft (category 6, 1,000 mm / 39 in) with twin-disc friction clutch Ø 180 mm (7.1 in) is included: the clutch protects stone burier and tractor when the blades meet a large stone or a root, and is set to suit the tractor and the ground following the manual.


Rotor and forged blades

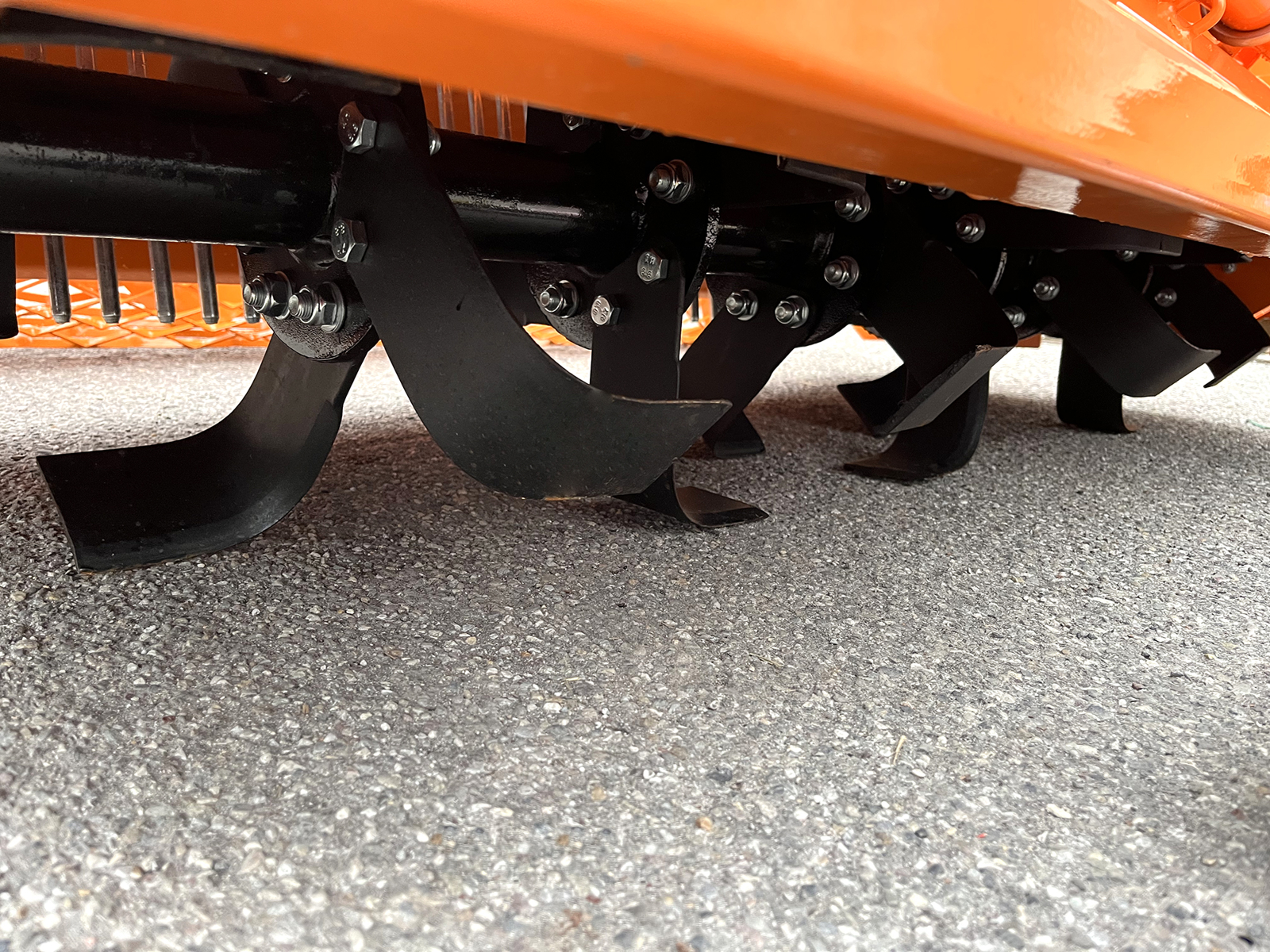

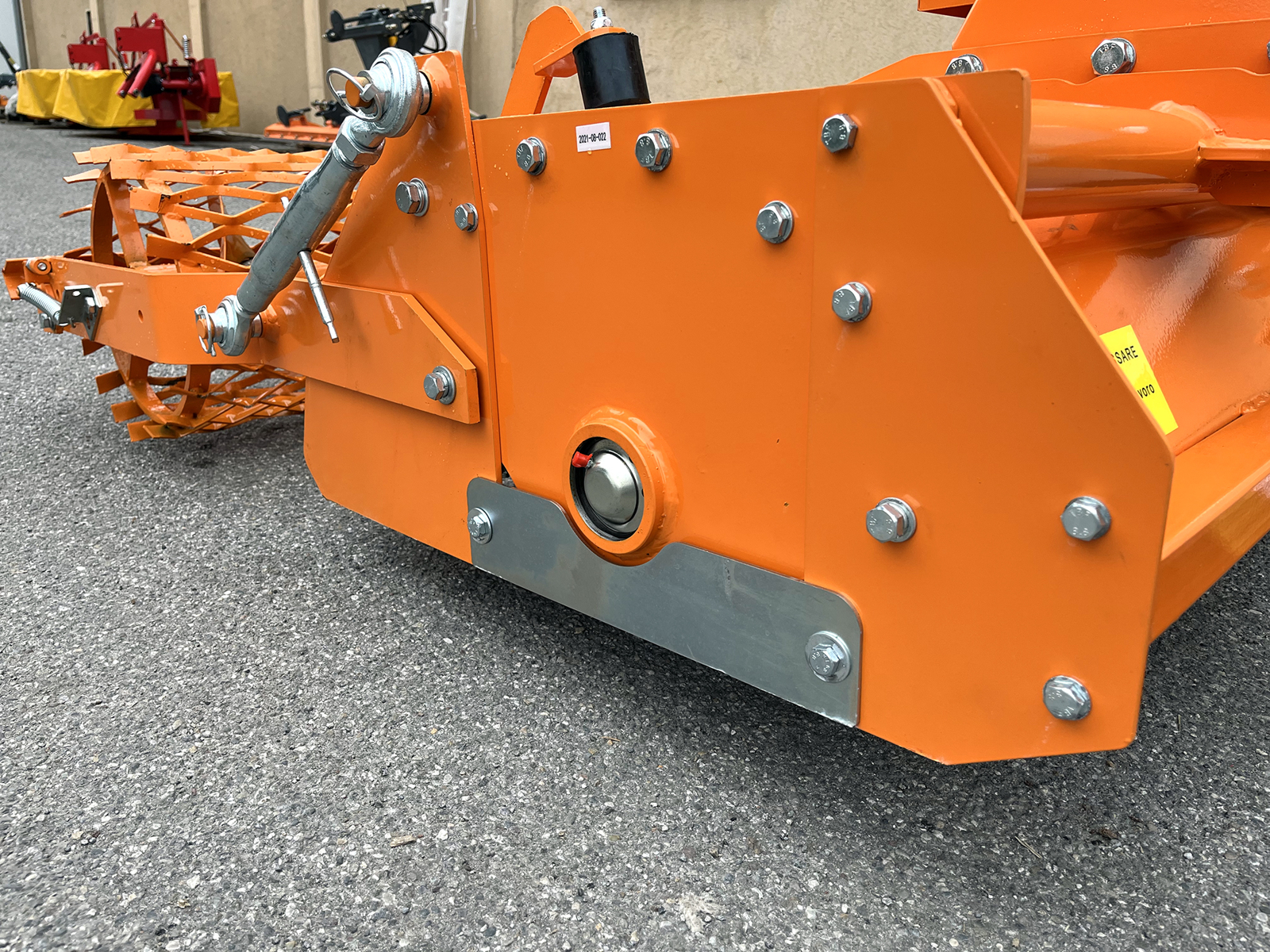

The rotor measures 415 mm (16.3 in) across with the blades fitted, on a 64 mm (2.5 in) shaft with 6306 and 6209 bearings and 10 mm (0.4 in) side plates. The 32 forged blades (9 flanges, 4 blades per flange and 2 on the two outer flanges; 170 × 65 mm / 6.7 × 2.6 in, 6 mm thick, 770 g / 1.7 lb each) are held by two bolts each and are changed one at a time; the set of 10 DFU blades and the bolts are among the options on this page.


Dimensions, weight and delivery

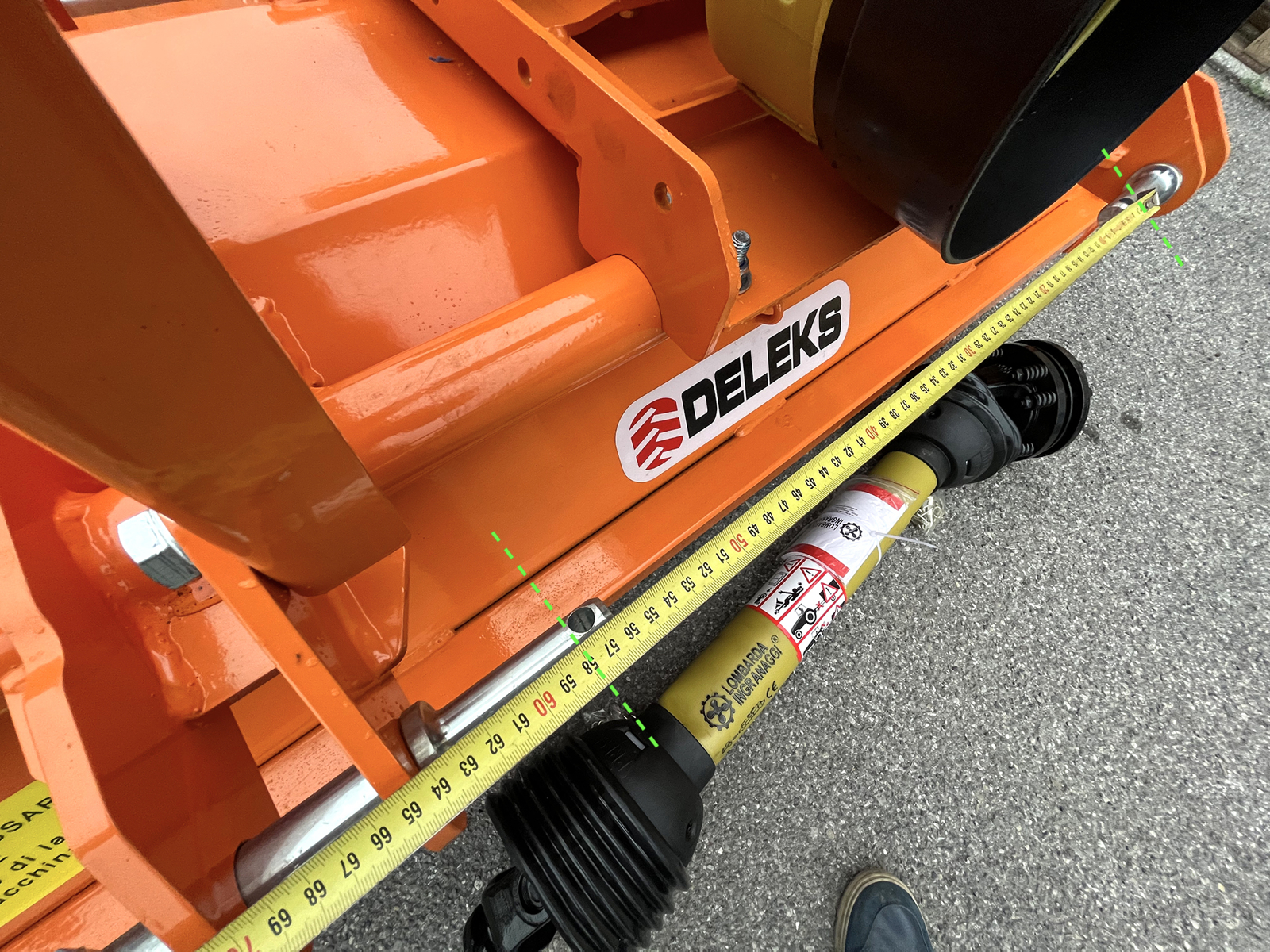

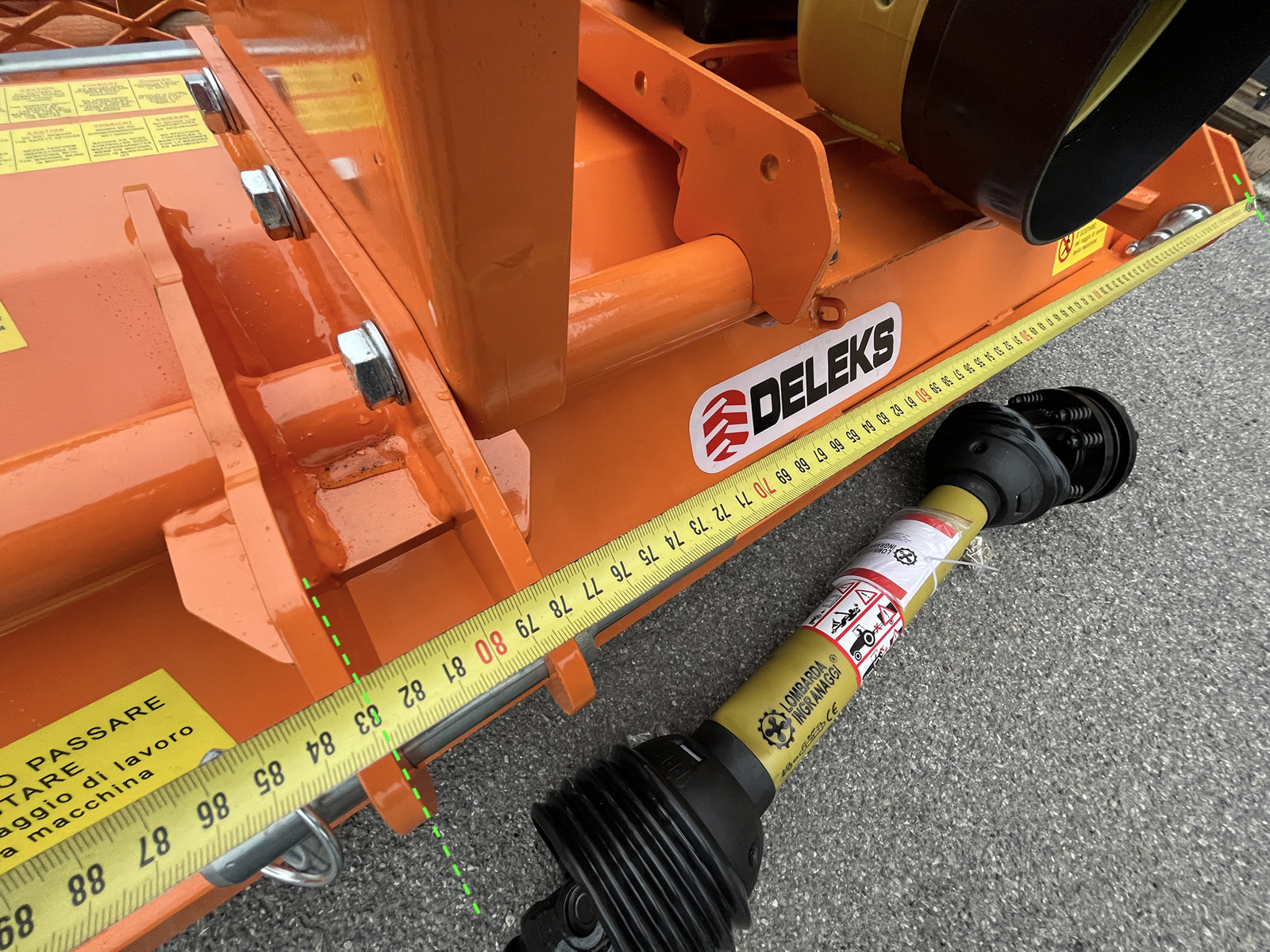

Working width 1,550 mm (61 in), overall width 1,780 mm (70 in), height 900 mm (35.4 in), length 1,230 mm (48.4 in) with the roller, weight 350 kg (772 lb). It ships on a pallet of 100 × 185 × 90 cm (39 × 73 × 35 in), 450 kg (992 lb) gross, 1.67 m³, with free delivery within the EU; unloading needs a forklift or the tractor's lift. The machine complies with the EC Machinery Directive, is TÜV Austria certified and comes with a two-year warranty.


Where it works

  • Lawns and turf: seedbed preparation in one pass, on made-up ground and building sites too, with the stones buried and the surface ready for seed

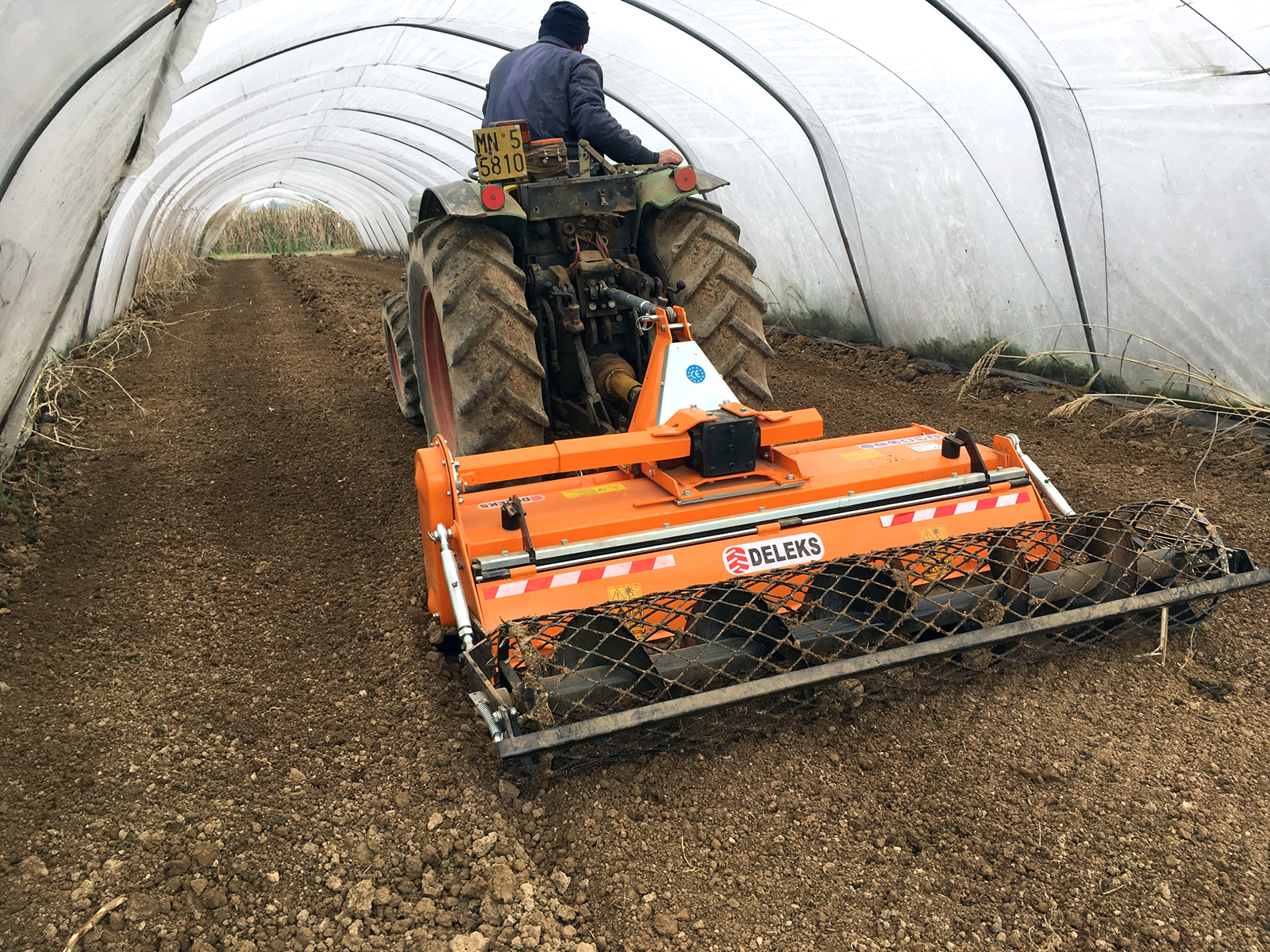

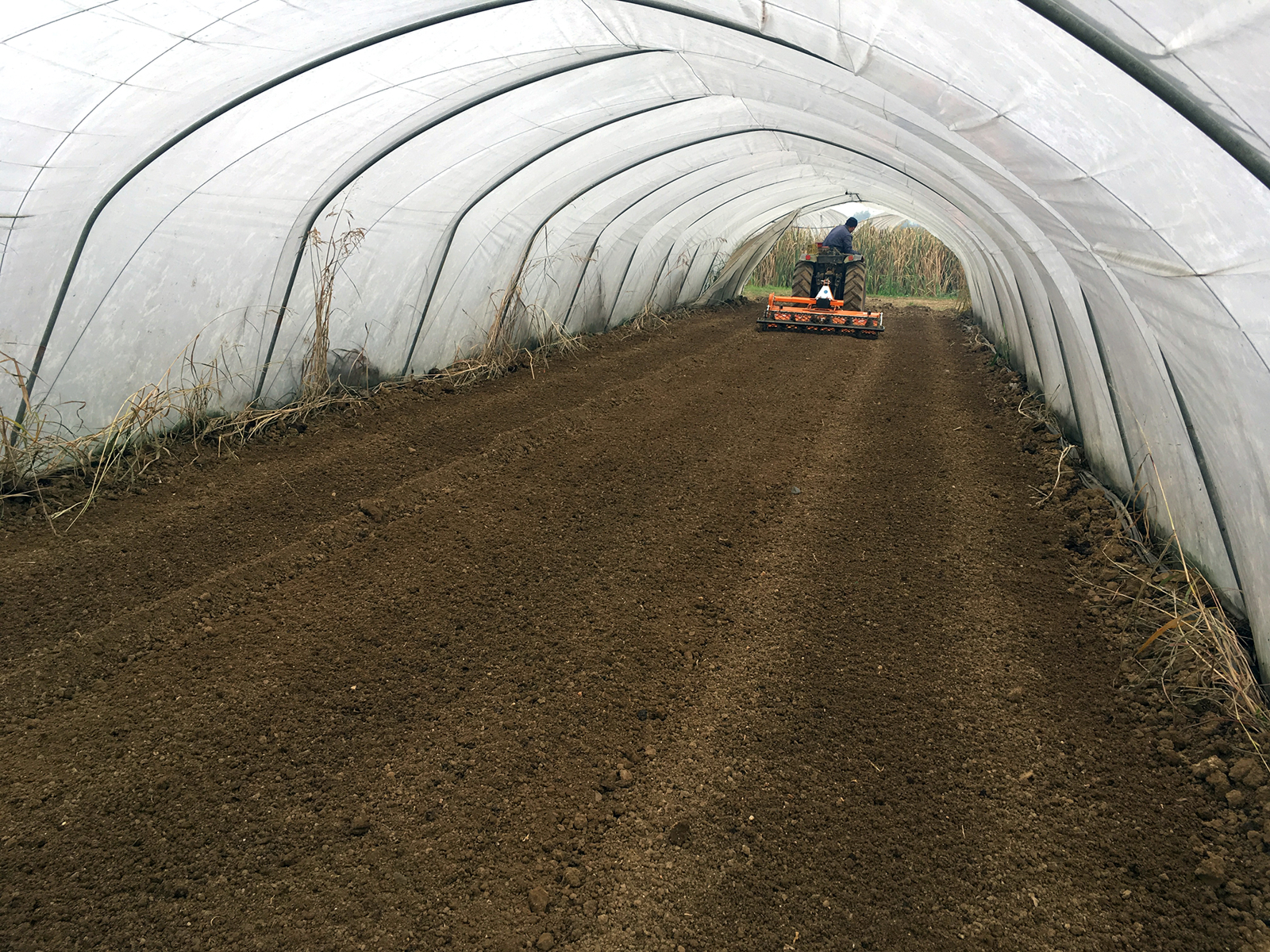

  • Market gardens, polytunnels and nurseries: fine, level seedbeds and planting beds, working in residues and fertiliser
  • Landscaping and grounds maintenance: re-laying lawns, borders and green areas after groundworks
  • Stony ground and vineyards: burying stones without picking them, alleyways and preparation for grassing down

Options and spares

On this page you will also find the set of 10 DFU blades, the 20 blade nuts and bolts, the spare DFU drive chain and the PTO reduction adaptor: order them with the stone burier or later on.


FAQ

What is the difference between a stone burier and a rotavator?
A rotavator turns with the direction of travel, mixes the whole profile and brings the stones back to the surface; a stone burier turns the other way and, with its grid, separates the fine soil from the stones and buries them beneath it. For a lawn or a vegetable plot on stony or made-up ground the stone burier leaves the surface ready in one pass; on clean ground and in the open field a rotavator is still the simpler machine.

How big a stone will it bury?
It buries the stones and clods that pass under the rotor and over the grid, in practice up to a few centimetres across; larger ones come to the surface and are picked by hand. On ground with many large stones a first higher pass and then the final one works best.

How much tractor does the DFU-160 need?
30–50 hp with a Cat. 1 or 2 three-point linkage and a 540 rpm PTO. The lift matters too: 350 kg (772 lb) plus the soil held in the bonnet is within reach of tractors in this class, but on the smaller models front ballast is a good idea.

How is the working depth set?
With the screw rods on the roller arms: raising the roller makes the stone burier work deeper, lowering it works shallower; the top link levels the machine. The rear bonnet is set to suit the ground: closed it refines more, open it lets the clods out sooner.

What maintenance does it need?
At the start of the season check the oil level in the gearbox (SAE 120) and in the chain casing, the chain tension, blade wear and bolt tightness; before each use grease the points shown in the manual and check the PTO clutch. Worn blades are replaced with the set of 10.


DELEKS® spares and support

Genuine spares ship from the DELEKS® warehouses in Europe: blades, drive chain, sprockets, bearings, PTO shafts, clutches, seals and the roller mesh are normally in stock, for routine servicing and for repairs. The technical team helps you pick the right part from the exploded drawings, service the machine and choose the stone burier and the accessories that suit your tractor and your ground. The stone burier comes with the EC declaration of conformity, the invoice and the use and maintenance manual, also emailed when the order ships. Two-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric
Working width 1550.0 mm
Overall width 1780.0 mm
Weight 350.0 kg
Overall height 900.0 mm
Tractor Power Range 30 - 50 Hp
3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
Position of the gearbox Central
Spacing between the 2 lower points 580.0 - 830.0 mm
Overall length 1230.0 mm
Distance between pto attachment and ground 470.0 mm
Transmission: Drive method Chain
Transmission: Gearbox DELEKS 540 r/min (3 year warranty)
Transmission: Rotation of gearbox Right side
Transmission: RPM Rotor speed 216 rpm
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925
Rotor: diameter 64.0 mm
Rotor: bearings type and size "GB276-6306(R) GB276-6209(L)"
Rotor: sheet thickness 10.0 mm
Working Depth Range 160.0-200.0 mm
Pto shaft CE 6x1000 mm + twin-disc friction clutch Ø180 mm
Rotor: diameter with blades 415.0 mm
Rotor: flanges 9
Number of Blades per flange 4
Blades: quantity 32
Blades: height/width 170.0 / 65.0 mm
Blades: curve length 255.0 mm
Blades: distance between holes 45.0 mm
Blades: diameter of the holes 13.0 mm
Blades: thickness 6.0 mm
Effective Displacement 120.0 mm manual
Blades: weight 770.0 g
Gross shipping weight 450 kg
Package volume 1.67 m3
Packing sizes 1000.0*1850.0*900.0 mm

Technical charts

Shell Spirax S2 A 80W-90: Specifications   Download PDF
