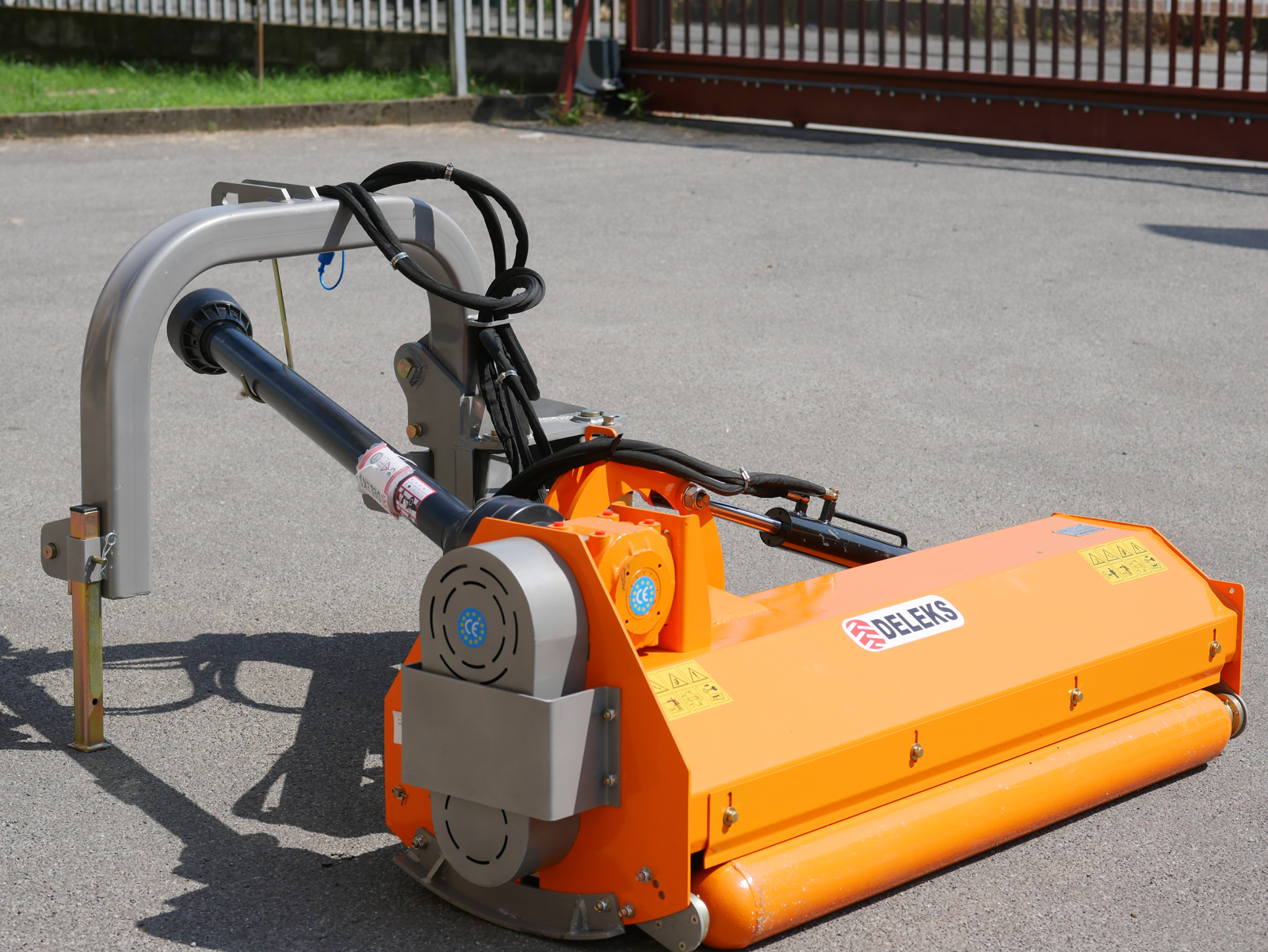

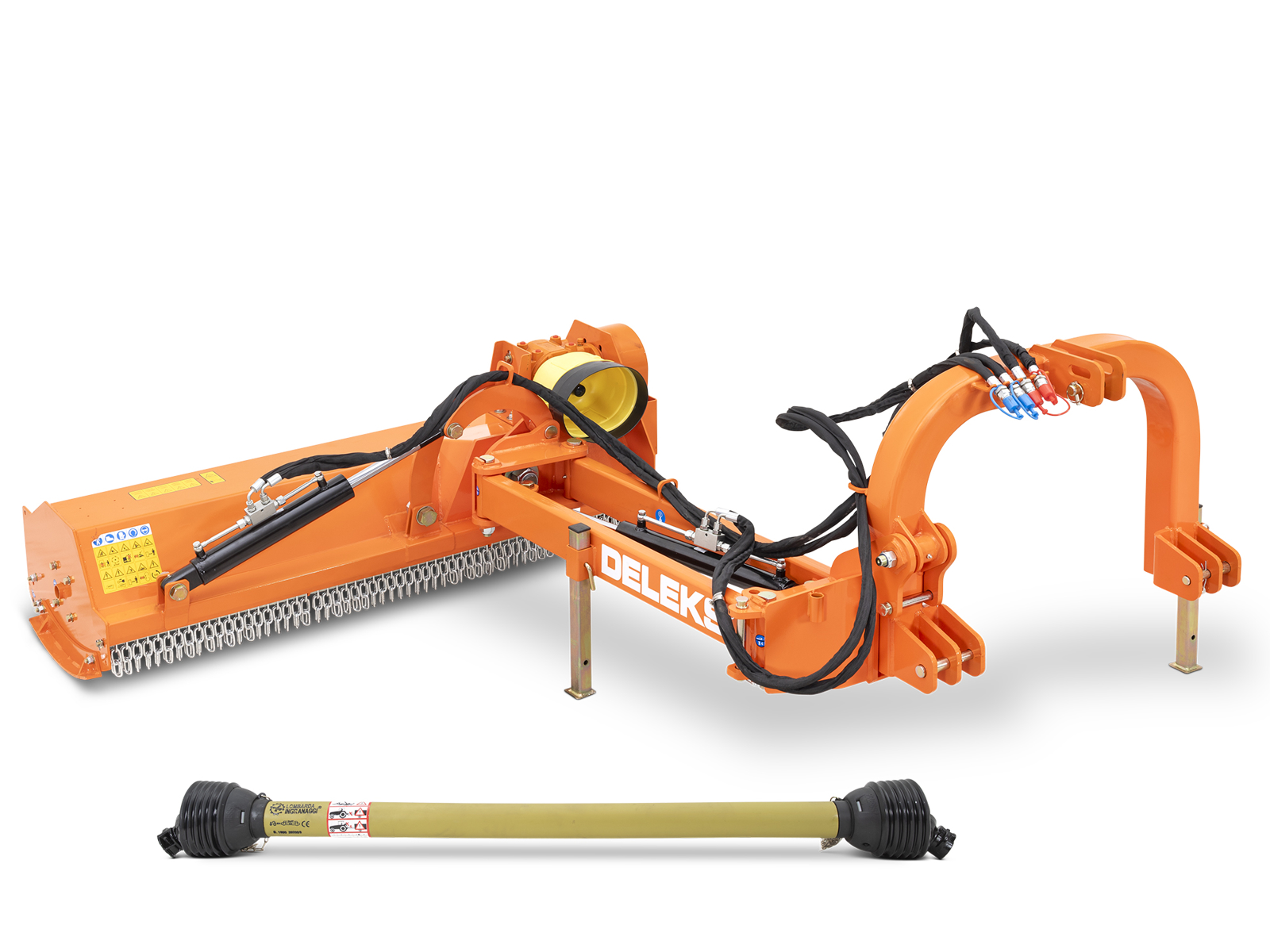

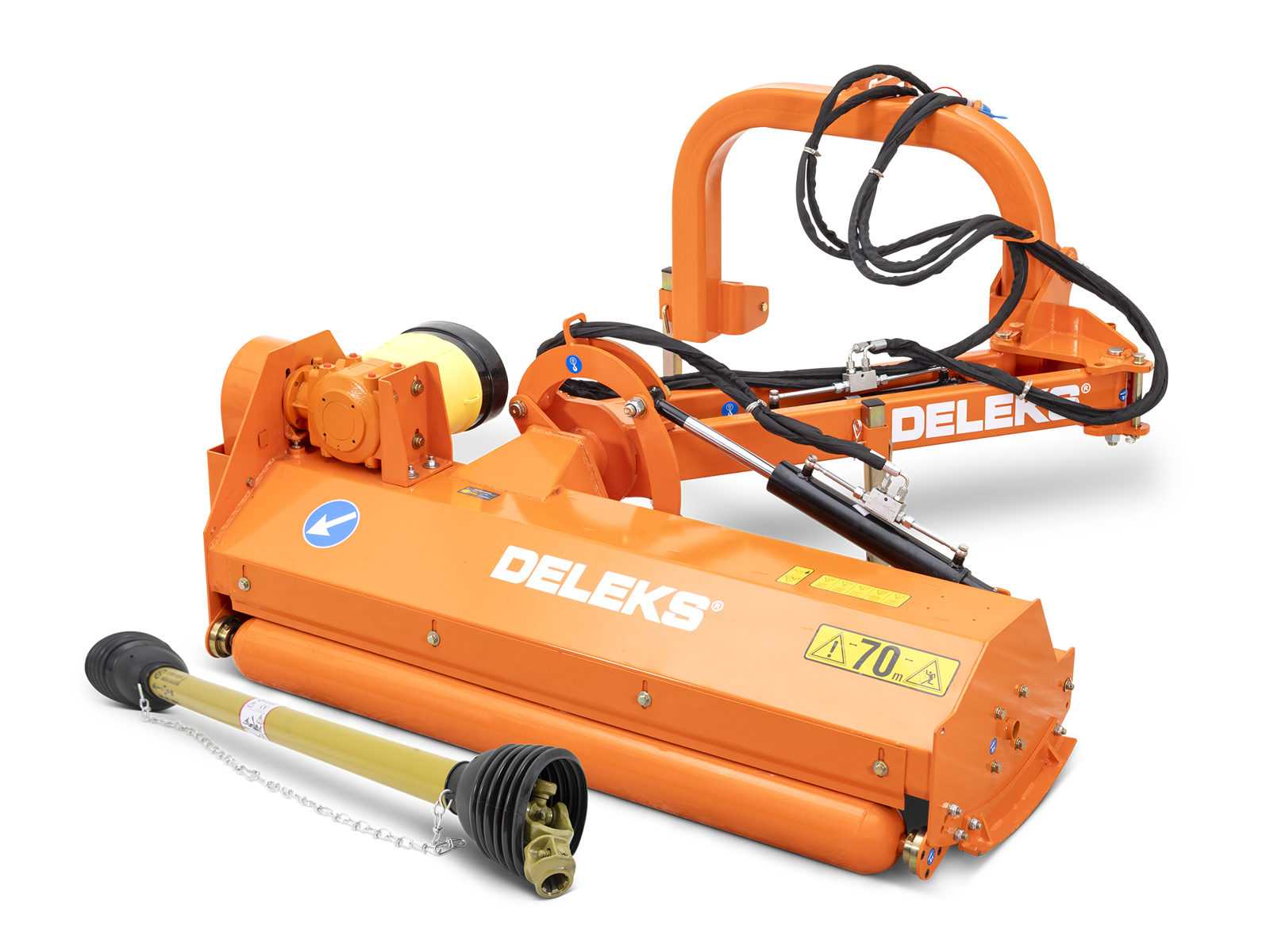

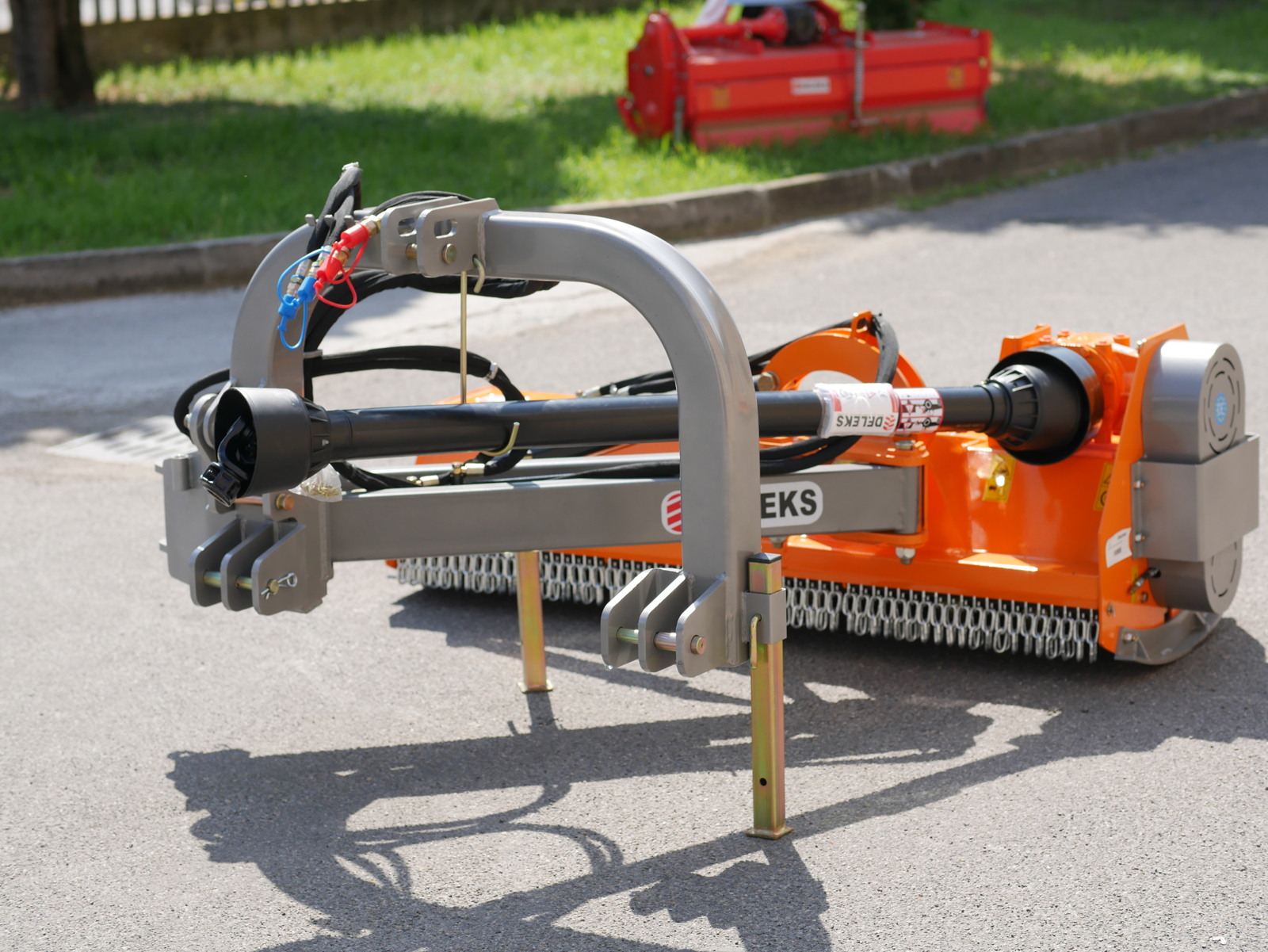

Ditch bank and verge flail mower 160 cm (63 in) LEO-160, offset hammer flail mower with internal gearbox for 50-70 hp tractors, for orchards, banks and roadside verges
DETAILS
Ditch bank and verge flail mower with a 160 cm (63 in) cut: the DELEKS® LEO-160 is the offset hammer flail mower from the medium series with an internal gearbox, for wheeled or tracked tractors from 50 to 70 hp. Two hydraulic rams move the head out beside the tractor and tilt it from +90° to -60°: it works on roadside verges, ditches, banks and sloping ground, upright on hedges and bushes and, level, between the rows of orchards and vineyards. The 108 mm (4.3 in) rotor, electronically balanced and running on SKF bearings, carries 24 hammer flails of 820 g (1.8 lb) and pulverises grass, brambles and vine and olive prunings up to 4-5 cm (1.6-2 in) thick. Oversized rear roller with mud scraper, three-point headstock with Anti Shock system, CMR Group 540 rpm gearbox with built-in freewheel and a 3-year warranty, 4-belt drive, 468 kg (1,032 lb). CAC-certified, it comes complete with a CE-approved PTO shaft, a 2-year warranty and free delivery within the EU.

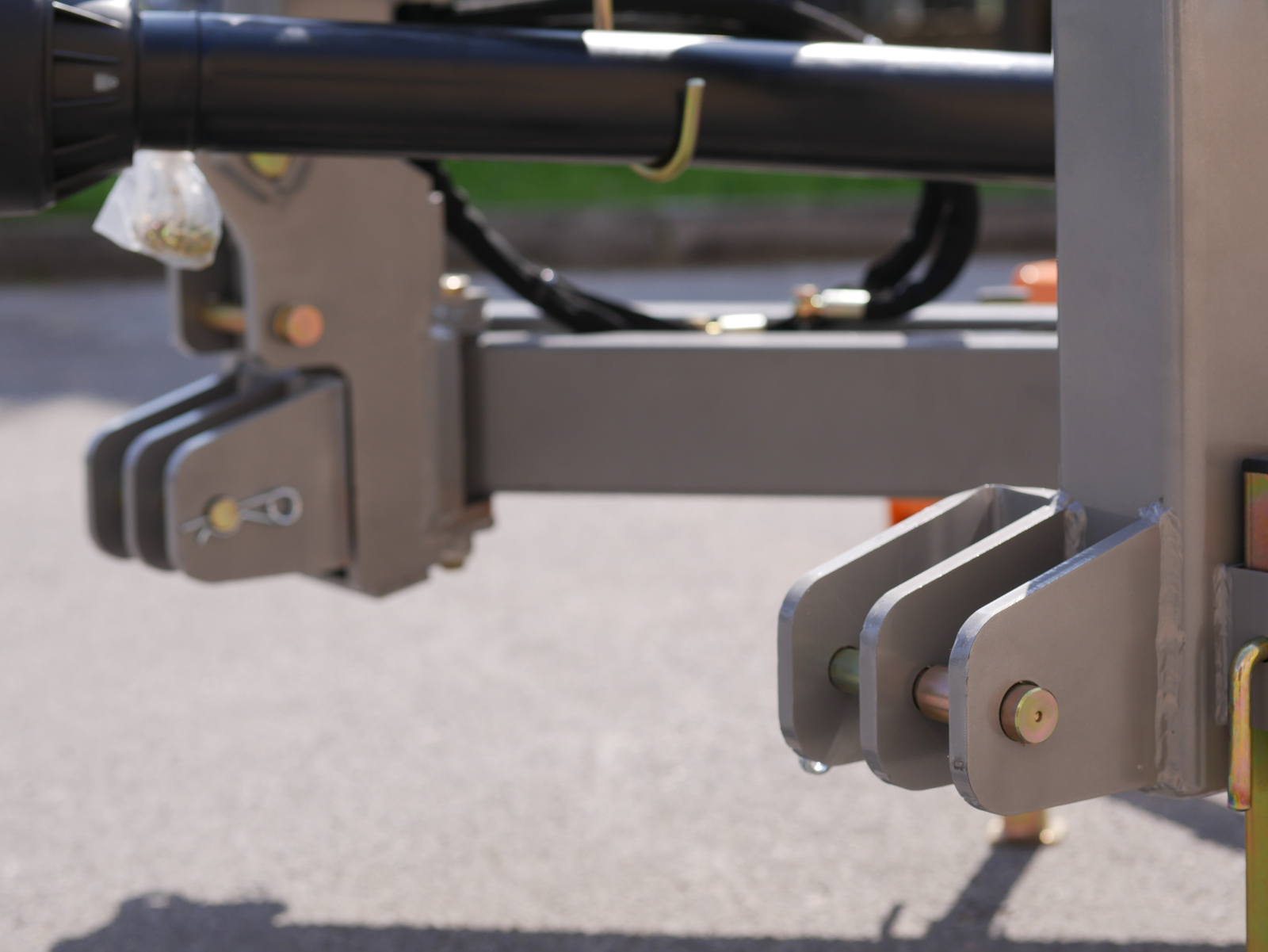

Which tractors it fits
The LEO-160 cuts 160 cm (63 in) and is designed for mid-power wheeled or tracked tractors, from 50 to 70 hp, with a 540 rpm PTO and a category 1 or 2 three-point linkage (19-22 or 25-28 mm pins, lower link spacing from 730 to 960 mm): New Holland T4F, John Deere, Landini Mistral, Carraro, Goldoni, Lamborghini, McCormick, Same Solaris, Solis and equivalent tractors. The tractor needs 4 hydraulic outlets with ½ in couplings: the machine has 2 rams and 4 hoses with agricultural quick-release couplings and runs on an oil flow of 18-22 l/min at 120-150 bar. The gearbox sits 490 mm above the ground. It works on the flat and on slopes.
Hydraulic side shift and tilt
Two hydraulic rams, worked from the seat with the tractor's spool valves, move the head sideways and tilt it from +90° upwards to -60° downwards. Closed, the head stays behind the tractor, 750 mm (29.5 in) to the left and 970 mm (38.2 in) to the right of the centre; with the arm fully out, the outer edge reaches about 2.2 m (7 ft 3 in) from the centre of the tractor, on the right-hand side. Out to the side and tilted, the LEO-160 tidies roadside verges, ditches and banks; out to the side and upright it trims bushes and hedges; level, it works between the rows. The gearbox is mounted inboard. The three-point headstock has the Anti Shock system: the joint between the three-point headstock and the arm is not rigid, so the head can follow the ground over humps.

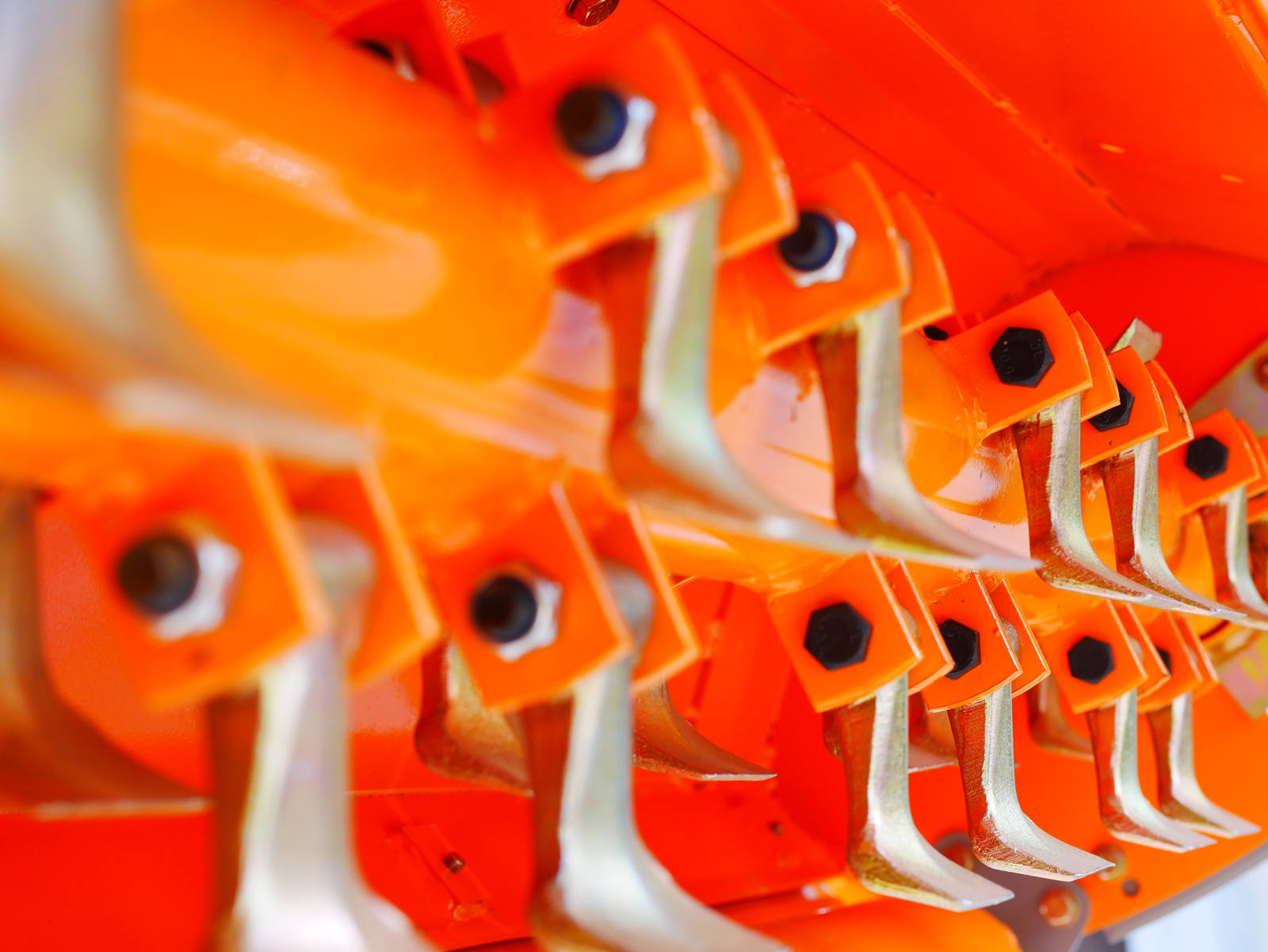

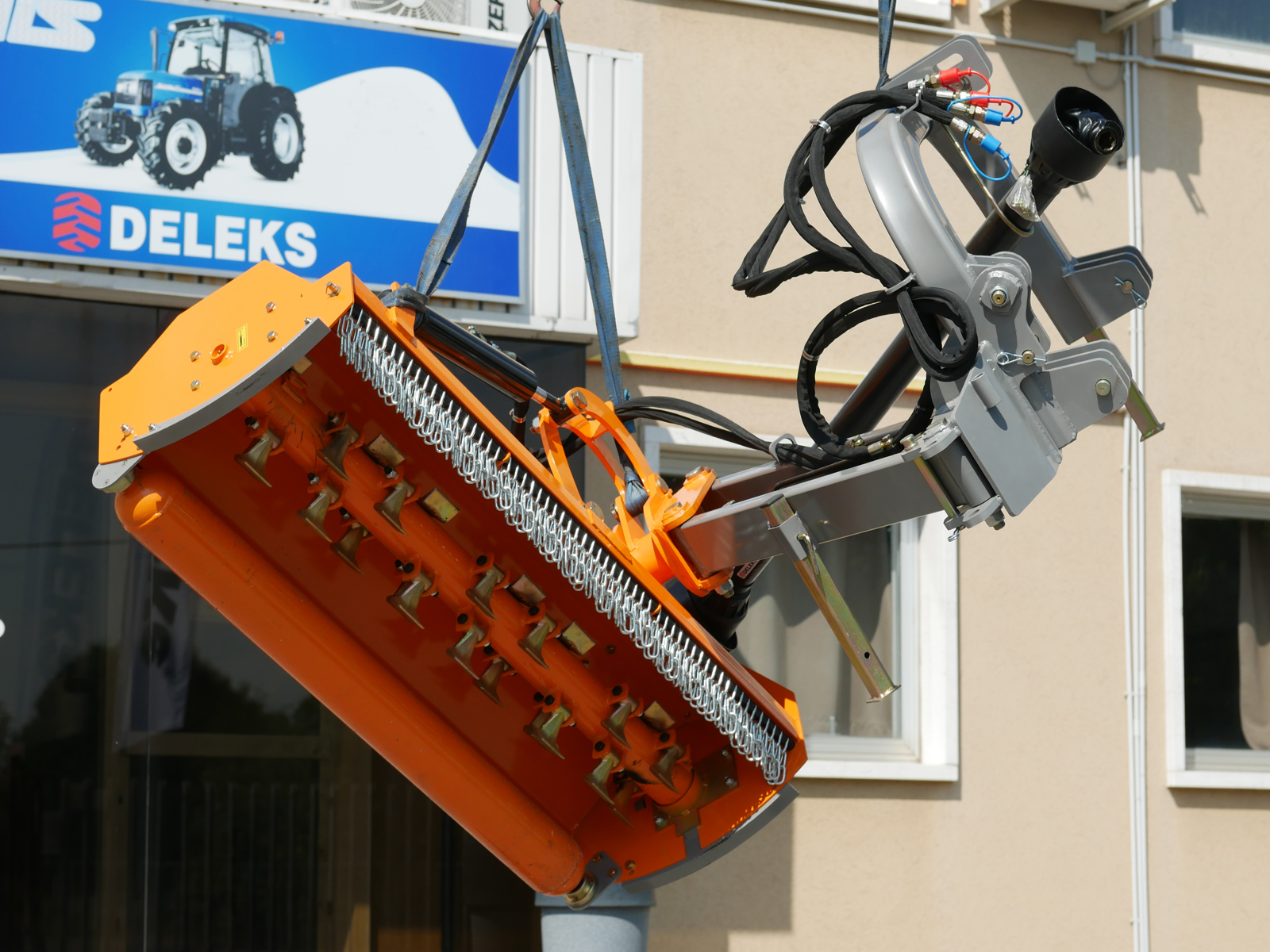

108 mm (4.3 in) rotor on SKF bearings, 24 hammer flails
The rotor is 108 mm (4.3 in) in diameter, with an 8 mm tube wall; it is electronically balanced, spins at 2,300 rpm and runs on SKF bearings. The 24 thick hammer flails weigh 820 g (1.8 lb) each: they pulverise grass, brambles and vine and olive prunings up to 4-5 cm (1.6-2 in) thick. As an option there is the kit of 30 blades (COLTELLI30T), as an alternative to the hammer flails.

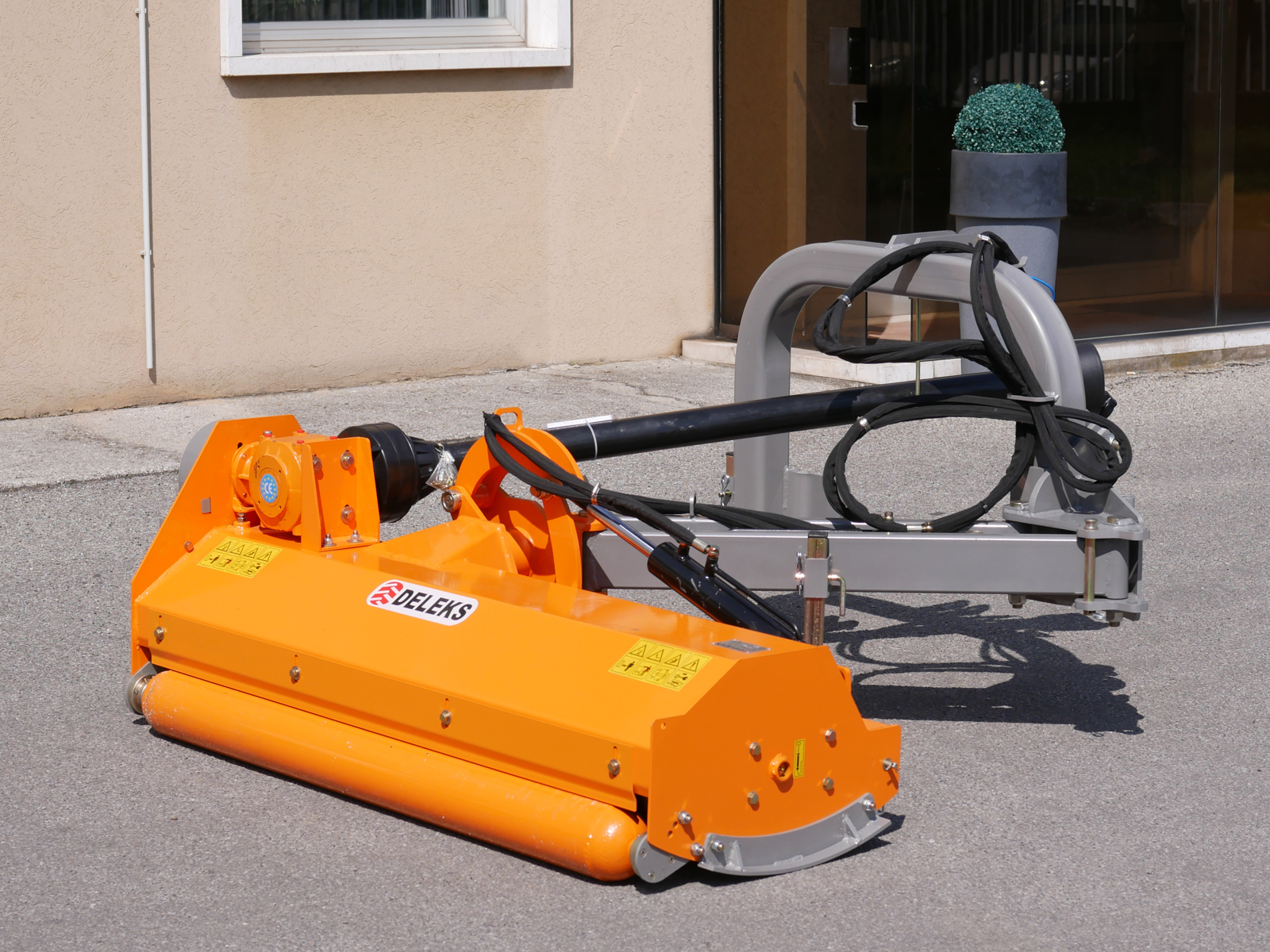

Hood, roller with mud scraper and cutting height
The frame is 4 mm thick, with 6 mm side plates and 6 mm side skids. The oversized rear roller, 140 mm (5.5 in) in diameter, has a mud scraper that keeps it clear of soil; with the side skids it sets the cutting height from 10 to 45 mm (0.4 to 1.8 in).

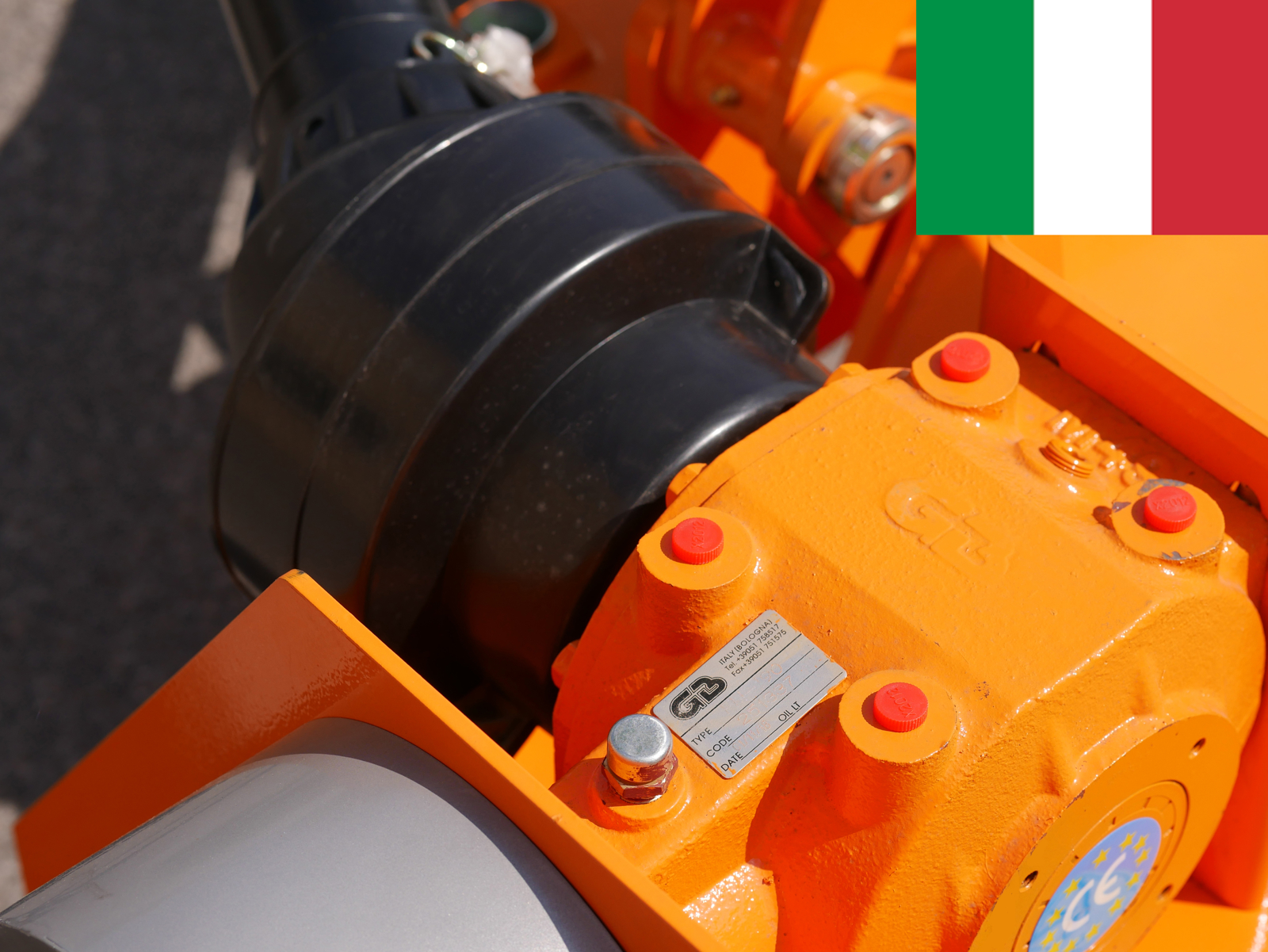

Gearbox with freewheel, 4 belts and PTO shaft
The CMR Group gearbox for a 540 rpm PTO has a built-in freewheel and a 3-year warranty: when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. Drive reaches the rotor through 4 V-belts, 17x1026; belt tension is set from the outside, with the adjustable tensioner. The CE-approved category 5 PTO shaft, 1,800 mm (70.9 in) long, is included; as an option you can order the category 6 wide-angle shaft in its place (SOST6X1800OM).
Dimensions, weight and delivery
Working width 1,592 mm (62.7 in), overall width 1,720 mm (67.7 in), length 1,550 mm (61 in) with the arm closed, height 850 mm (33.5 in), weight 468 kg (1,032 lb). It ships on a pallet in packaging measuring 178 × 80 × 76 cm (70 × 31 × 30 in), 524 kg (1,155 lb) gross, 1.08 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is CAC-certified (Conformity Assessment Center) and carries a 2-year warranty.
Where it works

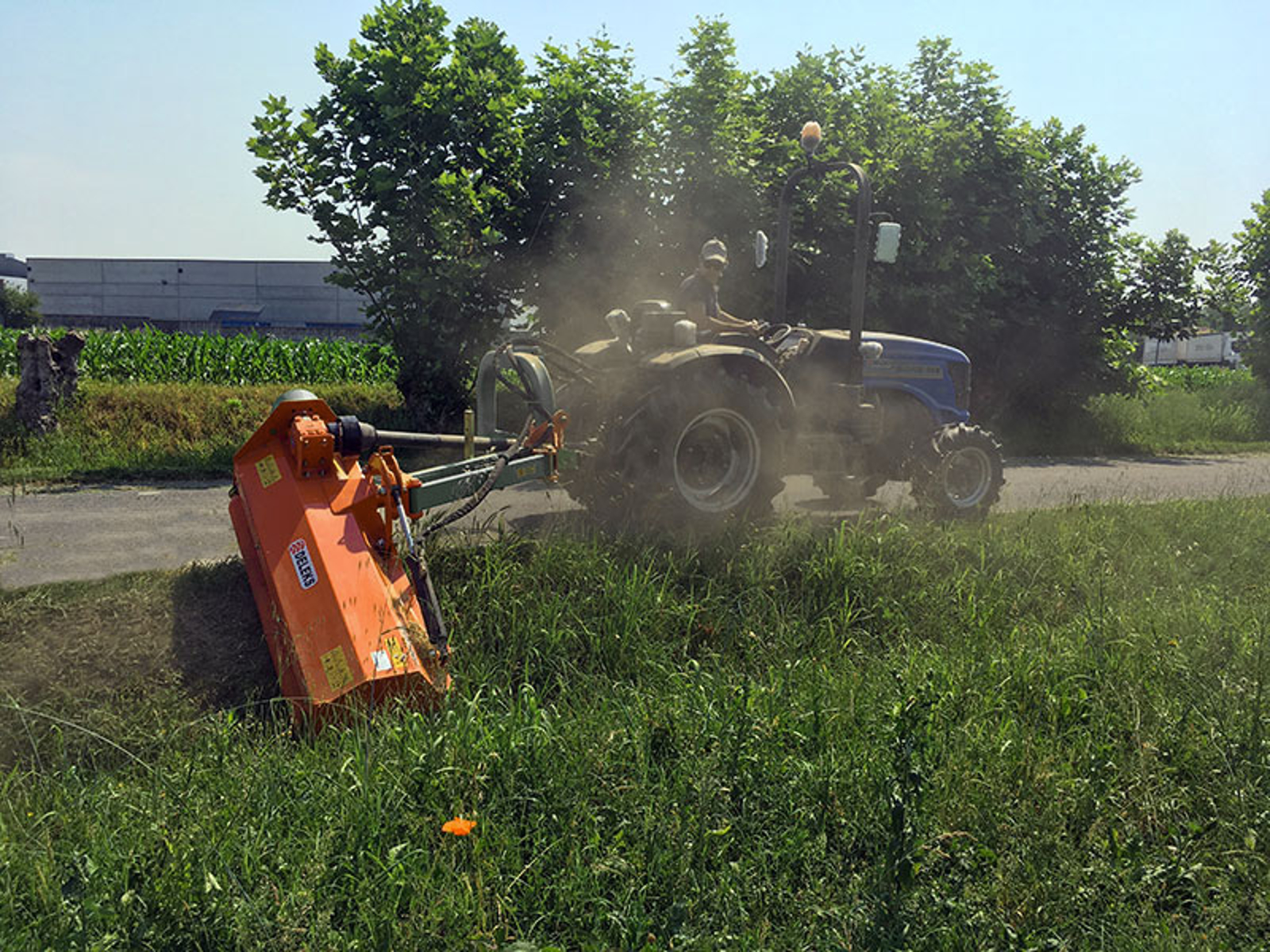

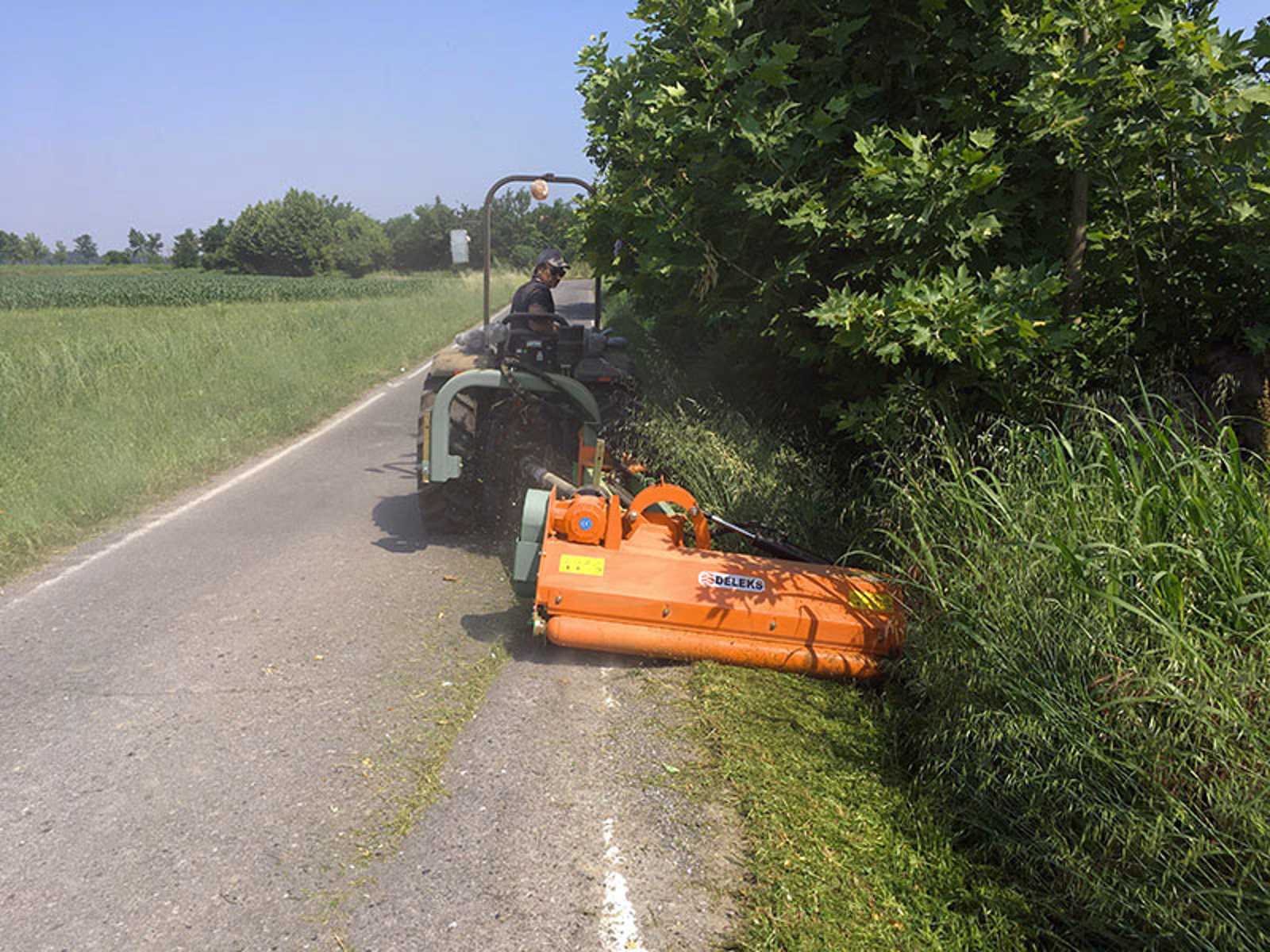

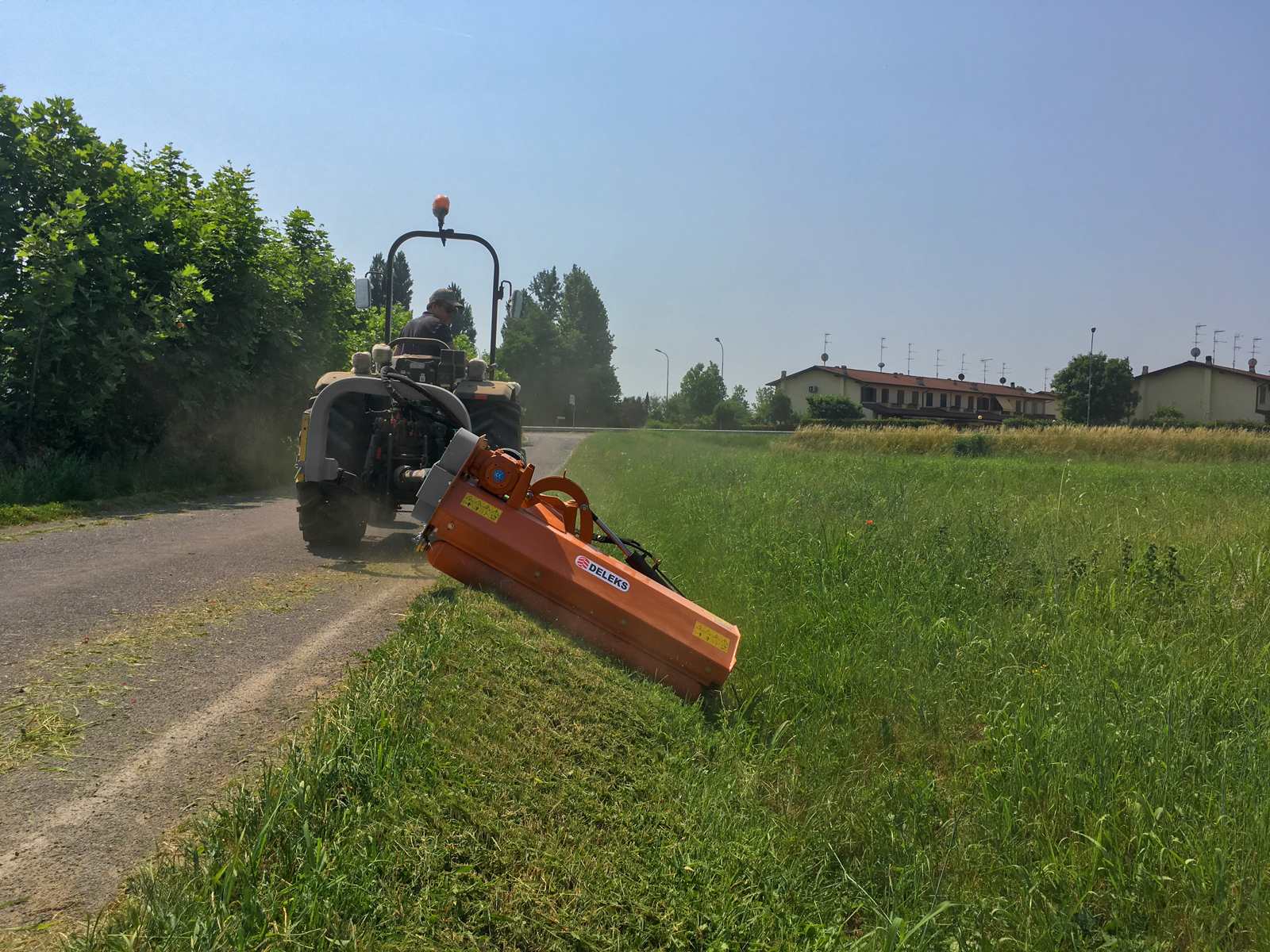

- Roadside verges, ditches and banks: head out to the side and tilted down to -60°
- Orchards and vineyards: level between the rows, prunings up to 4-5 cm (1.6-2 in)
- Hedges and bushes: head upright
- Council work and sloping ground in general
- On the flat and on slopes, with wheeled or tracked tractors from 50 to 70 hp
Options and spares
From this page you can add to your order the kit of 10 hammer flails (MAZZE10T), the 10 nuts and bolts for the flails (DB10T), the kit of 30 blades (COLTELLI30T), the spare set of 4 belts (CINGHIE4LEO), the category 6 wide-angle PTO shaft, 1,800 mm (70.9 in) long, in place of the standard one (SOST6X1800OM), spare pins for the category 1-2 three-point linkage (3PERNI12), the universal PTO adapter (RID1), the 680 mm (26.8 in) top link (BE0124) and the 730 mm (28.7 in) top link (BE0125). Other spares are identified on the exploded diagrams with our technical team.
FAQ
What size tractor does the LEO-160 need?
From 50 to 70 hp, with a 540 rpm PTO and a category 1 or 2 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 468 kg (1,032 lb).
How far out to the side does the LEO-160 reach?
With the arm fully out, the outer edge of the head reaches about 2.2 m (7 ft 3 in) from the centre of the tractor, on the right-hand side.
How far does the head tilt?
From +90° upwards, upright, for hedges and bushes, to -60° downwards, for ditches and banks.
What does the tractor need to work it?

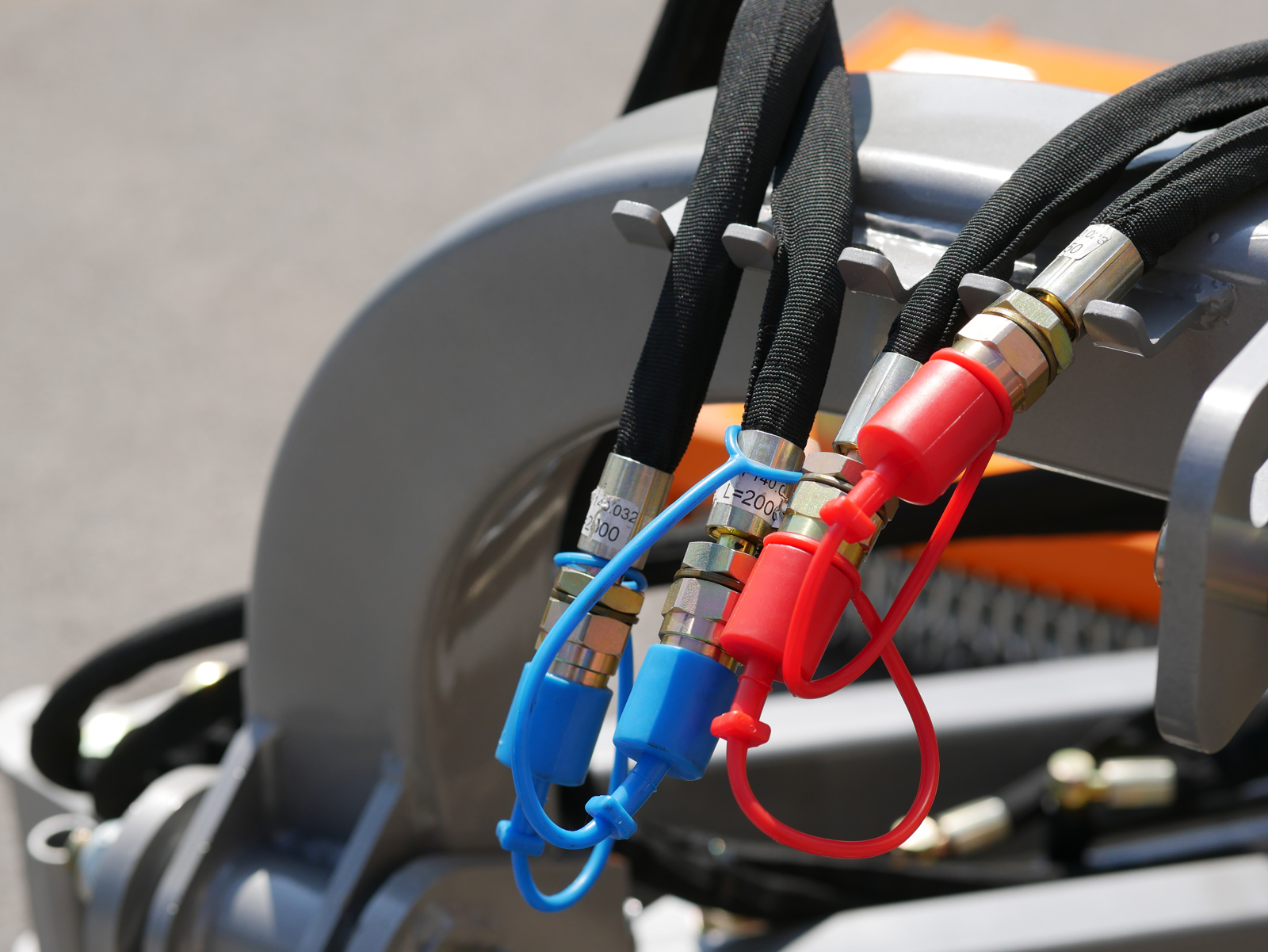

4 hydraulic outlets with ½ in couplings for the mower's 4 hoses, which have agricultural quick-release couplings: they work the side shift and the tilt.
What size branches will it shred?
Grass, brambles and vine and olive prunings up to 4-5 cm (1.6-2 in) thick.
Hammer flails or blades?
It comes with 24 hammer flails of 820 g (1.8 lb). As an option there is the kit of 30 blades (COLTELLI30T), as an alternative to the hammer flails.
Is the PTO shaft included?
Yes: a CE-approved category 5 PTO shaft, 1,800 mm (70.9 in) long. As an option there is the category 6 wide-angle shaft (SOST6X1800OM), supplied in place of the standard one.
How does it differ from the GIRAFFA?
The GIRAFFA has an external gearbox and, as standard, the category 6 double wide-angle PTO shaft. The LEO has its gearbox mounted inboard and a category 5 PTO shaft; the wide-angle shaft is an option. With the arm fully out the LEO reaches 2.0 to 2.4 m (6 ft 7 in to 7 ft 10 in) from the centre of the tractor, the GIRAFFA 2.3 to 2.7 m (7 ft 7 in to 8 ft 10 in).
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1592.0 mm |
| Overall width | 1720.0 mm |
| Min / Max cutting height | 10.0 - 45.0 mm |
| Weight | 468.0 kg |
| Overall height | 850.0 mm |
| Tractor Power Range | 50 - 70 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Position of the gearbox | Internal |
| Hood height | 390.0 mm |
| Spacing between the 2 lower points | 730.0 - 960.0 mm |
| Number of Hammers | 24 |
| Maximum cutting diameter | 40.0 - 50.0 mm |
| Overall length | 1550.0 mm (closed) |
| Distance between pto attachment and ground | 490.0 mm |
| Main hood thickness | 4.0 mm |
| Sides thickness | 6.0 mm |
| Side plates thickness | 6.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: Gearbox | Lombarda Ingranaggi (Italy) |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: RPM Rotor speed | 2300 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Transmission: Top pulley ø | 170.0 mm |
| Transmission: Lower pulley ø | 120.0 mm |
| Transmission: V-Belts quantity | 4 |
| Transmission: V-Belts size | 17x1026 |
| Rotor: diameter | 108.0 mm |
| Rotor: bearings type and size | SKF 6207 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |

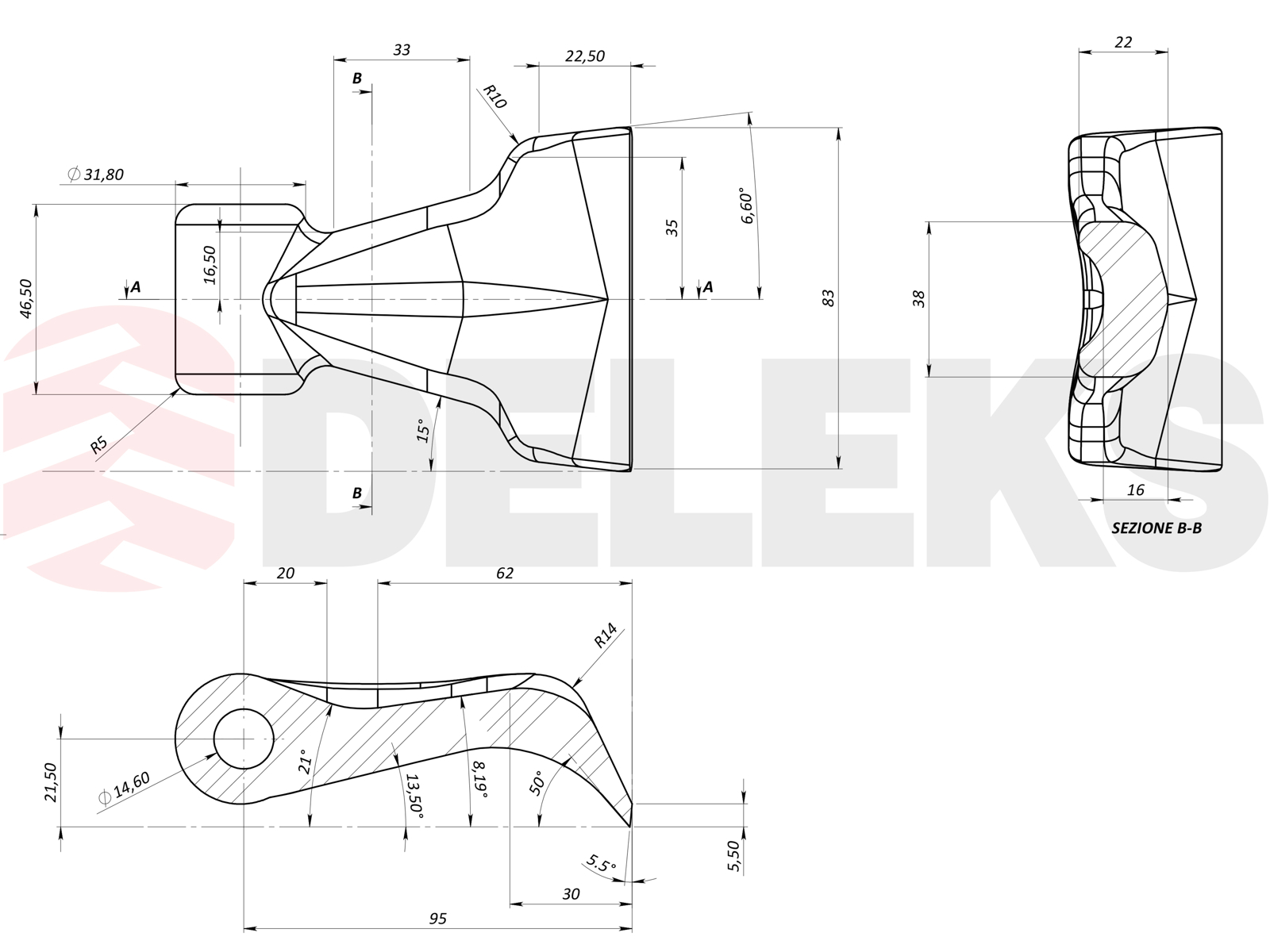

| Hammers: Weight | 820.0 g |
| Hammer: øhole | 15.0 mm |
| Hammer: base width | 82.0 mm |
| Hammer: top width | 45.0 mm |
| Hammer: Diagonal | 95.0 mm |
| Rear roller: diameter | 140.0 mm |
| Rear roller: sheet thickness | 5.0 mm |
| Rear roller: bearings type and size | UC205 |

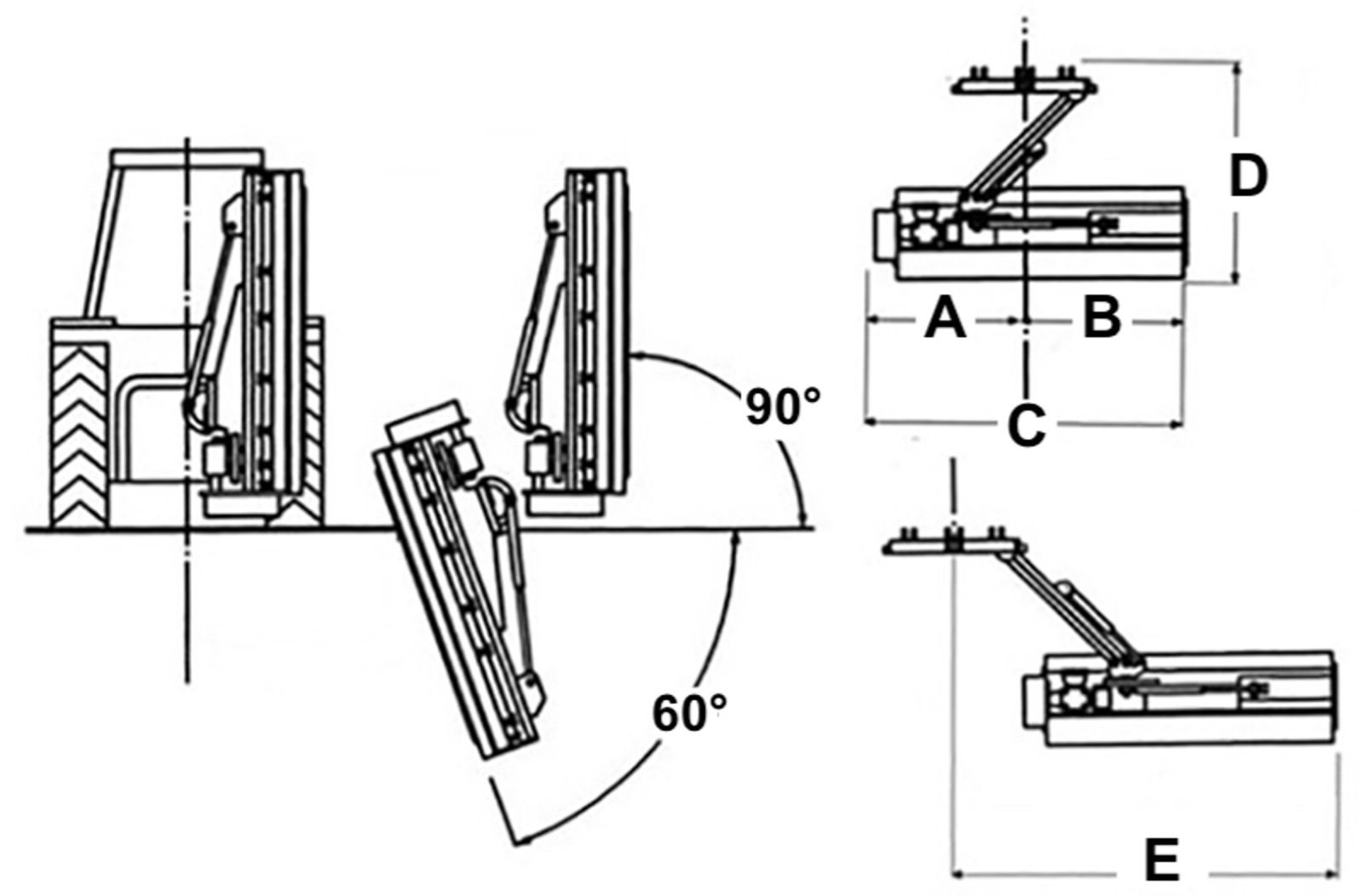

| Displacement and Sizes | See pictures |
| Hydraulic cylinder A diam. | 70.0 - 30.0 mm |
| Hydraulic cylinder B diam. | 65.0 - 25.0 mm |
| Working pressure | 120 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min |
| Hydraulic Hoses | WP 400 Bar, 1/2" Agri Standard |
| Pto shaft | CE 5x1800 mm |
| Hood length | 630.0 mm |
| Gross shipping weight | 524 kg |
| Package volume | 1.08 m3 |
| Packing sizes | 1780.0*800.0*760.0 mm |
DETAILS
CLOSEDitch bank and verge flail mower with a 160 cm (63 in) cut: the DELEKS® LEO-160 is the offset hammer flail mower from the medium series with an internal gearbox, for wheeled or tracked tractors from 50 to 70 hp. Two hydraulic rams move the head out beside the tractor and tilt it from +90° to -60°: it works on roadside verges, ditches, banks and sloping ground, upright on hedges and bushes and, level, between the rows of orchards and vineyards. The 108 mm (4.3 in) rotor, electronically balanced and running on SKF bearings, carries 24 hammer flails of 820 g (1.8 lb) and pulverises grass, brambles and vine and olive prunings up to 4-5 cm (1.6-2 in) thick. Oversized rear roller with mud scraper, three-point headstock with Anti Shock system, CMR Group 540 rpm gearbox with built-in freewheel and a 3-year warranty, 4-belt drive, 468 kg (1,032 lb). CAC-certified, it comes complete with a CE-approved PTO shaft, a 2-year warranty and free delivery within the EU.
Which tractors it fits
The LEO-160 cuts 160 cm (63 in) and is designed for mid-power wheeled or tracked tractors, from 50 to 70 hp, with a 540 rpm PTO and a category 1 or 2 three-point linkage (19-22 or 25-28 mm pins, lower link spacing from 730 to 960 mm): New Holland T4F, John Deere, Landini Mistral, Carraro, Goldoni, Lamborghini, McCormick, Same Solaris, Solis and equivalent tractors. The tractor needs 4 hydraulic outlets with ½ in couplings: the machine has 2 rams and 4 hoses with agricultural quick-release couplings and runs on an oil flow of 18-22 l/min at 120-150 bar. The gearbox sits 490 mm above the ground. It works on the flat and on slopes.
Hydraulic side shift and tilt
Two hydraulic rams, worked from the seat with the tractor's spool valves, move the head sideways and tilt it from +90° upwards to -60° downwards. Closed, the head stays behind the tractor, 750 mm (29.5 in) to the left and 970 mm (38.2 in) to the right of the centre; with the arm fully out, the outer edge reaches about 2.2 m (7 ft 3 in) from the centre of the tractor, on the right-hand side. Out to the side and tilted, the LEO-160 tidies roadside verges, ditches and banks; out to the side and upright it trims bushes and hedges; level, it works between the rows. The gearbox is mounted inboard. The three-point headstock has the Anti Shock system: the joint between the three-point headstock and the arm is not rigid, so the head can follow the ground over humps.
108 mm (4.3 in) rotor on SKF bearings, 24 hammer flails
The rotor is 108 mm (4.3 in) in diameter, with an 8 mm tube wall; it is electronically balanced, spins at 2,300 rpm and runs on SKF bearings. The 24 thick hammer flails weigh 820 g (1.8 lb) each: they pulverise grass, brambles and vine and olive prunings up to 4-5 cm (1.6-2 in) thick. As an option there is the kit of 30 blades (COLTELLI30T), as an alternative to the hammer flails.
Hood, roller with mud scraper and cutting height
The frame is 4 mm thick, with 6 mm side plates and 6 mm side skids. The oversized rear roller, 140 mm (5.5 in) in diameter, has a mud scraper that keeps it clear of soil; with the side skids it sets the cutting height from 10 to 45 mm (0.4 to 1.8 in).
Gearbox with freewheel, 4 belts and PTO shaft
The CMR Group gearbox for a 540 rpm PTO has a built-in freewheel and a 3-year warranty: when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. Drive reaches the rotor through 4 V-belts, 17x1026; belt tension is set from the outside, with the adjustable tensioner. The CE-approved category 5 PTO shaft, 1,800 mm (70.9 in) long, is included; as an option you can order the category 6 wide-angle shaft in its place (SOST6X1800OM).
Dimensions, weight and delivery
Working width 1,592 mm (62.7 in), overall width 1,720 mm (67.7 in), length 1,550 mm (61 in) with the arm closed, height 850 mm (33.5 in), weight 468 kg (1,032 lb). It ships on a pallet in packaging measuring 178 × 80 × 76 cm (70 × 31 × 30 in), 524 kg (1,155 lb) gross, 1.08 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is CAC-certified (Conformity Assessment Center) and carries a 2-year warranty.
Where it works
- Roadside verges, ditches and banks: head out to the side and tilted down to -60°
- Orchards and vineyards: level between the rows, prunings up to 4-5 cm (1.6-2 in)
- Hedges and bushes: head upright
- Council work and sloping ground in general
- On the flat and on slopes, with wheeled or tracked tractors from 50 to 70 hp
Options and spares
From this page you can add to your order the kit of 10 hammer flails (MAZZE10T), the 10 nuts and bolts for the flails (DB10T), the kit of 30 blades (COLTELLI30T), the spare set of 4 belts (CINGHIE4LEO), the category 6 wide-angle PTO shaft, 1,800 mm (70.9 in) long, in place of the standard one (SOST6X1800OM), spare pins for the category 1-2 three-point linkage (3PERNI12), the universal PTO adapter (RID1), the 680 mm (26.8 in) top link (BE0124) and the 730 mm (28.7 in) top link (BE0125). Other spares are identified on the exploded diagrams with our technical team.
FAQ
What size tractor does the LEO-160 need?
From 50 to 70 hp, with a 540 rpm PTO and a category 1 or 2 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 468 kg (1,032 lb).
How far out to the side does the LEO-160 reach?
With the arm fully out, the outer edge of the head reaches about 2.2 m (7 ft 3 in) from the centre of the tractor, on the right-hand side.
How far does the head tilt?
From +90° upwards, upright, for hedges and bushes, to -60° downwards, for ditches and banks.
What does the tractor need to work it?
4 hydraulic outlets with ½ in couplings for the mower's 4 hoses, which have agricultural quick-release couplings: they work the side shift and the tilt.
What size branches will it shred?
Grass, brambles and vine and olive prunings up to 4-5 cm (1.6-2 in) thick.
Hammer flails or blades?
It comes with 24 hammer flails of 820 g (1.8 lb). As an option there is the kit of 30 blades (COLTELLI30T), as an alternative to the hammer flails.
Is the PTO shaft included?
Yes: a CE-approved category 5 PTO shaft, 1,800 mm (70.9 in) long. As an option there is the category 6 wide-angle shaft (SOST6X1800OM), supplied in place of the standard one.
How does it differ from the GIRAFFA?
The GIRAFFA has an external gearbox and, as standard, the category 6 double wide-angle PTO shaft. The LEO has its gearbox mounted inboard and a category 5 PTO shaft; the wide-angle shaft is an option. With the arm fully out the LEO reaches 2.0 to 2.4 m (6 ft 7 in to 7 ft 10 in) from the centre of the tractor, the GIRAFFA 2.3 to 2.7 m (7 ft 7 in to 8 ft 10 in).
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
CLOSE| Characteristic | Units metric |
|---|---|
| Working width | 1592.0 mm |
| Overall width | 1720.0 mm |
| Min / Max cutting height | 10.0 - 45.0 mm |
| Weight | 468.0 kg |
| Overall height | 850.0 mm |
| Tractor Power Range | 50 - 70 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Position of the gearbox | Internal |
| Hood height | 390.0 mm |
| Spacing between the 2 lower points | 730.0 - 960.0 mm |
| Number of Hammers | 24 |
| Maximum cutting diameter | 40.0 - 50.0 mm |
| Overall length | 1550.0 mm (closed) |
| Distance between pto attachment and ground | 490.0 mm |
| Main hood thickness | 4.0 mm |
| Sides thickness | 6.0 mm |
| Side plates thickness | 6.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: Gearbox | Lombarda Ingranaggi (Italy) |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: RPM Rotor speed | 2300 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Transmission: Top pulley ø | 170.0 mm |
| Transmission: Lower pulley ø | 120.0 mm |
| Transmission: V-Belts quantity | 4 |
| Transmission: V-Belts size | 17x1026 |
| Rotor: diameter | 108.0 mm |
| Rotor: bearings type and size | SKF 6207 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |
| Hammers: Weight | 820.0 g |
| Hammer: øhole | 15.0 mm |
| Hammer: base width | 82.0 mm |
| Hammer: top width | 45.0 mm |
| Hammer: Diagonal | 95.0 mm |
| Rear roller: diameter | 140.0 mm |
| Rear roller: sheet thickness | 5.0 mm |
| Rear roller: bearings type and size | UC205 |
| Displacement and Sizes | See pictures |
| Hydraulic cylinder A diam. | 70.0 - 30.0 mm |
| Hydraulic cylinder B diam. | 65.0 - 25.0 mm |
| Working pressure | 120 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min |
| Hydraulic Hoses | WP 400 Bar, 1/2" Agri Standard |
| Pto shaft | CE 5x1800 mm |
| Hood length | 630.0 mm |
| Gross shipping weight | 524 kg |
| Package volume | 1.08 m3 |
| Packing sizes | 1780.0*800.0*760.0 mm |
Certifications
CLOSE| SSAB Laser 355MC | Download PDF |
| ARVEDI / TUBINDUSTRIA: Certification | Download PDF |
Technical charts
CLOSE| Shell Spirax S2 A 80W-90: Specifications | Download PDF |
