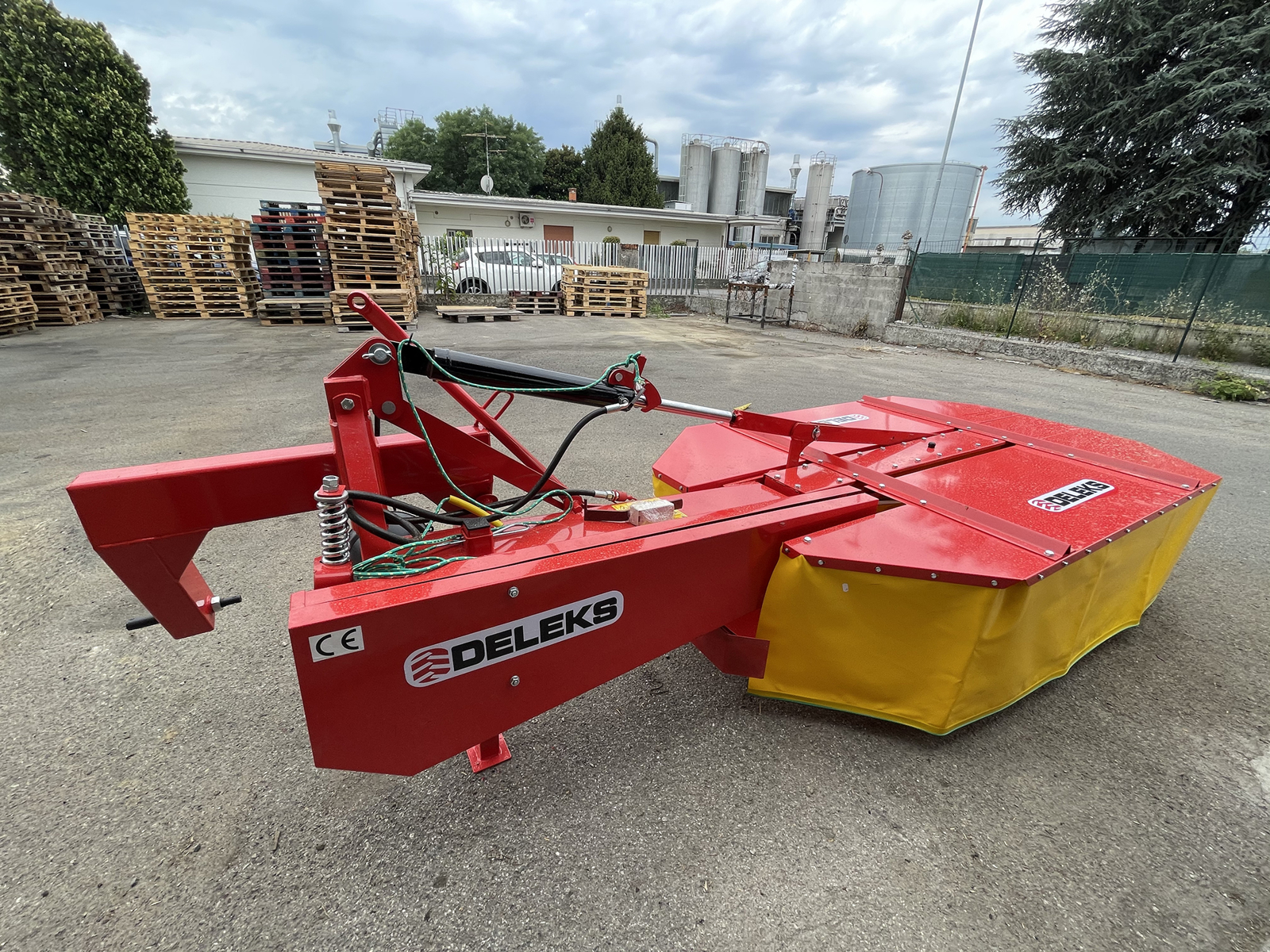

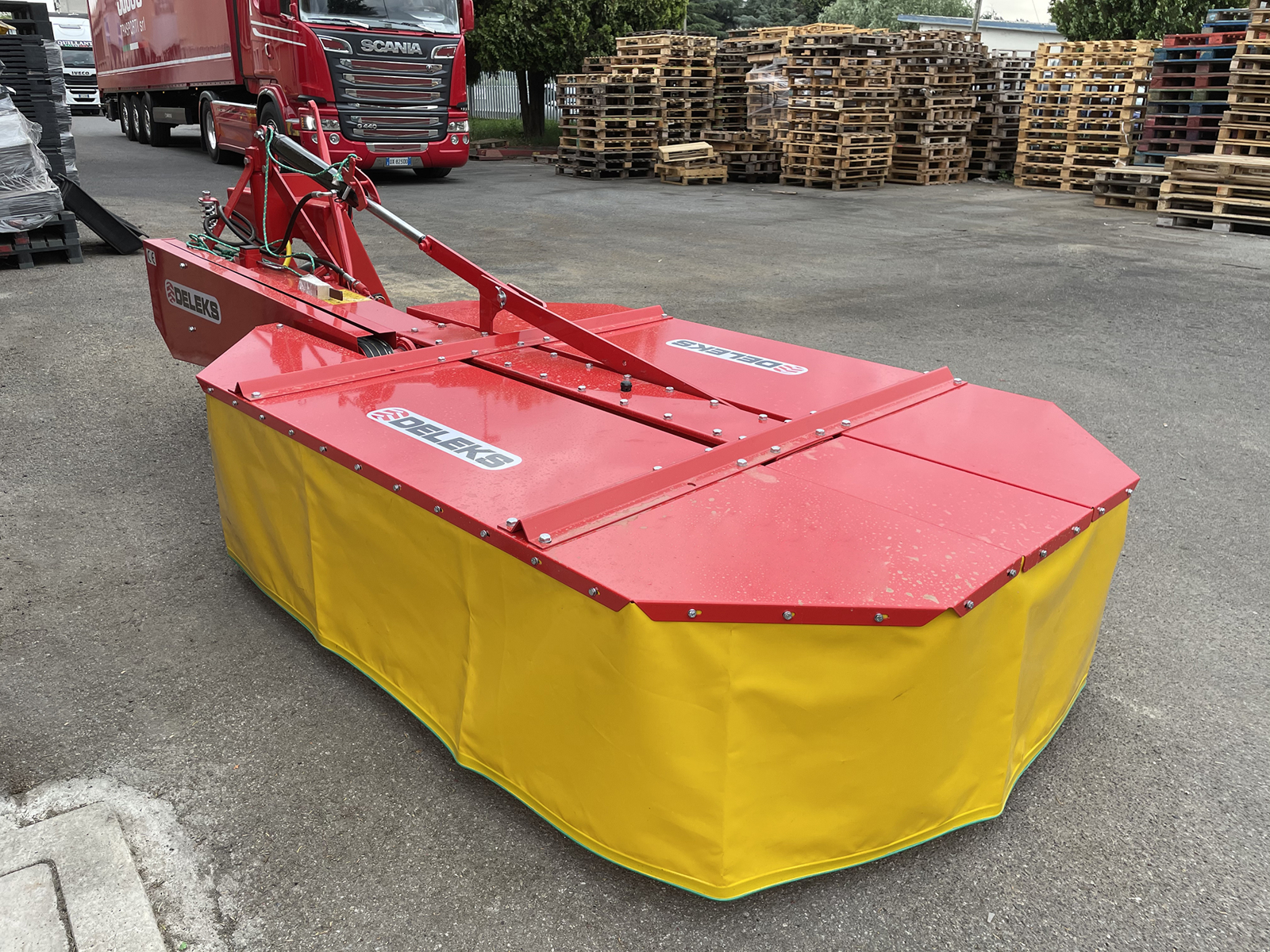

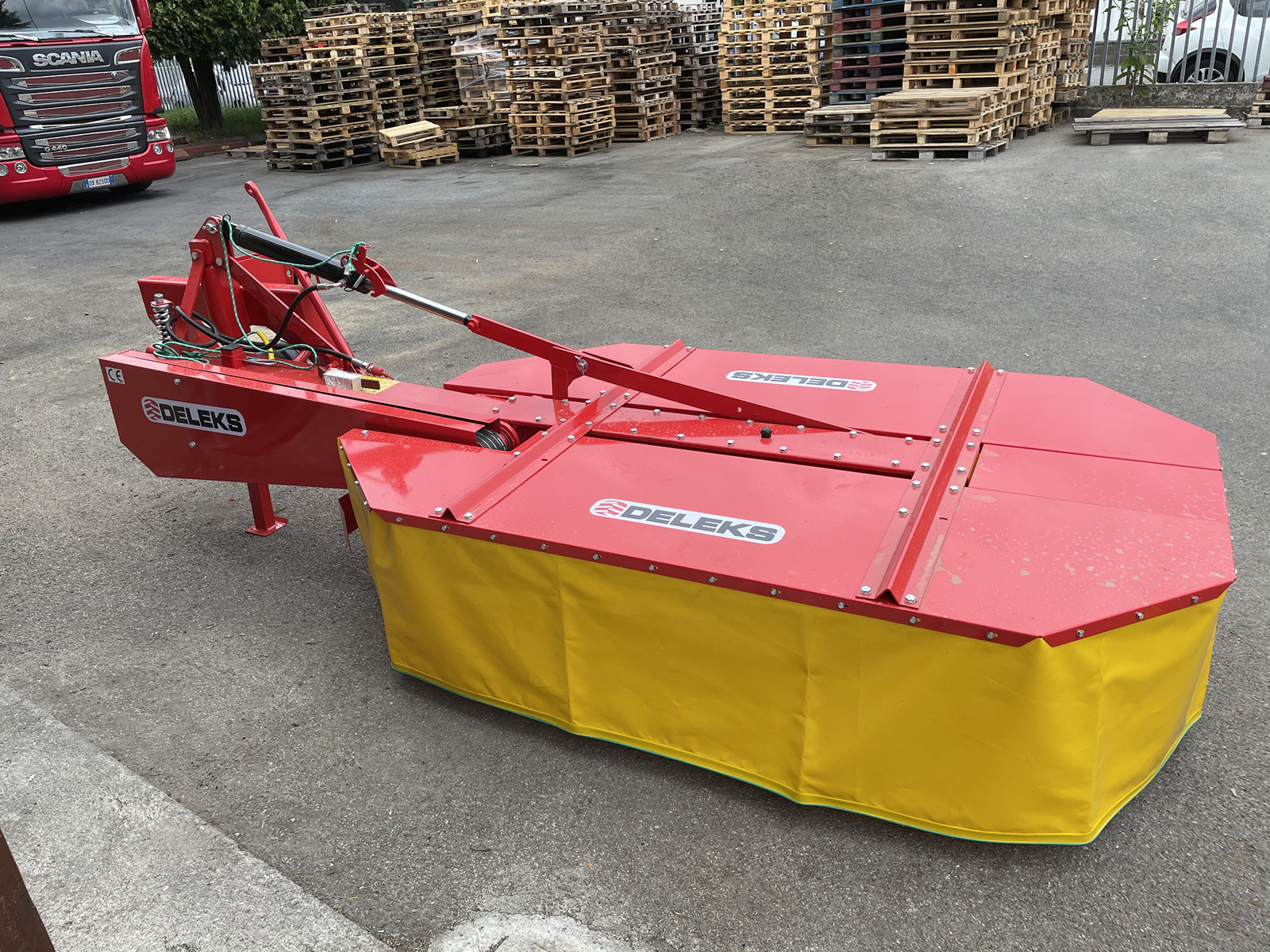

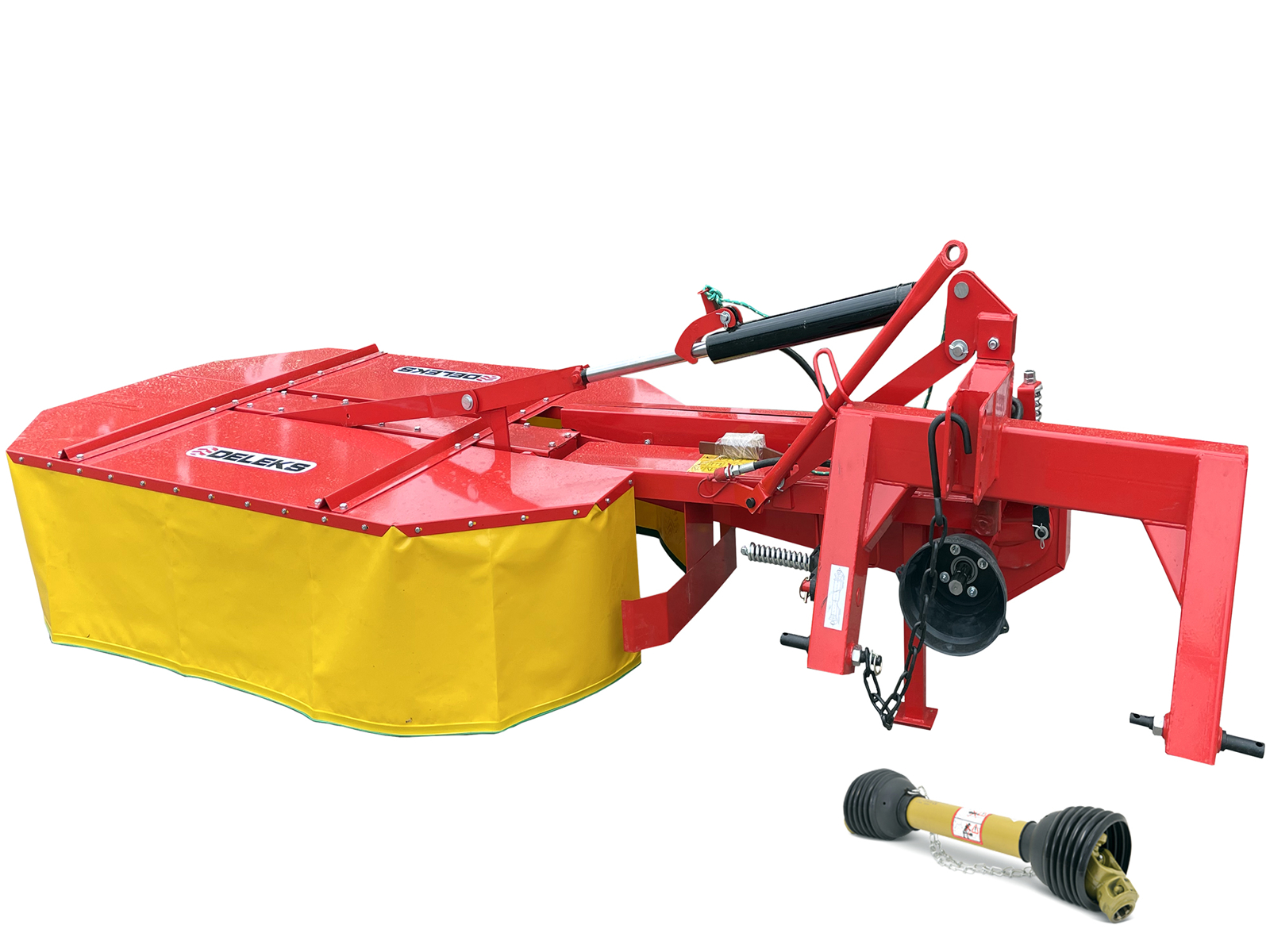

Drum mower for tractor 185 cm (73 in) DFR-185H, 2-drum rotary mower with hydraulic lift, 70-100 hp

Available
Code DFR185H - EAN 8057724860047
D
H
M
S
-263,00€ 3.290,00€VAT incl.
3.027,00€VAT incl.
Free shipping
Loading...
D
H
M
S
-263,00€ 3.290,00€VAT incl.
3.027,00€VAT incl.
Free shipping
View all details.

reviews

-263,00€ 3.290,00€VAT incl.
3.027,00€VAT incl.
 REQUEST INFORMATION

DETAILS

2-drum rotary mower for tractors with a 185 cm (73 in) cut and hydraulic lift, the DELEKS® DFR-185H: it mows grass and forage for hay with 6 blades of 150 g (5.3 oz), 50 mm (2 in) from the ground, and leaves the grass in a swath ready for drying and collection. It weighs 430 kg (948 lb) and works with tractors from 70 to 100 hp, with a 540 rpm PTO and a category 2 three-point linkage. It is the widest in the range: a hydraulic ram, controlled by the tractor's spool valve, lifts it upright to pass through gateways and travel on the road. Made in Europe, it comes complete with a CE-approved PTO shaft, a 2-year warranty and free delivery within the EU.


How a drum mower works

A drum mower, also called a rotary drum mower, works like this: the 2 drums with their blades spin at high speed and cut the grass cleanly, without tearing it; the forage stays in a swath and dries for hay. Compared with a finger bar mower it is not troubled by long or lodged grass and does not clog; compared with a flail mower it does not chop the grass, which can still be collected with a rake and baler.

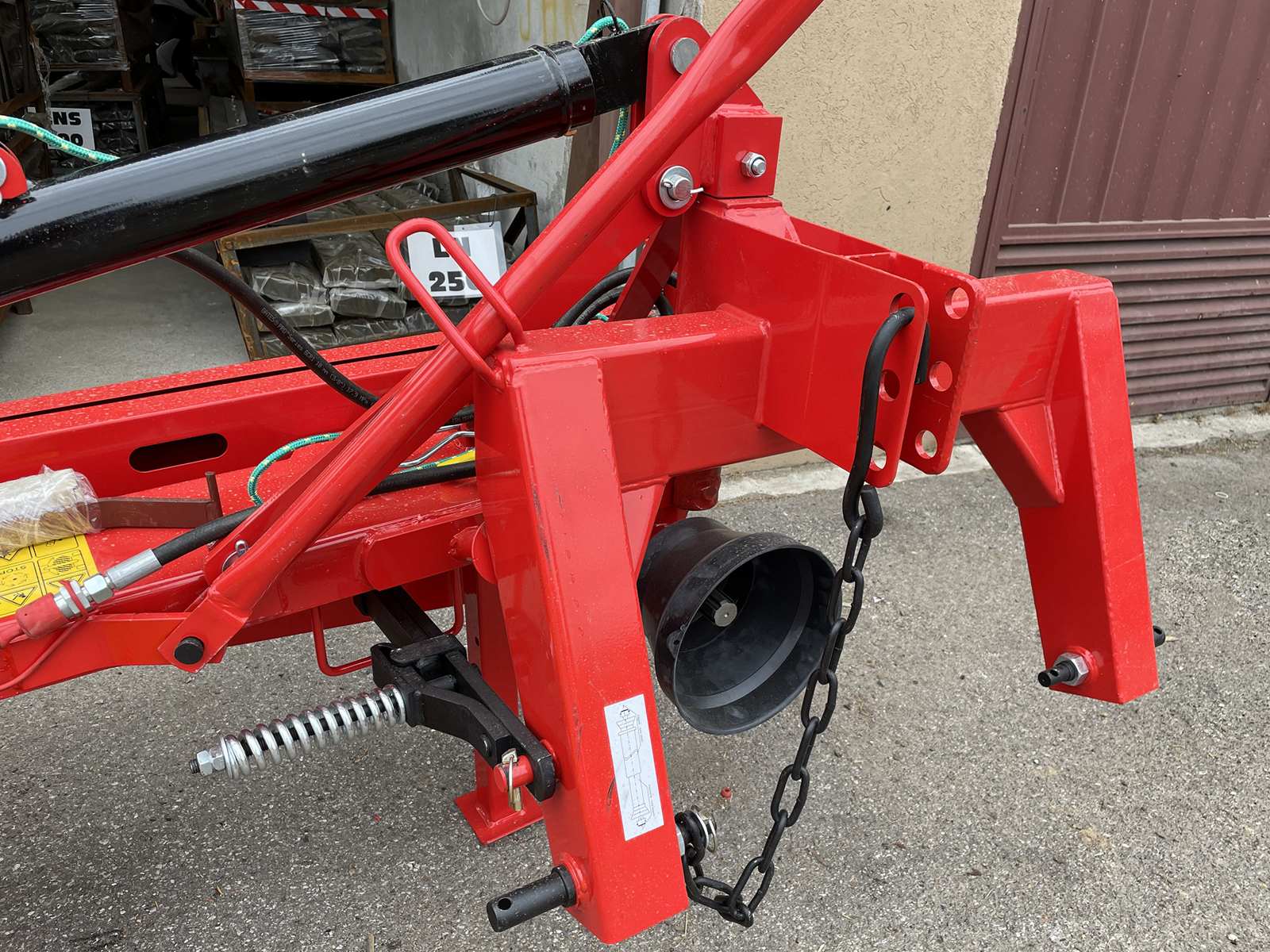

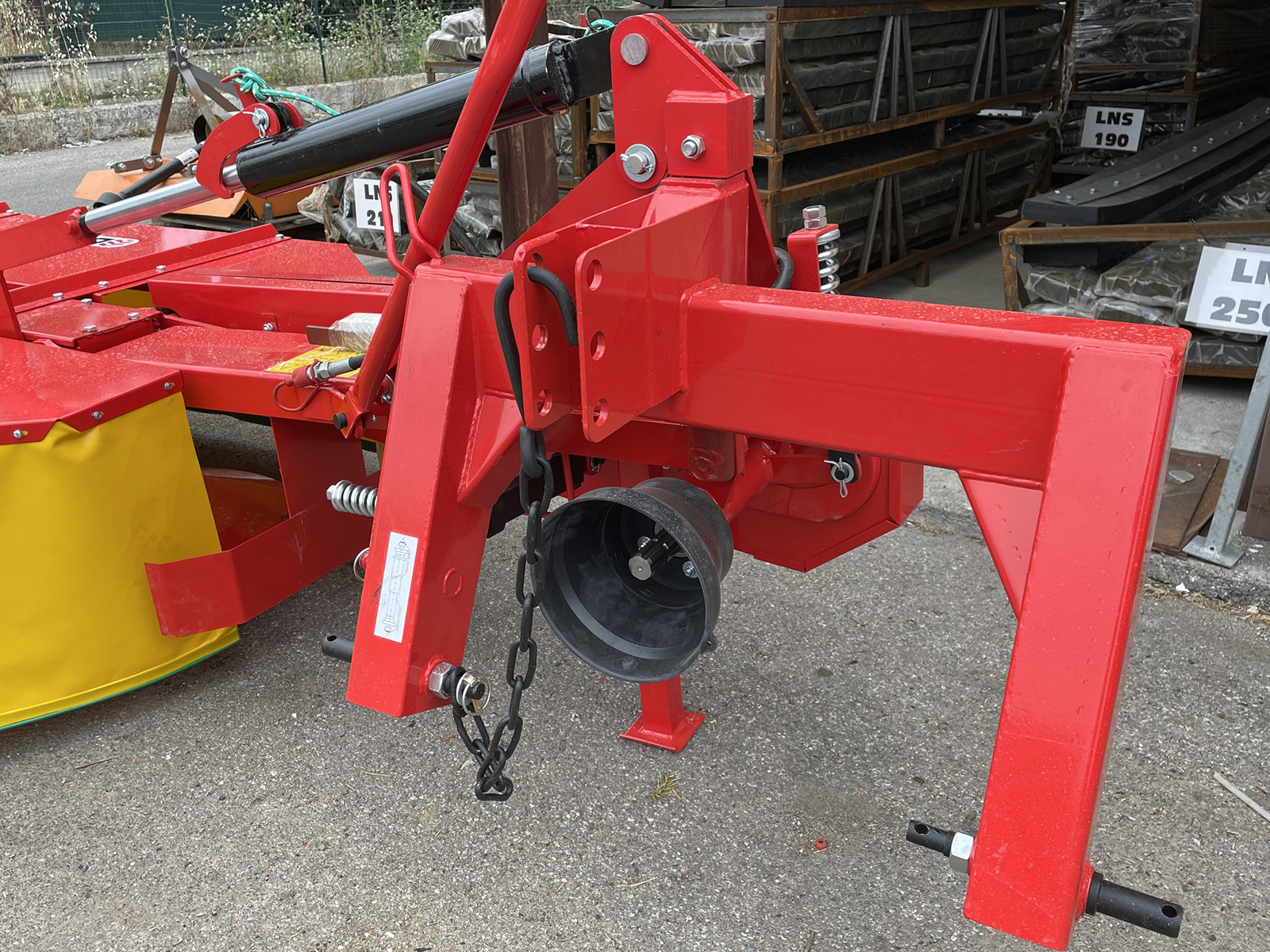

Which tractors it fits

The DFR-185H is built for field tractors from 70 to 100 hp, with a rear 540 rpm PTO and a category 2 three-point linkage (25-28 mm pins, lower link spacing from 670 to 790 mm): Landini, Lamborghini, Fendt, Fiat, Same, McCormick, Solis and equivalent tractors. It works offset to one side of the tractor, on a 1,250 mm (49.2 in) arm, with an overall width of 3,300 mm (129.9 in).

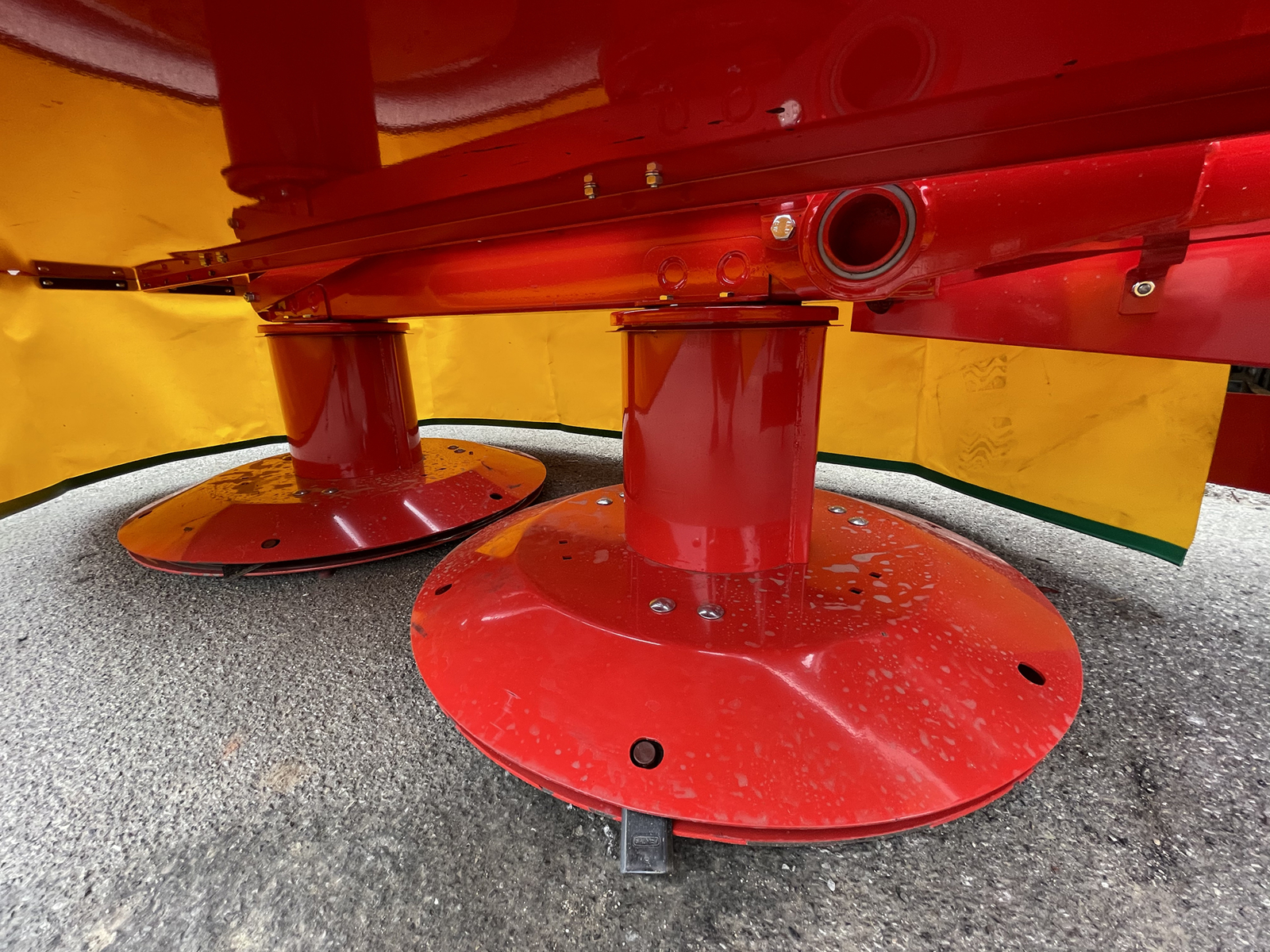

2 drums and 6 blades of 150 g (5.3 oz)

The 2 drums carry 6 universal blades of 150 g (5.3 oz) each (95 × 48 mm, 3.7 × 1.9 in, with an 18 mm hole) and cut 50 mm (2 in) from the ground, the right height for forage and for the regrowth of the meadow. The blades come off and go back on easily with the lever supplied; the spare set of 10 blades can be ordered from this page (COLTELLI10DFR). CE guards are fitted as standard.

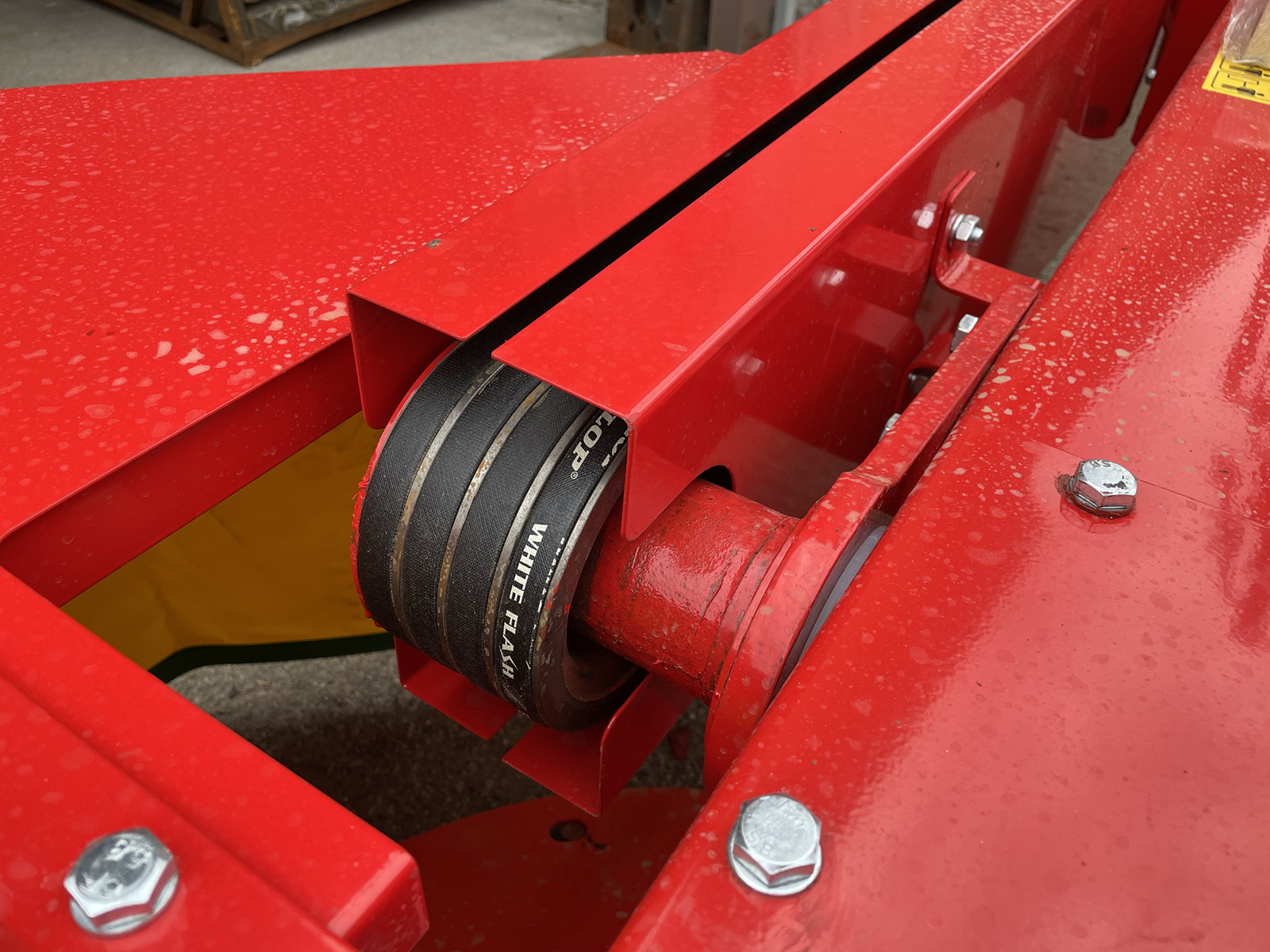

Drive: 540 rpm PTO, 4 belts and freewheel

Drive comes from the 540 rpm PTO, turning clockwise, and reaches the drums through the gearbox and 4 V-belts. The driveline has a freewheel: when you disengage the PTO the drums carry on turning under their own momentum and run down by themselves, without driving back through the tractor's transmission. The CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt, is included: the bolt shears under overload and protects the driveline.

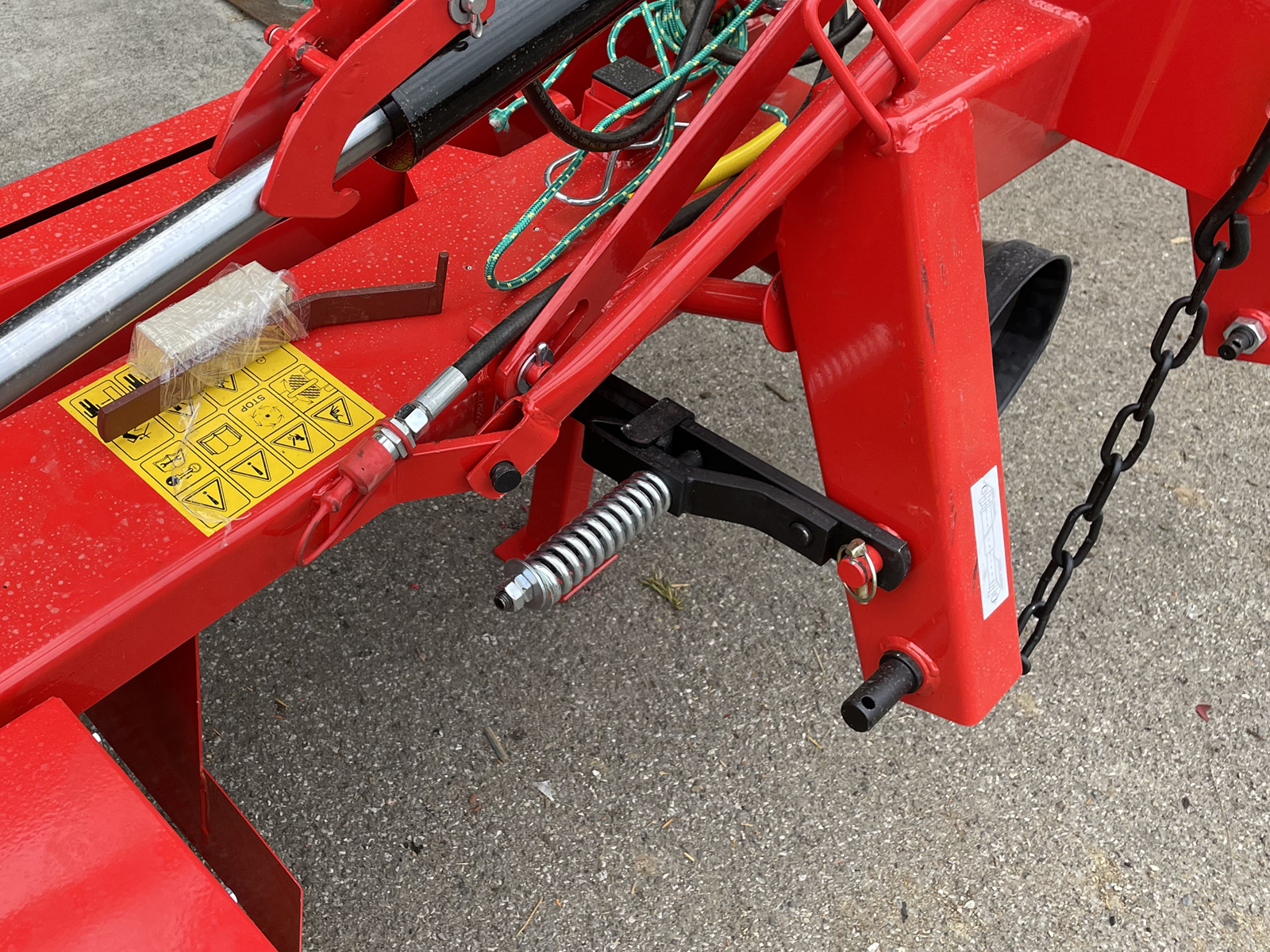

Hydraulic lift and anti-shock system

The DFR-185H has a hydraulic lift: a ram, controlled by the tractor's spool valve, lifts the mower upright to pass through gateways and travel on the road. It needs one double-acting spool valve; the hoses are supplied. The anti-shock system protects the frame if the mower hits a tree, a post or another obstacle. The version with manual folding is the DFR-185.


Dimensions, weight and delivery

Working width 1,850 mm (72.8 in), overall width 3,300 mm (129.9 in), length 1,500 mm (59.1 in), weight 430 kg (948 lb). It ships in packaging measuring 185 × 100 × 230 cm (73 × 39 × 91 in), 440 kg (970 lb) gross, 4.26 m³, with free delivery within the EU. It complies with the EC Machinery Directive and carries a 2-year warranty.


Where it works

  • Meadows and forage crops: mowing grass and forage for hay
  • Long and lodged grass, where a finger bar mower clogs
  • Uneven ground, where a drum mower copes better than a finger bar mower
  • Swaths ready for the rake and the baler
  • Tractors from 70 to 100 hp with a category 2 three-point linkage

Options and spares

From this page you can add to your order the spare set of 10 blades (COLTELLI10DFR). Other spares are identified on the exploded diagrams with our technical team.


FAQ

What size tractor does the DFR-185H need?
From 70 to 100 hp, with a 540 rpm PTO and a category 2 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 430 kg (948 lb).

Drum mower or finger bar mower?
The drum mower is faster, does not clog in long or lodged grass and copes with uneven ground; the finger bar mower is the tool for two-wheel tractors and small meadows.

What height does it cut at?
50 mm (2 in) from the ground, the right height for forage and for the regrowth of the meadow.

Does it cut long and lodged grass?
Yes, the drums cut lodged grass and tall forage without clogging.

How do you change the blades?
With the lever supplied. The blades are universal, 150 g (5.3 oz) each; the spare set of 10 is COLTELLI10DFR.

What is the hydraulic lift?
A hydraulic ram, controlled by the tractor's spool valve, lifts the mower upright to pass through gateways and travel on the road. It needs one double-acting spool valve; the hoses are supplied.

How does it differ from the DFR-185?
The DFR-185H has a hydraulic lift and weighs 430 kg (948 lb); the DFR-185 folds up by hand and weighs 420 kg (926 lb). Cutting width, blades and tractors are the same.

Is the PTO shaft included?
Yes: a CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: blades, belts, bearings, drums and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric
Working width 1850.0 mm
Overall width 3300.0 mm
Min / Max cutting height 50.0 mm
Weight 430.0 kg
Tractor Power Range 70-100 Hp
3 point linkage Cat. 2 (ø 25.0-28.0mm)
Spacing between the 2 lower points 670.0-790.0 mm
Overall length 1500.0 mm
Distance between pto attachment and ground 530.0 mm
Transmission: Drive method V-Belts
Transmission: PTO 540 r/min
Transmission: Rotation of gearbox Right side
Transmission: Free wheel √
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925
Transmission: V-Belts quantity 4
Arm length 1250.0 mm
Cover Metal frame
Drums quantity 2
Height of the drums 600.0 mm
Lift System Hydraulic
Pto shaft CE 6x1000 mm + shear bolt
Number of Blades 6
Blades: Weight 150.0 g
Blades: Length/Width 95.0 / 48.0 mm
Blades: Diameter of the hole 18.0 mm
Gross shipping weight 440 kg
Package volume 4.26 m3
Packing sizes 1850.0*1000.0*2300.0 mm
