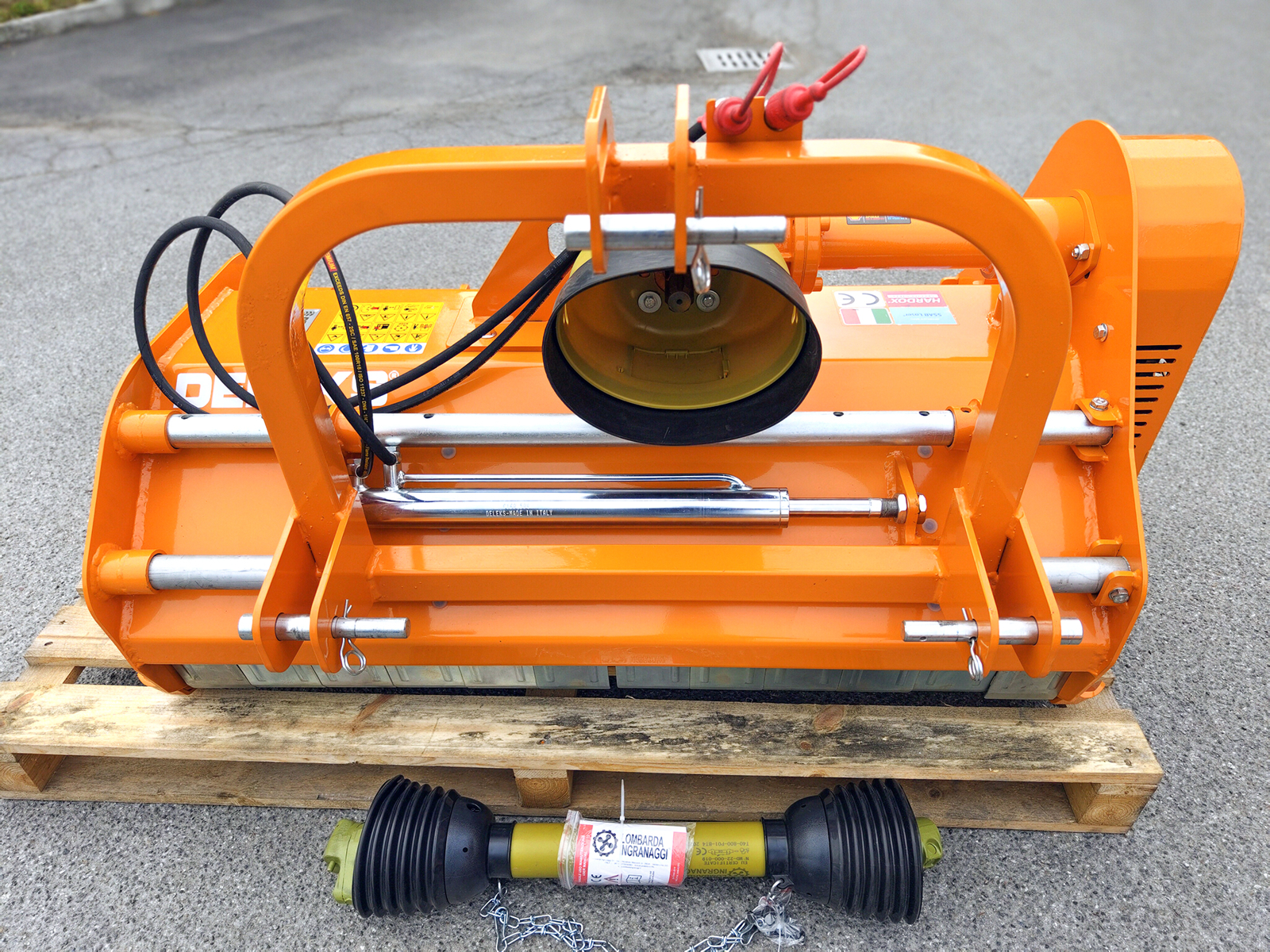

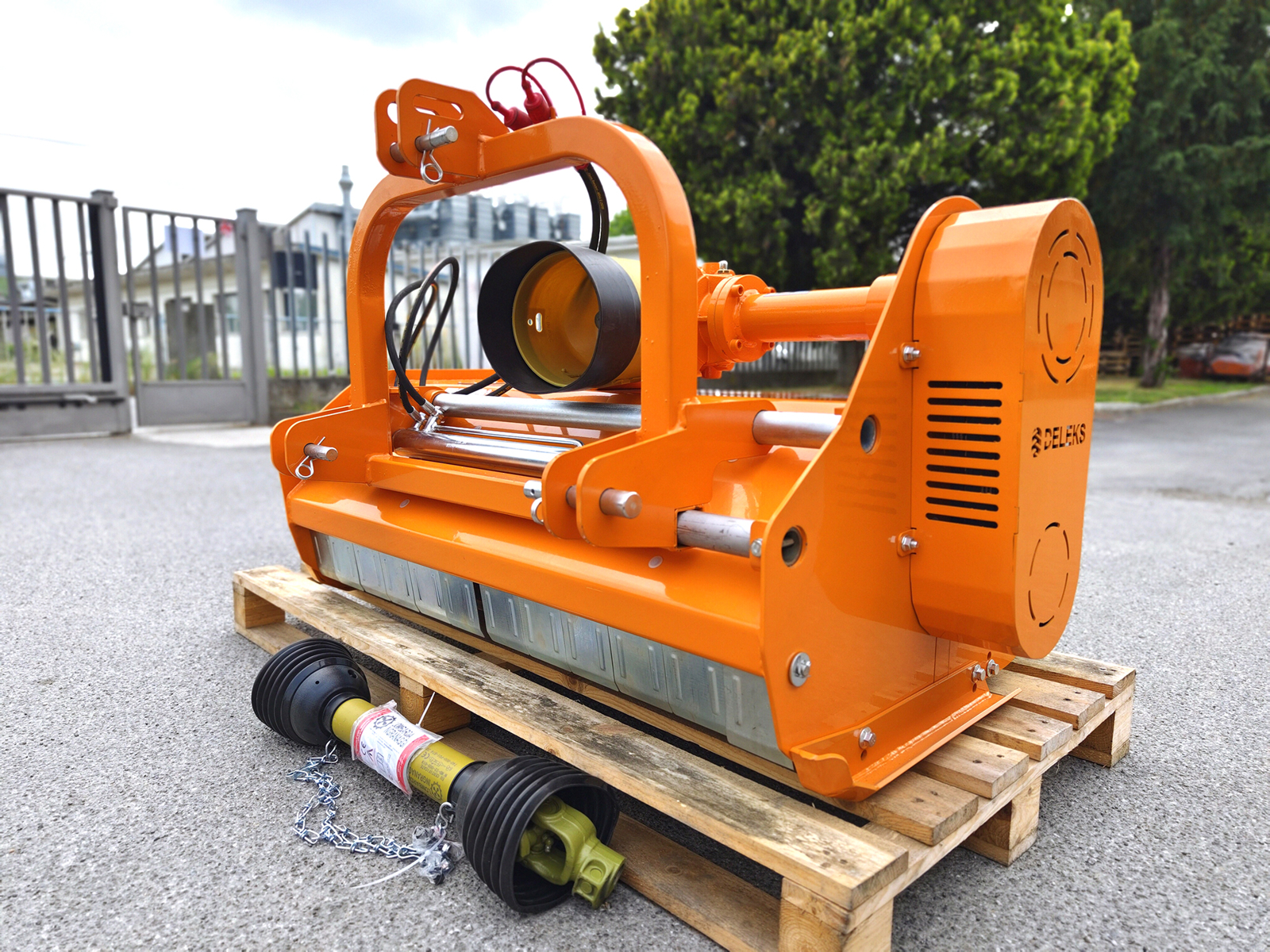

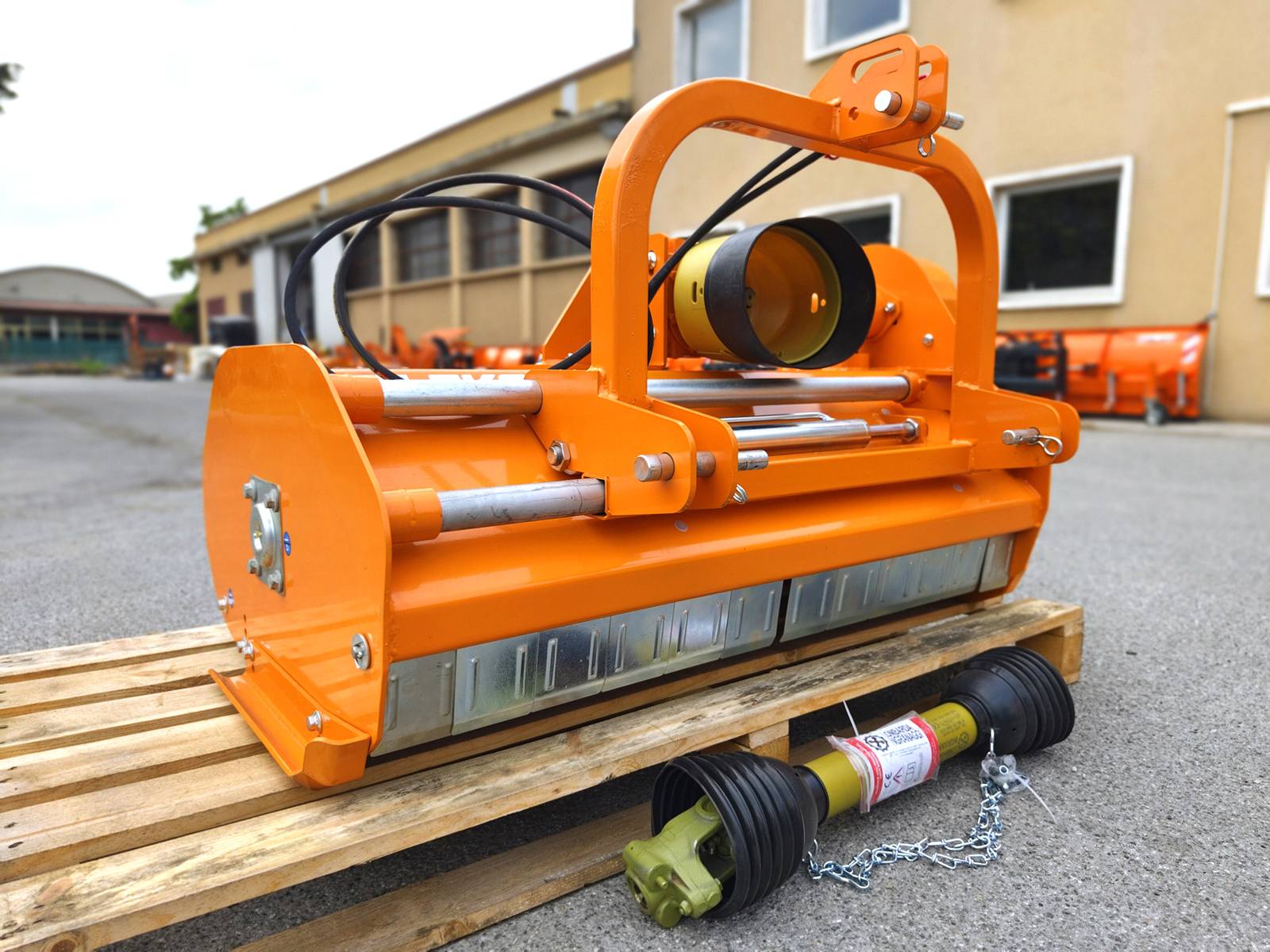

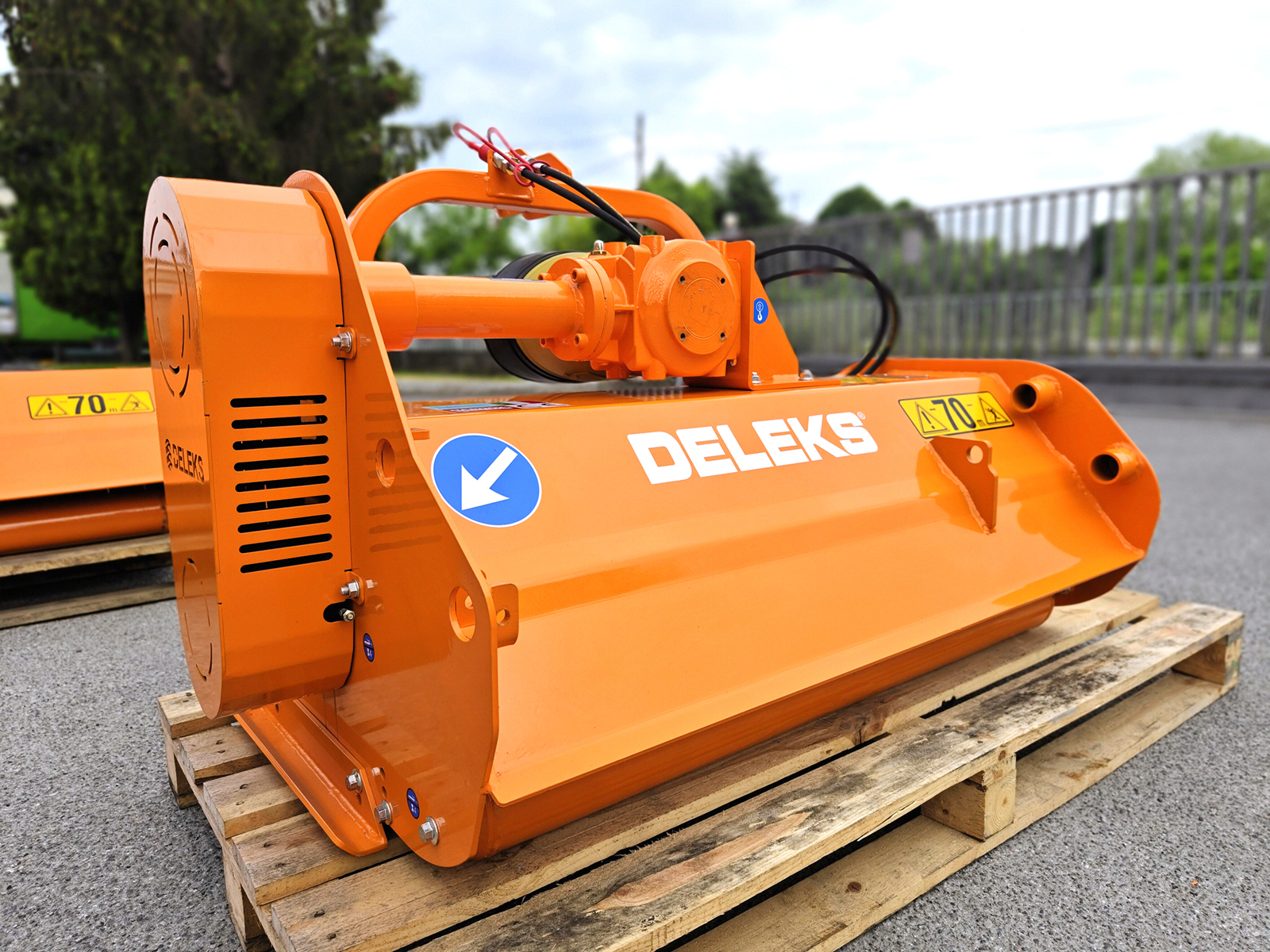

Hydraulic side-shift flail mulcher 120 cm (47 in) LINCIONE-120-SPH, hammer flail mower for 30-60 hp tractors
DETAILS

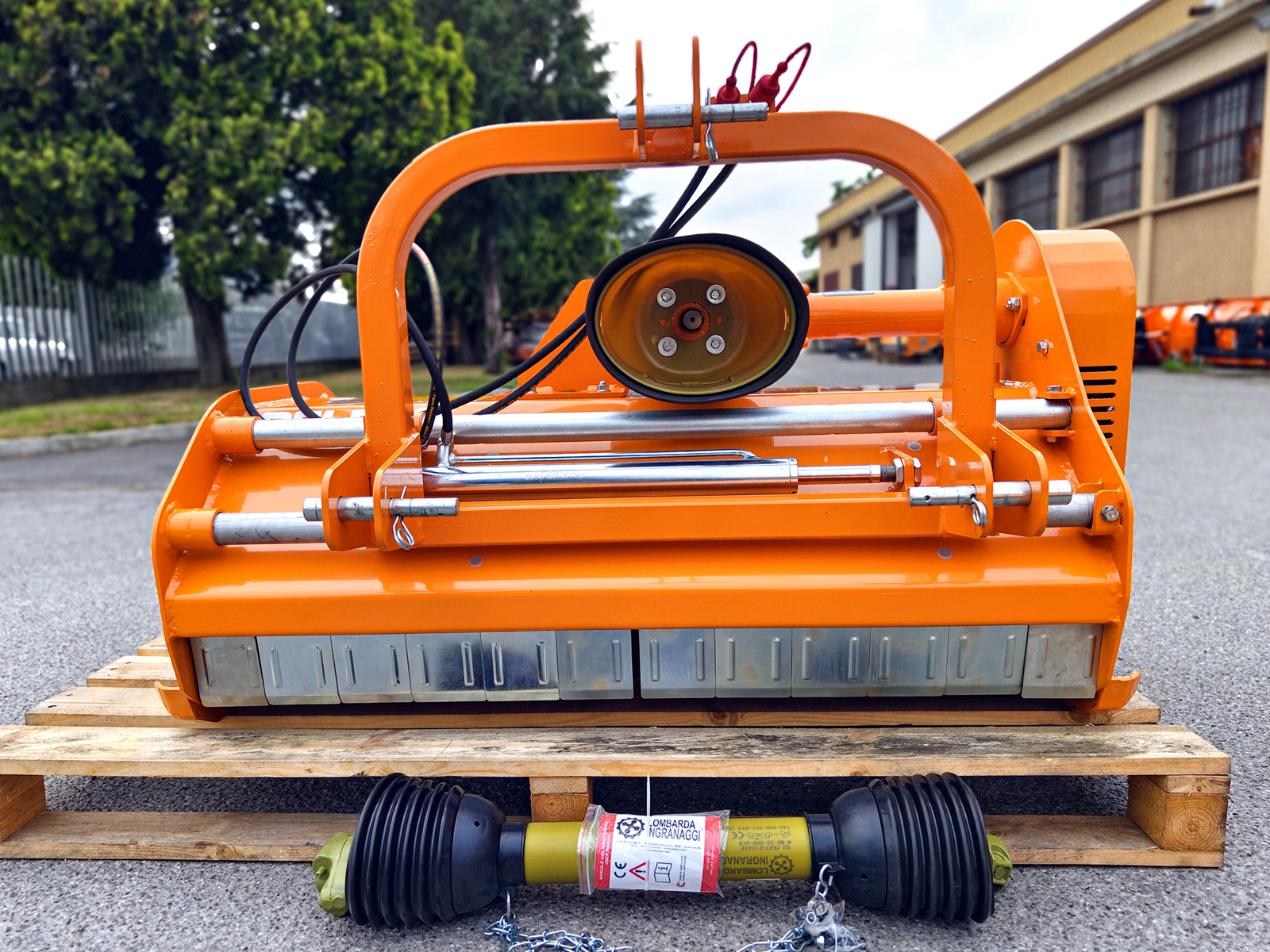

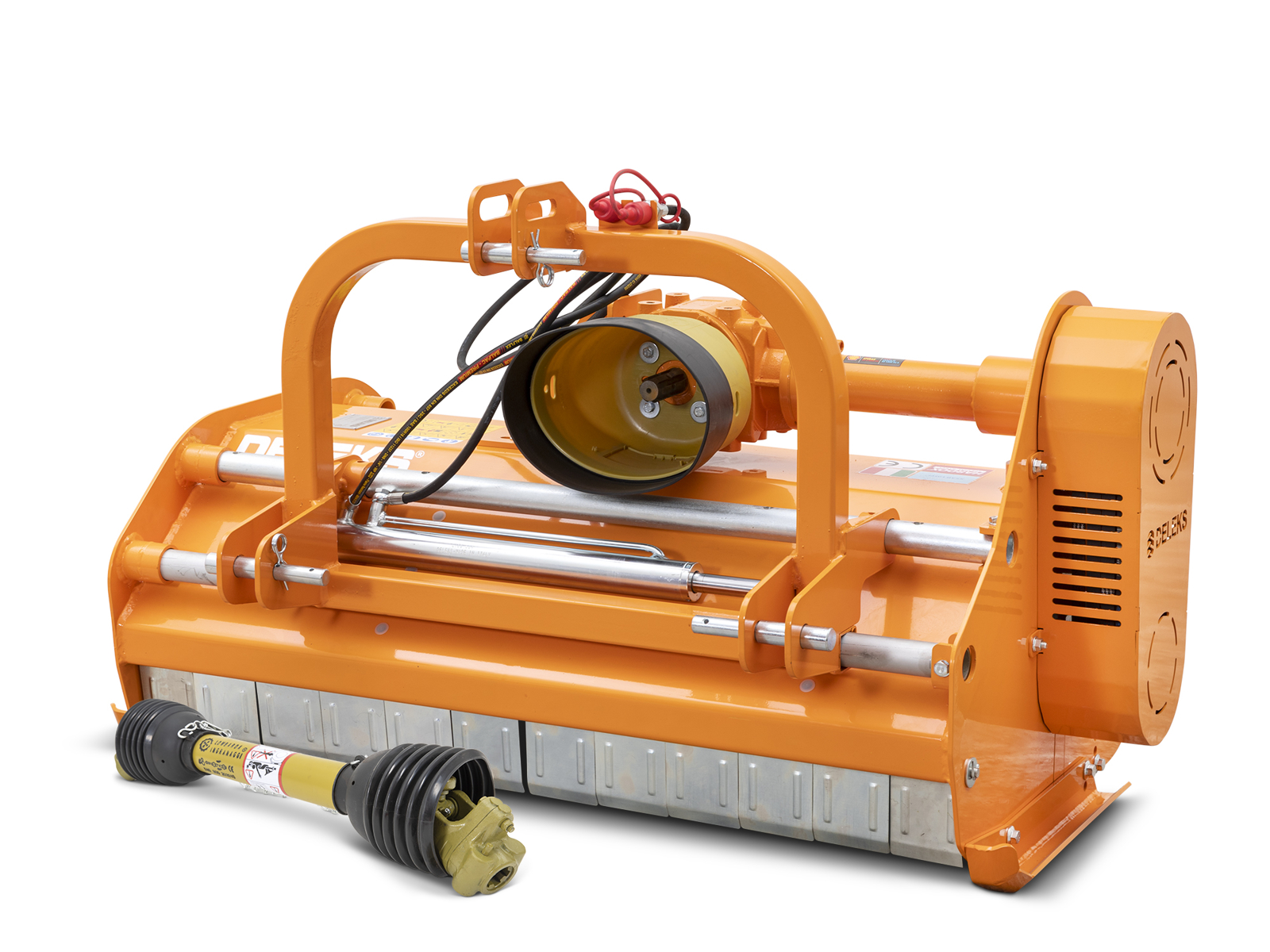

Hammer flail mulcher for tractors with a 120 cm (47 in) cut and 31 cm (12 in) of hydraulic side shift as standard, from the DELEKS® medium series: the LINCIONE-120-SPH is the side-shift mower for orchard and vineyard tractors from 30 to 60 hp, such as Antonio Carraro, Goldoni, Kubota, Landini and Same, moved from the seat as you work along rows, fences, ditches and field edges. The side shift comes complete with a pair of hoses and ½ in quick-release couplings. The electronically balanced rotor carries 16 forged hammer flails of 820 g (1.8 lb) and shreds grass, leaves, vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick; the specially shaped hood gives a fine mulch and stops the mower clogging. DELEKS® 540 rpm gearbox with freewheel and a 3-year warranty, 4-belt drive, SSAB steel frame, 305 kg (672 lb). Made in Italy, built by DELEKS, it comes complete with a CE-approved PTO shaft with shear bolt, a 2-year warranty and free delivery within the EU.
Hydraulic side shift of 31 cm (12 in), as standard

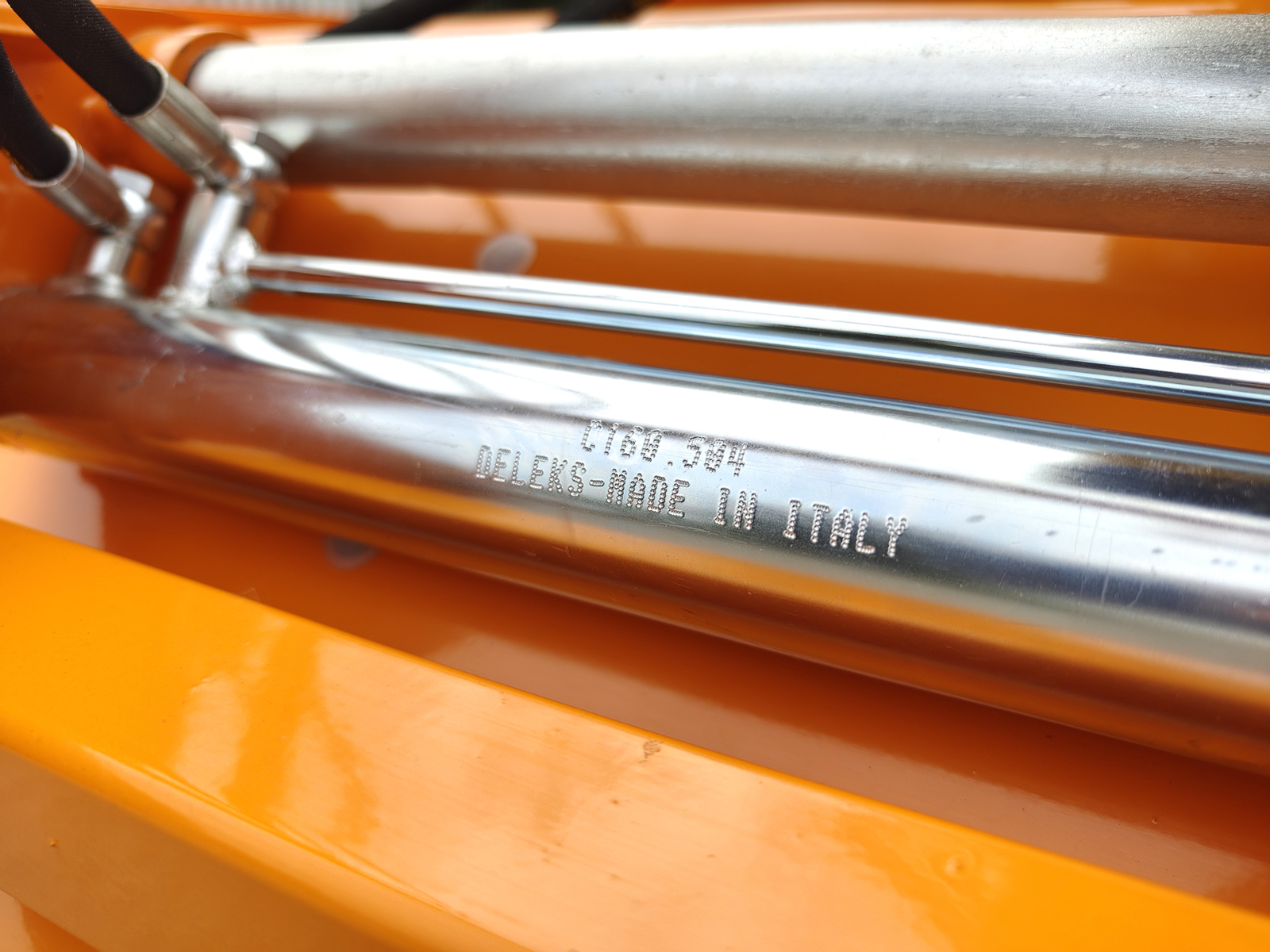

Hydraulic side shift of the headstock is standard, with 31 cm (12 in) of travel: you work it from the seat with the tractor's spool valve, even on the move. It brings the mower in to the row and away from posts and stumps, to mow under the canopy, along fences and ditches and on field edges, keeping the tractor's wheels away from the edge. It arrives fitted, with the pair of hoses and standard ½ in agricultural quick-release couplings; the tractor needs a pair of rear hydraulic outlets (one double-acting spool valve).
Which tractors it fits
The LINCIONE-120-SPH cuts 120 cm (47 in) with an overall width of 134 cm (53 in) and is built for tractors from 30 to 60 hp with a 540 rpm PTO and a universal category 1 or 2 three-point linkage (19-22 or 25-28 mm pins, lower link spacing from 560 to 950 mm): Antonio Carraro, Goldoni, Kubota, Landini, Same, Lamborghini, Solis and equivalent tractors. It is the narrowest in the series: the size for tight rows in vineyards and orchards. As a rule of thumb the mower should be 15 to 20 cm (6 to 8 in) wider than the tractor's outer track, so it covers the wheel marks.

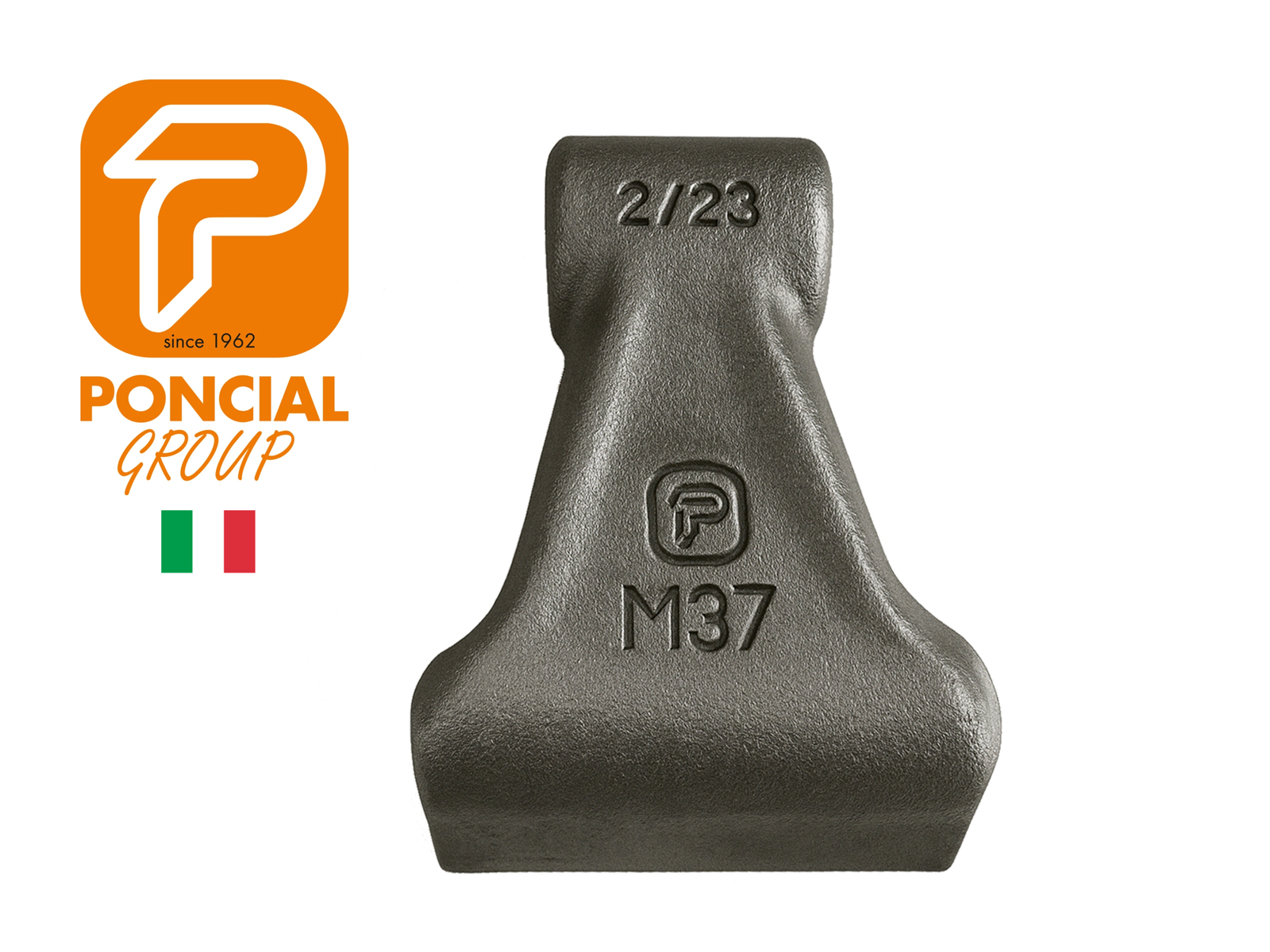

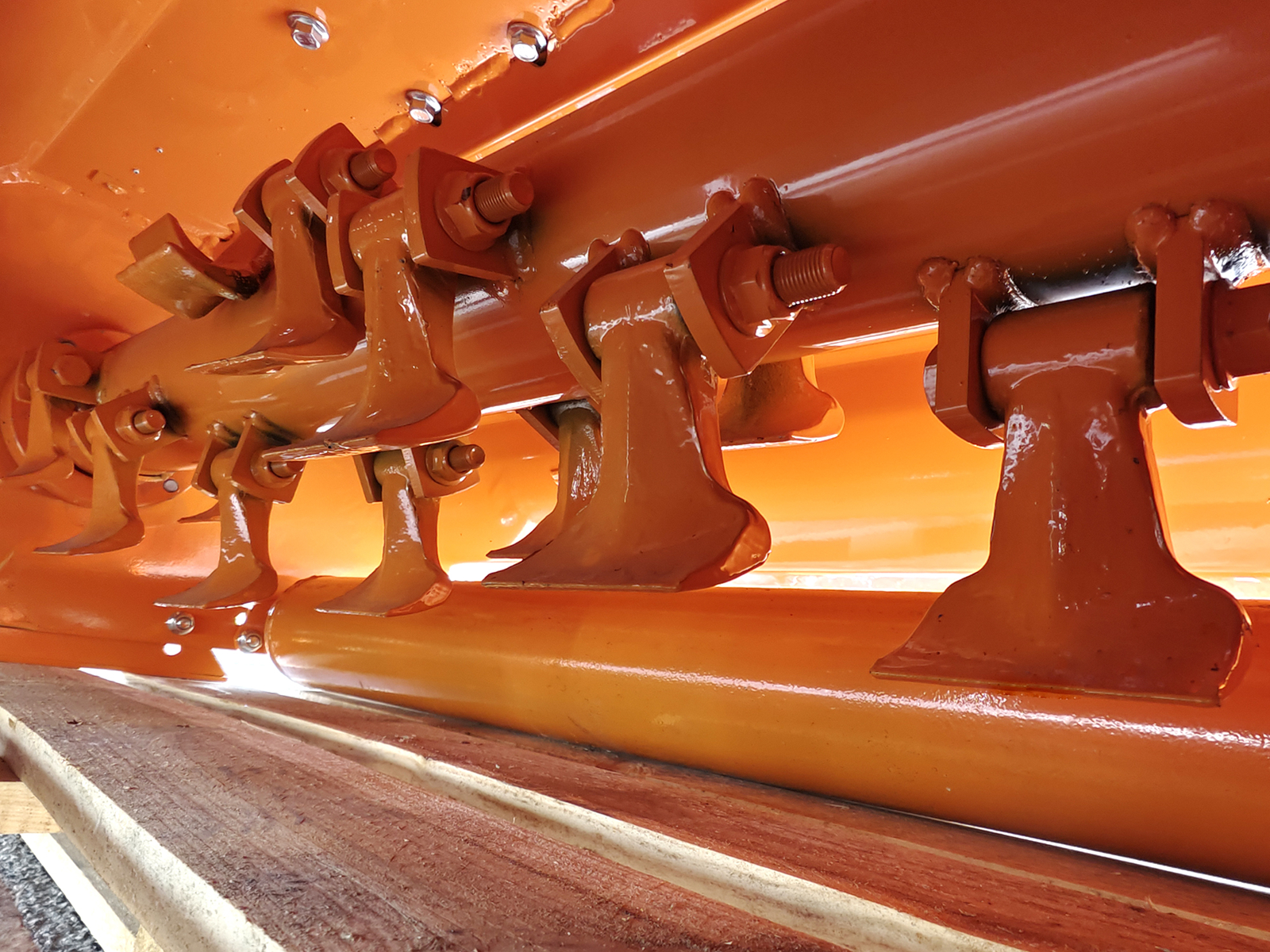

Rotor with 16 forged hammer flails of 820 g (1.8 lb)
The rotor is built from ARVEDI S355 steel tube, 8 mm (5/16 in) thick and 115 mm (4.5 in) in diameter, electronically balanced, and spins at 2,300 rpm on self-aligning SKF bearings. The 16 forged Poncial flails, Made in Italy, weigh 820 g (1.8 lb) each and sit in 2 helical rows on brackets in HARDOX wear-resistant steel: they pulverise grass, leaves, brambles, vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick. The kit of 30 blades (COLTELLI30T) is available as an option, as an alternative to the hammer flails.

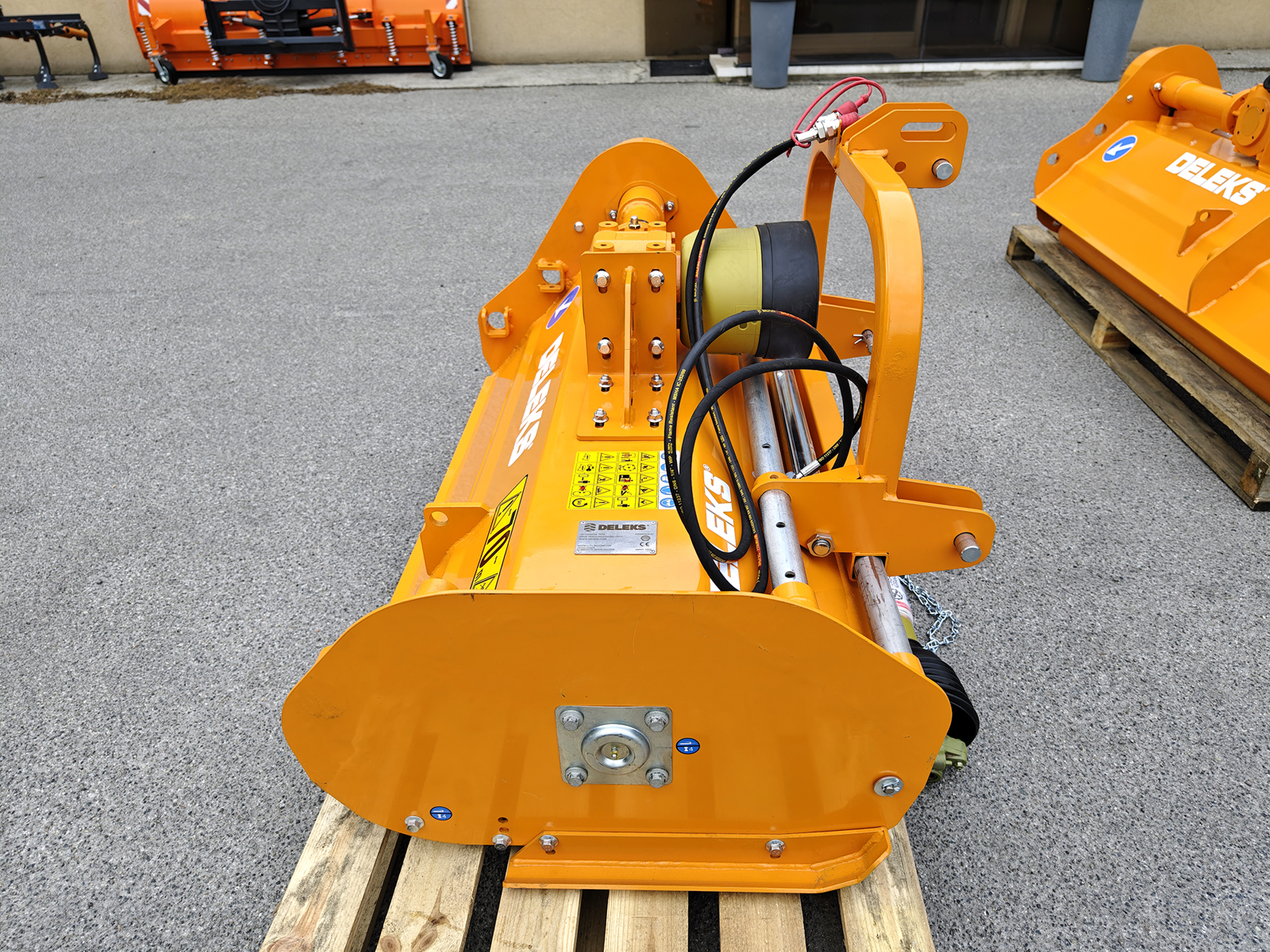

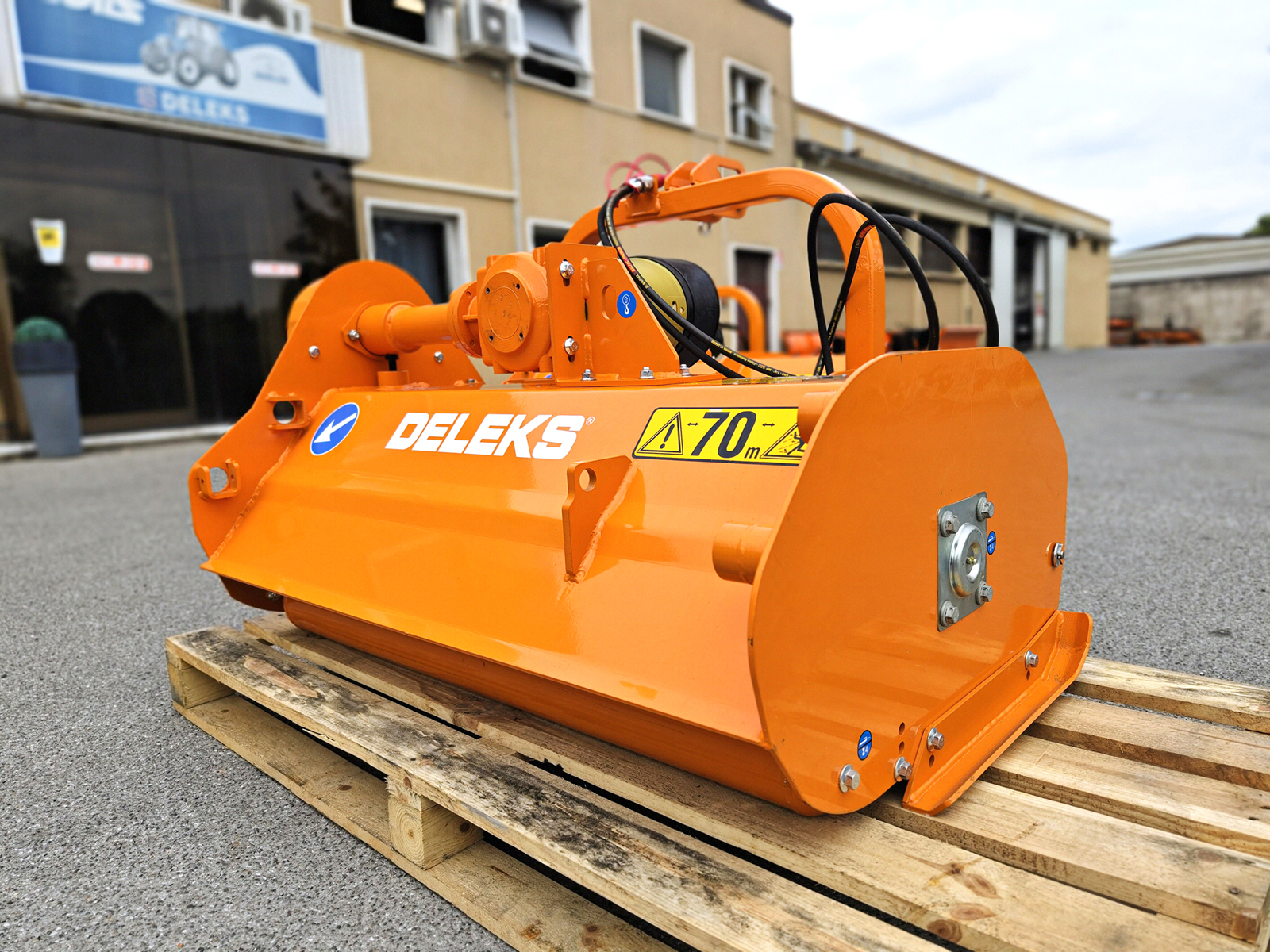

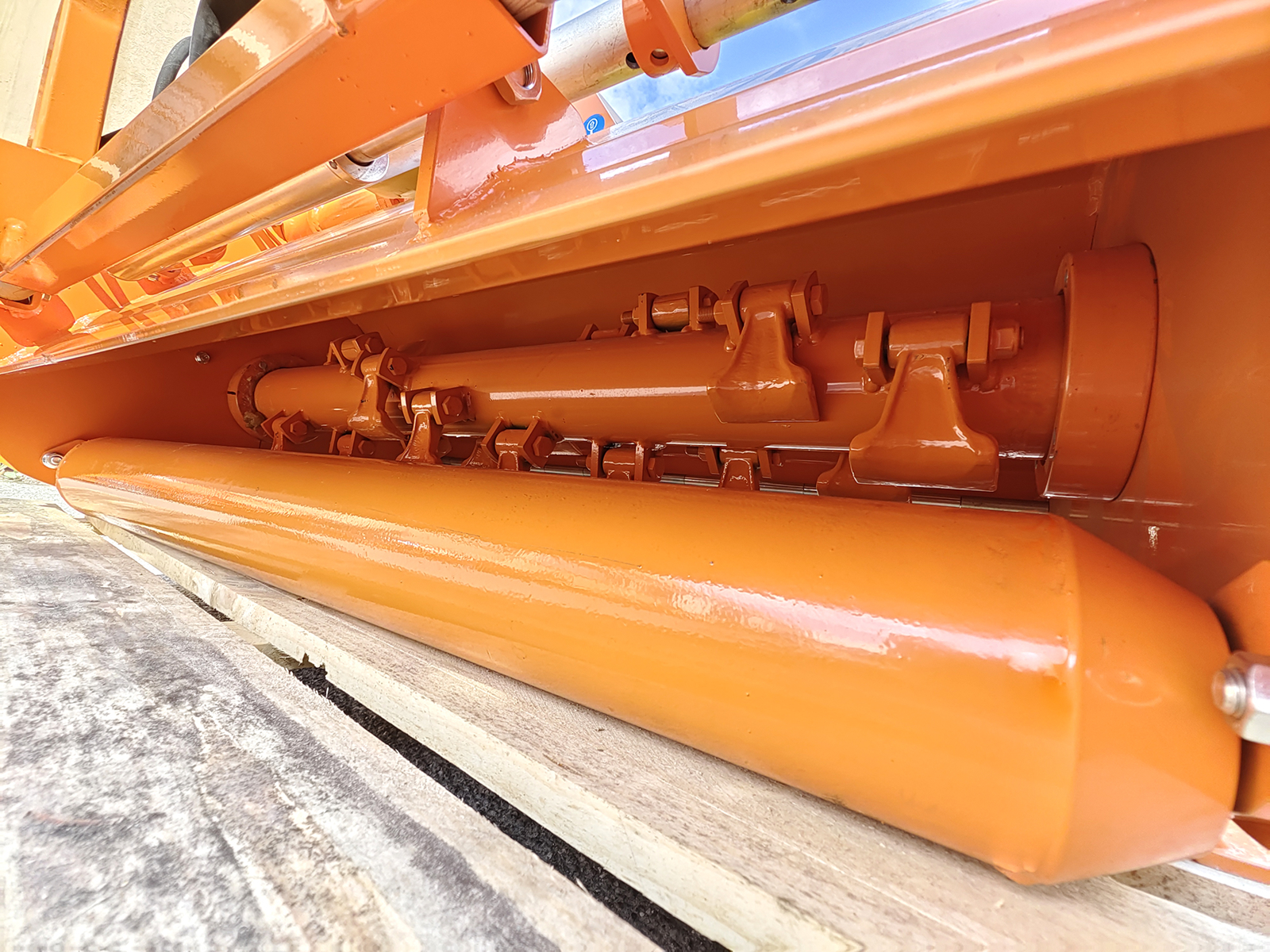

Mulching hood, roller and skids

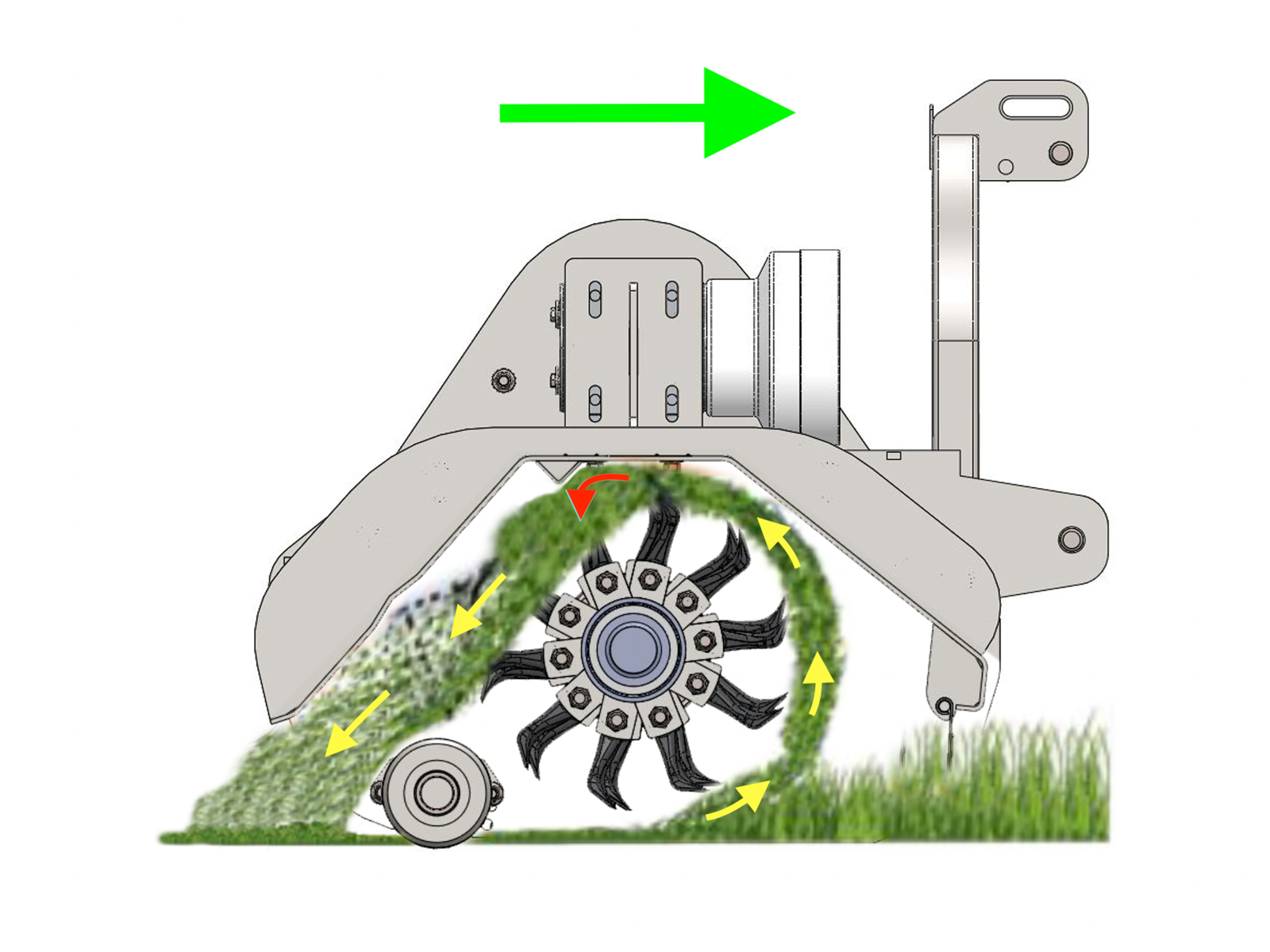

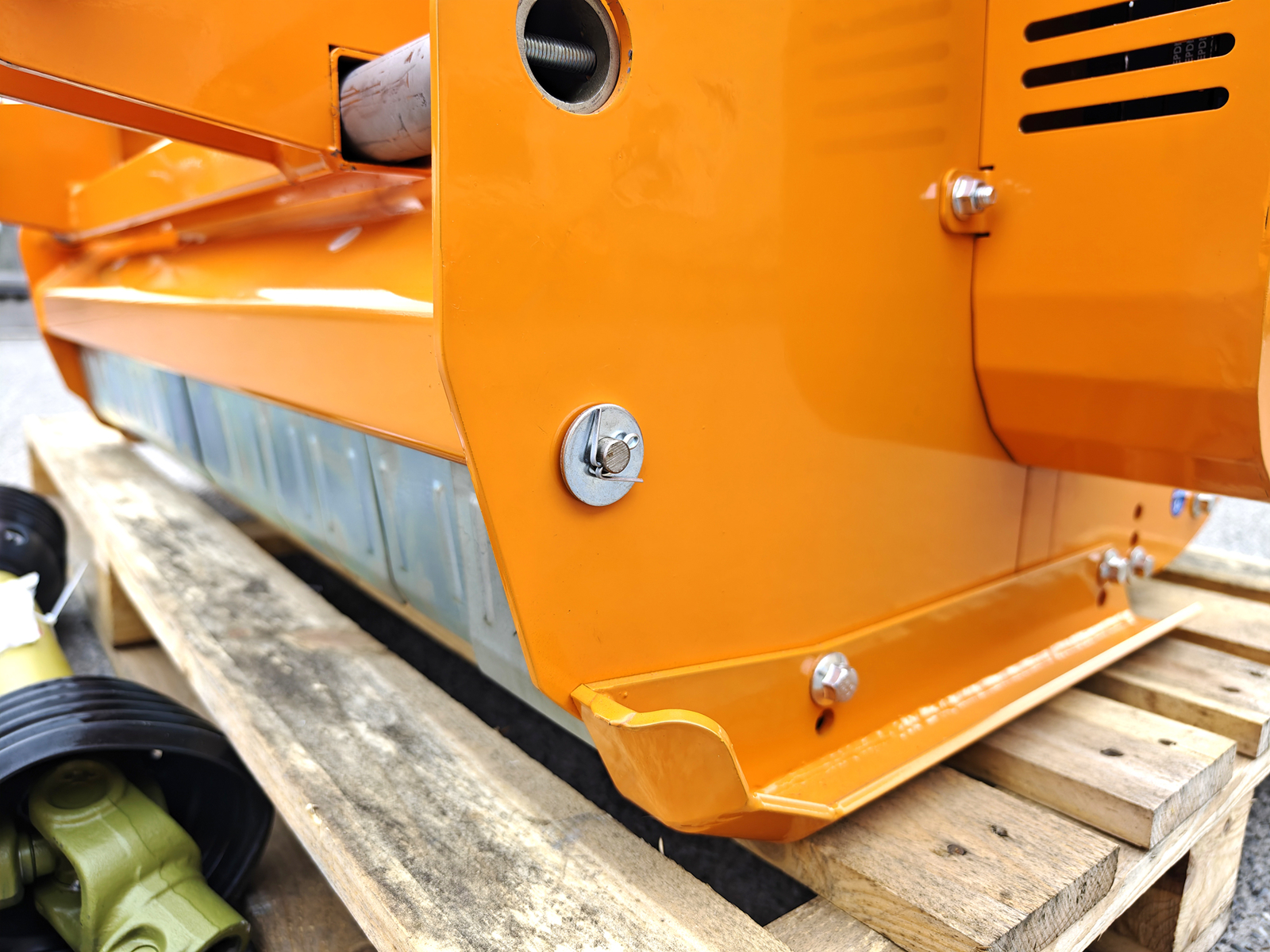

The hood of the LINCIONE-120-SPH is specially shaped to give a fine mulch and stop the mower clogging. Cutting height is set from 38 to 60 mm (1.5 to 2.4 in) with the 121 mm (4.8 in) rear roller, which runs on SKF bearings, and the 6 mm side skids. The skids have a double bend, so the mower does not dig in when it moves sideways.

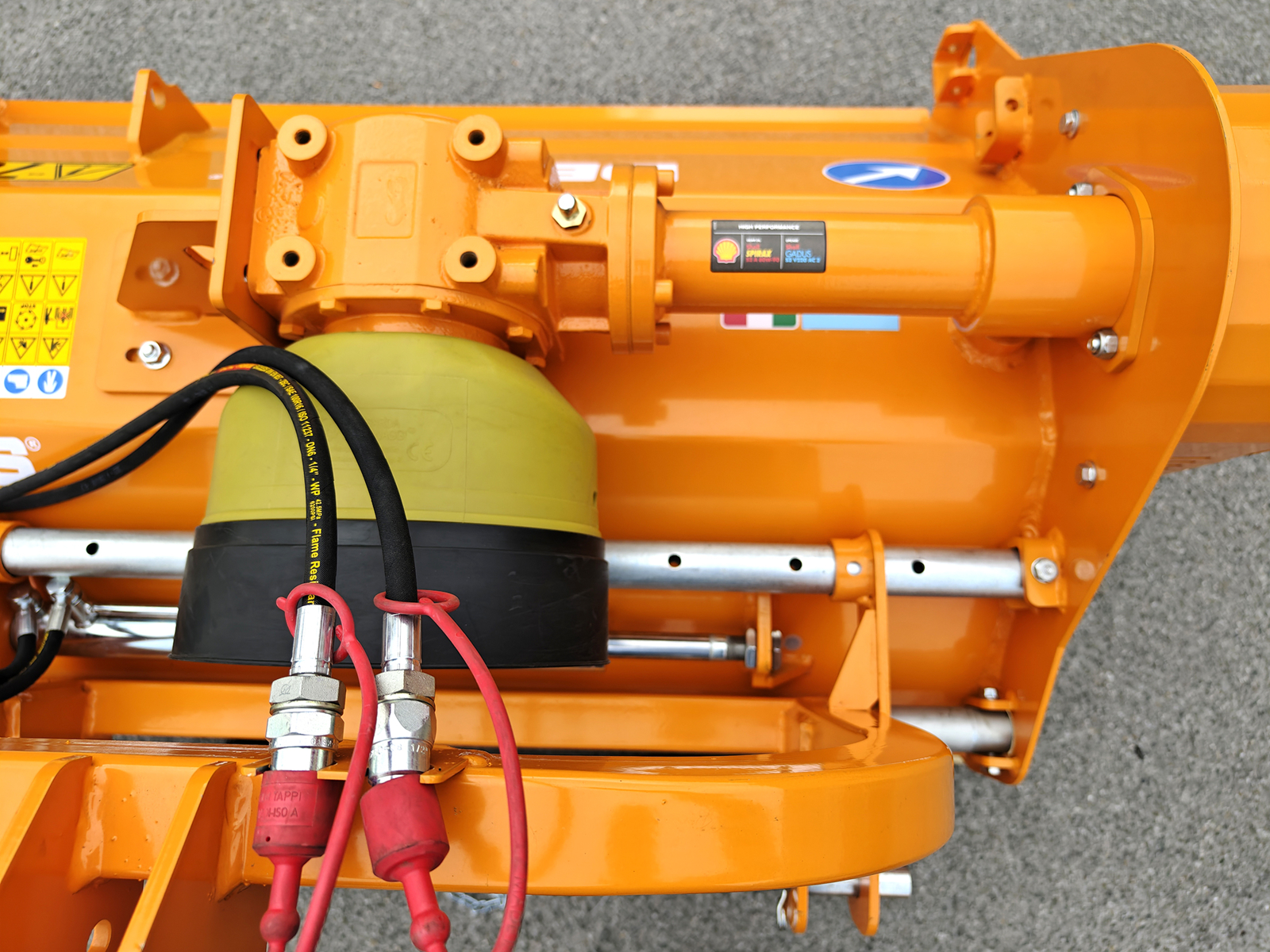

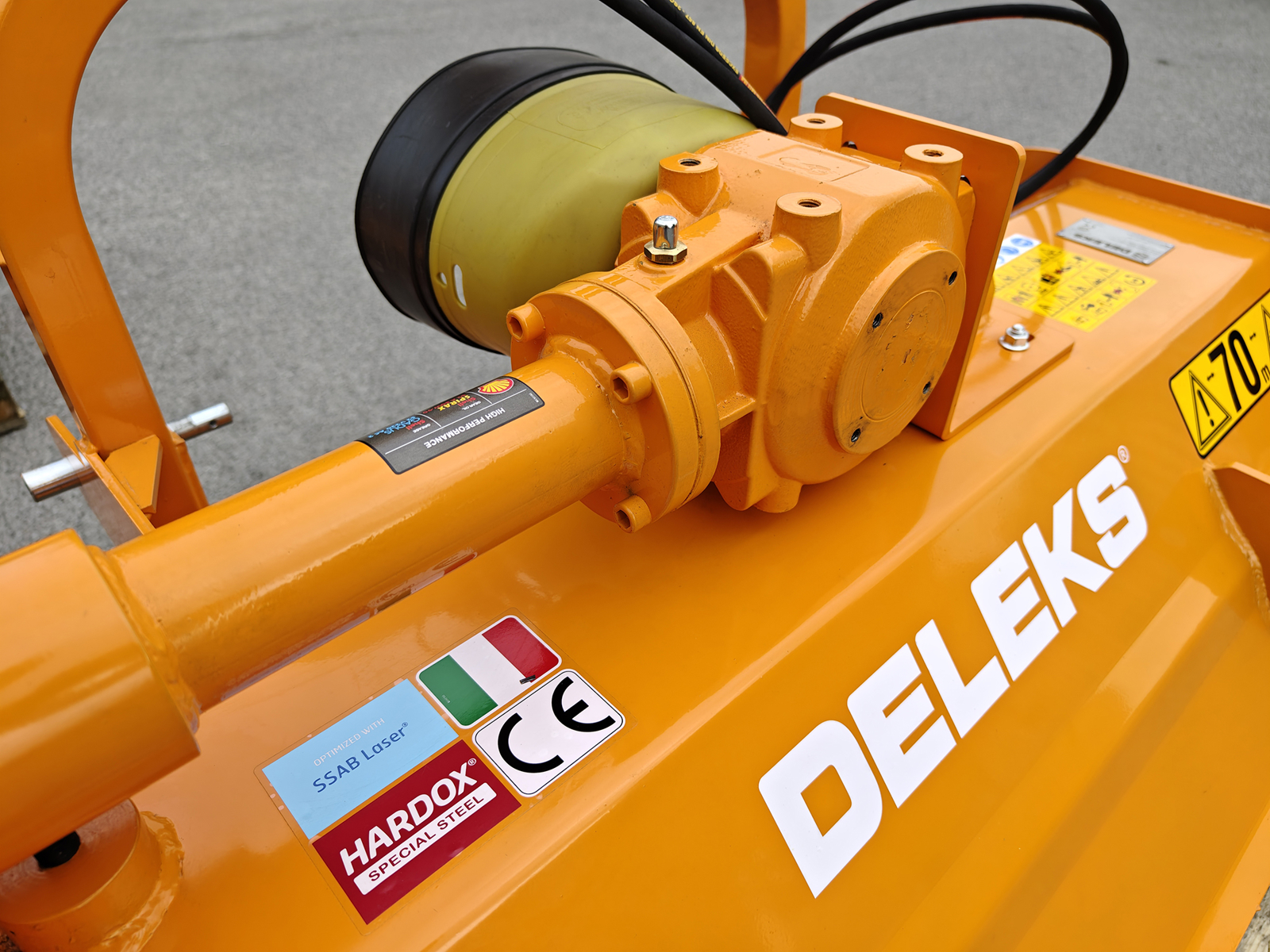

Gearbox with freewheel, 4 belts and PTO shaft
The DELEKS® gearbox for a 540 rpm PTO is uprated, with a built-in freewheel and a 3-year warranty: when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. Drive reaches the rotor through 4 BX43 V-belts; the tensioner is adjustable and belt tension is set from the outside. The CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt, is included: the bolt shears under overload and protects the driveline.

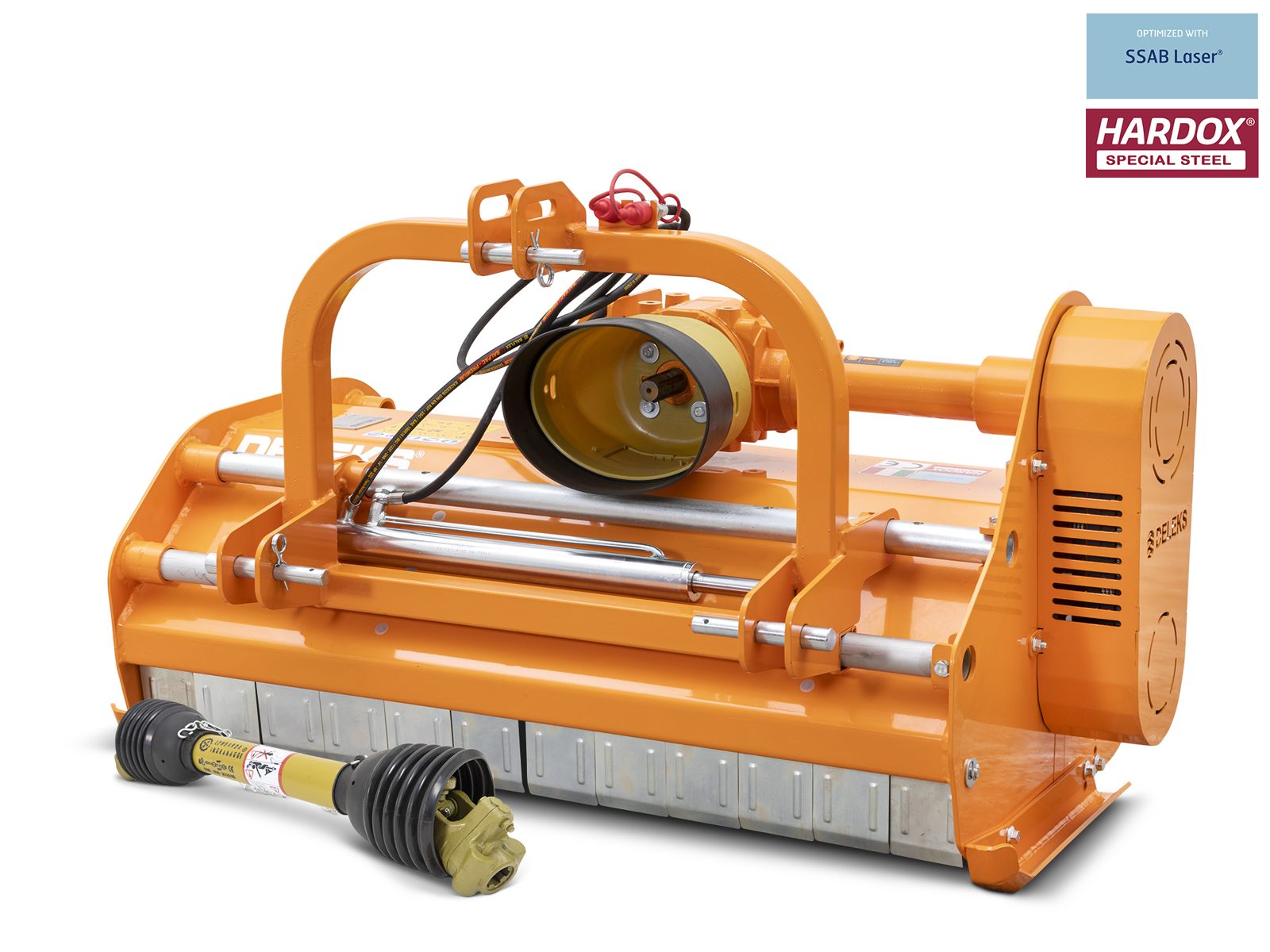

SSAB steel frame, Made in Italy
The frame is made entirely from Swedish SSAB steel, 5 mm thick with 6 mm side plates; the flail brackets are HARDOX and the rotor bearings are SKF. The LINCIONE-120-SPH is Made in Italy, built by DELEKS. For this product the sheet steel is bought in Italy and worked at a production plant in the European Union.
Dimensions, weight and delivery
Working width 1,200 mm (47.2 in), overall width 1,340.5 mm (52.8 in), length 930 mm (36.6 in), height 1,130 mm (44.5 in), weight 305 kg (672 lb). It ships in packaging measuring 138 × 90 × 80 cm (54 × 35 × 31 in), 342 kg (754 lb) gross, 0.99 m³, with free delivery within the EU. It complies with the EC Machinery Directive and carries a 2-year warranty.
Where it works
- Vineyards, orchards and olive groves: grass between the rows and under the canopy, prunings up to 4-5 cm (1.6-2 in)
- Rows, fence lines and ditches: the mower moves in and out from the seat
- Field edges and headlands: working offset, with the tractor kept away from the edge
- Rough ground and open fields: long grass, brambles, stubble and crop residues
- Farms running tractors from 30 to 60 hp
Options and spares
From this page you can add to your order the kit of 10 hammer flails (MAZZE10T), the 10 nuts and bolts for the flails (DB10T), the kit of 30 blades (COLTELLI30T), the spare set of 4 belts (CINGHIE4LEOPARD), spare pins for the category 1-2 three-point linkage (3PERNI12) and the universal PTO adapter (RID1). Other spares are identified on the exploded diagrams with our technical team.
FAQ
How does the hydraulic side shift work?
A hydraulic ram moves the mower up to 31 cm (12 in) sideways; you work it from the seat with a double-acting spool valve on the tractor, even on the move. Hoses and ½ in quick-release couplings are standard.
What does the tractor need?
30 to 60 hp, a 540 rpm PTO, a category 1 or 2 three-point linkage, enough lift capacity for the mower's 305 kg (672 lb) and a pair of rear hydraulic outlets for the side shift.
How does it differ from the LINCIONE-SP?
The LINCIONE-120-SP has the same 31 cm (12 in) side shift, but manual: you set it with the machine stopped before you start. With the LINCIONE-120-SPH you shift from the seat as you work.
What size branches will it shred?
Vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick, as well as grass, leaves and brambles. For branches up to 8 cm (3.1 in) there is the heavy series.
Hammer flails or blades?
It comes with 16 forged hammer flails of 820 g (1.8 lb), suited to grass, brambles and prunings. The kit of 30 blades (COLTELLI30T) is available as an option.

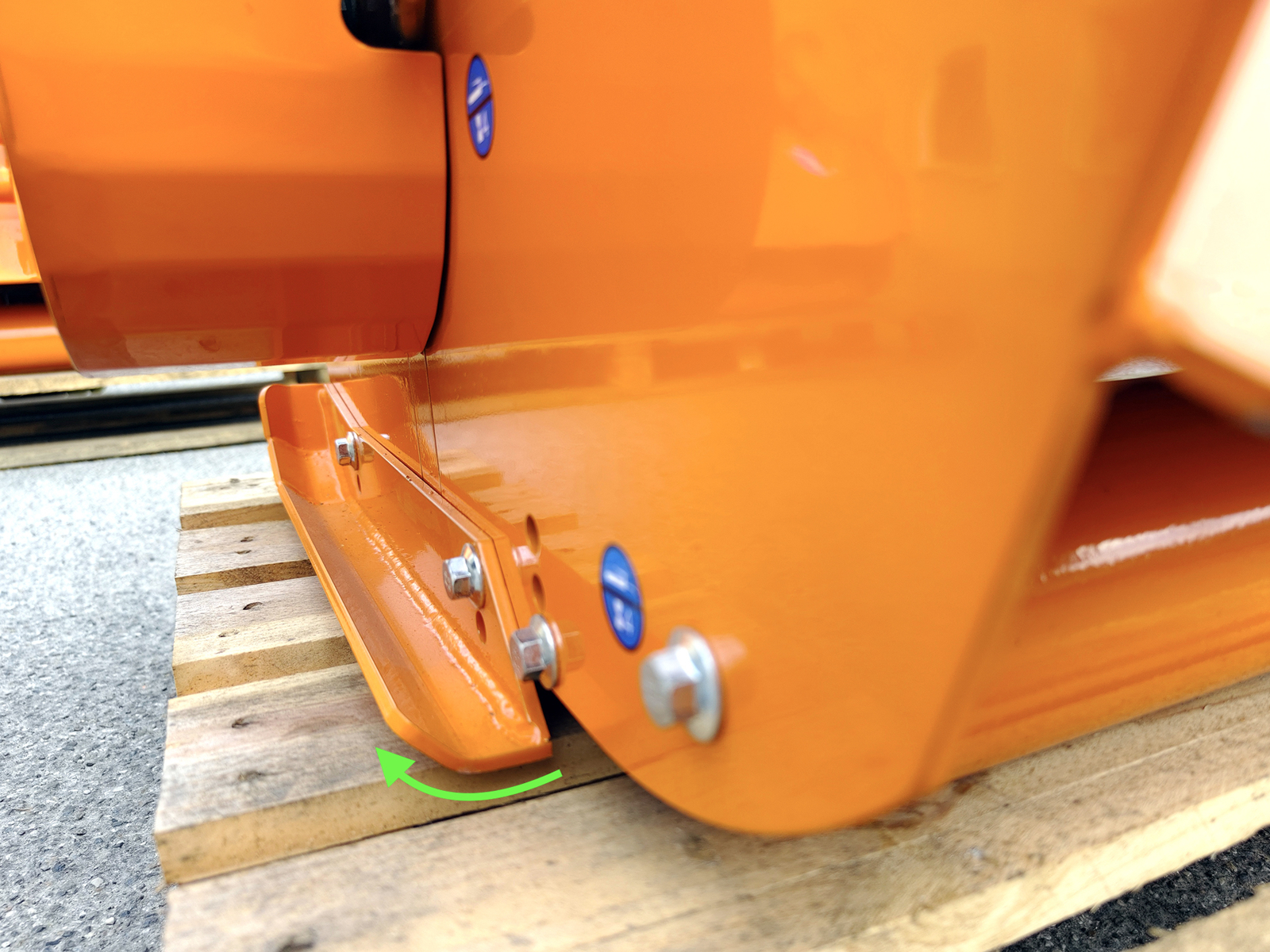

How do you set the cutting height?
From 38 to 60 mm (1.5 to 2.4 in), with the rear roller and the side skids.

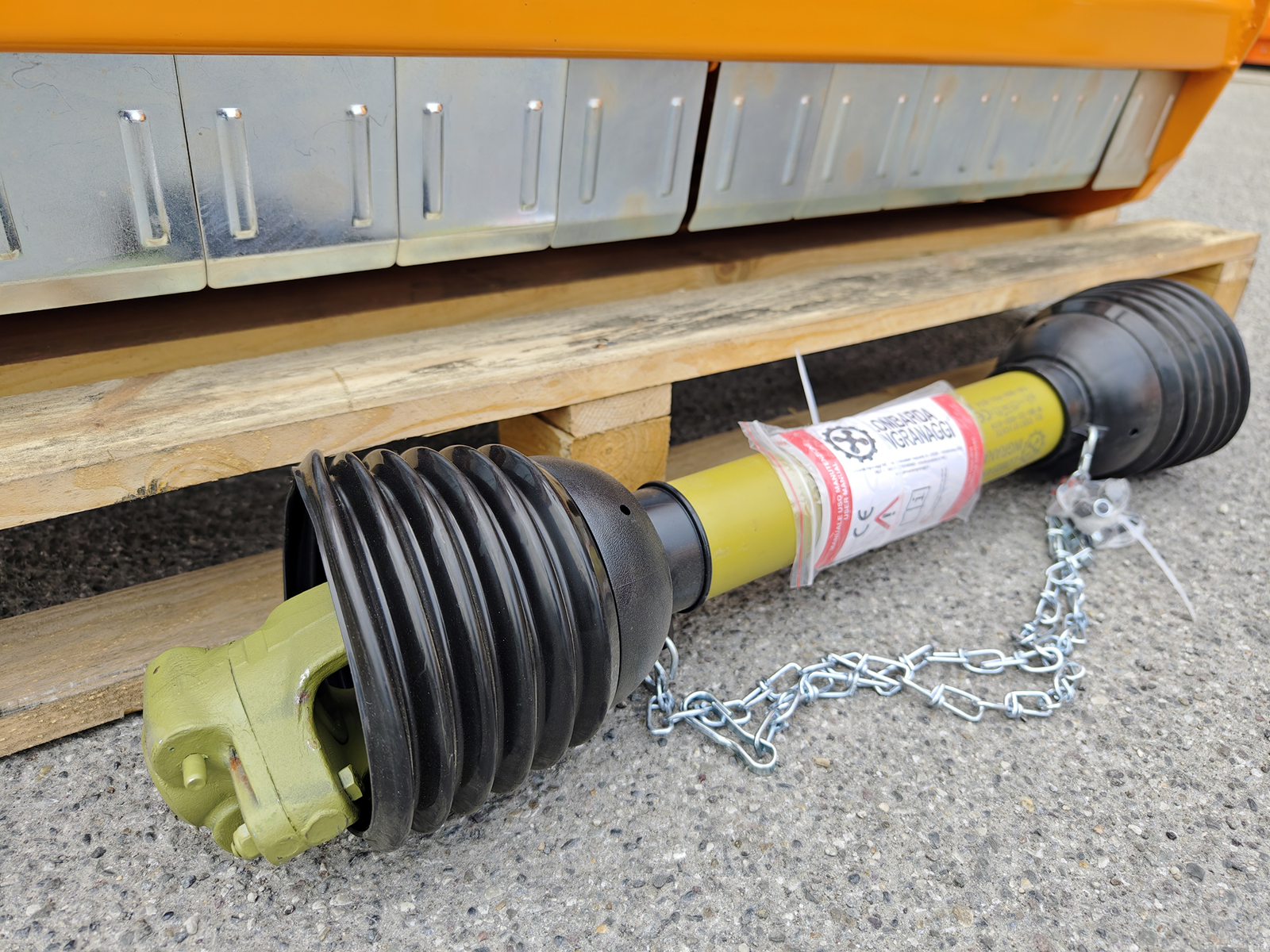

Is the PTO shaft included?
Yes: a CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt.
How does it differ from the LEOPARD?
Rotor, flails and drive are the same. The LEOPARD has a double HARDOX skin, an opening rear hood and a 20 cm (8 in) high front opening for long grass, and starts at 140 cm (55 in); the LINCIONE has a hood shaped for mulching and starts at 120 cm (47 in).
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1200.0 mm |
| Overall width | 1340.5 mm |
| Min / Max cutting height | 38.0 - 60.0 mm |
| Weight | 305 kg |
| Overall height | 1130.0 mm |
| Tractor Power Range | 30 - 60 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Hood height | 460.00 mm |
| Spacing between the 2 lower points | 560.0 - 950.0 mm |
| Number of Hammers | 16 |
| Maximum cutting diameter | 40.0 - 50.0 mm |
| Overall length | 930.0 mm |
| Distance between pto attachment and ground | 540.0 mm |
| Main hood thickness | 5.0 + 6.0 mm |
| Sides thickness | 6.0 mm |
| Side plates thickness | 6.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: Gearbox | DELEKS (Italy) (3 year warranty) |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: RPM Rotor speed | 2300 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Transmission: Top pulley ø | 180.0 mm |
| Transmission: Lower pulley ø | 130.0 mm |
| Transmission: V-Belts quantity | 4 |
| Transmission: V-Belts size | BX43 |
| Rotor: diameter | 115.0 mm |
| Rotor: bearings type and size | SKF 2208-TVH |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |
| Hammers: Weight | 820.0 g |
| Hammer: øhole | 15.0 mm |
| Hammer: base width | 82.0 mm |
| Hammer: top width | 45.0 mm |
| Hammer: Diagonal | 95.0 mm |
| Rear roller: diameter | 121.0 mm |
| Rear roller: sheet thickness | 5.0 mm |
| Rear roller: bearings type and size | SKF 6207 |
| Pto shaft | CE 6x1000 mm + shear bolt |
| Effective Displacement | 310.0 mm |
| Gross shipping weight | 342 kg |
| Package volume | 0.99 m3 |
| Packing sizes | 1380.0*900.0*800.0 mm |
