Heavy-duty verge flail mower 140 cm (55 in) ALCE-140, offset hammer flail mower with external gearbox and double wide-angle PTO shaft for 50-90 hp tractors
DETAILS

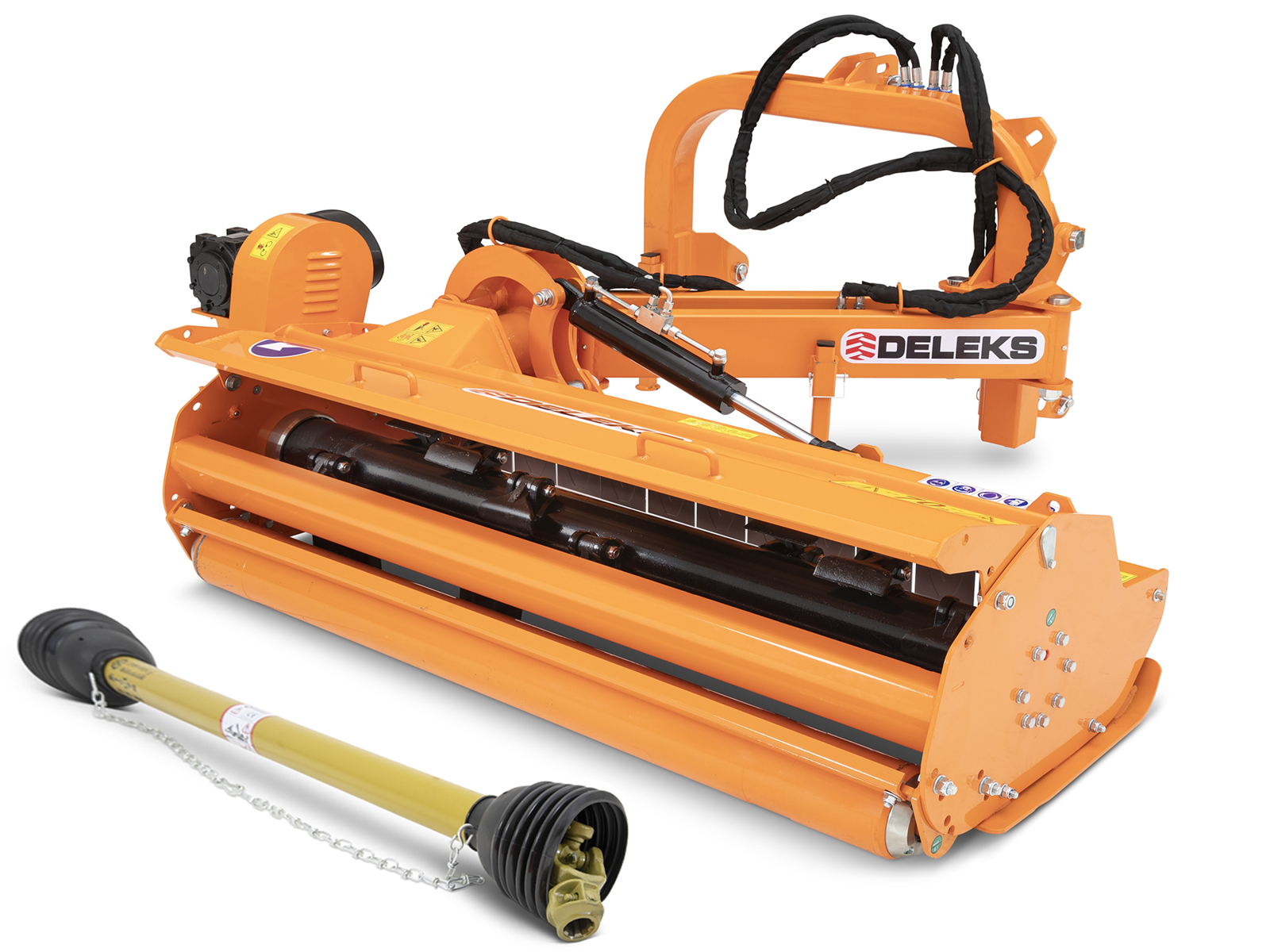

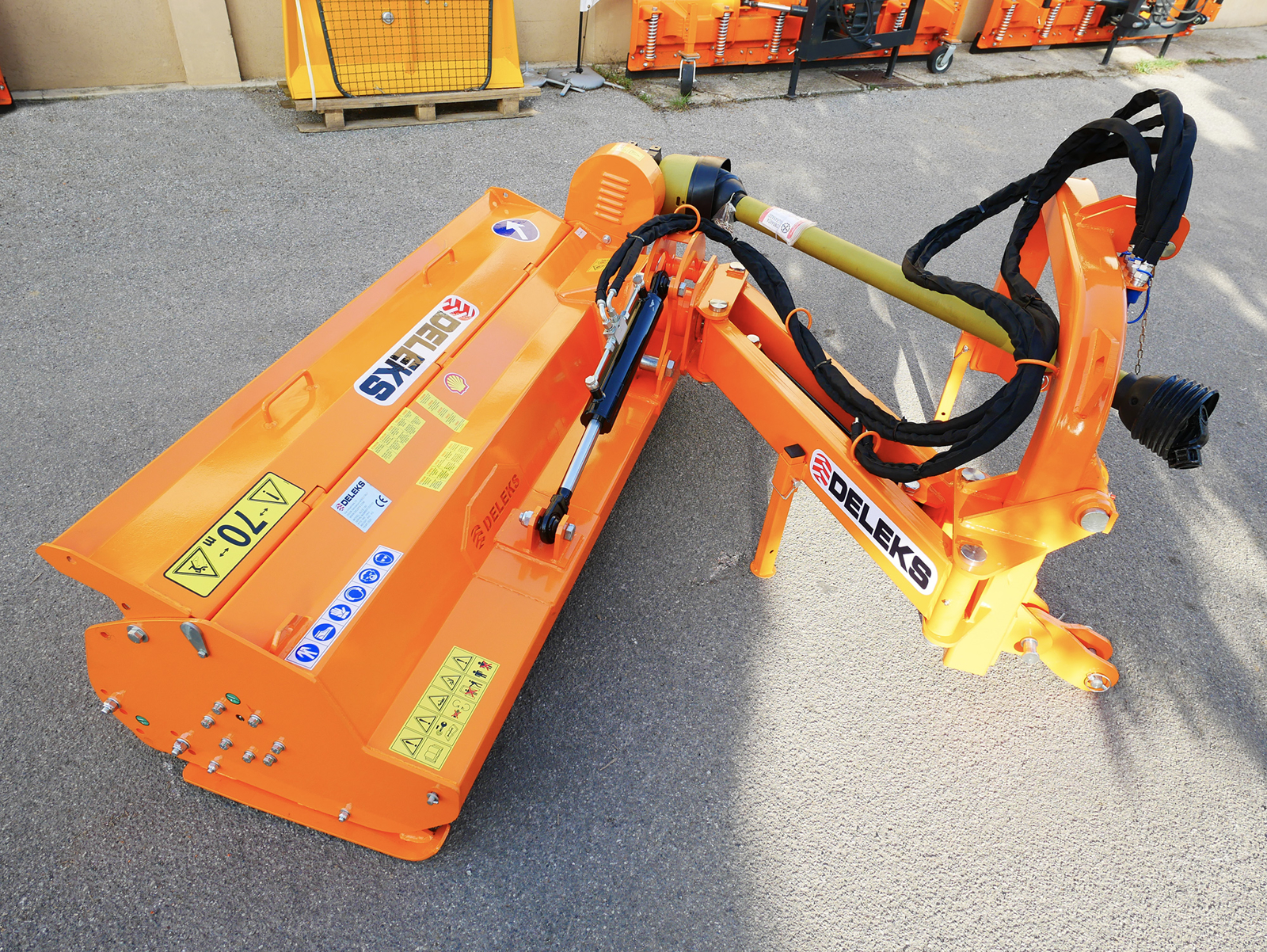

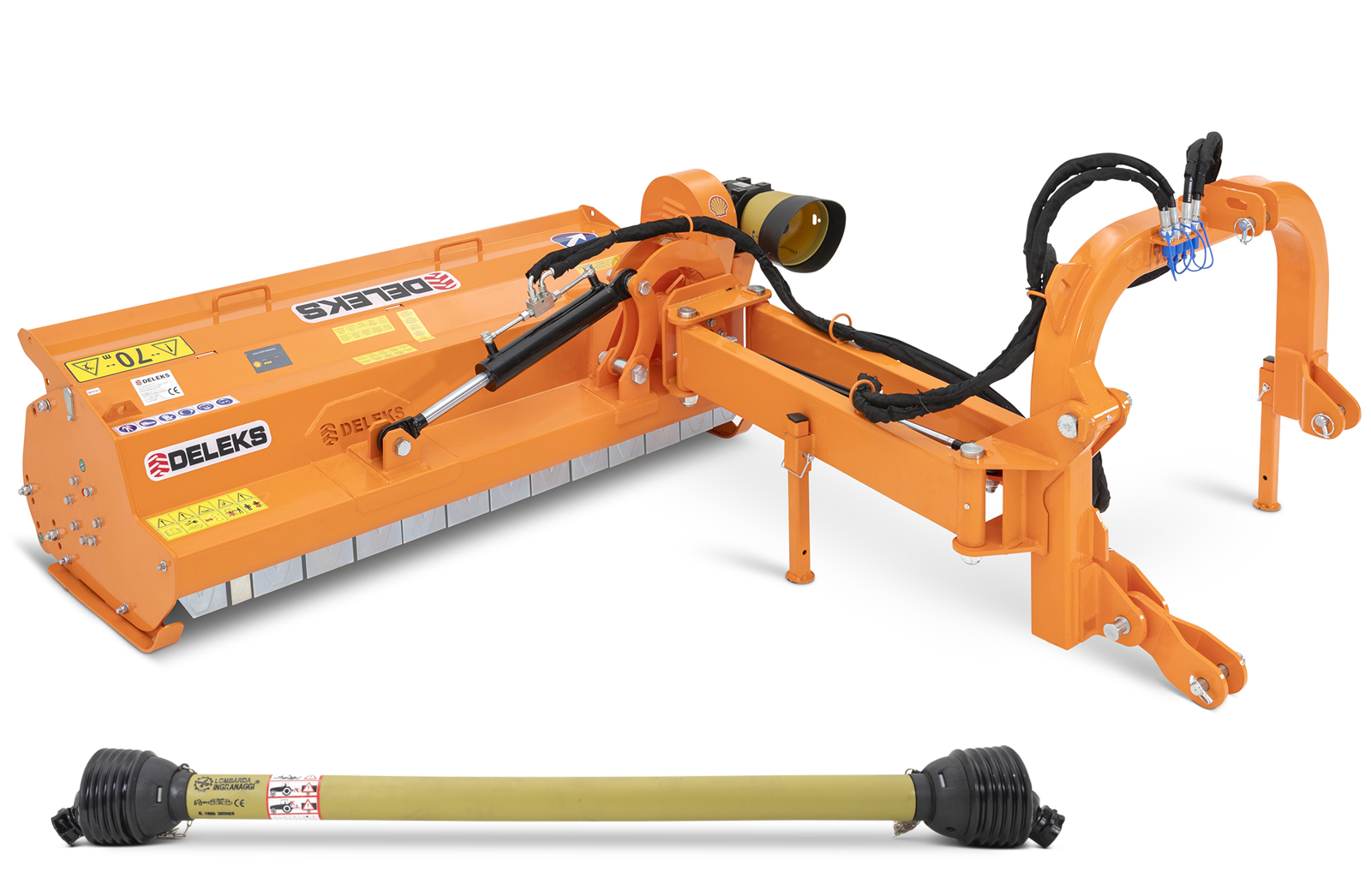

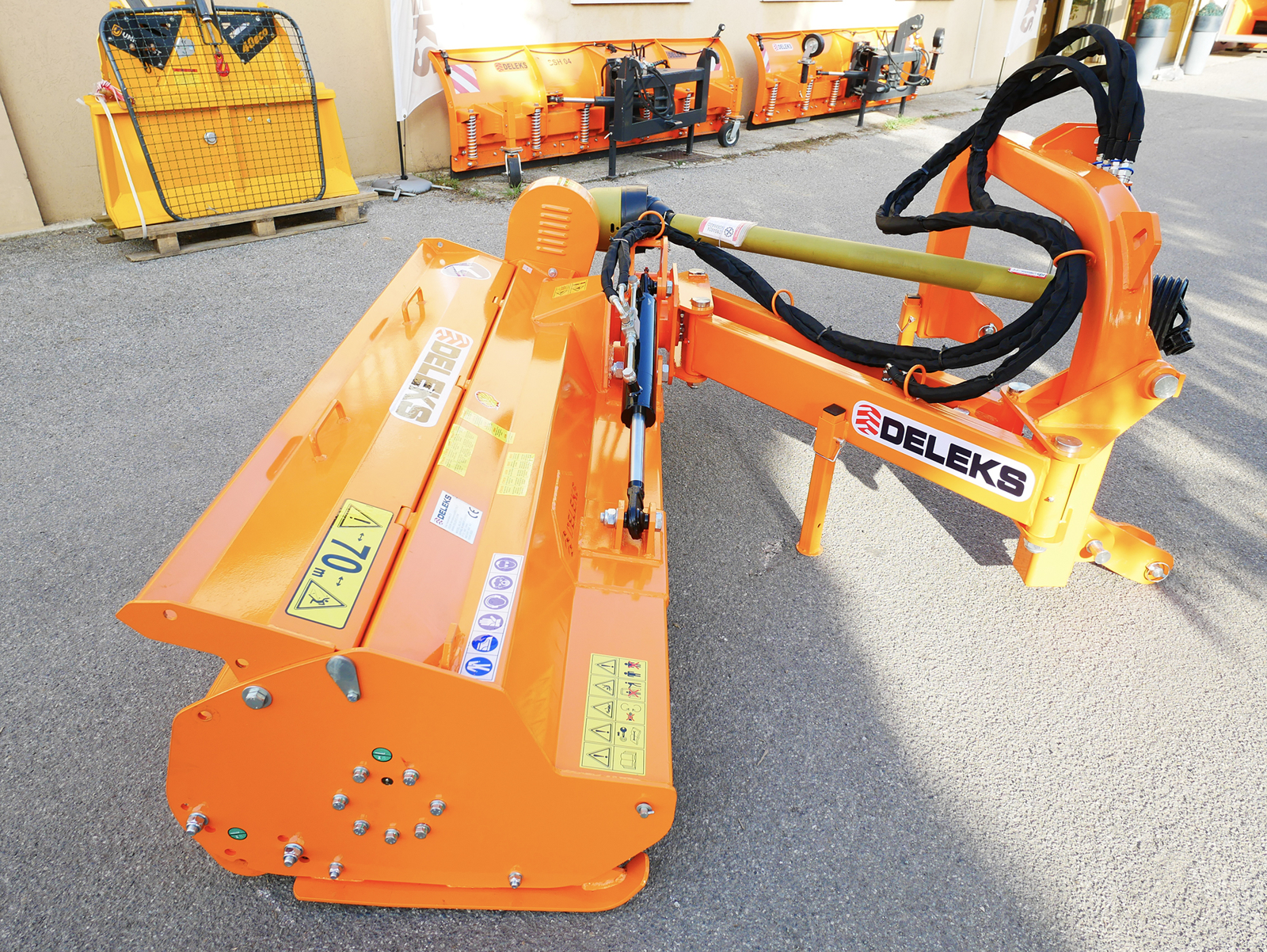

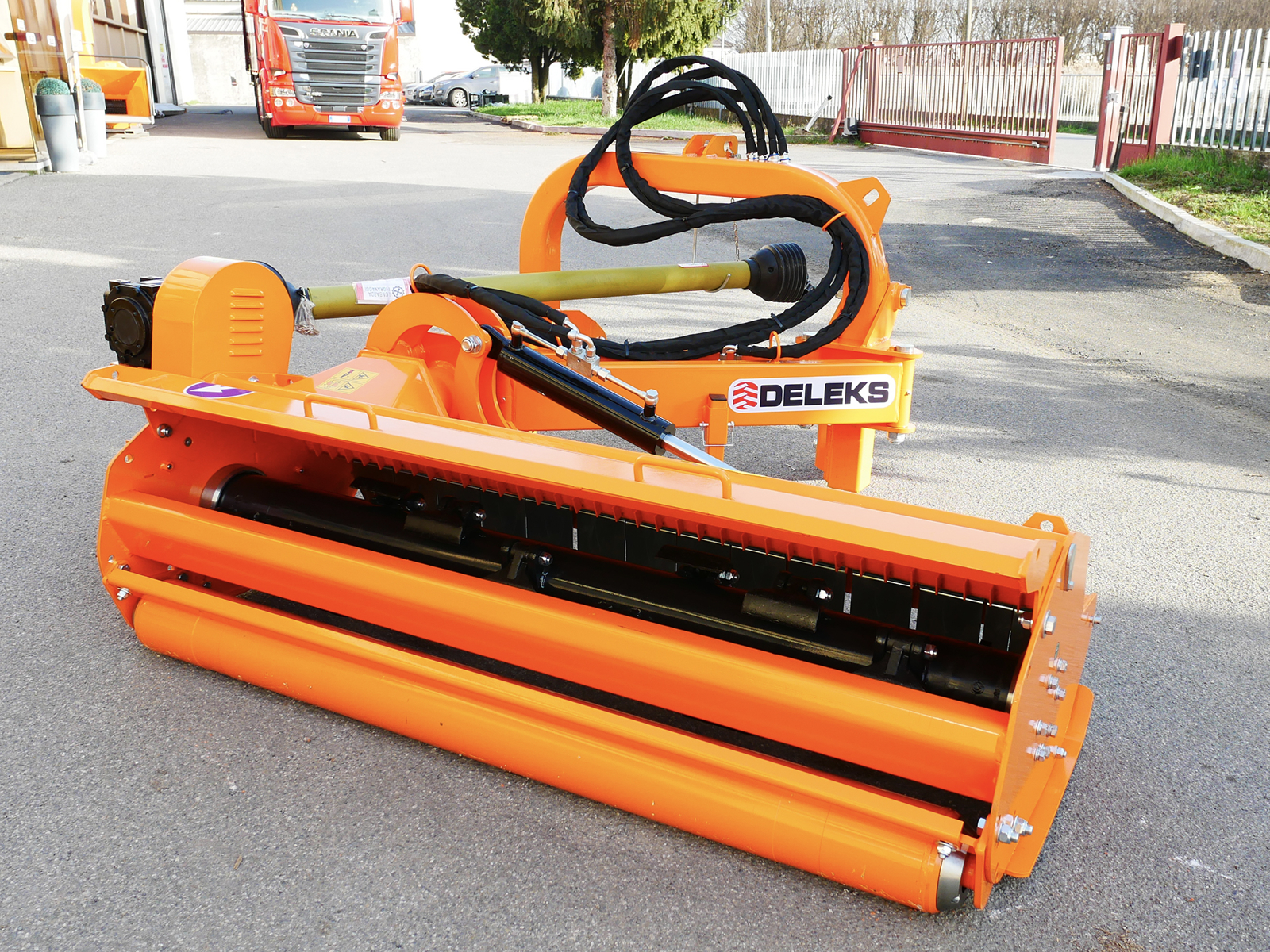

Heavy-duty verge flail mower with a 140 cm (55 in) cut: the DELEKS® ALCE-140 is the offset hammer flail mower from the heavy series for tractors from 50 to 90 hp with a category 2 three-point linkage. Two hydraulic rams move the head out beside the tractor and tilt it from +90° to -60°: it works on roadside verges, ditches, banks and sloping ground, upright on hedges and bushes and, level, between the rows. The hood is double-skinned and the external gearbox helps the head reach out beyond the width of the tractor. The electronically balanced 152 mm (6 in) rotor carries 12 hammer flails of 1,100 g (2.4 lb) with a 14 cm (5.5 in) wide base and shreds grass, brambles and brushwood up to 6-7 cm (2.4-2.8 in) thick. Three-point headstock with Anti Shock system, DELEKS® 540 rpm gearbox with freewheel and a 3-year warranty, 4-belt drive, 540 kg (1,190 lb). TÜV-certified, it comes complete with a CE-approved double wide-angle PTO shaft, a 2-year warranty and free delivery within the EU.
Which tractors it fits
The ALCE-140 cuts 140 cm (55 in) and fits tractors of every make from 50 to 90 hp with a 540 rpm PTO and a category 2 three-point linkage (25-28 mm pins, lower link spacing from 840 to 970 mm): New Holland T5, John Deere 5 Series, Landini Rex, Deutz-Fahr, Massey Ferguson, Same, Case, Kubota M Series, Solis and equivalent tractors. The tractor needs 4 hydraulic outlets with ½ in couplings: the machine has 2 rams and 4 hoses with agricultural quick-release couplings and runs on an oil flow of 18-22 l/min at 120-150 bar. The gearbox sits 650 mm above the ground. It works on the flat and on slopes.

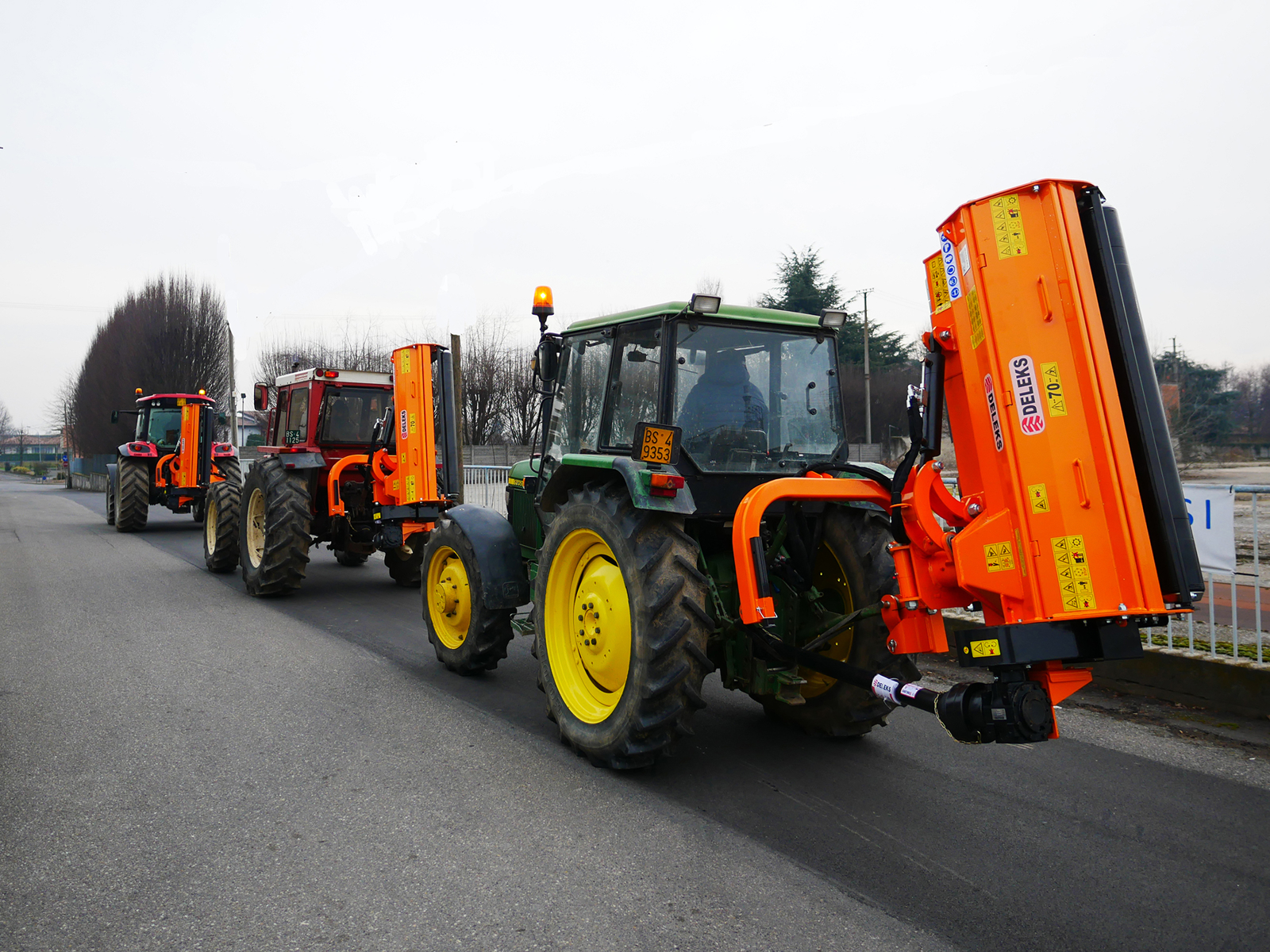

Hydraulic side shift and tilt
Two hydraulic rams, worked from the seat with the tractor's spool valves, move the head sideways and tilt it from +90° upwards to -60° downwards. With the arm fully out, the head works between about 0.9 m (2 ft 11 in) and 2.3 m (7 ft 7 in) from the centre of the tractor, on the right-hand side. Out to the side and tilted, the ALCE-140 tidies roadside verges, ditches and banks; out to the side and upright it trims bushes and hedges; level, it works between the rows. The gearbox is mounted on the outside of the hood, a position that helps the head reach out beyond the width of the tractor. The three-point headstock has the Anti Shock system: the joint between the three-point headstock and the arm is not rigid, so the head can follow the ground over humps.

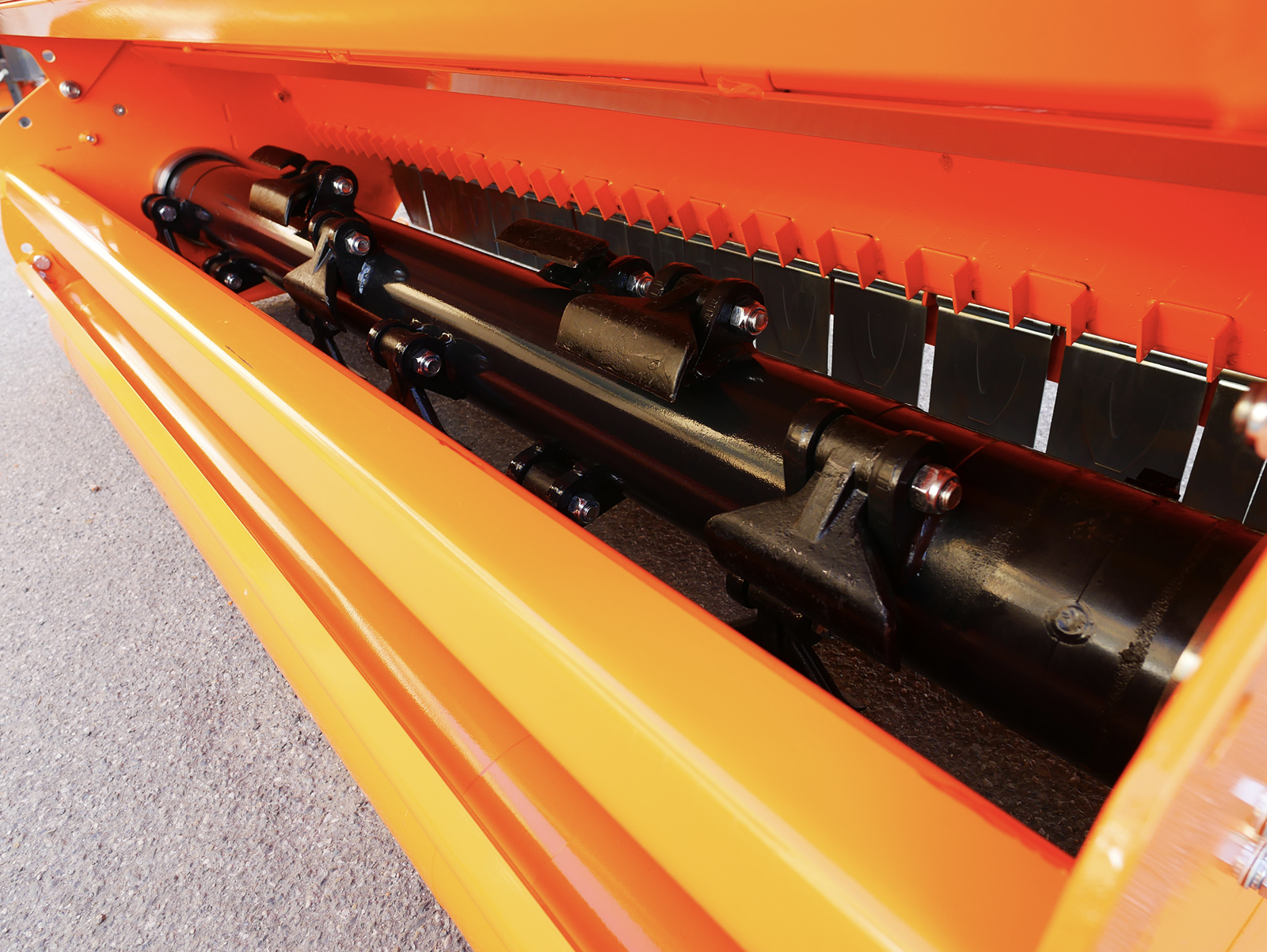

152 mm (6 in) rotor with 12 hammer flails of 1,100 g (2.4 lb)
The rotor is 152 mm (6 in) in diameter, with an 8 mm tube wall; it is electronically balanced and spins at 2,134 rpm. The 12 hammer flails weigh 1,100 g (2.4 lb) each and have a 140 mm (5.5 in) wide base: they shred grass, brambles and brushwood up to 6-7 cm (2.4-2.8 in) thick. As an option there is the kit of 54 blades (COLTELLI54TORO), as an alternative to the hammer flails.

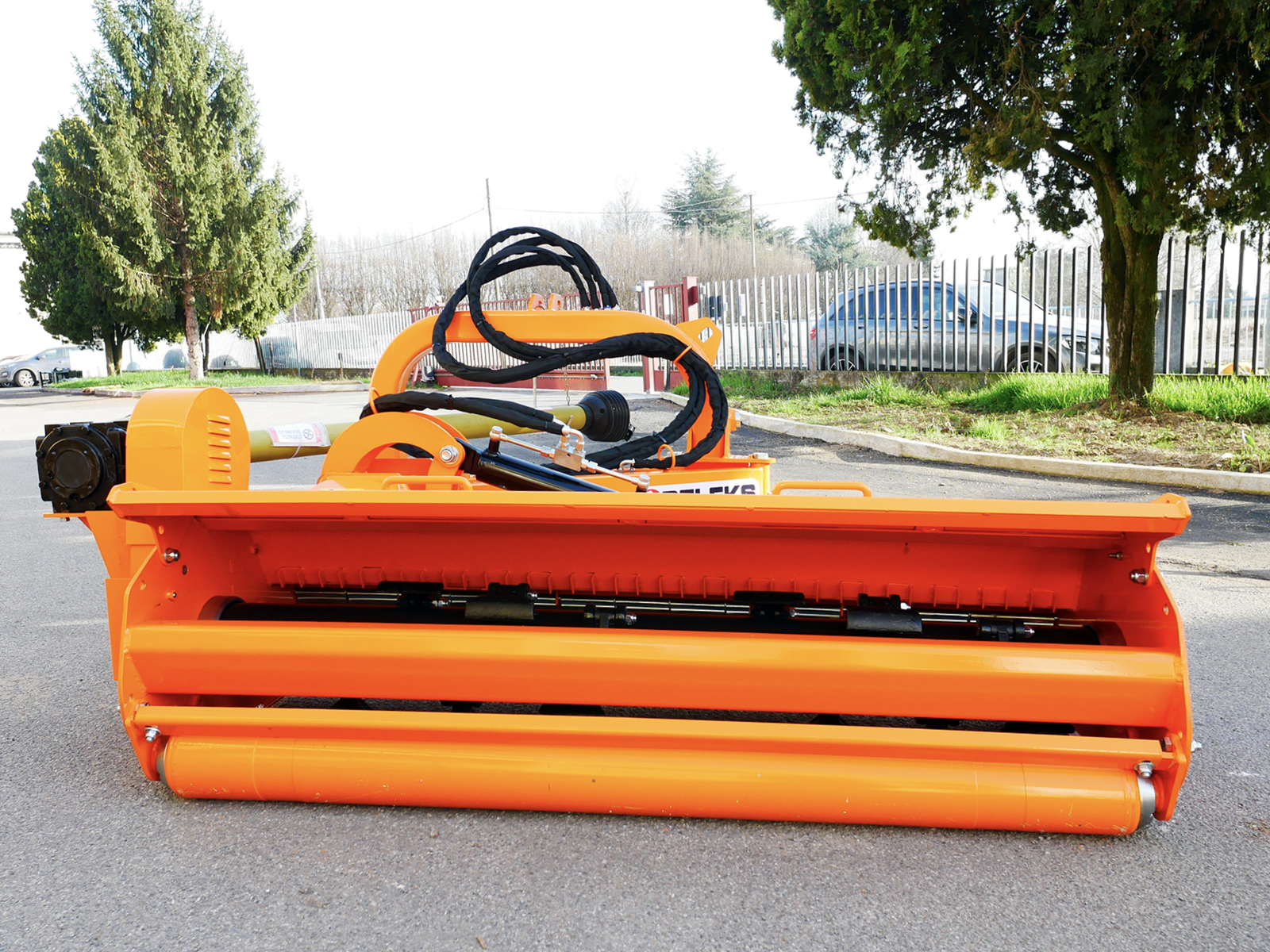

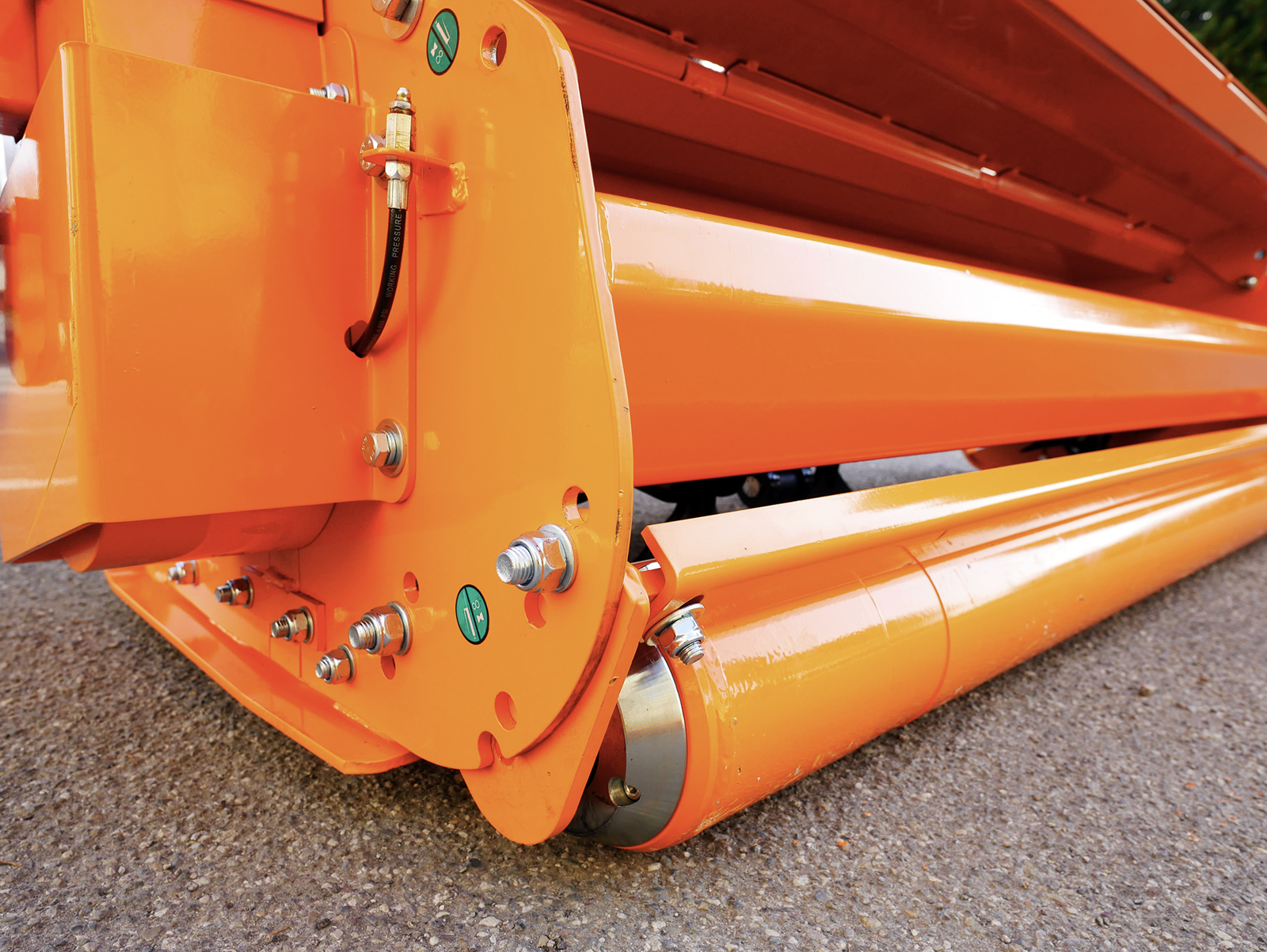

Double-skin hood, 152 mm (6 in) roller and cutting height

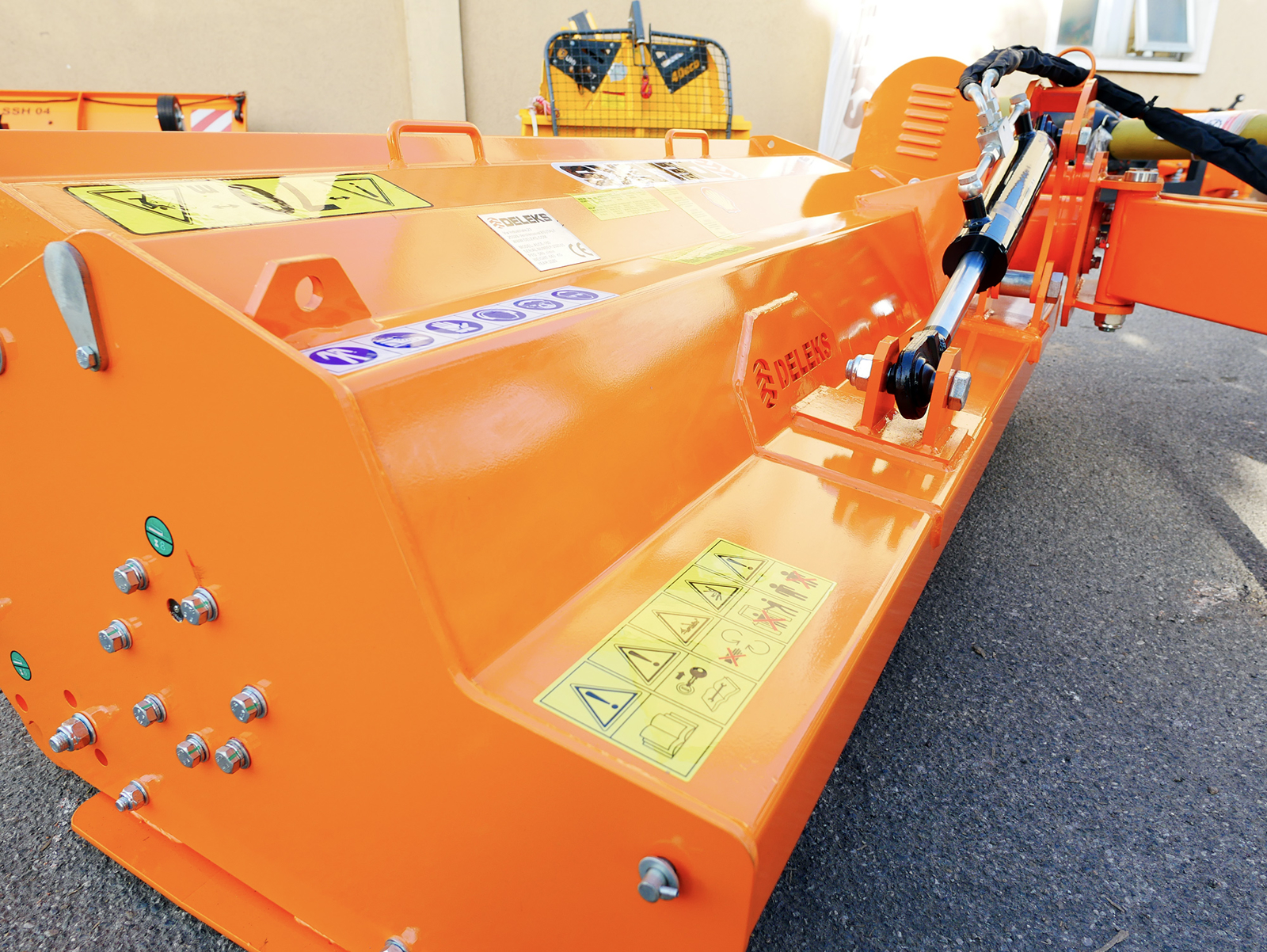

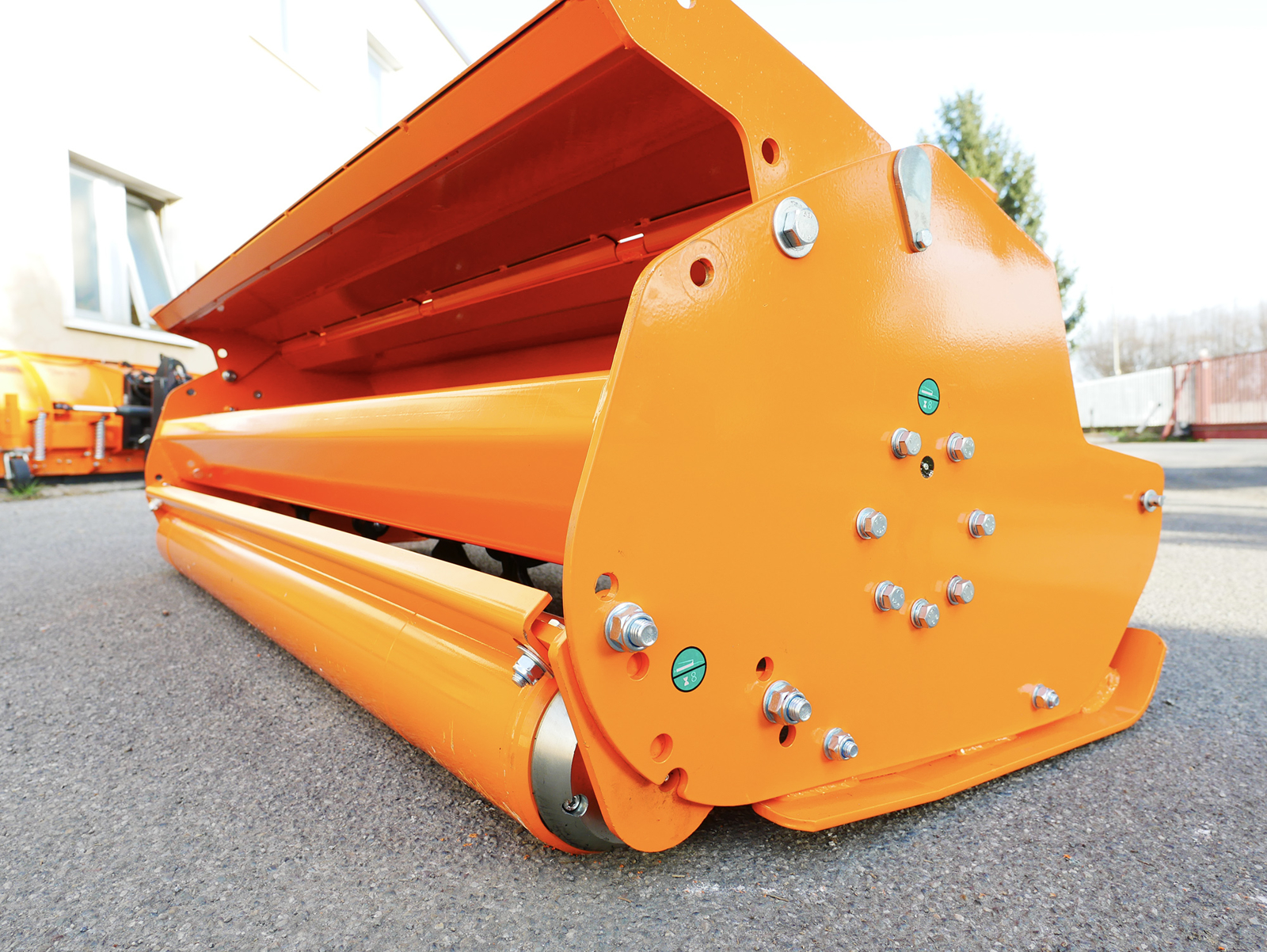

The ALCE-140 is built with a double-skin hood. The frame is 5 mm thick, with reinforcements, 8 mm side plates and 8 mm side skids. The rear roller, 152 mm (6 in) in diameter, and the side skids set the cutting height from 35 to 95 mm (1.4 to 3.7 in).

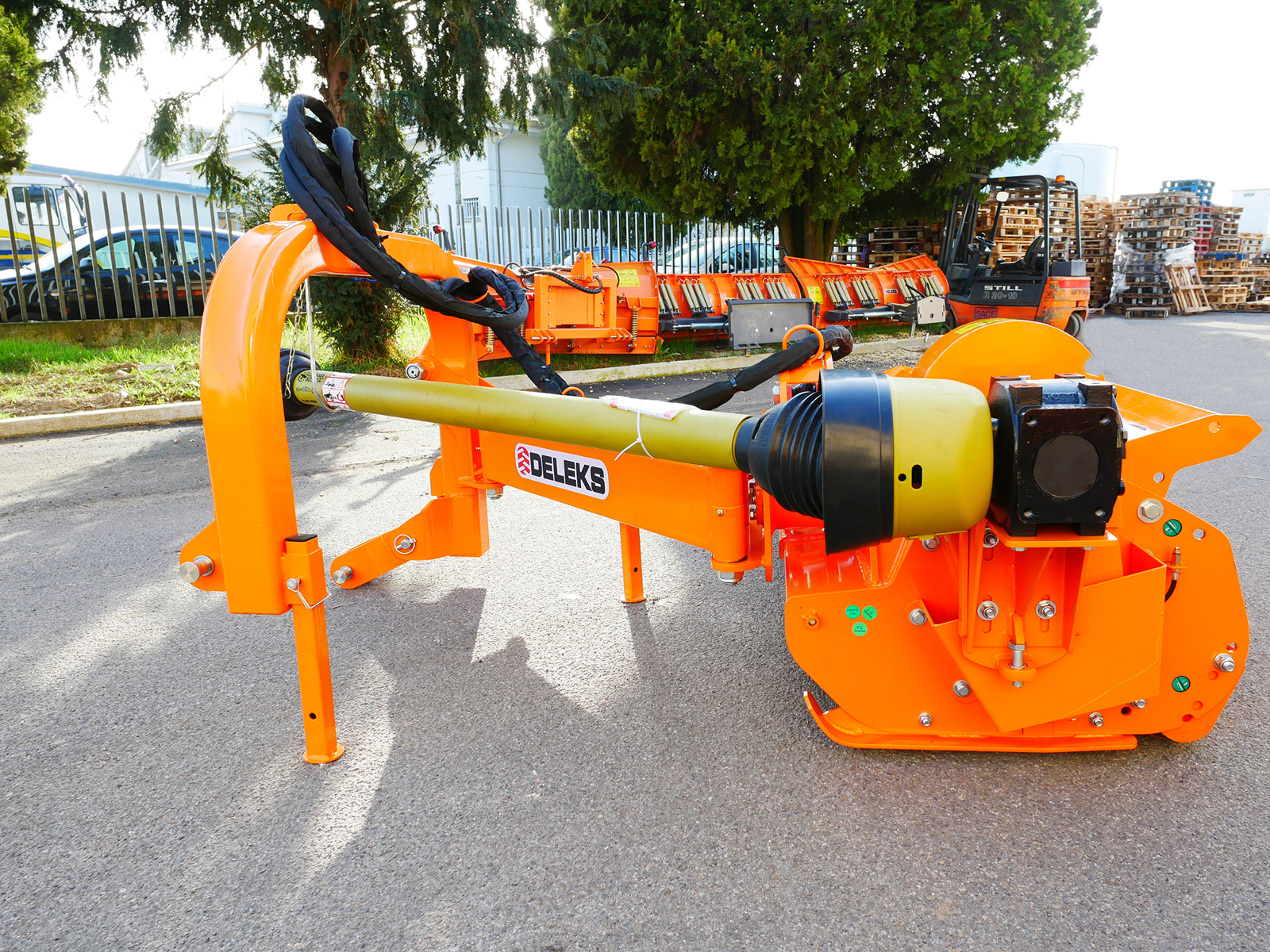

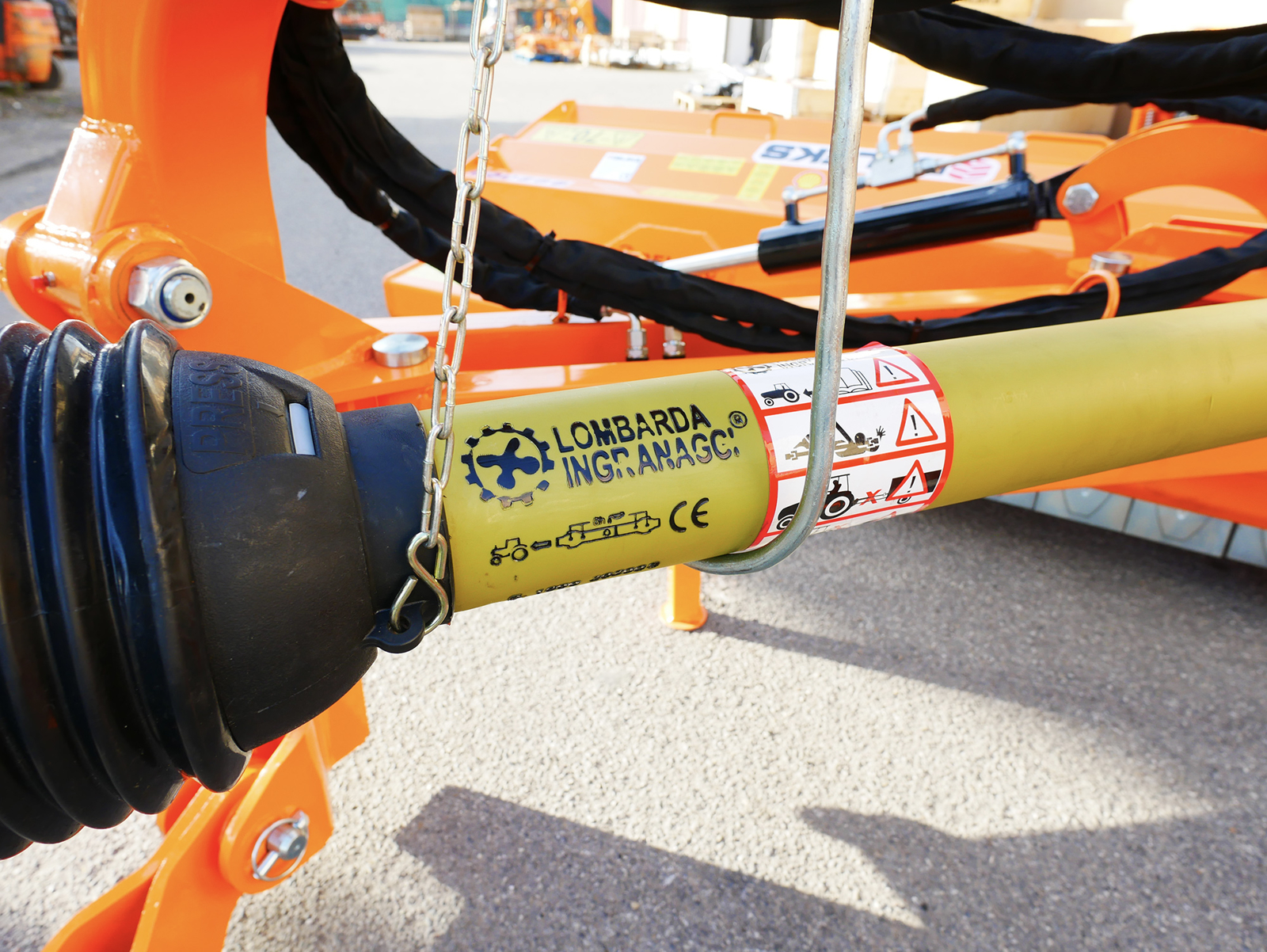

External gearbox with freewheel, 4 belts and double wide-angle PTO shaft
The DELEKS® gearbox for a 540 rpm PTO has a freewheel and a 3-year warranty: when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. Drive reaches the rotor through 4 V-belts, 17x1270; belt tension is set from the outside, with the adjustable tensioner. The CE-approved category 6 PTO shaft, 1,800 mm (70.9 in) long, is included and is double wide-angle: unlike shafts with a wide-angle joint at one end only, it has a wide-angle constant-velocity joint at both ends and allows generous working angles at the tractor end and at the machine end alike, even with the mower offset and tilted.
Dimensions, weight and delivery

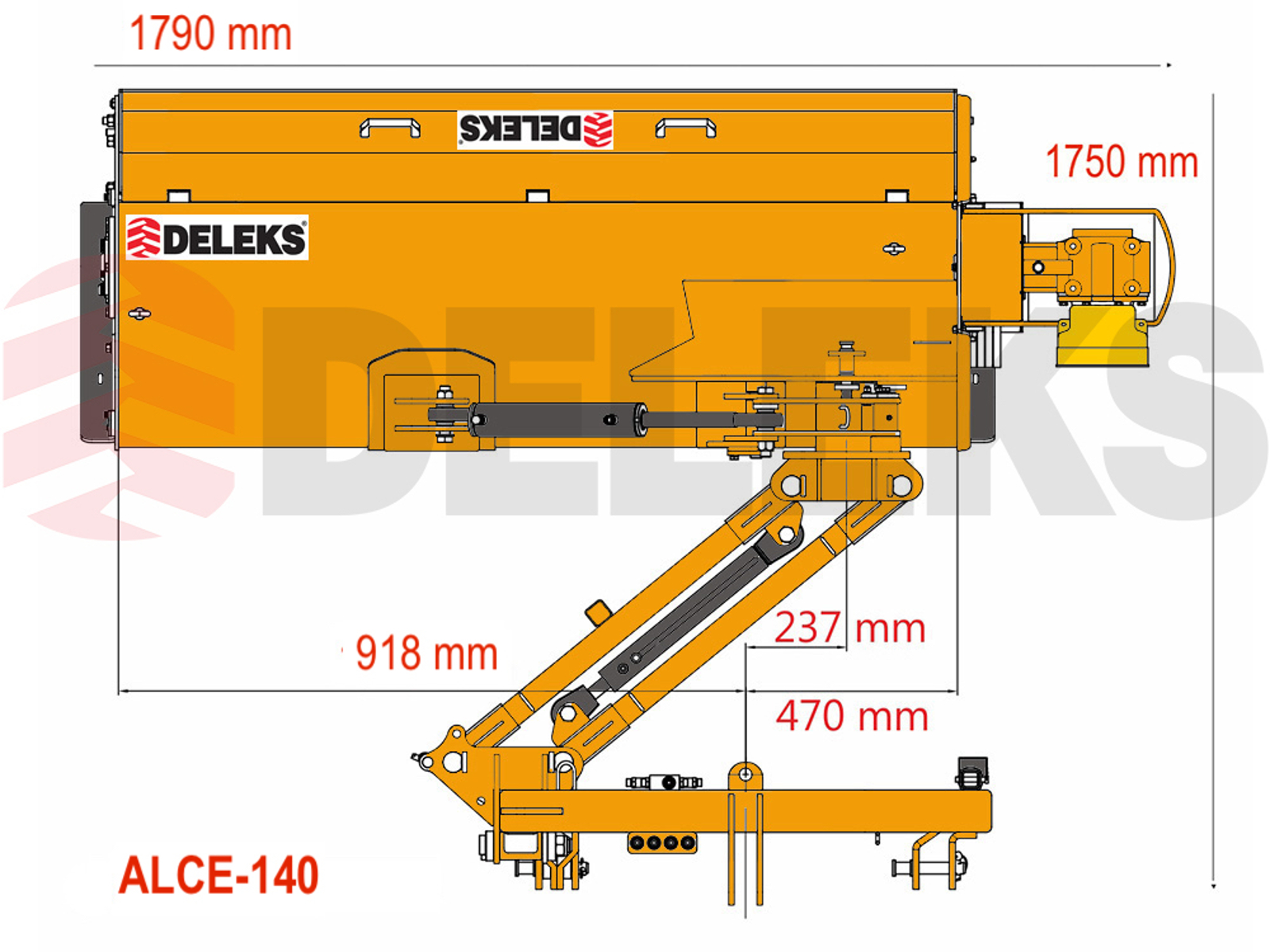

Working width 1,395 mm (54.9 in), overall width 1,790 mm (70.5 in), length 1,750 mm (68.9 in) with the arm closed, height 1,150 mm (45.3 in), weight 540 kg (1,190 lb). It ships on a pallet in packaging measuring 180 × 100 × 100 cm (71 × 39 × 39 in), 696 kg (1,534 lb) gross, 1.80 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.
Where it works

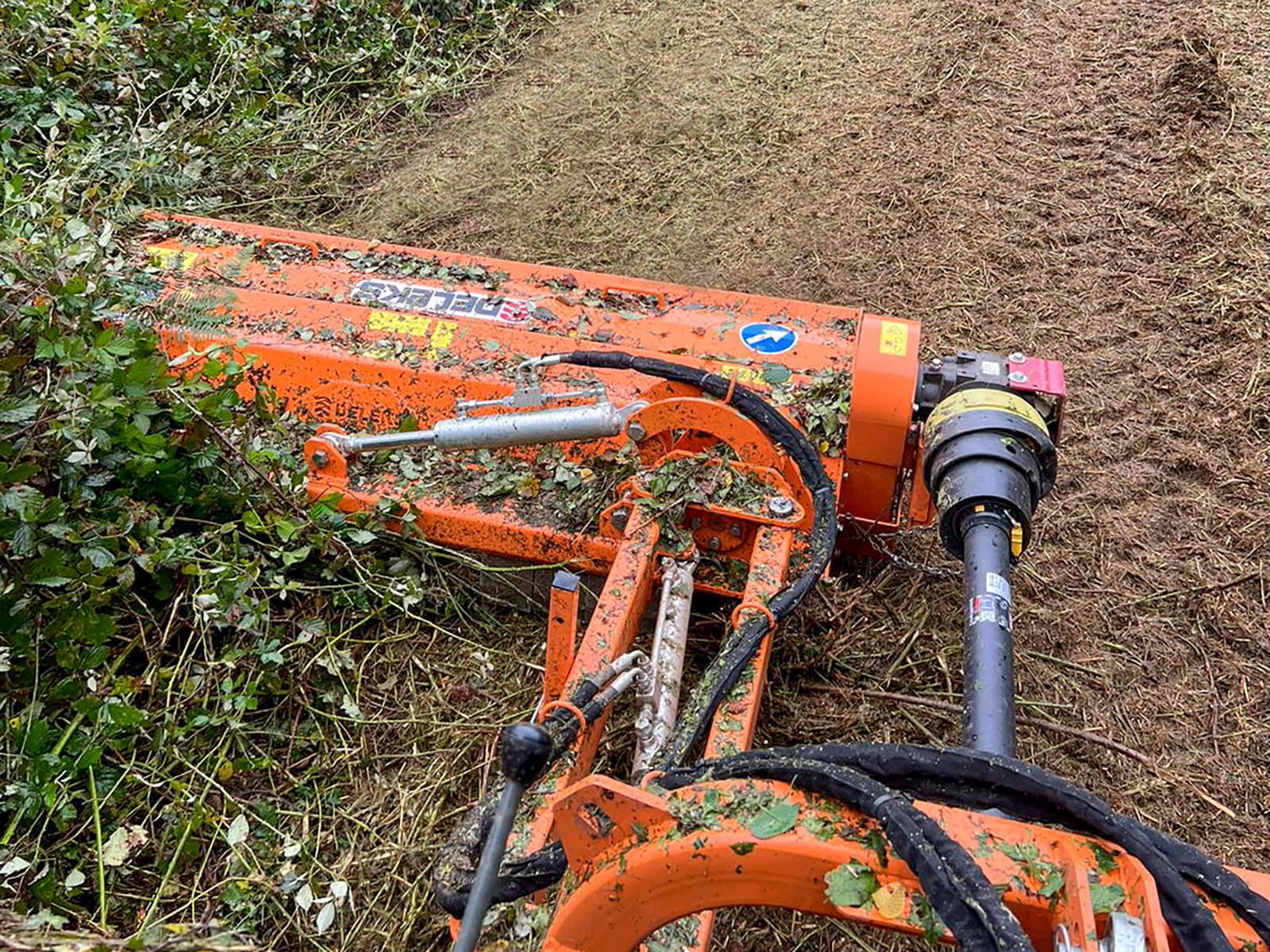

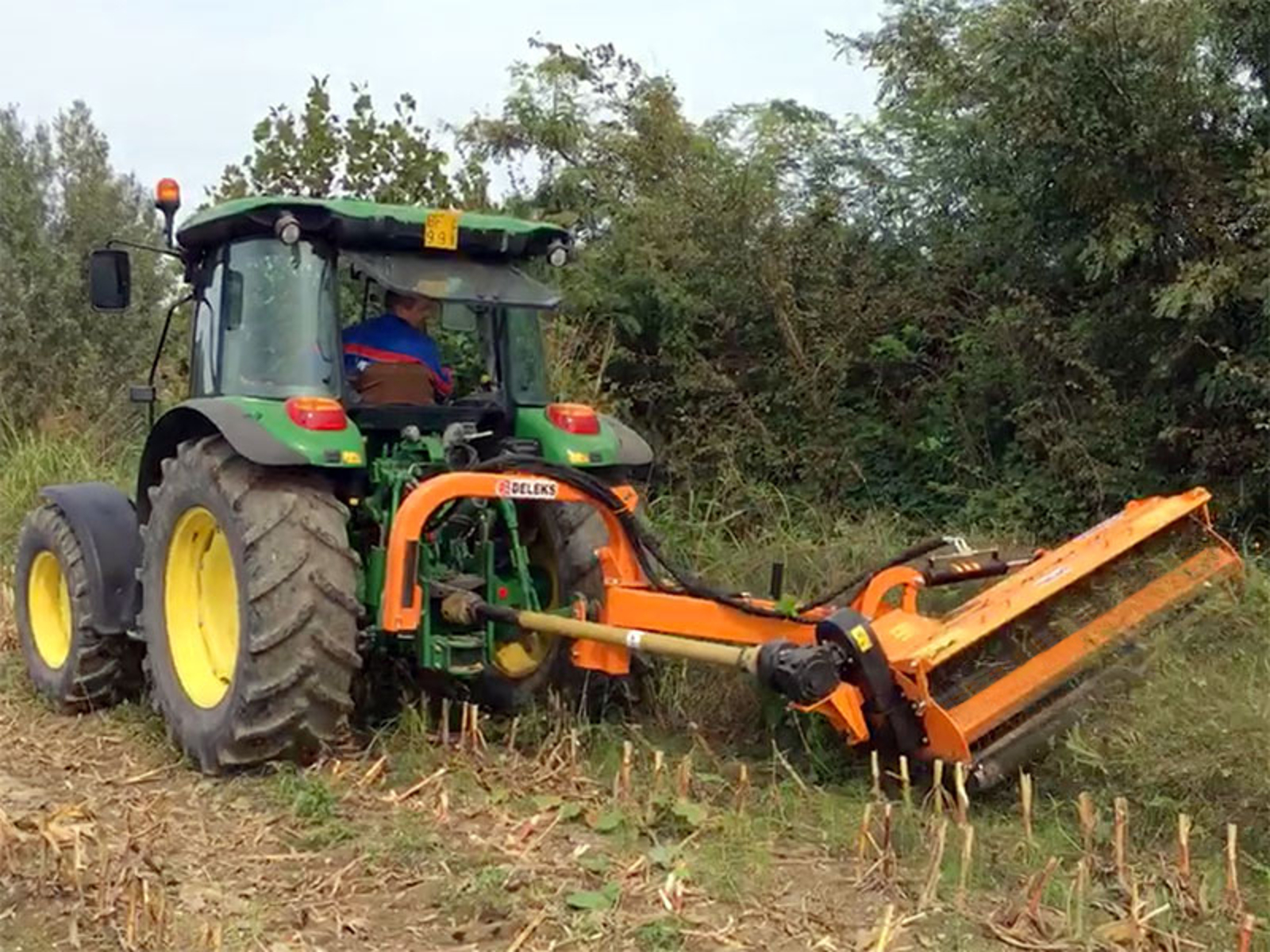

- Roadside verges, road shoulders and council work: head out to the side

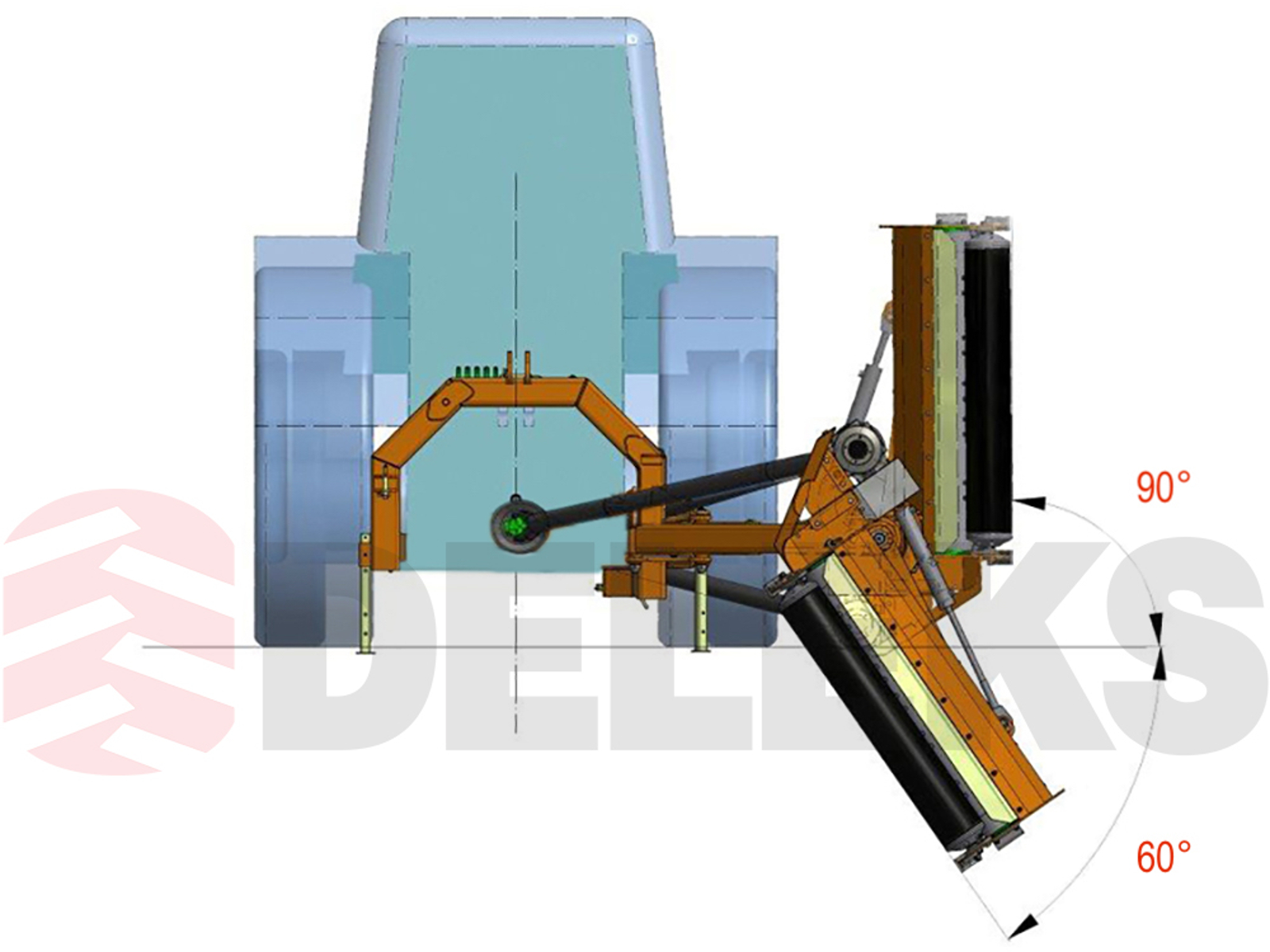

- Ditches, banks and sloping ground: head tilted down to -60°
- Hedges and bushes: head upright, at +90°
- Long grass, brambles and brushwood up to 6-7 cm (2.4-2.8 in) thick
- On the flat and on slopes, with tractors from 50 to 90 hp
Options and spares
From this page you can add to your order the kit of 10 hammer flails (MAZZE10A), the 10 nuts and bolts for the flails (DB10A), the kit of 54 blades (COLTELLI54TORO), the spare set of 4 belts (CINGHIE4A), spare pins for the category 2 three-point linkage (3PERNI2A), the 680 mm (26.8 in) top link (BE0124) and the 730 mm (28.7 in) top link (BE0125). Other spares are identified on the exploded diagrams with our technical team.
FAQ
What size tractor does the ALCE-140 need?
From 50 to 90 hp, with a 540 rpm PTO and a category 2 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 540 kg (1,190 lb).
How far out to the side does the ALCE-140 reach?

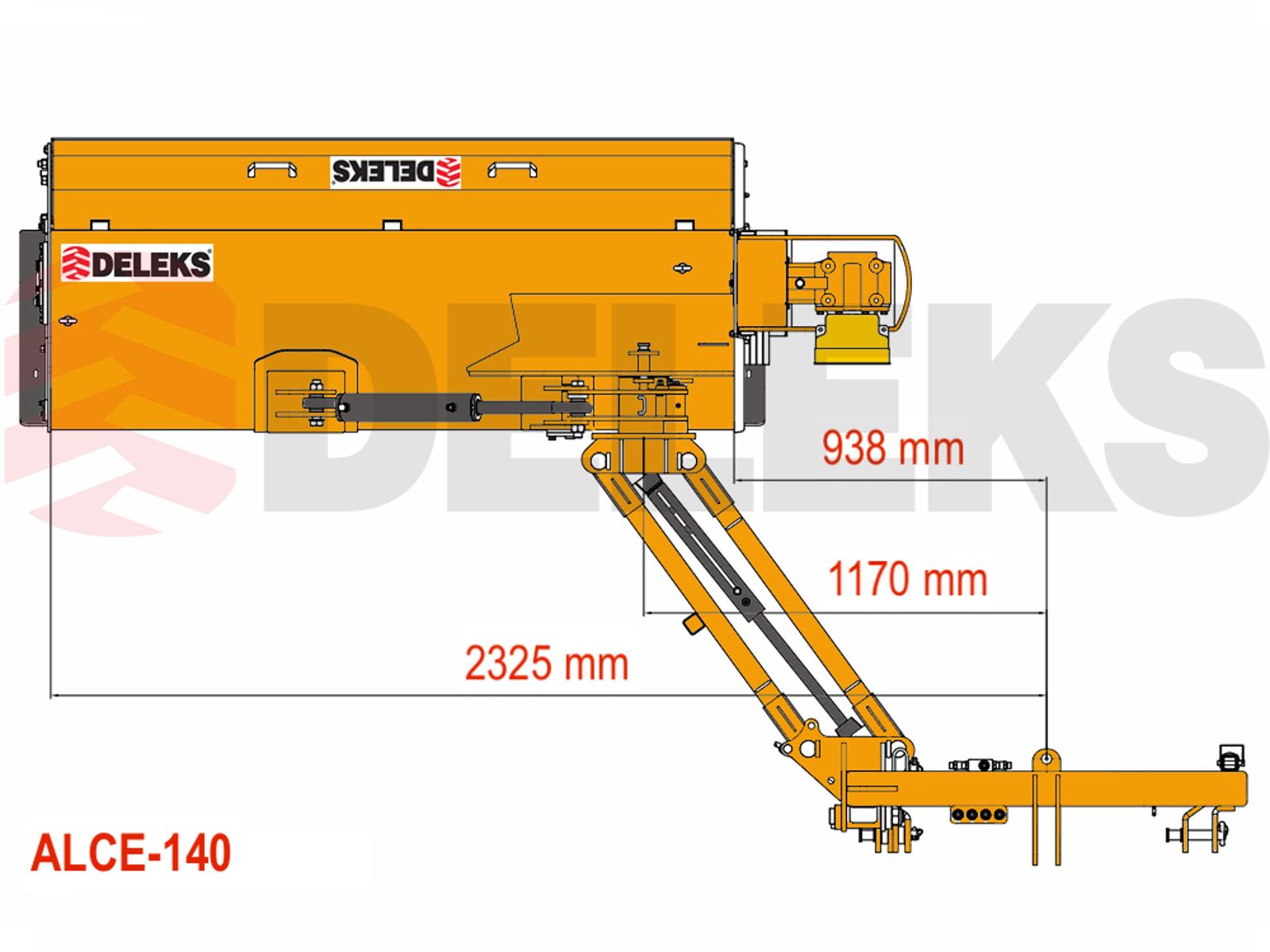

With the arm fully out, the head works between about 0.9 m (2 ft 11 in) and 2.3 m (7 ft 7 in) from the centre of the tractor, on the right-hand side.
How far does the head tilt?
From +90° upwards, upright, for hedges and bushes, to -60° downwards, for ditches and banks.
What does the tractor need to work it?
4 hydraulic outlets with ½ in couplings for the mower's 4 hoses, which have agricultural quick-release couplings: they work the side shift and the tilt.
What size branches will it shred?
Long grass, brambles and brushwood up to 6-7 cm (2.4-2.8 in) thick.
Hammer flails or blades?
It comes with 12 hammer flails of 1,100 g (2.4 lb) with a 14 cm (5.5 in) wide base. As an option there is the kit of 54 blades (COLTELLI54TORO), as an alternative to the hammer flails.
How do you set the cutting height?
From 35 to 95 mm (1.4 to 3.7 in), with the rear roller and the side skids.
Is the PTO shaft included?
Yes: a CE-approved category 6 PTO shaft, 1,800 mm (70.9 in) long, double wide-angle, with a wide-angle joint at both ends.
How does it differ from the DRAGON?
The DRAGON is the reinforced version, 180 to 220 cm (71 to 87 in) and 750 to 815 kg (1,653 to 1,797 lb), for tractors from 80 to 130 hp: 168 mm (6.6 in) rotor on NSK bearings, 5 belts, 10 mm side plates and oversized rams with a lock valve. The ALCE runs from 140 to 220 cm (55 to 87 in) and from 540 to 720 kg (1,190 to 1,587 lb), for tractors from 50 to 110 hp.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1395.0 mm |
| Overall width | 1790.0 mm |
| Min / Max cutting height | 35.0 - 95.0 mm |
| Weight | 540.0 kg |
| Overall height | 1150.0 mm |
| Tractor Power Range | 50 - 90 Hp |
| 3 point linkage | Cat. 2 (ø 25.0-28.0 mm) |
| Position of the gearbox | external |
| Hood height | 470.0 mm |
| Spacing between the 2 lower points | 840.0 - 970.0 mm |
| Number of Hammers | 12 |
| Maximum cutting diameter | 40.0-50.0 mm |
| Overall length | 1750.0 mm (closed) |
| Distance between pto attachment and ground | 650.0 mm |
| Main hood thickness | 5.0 mm + reinforcements |
| Sides thickness | 8.0 mm |
| Side plates thickness | 8.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: Gearbox | DELEKS (3 years warranty) |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: RPM Rotor speed | 2134 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Transmission: Top pulley ø | 220.0 mm |
| Transmission: Lower pulley ø | 165.0 mm |
| Transmission: V-Belts quantity | 4 |
| Transmission: V-Belts size | 17x1270 |
| Rotor: diameter | 152.0 mm |
| Rotor: bearings type and size | 40x90 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |
| Hammers: Weight | 1100.0 g |
| Hammer: øhole | 16.0 mm |
| Hammer: base width | 140.0 mm |
| Hammer: top width | 40.0 mm |
| Hammer: Diagonal | 97.0 mm |
| Rear roller: diameter | 152.0 mm |
| Rear roller: sheet thickness | 6.0 mm |
| Rear roller: bearings type and size | 90x40 mm - GB276-6308 |
| Displacement and Sizes | See pictures |
| Hydraulic cylinder A diam. | 80.0-35.0 mm |
| Hydraulic cylinder B diam. | 60.0-30.0 mm |
| Working pressure | 120 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min |
| Hydraulic Hoses | WP 400 Bar, 1/2" Agri Standard |
| Pto shaft | CE cat. 6 x 1800 mm, double wide-angle (CV joint at both ends) |
| Hood length | 770.0 mm |
| Gross shipping weight | 696 kg |
| Package volume | 1.80 m3 |
| Packing sizes | 1800.0*1000.0*1000.0 mm |
