DETAILS

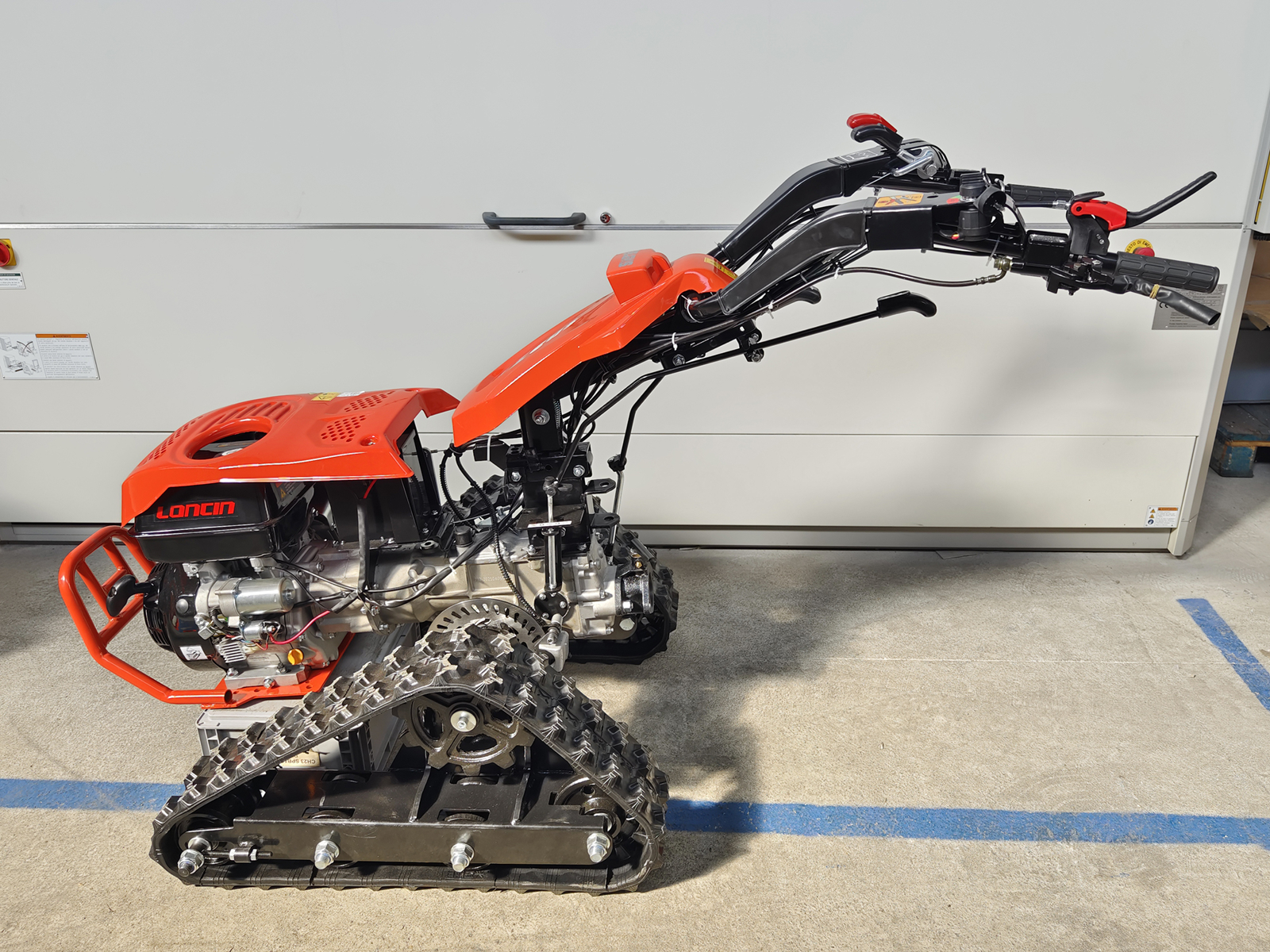

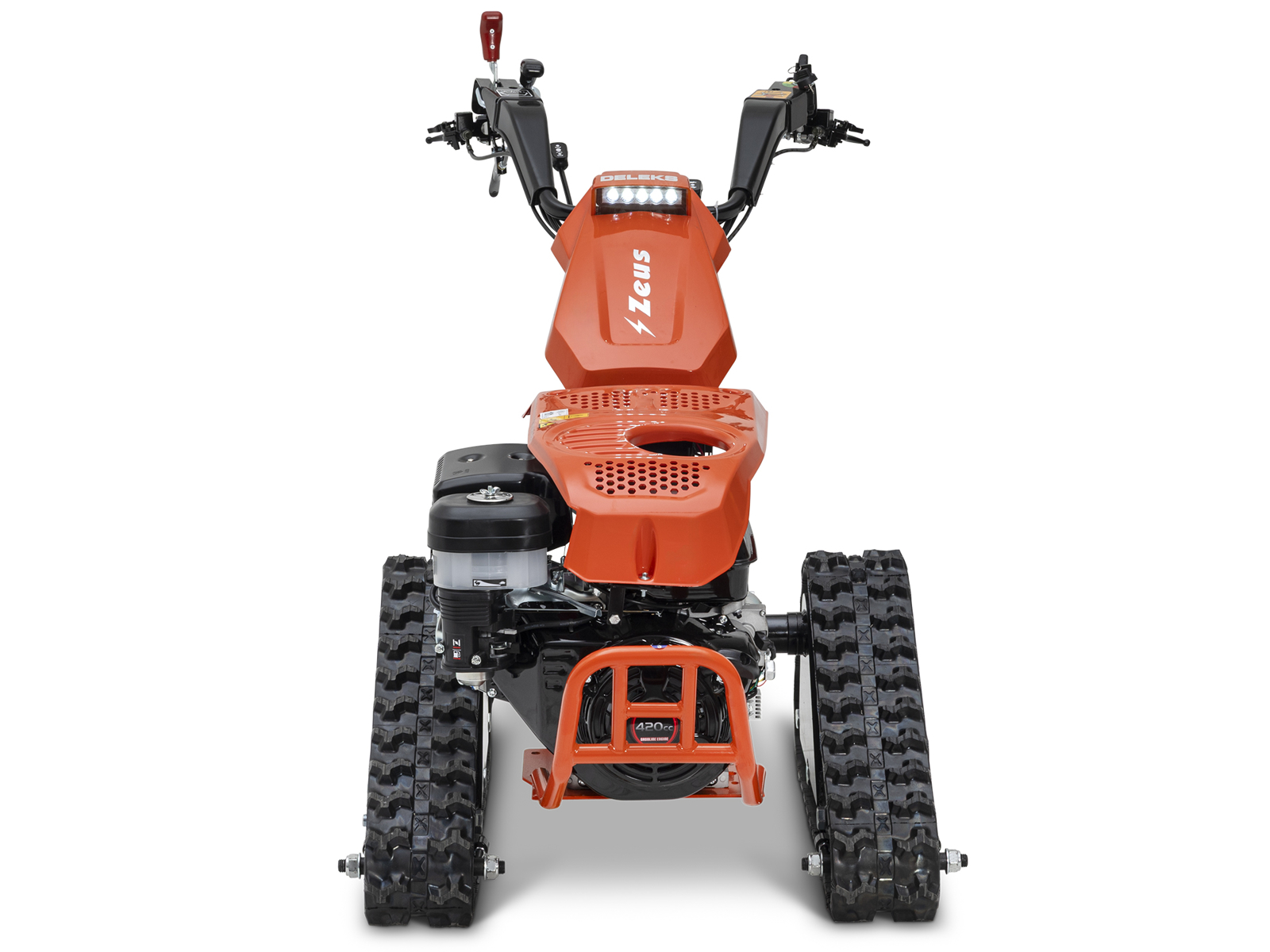

Professional tracked two-wheel tractor with a 420 cc Loncin petrol engine giving 14 hp, rubber tracks, electric key start, 3+2 gearbox with quick reverse and reversible handlebars: the version for slopes, rough and wet ground, where wheels would spin. The 3-tooth BCS-type quick hitch comes as standard: it takes BCS, Ferrari and Pasquali attachments straight on and, with the adapter, fine-spline (millerighe) attachments too. It weighs 165 kg (364 lb); free delivery within the EU, delivered ready to use.

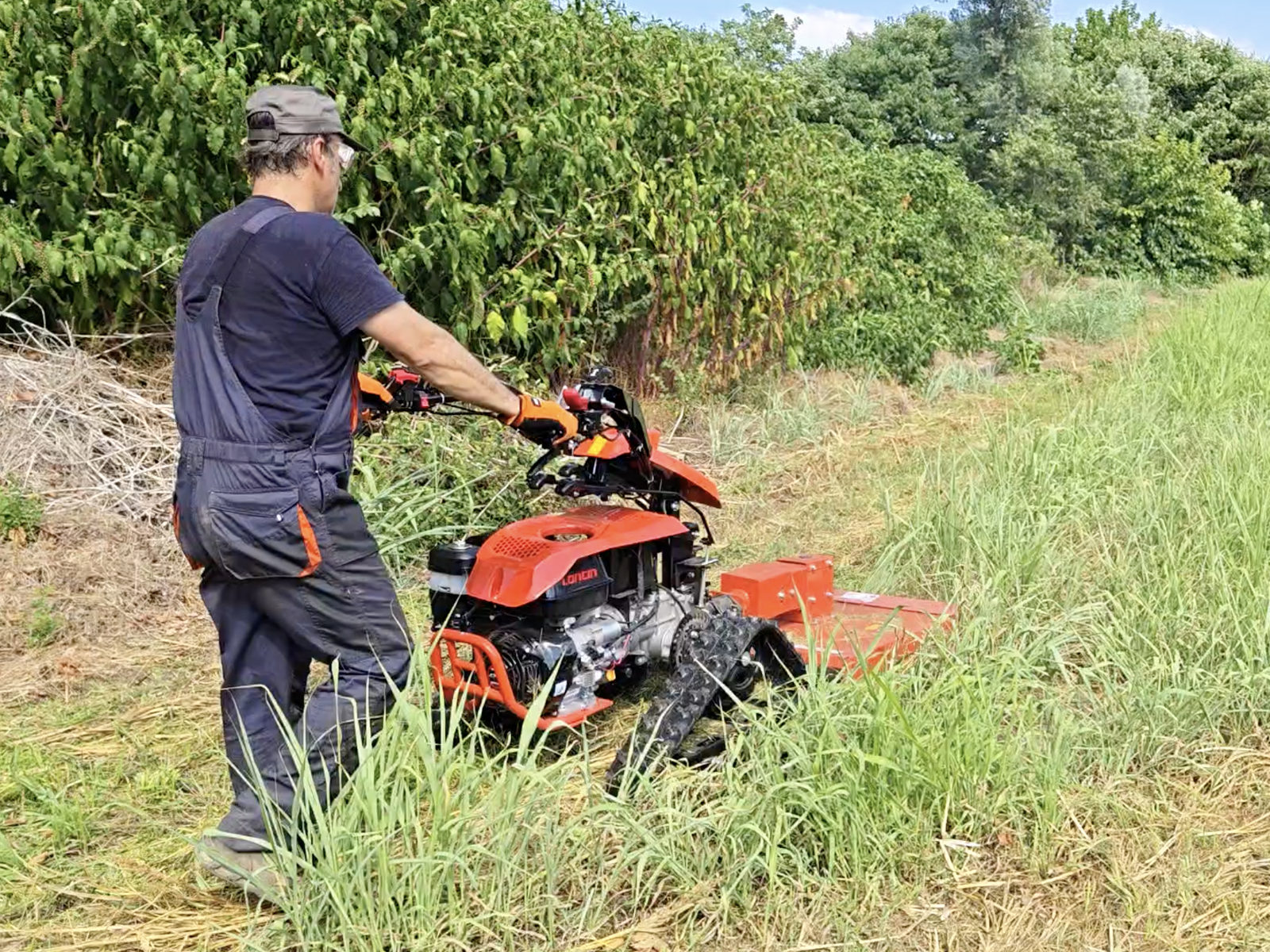

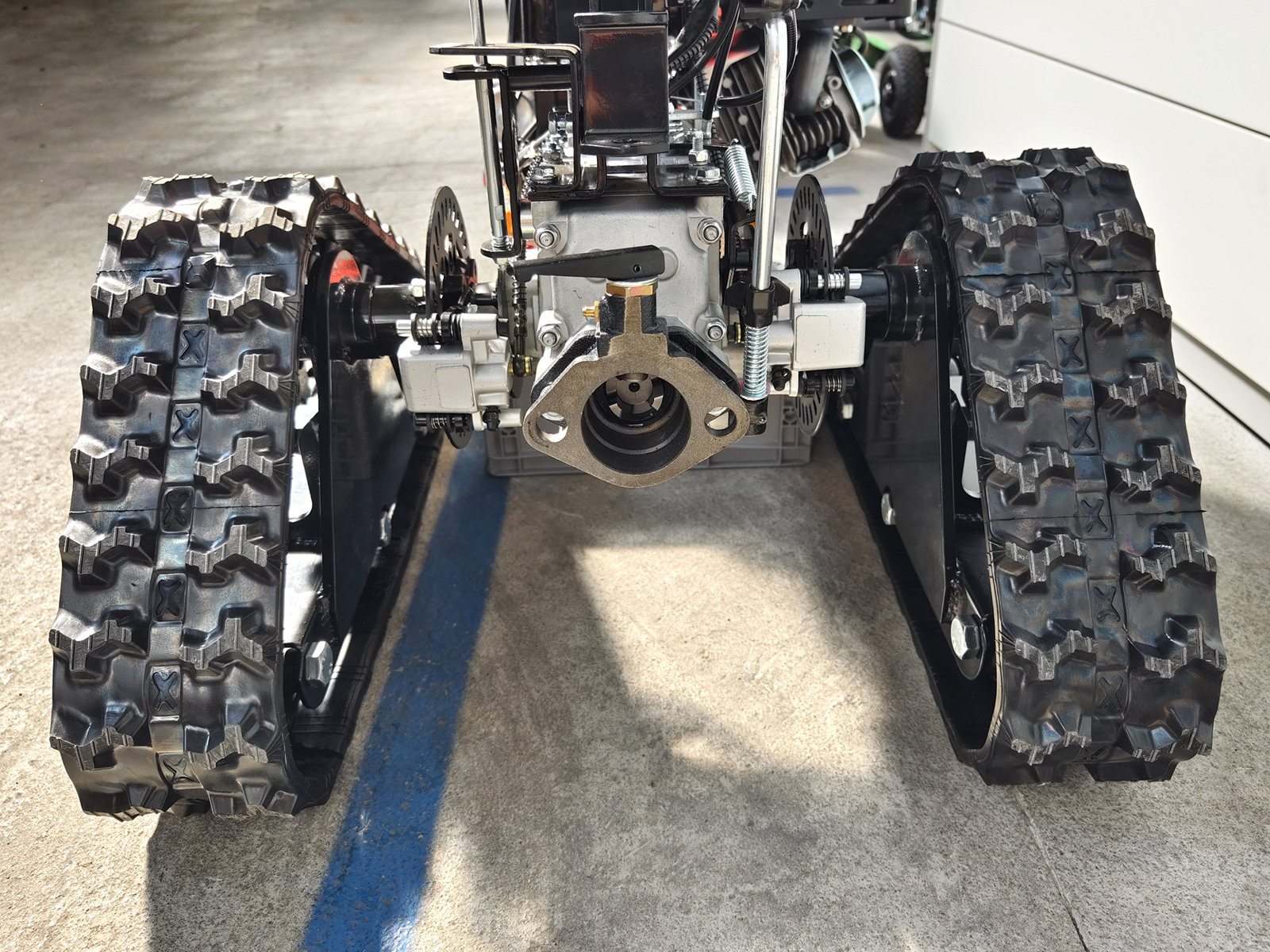

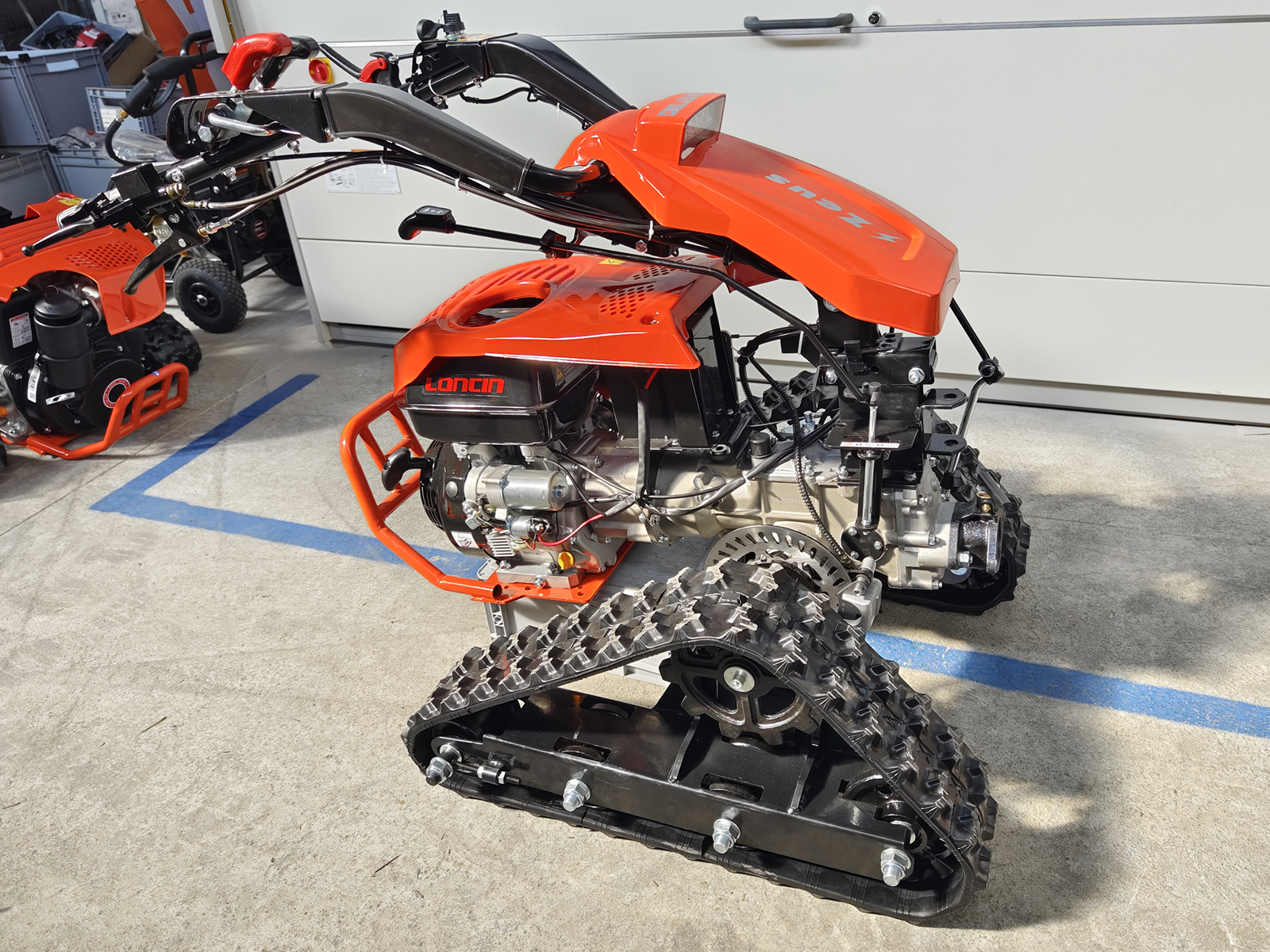

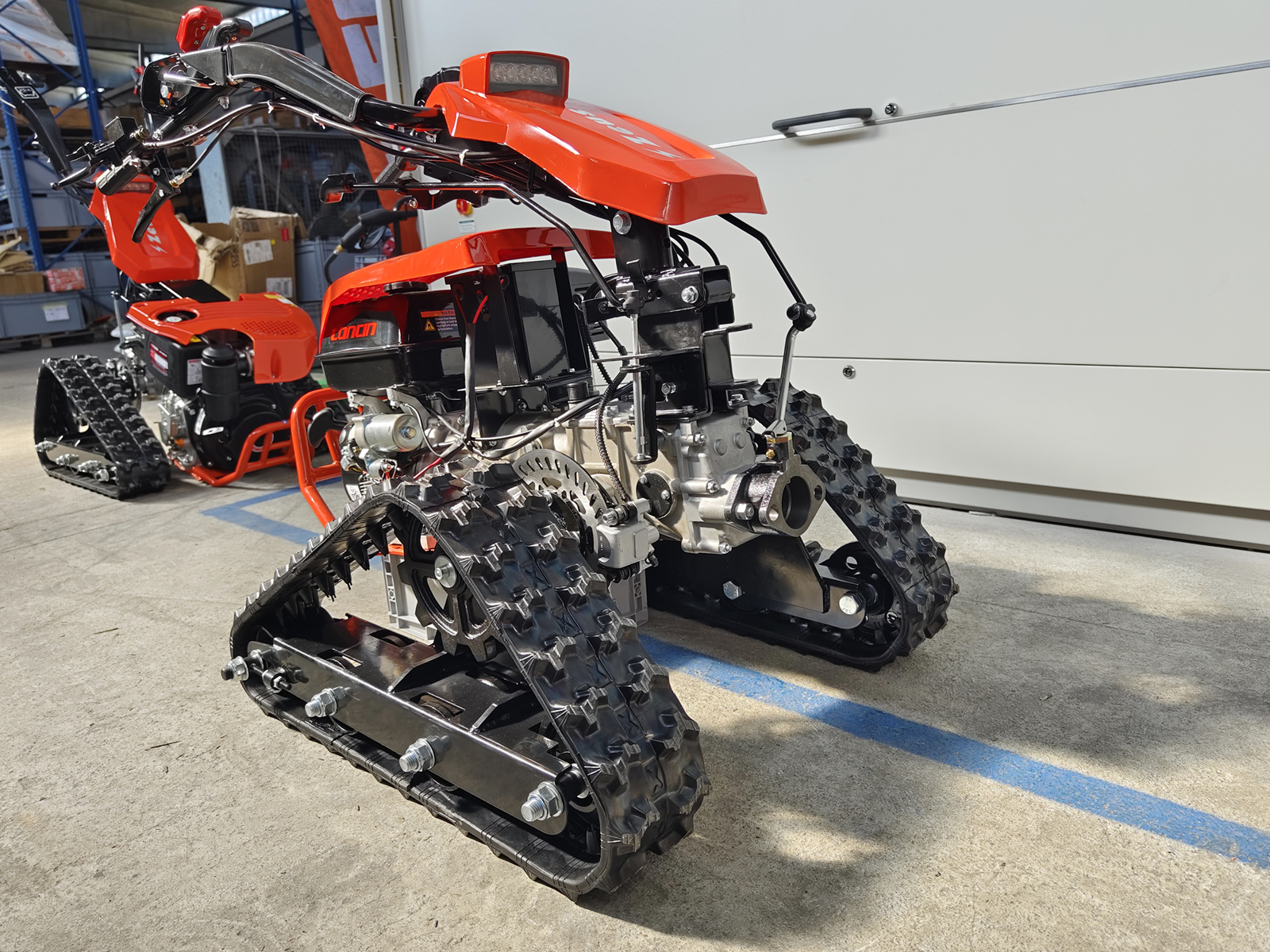

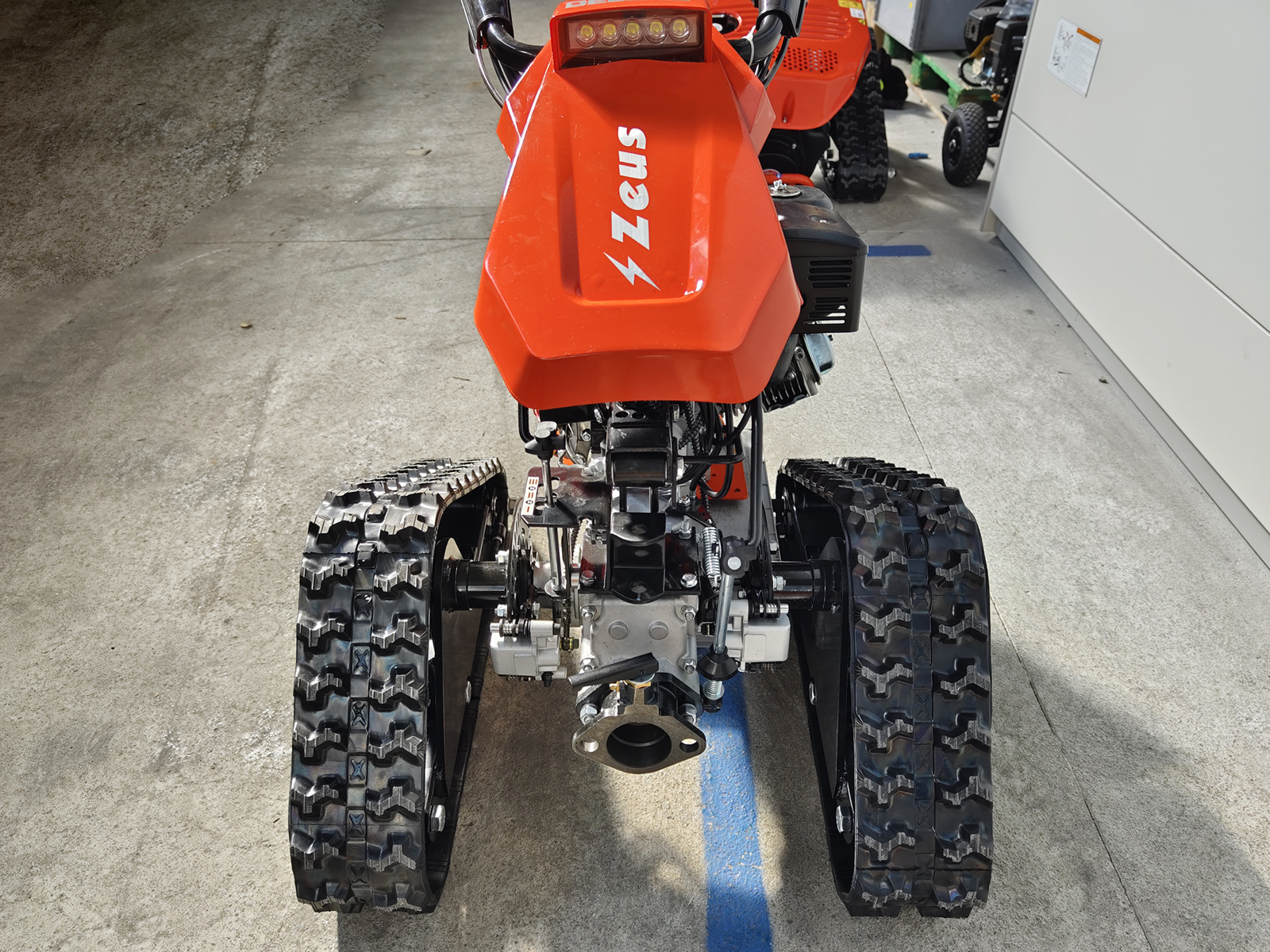

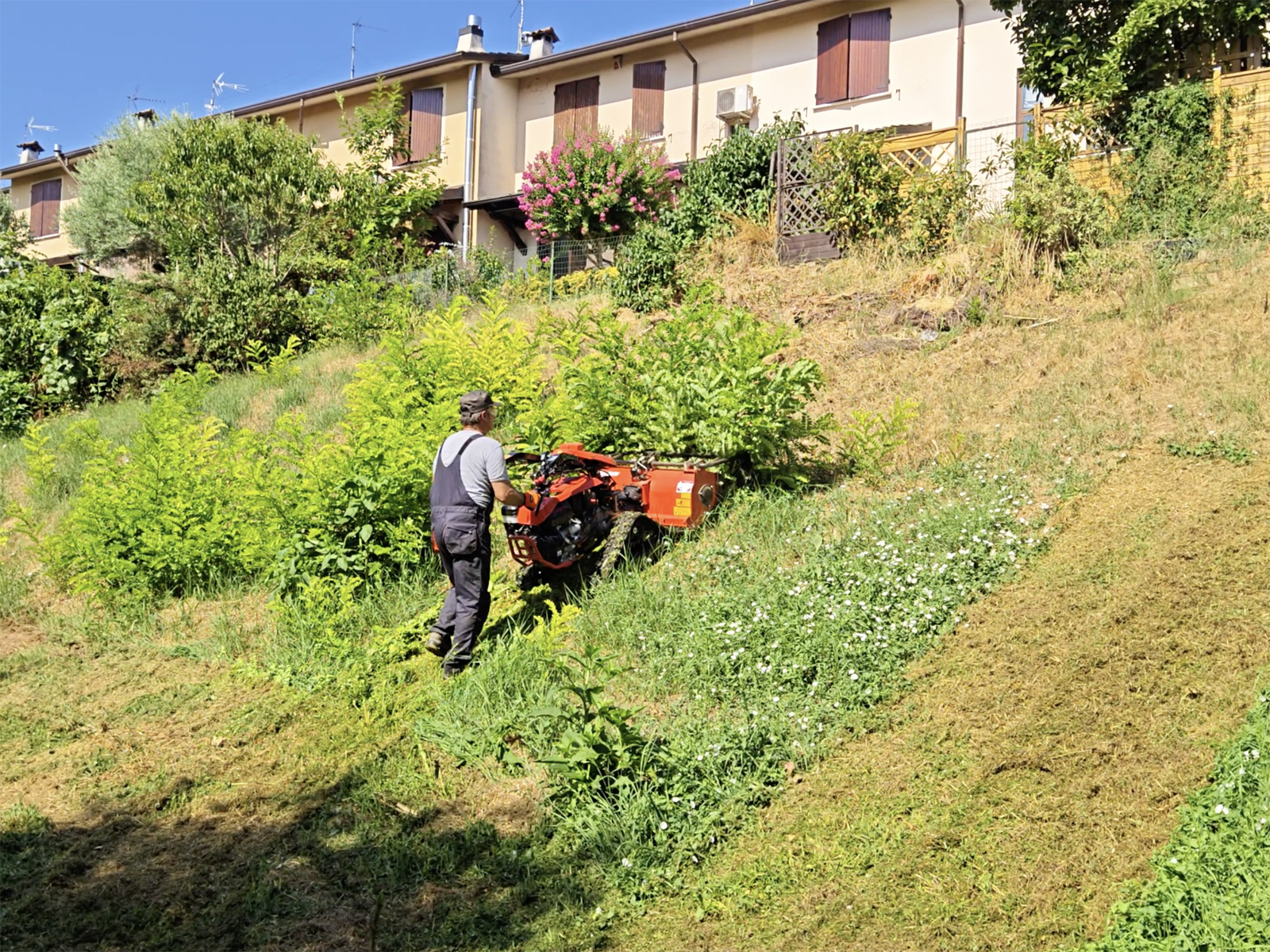

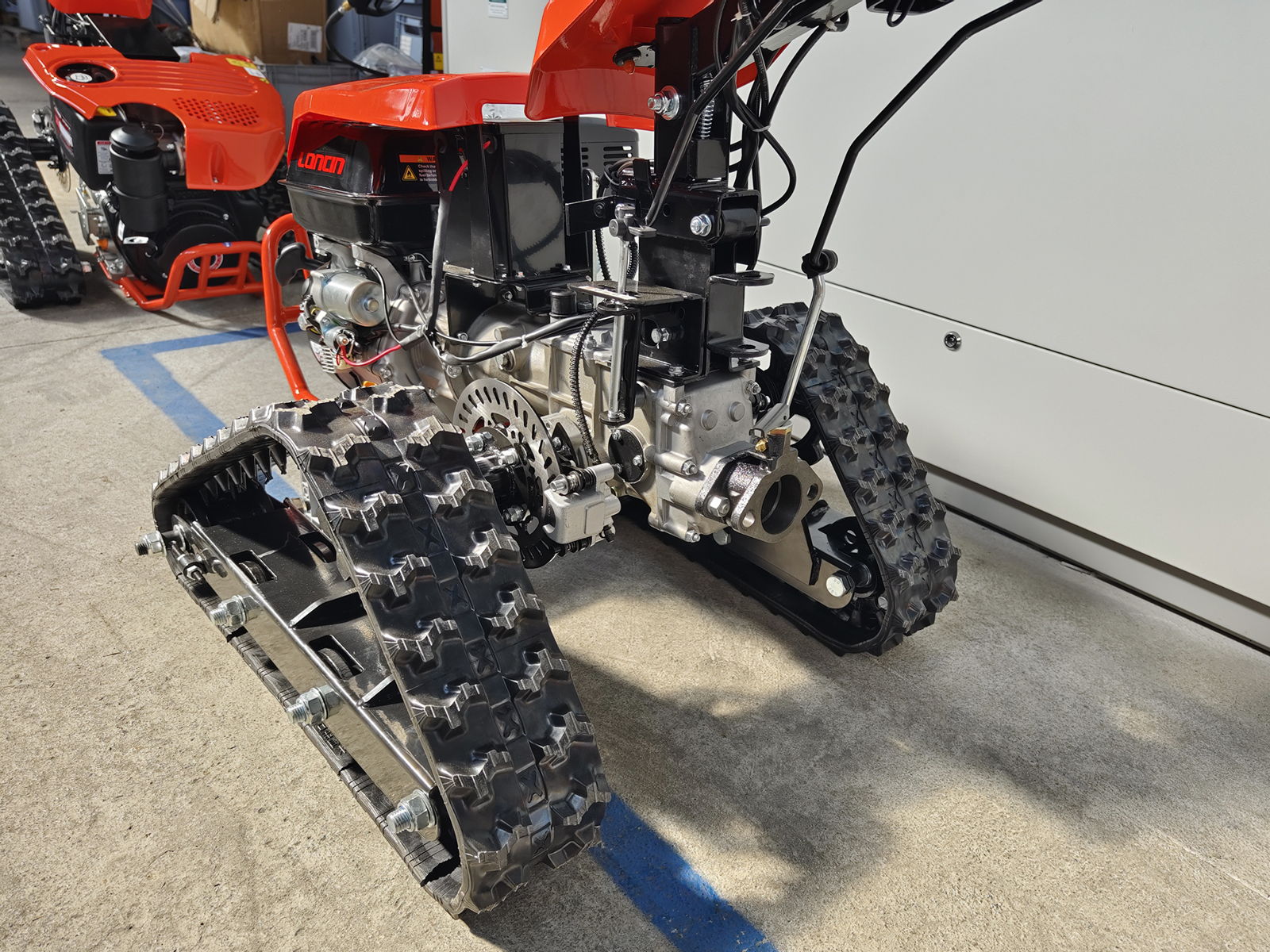

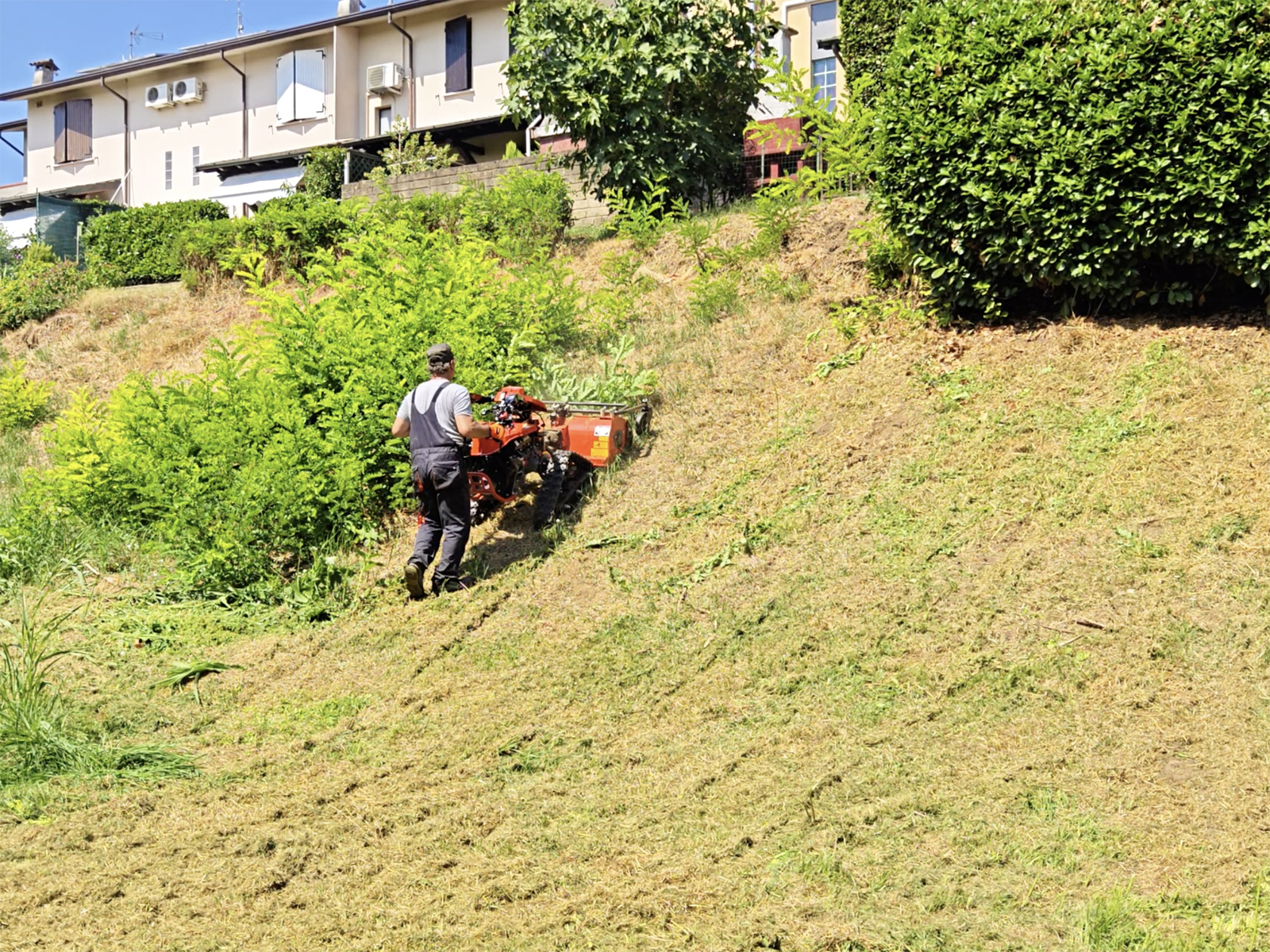

Rubber tracks: stable on slopes
The rubber tracks rest on a far larger footprint than wheels: the machine does not spin on wet grass, does not sink into soft ground and stays stable working across a slope. It is the set-up for mowing and flail mowing on hillsides, for sloping vineyards and orchards and for rough ground, where its 165 kg (364 lb) work in favour of grip.

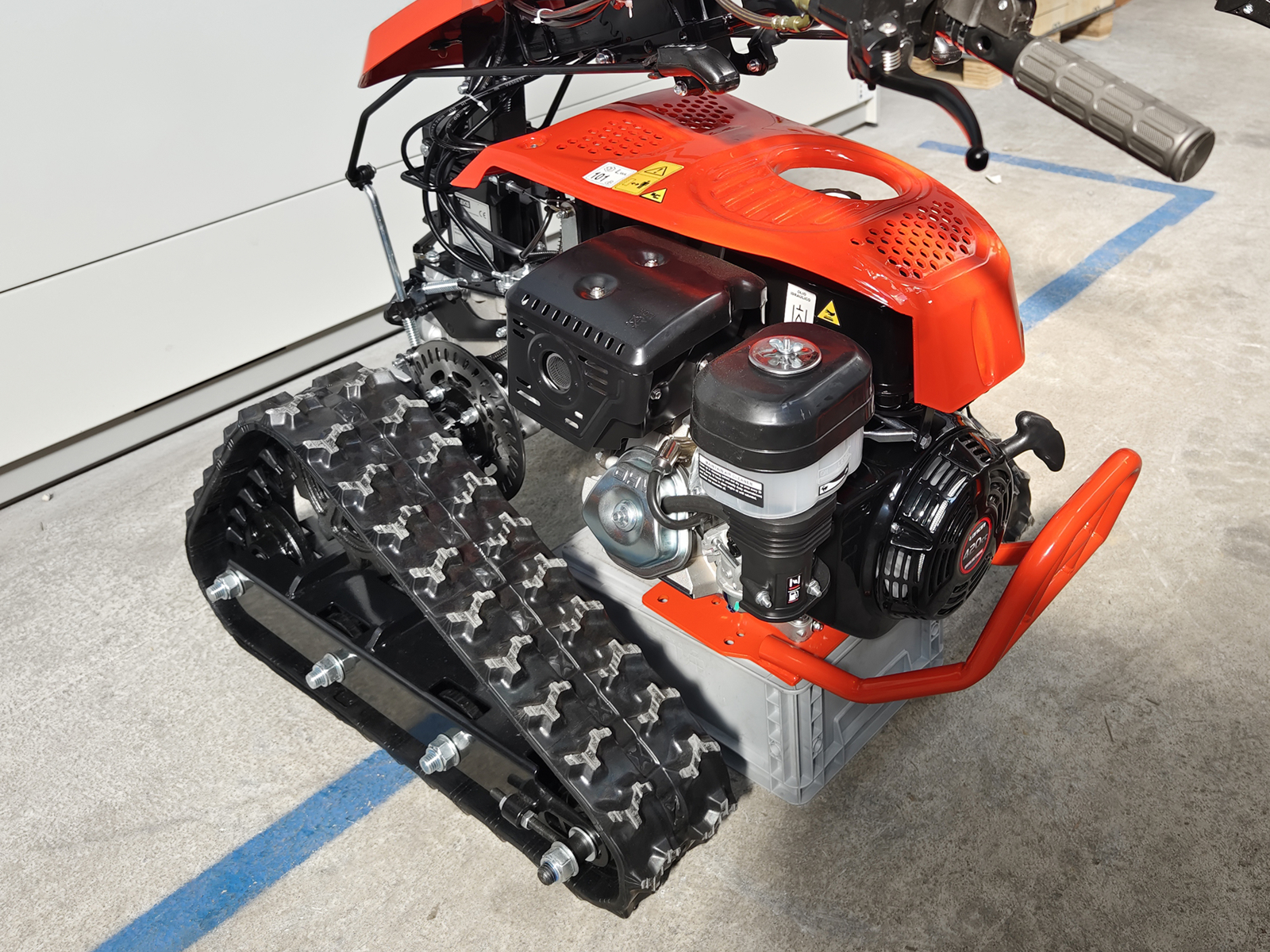

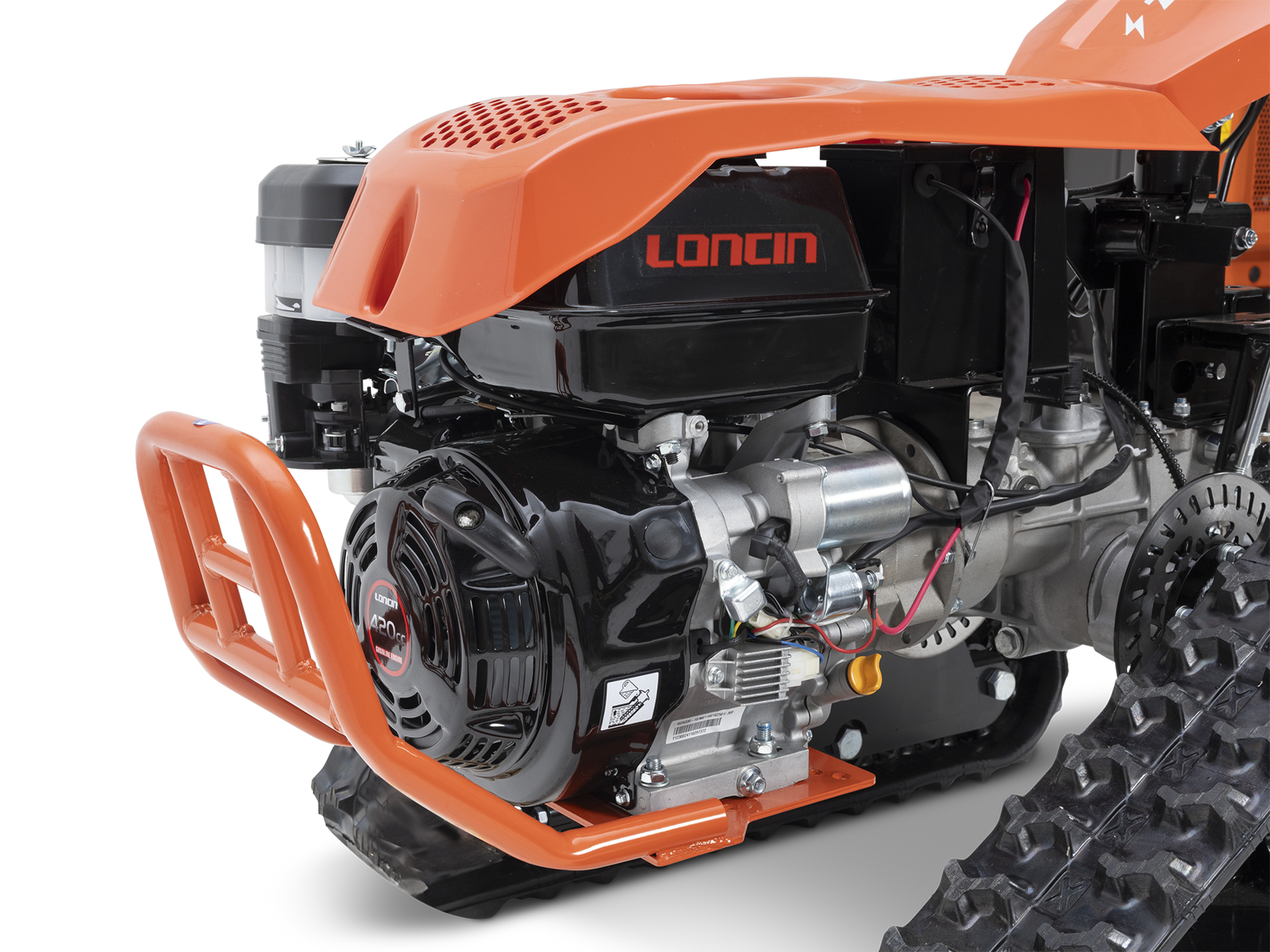

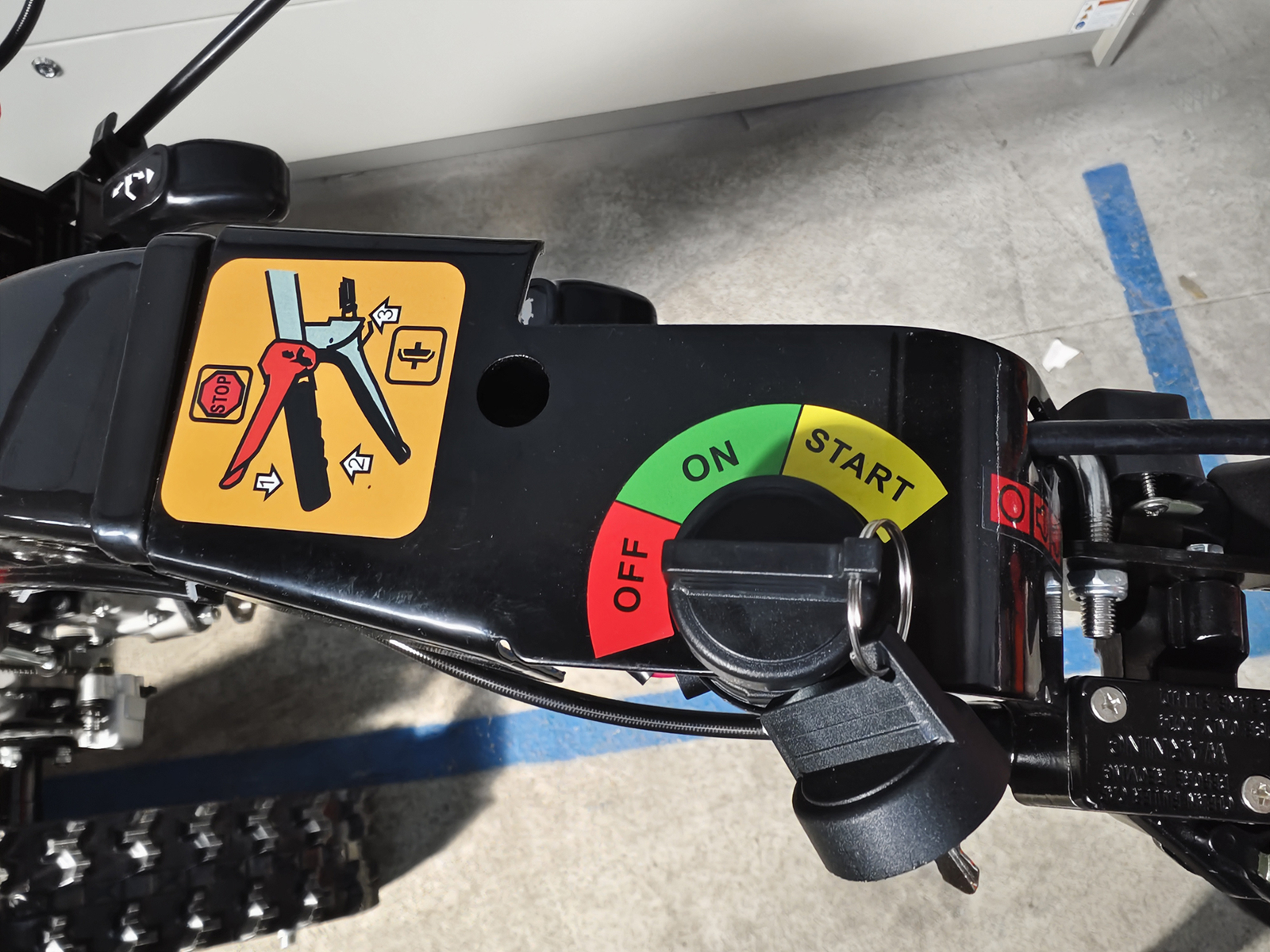

Loncin 14 hp engine with electric start
The 420 cc Loncin petrol engine gives 14 hp, the highest output in the ZEUS range: with the flail mower in tall grass going uphill you feel the torque in reserve. Electric key start with a recoil starter as back-up; petrol everywhere and light maintenance.

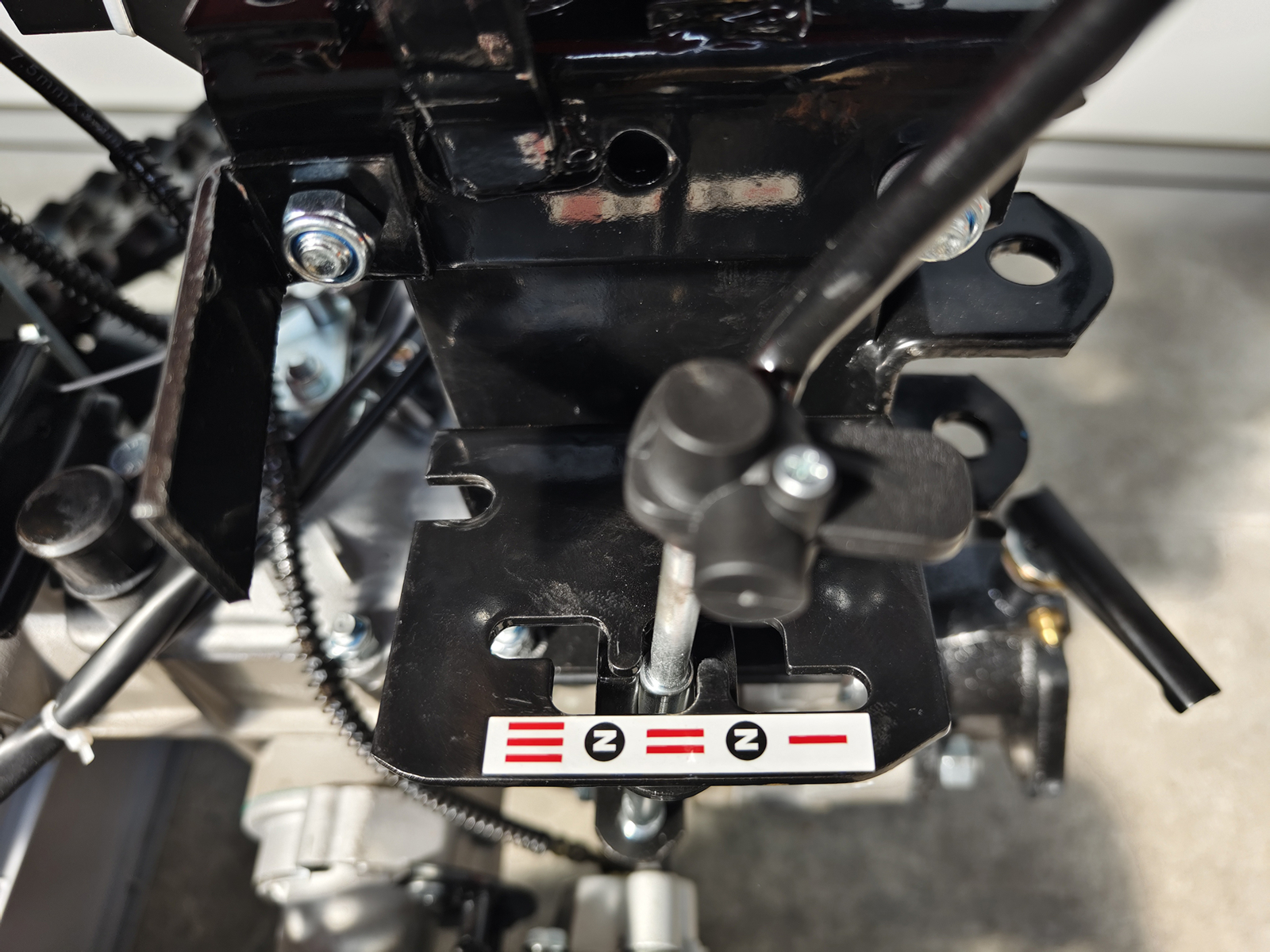

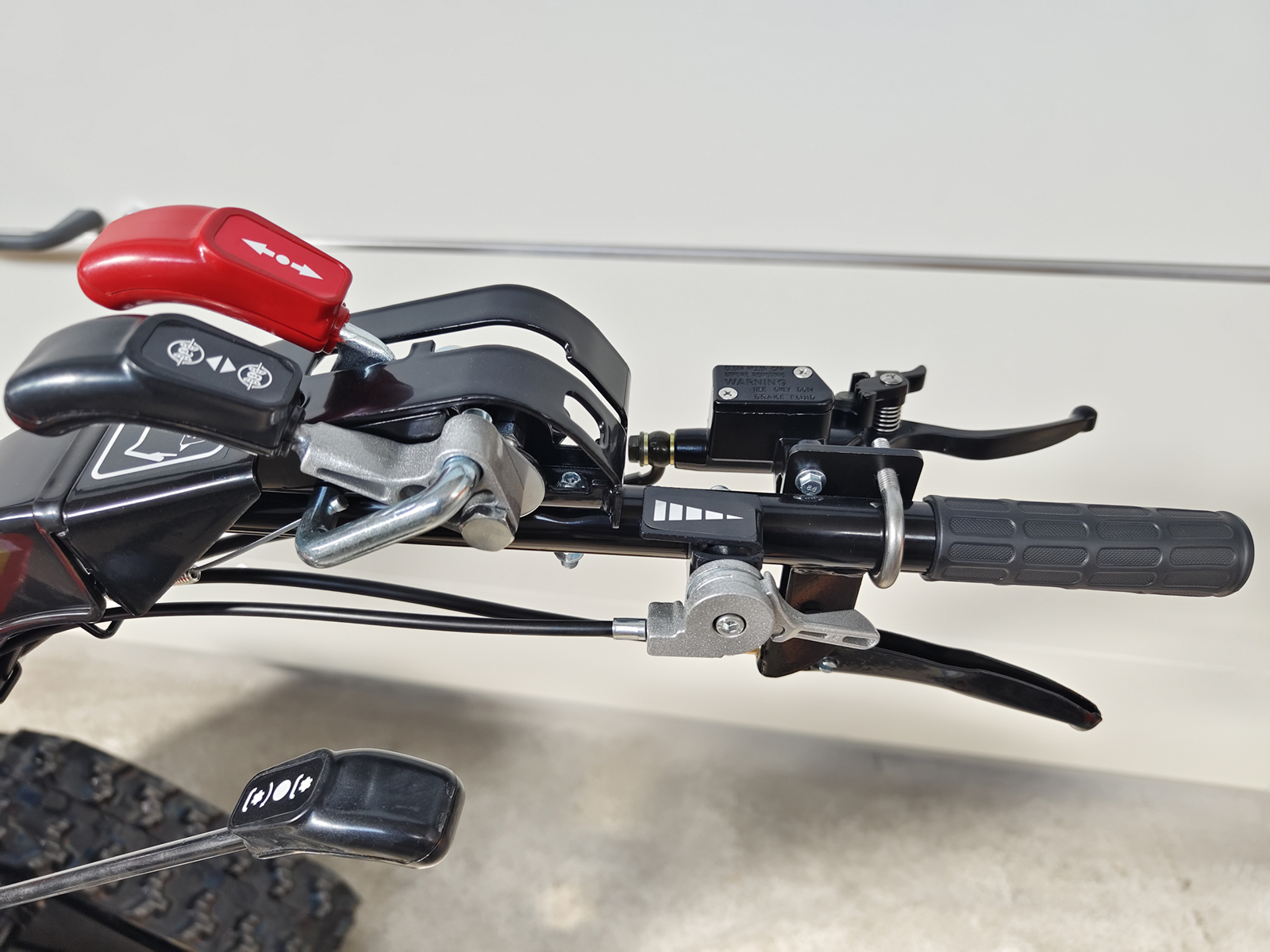

3+2 gearbox with quick reverse
Three forward gears and two reverse, quick reverse to change direction without changing gear, gears in an oil bath and a 990 rpm PTO, turning clockwise, independent of the drive.

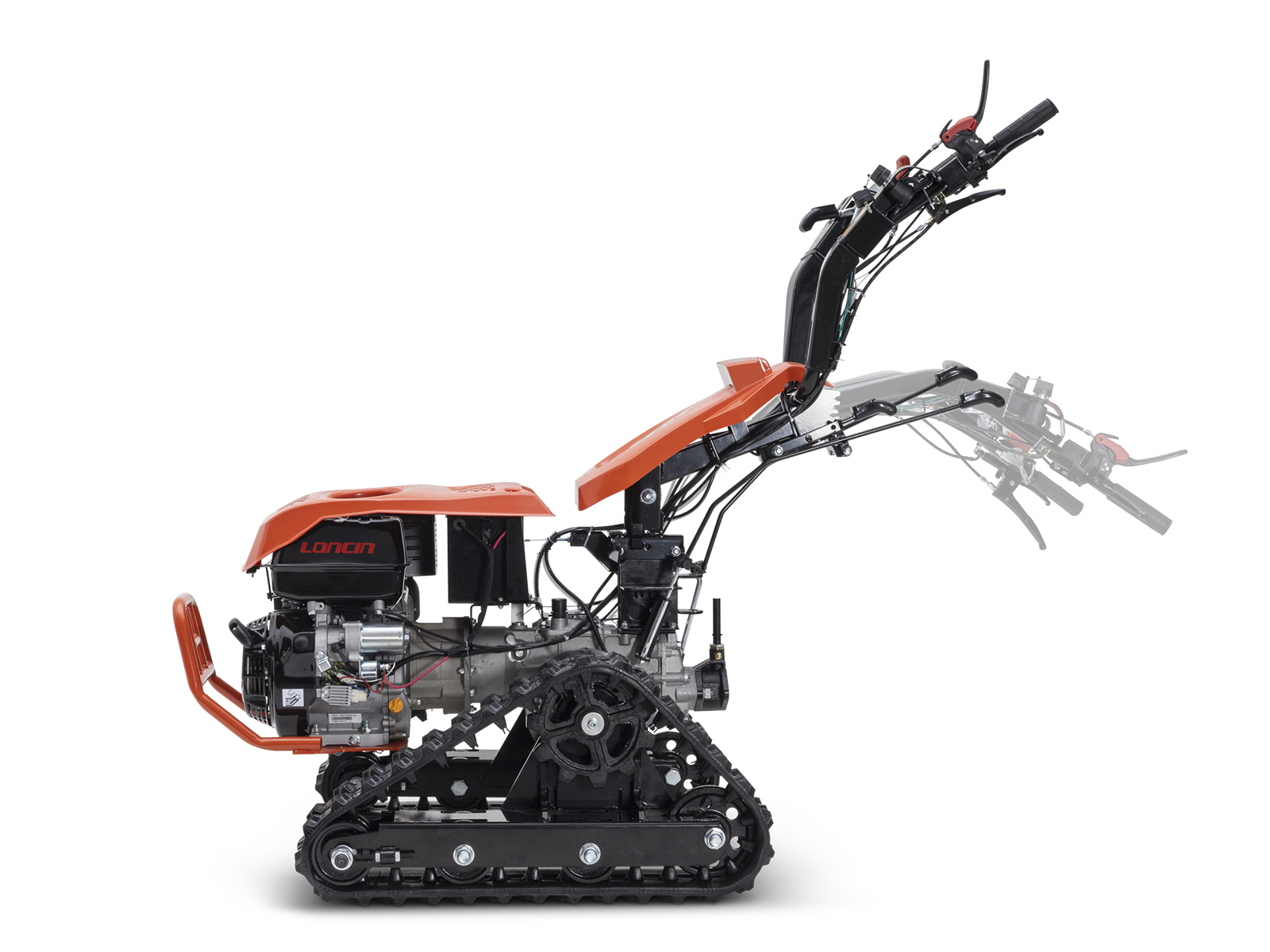

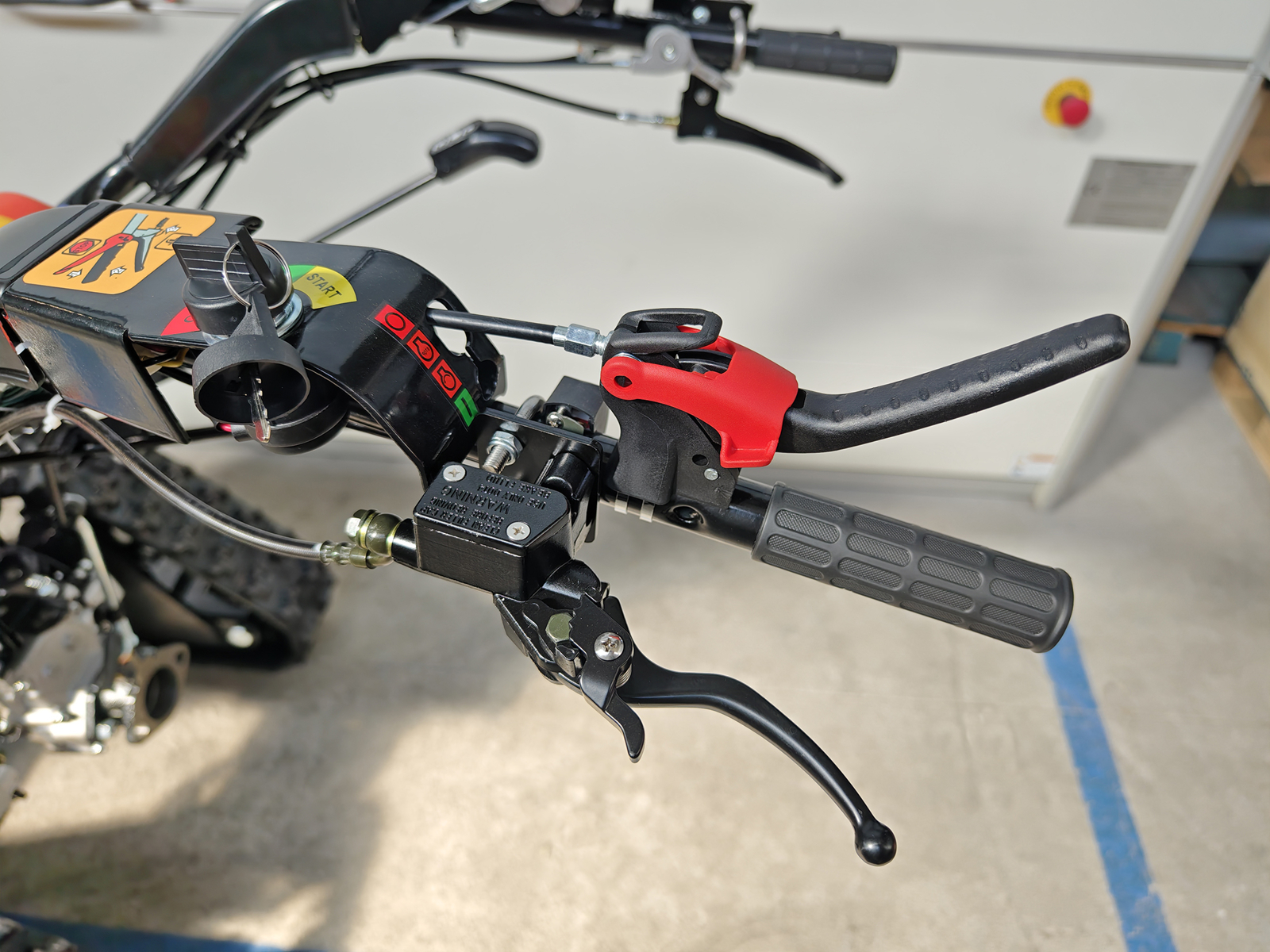

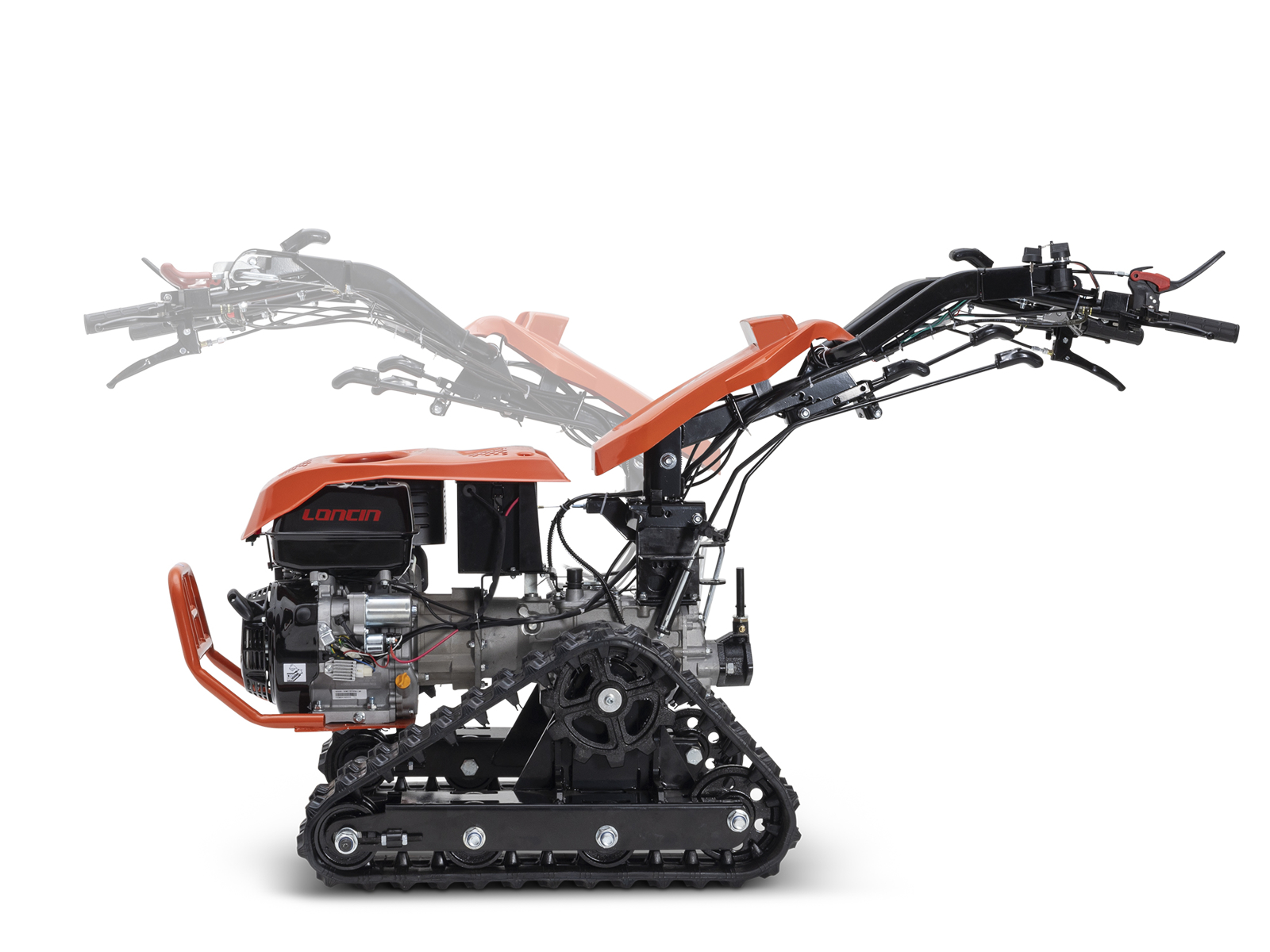

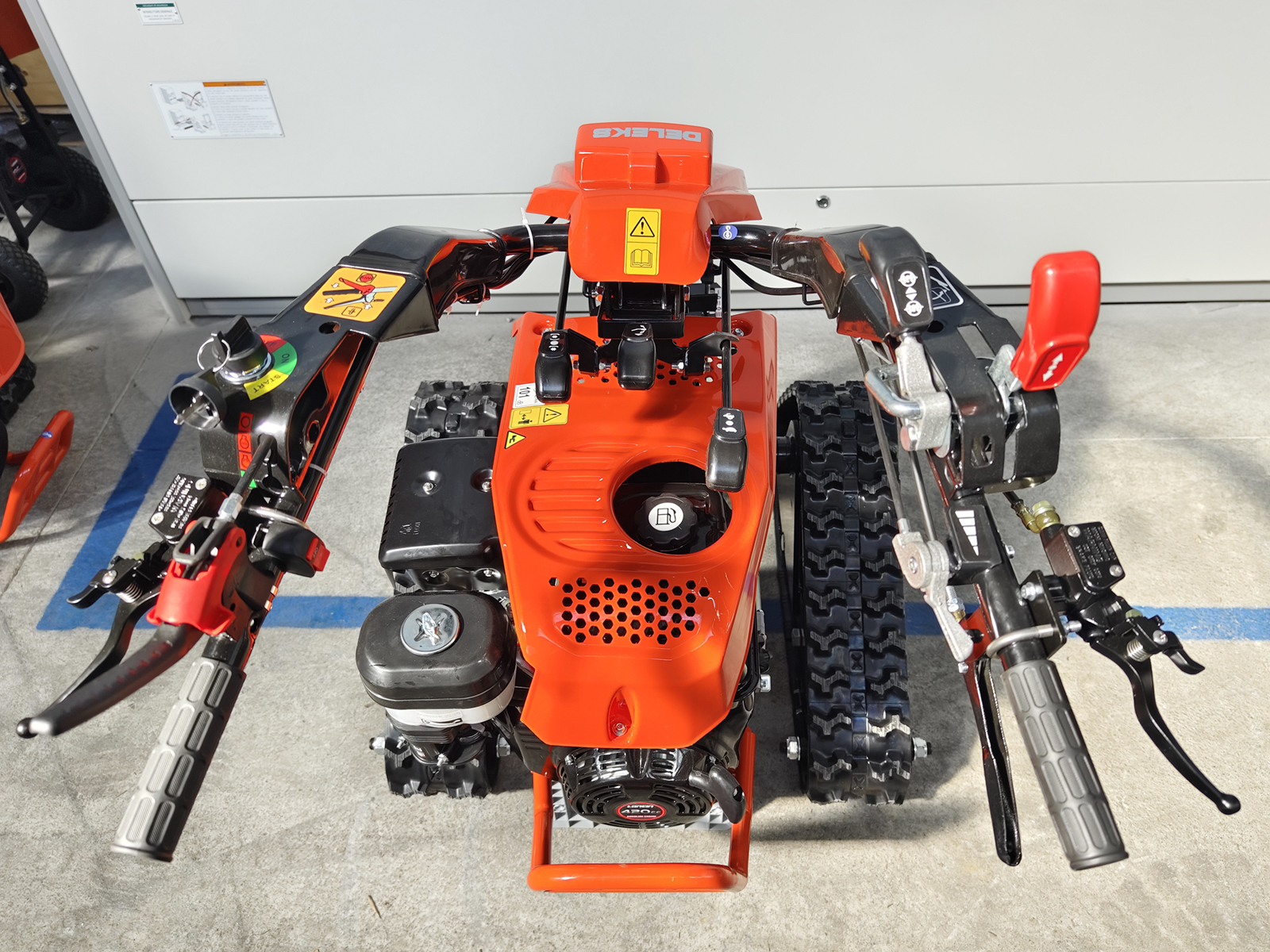

Handlebars reversible through 180°
The handlebars swing through 180°: with rear attachments (rotavator, plough, ridger) you work one way, with front attachments (cutter bar, flail mower, sweeper, snow blower) the other. They adjust for height and sideways, so you can stay on the uphill side when working across a slope.

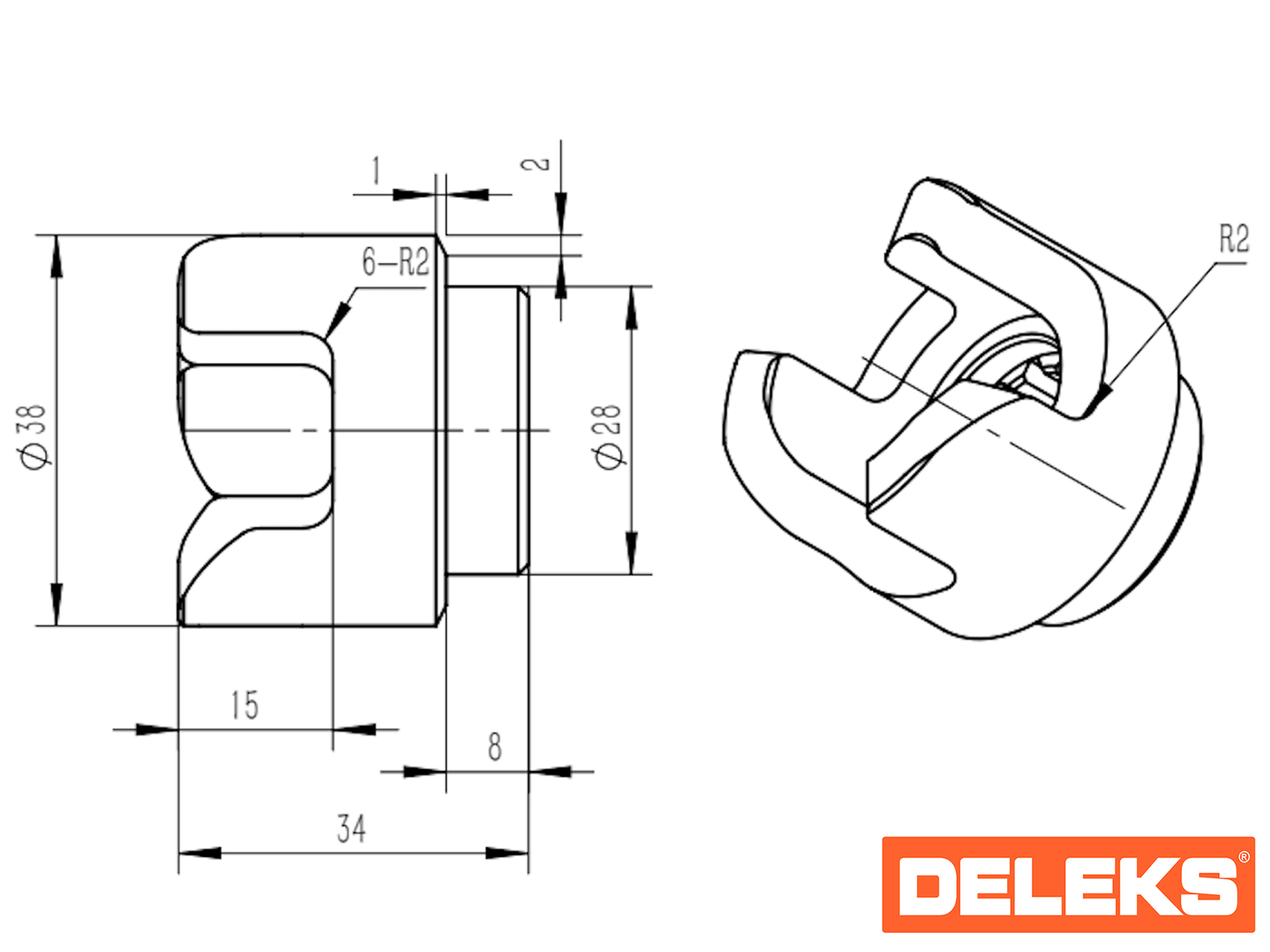

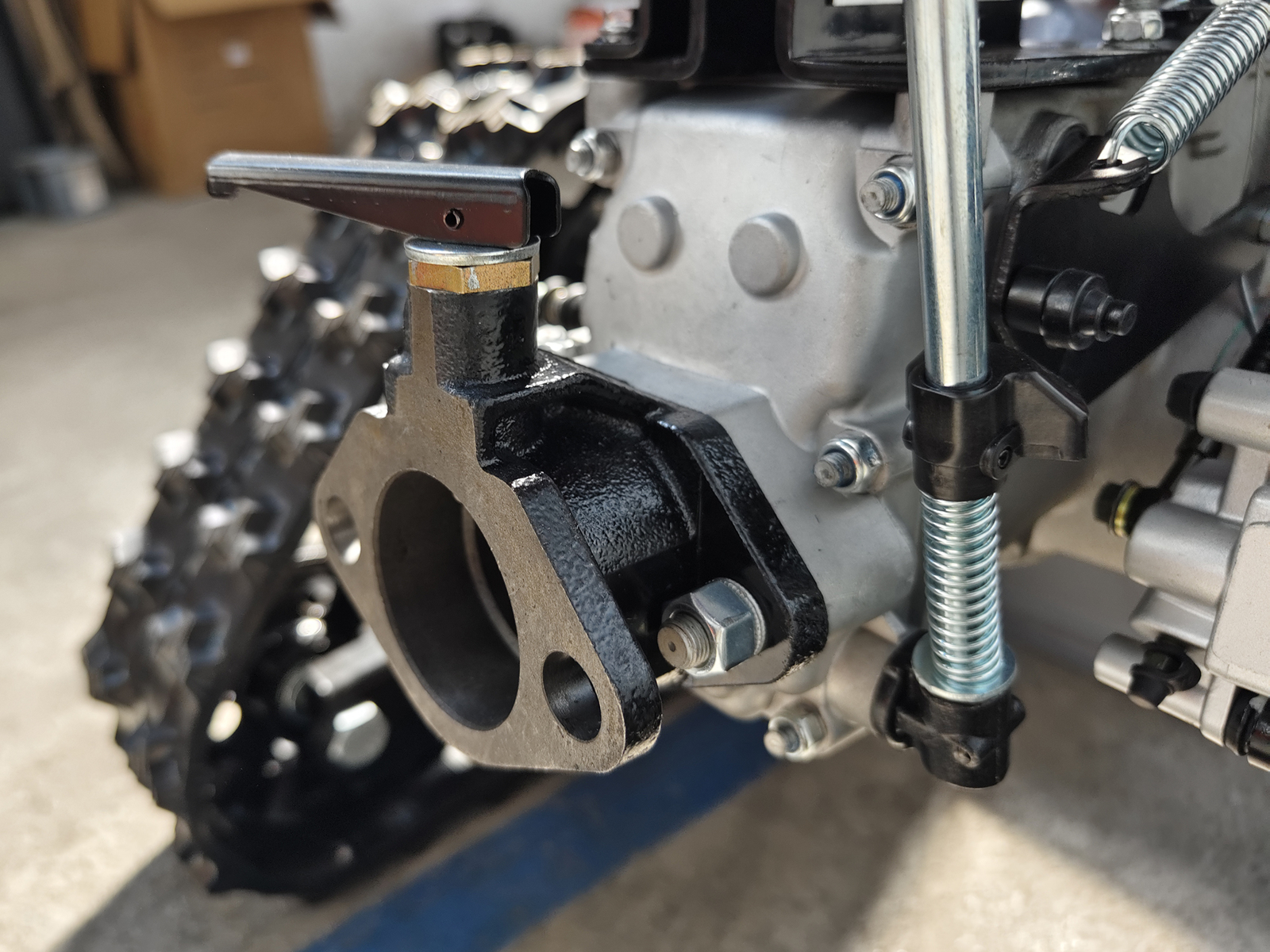

3-tooth BCS-type quick hitch, fine-spline with adapter
The female half of the 3-tooth quick hitch comes fitted to the tractor; every DELEKS® attachment already has its male half and changes over in seconds, with no tools. It is the same hitch as BCS, Ferrari and Pasquali, so attachments from those makes fit straight on; for fine-spline (millerighe) attachments there is the adapter. The attachments are the same as for the wheeled versions.
Pre-delivery check and shipping
Before shipping, the DELEKS® logistics centre checks the assembly, the engine and gearbox oil levels, the greasing and the controls, then secures the machine in a sealed wooden crate for transport. Delivery is free within the EU and the tractor arrives ready to use.
Fields of application

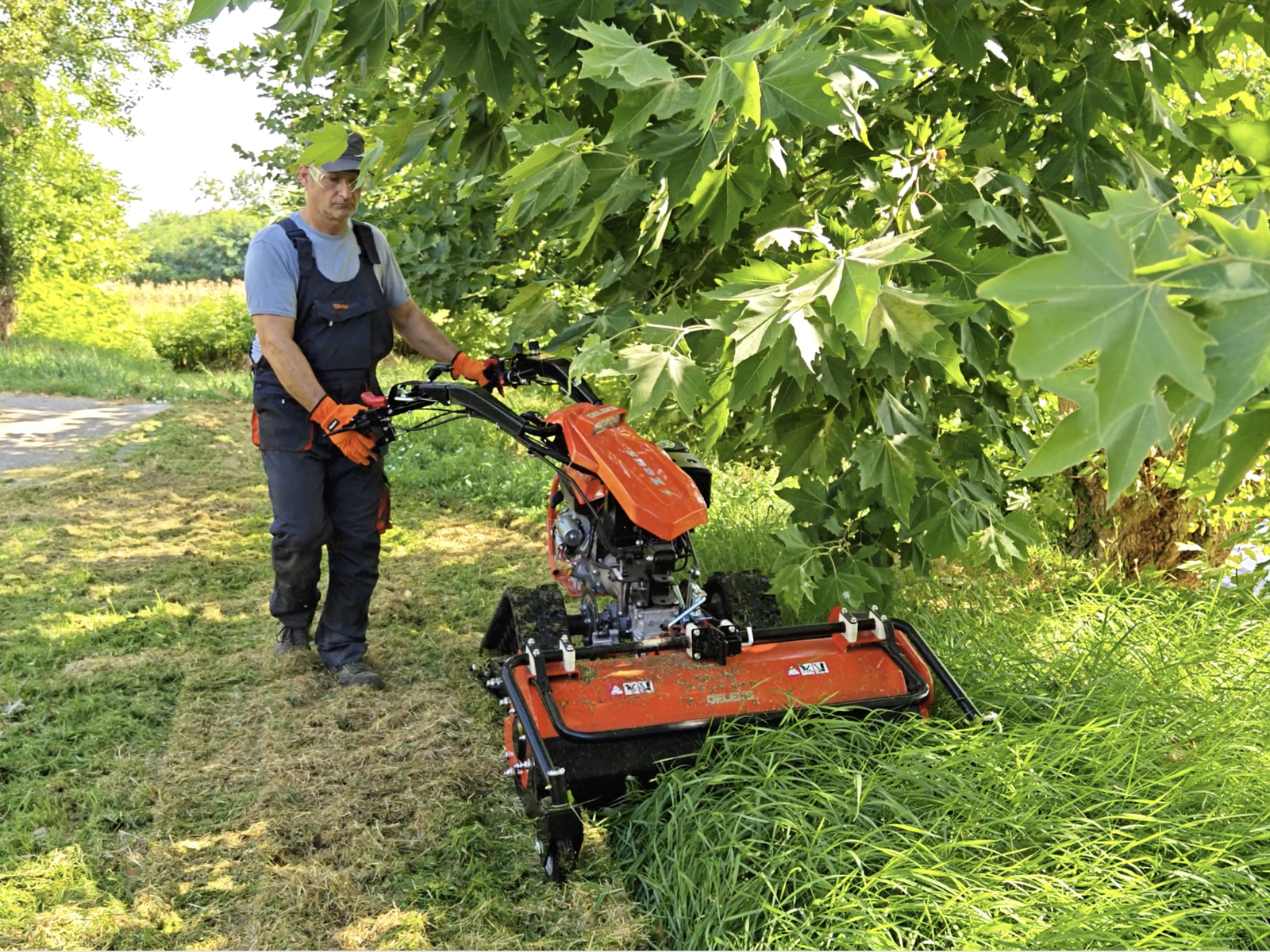

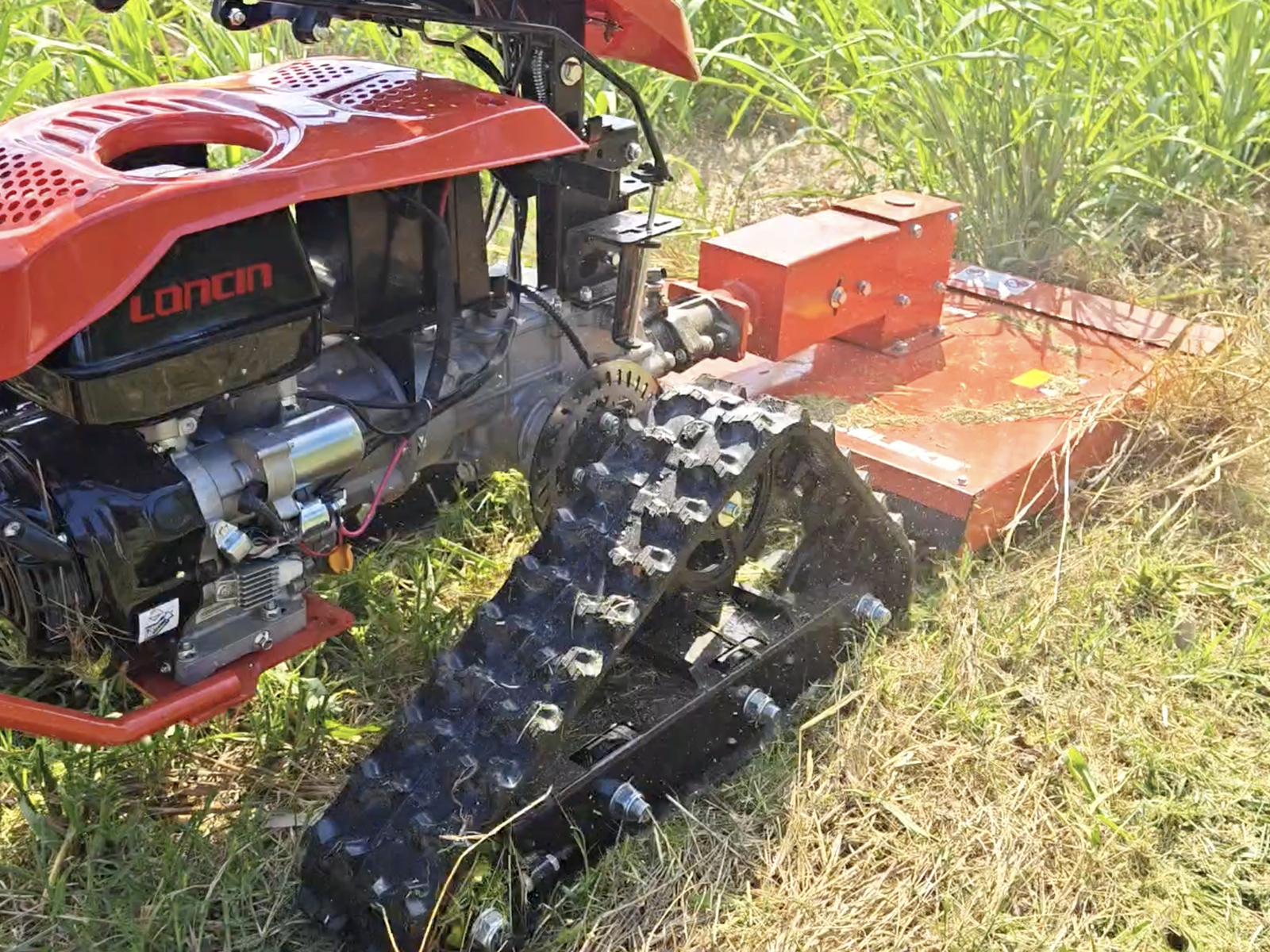

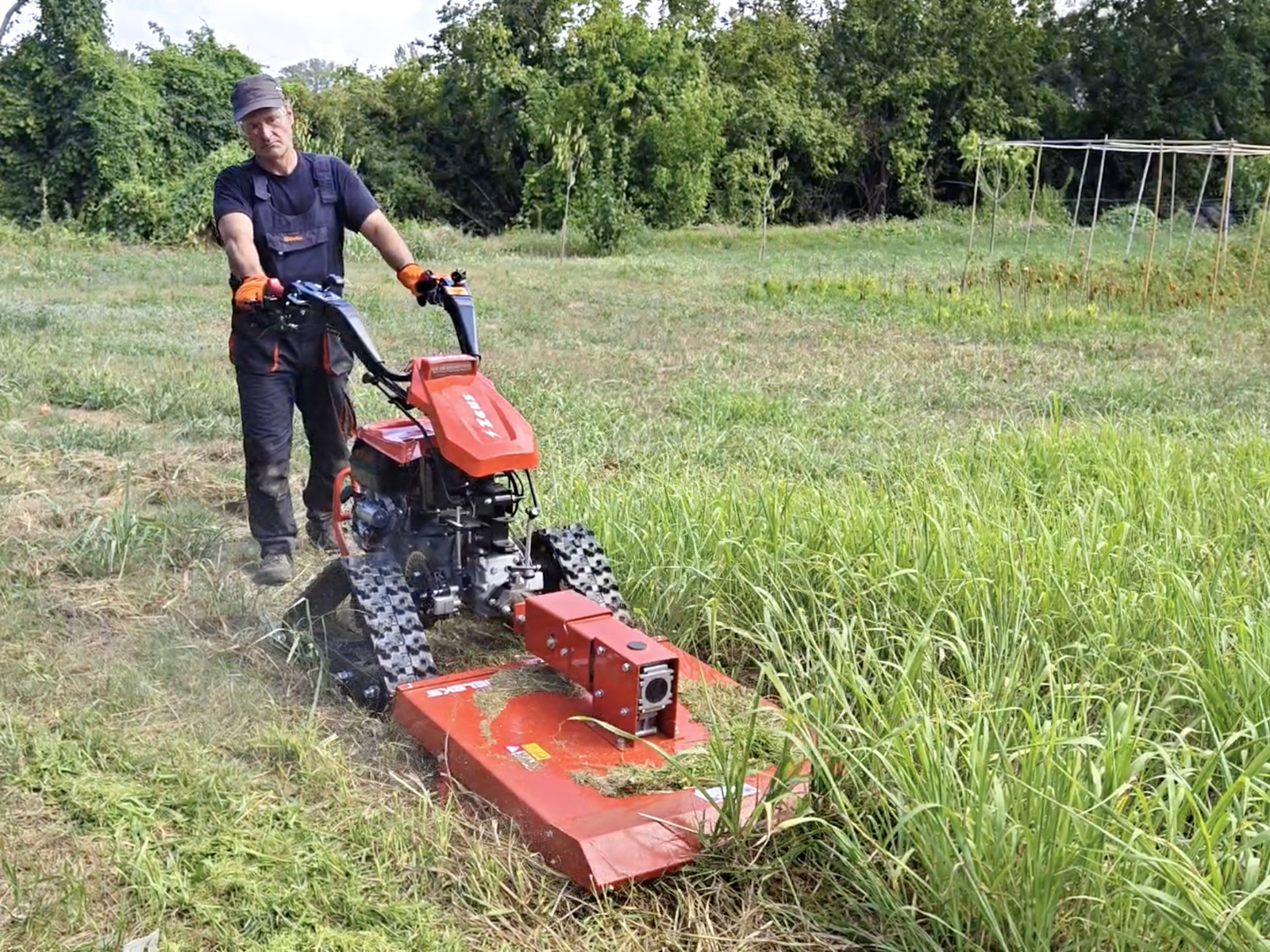

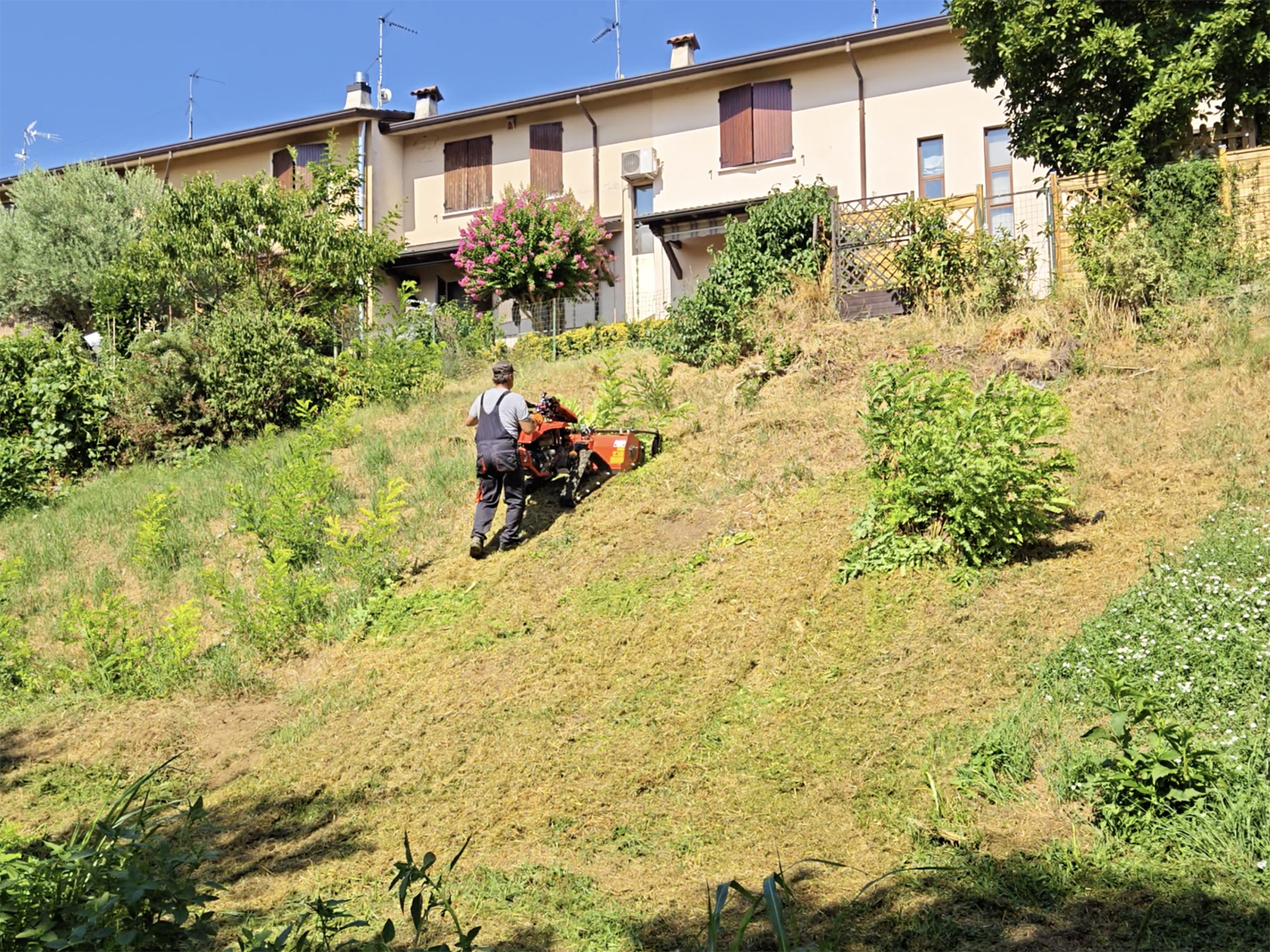

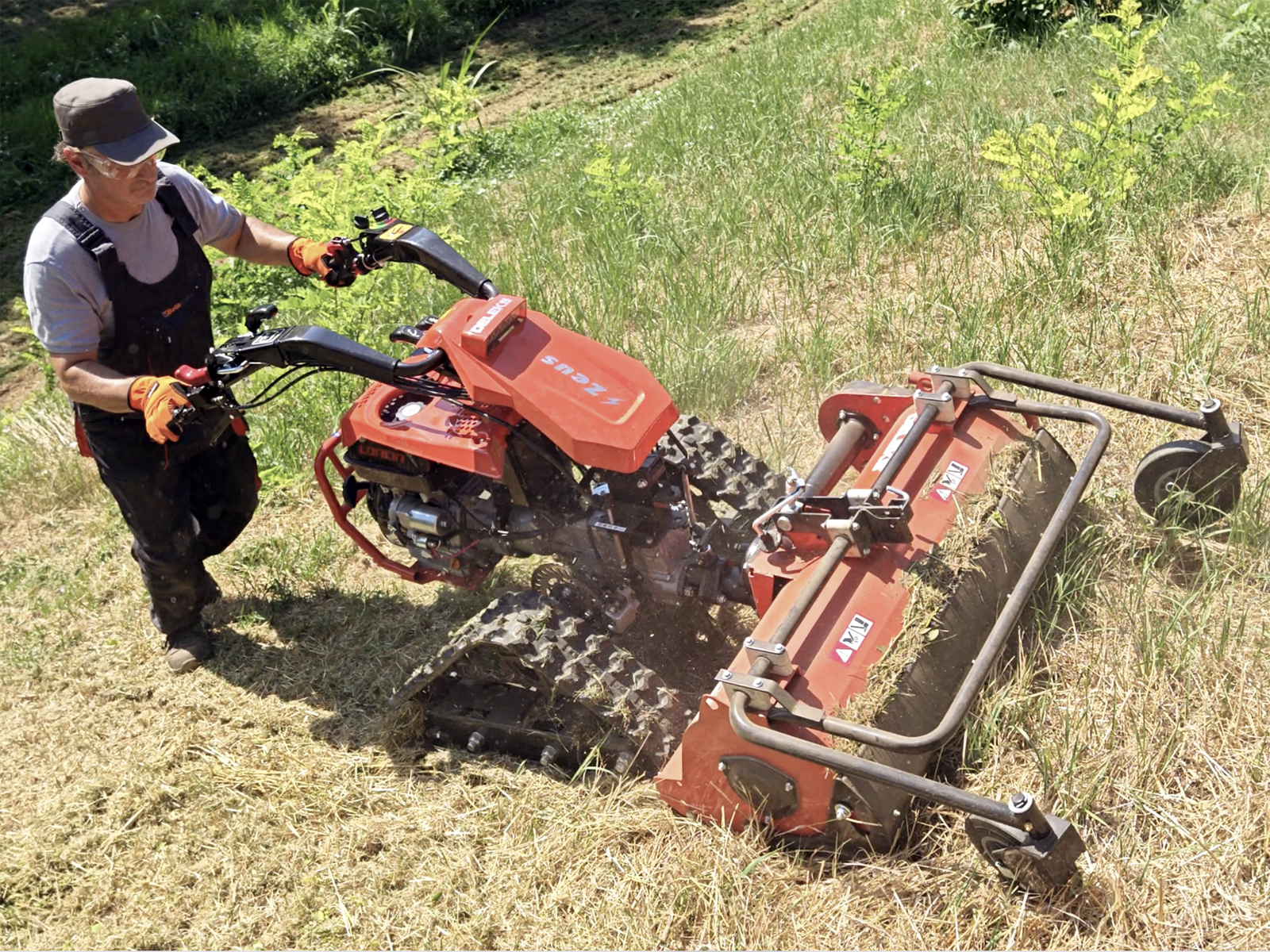

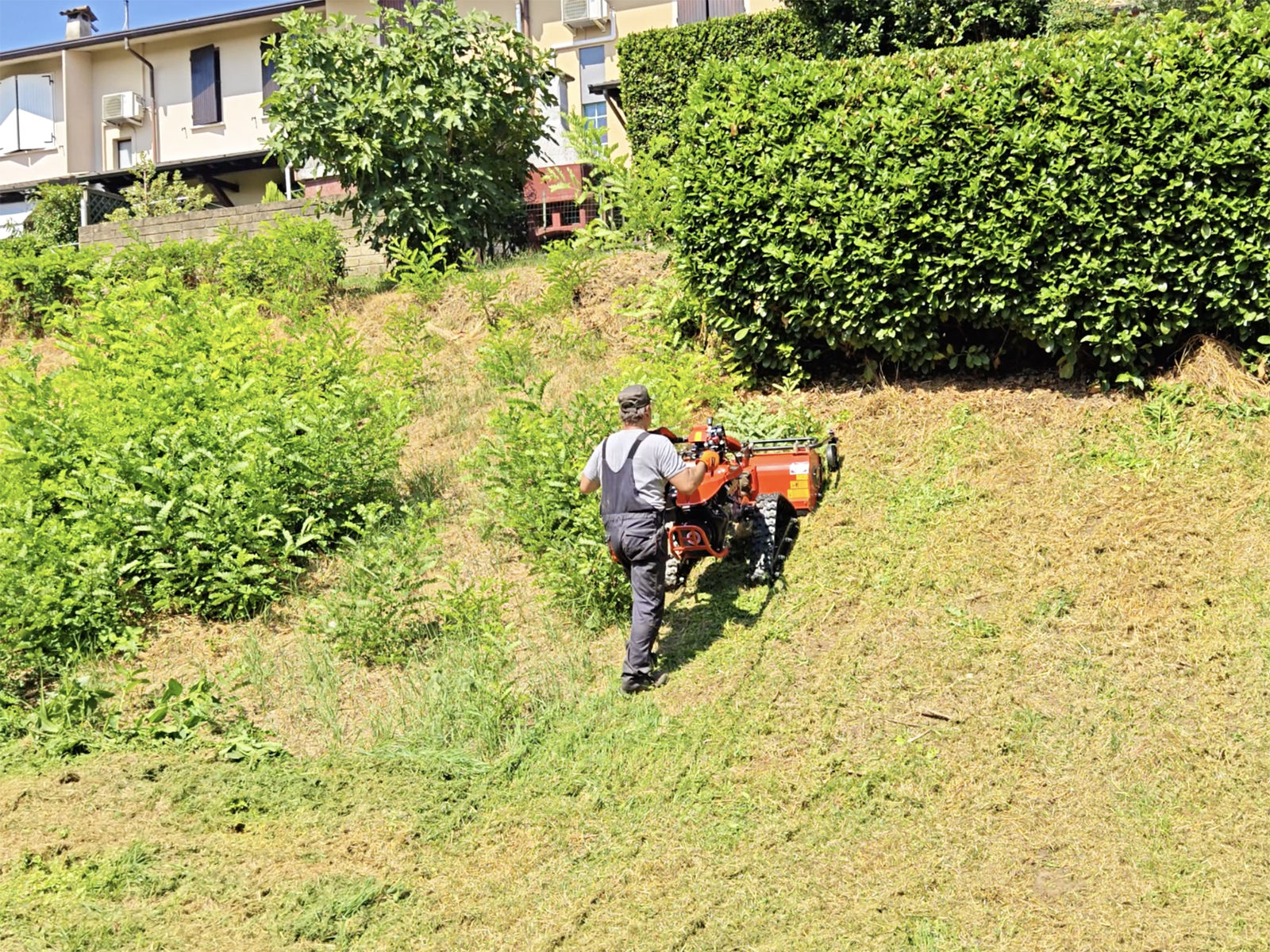

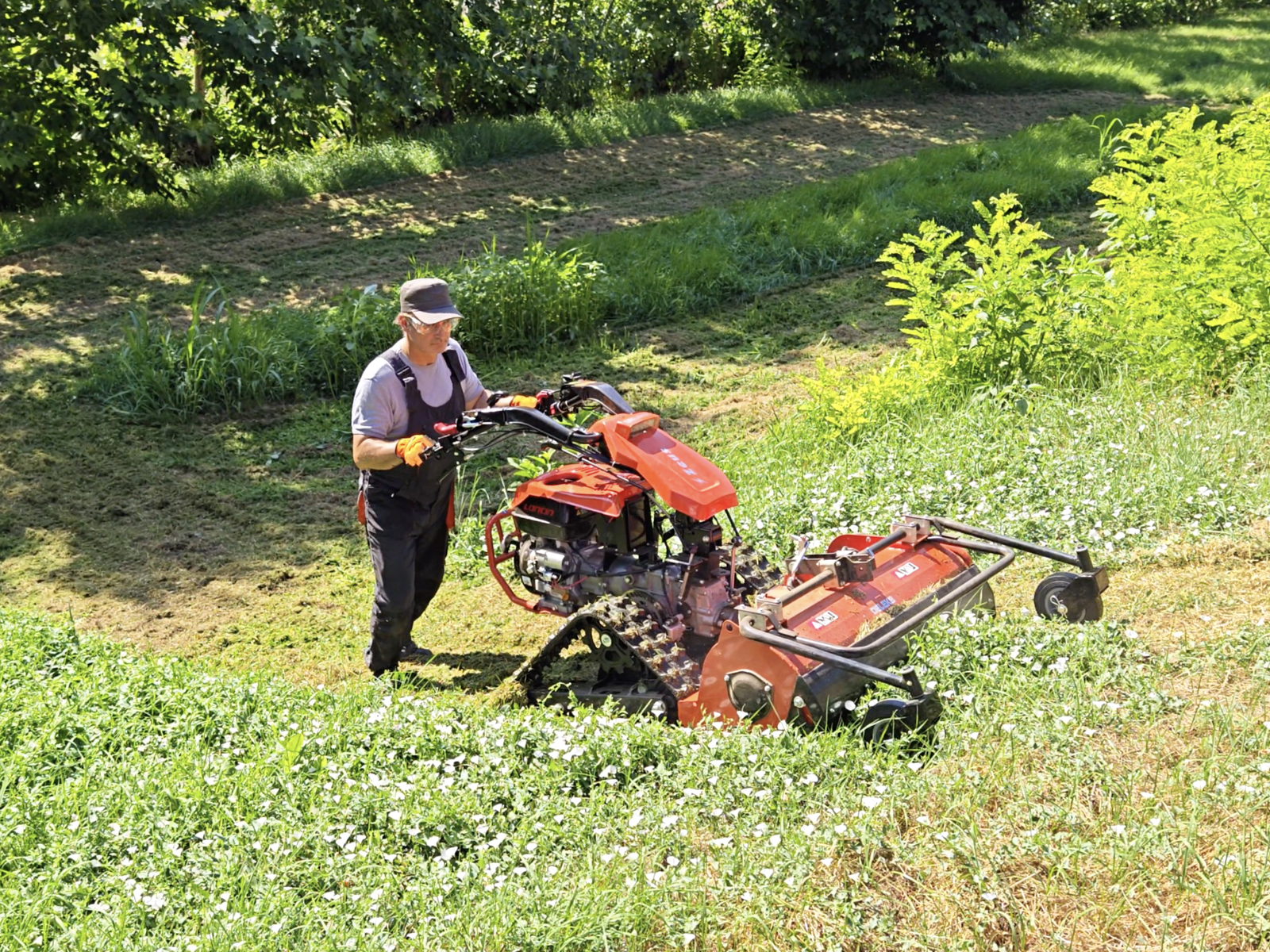

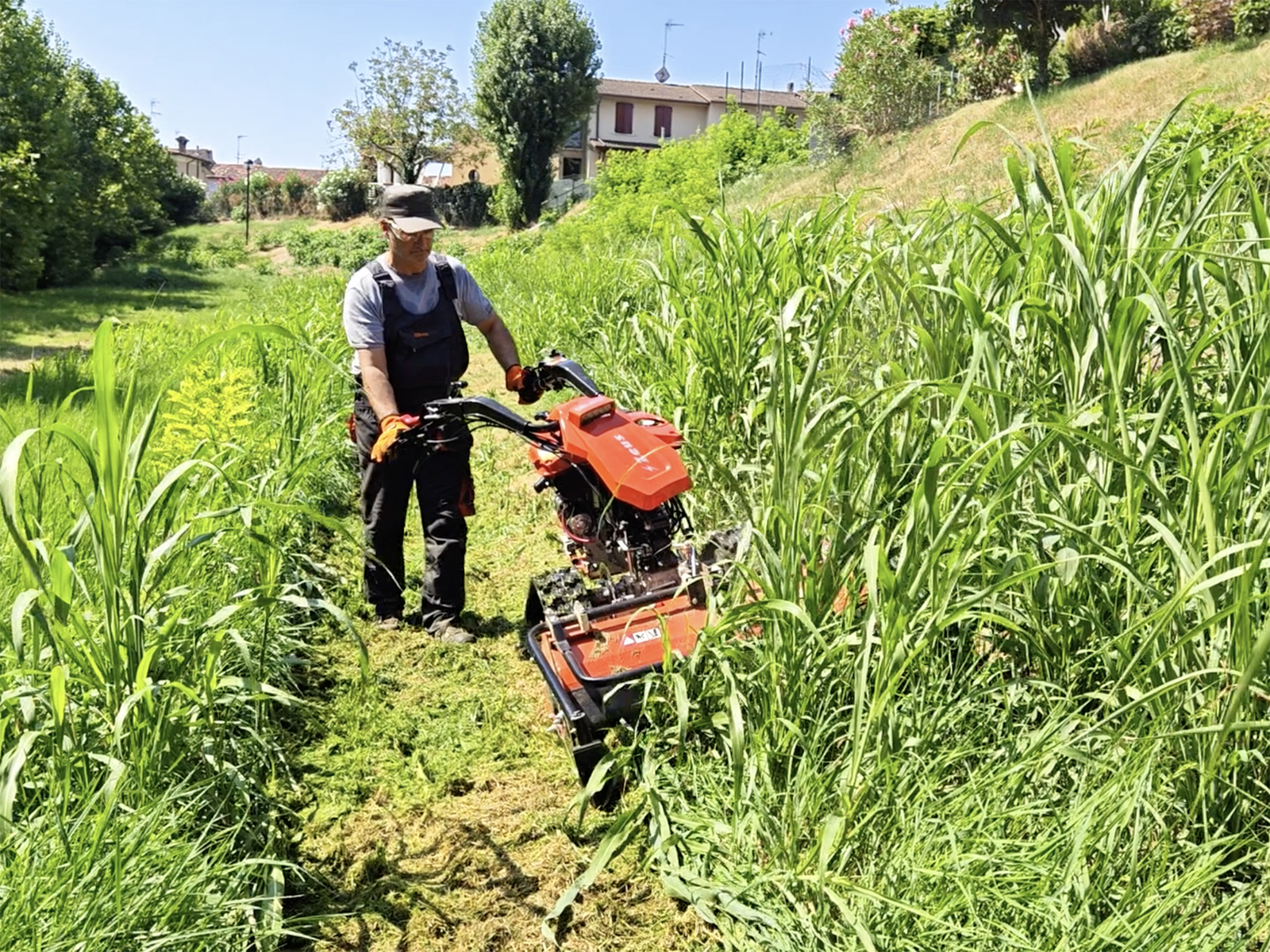

- Cutter-bar mowing and flail mowing on slopes, banks and embankments
- Hillside vineyards, orchards and olive groves: grass between the rows, loose soil
- Wet or soft ground where wheels sink

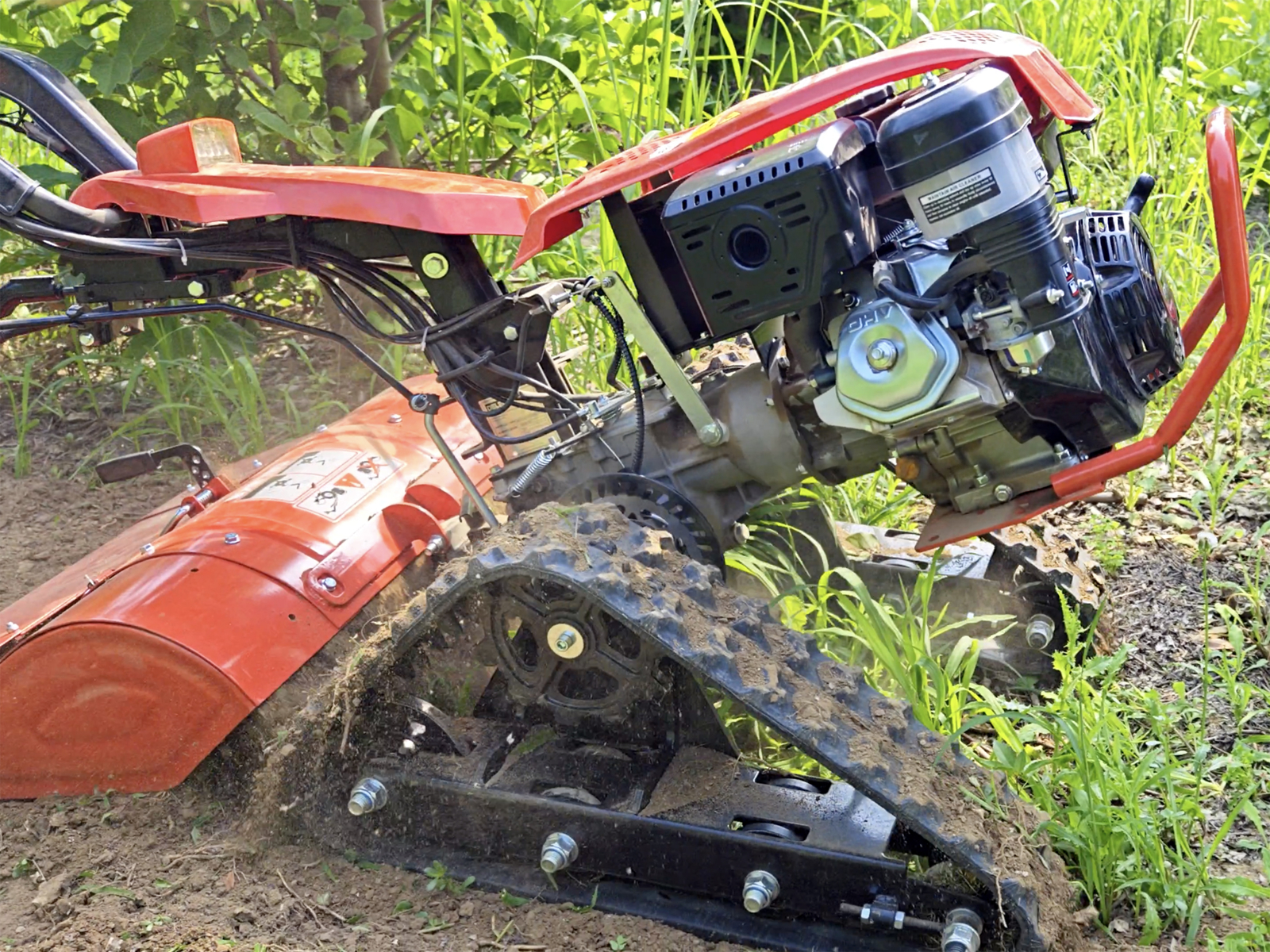

- Rotavating and ploughing the plot, as with the wheeled versions
- Snow with blower or blade on sloping drives and yards
Options and attachments
Rotavator, cutter bar, flail mower, ploughs, ridger, potato digger, cultivator, rotary harrow with seeder, PTO extension and snow blower can be added to the order or later. Ordered together with the tractor they get 10% off up to €150 and 5% off above.
FAQ
When are tracks worth it instead of wheels?
When you often work on slopes, across a hillside or on wet ground: tracks do not spin and do not sink. On the flat, on the plot, wheels are enough (ZEUSL and ZEUSK).
Can I use the BCS, Ferrari or Pasquali attachments I already have?
Yes, they have the same 3-tooth hitch; fine-spline ones need the adapter. If in doubt, ask the DELEKS® team first.
Does the tracked version rotavate and plough like the wheeled ones?
Yes, it takes the same attachments and has the same transmission; on top of that, the weight and the footprint of the tracks keep it steady in hard ground.
How does it arrive?
In a sealed wooden crate with oil and lubricants already checked: set the handlebars to the working position, fill up with petrol and off you go.
DELEKS® spare parts and service
Genuine spare parts ship from the DELEKS® warehouses in Europe: tines, blades, knives, belts, filters, control cables and the other wearing parts are normally in stock, for routine and for unscheduled maintenance. The technical service helps you find the right part from the exploded drawings, service the machine and choose the attachments that suit your work. The product comes with the EC declaration of conformity, the invoice and the use and maintenance manual, also emailed when the order ships. Two-year warranty, free delivery within the EU and free returns on attachments that do not fit your two-wheel tractor.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 165.0 kg |
| Transmission: Rotation of gearbox | Clockwise |
| Engine | Loncin 14Hp 420cc |
| Starter | E-start and Pull cord |
| RPM | 990 |
| Gross shipping weight | 196 kg |
| Package volume | 0.98 m3 |
| Packing sizes | 1150*900*950.0 mm |
