Flail mower for mini diggers 80 cm (31 in) AR-80, hydraulic flail head with blades for 0.8 to 1.8 tonne mini excavators and tractor reach arms

Available
Code AR80 - EAN 8053470234873
1.669,00€VAT incl.
or 3 installments of 556,33 €
Free shipping
Loading...
1.669,00€VAT incl.
or 3 installments of 556,33 €
Free shipping
View all details.
CUTTING WIDTH
60 80 100

4.6

1551 reviews

1.669,00€VAT incl.
 REQUEST INFORMATION

VIDEO
Review by Edd China (Wheeler Dealers)
Review by Edd China (Wheeler Dealers)

DETAILS

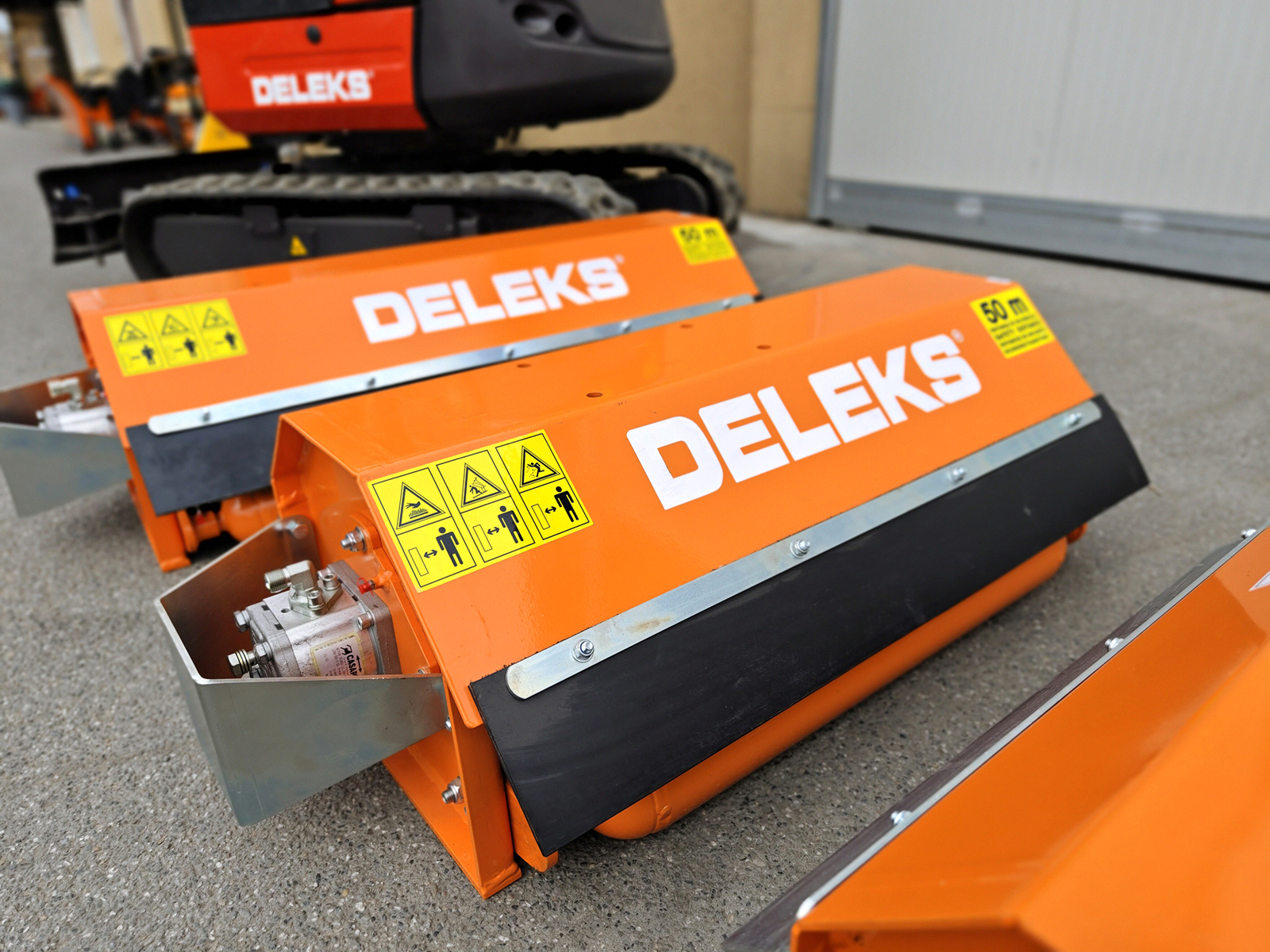

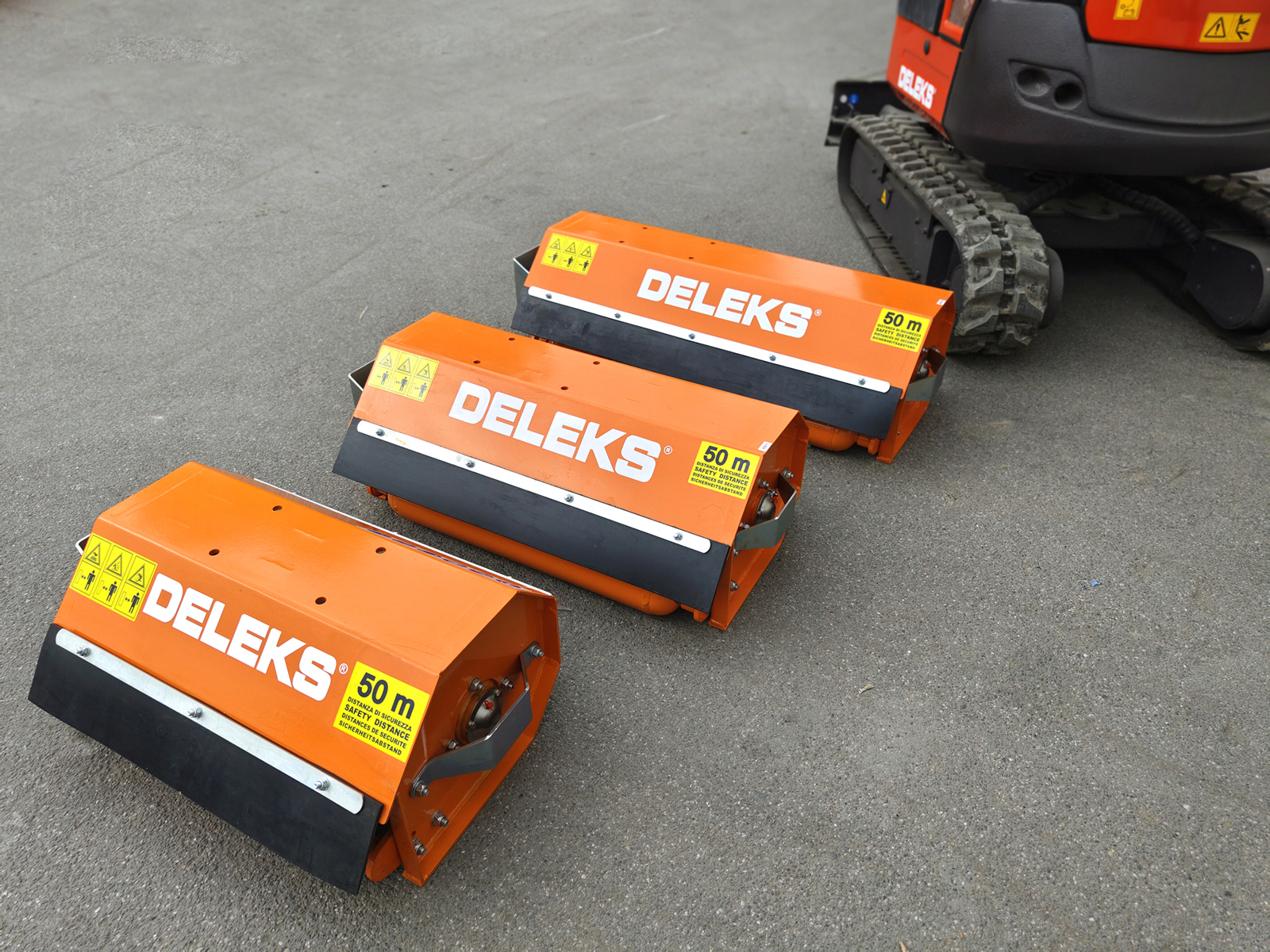

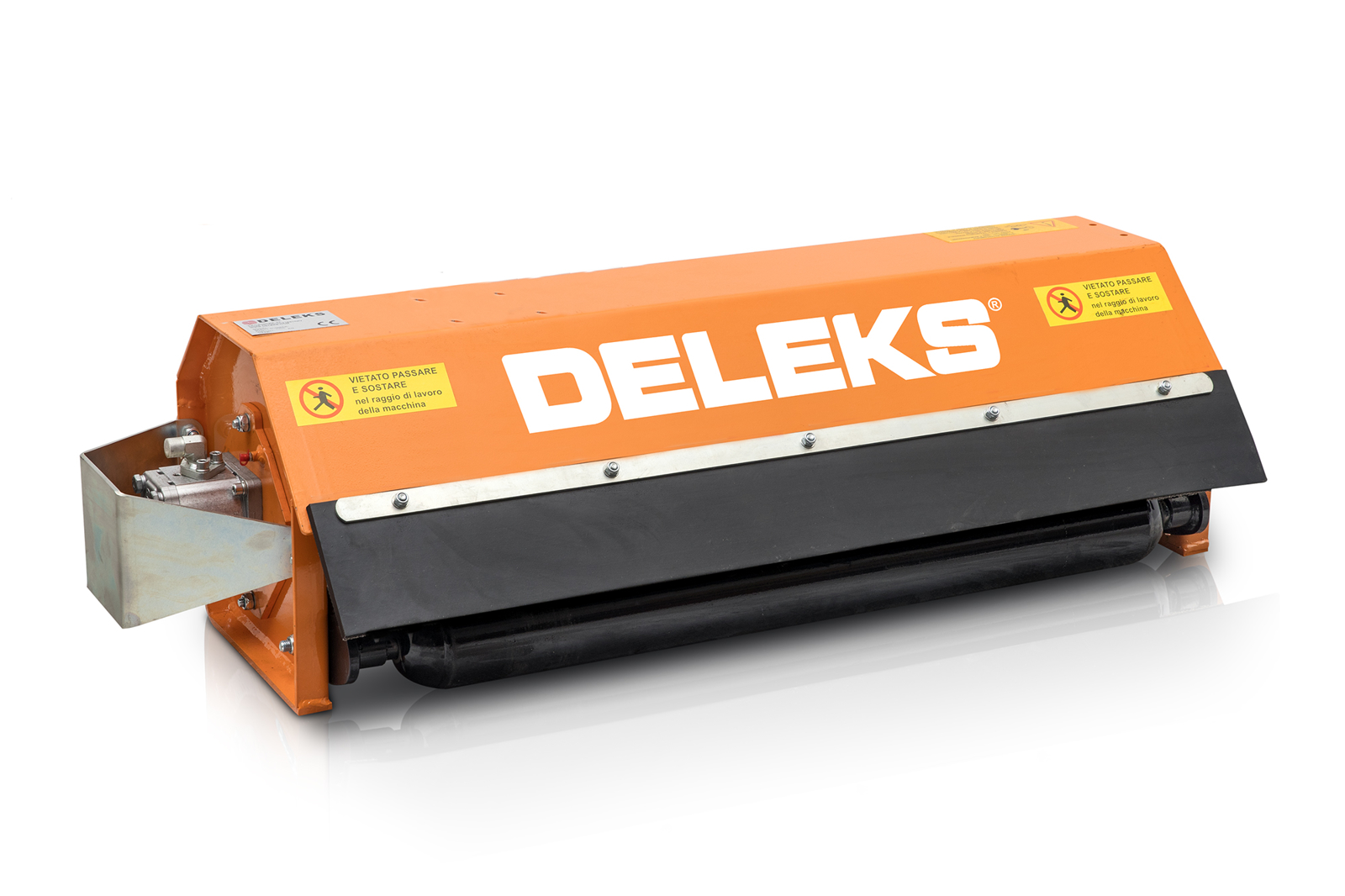

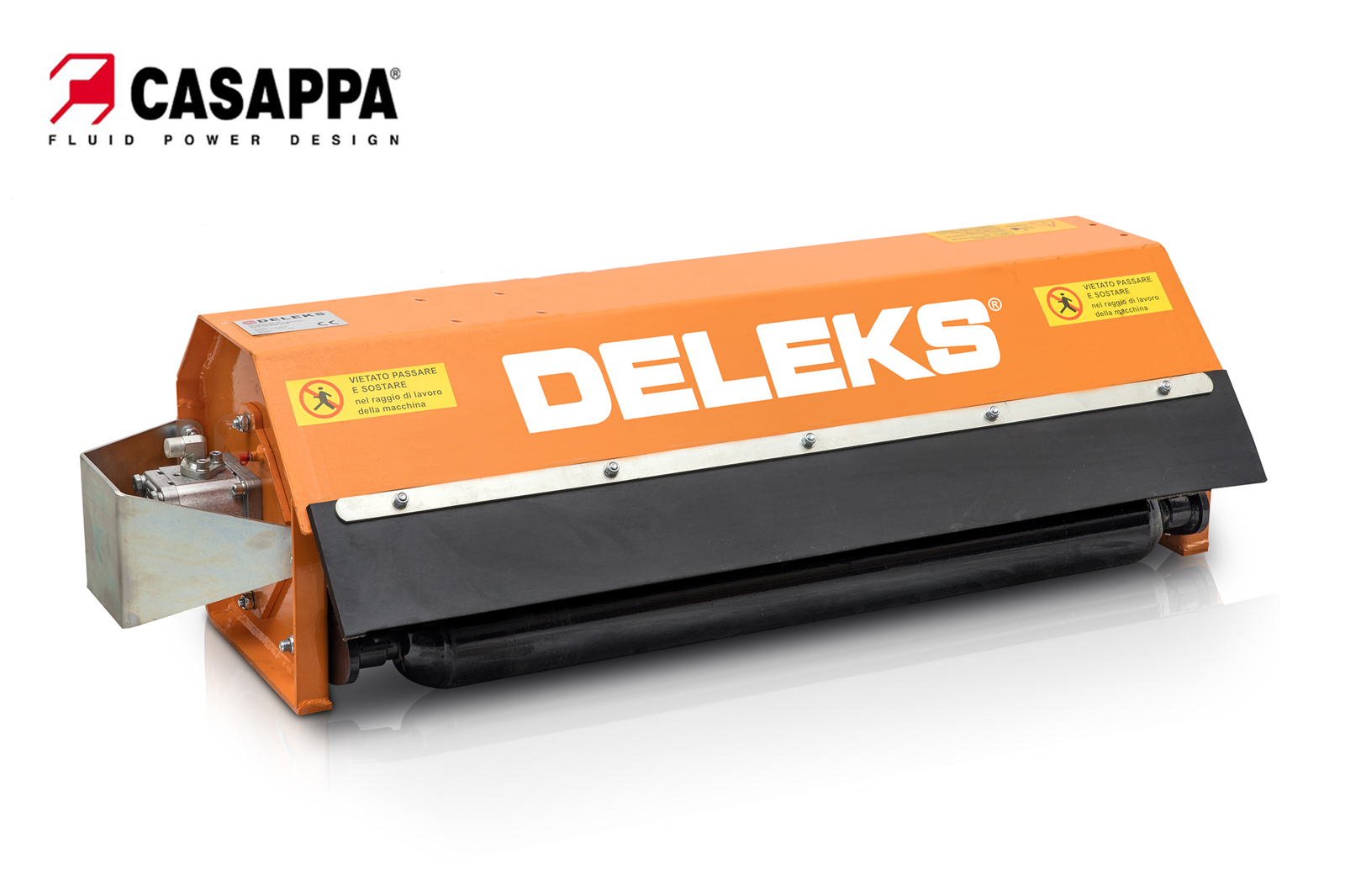

Hydraulic flail mower for mini diggers with a 80 cm (31 in) cut, the DELEKS® AR-80: the flail head with blades for 0.8 to 1.8 tonne mini excavators such as Kubota, Takeuchi, Yanmar, Caterpillar and JCB, and for tractor-mounted reach arms. It mounts on the arm in place of the bucket, connects to the auxiliary hydraulic line and shreds grass, brambles, reeds, bushes and branches up to 2 cm (0.8 in) thick along ditches, banks, embankments and slopes, where a tractor cannot reach. It weighs 80 kg (176 lb), so it does not unbalance the arm; the electronically balanced rotor carries 32 blades of 130 g (4.6 oz) at 1,500 rpm and the cutting height adjusts from 20 to 80 mm (0.8 to 3.1 in). It runs on 25-30 l/min of oil at 120-150 bar. It is TÜV-certified, carries a 2-year warranty and comes with free delivery within the EU.


Which mini diggers it fits

The AR-80 is built for 0.8 to 1.8 tonne mini diggers and mini excavators with an auxiliary hydraulic line: Caterpillar, Takeuchi, Kubota, JCB, Case, Komatsu and Yanmar. With a 80 cm (31 in) cut and an overall width of 102 cm (40.2 in) it weighs 80 kg (176 lb). Always check the weight of the head against the lifting capacity of the arm at full reach. The same series also includes the AR-60 (60 cm, 66 kg) and the AR-100 (100 cm, 93 kg): on the same excavator, a narrower head weighs less and is easier to handle with the arm fully extended. For mini diggers without a case drain line there is the ARS series, for 1 to 2 tonne machines. It also fits tractor-mounted reach arms that deliver 25-30 l/min of oil: it is one of the heads for the DELEKS® AIRONE arms.

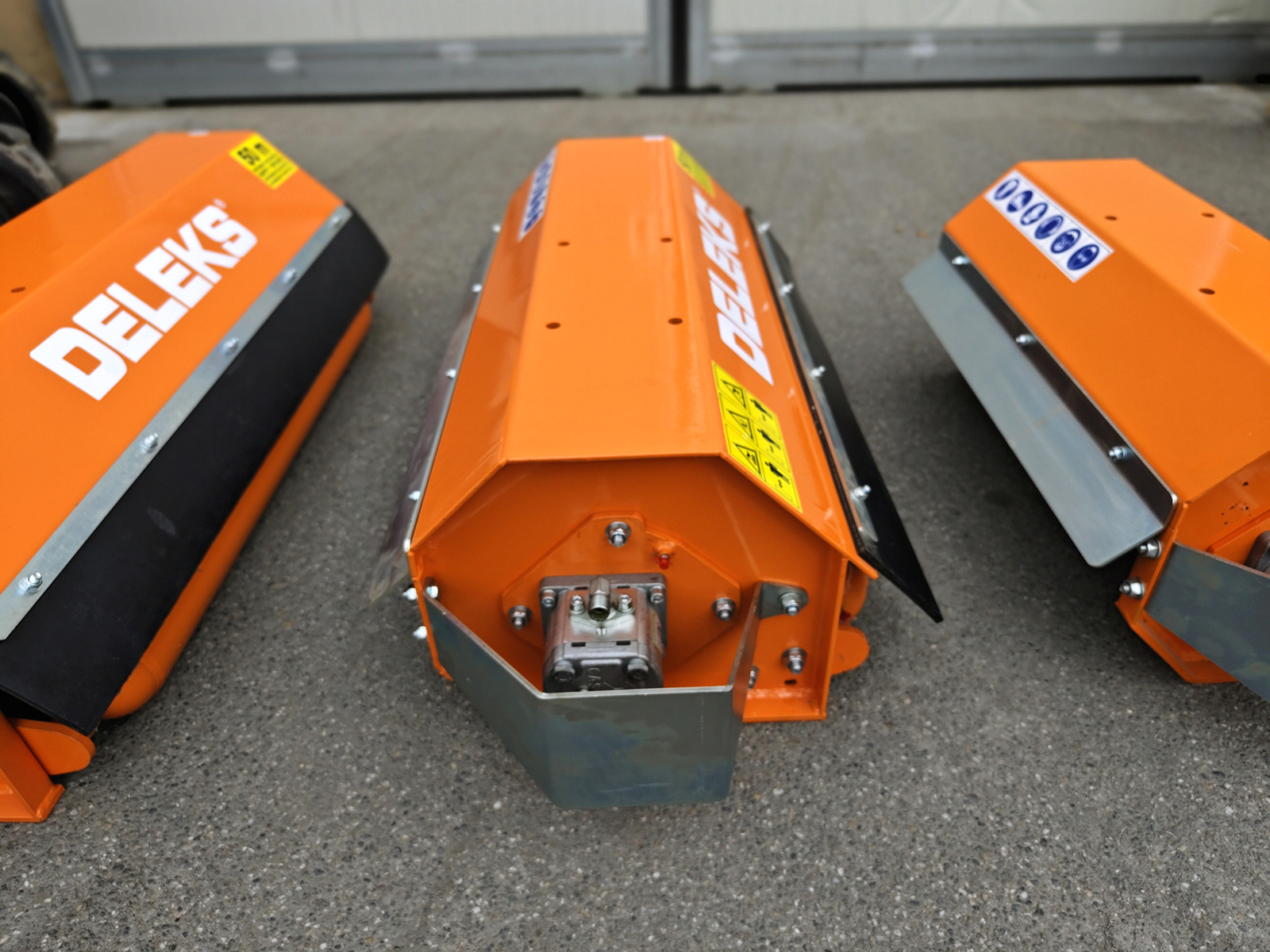

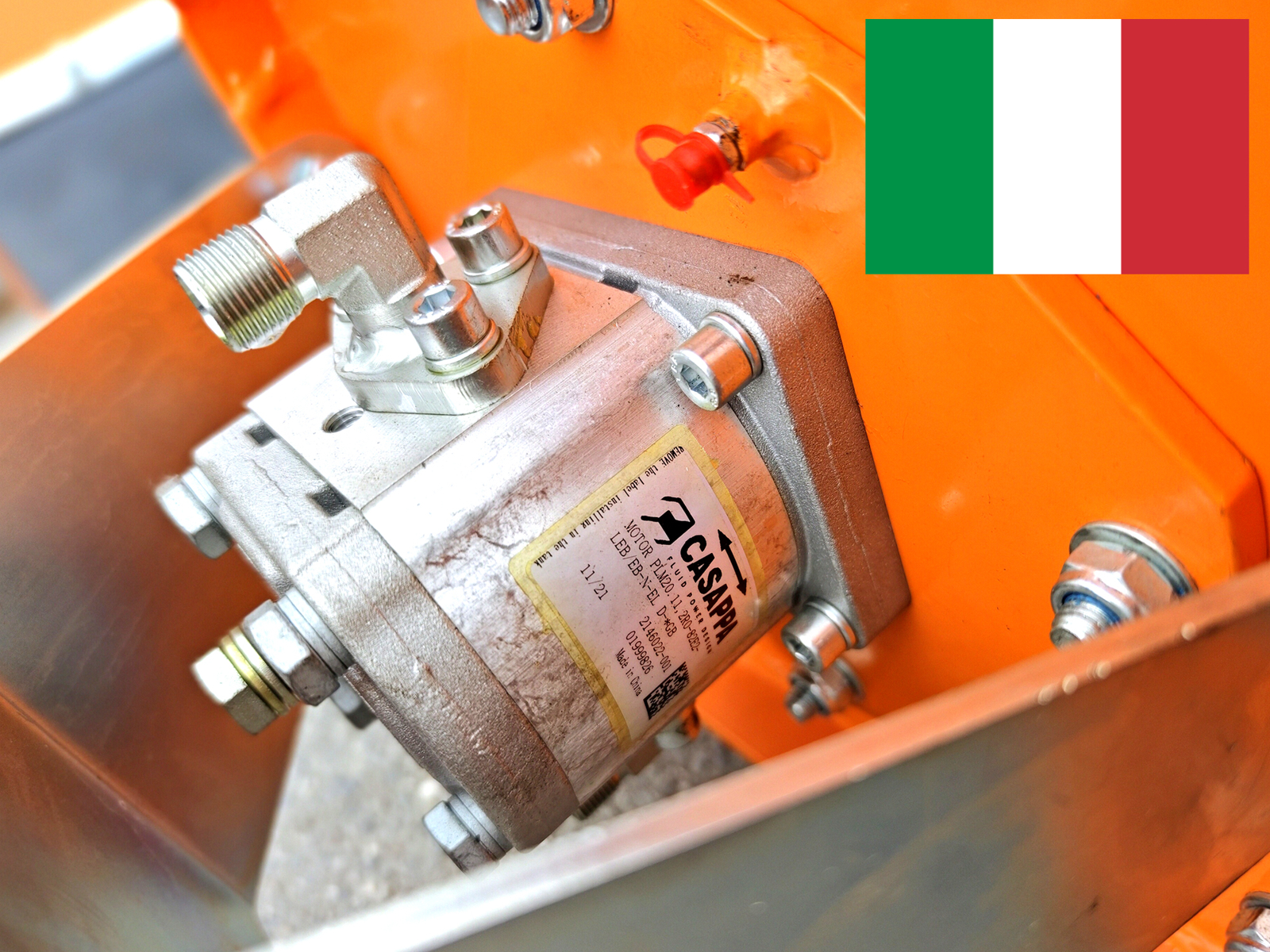

Hydraulic connection: flow, double-acting circuit and case drain

The AR-80 runs on an oil flow of 25-30 l/min (5.5-6.6 UK gal/min) and a working pressure of 120 to 150 bar (1,740 to 2,180 psi), on the mini digger's auxiliary line. The hydraulic motor, Made in Italy, drives the blades in both directions: a double-acting pedal control is required. It has a third hose for the case drain, to be connected straight back to the tank. Ideally the excavator has two pumps, one for travel and one for the auxiliary services. Before ordering, check the flow and pressure of your auxiliary line: if in doubt, just tell us the model of your excavator.

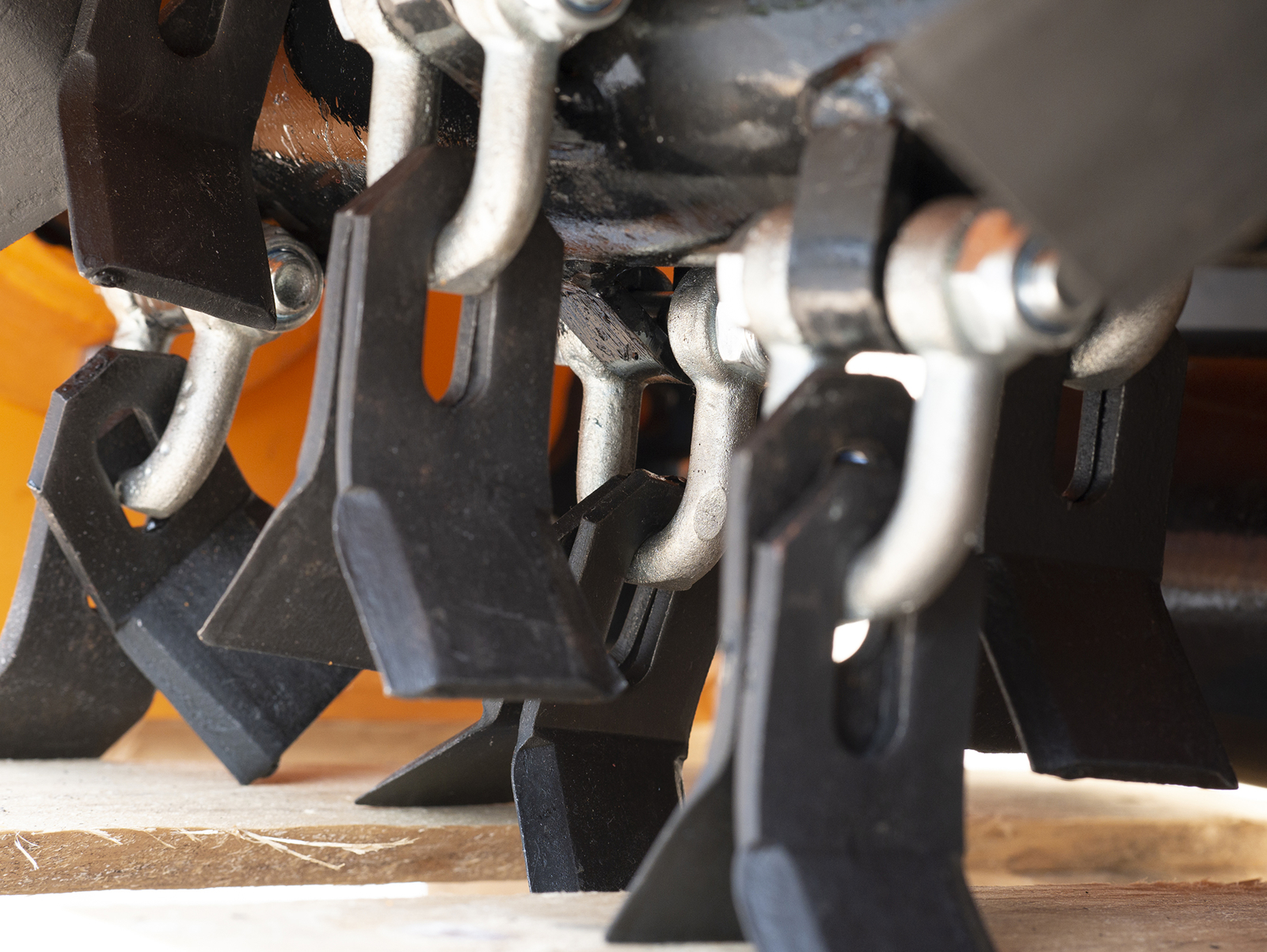

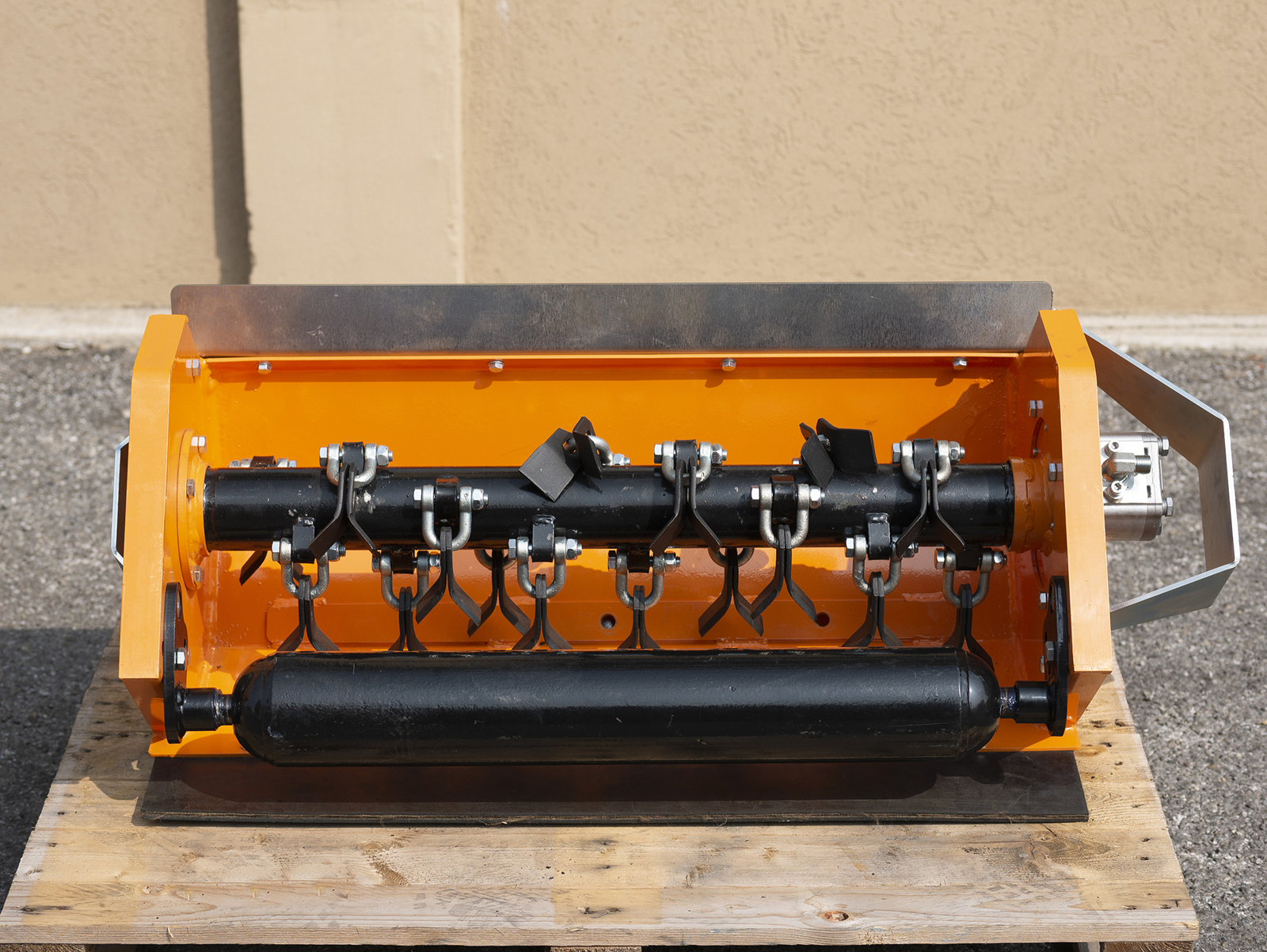

Rotor with 32 blades

The rotor, 78 mm (3.1 in) in diameter and 10 mm thick, is electronically balanced and spins at 1,500 rpm. It carries 32 blades of 130 g (4.6 oz), 50 mm (2 in) wide: they draw little hydraulic power and make a clean cut through grass, brambles, reeds, bushes and branches up to 2 cm (0.8 in) thick. The blades are replaced with the COLTELLI30AI set.

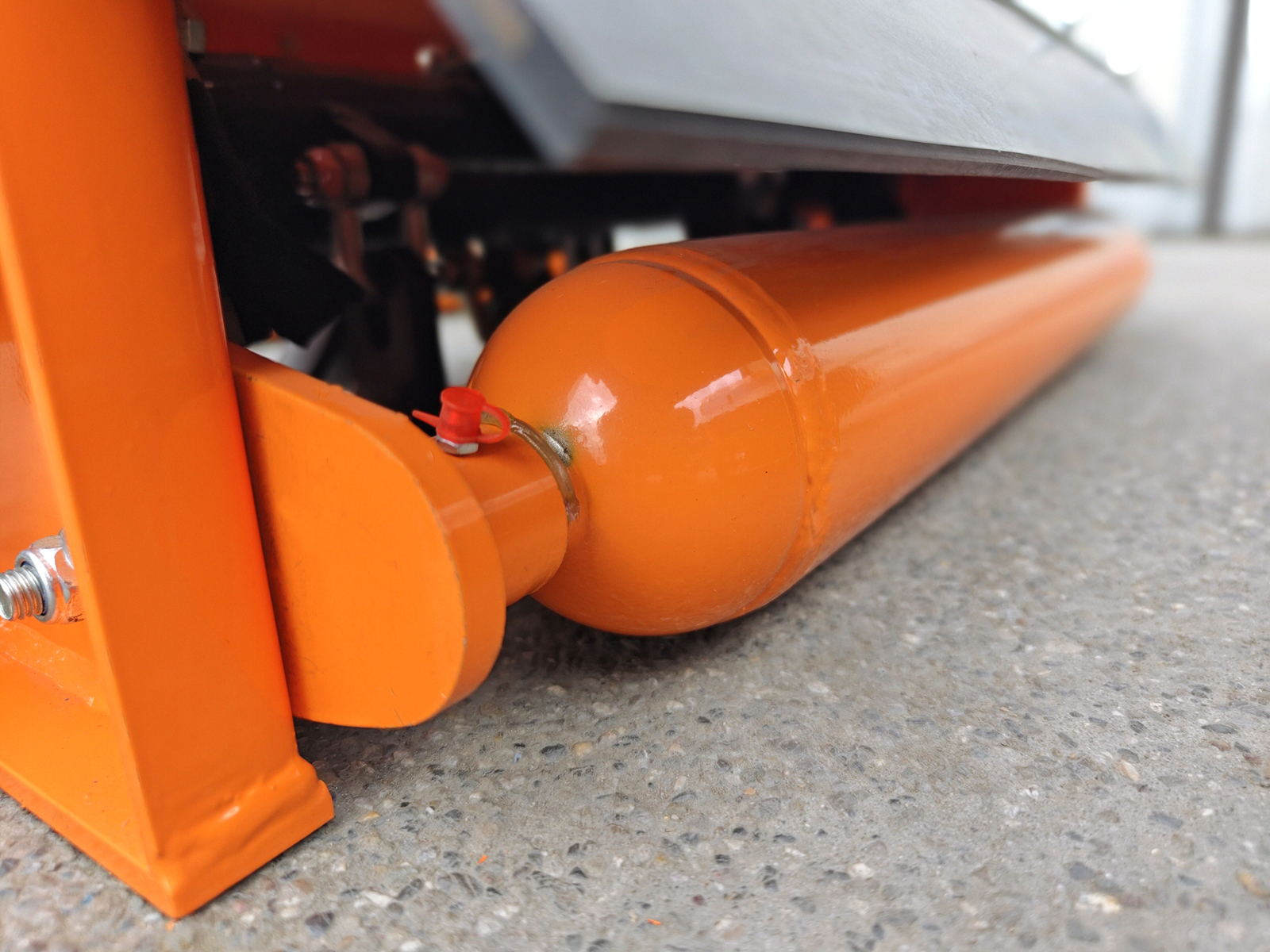

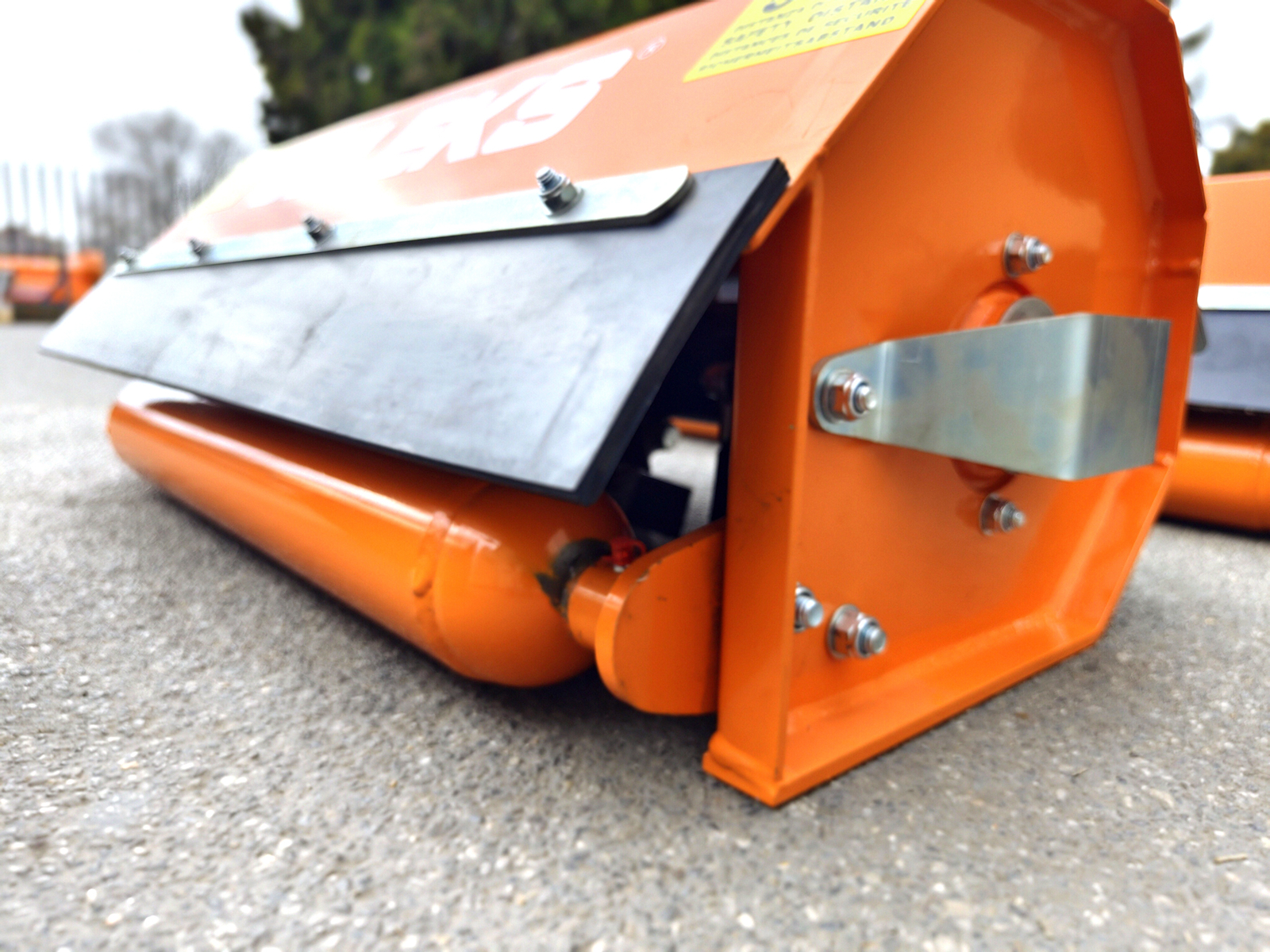

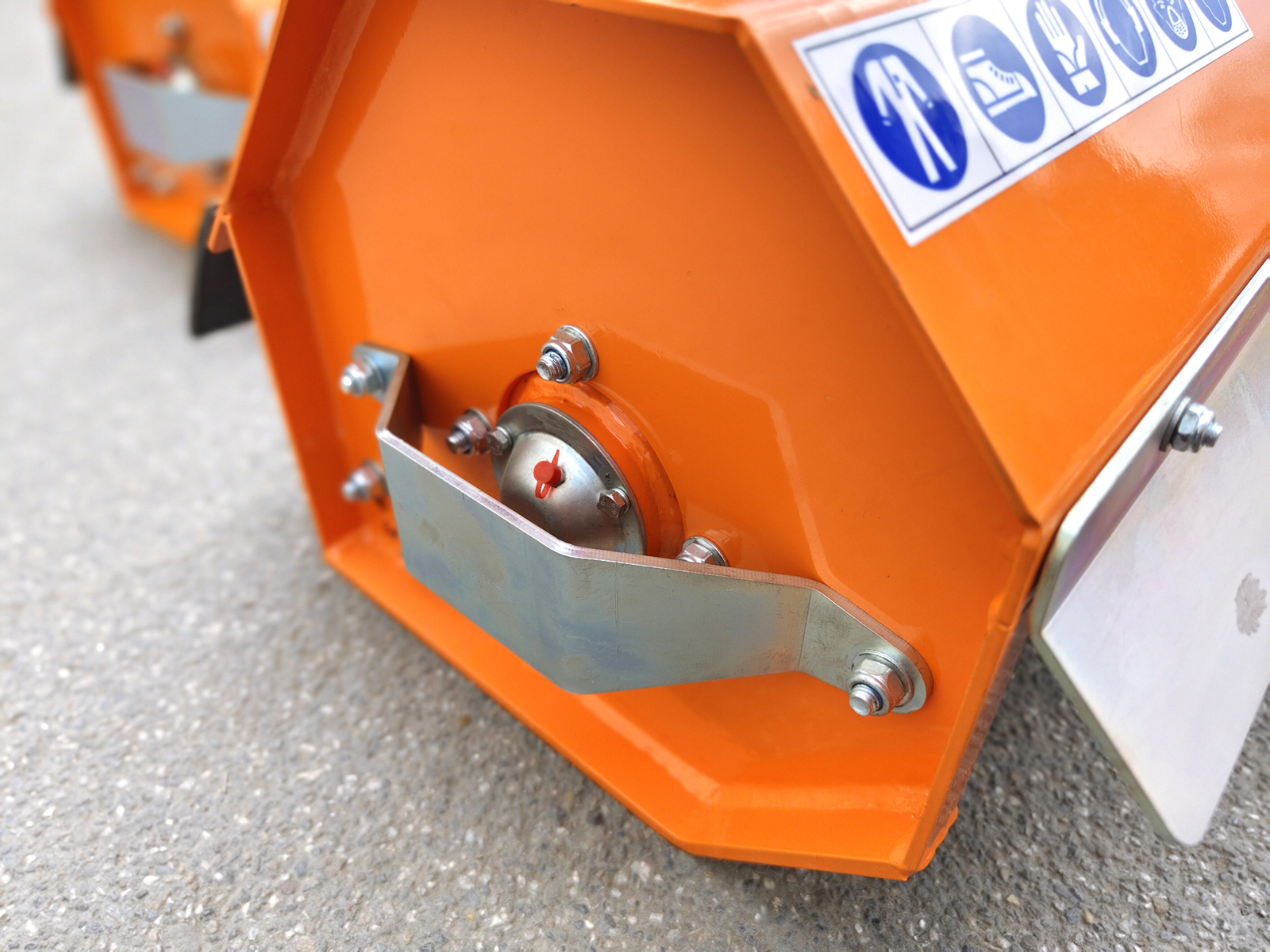

Roller and cutting height

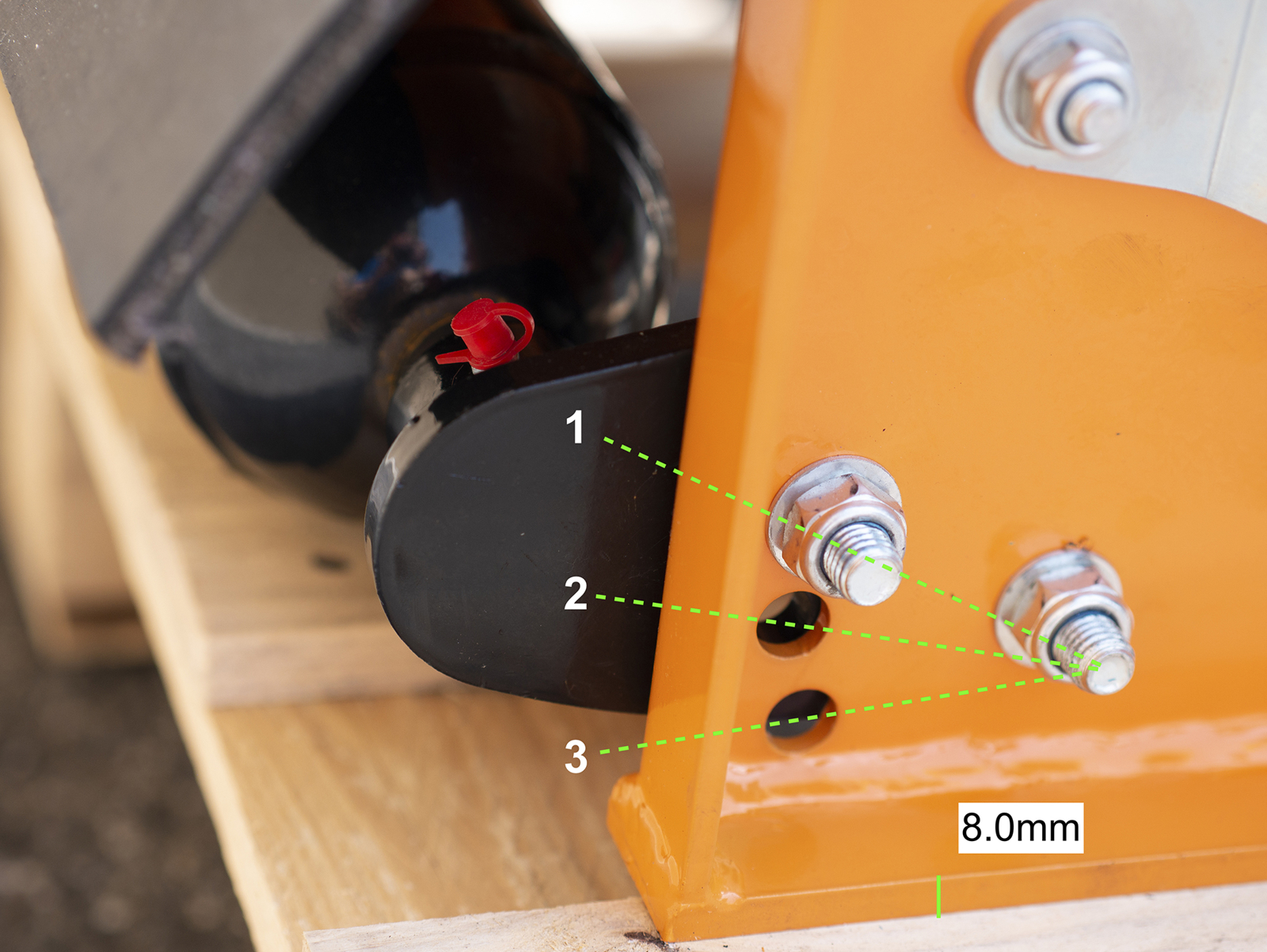

The cutting height is adjustable from 20 to 80 mm (0.8 to 3.1 in). The rear roller, 102 mm (4 in) in diameter, rests the head on the ground and keeps the height constant: low for a fine finish on grass, higher on stony or uneven ground.


Hitch for the excavator arm

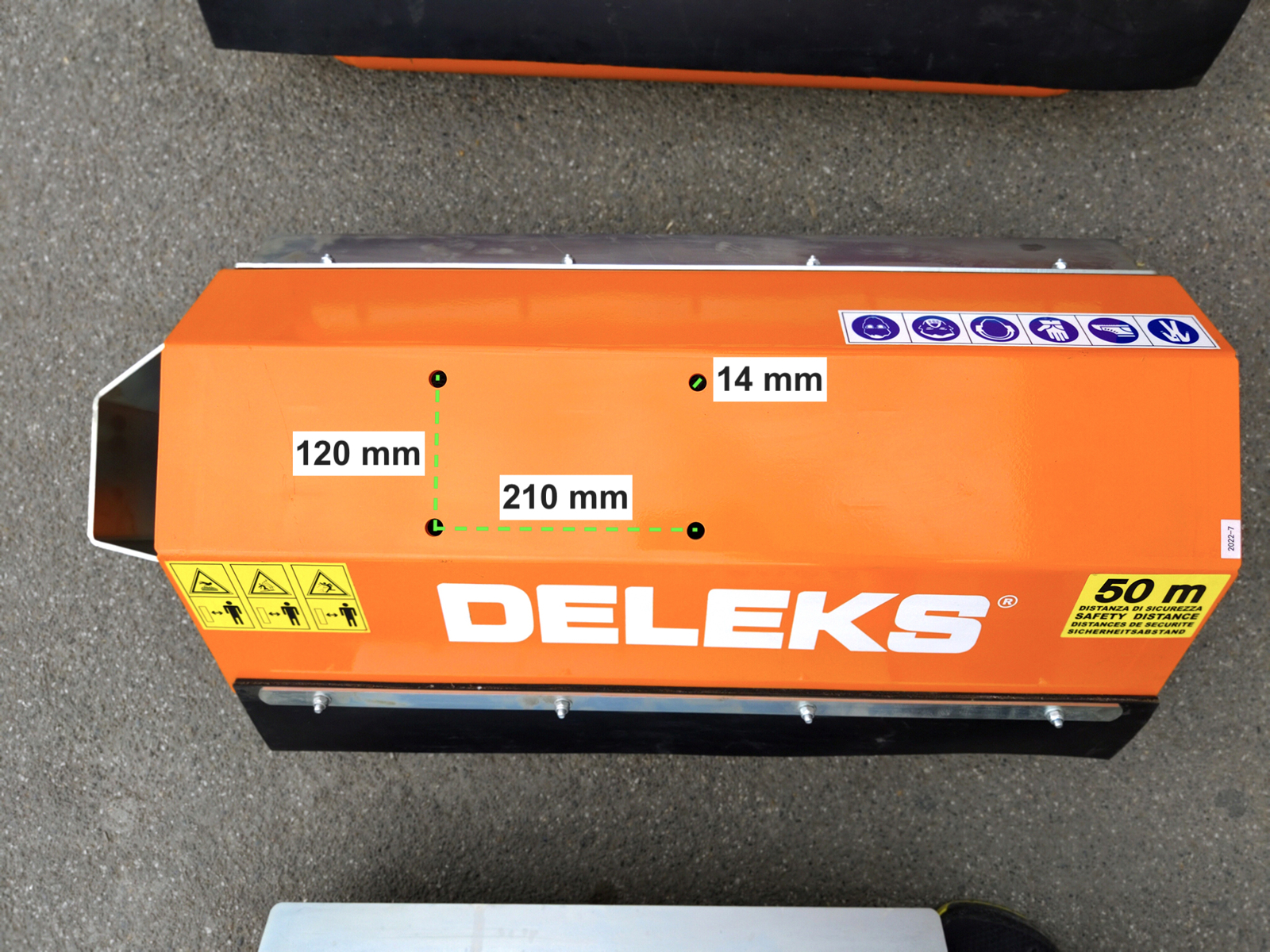

The dimensions of the standard hitch are shown in the product images: check them against the arm of your mini digger. Alternatively you can order one of the optional hitches (MS01, S40, Cangini AR15, Morin-type ACB+ M0 and M1) or a hitch made to measure for your machine, at a surcharge.


Dimensions, weight and delivery

Working width 800 mm (31.5 in), overall width 1,020 mm (40.2 in), length 650 mm (25.6 in), height 330 mm (13 in), weight 80 kg (176 lb); 4 mm steel frame. It ships in a package of 102 × 60 × 50 cm (40 × 24 × 20 in), 84 kg (185 lb) gross and 0.31 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.

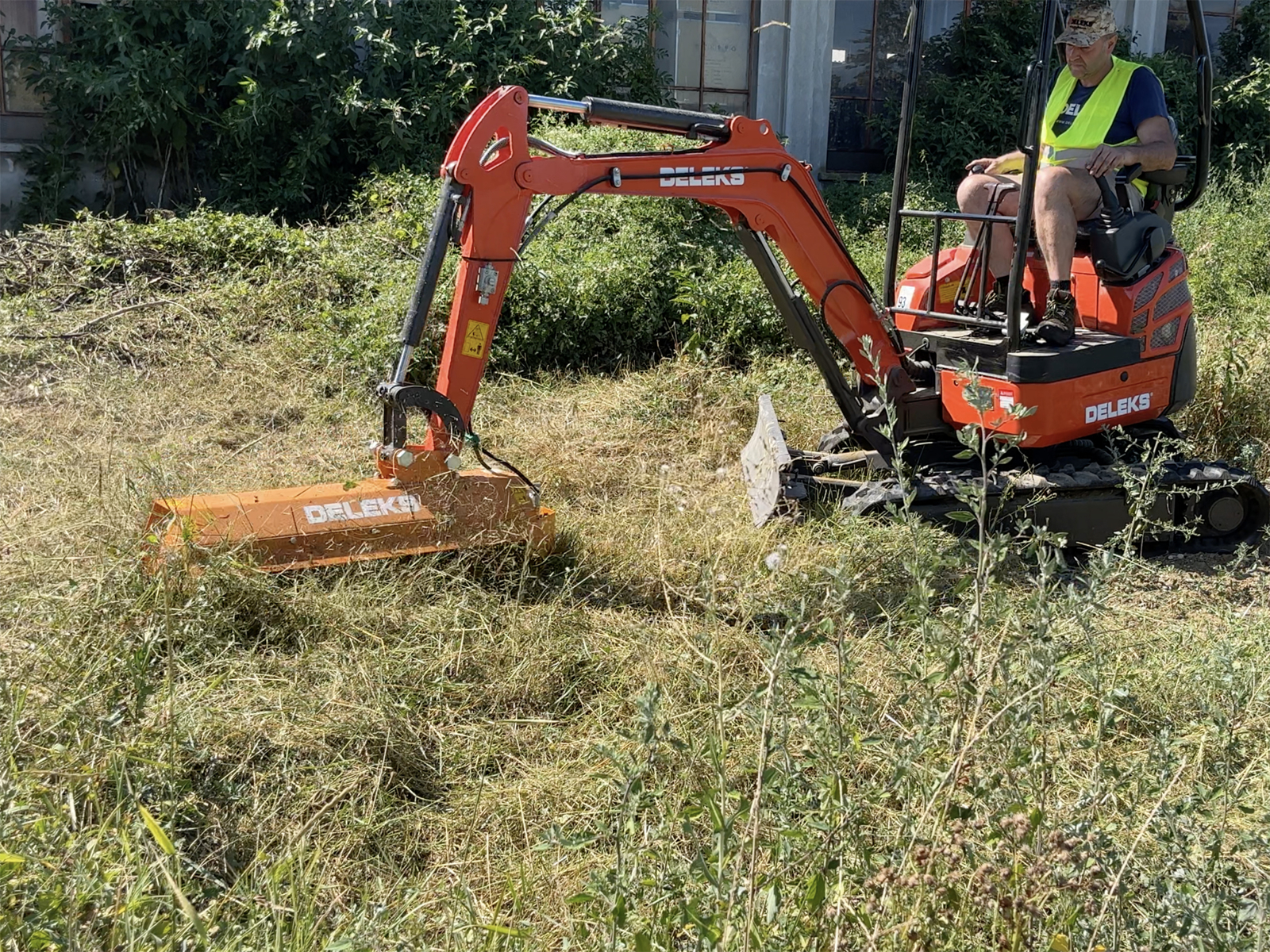

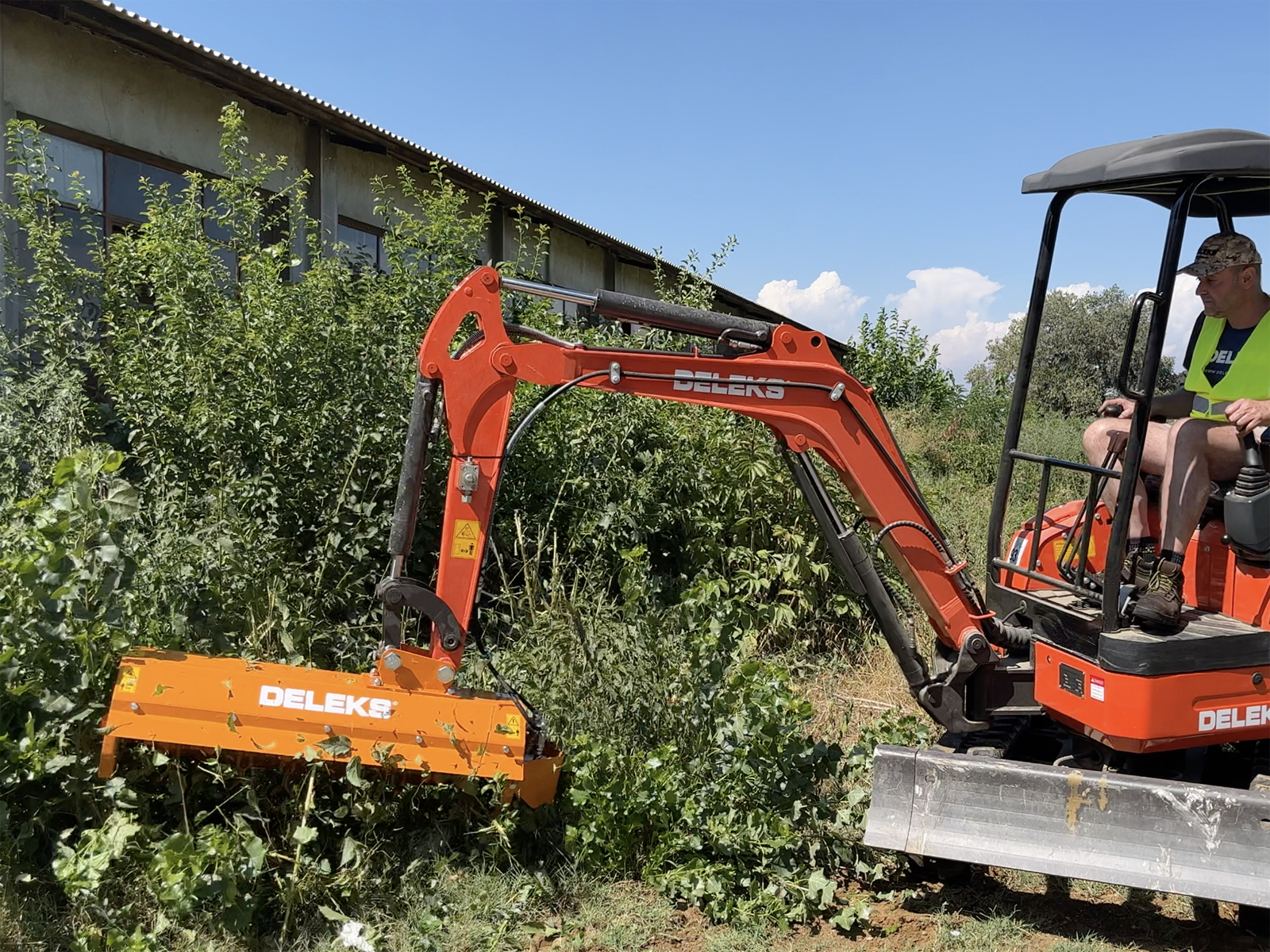

Where it works

  • Ditches, banks and embankments: grass, reeds and brambles where a tractor cannot reach
  • Slopes and roadside verges: mowing with the excavator arm
  • Overgrown land and undergrowth: brambles, bushes and branches up to 2 cm (0.8 in) thick
  • Hedges, fences and boundaries: clearing along walls and wire fencing
  • 0.8 to 1.8 tonne mini diggers and mini excavators with an auxiliary hydraulic line and tractor-mounted reach arms

Options and spares

From this page you can add to your order the spare set of 30 blades with fixings (COLTELLI30AI). For mounting on the arm you can choose the MS01 hitch (ATTACCOMS01), the S40 hitch (ATTACCOS40), the Cangini AR15 hitch (ATTACCOAR15), the Morin-type ACB+ M0 hitch (ATTACCOMORINM0), the Morin-type ACB+ M1 hitch (ATTACCOMORINM1AR) and the made-to-measure hitch (ATTACCOAR). Other spares are identified on the exploded diagrams with our technical team.


FAQ

Which mini digger does the AR-80 suit?
0.8 to 1.8 tonne mini diggers and mini excavators with an auxiliary hydraulic line delivering 25-30 l/min. The head weighs 80 kg (176 lb): check it against the lifting capacity of the arm at full reach.

Is it suitable for a 1.5 tonne mini digger?
Yes: the AR series covers mini diggers from 0.8 to 1.8 tonnes. A 1.5 tonne machine can take the AR-60, AR-80 or AR-100: choose the width to suit the lifting capacity of the arm.

What oil flow does it need?
25 to 30 l/min, at a working pressure of 120 to 150 bar. Ideally the excavator has two pumps, one for travel and one for the auxiliary services.

Does it need a case drain line?
Yes: the hydraulic motor has a third hose for the case drain, to be connected straight back to the tank. For mini diggers without a drain line there is the ARS series, with a 2-hose motor.

Does it need a double-acting circuit?
Yes: the blades turn in both directions, which requires a double-acting pedal control.

What thickness of branch will it cut?
Grass, brambles, reeds, bushes and branches up to 2 cm (0.8 in) thick. For branches up to 3 cm (1.2 in) there is the ARK series; for excavators of 2 tonnes and over, the ARM, ARJ and ARH hammer-flail heads handle 4-5 cm (1.6-2 in).

Does it fit a tractor reach arm as well?
Yes: the AR-80 also suits tractor-mounted reach arms, provided the hydraulics deliver 25-30 l/min of oil. It is one of the heads for the DELEKS® AIRONE arms.

How does it mount on the arm?
In place of the bucket, with the standard hitch (dimensions in the product images), one of the optional hitches or a made-to-measure hitch; the hoses connect to the auxiliary hydraulic line.

How do the AR and ARS differ?
The AR is the lightest, from 66 to 93 kg (146 to 205 lb), and needs a double-acting circuit and a case drain line. The ARS, Made in Italy, has a 5 mm SSAB steel frame and a 2-hose Caproni motor with no case drain, for 1 to 2 tonne mini diggers.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: blades, hammer flails, fixings, bearings, roller, hydraulic motor and hoses are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and a check that the head matches your excavator's hydraulics and hitch. The head comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric
Working width 800.0 mm
Overall width 1020.0 mm
Min / Max cutting height 20.0 - 80.0 mm
Weight 80.0 kg
Hood height 330.0 mm
Maximum cutting diameter 20.0 mm
Main hood thickness 4.0 mm
Transmission: RPM Rotor speed 1500 r/min
Rotor: diameter 78.0 mm
Rotor: bearings type and size GB276-6007
Rotor: balancing Electronic
Rotor: sheet thickness 10.0 mm
Rear roller: diameter 102.0 mm
Rear roller: sheet thickness 4.0 mm
Rear roller: bearings type and size φ25
Working pressure 120 - 150 bar
Min./Max. Flow 25 - 30 l/min
Hood length 650.0 mm
Number of Blades 32
Blades: Weight 130.0 g
Blades: Diameter of the hole 13.0 mm
Blades: base width 50.0 mm
Blades: Diagonal 85.0 mm
Gross shipping weight 84 kg
Package volume 0.31 m3
Packing sizes 1020.0*600.0*500.0 mm
DETAILS
CHARACTERISTICS

DETAILS

CLOSE

Hydraulic flail mower for mini diggers with a 80 cm (31 in) cut, the DELEKS® AR-80: the flail head with blades for 0.8 to 1.8 tonne mini excavators such as Kubota, Takeuchi, Yanmar, Caterpillar and JCB, and for tractor-mounted reach arms. It mounts on the arm in place of the bucket, connects to the auxiliary hydraulic line and shreds grass, brambles, reeds, bushes and branches up to 2 cm (0.8 in) thick along ditches, banks, embankments and slopes, where a tractor cannot reach. It weighs 80 kg (176 lb), so it does not unbalance the arm; the electronically balanced rotor carries 32 blades of 130 g (4.6 oz) at 1,500 rpm and the cutting height adjusts from 20 to 80 mm (0.8 to 3.1 in). It runs on 25-30 l/min of oil at 120-150 bar. It is TÜV-certified, carries a 2-year warranty and comes with free delivery within the EU.


Which mini diggers it fits

The AR-80 is built for 0.8 to 1.8 tonne mini diggers and mini excavators with an auxiliary hydraulic line: Caterpillar, Takeuchi, Kubota, JCB, Case, Komatsu and Yanmar. With a 80 cm (31 in) cut and an overall width of 102 cm (40.2 in) it weighs 80 kg (176 lb). Always check the weight of the head against the lifting capacity of the arm at full reach. The same series also includes the AR-60 (60 cm, 66 kg) and the AR-100 (100 cm, 93 kg): on the same excavator, a narrower head weighs less and is easier to handle with the arm fully extended. For mini diggers without a case drain line there is the ARS series, for 1 to 2 tonne machines. It also fits tractor-mounted reach arms that deliver 25-30 l/min of oil: it is one of the heads for the DELEKS® AIRONE arms.


Hydraulic connection: flow, double-acting circuit and case drain

The AR-80 runs on an oil flow of 25-30 l/min (5.5-6.6 UK gal/min) and a working pressure of 120 to 150 bar (1,740 to 2,180 psi), on the mini digger's auxiliary line. The hydraulic motor, Made in Italy, drives the blades in both directions: a double-acting pedal control is required. It has a third hose for the case drain, to be connected straight back to the tank. Ideally the excavator has two pumps, one for travel and one for the auxiliary services. Before ordering, check the flow and pressure of your auxiliary line: if in doubt, just tell us the model of your excavator.


Rotor with 32 blades

The rotor, 78 mm (3.1 in) in diameter and 10 mm thick, is electronically balanced and spins at 1,500 rpm. It carries 32 blades of 130 g (4.6 oz), 50 mm (2 in) wide: they draw little hydraulic power and make a clean cut through grass, brambles, reeds, bushes and branches up to 2 cm (0.8 in) thick. The blades are replaced with the COLTELLI30AI set.


Roller and cutting height

The cutting height is adjustable from 20 to 80 mm (0.8 to 3.1 in). The rear roller, 102 mm (4 in) in diameter, rests the head on the ground and keeps the height constant: low for a fine finish on grass, higher on stony or uneven ground.


Hitch for the excavator arm

The dimensions of the standard hitch are shown in the product images: check them against the arm of your mini digger. Alternatively you can order one of the optional hitches (MS01, S40, Cangini AR15, Morin-type ACB+ M0 and M1) or a hitch made to measure for your machine, at a surcharge.


Dimensions, weight and delivery

Working width 800 mm (31.5 in), overall width 1,020 mm (40.2 in), length 650 mm (25.6 in), height 330 mm (13 in), weight 80 kg (176 lb); 4 mm steel frame. It ships in a package of 102 × 60 × 50 cm (40 × 24 × 20 in), 84 kg (185 lb) gross and 0.31 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.


Where it works

  • Ditches, banks and embankments: grass, reeds and brambles where a tractor cannot reach
  • Slopes and roadside verges: mowing with the excavator arm
  • Overgrown land and undergrowth: brambles, bushes and branches up to 2 cm (0.8 in) thick
  • Hedges, fences and boundaries: clearing along walls and wire fencing
  • 0.8 to 1.8 tonne mini diggers and mini excavators with an auxiliary hydraulic line and tractor-mounted reach arms

Options and spares

From this page you can add to your order the spare set of 30 blades with fixings (COLTELLI30AI). For mounting on the arm you can choose the MS01 hitch (ATTACCOMS01), the S40 hitch (ATTACCOS40), the Cangini AR15 hitch (ATTACCOAR15), the Morin-type ACB+ M0 hitch (ATTACCOMORINM0), the Morin-type ACB+ M1 hitch (ATTACCOMORINM1AR) and the made-to-measure hitch (ATTACCOAR). Other spares are identified on the exploded diagrams with our technical team.


FAQ

Which mini digger does the AR-80 suit?
0.8 to 1.8 tonne mini diggers and mini excavators with an auxiliary hydraulic line delivering 25-30 l/min. The head weighs 80 kg (176 lb): check it against the lifting capacity of the arm at full reach.

Is it suitable for a 1.5 tonne mini digger?
Yes: the AR series covers mini diggers from 0.8 to 1.8 tonnes. A 1.5 tonne machine can take the AR-60, AR-80 or AR-100: choose the width to suit the lifting capacity of the arm.

What oil flow does it need?
25 to 30 l/min, at a working pressure of 120 to 150 bar. Ideally the excavator has two pumps, one for travel and one for the auxiliary services.

Does it need a case drain line?
Yes: the hydraulic motor has a third hose for the case drain, to be connected straight back to the tank. For mini diggers without a drain line there is the ARS series, with a 2-hose motor.

Does it need a double-acting circuit?
Yes: the blades turn in both directions, which requires a double-acting pedal control.

What thickness of branch will it cut?
Grass, brambles, reeds, bushes and branches up to 2 cm (0.8 in) thick. For branches up to 3 cm (1.2 in) there is the ARK series; for excavators of 2 tonnes and over, the ARM, ARJ and ARH hammer-flail heads handle 4-5 cm (1.6-2 in).

Does it fit a tractor reach arm as well?
Yes: the AR-80 also suits tractor-mounted reach arms, provided the hydraulics deliver 25-30 l/min of oil. It is one of the heads for the DELEKS® AIRONE arms.

How does it mount on the arm?
In place of the bucket, with the standard hitch (dimensions in the product images), one of the optional hitches or a made-to-measure hitch; the hoses connect to the auxiliary hydraulic line.

How do the AR and ARS differ?
The AR is the lightest, from 66 to 93 kg (146 to 205 lb), and needs a double-acting circuit and a case drain line. The ARS, Made in Italy, has a 5 mm SSAB steel frame and a 2-hose Caproni motor with no case drain, for 1 to 2 tonne mini diggers.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: blades, hammer flails, fixings, bearings, roller, hydraulic motor and hoses are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and a check that the head matches your excavator's hydraulics and hitch. The head comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

CLOSE
Characteristic Units metric
Working width 800.0 mm
Overall width 1020.0 mm
Min / Max cutting height 20.0 - 80.0 mm
Weight 80.0 kg
Hood height 330.0 mm
Maximum cutting diameter 20.0 mm
Main hood thickness 4.0 mm
Transmission: RPM Rotor speed 1500 r/min
Rotor: diameter 78.0 mm
Rotor: bearings type and size GB276-6007
Rotor: balancing Electronic
Rotor: sheet thickness 10.0 mm
Rear roller: diameter 102.0 mm
Rear roller: sheet thickness 4.0 mm
Rear roller: bearings type and size φ25
Working pressure 120 - 150 bar
Min./Max. Flow 25 - 30 l/min
Hood length 650.0 mm
Number of Blades 32
Blades: Weight 130.0 g
Blades: Diameter of the hole 13.0 mm
Blades: base width 50.0 mm
Blades: Diagonal 85.0 mm
Gross shipping weight 84 kg
Package volume 0.31 m3
Packing sizes 1020.0*600.0*500.0 mm
