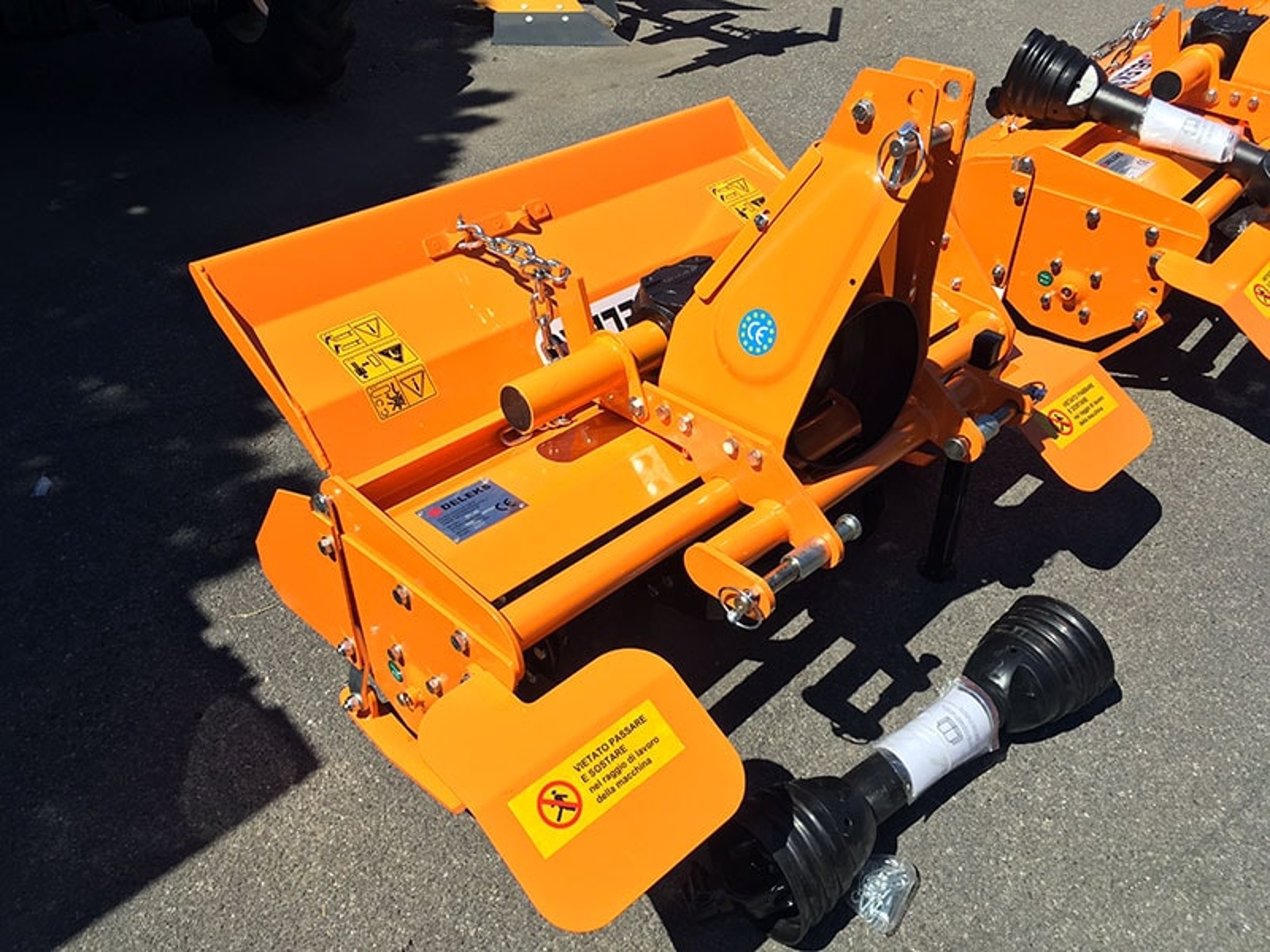

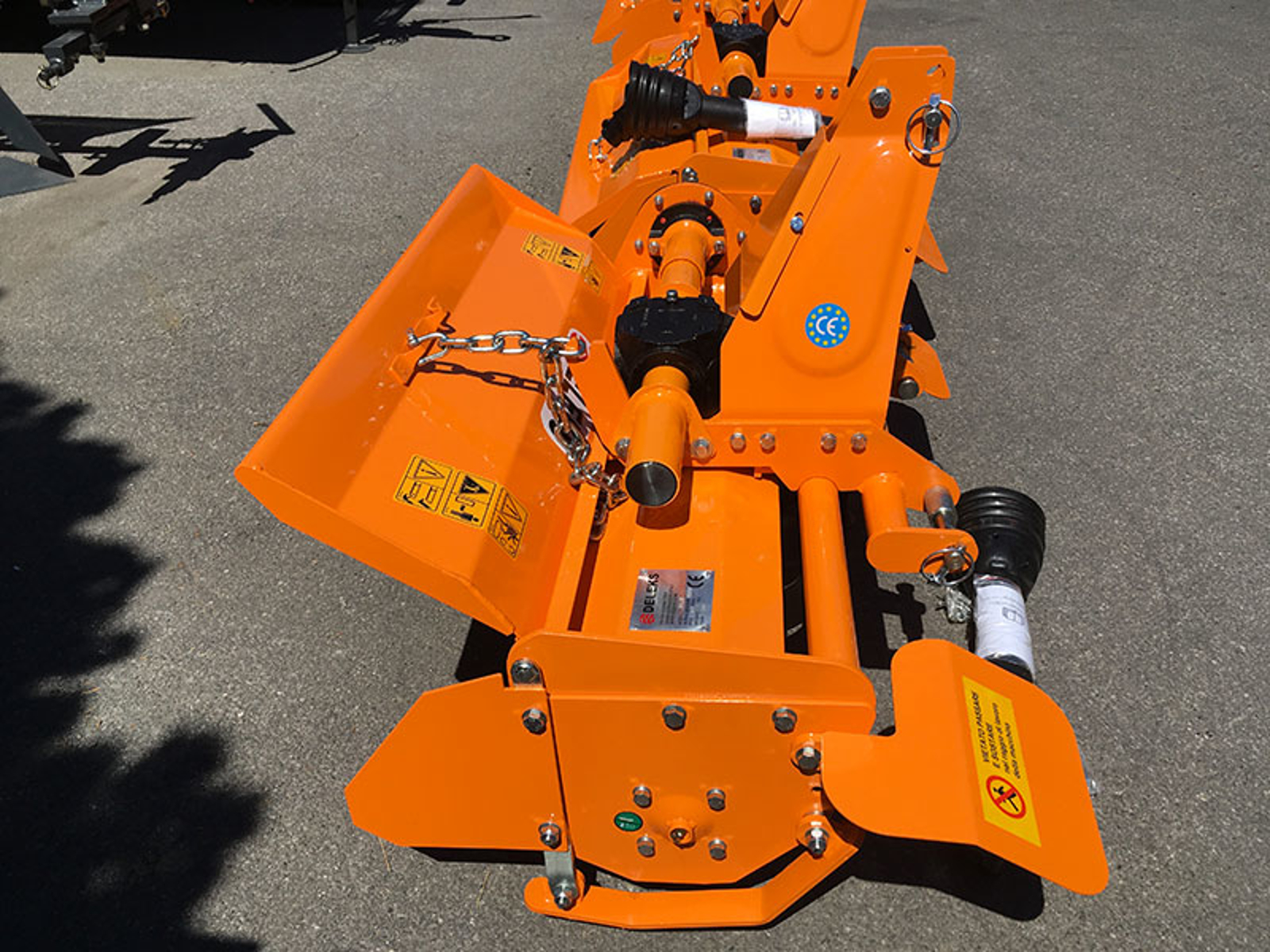

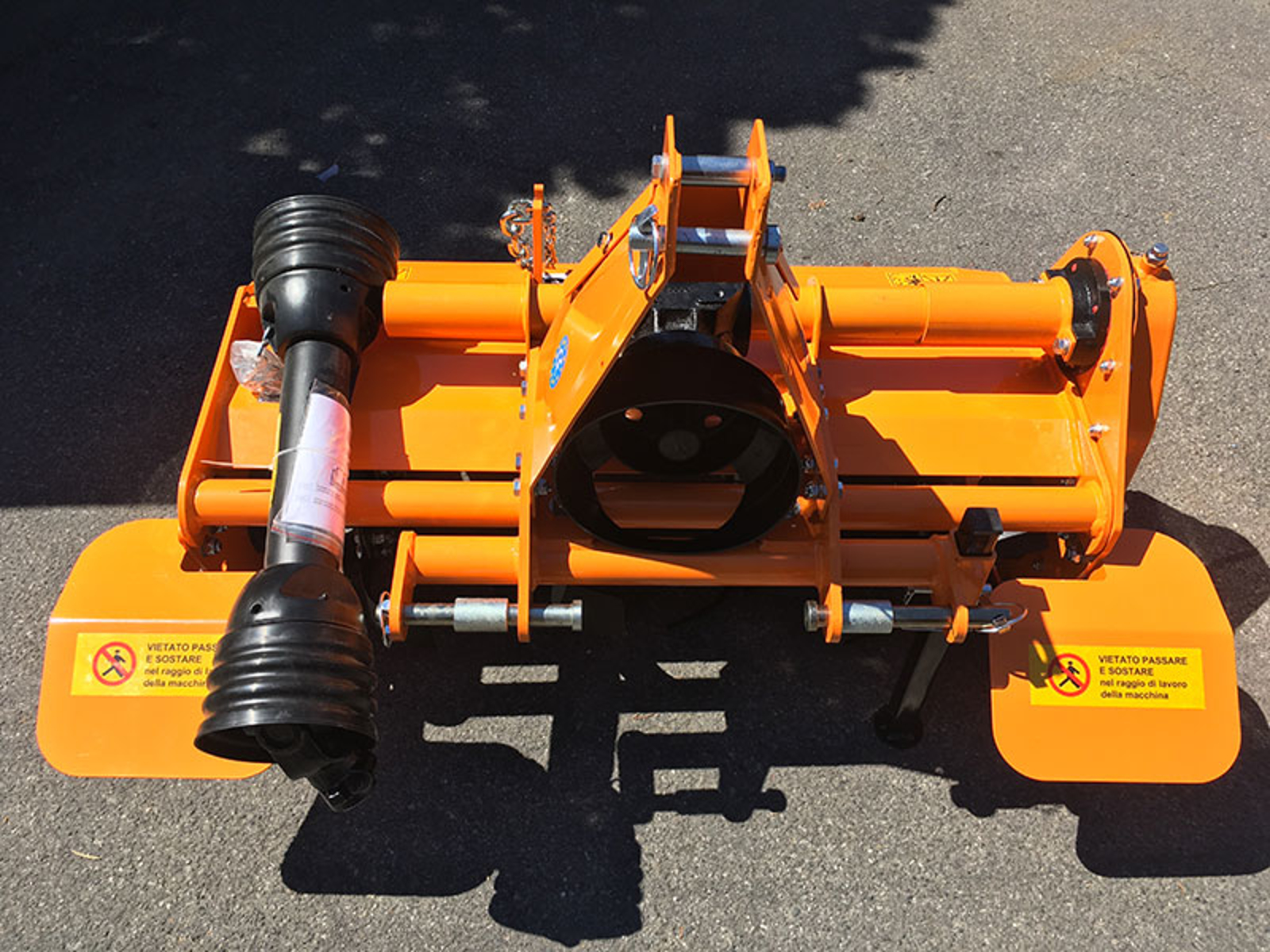

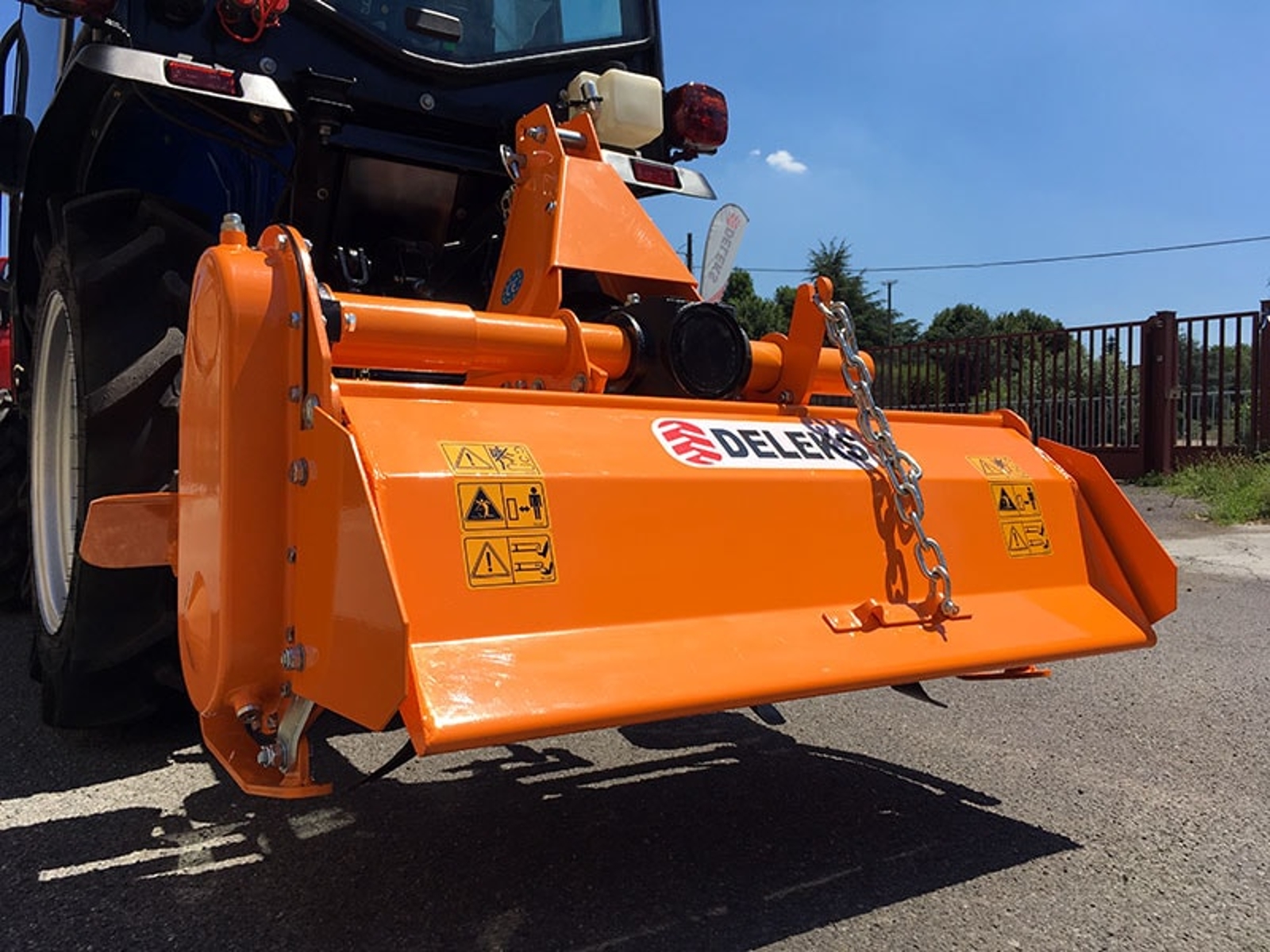

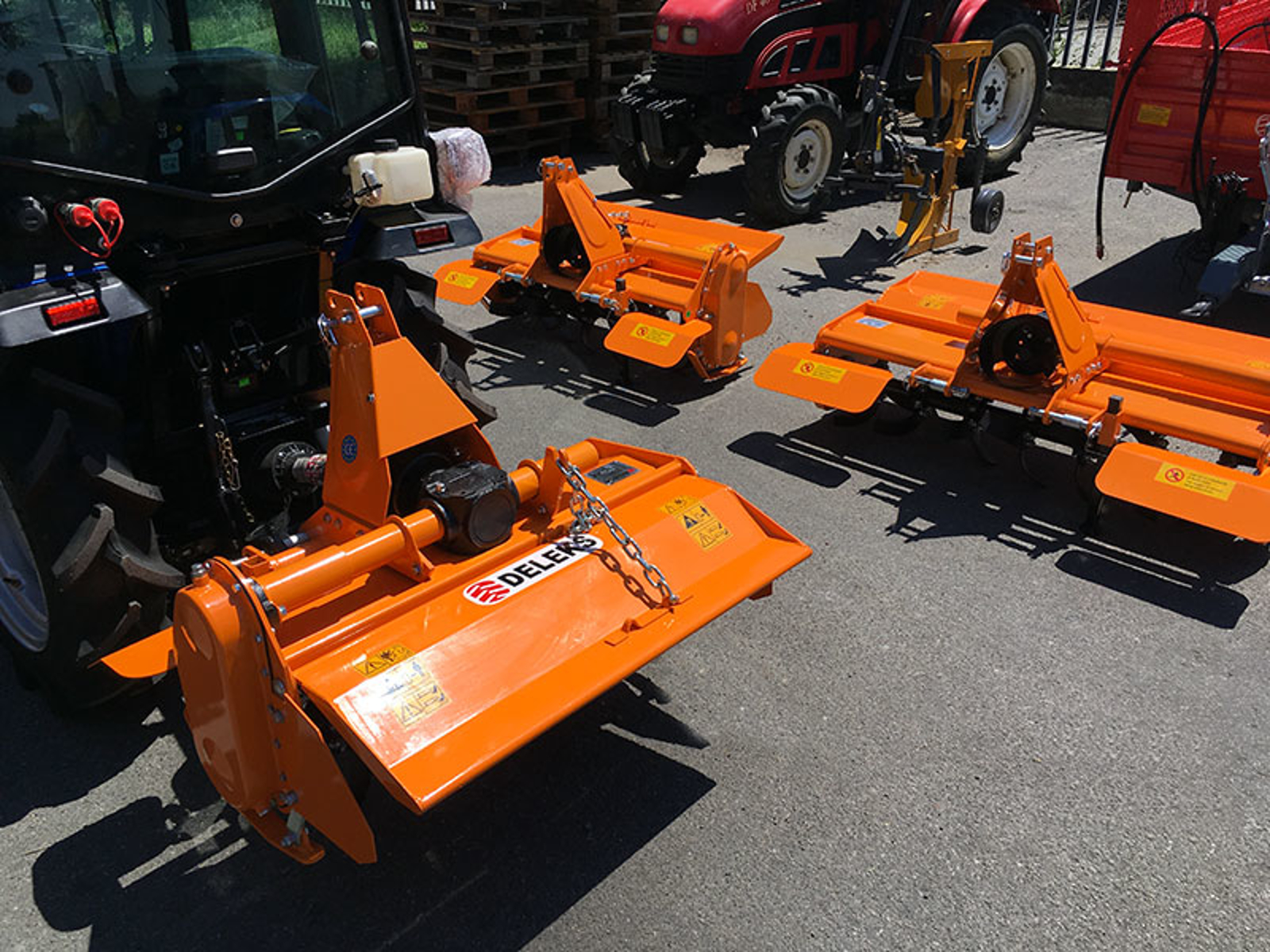

Rotavator for compact tractors 135 cm (53 in) DFL-135, light series 18-35 hp, side shift
DETAILS
Rotavator for compact tractors with 135 cm (53.1 in) working width, from the DELEKS® light series: the widest of the light range, for compact tractors from 18 to 35 hp with a Cat. 1 three-point linkage, such as Kubota B, Iseki, Yanmar, Solis and most other compact tractors. Rotary tiller with side chain drive, 540 rpm gearbox with a three-year warranty, 28 forged tines on 7 flanges, 120 mm (4.7 in) of manual side shift and an adjustable rear bonnet. It weighs 171 kg (377 lb), works 12 to 16 cm (4.7–6.3 in) deep and comes complete with its CE PTO shaft; free delivery within the EU.

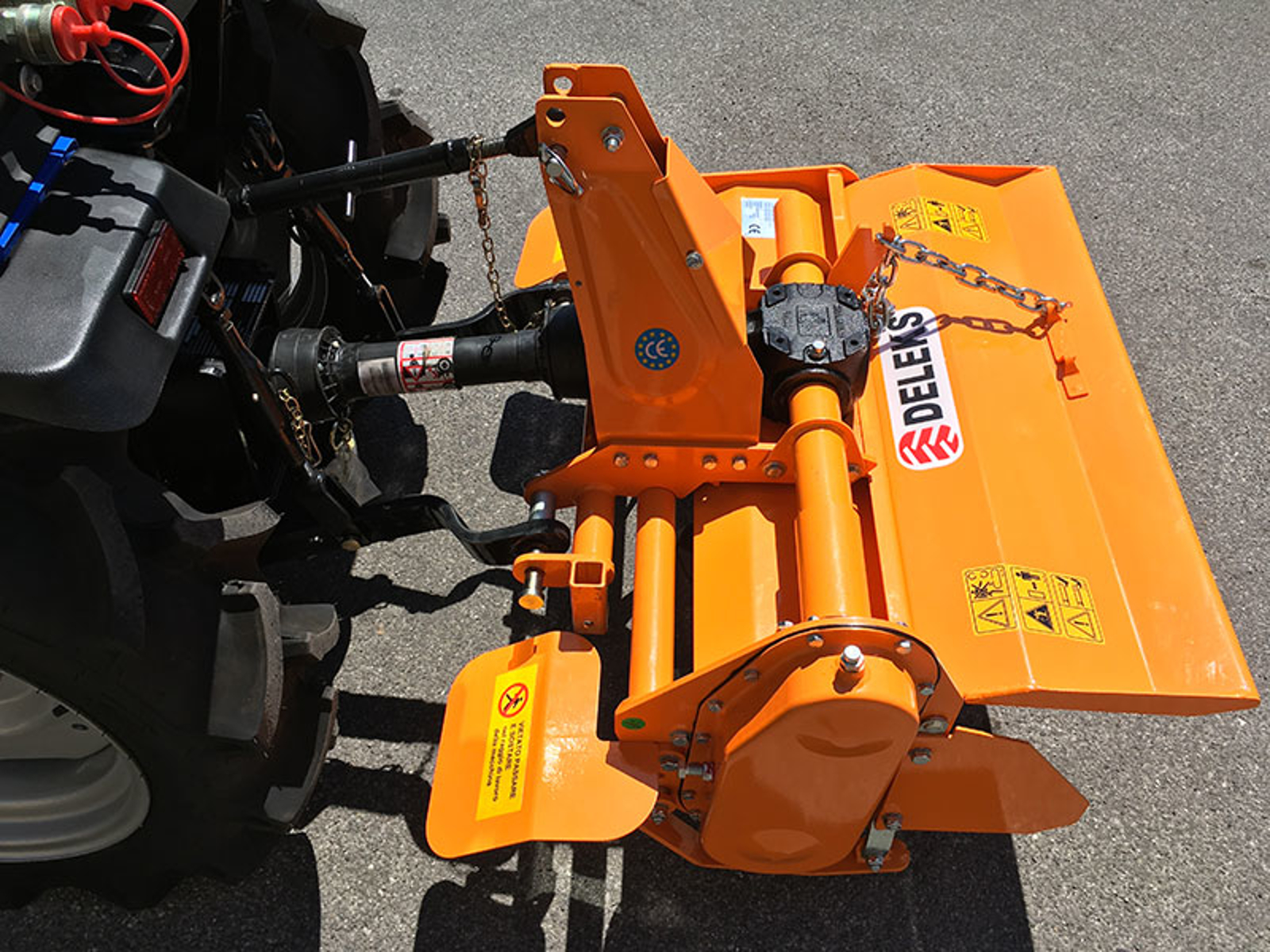

Which tractors it suits
With 135 cm (53.1 in) of working width and 148 cm (58.3 in) overall, the DFL-135 covers the track of compact and orchard tractors while keeping the 171 kg (377 lb) of a light rotavator: the choice for 18–35 hp owners who want a wide pass without the weight of the medium series. It needs 18-35 hp at the 540 rpm PTO and a Cat. 1 three-point linkage (ø 19–22 mm pins, lower-link spacing adjustable from 305 to 520 mm / 12–20.5 in). It is not suitable for quick-hitch frames on the lift arms. For tractors with a reverse-rotation PTO there is the reverse-rotation option: we turn the gearbox over before dispatch and the rotavator arrives ready to fit.

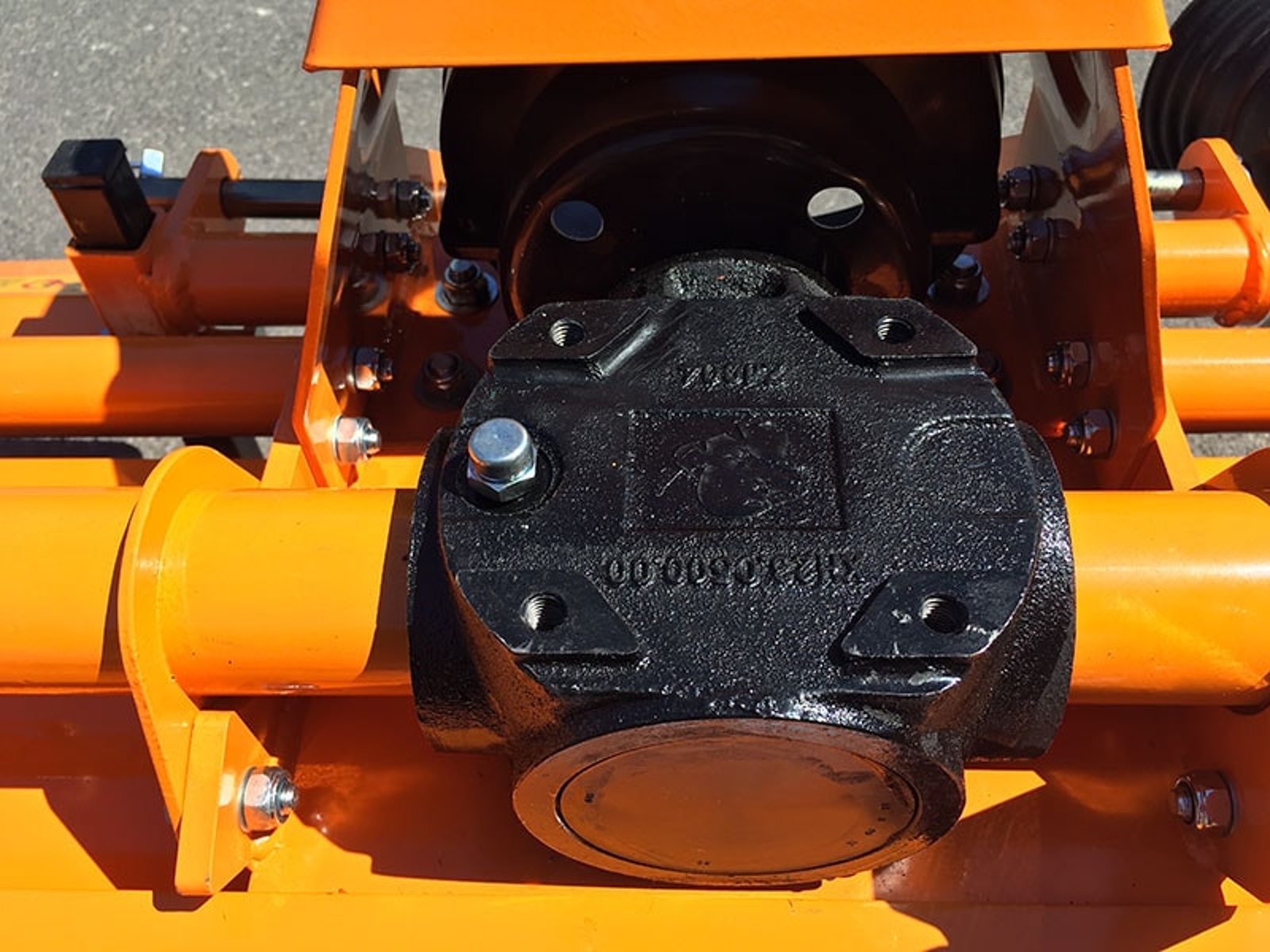

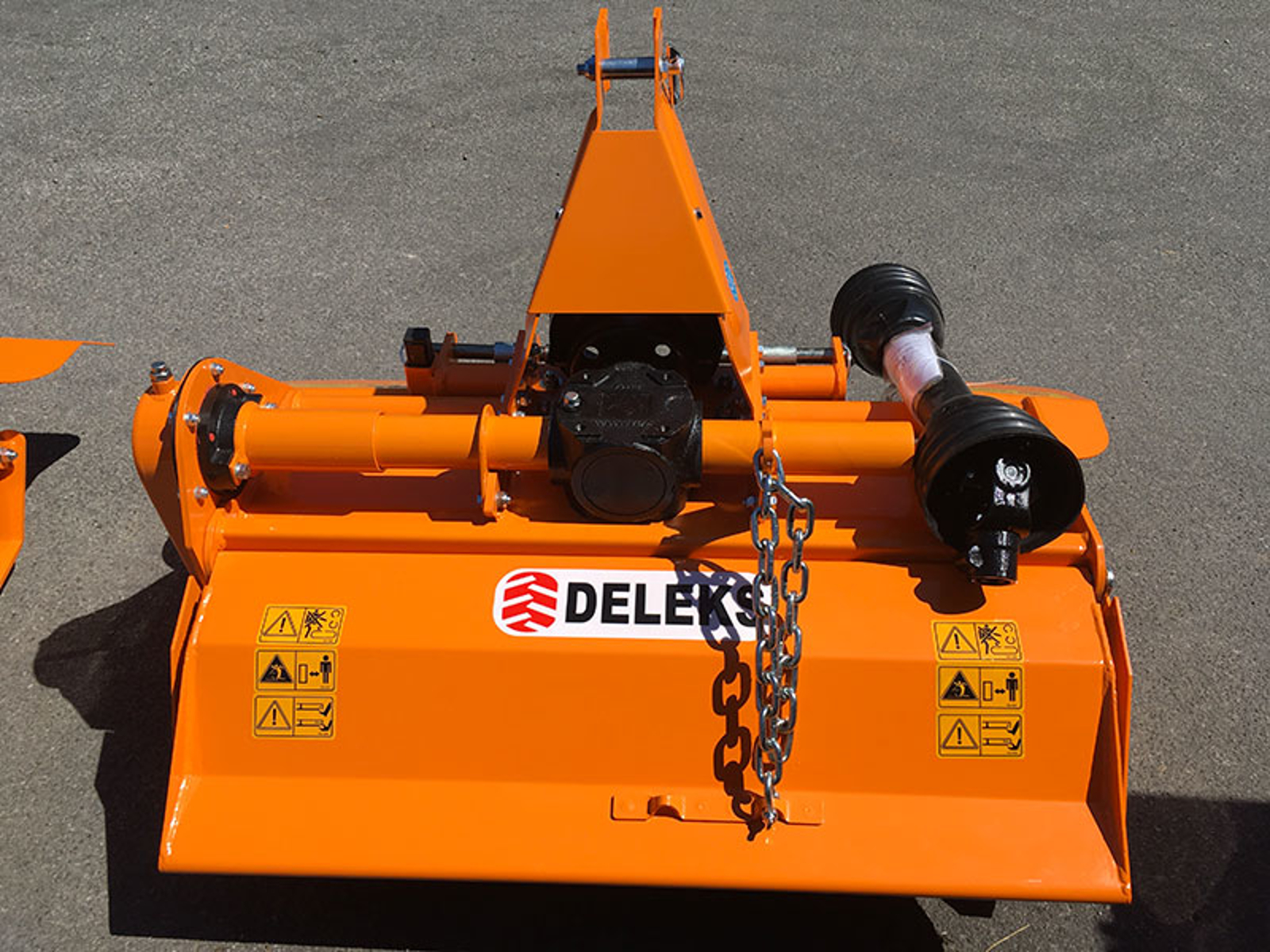

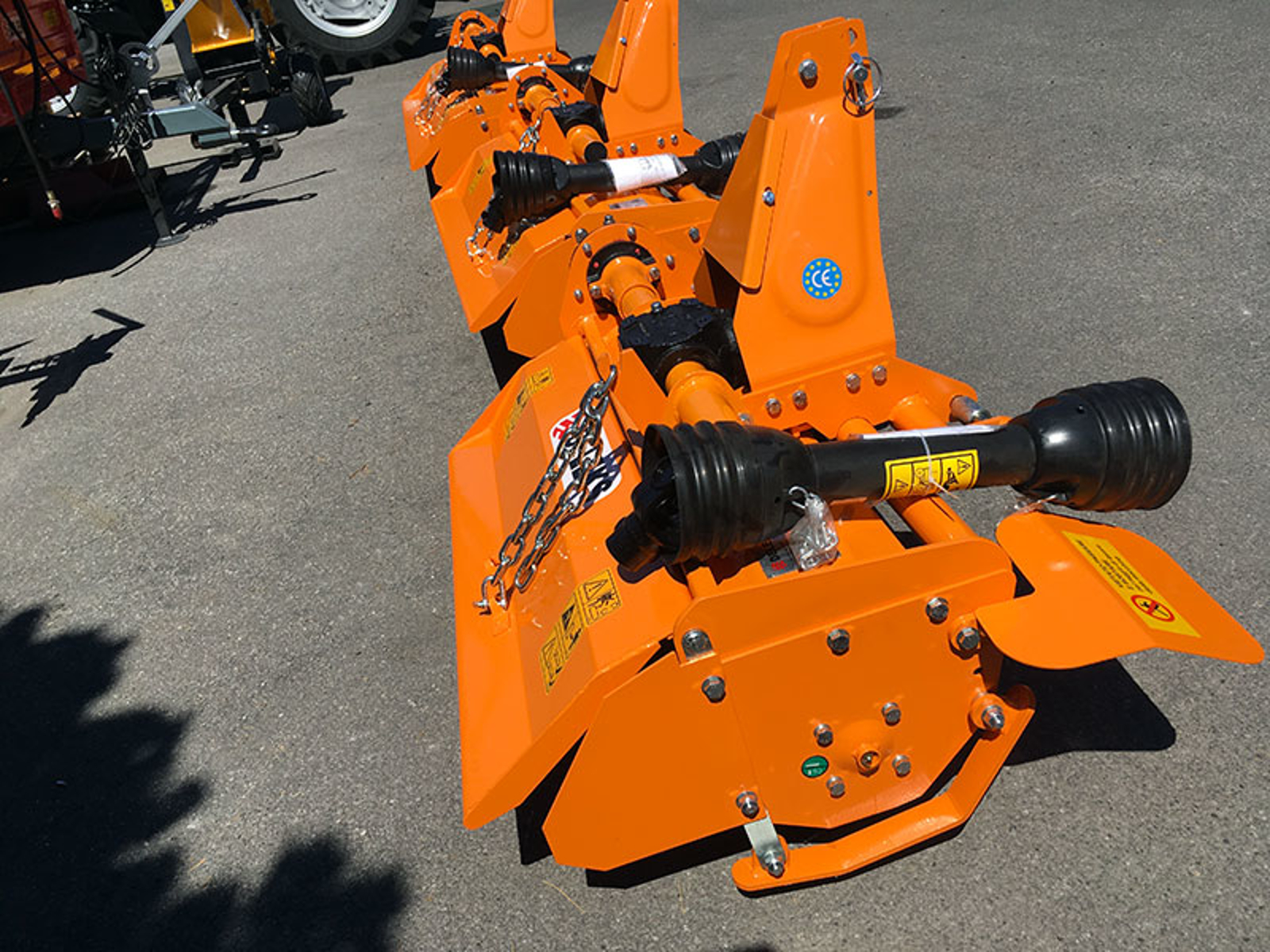

Chain drive and 540 rpm gearbox

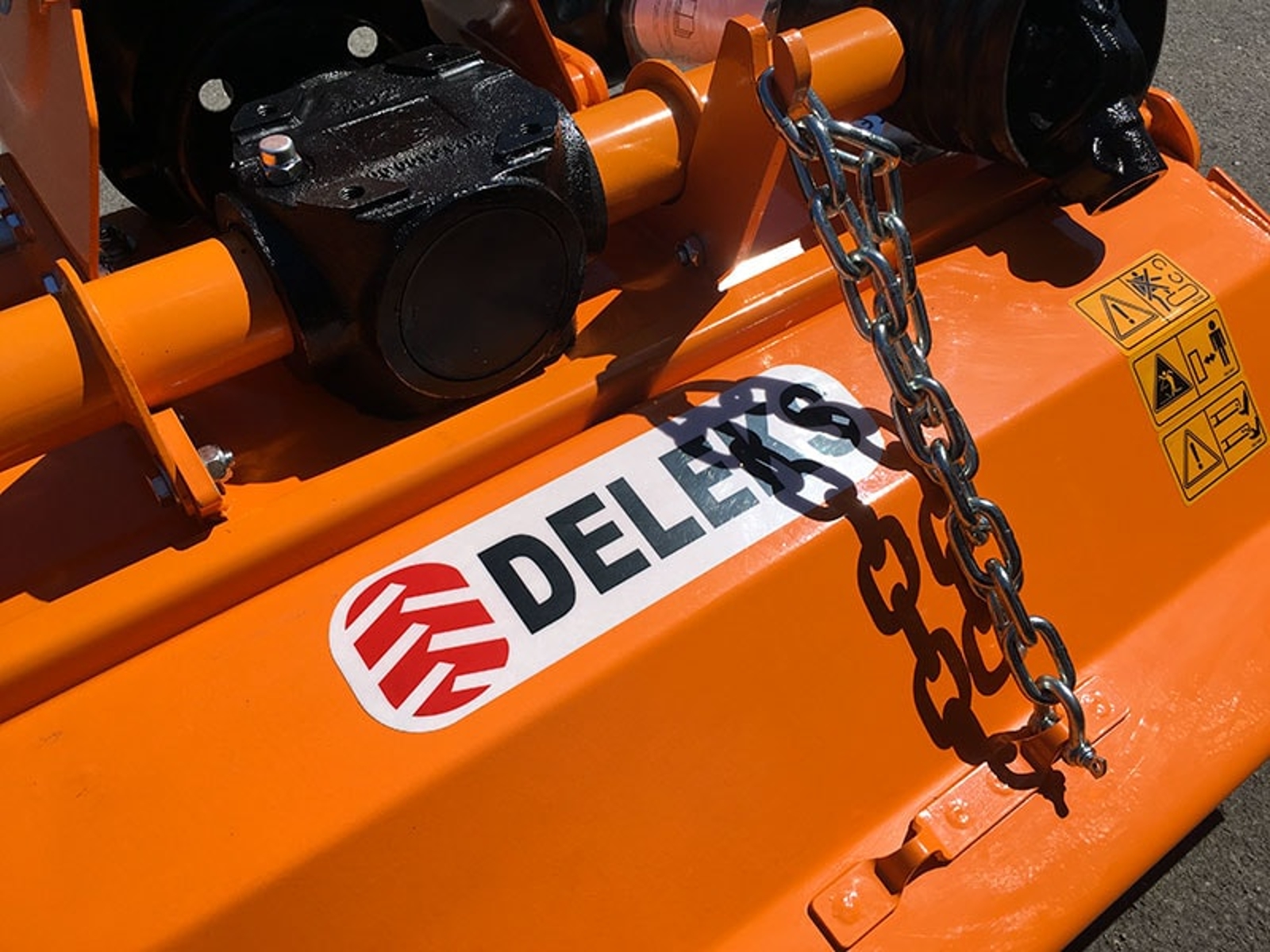

The DELEKS® 540 rpm gearbox carries a three-year warranty and arrives filled with SAE 120 oil; a side chain drive takes the power from the gearbox to the rotor, the simplest layout to check and repair on a light rotavator. The rotor turns at 280 rpm, the right speed to break the clod down with a low-powered tractor. The CE PTO shaft (category 4, 700 mm / 27.6 in) with single-disc friction clutch Ø 160 mm (6.3 in, type F0) is included and can be shortened, if needed, following the manual.

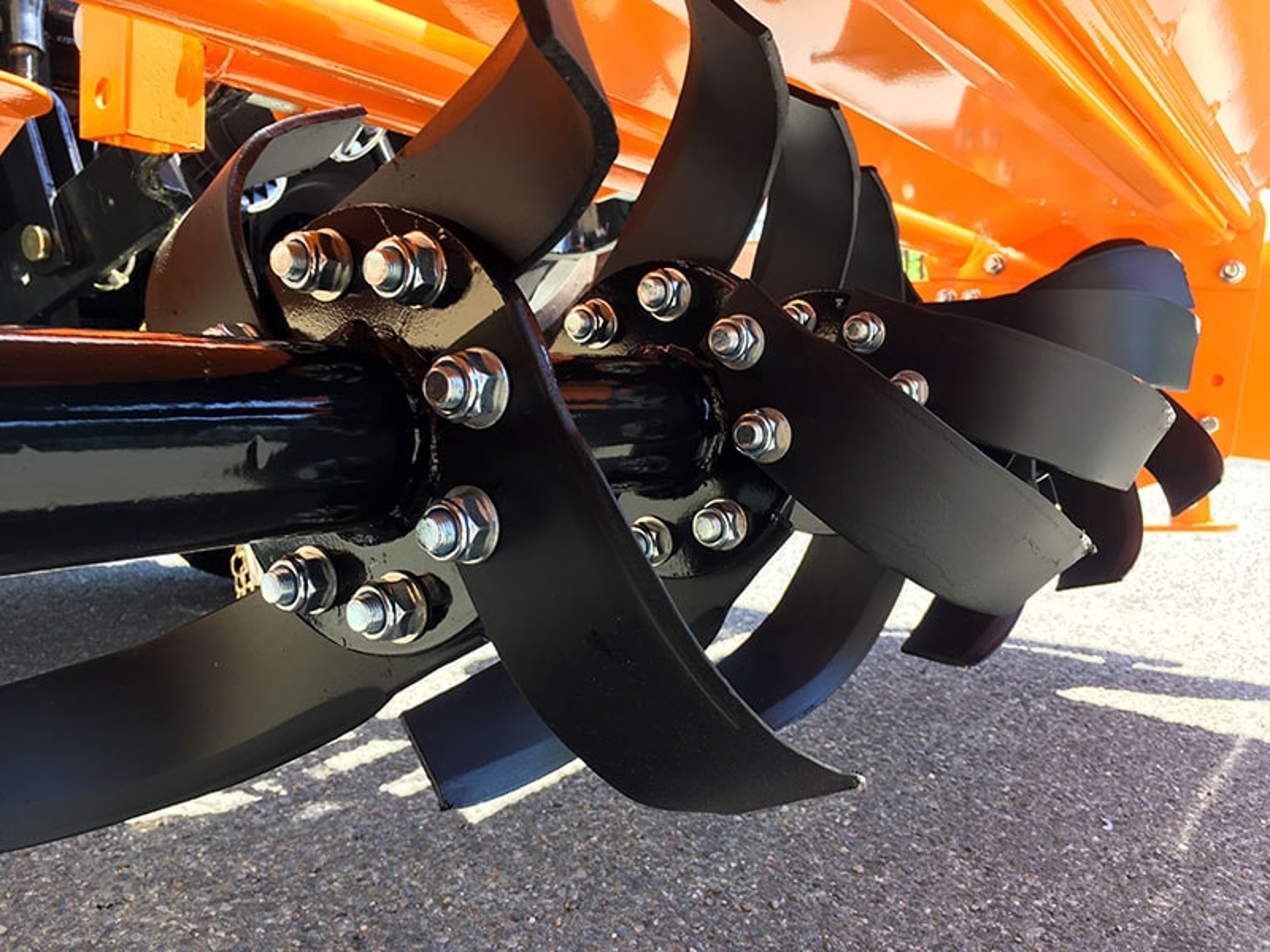

Rotor and forged tines
The rotor measures 370 mm (14.6 in) across with the tines fitted, on a 64 mm shaft with 6207 bearings and 6 mm side plates. The 28 forged tines (4 per flange, 180 × 67 mm, 6 mm thick, 230 mm curve, 570 g each) are held by two bolts each (ø 13 mm holes, 45 mm centres) and are changed one at a time; the same spare fits every DFL and DFM rotavator. Working depth 120 to 160 mm (4.7–6.3 in).

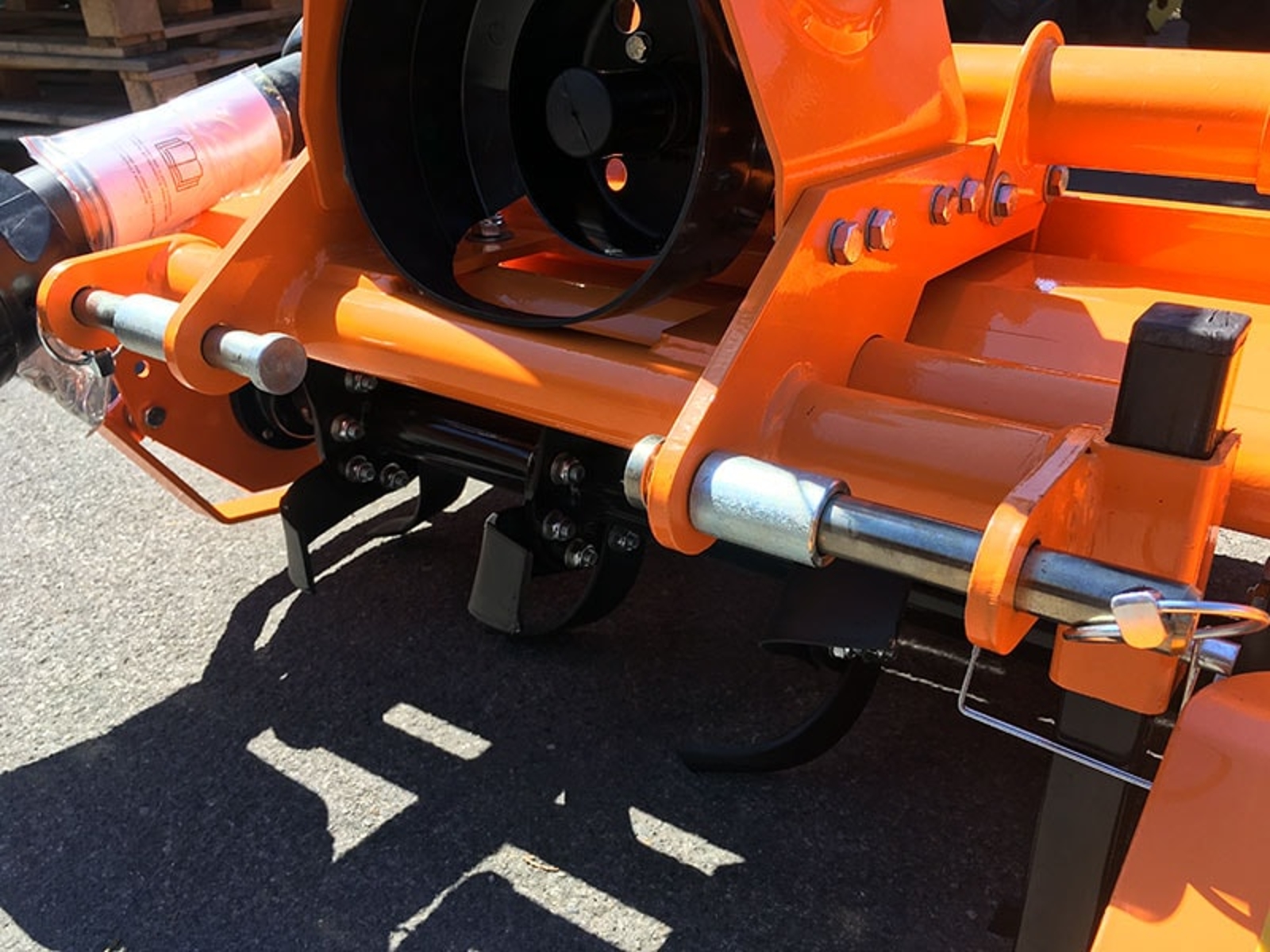

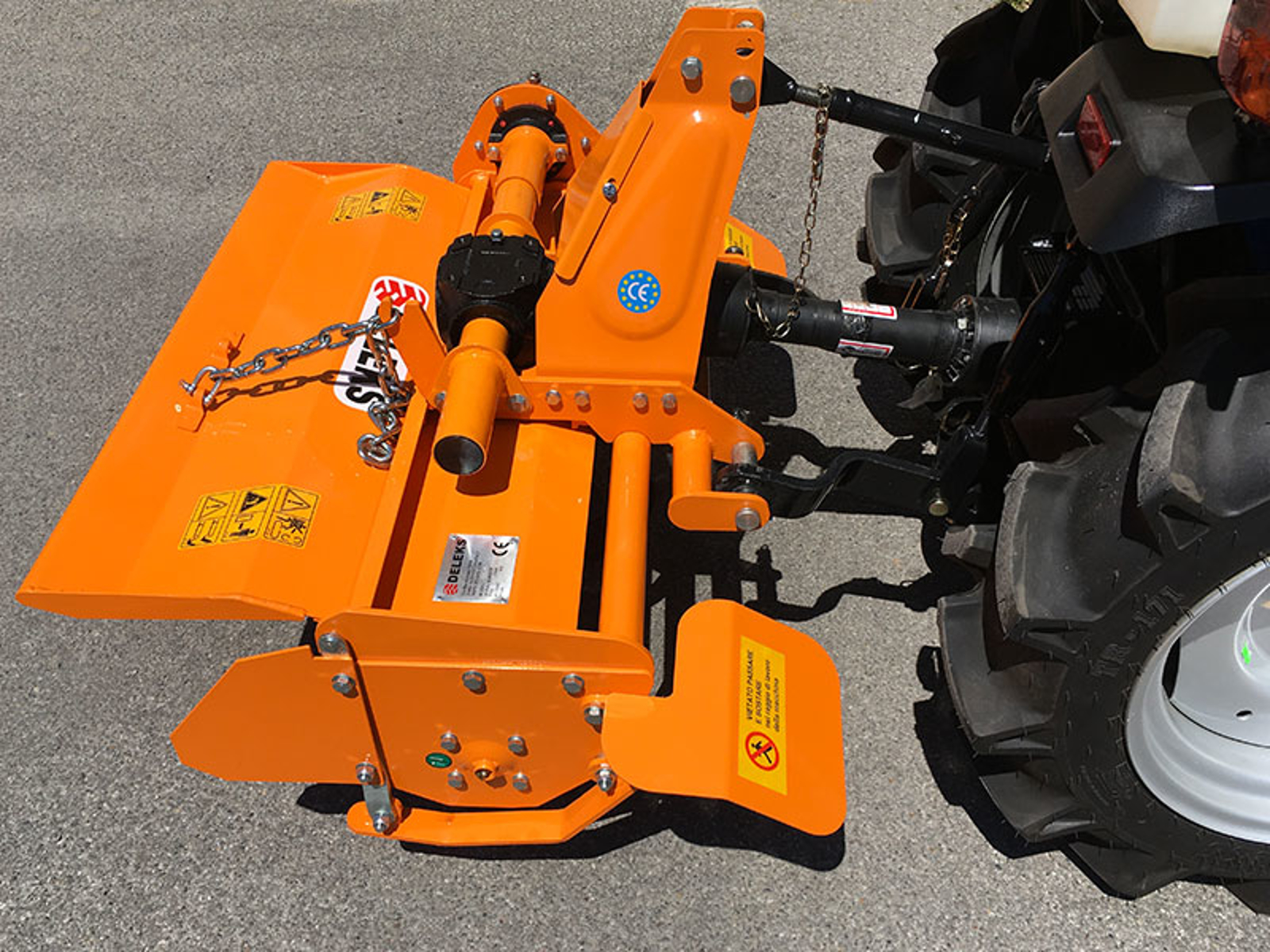

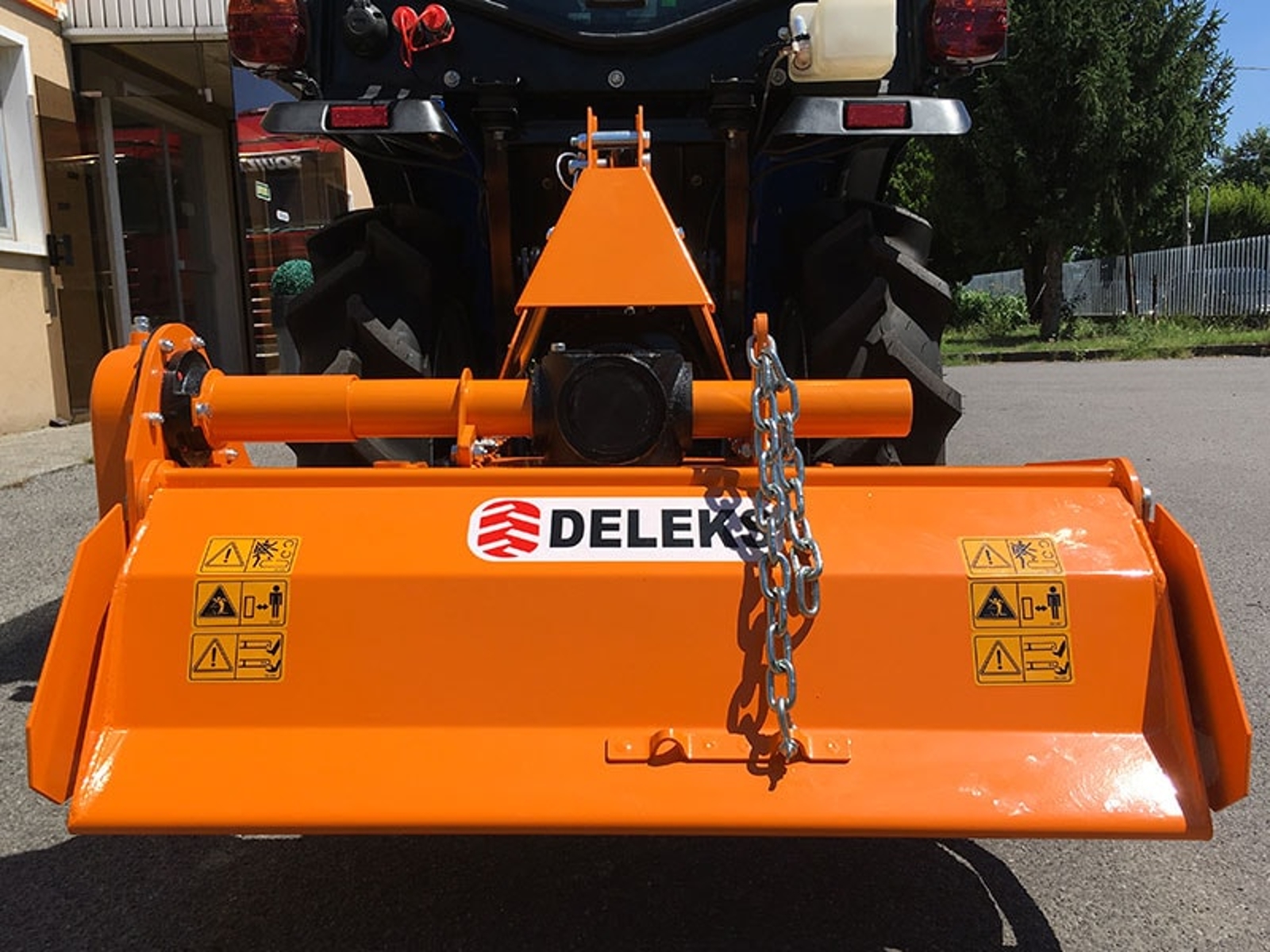

120 mm side shift and adjustable bonnet

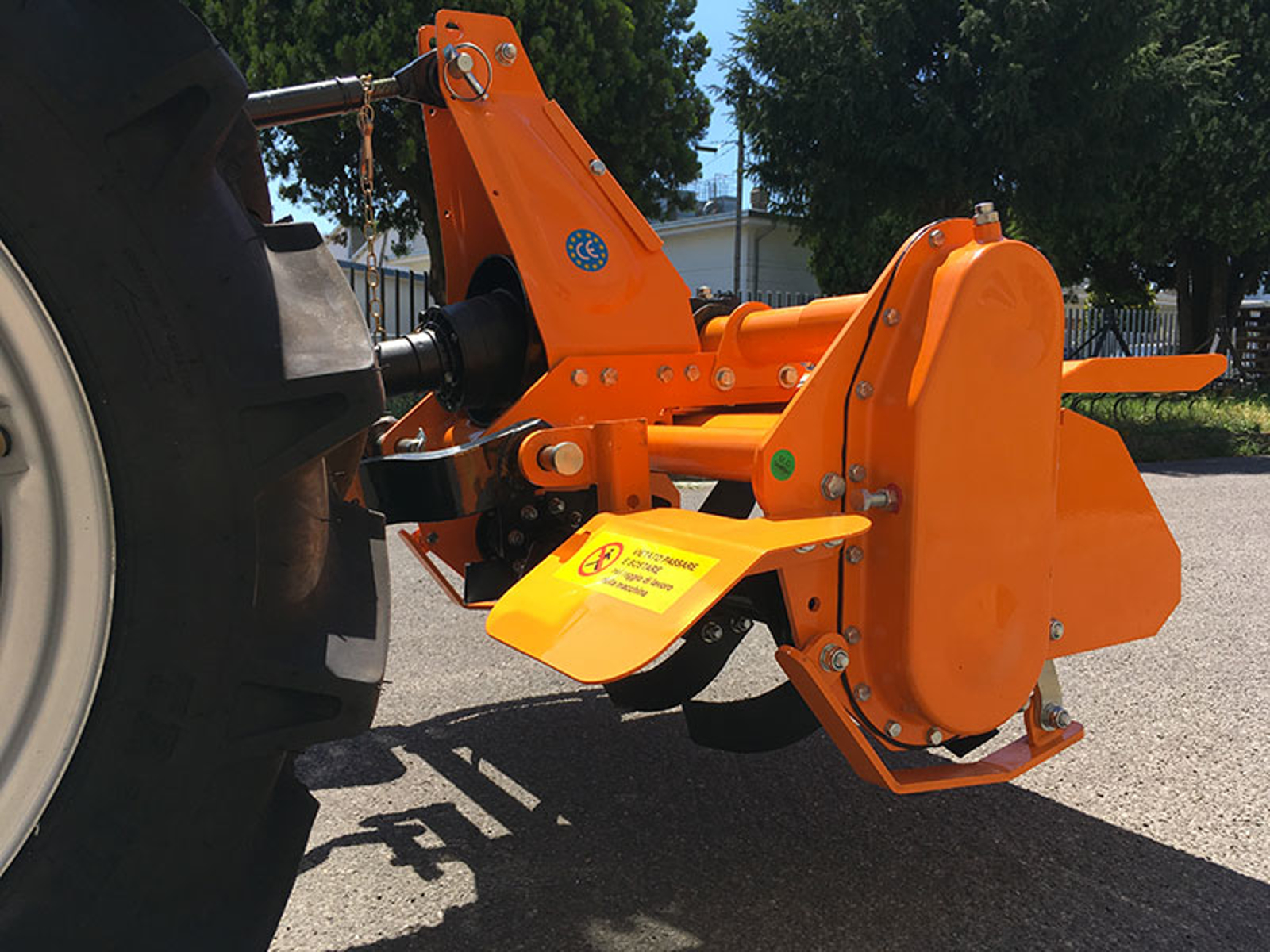

The three-point linkage shifts sideways by 120 mm (4.7 in) mechanically, with the same system as the DFL-95 and DFL-115 and no levers or hydraulics: slacken the two U-bolts that clamp the linkage-and-gearbox assembly to the frame, slide it by hand and tighten up again. It lets you work close to the row or the edge without steering the tractor over, and centre the rotavator behind the wheels. The rear bonnet is adjustable: closed it holds the soil back and breaks it finer, open it lets clods and trash out.
Dimensions, weight and delivery
Working width 1350 mm (53.1 in), overall width 1480 mm (58.3 in), length 680 mm, height 800 mm, weight 171 kg (377 lb); the gearbox sits 490 mm off the ground. It ships on a pallet (206 kg / 454 lb gross) with free delivery within the EU. The machine is CE and TÜV Austria certified, with the risk assessment carried out by E.C.O. Spa of Faenza (Italy), and comes with a two-year warranty.
Where it works

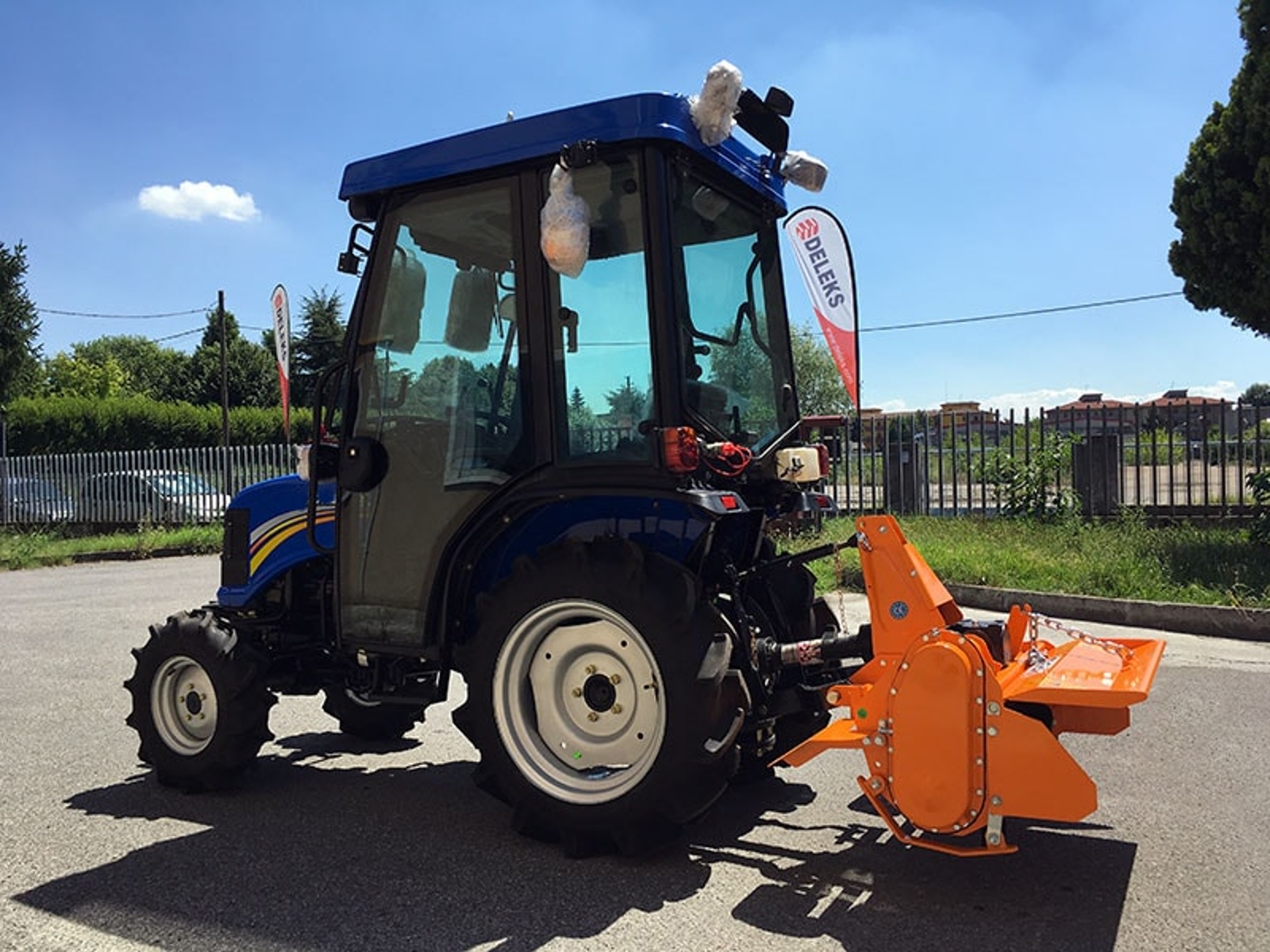

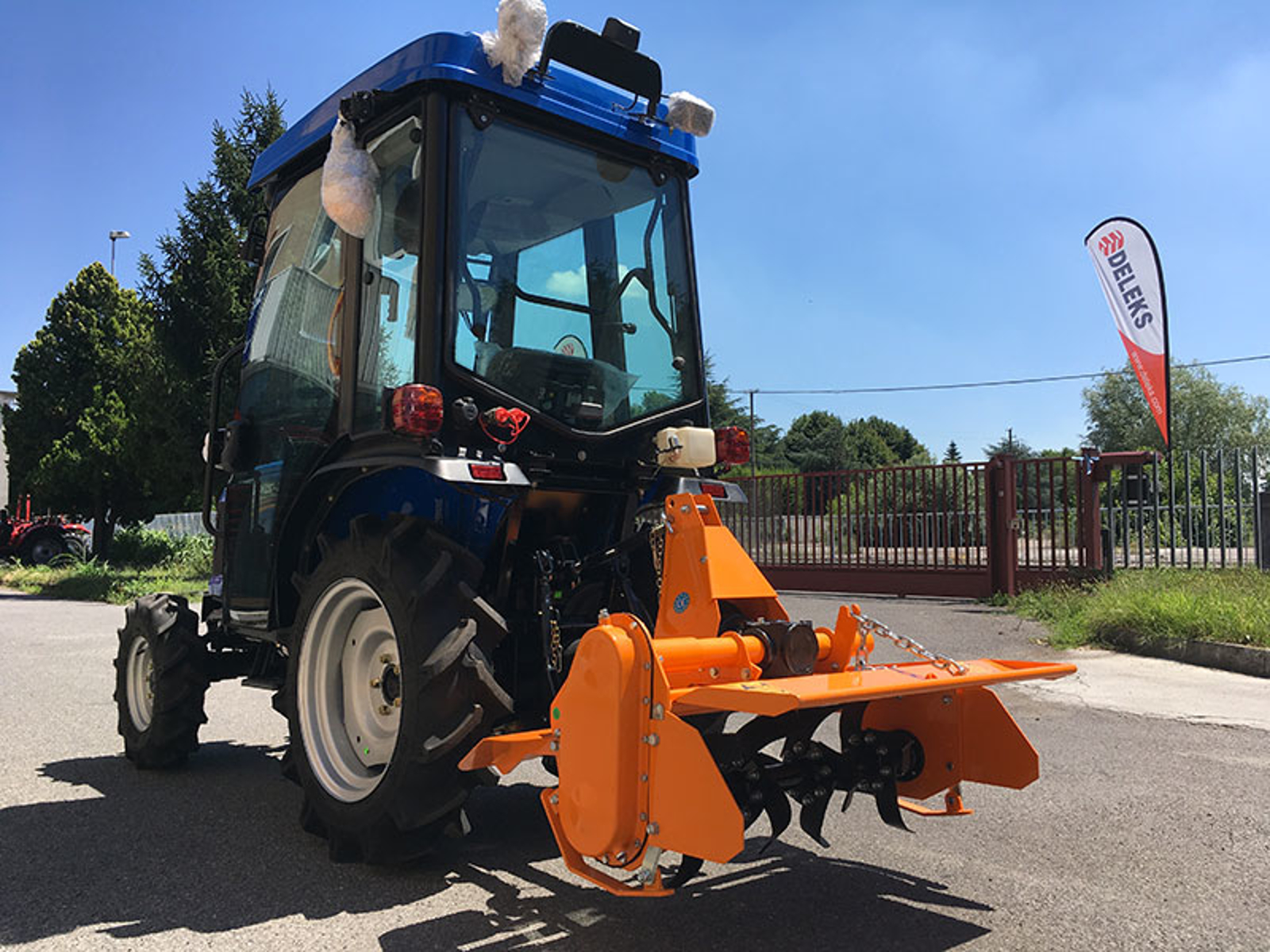

- Vineyards and orchards: working the alleyway with the rotavator shifted towards the row
- Vegetable plot and small fields: preparing seedbeds and planting beds, working in fertiliser and residues
- Polytunnels: a wide pass with a compact tractor
- Gardening and nurseries: renovating lawns and tilthing the soil before sowing
Options and spares
The reverse-rotation kit for tractors with a reverse PTO is an option to request with your order. On this page you will also find the set of 10 forged tines, the drive chain, Cat. 1 pins, tine nuts and bolts, the PTO reduction adaptor and spare PTO shafts and clutches: order them with the rotavator or later on.
FAQ
DFL-135 or the medium-series DFM-125?
Same tractor bracket, two different machines: the DFL-135 is wider and lighter (171 kg / 377 lb), with a 280 rpm rotor and Cat. 1 linkage; the DFM-125 weighs 195 kg (430 lb), has a 230 rpm rotor, a floating bonnet and Cat. 1–2 linkage. On light soils and tractors up to 25–30 hp the DFL-135 is enough; on heavy ground and 30–45 hp tractors the medium series pays off.
Does it work with a reverse-rotation PTO?
Yes, with the reverse-rotation option: we turn the gearbox over before dispatch and the rotavator arrives ready for tractors with a reverse-rotation PTO.
Is the PTO shaft included?
Yes: the CE PTO shaft (category 4, 700 mm / 27.6 in) with single-disc friction clutch Ø 160 mm (6.3 in, type F0) is included and can be shortened following the manual if the tractor's linkage sits very close.
What oil goes in the gearbox, and what maintenance does it need?
The gearbox arrives filled with SAE 120 oil (ISO 72925): at the start of the season check the oil level, tine wear and bolt tightness. Worn tines are replaced with the set of 10.
Can I fit it with a quick-hitch frame?
No: the DFL-135 hooks onto the lift arms with Cat. 1 pins and quick-hitch frames are not compatible.
DELEKS® spares and support
Genuine spares ship from the DELEKS® warehouses in Europe: tines, chains, pins, bearings, PTO shafts, clutches and the other wearing parts are normally in stock, for routine servicing and for repairs. The technical team helps you pick the right part from the exploded drawings, service the machine and choose the rotavator and the accessories that suit your tractor. The rotavator comes with the EC declaration of conformity, the invoice and the use and maintenance manual, also emailed when the order ships. Two-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1350.0 mm |
| Overall width | 1480.0 mm |
| Weight | 171.0 kg |
| Overall height | 800.0 mm |
| Tractor Power Range | 18 - 35 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Position of the gearbox | 560.0 mm from left side / 790.0 mm from right side |
| Spacing between the 2 lower points | 305.0 - 520.0 mm |
| Overall length | 680.0 mm |
| Distance between pto attachment and ground | 490.0 mm |
| Transmission: Drive method | Chain |
| Transmission: Gearbox | DELEKS 540 r/min (3 year warranty) |
| Transmission: Rotation of gearbox | Right side (left side on request) |
| Transmission: RPM Rotor speed | 280 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Rotor: diameter | 64.0 mm |
| Rotor: bearings type and size | "GB276-6207(R) GB276-6207(L)" |
| Rotor: sheet thickness | 6.0 mm |
| Working Depth Range | 120.0 - 160.0 mm |
| Pto shaft | CE 4x700 mm + single-disc friction clutch Ø160 mm (F0) |
| Rotor: diameter with blades | 370.0 mm |
| Rotor: flanges | 7 |
| Number of Blades per flange | 4 |
| Blades: quantity | 28 |
| Blades: height/width | 180.0 / 67.0 mm |
| Blades: curve length | 230.0 mm |
| Blades: distance between holes | 45.0 mm |
| Blades: diameter of the holes | 13.0 mm |
| Blades: thickness | 6.0 mm |
| Effective Displacement | 120.0 mm manual |
| Blades: weight | 570.0 g |
| Gross shipping weight | 206 kg |
| Package volume | 0.77 m3 |
| Packing sizes | 800.0*1490.0*650.0 mm |
