Drum mower for tractor 100 cm (39 in) DFR-100, 2-drum rotary mower for compact tractors, 16-35 hp

Not available  Notify me
Code DFR100PTO - EAN 8053470237652
1.650,00€VAT incl.
or 3 installments of 550,00 €
Free shipping
Loading...
1.650,00€VAT incl.
or 3 installments of 550,00 €
Free shipping
View all details.

reviews

1.650,00€VAT incl.

DETAILS

2-drum rotary mower for tractors with a 100 cm (39 in) cut, the DELEKS® DFR-100: it mows grass and forage for hay with 6 blades of 150 g (5.3 oz), 50 mm (2 in) from the ground, and leaves the grass in a swath ready for drying and collection. It weighs 110 kg (243 lb) and works with tractors from 16 to 35 hp, with a 540 rpm PTO and a category 1 three-point linkage. It is the smallest in the range, for compact tractors. Made in Europe, it comes complete with a CE-approved PTO shaft, a 2-year warranty and free delivery within the EU.


How a drum mower works

A drum mower, also called a rotary drum mower, works like this: the 2 drums with their blades spin at high speed and cut the grass cleanly, without tearing it; the forage stays in a swath and dries for hay. Compared with a finger bar mower it is not troubled by long or lodged grass and does not clog; compared with a flail mower it does not chop the grass, which can still be collected with a rake and baler.


Which tractors it fits

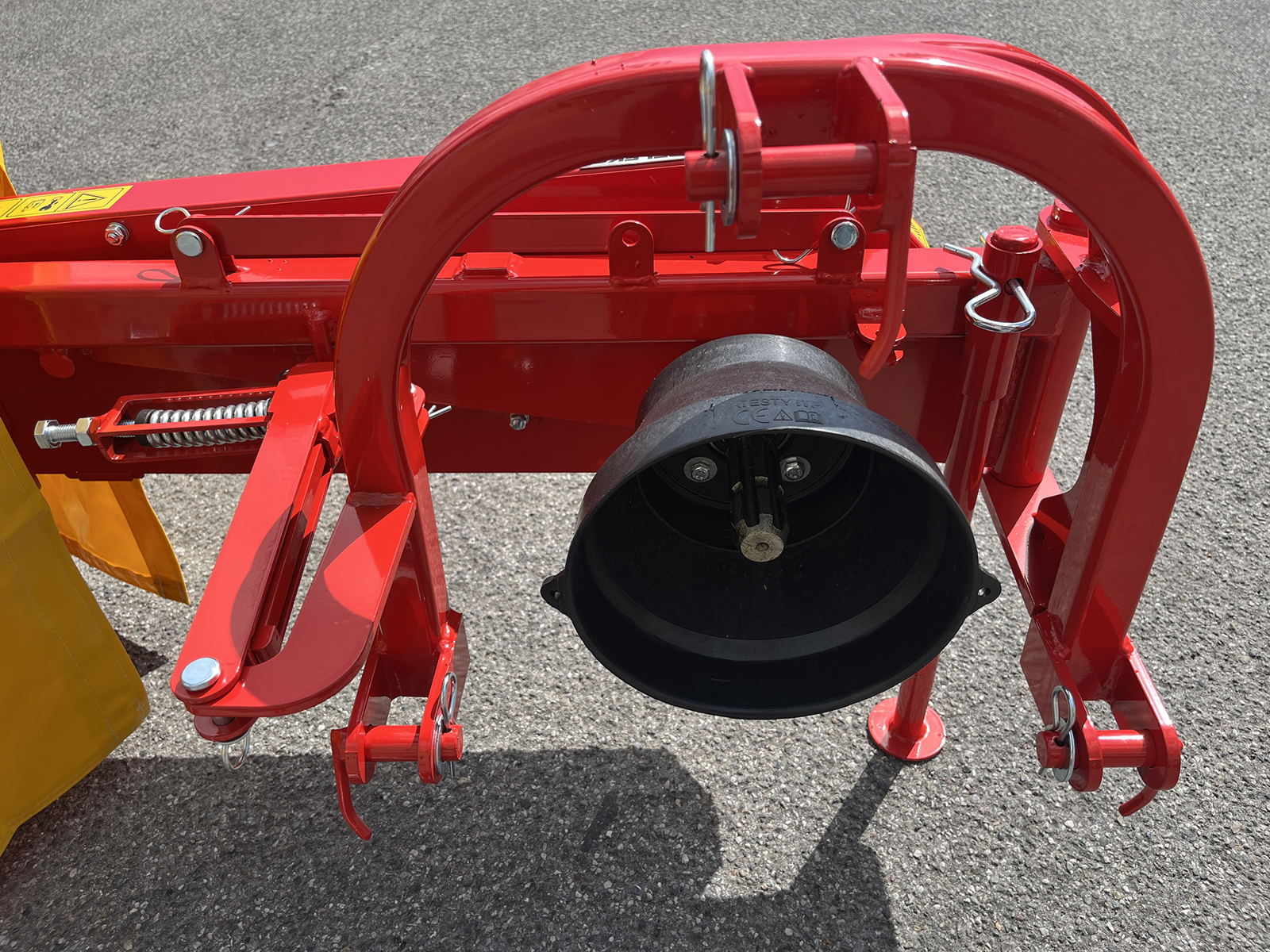

The DFR-100 is built for compact tractors from 16 to 35 hp, with a rear 540 rpm PTO and a category 1 three-point linkage (19-22 mm pins, lower link spacing from 410 to 485 mm): Antonio Carraro, Goldoni, Kubota, BCS, Ferrari, Solis and equivalent tractors. It works offset to one side of the tractor, on a 650 mm (25.6 in) arm, with an overall width of 2,000 mm (78.7 in).

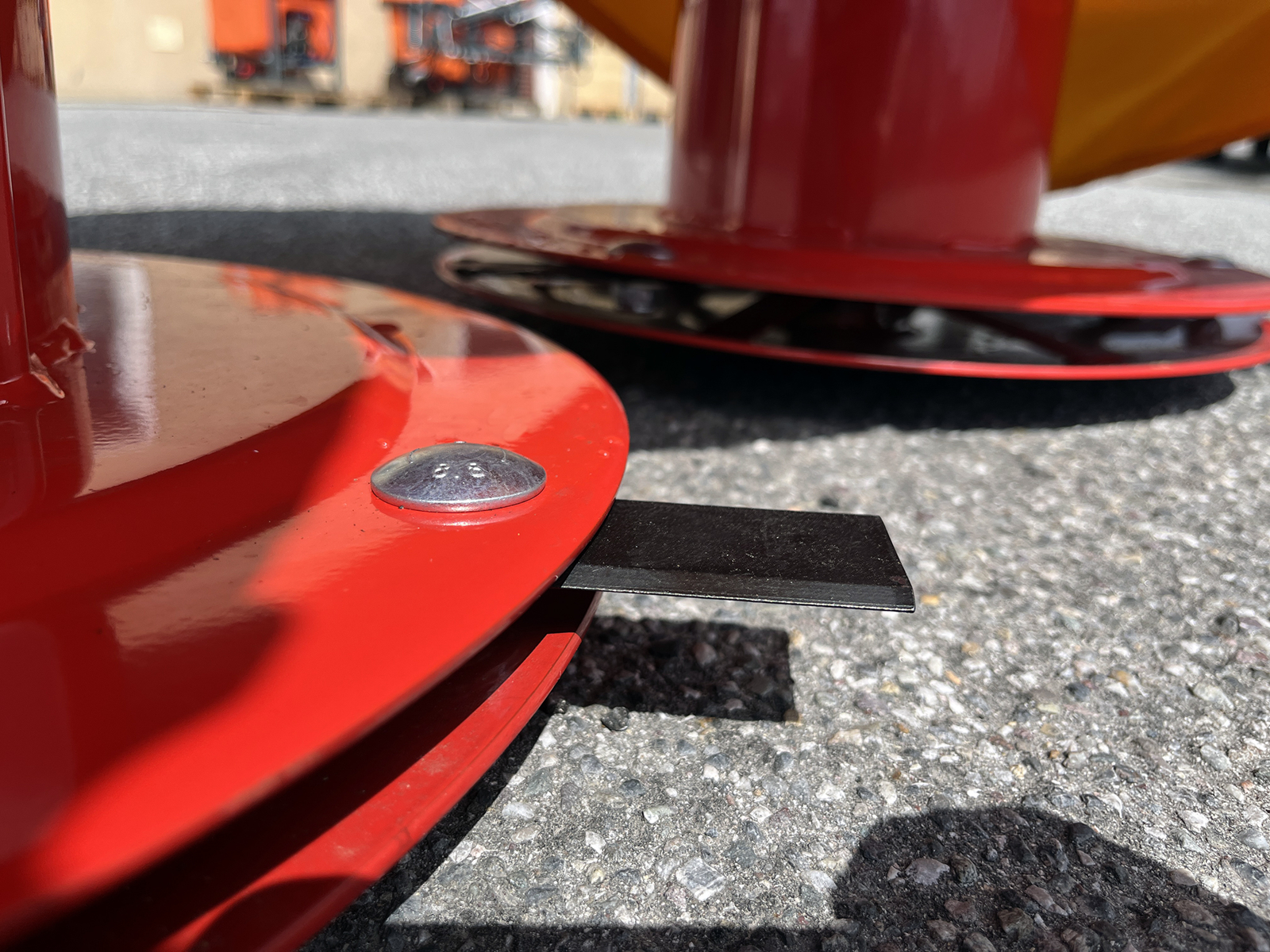

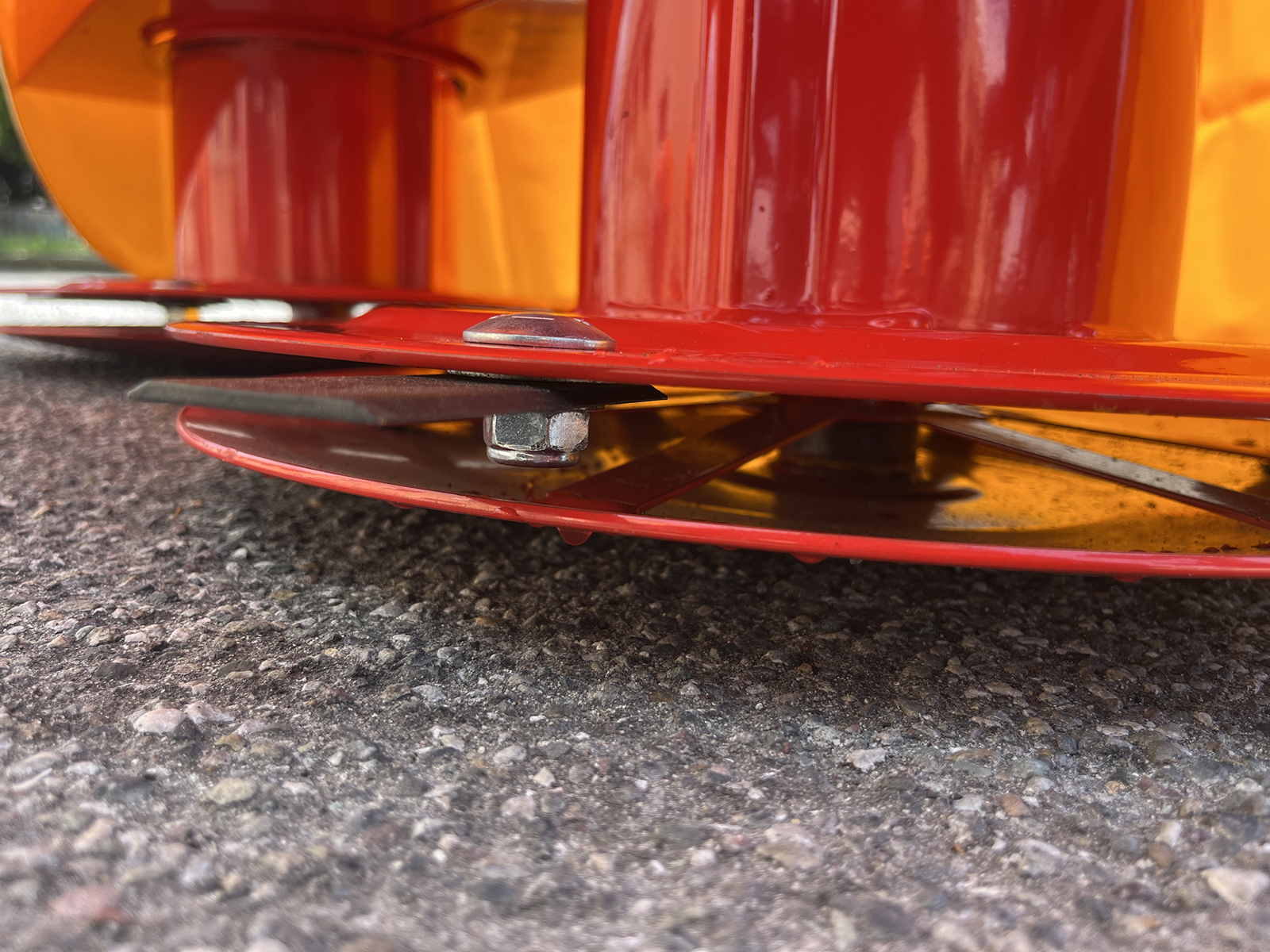

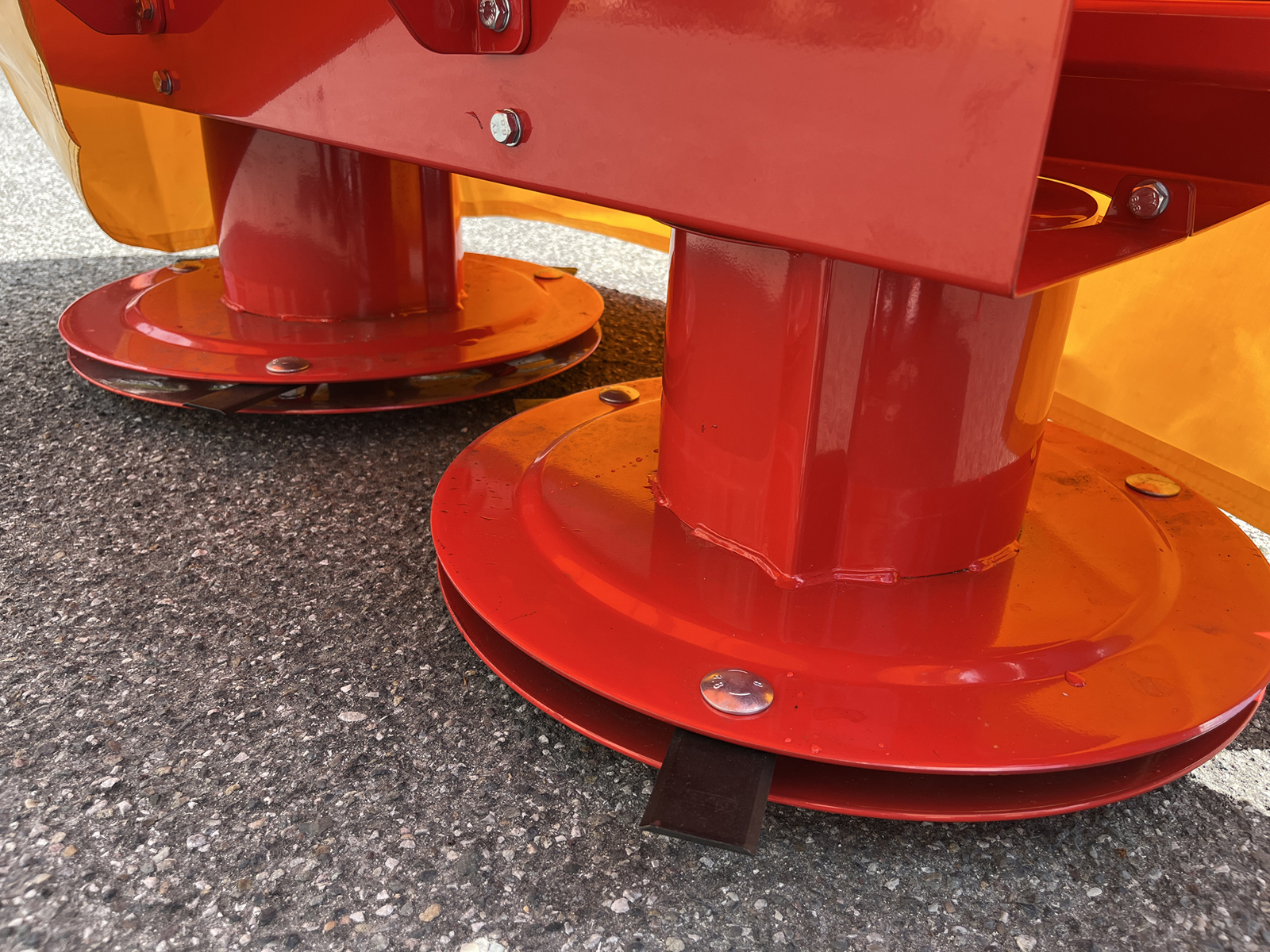

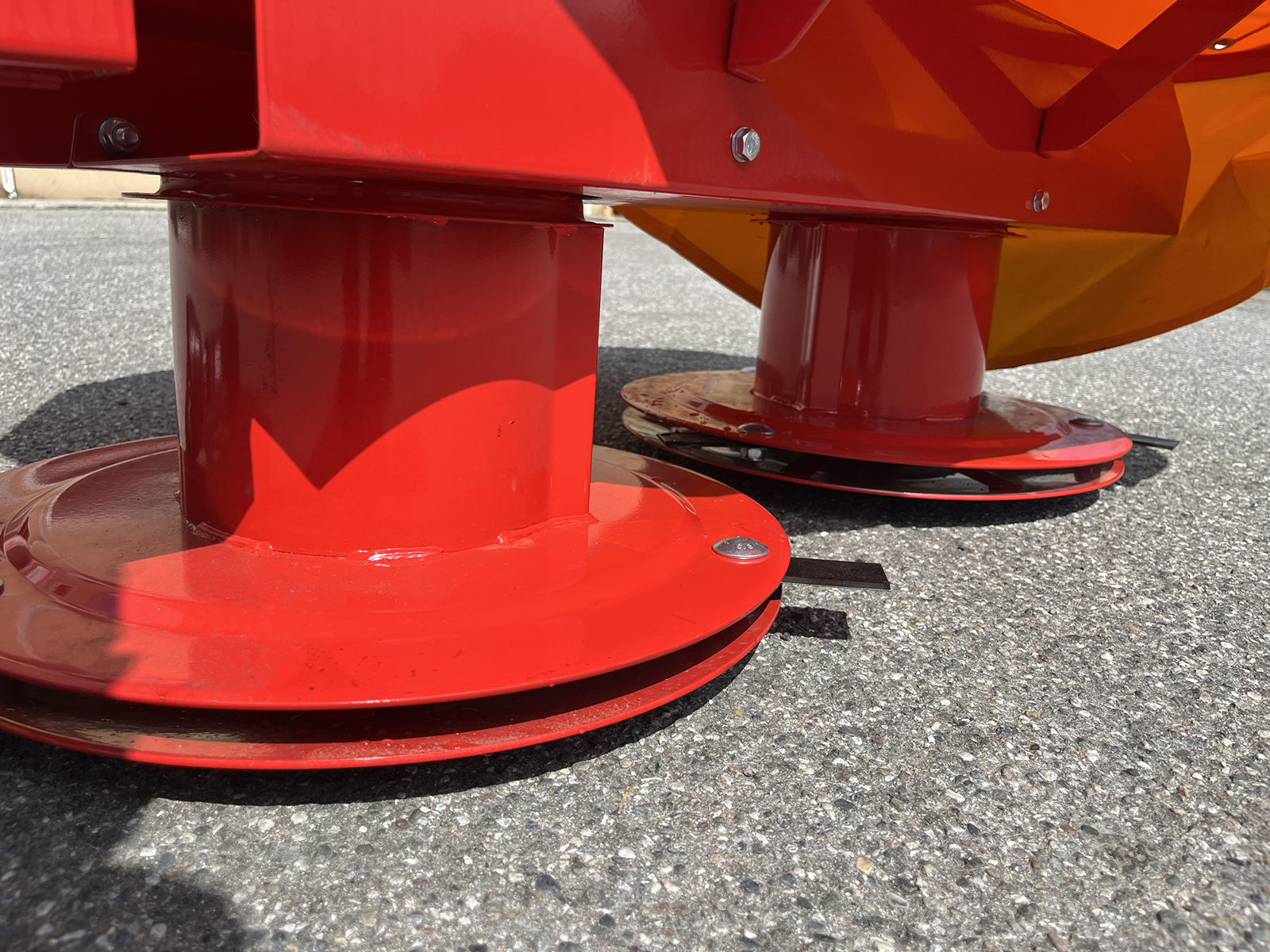

2 drums and 6 blades of 150 g (5.3 oz)

The 2 drums carry 6 universal blades of 150 g (5.3 oz) each (95 × 48 mm, 3.7 × 1.9 in, with an 18 mm hole) and cut 50 mm (2 in) from the ground, the right height for forage and for the regrowth of the meadow. The blades come off and go back on easily with the lever supplied; the spare set of 10 blades can be ordered from this page (COLTELLI10DFR). CE guards are fitted as standard.

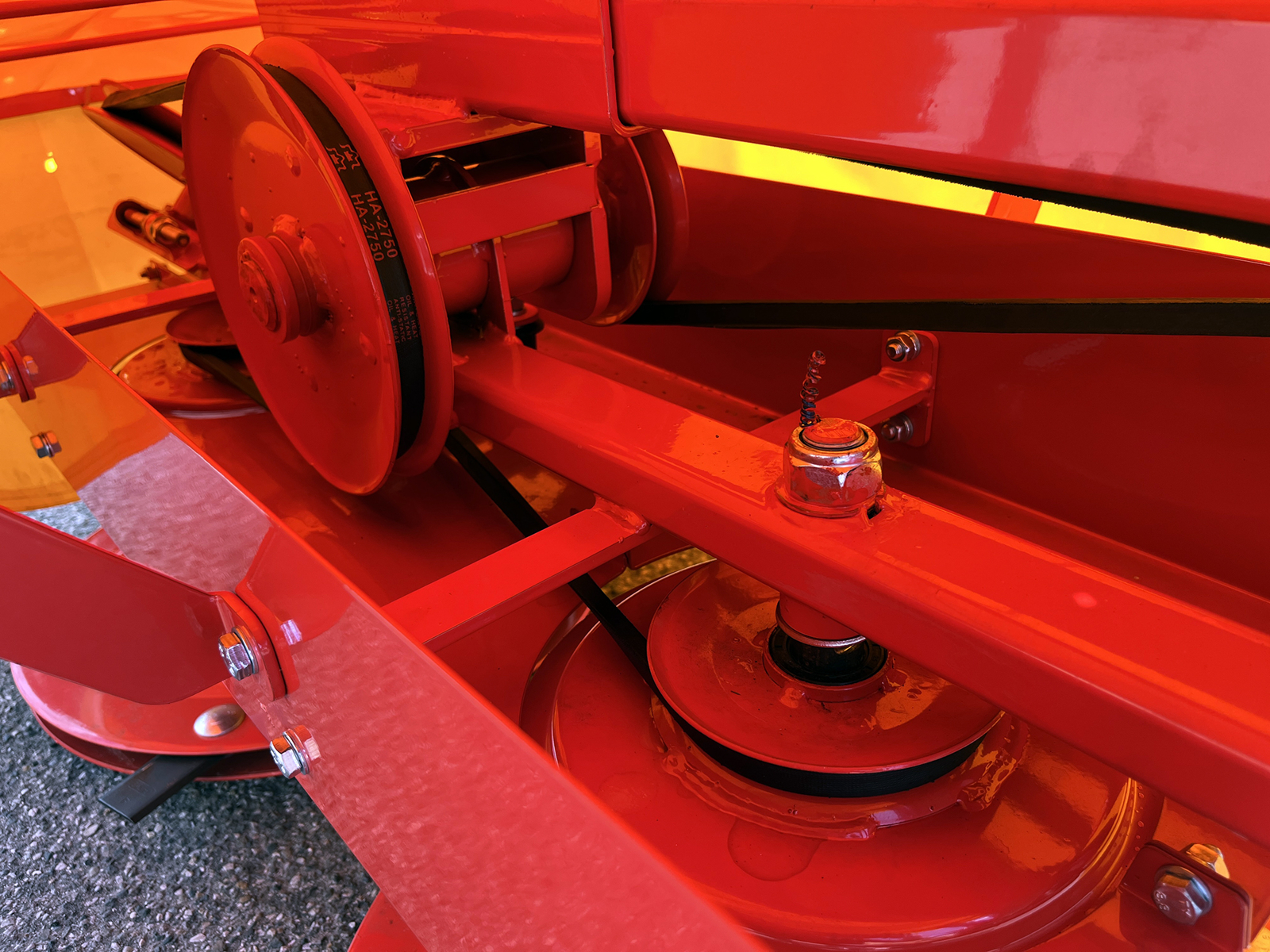

Drive: 540 rpm PTO, 2 belts and freewheel

Drive comes from the 540 rpm PTO, turning clockwise, and reaches the drums through the gearbox and 2 V-belts. The driveline has a freewheel: when you disengage the PTO the drums carry on turning under their own momentum and run down by themselves, without driving back through the tractor's transmission. The CE-approved category 4 PTO shaft, 800 mm (31.5 in) long, is included.

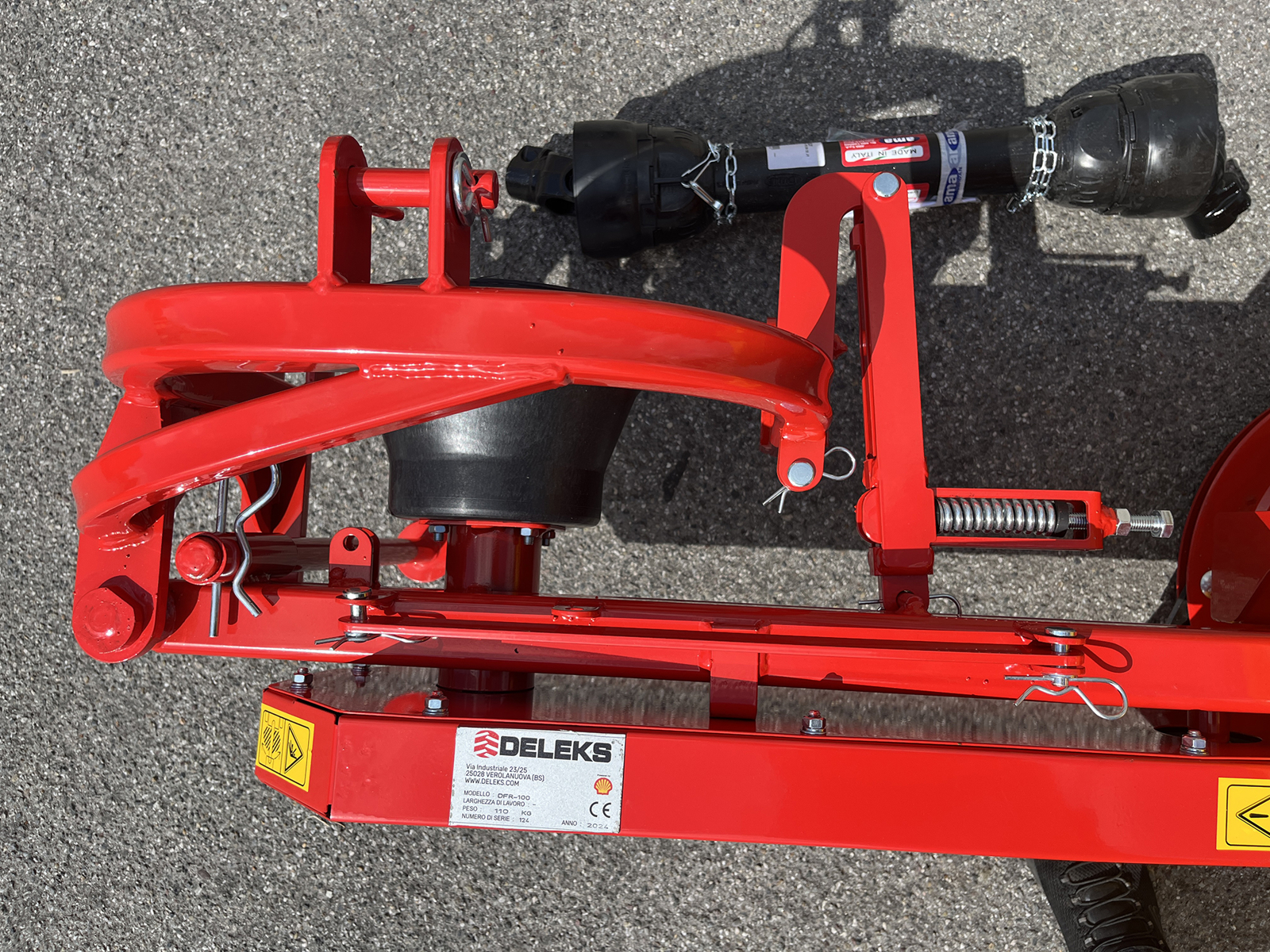

Anti-shock system and road transport

The anti-shock system protects the frame if the mower hits a tree, a post or another obstacle. For road transport the DFR-100 folds up by hand.

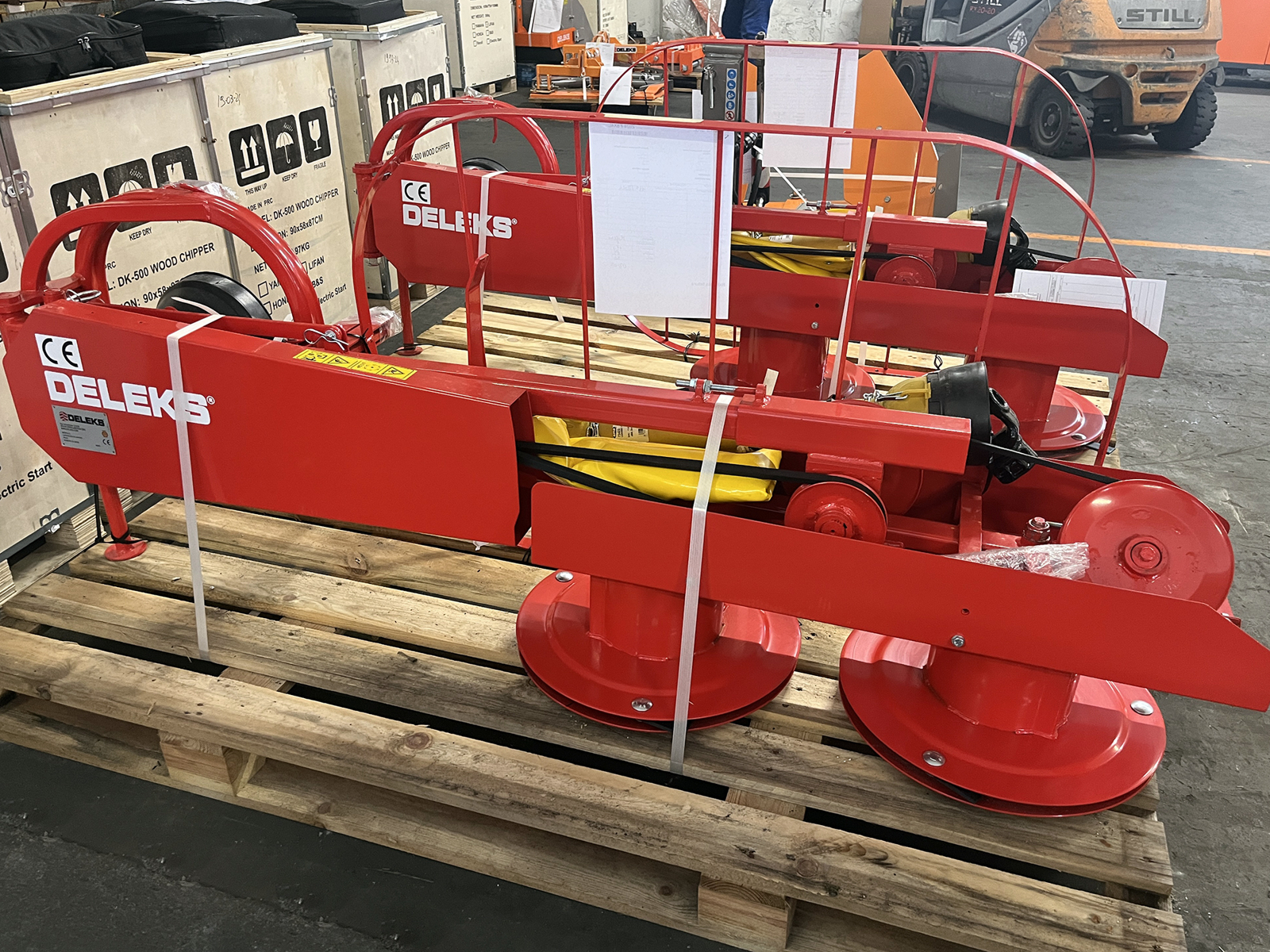

Dimensions, weight and delivery

Working width 1,000 mm (39.4 in), overall width 2,000 mm (78.7 in), length 800 mm (31.5 in), weight 110 kg (243 lb). It ships in packaging measuring 120 × 80 × 80 cm (47 × 31 × 31 in), 136 kg (300 lb) gross, 0.77 m³, with free delivery within the EU. It complies with the EC Machinery Directive and carries a 2-year warranty.


Where it works

  • Meadows and forage crops: mowing grass and forage for hay
  • Long and lodged grass, where a finger bar mower clogs
  • Uneven ground, where a drum mower copes better than a finger bar mower
  • Swaths for the rake and for a mini round baler with an 80 cm (31 in) pick-up
  • Tractors from 16 to 35 hp with a category 1 three-point linkage

Options and spares

From this page you can add to your order the spare set of 10 blades (COLTELLI10DFR). Other spares are identified on the exploded diagrams with our technical team.


FAQ

What size tractor does the DFR-100 need?
From 16 to 35 hp, with a 540 rpm PTO and a category 1 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 110 kg (243 lb).

Drum mower or finger bar mower?
The drum mower is faster, does not clog in long or lodged grass and copes with uneven ground; the finger bar mower is the tool for two-wheel tractors and small meadows.

What height does it cut at?
50 mm (2 in) from the ground, the right height for forage and for the regrowth of the meadow.

Does it cut long and lodged grass?
Yes, the drums cut lodged grass and tall forage without clogging.

How do you change the blades?
With the lever supplied. The blades are universal, 150 g (5.3 oz) each; the spare set of 10 is COLTELLI10DFR.

How is it moved on the road?
It folds up by hand. No hydraulic connections to the tractor are needed.

Does it pair with the mini round baler?
Yes: with the 100 and 135 cm (39 and 53 in) mowers the swath is the right size for the 80 cm (31 in) pick-up of the mini round balers.

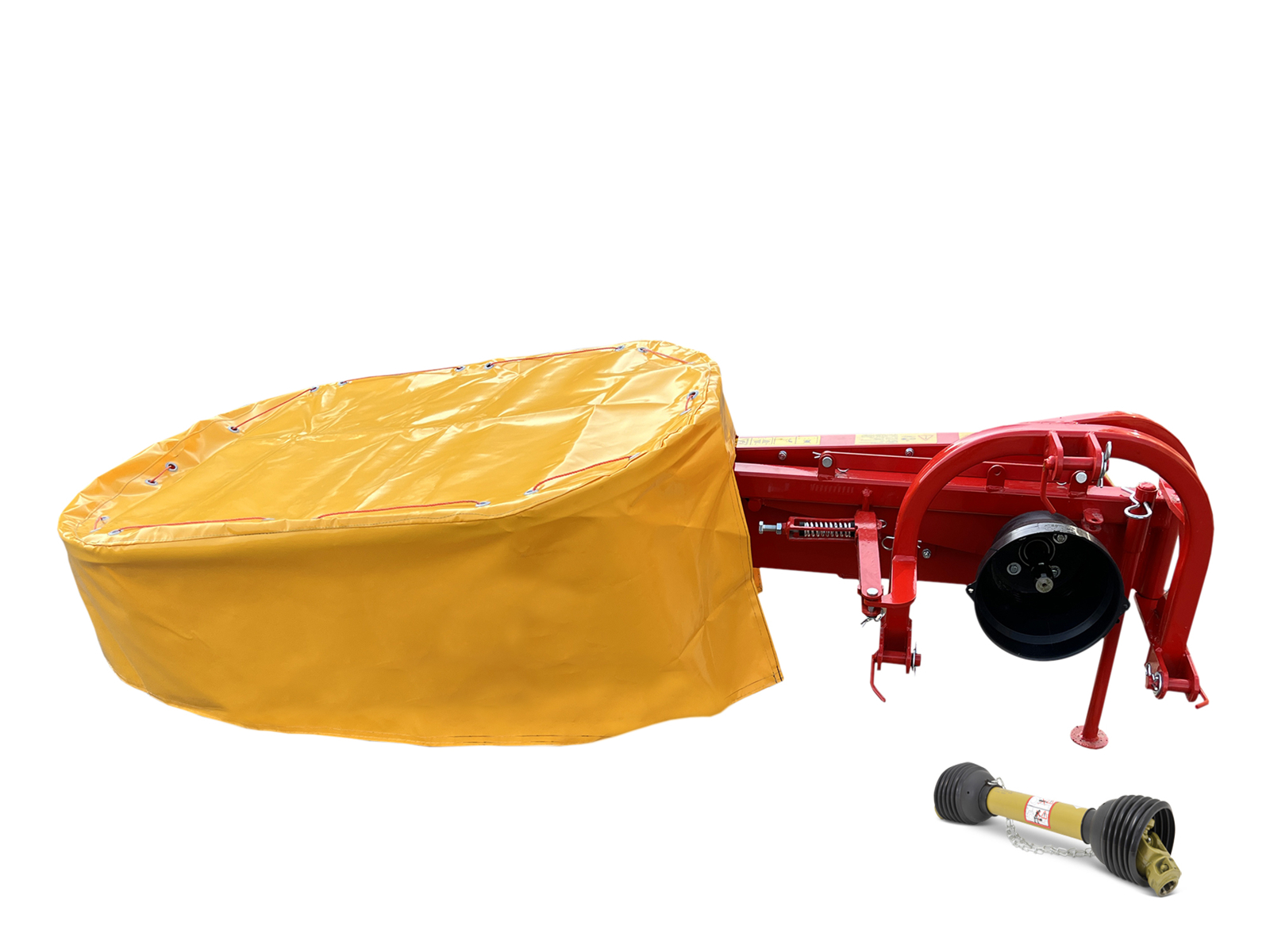

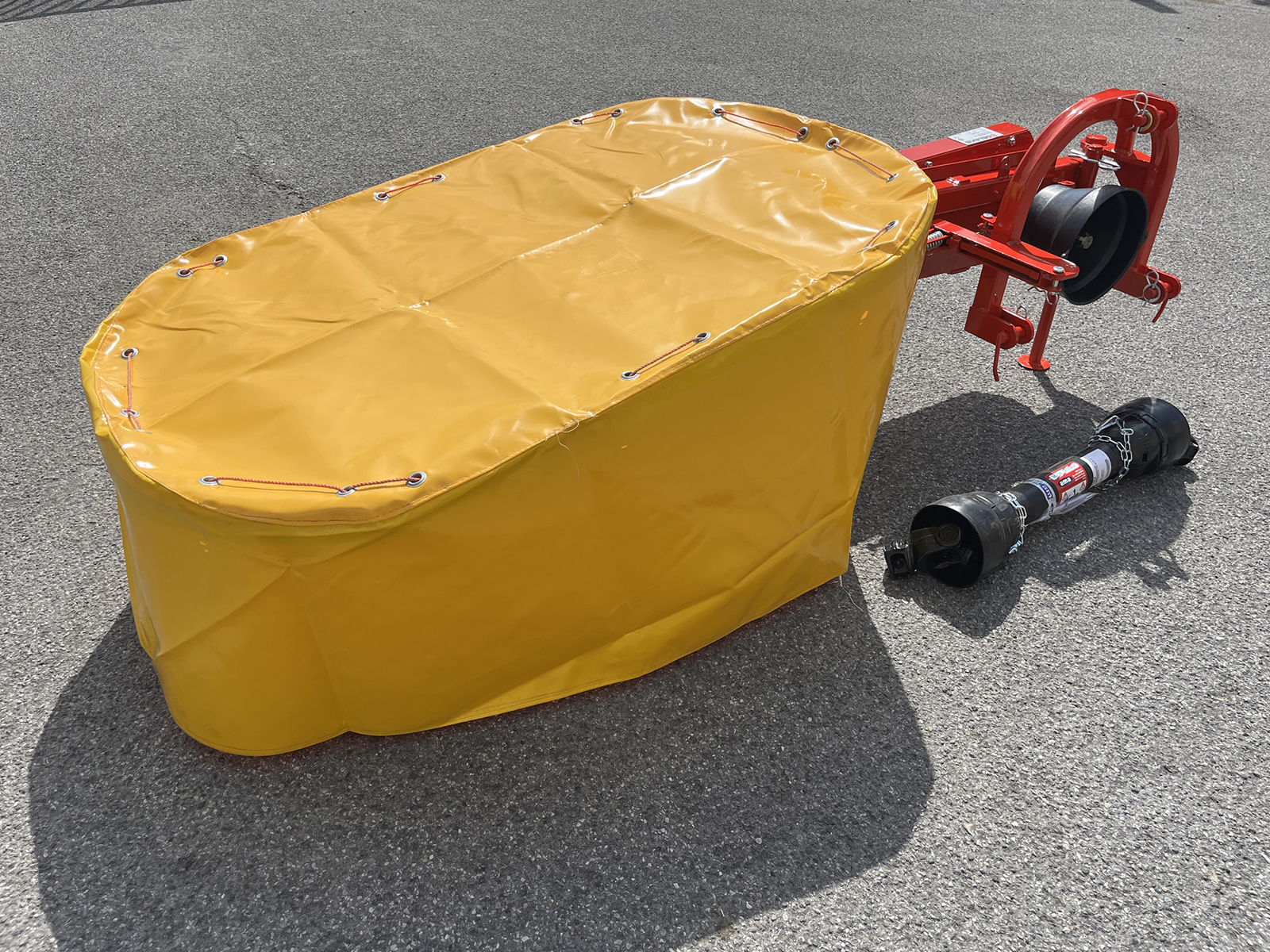

Is the PTO shaft included?

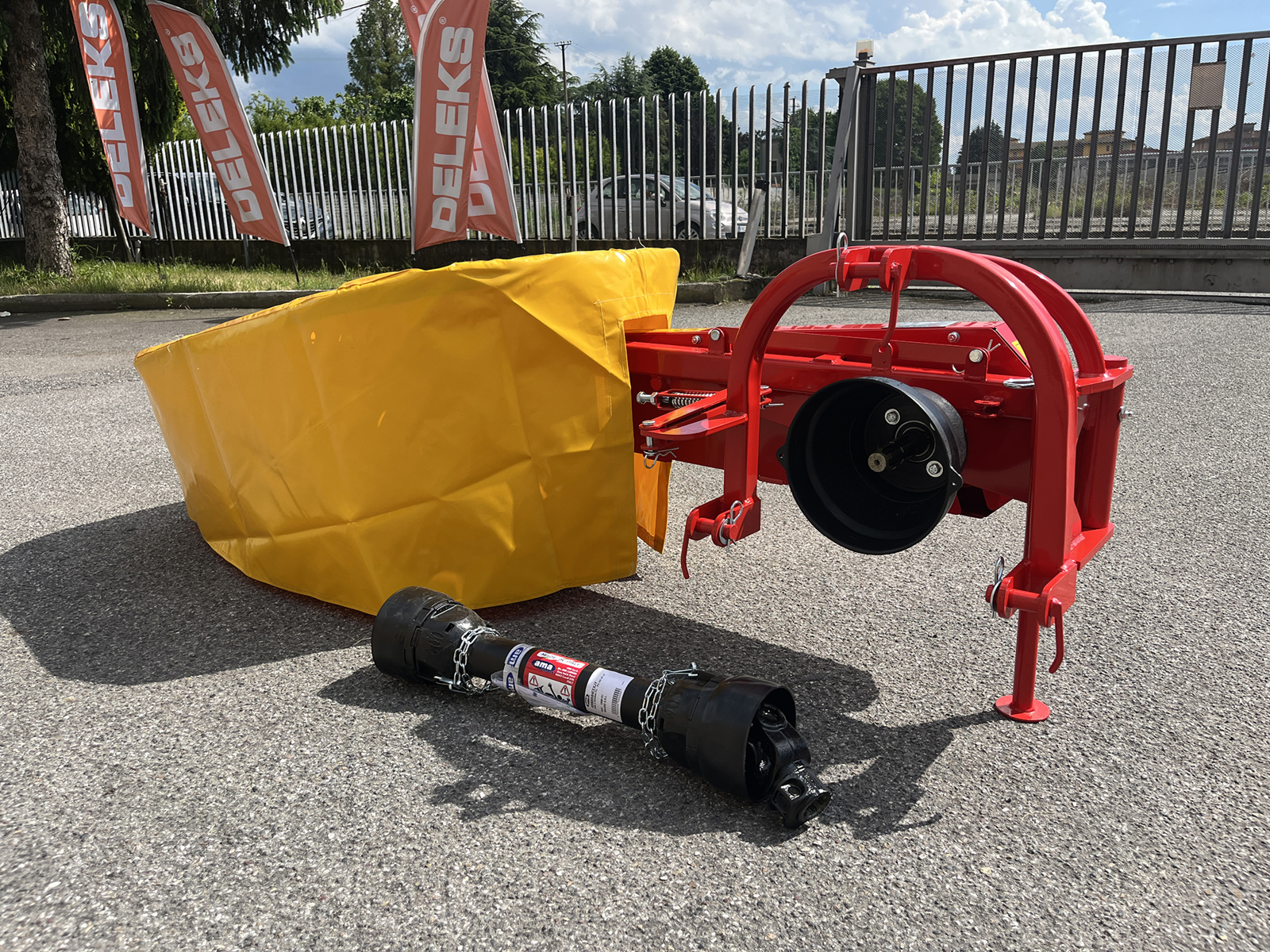

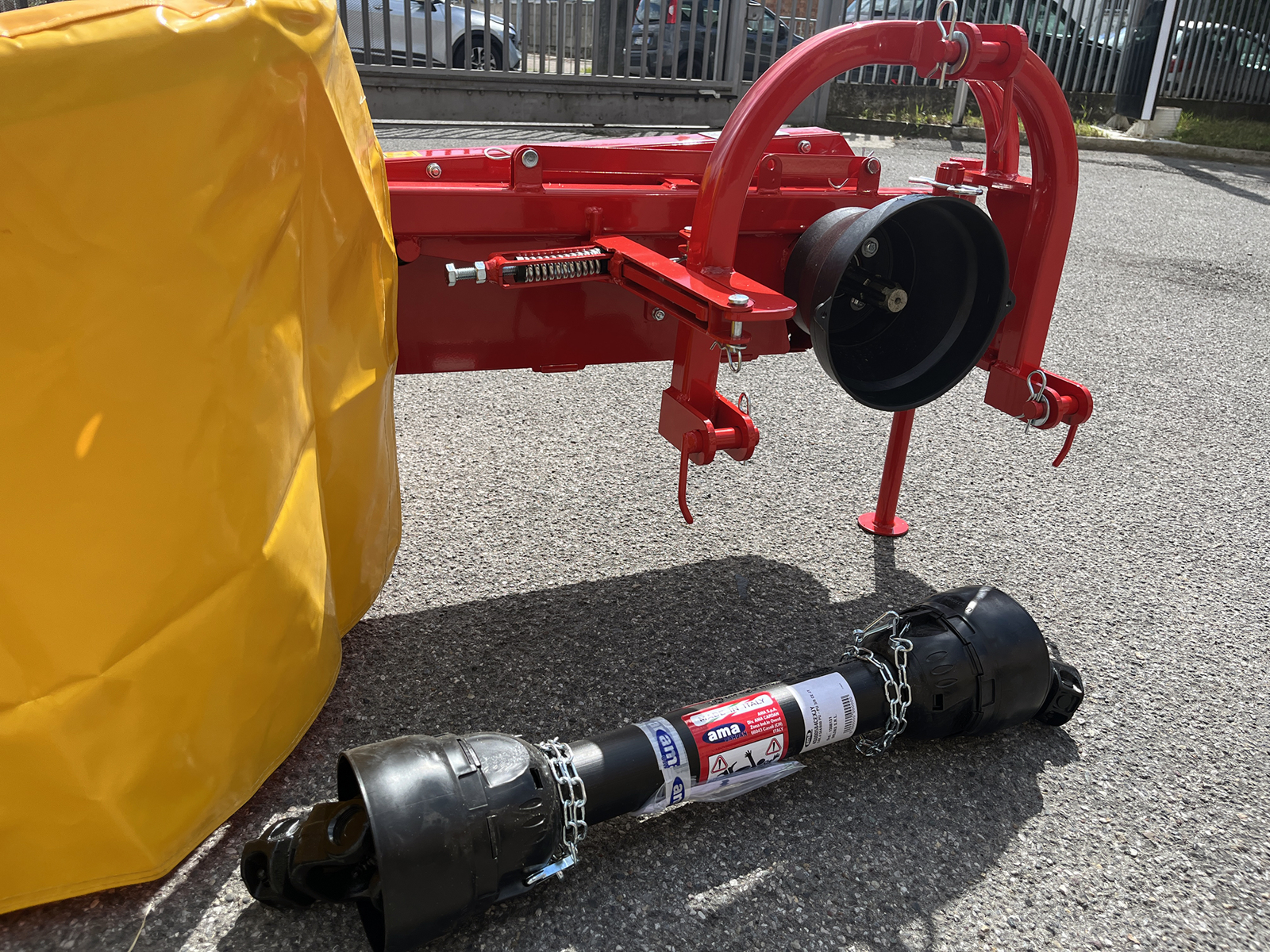

Yes: a CE-approved category 4 PTO shaft, 800 mm (31.5 in) long.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: blades, belts, bearings, drums and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric
Working width 1000.0 mm
Overall width 2000.0 mm
Min / Max cutting height 50.0 mm
Weight 110.0 kg
Tractor Power Range 16-35 Hp
3 point linkage Cat. 1 (ø 19.0-22.0mm)
Spacing between the 2 lower points 410.0-485.0 mm
Overall length 800.0 mm
Distance between pto attachment and ground 380.0 mm
Transmission: Drive method V-Belts
Transmission: PTO 540 r/min
Transmission: Rotation of gearbox Right side
Transmission: Free wheel √
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925
Transmission: V-Belts quantity 2
Arm length 650.0 mm
Drums quantity 2
Height of the drums 260.0 mm
Lift System Manual
Pto shaft CE 4x800 mm
Number of Blades 6
Blades: Weight 150.0 g
Blades: Length/Width 95.0 / 48.0 mm
Blades: Diameter of the hole 18.0 mm
Gross shipping weight 136 kg
Package volume 0.77 m3
Packing sizes 1200.0*800.0*800.0 mm
