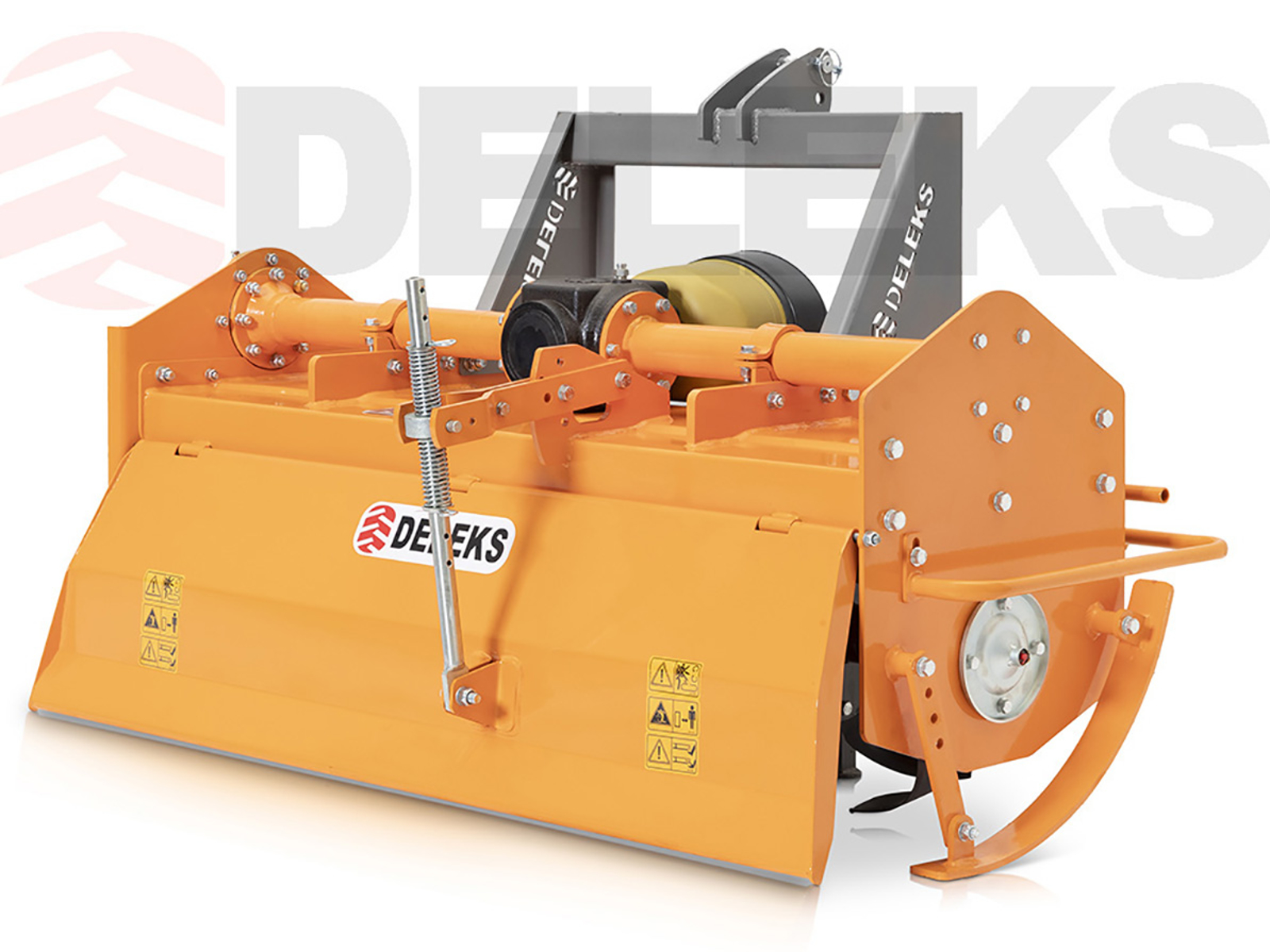

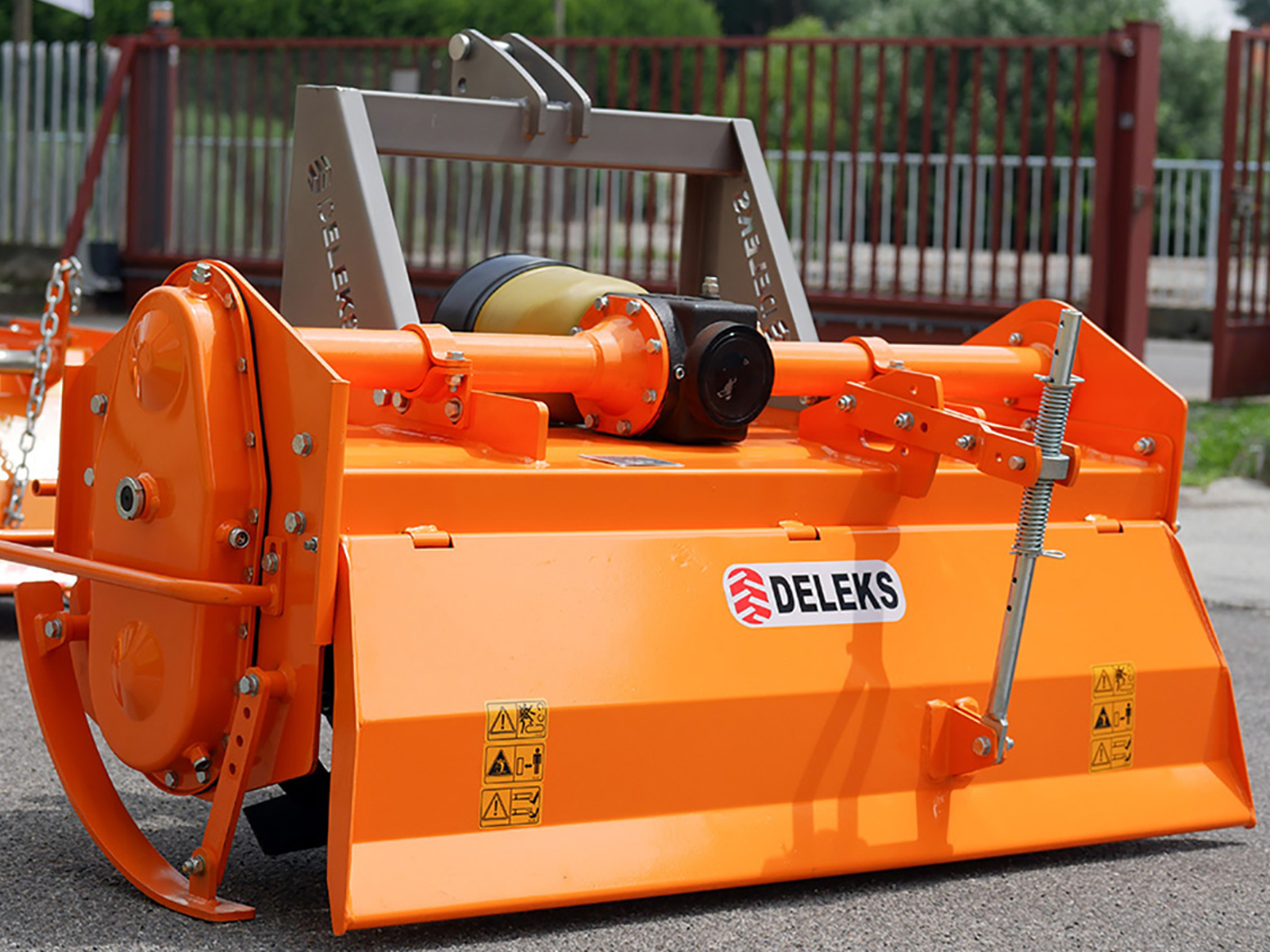

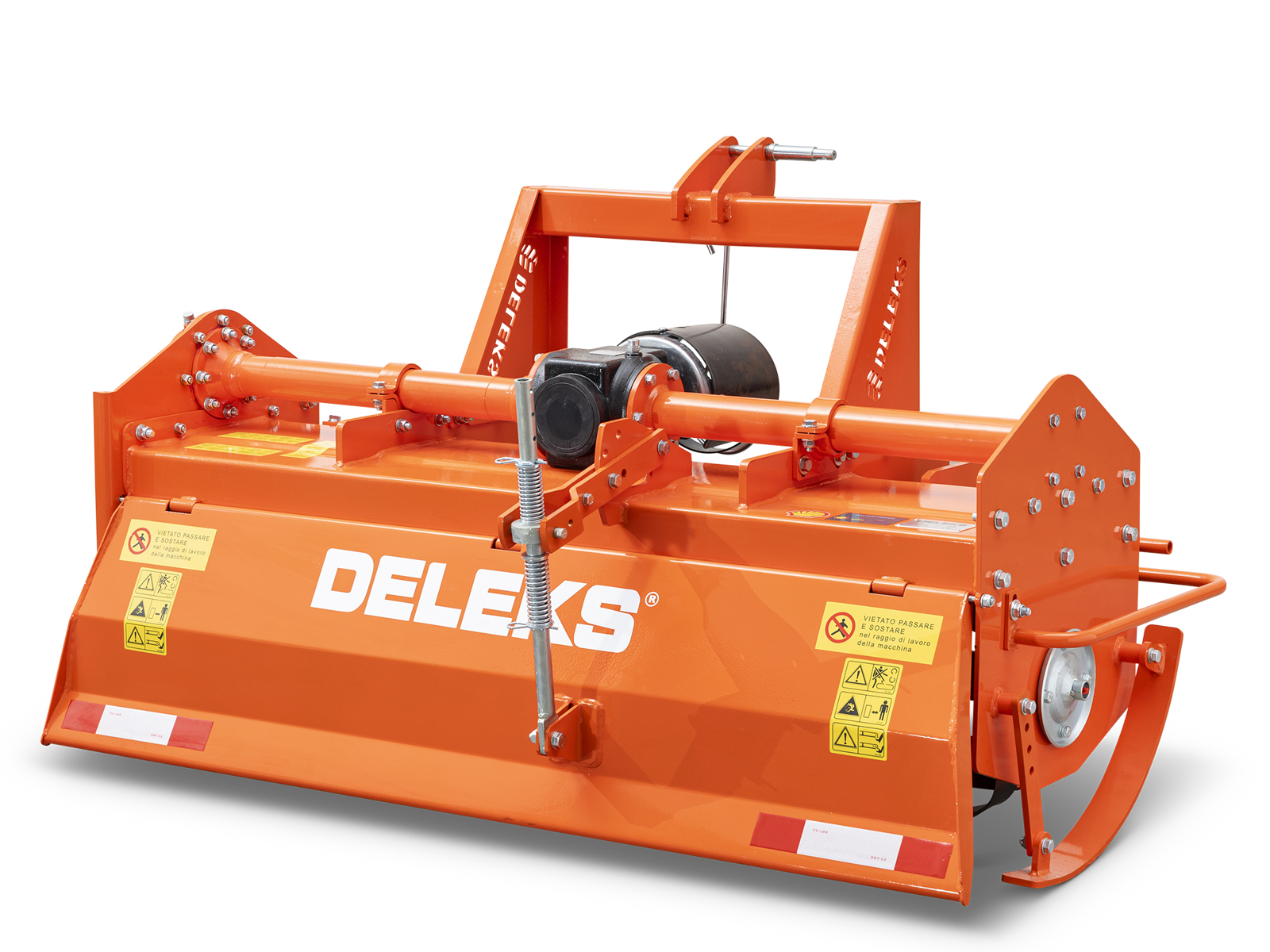

Heavy-duty rotavator for tractors 180 cm (70 in) DFH-180, heavy series 50-70 hp, Cat. 1-2 linkage

Available
Code DFH180PTO - EAN 8053470230806
2.318,00€VAT incl.
Free shipping
Loading...
2.318,00€VAT incl.
Free shipping
View all details.

reviews

2.318,00€VAT incl.
 REQUEST INFORMATION

VIDEO

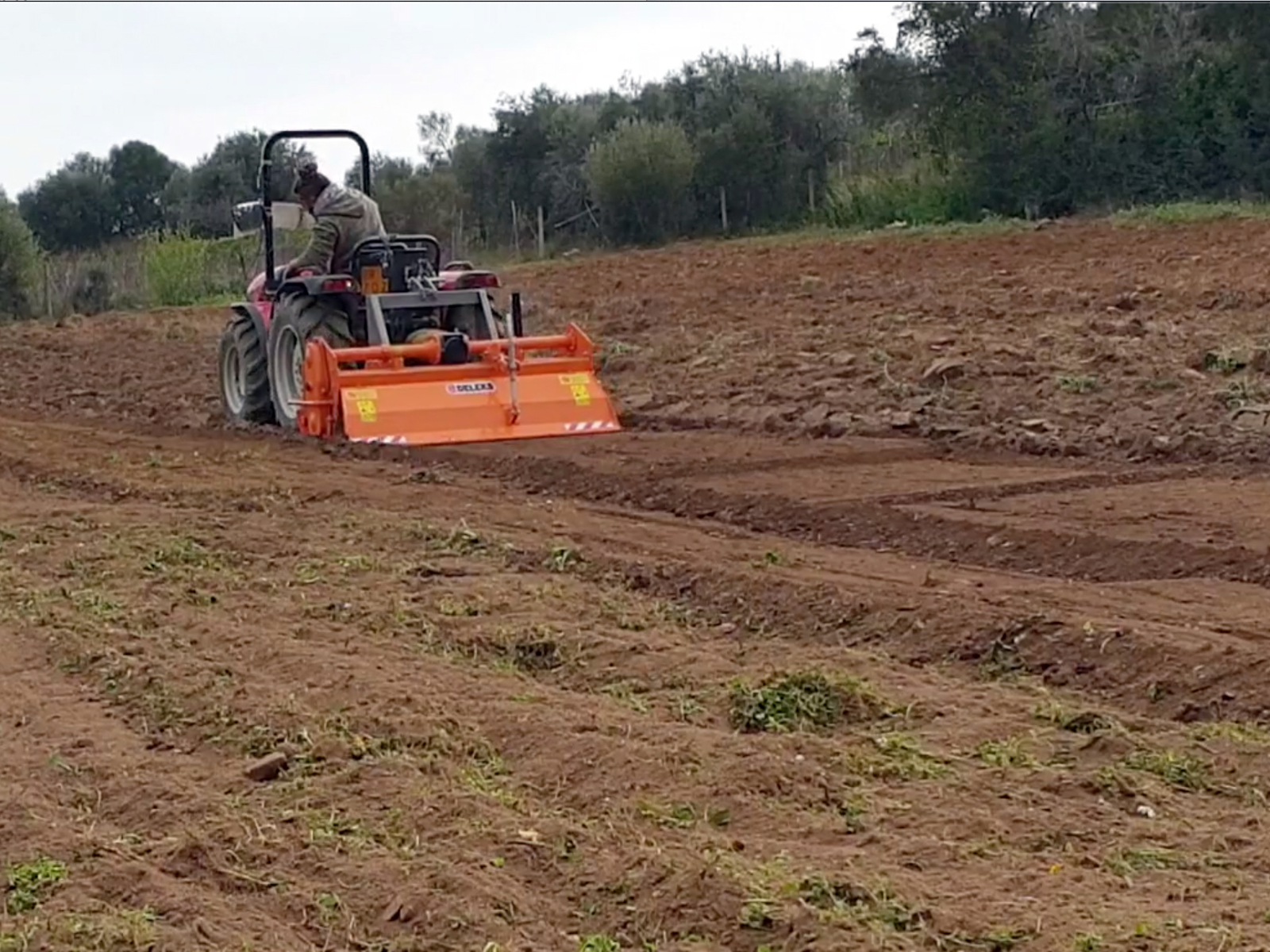

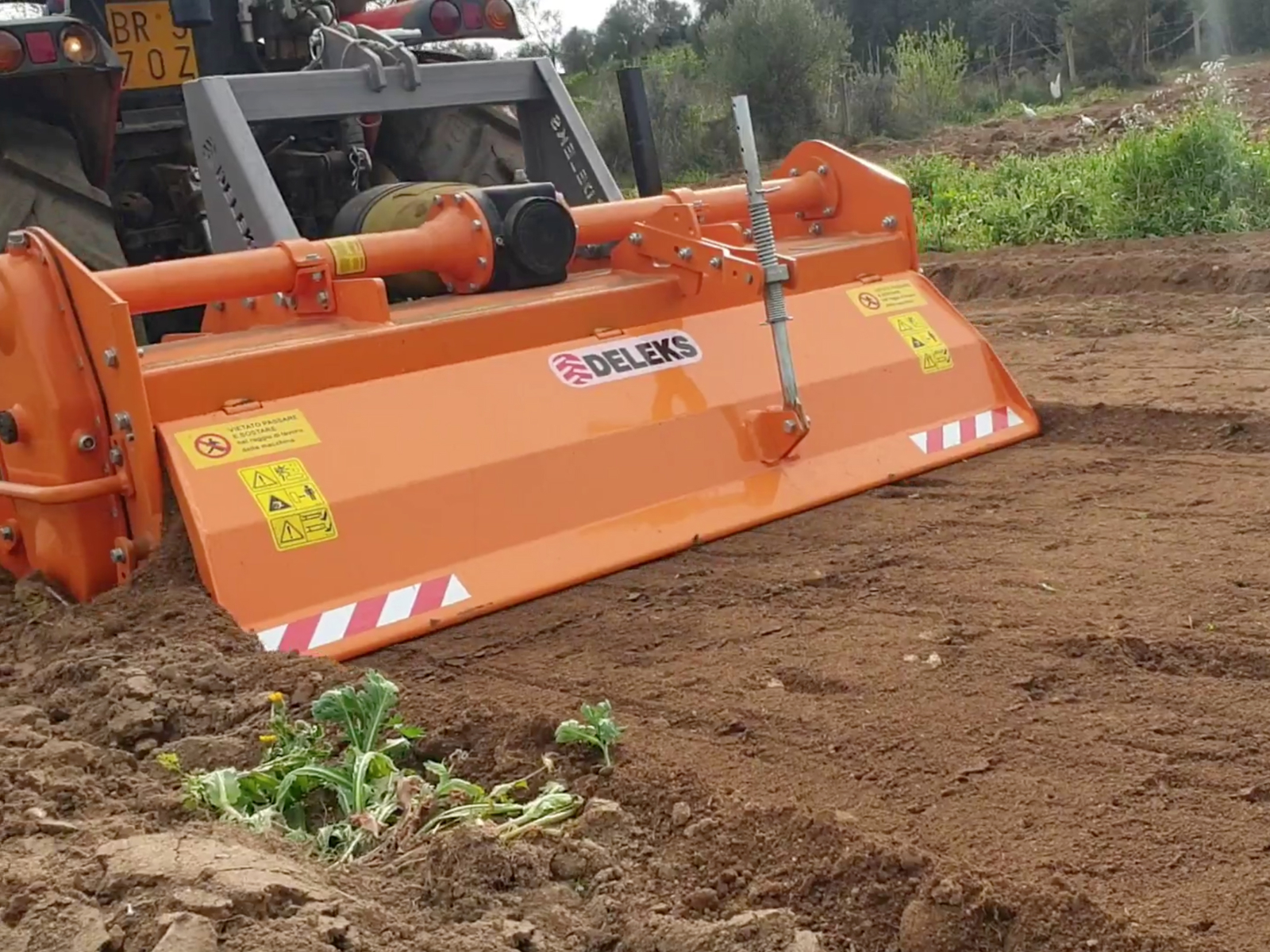

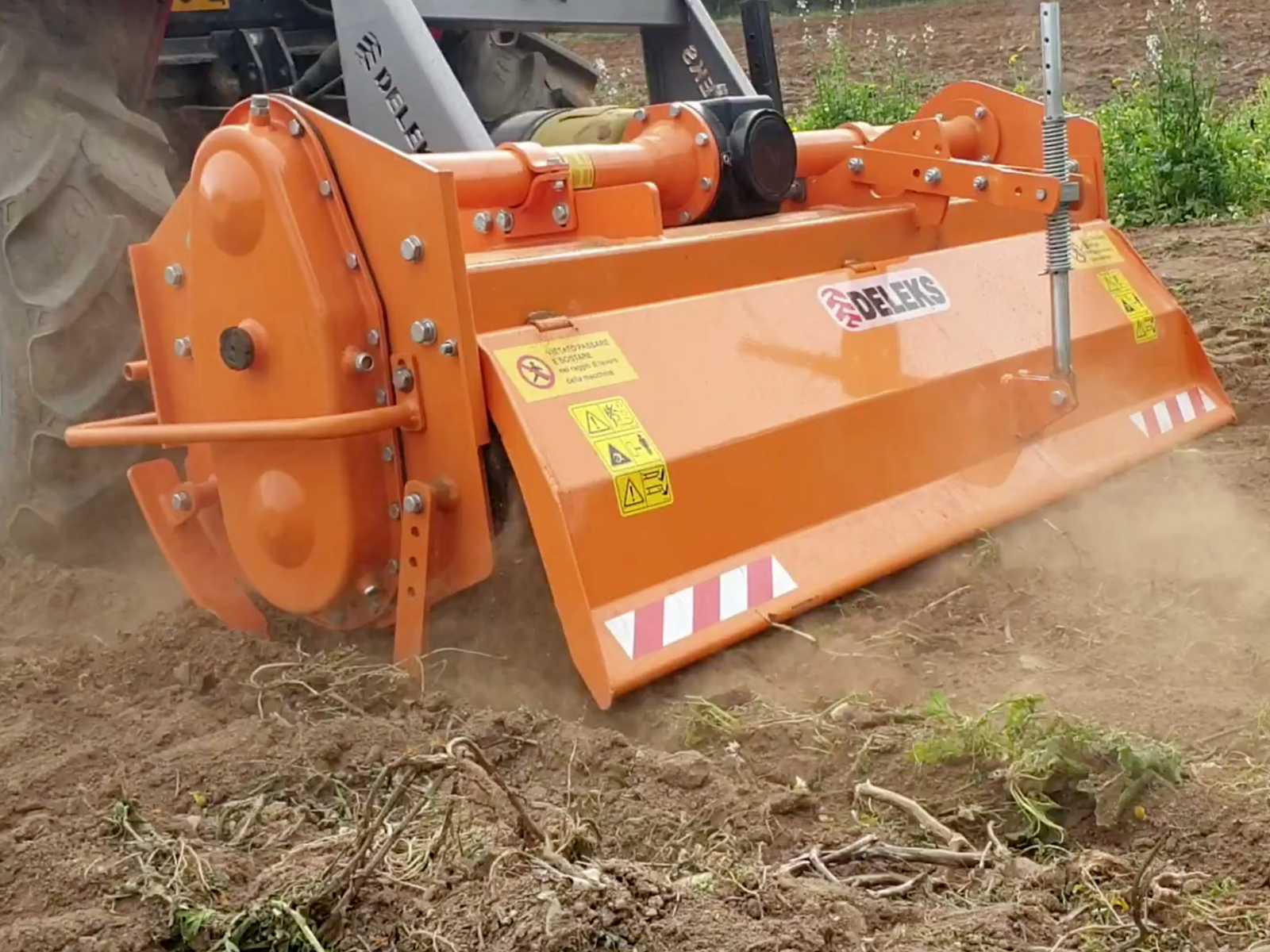

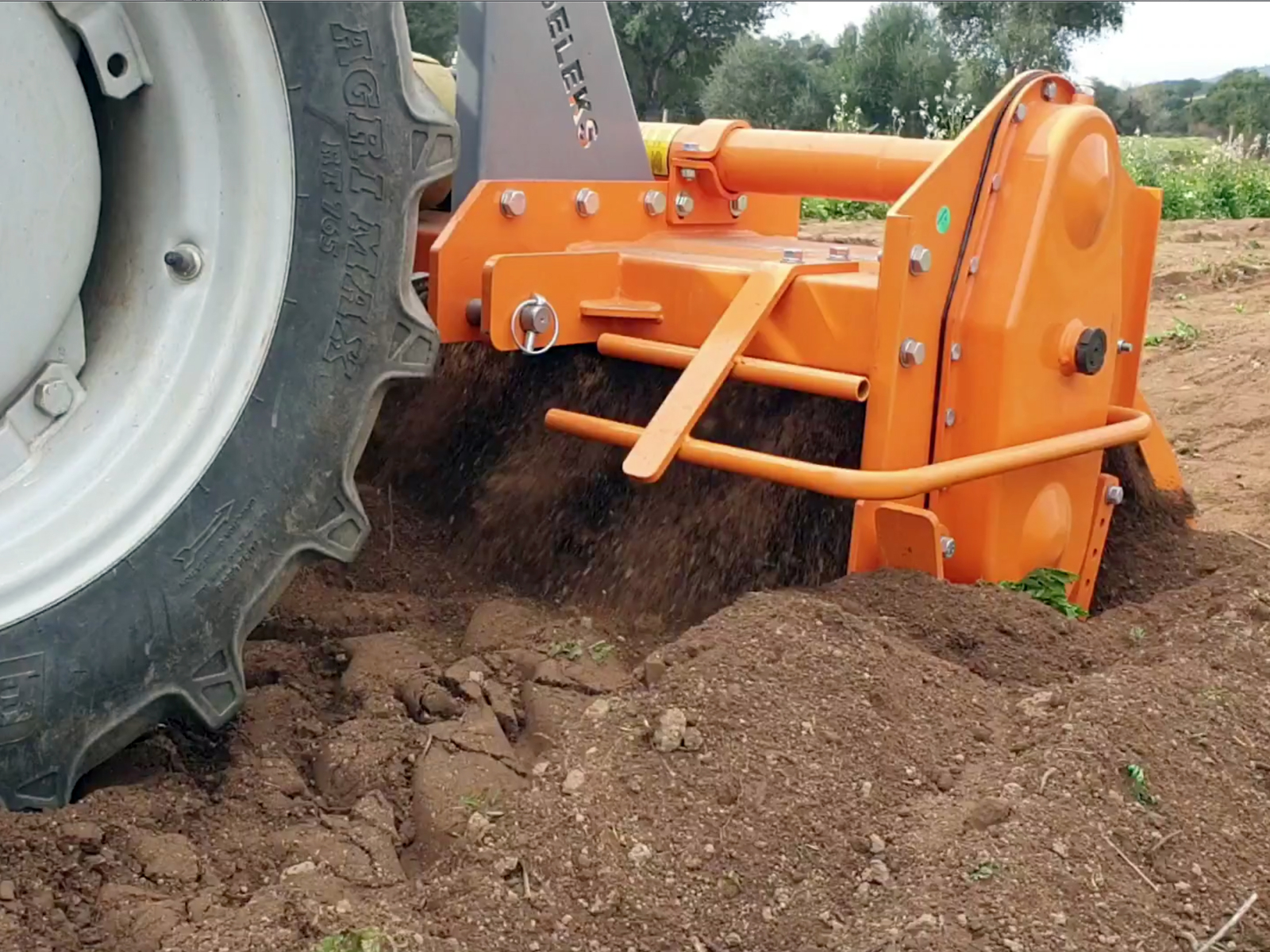

Field test
Field test
Field test
Field test
Field test
Field test

DETAILS

Heavy-duty rotavator for tractors with 180 cm (70.7 in) working width, from the DELEKS® heavy series: the rotary tiller for 50–70 hp orchard and field tractors with a Cat. 1 and 2 three-point linkage, such as New Holland T4F, John Deere 4 and 5 series, Landini, Kubota L and M, Same, Deutz-Fahr, Massey Ferguson, Solis and most other 50–70 hp tractors. 392 kg (864 lb) frame with 8 mm side plates, side gear drive, DELEKS® 540 rpm gearbox with a three-year warranty, 48 forged helical tines on 9 flanges and an adjustable rear bonnet. It works 16 to 20 cm (6.3–7.9 in) deep with the rotor at 210 rpm and comes complete with its CE PTO shaft with clutch; free delivery within the EU.


Which tractors it suits

The DFH-180 works 180 cm (70.7 in) with 200 cm (78.7 in) overall: it covers the track of 50–70 hp tractors and prepares the alleyway of a wide-spaced orchard, or a strip of open field, in one pass. At 392 kg (864 lb) it needs a lift in the normal range for this class of tractor, and in the field the weight keeps the tines at depth without bouncing. The three-point linkage is fixed, with the gearbox in the centre, and is Cat. 1 and 2 (ø 19–22 mm and ø 25–28 mm pins, lower-link spacing adjustable from 745 to 870 mm / 29.3–34.3 in); the PTO must run at 540 rpm. For working right up to the row, the same range has the DFHIDR-180 with hydraulic side shift; for 70–100 hp tractors and crawlers there is the DFTR-180, same width and 630 kg (1,389 lb).

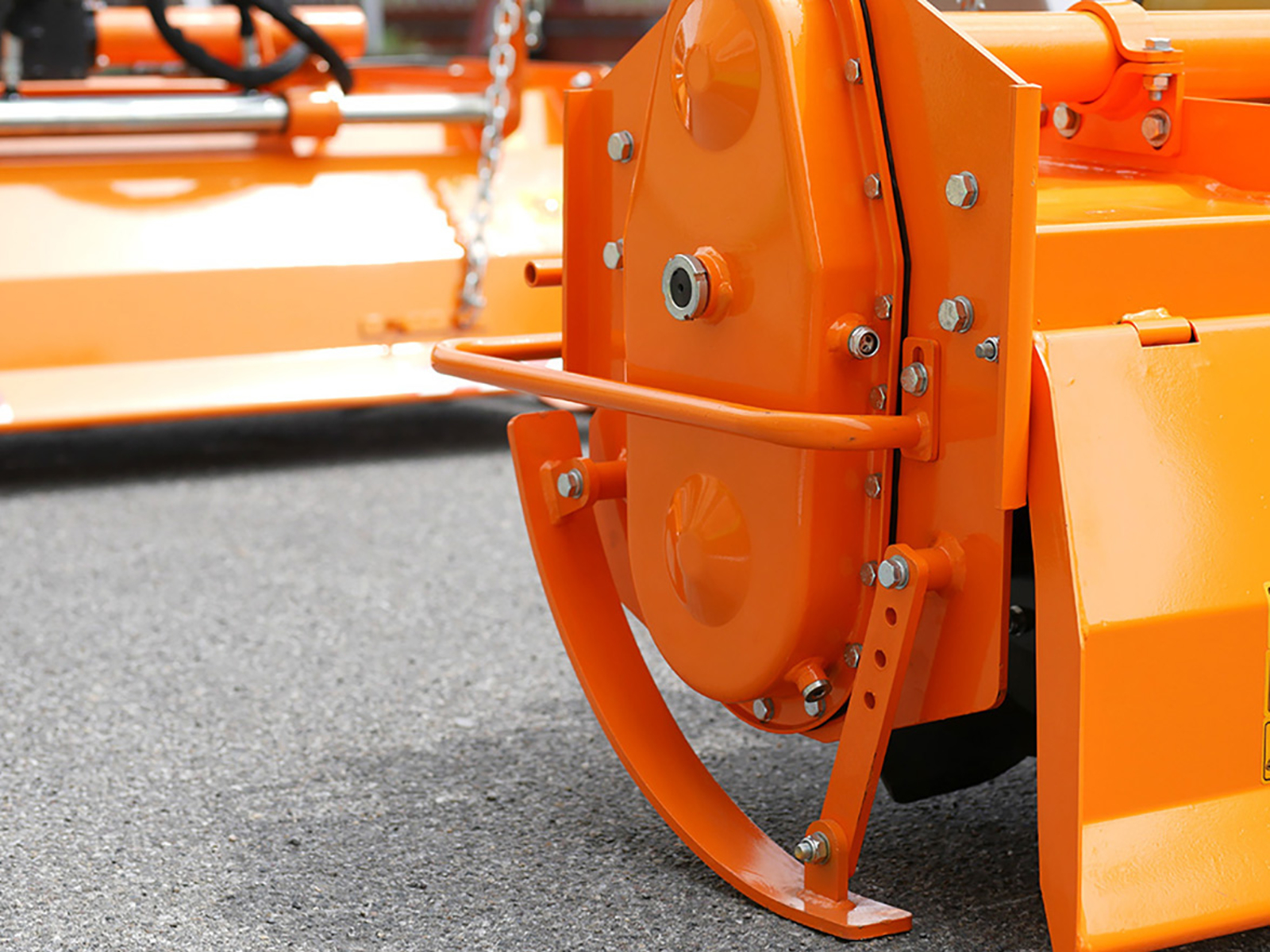

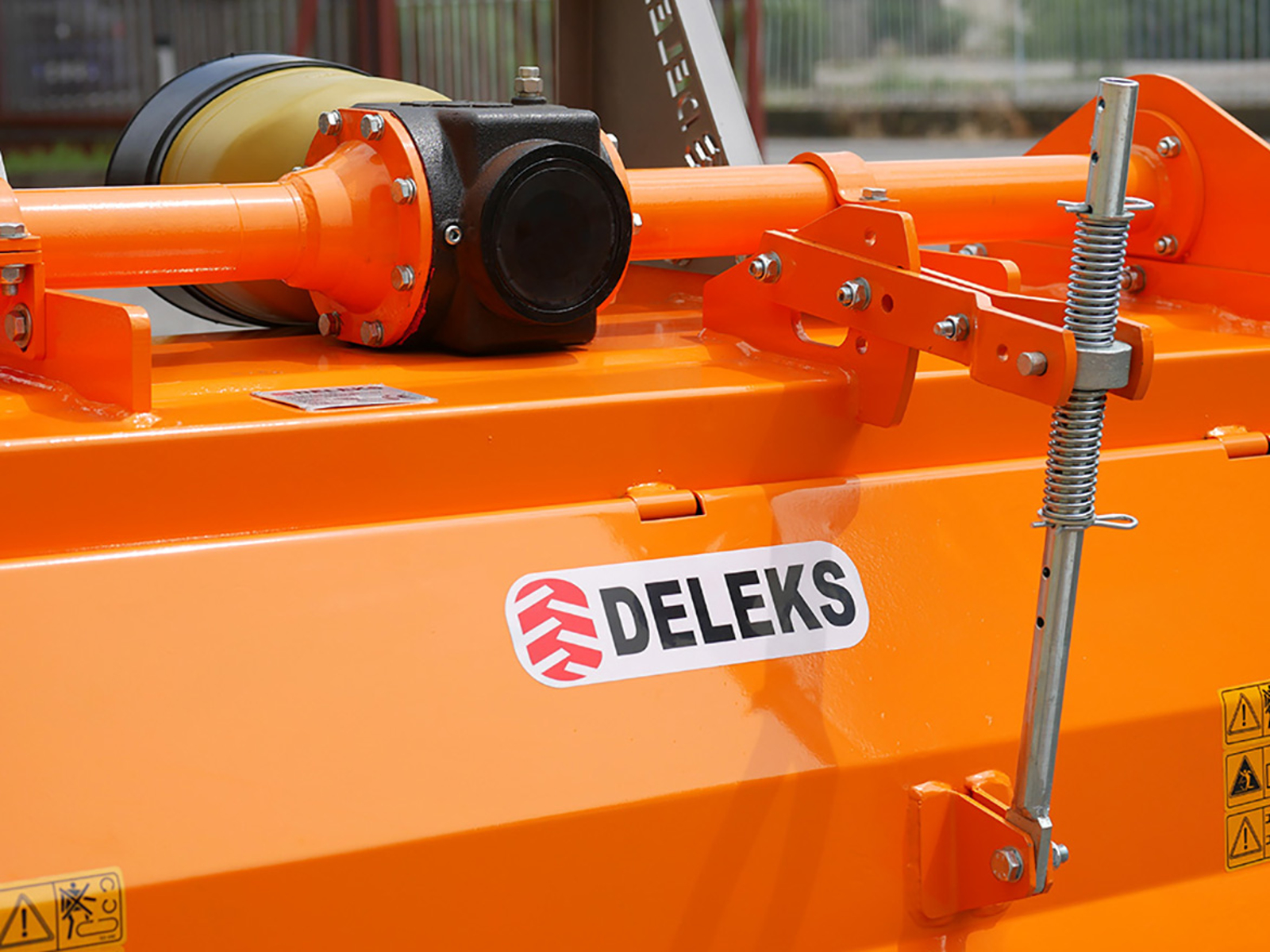

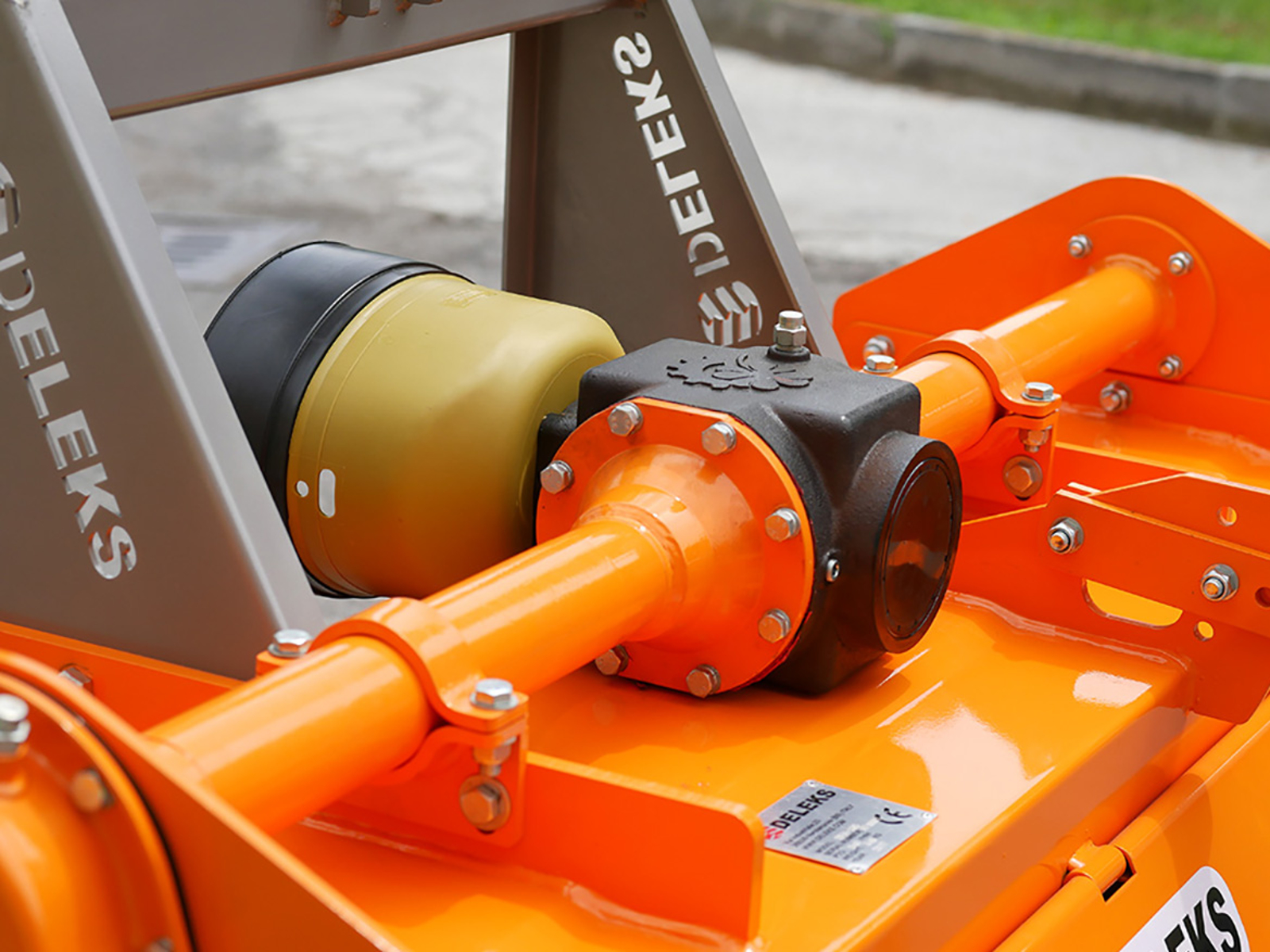

Gear drive and 540 rpm gearbox

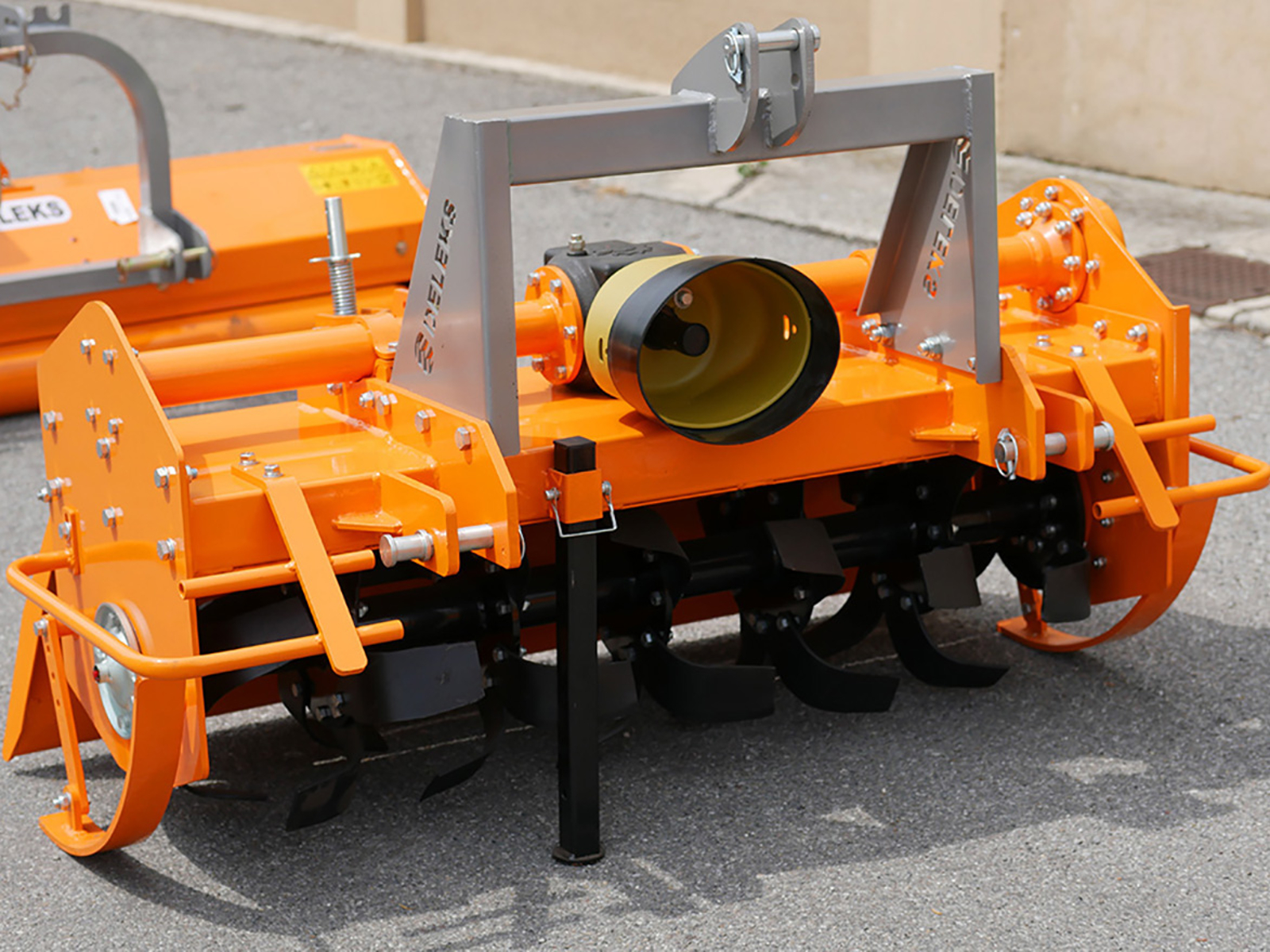

The DELEKS® 540 rpm gearbox, with its cast-iron housing, carries a three-year warranty and arrives filled with SAE 120 oil; a side gear drive, with no chain, takes the power from the gearbox to the rotor and is built for long hours and heavy ground. The rotor turns at 210 rpm, slower than on light rotavators: it puts more torque into every tine and cuts finer. The CE PTO shaft (category 6, 1,000 mm / 39 in) with twin-disc friction clutch Ø 180 mm (7.1 in) is included: the clutch protects rotavator and tractor when a tine meets a stone or a root, and is set to suit the tractor and the ground following the manual.

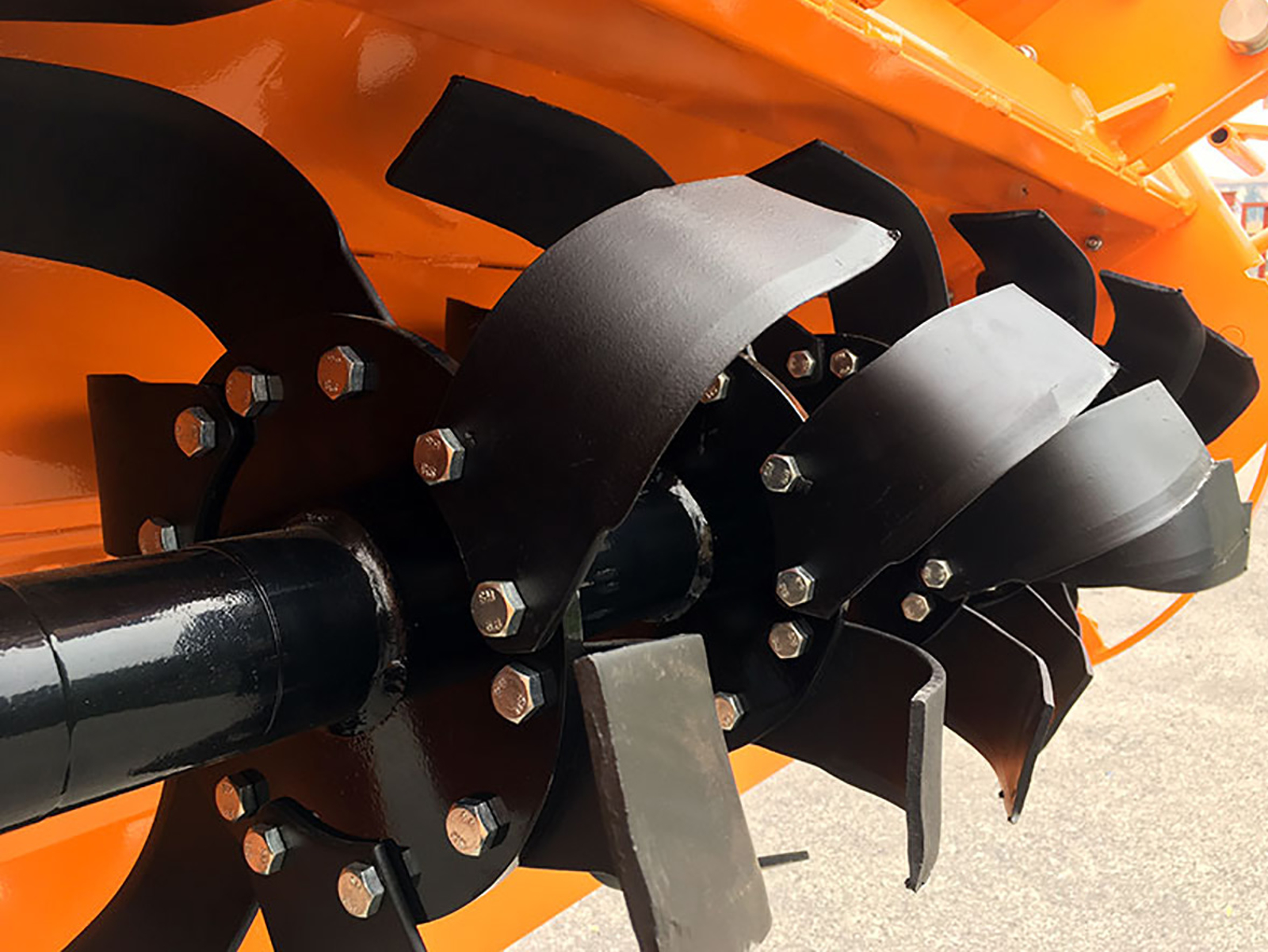

Rotor and forged helical tines

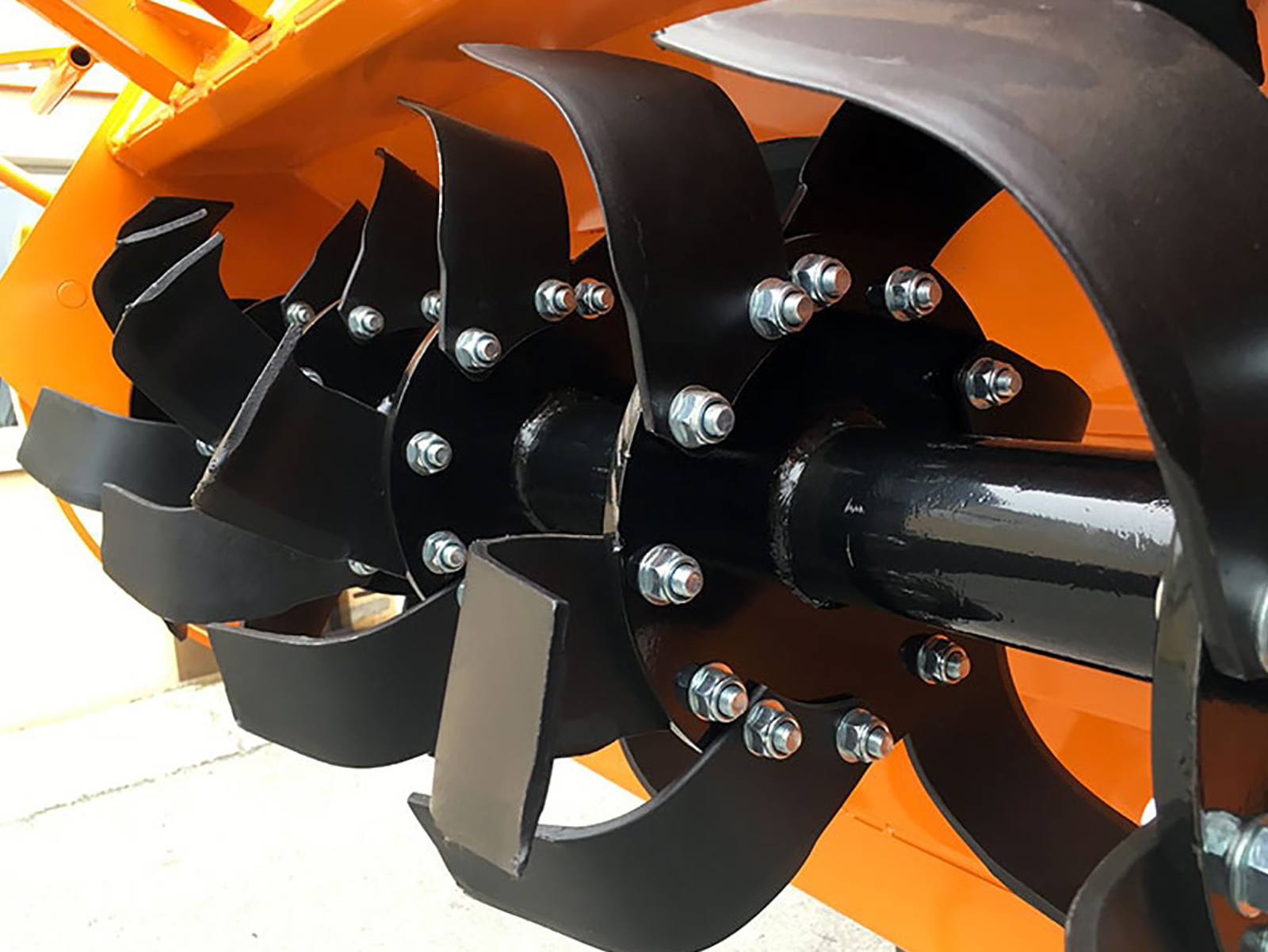

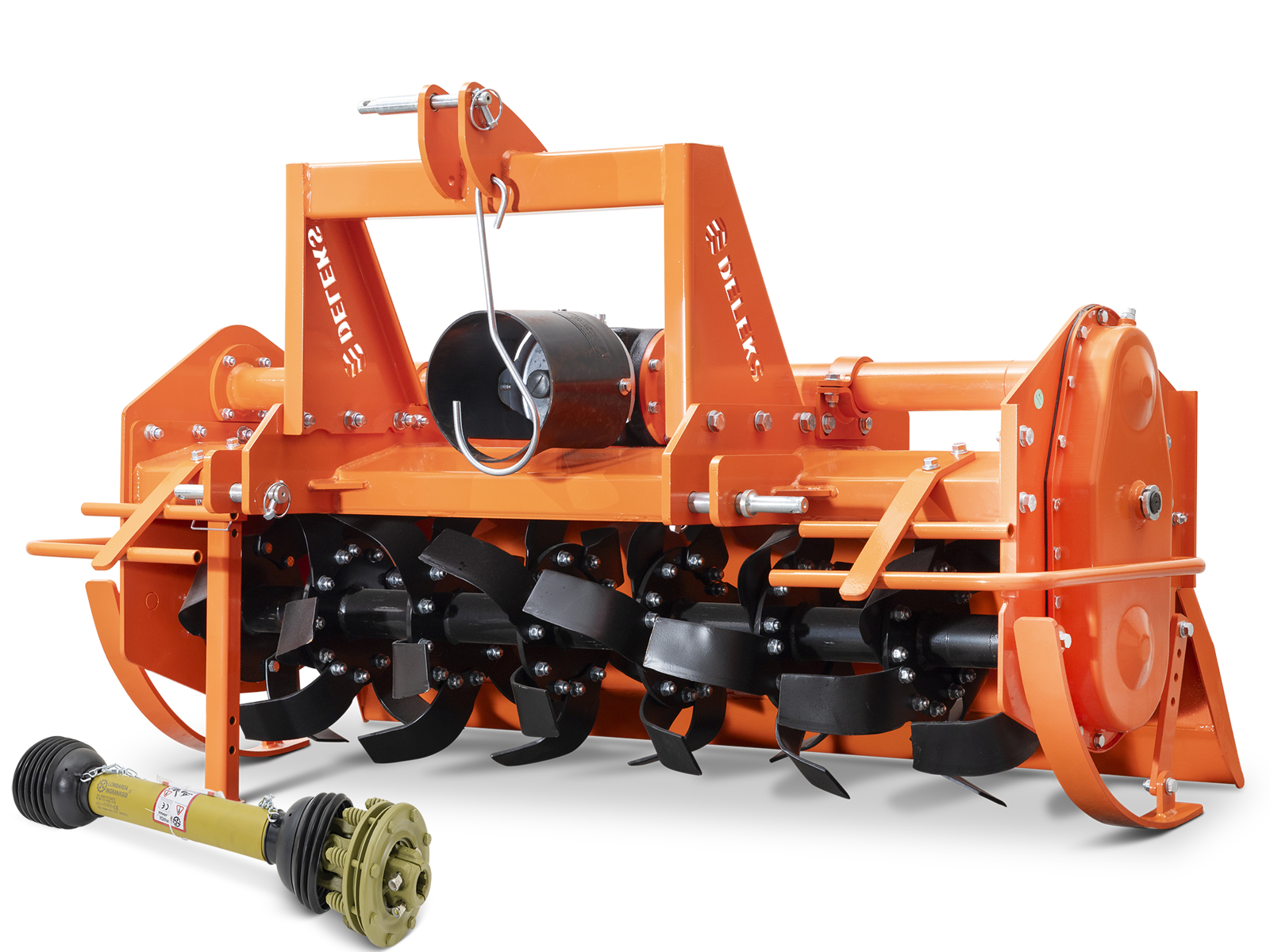

The rotor measures 480 mm (18.9 in) across with the tines fitted, on a 76 mm shaft with 6306 and 6309 bearings and 8 mm side plates. The 48 forged helical tines on 9 flanges (6 per flange, 3 on the two outer flanges; 180 × 83 mm, 6 mm thick, 250 mm curve, 810 g each) enter the soil progressively, with less vibration and a finer cut than straight tines; they are held by two bolts each (ø 13 mm holes, 55 mm centres) and are changed one at a time, with the same spare for every DFH rotavator. Working depth 160 to 200 mm (6.3–7.9 in), set with the side skids.


Adjustable bonnet and work on heavy ground

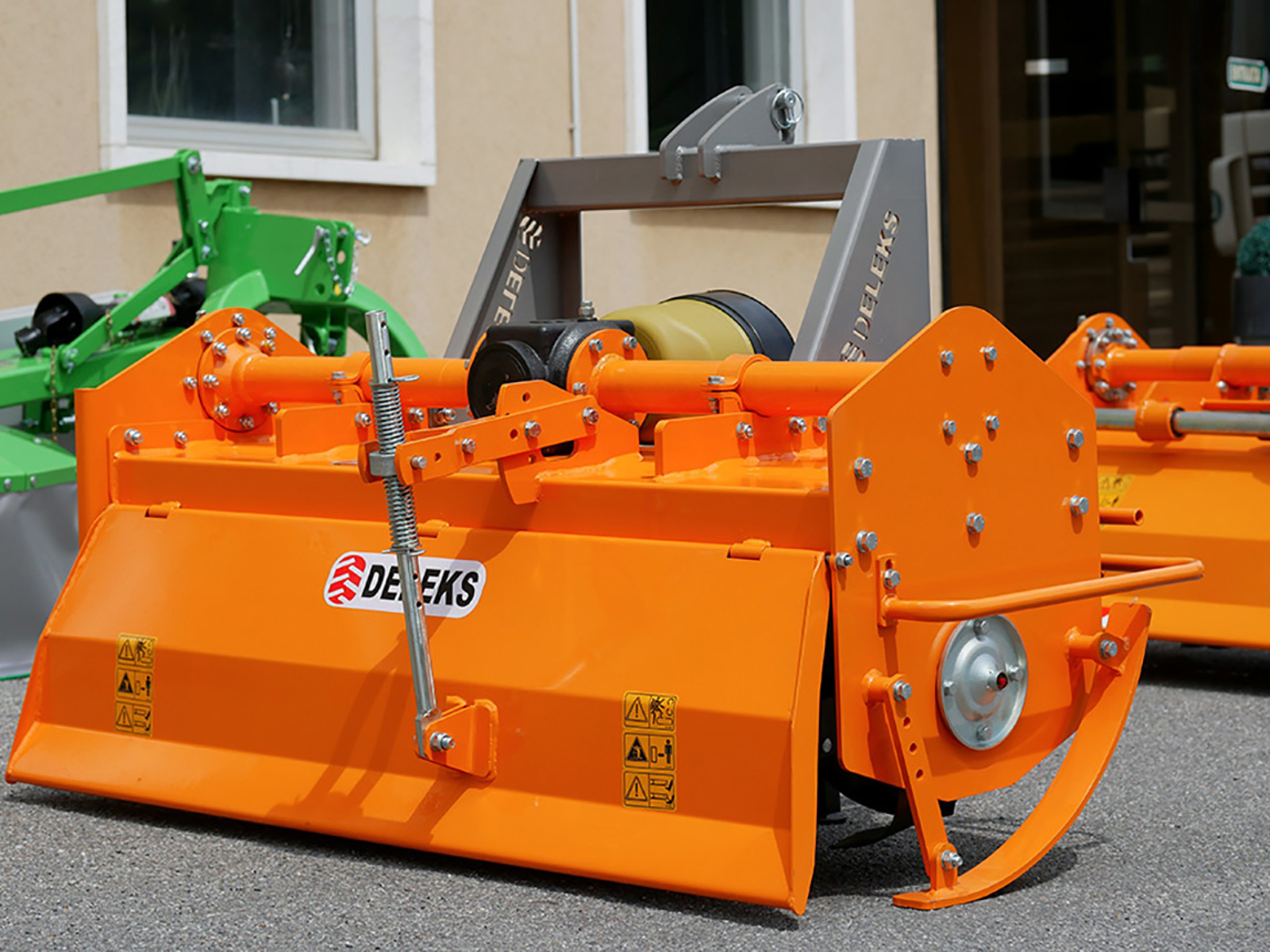

The rear bonnet adjusts in height: closed it holds the soil longer between the tines and refines the seedbed, open it lets large clods and crop residues out. With 392 kg (864 lb) and the slow rotor the rotavator stays at depth even on clay and on hard late-summer ground, where light rotavators bounce; on very stony ground a stone burier is the better choice.


Dimensions, weight and delivery

Working width 1795 mm (70.7 in), overall width 2000 mm (78.7 in), length 720 mm, height 1030 mm, weight 392 kg (864 lb); the gearbox sits 590 mm off the ground. It ships on a pallet of 80 × 203 × 82 cm (31 × 80 × 32 in), 460 kg (1,014 lb) gross, with free delivery within the EU; you will need a forklift or the tractor's lift to unload it. The machine complies with the EC Machinery Directive, is TÜV Austria certified and comes with a two-year warranty.


Where it works

  • Wide-spaced orchards and vineyards: the alleyway in one pass, implement centred behind the tractor
  • Open field and field-scale vegetables: seedbeds and planting beds, working in fertiliser, green manure and stubble
  • Clay and hard ground, worked several times a year
  • Smallholdings and contractors with 50–70 hp tractors

Options and spares

On this page you will also find the set of 10 DFH helical tines, tine nuts and bolts, the 680 or 730 mm mechanical top link, the PTO reduction adaptor and spare PTO shafts and clutches: order them with the rotavator or later on.


FAQ

How much power does a 180 cm rotavator need?
The DFH-180 works from 50 to 70 hp at the 540 rpm PTO: 50–55 hp is fine on medium soils, on clay and at full depth you want 60 hp and more. For 70–100 hp tractors and crawlers there is the DFTR-180, same width and 630 kg (1,389 lb).

What is the difference between the DFH-180 and the DFTR-180?
Same working width, different build: the DFTR-180 weighs 630 kg (1,389 lb) instead of 392, has 12 mm side plates instead of 8, a 90 mm rotor shaft, 1 kg tines and a standard rear mesh roller, and is made for 70–100 hp and for crawlers. The DFH-180 is the choice for 50–70 hp wheeled tractors.

Is the PTO shaft included? How is the clutch set?
Yes: the CE PTO shaft (category 6, 1,000 mm / 39 in) with twin-disc friction clutch Ø 180 mm (7.1 in) is standard. The clutch is set to suit the tractor and the ground following the manual: too tight it does not protect the drive, too loose it slips and overheats.

What maintenance does it need?
At the start of the season check the gearbox oil level (SAE 120), tine wear and bolt tightness; before each use grease the points shown in the manual and check the PTO clutch. Worn tines are replaced with the set of 10.

Can it be shifted sideways?
No: the DFH-180 has a fixed linkage with the gearbox in the centre and works centred behind the tractor. To work right up to the row there is the DFHIDR-180 with hydraulic side shift, same working width.


DELEKS® spares and support

Genuine spares ship from the DELEKS® warehouses in Europe: tines, gears, pins, bearings, PTO shafts, clutches and the other wearing parts are normally in stock, for routine servicing and for repairs. The technical team helps you pick the right part from the exploded drawings, service the machine and choose the rotavator and the accessories that suit your tractor. The rotavator comes with the EC declaration of conformity, the invoice and the use and maintenance manual, also emailed when the order ships. Two-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric
Working width 1795.0 mm
Overall width 2000.0 mm
Weight 392.0 kg
Overall height 1030.0 mm
Tractor Power Range 50 - 70 Hp
3 point linkage Cat. 1/2 ø 19.0-22.0mm / 25.0-28.0mm)
Position of the gearbox Central
Spacing between the 2 lower points 745.0 - 870.0 mm
Overall length 720.0 mm
Distance between pto attachment and ground 590.0 mm
Transmission: Drive method Gears
Transmission: Gearbox DELEKS 540 r/min (3 year warranty)
Transmission: Rotation of gearbox Right side
Transmission: RPM Rotor speed 210 rpm
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925
Rotor: diameter 76.0 mm
Rotor: bearings type and size "GB276-6306(R) GB276-6309(L)"
Rotor: sheet thickness 8.0 mm
Working Depth Range 160.0-200.0 mm
Pto shaft CE 6x1000 mm + twin-disc friction clutch Ø180 mm
Rotor: diameter with blades 480.0 mm
Rotor: flanges 9
Number of Blades per flange 6
Blades: quantity 48
Blades: height/width 180.0 / 83.0 mm
Blades: curve length 250.0 mm
Blades: distance between holes 55.0 mm
Blades: diameter of the holes 13.0 mm
Blades: thickness 6.0 mm
Blades: weight 810.0 g
Gross shipping weight 460 kg
Package volume 1.33 m3
Packing sizes 800.0*2030.0*820.0 mm
