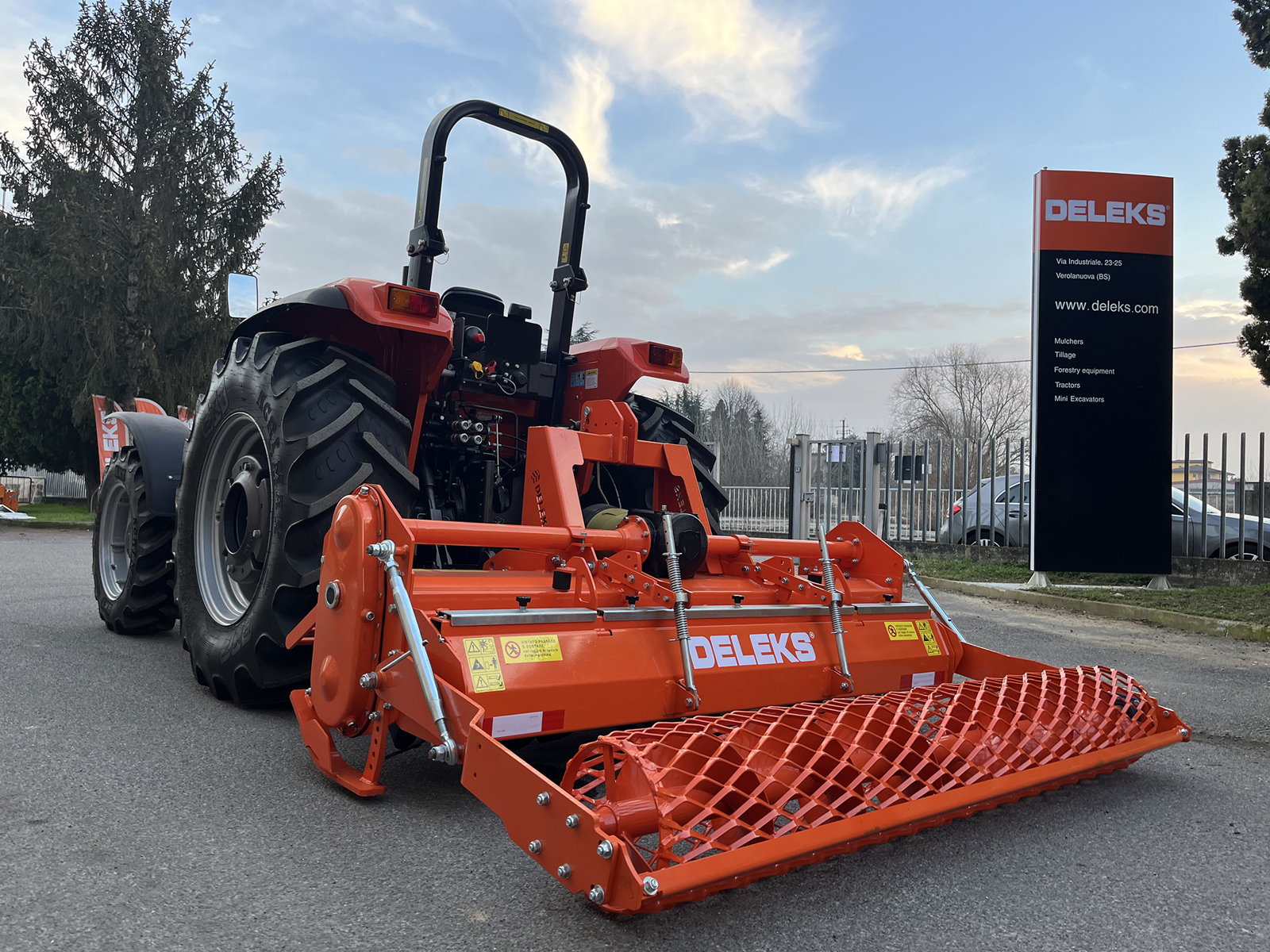

Heavy-duty rotavator for tractors 180 cm (70 in) DFTR-180 with mesh roller, reinforced series 70-100 hp, wheeled and tracked
DETAILS
Heavy-duty rotavator for tractors with 180 cm (70.7 in) working width, from the DELEKS® reinforced heavy series: a 630 kg (1,389 lb) rotary tiller for 70–100 hp wheeled and tracked tractors with a Cat. 2 three-point linkage, such as New Holland T5 and TK, John Deere 5 series, Same, Deutz-Fahr, Landini, Massey Ferguson, Kubota M and most other tractors in this class. 12 mm side plates, 90 mm rotor shaft, side gear drive, DELEKS® 540 rpm gearbox with a three-year warranty, 42 forged helical tines of 1 kg (2.2 lb) each and an adjustable rear bonnet. It works up to 20 cm (7.9 in) deep with the rotor at 210 rpm, has a rear mesh roller as standard and comes complete with its CE PTO shaft with twin-disc clutch; free delivery within the EU.
Which tractors it suits
The DFTR-180 works 180 cm (70.7 in) with 200 cm (78.7 in) overall and is built for 70–100 hp tractors, wheeled or tracked, that rotavate many hours a year: farms, contractors, nurseries and field-scale vegetable growers. At 630 kg (1,389 lb) it needs an adequate lift and, on wheeled tractors, front ballast. The three-point linkage is fixed, with the gearbox in the centre, and is Cat. 2 (ø 25–28 mm pins); the PTO must run at 540 rpm. For wheeled tractors under 70 hp the lighter heavy series DFH is the choice: the DFH-180, 392 kg (864 lb).

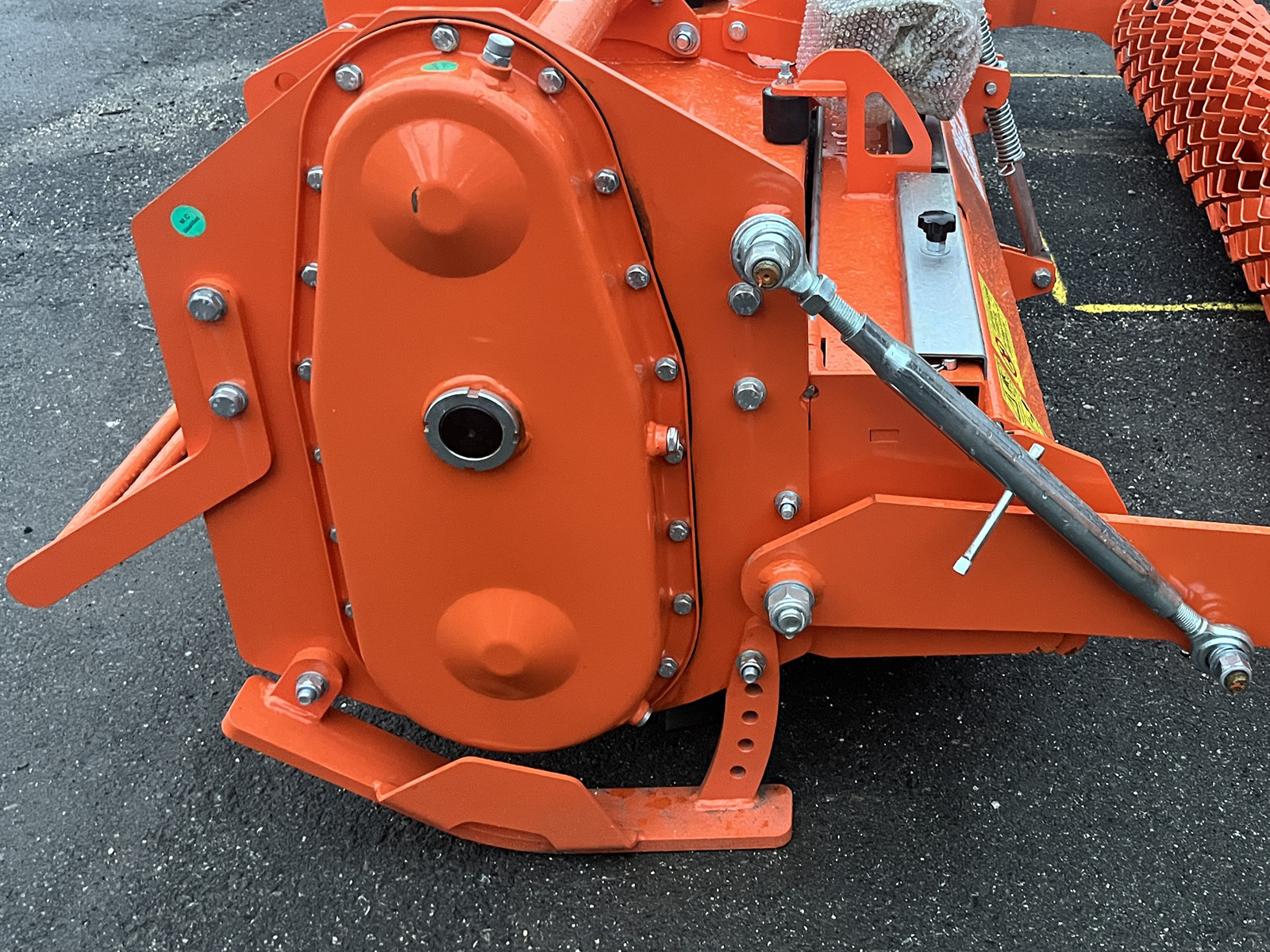

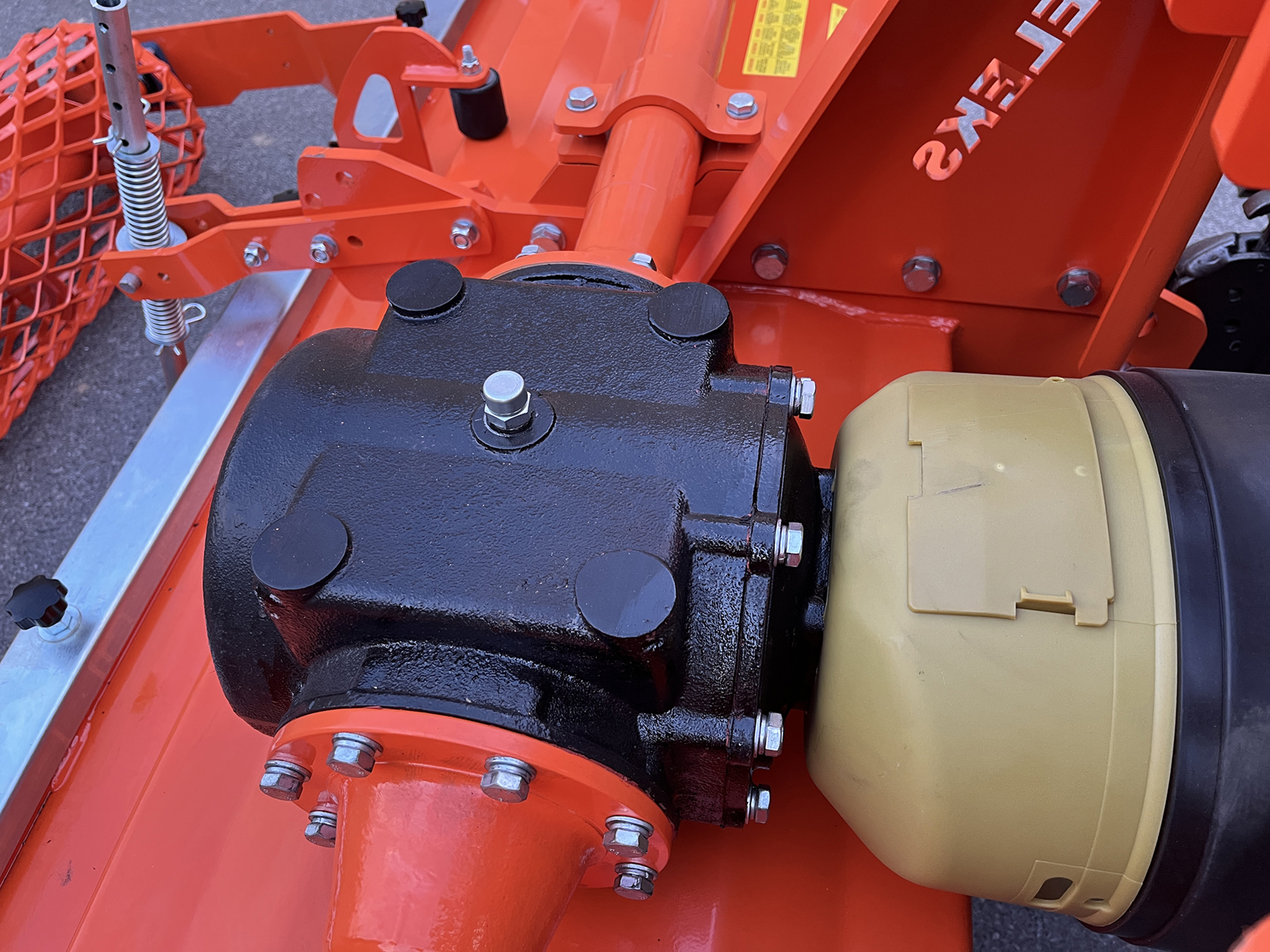

Gear drive and twin-disc clutch
The DELEKS® 540 rpm gearbox has a cast-iron housing, a three-year warranty and arrives filled with SAE 120 oil; a side gear drive, with no chain, takes the power to the rotor and is sized for powers up to 100 hp. The rotor turns at 210 rpm: it puts more torque into every tine and cuts finer. The CE PTO shaft (category 6, 1,000 mm / 39 in) with twin-disc friction clutch Ø 180 mm (7.1 in) is included: the clutch protects rotavator and tractor when a tine meets a stone or a root, and is set to suit the tractor and the ground following the manual.

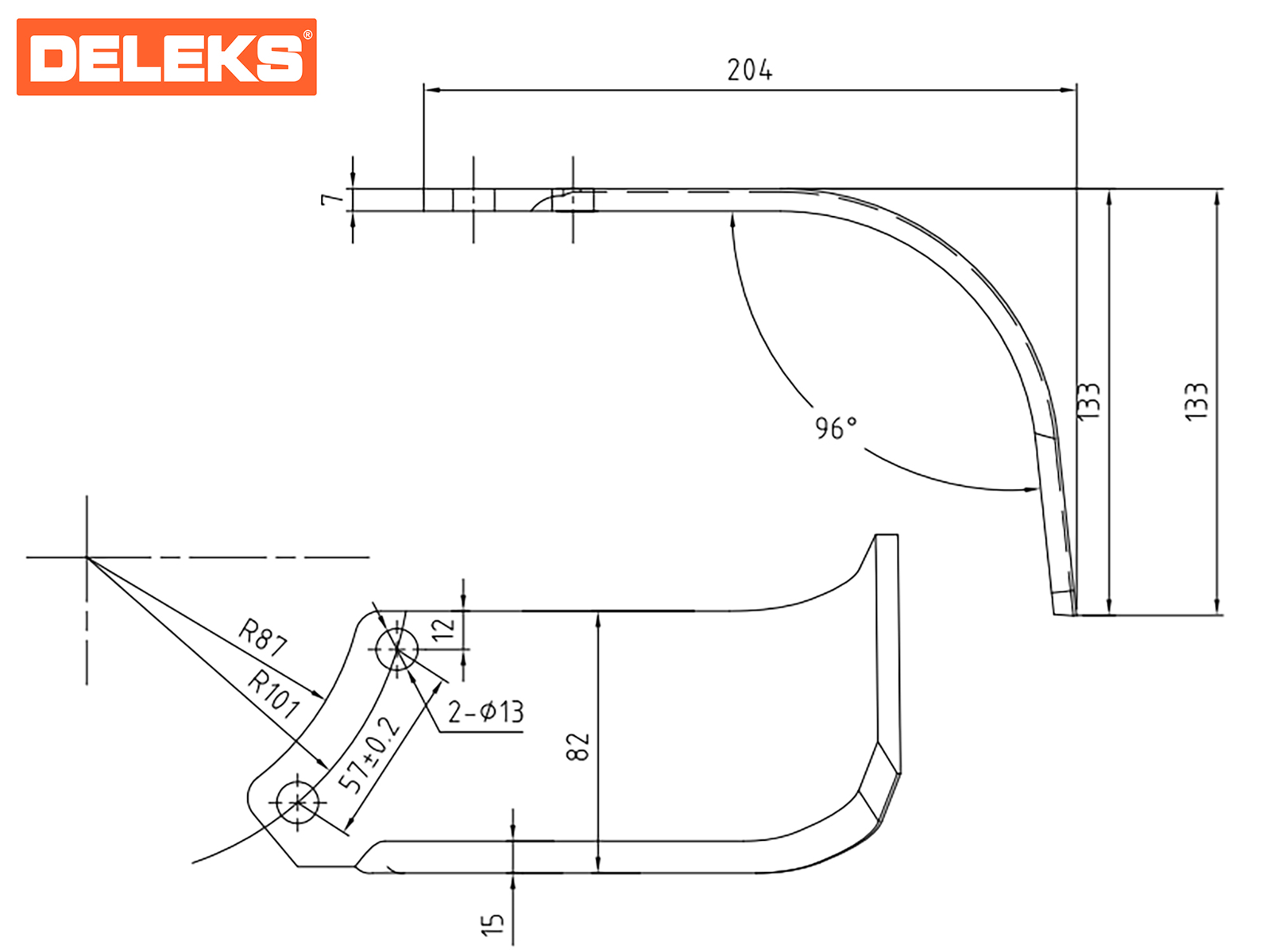

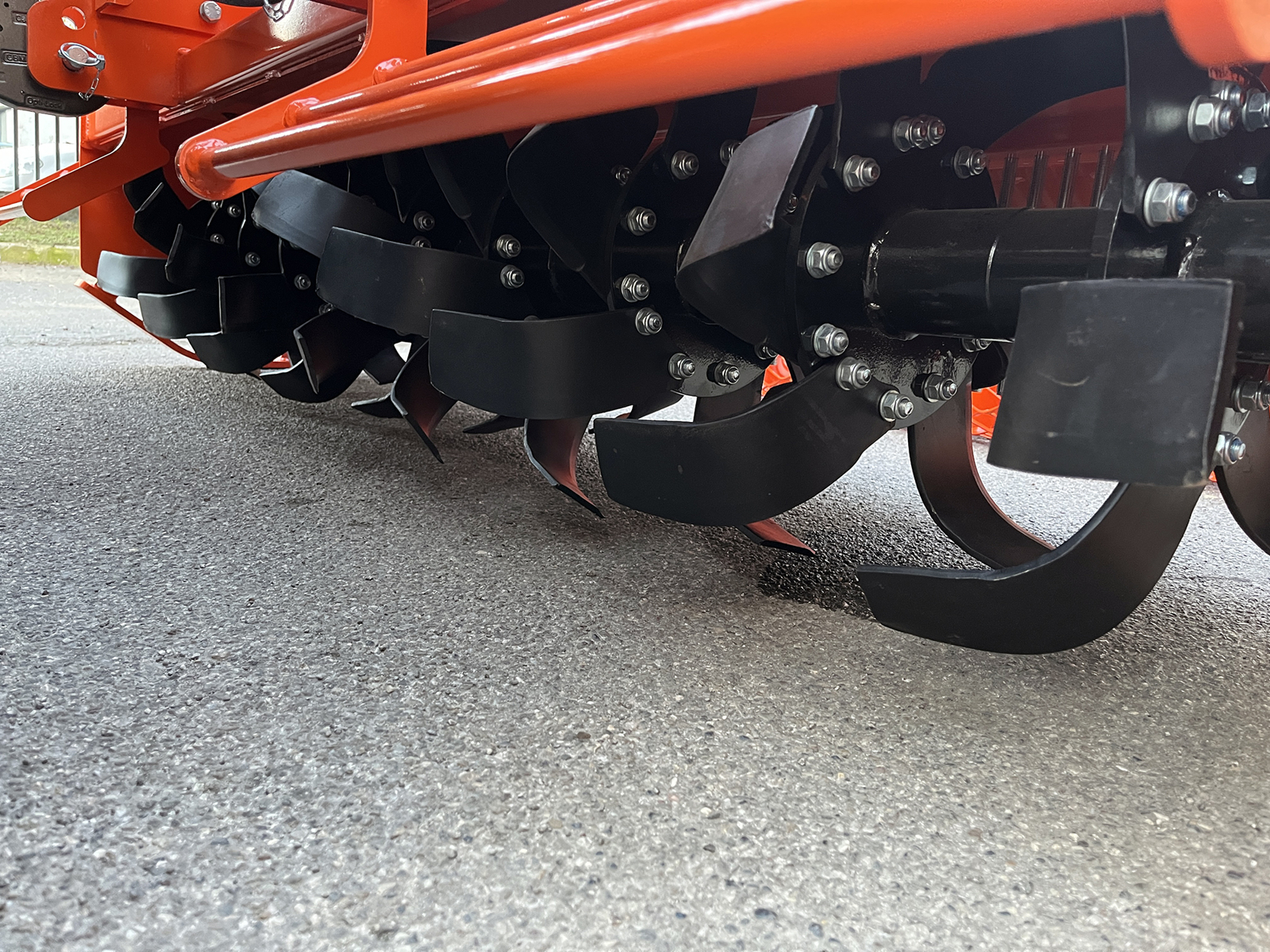

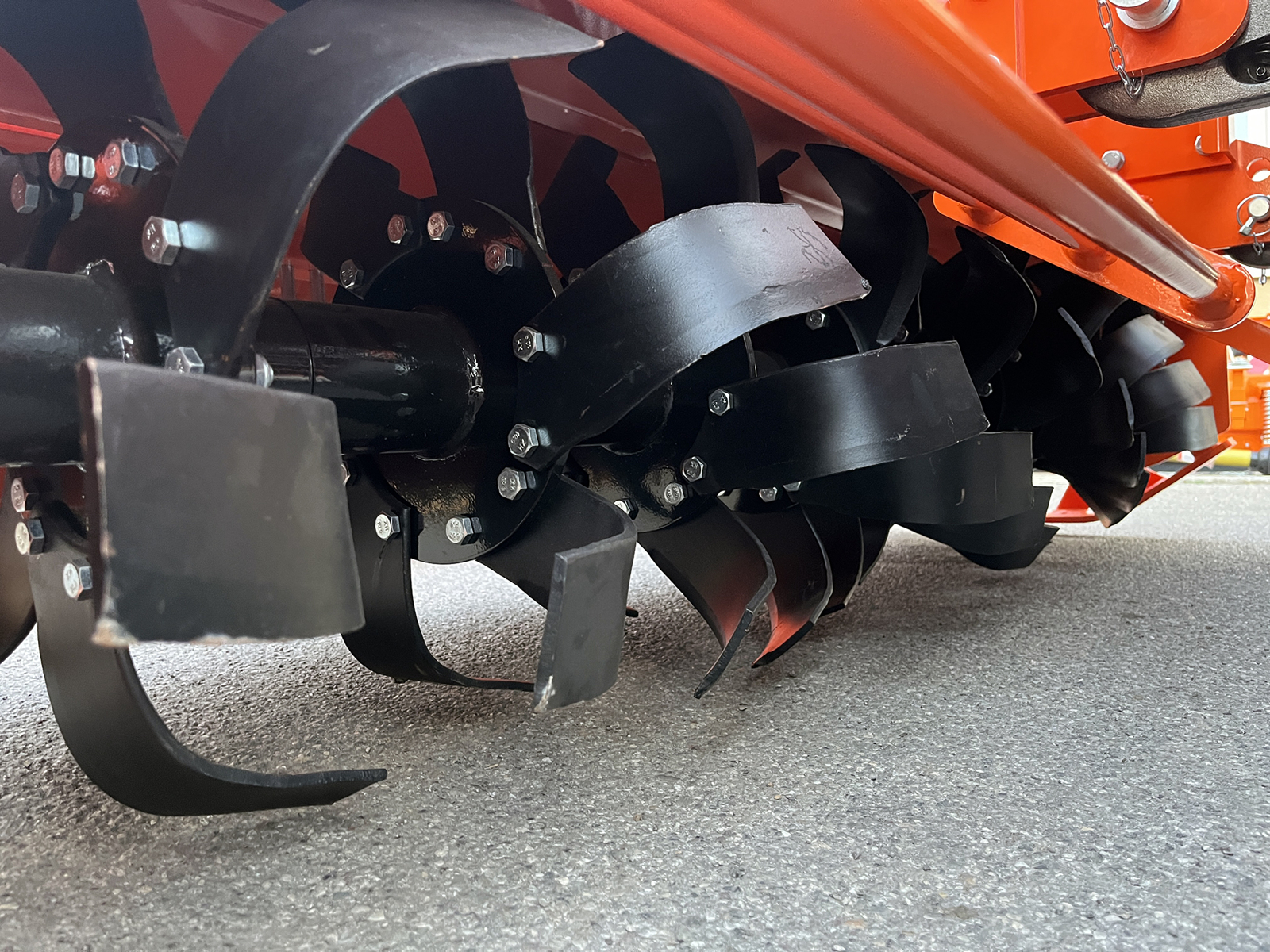

90 mm rotor and 1 kg helical tines
The rotor measures 500 mm (19.7 in) across with the tines fitted, on a 90 mm shaft with 6309 and 6310 bearings and 12 mm side plates. The 42 forged helical tines (21 right-hand and 21 left-hand, 6 per flange on 7 flanges, 1 kg / 2.2 lb each) enter the soil progressively, with less vibration and a finer cut than straight tines; they are held by two bolts each and are changed one at a time. Working depth up to 200 mm (7.9 in), set mechanically with the rear mesh roller.
Built for continuous work
12 mm side plates, a 90 mm rotor shaft and 630 kg (1,389 lb) of weight: the DFTR-180 is the rotavator for clay, hard ground and land worked several times a year, behind crawlers too, where lighter rotavators wear out fast. The rear bonnet adjusts in height: closed it holds the soil between the tines and refines the seedbed, open it lets large clods and crop residues out. On very stony ground a stone burier is the better choice.

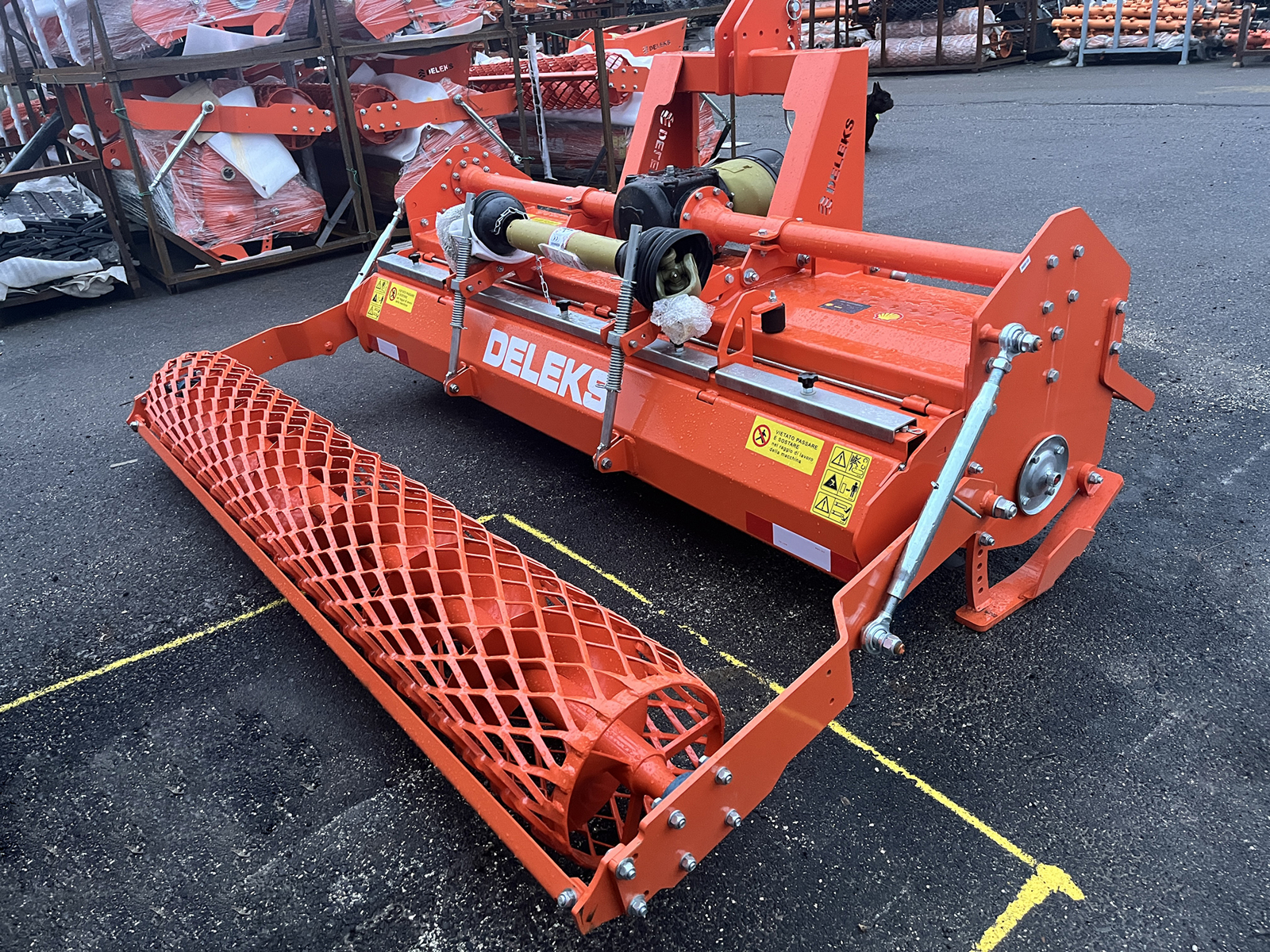

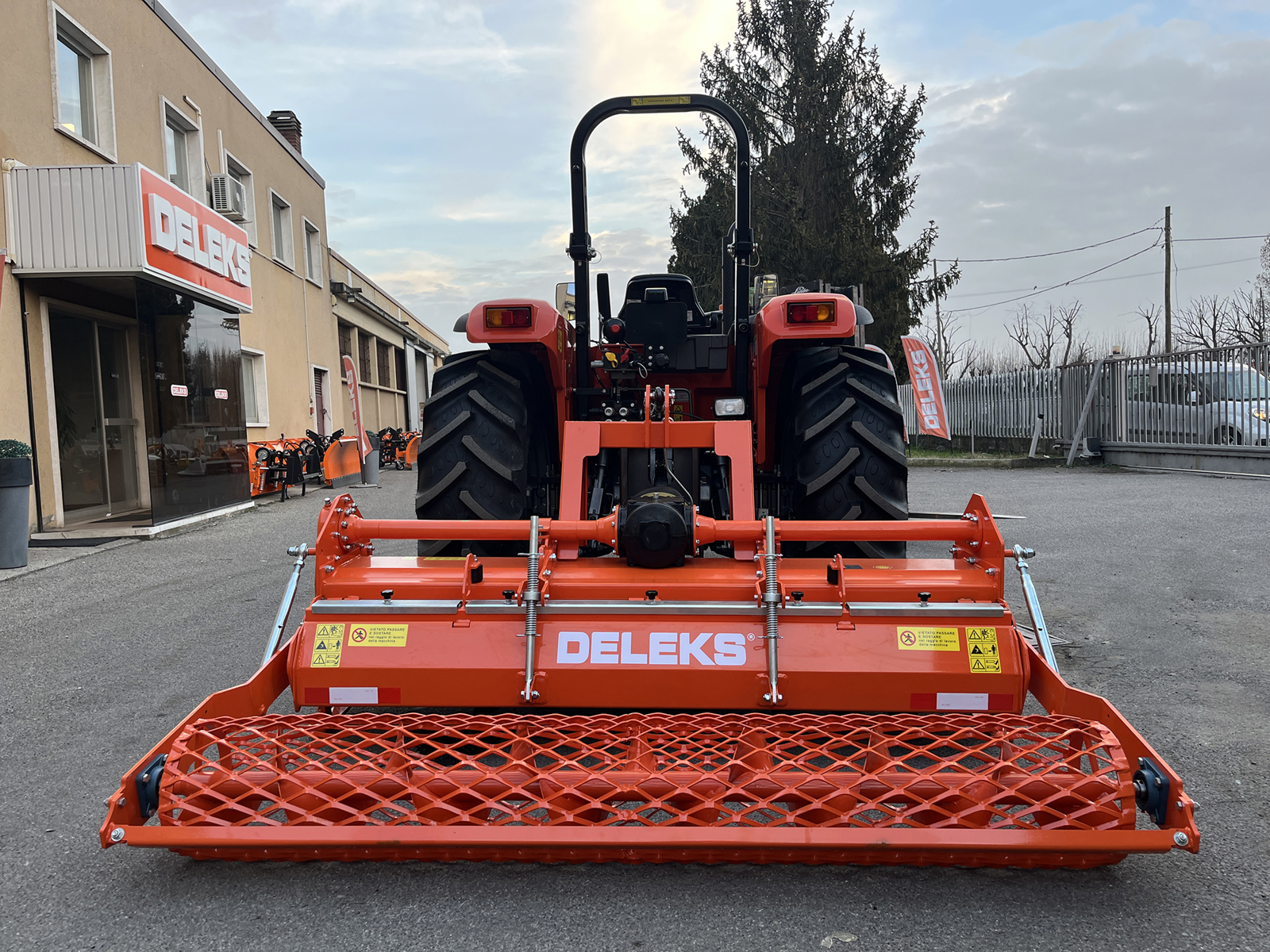

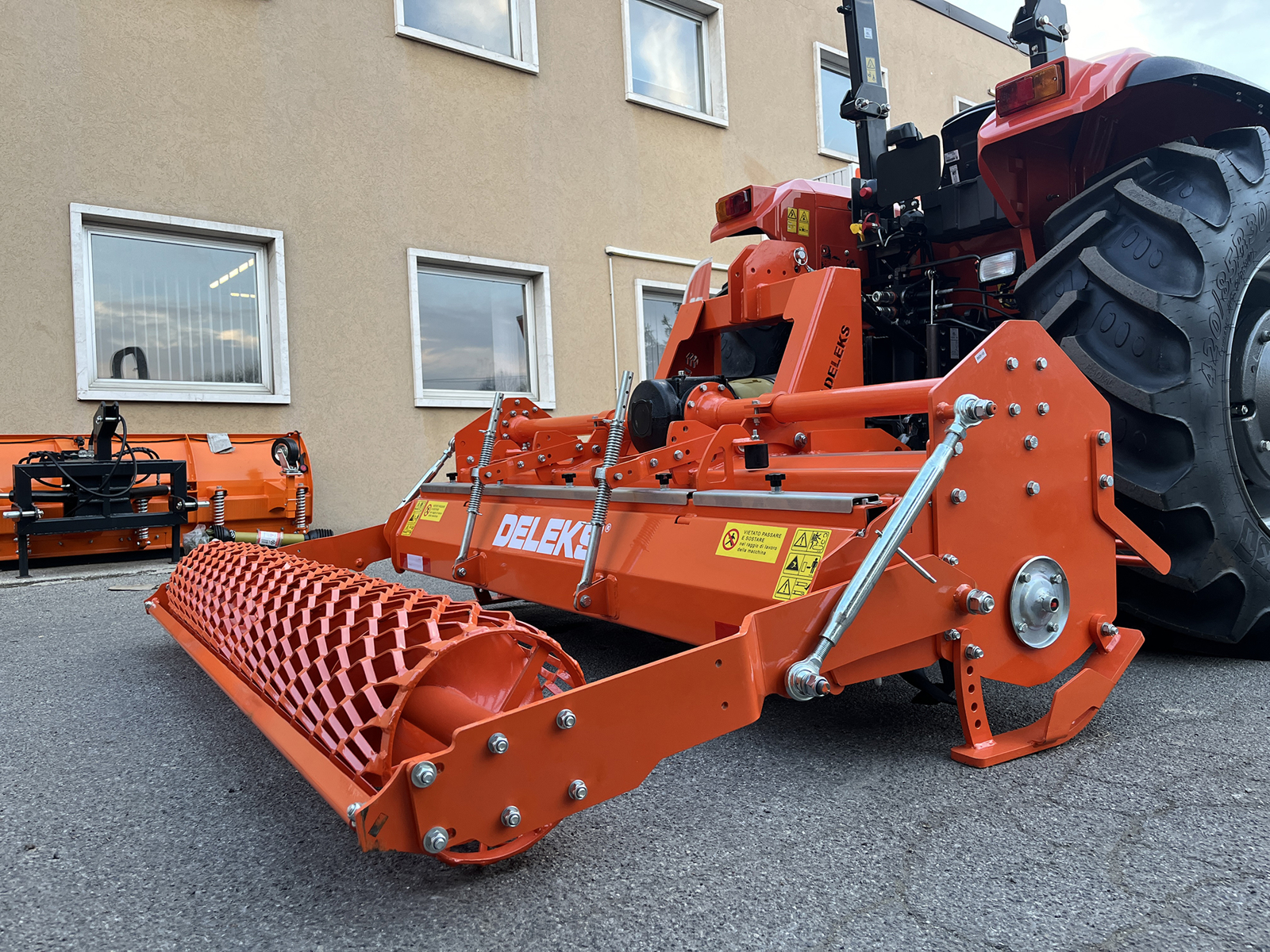

Standard rear mesh roller
Behind the bonnet the DFTR-180 carries a 300 mm (11.8 in) mesh roller as standard, with mechanical depth adjustment: the rotavator rides on the roller across its full width, keeps the depth constant on uneven ground too and leaves the surface level and crumbled, ready for sowing or planting. The mesh lets fine soil through and does not pack up like a solid roller, so it works well on damp ground as well. The roller is what makes the DFTR longer and heavier than a DFH of the same width, which has no roller even as an option and sets its depth with the side skids.
Dimensions, weight and delivery
Working width 1795 mm (70.7 in), overall width 2000 mm (78.7 in), height 1200 mm, weight 630 kg (1,389 lb); the gearbox sits 650 mm off the ground. It ships on a pallet of 210 × 115 × 115 cm (83 × 45 × 45 in), 744 kg (1,640 lb) gross, with free delivery within the EU: the delivery address must be reachable by an articulated lorry and unloading is down to the customer, with a forklift or the tractor's lift; delivery can take longer than standard, so it is worth speaking to our sales office before you order. The machine complies with the EC Machinery Directive, is TÜV Austria certified and comes with a two-year warranty.
Where it works
- Open field and field-scale vegetables: seedbeds and planting beds, working in fertiliser, green manure and stubble, on clay too
- Contractors and farms with 70–100 hp wheeled or tracked tractors
- Wide-spaced orchards and vineyards with high-powered tractors
- Hard ground worked several times a year
Options and spares
On this page you will also find the set of 10 helical tines, tine nuts and bolts and spare PTO shafts and clutches: order them with the rotavator or later on.
FAQ
How much power does the DFTR-180 need?
From 70 to 100 hp at the 540 rpm PTO, wheeled or tracked; under 70 hp the tractor struggles to keep its speed at depth and the lighter heavy-series DFH-180 is the better choice.
What is the difference between the DFTR-180 and the heavy series DFH?
A heavier build for the same width: 630 kg (1,389 lb), 12 mm side plates instead of 8, a 90 mm rotor shaft instead of 76, 1 kg tines and a standard rear mesh roller, for 70–100 hp tractors and for crawlers; the DFH models go up to 90 hp and weigh 352 to 560 kg.

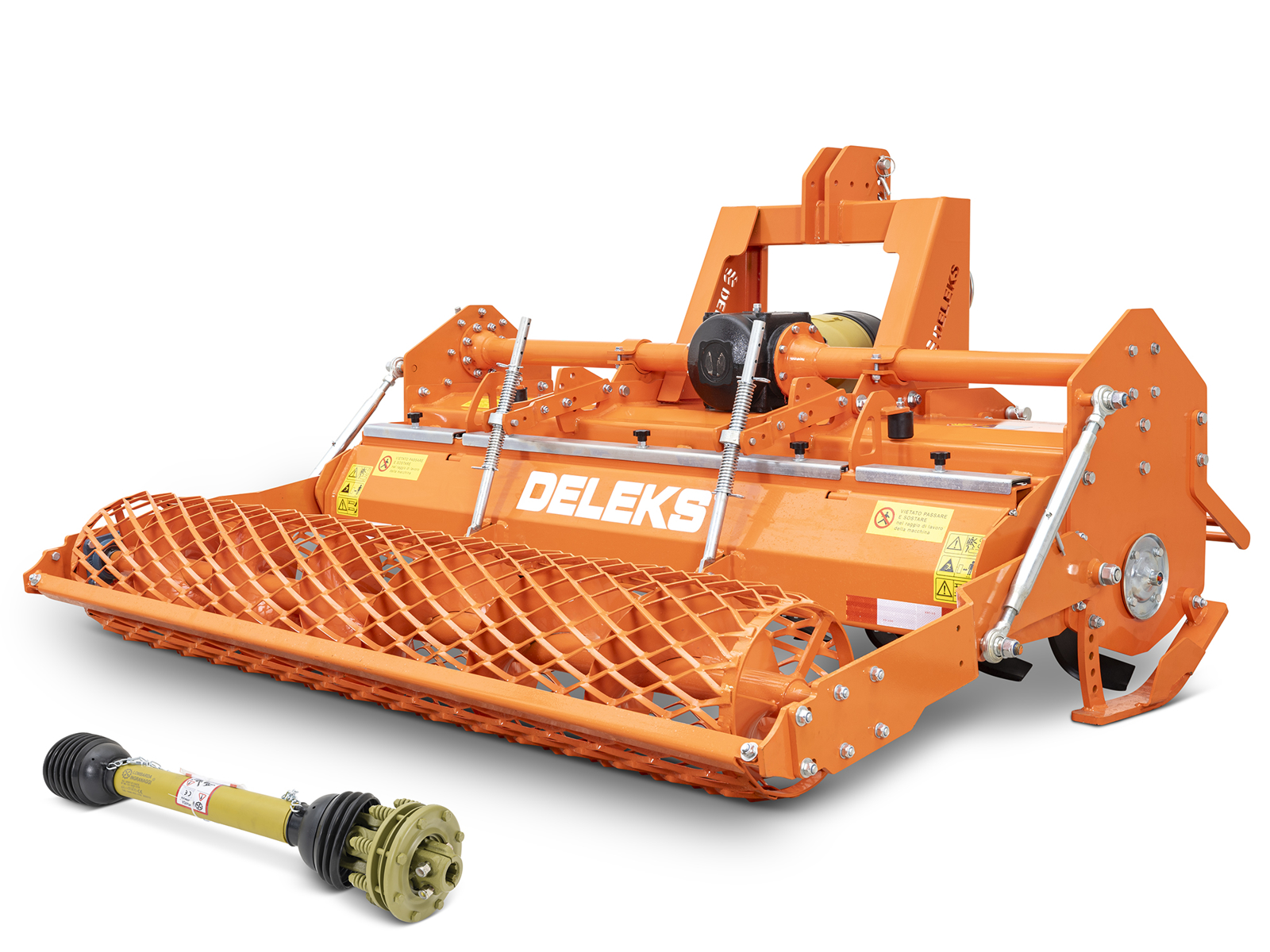

Is the PTO shaft included? How is the clutch set?
Yes: the CE PTO shaft (category 6, 1,000 mm / 39 in) with twin-disc friction clutch Ø 180 mm (7.1 in) is standard. The clutch is set to suit the tractor and the ground following the manual: too tight it does not protect the drive, too loose it slips and overheats.
What maintenance does it need?
At the start of the season check the gearbox oil level (SAE 120), tine wear and bolt tightness; before each use grease the points shown in the manual and check the PTO clutch. Worn tines are replaced with the set of 10.
How is a rotavator of 744 kg delivered?
On a pallet, with free delivery within the EU: the lorry is an articulated one, so the address must be reachable and unloading is done with a forklift or the tractor's lift. Delivery can take longer than standard: best to speak to our sales office before ordering.
DELEKS® spares and support
Genuine spares ship from the DELEKS® warehouses in Europe: tines, gears, pins, bearings, PTO shafts, clutches and the other wearing parts are normally in stock, for routine servicing and for repairs. The technical team helps you pick the right part from the exploded drawings, service the machine and choose the rotavator and the accessories that suit your tractor. The rotavator comes with the EC declaration of conformity, the invoice and the use and maintenance manual, also emailed when the order ships. Two-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1795.0 mm |
| Overall width | 2000.0 mm |
| Weight | 630.0 kg |
| Overall height | 1200.0 mm |
| Tractor Power Range | 70 - 100 Hp |
| 3 point linkage | Cat. 2 (ø 25.0-28.0mm) |
| Spacing between the 2 lower points | 745.0 - 870.0 mm |
| Overall length | 1800.00 mm |
| Distance between pto attachment and ground | 650.0 mm |
| Transmission: Drive method | Gears |
| Transmission: Gearbox | DELEKS 540 r/min (3 year warranty) |
| Transmission: Rotation of gearbox | Right side |
| Transmission: RPM Rotor speed | 210 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Rotor: diameter | 90.0 mm |
| Rotor: bearings type and size | 6309(L) / 6310(R) |
| Rotor: sheet thickness | 12.0 mm |
| Rear roller: diameter | 300.0 mm |
| Working Depth Range | 200.0 mm |
| Pto shaft | CE 6x1000 mm + twin-disc friction clutch Ø180 mm |
| Rotor: diameter with blades | 500.0 mm |
| Rotor: flanges | 7 |
| Number of Blades per flange | 6 |
| Blades: quantity | 21 + 21 |
| Blades: weight | 1.0 kg |
| Gross shipping weight | 744 kg |
| Package volume | 2.78 m3 |
| Packing sizes | 2100*1150*1150 mm |
