Side-shift flail mulcher 120 cm (47 in) LINCIONE-120-SP, hammer flail mower with manual side shift for 30-60 hp tractors

Available
Code LINCIONE120SPPTO - EAN 8053470238598
2.163,00€VAT incl.
Free shipping
Loading...
2.163,00€VAT incl.
 REQUEST INFORMATION

VIDEO
Field test
Field test

DETAILS

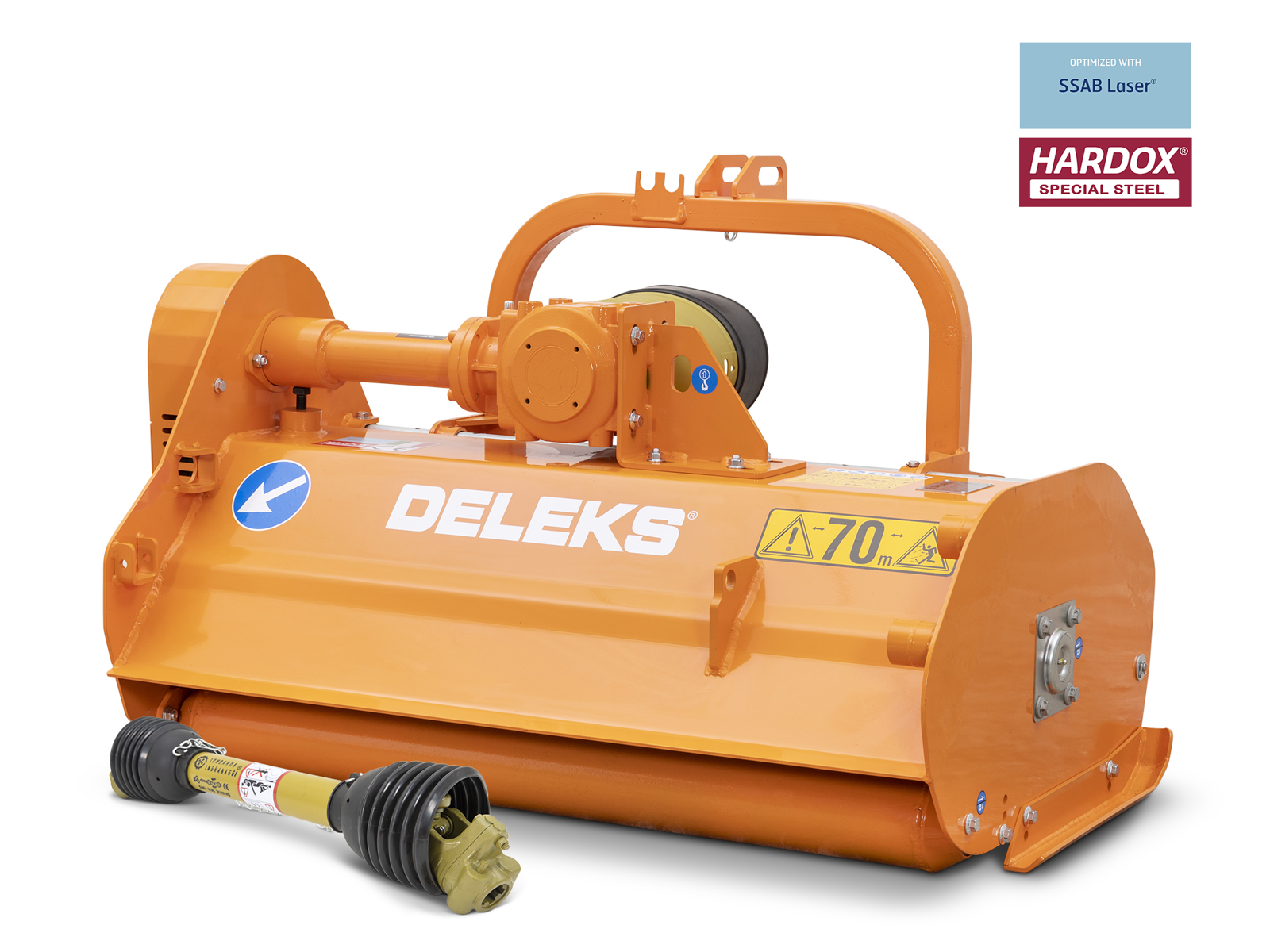

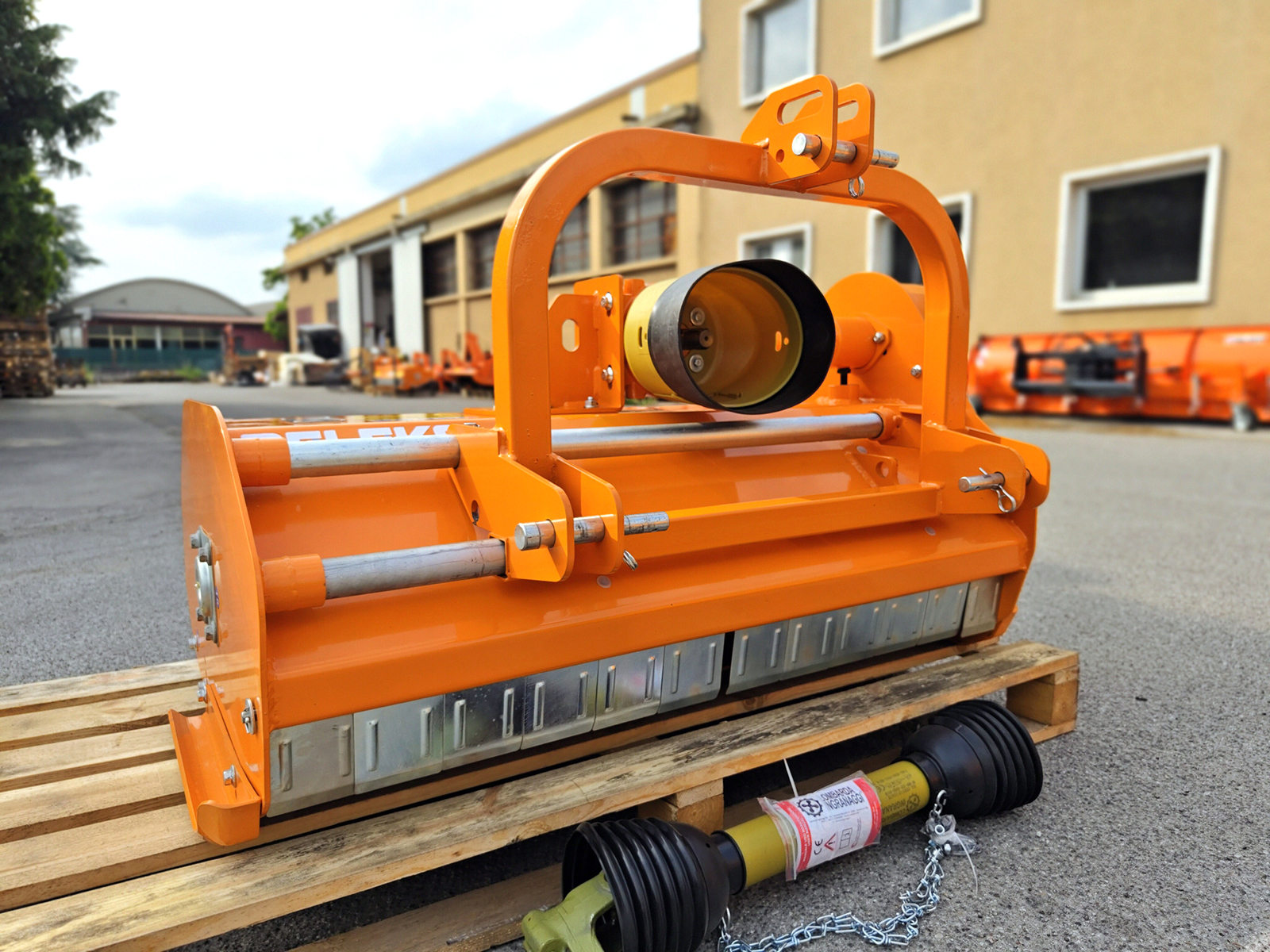

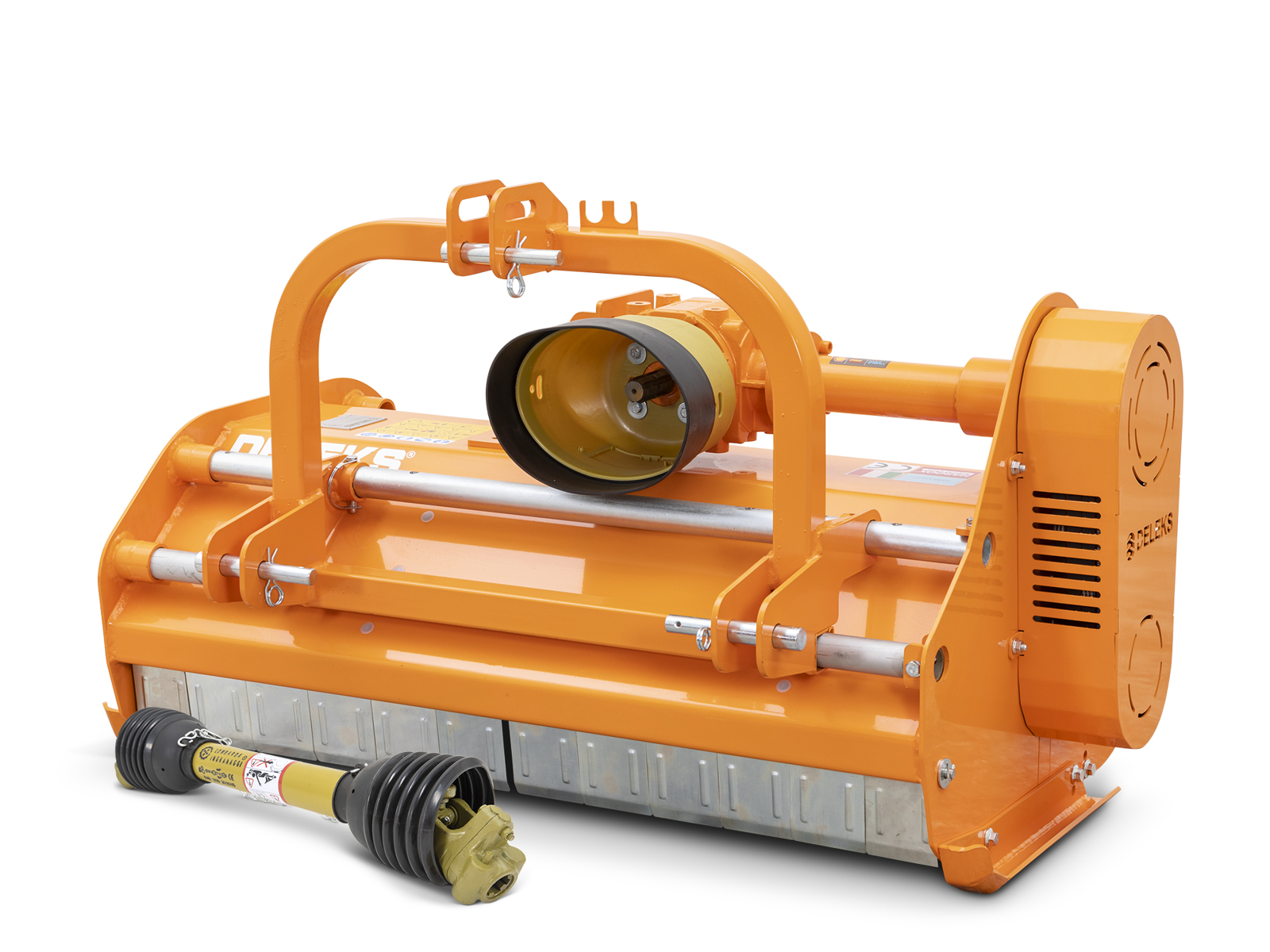

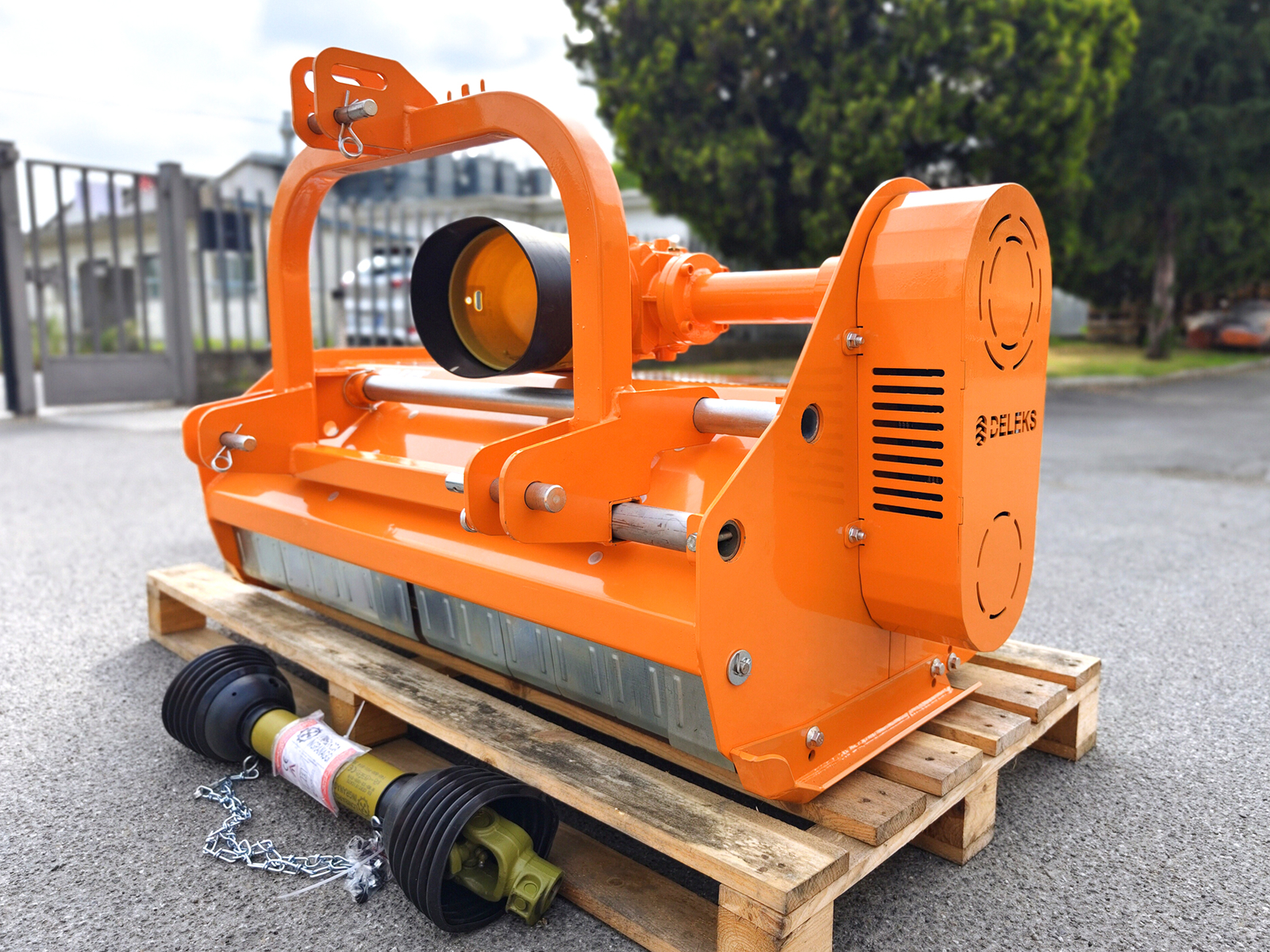

Side-shift flail mulcher for tractors with a 120 cm (47 in) cut and 31 cm (12 in) of manual side shift, from the DELEKS® medium series: the LINCIONE-120-SP is the hammer flail mower for orchard and vineyard tractors from 30 to 60 hp, such as Antonio Carraro, Goldoni, Kubota, Landini and Same, and also works offset, under the canopy and along ditches, fences and field edges. The electronically balanced rotor carries 16 forged hammer flails of 820 g (1.8 lb) and shreds grass, leaves, vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick; the specially shaped hood gives a fine mulch and stops the mower clogging. DELEKS® 540 rpm gearbox with freewheel and a 3-year warranty, 4-belt drive, SSAB steel frame, 295 kg (650 lb). Made in Italy, built by DELEKS, it comes complete with a CE-approved PTO shaft with shear bolt, a 2-year warranty and free delivery within the EU.

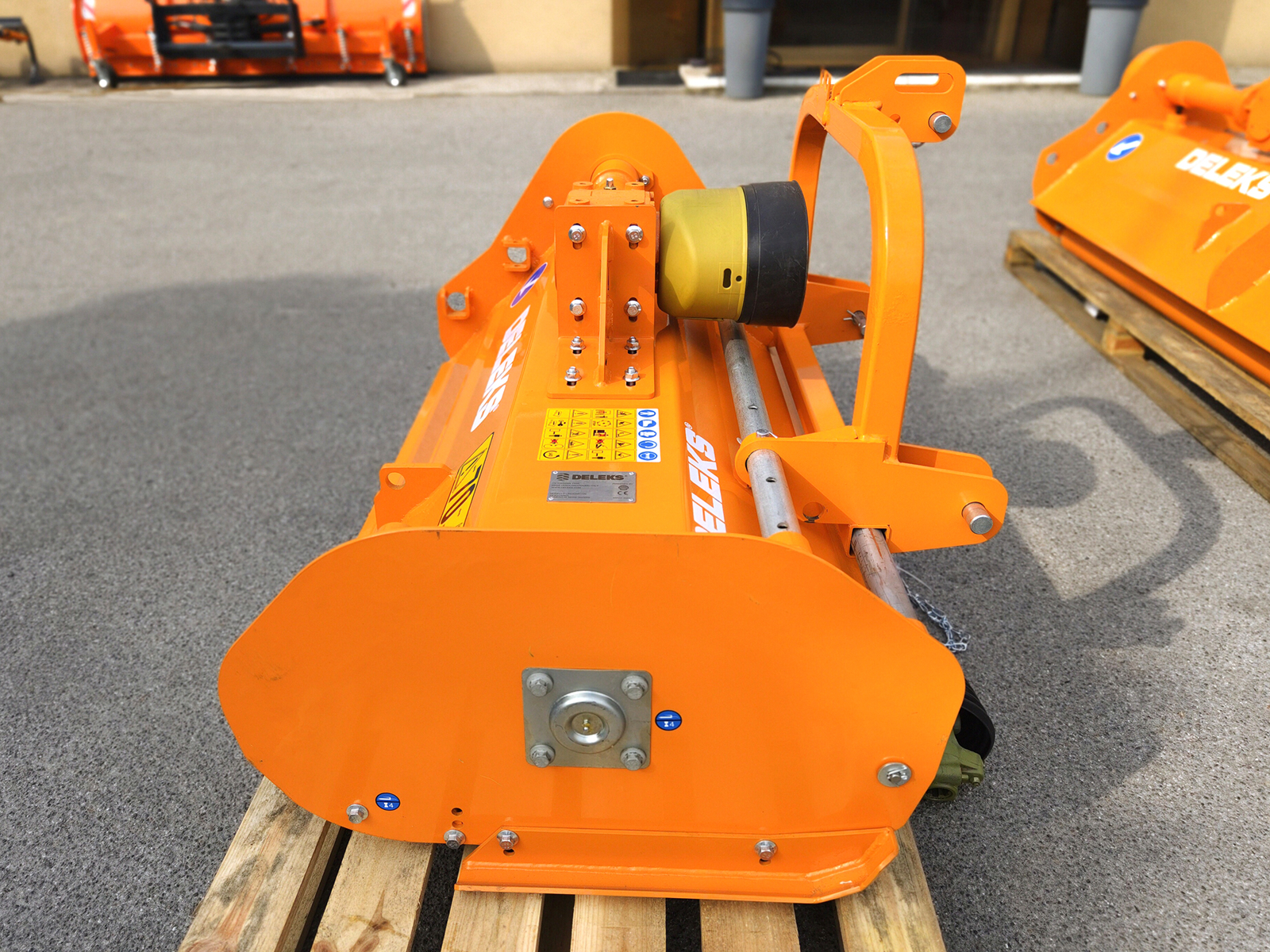

Manual side shift of 31 cm (12 in)

The headstock of the LINCIONE-120-SP slides sideways: the mower moves up to 31 cm (12 in) to one side of the tractor, so you can work offset. The side shift is mechanical and is set by hand with the machine stopped, before you start: centred for open ground, offset to mow under the canopy, tight to a row or along a ditch without bringing the tractor's wheels close to the edge. If you need to change position on the move, the LINCIONE-120-SPH has hydraulic side shift as standard.


Which tractors it fits

The LINCIONE-120-SP cuts 120 cm (47 in) with an overall width of 134 cm (53 in) and is built for tractors from 30 to 60 hp with a 540 rpm PTO and a universal category 1 or 2 three-point linkage (19-22 or 25-28 mm pins, lower link spacing from 560 to 950 mm): Antonio Carraro, Goldoni, Kubota, Landini, Same, Lamborghini, Solis and equivalent tractors. It is the narrowest in the series: the size for tight rows in vineyards and orchards. As a rule of thumb the mower should be 15 to 20 cm (6 to 8 in) wider than the tractor's outer track, so it covers the wheel marks.

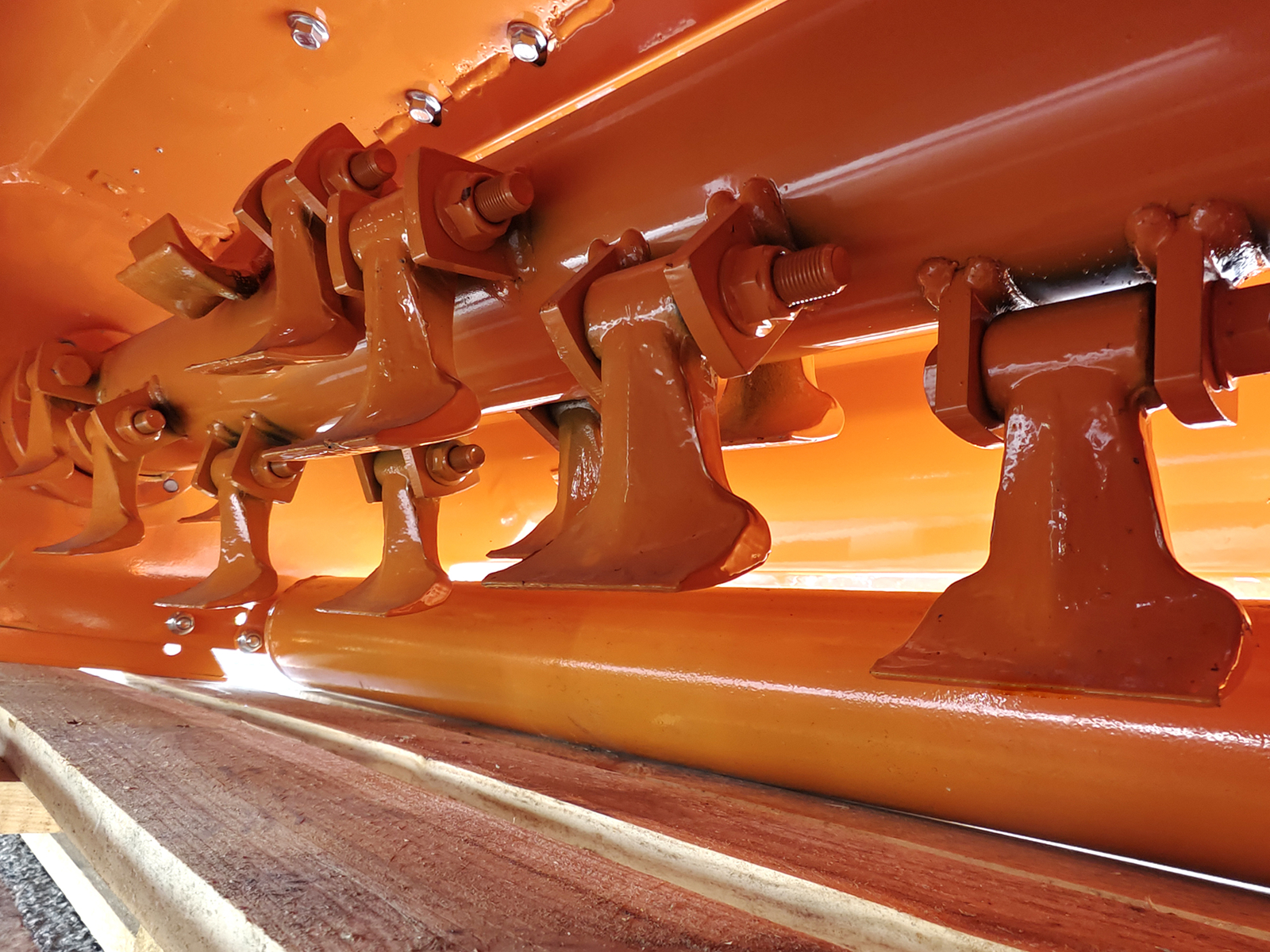

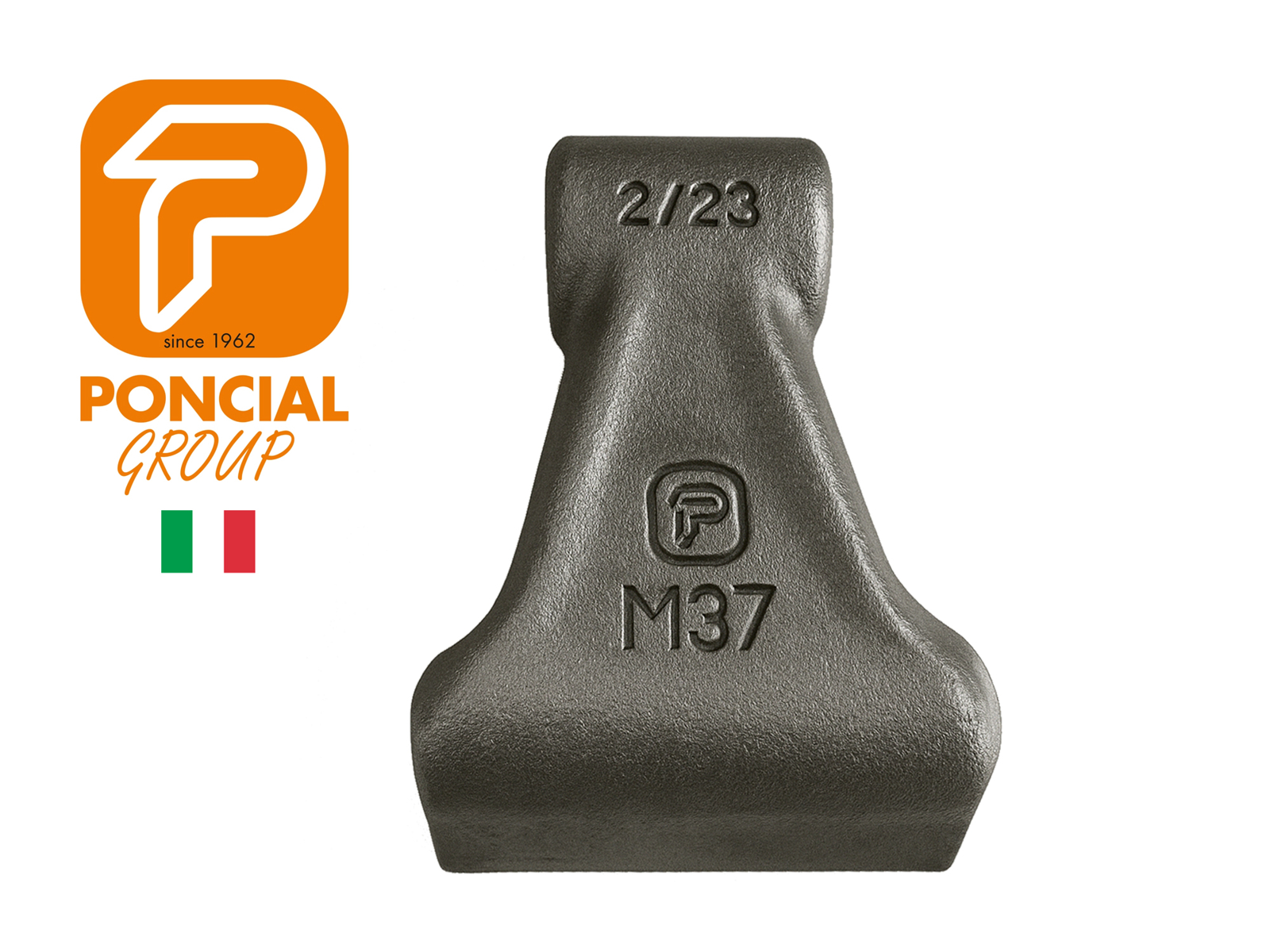

Rotor with 16 forged hammer flails of 820 g (1.8 lb)

The rotor is built from ARVEDI S355 steel tube, 8 mm (5/16 in) thick and 115 mm (4.5 in) in diameter, electronically balanced, and spins at 2,300 rpm on self-aligning SKF bearings. The 16 forged Poncial flails, Made in Italy, weigh 820 g (1.8 lb) each and sit in 2 helical rows on brackets in HARDOX wear-resistant steel: they pulverise grass, leaves, brambles, vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick. The kit of 30 blades (COLTELLI30T) is available as an option, as an alternative to the hammer flails.

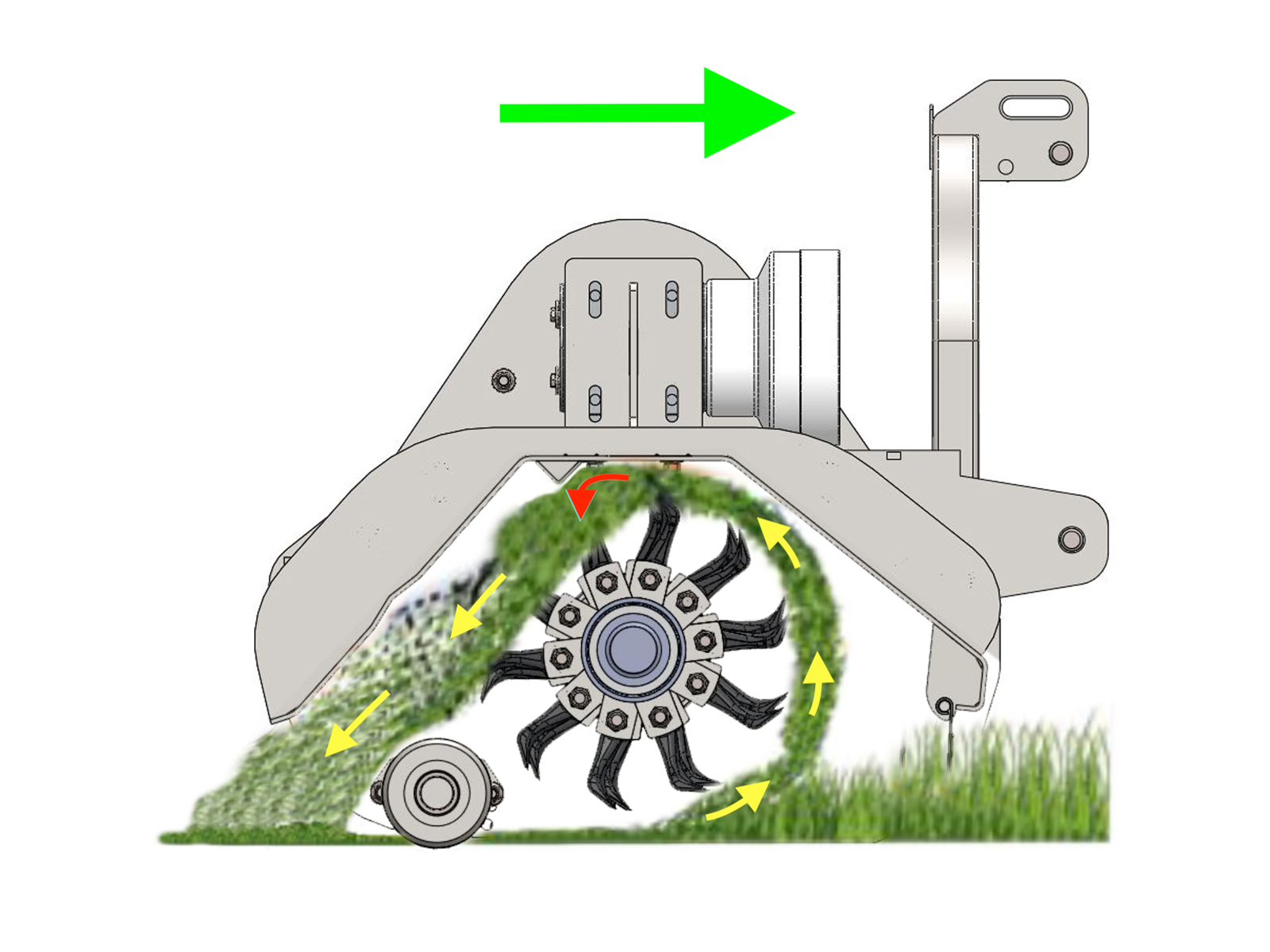

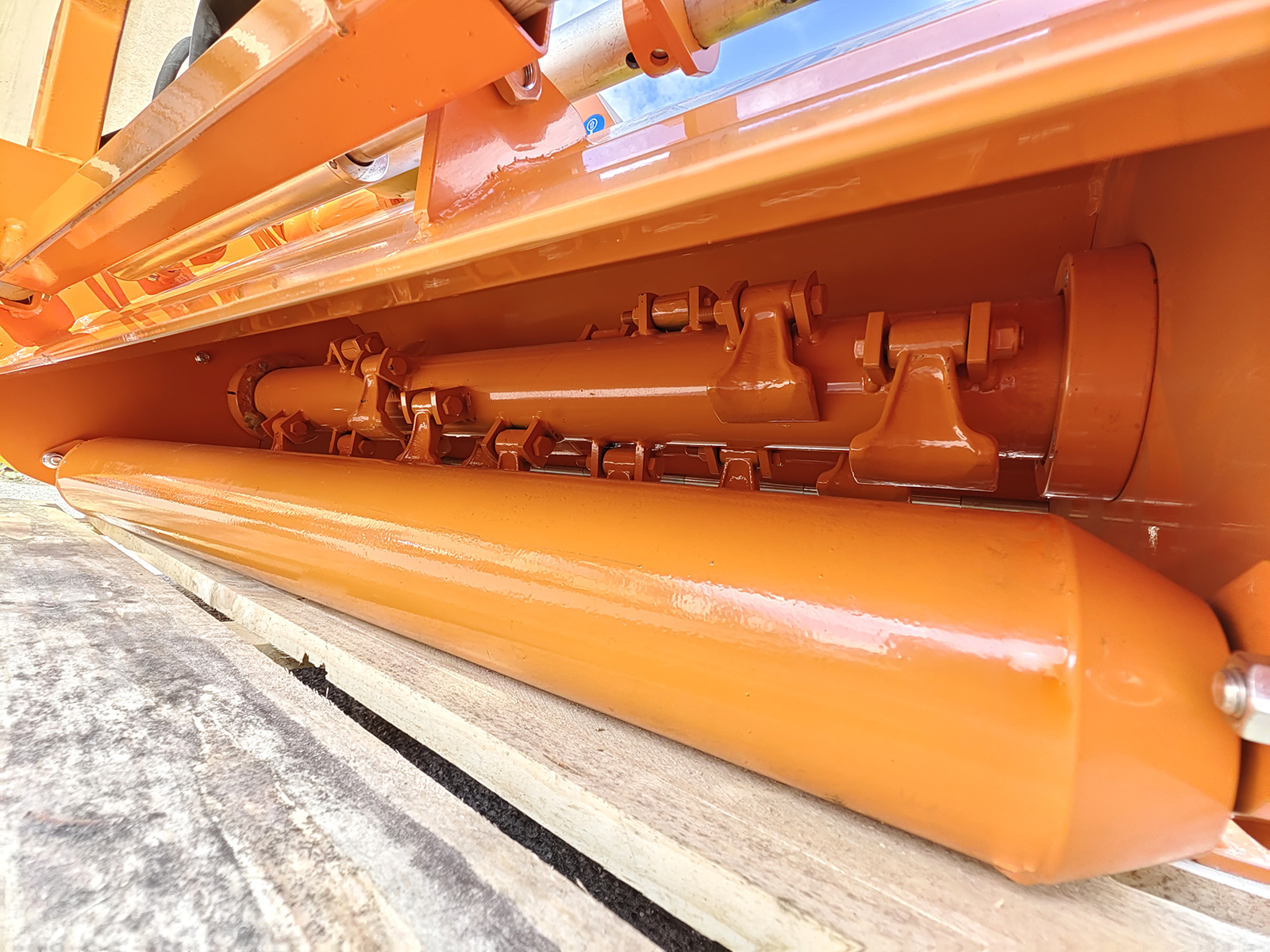

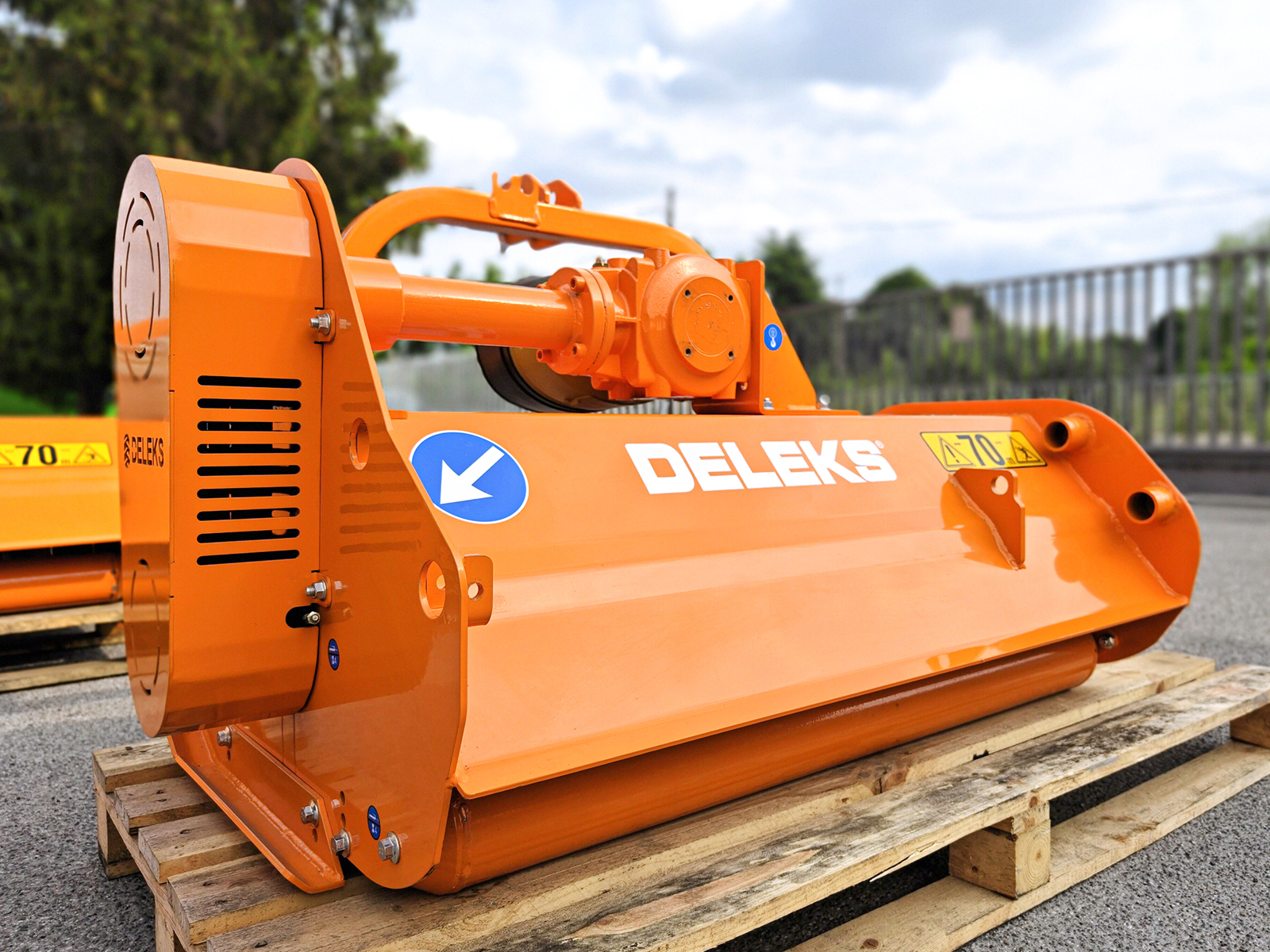

Mulching hood, roller and skids

The hood of the LINCIONE-120-SP is specially shaped to give a fine mulch and stop the mower clogging. Cutting height is set from 38 to 60 mm (1.5 to 2.4 in) with the 121 mm (4.8 in) rear roller, which runs on SKF bearings, and the 6 mm side skids. The skids have a double bend, so the mower does not dig in when it moves sideways.

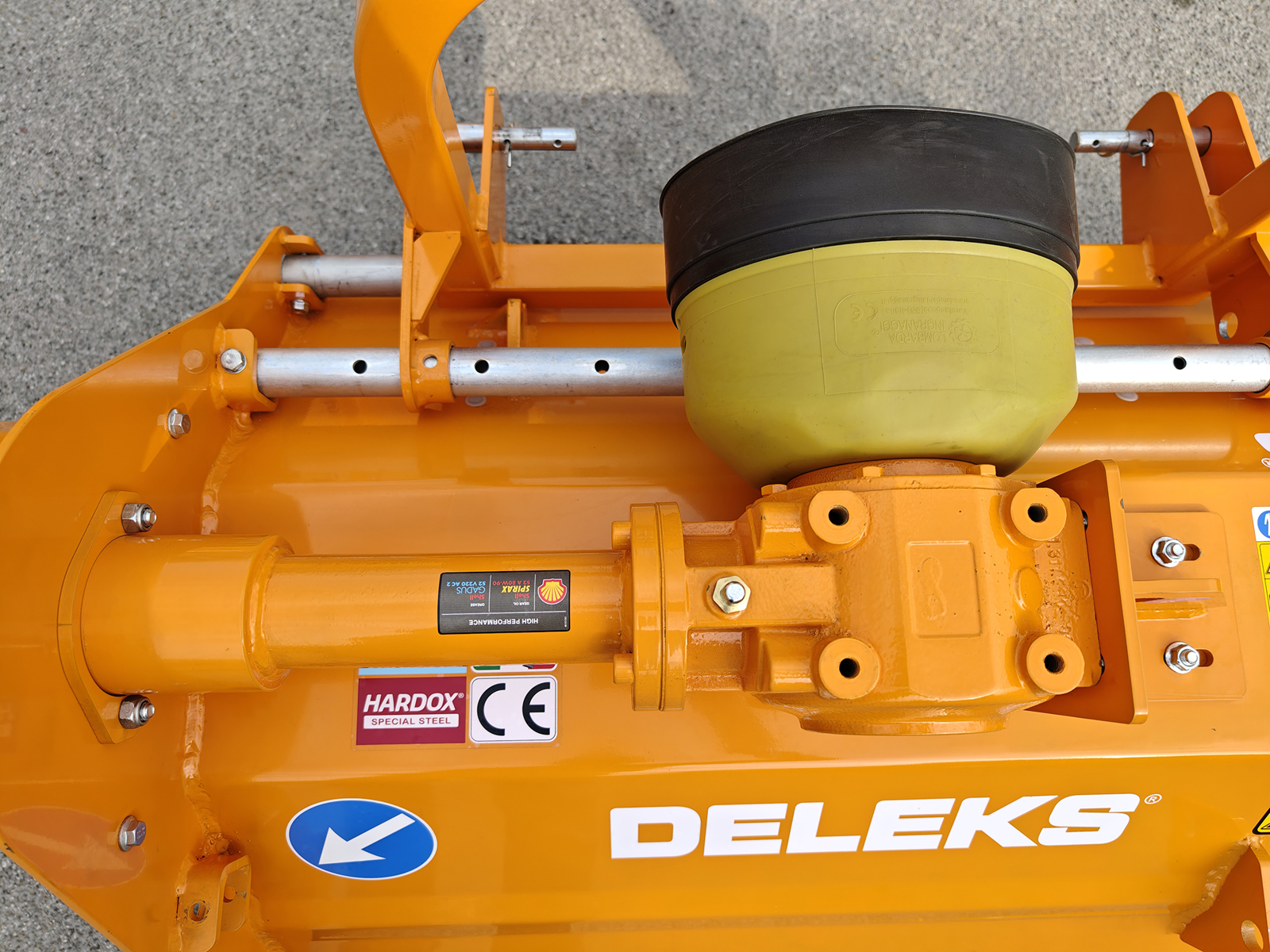

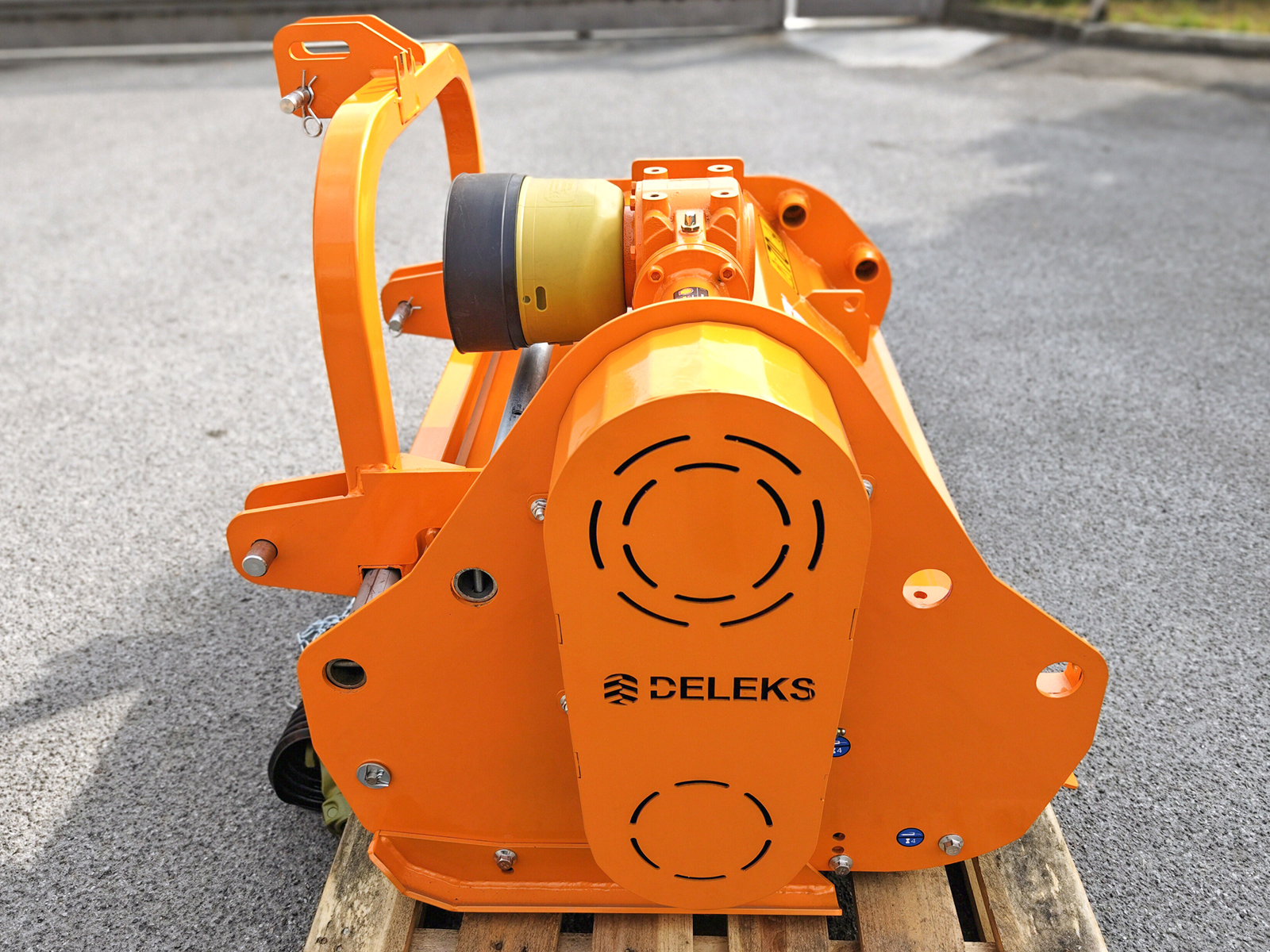

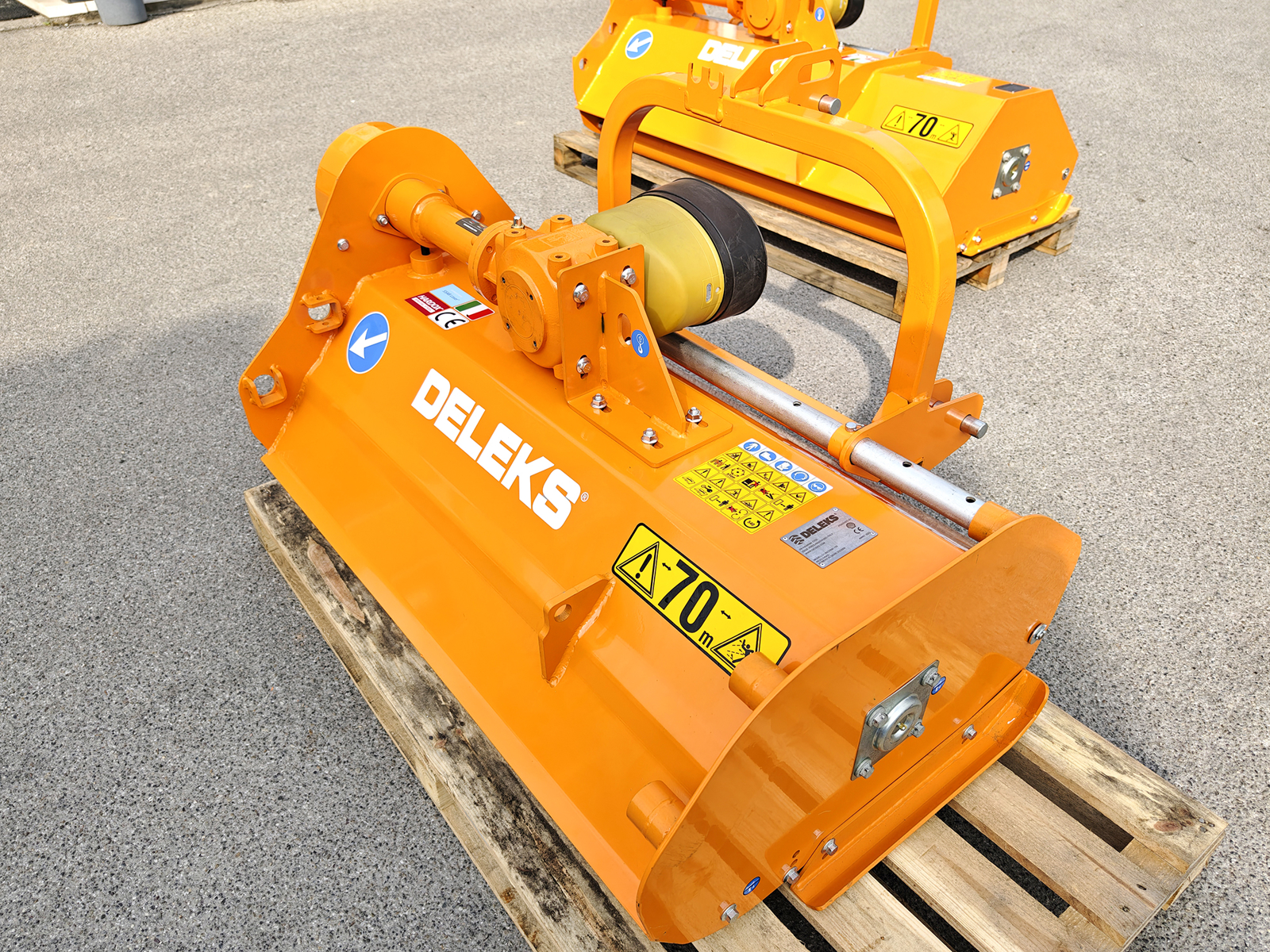

Gearbox with freewheel, 4 belts and PTO shaft

The DELEKS® gearbox for a 540 rpm PTO is uprated, with a built-in freewheel and a 3-year warranty: when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. Drive reaches the rotor through 4 BX43 V-belts; the tensioner is adjustable and belt tension is set from the outside. The CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt, is included: the bolt shears under overload and protects the driveline.

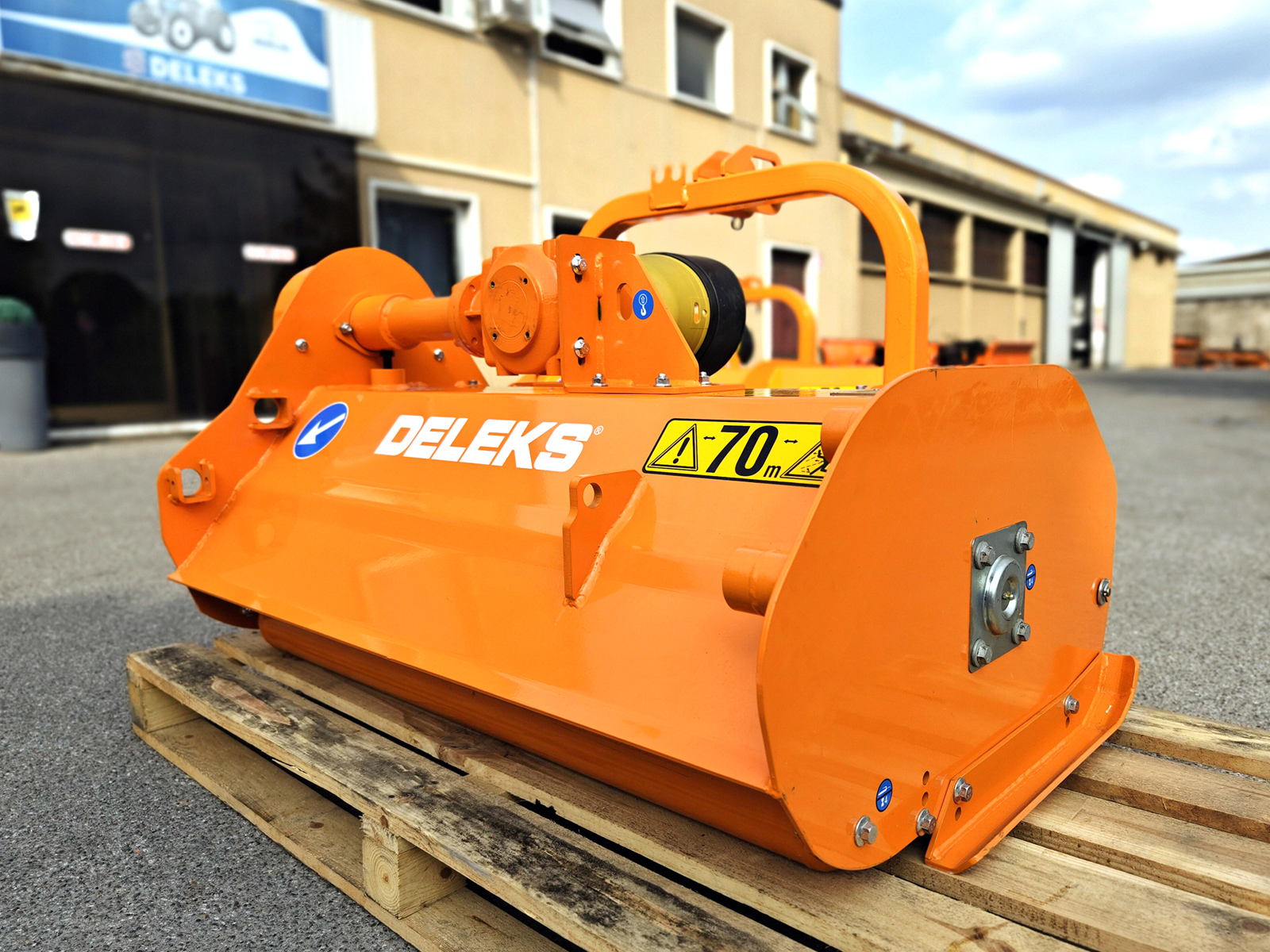

SSAB steel frame, Made in Italy

The frame is made entirely from Swedish SSAB steel, 5 mm thick with 6 mm side plates; the flail brackets are HARDOX and the rotor bearings are SKF. The LINCIONE-120-SP is Made in Italy, built by DELEKS. For this product the sheet steel is bought in Italy and worked at a production plant in the European Union.


Dimensions, weight and delivery

Working width 1,200 mm (47.2 in), overall width 1,340.5 mm (52.8 in), length 930 mm (36.6 in), height 1,130 mm (44.5 in), weight 295 kg (650 lb). It ships in packaging measuring 138 × 90 × 80 cm (54 × 35 × 31 in), 324 kg (714 lb) gross, 0.99 m³, with free delivery within the EU. It complies with the EC Machinery Directive and carries a 2-year warranty.


Where it works

  • Vineyards, orchards and olive groves: grass between the rows and under the canopy, prunings up to 4-5 cm (1.6-2 in)
  • Field edges, ditches and fence lines: working offset, with the tractor kept away from the edge
  • Rough ground and headlands: long grass, brambles and reeds
  • Open fields: stubble and crop residues
  • Farms running tractors from 30 to 60 hp

Options and spares

From this page you can add to your order the kit of 10 hammer flails (MAZZE10T), the 10 nuts and bolts for the flails (DB10T), the kit of 30 blades (COLTELLI30T), the spare set of 4 belts (CINGHIE4LEOPARD), spare pins for the category 1-2 three-point linkage (3PERNI12) and the universal PTO adapter (RID1). Other spares are identified on the exploded diagrams with our technical team.


FAQ

How far does the LINCIONE-120-SP shift?
31 cm (12 in) to the side, adjusted by hand with the machine stopped: you set the position before starting work.

Manual or hydraulic side shift?
Manual is enough when you work for long spells in the same position, for example along a ditch or in an orchard with regular spacing. The hydraulic side shift on the LINCIONE-SPH is worked from the seat while you mow: useful between rows and for steering round posts and obstacles.

What size tractor does the LINCIONE-120-SP need?
From 30 to 60 hp, with a 540 rpm PTO and a category 1 or 2 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 295 kg (650 lb).

What size branches will it shred?
Vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick, as well as grass, leaves and brambles. For branches up to 8 cm (3.1 in) there is the heavy series.

Hammer flails or blades?
It comes with 16 forged hammer flails of 820 g (1.8 lb), suited to grass, brambles and prunings. The kit of 30 blades (COLTELLI30T) is available as an option.

How do you set the cutting height?
From 38 to 60 mm (1.5 to 2.4 in), with the rear roller and the side skids.

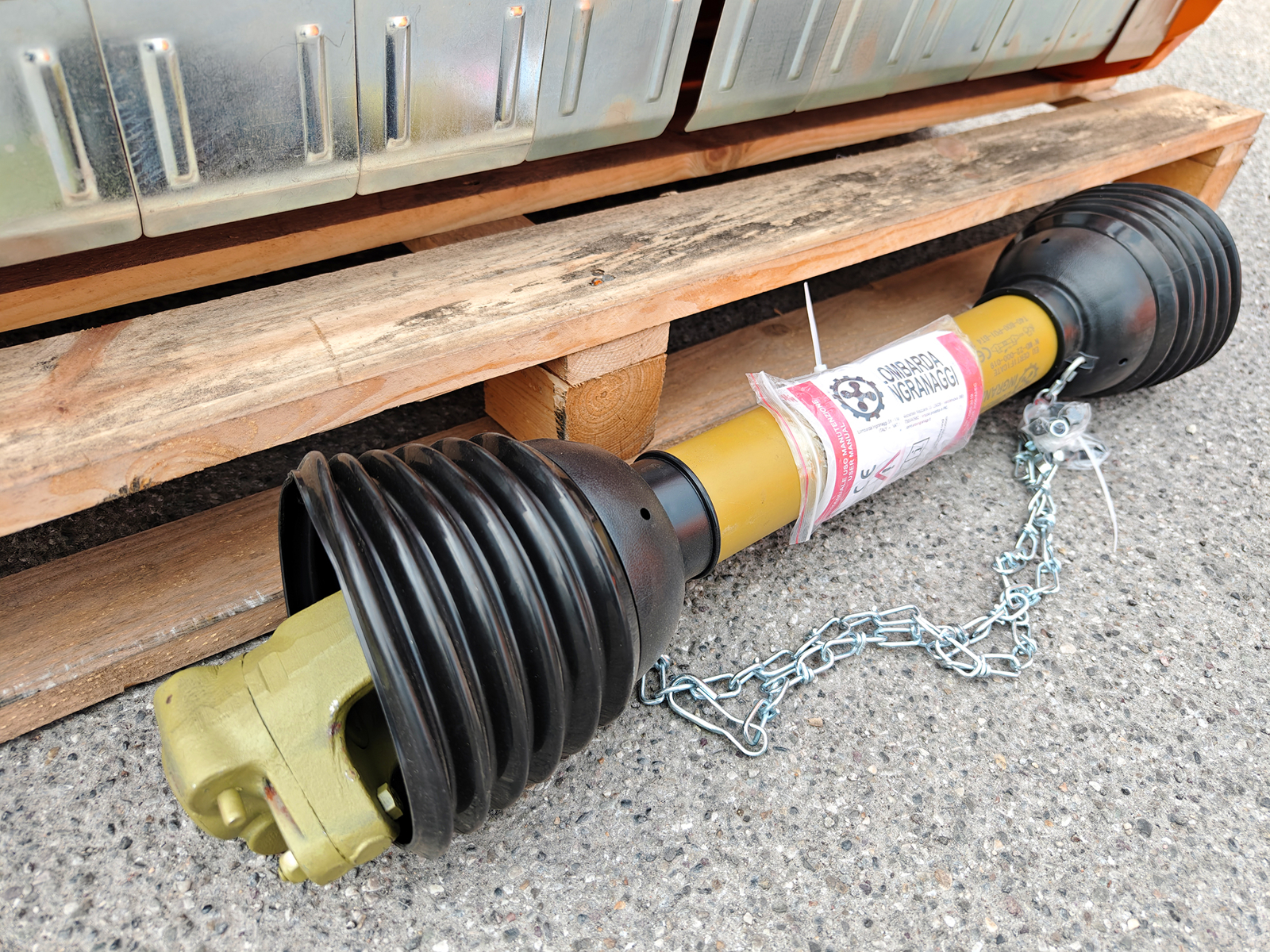

Is the PTO shaft included?
Yes: a CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt.

How does it differ from the LEOPARD?
Rotor, flails and drive are the same. The LEOPARD has a double HARDOX skin, an opening rear hood and a 20 cm (8 in) high front opening for long grass, and starts at 140 cm (55 in); the LINCIONE has a hood shaped for mulching and starts at 120 cm (47 in).


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric
Working width 1200.0 mm
Overall width 1340.5 mm
Min / Max cutting height 38.0 - 60.0 mm
Weight 295.0 kg
Overall height 1130.0 mm
Tractor Power Range 30 - 60 Hp
3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
Hood height 460.00 mm
Spacing between the 2 lower points 560.0 - 950.0 mm
Number of Hammers 16
Maximum cutting diameter 40.0 - 50.0 mm
Overall length 930.0 mm
Distance between pto attachment and ground 540.0 mm
Main hood thickness 5.0 + 6.0 mm
Sides thickness 6.0 mm
Side plates thickness 6.0 mm
Transmission: Gearbox DELEKS (Italy) (3 year warranty)
Transmission: PTO 540 r/min
Transmission: Rotation of gearbox Right side
Transmission: Free wheel √
Transmission: RPM Rotor speed 2300 rpm
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925
Transmission: Top pulley ø 180.0 mm
Transmission: Lower pulley ø 130.0 mm
Transmission: V-Belts quantity 4
Transmission: V-Belts size BX43
Rotor: diameter 115.0 mm
Rotor: bearings type and size SKF 2208-TVH
Rotor: balancing Electronic
Rotor: sheet thickness 8.0 mm
Hammers: Weight 820.0 g
Hammer: øhole 15.0 mm
Hammer: base width 82.0 mm
Hammer: top width 45.0 mm
Hammer: Diagonal 95.0 mm
Rear roller: diameter 121.0 mm
Rear roller: sheet thickness 5.0 mm
Rear roller: bearings type and size SKF 6207
Pto shaft CE 6x1000 mm + shear bolt
Effective Displacement 310.0 mm
Gross shipping weight 324 kg
Package volume 0.99 m3
Packing sizes 1380.0*900.0*800.0 mm

Certifications

SSAB Laser 355MC   Download PDF
Hardox   Download PDF
ARVEDI / TUBINDUSTRIA: Certification   Download PDF

Technical charts

Shell Spirax S2 A 80W-90: Specifications   Download PDF
