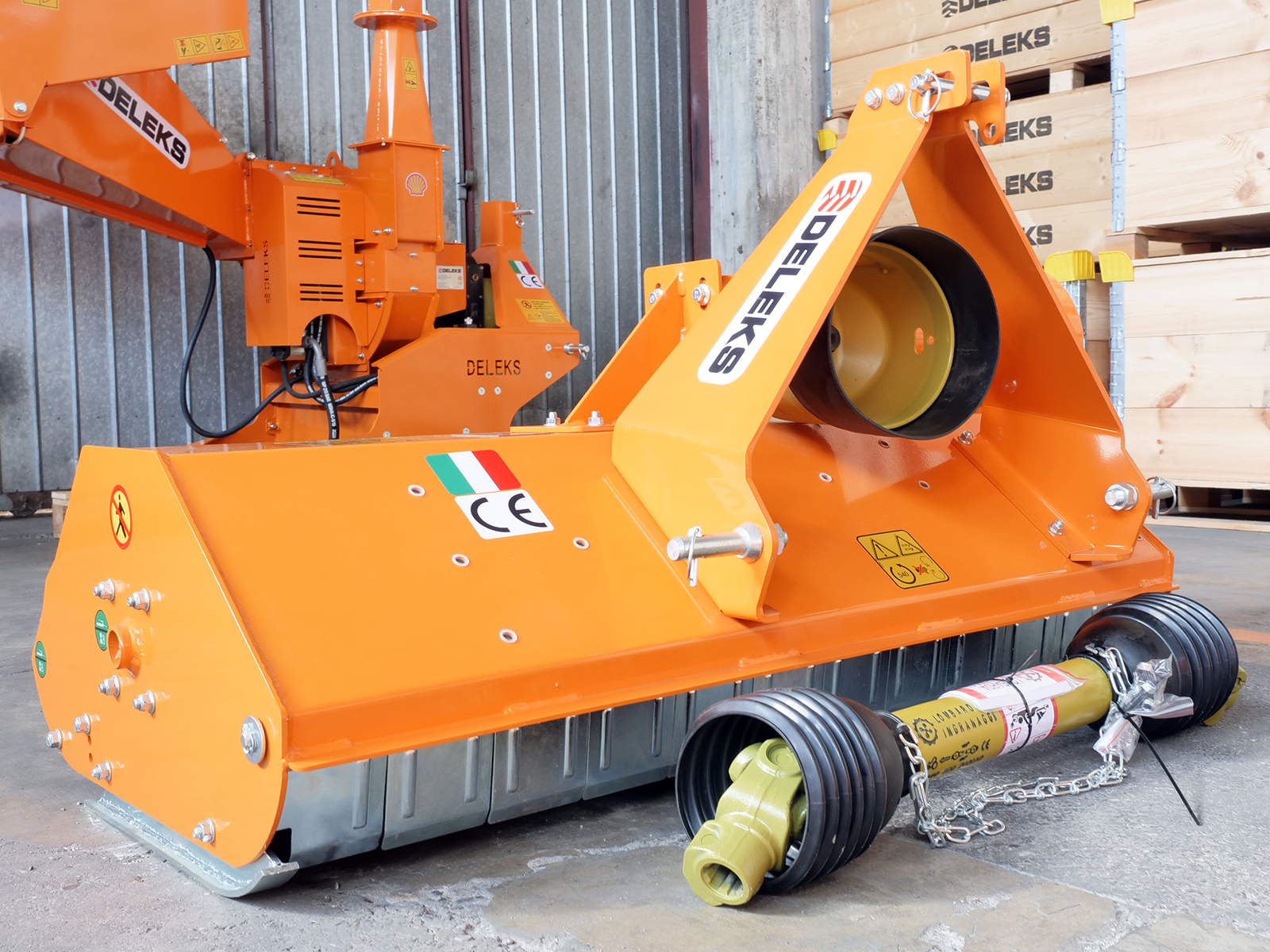

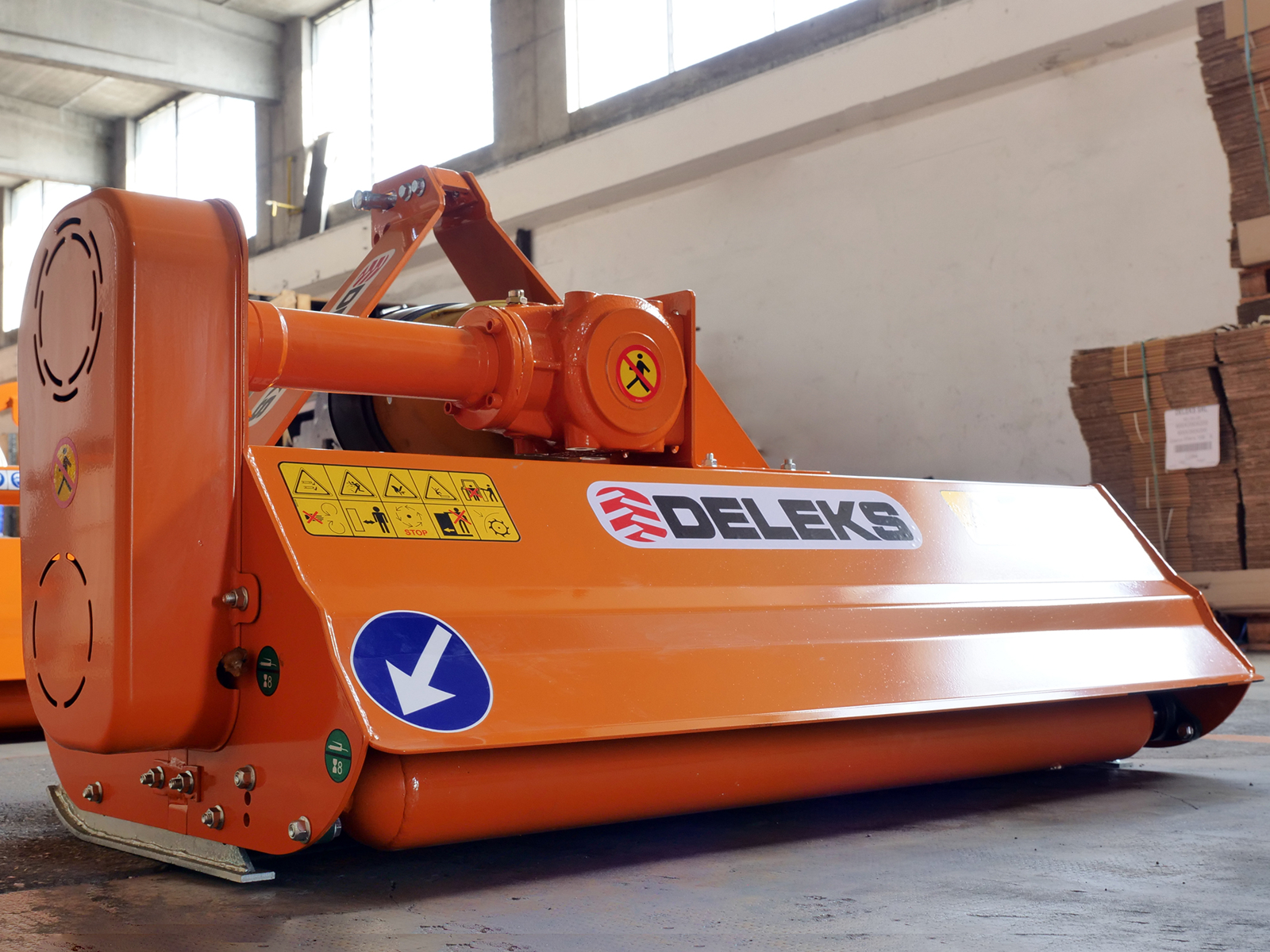

Flail mower for compact tractors 140 cm (55 in) LINCE-140, light hammer flail mower for 20-40 hp tractors
DETAILS

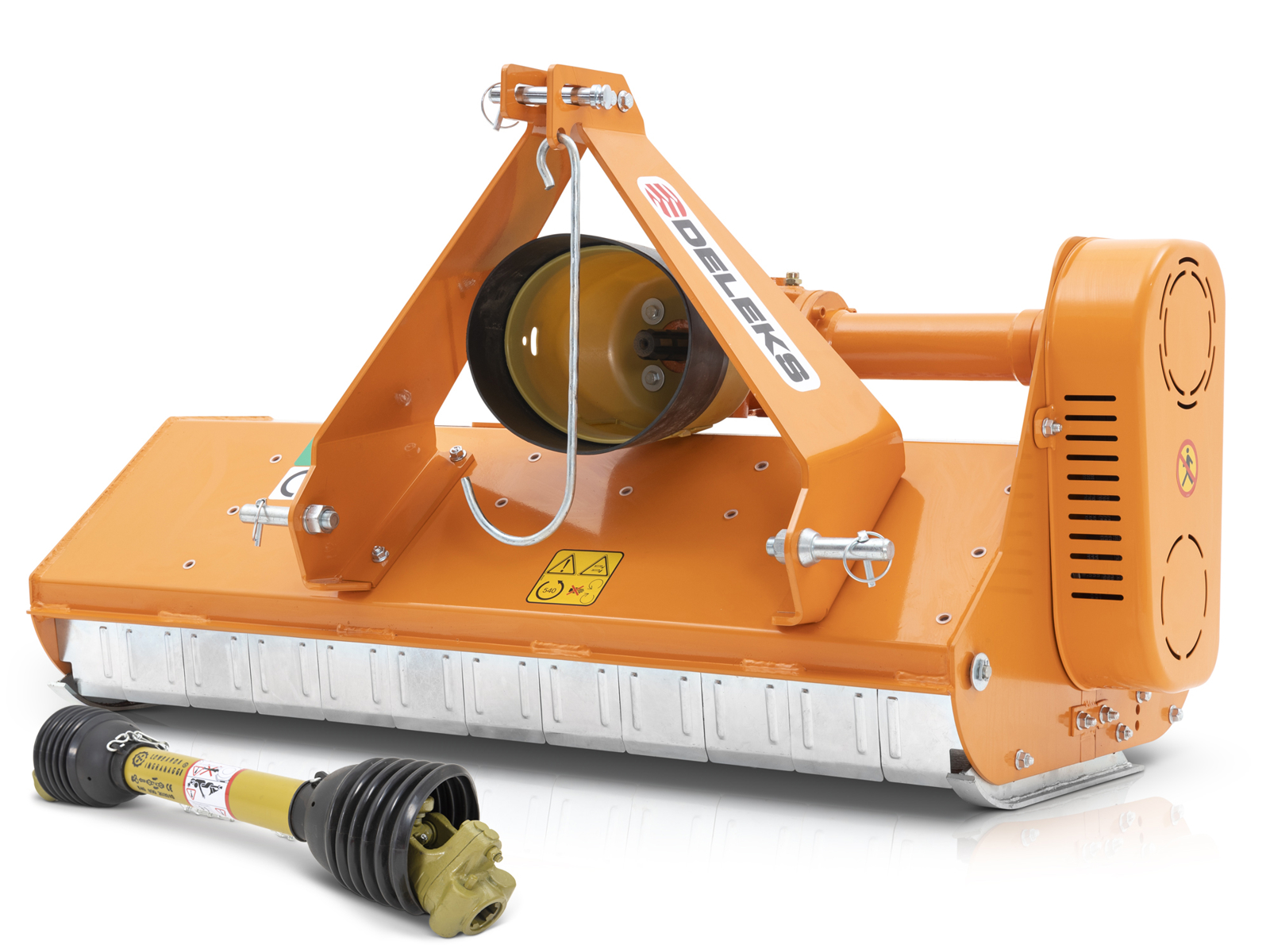

Hammer flail mower for compact tractors with a 140 cm (55 in) cut, from the DELEKS® light series: the LINCE-140 is the flail mower for small tractors from 20 to 40 hp with a category 1 three-point linkage, such as Kubota, Solis, New Holland Boomer, Antonio Carraro, Goldoni and Landini. The electronically balanced rotor carries 24 hammer flails of 330 g (11.6 oz) in 6 rows and shreds grass, leaves, brambles and prunings up to 3 cm (1.2 in) thick; the rear roller and side skids set the cutting height from 10 to 45 mm (0.4 to 1.8 in). DELEKS® 540 rpm gearbox with freewheel and a 3-year warranty, 3-belt drive with external tensioner, 180 kg (397 lb). Made in Italy, built by DELEKS, it comes complete with a CE-approved PTO shaft, a 2-year warranty and free delivery within the EU.
Which tractors it fits
The LINCE-140 cuts 140 cm (55 in) with an overall width of 152 cm (59.8 in) and is built for wheeled or tracked tractors from 20 to 40 hp with a 540 rpm PTO and a category 1 three-point linkage (19-22 mm pins, lower link spacing from 470 to 710 mm): Kubota B and L series, Solis, New Holland Boomer 30-35, John Deere 2 and 3 Series, Antonio Carraro Tigre, Goldoni, Lamborghini Ego, Same Delfino and Landini Mistral. At 180 kg (397 lb) it is well within the lift capacity of tractors in this class, on the flat and on slopes. As a rule of thumb the mower should be 15 to 20 cm (6 to 8 in) wider than the tractor's outer track, so it covers the wheel marks. If your tractor's PTO turns anticlockwise, order the LINCE-140 with the reverse-rotation gearbox (option SOSTMOLTSXLINCE).

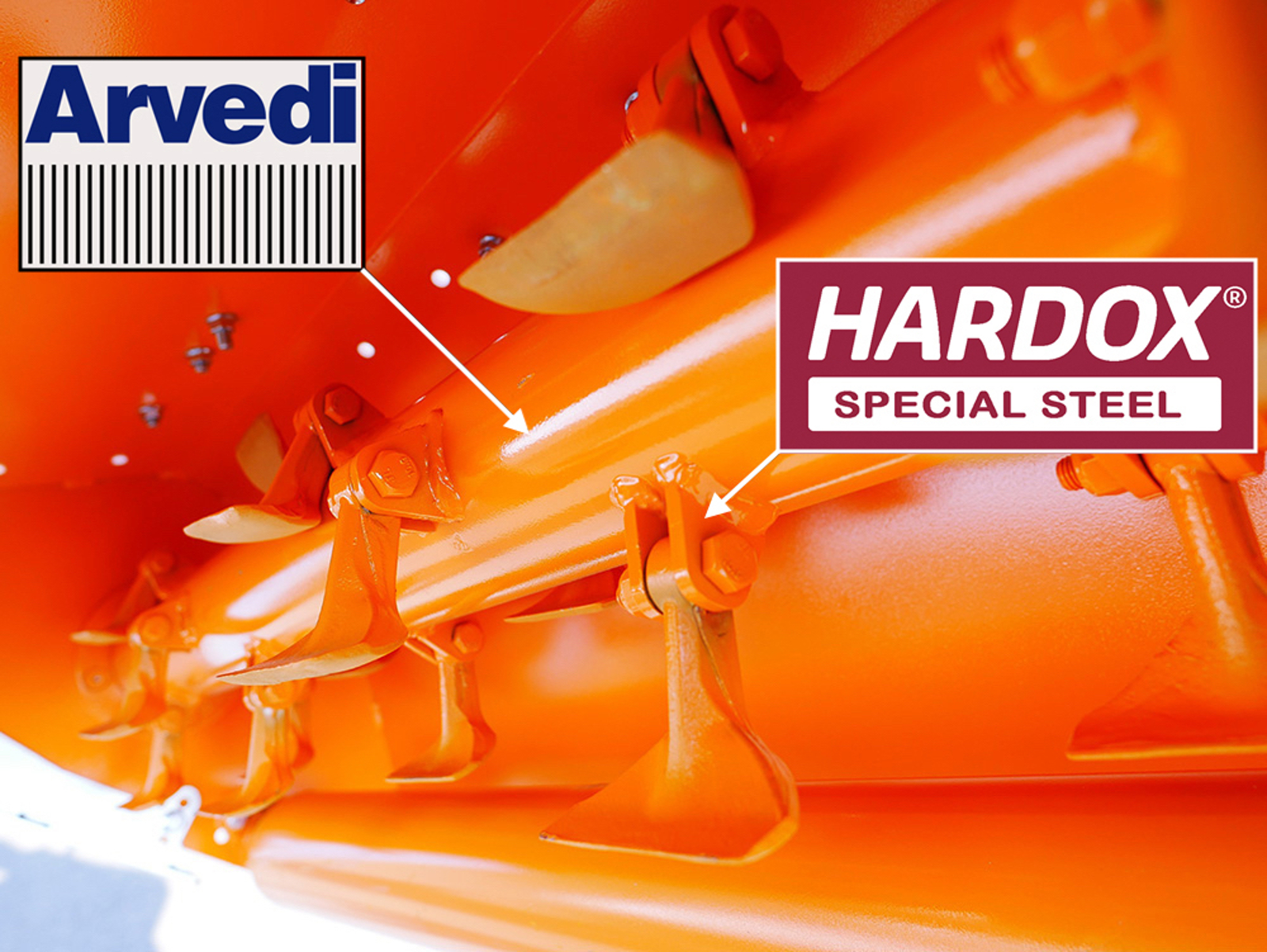

Rotor with 24 hammer flails in 6 rows
The rotor is built from ARVEDI S355 steel tube, 8 mm (5/16 in) thick and 102 mm (4 in) in diameter, electronically balanced, and spins at 3,150 rpm on SKF bearings. The 24 hammer flails weigh 330 g (11.6 oz) each and sit in 6 rows rather than 4, on brackets in HARDOX wear-resistant steel: they pulverise grass, leaves, brambles and small vine and olive prunings up to 3 cm (1.2 in) thick. A ridge inside the hood directs the airflow back onto the rotor for a mulching effect: the material stays under the flails for longer and comes out finer. On request the LINCE-140 can be fitted with blades instead, using the COLTELLI30APE kit.
Internal roller, skids and cutting height
Cutting height is set from 10 to 45 mm (0.4 to 1.8 in) with the 102 mm (4 in) rear roller and the 6 mm side skids: low on grass, higher on stony or uneven ground. The roller is mounted inside the body, close to the rotor: the cut grass passes over the roller without being flattened and is cleared more quickly, so the job moves along faster.

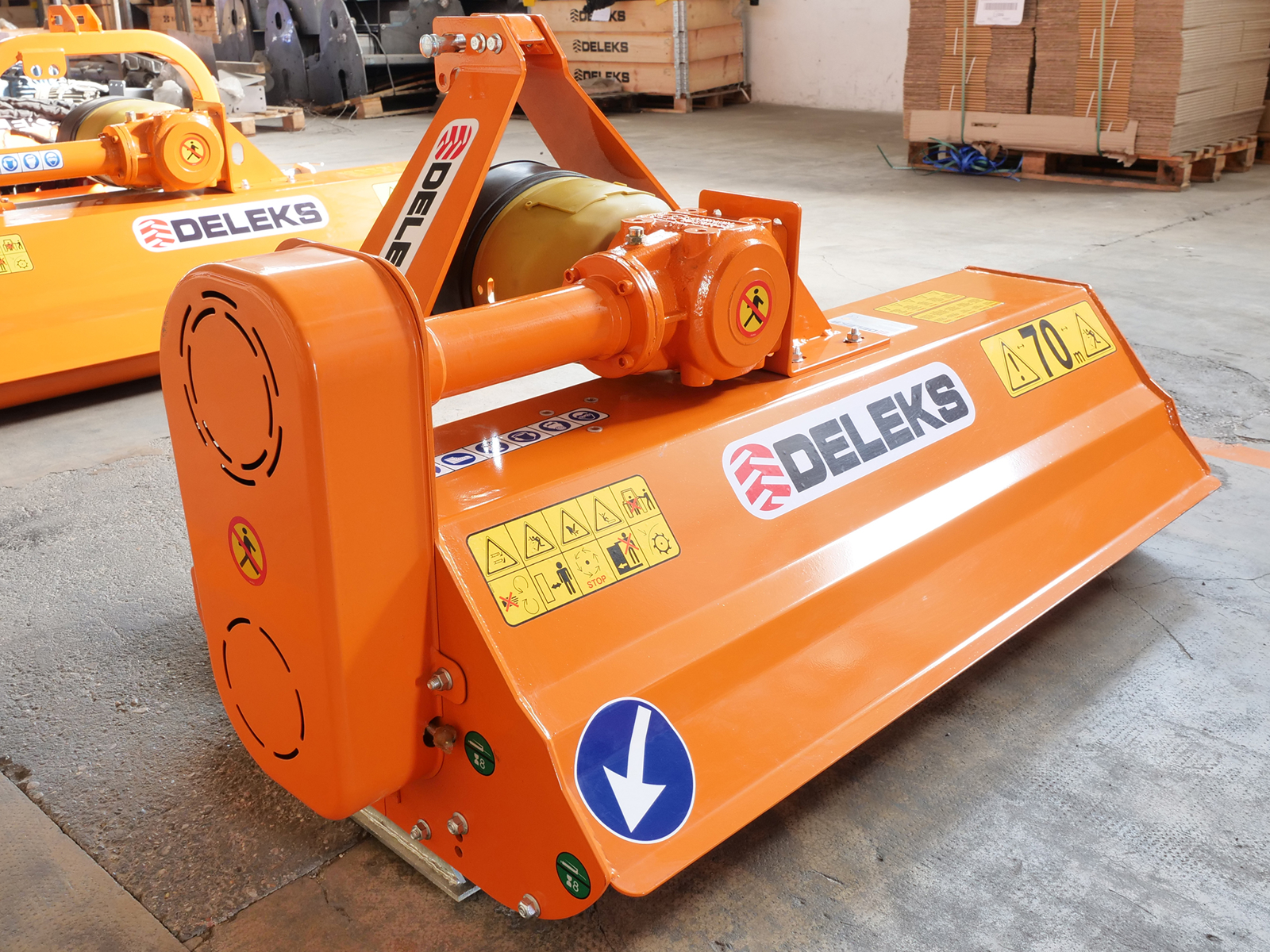

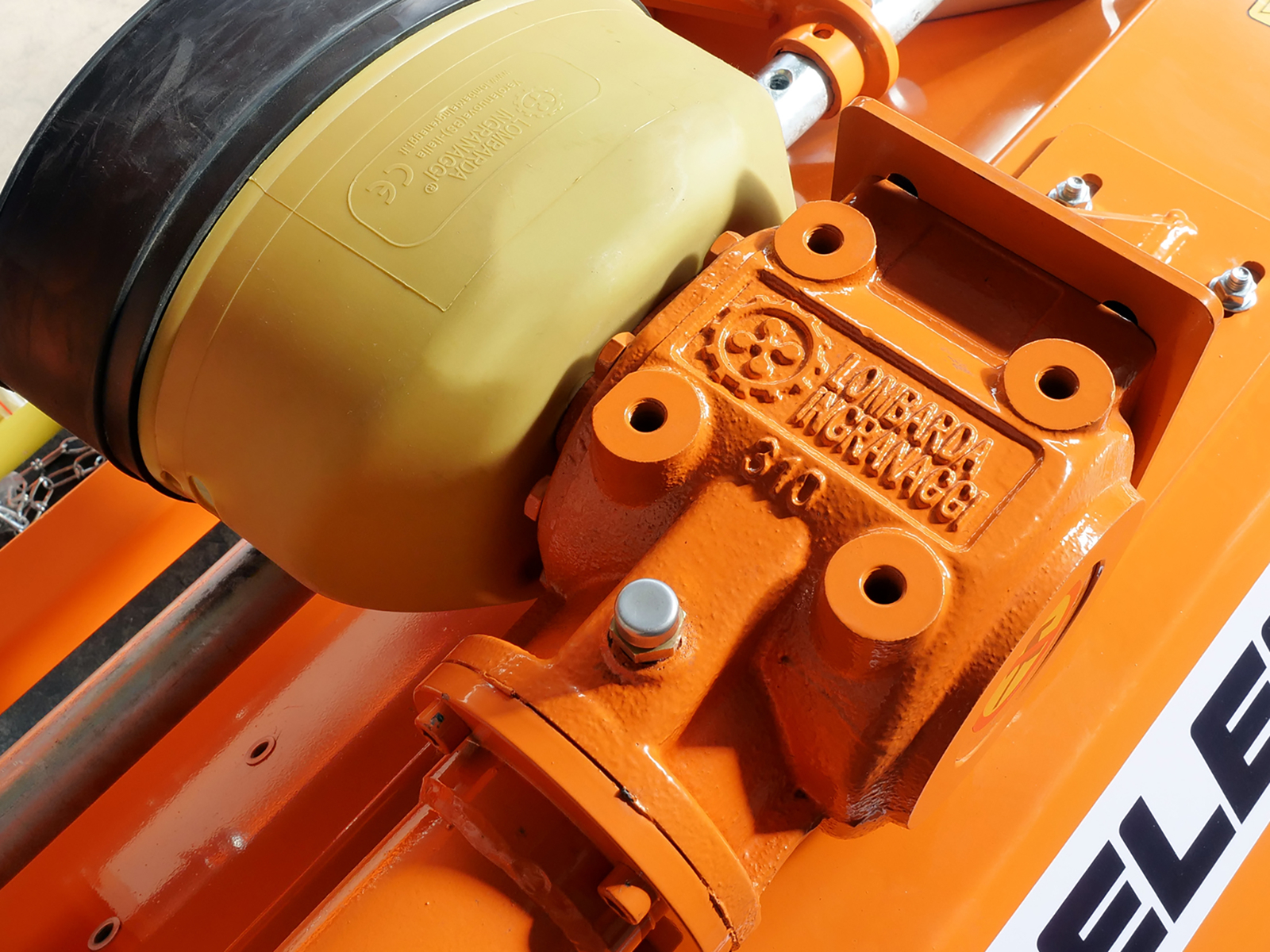

Gearbox with freewheel, belts and PTO shaft
The DELEKS® gearbox for a 540 rpm PTO has a built-in freewheel and a 3-year warranty: when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. Drive reaches the rotor through 3 AX39 V-belts; the tensioner is adjustable and belt tension is set from the outside. The CE-approved category 4 PTO shaft, 800 mm (31.5 in) long, is included: if your tractor's linkage sits very close, shorten it as shown in the manual.
SSAB steel frame, Made in Italy
The frame is made entirely from Swedish SSAB steel, 3 mm thick with 5 mm side plates; the flail brackets are HARDOX and the rotor bearings are SKF. The LINCE-140 is Made in Italy, built by DELEKS. For this product the sheet steel is bought in Italy and worked at a production plant in the European Union.
Dimensions, weight and delivery
Working width 1,400 mm (55.1 in), overall width 1,520 mm (59.8 in), length 730 mm (28.7 in), height 750 mm (29.5 in), weight 180 kg (397 lb). It ships in packaging measuring 155 × 85 × 70 cm (61 × 33 × 28 in), 223 kg (492 lb) gross, 0.92 m³, with free delivery within the EU. It complies with the EC Machinery Directive and carries a 2-year warranty.
Where it works
- Lawns, parks and amenity grass: topping with a mulching effect, no collection

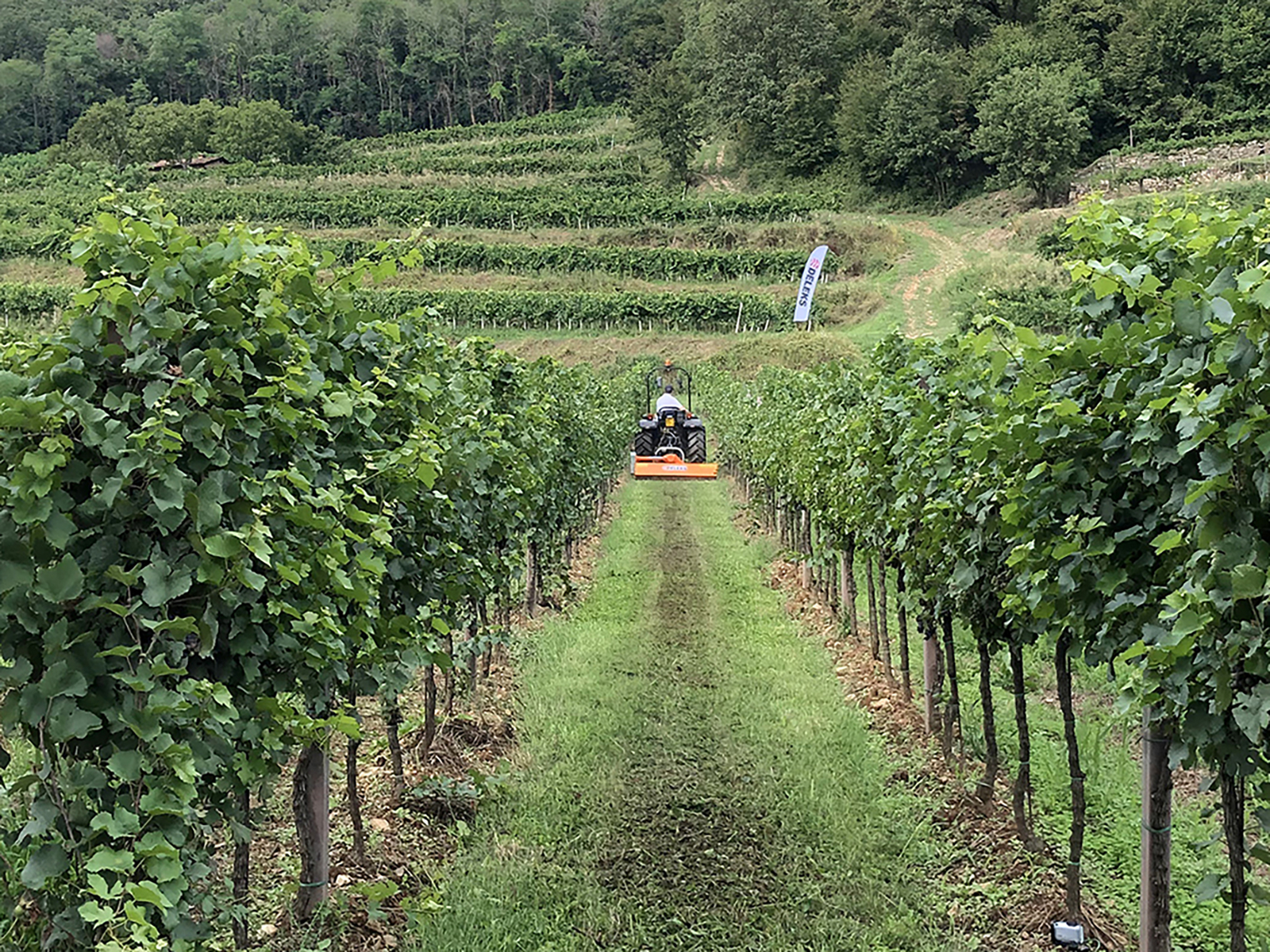

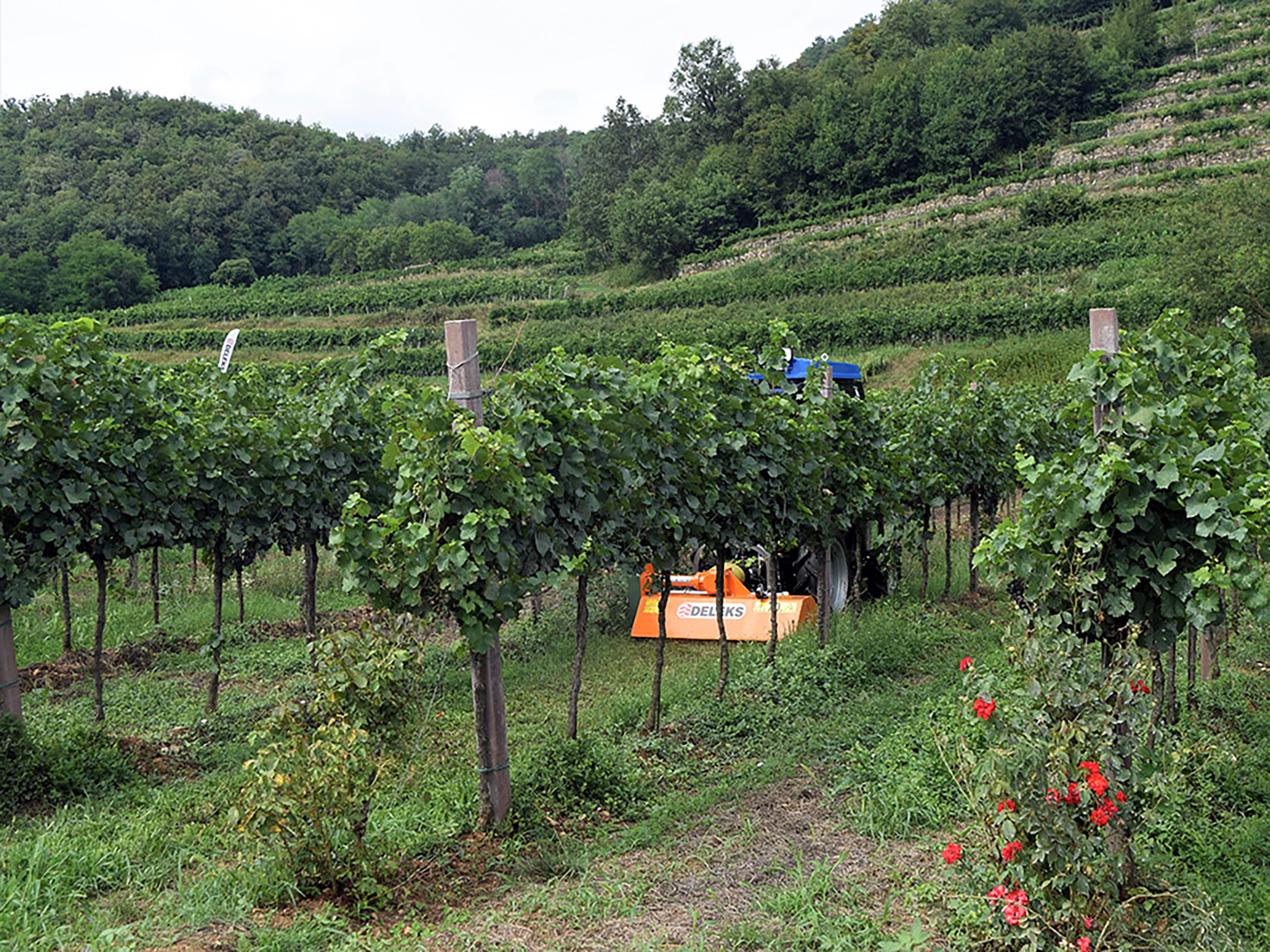

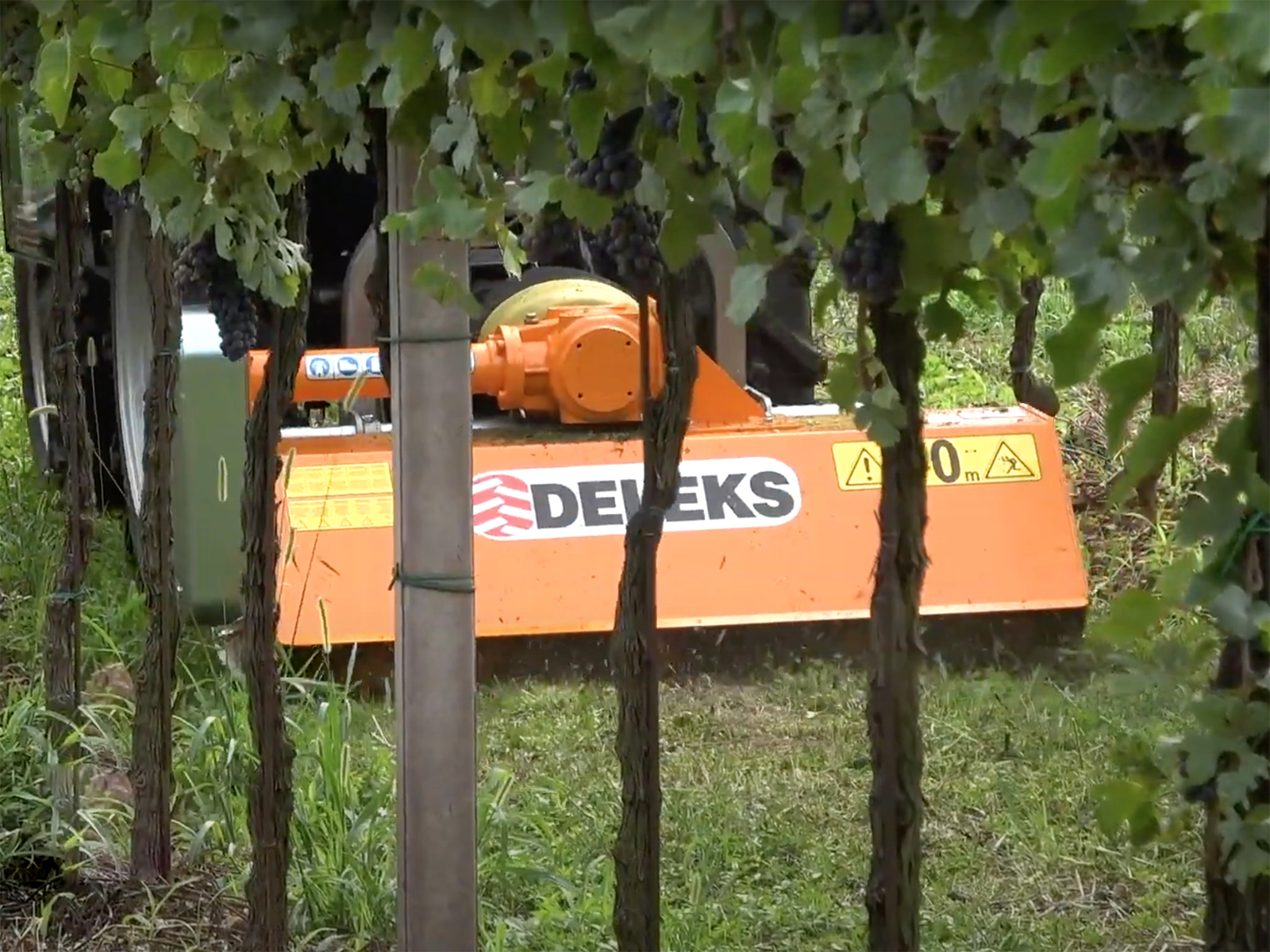

- Vineyards, orchards and olive groves: grass between the rows and prunings up to 3 cm (1.2 in)
- Rough ground, field margins and headlands: long grass, brambles and scrub
- Vegetable plots and smallholdings: crop residues, leaves and weeds
- On the flat and on slopes, with wheeled or tracked tractors from 20 to 40 hp
Options and spares
From this page you can add to your order the spare set of 3 belts (CINGHIE3L), the kit of 10 hammer flails (MAZZE10L2022), the 10 nuts and bolts for the flails (DB10L2022), the blade kit, 10 sets of 3 (COLTELLI30APE), spare pins for the three-point linkage (3PERNI1B), the universal PTO adapter (RID1) and the reverse-rotation gearbox in place of the standard one (SOSTMOLTSXLINCE). Other spares are identified on the exploded diagrams with our technical team.
FAQ
What size tractor does the LINCE-140 need?
From 20 to 40 hp, with a 540 rpm PTO and a category 1 three-point linkage. Mind the lift capacity too: the mower's 180 kg (397 lb) is within reach of tractors in this class; on the lightest ones a front weight may be needed.
Will it shred prunings?
Yes: small vine and olive prunings and branches up to 3 cm (1.2 in) thick, as well as grass, leaves and brambles. For thicker prunings or continuous work the medium series is the better choice.
Hammer flails or blades?
It comes with 24 hammer flails of 330 g (11.6 oz), suited to grass, brambles and prunings. On request it can be fitted with blades using the COLTELLI30APE kit.
Is it suitable for tractors with an anticlockwise PTO?
Yes, with the reverse-rotation gearbox (option SOSTMOLTSXLINCE): it is for tractors whose PTO turns anticlockwise, such as some Pasquali, BCS and Valpadana models. The direction of rotation is given in the tractor handbook.
How do you set the cutting height?
From 10 to 45 mm (0.4 to 1.8 in), with the rear roller and the side skids: low on grass, higher on stony ground.
Does it work offset to one side?
No: the LINCE-140 has a fixed headstock and works centred behind the tractor. To work under trees and along ditches and fences there are the LINCE-SP models, with 25 cm (10 in) of manual side shift, and the LINCE-SPH models, with hydraulic side shift.
How does it differ from the APE?
The APE is the lightest in the series (105 to 144 kg / 231 to 317 lb, for 12 to 35 hp tractors) and shreds branches up to 2 cm (0.8 in); the LINCE has a 102 mm (4 in) rotor with flails in 6 rows, shreds up to 3 cm (1.2 in) and is also available with side shift.

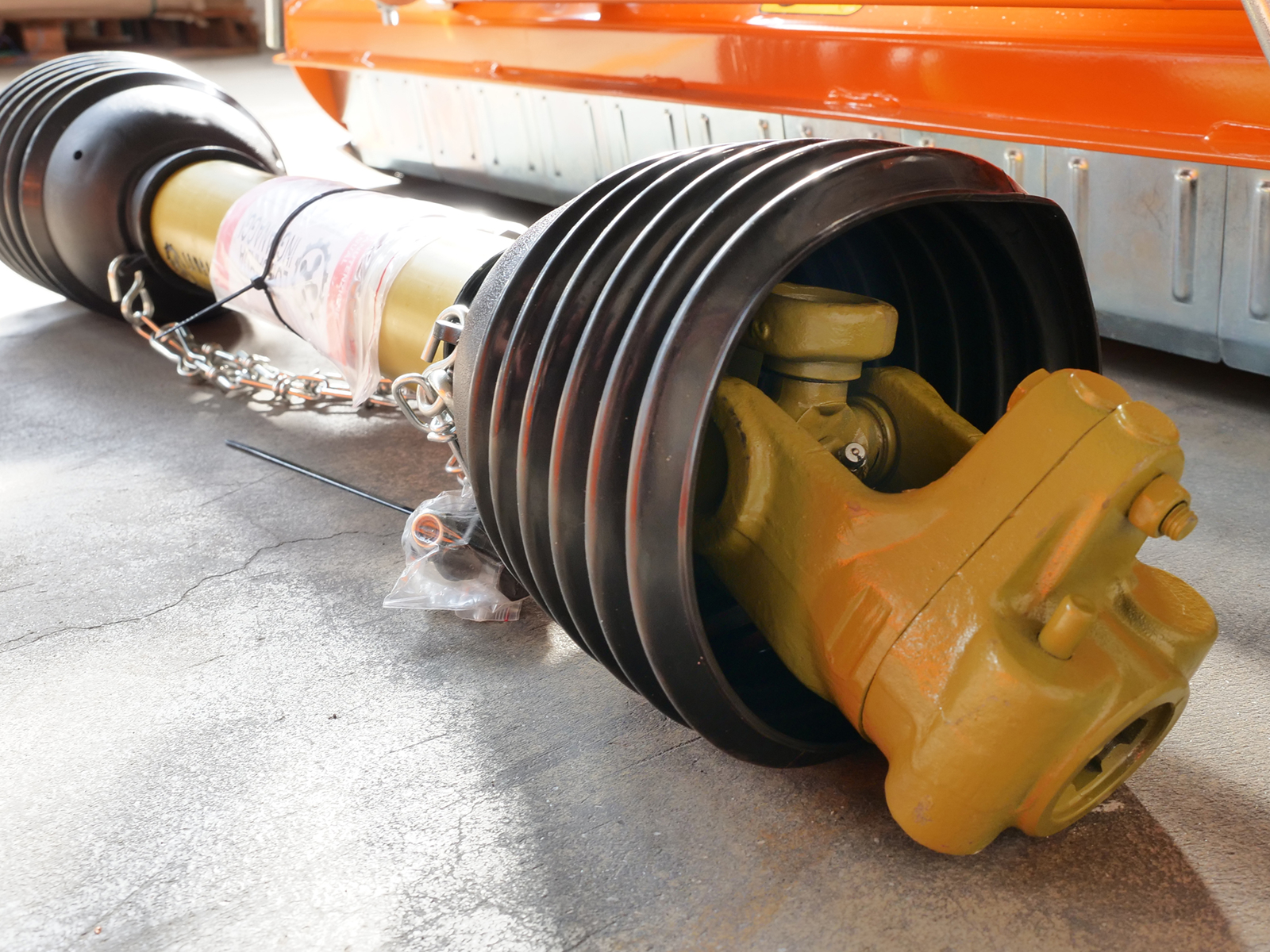

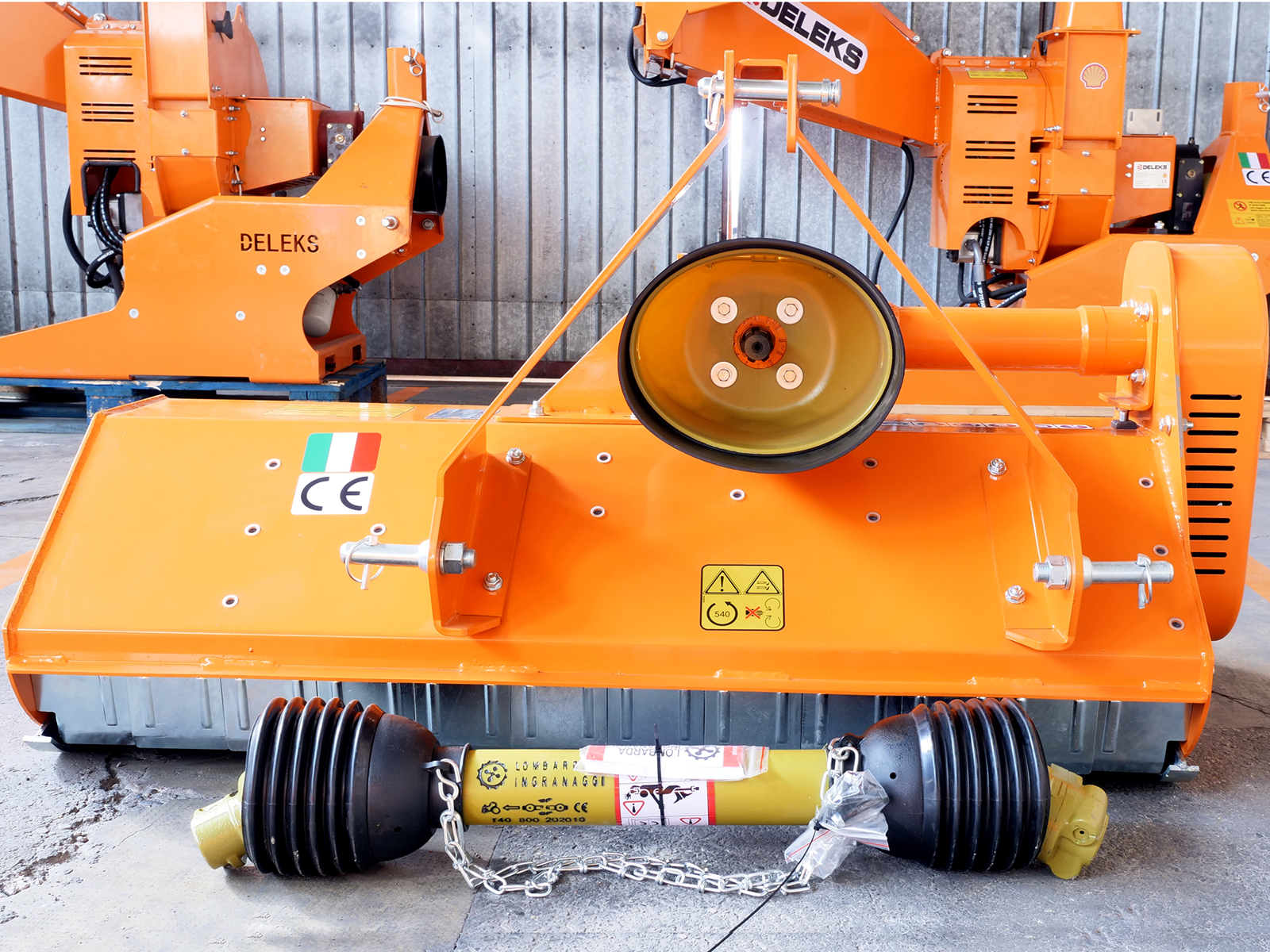

Is the PTO shaft included?
Yes: a CE-approved category 4 PTO shaft, 800 mm (31.5 in) long, to be shortened as shown in the manual if the tractor's linkage sits very close.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1400.0 mm |
| Overall width | 1520.0 mm |
| Min / Max cutting height | 10.0 - 45.0 mm |
| Weight | 180.0 kg |
| Overall height | 750.0 mm |
| Tractor Power Range | 20 - 40 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Position of the gearbox | 748.0 mm from left side / 773.0 mm from right side |
| Hood height | 358.0 mm |
| Spacing between the 2 lower points | 470.0 - 710.0 mm |
| Number of Hammers | 24 |
| Maximum cutting diameter | 20.0 - 30.0 mm |
| Overall length | 730.0 mm |
| Distance between pto attachment and ground | 472.0 mm |
| Main hood thickness | 3.0 mm |
| Sides thickness | 5.0 mm |
| Side plates thickness | 6.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: Gearbox | DELEKS (3 year warranty) |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: RPM Rotor speed | 3150.0 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Transmission: Top pulley ø | 206.0 mm |
| Transmission: Lower pulley ø | 106.0 mm |
| Transmission: V-Belts quantity | 3 |
| Transmission: V-Belts size | AX39 |
| Rotor: diameter | 102.0 mm |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |
| Hammers: Weight | 330.0 g |
| Hammer: øhole | 11.0 mm |
| Hammer: base width | 80.0 mm |
| Hammer: top width | 14.0 mm |
| Hammer: Diagonal | 75.0 mm |
| Rear roller: diameter | 102.0 mm |
| Rear roller: sheet thickness | 5.0 mm |
| Rear roller: bearings type and size | FL205 |
| Pto shaft | CE 4x800 mm |
| Hood length | 665.0 mm |
| Gross shipping weight | 223 kg |
| Package volume | 0.92 m3 |
| Packing sizes | 1550.0*850.0*700.0 mm |
