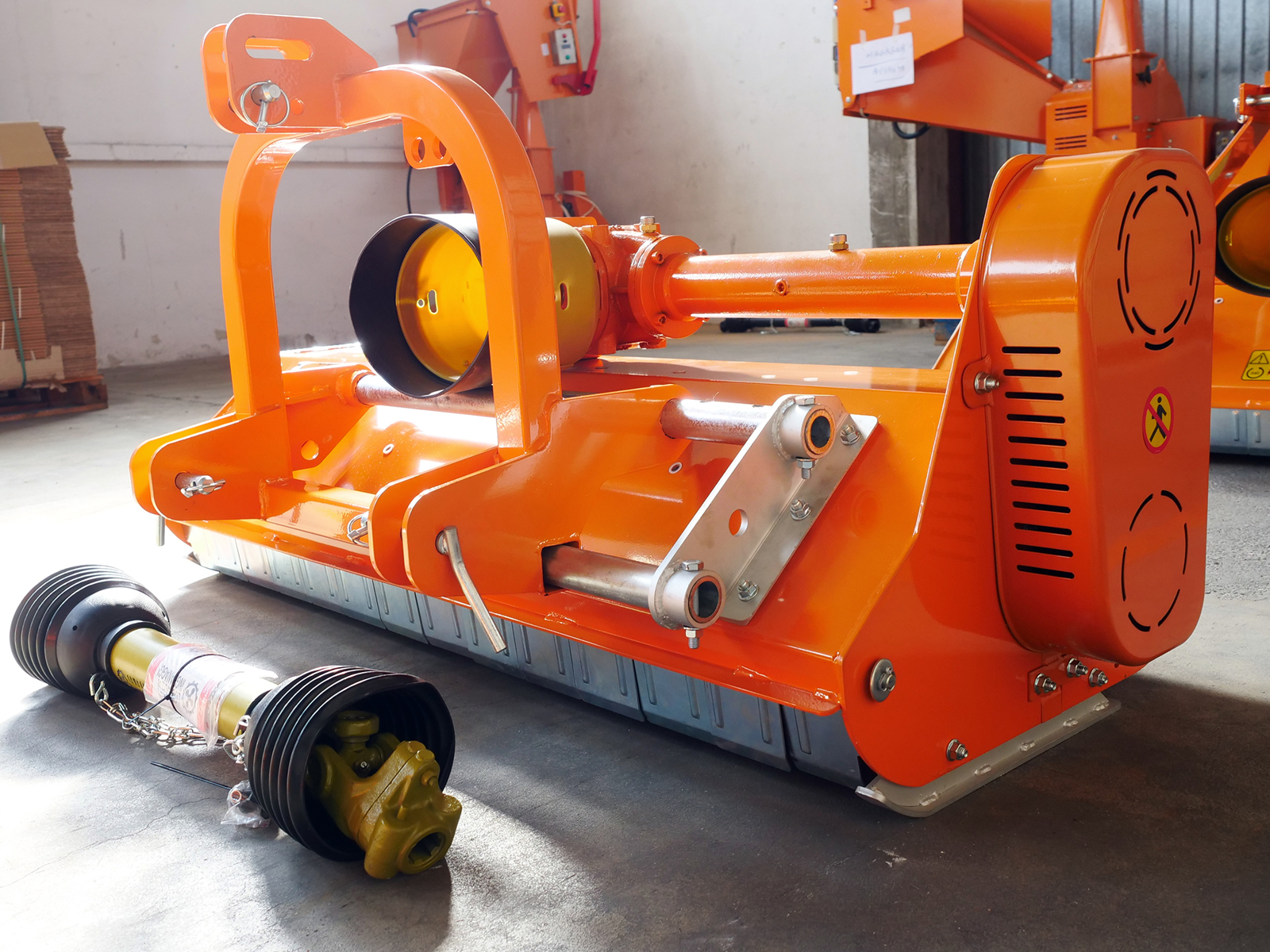

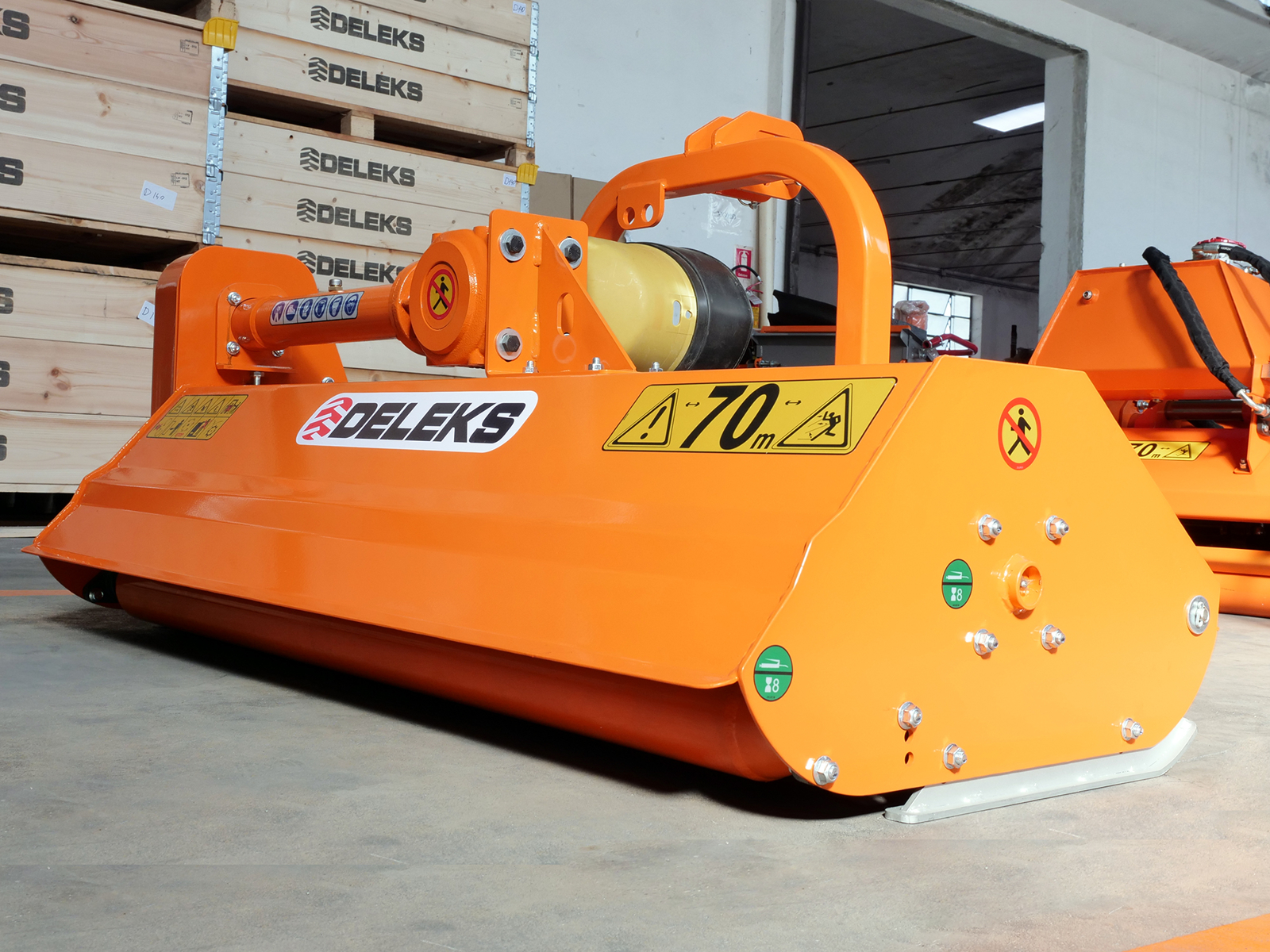

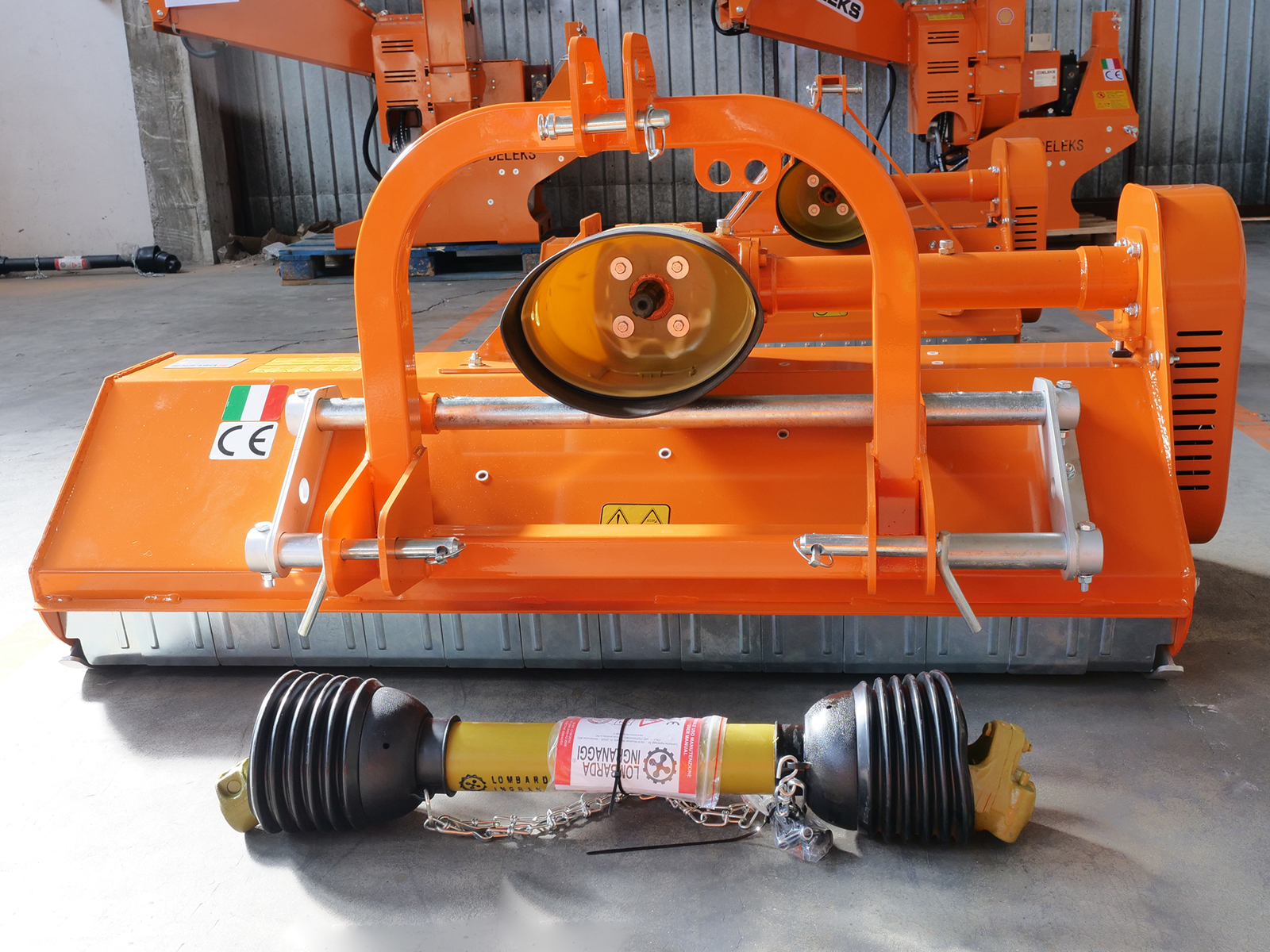

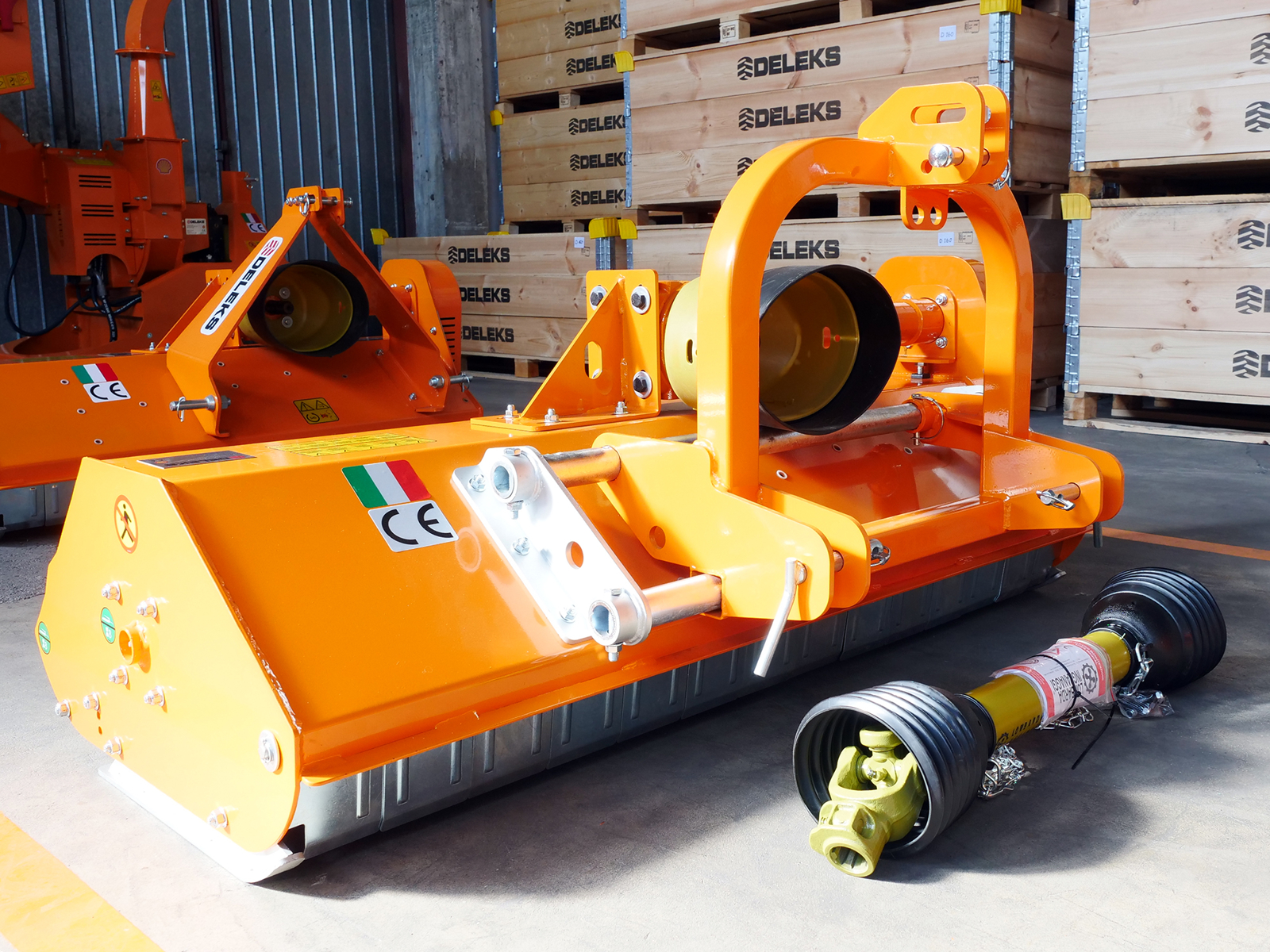

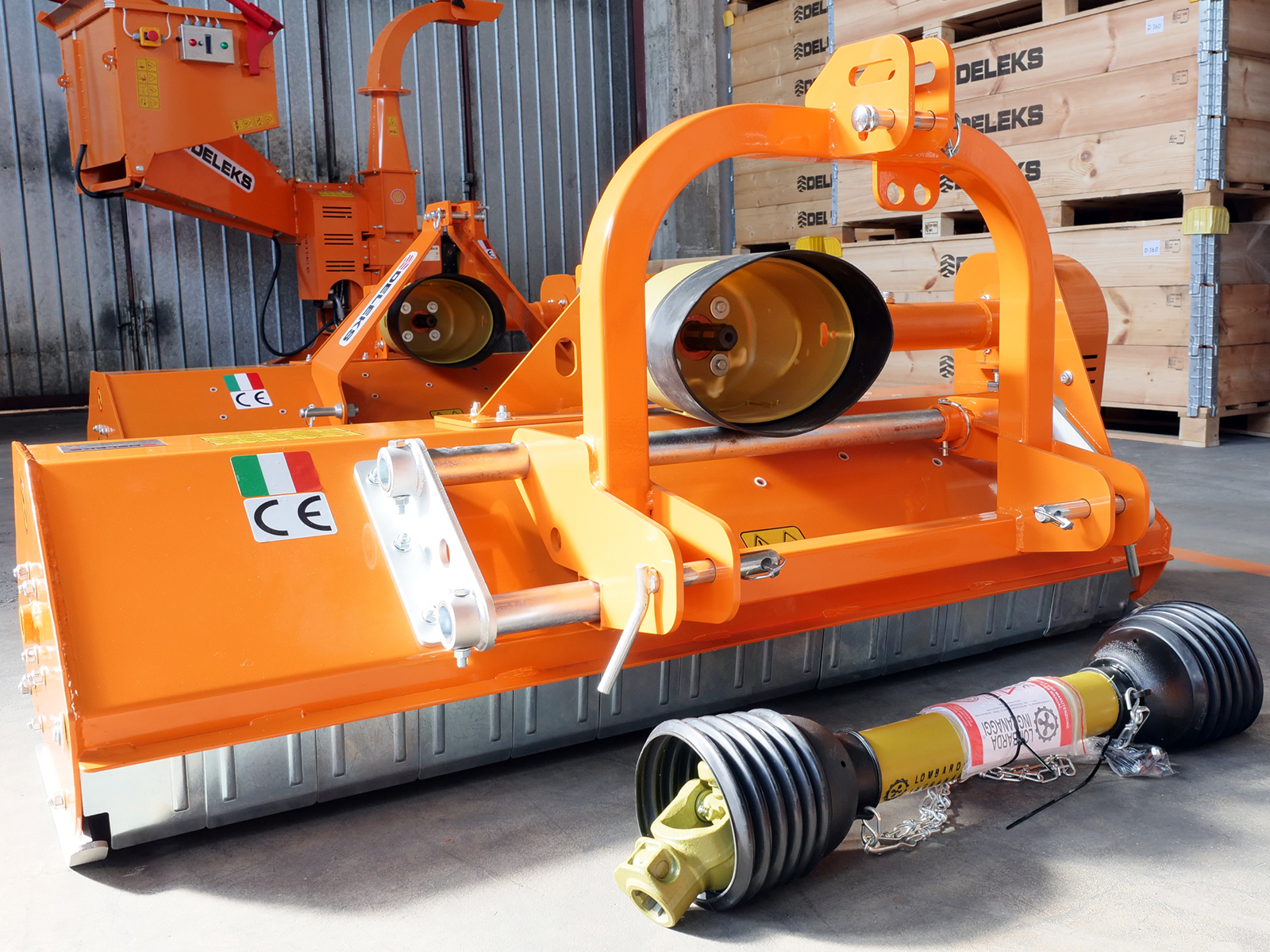

Hydraulic side-shift flail mower 140 cm (55 in) LINCE-140-SPH, hammer flail mower for 20-40 hp compact tractors

Available
Code LINCE140SPHPTO - EAN 8057724864410
2.065,00€VAT incl.
Free shipping
Loading...
2.065,00€VAT incl.
 REQUEST INFORMATION

VIDEO
Field test
Field test
Field test
Field test

DETAILS

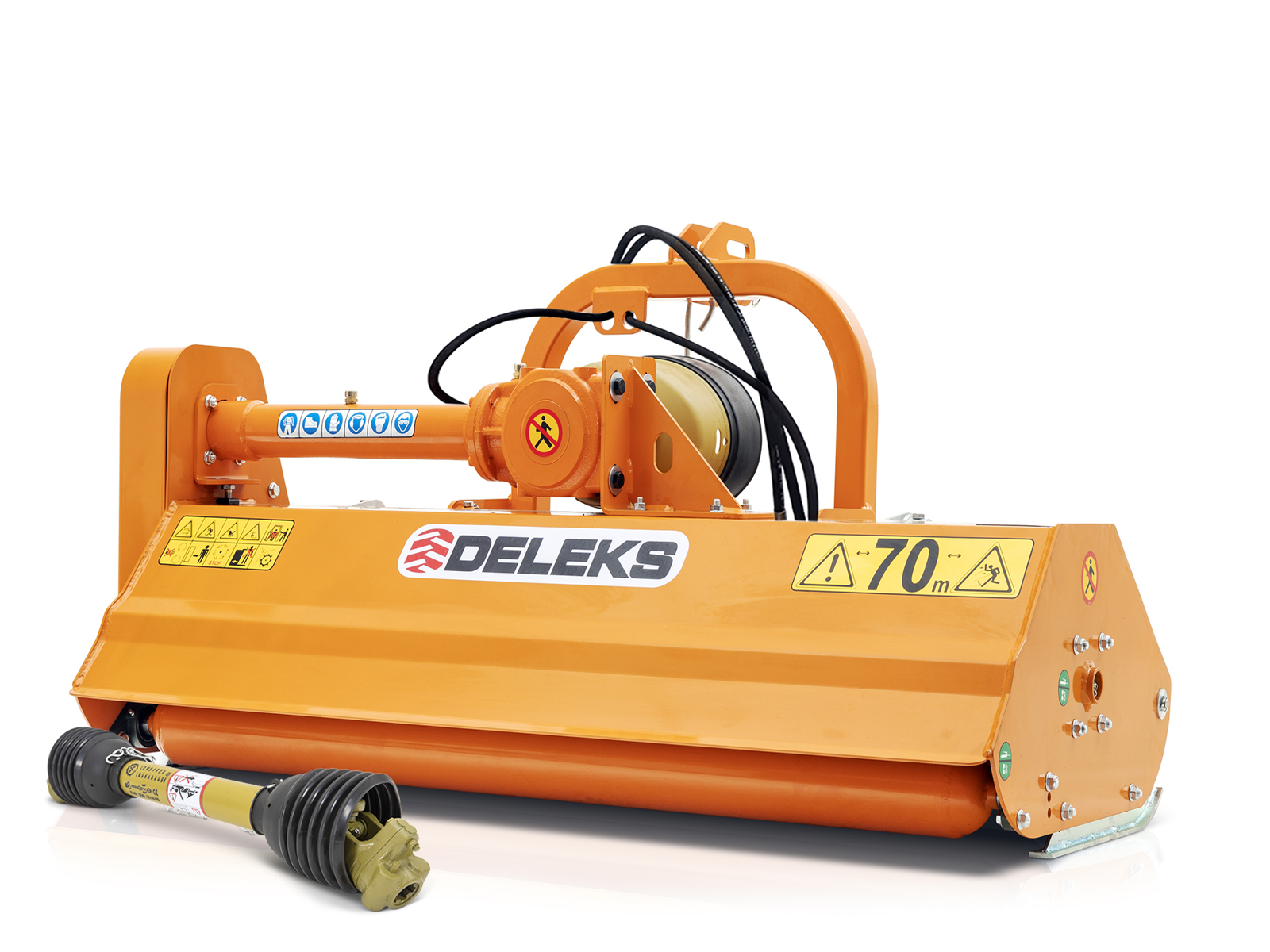

Hammer flail mower for compact tractors with a 140 cm (55 in) cut and 25 cm (10 in) of hydraulic side shift as standard, from the DELEKS® light series: the LINCE-140-SPH is the side-shift mower for tractors from 20 to 40 hp with a category 1 three-point linkage, such as Kubota, Solis, New Holland Boomer, Antonio Carraro, Goldoni and Landini, moved from the seat as you work along rows, fences, ditches and field edges. The side shift comes complete with hydraulic ram, a pair of 150 cm (59 in) hoses and ½ in quick-release couplings. The electronically balanced rotor carries 24 hammer flails of 330 g (11.6 oz) in 6 rows and shreds grass, leaves, brambles and prunings up to 3 cm (1.2 in) thick; the rear roller and side skids set the cutting height from 10 to 45 mm (0.4 to 1.8 in). DELEKS® 540 rpm gearbox with freewheel and a 3-year warranty, 3-belt drive with external tensioner, 205 kg (452 lb). Made in Italy, built by DELEKS, it comes complete with a CE-approved PTO shaft, a 2-year warranty and free delivery within the EU.


Hydraulic side shift of 25 cm (10 in), as standard

The DELEKS® hydraulic side shift is standard, with 25 cm (10 in) of travel: you work it from the seat with the tractor's spool valve, even on the move. It brings the mower in to the row and away from posts and stumps, to mow under the canopy, along fences and ditches and on field edges, keeping the tractor's wheels away from the edge. It arrives fitted and complete: hydraulic ram, a pair of 150 cm (59 in) hoses and standard ½ in agricultural quick-release couplings; the tractor needs a pair of rear hydraulic outlets (one double-acting spool valve).


Which tractors it fits

The LINCE-140-SPH cuts 140 cm (55 in) with an overall width of 152 cm (59.8 in) and is built for wheeled or tracked tractors from 20 to 40 hp with a 540 rpm PTO and a category 1 three-point linkage (19-22 mm pins, lower link spacing from 520 to 620 mm): Kubota B and L series, Solis, New Holland Boomer 30-35, John Deere 2 and 3 Series, Antonio Carraro Tigre, Goldoni, Lamborghini Ego, Same Delfino and Landini Mistral. At 205 kg (452 lb) it is well within the lift capacity of tractors in this class, on the flat and on slopes. As a rule of thumb the mower should be 15 to 20 cm (6 to 8 in) wider than the tractor's outer track, so it covers the wheel marks. If your tractor's PTO turns anticlockwise, order the LINCE-140-SPH with the reverse-rotation gearbox (option SOSTMOLTSXLINCE).

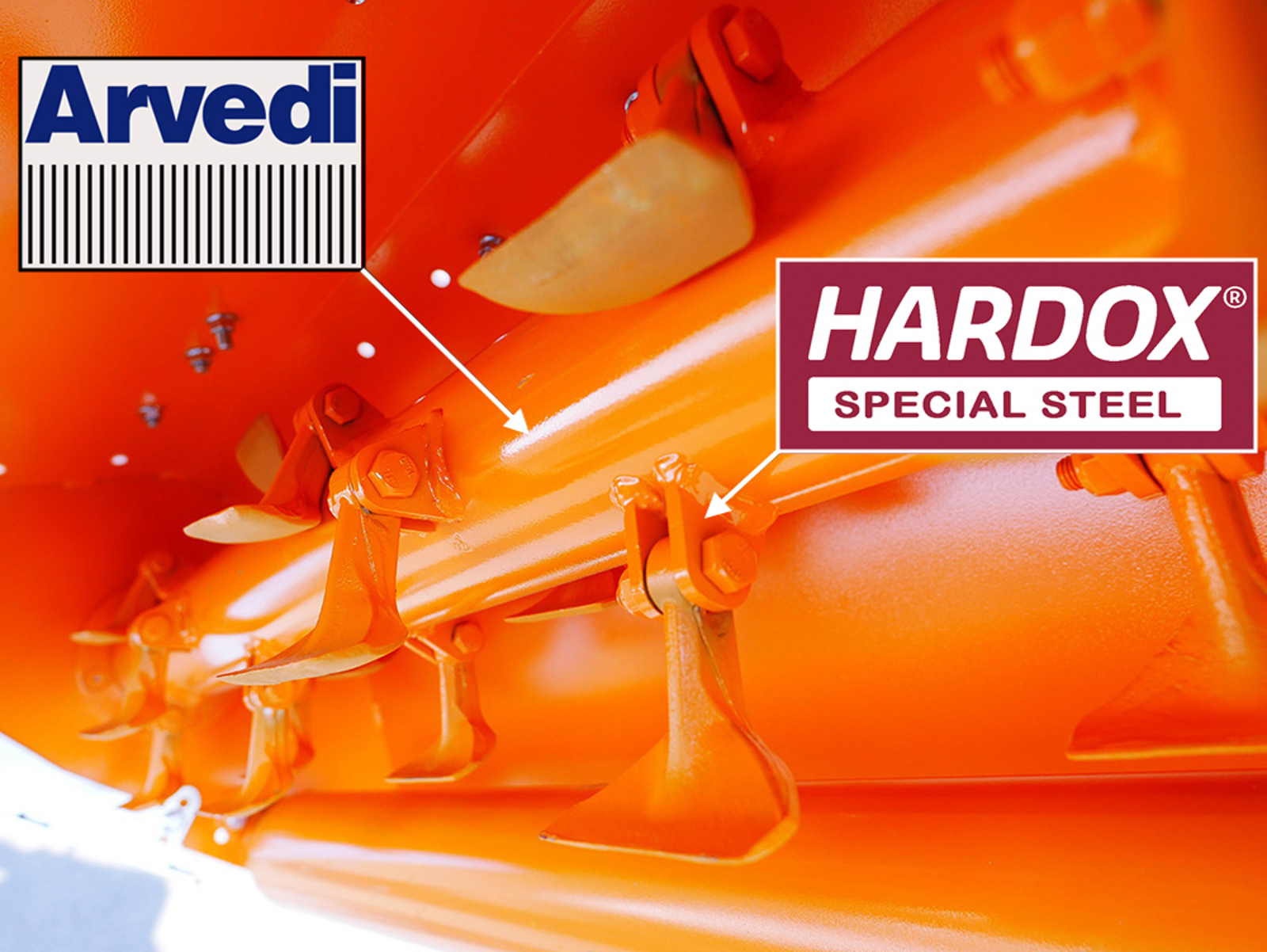

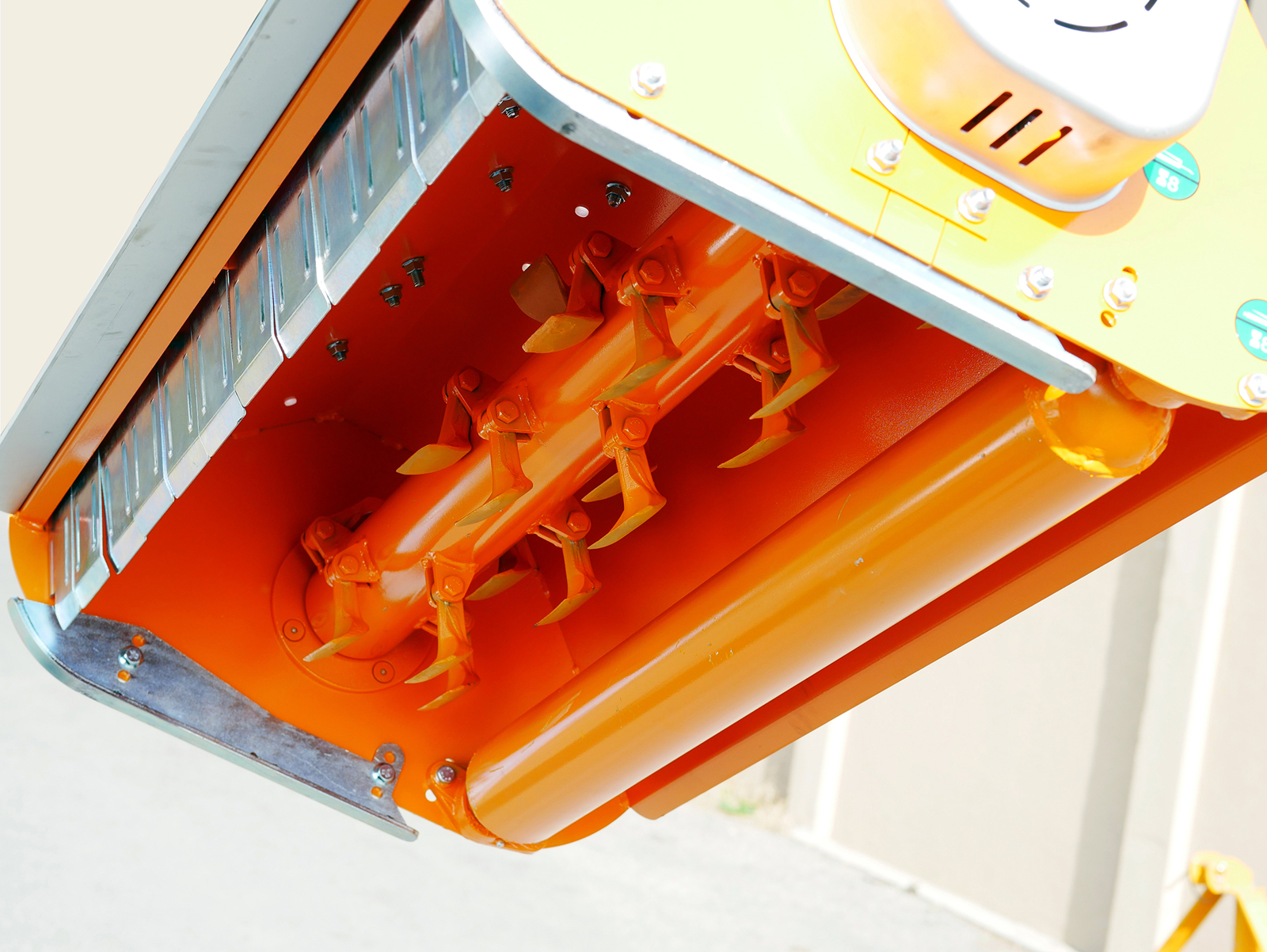

Rotor with 24 hammer flails in 6 rows

The rotor is built from ARVEDI S355 steel tube, 8 mm (5/16 in) thick and 102 mm (4 in) in diameter, electronically balanced, and spins at 3,150 rpm on SKF bearings. The 24 hammer flails weigh 330 g (11.6 oz) each and sit in 6 rows rather than 4, on brackets in HARDOX wear-resistant steel: they pulverise grass, leaves, brambles and small vine and olive prunings up to 3 cm (1.2 in) thick. A ridge inside the hood directs the airflow back onto the rotor for a mulching effect: the material stays under the flails for longer and comes out finer. On request the LINCE-140-SPH can be fitted with blades instead, using the COLTELLI30APE kit.

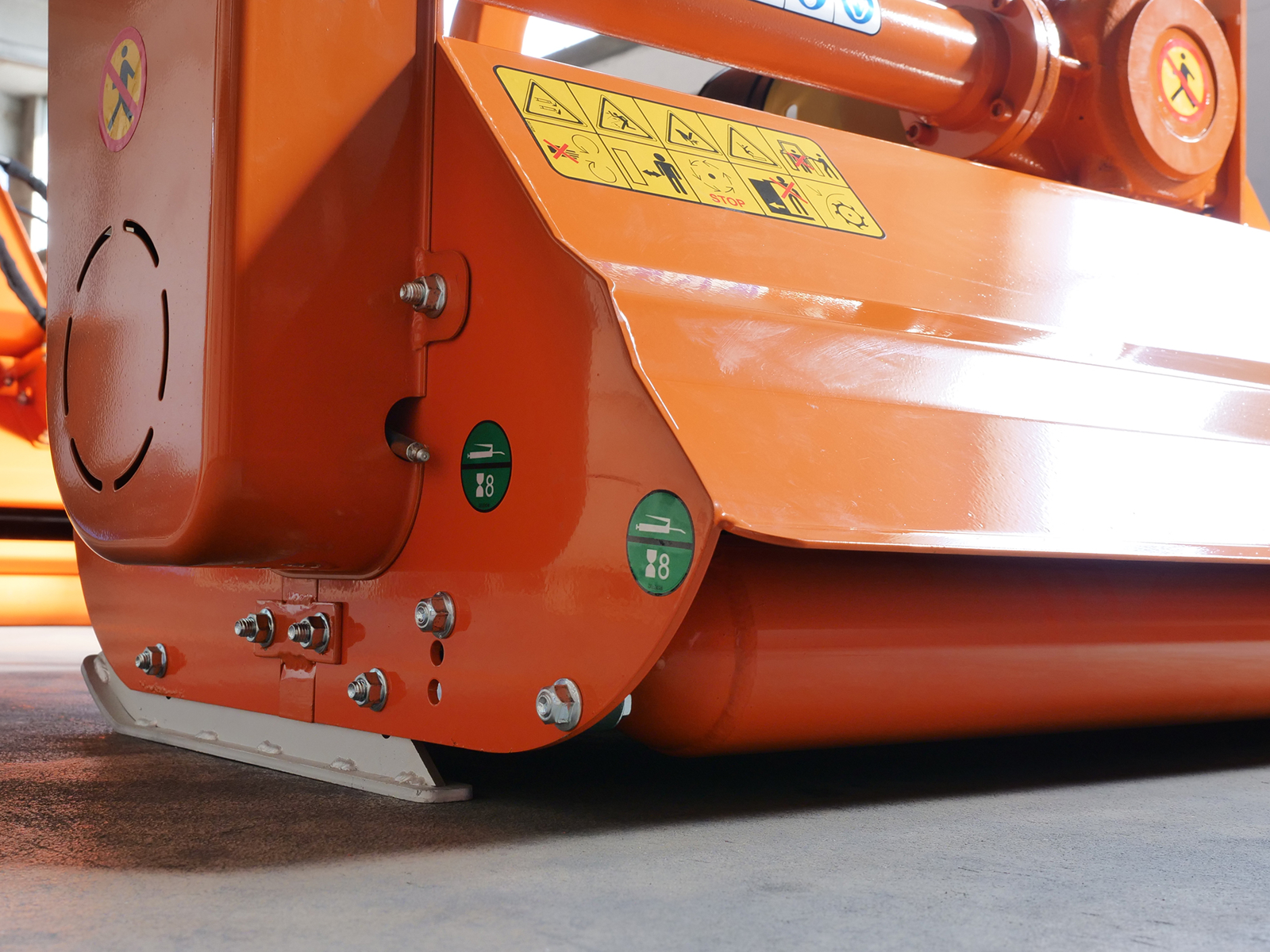

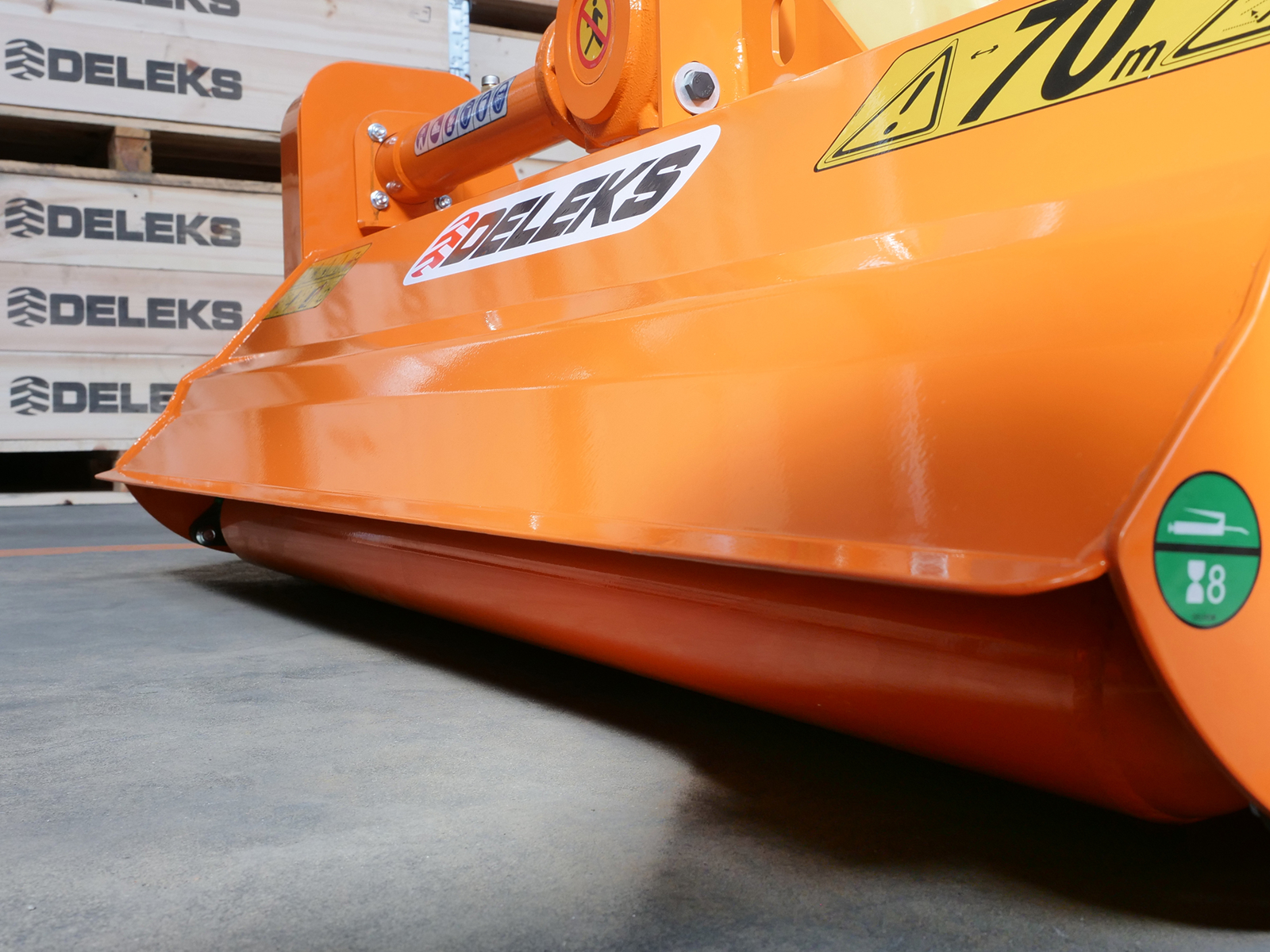

Internal roller, skids and cutting height

Cutting height is set from 10 to 45 mm (0.4 to 1.8 in) with the 102 mm (4 in) rear roller and the 6 mm side skids: low on grass, higher on stony or uneven ground. The roller is mounted inside the body, close to the rotor: the cut grass passes over the roller without being flattened and is cleared more quickly, so the job moves along faster.

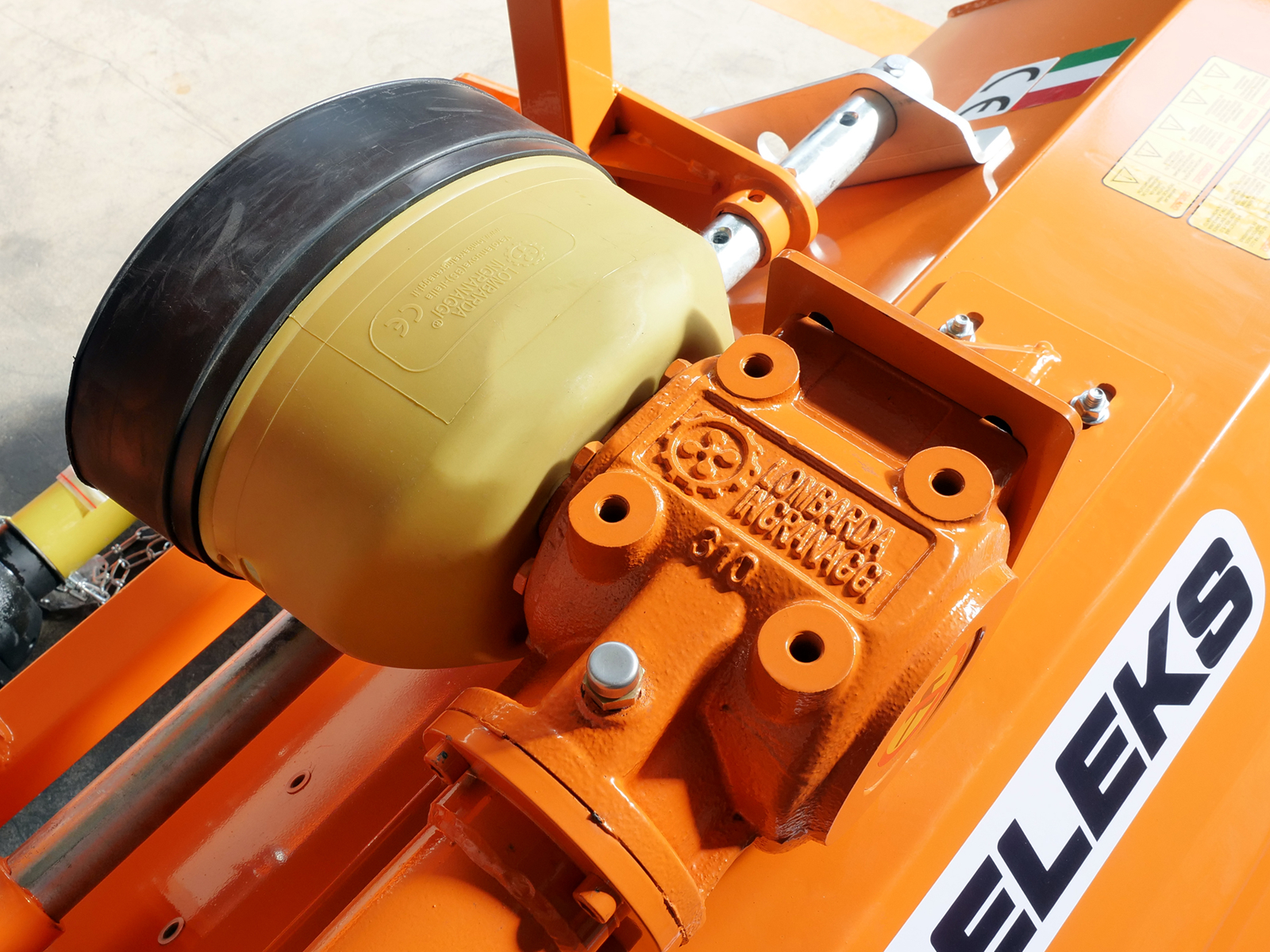

Gearbox with freewheel, belts and PTO shaft

The DELEKS® gearbox for a 540 rpm PTO has a built-in freewheel and a 3-year warranty: when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. Drive reaches the rotor through 3 AX39 V-belts; the tensioner is adjustable and belt tension is set from the outside. The CE-approved category 4 PTO shaft, 800 mm (31.5 in) long, is included: if your tractor's linkage sits very close, shorten it as shown in the manual.

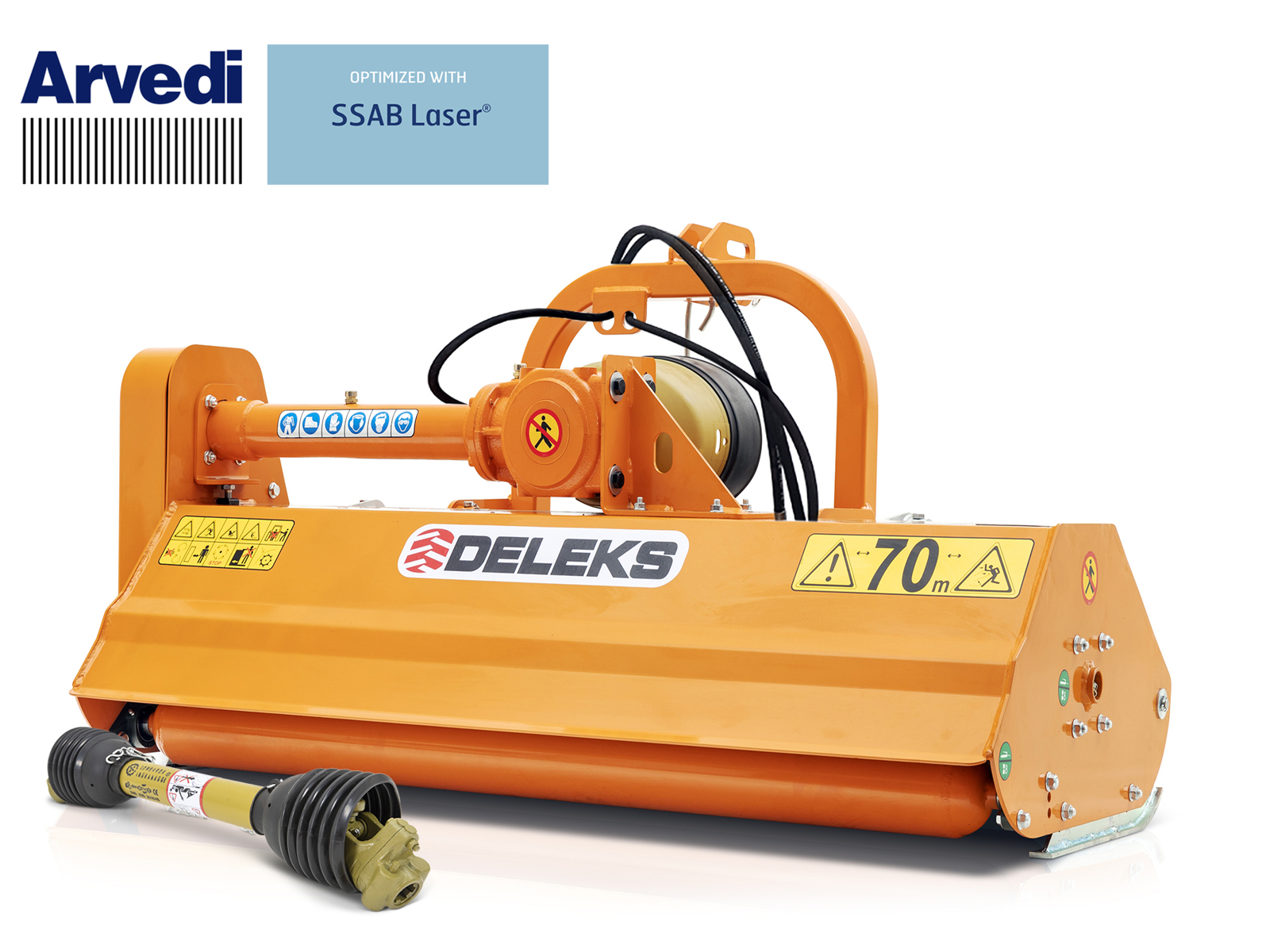

SSAB steel frame, Made in Italy

The frame is made entirely from Swedish SSAB steel, 3 mm thick with 5 mm side plates; the flail brackets are HARDOX and the rotor bearings are SKF. The LINCE-140-SPH is Made in Italy, built by DELEKS. For this product the sheet steel is bought in Italy and worked at a production plant in the European Union.


Dimensions, weight and delivery

Working width 1,400 mm (55.1 in), overall width 1,520 mm (59.8 in), length 880 mm (34.6 in), height 750 mm (29.5 in), weight 205 kg (452 lb). It ships in packaging measuring 155 × 85 × 70 cm (61 × 33 × 28 in), 250 kg (551 lb) gross, 0.92 m³, with free delivery within the EU. It complies with the EC Machinery Directive and carries a 2-year warranty.

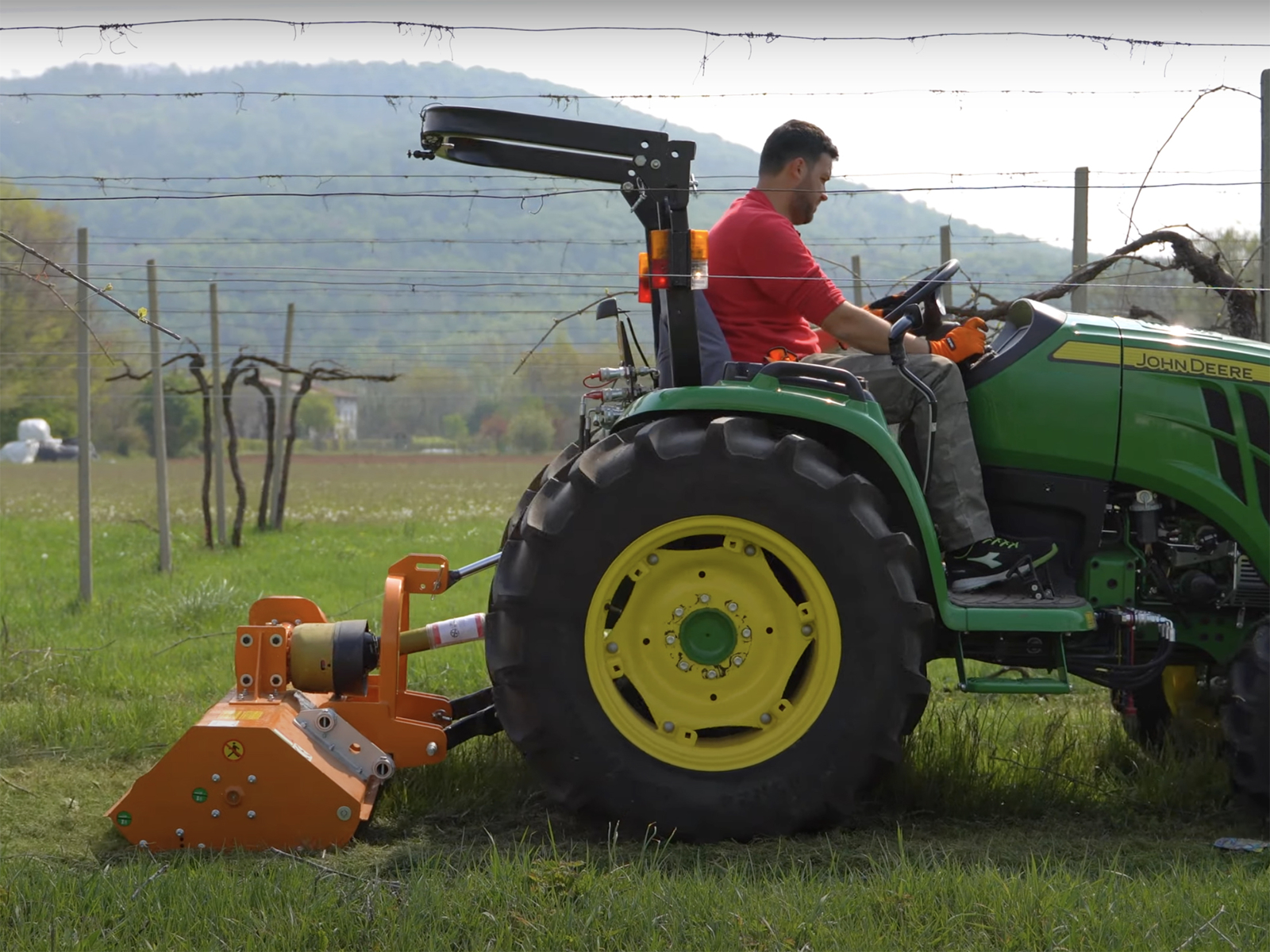

Where it works

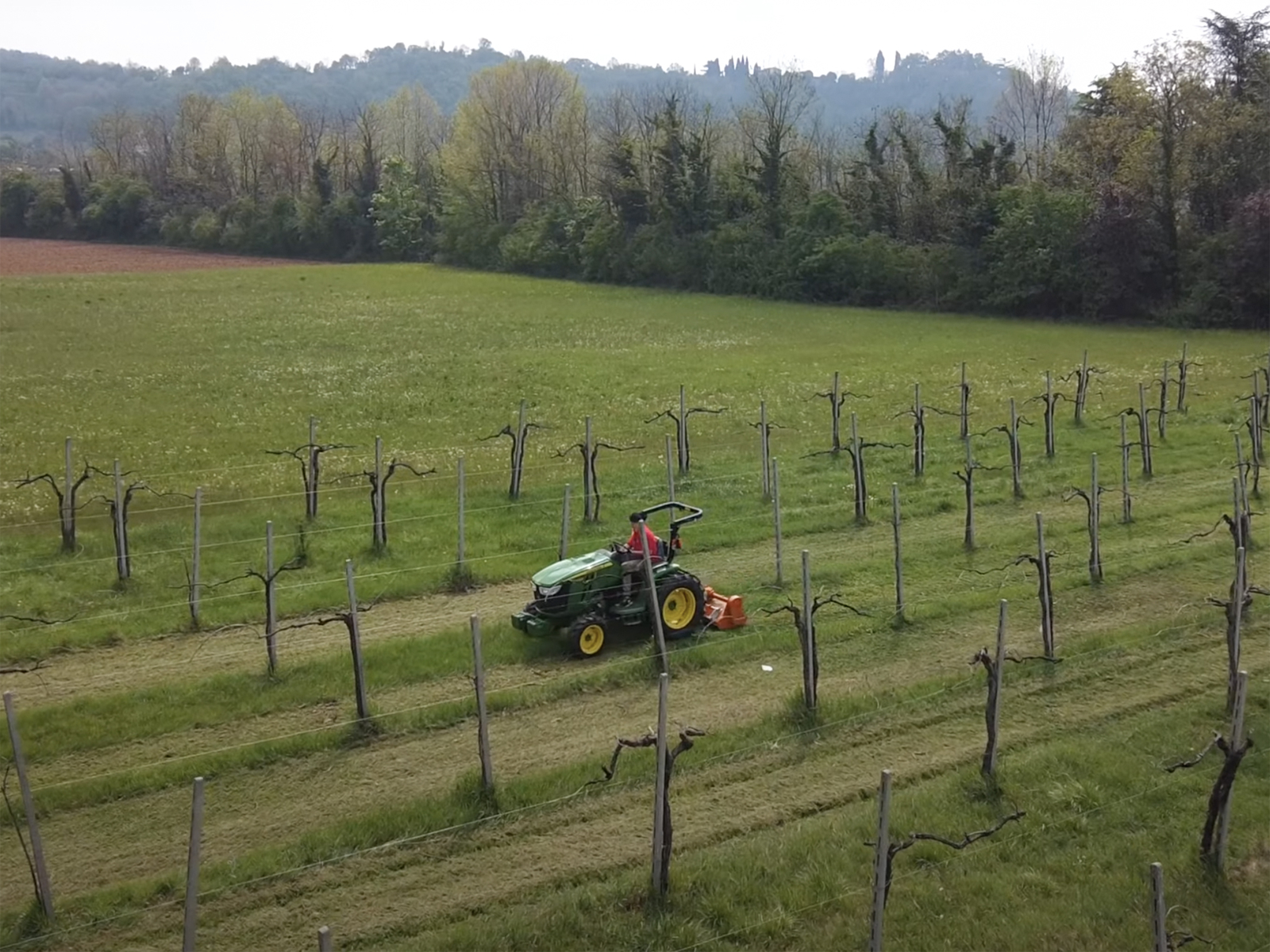

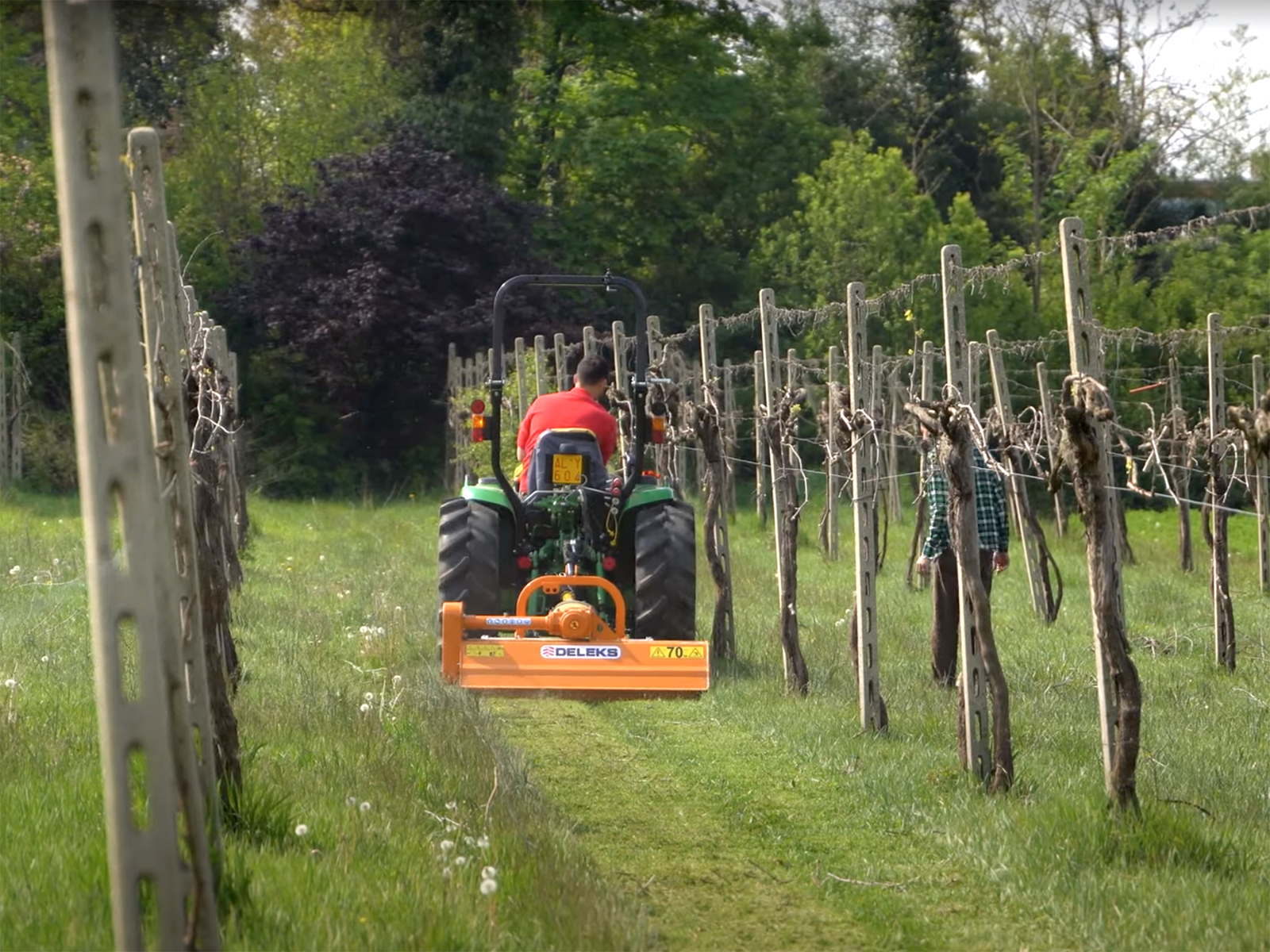

  • Vineyards, orchards and olive groves: grass between the rows and under the canopy, prunings up to 3 cm (1.2 in)
  • Rows, fence lines and ditches: the mower moves in and out from the seat
  • Field edges and headlands: working offset, with the tractor kept away from the edge
  • Lawns, parks and amenity grass: topping with a mulching effect, no collection
  • On the flat and on slopes, with wheeled or tracked tractors from 20 to 40 hp

Options and spares

From this page you can add to your order the spare set of 3 belts (CINGHIE3L), the kit of 10 hammer flails (MAZZE10L2022), the 10 nuts and bolts for the flails (DB10L2022), the blade kit, 10 sets of 3 (COLTELLI30APE), spare pins for the three-point linkage (3PERNI1A), the universal PTO adapter (RID1) and the reverse-rotation gearbox in place of the standard one (SOSTMOLTSXLINCE). Other spares are identified on the exploded diagrams with our technical team.


FAQ

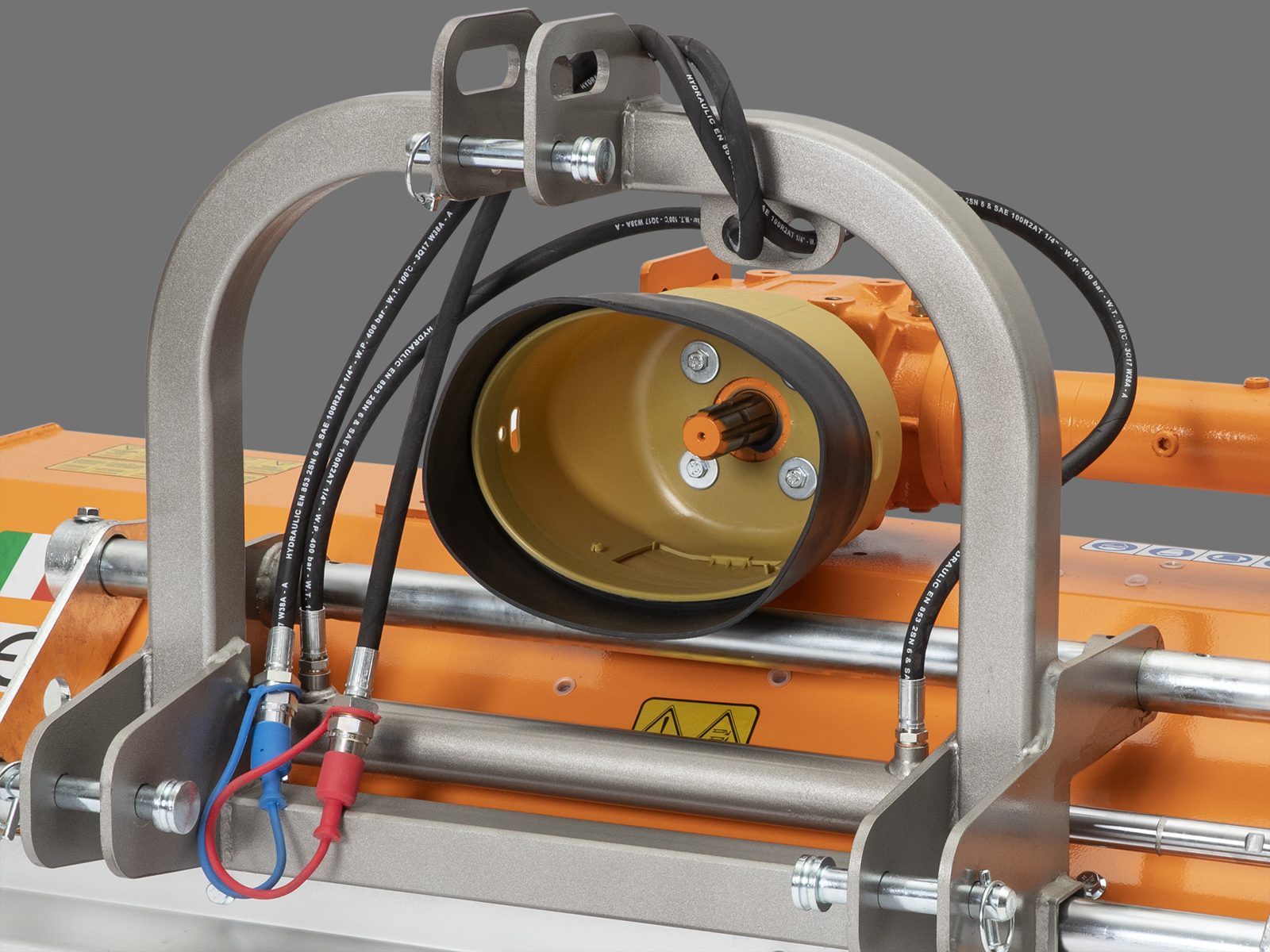

How does the hydraulic side shift work?
A hydraulic ram moves the mower up to 25 cm (10 in) sideways; you work it from the seat with a double-acting spool valve on the tractor, even on the move. Ram, 150 cm (59 in) hoses and ½ in quick-release couplings are standard.

What does the tractor need?
20 to 40 hp, a 540 rpm PTO, a category 1 three-point linkage and a pair of rear hydraulic outlets for the side shift.

How does it differ from the LINCE-SP?
The LINCE-140-SP has the same 25 cm (10 in) side shift, but manual: you set it with the machine stopped before you start. With the LINCE-140-SPH you shift from the seat as you work.

Will it shred prunings?
Yes: small vine and olive prunings and branches up to 3 cm (1.2 in) thick, as well as grass, leaves and brambles. For thicker prunings or continuous work the medium series is the better choice.

Hammer flails or blades?
It comes with 24 hammer flails of 330 g (11.6 oz), suited to grass, brambles and prunings. On request it can be fitted with blades using the COLTELLI30APE kit.

Is it suitable for tractors with an anticlockwise PTO?
Yes, with the reverse-rotation gearbox (option SOSTMOLTSXLINCE): it is for tractors whose PTO turns anticlockwise, such as some Pasquali, BCS and Valpadana models. The direction of rotation is given in the tractor handbook.

How do you set the cutting height?
From 10 to 45 mm (0.4 to 1.8 in), with the rear roller and the side skids: low on grass, higher on stony ground.

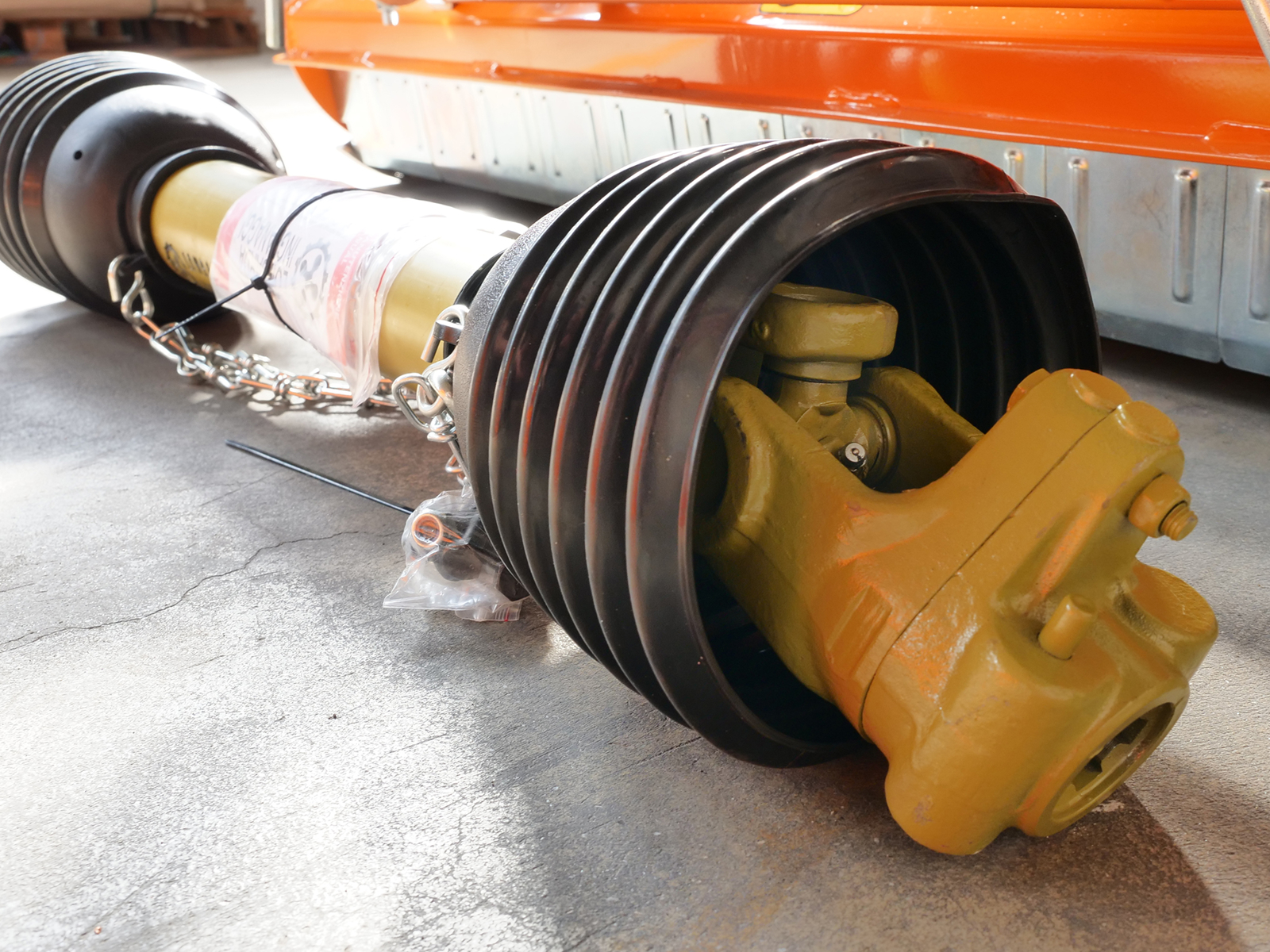

Is the PTO shaft included?
Yes: a CE-approved category 4 PTO shaft, 800 mm (31.5 in) long, to be shortened as shown in the manual if the tractor's linkage sits very close.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric
Working width 1400.0 mm
Overall width 1520.0 mm
Min / Max cutting height 10.0 - 45.0 mm
Weight 205.0 kg
Overall height 750.0 mm
Tractor Power Range 20 - 40 Hp
3 point linkage Cat. 1 (ø 19.0-22.0mm)
Position of the gearbox 748.0 mm from left side / 773.0 mm from right side
Hood height 370.0 mm
Spacing between the 2 lower points 520.0 - 620.0 mm
Number of Hammers 24
Maximum cutting diameter 20.0 - 30.0 mm
Overall length 880.0 mm
Distance between pto attachment and ground 472.0 mm
Main hood thickness 3.0 mm
Sides thickness 5.0 mm
Side plates thickness 6.0 mm
Transmission: Drive method V-Belts
Transmission: Gearbox DELEKS (3 year warranty)
Transmission: PTO 540 r/min
Transmission: Rotation of gearbox Right side
Transmission: Free wheel √
Transmission: RPM Rotor speed 3150.0 rpm
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925
Transmission: Top pulley ø 206.0 mm
Transmission: Lower pulley ø 106.0 mm
Transmission: V-Belts quantity 3
Transmission: V-Belts size AX39
Rotor: diameter 102.0 mm
Rotor: balancing Electronic
Rotor: sheet thickness 8.0 mm
Hammers: Weight 330.0 g
Hammer: øhole 11.0 mm
Hammer: base width 80.0 mm
Hammer: top width 14.0 mm
Hammer: Diagonal 75.0 mm
Rear roller: diameter 102.0 mm
Rear roller: sheet thickness 6.0 mm
Rear roller: bearings type and size FL205
Pto shaft CE 4x800 mm
Hood length 665.0 mm
Effective Displacement 250.0 mm Hydr.
Gross shipping weight 250 kg
Package volume 0.92 m3
Packing sizes 1550.0*850.0*700.0 mm
