Bramble flail mower for mini diggers 110 cm (43 in) ARK-110, hydraulic flail head with Y-blades for 1 to 2 tonne mini excavators and tractor reach arms
DETAILS

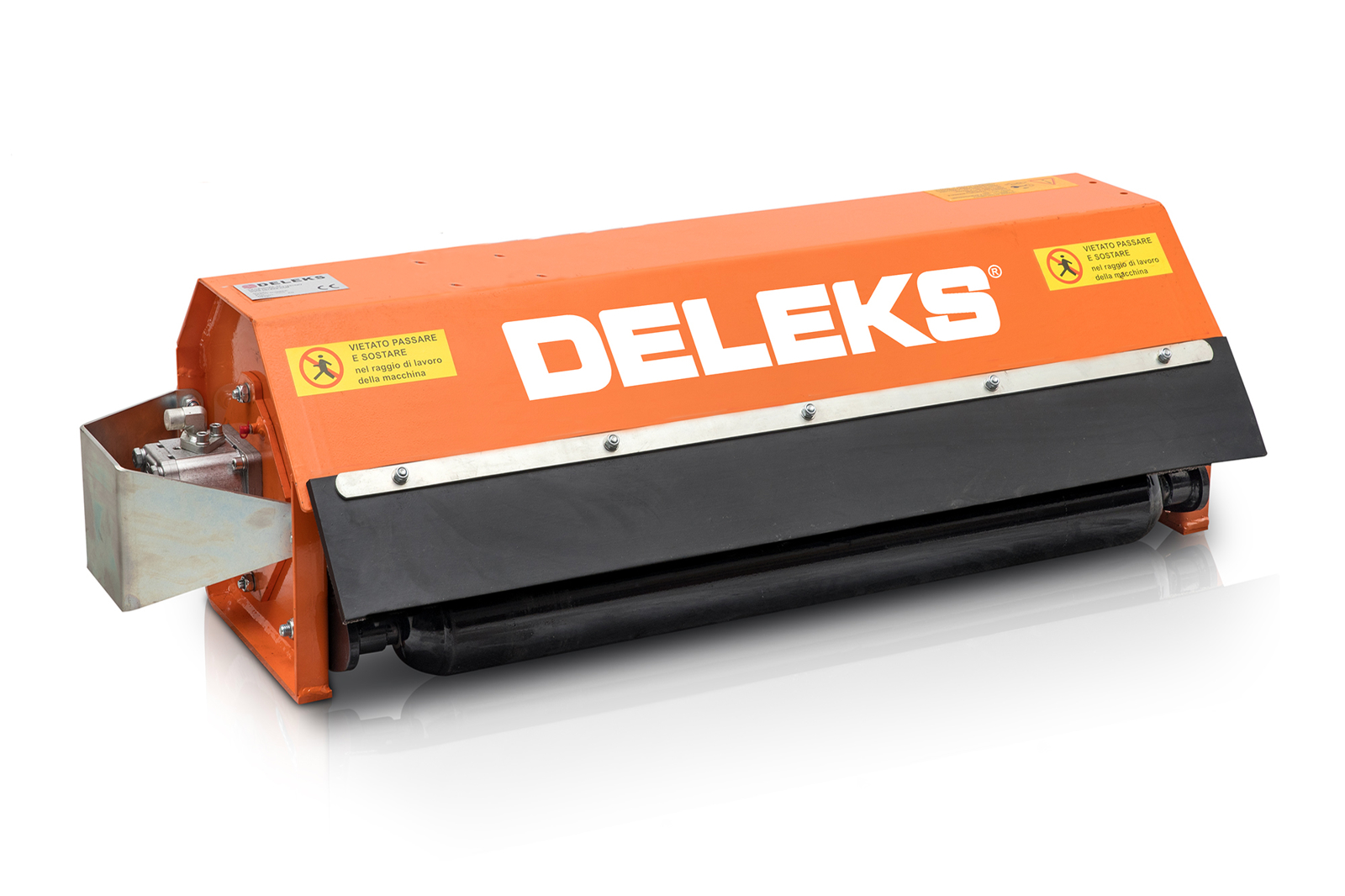

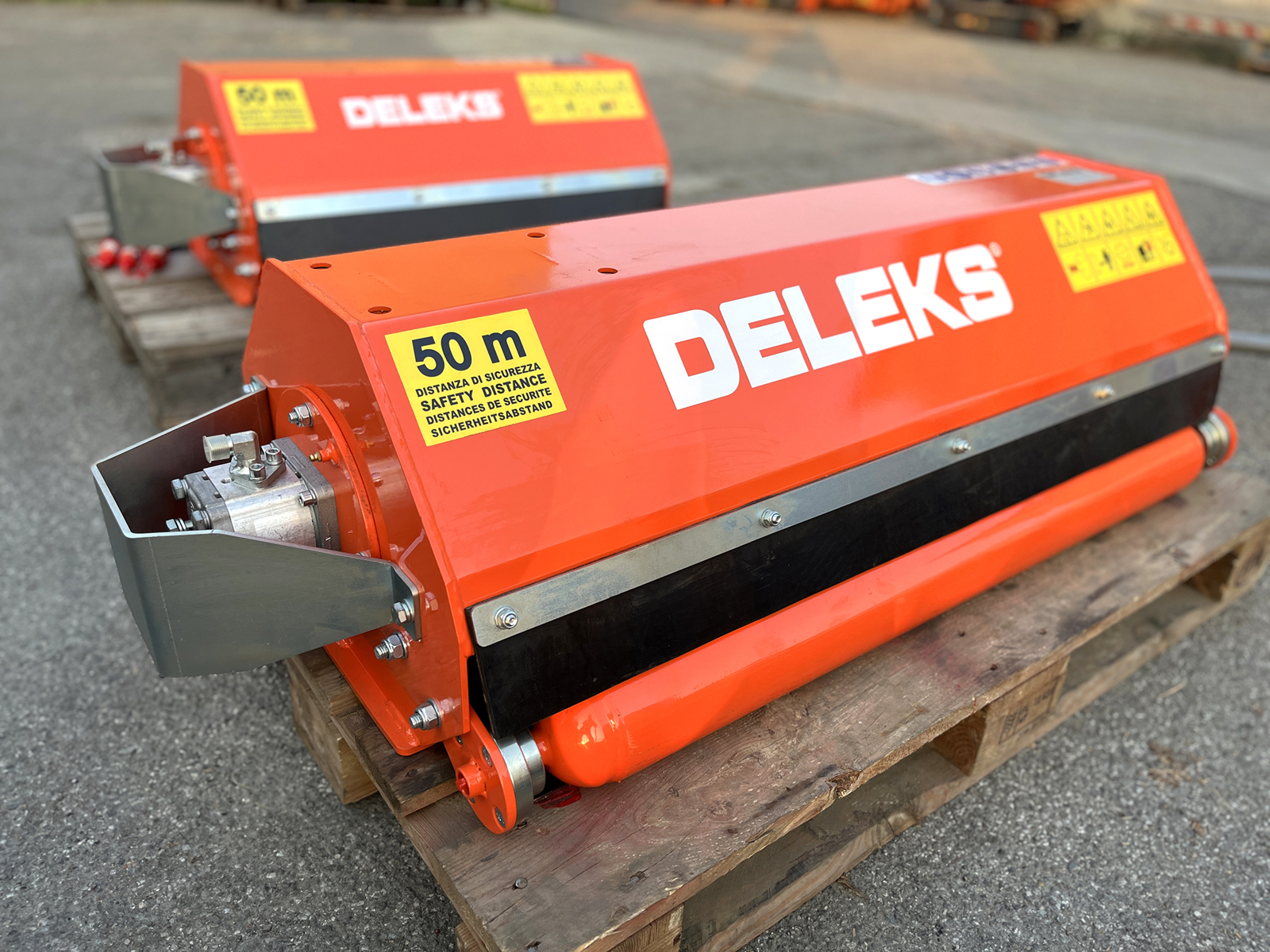

Hydraulic bramble flail mower for mini diggers with a 110 cm (43 in) cut, the DELEKS® ARK-110: the flail head with a reinforced rotor for 1 to 2 tonne mini excavators such as Kubota, Takeuchi, Yanmar, Caterpillar and JCB, and for tractor-mounted reach arms. The 108 mm (4.3 in) rotor, electronically balanced, carries 44 Y-blades and shreds grass, brambles, reeds, bushes and branches up to 3 cm (1.2 in) thick along ditches, banks, embankments and slopes, where a tractor cannot reach; hammer flails can be fitted as an option. It mounts on the arm in place of the bucket and runs on 25-30 l/min of oil at 120-150 bar; it weighs 120 kg (265 lb) and the cutting height adjusts from 20 to 80 mm (0.8 to 3.1 in). It is certified by ECO Certificazioni, carries a 2-year warranty and comes with free delivery within the EU.
Which mini diggers it fits
The ARK-110 is built for 1 to 2 tonne mini diggers and mini excavators with an auxiliary hydraulic line: Caterpillar, Takeuchi, Kubota, JCB, Case, Komatsu and Yanmar. With a 110 cm (43 in) cut and an overall width of 132 cm (52 in) it weighs 120 kg (265 lb). Always check the weight of the head against the lifting capacity of the arm at full reach. The same series also includes the ARK-100 (100 cm, 110 kg): on the same excavator, a narrower head weighs less and is easier to handle with the arm fully extended. For branches up to 2 cm and arms with less lifting capacity there are the AR and ARS series, from 60 to 100 cm and from 66 to 100 kg. It also fits tractor-mounted reach arms that deliver 25-30 l/min of oil: it is one of the heads for the DELEKS® MERLO arms.

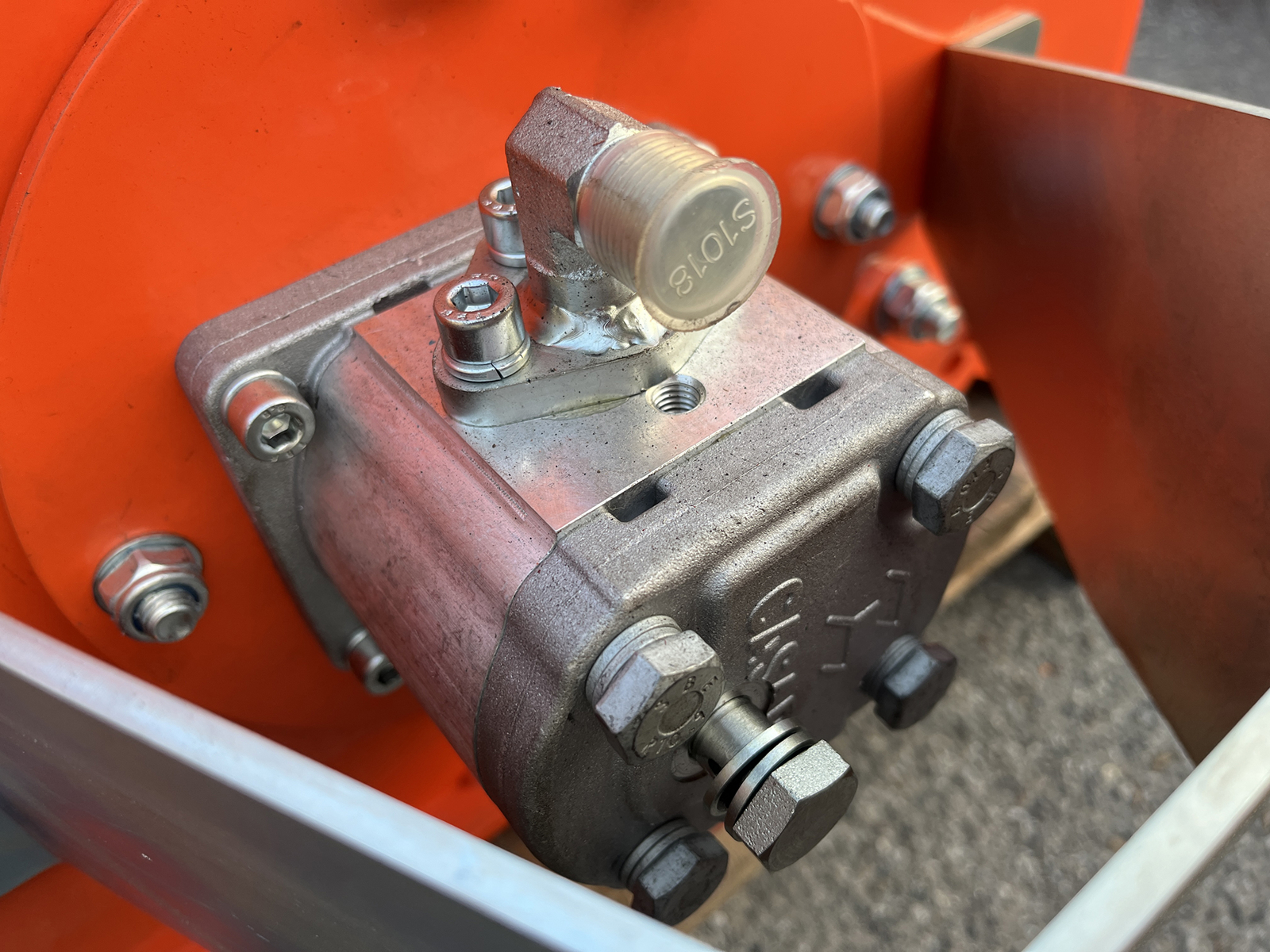

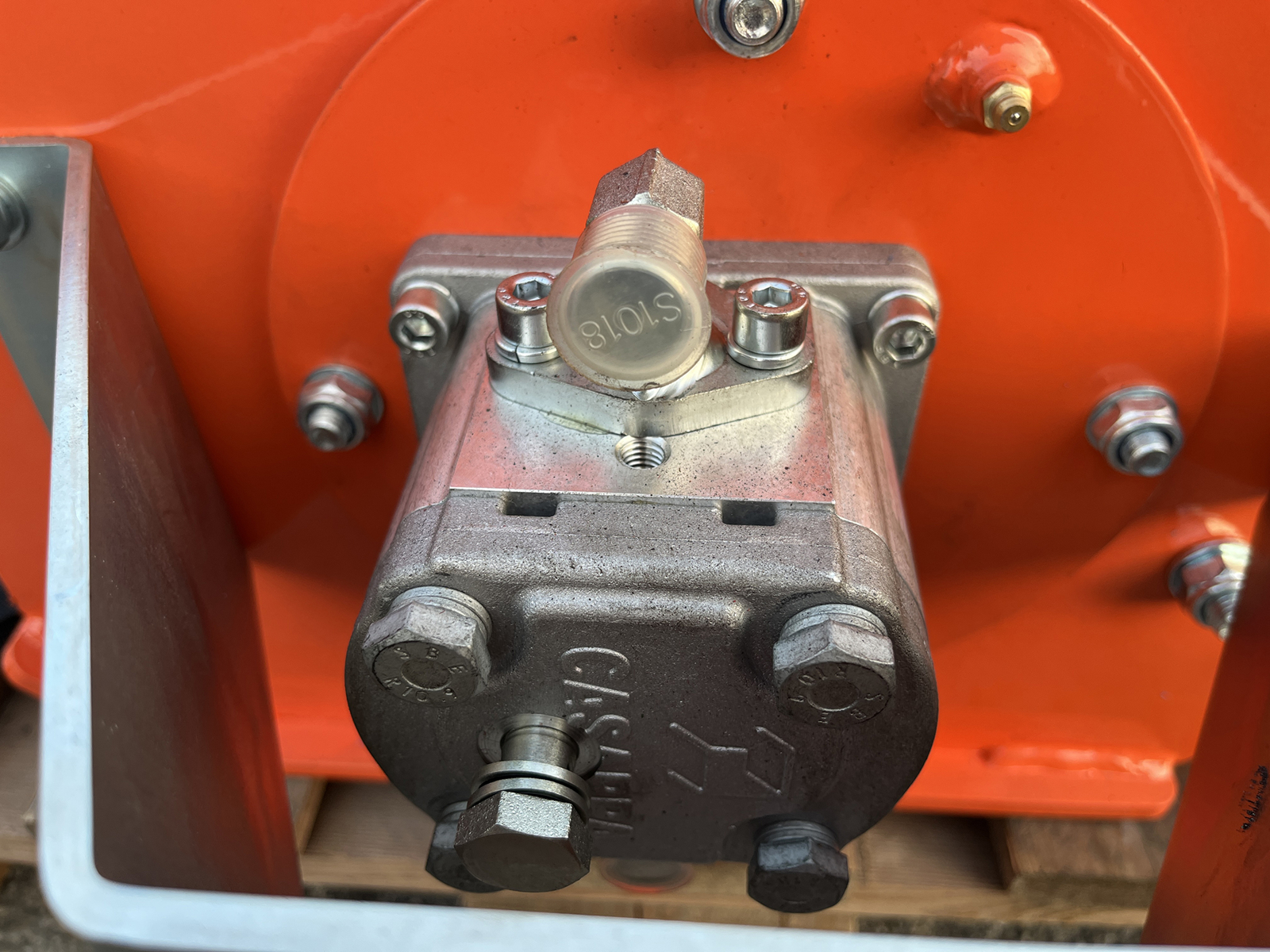

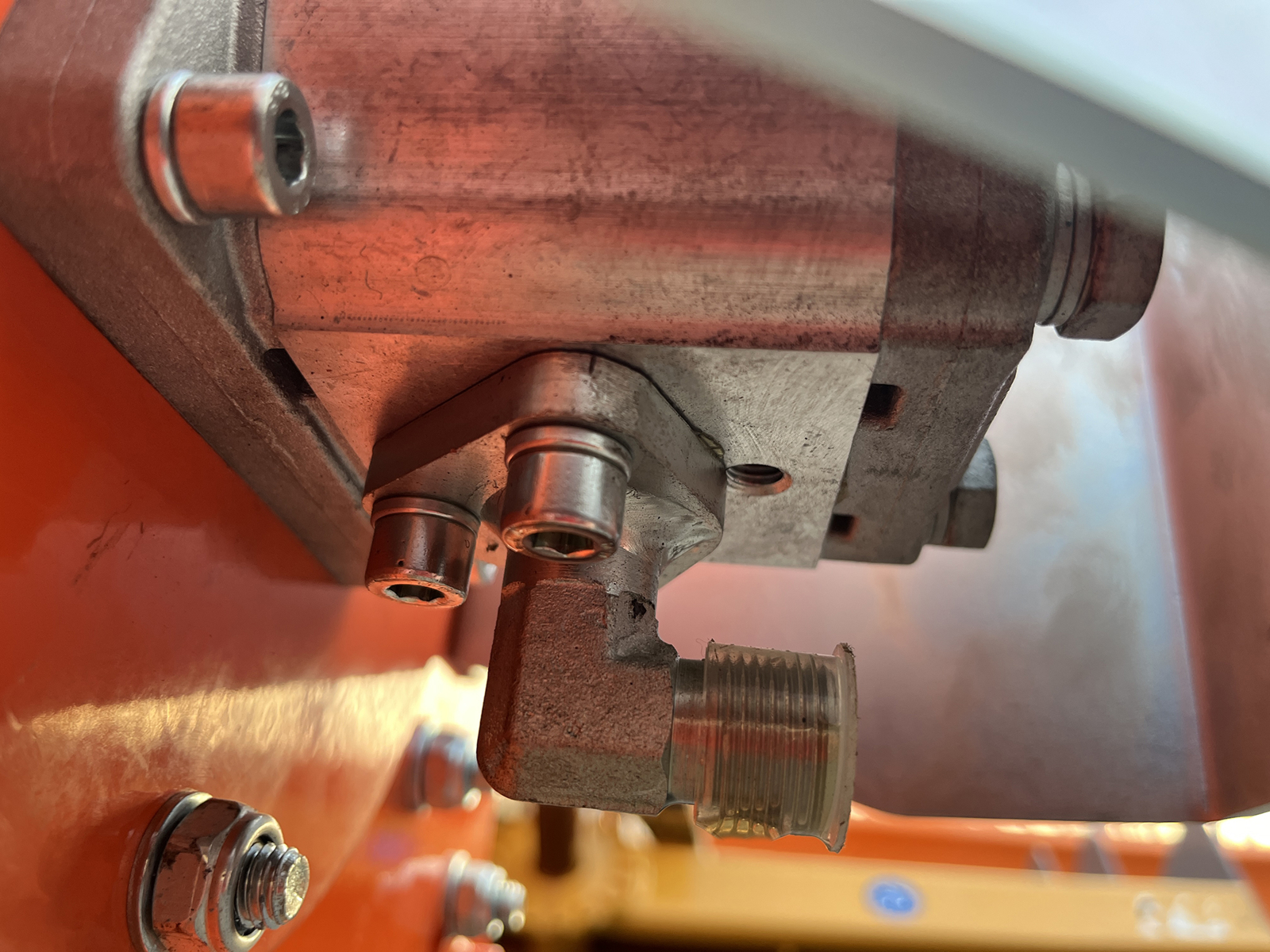

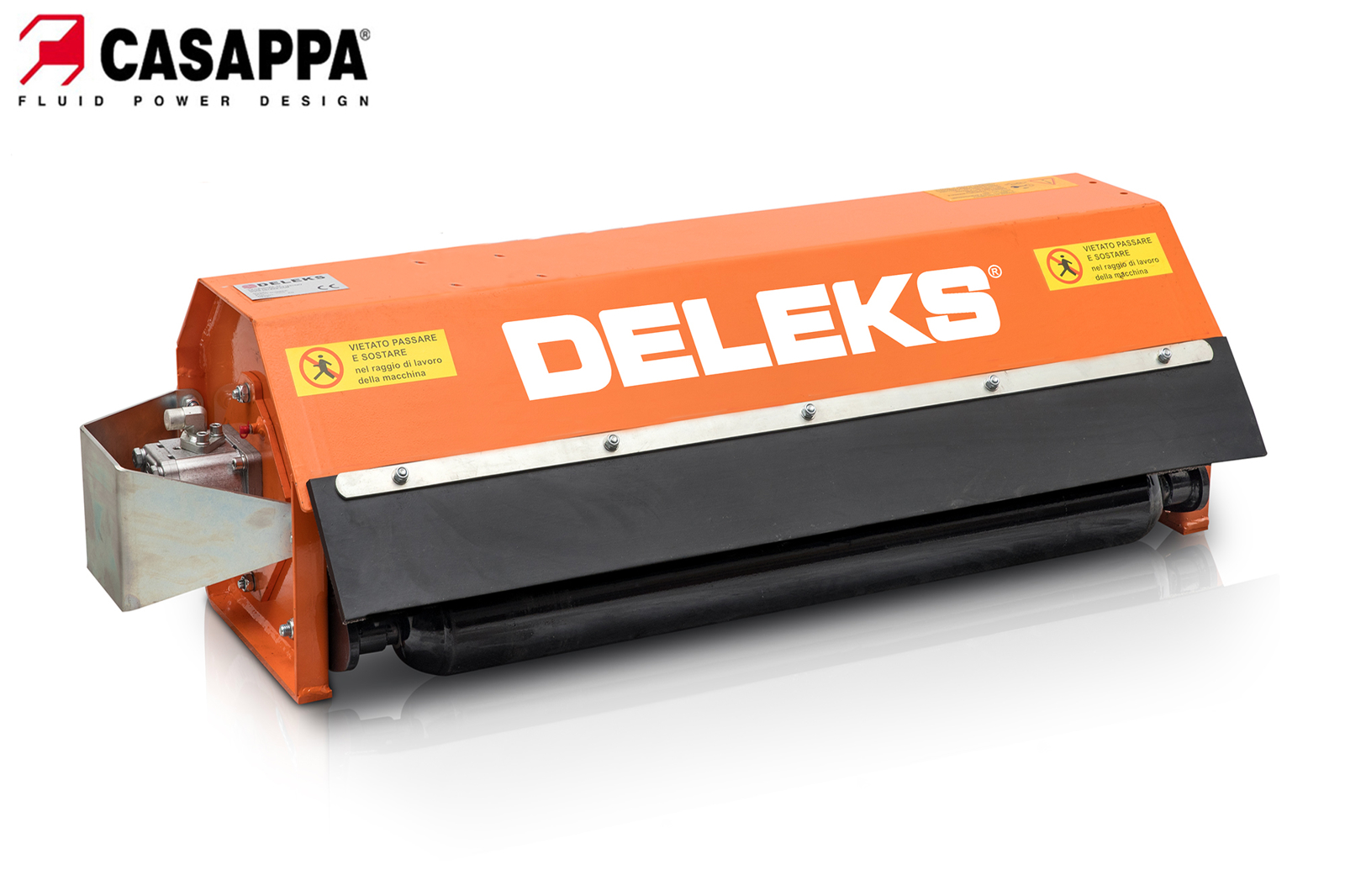

Hydraulic connection: flow, double-acting circuit and case drain
The ARK-110 runs on an oil flow of 25-30 l/min (5.5-6.6 UK gal/min) and a working pressure of 120 to 150 bar (1,740 to 2,180 psi), on the mini digger's auxiliary line. The hydraulic motor, Made in Italy, drives the blades in both directions: a double-acting pedal control is required. It has a third hose for the case drain, to be connected straight back to the tank. Ideally the excavator has two pumps, one for travel and one for the auxiliary services. Before ordering, check the flow and pressure of your auxiliary line: if in doubt, just tell us the model of your excavator.

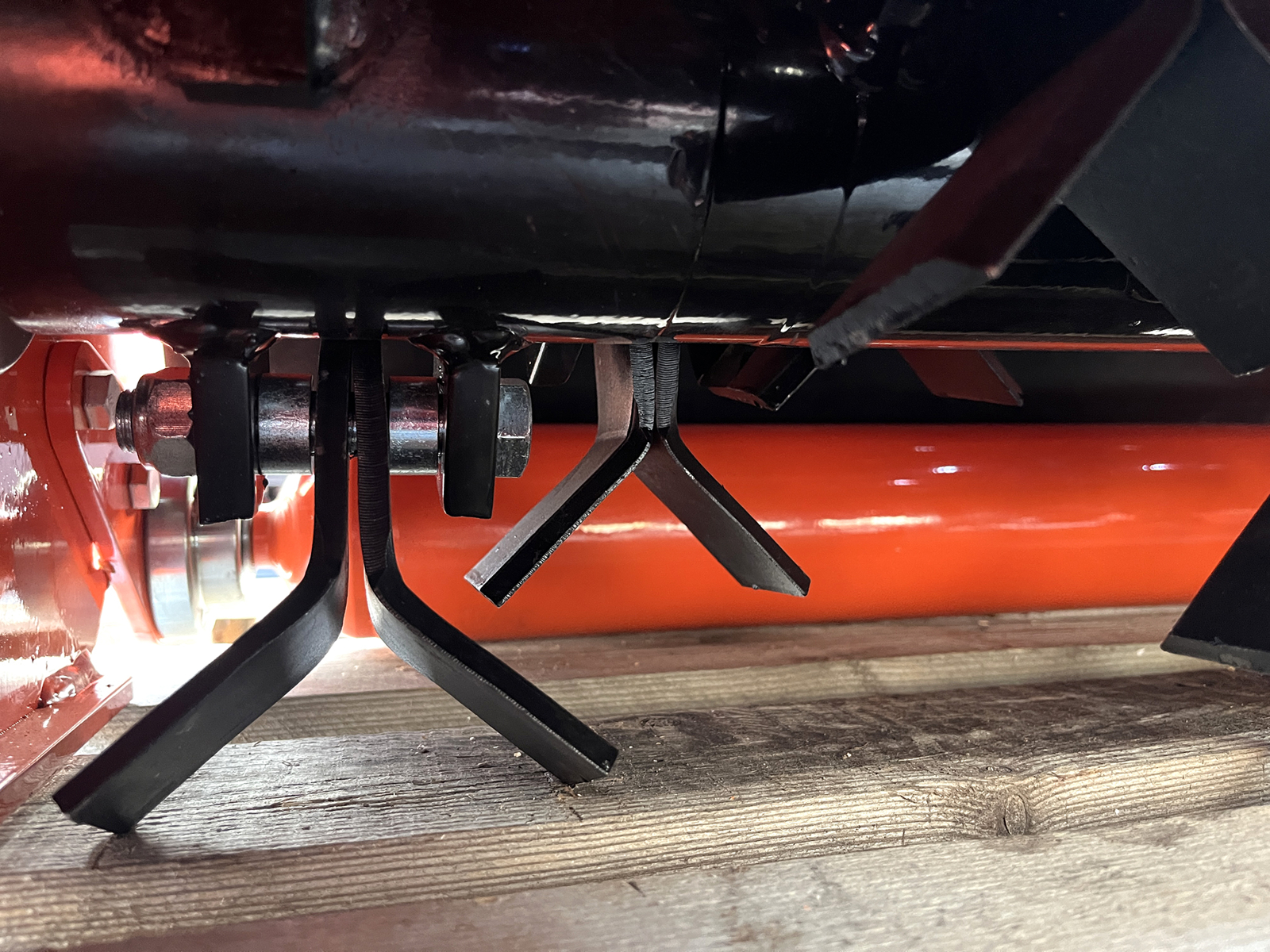

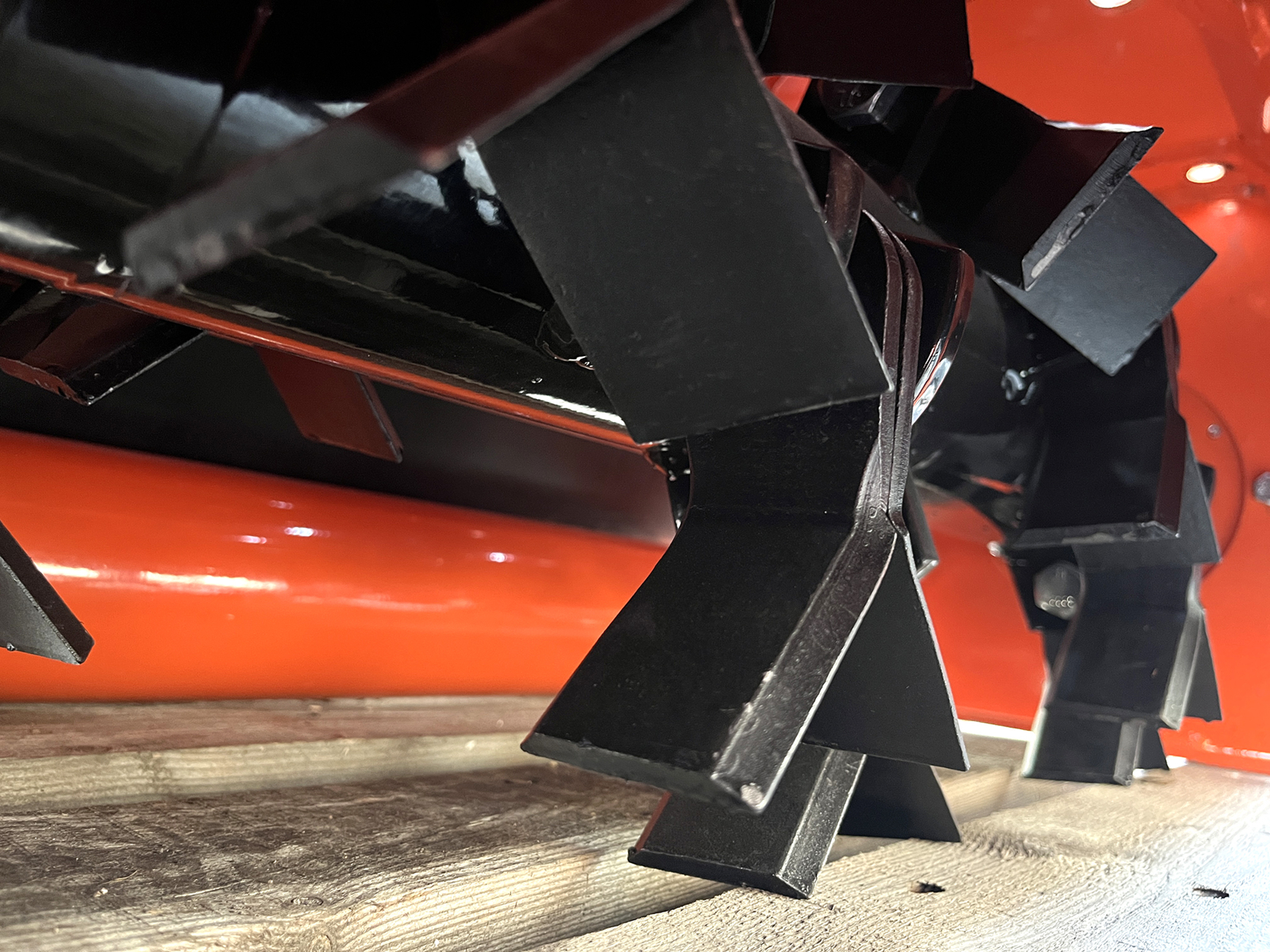

Reinforced rotor with 44 Y-blades
The rotor, 108 mm (4.3 in) in diameter and 8 mm thick, is electronically balanced and spins at 1,500 rpm. It carries 44 Y-blades, that is 22 pairs, and shreds grass, brambles, reeds, bushes and branches up to 3 cm (1.2 in) thick. The blades are replaced with the COLTELLIDTH set: 20 pairs with fixings and mounting spacers. As an option, hammer flails can be fitted in place of the blades (MAZZE10INT kit).

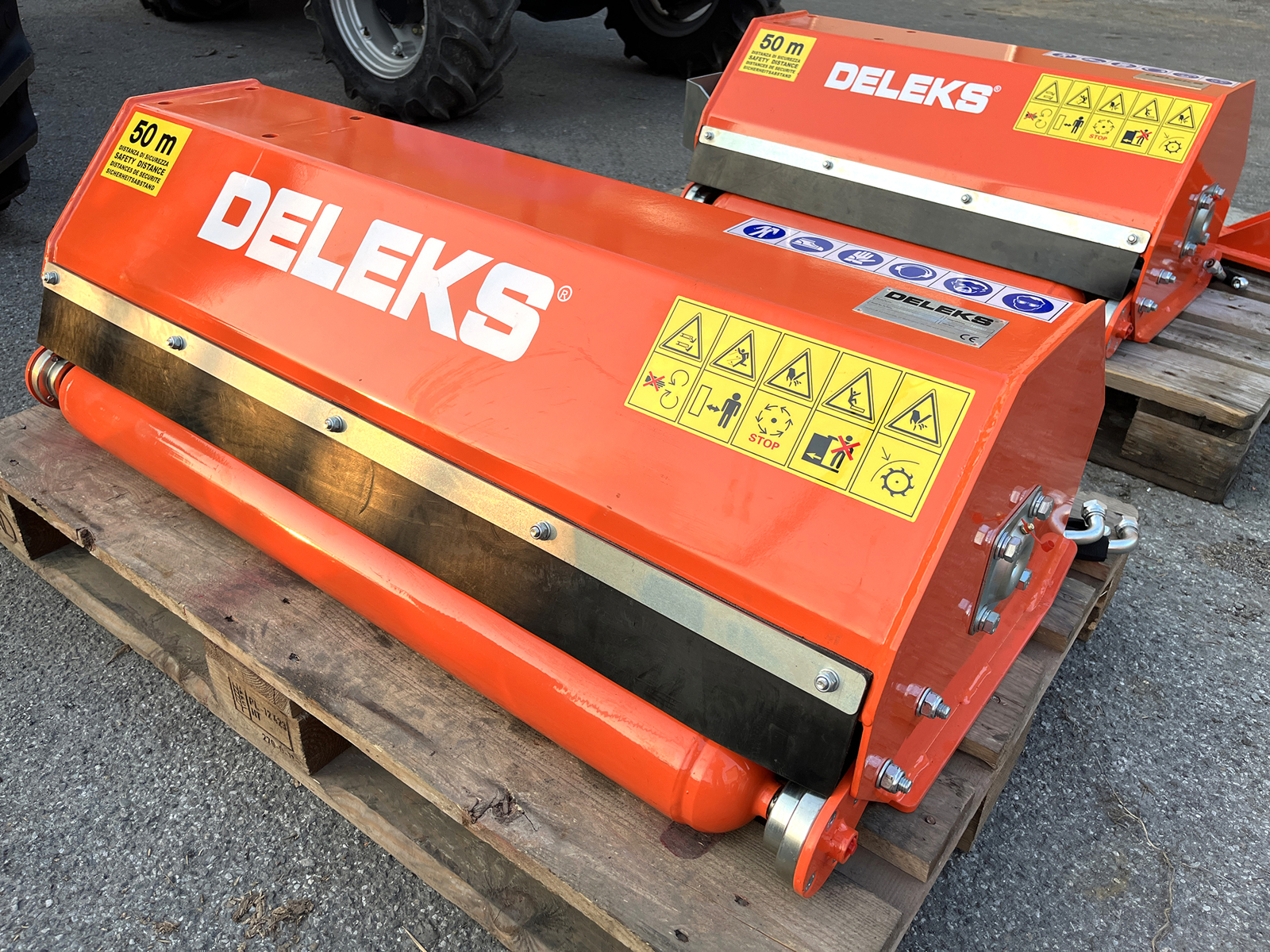

Roller and cutting height
The cutting height is adjustable from 20 to 80 mm (0.8 to 3.1 in). The rear roller, 102 mm (4 in) in diameter, rests the head on the ground and keeps the height constant: low for a fine finish on grass, higher on stony or uneven ground.

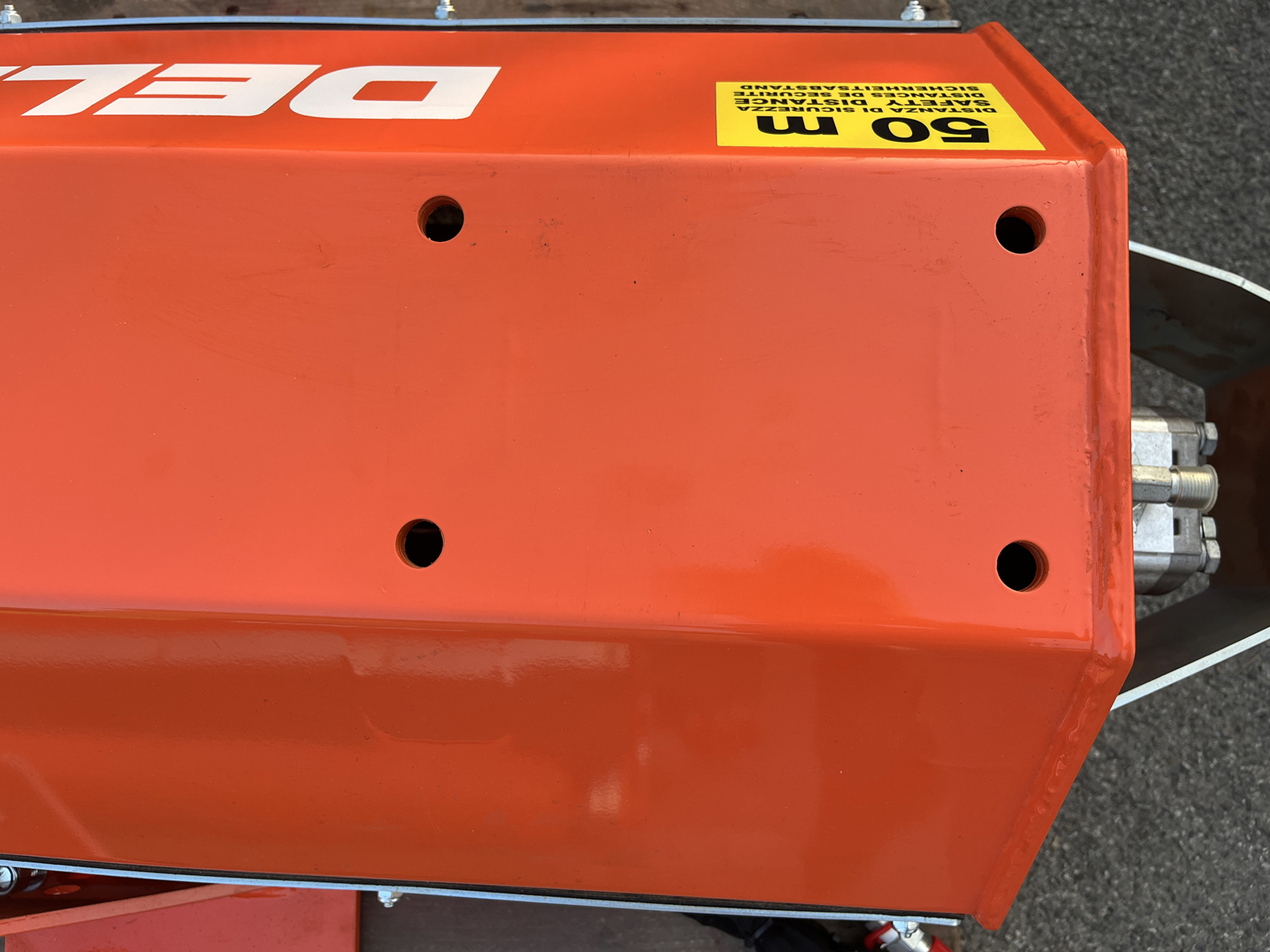

Hitch for the excavator arm

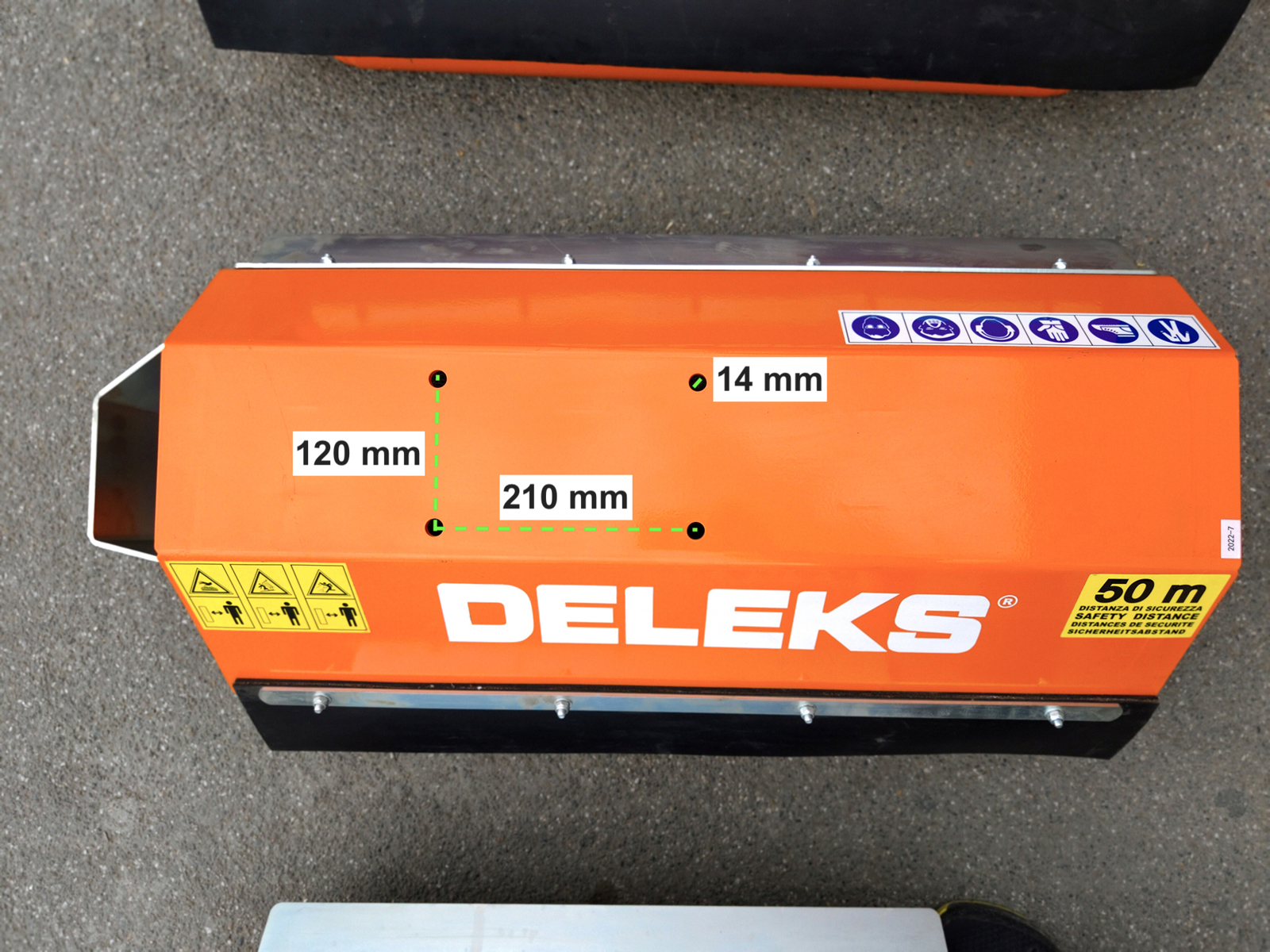

The dimensions of the standard hitch are shown in the product images: check them against the arm of your mini digger. Alternatively you can order one of the optional hitches (Morin-type ACB+ M0 and M1) or a hitch made to measure for your machine, at a surcharge.
Dimensions, weight and delivery
Working width 1,100 mm (43.3 in), overall width 1,320 mm (52 in), length 650 mm (25.6 in), height 360 mm (14.2 in), weight 120 kg (265 lb); 4 mm steel frame. It ships in a package of 132 × 60 × 50 cm (52 × 24 × 20 in), 146 kg (322 lb) gross and 0.40 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is certified by ECO Certificazioni and carries a 2-year warranty.
Where it works
- Ditches, banks and embankments: grass, reeds and brambles where a tractor cannot reach
- Slopes and roadside verges: mowing with the excavator arm
- Overgrown land and undergrowth: brambles, bushes and branches up to 3 cm (1.2 in) thick
- Hedges, fences and boundaries: clearing along walls and wire fencing
- 1 to 2 tonne mini diggers and mini excavators with an auxiliary hydraulic line and tractor-mounted reach arms
Options and spares
From this page you can add to your order the set of 20 pairs of Y-blades with fixings (COLTELLIDTH), the kit of 10 hammer flails (MAZZE10INT) and the 10 nuts and bolts (DB10A). For mounting on the arm you can choose the Morin-type ACB+ M0 hitch (ATTACCOMORINM0), the Morin-type ACB+ M1 hitch (ATTACCOMORINM1AR) and the made-to-measure hitch (ATTACCOAR). Other spares are identified on the exploded diagrams with our technical team.
FAQ
Which mini digger does the ARK-110 suit?
1 to 2 tonne mini diggers and mini excavators with an auxiliary hydraulic line delivering 25-30 l/min. The head weighs 120 kg (265 lb): check it against the lifting capacity of the arm at full reach.
Is it suitable for a 1.5 tonne mini digger?
Yes, provided the arm can carry the head's 120 kg (265 lb) at full reach: the ARK series covers mini diggers from 1 to 2 tonnes. For an arm with less lifting capacity there are the AR and ARS series, from 66 to 100 kg.
What oil flow does it need?
25 to 30 l/min, at a working pressure of 120 to 150 bar. Ideally the excavator has two pumps, one for travel and one for the auxiliary services.
Does it need a case drain line?
Yes: the hydraulic motor has a third hose for the case drain, to be connected straight back to the tank. For mini diggers without a drain line there is the ARS series, with a 2-hose motor.
Does it need a double-acting circuit?
Yes: the blades turn in both directions, which requires a double-acting pedal control.
What thickness of branch will it cut?
Grass, brambles, reeds, bushes and branches up to 3 cm (1.2 in) thick. For excavators of 2 tonnes and over there are the ARM, ARJ and ARH hammer-flail heads, which handle 4-5 cm (1.6-2 in).
Blades or hammer flails?
It comes with 44 Y-blades as standard; hammer flails are an option (MAZZE10INT kit).
Does it fit a tractor reach arm as well?
Yes: the ARK-110 also suits tractor-mounted reach arms, provided the hydraulics deliver 25-30 l/min of oil. It is one of the heads for the DELEKS® MERLO arms.
How does it mount on the arm?
In place of the bucket, with the standard hitch (dimensions in the product images), one of the optional hitches or a made-to-measure hitch; the hoses connect to the auxiliary hydraulic line.
How do the ARK and AR differ?
The ARK has a 108 mm rotor with Y-blades and shreds branches up to 3 cm; it weighs 120 kg (265 lb) and is 110 cm wide. The AR has a 78 mm rotor with 130 g blades, handles up to 2 cm and is lighter, from 66 to 93 kg.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: blades, hammer flails, fixings, bearings, roller, hydraulic motor and hoses are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and a check that the head matches your excavator's hydraulics and hitch. The head comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
