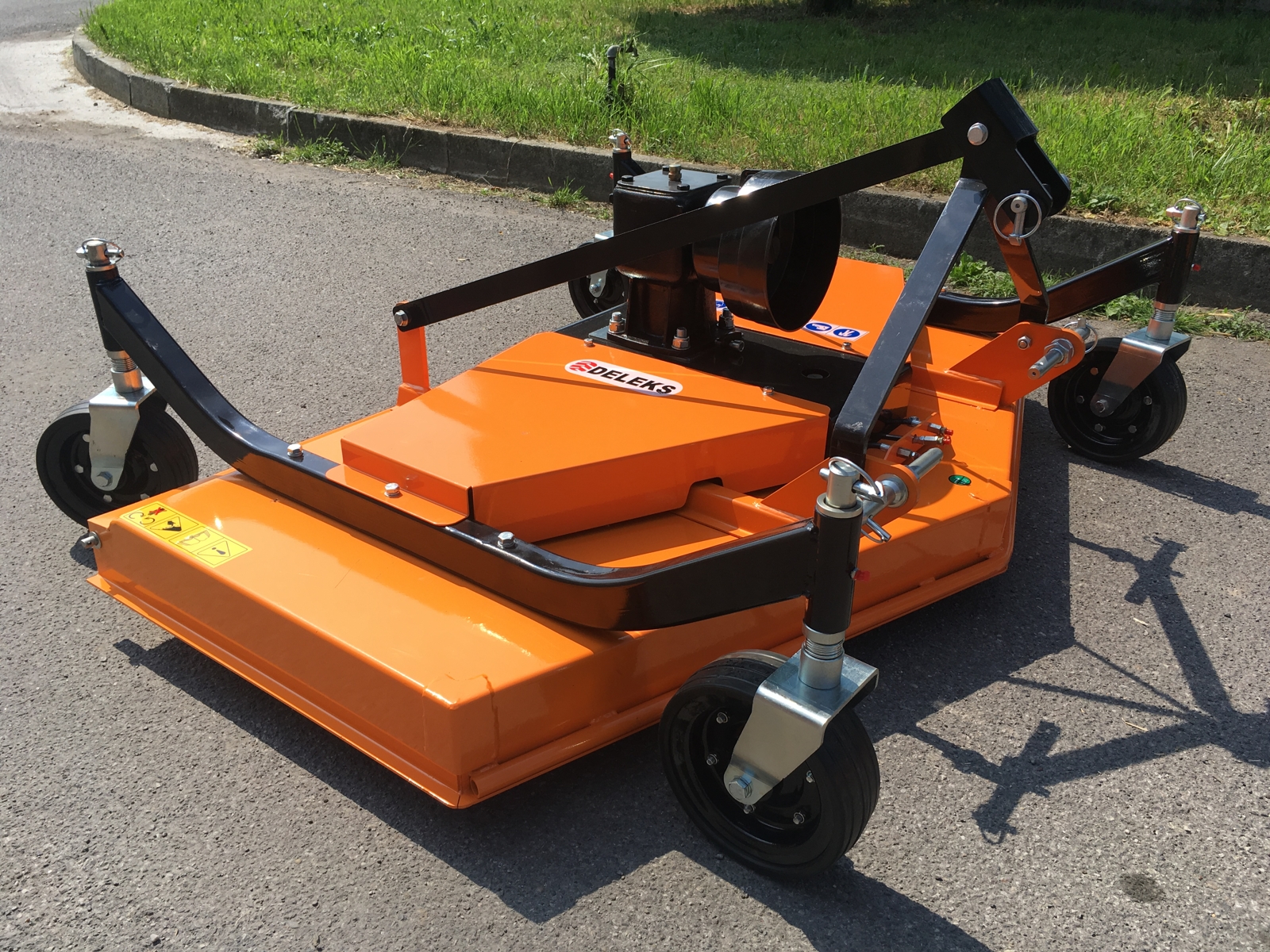

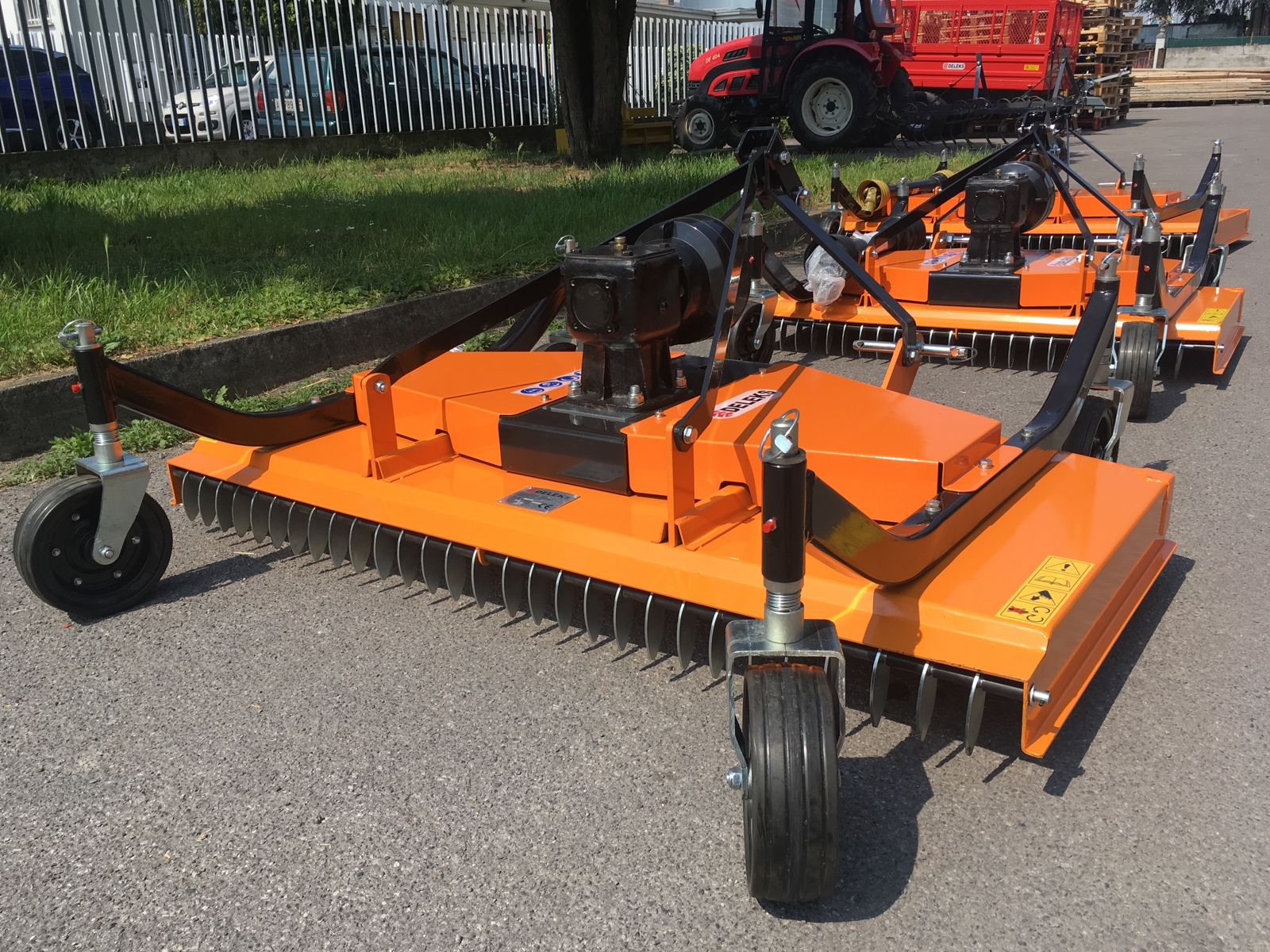

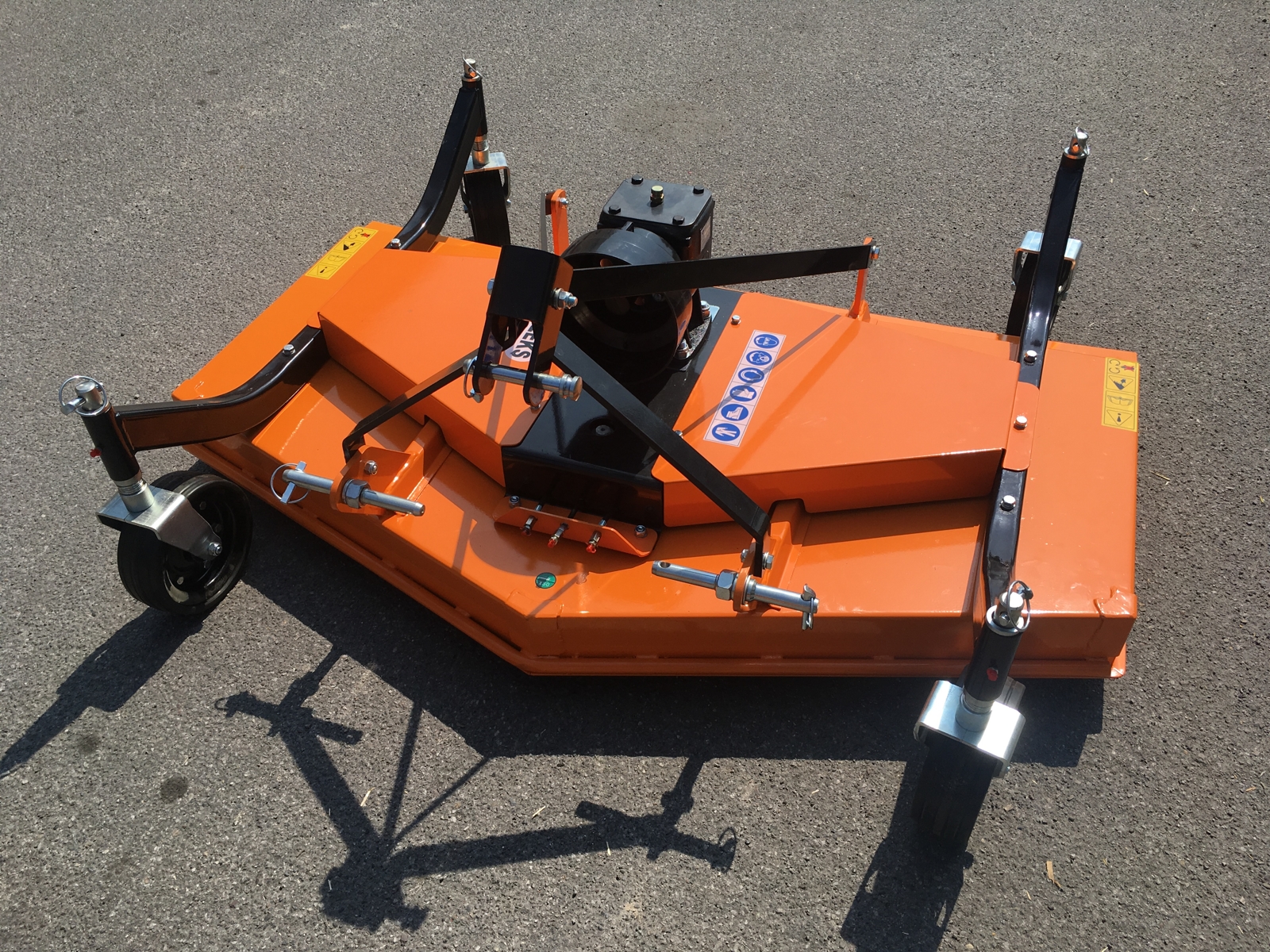

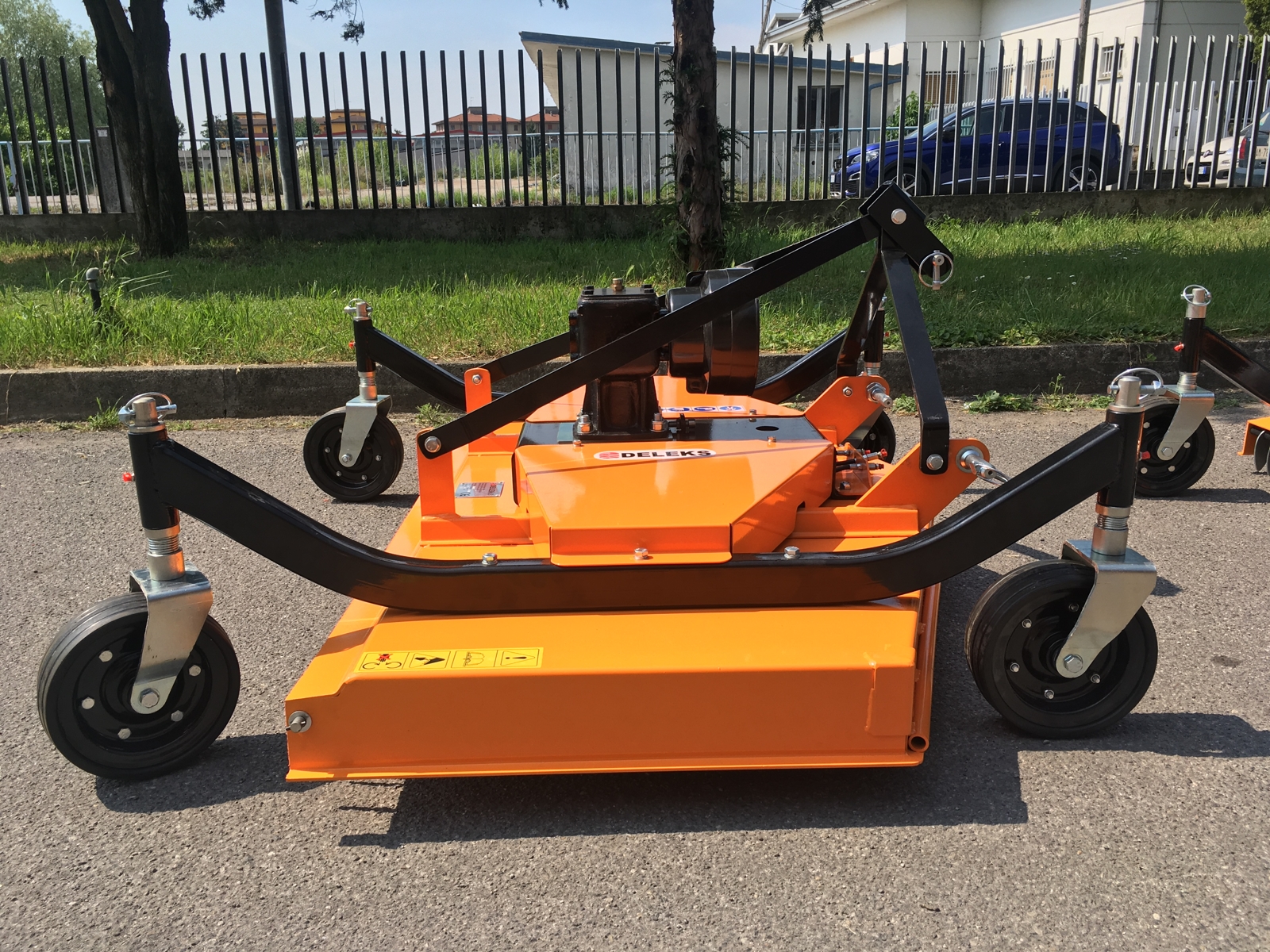

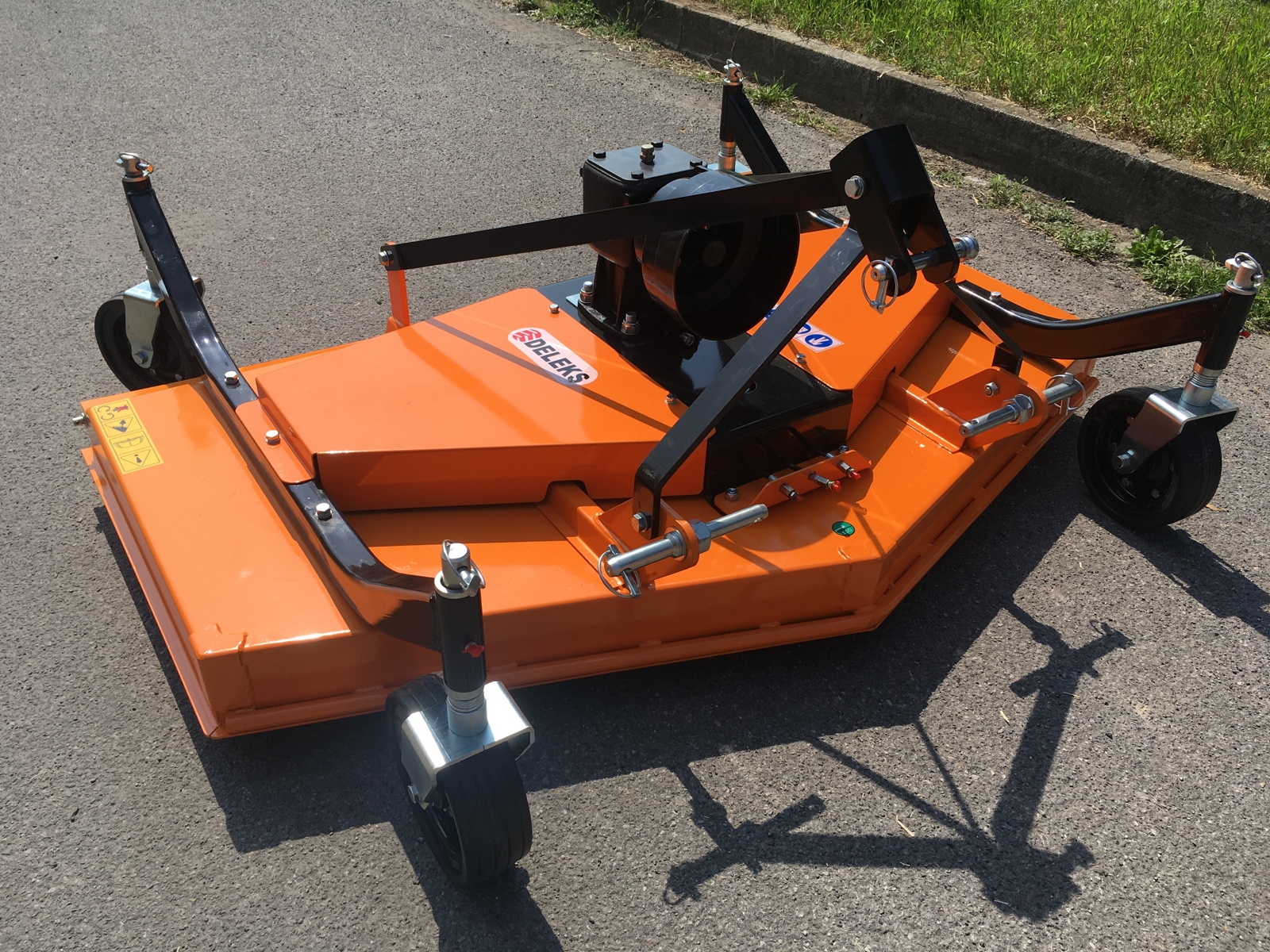

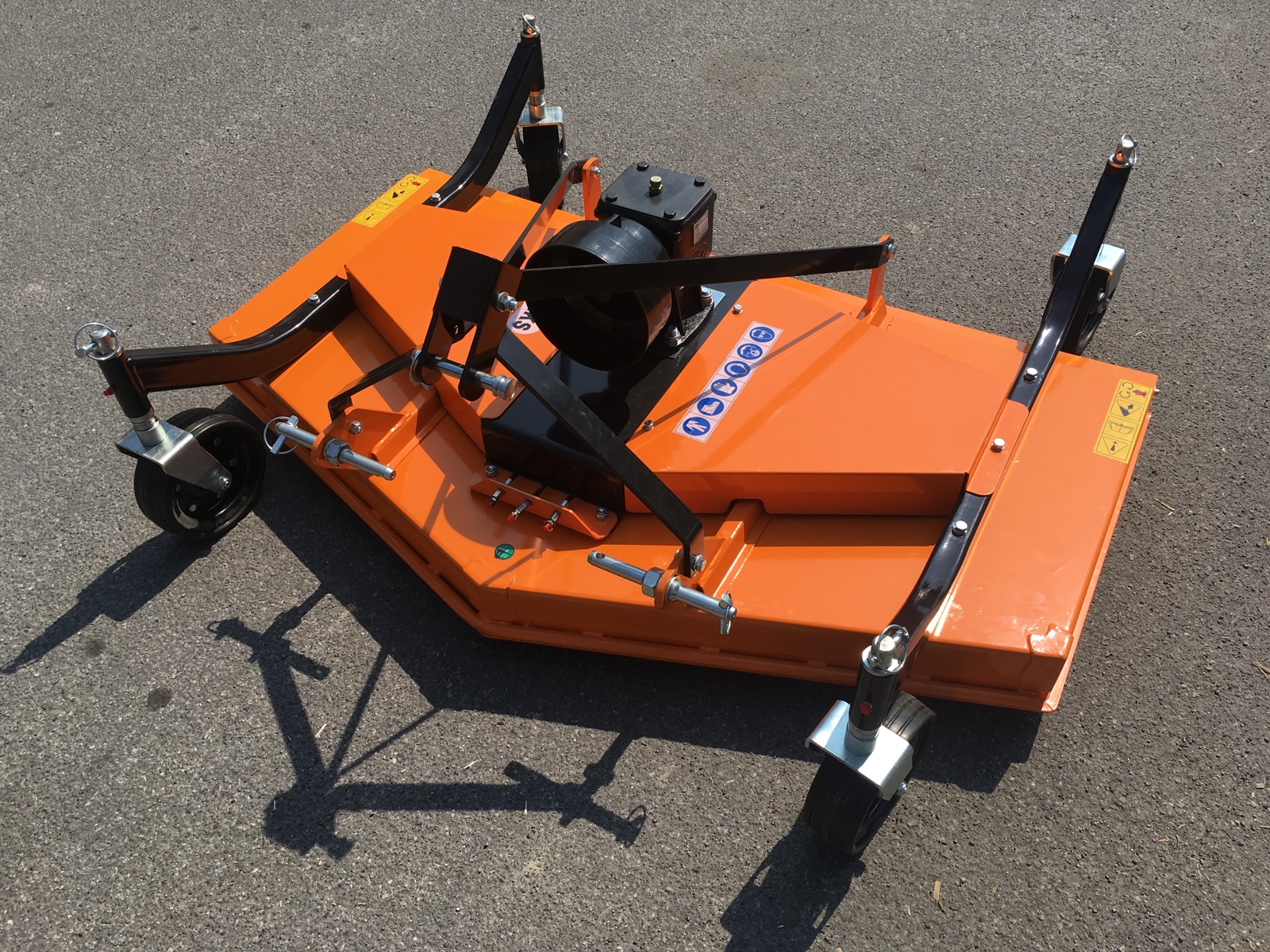

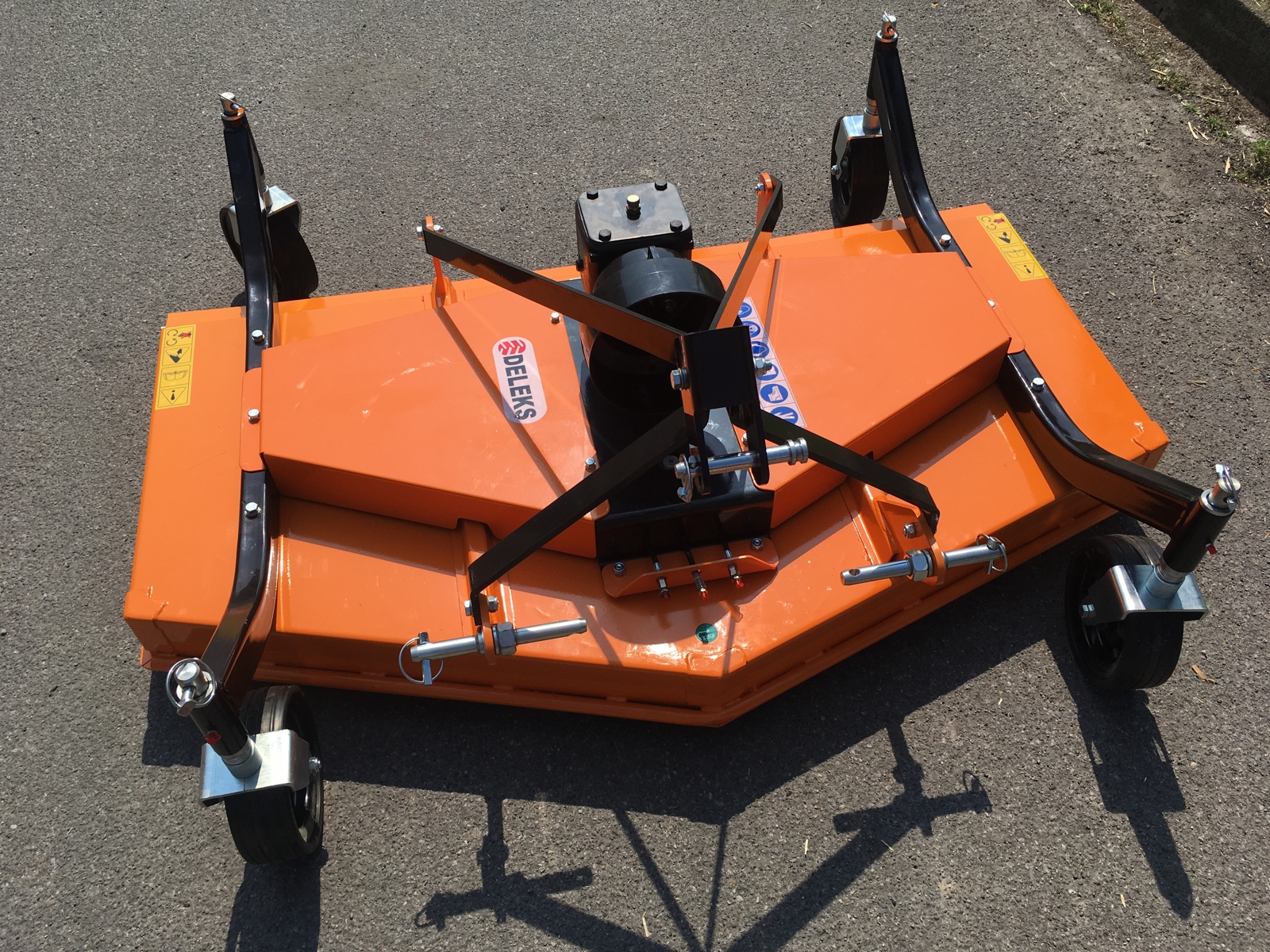

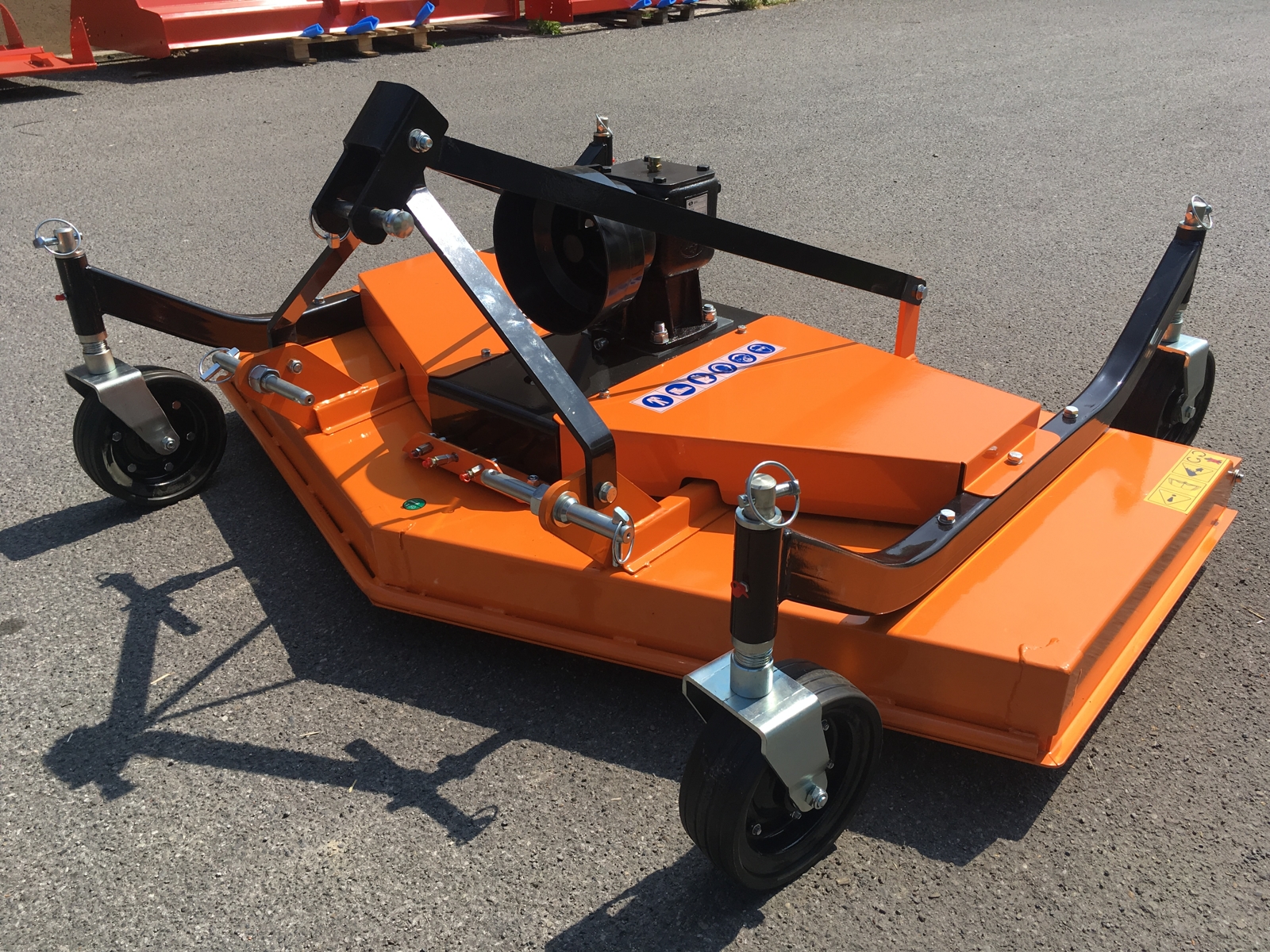

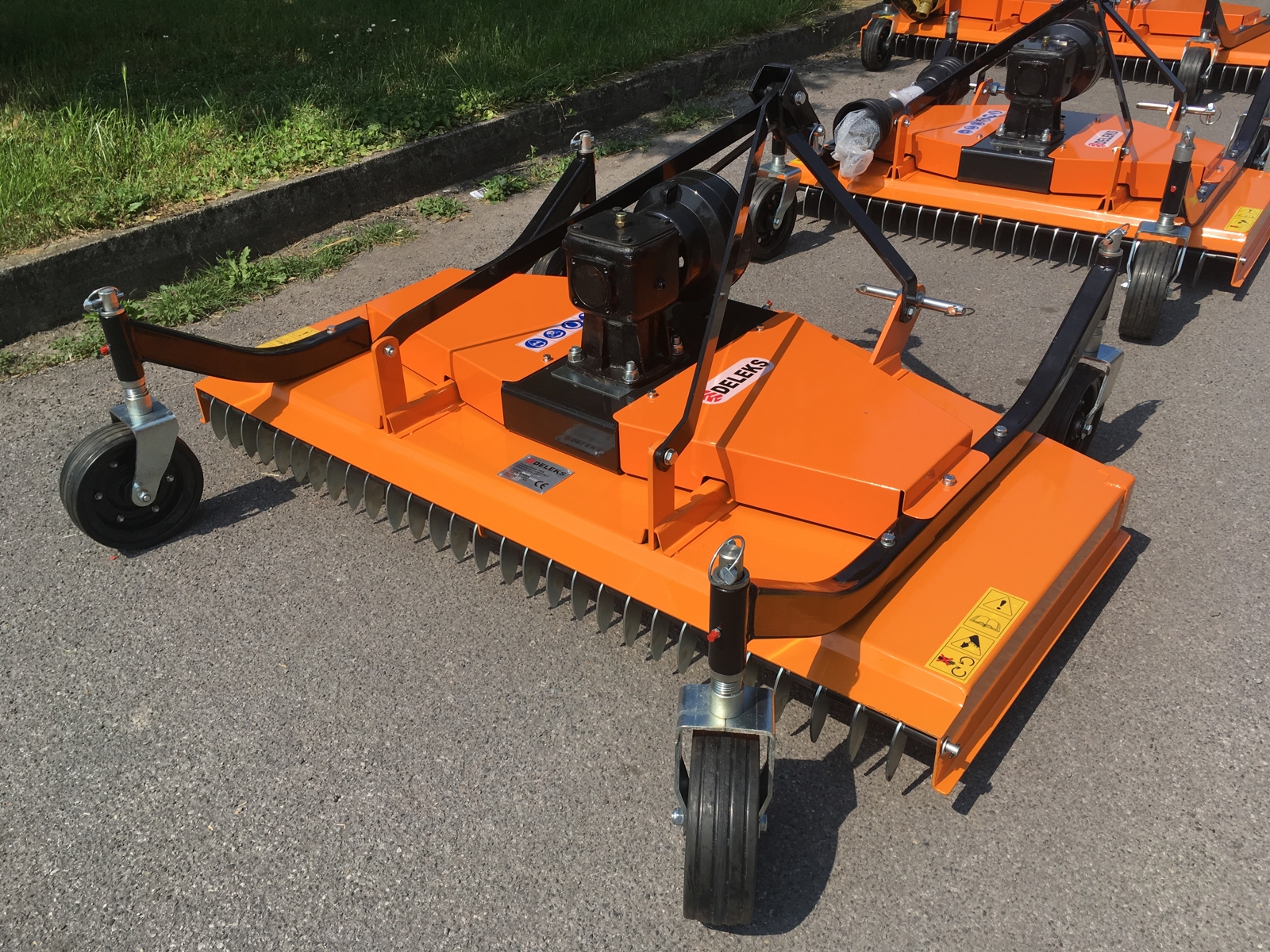

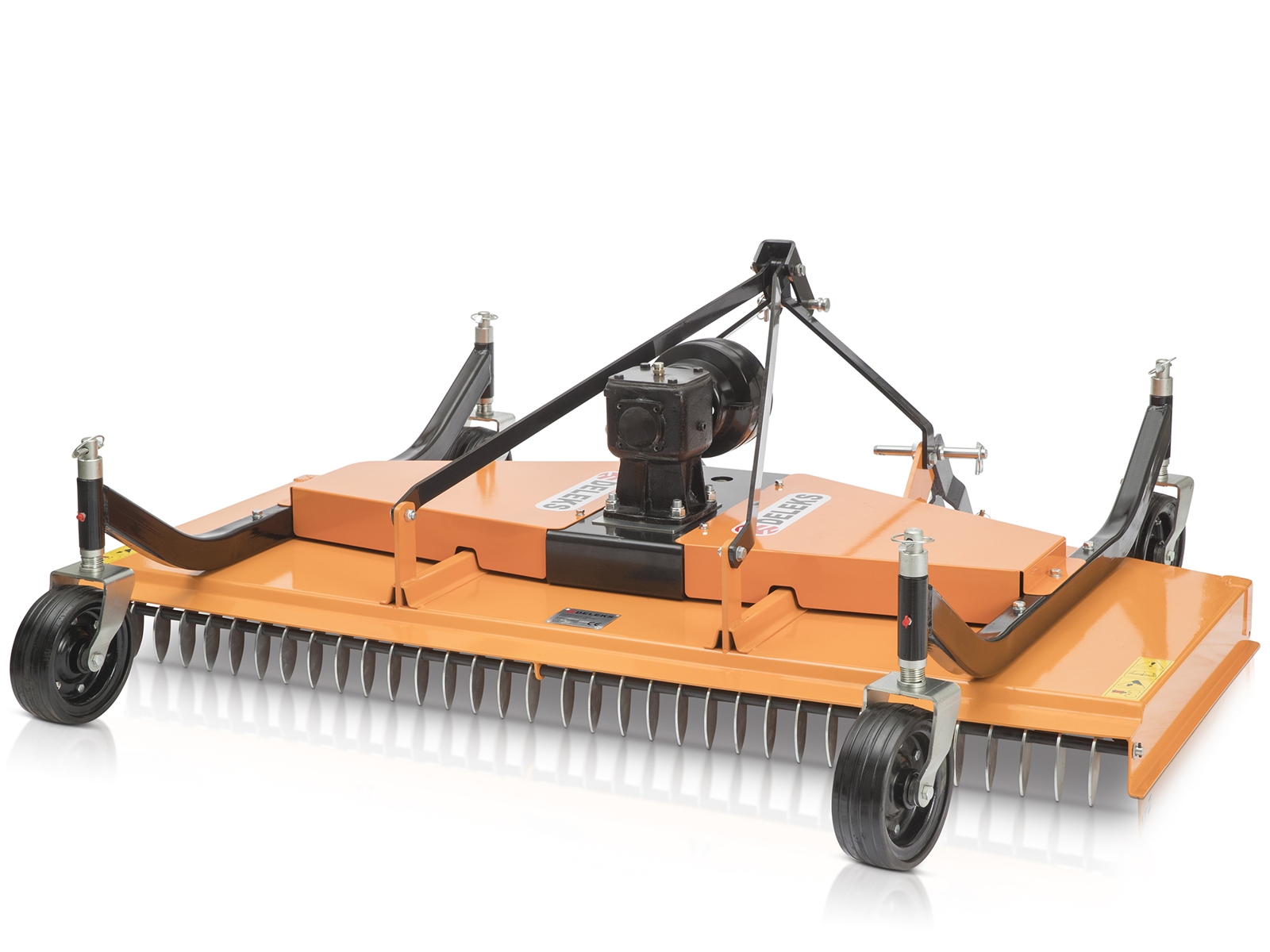

Finishing mower for tractor 150 cm (59 in) DM-150, 3-blade mower deck with 4 castor wheels and rear discharge for lawns, parks and sports grounds, for 18-45 hp tractors
DETAILS
Three-blade finishing mower for tractors with a 150 cm (59 in) cut: the DELEKS® DM-150 is the finishing mower deck for tractors from 18 to 45 hp, for mowing lawns, parks, gardens and sports grounds. Three horizontal blades turn at 2,600 rpm and leave a more even cut than hammer or blade flail mowers; discharge is to the rear and, with the optional kit, the deck mulches. Four castor wheels keep the deck parallel to the ground and set the cutting height from 5 to 50 mm. Frame in 4 mm steel, 2-belt drive, DELEKS® gearbox for a 540 rpm PTO with a 3-year warranty, weight 180 kg (397 lb). It is TÜV-certified and comes complete with a CE-approved PTO shaft with freewheel, a 2-year warranty and free delivery within the EU.
Which tractors it fits

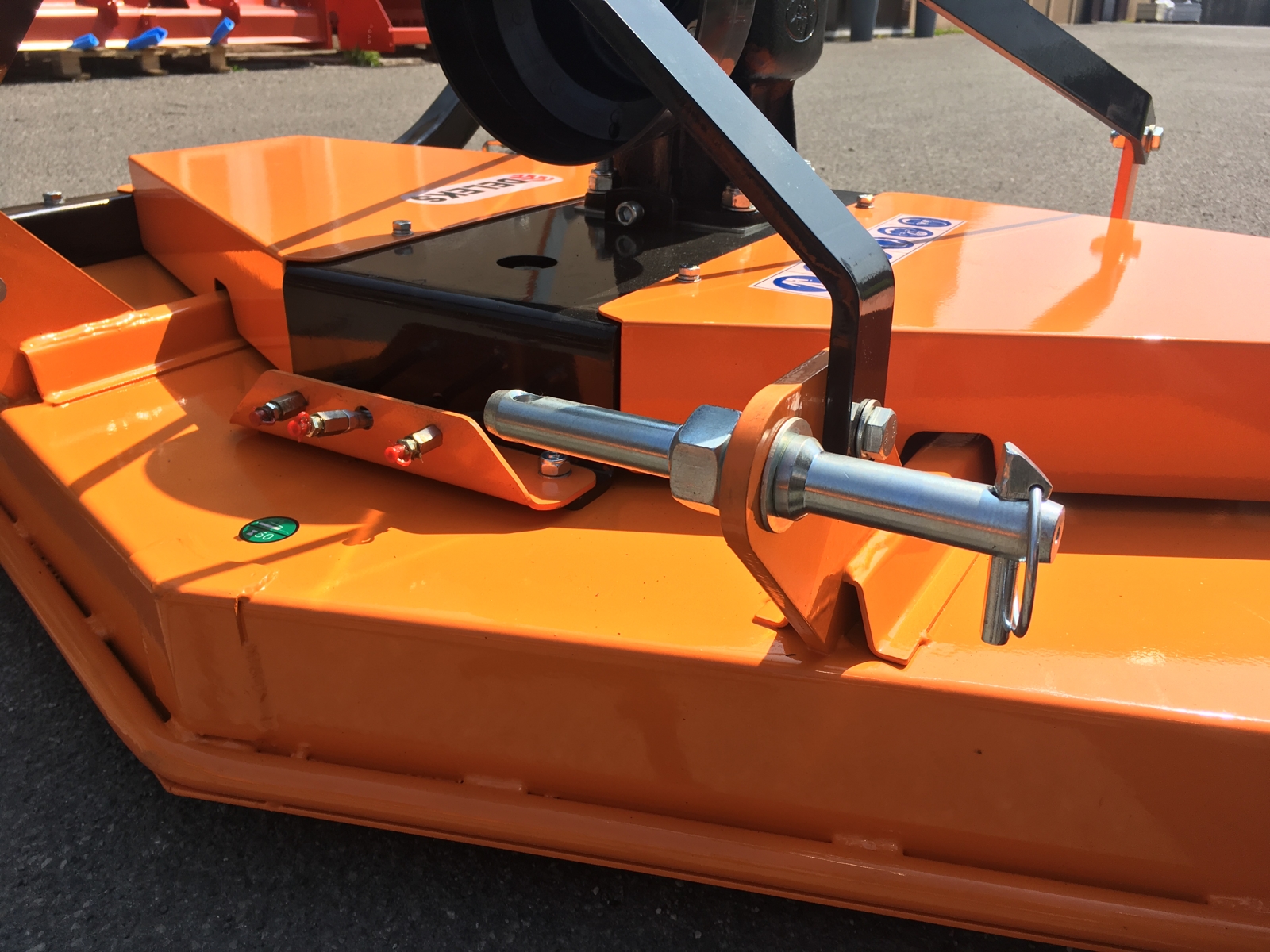

The DM-150 cuts 150 cm (59 in) and fits tractors of every make from 18 to 45 hp with a 540 rpm PTO and a category 1 three-point linkage (19-22 mm pins, lower link spacing from 375 to 715 mm): New Holland Boomer, John Deere 2 and 3 Series, Kubota B Series, Same, Carraro, Goldoni, BCS, Solis and equivalent tractors. The gearbox sits 450 mm (17.7 in) off the ground. Its light build suits low-powered tractors too, on level ground and on slopes; it is not made for rough farmland.

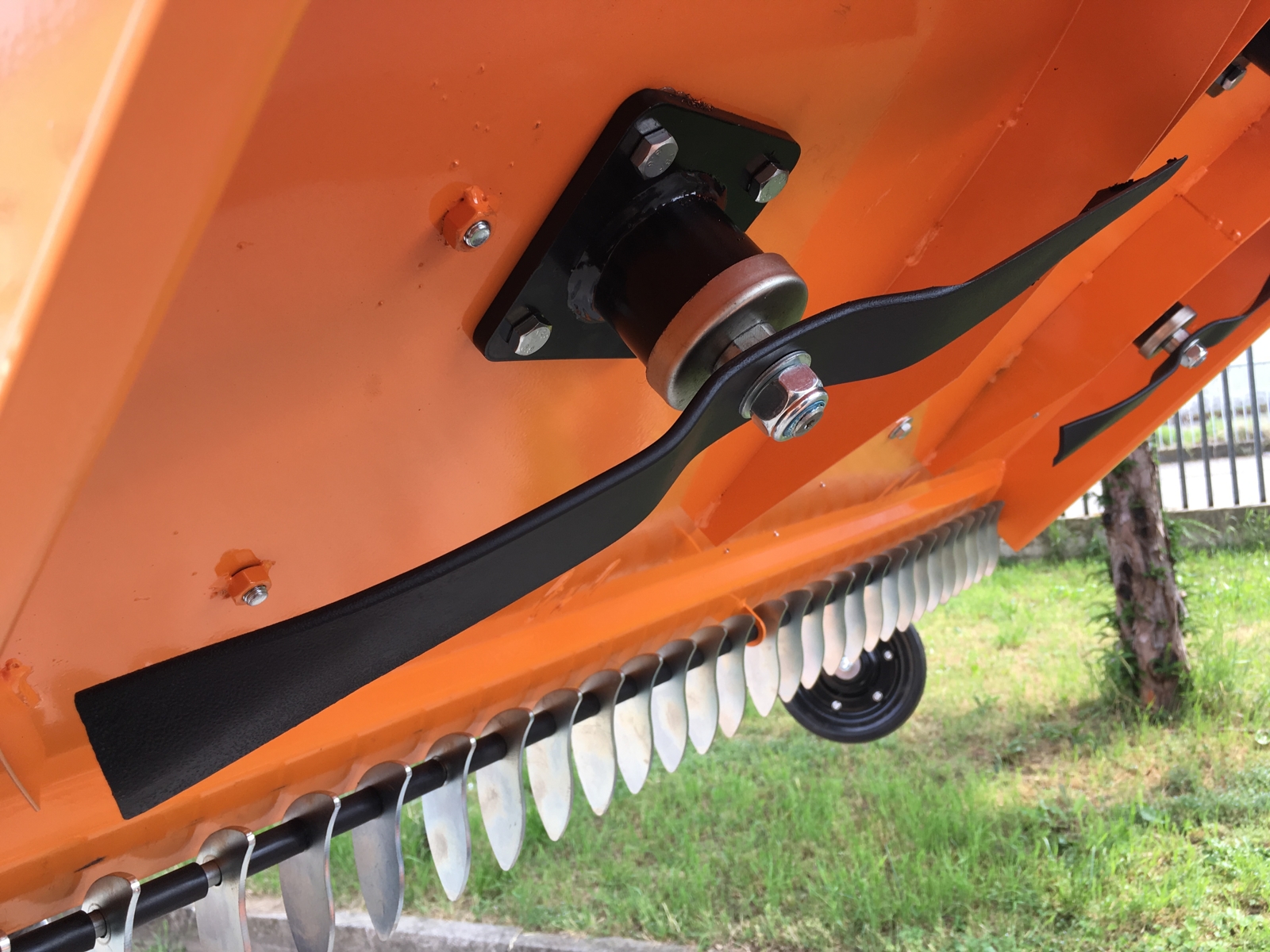

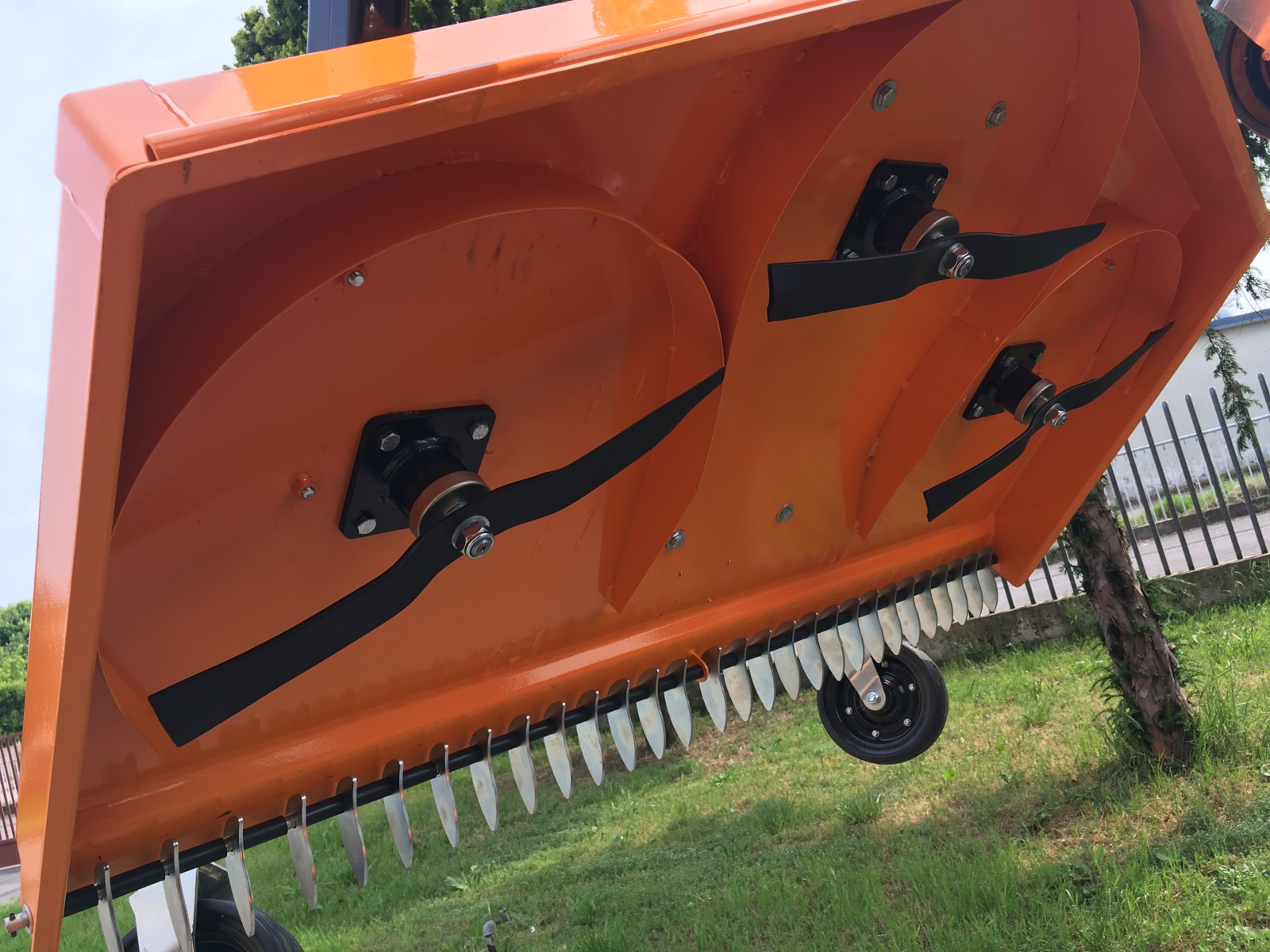

Three horizontal blades at 2,600 rpm

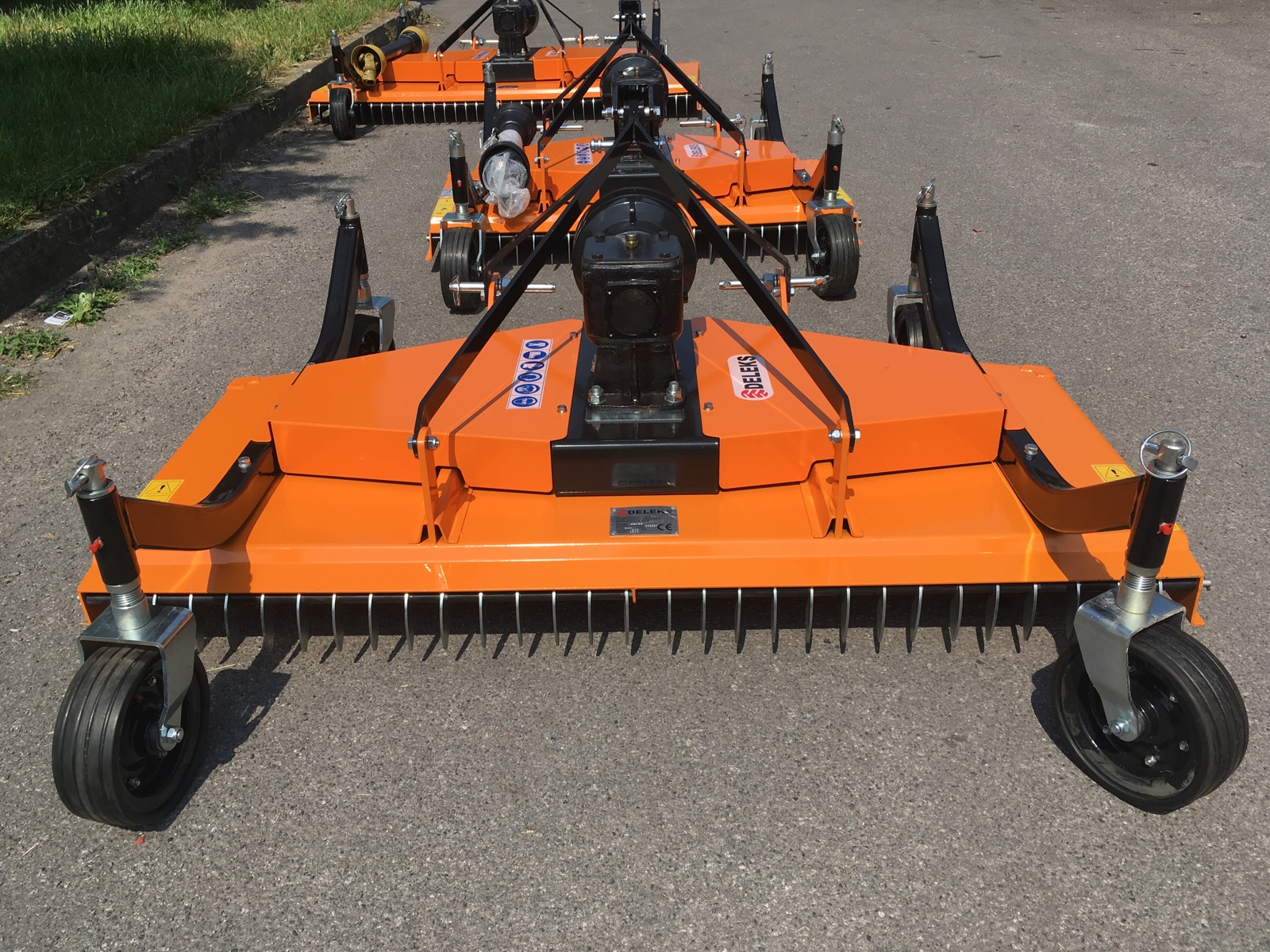

Three horizontal blades of 1,120 g, 500 mm long and 50 mm wide, turn at 2,600 rpm and pulverise the grass: compared with hammer or blade flail mowers the cut is more even and the lawn is left with a fine finish. Discharge is to the rear, guarded by a row of chains; with the mulching kit (MULCHINGDM150), an option, the grass is chopped fine and stays on the lawn.

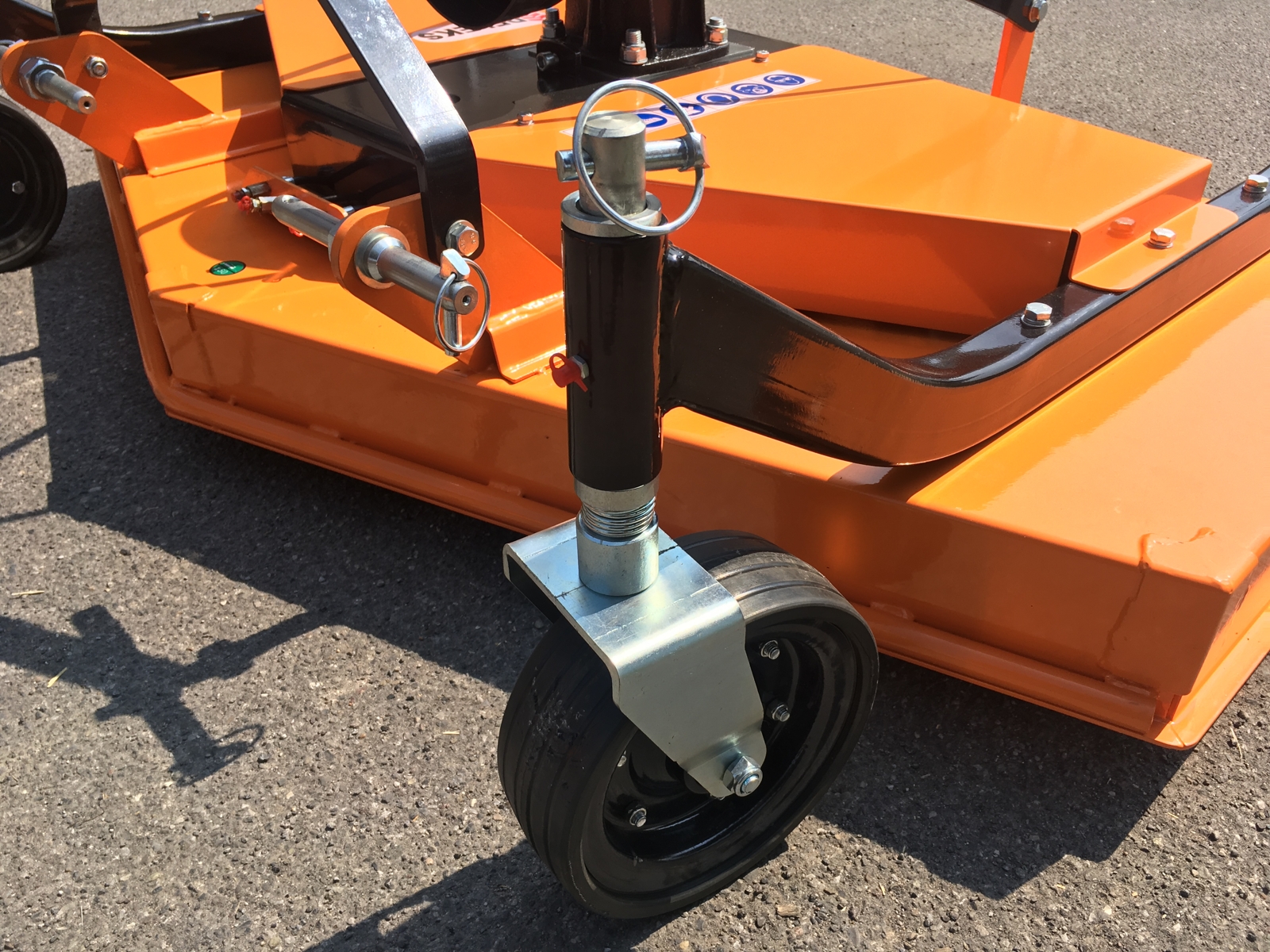

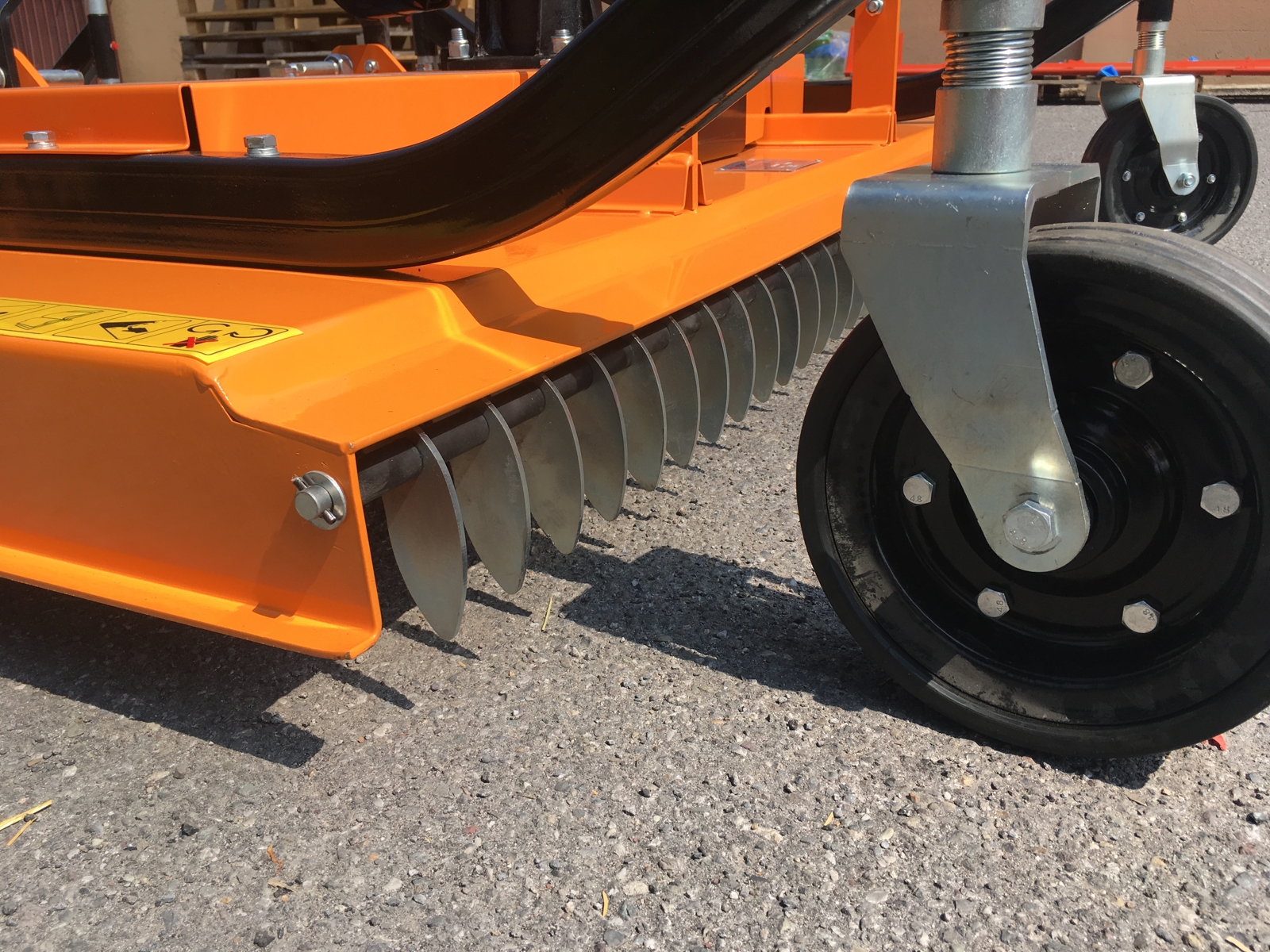

Four castor wheels and cutting height from 5 to 50 mm
Four castor wheels of 200 x 77 mm keep the deck parallel to the ground and are used to set the cutting height from 5 to 50 mm.
4 mm frame and belt drive
The frame is in 4 mm sheet steel. From the DELEKS® gearbox for a 540 rpm PTO, which has a 3-year warranty, the drive reaches the three blades through 2 V-belts, size 17x1753.

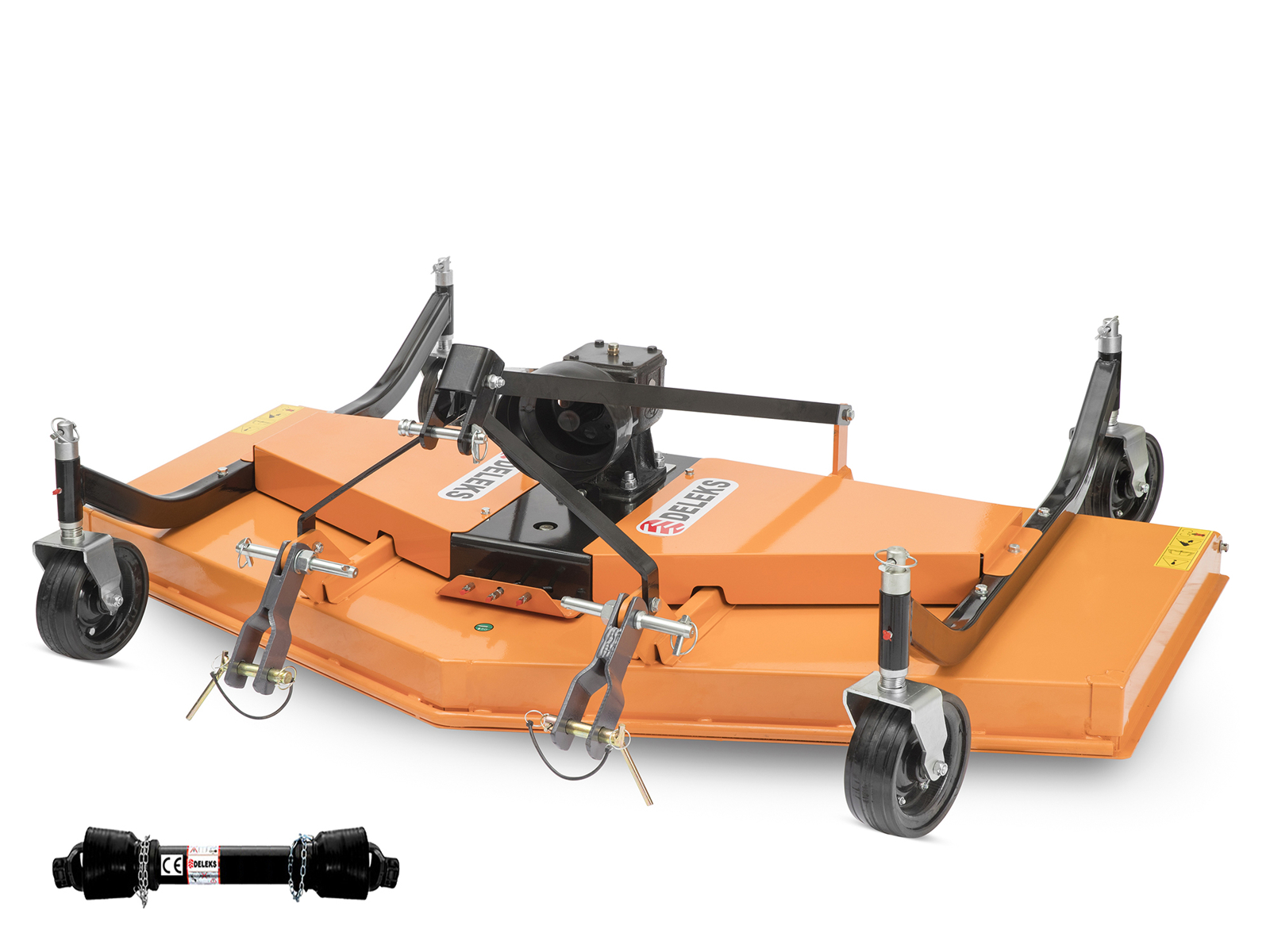

PTO shaft with freewheel
The CE-approved category 4 PTO shaft, 1,000 mm (39.4 in) long, with freewheel, is included: when you disengage the PTO the blades carry on turning under their own momentum and run down by themselves, without driving back through the tractor's transmission.
Dimensions, weight and delivery
Working width 1,500 mm (59.1 in), overall width 1,580 mm (62.2 in), length 1,250 mm (49.2 in), height 750 mm (29.5 in), weight 180 kg (397 lb). It ships on a pallet in packaging measuring 160 × 90 × 50 cm (63 × 35 × 20 in), 0.72 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.
Where it works
- Lawns, parks and gardens: a finishing cut from 5 to 50 mm
- Sports grounds and large areas of lawn
- Even ground: the 4 castor wheels keep the deck parallel to the surface
- Mulching cut with the optional kit
- Level ground and slopes, with tractors from 18 to 45 hp
Options and spares
From this page you can add to your order the mulching kit (MULCHINGDM150), the spare set of 2 belts (CINGHIEDM150), the set of 3 blades (COLTELLIDM150), spare pins for the three-point linkage (3PERNI1A) and the universal PTO adapter (RID1). Other spares are identified on the exploded diagrams with our technical team.
FAQ
What size tractor does the DM-150 need?
From 18 to 45 hp, with a 540 rpm PTO and a category 1 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 180 kg (397 lb).
What is the cutting height?
From 5 to 50 mm, adjustable with the four castor wheels.
Does it mulch?
As standard, discharge is to the rear. With the mulching kit (MULCHINGDM150), an option, the grass is chopped fine and left on the lawn.
Finishing mower or flail mower?
The finishing mower cuts with horizontal blades and leaves the lawn with a fine finish; the flail mower shreds tall grass, brambles and branches with hammers or blades. The DM-150 gives a better cut on lawns, but it is not suitable for rough farmland.
Which size should I choose?
The DM-120 cuts 120 cm and works from 12 hp; the DM-150 cuts 150 cm, from 18 hp; the DM-180 cuts 180 cm, from 25 hp.
Can the blades and belts be replaced?
Yes: the set of 3 blades (COLTELLIDM150) and the set of 2 belts (CINGHIEDM150) can be ordered from this page.
Is the PTO shaft included?
Yes: a CE-approved category 4 PTO shaft, 1,000 mm (39.4 in) long, with freewheel.
How does it differ from the DM-INTERFILA?
The DM-INTERFILA models add the hydraulic side shift and a 60 cm side disc that cuts between one plant and the next in the row: they work across 200 or 230 cm, in vineyards and orchards.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: blades, chains, belts, bearings, wheels, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower deck and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1500.0 mm |
| Overall width | 1580.0 mm |
| Min / Max cutting height | 5.0 - 50.0 mm |
| Weight | 180.0 kg |
| Overall height | 750.0 mm |
| Tractor Power Range | 18-45 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Spacing between the 2 lower points | 375.0-715.0 mm |
| Overall length | 1250.0 mm |
| Distance between pto attachment and ground | 450.0 mm |
| Main hood thickness | 4.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: Gearbox | DELEKS (3 years warranty) |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Transmission: V-Belts quantity | 2 |
| Transmission: V-Belts size | 17x1753 |
| Number of Blades | 3 |
| Transmission: RPM Blade speed | 2600 r/min |
| Blades: Weight | 1120.0 g |
| Blades: Diameter of the hole | 20.0 mm |
| Wheels: Quantity | 4 |
| Wheels: Diameter / Width | 200.0/77.0 mm |
| Pto shaft | CE 4x1000 mm + freewheel |
| Blades: Sizes | 500.0/50.0 mm |
| Transmission: Pulleys diameter | 245.0/14.0 mm |
| Gross shipping weight | 260 kg |
| Package volume | 0.72 m3 |
| Packing sizes | 1600.0*900.0*500.0 mm |
