Finishing mower for tractor 180 cm (71 in) DM-180, 3-blade mower deck with 4 castor wheels and rear discharge for lawns, parks and sports grounds, for 25-50 hp tractors

Available
Code DM180PTO - EAN 8053470231193
D
H
M
S
-285,00€ 1.581,00€VAT incl.
1.296,00€VAT incl.
or 3 installments of 432,00 €
Free shipping
Loading...
D
H
M
S
-285,00€ 1.581,00€VAT incl.
1.296,00€VAT incl.
or 3 installments of 432,00 €
Free shipping
View all details.
CUTTING WIDTH
120 150 180

reviews

-285,00€ 1.581,00€VAT incl.
1.296,00€VAT incl.
 REQUEST INFORMATION

VIDEO
Field test
Field test

DETAILS

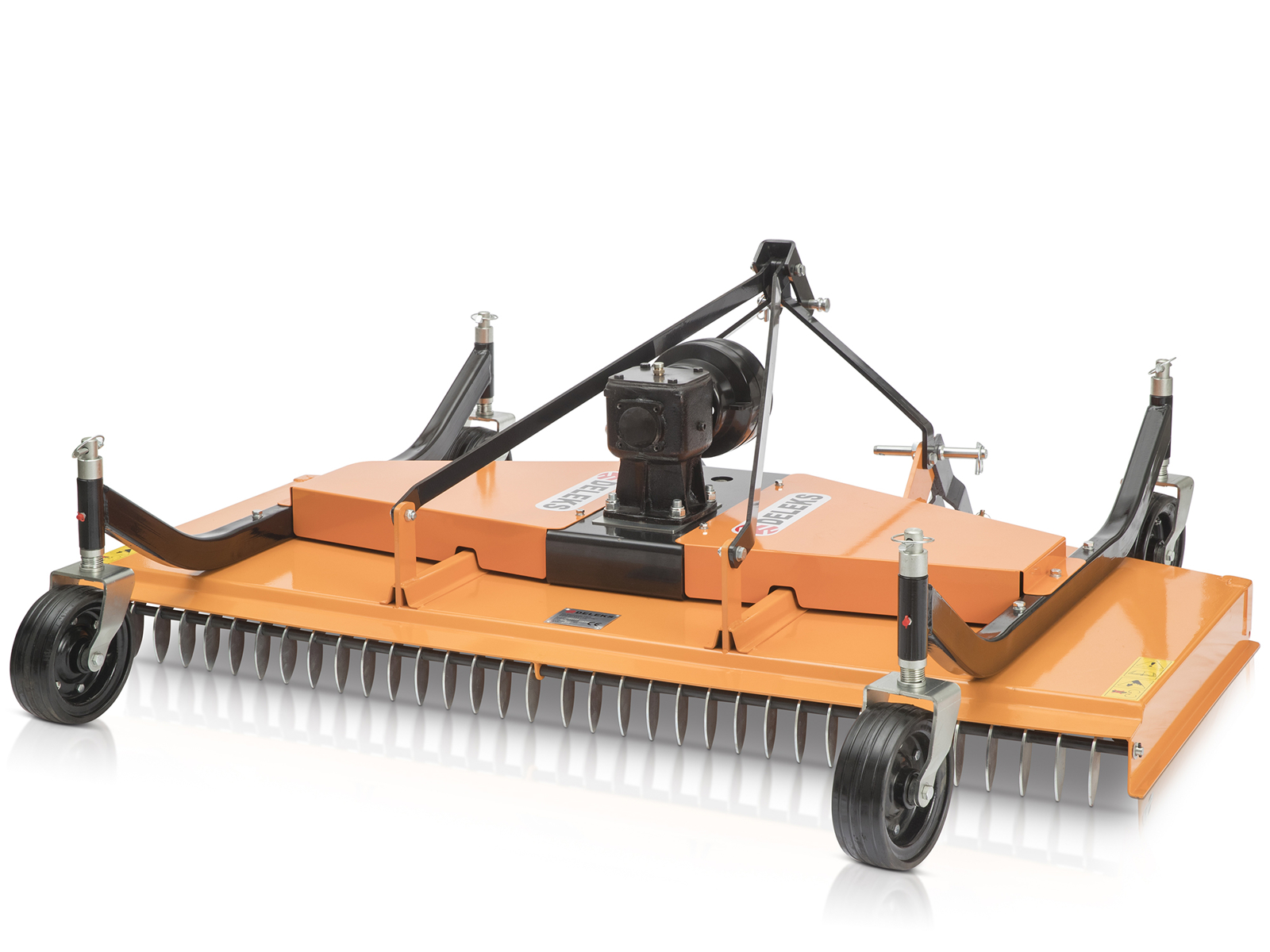

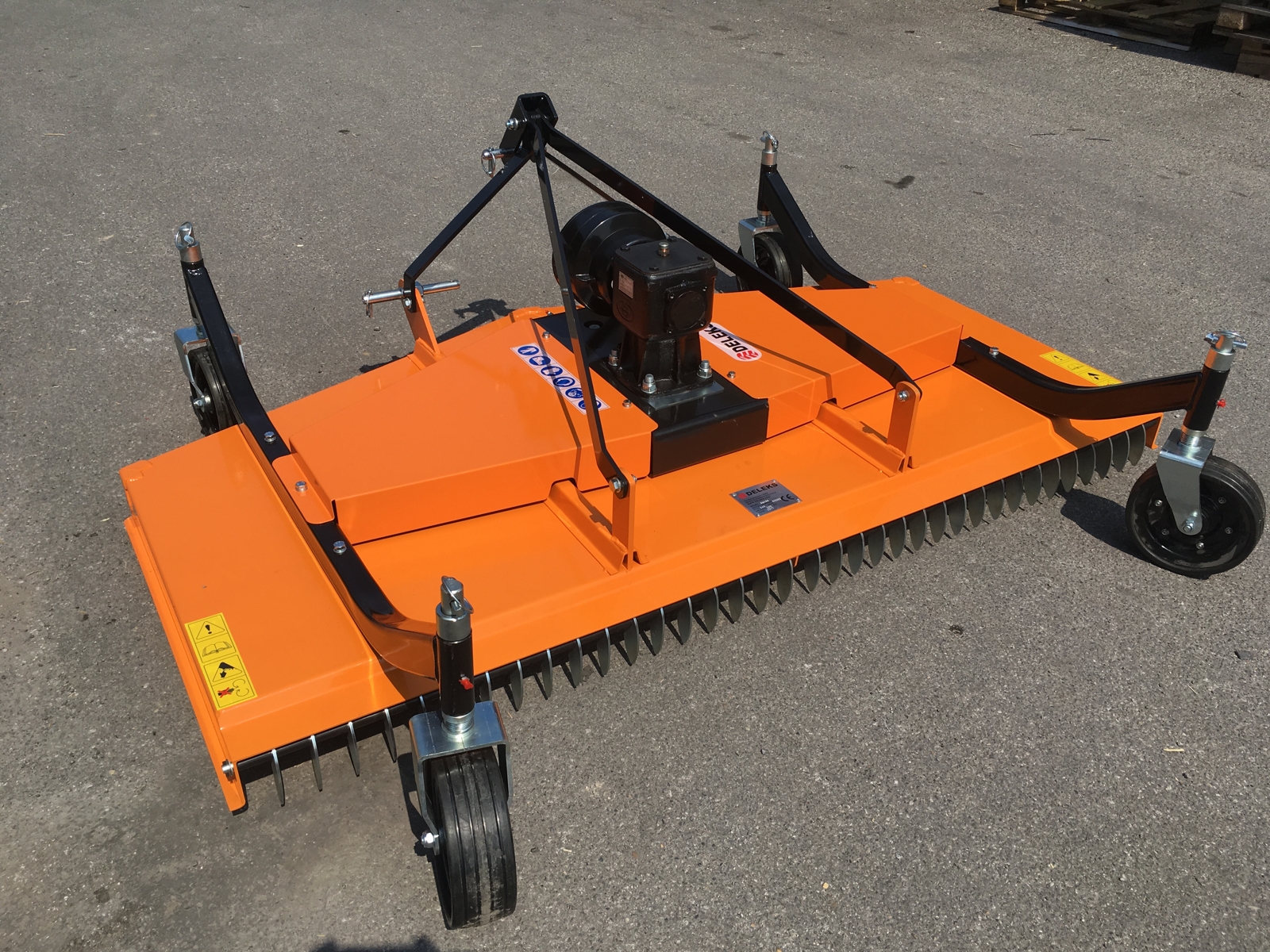

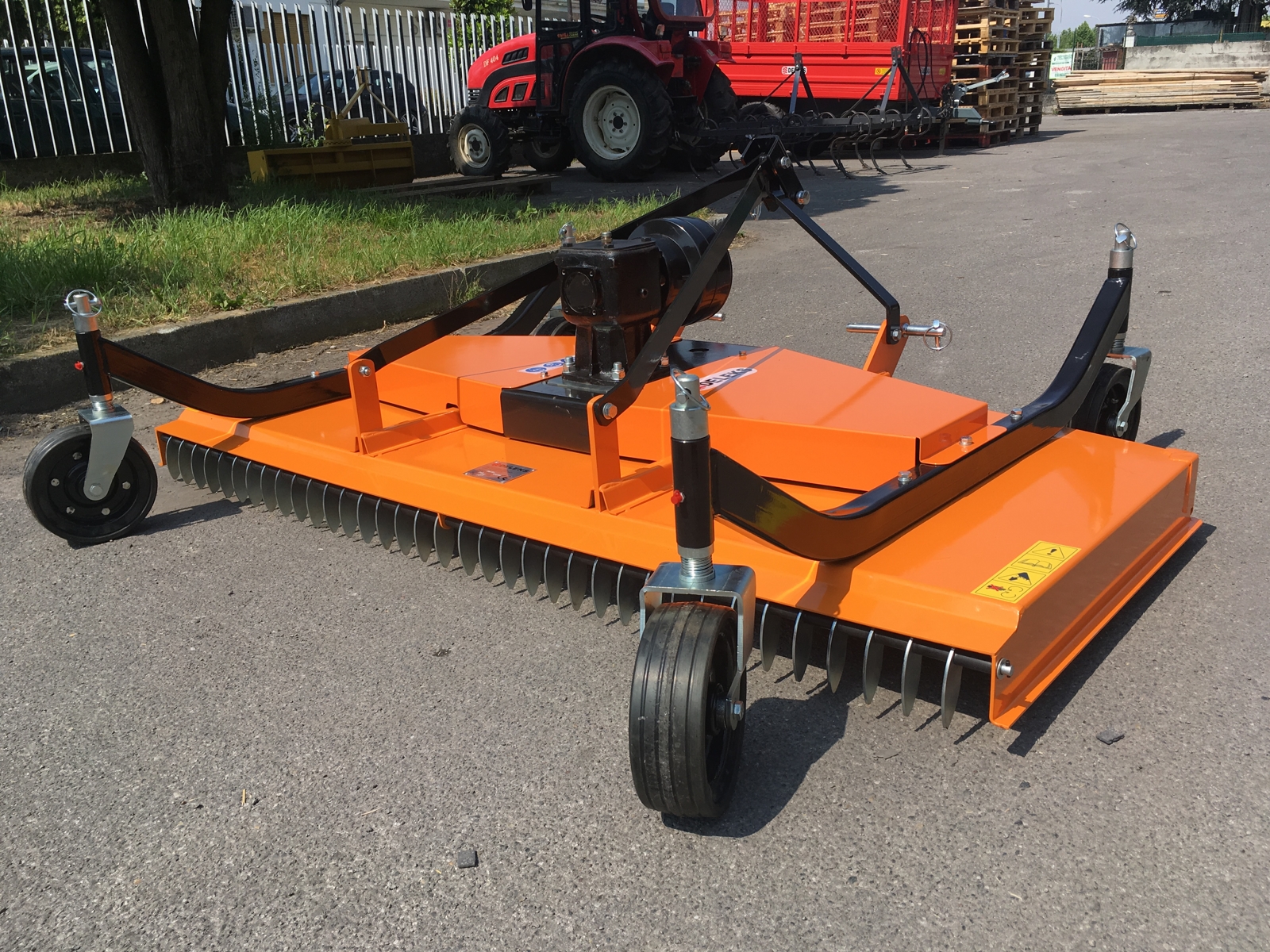

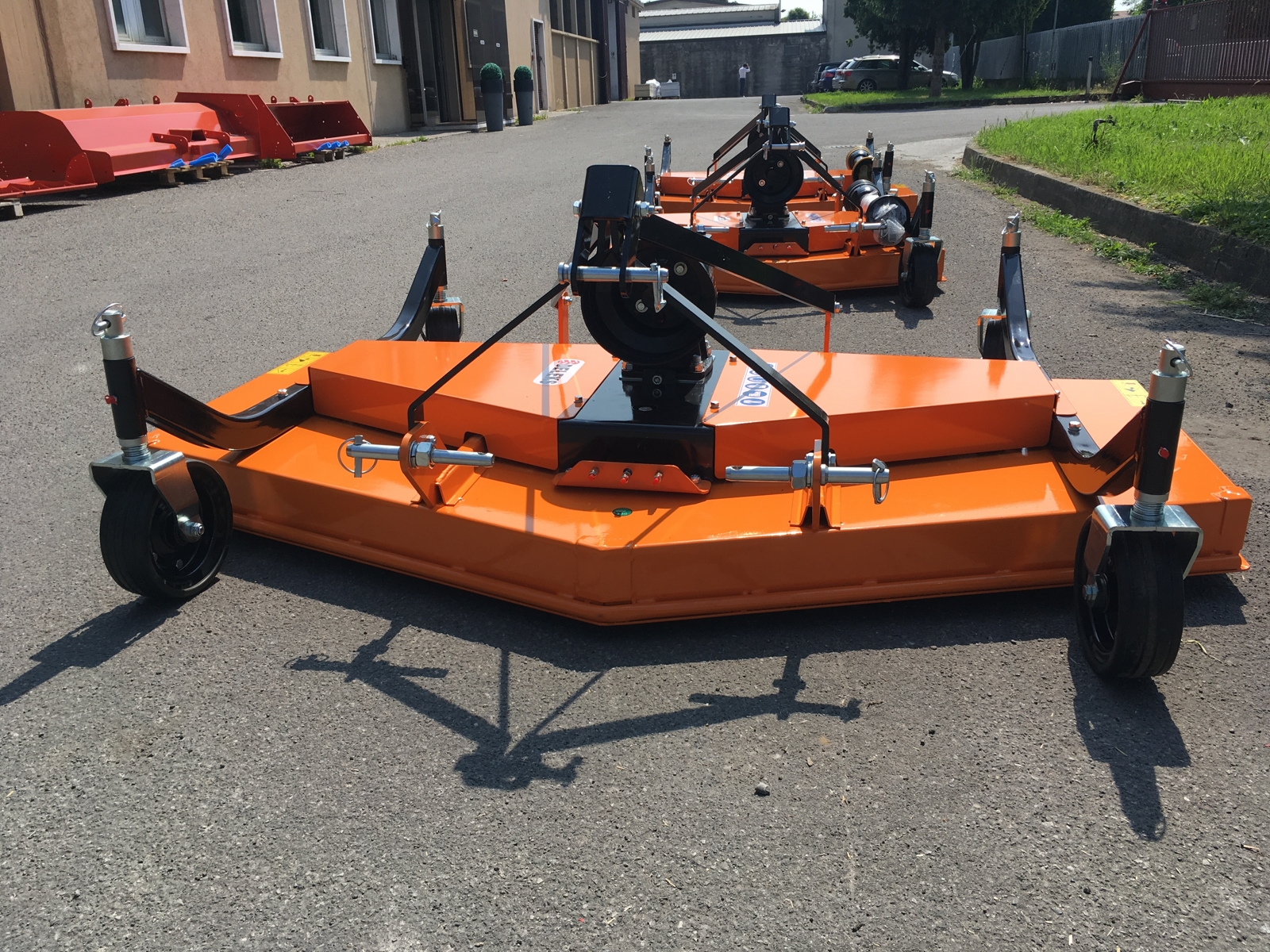

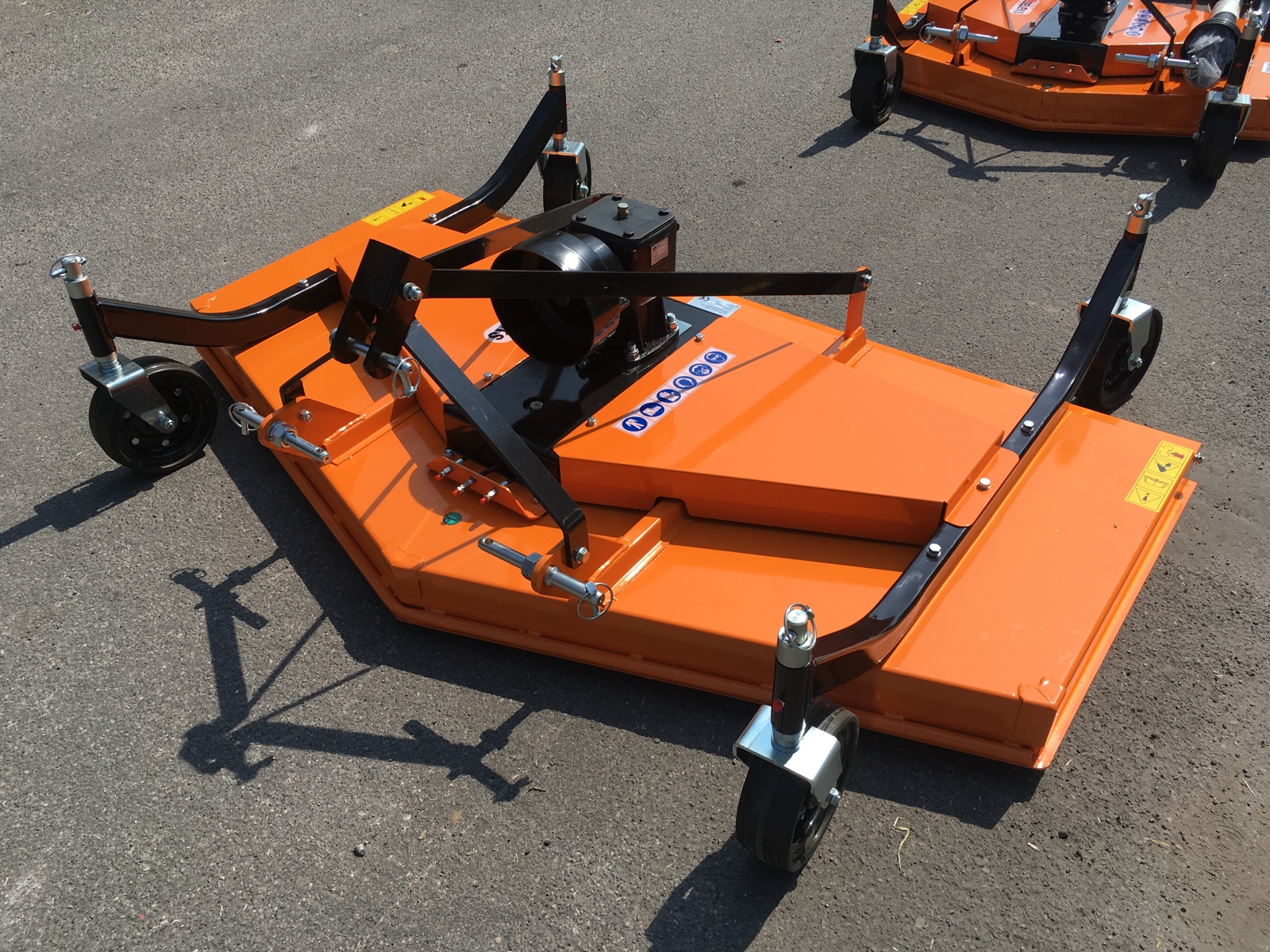

Three-blade finishing mower for tractors with a 180 cm (71 in) cut: the DELEKS® DM-180 is the finishing mower deck for tractors from 25 to 50 hp, for mowing lawns, parks, gardens and sports grounds. Three horizontal blades turn at 2,600 rpm and leave a more even cut than hammer or blade flail mowers; discharge is to the rear and, with the optional kit, the deck mulches. Four castor wheels keep the deck parallel to the ground and set the cutting height from 5 to 50 mm. Frame in 4 mm steel, 2-belt drive, DELEKS® gearbox for a 540 rpm PTO with a 3-year warranty, weight 205 kg (452 lb). It is TÜV-certified and comes complete with a CE-approved PTO shaft with freewheel, a 2-year warranty and free delivery within the EU.


Which tractors it fits

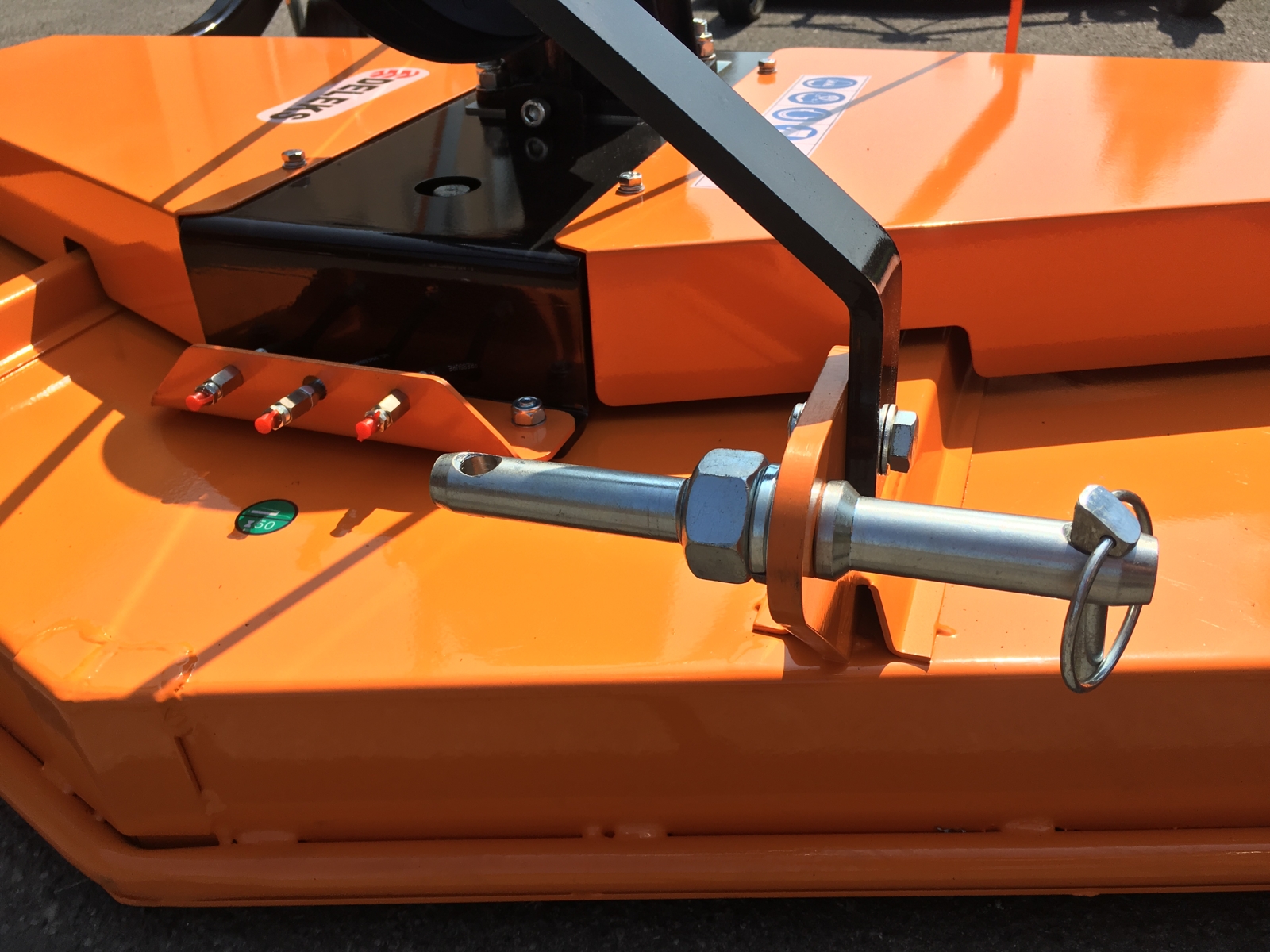

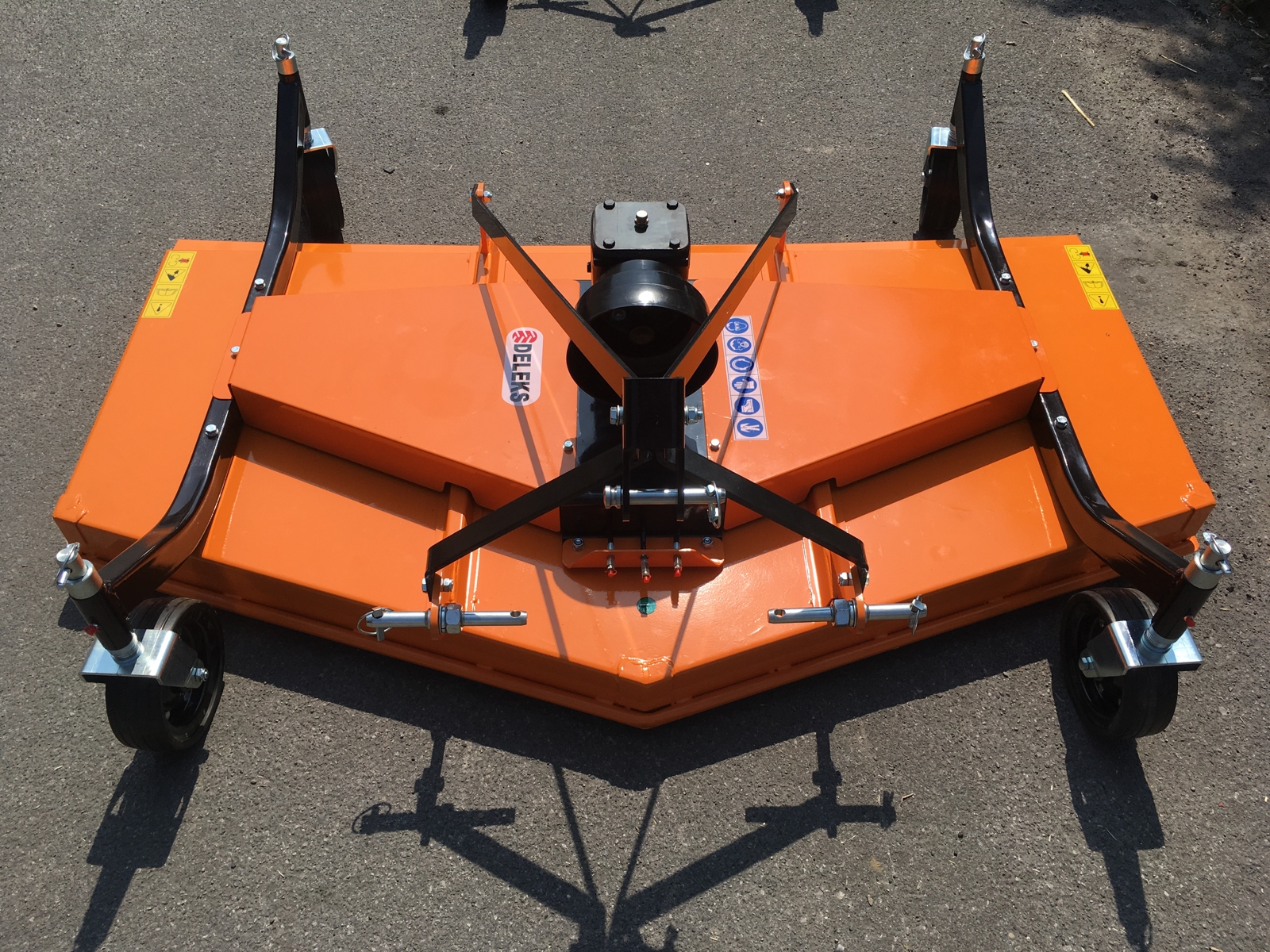

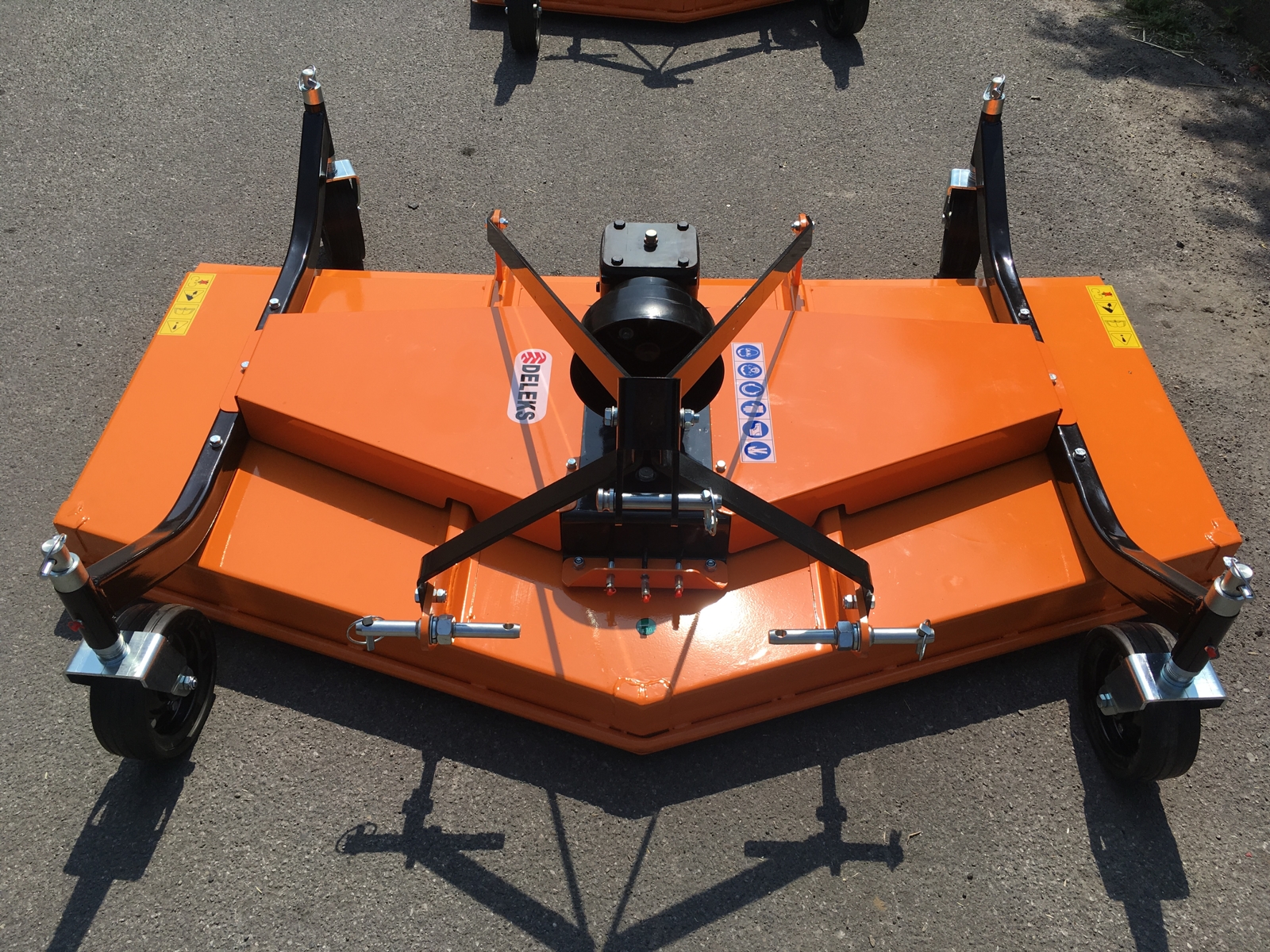

The DM-180 cuts 180 cm (71 in) and fits tractors of every make from 25 to 50 hp with a 540 rpm PTO and a category 1 three-point linkage (19-22 mm pins, lower link spacing from 375 to 715 mm): New Holland Boomer, John Deere 3 Series, Kubota B and L Series, Landini Mistral, Same, Carraro, Goldoni, Solis and equivalent tractors. The gearbox sits 450 mm (17.7 in) off the ground. Its light build suits low-powered tractors too, on level ground and on slopes; it is not made for rough farmland.

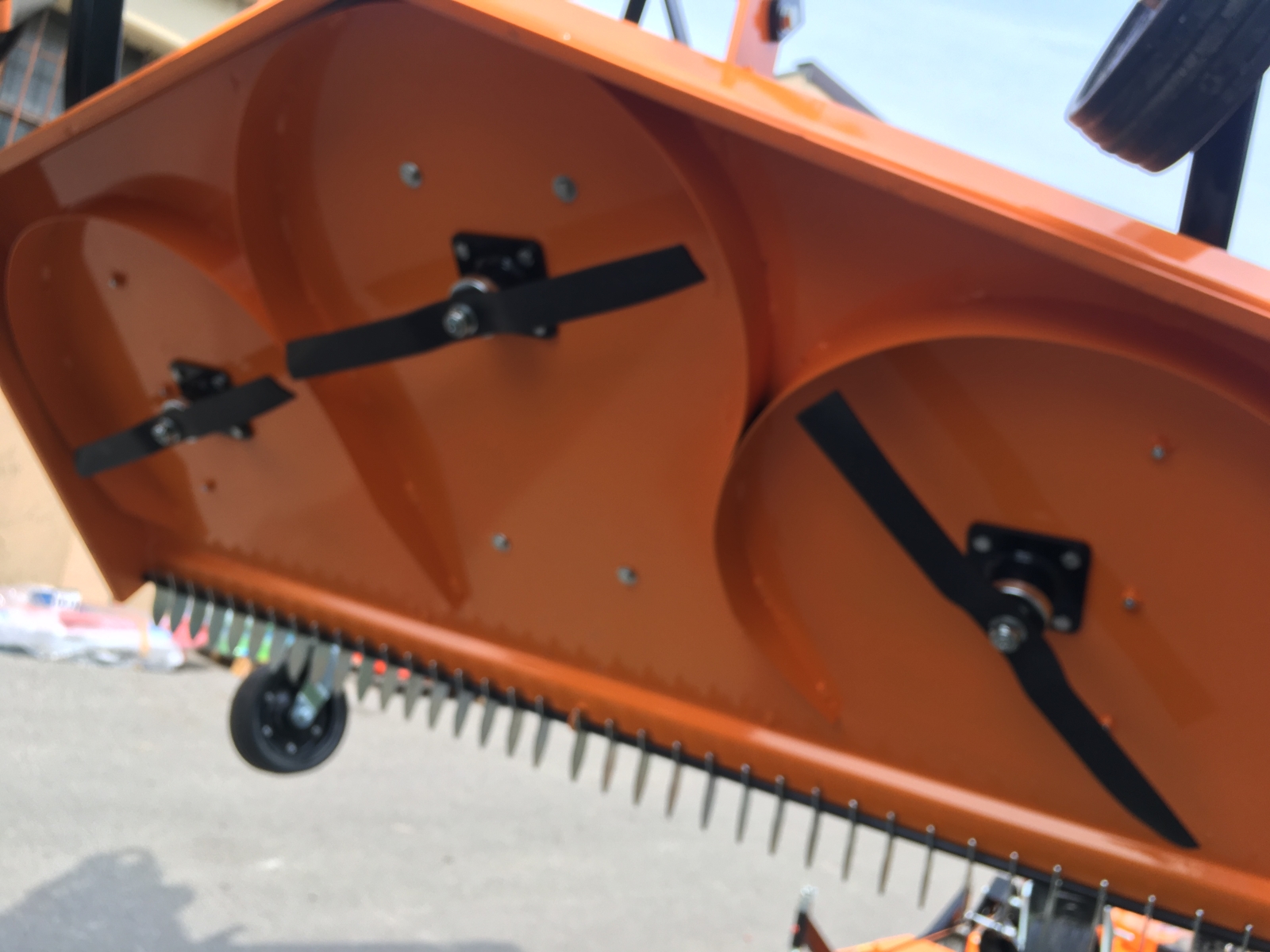

Three horizontal blades at 2,600 rpm

Three horizontal blades of 1,320 g, 600 mm long and 50 mm wide, turn at 2,600 rpm and pulverise the grass: compared with hammer or blade flail mowers the cut is more even and the lawn is left with a fine finish. Discharge is to the rear, guarded by a row of chains; with the mulching kit (MULCHINGDM180), an option, the grass is chopped fine and stays on the lawn.

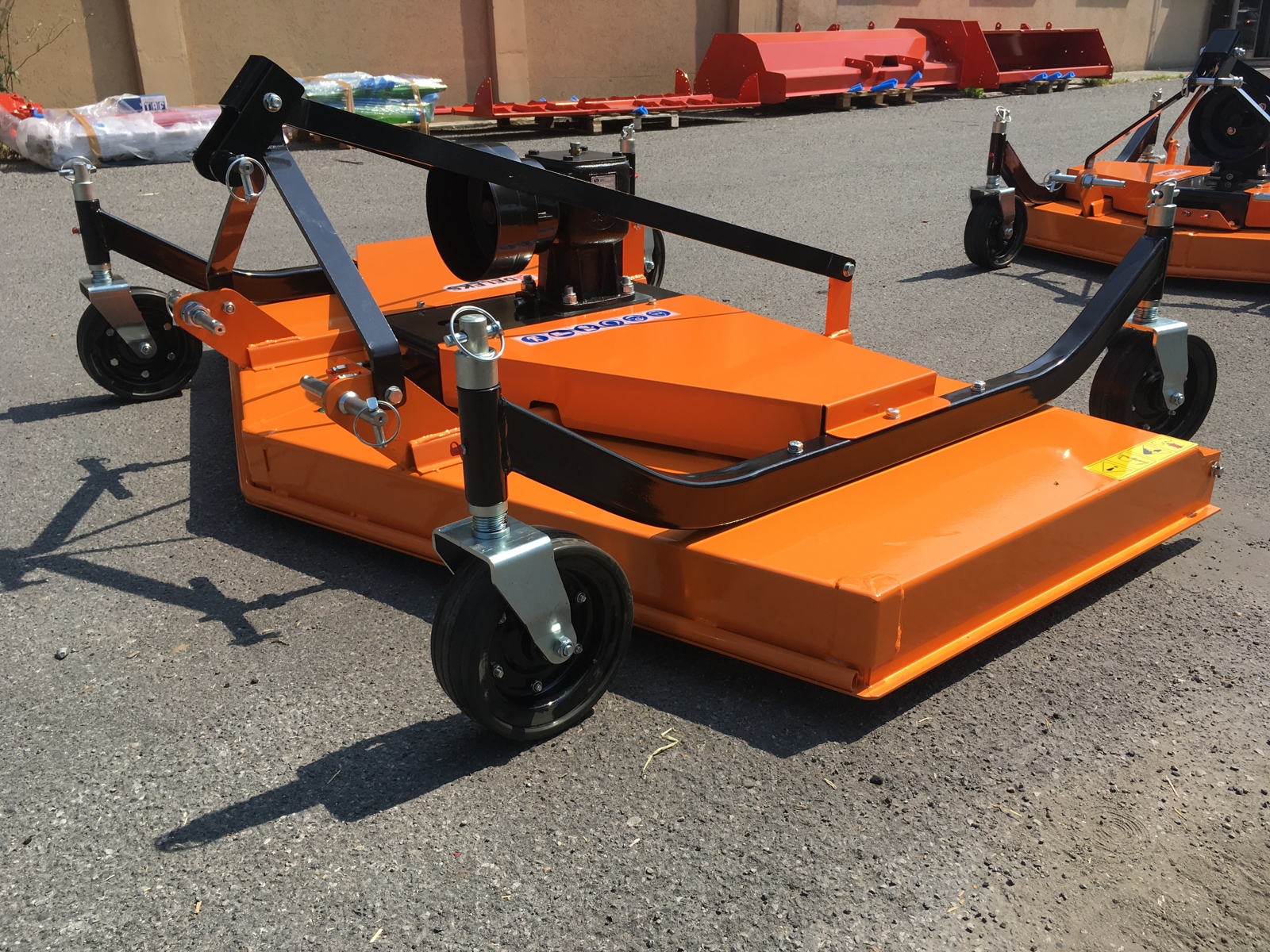

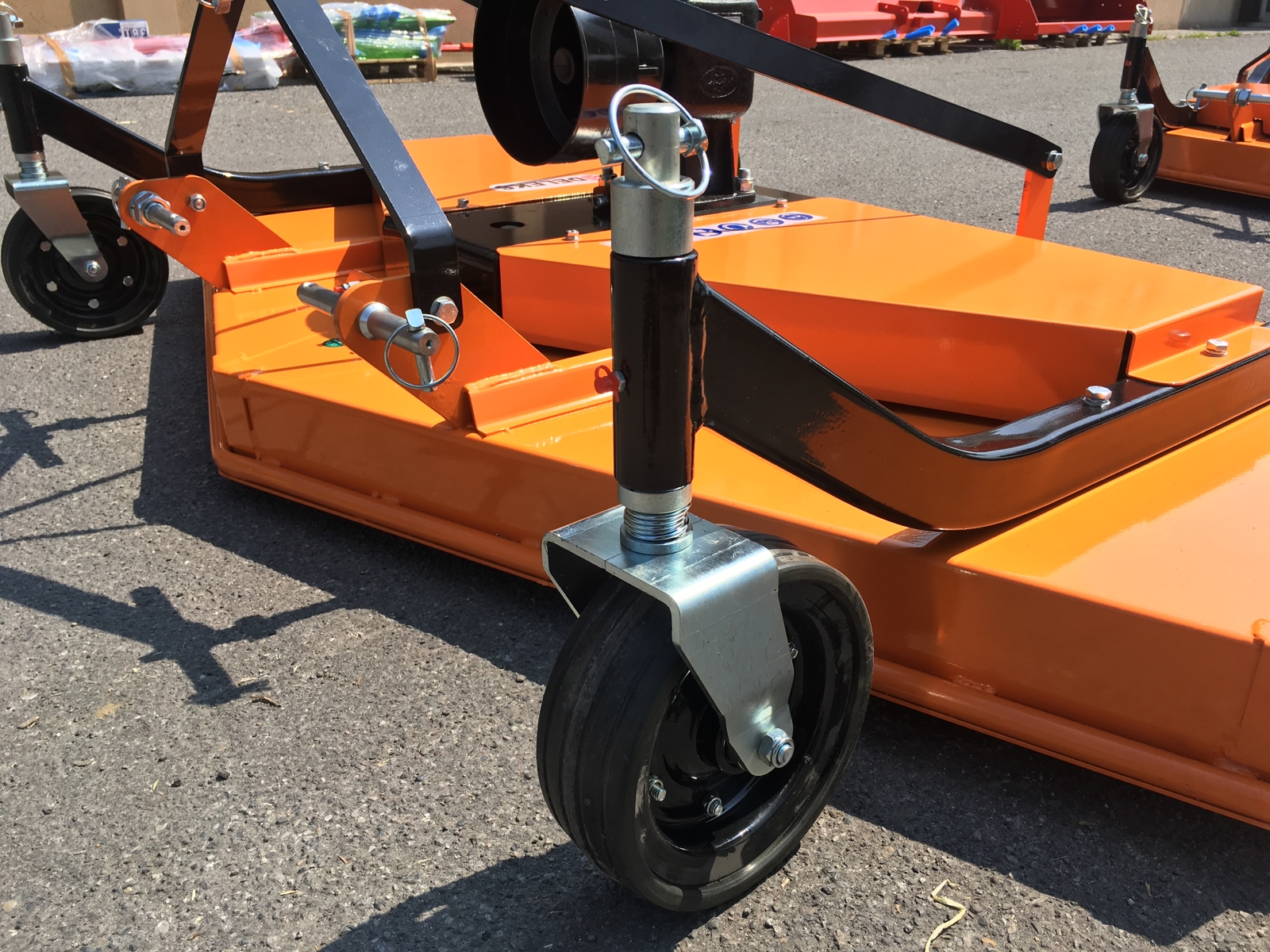

Four castor wheels and cutting height from 5 to 50 mm

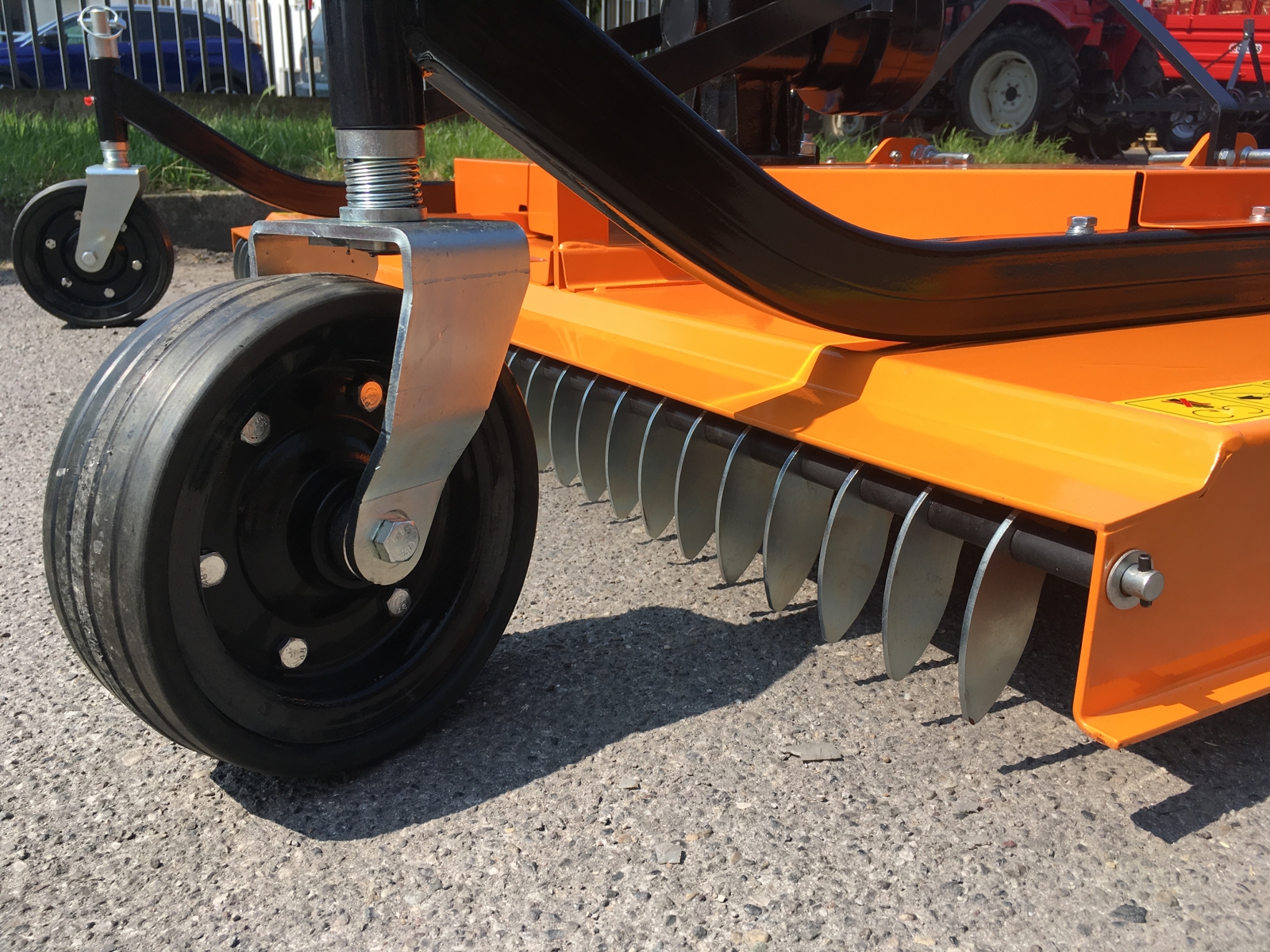

Four castor wheels of 200 x 77 mm keep the deck parallel to the ground and are used to set the cutting height from 5 to 50 mm.


4 mm frame and belt drive

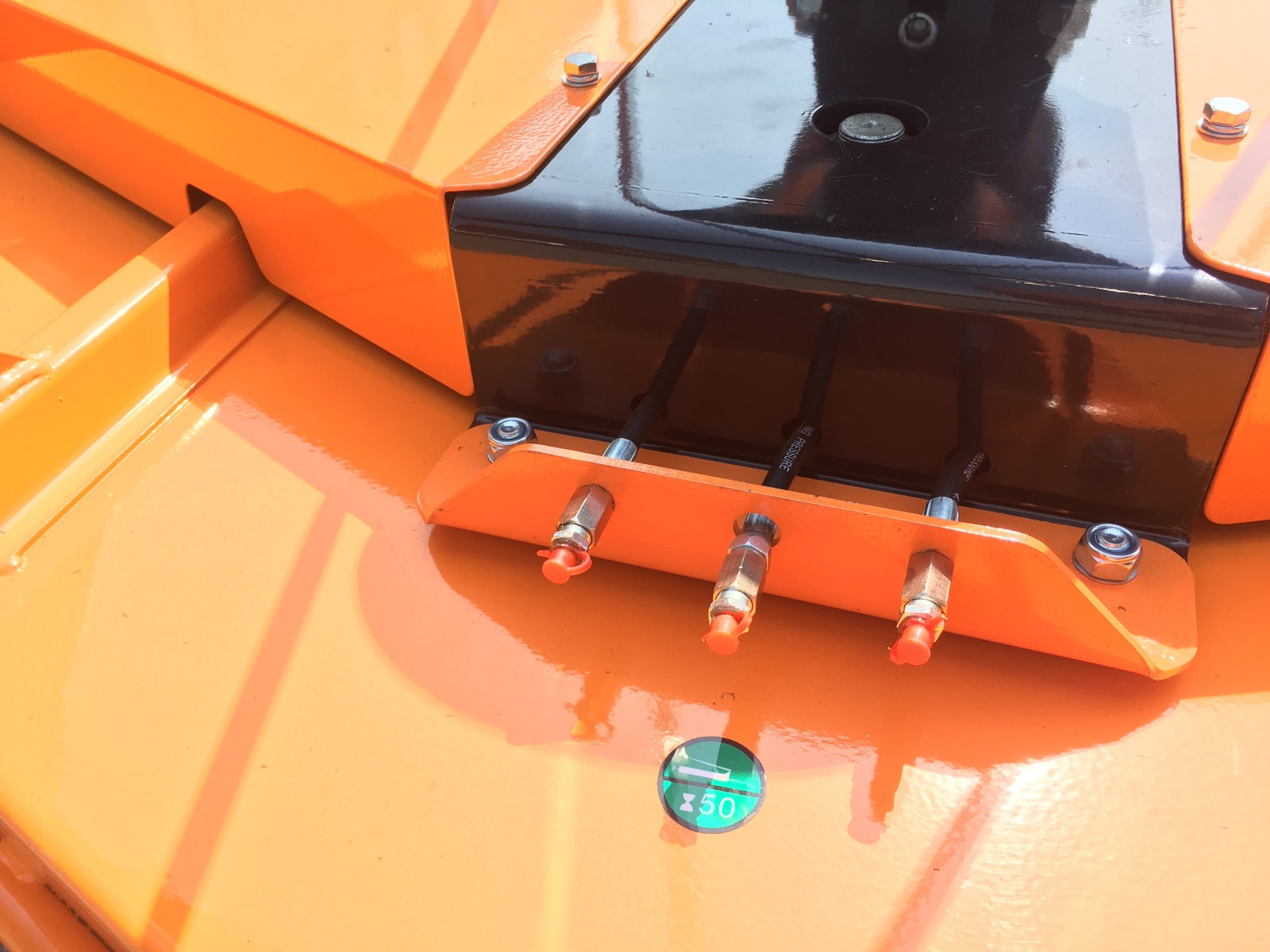

The frame is in 4 mm sheet steel. From the DELEKS® gearbox for a 540 rpm PTO, which has a 3-year warranty, the drive reaches the three blades through 2 V-belts, size 17x1930.

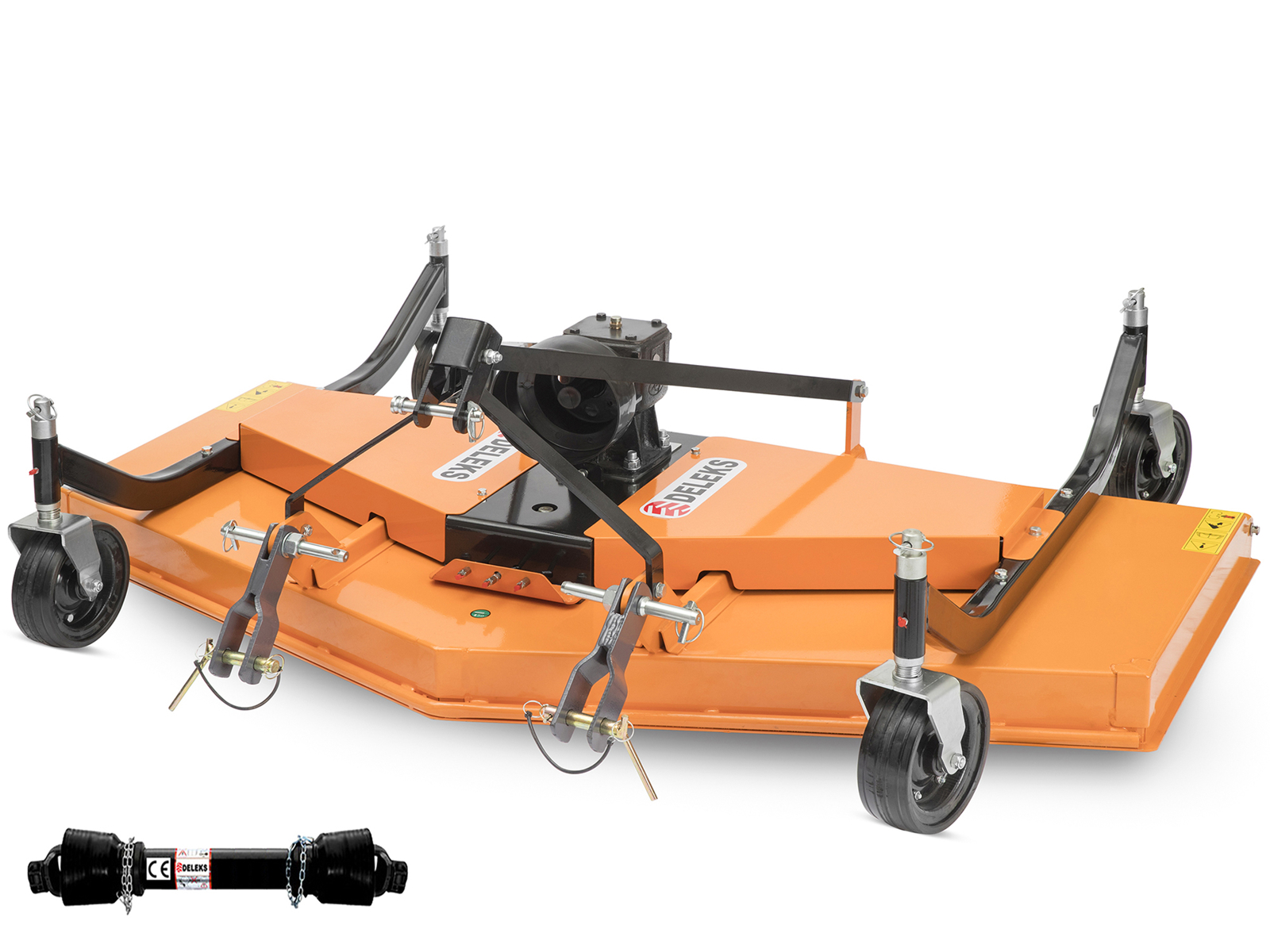

PTO shaft with freewheel

The CE-approved category 4 PTO shaft, 1,000 mm (39.4 in) long, with freewheel, is included: when you disengage the PTO the blades carry on turning under their own momentum and run down by themselves, without driving back through the tractor's transmission.


Dimensions, weight and delivery

Working width 1,800 mm (70.9 in), overall width 1,880 mm (74 in), length 1,350 mm (53.1 in), height 750 mm (29.5 in), weight 205 kg (452 lb). It ships on a pallet in packaging measuring 190 × 100 × 50 cm (75 × 39 × 20 in), 0.95 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.


Where it works

  • Lawns, parks and gardens: a finishing cut from 5 to 50 mm
  • Sports grounds and large areas of lawn
  • Even ground: the 4 castor wheels keep the deck parallel to the surface
  • Mulching cut with the optional kit
  • Level ground and slopes, with tractors from 25 to 50 hp

Options and spares

From this page you can add to your order the mulching kit (MULCHINGDM180), the spare set of 2 belts (CINGHIEDM180), the set of 3 blades (COLTELLIDM180), spare pins for the three-point linkage (3PERNI1A), the universal PTO adapter (RID1), the 680 mm (26.8 in) top link (BE0124) and the 730 mm (28.7 in) top link (BE0125). Other spares are identified on the exploded diagrams with our technical team.


FAQ

What size tractor does the DM-180 need?
From 25 to 50 hp, with a 540 rpm PTO and a category 1 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 205 kg (452 lb).

What is the cutting height?
From 5 to 50 mm, adjustable with the four castor wheels.

Does it mulch?
As standard, discharge is to the rear. With the mulching kit (MULCHINGDM180), an option, the grass is chopped fine and left on the lawn.

Finishing mower or flail mower?
The finishing mower cuts with horizontal blades and leaves the lawn with a fine finish; the flail mower shreds tall grass, brambles and branches with hammers or blades. The DM-180 gives a better cut on lawns, but it is not suitable for rough farmland.

Which size should I choose?

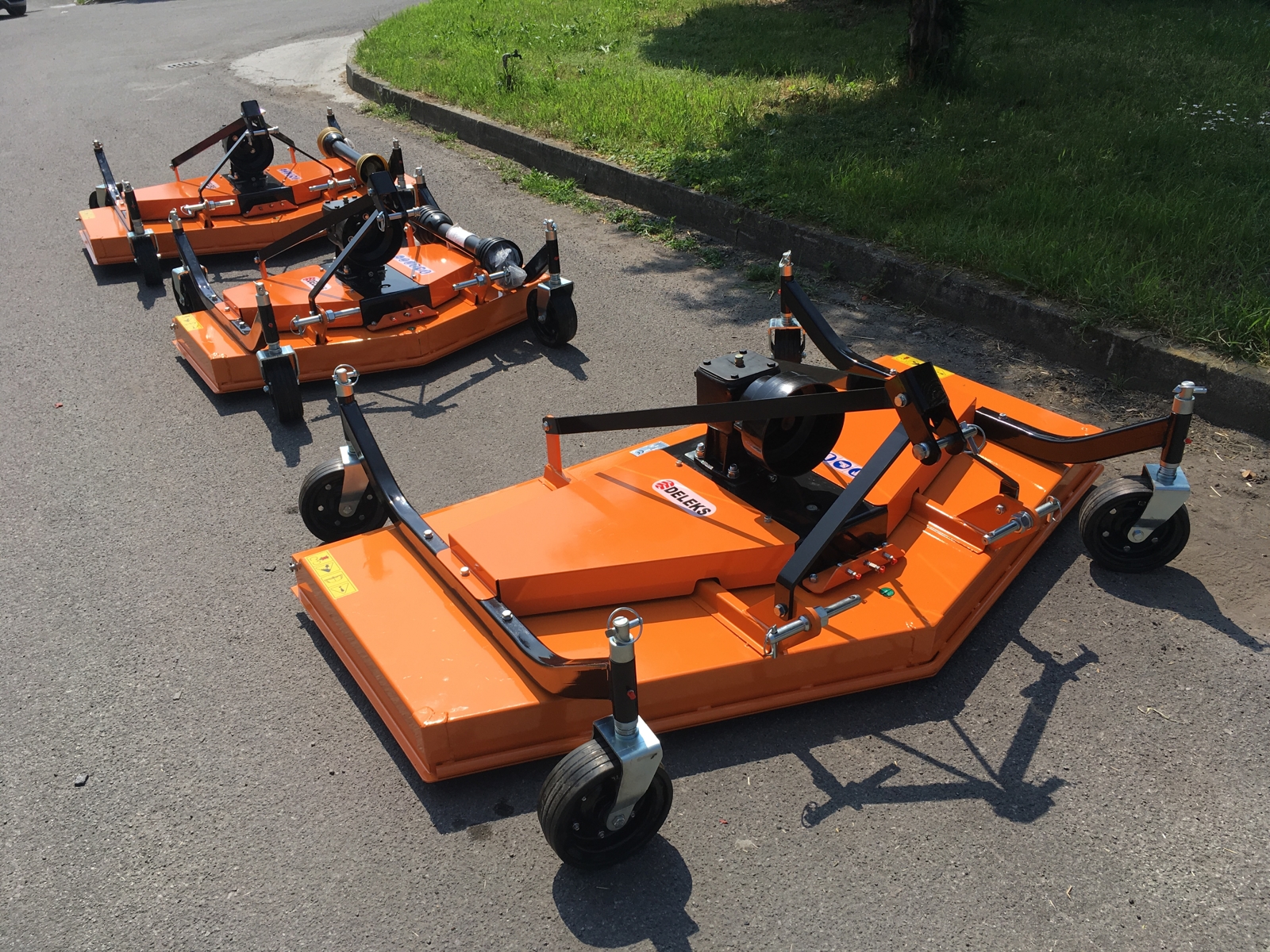

The DM-120 cuts 120 cm and works from 12 hp; the DM-150 cuts 150 cm, from 18 hp; the DM-180 cuts 180 cm, from 25 hp.

Can the blades and belts be replaced?
Yes: the set of 3 blades (COLTELLIDM180) and the set of 2 belts (CINGHIEDM180) can be ordered from this page.

Is the PTO shaft included?
Yes: a CE-approved category 4 PTO shaft, 1,000 mm (39.4 in) long, with freewheel.

How does it differ from the DM-INTERFILA?
The DM-INTERFILA models add the hydraulic side shift and a 60 cm side disc that cuts between one plant and the next in the row: they work across 200 or 230 cm, in vineyards and orchards.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: blades, chains, belts, bearings, wheels, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower deck and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric
Working width 1800.0 mm
Overall width 1880.0 mm
Min / Max cutting height 5.0 - 50.0 mm
Weight 205.0 kg
Overall height 750.0 mm
Tractor Power Range 25-50 Hp
3 point linkage Cat. 1 (ø 19.0-22.0mm)
Spacing between the 2 lower points 375.0-715.0 mm
Overall length 1350.0 mm
Distance between pto attachment and ground 450.0 mm
Main hood thickness 4.0 mm
Transmission: Drive method V-Belts
Transmission: Gearbox DELEKS (3 years warranty)
Transmission: PTO 540 r/min
Transmission: Rotation of gearbox Right side
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925
Transmission: V-Belts quantity 2
Transmission: V-Belts size 17x1930
Number of Blades 3
Transmission: RPM Blade speed 2600 r/min
Blades: Weight 1320.0 g
Blades: Diameter of the hole 20.0 mm
Wheels: Quantity 4
Wheels: Diameter / Width 200.0/77.0 mm
Pto shaft CE 4x1000 mm + freewheel
Blades: Sizes 600.0/50.0 mm
Transmission: Pulleys diameter 245.0/14.0 mm
Gross shipping weight 284 kg
Package volume 0.95 m3
Packing sizes 1900.0*1000.0*500.0 mm
