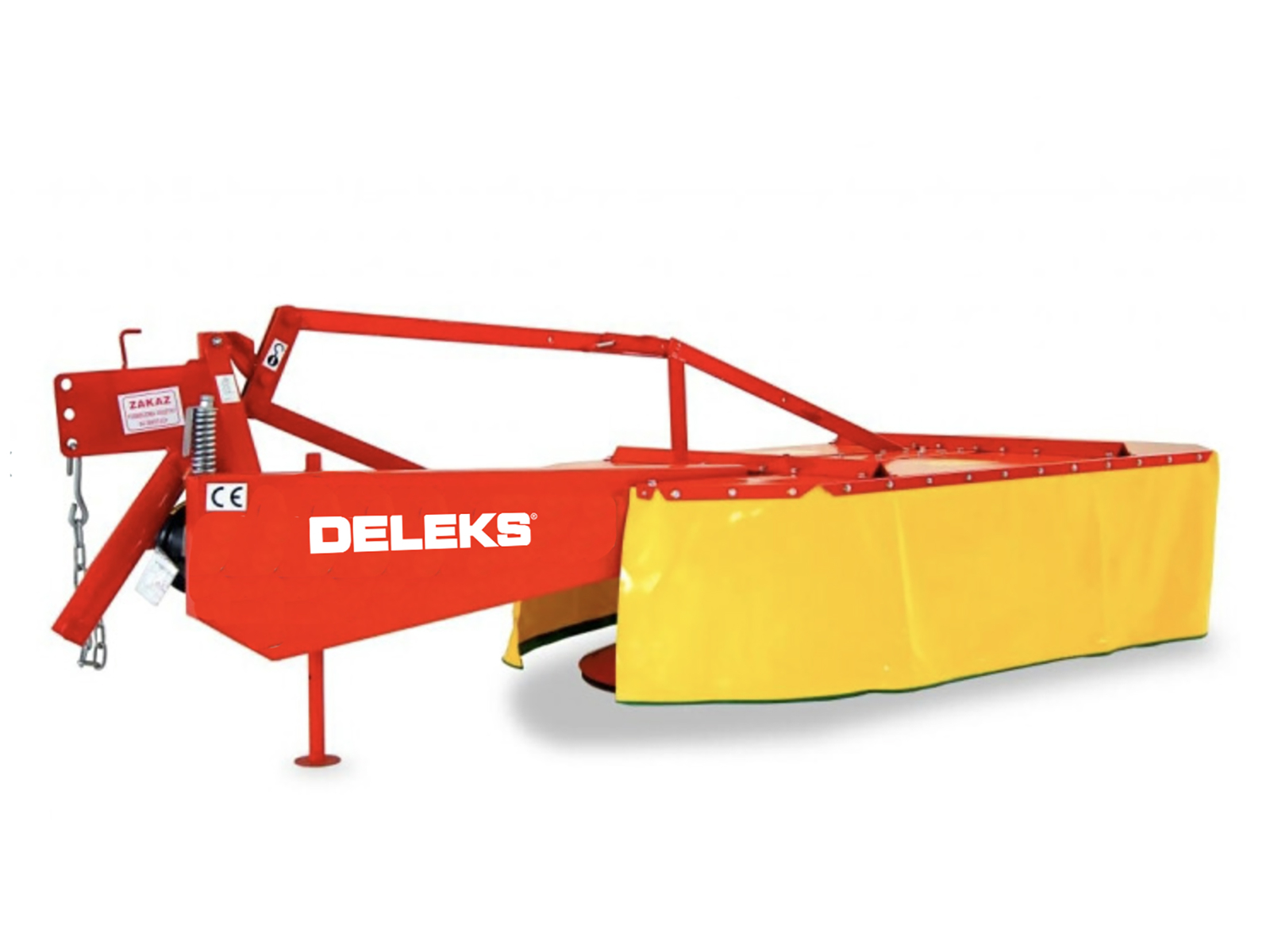

Drum mower for tractor 185 cm (73 in) DFR-185, 2-drum rotary mower with manual folding, 70-100 hp
DETAILS
2-drum rotary mower for tractors with a 185 cm (73 in) cut, the DELEKS® DFR-185: it mows grass and forage for hay with 6 blades of 150 g (5.3 oz), 50 mm (2 in) from the ground, and leaves the grass in a swath ready for drying and collection. It weighs 420 kg (926 lb) and works with tractors from 70 to 100 hp, with a 540 rpm PTO and a category 2 three-point linkage. It is the widest in the range; for road transport it folds up by hand. Made in Europe, it comes complete with a CE-approved PTO shaft, a 2-year warranty and free delivery within the EU.
How a drum mower works
A drum mower, also called a rotary drum mower, works like this: the 2 drums with their blades spin at high speed and cut the grass cleanly, without tearing it; the forage stays in a swath and dries for hay. Compared with a finger bar mower it is not troubled by long or lodged grass and does not clog; compared with a flail mower it does not chop the grass, which can still be collected with a rake and baler.
Which tractors it fits
The DFR-185 is built for field tractors from 70 to 100 hp, with a rear 540 rpm PTO and a category 2 three-point linkage (25-28 mm pins, lower link spacing from 670 to 790 mm): Landini, Lamborghini, Fendt, Fiat, Same, McCormick, Solis and equivalent tractors. It works offset to one side of the tractor, on a 1,250 mm (49.2 in) arm, with an overall width of 3,300 mm (129.9 in).
2 drums and 6 blades of 150 g (5.3 oz)

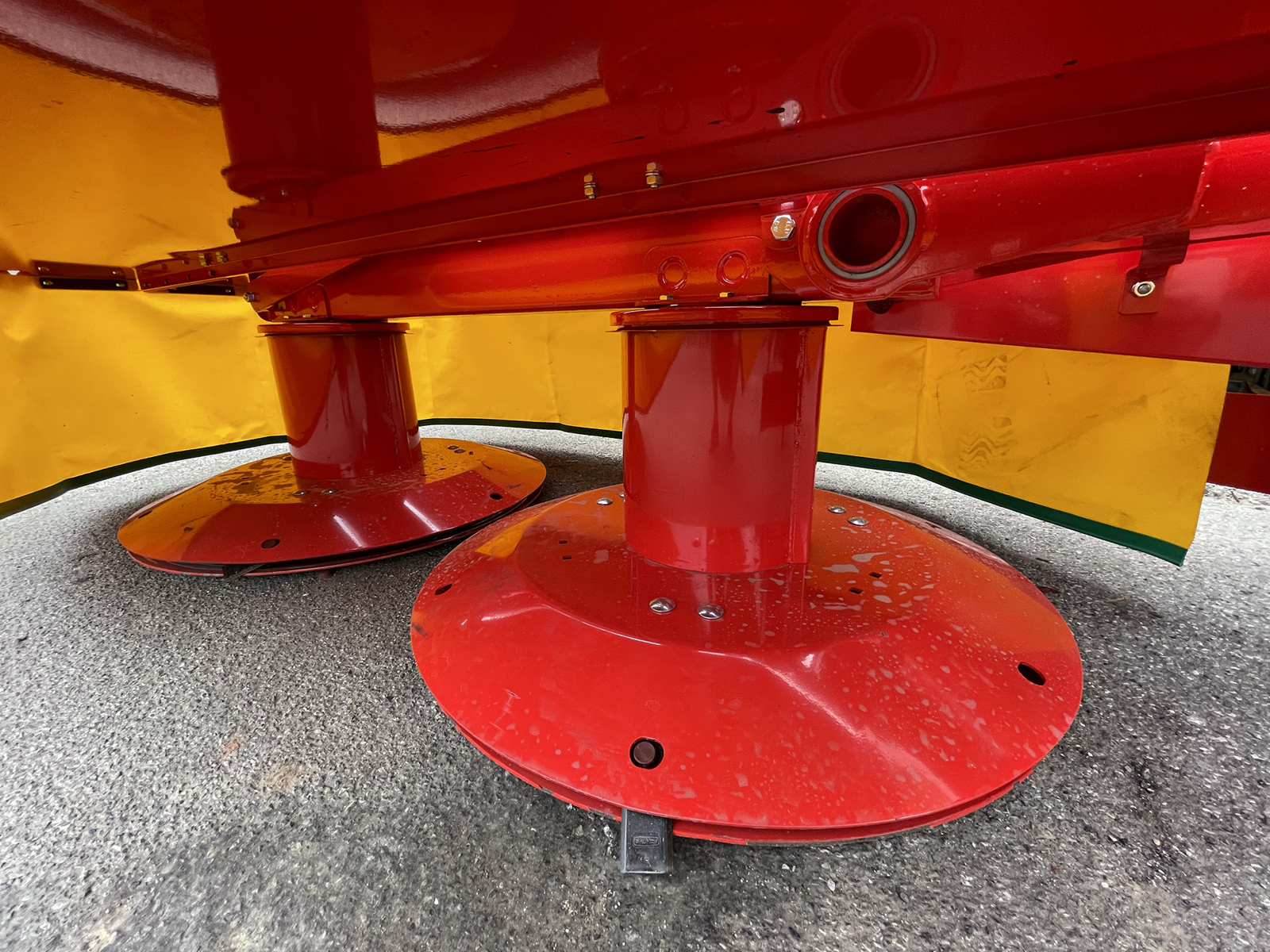

The 2 drums carry 6 universal blades of 150 g (5.3 oz) each (95 × 48 mm, 3.7 × 1.9 in, with an 18 mm hole) and cut 50 mm (2 in) from the ground, the right height for forage and for the regrowth of the meadow. The blades come off and go back on easily with the lever supplied; the spare set of 10 blades can be ordered from this page (COLTELLI10DFR). CE guards are fitted as standard.
Drive: 540 rpm PTO, 4 belts and freewheel

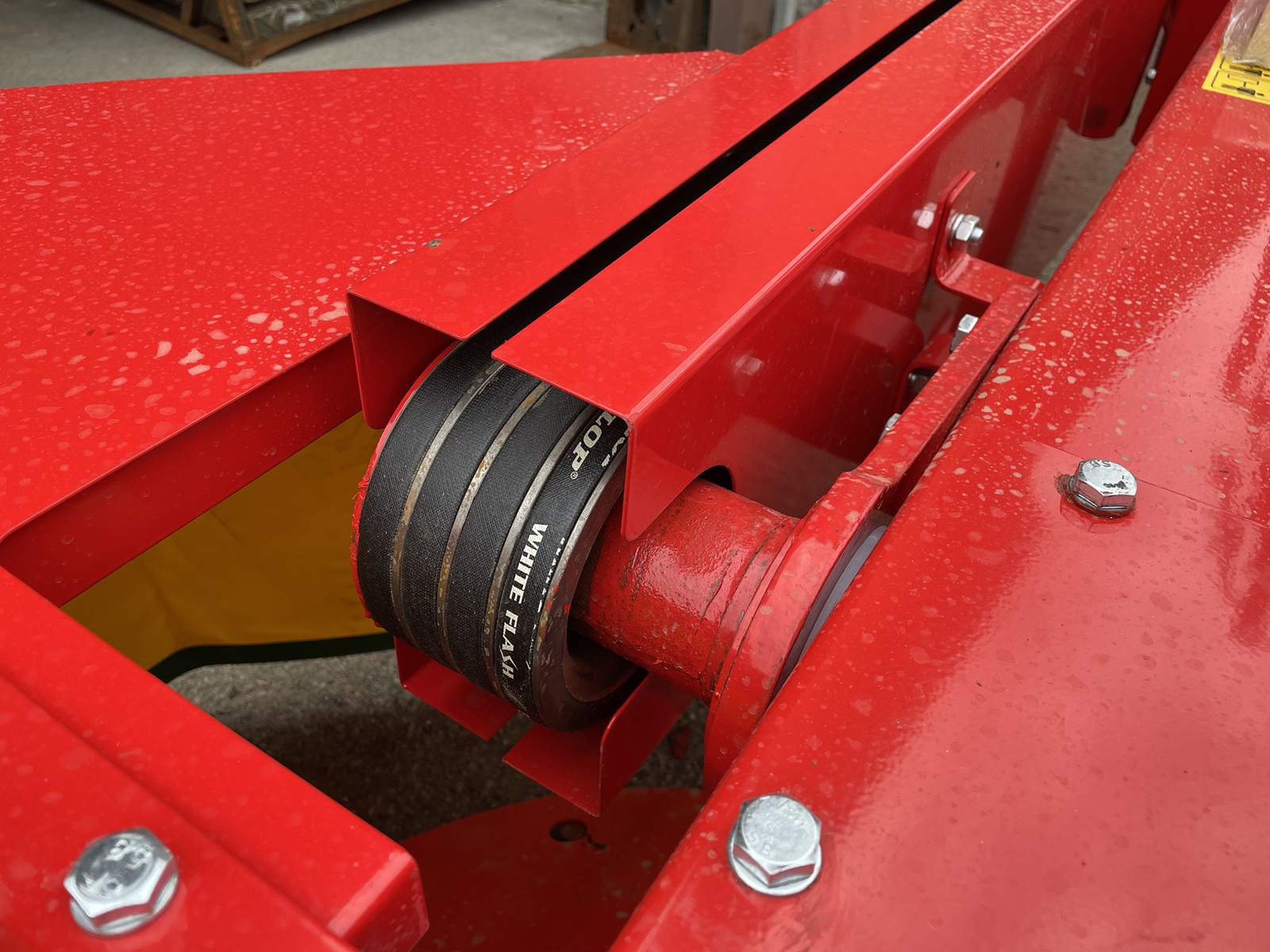

Drive comes from the 540 rpm PTO, turning clockwise, and reaches the drums through the gearbox and 4 V-belts. The driveline has a freewheel: when you disengage the PTO the drums carry on turning under their own momentum and run down by themselves, without driving back through the tractor's transmission. The CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt, is included: the bolt shears under overload and protects the driveline.
Anti-shock system and road transport
The anti-shock system protects the frame if the mower hits a tree, a post or another obstacle. For road transport the DFR-185 folds up by hand. The version with hydraulic lift is the DFR-185H.
Dimensions, weight and delivery
Working width 1,850 mm (72.8 in), overall width 3,300 mm (129.9 in), length 1,500 mm (59.1 in), weight 420 kg (926 lb). It ships in packaging measuring 185 × 100 × 230 cm (73 × 39 × 91 in), 436 kg (961 lb) gross, 4.26 m³, with free delivery within the EU. It complies with the EC Machinery Directive and carries a 2-year warranty.
Where it works
- Meadows and forage crops: mowing grass and forage for hay
- Long and lodged grass, where a finger bar mower clogs
- Uneven ground, where a drum mower copes better than a finger bar mower
- Swaths ready for the rake and the baler
- Tractors from 70 to 100 hp with a category 2 three-point linkage
Options and spares
From this page you can add to your order the spare set of 10 blades (COLTELLI10DFR), the universal PTO adapter (RID1), the 680 mm (26.8 in) top link (BE0124) and the 730 mm (28.7 in) top link (BE0125). Other spares are identified on the exploded diagrams with our technical team.
FAQ
What size tractor does the DFR-185 need?
From 70 to 100 hp, with a 540 rpm PTO and a category 2 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 420 kg (926 lb).
Drum mower or finger bar mower?
The drum mower is faster, does not clog in long or lodged grass and copes with uneven ground; the finger bar mower is the tool for two-wheel tractors and small meadows.
What height does it cut at?
50 mm (2 in) from the ground, the right height for forage and for the regrowth of the meadow.
Does it cut long and lodged grass?
Yes, the drums cut lodged grass and tall forage without clogging.
How do you change the blades?
With the lever supplied. The blades are universal, 150 g (5.3 oz) each; the spare set of 10 is COLTELLI10DFR.
How is it moved on the road?
It folds up by hand. The version with hydraulic lift is the DFR-185H.
How does it differ from the DFR-185H?
The DFR-185H has a hydraulic lift and weighs 430 kg (948 lb); the DFR-185 folds up by hand and weighs 420 kg (926 lb). Cutting width, blades and tractors are the same.
Is the PTO shaft included?
Yes: a CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: blades, belts, bearings, drums and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1850.0 mm |
| Overall width | 3300.0 mm |
| Min / Max cutting height | 50.0 mm |
| Weight | 420.0 kg |
| Tractor Power Range | 70-100 Hp |
| 3 point linkage | Cat. 2 (ø 25.0-28.0mm) |
| Spacing between the 2 lower points | 670.0-790.0 mm |
| Overall length | 1500.0 mm |
| Distance between pto attachment and ground | 530.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Transmission: V-Belts quantity | 4 |
| Arm length | 1250.0 mm |
| Cover | Metal frame |
| Drums quantity | 2 |
| Height of the drums | 600.0 mm |
| Lift System | mechanical |
| Pto shaft | CE 6x1000 mm + shear bolt |
| Number of Blades | 6 |
| Blades: Weight | 150.0 g |
| Blades: Length/Width | 95.0 / 48.0 mm |
| Blades: Diameter of the hole | 18.0 mm |
| Gross shipping weight | 436 kg |
| Package volume | 4.26 m3 |
| Packing sizes | 1850.0*1000.0*2300.0 mm |
