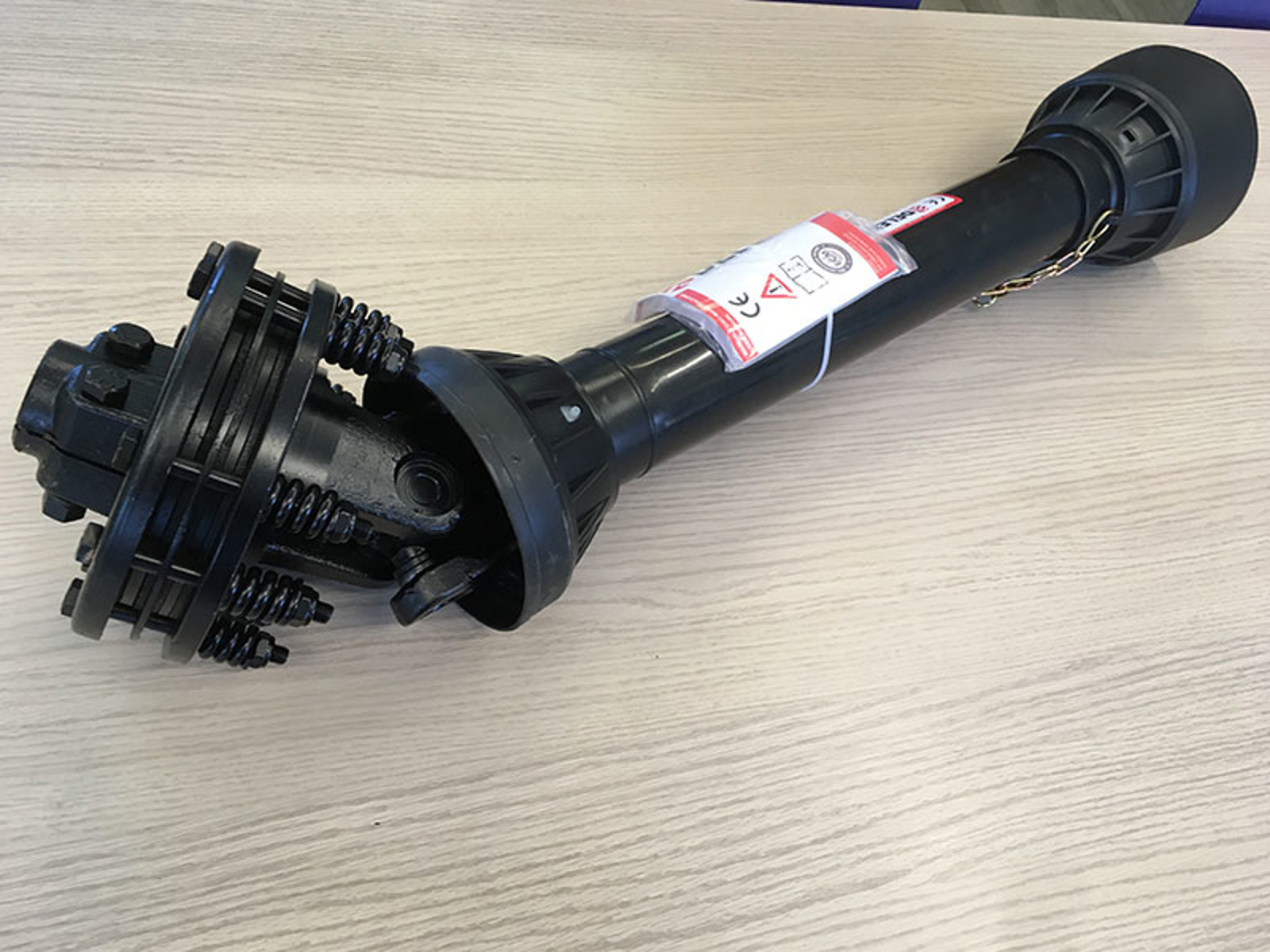

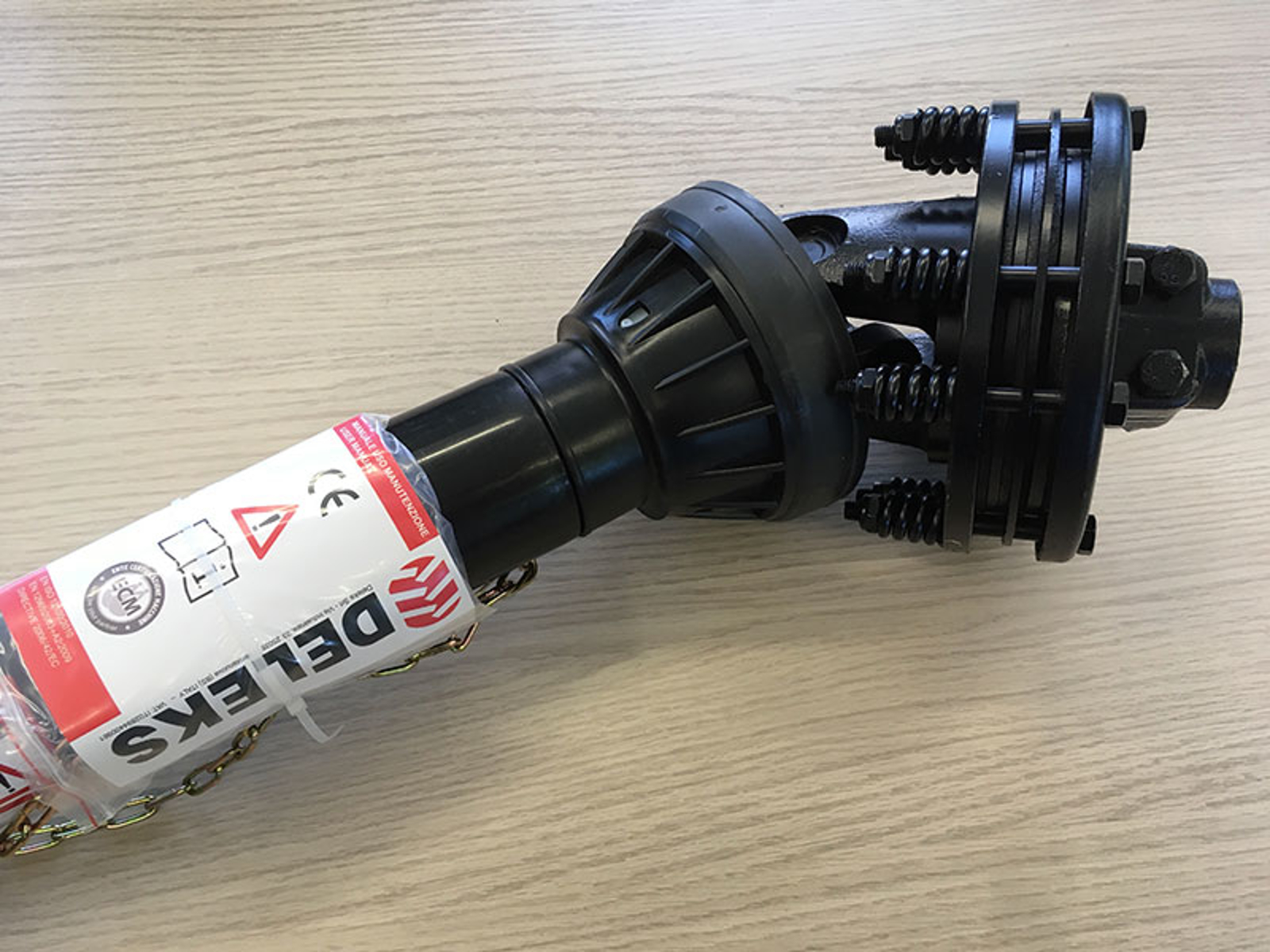

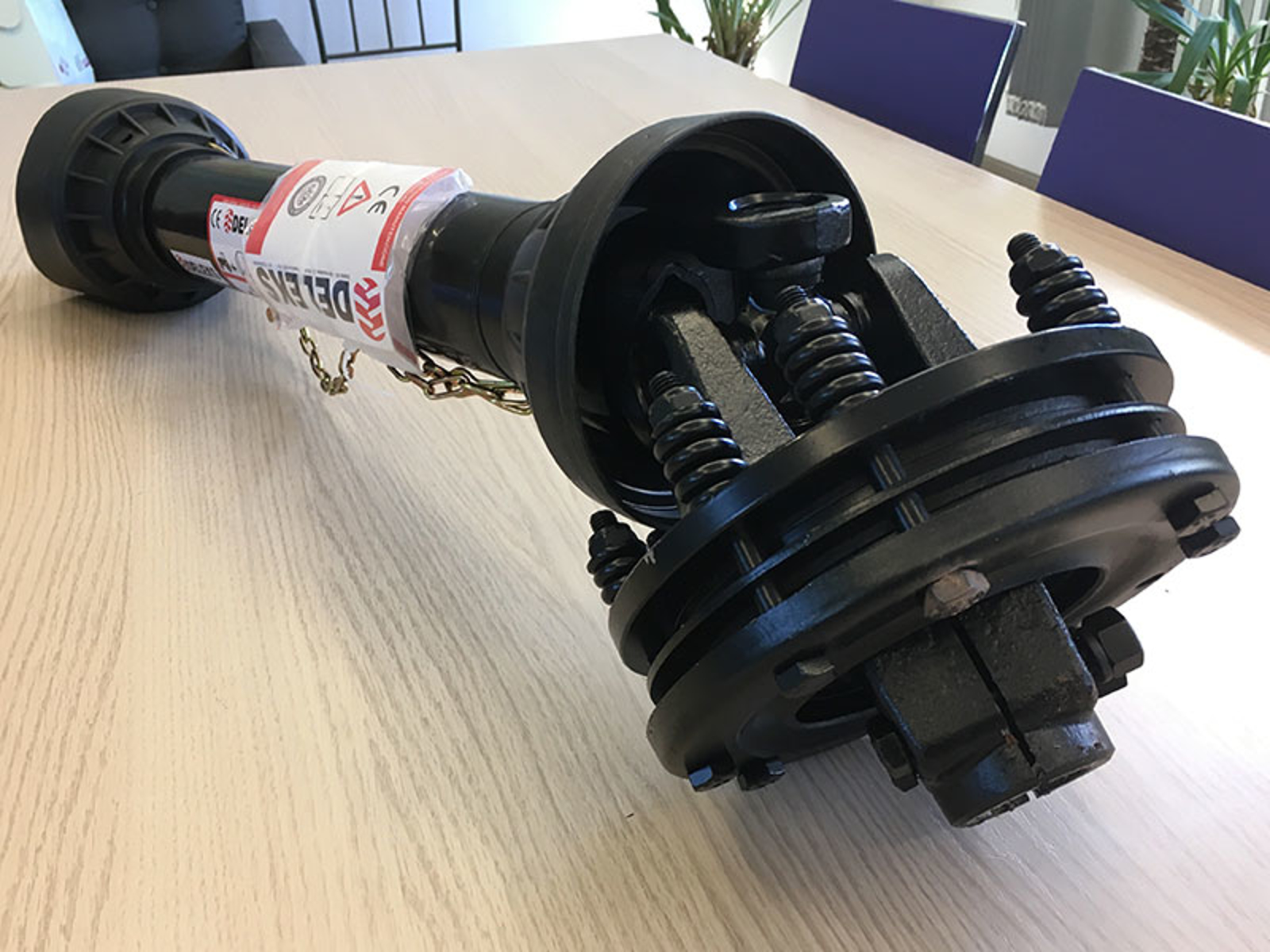

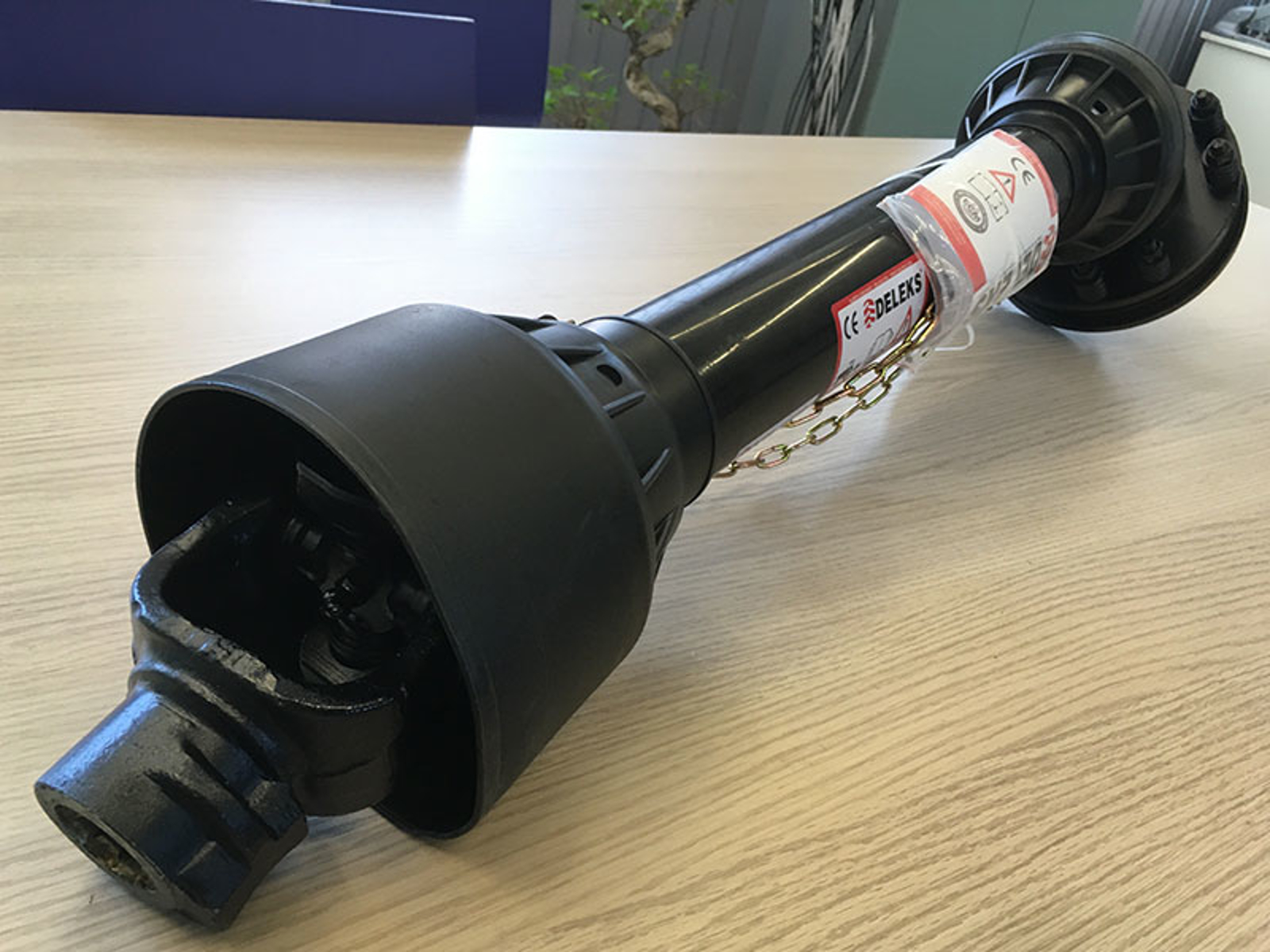

Cardan shaft CAT-6 800 + Friction
DETAILS
Pto Shaft for tractor.
Dim. 6

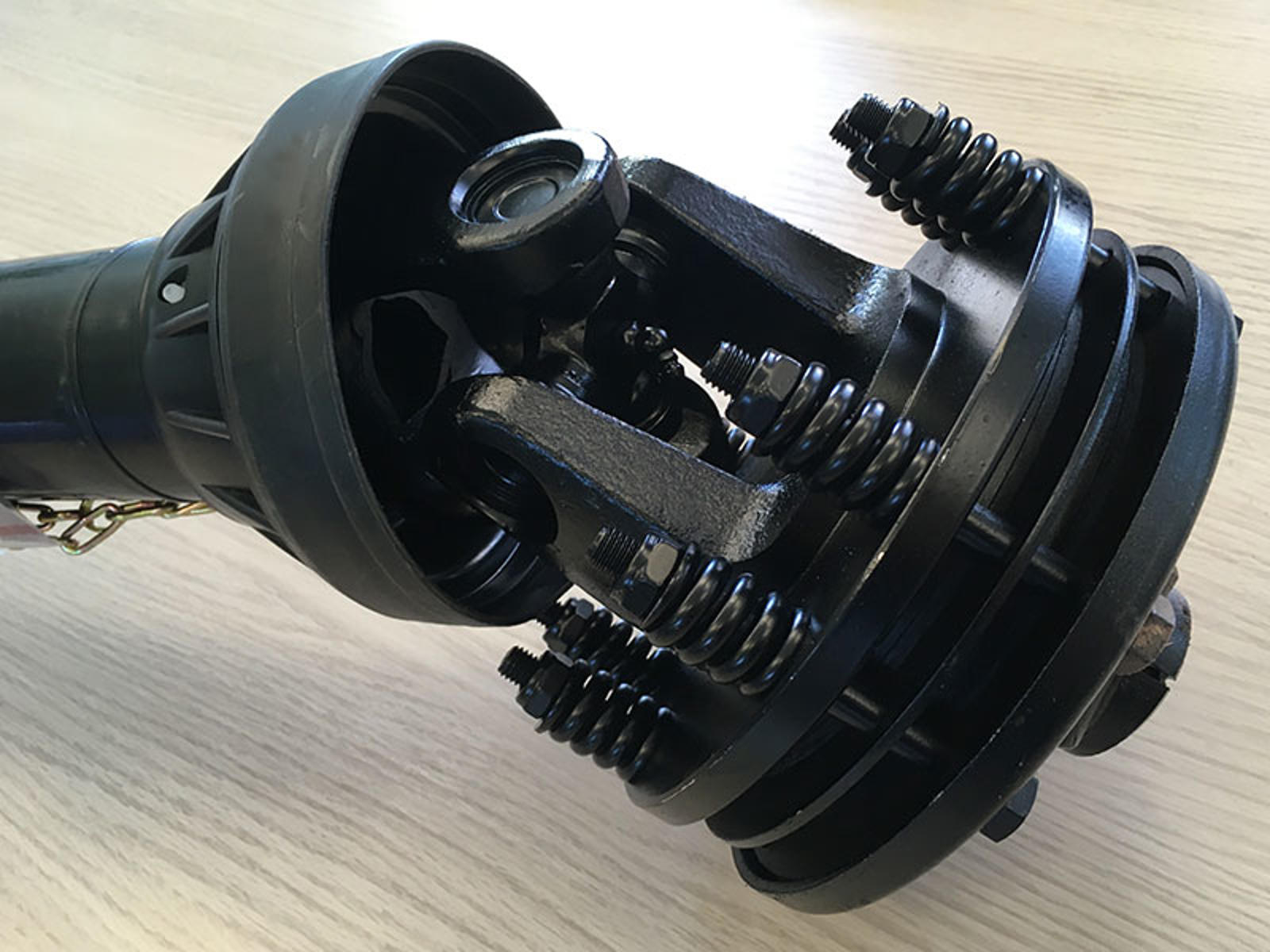

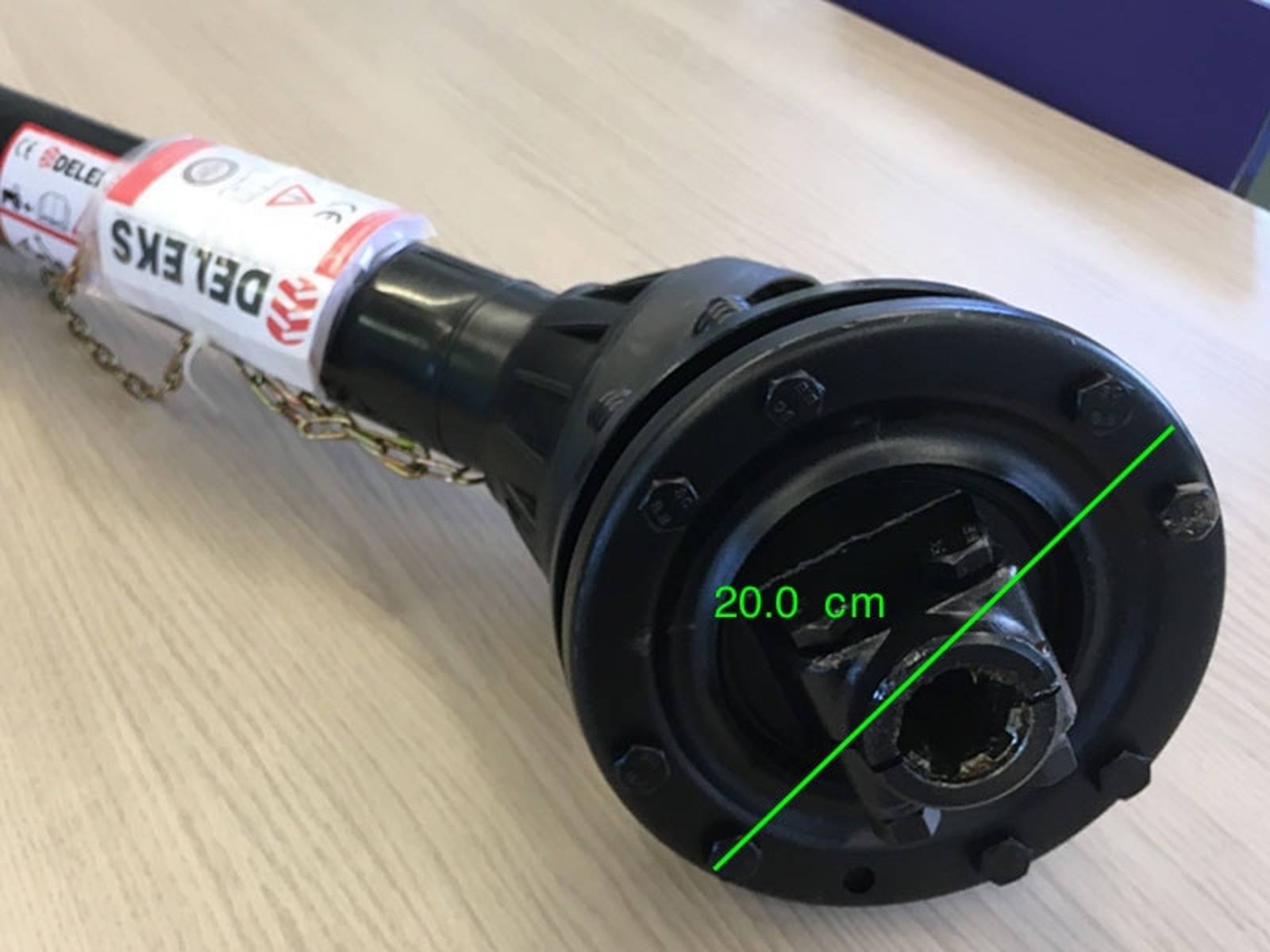

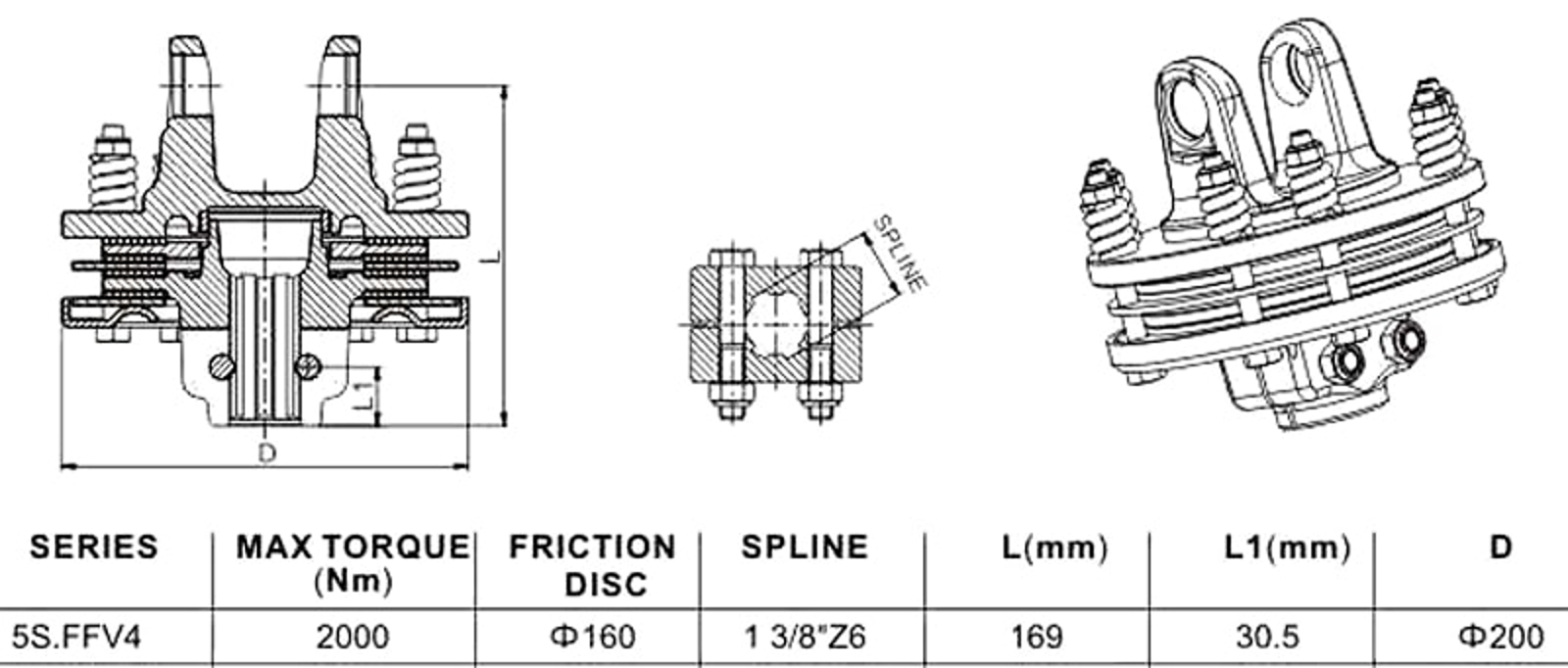

With adjustable Friction Torque Limiter ø 200 mm, 1600 Nm
Min. Length: 800.0 mm

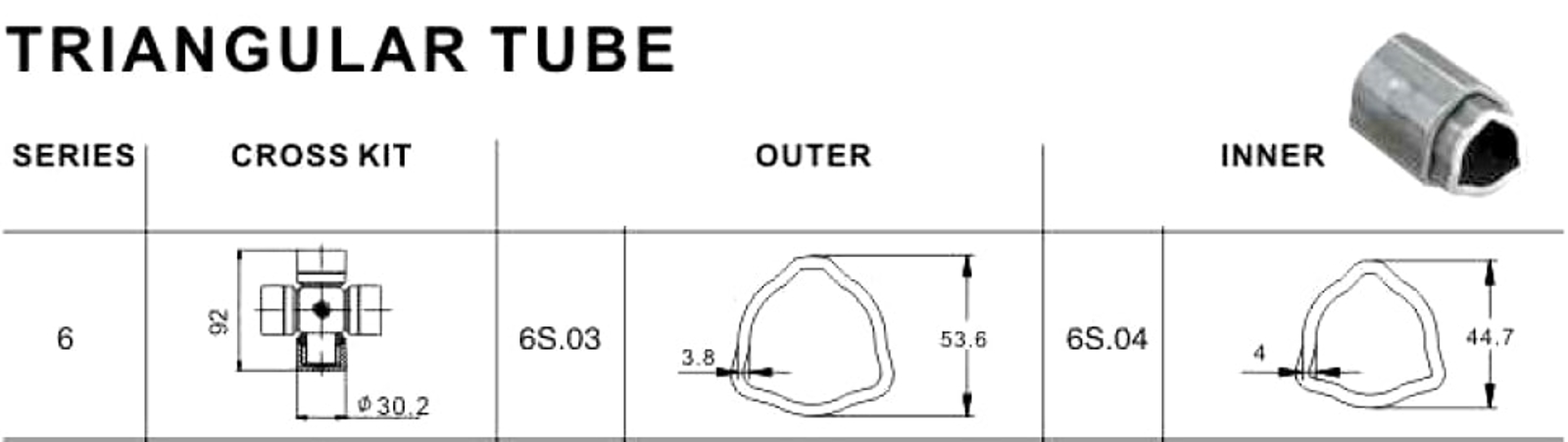

Cross Kit: ø30.2*92.0
Transmission power at 540 r/min: 64HP (47Kw)
Transmission power at 1000 r/min: 100HP (74Kw)

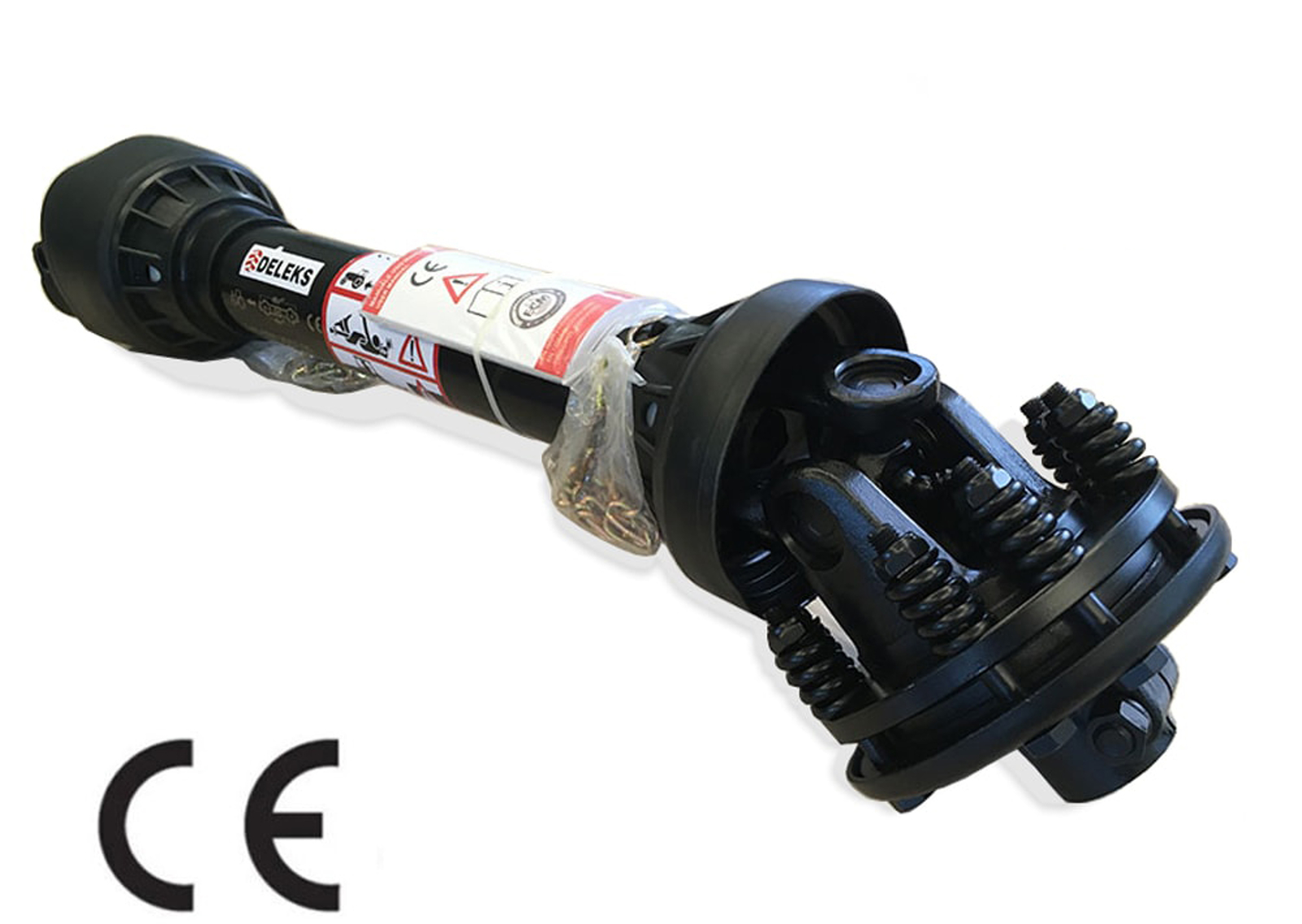

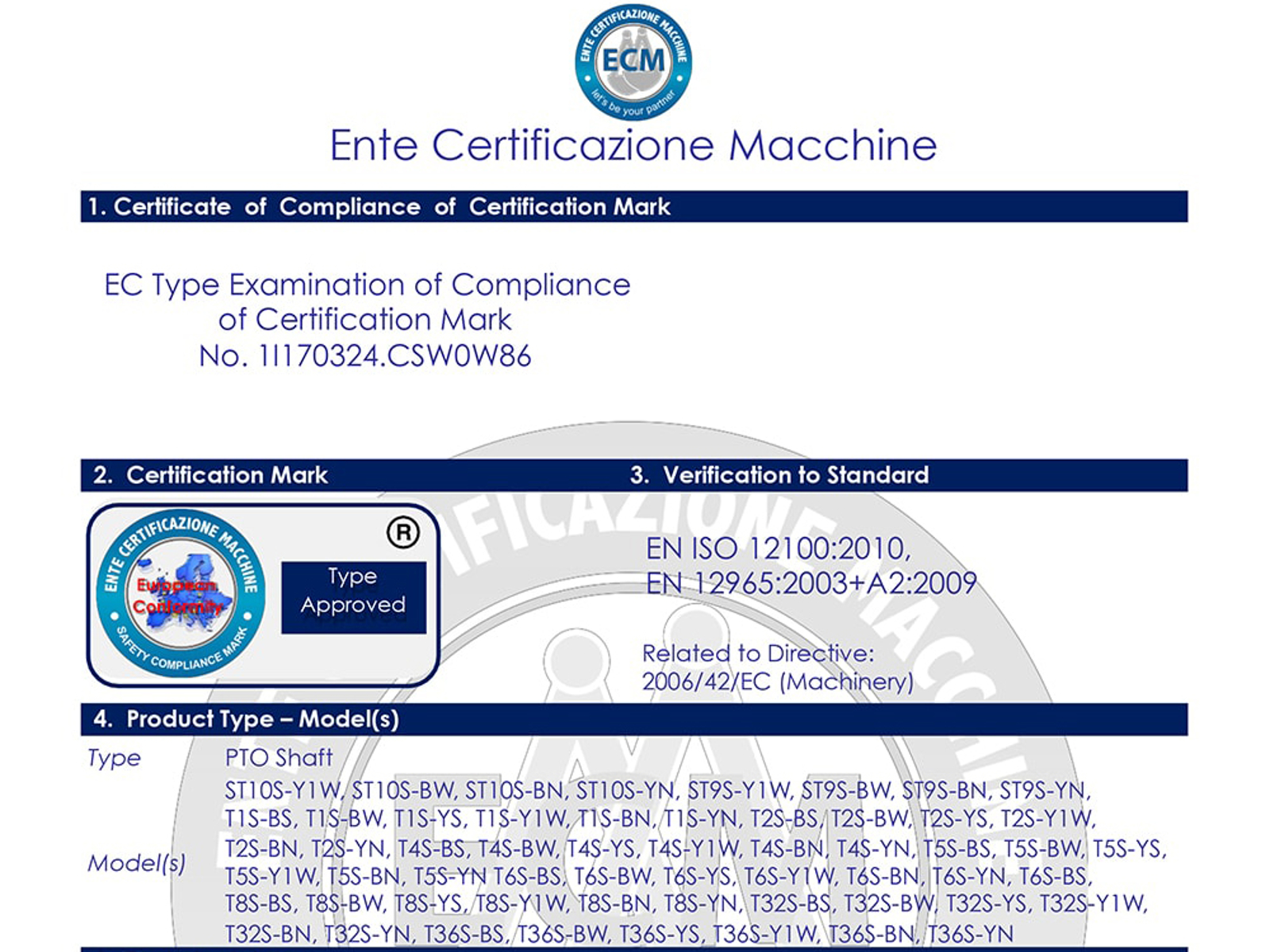

Certification Mark by ECM Ente Certificazione Macchine (Modena - Italy)
User Manual
2 Years warranty
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 18 kg |
