Heavy-duty rotavator for tractors 150 cm (59 in) DFHIDR-150 with hydraulic side shift, heavy series 35-60 hp

Available
Code DFHIDR150PTO - EAN 8053470234026
2.462,00€VAT incl.
Free shipping
Loading...
2.462,00€VAT incl.
Free shipping
View all details.

reviews

2.462,00€VAT incl.
 REQUEST INFORMATION

VIDEO
Field test
Field test

DETAILS

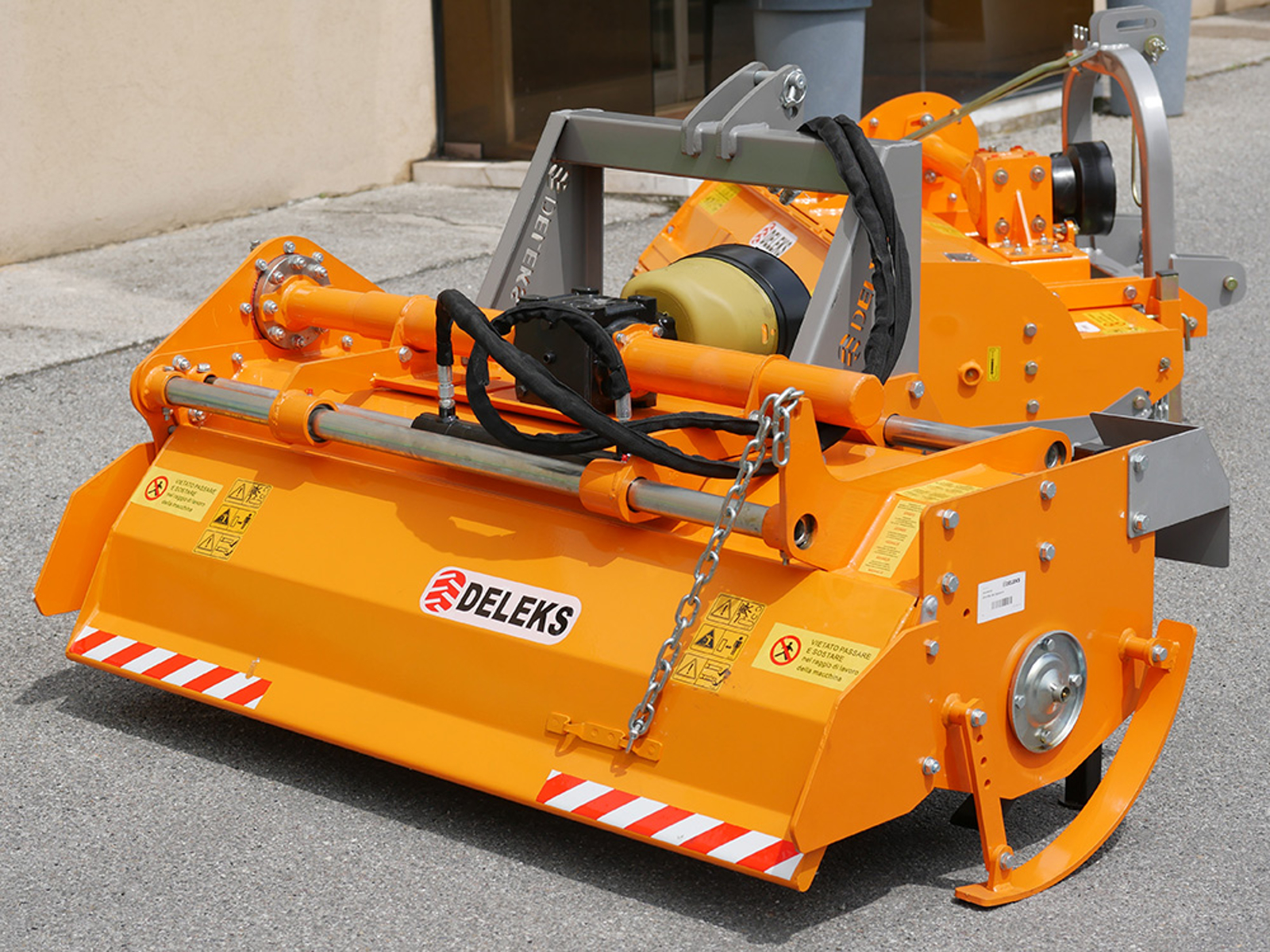

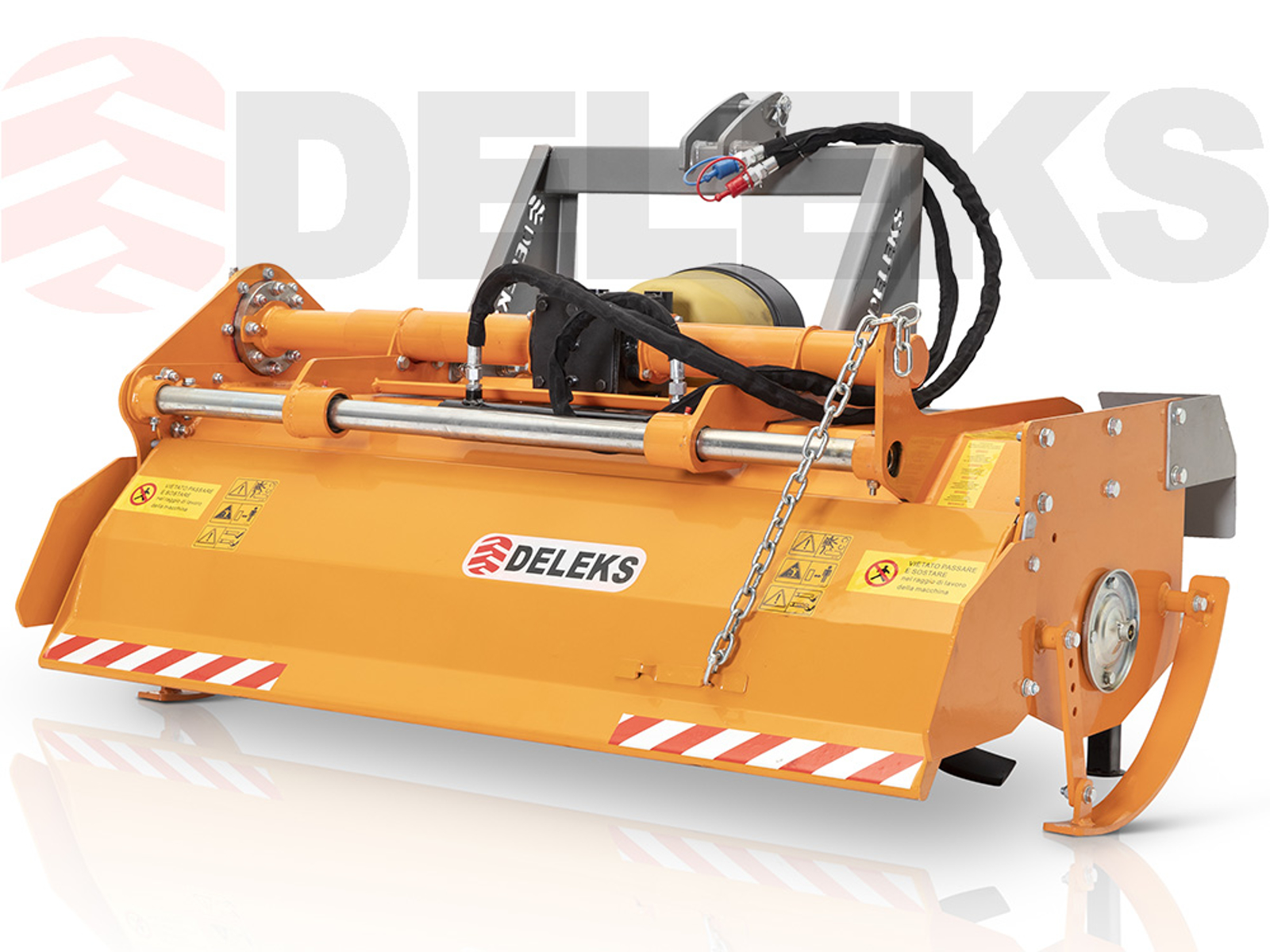

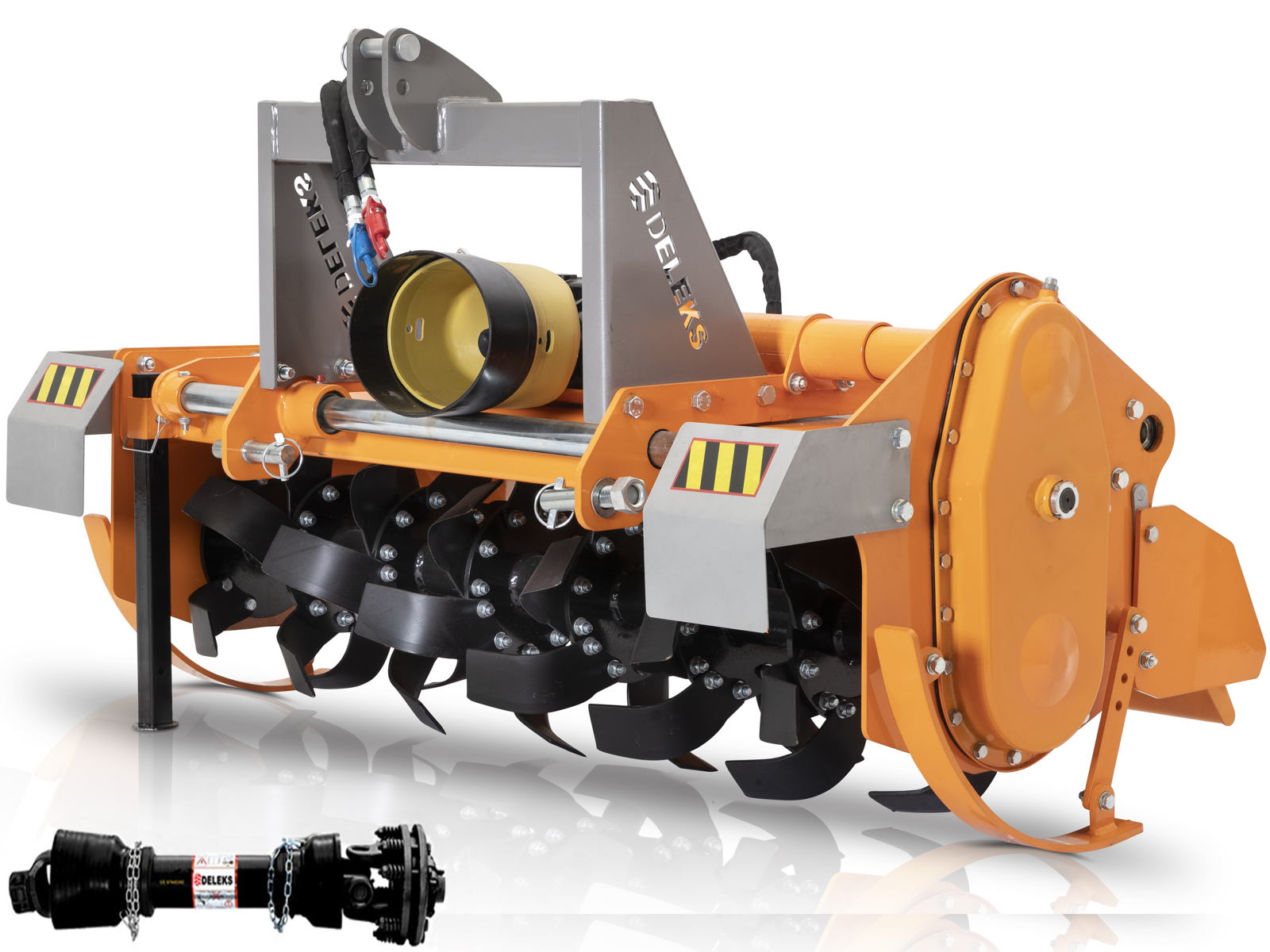

Heavy-duty rotavator for tractors with 150 cm (59 in) working width and 330 mm (13 in) of hydraulic side shift, from the DELEKS® heavy series: the rotary tiller for 35–60 hp orchard and field tractors with a Cat. 2 three-point linkage, such as New Holland T3F and T4F, John Deere 3 and 4 series, Landini Rex and Mistral, Kubota L, Same Frutteto, Deutz-Fahr, Antonio Carraro, Solis and most other 35–60 hp tractors. 360 kg (794 lb) frame with 8 mm side plates, side gear drive, DELEKS® 540 rpm gearbox with a three-year warranty, 42 forged helical tines on 8 flanges and an adjustable rear bonnet. It works 16 to 20 cm (6.3–7.9 in) deep with the rotor at 210 rpm, shifts sideways from the driver's seat with a hydraulic ram and comes complete with its CE PTO shaft (category 6, 1,000 mm / 39 in) with twin-disc friction clutch Ø 180 mm (7.1 in); free delivery within the EU.


Which tractors it suits

The DFHIDR-150 works 150 cm (59 in) wide with an overall width of 170 cm (67 in) and is built for 35–60 hp wheeled or tracked tractors with a Cat. 2 three-point linkage (25–28 mm pins): New Holland T3F and T4F, John Deere 3 and 4 series, Landini Rex and Mistral, Kubota L, Same Frutteto, Deutz-Fahr, Antonio Carraro, Solis and most other 35–60 hp tractors. The gearbox stays central and the 360 kg (794 lb) weight is within reach of the lift on tractors of this class. The category 6 PTO shaft comes 1,000 mm long and can be shortened following the manual if the tractor's linkage sits very close. If you do not need the side shift, the same machine with a fixed linkage is the DFH-150 (352 kg / 776 lb).

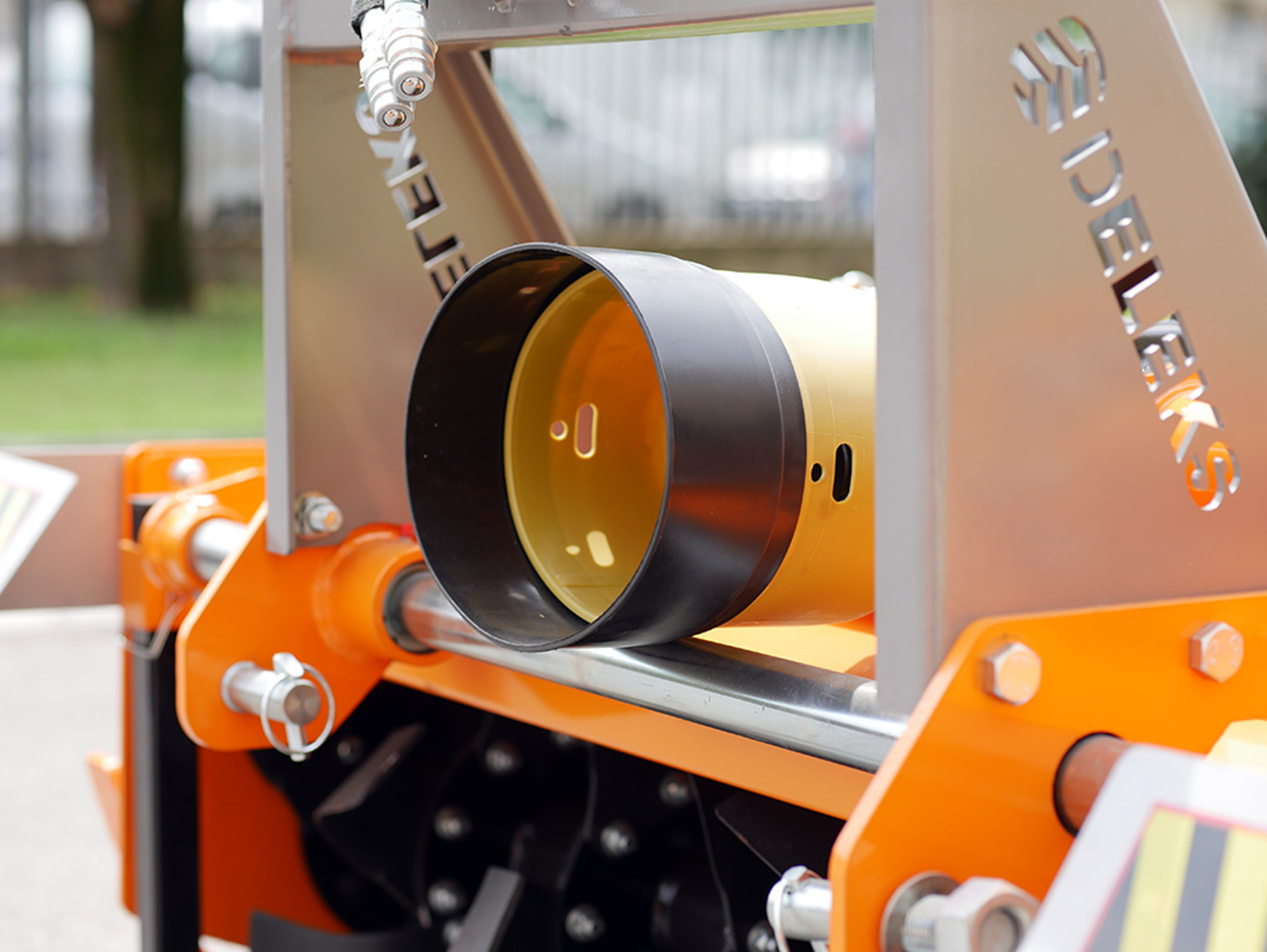

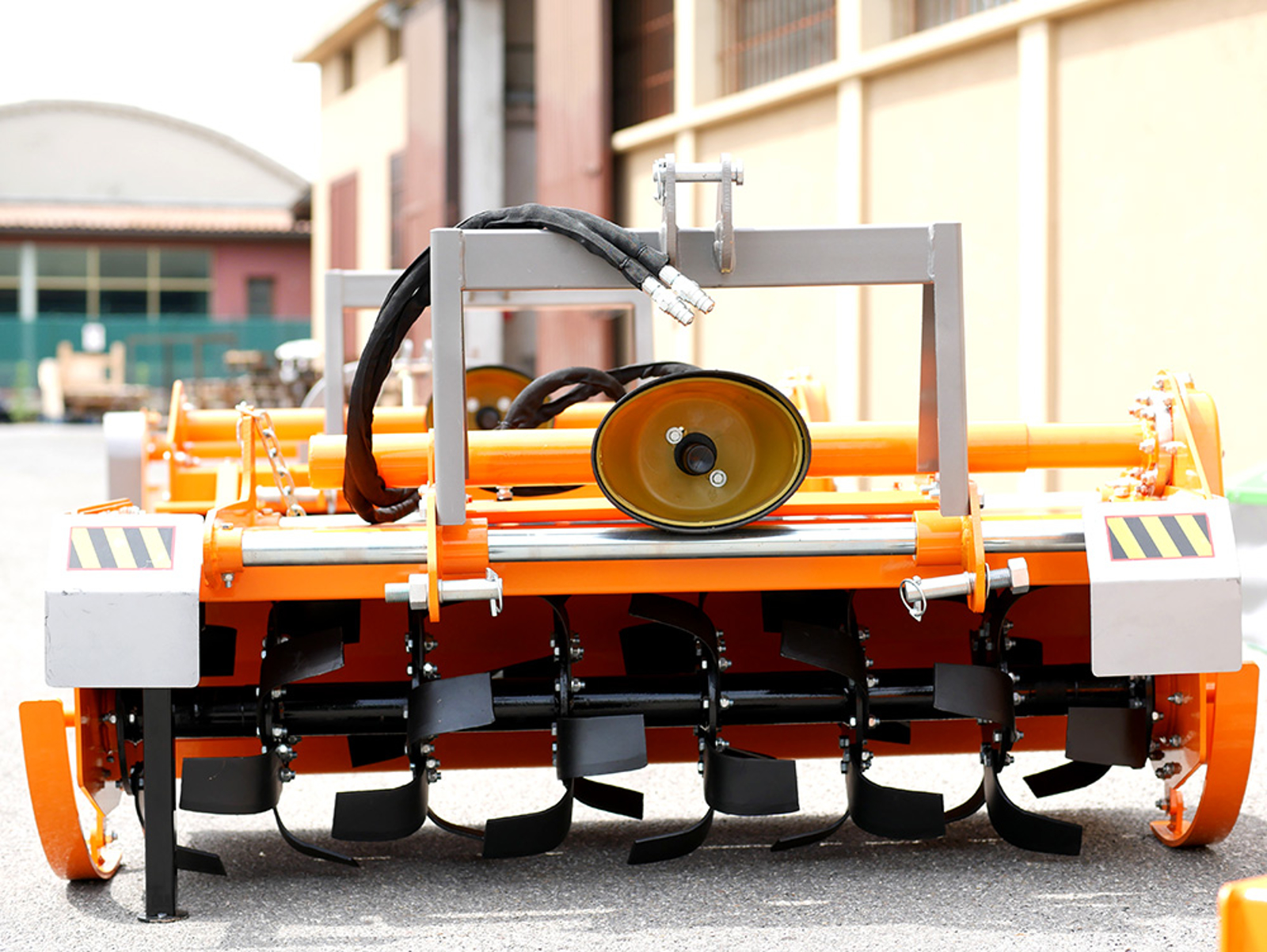

330 mm hydraulic side shift from the driver's seat

The rotavator body slides 330 mm (13 in) on guides relative to the three-point linkage, pushed by a hydraulic ram plumbed to a double-acting spool valve on the tractor; hoses and standard 1/2" agricultural quick couplers are included. You bring the rotavator up to the row or the edge without moving the tractor, work under the canopy with the wheels on the track and centre the machine behind the wheels on the road and on the headland. The adjustment is stepless, standing still or on the move, and there is no climbing down as with the U-bolt mechanical shift of lighter rotavators. In the vineyard and the orchard it is the difference between working the alleyway in two passes or in one.

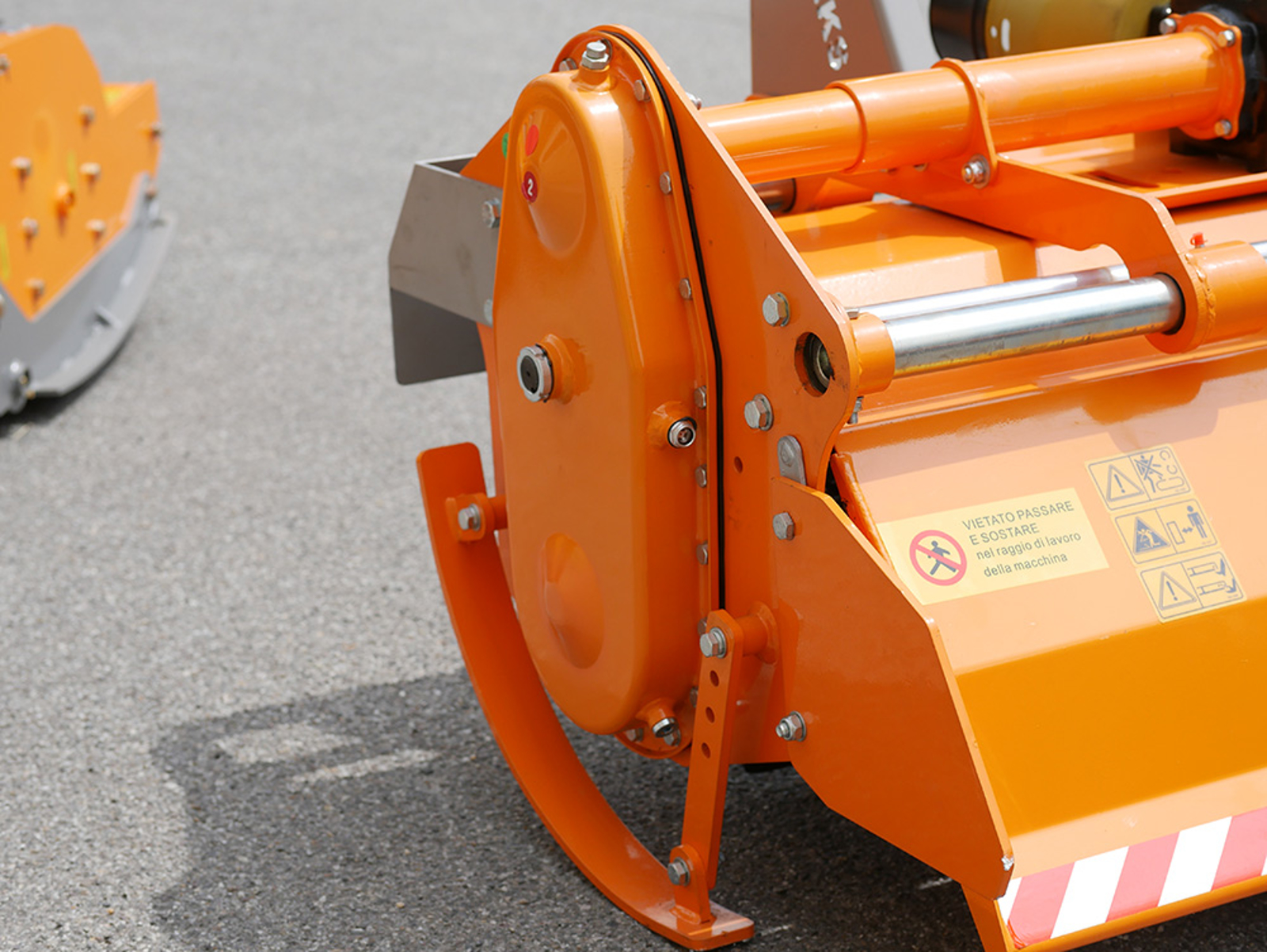

Gear drive and 540 rpm gearbox

The DELEKS® 540 rpm gearbox has a cast-iron housing, a three-year warranty and arrives already filled with SAE 120 oil; from the gearbox the drive reaches the rotor through a side gear train in an oil bath, which needs no tensioning and does not stretch like a chain. The rotor turns at 210 rpm: slower than on light rotavators, it puts more torque into each tine and cuts finer. The CE PTO shaft (category 6, 1,000 mm / 39 in) with twin-disc friction clutch Ø 180 mm (7.1 in) is included: the clutch protects rotavator and tractor when a tine meets a stone or a root, and is set to suit the tractor and the ground following the manual.

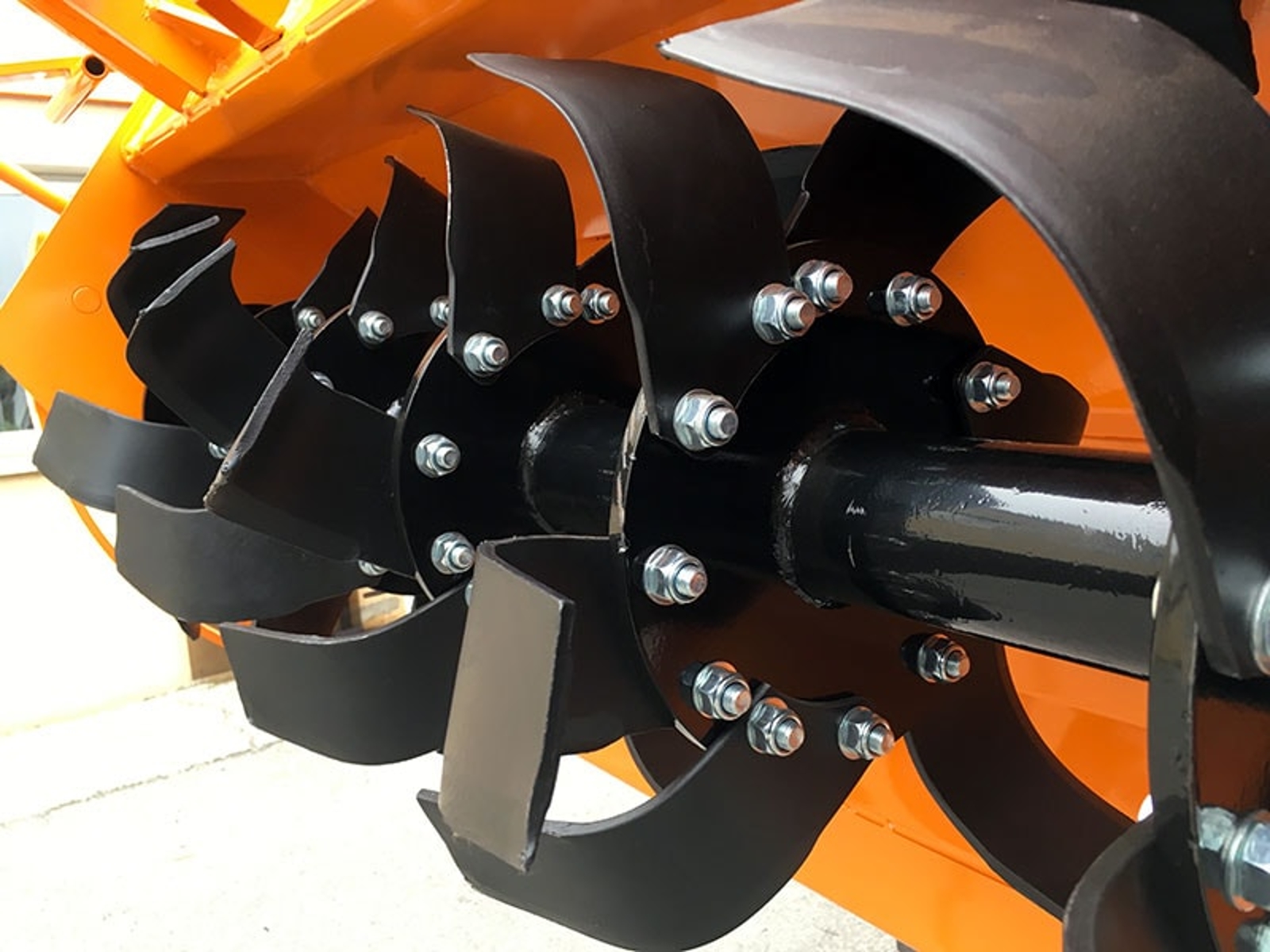

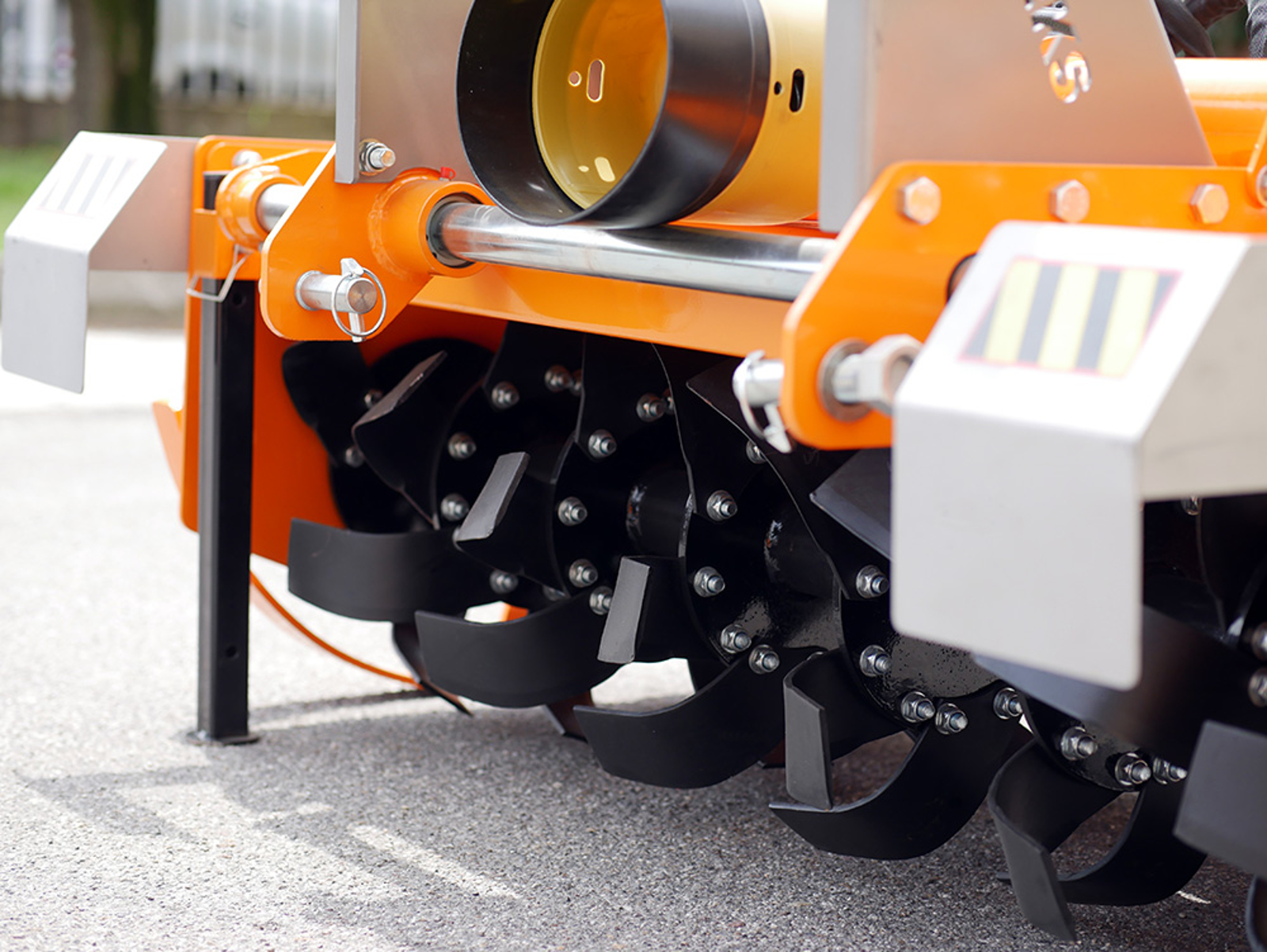

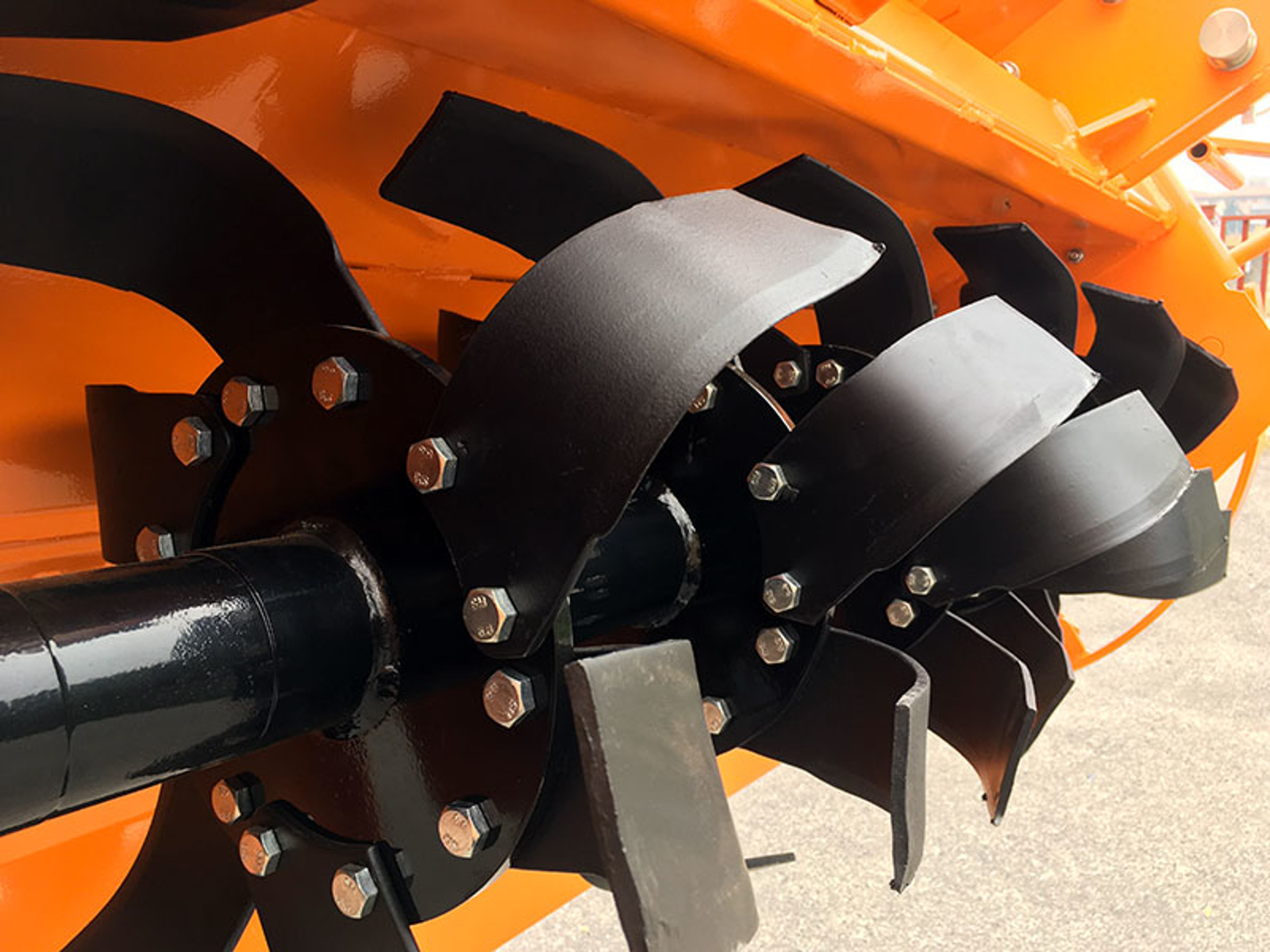

Rotor and forged helical tines

The rotor measures 480 mm (18.9 in) across with the tines fitted, on a 76 mm shaft with 6306 and 6309 bearings and 8 mm side plates. The 42 forged helical tines (8 flanges, 6 tines per flange and 3 on the two outer flanges; 180 × 83 mm, 6 mm thick, 250 mm curve, 810 g / 1.8 lb each) enter the soil progressively, with less vibration and a finer cut than straight tines; they are held by two bolts each and are changed one at a time. Working depth up to 200 mm (7.9 in), set with the side skids; the rear bonnet lifts and lowers: closed it holds the soil between the tines and refines the seedbed, open it lets large clods and residues out.


Dimensions, weight and delivery

Working width 1495 mm (59 in), overall width 1700 mm (67 in), height 1,030 mm (40.6 in), length 720 mm (28.3 in), weight 360 kg (794 lb); the gearbox sits 590 mm (23.2 in) off the ground. It ships on a pallet of 80 × 173 × 82 cm (31 × 68 × 32 in), 442 kg (974 lb) gross, 1.13 m³, with free delivery within the EU; unloading is down to the customer, with a forklift or the tractor's lift. The machine complies with the EC Machinery Directive, is TÜV Austria certified and comes with a two-year warranty.


Where it works

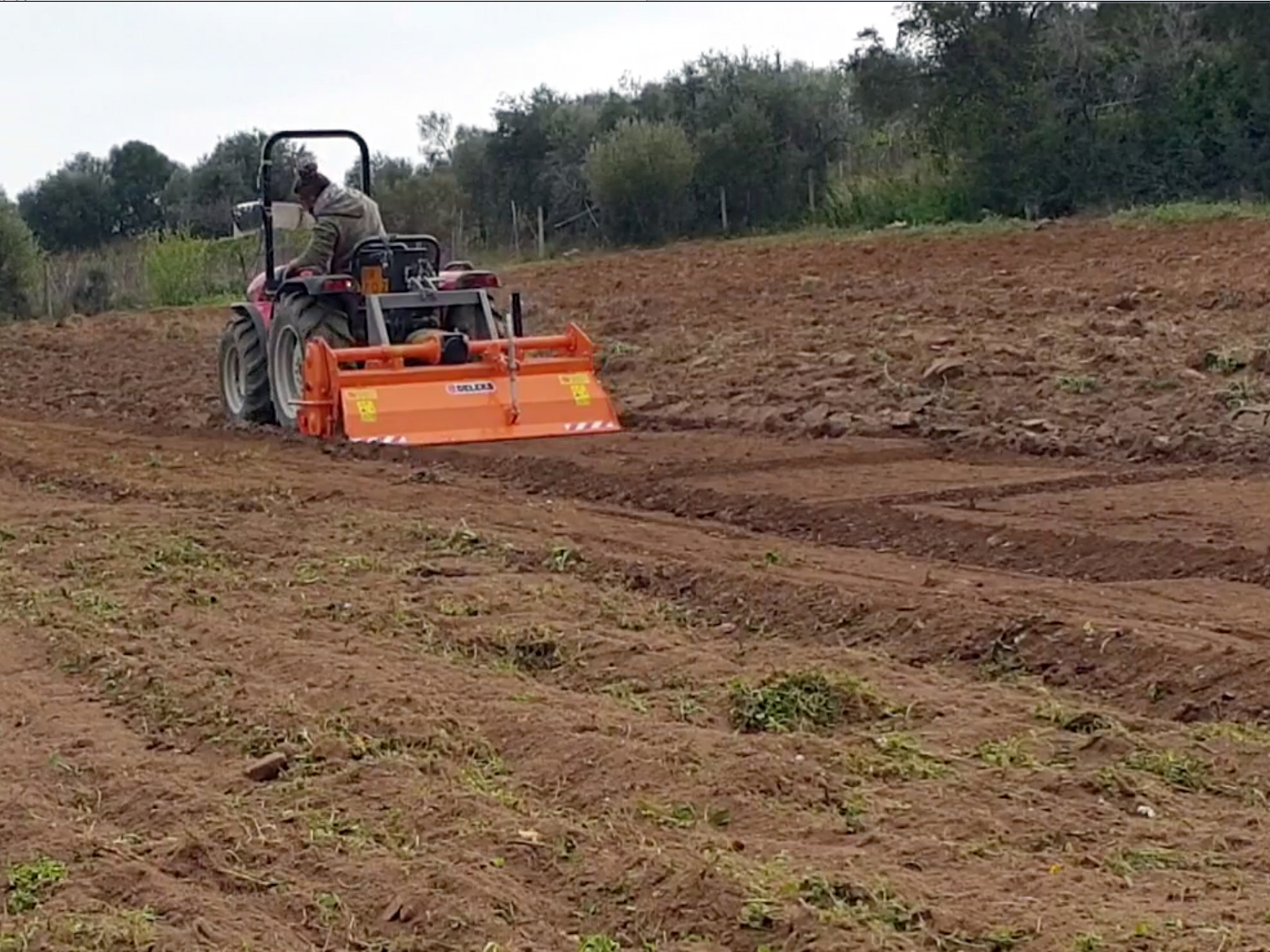

  • Vineyards and orchards: alleyway and under-row work with the rotavator shifted towards the row, without bringing the tractor close to the plants
  • Market gardens and nurseries: seedbed and planting-bed preparation, working in fertiliser and residues, working right up to the bed edges

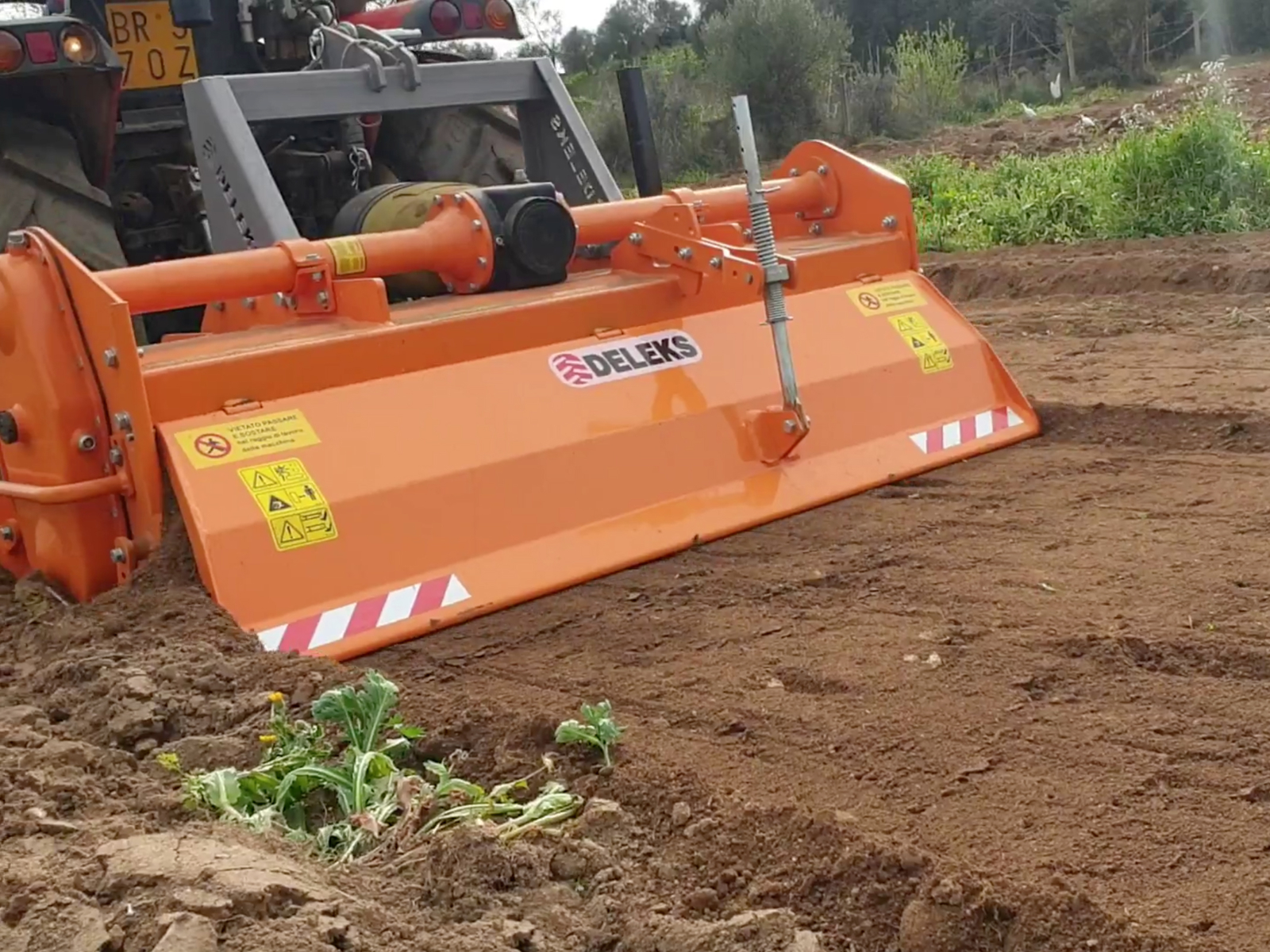

  • Open field and unbroken ground: working down the ploughing and two-pass tillage with the rotor at 210 rpm
  • Grounds maintenance and verges: working flush with walls, fences and ditches with the rotavator offset from the tractor

Options and spares

On this page you will also find the set of 10 DFH helical tines, tine nuts and bolts (20 of each), the 680 or 730 mm mechanical top link and the PTO reduction adaptor, as well as spare PTO shafts and clutches: order them with the rotavator or later on.


FAQ

What is the difference between the DFHIDR-150 and the fixed-linkage DFH-150?
Same rotor, same tines, same gearbox: the DFHIDR-150 adds the sliding frame with hydraulic ram and 330 mm of travel, controlled from the tractor. It pays off for anyone working between rows or along edges; for open-field work the fixed DFH-150 costs less and weighs 352 kg (776 lb).

What does the tractor need for the hydraulic side shift?
One free double-acting spool valve: the ram pushes and pulls the rotavator, so it needs flow in both directions. Hoses and standard 1/2" agricultural quick couplers are supplied. Orchard tractors of this class normally have at least one; if it is taken by another implement, a diverter valve adds a second outlet.

Is the PTO shaft included? How is the clutch set?
Yes: the CE PTO shaft (category 6, 1,000 mm / 39 in) with twin-disc friction clutch Ø 180 mm (7.1 in) is standard. The clutch is set to suit the tractor and the ground following the manual: too tight it does not protect the drive, too loose it slips and overheats.

How deep does it work and how is the depth set?
16 to 20 cm (6.3–7.9 in). The depth is set with the side skids and trimmed with the top link; on hard ground a first shallower pass and a second to full depth work best.

What maintenance does it need?
At the start of the season check the oil level in the gearbox (SAE 120) and in the side drive, tine wear and bolt tightness; before each use grease the points shown in the manual, check the hydraulic hoses and fittings and check the PTO clutch. Worn tines are replaced with the set of 10.


DELEKS® spares and support

Genuine spares ship from the DELEKS® warehouses in Europe: tines, gears, pins, bearings, PTO shafts, clutches, seals and the side-shift cylinder are normally in stock, for routine servicing and for repairs. The technical team helps you pick the right part from the exploded drawings, service the machine and choose the rotavator and the accessories that suit your tractor. The rotavator comes with the EC declaration of conformity, the invoice and the use and maintenance manual, also emailed when the order ships. Two-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric
Working width 1495.0 mm
Overall width 1700.0 mm
Weight 360.0 kg
Overall height 1030.0 mm
Tractor Power Range 35 - 60 Hp
3 point linkage Cat. 2 (ø 25.0-28.0mm)
Position of the gearbox Central
Spacing between the 2 lower points 745.0 - 870.0 mm
Overall length 720.0 mm
Distance between pto attachment and ground 590.0 mm
Transmission: Drive method Gears
Transmission: Gearbox DELEKS 540 r/min (3 year warranty)
Transmission: Rotation of gearbox Right side
Transmission: RPM Rotor speed 210 rpm
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925
Rotor: diameter 76.0 mm
Rotor: bearings type and size "GB276-6306(R) GB276-6309(L)"
Rotor: sheet thickness 8.0 mm
Working Depth Range 160.0-200.0 mm
Pto shaft CE 6x1000 mm + twin-disc friction clutch Ø180 mm
Rotor: diameter with blades 480.0 mm
Rotor: flanges 8
Number of Blades per flange 6
Blades: quantity 42
Blades: height/width 180.0 / 83.0 mm
Blades: curve length 250.0 mm
Blades: distance between holes 55.0 mm
Blades: diameter of the holes 13.0 mm
Blades: thickness 6.0 mm
Effective Displacement 330.0 mm Hydraulic
Blades: weight 810.0 g
Gross shipping weight 442 kg
Package volume 1.13 m3
Packing sizes 800.0*1730.0*820.0 mm

Technical charts
