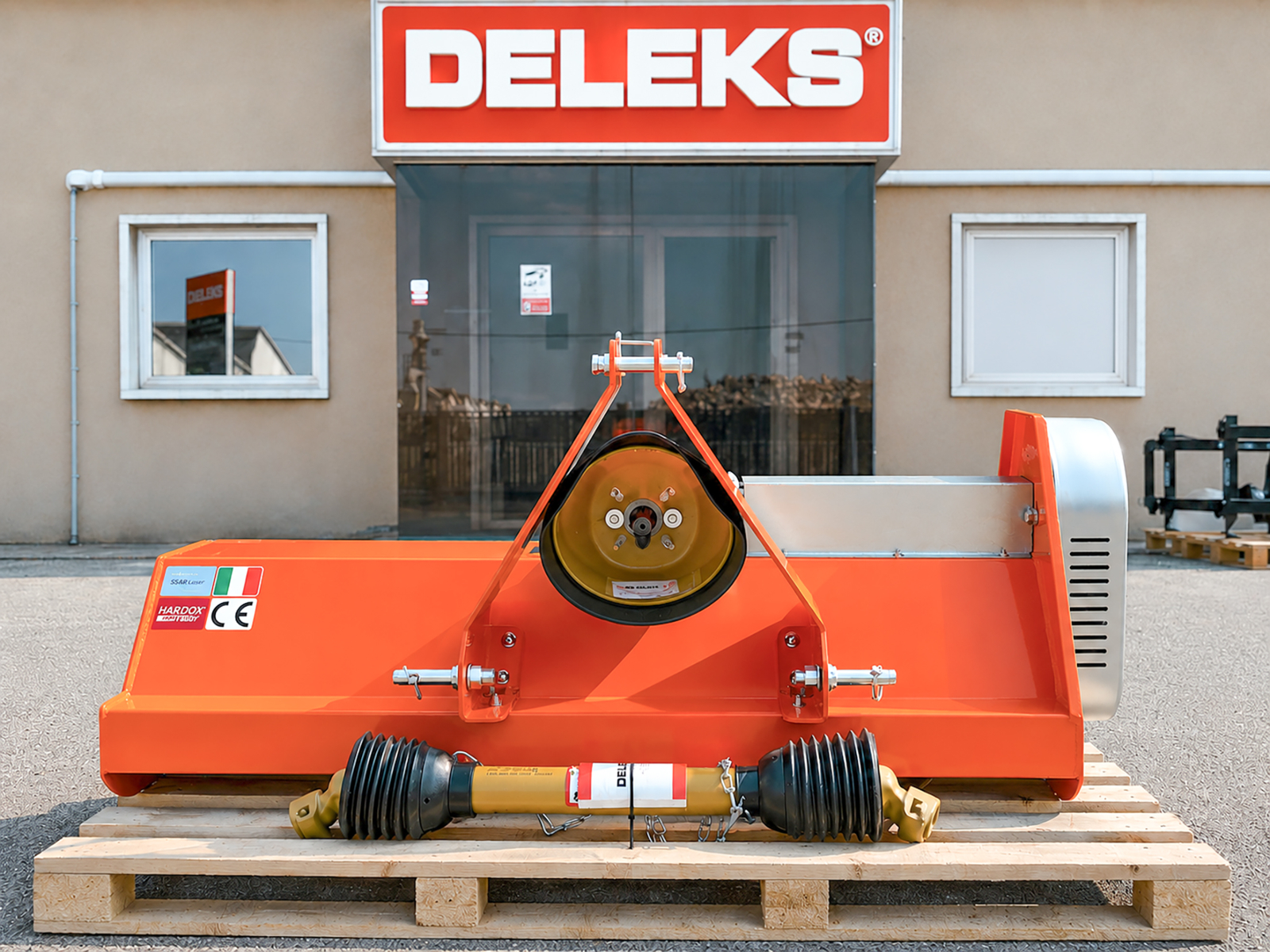

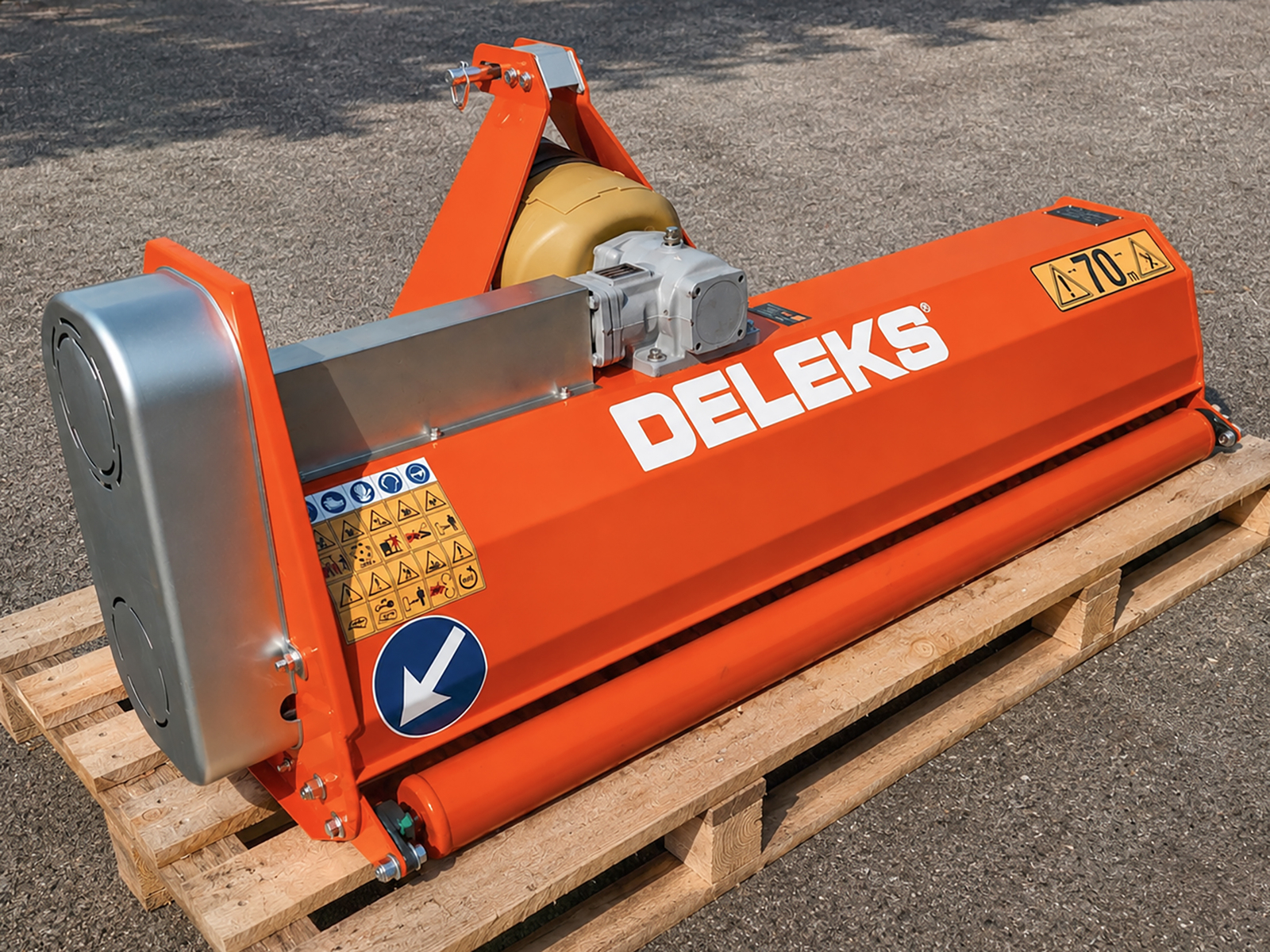

Light flail mower for compact tractors 140 cm (55 in) APE-140, hammer flail mower for 18-35 hp tractors
DETAILS

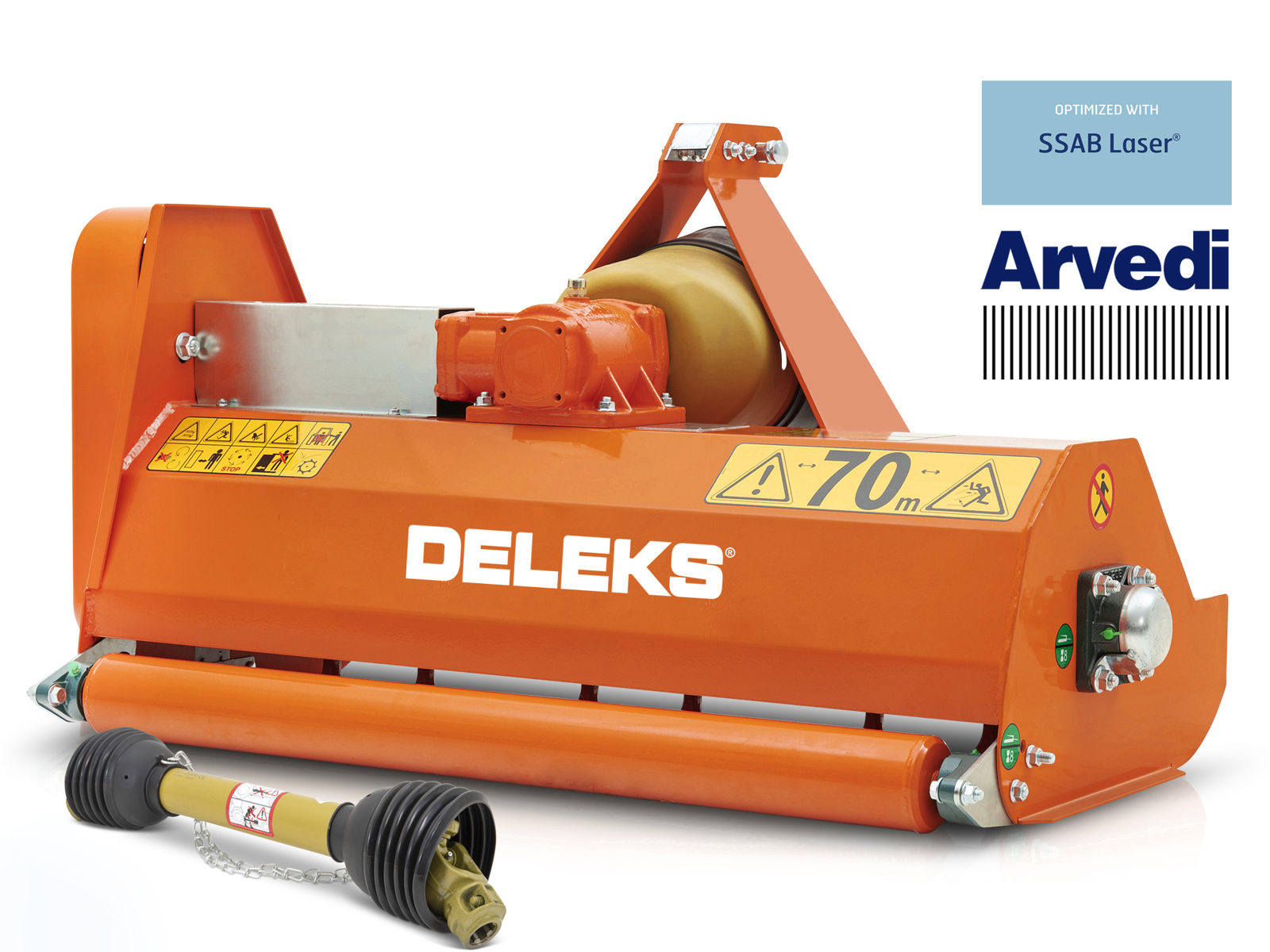

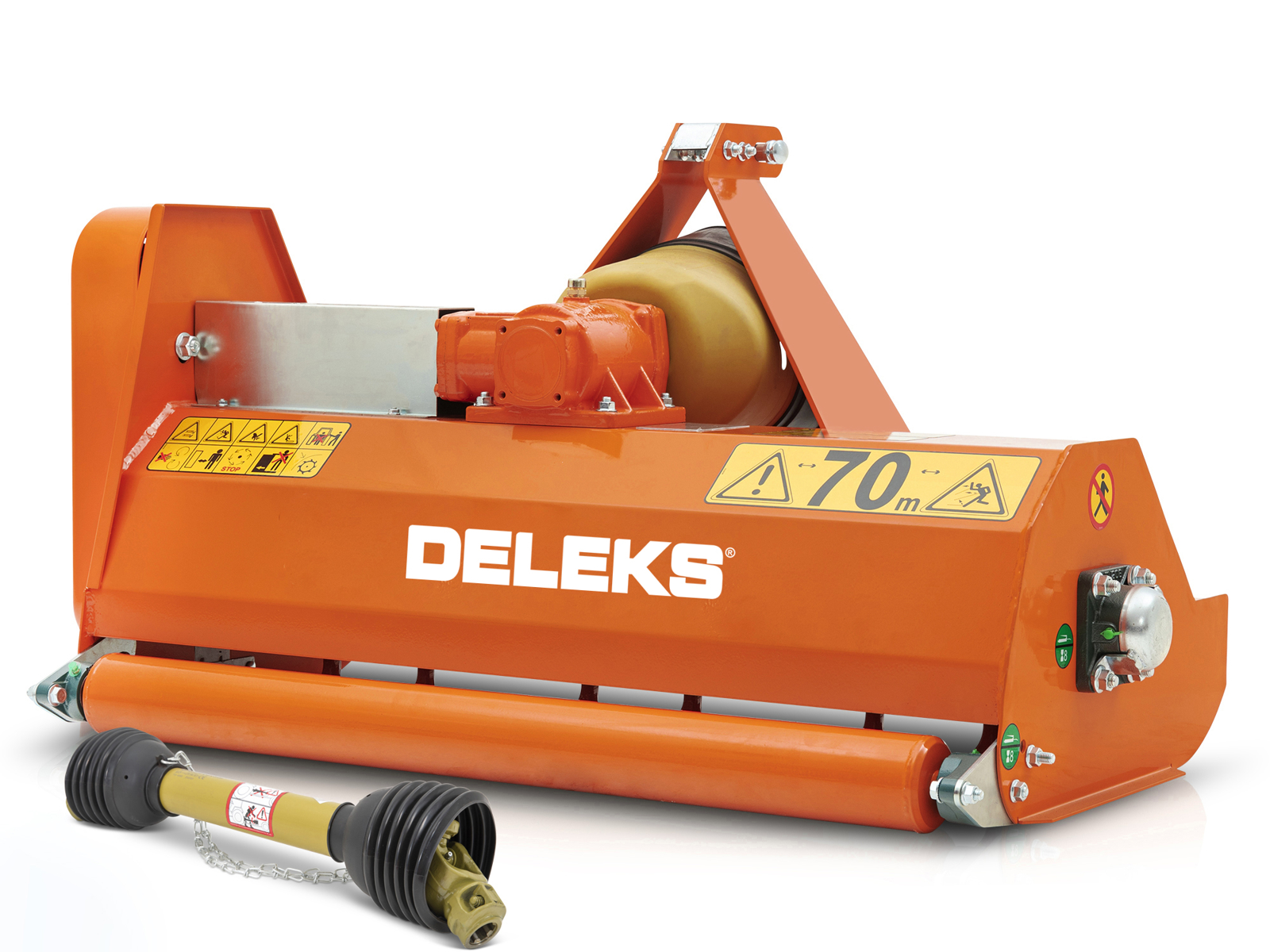

Light hammer flail mower for compact tractors with a 140 cm (55 in) cut: the DELEKS® APE-140 is the flail mower for compact tractors from 18 to 35 hp with a 540 rpm PTO and a category 1 three-point linkage, such as Kubota, Iseki, Yanmar, Solis and Pasquali. It weighs just 144 kg (317 lb) and, unlike many light flail mowers, works with hammer flails rather than Y-blades: 24 hammers of 330 g (11.6 oz) on an electronically balanced rotor shred grass, brambles, leaves, plant residues and small prunings up to 2 cm (0.8 in) thick on lawns, in vineyards, orchards and olive groves and on rough ground. Adjustable rear roller for a cutting height from 20 to 35 mm (0.8 to 1.4 in), drive with freewheel and a 3-year warranty, external belt tensioner. Designed, manufactured and assembled by DELEKS, Made in Italy, it comes complete with a CE-approved PTO shaft, a 2-year warranty and free delivery within the EU.
Which tractors it fits

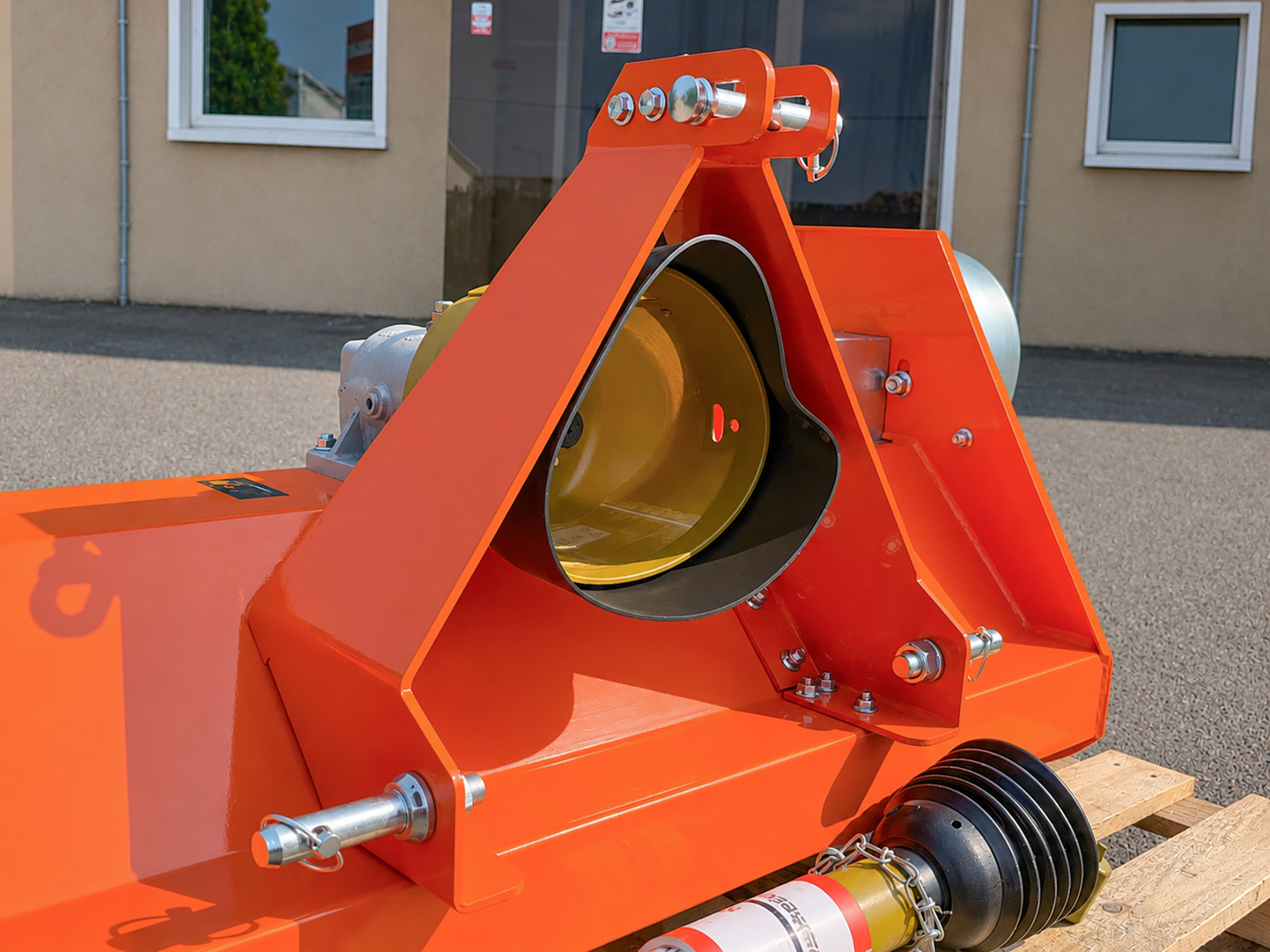

The APE-140 cuts 140 cm (55 in) with an overall width of 155 cm (61.0 in) and is built for small tractors from 18 to 35 hp with a 540 rpm PTO and a category 1 three-point linkage (lower link spacing from 380 to 580 mm): Kubota, Iseki, Yanmar, Solis, Pasquali and equivalent models. At 140 cm (55 in) it is the most productive in the APE series: more ground covered in less time, while still suiting compact tractors. Its 144 kg (317 lb) will not trouble the linkage of a compact tractor and the mower is easy to handle between rows, on the flat and on slopes. For tractors whose PTO turns anticlockwise there are the reverse-rotation APE-SX models, in 100 and 120 cm (39 and 47 in).

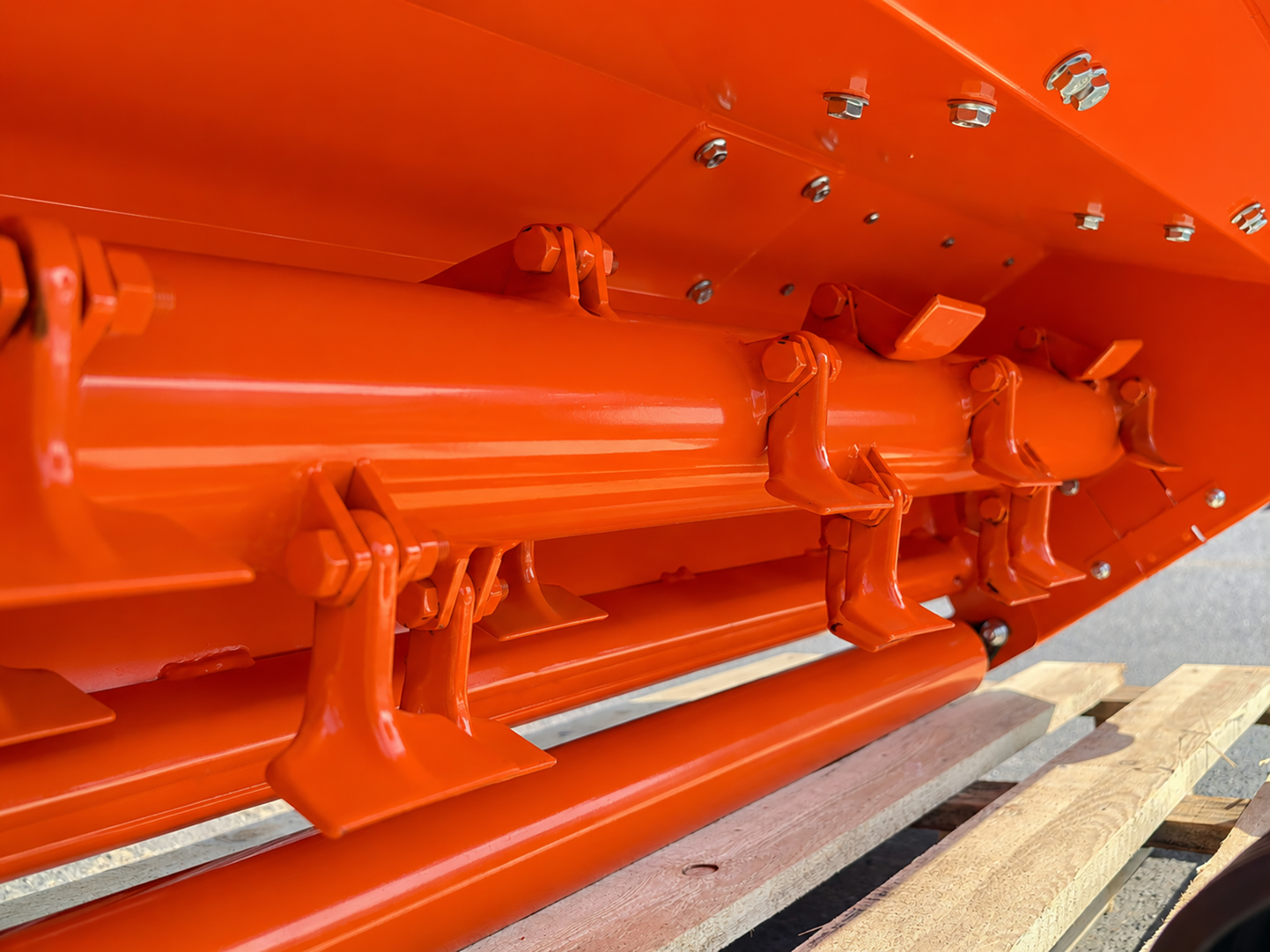

Hammer flails, not Y-blades
Most light flail mowers work with Y-blades; the APE series is designed for hammer flails, which make a better job of grass, brambles and small woody residues. The 24 hammers of 330 g (11.6 oz) are mounted on HARDOX brackets, a high wear-resistance steel, on a 76 mm (3 in) rotor built from ARVEDI tube and electronically balanced, which spins at 3,000 rpm with little vibration. It shreds grass, leaves, brambles, plant residues and small prunings up to 2 cm (0.8 in) thick. On request it can be fitted with blades using the COLTELLI30APE kit.

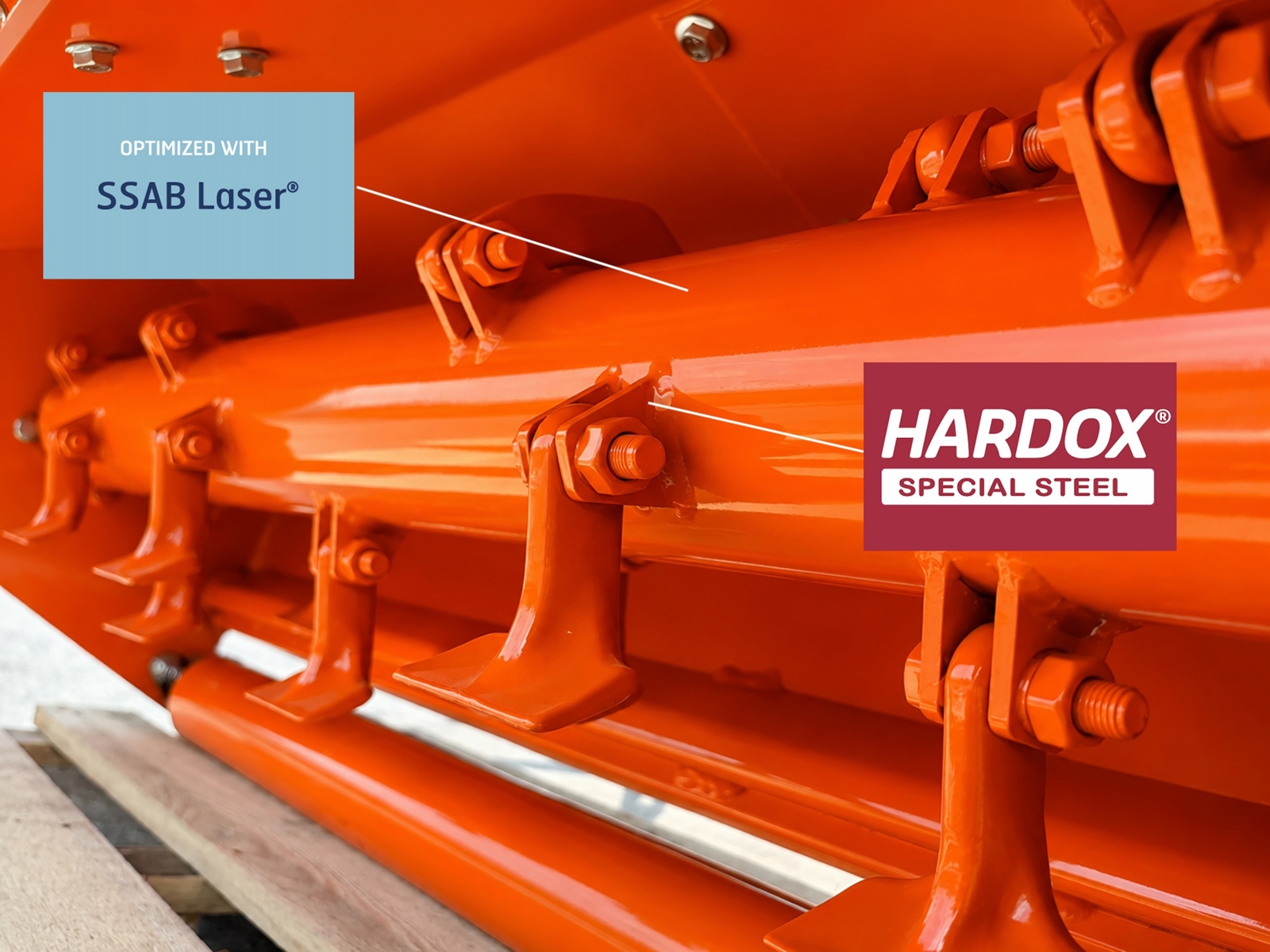

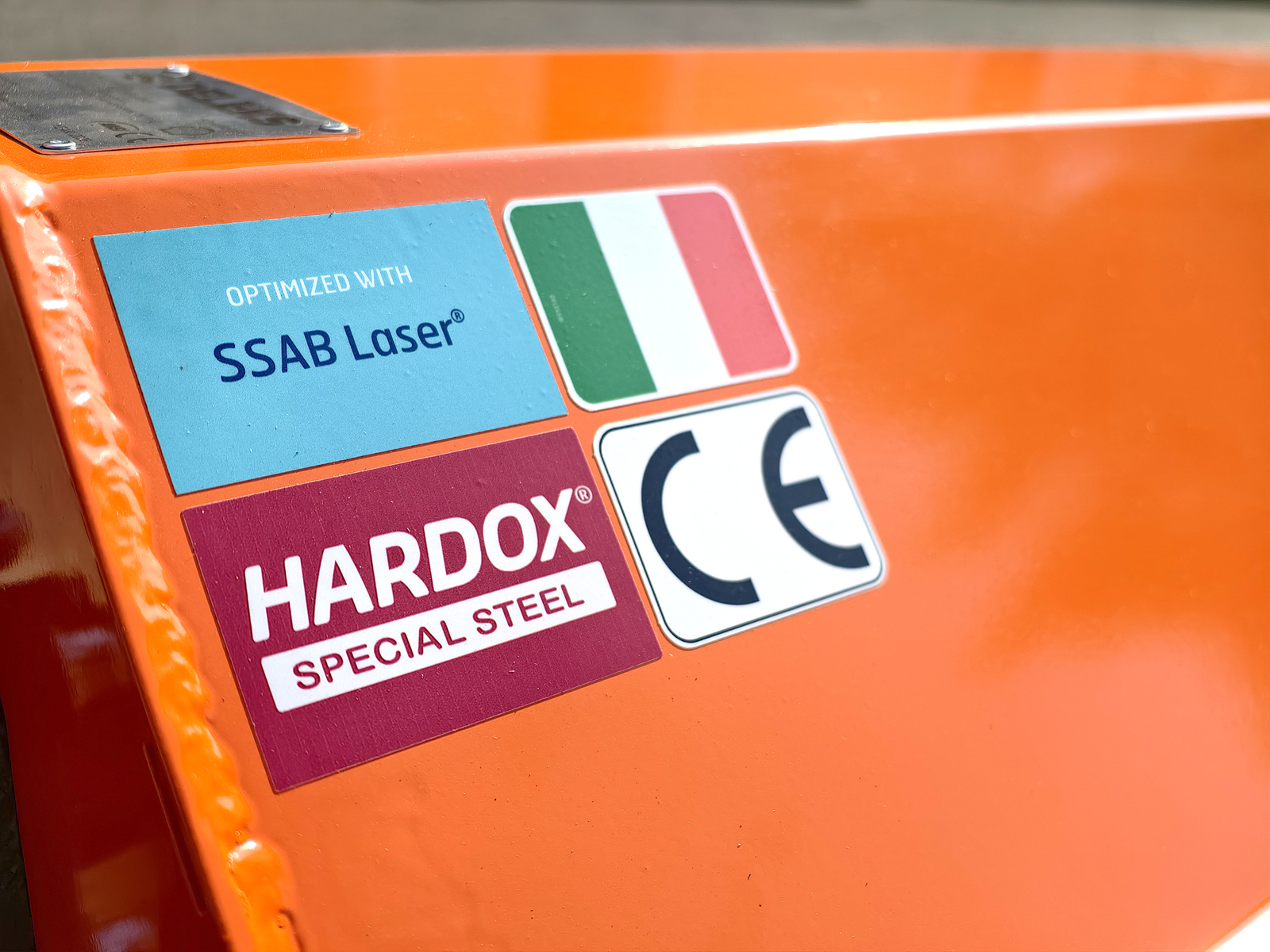

SSAB steel structure: light and strong
The whole structure is in SSAB structural steels, with high mechanical strength and low weight: that is what makes it possible to fit hammer flails to a mower weighing 144 kg (317 lb). The APE series is designed, manufactured and assembled directly by DELEKS®, from the metal fabrication to final assembly. For this model the sheet steel is bought in Italy and worked at a DELEKS® production plant in the European Union.

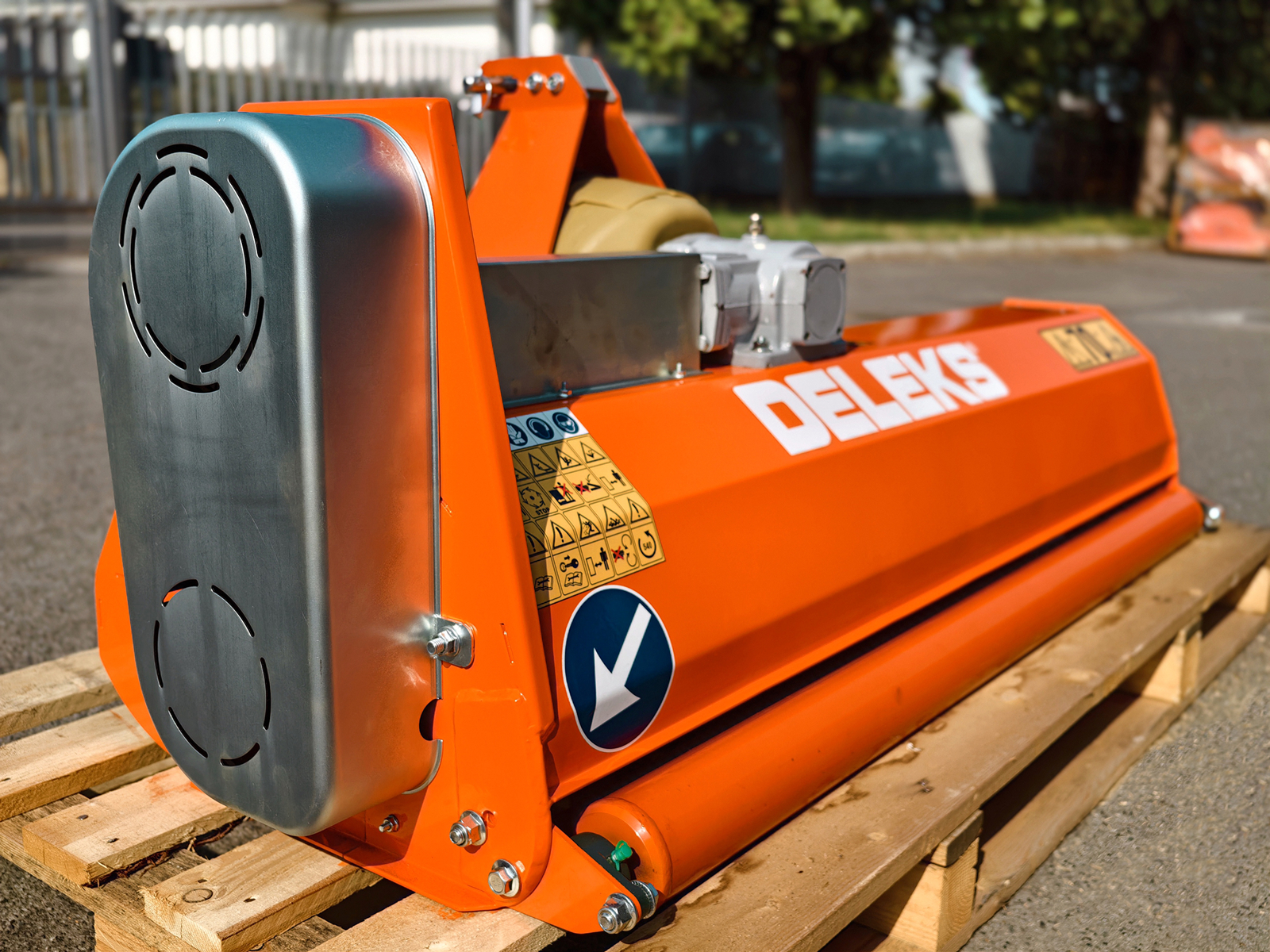

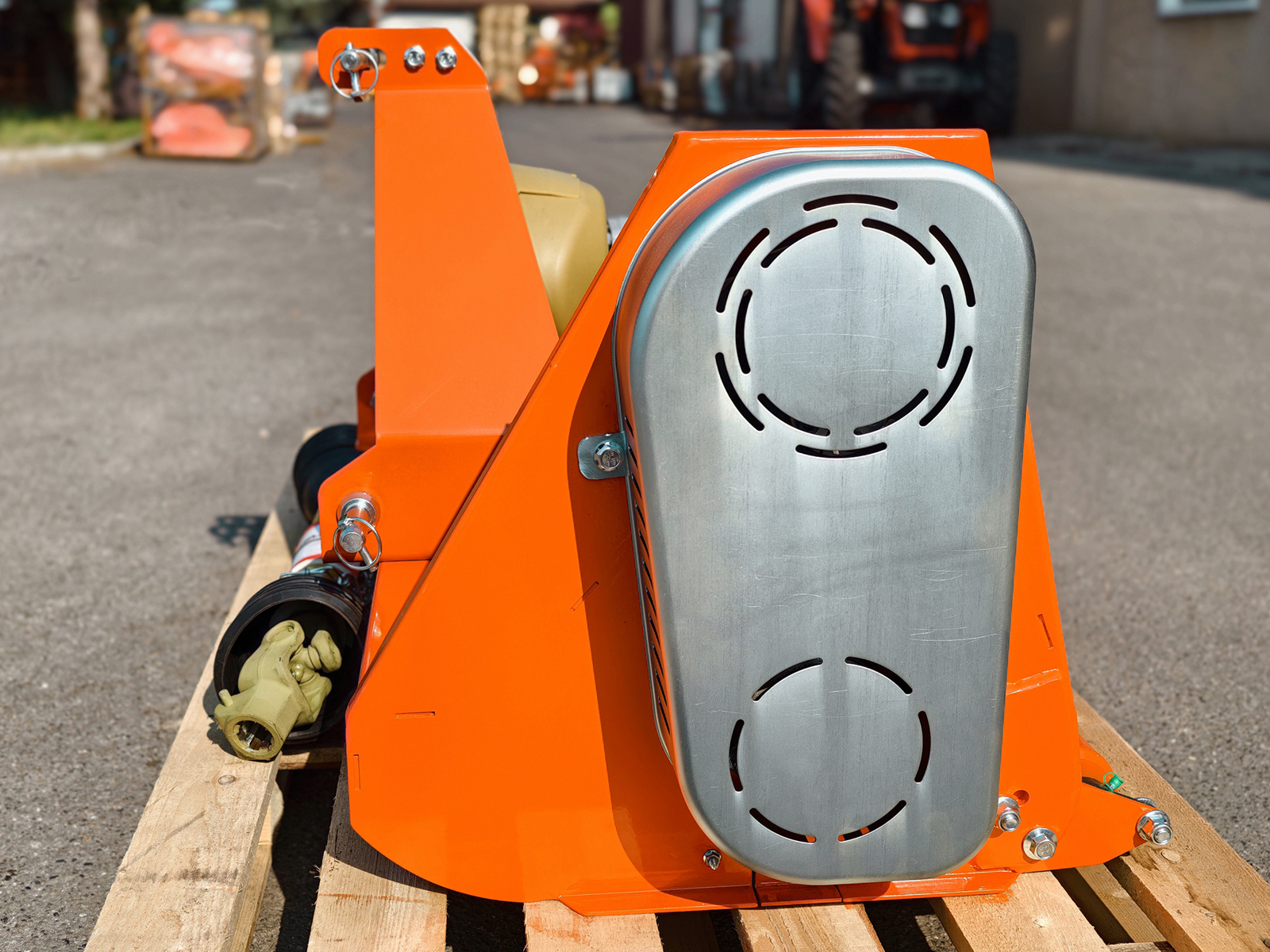

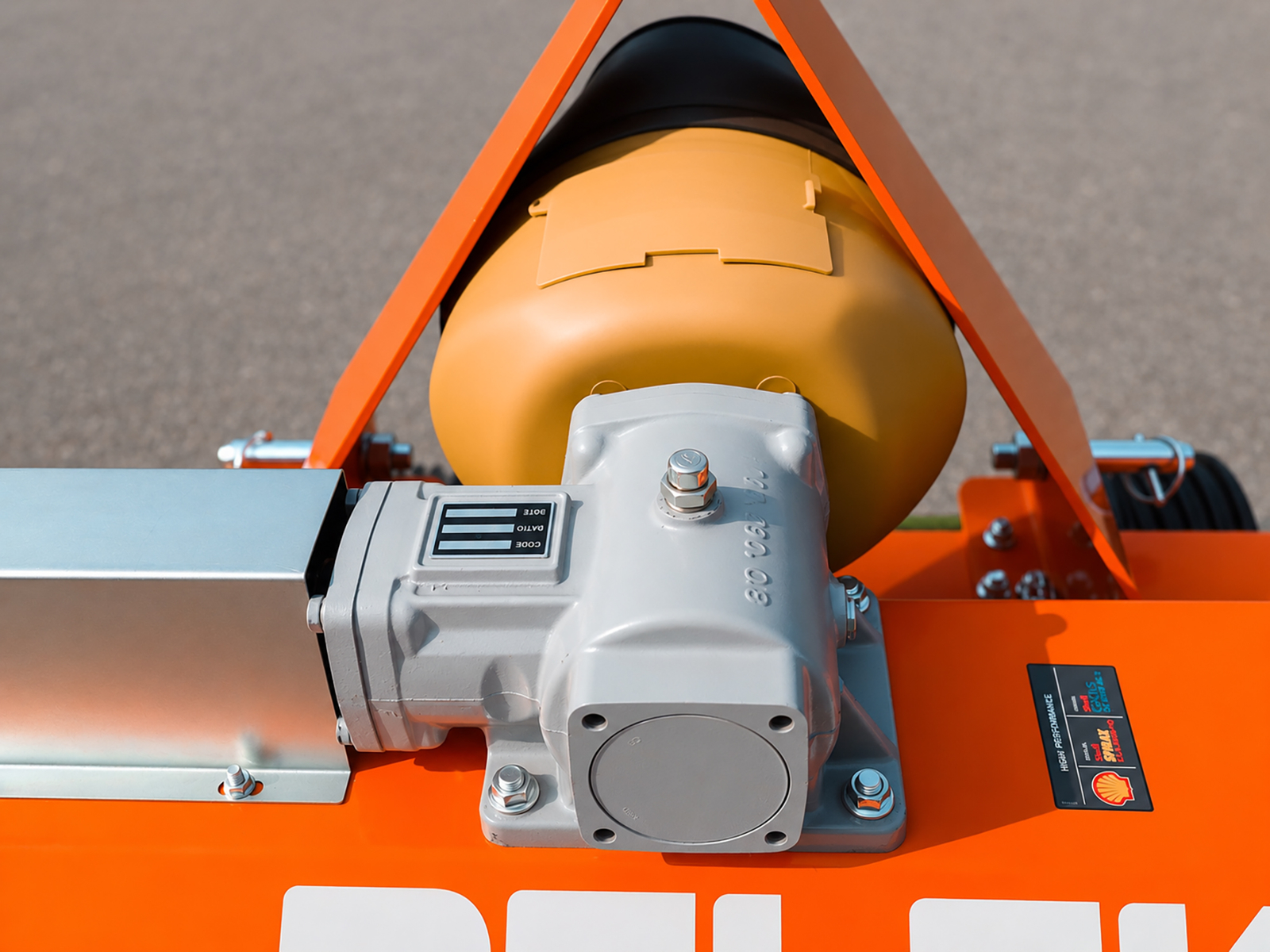

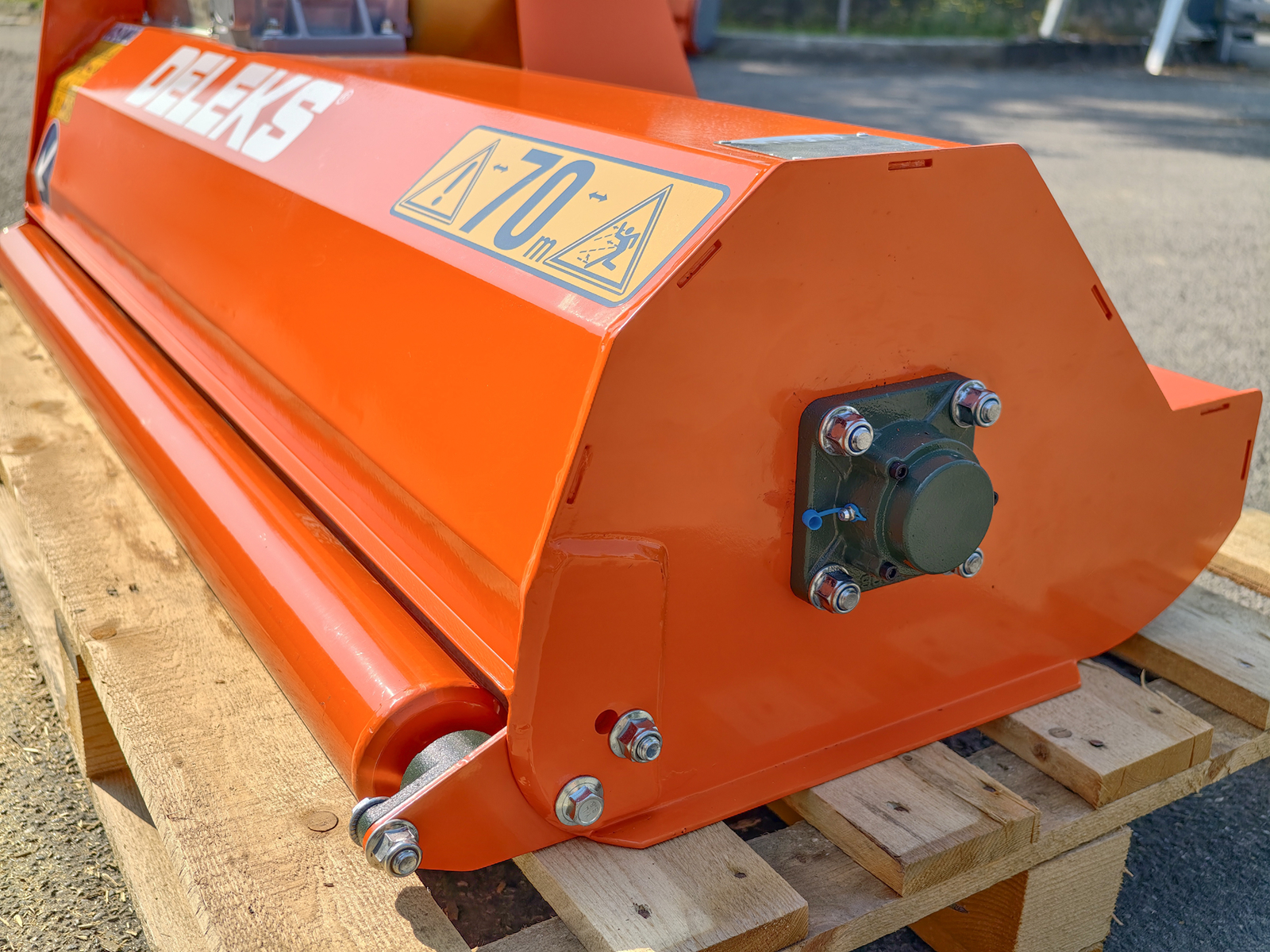

Drive with freewheel, belt tensioner and roller
The gearbox for a 540 rpm PTO has a built-in freewheel and a 3-year warranty; drive reaches the rotor through 2 AX35 V-belts and the external tensioner lets you adjust belt tension in a moment. The 85 mm (3.3 in) rear roller is adjustable and sets the cutting height from 20 to 35 mm (0.8 to 1.4 in). Standard equipment: CE-approved category 2 PTO shaft, 800 mm (31.5 in) long, category 1 three-point linkage, front and rear guards. All the grease points are easy to reach.

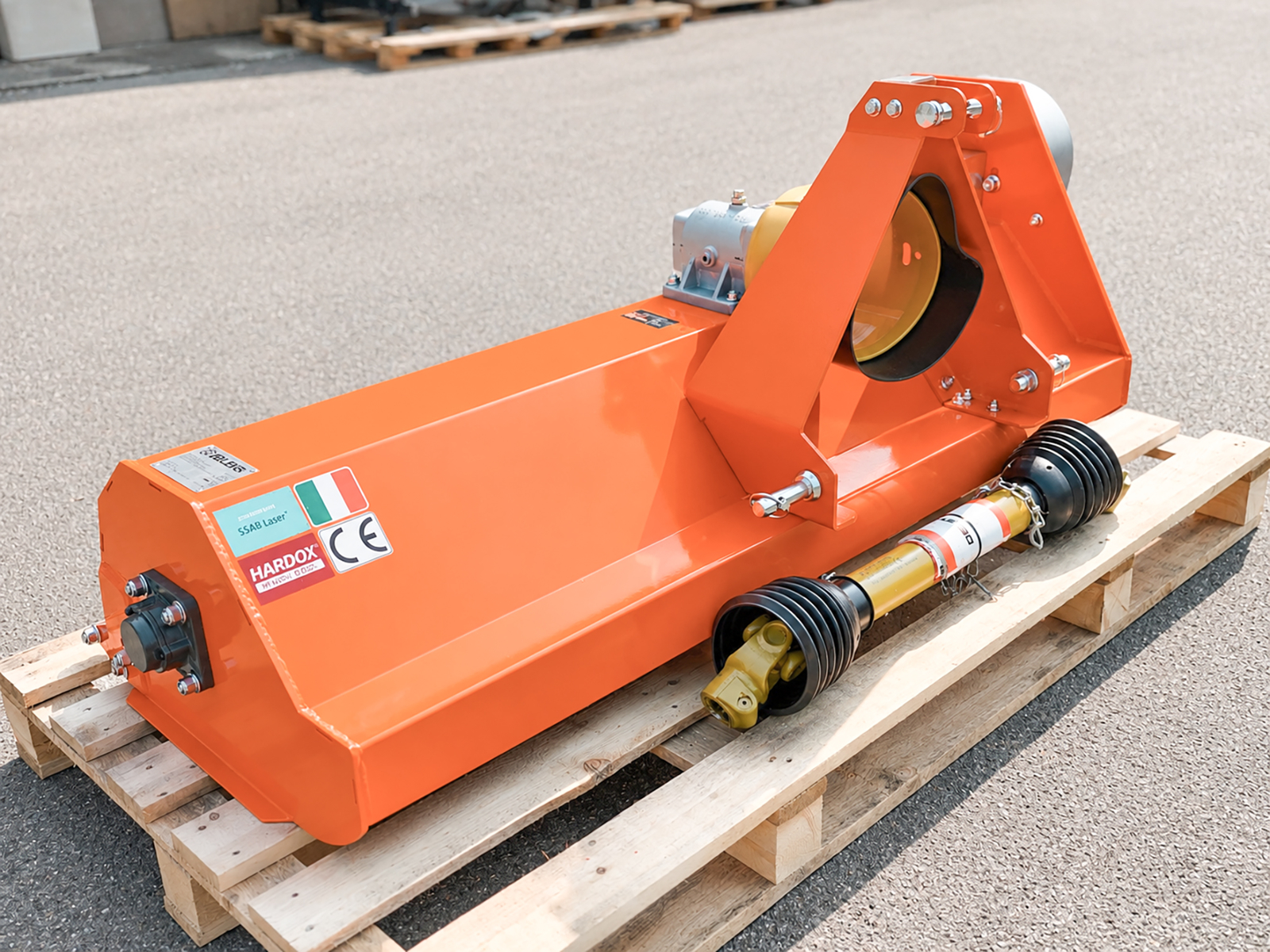

Dimensions, weight and delivery

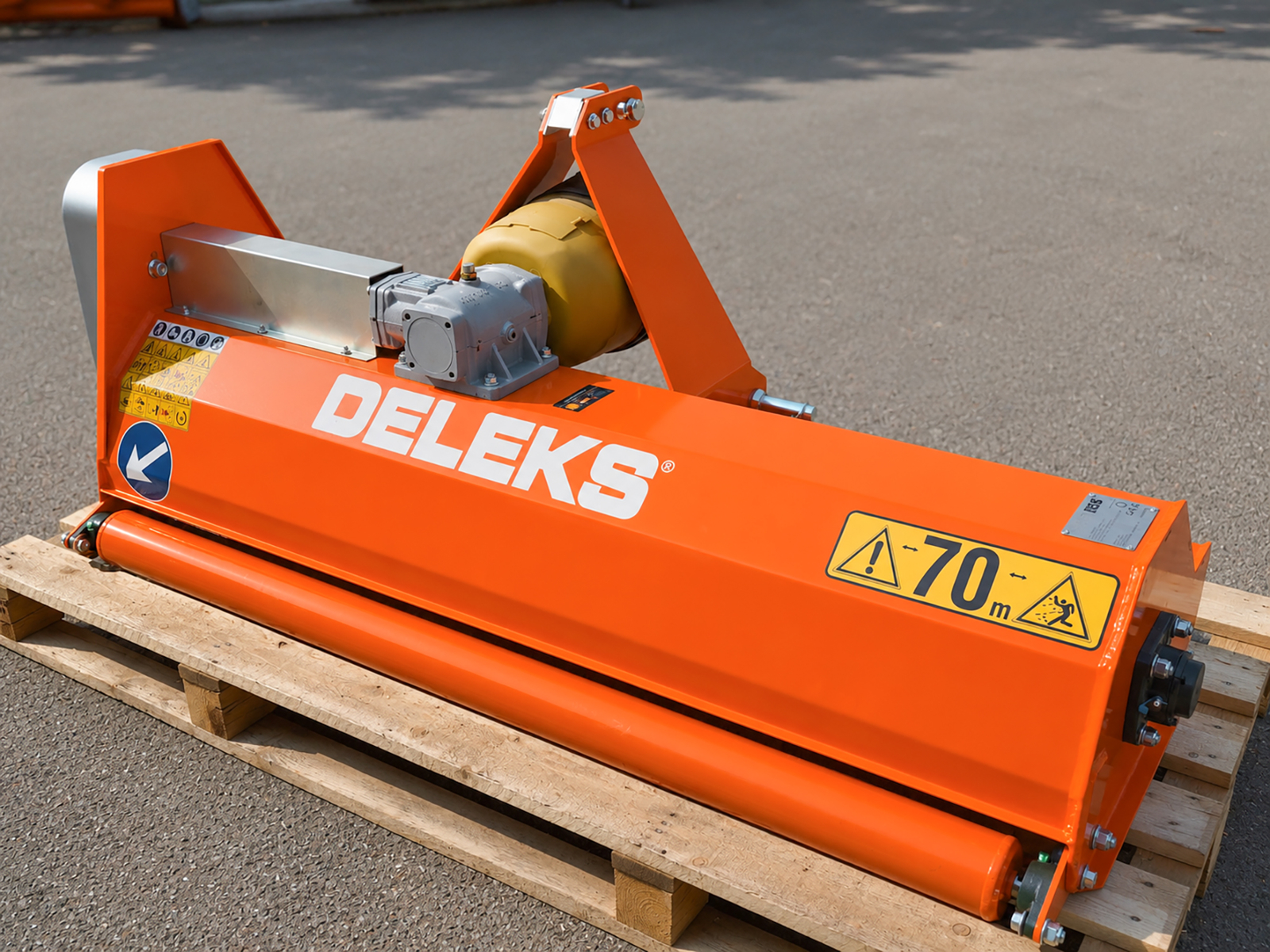

Working width 1,400 mm (55.1 in), overall width 1,550 mm (61.0 in), length 640 mm (25.2 in), height 623 mm (24.5 in), weight 144 kg (317 lb). It ships on a wooden pallet with side protection, 160 × 80 × 66 cm (63 × 31 × 26 in), 173 kg (381 lb) gross, 0.84 m³, with free delivery within the EU, after DELEKS® quality checks: it arrives with oil in the gearbox and the grease points greased. Only the three-point headstock needs fitting: a few minutes with two spanners. It complies with the EC Machinery Directive and carries a 2-year warranty.
Where it works
- Lawns, large gardens and amenity grass: topping without collection
- Vineyards, orchards and olive groves: grass between the rows and small prunings up to 2 cm (0.8 in)
- Vegetable plots and smallholdings: plant residues, leaves and weeds
- Rough ground and field edges: long grass and brambles
- Compact tractors from 18 to 35 hp, on the flat and on slopes
Options and spares
From this page you can add to your order the spare set of 2 belts (CINGHIE2AX35), the kit of 10 hammer flails (MAZZE10L2022), the 10 nuts and bolts for the flails (DB10L2022), the blade kit, 10 sets of 3 (COLTELLI30APE), spare pins for the three-point linkage (3PERNI1B) and the universal PTO adapter (RID1). Other spares are identified on the exploded diagrams with our technical team.
FAQ
What size tractor does the APE-140 need?
From 18 to 35 hp, with a 540 rpm PTO and a category 1 three-point linkage. It weighs 144 kg (317 lb): well within the lift capacity of a compact tractor.
Will it fit a Kubota, Iseki or Yanmar?
Yes: it is built for compact tractors with a category 1 three-point linkage and a 540 rpm PTO, such as Kubota, Iseki, Yanmar, Solis and Pasquali.
Why hammer flails and not Y-blades?
Hammer flails make a better job of grass, brambles and small woody residues. The SSAB steel structure keeps the weight down, so they can be fitted even to a light mower; on request it can be fitted with blades (COLTELLI30APE kit).
Will it shred prunings?
Small prunings and branches up to 2 cm (0.8 in) thick, as well as grass, brambles and leaves. For prunings up to 3 cm (1.2 in) there is the LINCE; for thicker material, the medium series.
How do you set the cutting height?
With the adjustable rear roller, from 20 to 35 mm (0.8 to 1.4 in).
How does it differ from the LINCE?
The LINCE is heavier (from 135 kg / 298 lb), has a 102 mm (4 in) rotor with flails in 6 rows, shreds up to 3 cm (1.2 in) and is also available with manual or hydraulic side shift. The APE is the lightest, for tractors from 12 to 35 hp.
What if my PTO turns the other way?
For tractors with an anticlockwise PTO, such as some Pasquali, Valpadana and BCS models, there are the APE-SX mowers with a reverse-rotation gearbox, in 100 and 120 cm (39 and 47 in).

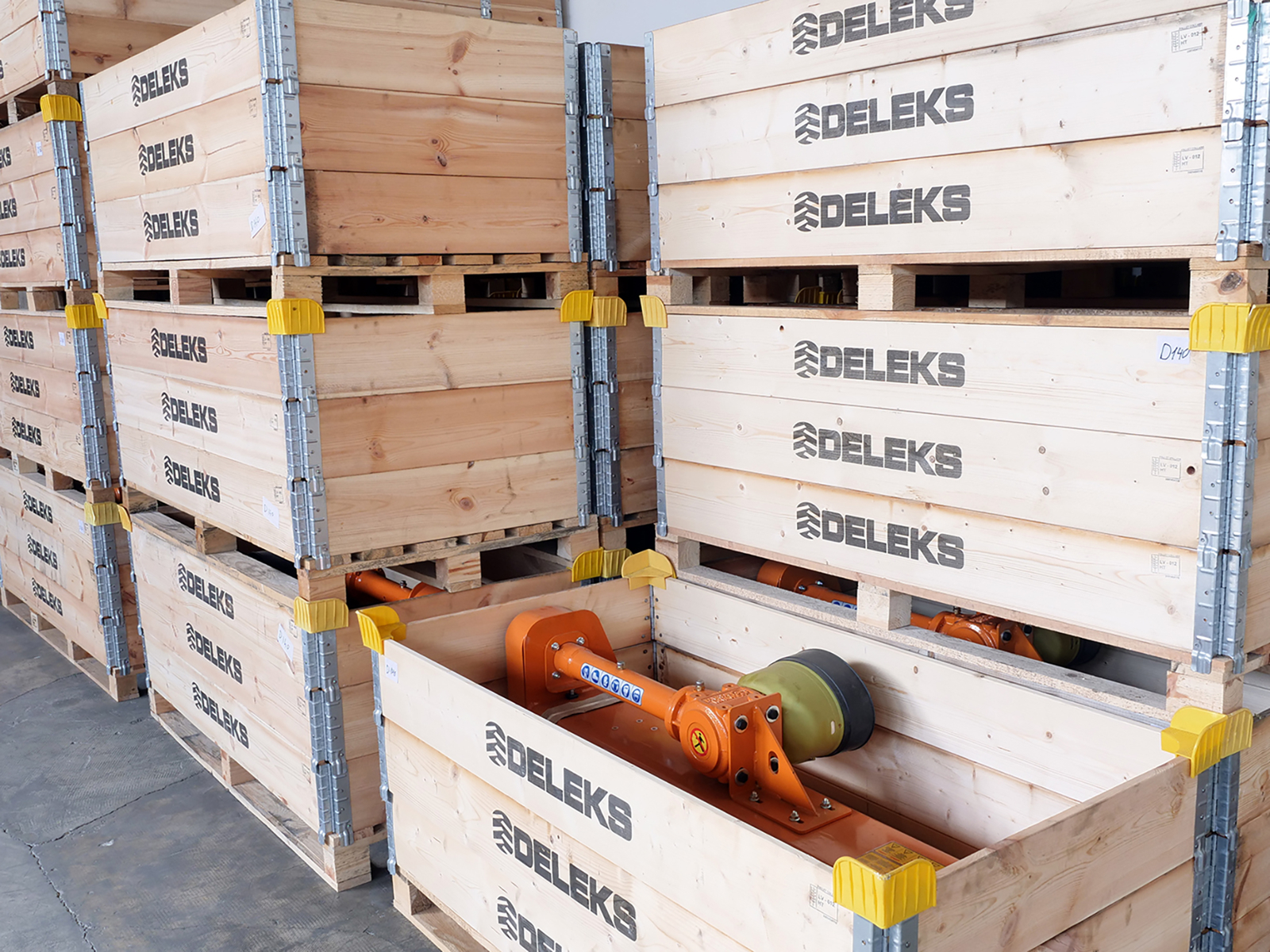

How is it delivered?

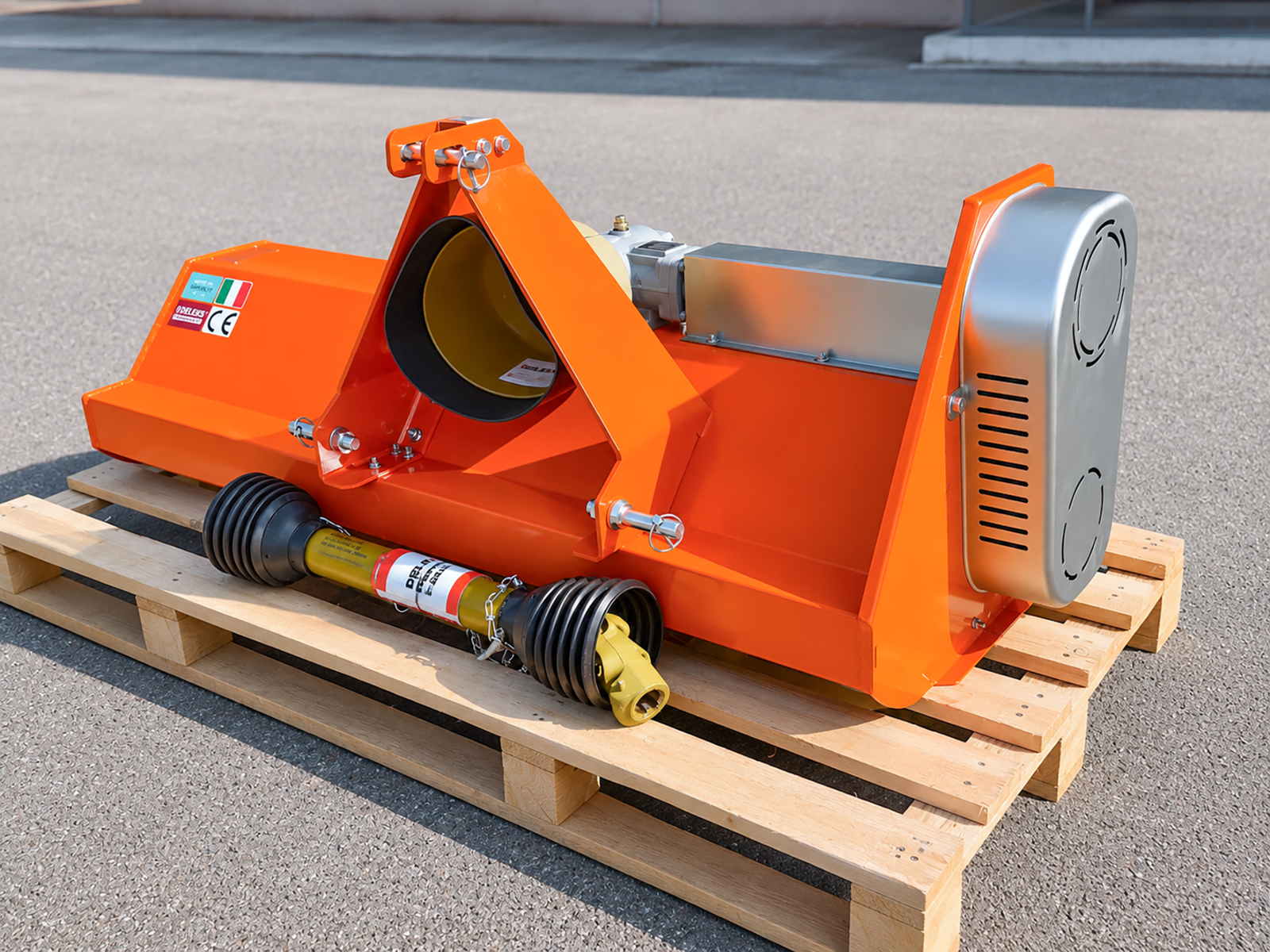

On a wooden pallet with side protection, with oil in the gearbox and the grease points greased; you only fit the three-point headstock, a few minutes with two spanners. The CE-approved PTO shaft is included.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1400.0 mm |
| Overall width | 1550.0 mm |
| Min / Max cutting height | 20.0 - 35.0 mm |
| Weight | 144.0 kg |
| Overall height | 623.0 mm |
| Tractor Power Range | 18 - 35 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Hood height | 317.0 mm |
| Spacing between the 2 lower points | 380.0 - 580.0 mm |
| Number of Hammers | 24 |
| Maximum cutting diameter | 10.0 - 20.0 mm |
| Overall length | 640.0 mm |
| Distance between pto attachment and ground | 385.0 mm |
| Main hood thickness | 3.0 mm |
| Sides thickness | 3.0 mm |
| Transmission: Drive method | V-belts |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: RPM Rotor speed | 3000 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Transmission: V-Belts quantity | 2 |
| Transmission: V-Belts size | AX35 (889LI) |
| Rotor: diameter | 76.0 mm |
| Rotor: bearings type and size | UCF206 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |
| Hammers: Weight | 330.0 g |
| Hammer: øhole | 11.0 mm |
| Hammer: base width | 80.0 mm |
| Hammer: top width | 14.0 mm |
| Hammer: Diagonal | 75.0 mm |
| Rear roller: diameter | 85.0 mm |
| Rear roller: sheet thickness | 6.3 mm |
| Rear roller: bearings type and size | UCFL204 |

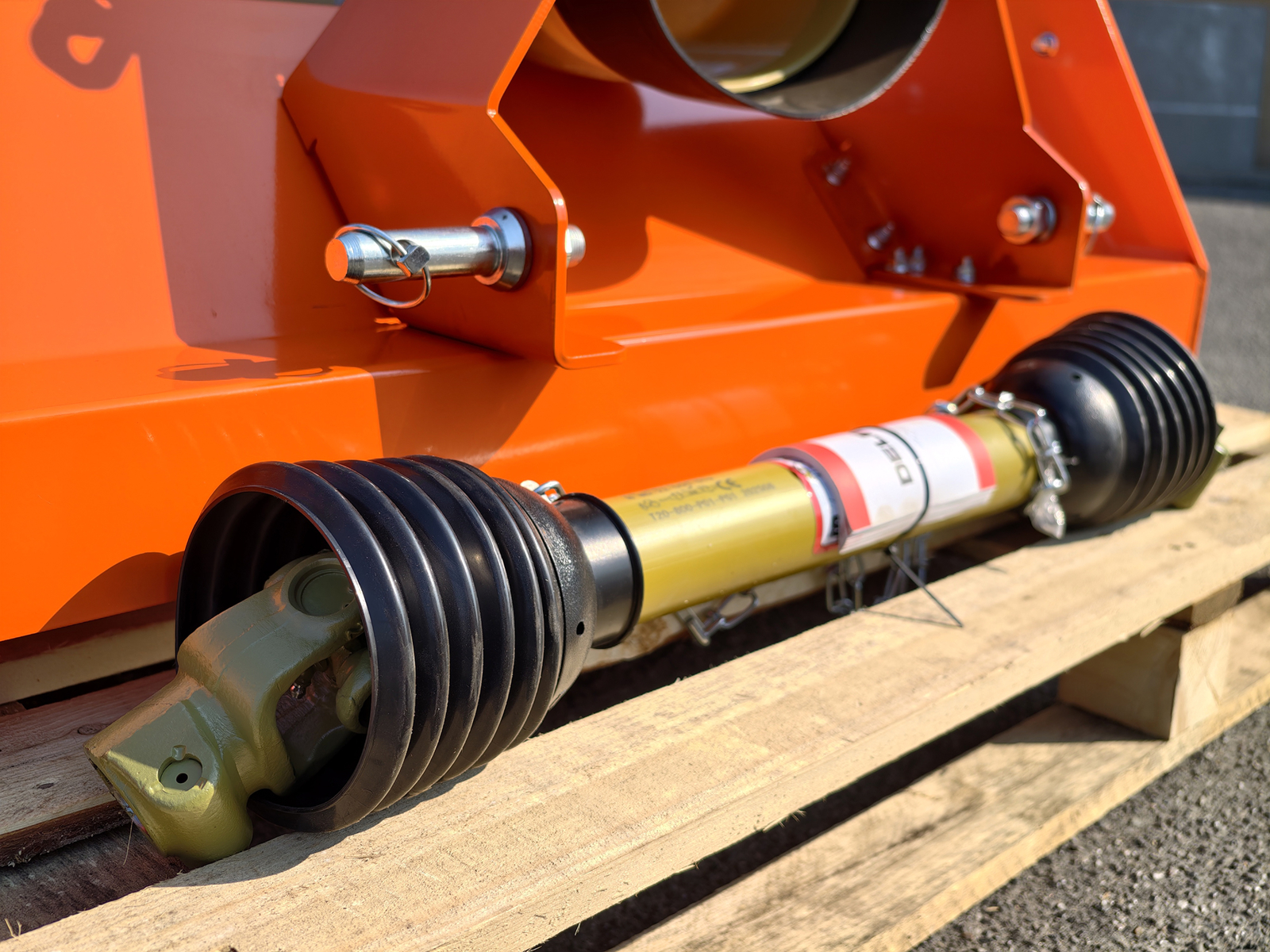

| Pto shaft | CE 2x800 mm |
| Hood length | 525.0 mm |
| Gross shipping weight | 173 kg |
| Package volume | 0.84 m3 |
| Packing sizes | 1600.0*800.0*660.0 mm |
