Verge flail mower for tractors 165 cm (65 in) VOLPE-165, offset hammer flail mower with hydraulic side shift and tilt for 35-55 hp tractors

Not available  Notify me
Code VOLPE165PTO - EAN 8053470234293
2.833,00€VAT incl.
Free shipping
Loading...
2.833,00€VAT incl.
Free shipping
View all details.
CUTTING WIDTH
100 120 140 165

reviews

2.833,00€VAT incl.

VIDEO
Field test
Field test
Review by Edd China (Wheeler Dealers)
Review by Edd China (Wheeler Dealers)
Unpacking by Alberto
Unpacking by Alberto

DETAILS

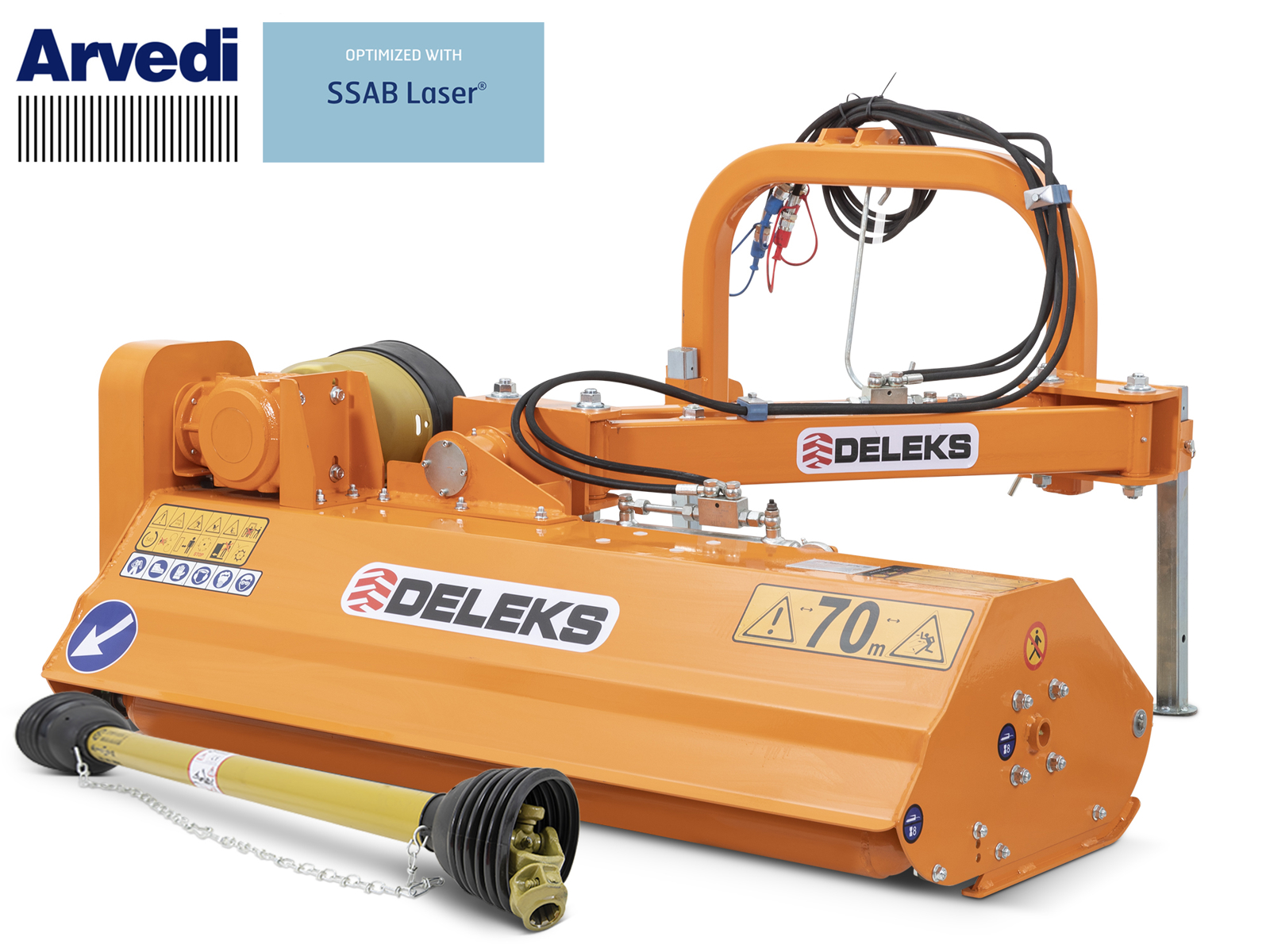

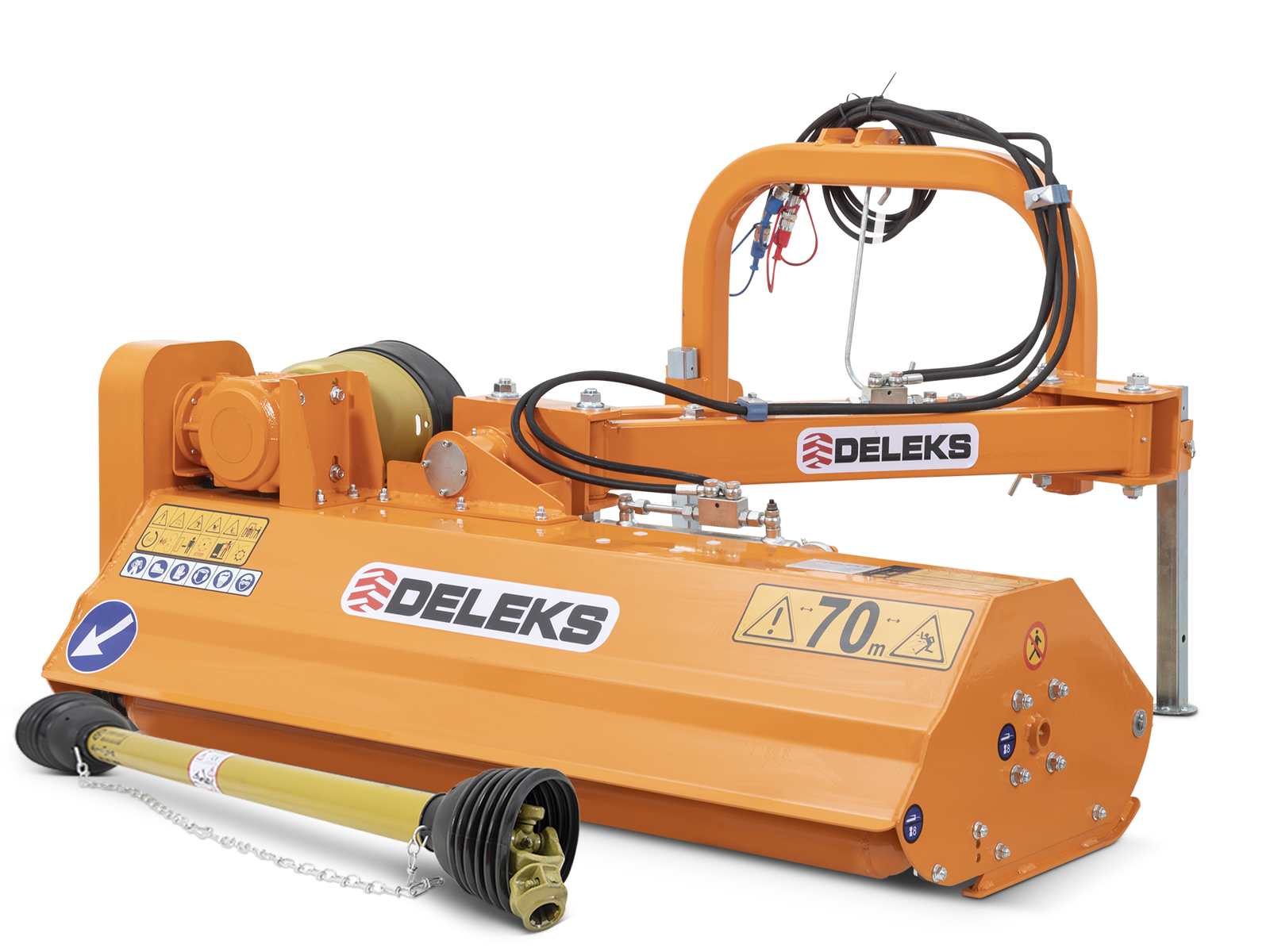

Verge flail mower for tractors with a 169 cm (67 in) cut: the DELEKS® VOLPE-165 is the offset hammer flail mower from the light series for compact tractors from 35 to 55 hp. Two hydraulic rams move the head out beside the tractor and tilt it from +90° to -60°: out to the side and tilted it tidies roadside verges, ditches and banks, upright it trims hedges and bushes, and closed it works behind the tractor like a normal flail mower, between the rows as well. The electronically balanced rotor, built from ARVEDI tube, carries 30 hammer flails of 330 g (11.6 oz) on HARDOX brackets and pulverises grass, brambles and small prunings up to 3 cm (1.2 in) thick. Frame in Swedish SSAB steel, DELEKS® 540 rpm gearbox with freewheel and a 3-year warranty, 4-belt drive, 322 kg (710 lb). Made in Italy, built by DELEKS, it comes complete with a CE-approved PTO shaft, a 2-year warranty and free delivery within the EU.


Which tractors it fits

The VOLPE-165 cuts 169 cm (67 in) and is built for compact tractors from 35 to 55 hp with a 540 rpm PTO and a category 1 three-point linkage (19-22 mm pins, lower link spacing from 650 to 900 mm): New Holland Boomer and T3000, John Deere 3 Series, Kubota L Series, Landini Mistral, Same Solaris, Antonio Carraro, Goldoni Star, Solis and equivalent tractors. The tractor needs 4 hydraulic outlets with ½ in couplings: the machine has 2 rams and 4 hoses with agricultural quick-release couplings and runs on an oil flow of 18-22 l/min at 120-150 bar. The gearbox sits 472 mm above the ground. It works on the flat and on slopes.

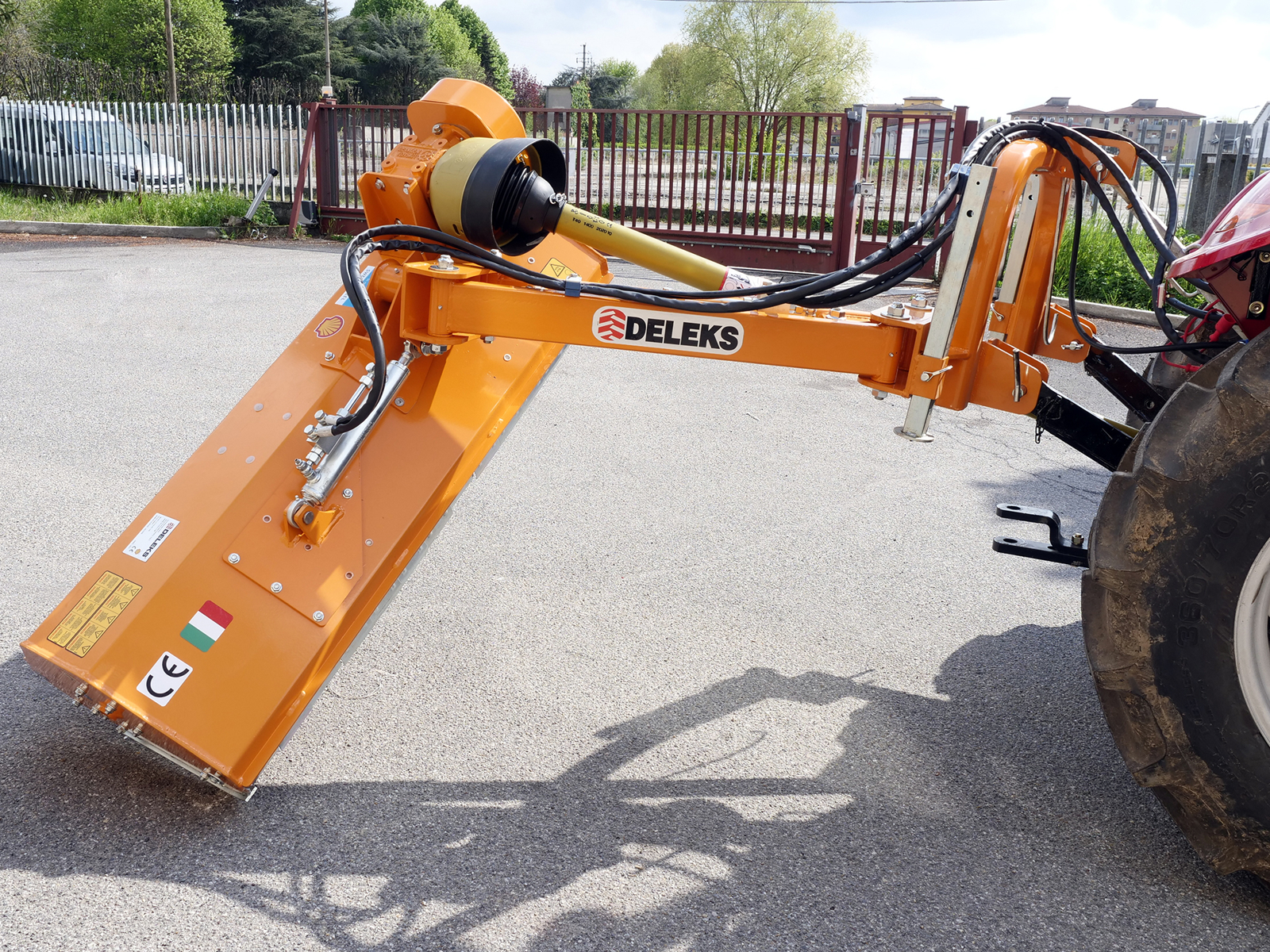

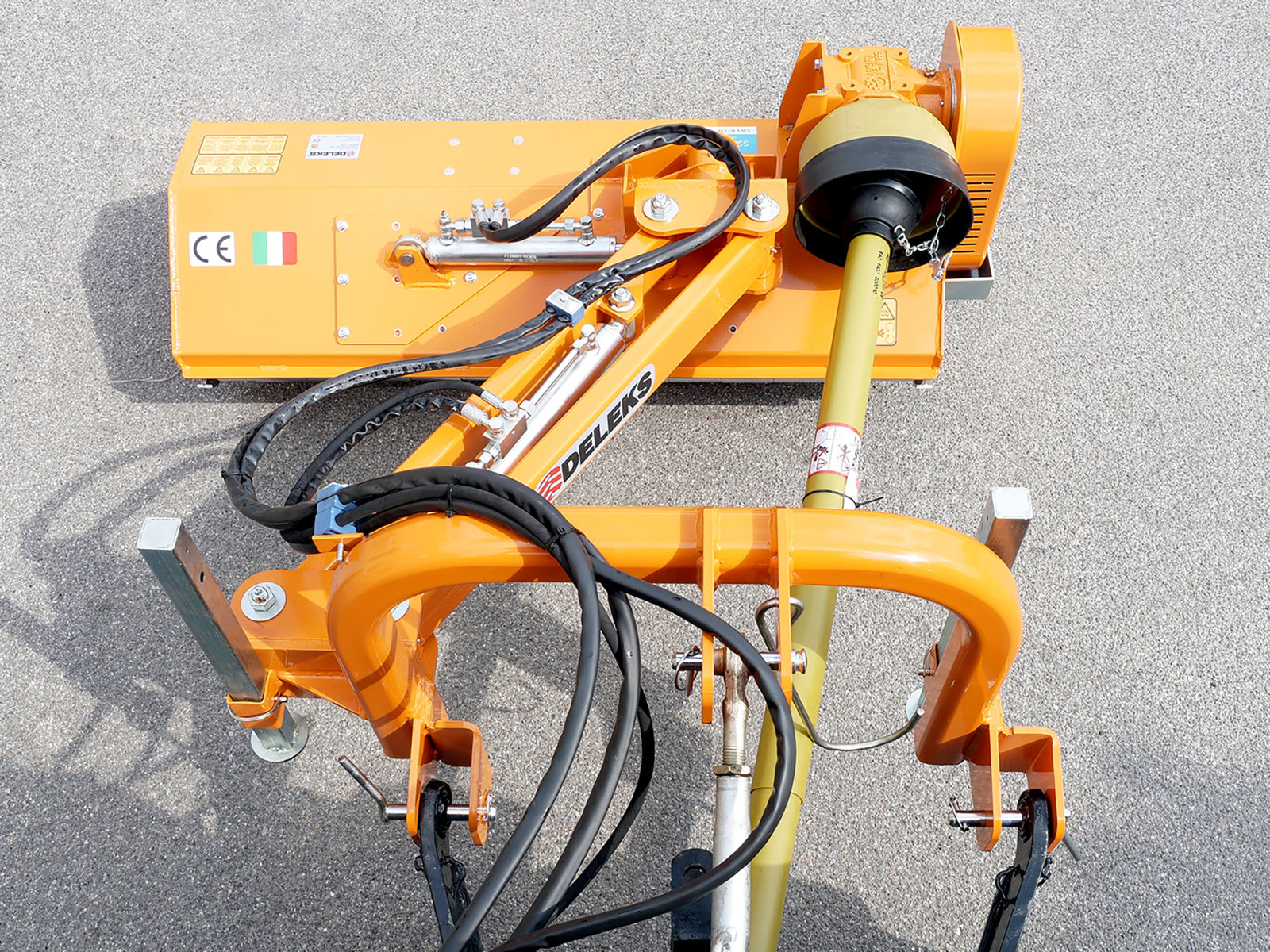

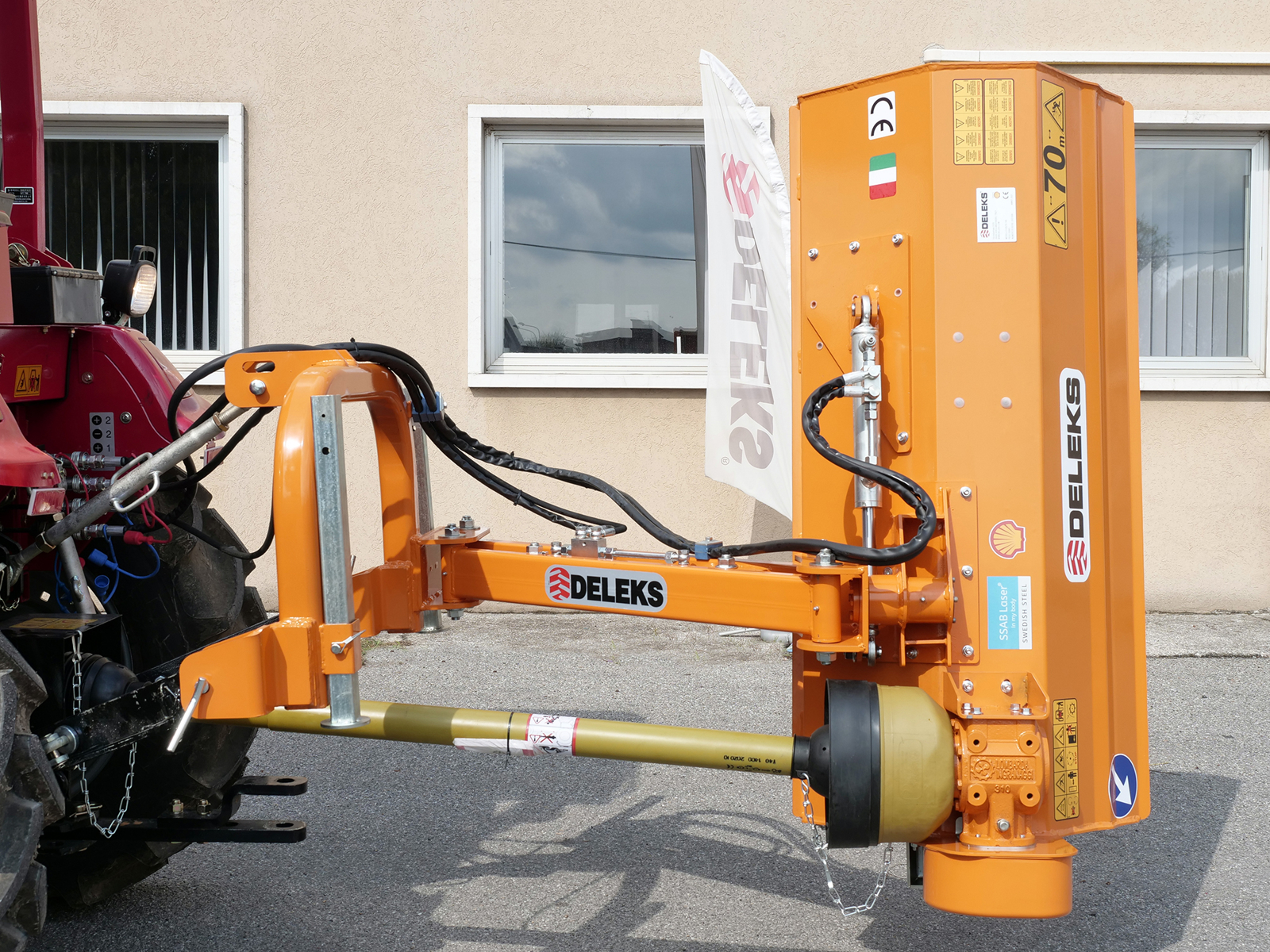

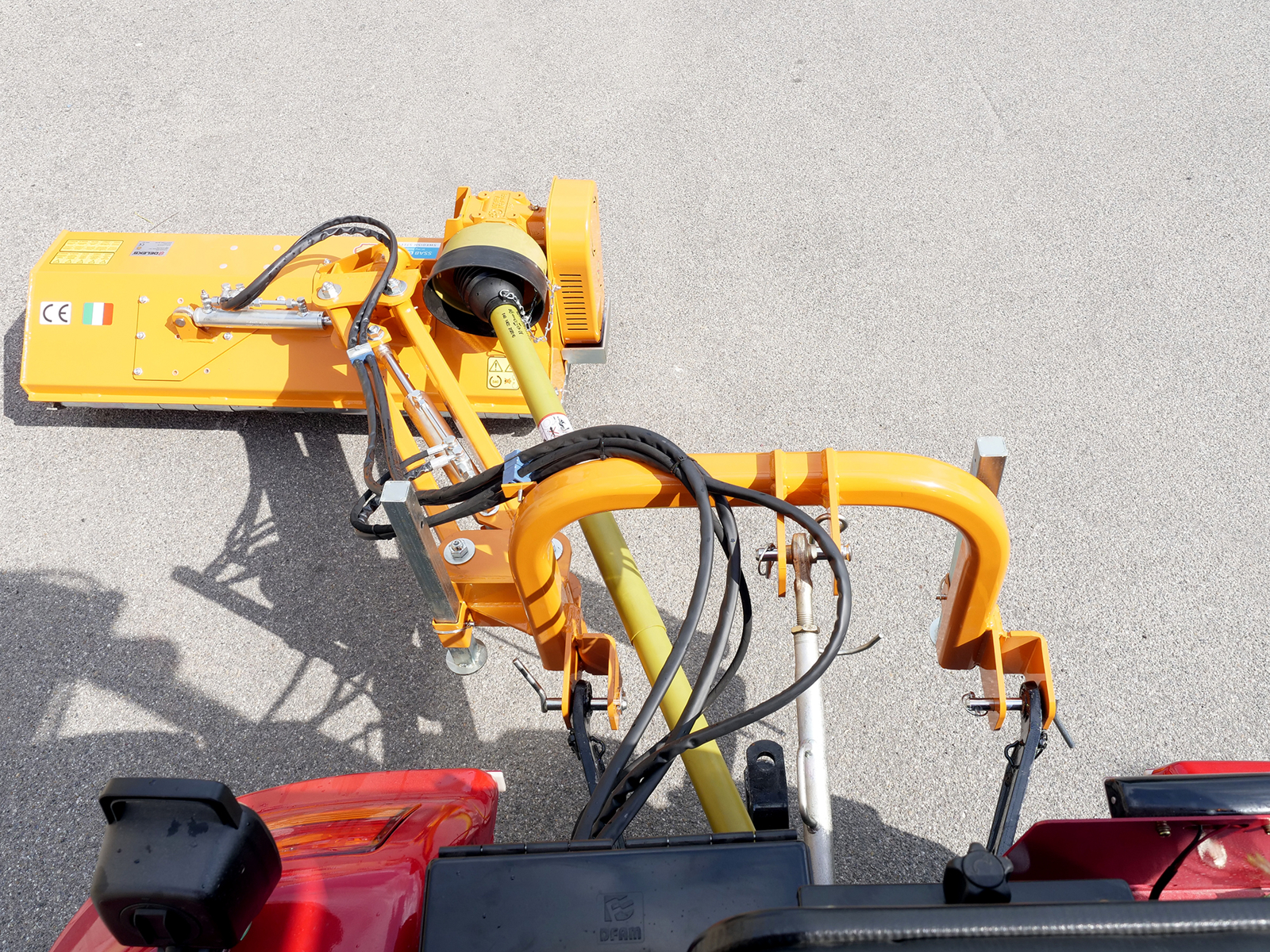

Hydraulic side shift and tilt

Two hydraulic rams, worked from the seat with the tractor's spool valves, move the head sideways and tilt it from +90° upwards to -60° downwards. With the arm fully out, the outer edge of the head reaches about 2.2 m (7 ft 3 in) from the centre of the tractor, on the right-hand side; upright, it cuts at about 1.4 m (4 ft 7 in) from the centre. Out to the side and tilted, the VOLPE-165 tidies roadside verges, ditches and banks; out to the side and upright it trims bushes and hedges, in the vineyard and the orchard as well. Closed, the head comes back in behind the tractor, up to 1,178 mm (46.4 in) to the right of the centre: the gearbox is mounted inboard and the mower works level, in tight spaces and between the rows too. The tilt ram has a hose-burst safety valve.

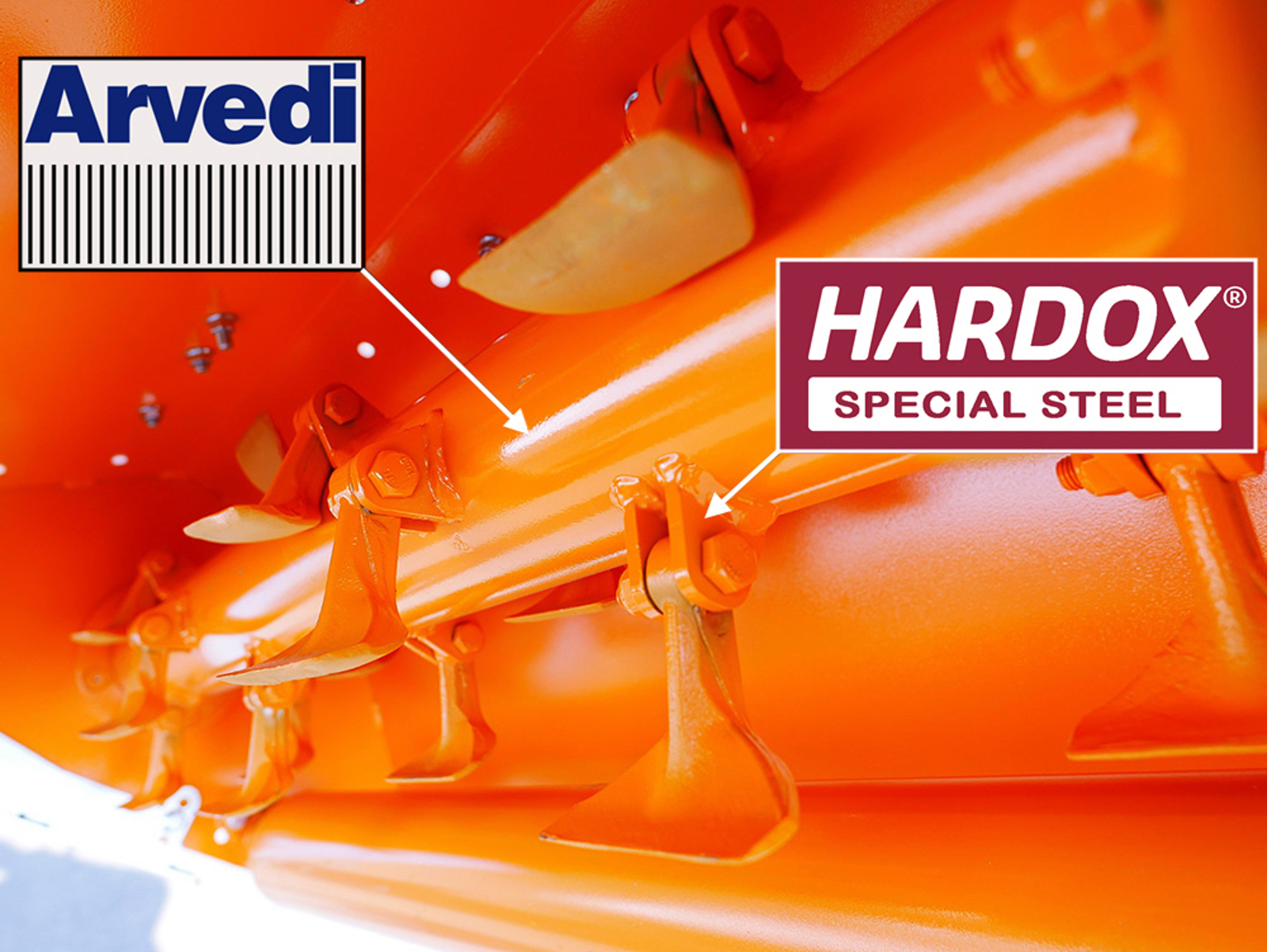

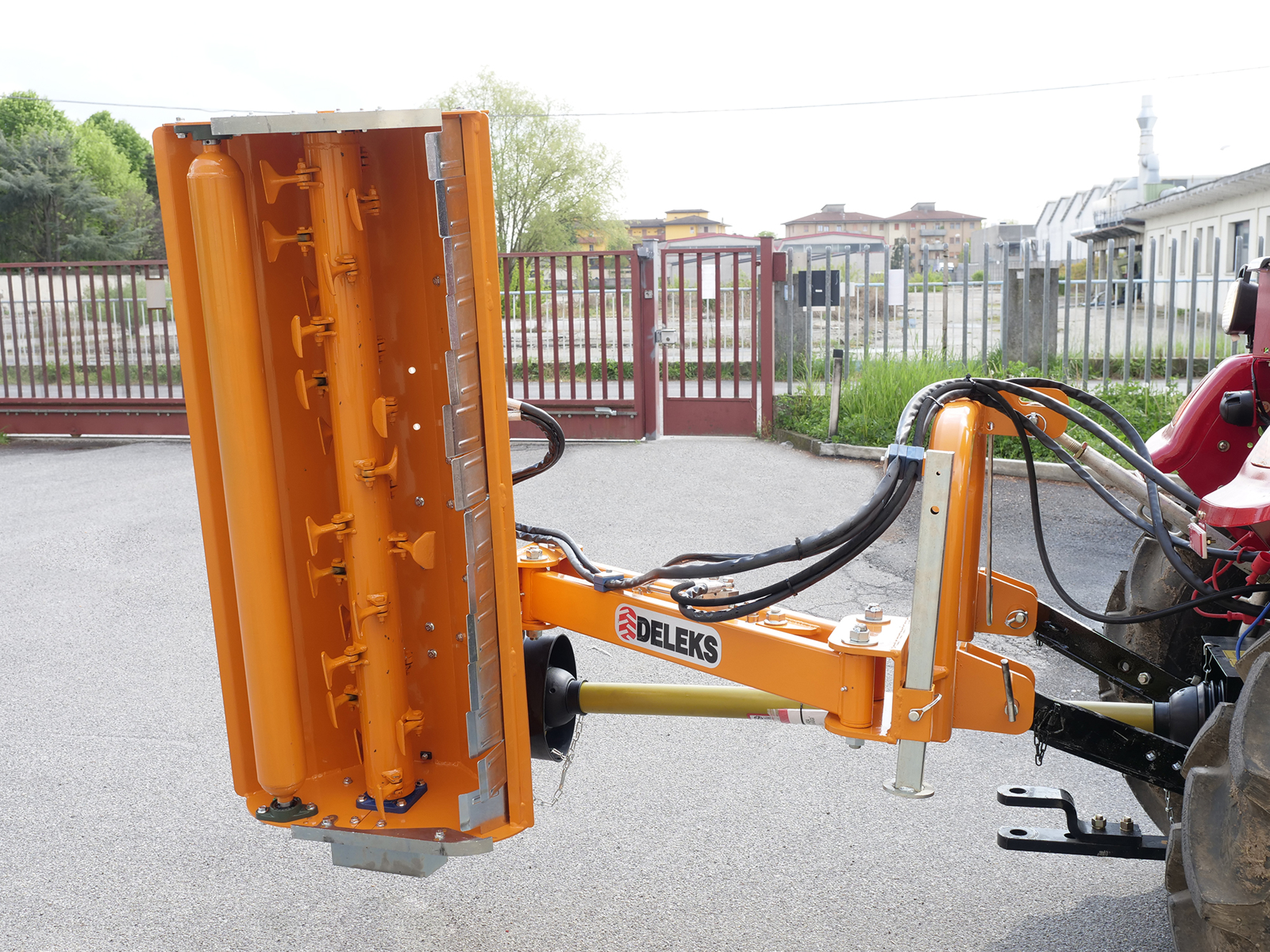

ARVEDI rotor with 30 hammer flails of 330 g (11.6 oz)

The rotor, 102 mm (4 in) in diameter, is built from ARVEDI tube in S355 steel with an 8 mm wall, is electronically balanced and spins at 3,150 rpm. The 30 hammer flails of 330 g (11.6 oz) are mounted in 6 rows rather than 4, on brackets in HARDOX, a highly wear-resistant steel: they pulverise grass, leaves, brambles and small vine prunings up to 3 cm (1.2 in) thick. A set of blades, in place of the hammer flails, is an option available on request.

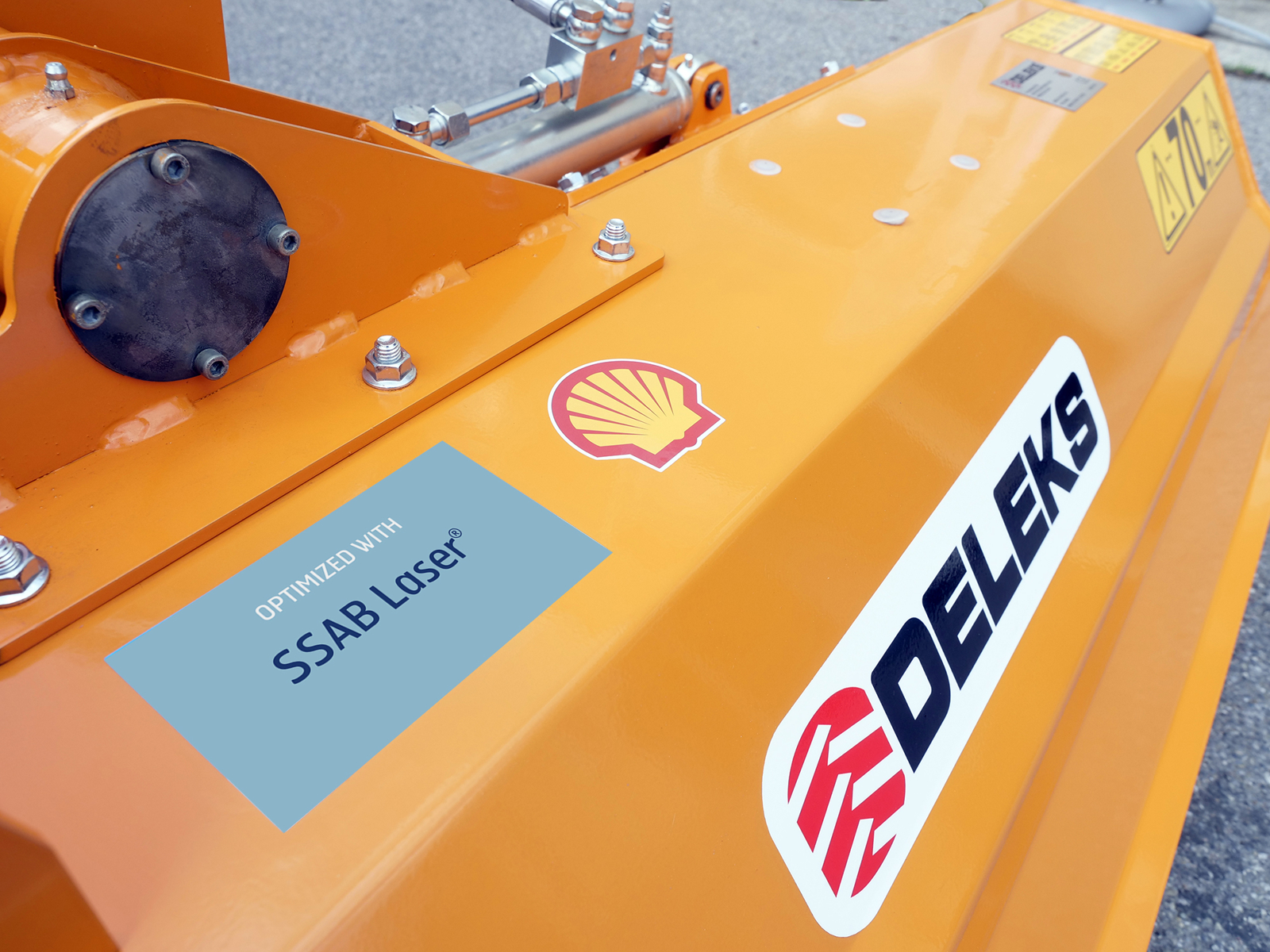

SSAB steel frame, inboard roller and cutting height

The frame is made entirely of Swedish SSAB steel, 5 mm thick, with 6 mm side plates and 6 mm side skids. Inside the hood a ridge deflects the airflow towards the rotor, for a mulching effect. The rear roller, 102 mm (4 in) in diameter, is mounted inboard: the cut grass passes over the roller without being flattened and clears more quickly. The roller and the side skids set the cutting height from 10 to 45 mm (0.4 to 1.8 in). The VOLPE-165 is Made in Italy, built by DELEKS. For this product the sheet steel is bought in Italy and worked at a production plant in the European Union.

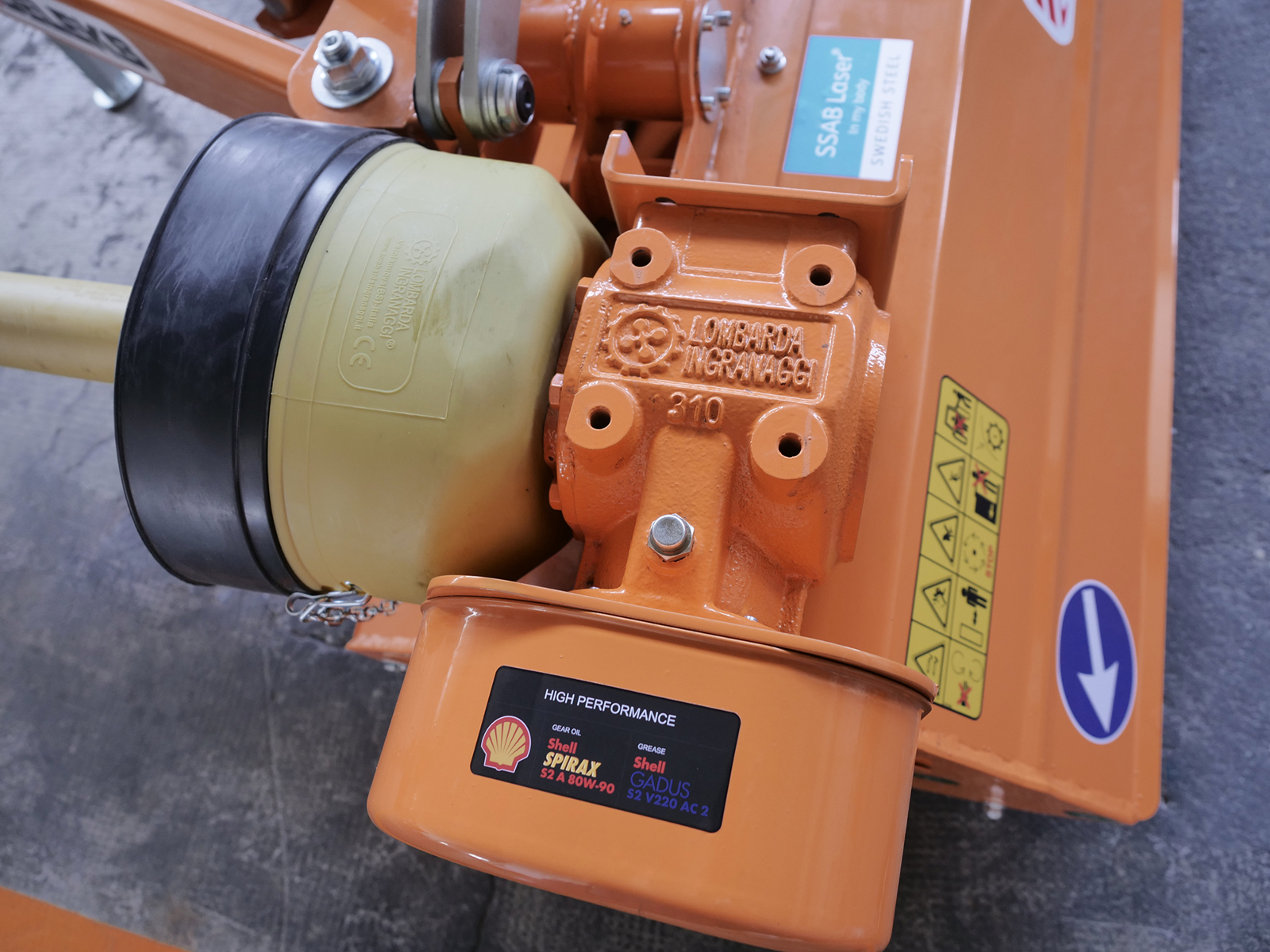

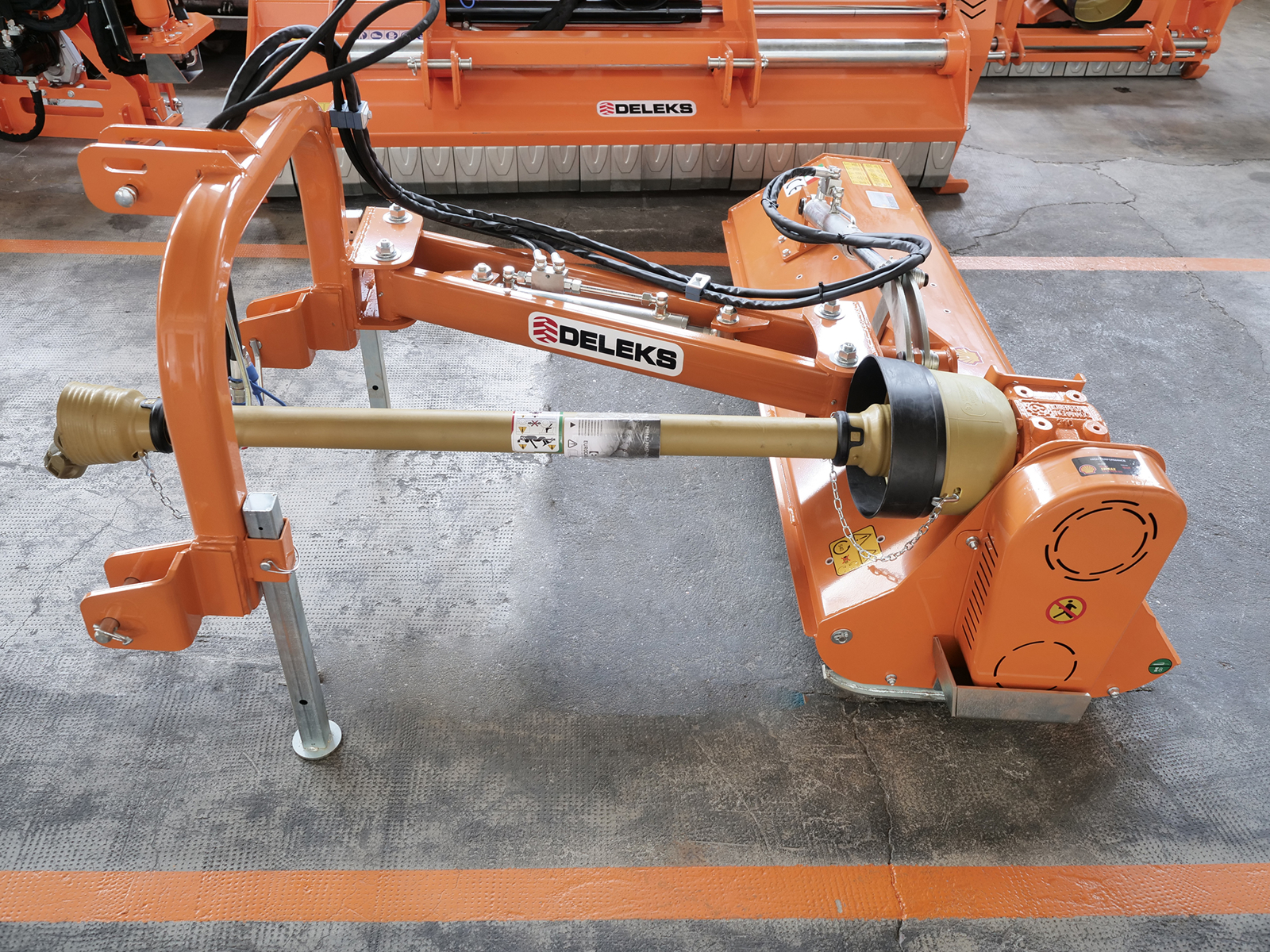

Gearbox with freewheel, 4 belts and PTO shaft

The DELEKS® gearbox for a 540 rpm PTO has a freewheel and a 3-year warranty: when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. Drive reaches the rotor through 4 V-belts, AX39; belt tension is set from the outside, with the adjustable tensioner. The CE-approved category 4 PTO shaft, 1,600 mm (63 in) long, is included.


Dimensions, weight and delivery

Working width 1,694 mm (66.7 in), overall width 1,870 mm (73.6 in), length 1,400 mm (55.1 in) with the arm closed, height 770 mm (30.3 in), weight 322 kg (710 lb). It ships on a pallet in packaging measuring 190 × 76 × 66 cm (75 × 30 × 26 in), 360 kg (794 lb) gross, 0.95 m³, with free delivery within the EU. It complies with the EC Machinery Directive and carries a 2-year warranty.


Where it works

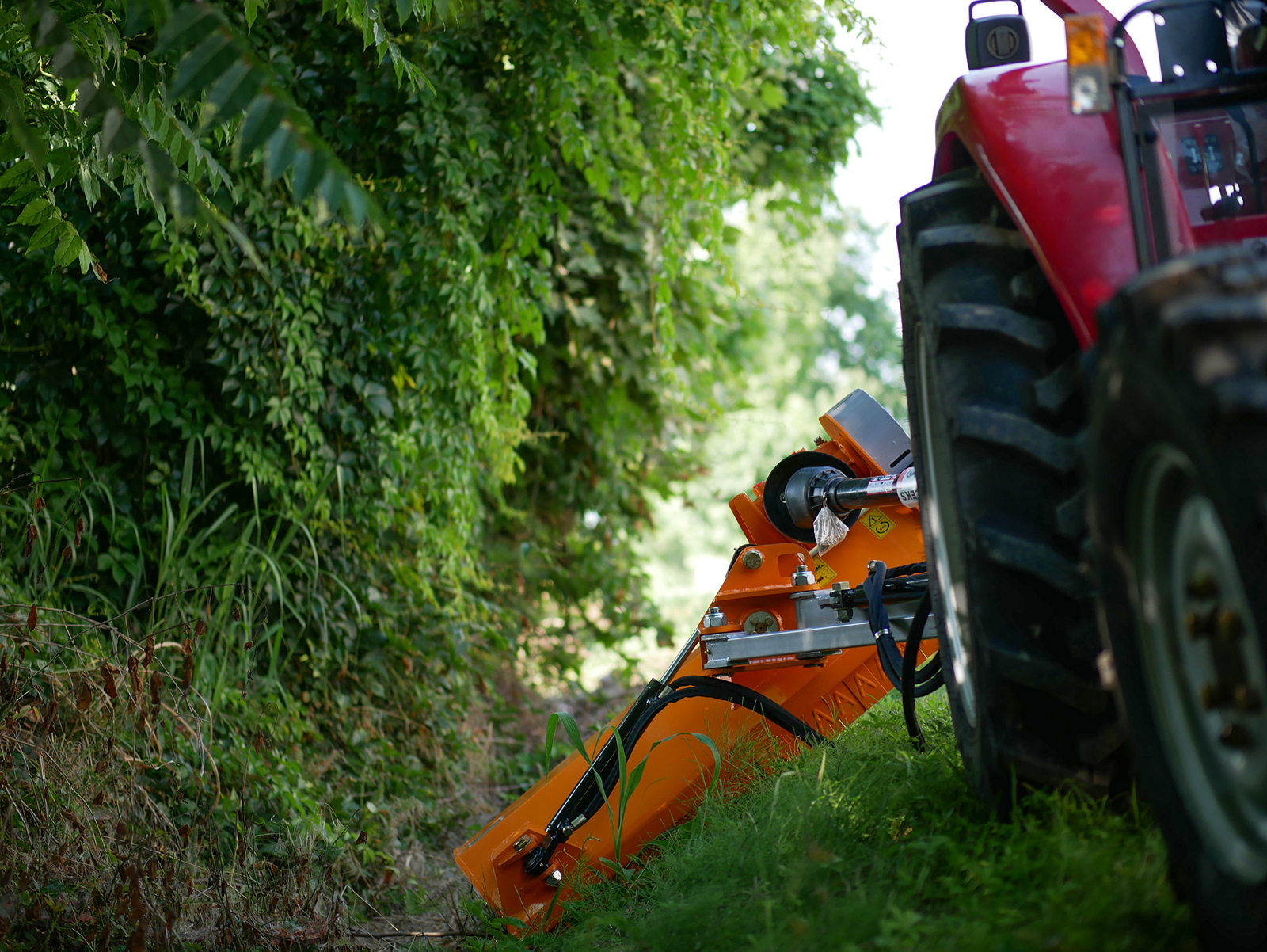

  • Ditches, banks and embankments: head out to the side and tilted down to -60°
  • Roadside verges and road shoulders: grass, leaves and brambles
  • Hedges and bushes: head out to the side and upright

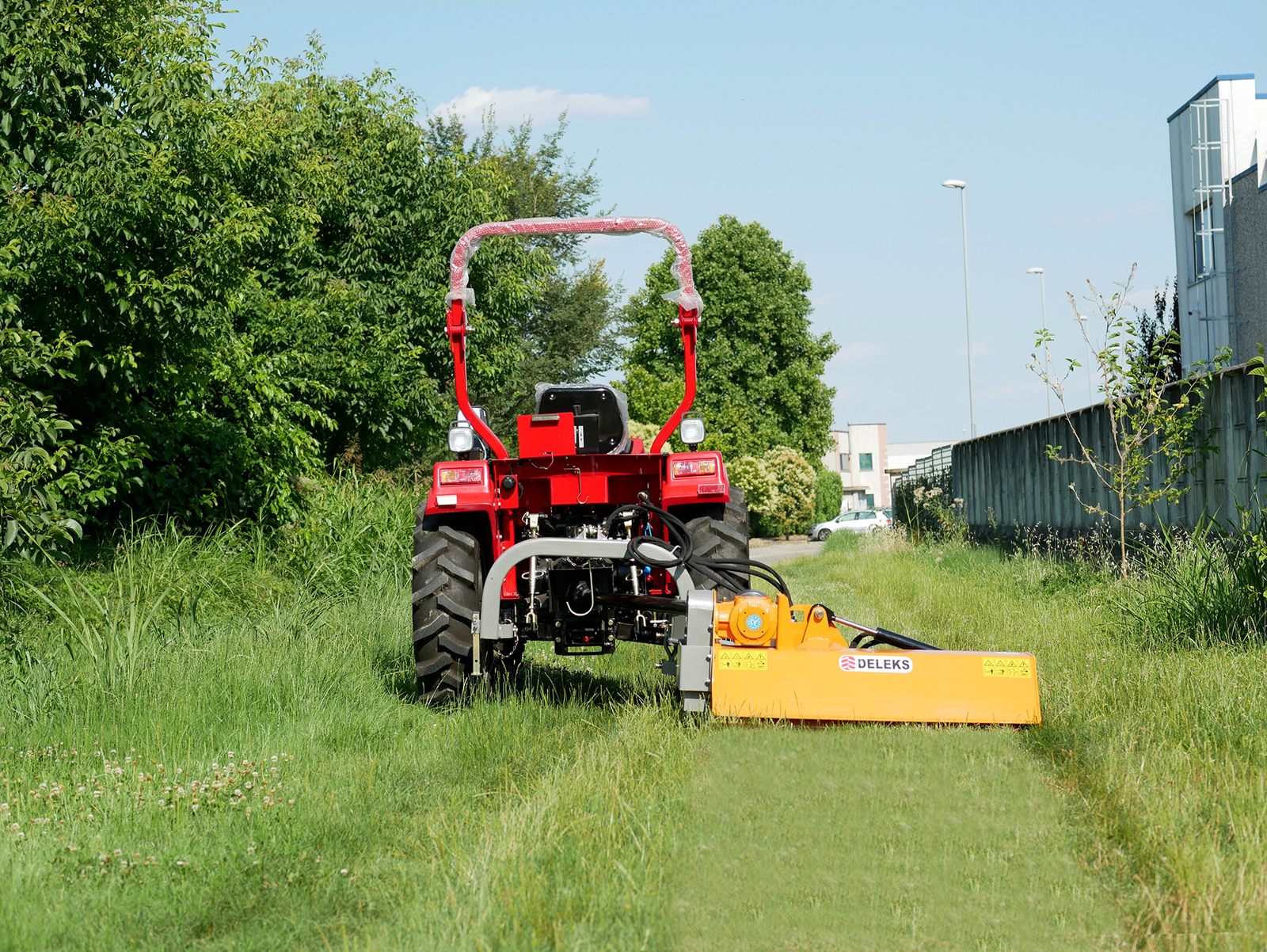

  • Vineyards and orchards: closed behind the tractor, it works between the rows
  • Green spaces and council work, on the flat and on slopes, with tractors from 35 to 55 hp

Options and spares

From this page you can add to your order the kit of 10 hammer flails (MAZZE10L2022), the 10 nuts and bolts for the flails (DB10L2022), the spare set of 4 belts (CINGHIE4L), spare pins for the three-point linkage (3PERNI1A) and the universal PTO adapter (RID1). Other spares are identified on the exploded diagrams with our technical team.


FAQ

What size tractor does the VOLPE-165 need?
From 35 to 55 hp, with a 540 rpm PTO and a category 1 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 322 kg (710 lb).

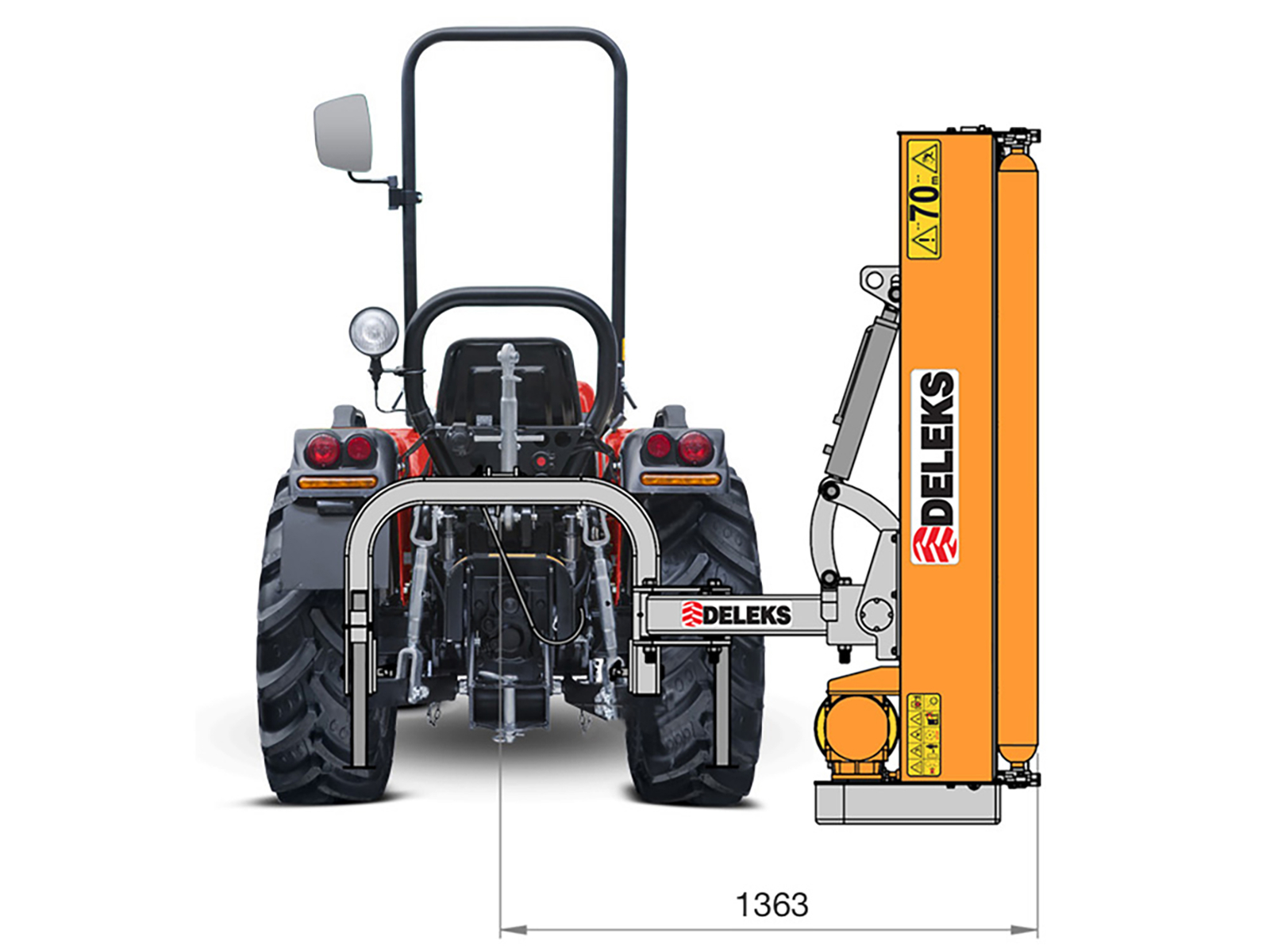

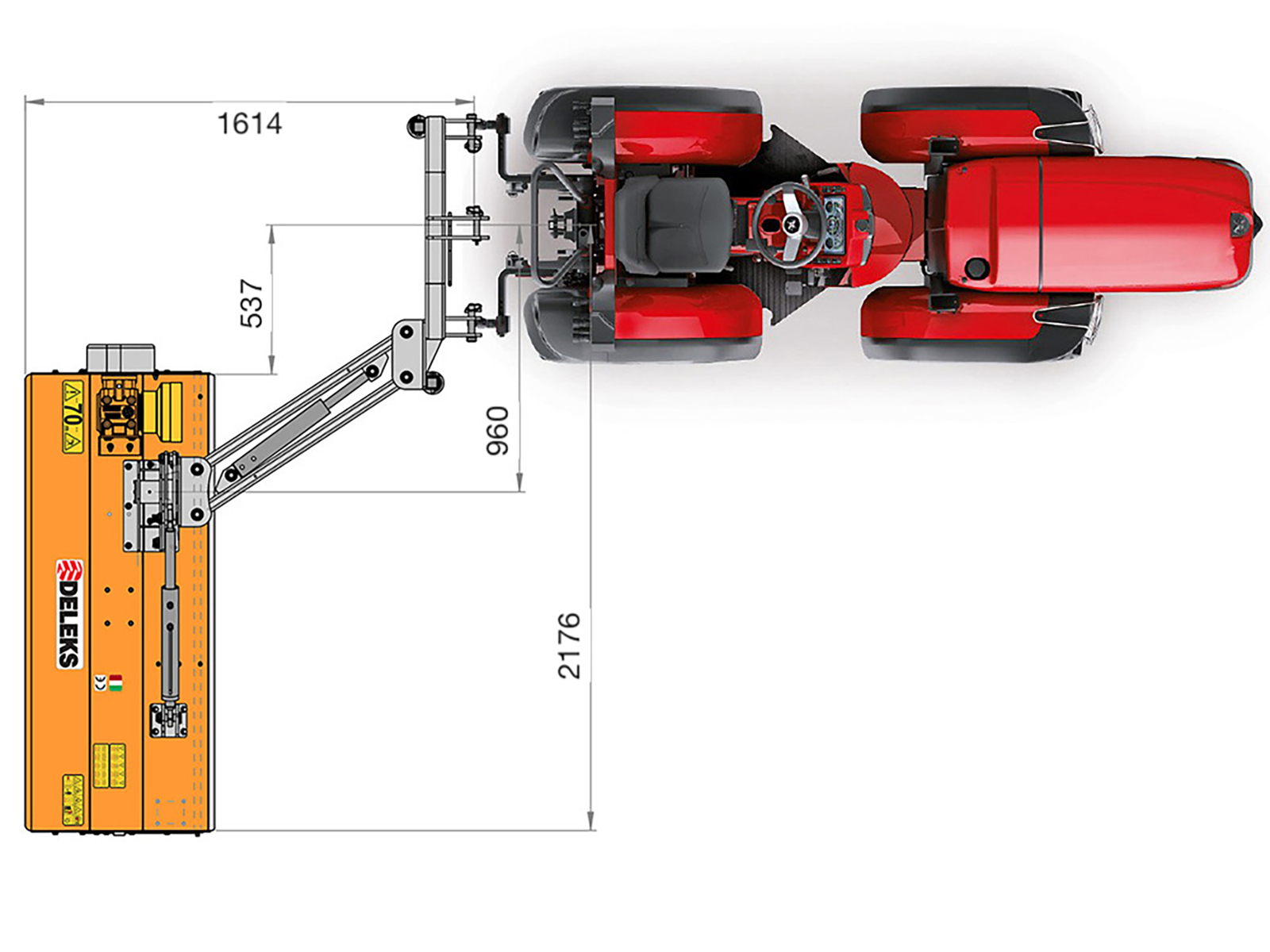

How far out to the side does the VOLPE-165 reach?
With the arm fully out, the outer edge of the head reaches about 2.2 m (7 ft 3 in) from the centre of the tractor, on the right-hand side. Closed, it comes back in behind the tractor: up to 1,178 mm (46.4 in) to the right of the centre.

How far does the head tilt?
From +90° upwards, upright, for hedges and bushes, to -60° downwards, for ditches and banks.

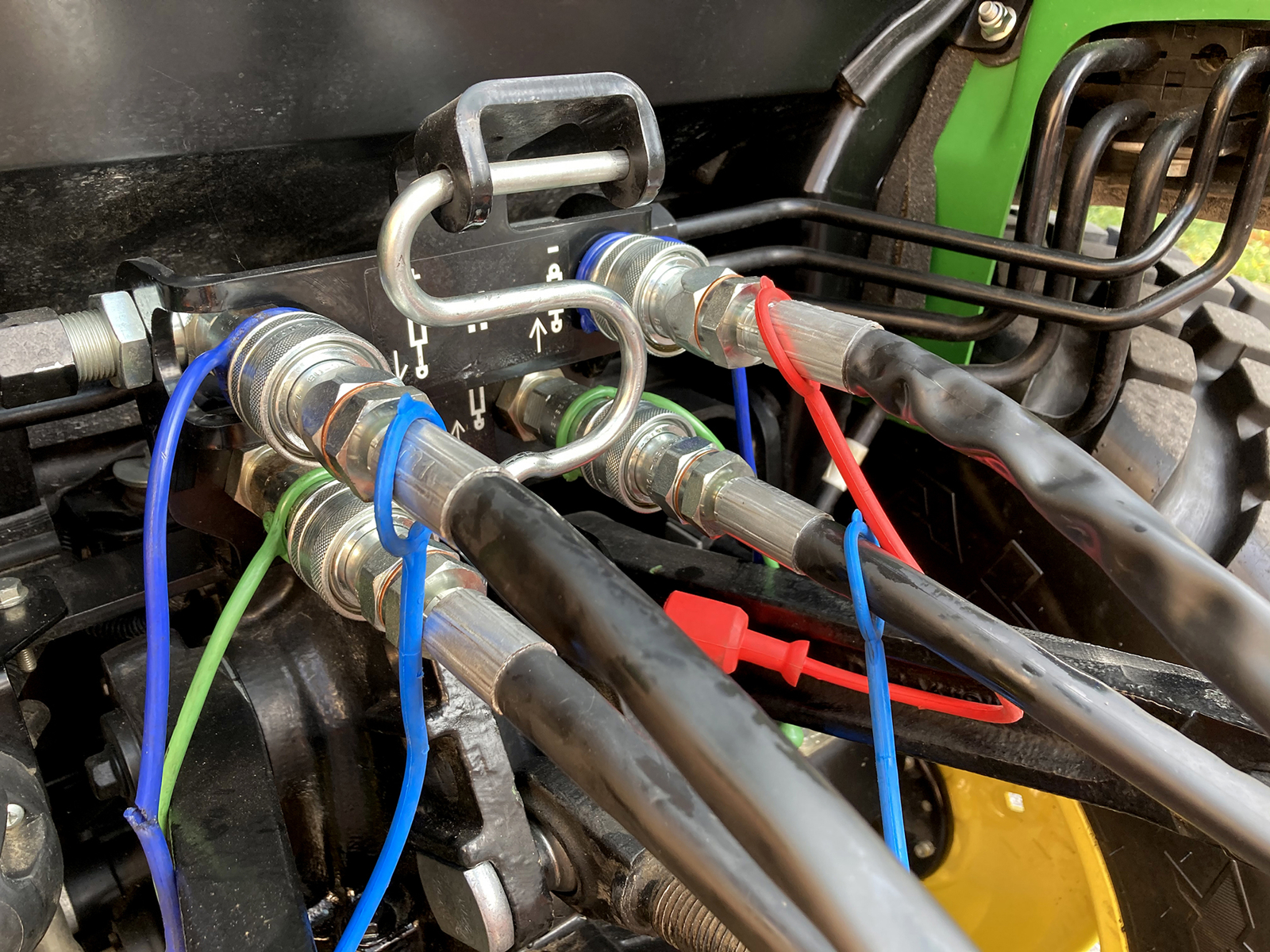

What does the tractor need to work it?
4 hydraulic outlets with ½ in couplings for the mower's 4 hoses, which have agricultural quick-release couplings: they work the side shift and the tilt.

What size branches will it shred?
Grass, leaves, brambles and small prunings up to 3 cm (1.2 in) thick. For branches up to 4-5 cm (1.6-2 in) there are the verge flail mowers with 820 g (1.8 lb) hammer flails from the GIRAFFA series.

Can it be used like a normal flail mower?
Yes: closed, it comes back in behind the tractor and works level, between the rows of vineyards and orchards as well.

How do you set the cutting height?
From 10 to 45 mm (0.4 to 1.8 in), with the rear roller and the side skids.

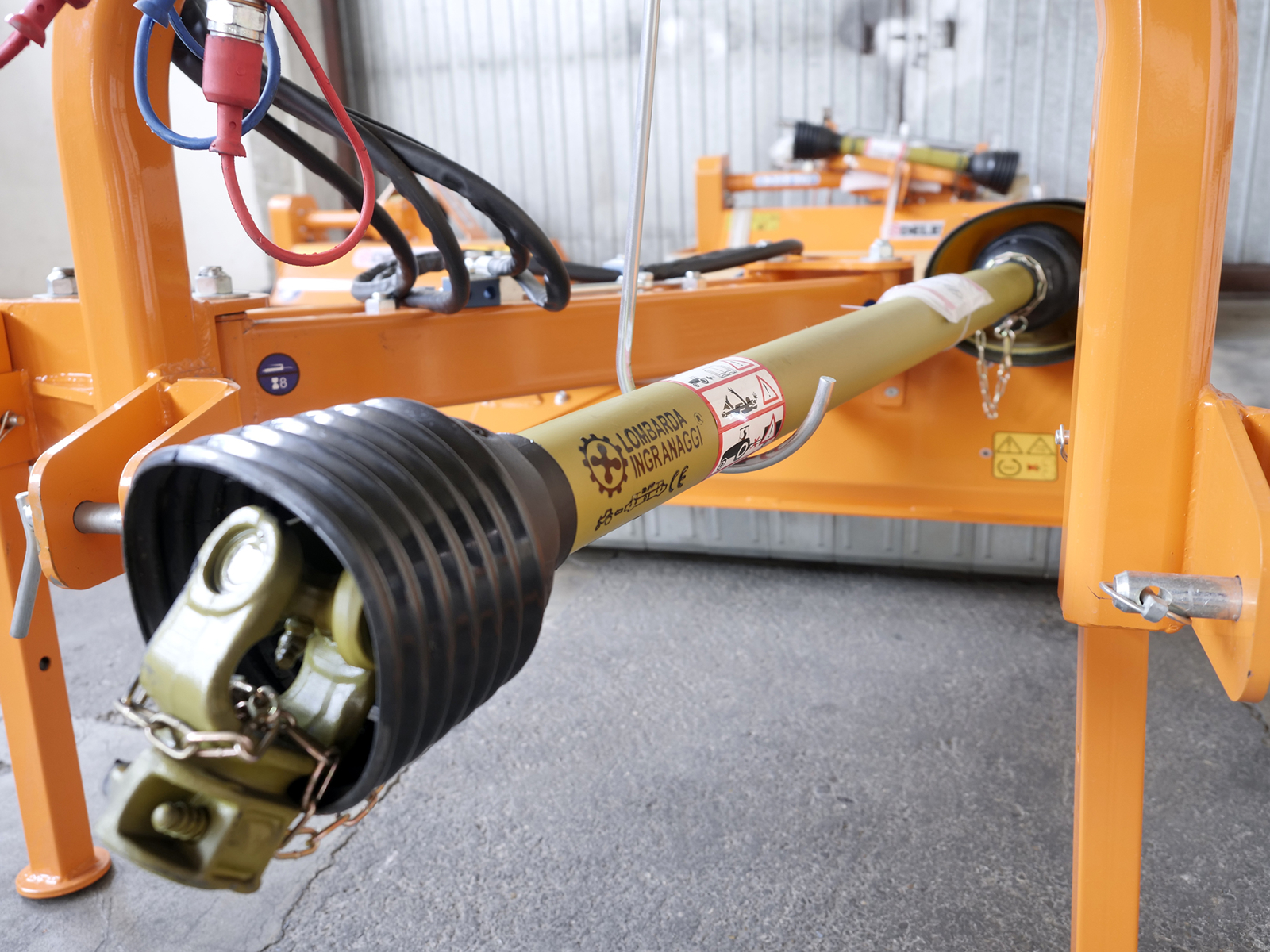

Is the PTO shaft included?
Yes: a CE-approved category 4 PTO shaft, 1,600 mm (63 in) long.

How does it differ from the GIRAFFA?
The GIRAFFA is the verge flail mower from the next band up: 130 to 170 cm (51 to 67 in), 452 to 504 kg (996 to 1,111 lb), with hammer flails of 820 g (1.8 lb), for tractors from 40 to 70 hp. The VOLPE runs from 100 to 165 cm (39 to 65 in) and from 160 to 322 kg (353 to 710 lb), with hammer flails of 330 g (11.6 oz), for tractors from 25 to 55 hp.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric
Working width 1694.0 mm
Overall width 1870.0 mm
Min / Max cutting height 10.0 - 45.0 mm
Weight 322.0 kg
Overall height 770.0 mm
Tractor Power Range 35 - 55 Hp
3 point linkage Cat. 1 (ø 19.0-22.0mm)
Position of the gearbox Internal
Hood height 358.0 mm
Spacing between the 2 lower points 650.0 - 900.0 mm
Number of Hammers 30
Maximum cutting diameter 20.0 - 30.0 mm
Overall length 1400.0 mm (closed)
Distance between pto attachment and ground 472.0 mm
Main hood thickness 5.0 mm
Sides thickness 6.0 mm
Side plates thickness 6.0 mm
Transmission: Drive method V-Belts
Transmission: Gearbox DELEKS (Italy) (3 year warranty)
Transmission: PTO 540 r/min
Transmission: Rotation of gearbox Right side
Transmission: Free wheel √
Transmission: RPM Rotor speed 3150.0 rpm
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925
Transmission: Top pulley ø 206.0 mm
Transmission: Lower pulley ø 106.0 mm
Transmission: V-Belts quantity 4
Transmission: V-Belts size AX39
Rotor: diameter 102.0 mm
Rotor: bearings type and size SKF UCF-207
Rotor: balancing Electronic
Rotor: sheet thickness 8.0 mm
Hammers: Weight 330.0 g
Hammer: øhole 11.0 mm
Hammer: base width 80.0 mm
Hammer: top width 14.0 mm
Hammer: Diagonal 75.0 mm
Rear roller: diameter 102.0 mm
Rear roller: sheet thickness 4.5 mm
Rear roller: bearings type and size FL204

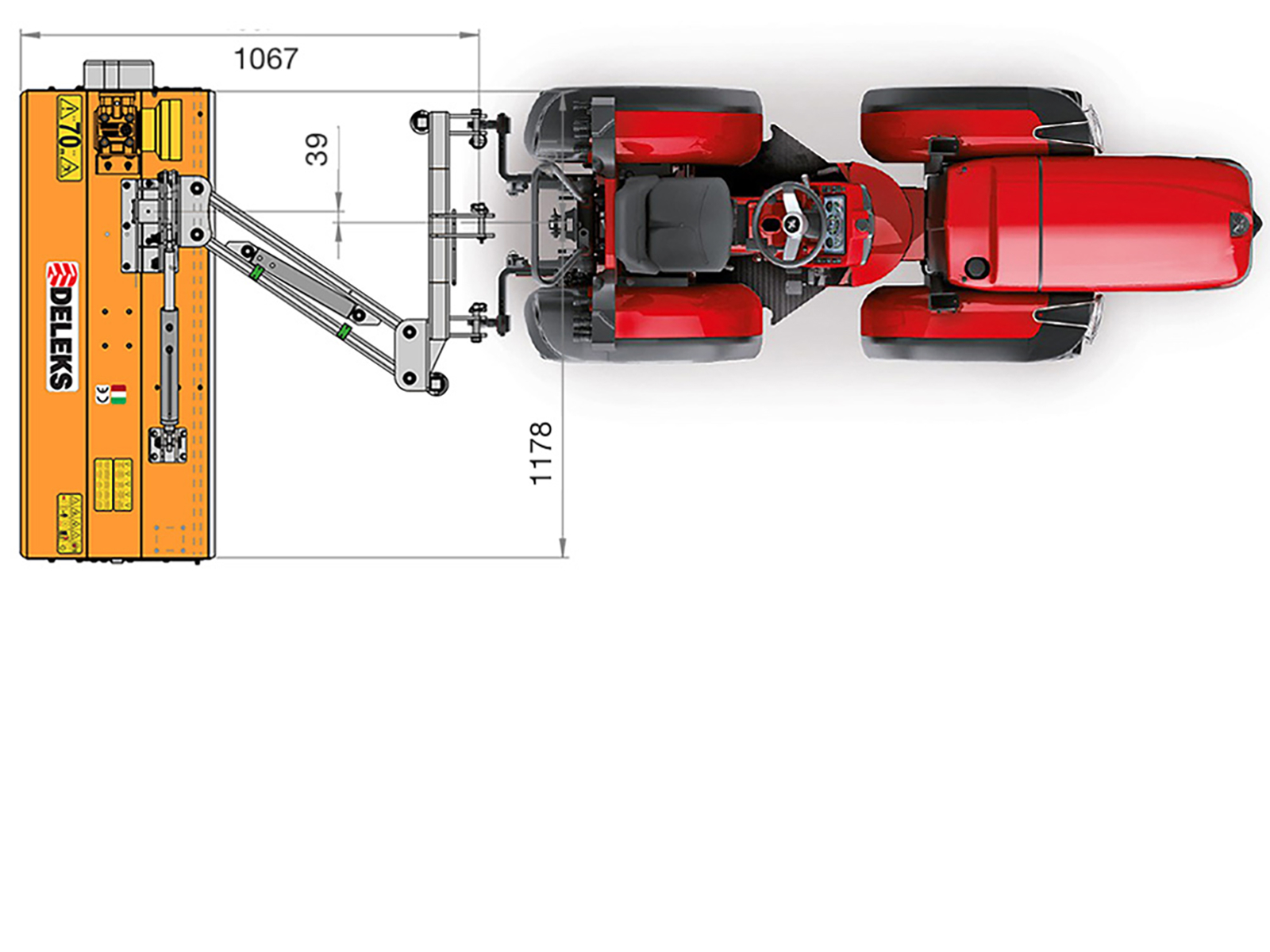

Displacement and Sizes See pictures

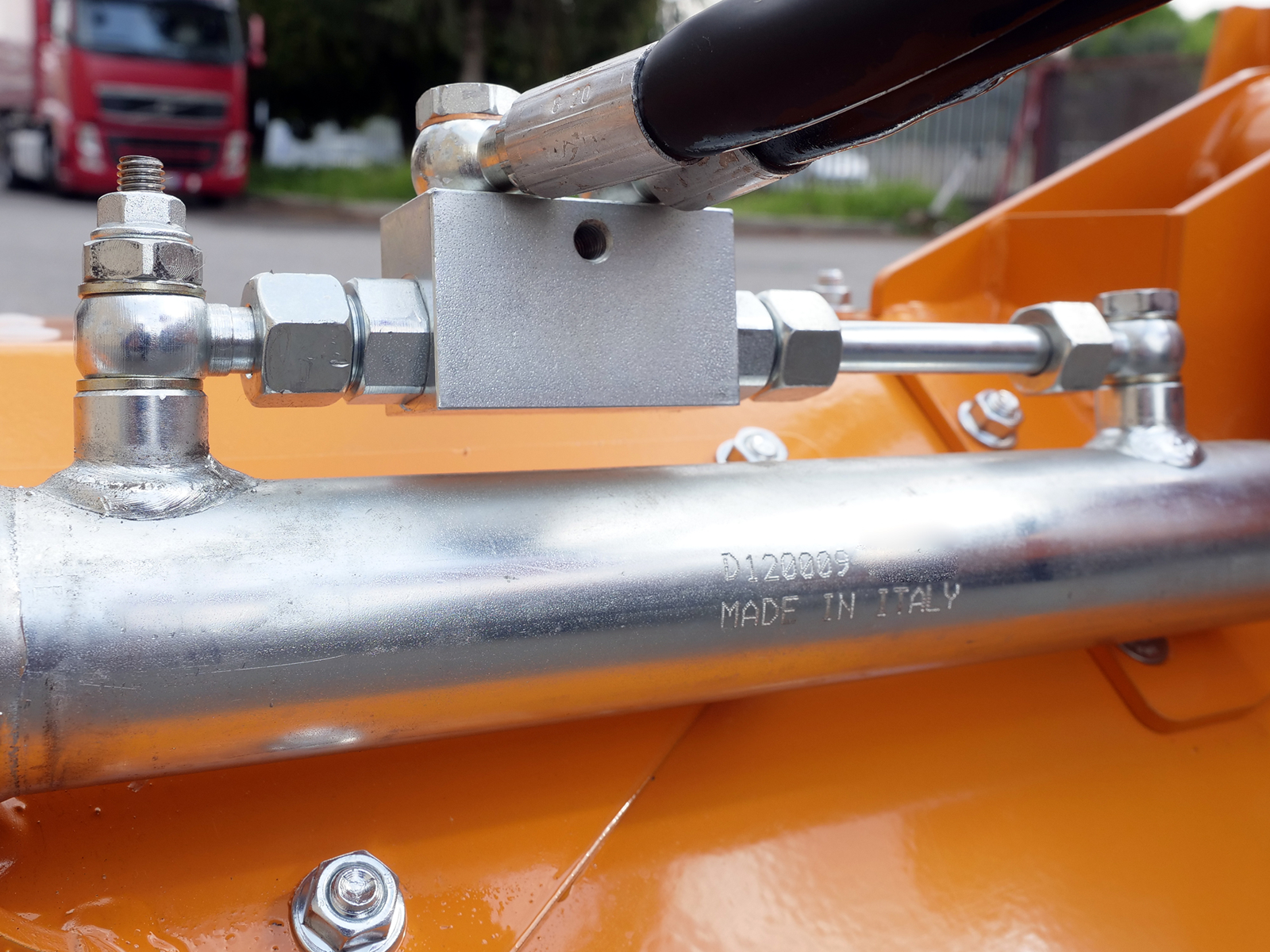

Hydraulic cylinder A diam. 55.0-21.0 mm
Hydraulic cylinder B diam. 55.0-21.0 mm
Working pressure 120 - 150 bar
Min./Max. Flow 18 - 22 l/min
Hydraulic Hoses WP 400 Bar, 1/2" Agri Standard
Pto shaft CE 4x1600 mm
Hood length 665.0 mm
Gross shipping weight 360 kg
Package volume 0.95 m3
Packing sizes 1900.0*760.0*660.0 mm

Certifications

SSAB Swedish Steel Laser 355C: Specifications and Certification   Download PDF
ARVEDI / TUBINDUSTRIA: Certification   Download PDF

Technical charts

Shell Spirax S2 A 80W-90   Download PDF
