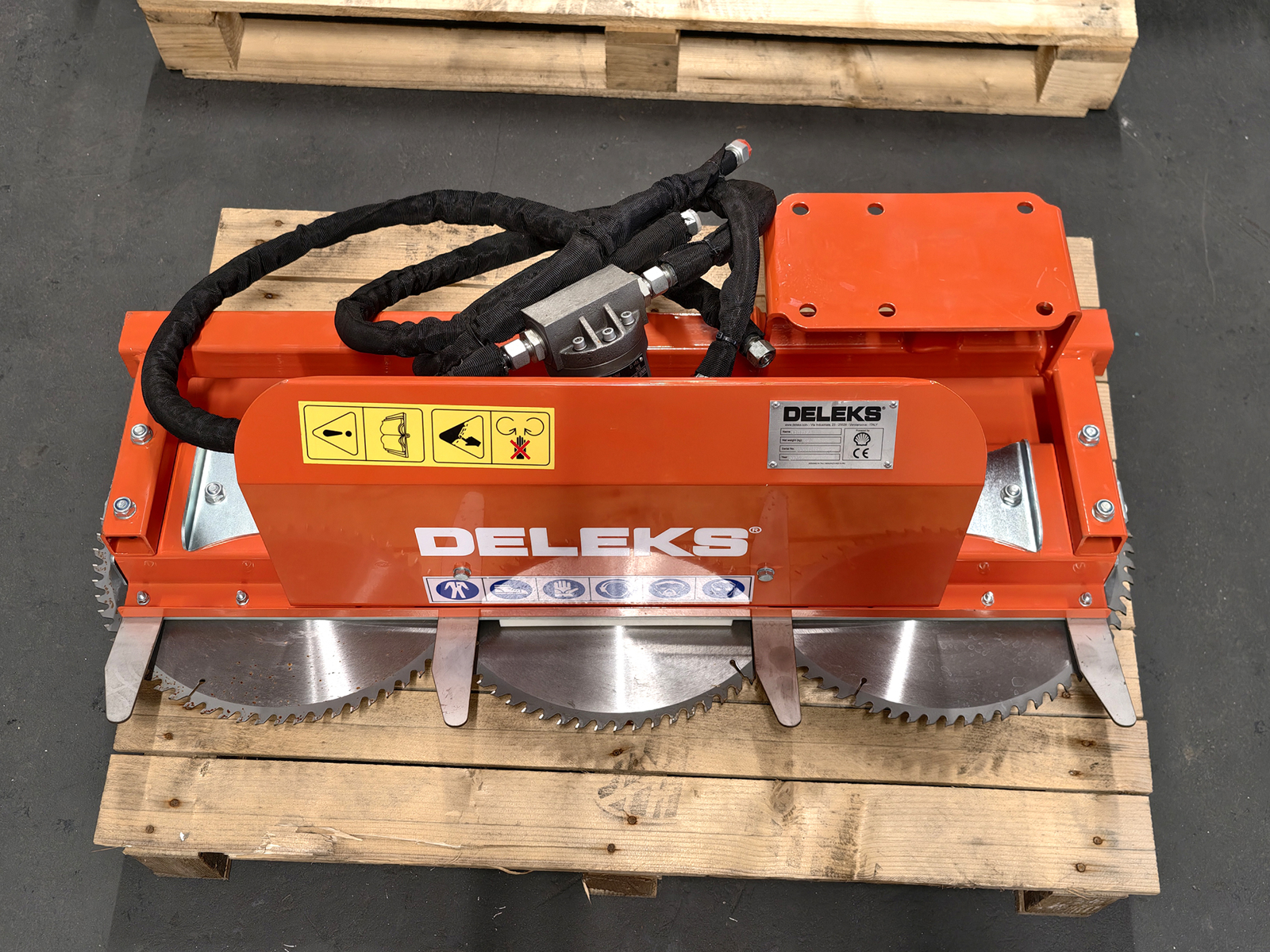

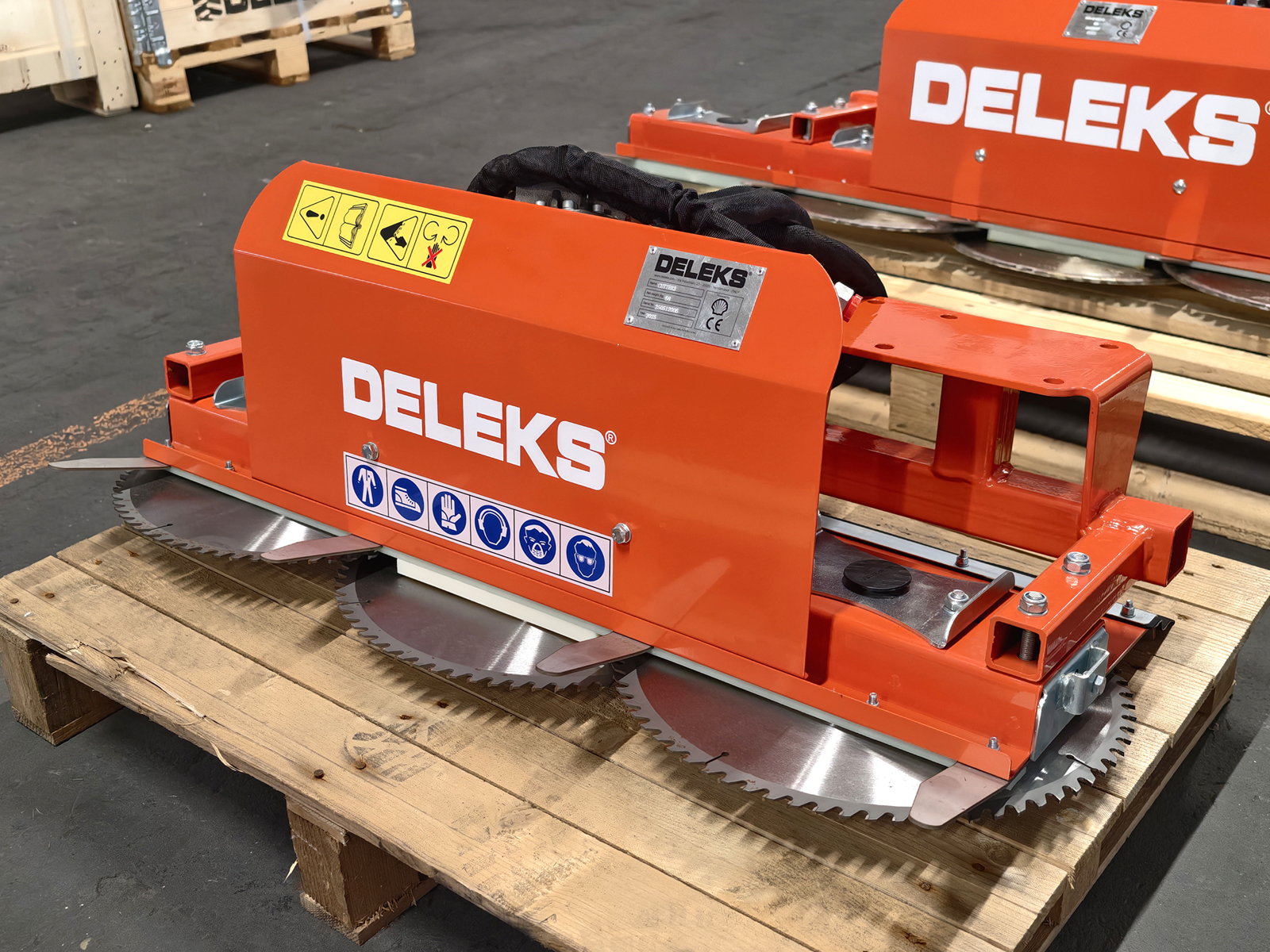

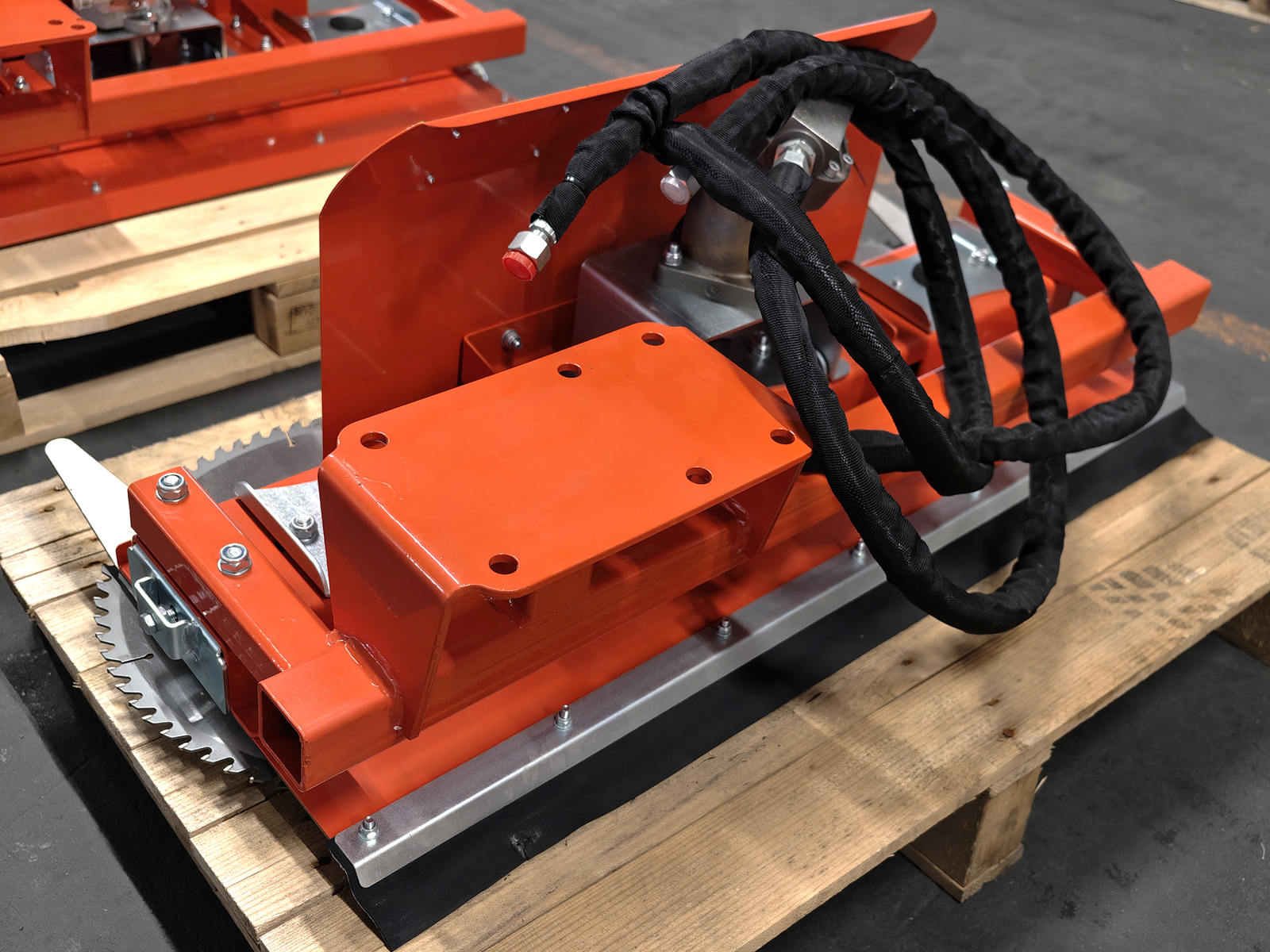

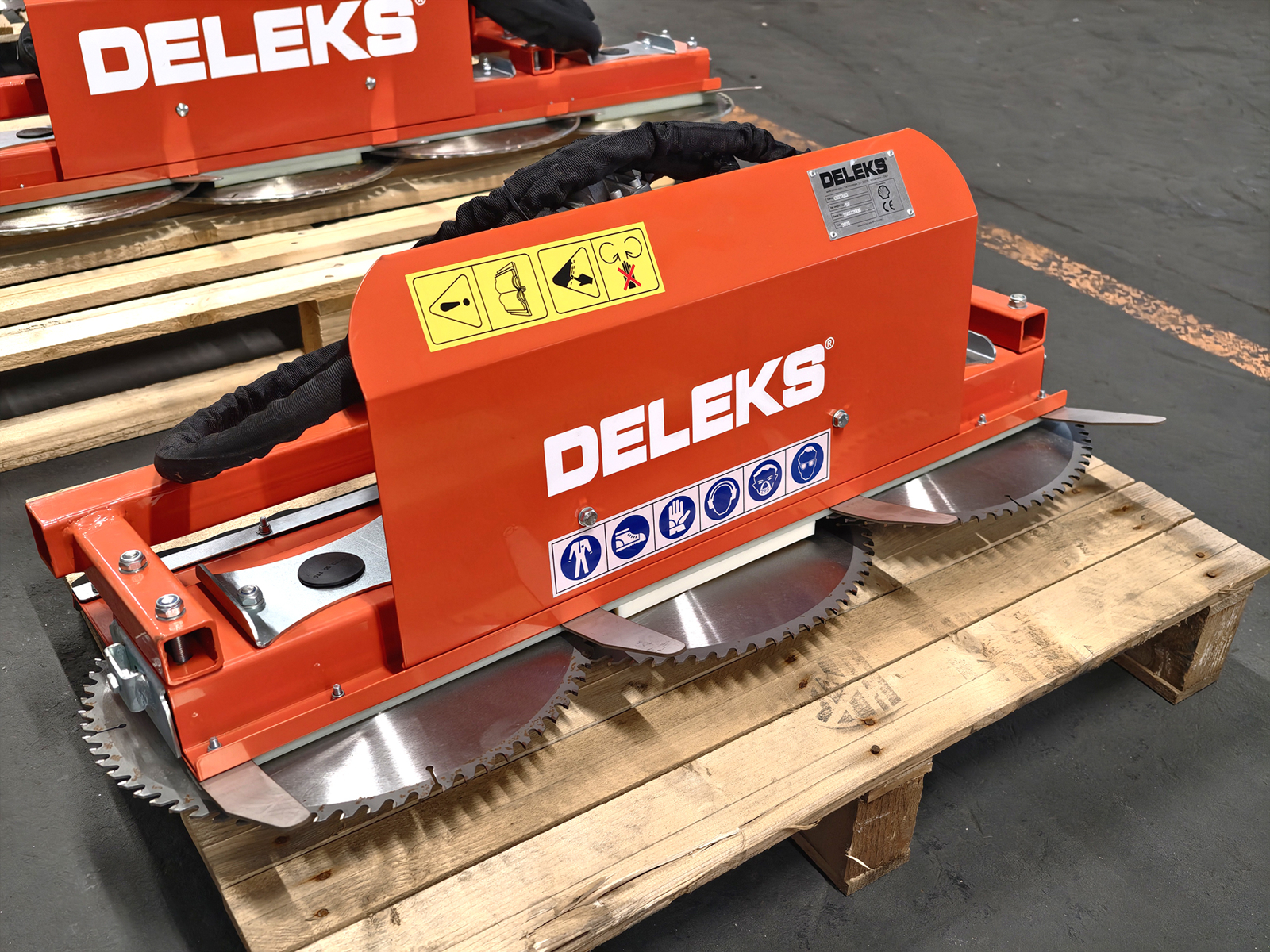

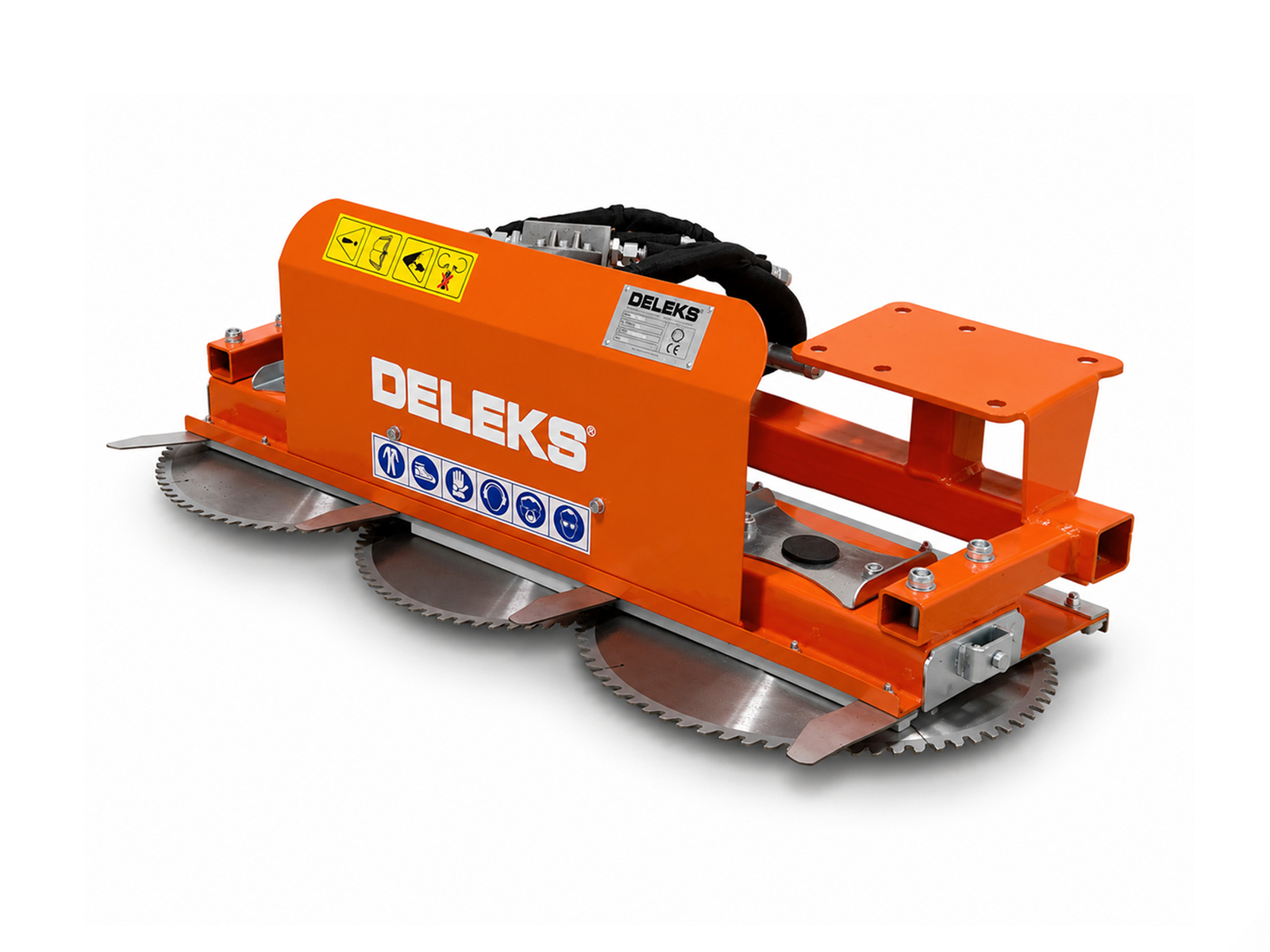

Hydraulic 3-disc saw head 100 cm (39 in) CUTTER3 with piston motor, circular saw hedge cutter for excavators and hedge cutter arms
DETAILS
Hydraulic 3-disc saw head with piston motor and a 100 cm (39 in) cut, the DELEKS® CUTTER3: a circular saw hedge cutter for excavators, mini diggers and hedge cutter arms that cuts woody hedges and branches up to about 9 cm (3.5 in) thick. The 3 discs of 400 mm (15.7 in) have 72 teeth each, with tungsten-carbide tips, for a fast, clean cut without splitting when pruning hedges and tree lines, along road verges, banks and ditches, in orchards and vineyards. The piston hydraulic motor of 12 cc per revolution, bidirectional and with a case drain, has more torque and better efficiency than an orbital motor and keeps up its performance under load: it drives the discs through 2 belts and runs on 40-70 l/min (8.8-15.4 UK gal/min) of oil at 140 to 180 bar (2,030 to 2,610 psi). It weighs 58 kg (128 lb). It is certified by ECO Certificazioni, with a 2-year warranty and free delivery within the EU.
Which machines it fits
The CUTTER3 fits excavators, mini diggers and mini excavators with an auxiliary hydraulic line and tractor hedge cutter arms. Among the DELEKS® mini diggers and mini excavators, it fits the S280 and the S380: a case drain hose has to be fitted on the excavator, a service that is free of charge when the bar is bought together with the mini excavator. On a tractor a hydraulic arm is needed: the bar does not connect directly to the three-point linkage. With a 100 cm (39 in) cut it weighs 58 kg (128 lb). For circuits with less flow there is the HR-DISC-3, with a gear motor (30-40 l/min, 120-160 bar); with 5 discs and a 160 cm cut there are the HR-DISC-5 and the CUTTER-5.

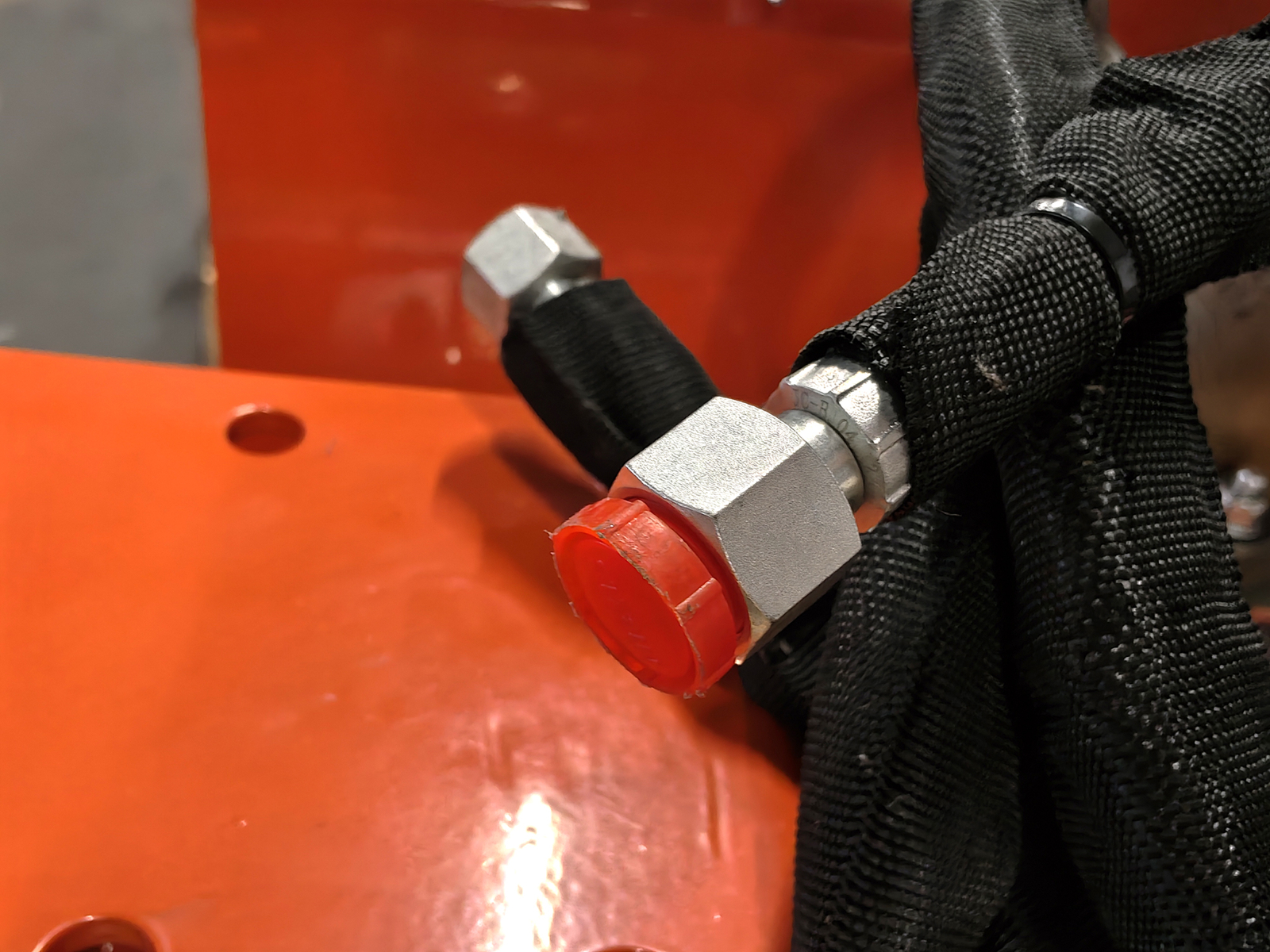

Hydraulic connection: flow, pressure and case drain
The CUTTER3 runs on an oil flow of 40-70 l/min (8.8-15.4 UK gal/min) and a working pressure of 140 to 180 bar (2,030 to 2,610 psi); the discs turn at 500 to 2,800 rpm. The motor is bidirectional and has a case drain, to be connected straight back to the tank. The hydraulic hoses are included. The machine must have a free oil return line: above a certain flow, the oil must be able to go straight back to the tank, without pressure build-up. Before ordering, check the flow and pressure of your hydraulic circuit: if in doubt, just tell us the model of your machine.

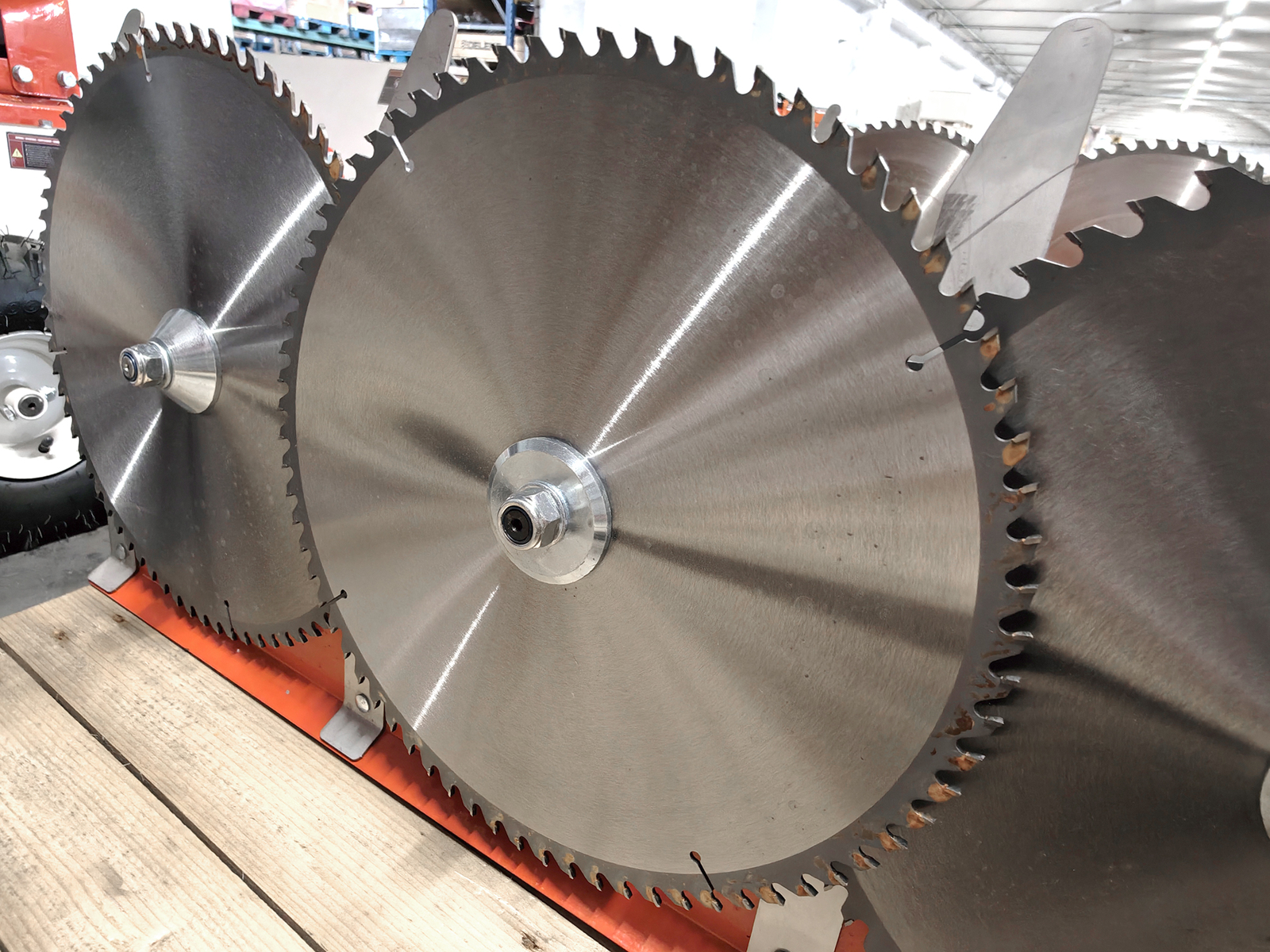

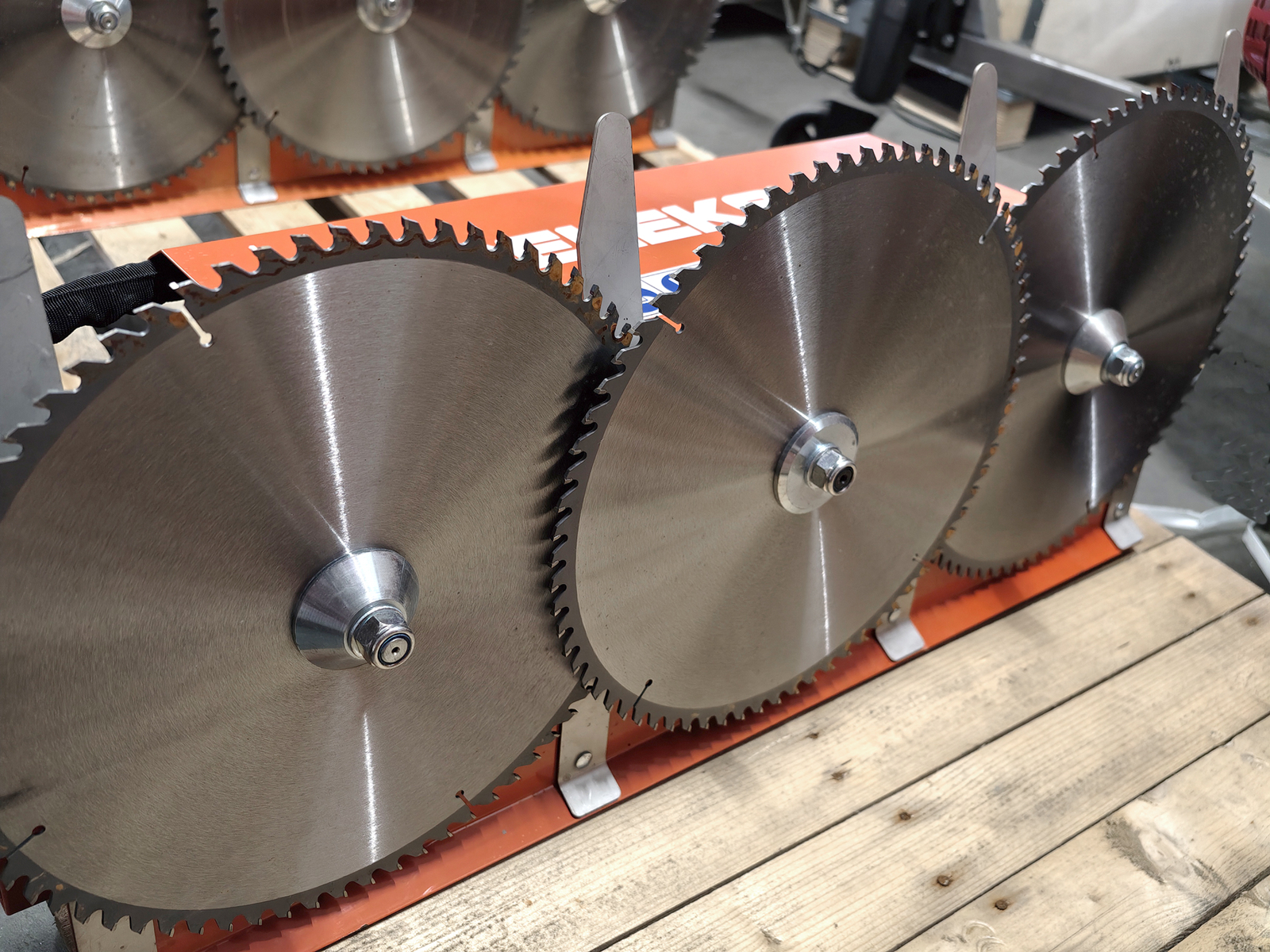

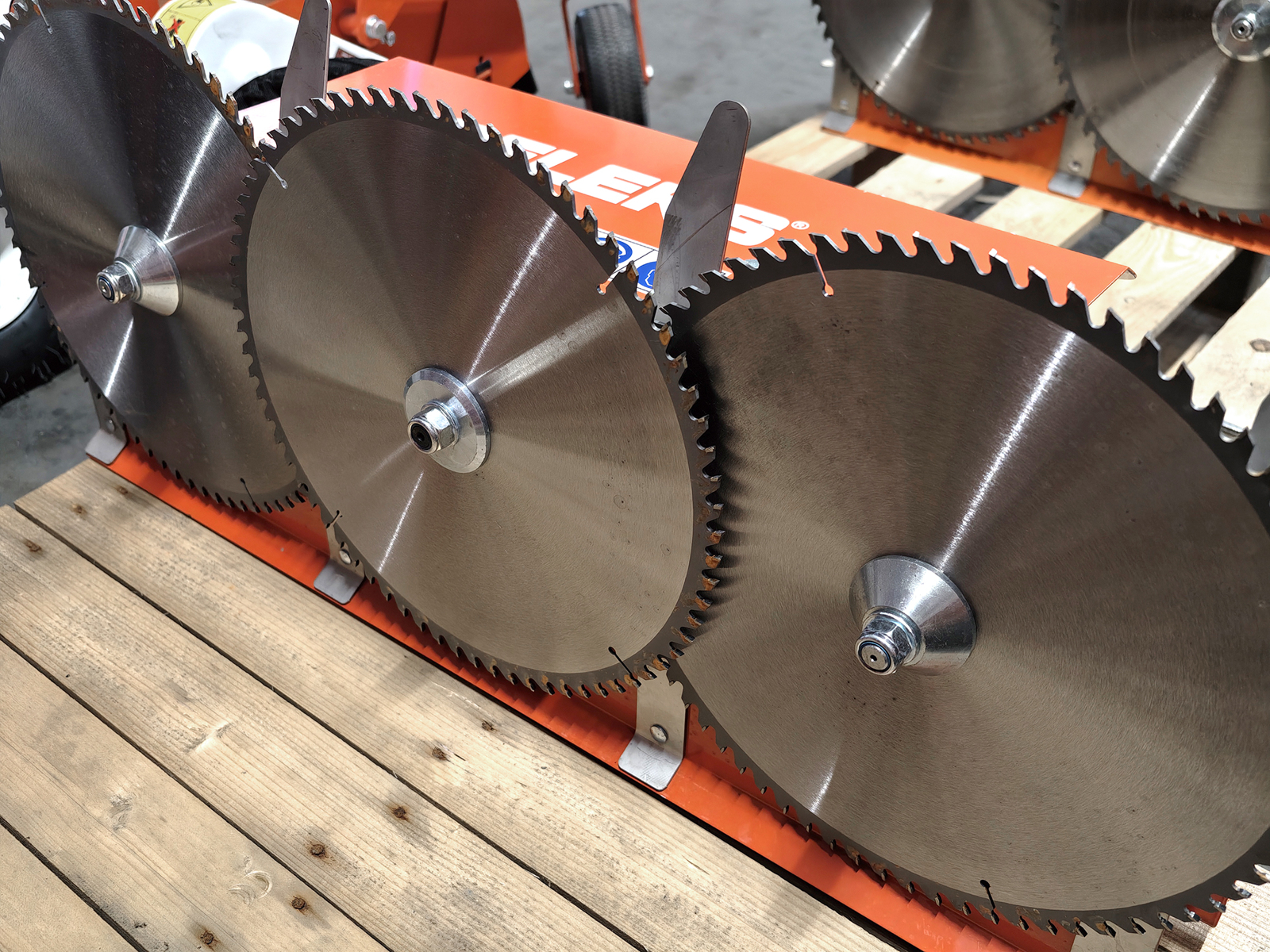

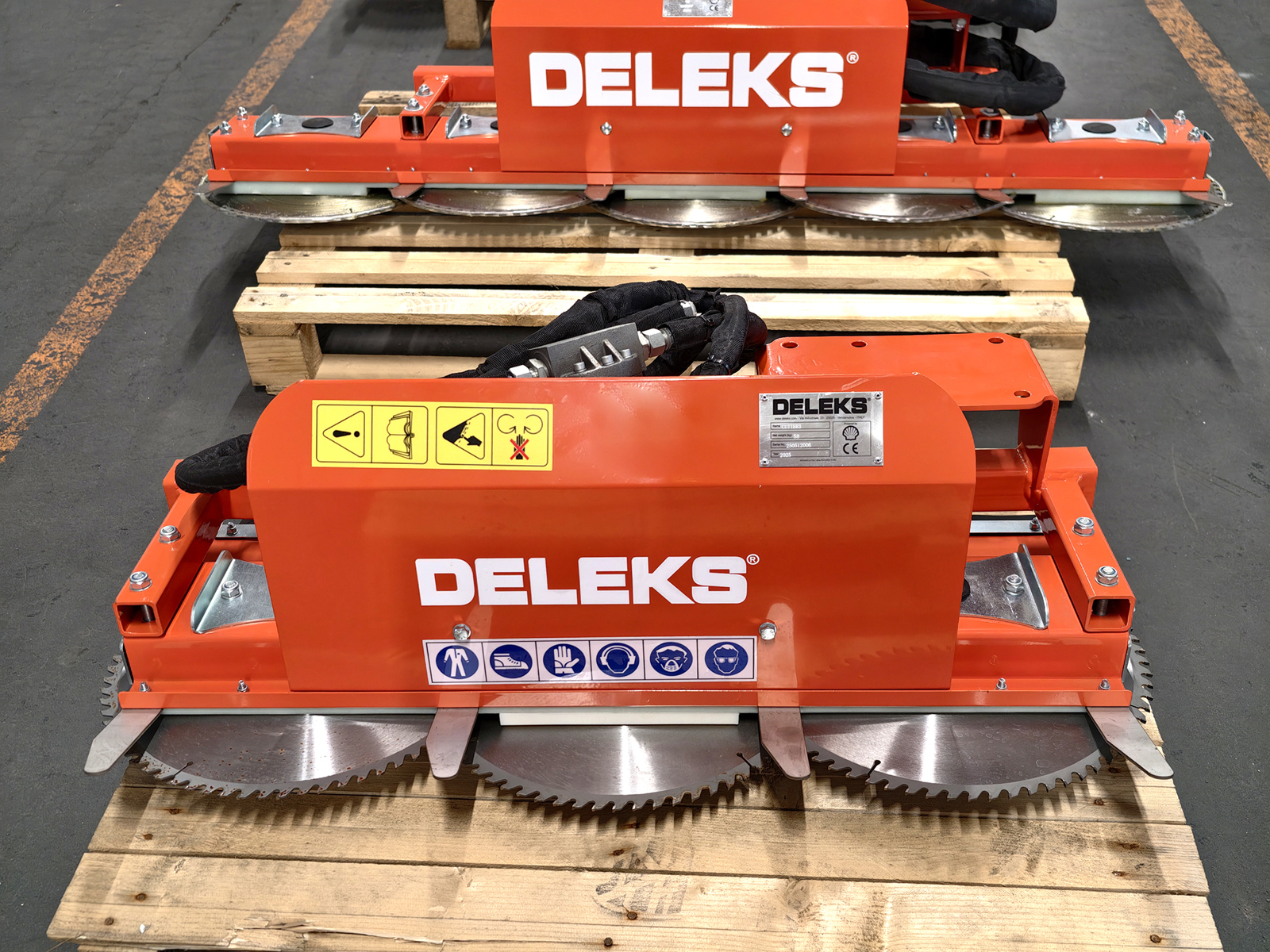

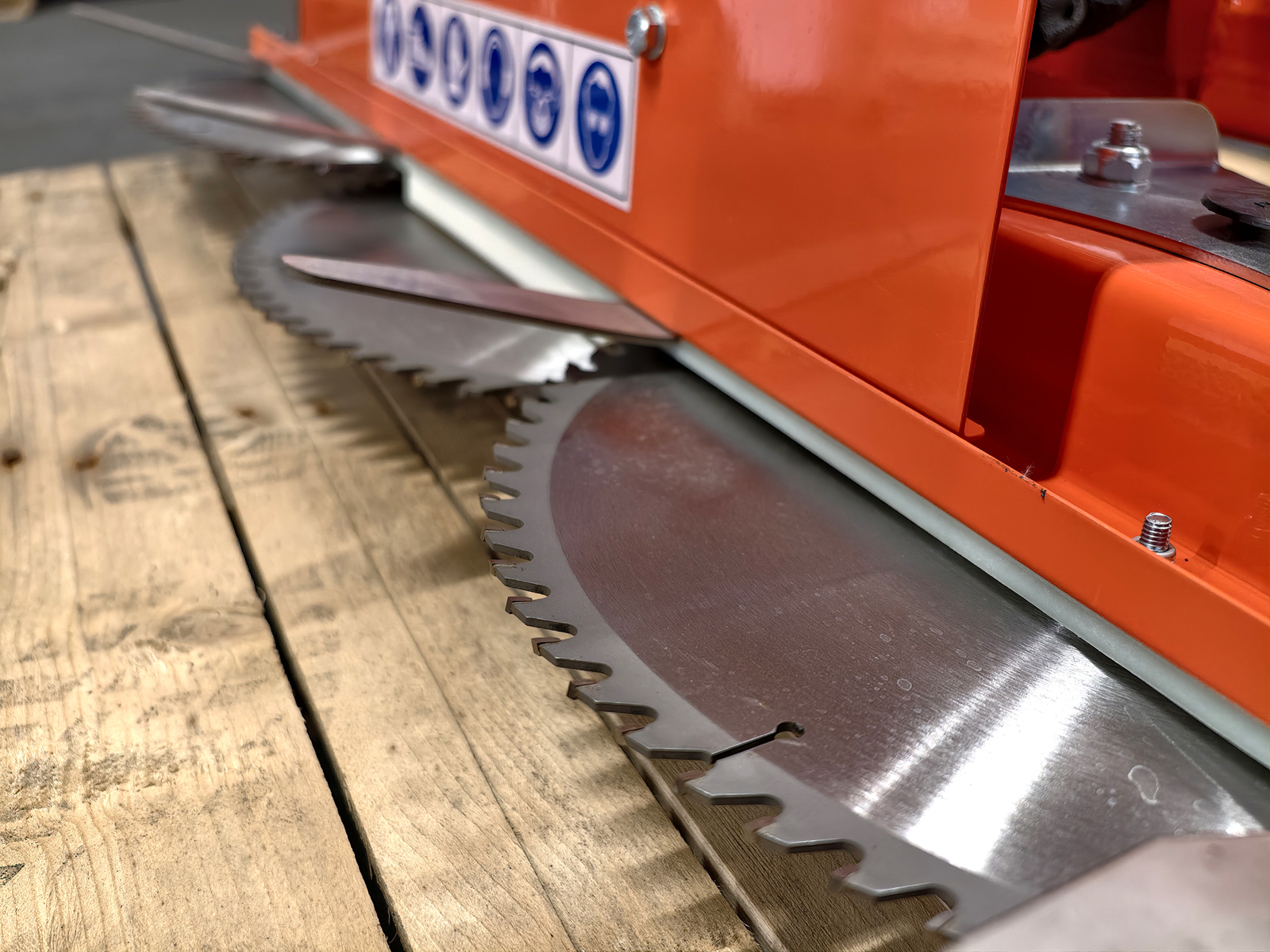

3 discs of 400 mm with 72 tungsten-carbide teeth

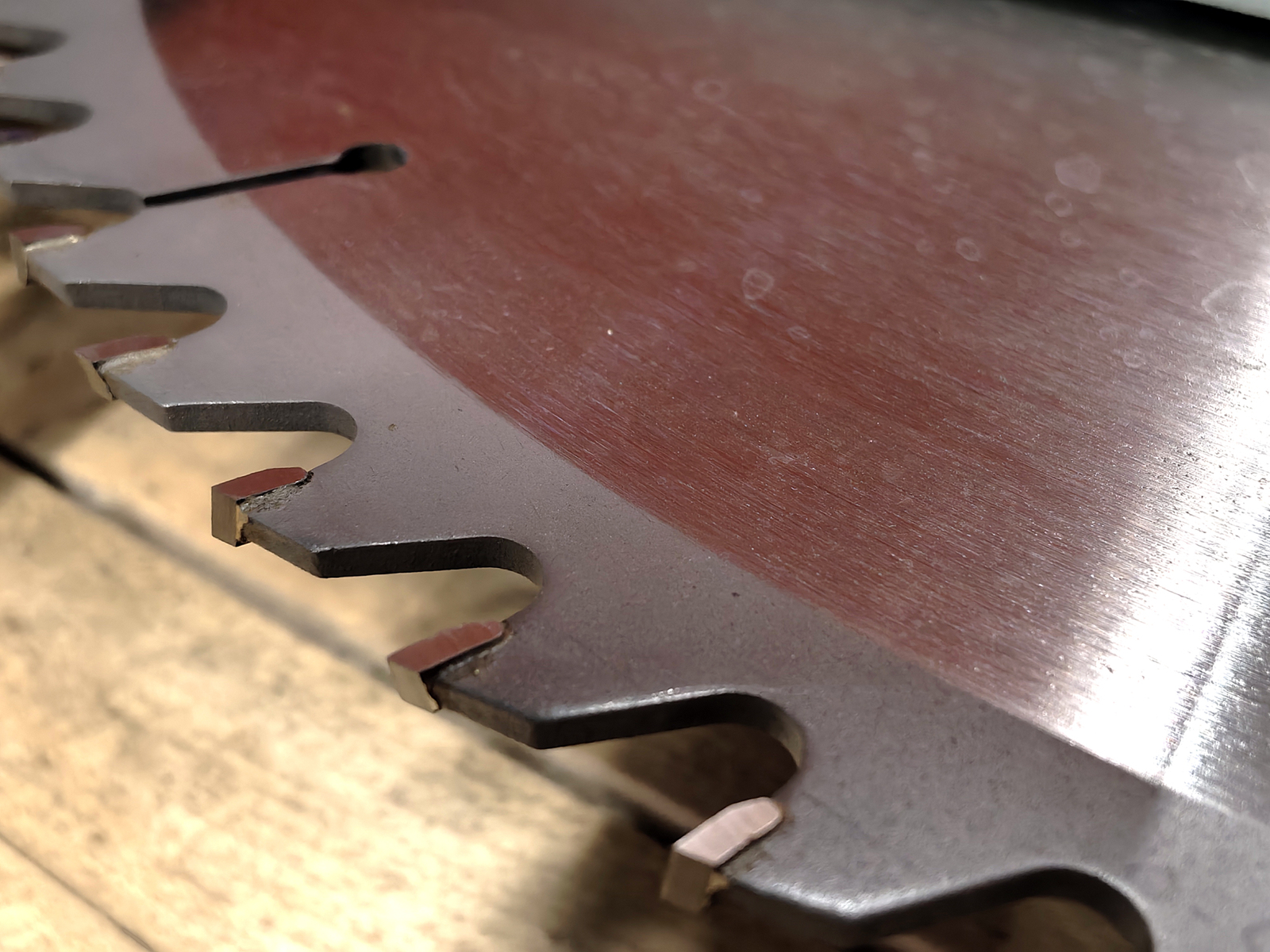

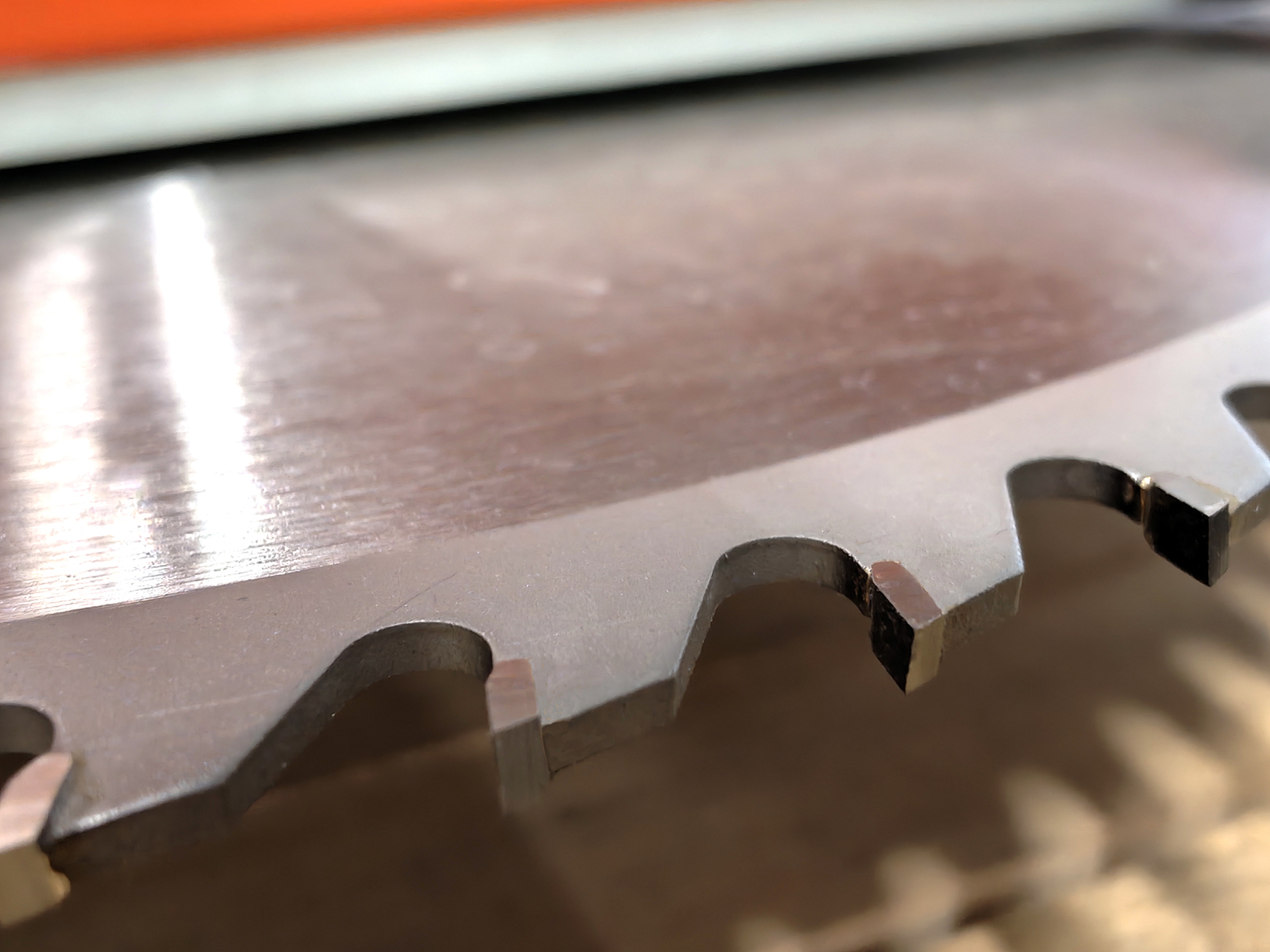

The 3 discs, 400 mm (15.7 in) in diameter, are made of high-strength carbon steel: 2.5 mm thick, with a 30 mm centre bore. Each disc has 72 teeth with tungsten-carbide tips, 3.2 mm thick: they cut woody hedges and branches up to about 9 cm (3.5 in) thick, with a fast, clean cut without splitting.

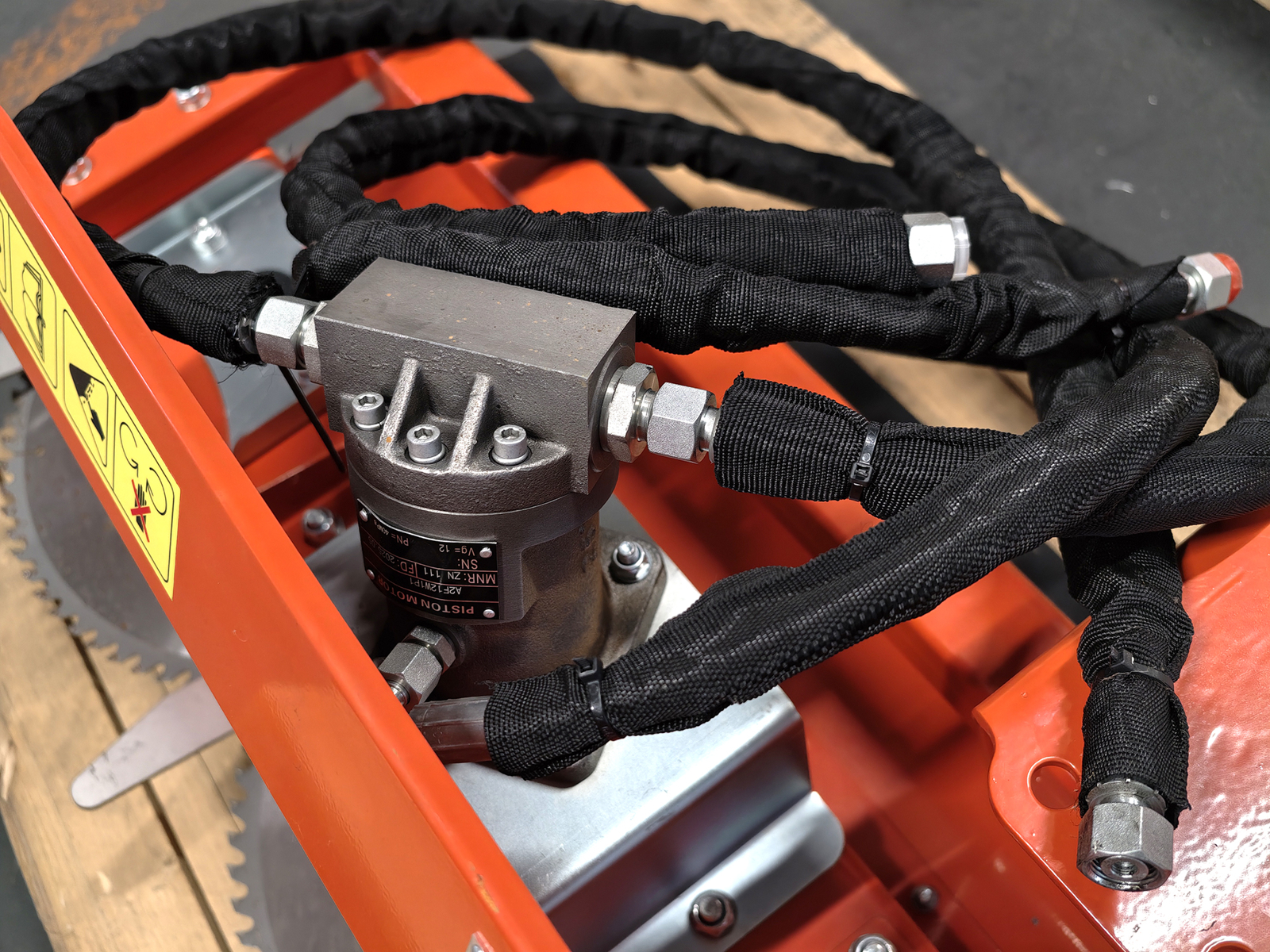

Piston motor and 2-belt drive

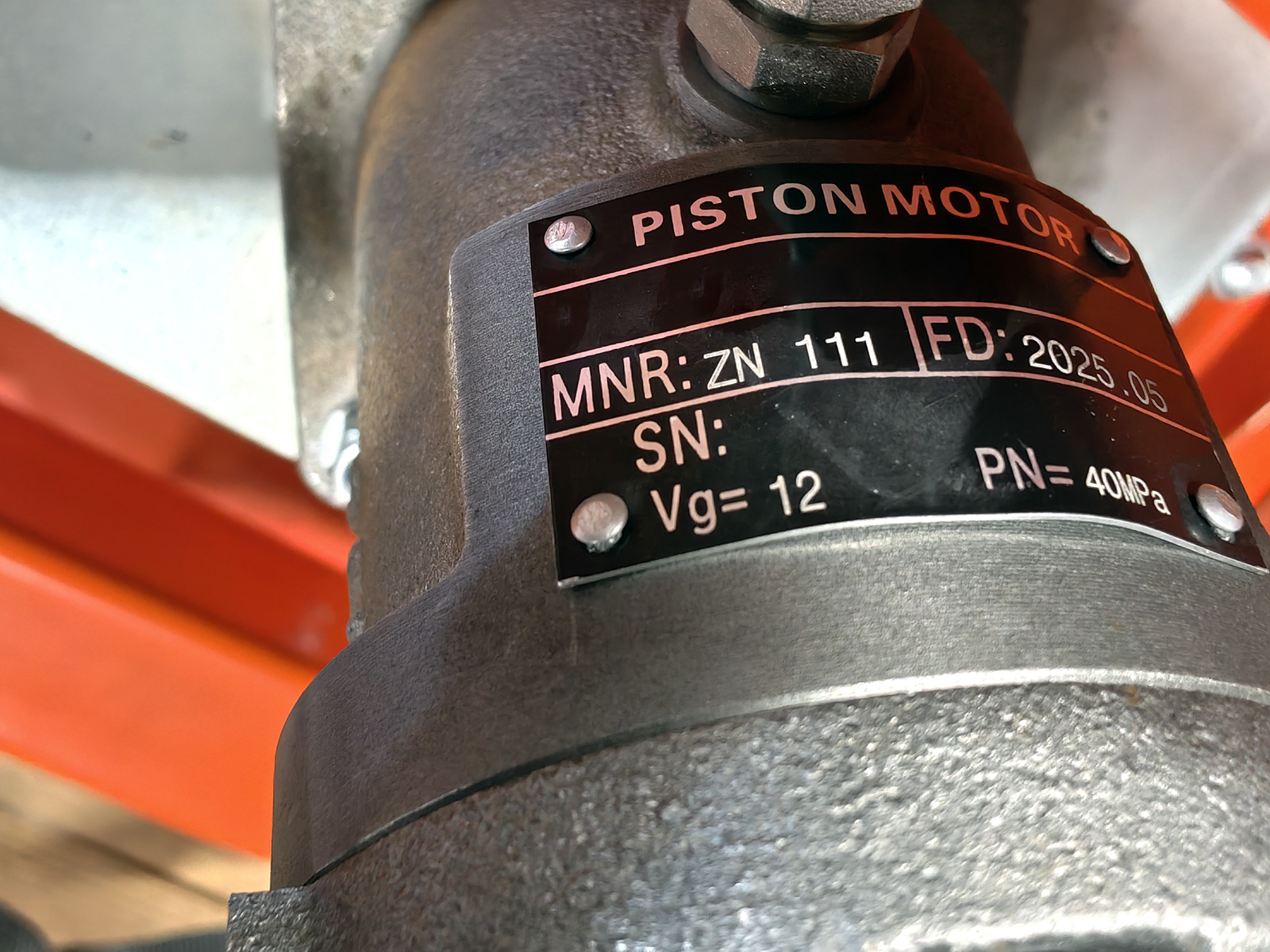

The piston hydraulic motor of 12 cc per revolution is bidirectional and has a case drain: compared with an orbital motor it has more torque and better efficiency, and keeps up its performance under load and in continuous use. Drive reaches the discs through 2 XPA907 belts, which absorb shock loads and reduce vibration.

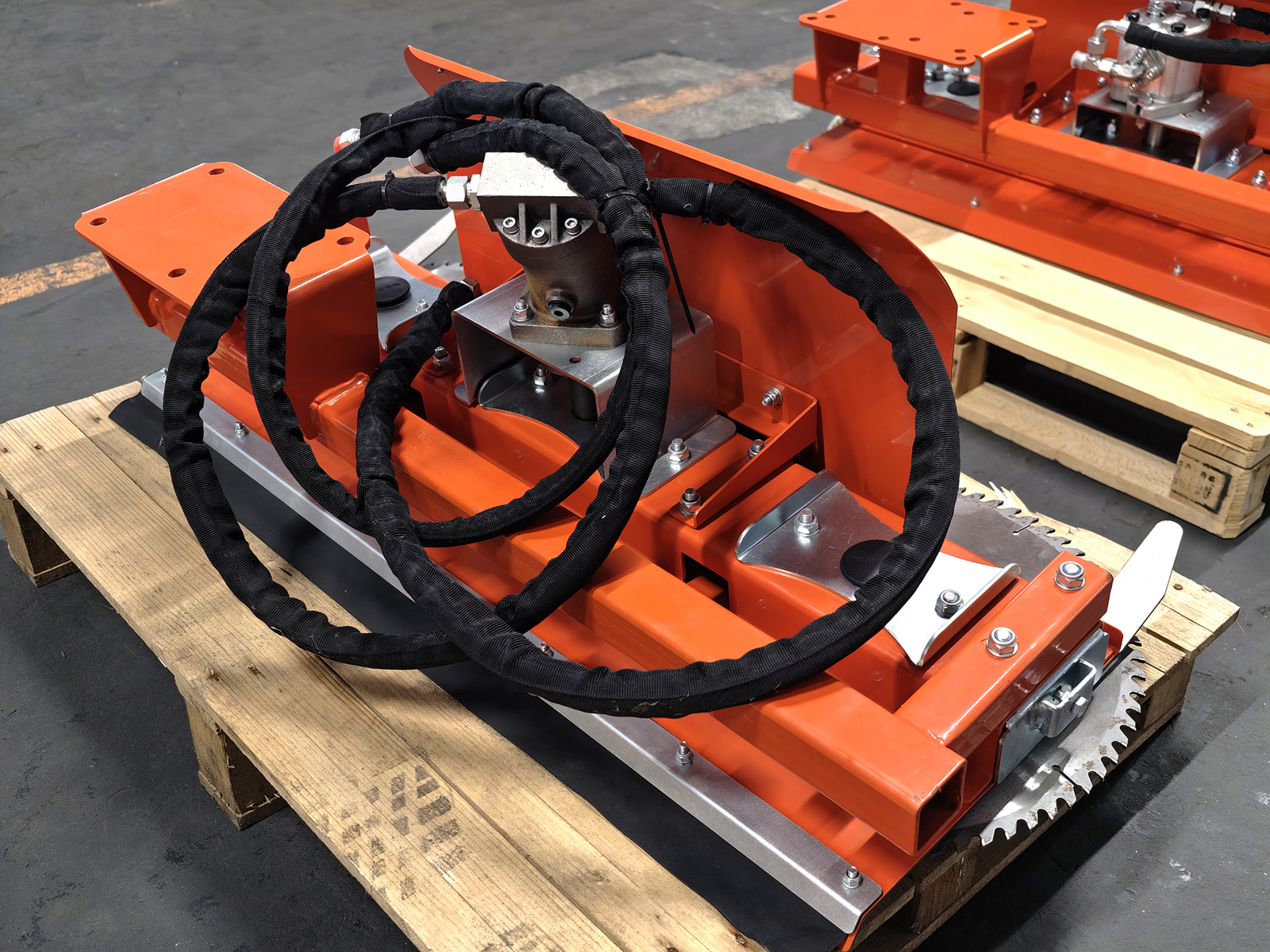

Mounting on the arm

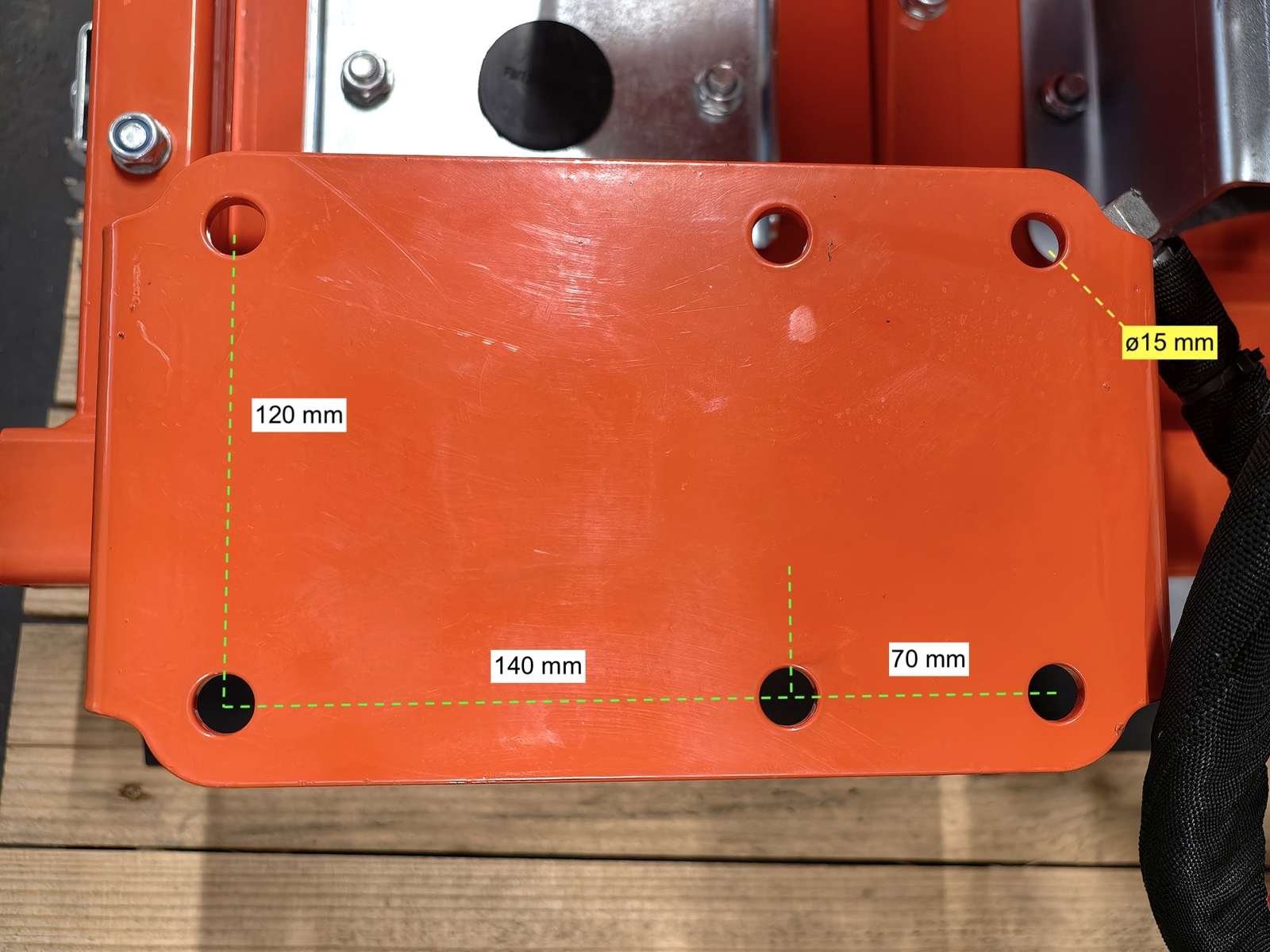

The dimensions of the mounting plate are in the product images, to check against the mounting of your arm or excavator. As options there are the Morin-type ACB+ M0 hitch and a hitch made to measure for your machine, at a surcharge.

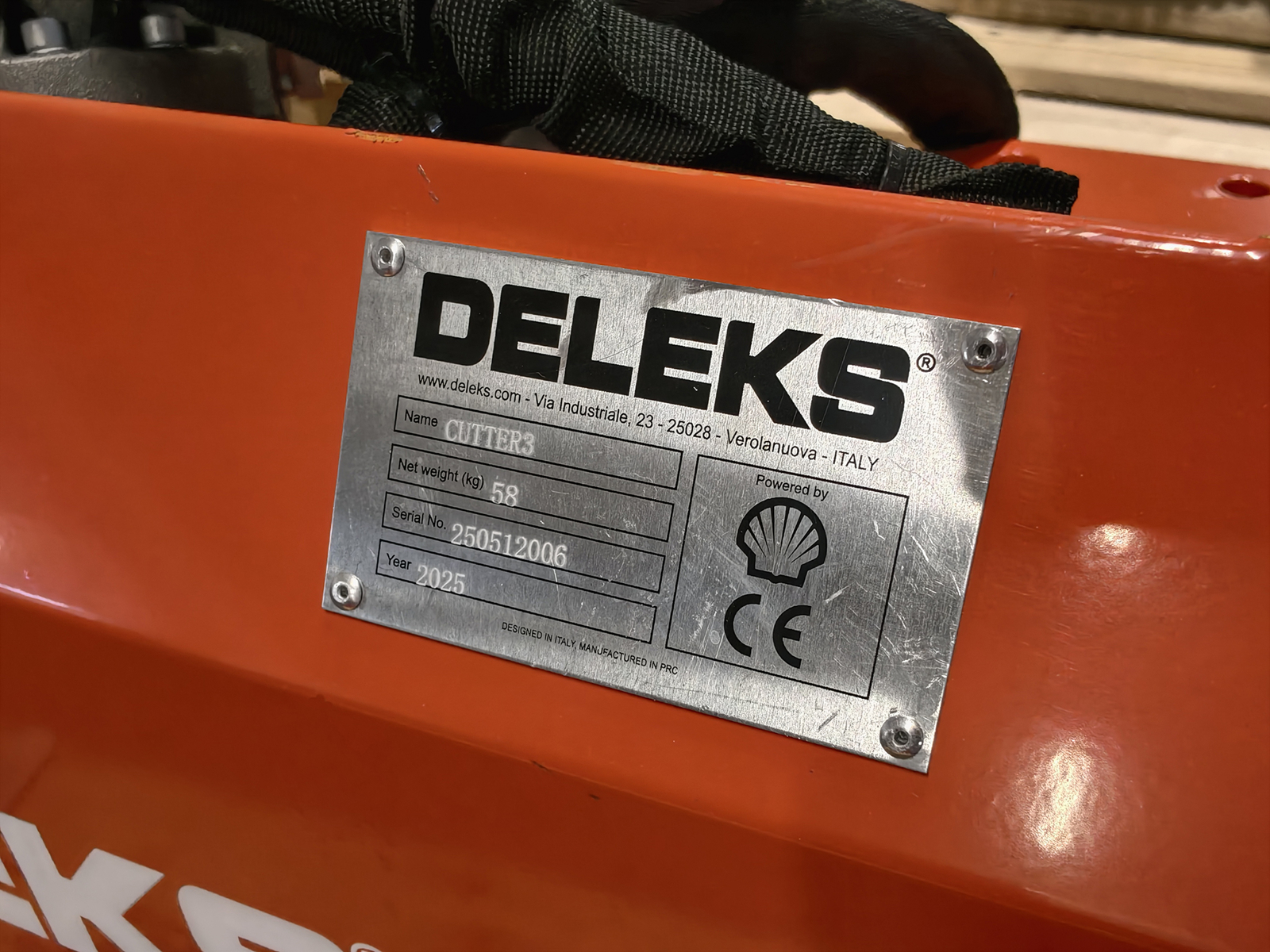

Dimensions, weight and delivery
Cutting width 1,000 mm (39.4 in), weight 58 kg (128 lb). It ships in a package of 108 × 54 × 46 cm (43 × 21 × 18 in), 78 kg (172 lb) gross and 0.27 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is certified by ECO Certificazioni and carries a 2-year warranty.
Where it works
- Woody hedges and tree lines: pruning branches up to 9 cm (3.5 in) thick
- Road verges, banks and ditches: branches and growth overhanging the road
- Orchards and vineyards: pruning and topping from the arm
- Woodland edges and farm tracks: keeping branches and regrowth in check
- Excavators, mini diggers and hedge cutter arms with an oil flow of 40-70 l/min
Options and spares
From this page you can add to your order the Morin-type ACB+ M0 hitch (ATTACCOMORINM0) and the made-to-measure hitch (ATTACCOAR). Discs, belts and other spares are identified on the exploded diagrams with our technical team.
FAQ
Which machines does the CUTTER3 fit?
Excavators, mini diggers and mini excavators with an auxiliary hydraulic line and tractor hedge cutter arms, with an oil flow of 40-70 l/min at 140-180 bar. Among the DELEKS® mini diggers and mini excavators, it fits the S280 and the S380: a case drain hose has to be fitted on the excavator, a service that is free of charge when the bar is bought together with the mini excavator.
What oil flow does it need?
From 40 to 70 l/min (8.8 to 15.4 UK gal/min), at a working pressure of 140 to 180 bar (2,030 to 2,610 psi). For circuits with less flow there is the HR-DISC-3, 30 to 40 l/min.
Does it need a case drain line?
Yes: the motor is bidirectional and has a case drain, to be connected straight back to the tank. The machine must also have a free oil return line.
What size branches does it cut?
Woody hedges and branches up to about 9 cm (3.5 in) thick. For hedges and small branches up to 3 cm (1.2 in), the HR-S and HR finger bar hedge cutters, 130 to 180 cm, are enough.
What is the difference between the HR-DISC-3 and the CUTTER3?
The HR-DISC-3 has a gear motor and runs on 30-40 l/min at 120-160 bar; the CUTTER3 has a piston motor, with more torque and better efficiency, and runs on 40-70 l/min at 140-180 bar. The cutting width is the same; the discs of the CUTTER3 have 72 teeth, those of the HR-DISC-3 60.
3 or 5 discs?
With 3 discs the bar cuts 100 cm and weighs 60 kg (HR-DISC-3) or 58 kg (CUTTER3); with 5 discs it cuts 160 cm and weighs 95 kg (HR-DISC-5) or 86 kg (CUTTER-5), and needs more oil flow.
How does it mount on the arm?
With the mounting plate, whose dimensions are in the product images, with the optional Morin-type ACB+ M0 hitch or with a made-to-measure hitch.
Does it mount directly on a tractor?
No: on a tractor you need a hydraulic arm, such as a hedge cutter arm. The bar does not connect directly to the three-point linkage.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: blades, fingers, saw discs, belts, bearings, hydraulic motor and hitches are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and a check that the bar, the hydraulic circuit and the machine's mounting match. The bar comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1000.0 mm |
| Overall width | 1000.0 mm |
| Weight | 58.0 kg |
| Maximum cutting diameter | 90.0 mm |
| Transmission: V-Belts quantity | 2*XPA907 |
| Working pressure | 140 - 180 bar |
| Min./Max. Flow | 40 - 70 l/min |
| Gross shipping weight | 78 kg |
| Package volume | 0.27 m3 |
| Packing sizes | 1080*540*460 mm |
