Hydraulic hedge cutter bar 160 cm (63 in) HR-160-S, single-blade finger bar for mini diggers and mini excavators of 1.3 to 1.8 tonnes and tractor hedge cutter arms

Available
Code HR160S - EAN 8053470237843
1.115,00€VAT incl.
or 3 installments of 371,67 €
Free shipping
Loading...
1.115,00€VAT incl.
or 3 installments of 371,67 €
Free shipping
View all details.
CUTTING WIDTH
130 160 180

4.6

1551 reviews

1.115,00€VAT incl.
 REQUEST INFORMATION

VIDEO
Chuck Norris Commercial
Chuck Norris Commercial

DETAILS

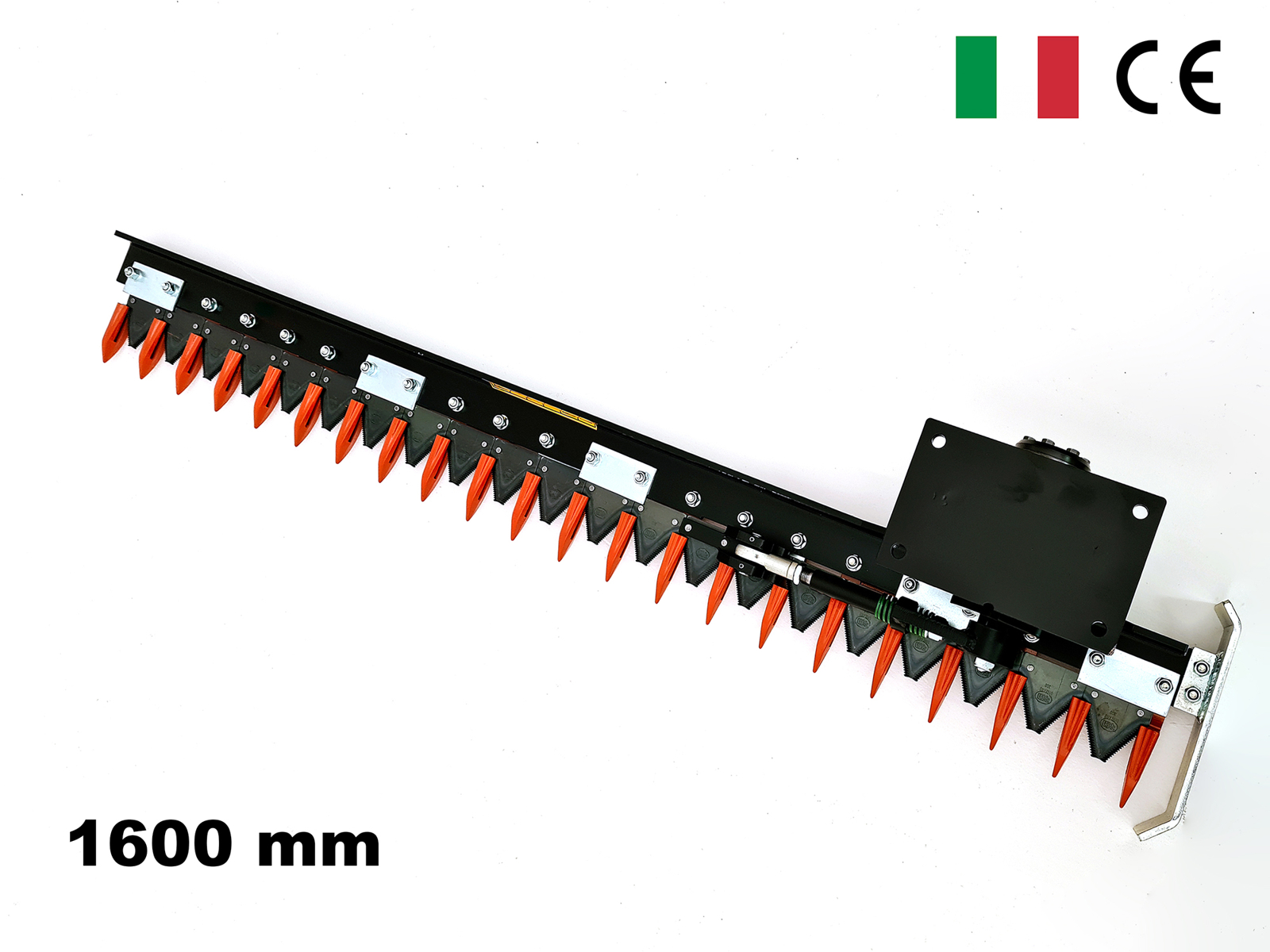

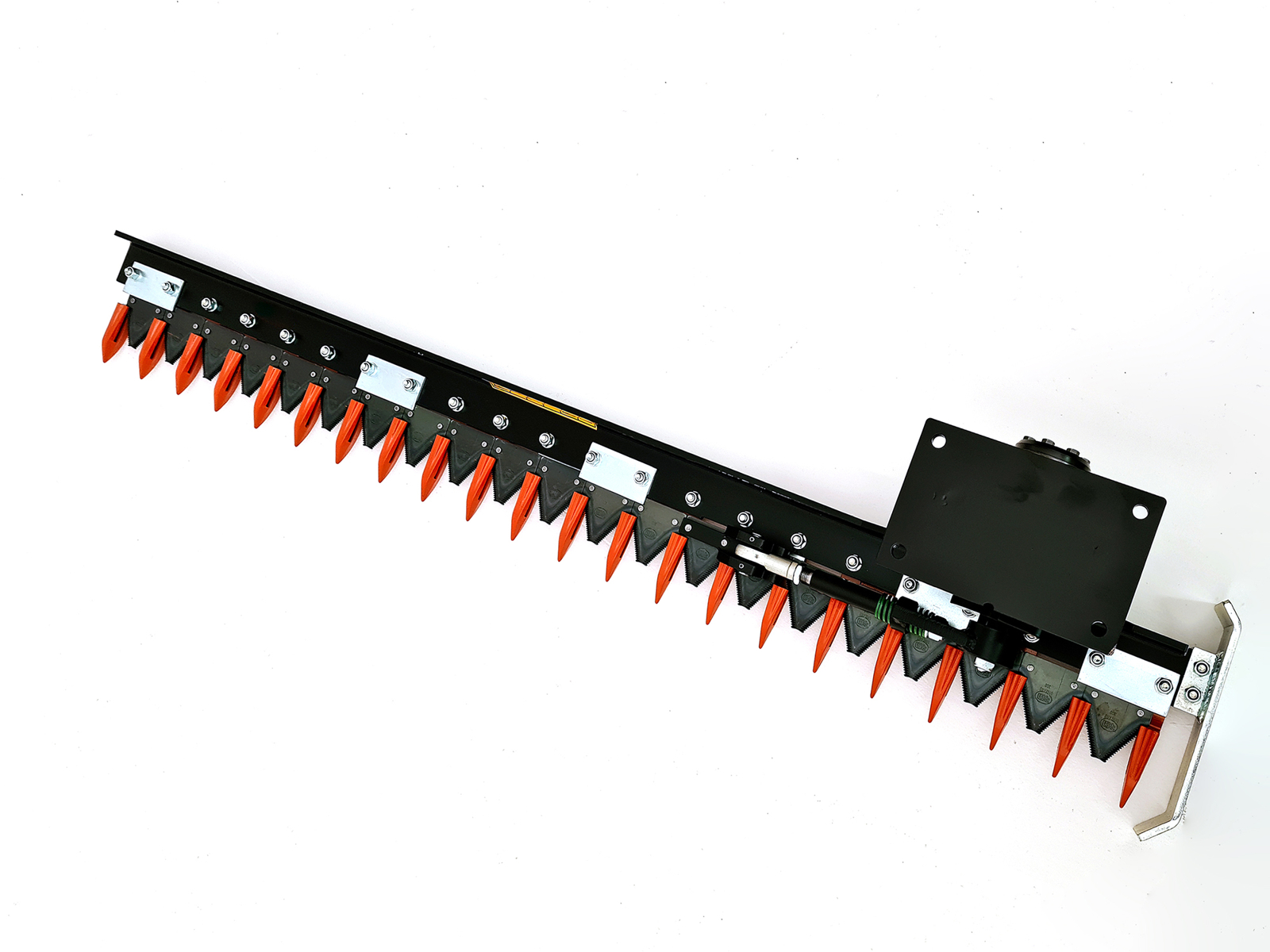

Hydraulic hedge cutter bar with a 160 cm (63 in) cut, the DELEKS® HR-160-S: a single-blade finger bar hedge cutter for mini diggers, mini excavators and tractor hedge cutter arms, Made in Italy, built by DELEKS. It cuts hedges and small branches up to 3 cm (1.2 in) thick along road verges, ditches, banks and rows: 21 serrated blades run between the double fingers, which act as the counter-blade, and leave a clean cut. The 50 cc Caproni hydraulic motor is the right one for mini diggers and mini excavators of 1.3 to 1.8 tonnes; for bigger machines, which deliver more oil, there is the HR-160, the same bar with a 100 cc motor. It bolts on with its 4-hole plate and runs at 140 to 180 bar (2,030 to 2,610 psi). It weighs 62 kg (137 lb) and comes with a 2-year warranty and free delivery within the EU.


Which machines it fits

The HR-160-S fits mini diggers and mini excavators of 1.3 to 1.8 tonnes with an auxiliary hydraulic line and tractor hedge cutter arms: it is one of the bars for the DELEKS® FALCO, FALCO-H, AIRONE and MERLO arms. The weight range is a guide: what counts is the oil flow of the auxiliary line, to be checked before ordering. Among the DELEKS® mini diggers and mini excavators, it fits the M130. On a tractor a hydraulic arm is needed: the bar does not connect directly to the three-point linkage. With a 160 cm (63 in) cut and an overall width of 168 cm (66.1 in) it weighs 62 kg (137 lb). The same series also includes the HR-130-S (130 cm, 58 kg) and the HR-180-S (180 cm, 70 kg): a shorter bar weighs less and is easier to handle with the arm fully extended, a longer one cuts a wider strip at each pass.

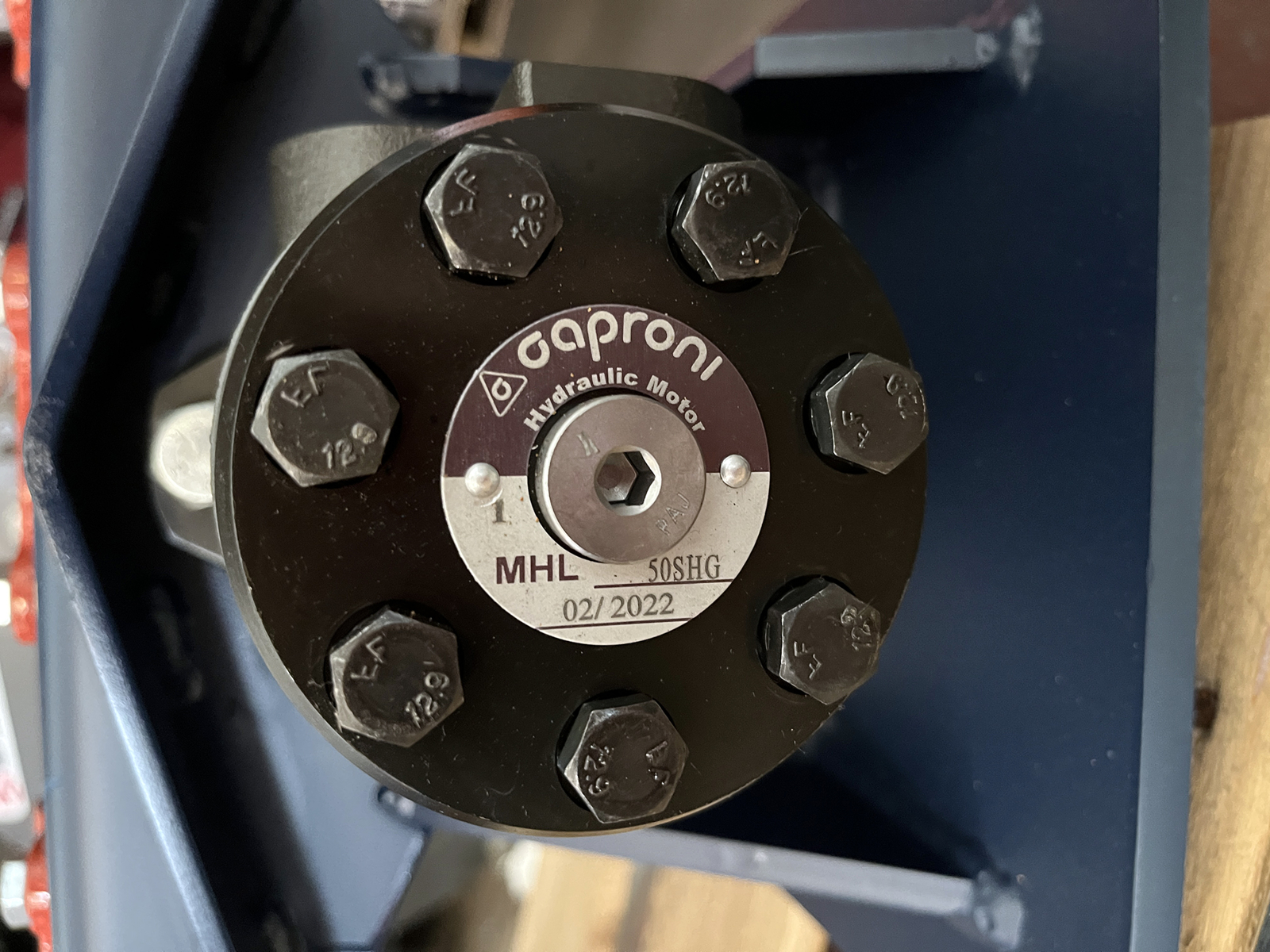

HR-S or HR: the choice comes down to oil flow

The HR-160-S and the HR-160 are the same bar: only the hydraulic motor changes, 50 cc on the HR-160-S and 100 cc on the HR-160. Blade speed depends on the machine's oil flow and on the motor's displacement: for the same flow, the smaller motor drives the blades faster. A bigger mini excavator delivers more oil: with the 50 cc motor the blades would run too fast, with a risk of breaking the bar, which is why above 1.8 tonnes the HR-160 is the one to choose. So the choice between the two does not depend on the job, which is the same, but on the oil flow of your mini digger.

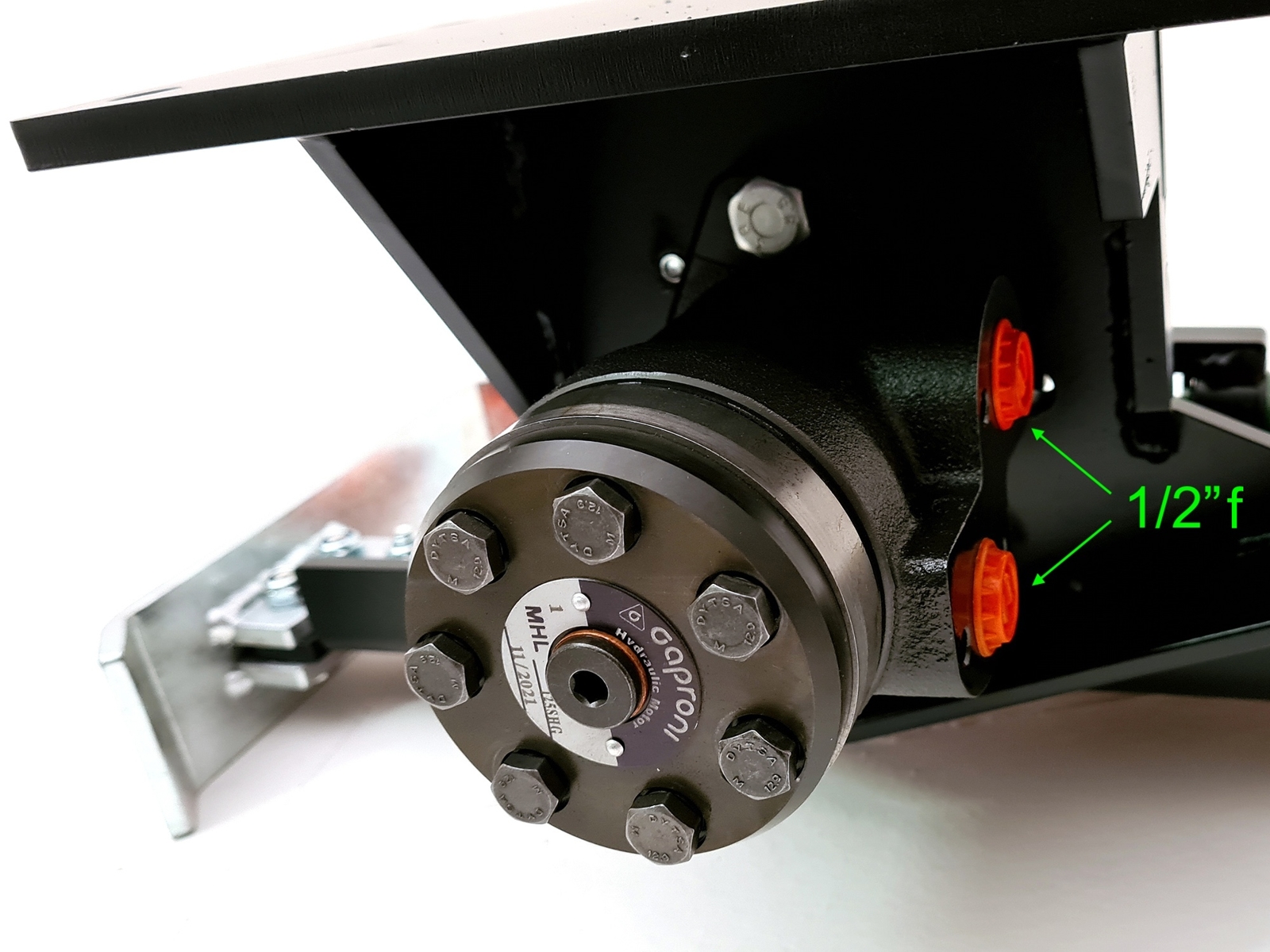

Hydraulic connection: pressure, flow and return line

The HR-160-S runs at a working pressure of 140 to 180 bar (2,030 to 2,610 psi) and an oil flow of 20 to 40 l/min (4.4 to 8.8 UK gal/min). The 50 cc Caproni hydraulic motor, with two ½ in female ports, connects to the circuit of the mini digger or the arm, and the bar is worked from the machine's controls. Blade speed depends on the oil flow, which is why the bar has to be matched to a machine of the right size. The machine must have an oil return line: above a certain flow, the excess oil goes straight back to the tank. Before ordering, check the flow and pressure of your hydraulic circuit: if in doubt, just tell us the model of your machine.

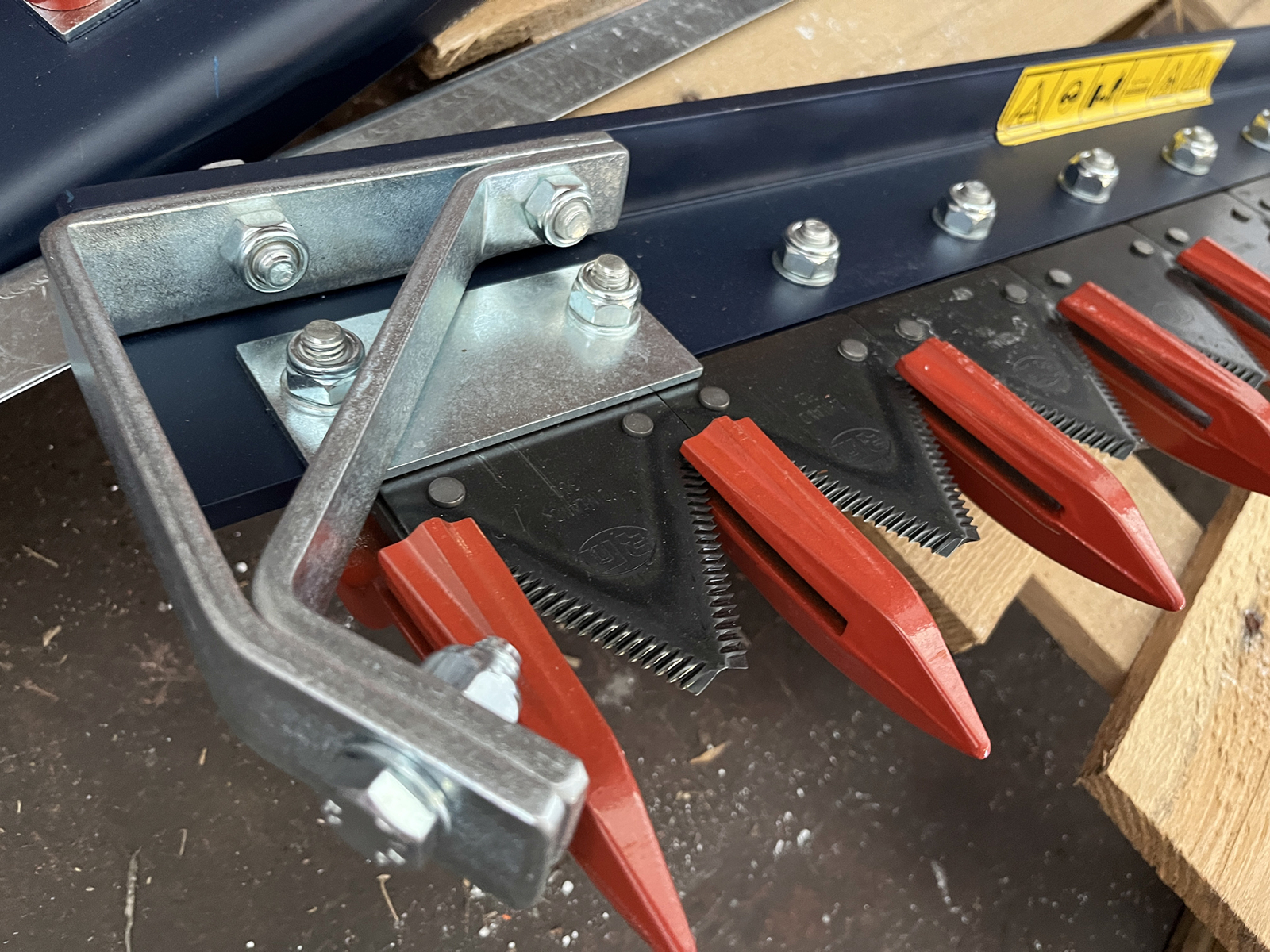

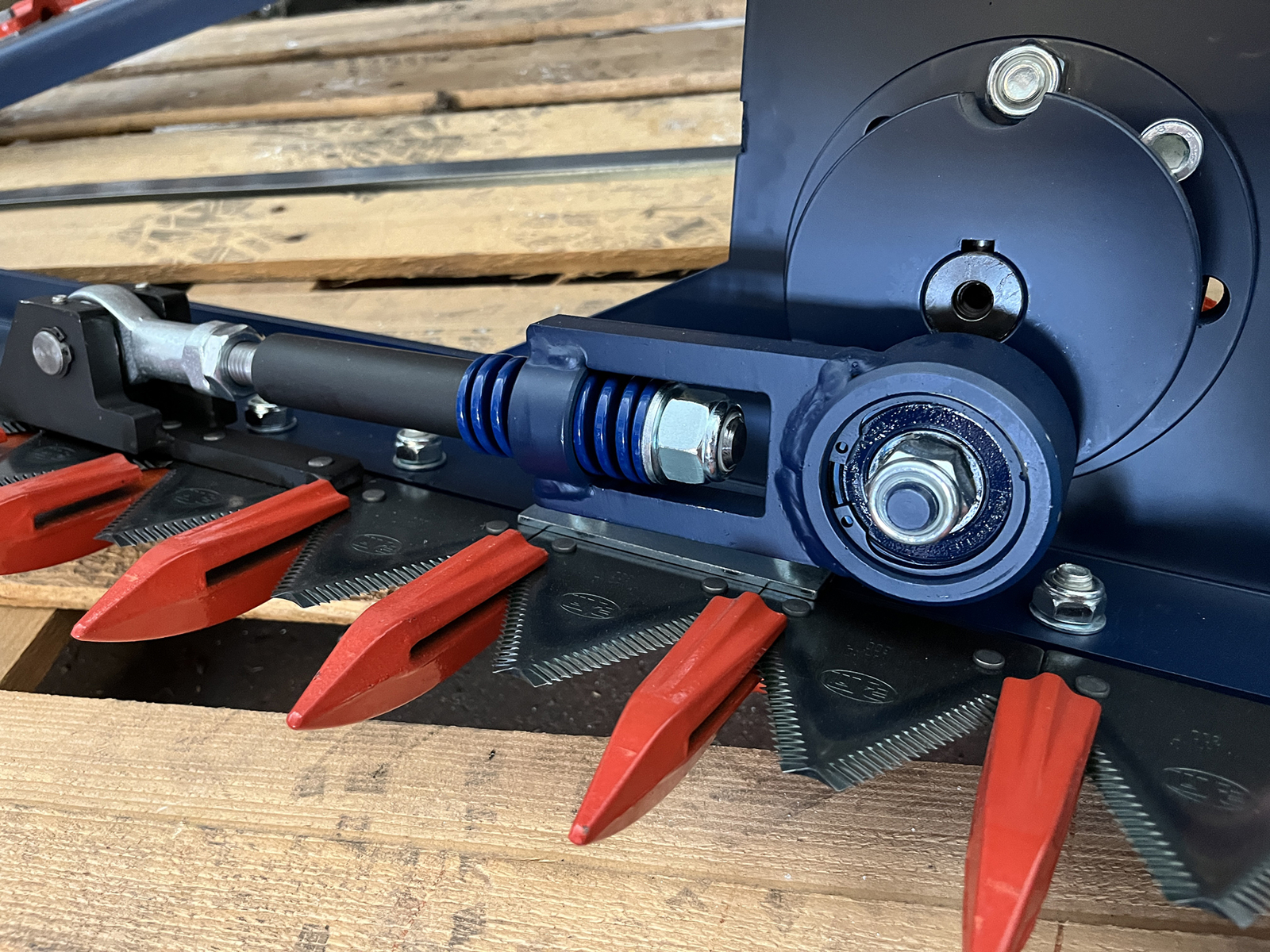

21 serrated blades and double fingers

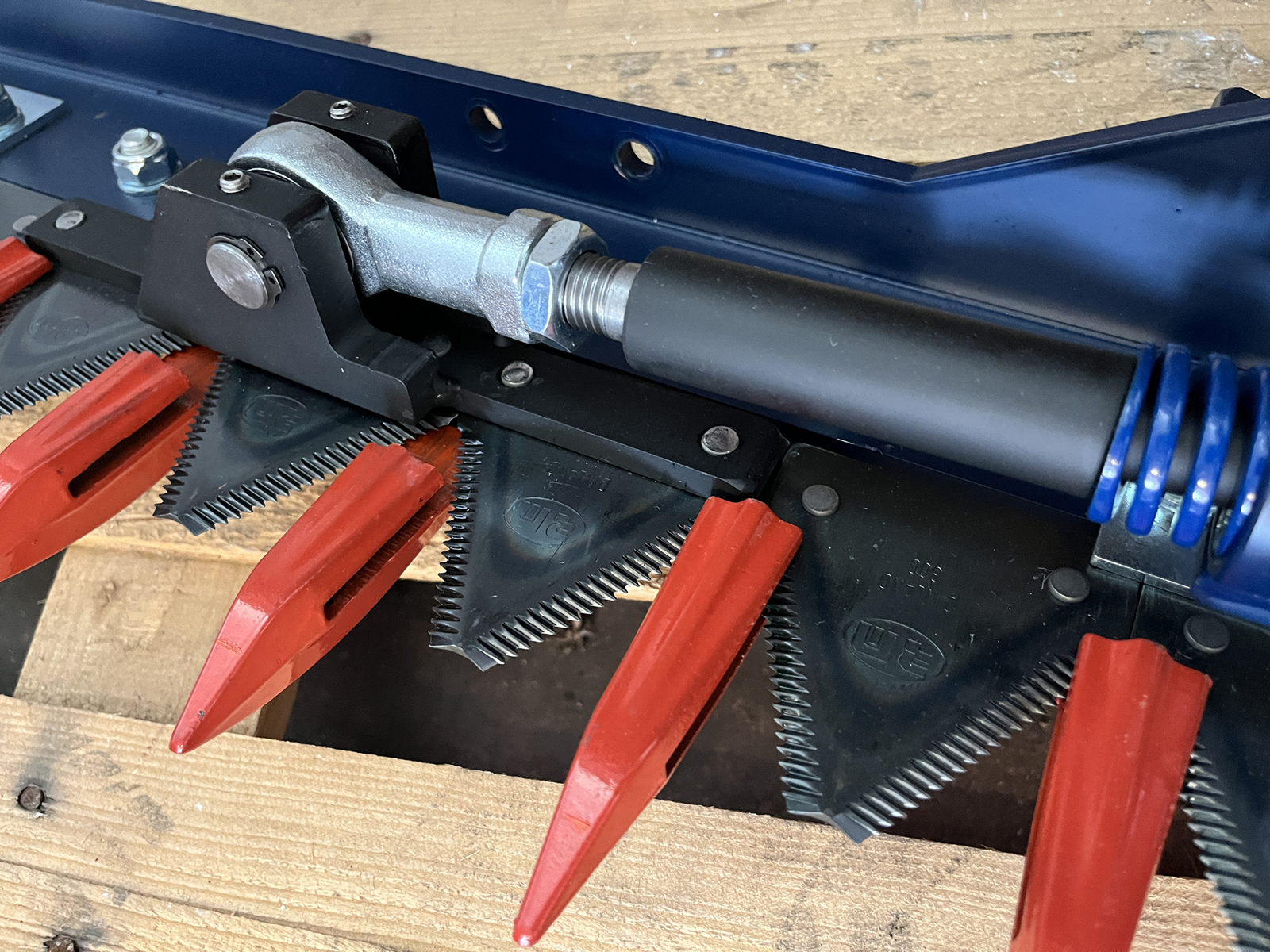

The bar has 21 triangular blades with a serrated edge: the motor drives them back and forth through a connecting rod and the blades run between the double fingers, which act as the counter-blade. It cuts hedges and small branches up to 3 cm (1.2 in) thick, with a clean cut; for grass you need the HRD double-blade bar instead. The blades are a standard type, easy to find on the market or from DELEKS: from this page you can order the set of 10 blades (COLTELLI10HRTCA) and the 5 double fingers (5DENTIDOPPIHR).


Single blade or double-blade bar

The HR-S is the single-blade bar with counter-blade: it cuts hedges and small branches up to 3 cm (1.2 in) and is the one most used for verges, banks and rows. The HRD double-blade bar, in the same sizes and weights, has two blades moving in opposite directions: it cuts hedges and grass, with branches up to 2 cm (0.8 in), and is the only blade bar suited to grass. For branches up to 9 cm (3.5 in) there are the HR-DISC and CUTTER disc saw bars, 100 and 160 cm (39 and 63 in).

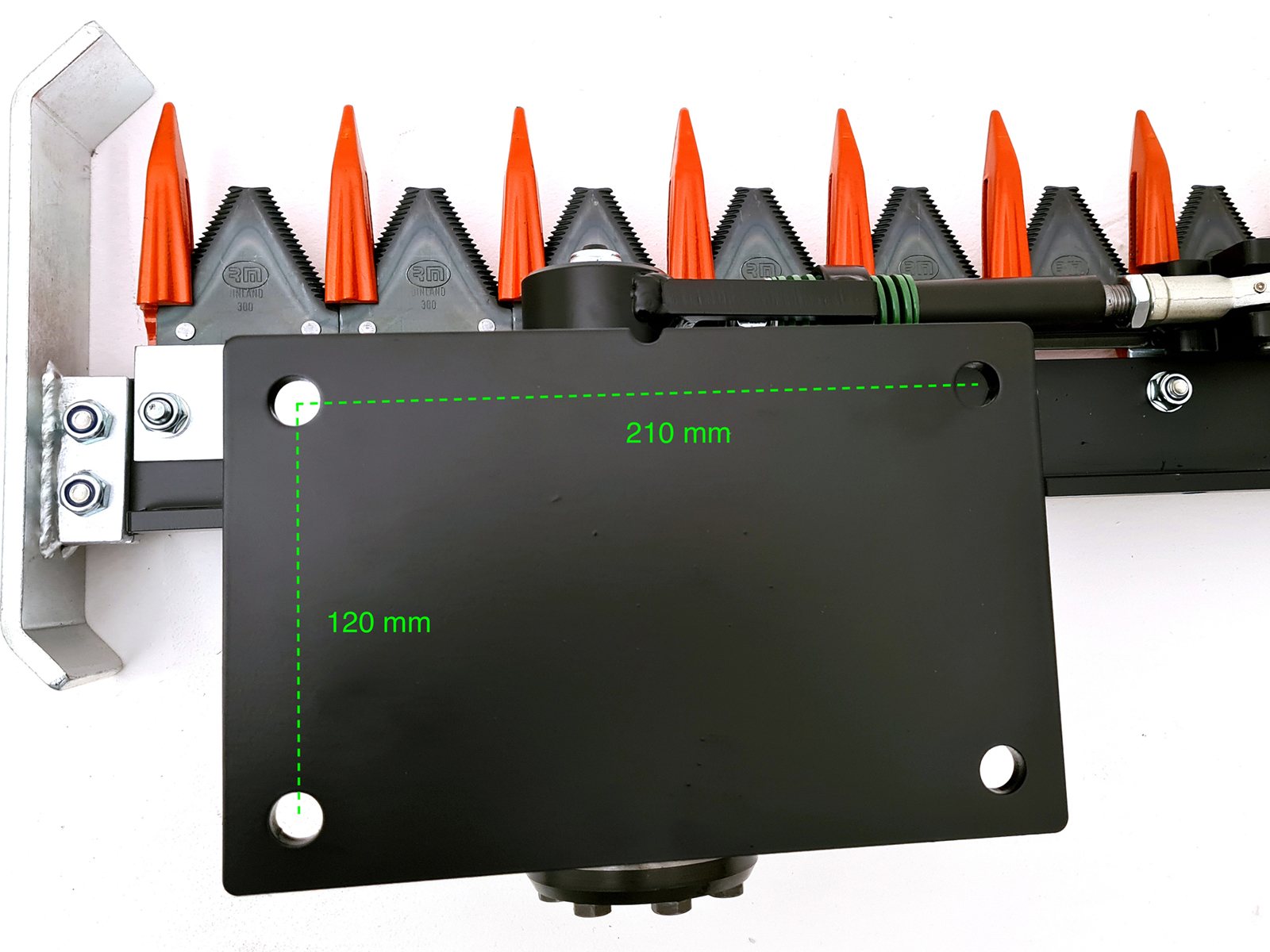

Mounting: 4-hole plate

The bar comes with a 4-hole mounting plate, with hole centres of 210 × 120 mm (8.3 × 4.7 in): the dimensions are in the product images, to check against the mounting of your arm or mini digger. For a mini digger or mini excavator you can order one of the optional hitches (MS01, S40, Cangini AR15, Morin-type ACB+ M0 and M1) or a hitch made to measure for your machine, at a surcharge.


Dimensions, weight and delivery

Working width 1,600 mm (63 in), overall width 1,680 mm (66.1 in), weight 62 kg (137 lb). It ships in a package of 168 × 60 × 30 cm (66 × 24 × 12 in), 72 kg (159 lb) gross and 0.30 m³, with free delivery within the EU. It complies with the EC Machinery Directive and carries a 2-year warranty.


Where it works

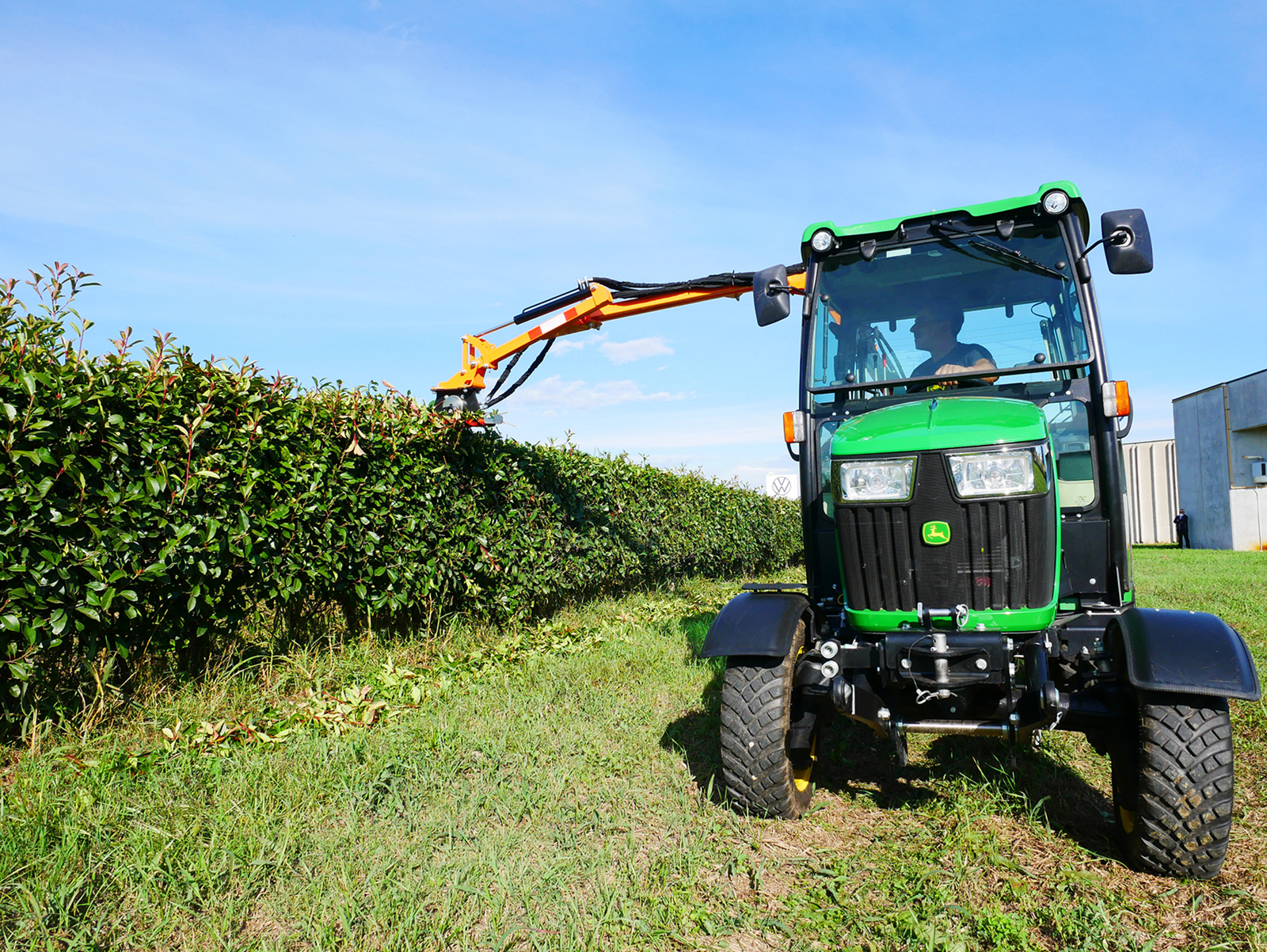

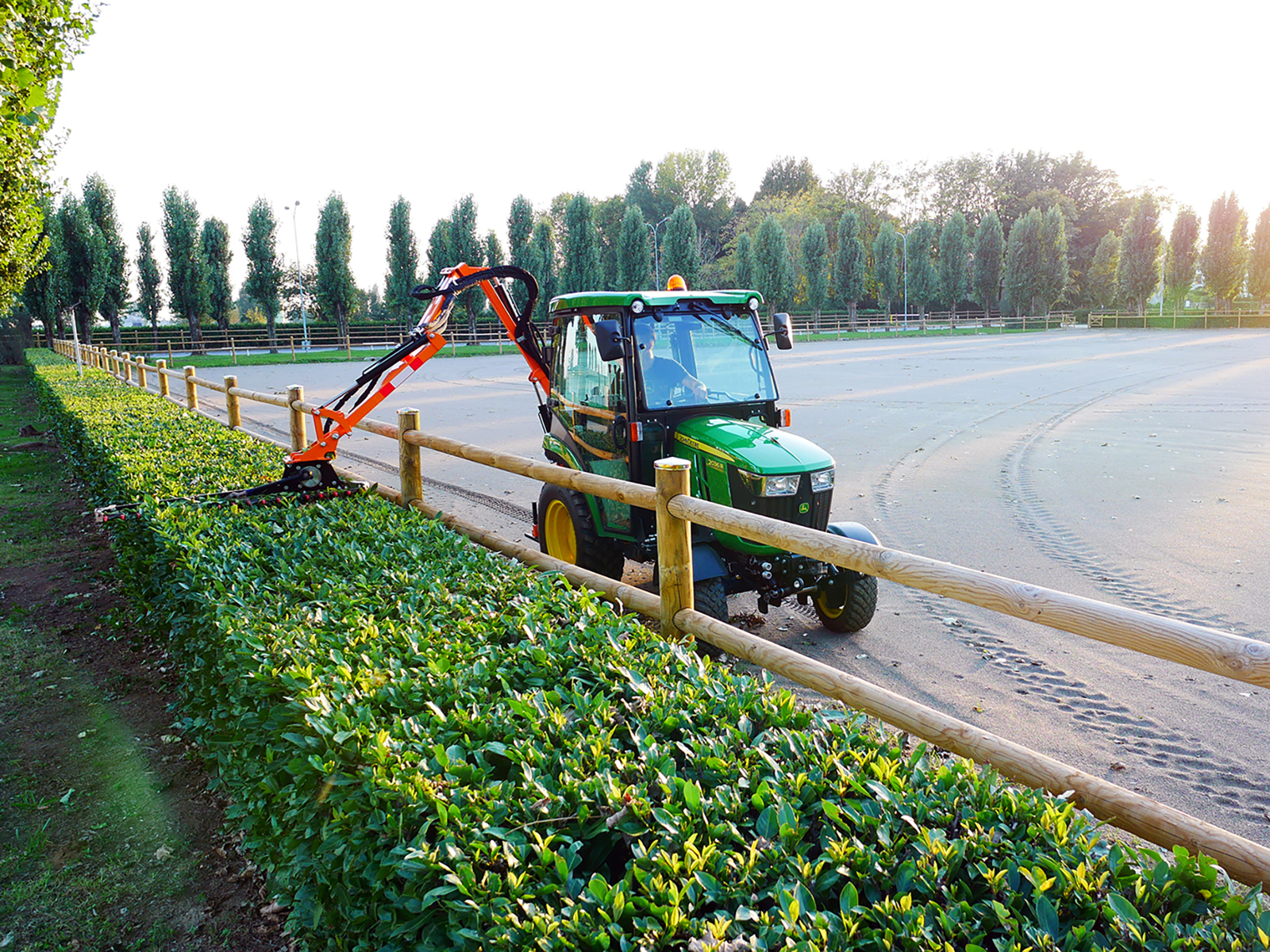

  • Boundary, garden and park hedges: a clean cut on branches up to 3 cm (1.2 in)
  • Road verges, ditches and banks: hedges, regrowth and small branches
  • Rows, orchards and vineyards: topping and keeping growth in check
  • Tree lines and woodland edges: small branches overhanging roads and farm tracks
  • Mini diggers and mini excavators of 1.3 to 1.8 tonnes and hedge cutter arms

Options and spares

From this page you can add to your order the spare set of 10 blades (COLTELLI10HRTCA) and the 5 double fingers (5DENTIDOPPIHR). For mounting on a mini digger or mini excavator you can choose the MS01 hitch (ATTACCOMS01), the S40 hitch (ATTACCOS40), the Cangini AR15 hitch (ATTACCOAR15), the Morin-type ACB+ M0 hitch (ATTACCOMORINM0), the Morin-type ACB+ M1 hitch (ATTACCOMORINM1AR) and the made-to-measure hitch (ATTACCOAR). Other spares are identified on the exploded diagrams with our technical team.


FAQ

Which machines does the HR-160-S fit?
Mini diggers and mini excavators of 1.3 to 1.8 tonnes with an auxiliary hydraulic line, and tractor hedge cutter arms: it is one of the bars for the DELEKS® FALCO, AIRONE and MERLO arms. For bigger mini excavators there is the HR-160. Among the DELEKS® mini diggers and mini excavators, it fits the M130.

HR-160-S or HR-160: which one?
They are the same bar with two motors: the HR-160-S has the 50 cc motor, for mini diggers of 1.3 to 1.8 tonnes; the HR-160 has the 100 cc motor, for those of 1.8 to 2.5 tonnes. You do not choose by the job, which is the same, but by the oil flow of your mini digger.

Can I fit the HR-160-S on a bigger mini excavator?
It is not advisable: a bigger machine delivers more oil and with the 50 cc motor the blades run too fast, with a risk of breaking the bar. Above 1.8 tonnes go for the HR-160, with its 100 cc motor.

Is 1.3-1.8 tonnes a hard limit?
No, it is a guide: what counts is the oil flow of the mini digger's auxiliary line. Check it before ordering: if in doubt, just tell us the make and model of your machine.

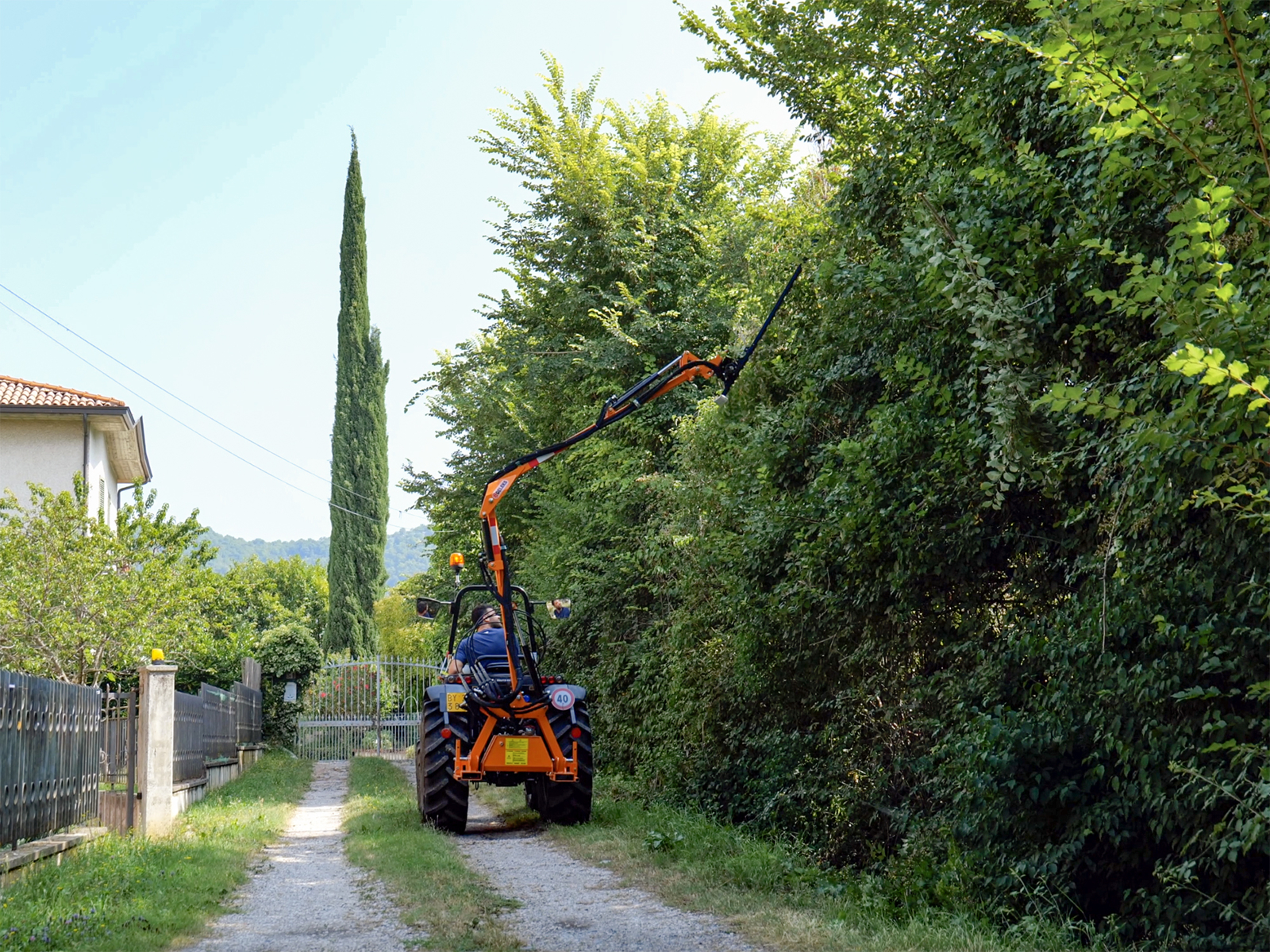

Does it mount directly on a tractor?

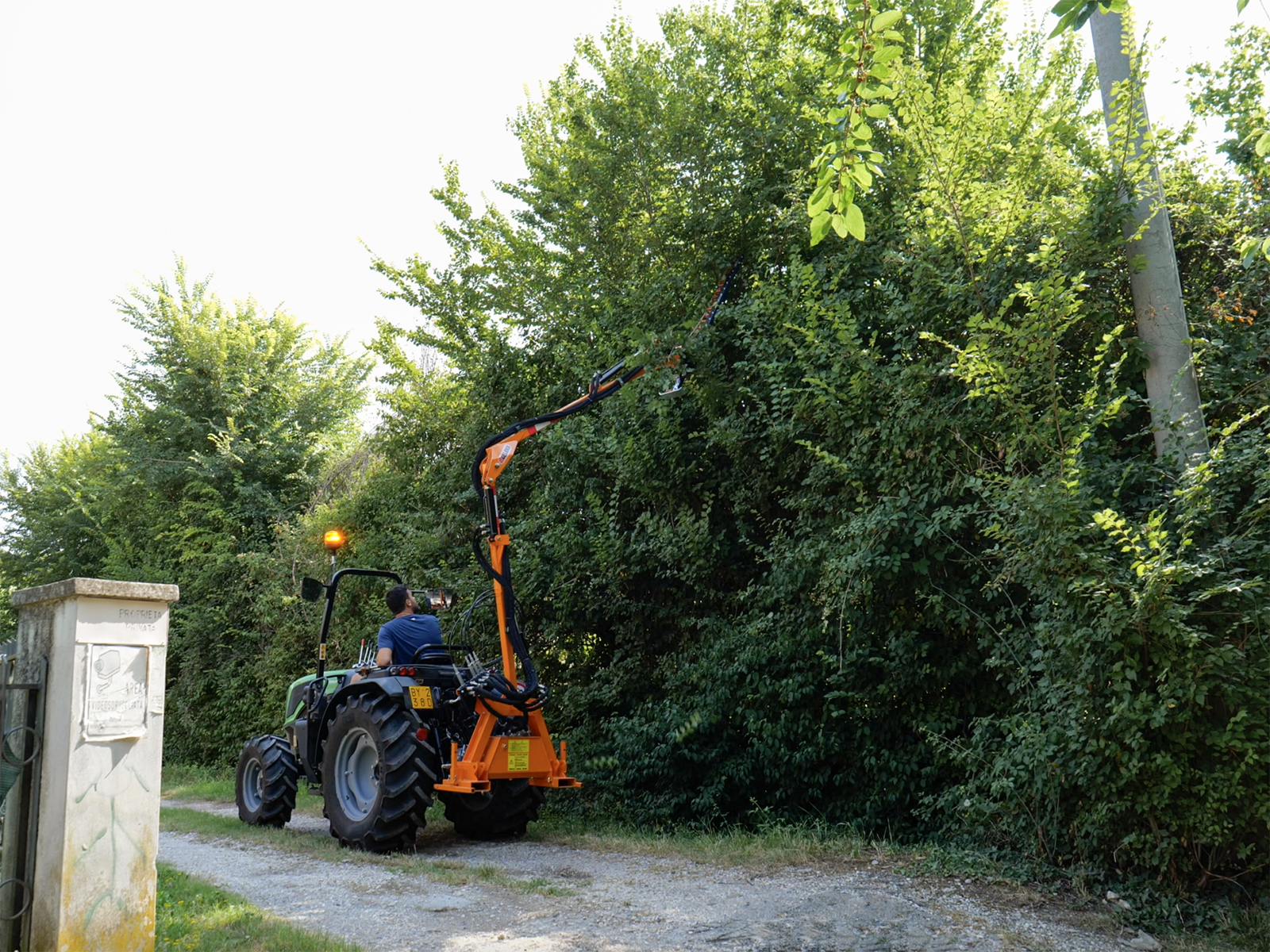

No: on a tractor you need a hydraulic arm, such as a hedge cutter arm. The bar does not connect directly to the three-point linkage.

What pressure and oil flow does it need?
A working pressure of 140 to 180 bar (2,030 to 2,610 psi) and an oil flow of 20 to 40 l/min (4.4 to 8.8 UK gal/min). The machine must have an oil return line. For the flow, go by the size of the machine, a mini digger of 1.3 to 1.8 tonnes: if in doubt, just tell us the make and model of your machine.

What size branches does it cut?
Hedges and small branches up to 3 cm (1.2 in) thick. For branches up to 9 cm (3.5 in) there are the HR-DISC and CUTTER disc saw bars.

Does it cut grass too?
No: for grass you need the HRD double-blade bar, with two blades moving in opposite directions. The HR-160-S is made for hedges and small branches.

What is the difference between the HR-S and the HRD?
The HR-S has a single blade with counter-blade and cuts hedges and small branches up to 3 cm (1.2 in); the HRD is the double-blade bar, for hedges and grass, with branches up to 2 cm (0.8 in). Sizes and weights are the same: 130, 160 and 180 cm, from 58 to 70 kg.

How does it mount on a mini digger?
With the 4-hole plate (210 × 120 mm) and one of the optional hitches: MS01, S40, Cangini AR15, Morin-type ACB+ M0 or M1, or a made-to-measure hitch.

Can the blades be replaced?
Yes: they are a standard type. From this page you can order the set of 10 blades (COLTELLI10HRTCA) and the 5 double fingers (5DENTIDOPPIHR).

Which size should I choose?
The three sizes, 130, 160 and 180 cm, weigh 58, 62 and 70 kg: the shortest is easier to handle with the arm fully extended, the longest cuts a wider strip at each pass.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: blades, fingers, saw discs, belts, bearings, hydraulic motor and hitches are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and a check that the bar, the hydraulic circuit and the machine's mounting match. The bar comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric
Working width 1600.0 mm
Overall width 1680.0 mm
Weight 62.0 kg
Maximum cutting diameter 10.0-20.0 mm
Number of Blades 21
Working pressure 140 - 180 bar
Min./Max. Flow min. 20 l/min
Gross shipping weight 72 kg
Package volume 0.30 m3
Packing sizes 1680.0*600.0*300.0 mm
