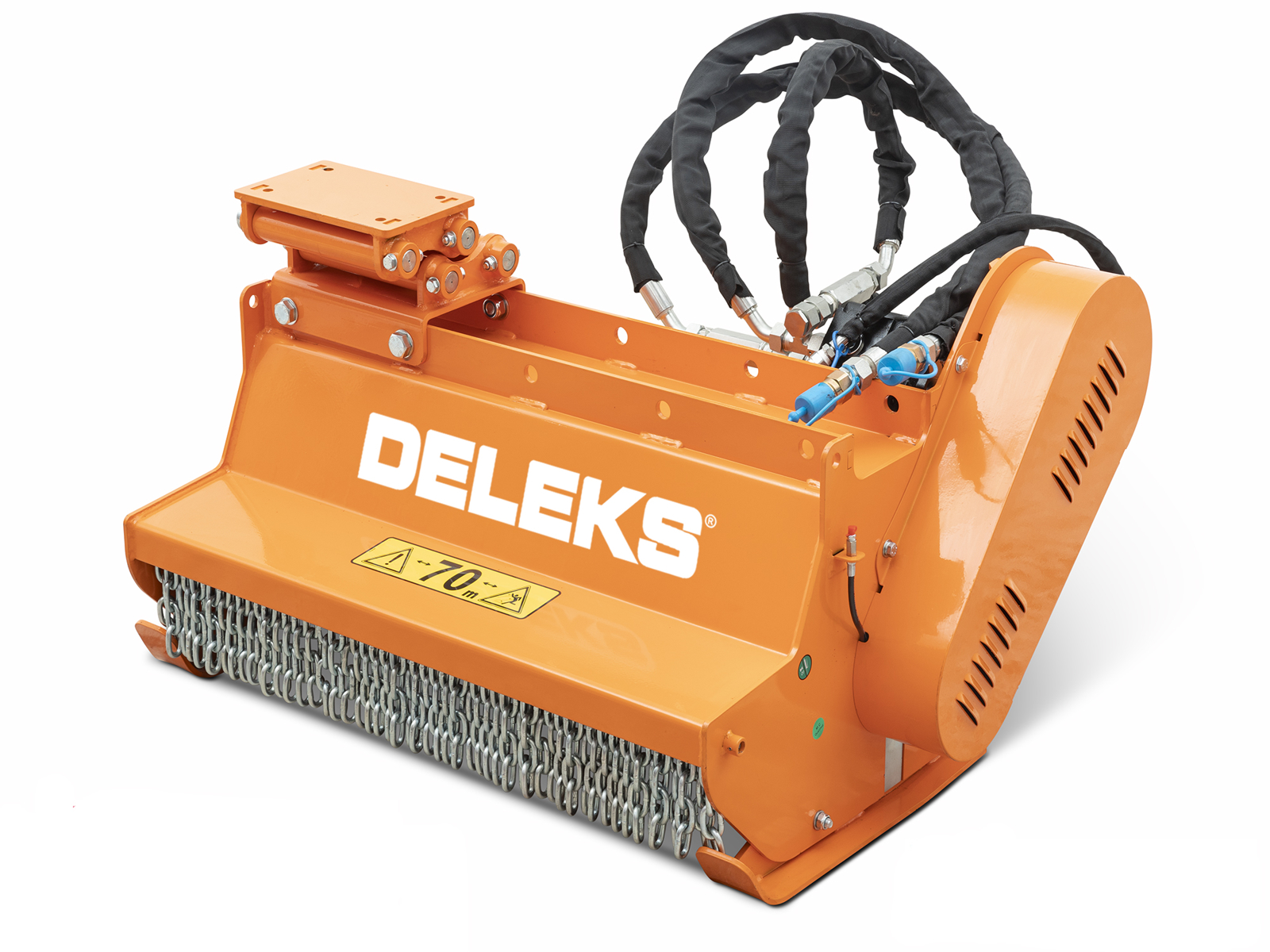

Forestry flail mower for excavators 80 cm (31 in) ARH-80, heavy-duty hydraulic hammer-flail head for 5 to 10 tonne diggers
DETAILS

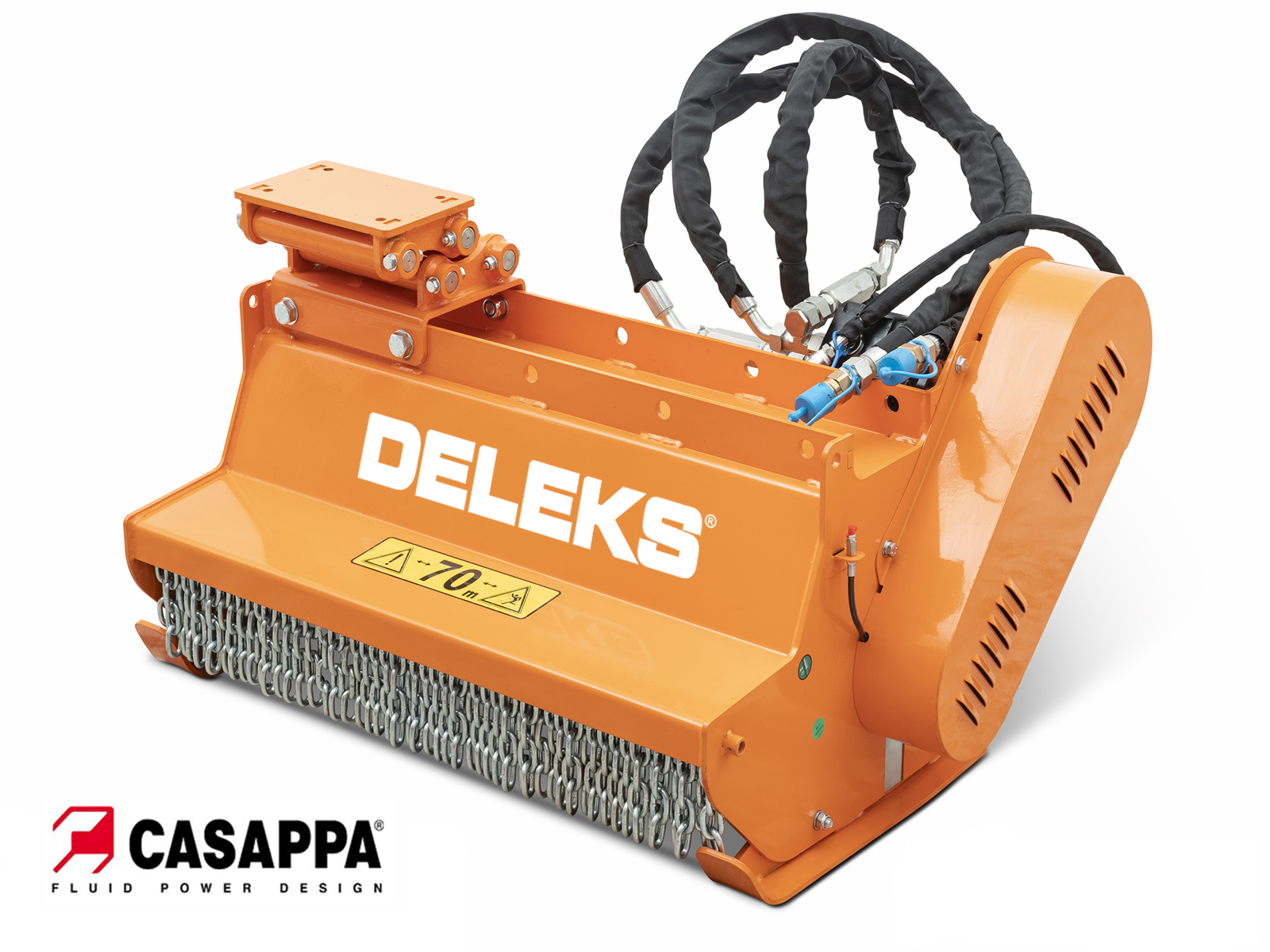

Hydraulic forestry flail mower for excavators with a 80 cm (31 in) cut, the DELEKS® ARH-80: the heavy-duty hammer-flail head for 5 to 10 tonne diggers such as Bobcat, Takeuchi, Komatsu, Caterpillar and Hitachi. The 127 mm (5 in) rotor, electronically balanced, carries 6 hammer flails of 1,100 g (2.4 lb) and shreds grass, brambles, shrubs and stems up to 5 cm (2 in) thick along embankments, slopes and ditches and in undergrowth, where a tractor cannot reach. Casappa hydraulic motor, Made in Italy, 3-belt drive, adjustable roller and skids with a cutting height from 20 to 80 mm (0.8 to 3.1 in). It runs on 65-100 l/min of oil at 70-140 bar and weighs 270 kg (595 lb). It is TÜV-certified, carries a 2-year warranty and comes with free delivery within the EU.
Which excavators it fits
The ARH-80 is built for 5 to 10 tonne excavators and diggers with an auxiliary hydraulic line: Bobcat, Takeuchi, Komatsu, Caterpillar, Neuson, Hitachi and JCB. With a 80 cm (31 in) cut and an overall width of 98 cm (38.6 in) it weighs 270 kg (595 lb). Always check the weight of the head against the lifting capacity of the arm at full reach. The same series also includes the ARH-100 (100 cm, 290 kg) and the ARH-120 (120 cm, 320 kg): on the same excavator, a narrower head weighs less and is easier to handle with the arm fully extended. For 5 to 8 tonne excavators there is the ARM series, from 150 to 195 kg.

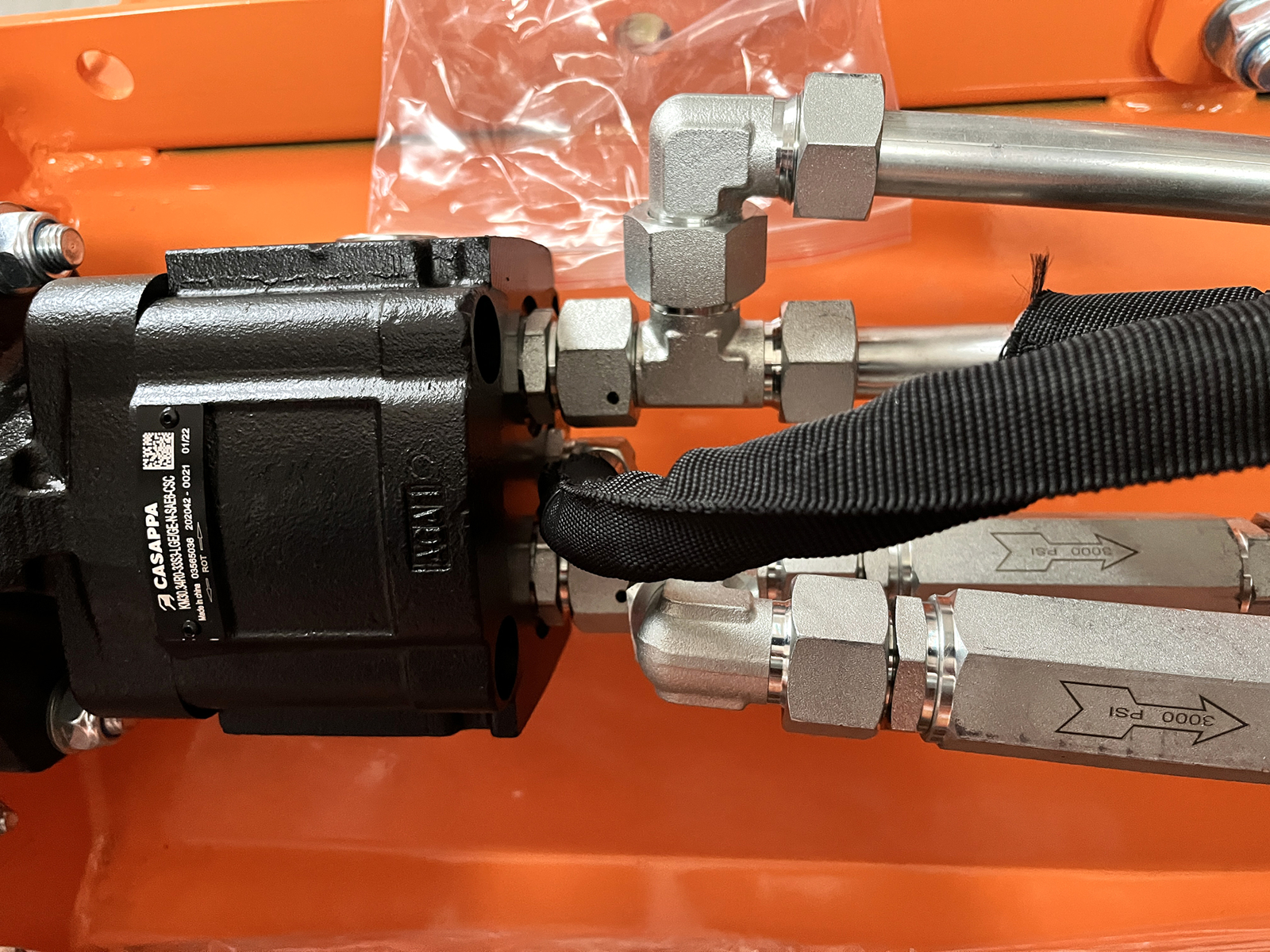

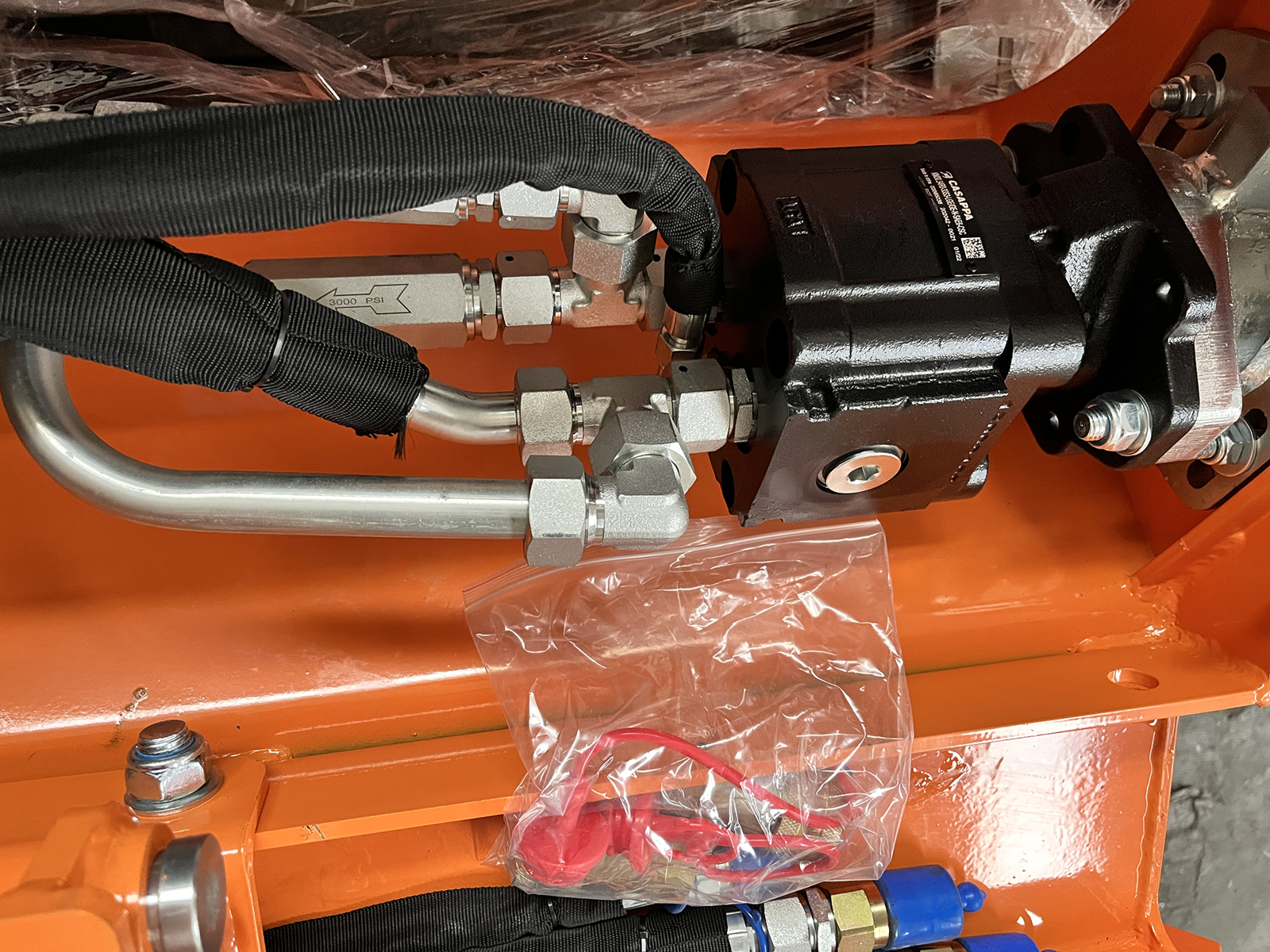

Hydraulic connection: flow and case drain

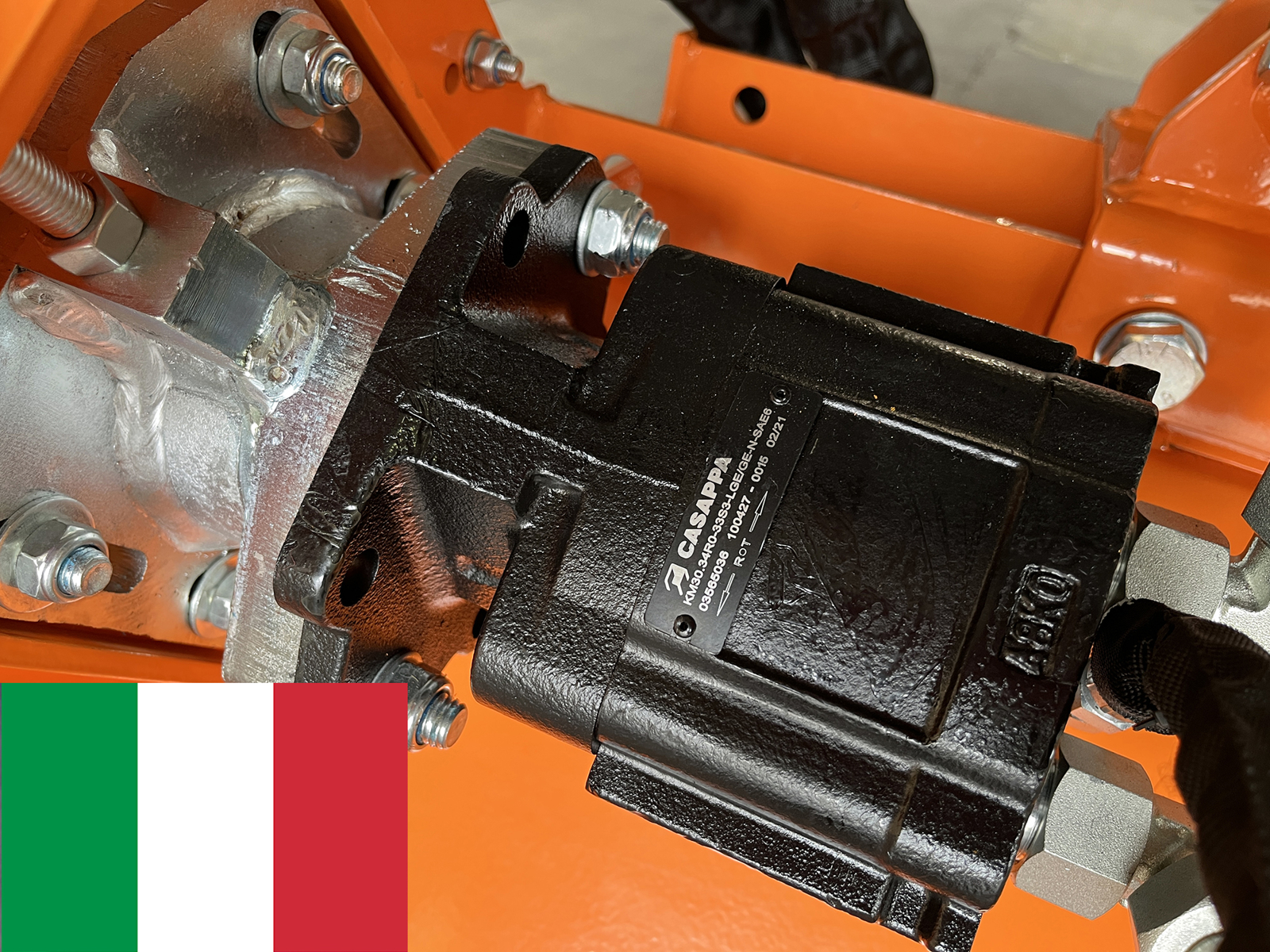

The ARH-80 runs on an oil flow of 65-100 l/min (14.3-22 UK gal/min) and a working pressure of 70 to 140 bar (1,020 to 2,030 psi). The rotor is single-direction. The Casappa hydraulic motor, Made in Italy, has a third hose for the case drain, to be connected straight back to the tank. Ideally the excavator has two pumps, one for travel and one for the auxiliary services; a hydraulic oil cooler is also advisable. Before ordering, check the flow and pressure of your auxiliary line: if in doubt, just tell us the model of your excavator.

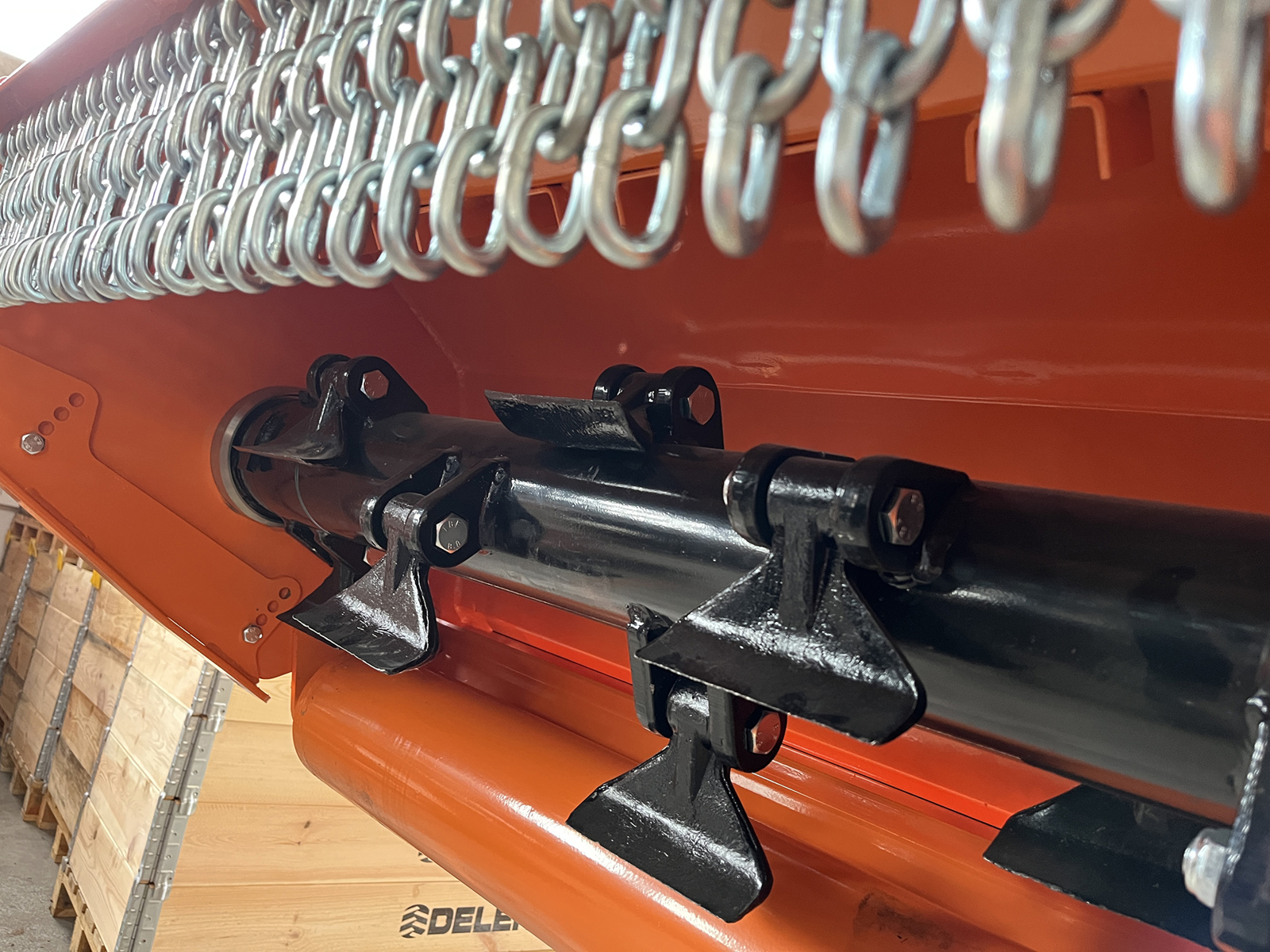

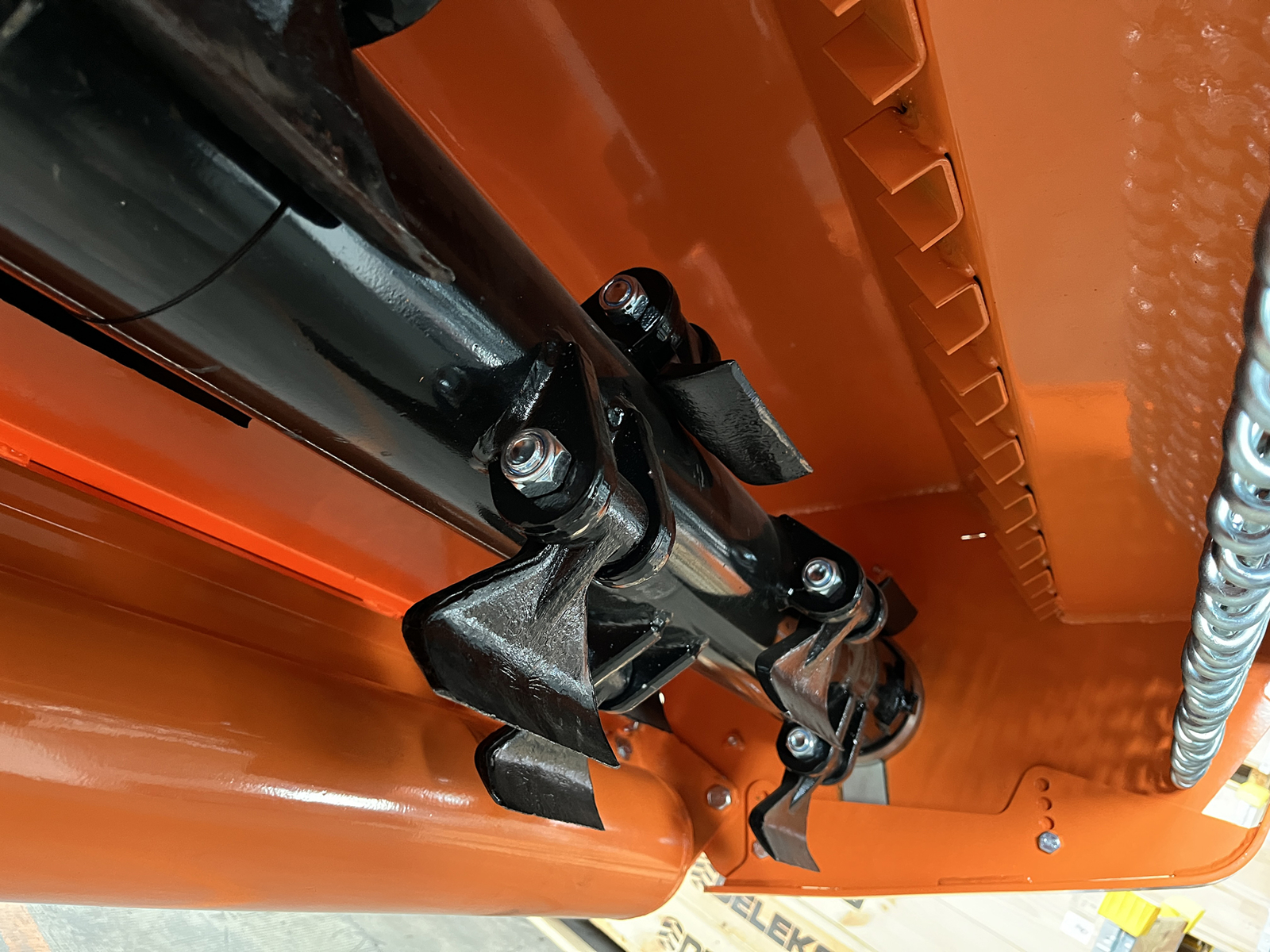

Rotor with 6 hammer flails of 1,100 g
The rotor, 127 mm (5 in) in diameter and 8 mm thick, is electronically balanced and driven by 3 belts. It carries 6 heavy hammer flails, 1,100 g (2.4 lb) each with a 140 mm (5.5 in) base: they shred grass, brambles, shrubs, suckers and stems up to 5 cm (2 in) thick. Spares include the MAZZE10A flail kit and the CINGHIE3ARH belt set; blades (COLTELLI30TORO) are also available for the ARH-80.

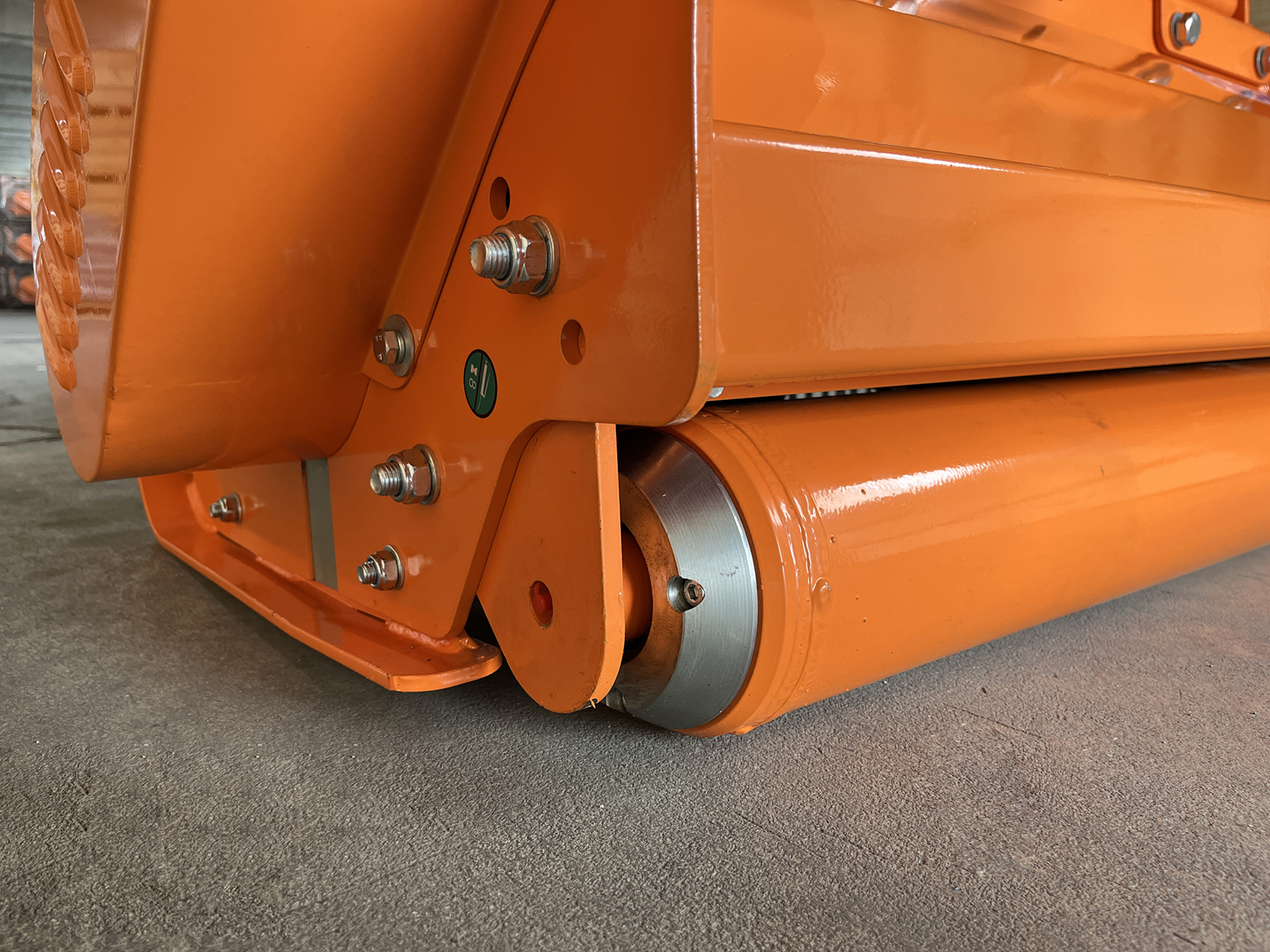

Roller, skids and cutting height
The rear roller, 152 mm (6 in) in diameter, and the skids are height-adjustable: the cutting height runs from 20 to 80 mm (0.8 to 3.1 in), low for a fine finish on grass, higher on stony or uneven ground.

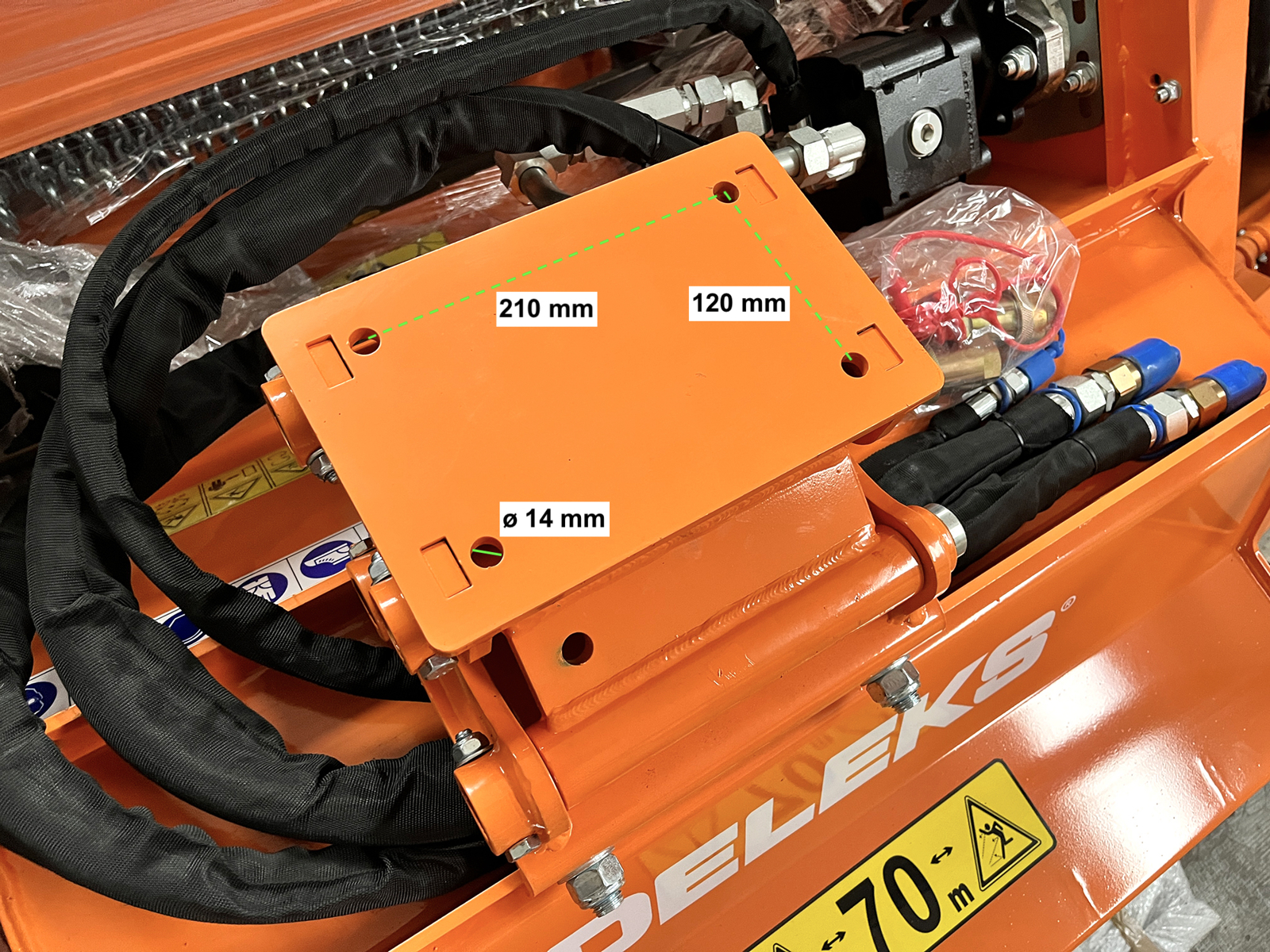

Hitch for the excavator arm
The dimensions of the standard hitch are shown in the product images: check them against the arm of your excavator. For a different hitch, contact our technical team before ordering.
Dimensions, weight and delivery
Working width 800 mm (31.5 in), overall width 980 mm (38.6 in), length 800 mm (31.5 in), height 440 mm (17.3 in), weight 270 kg (595 lb); 4 mm steel frame. It ships in a package of 100 × 93 × 80 cm (39 × 37 × 31 in), 286 kg (631 lb) gross and 0.74 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.

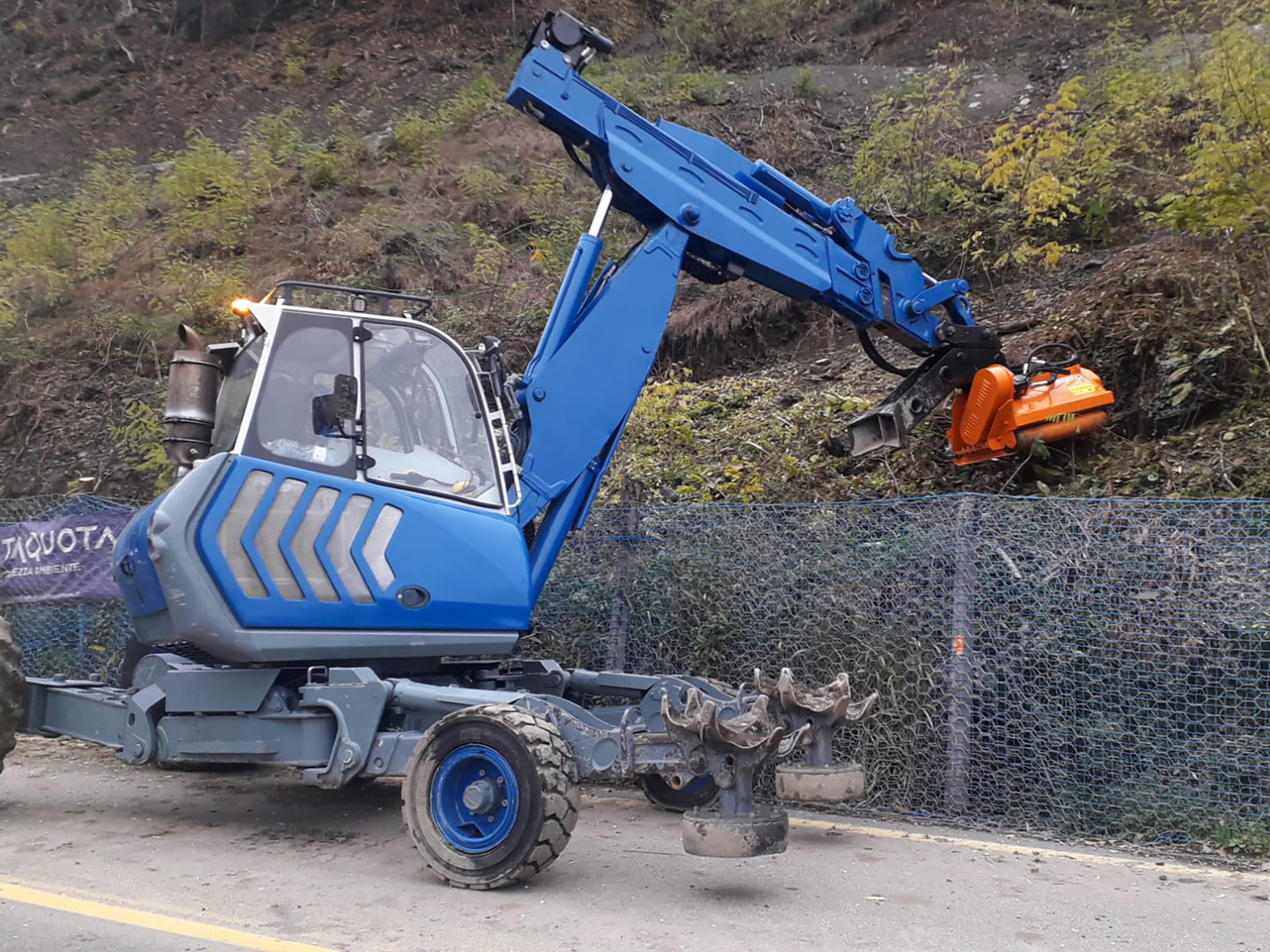

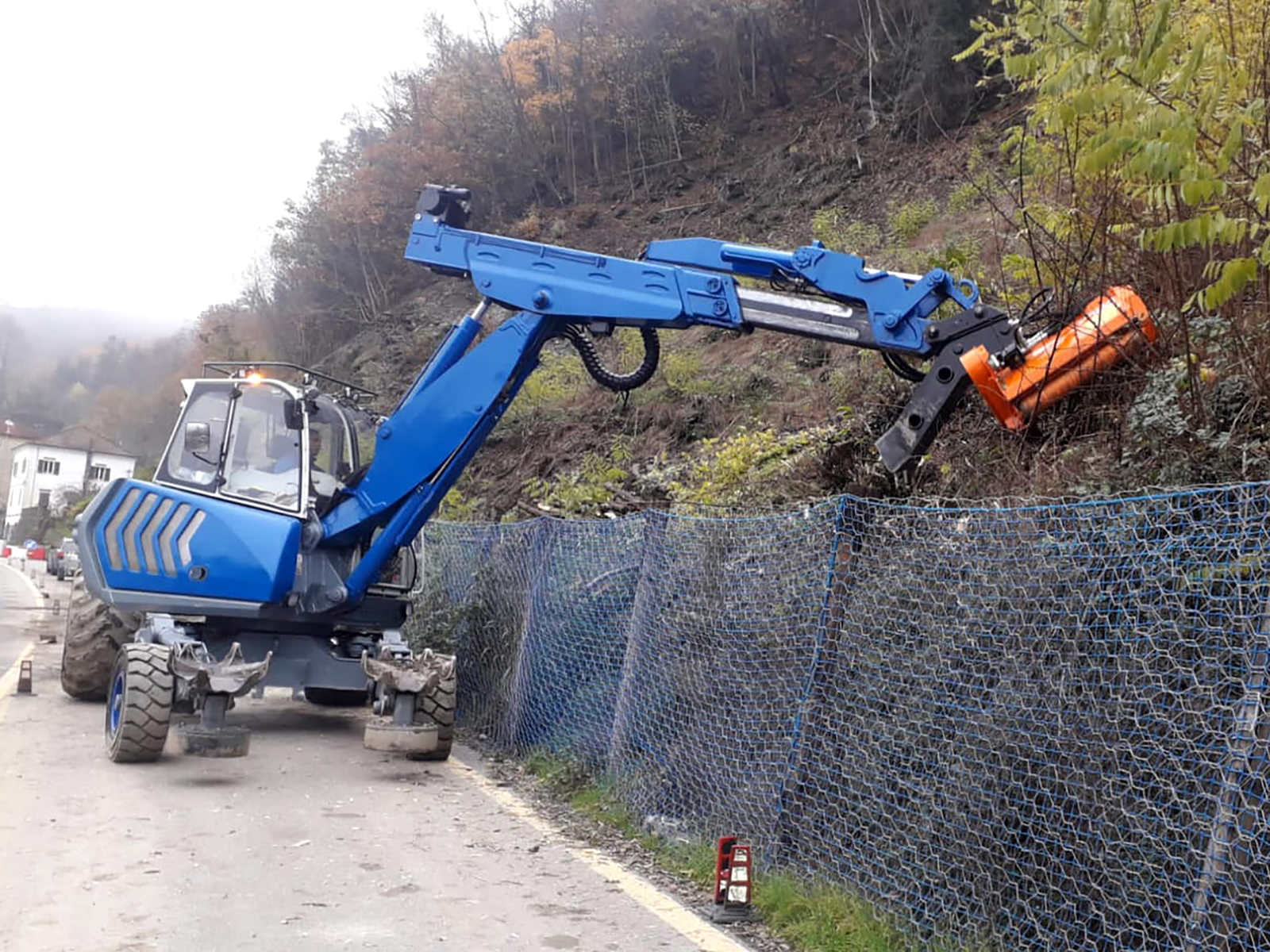

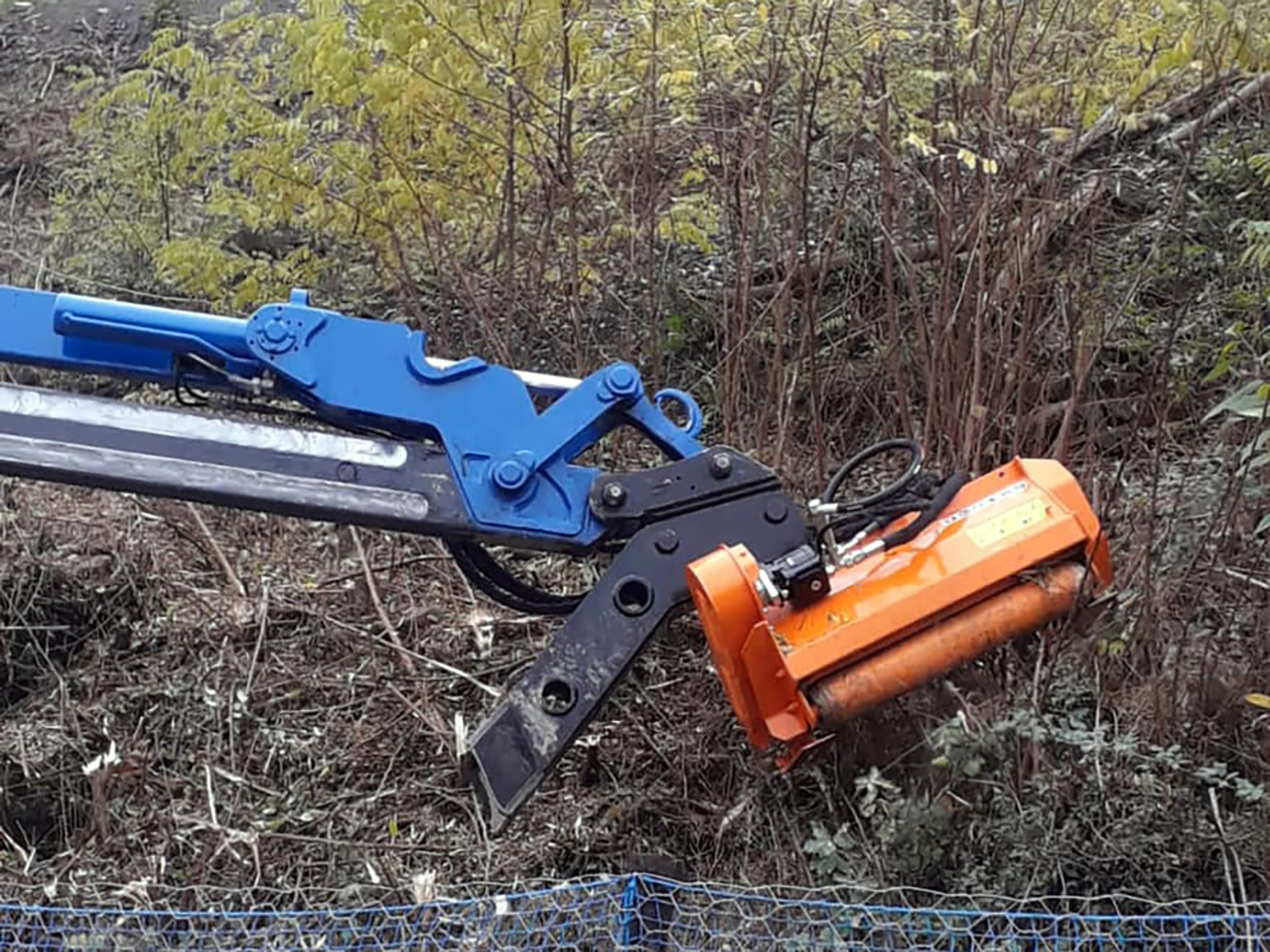

Where it works

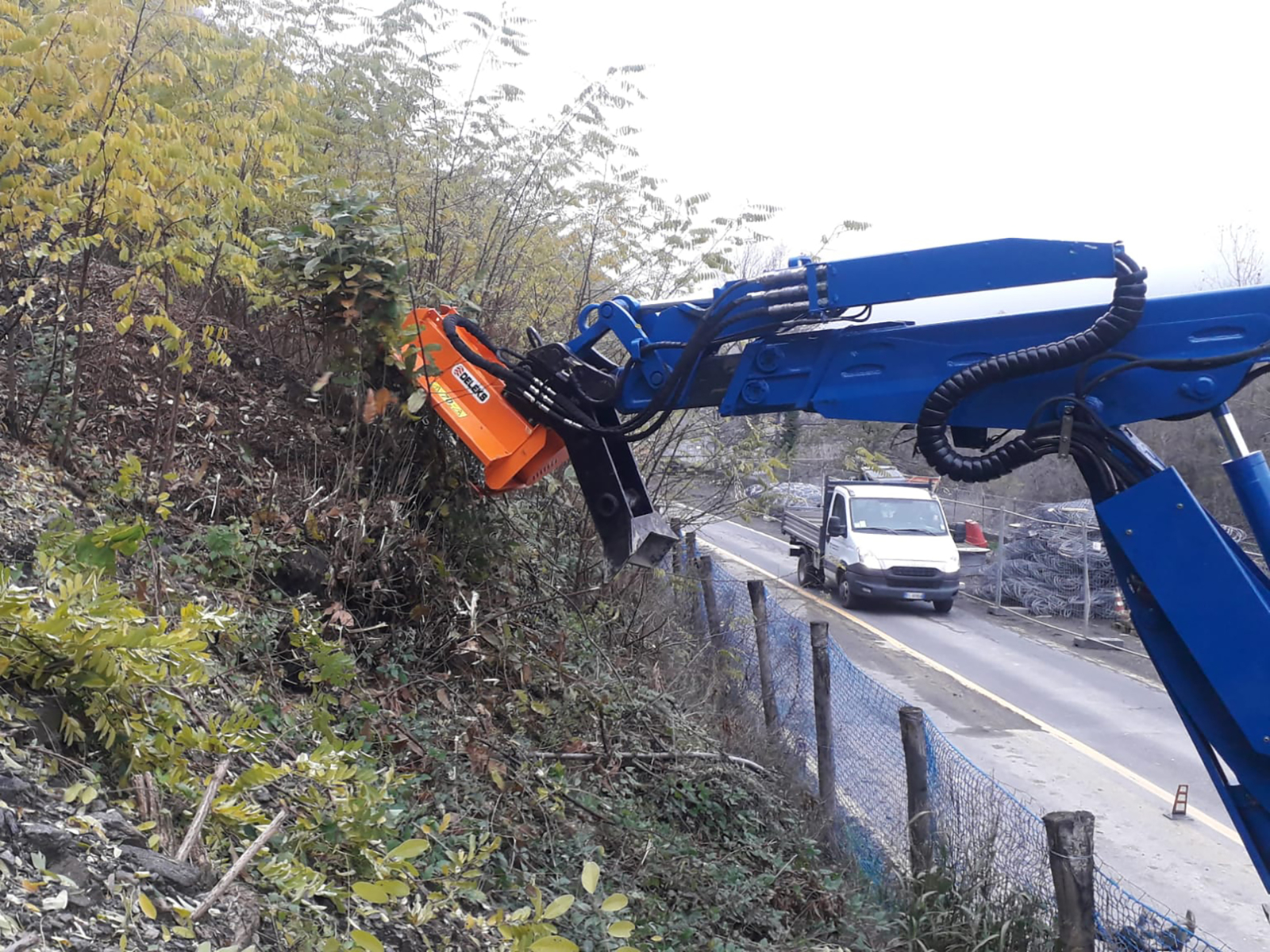

- Embankments, slopes and ditches: grass, reeds and brambles where a tractor cannot reach
- Undergrowth and overgrown land: shrubs, suckers and stems up to 5 cm (2 in) thick
- Roadsides, tracks and boundaries: clearing with the excavator arm
- Site clearance before excavation work: brambles and scrub
- 5 to 10 tonne excavators and diggers with an auxiliary hydraulic line
Options and spares
From this page you can add to your order the kit of 10 hammer flails of 1,100 g (MAZZE10A), the 10 nuts and bolts (DB10A), the kit of 30 blades (COLTELLI30TORO) and the spare set of 3 belts (CINGHIE3ARH). Other spares are identified on the exploded diagrams with our technical team.
FAQ
Which excavator does the ARH-80 suit?
5 to 10 tonne excavators and diggers with an auxiliary hydraulic line delivering 65-100 l/min. The head weighs 270 kg (595 lb): check it against the lifting capacity of the arm at full reach.
Is it suitable for a 5 tonne excavator?
Yes: the ARH series covers excavators from 5 to 10 tonnes, in three widths from 80 to 120 cm.
What oil flow does it need?
65 to 100 l/min, at a working pressure of 70 to 140 bar. A hydraulic oil cooler is advisable.
Does it need a case drain line?
Yes: the Casappa motor has a third hose for the case drain, to be connected straight back to the tank.
What thickness of branch will it cut?
Grass, brambles, shrubs, suckers and stems up to 5 cm (2 in) thick. For thicker branches there are the hydraulic disc saw bars for excavators.
How does it differ from a forestry flail mower for tractors?
The tractor-mounted forestry flail mower, in the heavy-duty series, shreds branches up to 15 cm (5.9 in) thick off the PTO; the excavator head is hydraulic, handles up to 5 cm and works on embankments and slopes where a tractor cannot go.
How does it mount on the arm?
In place of the bucket, with the standard hitch (dimensions in the product images); the hoses connect to the auxiliary hydraulic line.
How do the ARH and ARM differ?
The ARH weighs from 270 to 320 kg, carries 1,100 g hammer flails, suits 5 to 10 tonne excavators and handles 5 cm. The ARM weighs from 150 to 195 kg, suits 5 to 8 tonne excavators and shreds up to 4 cm.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: blades, hammer flails, fixings, bearings, roller, hydraulic motor and hoses are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and a check that the head matches your excavator's hydraulics and hitch. The head comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 800.0 mm |
| Overall width | 980.0 mm |
| Min / Max cutting height | 20.0 - 80.0 mm |
| Weight | 270.0 kg |
| Hood height | 440.0 mm |
| Number of Hammers | 6 |
| Maximum cutting diameter | 5.0 cm |
| Main hood thickness | 4.0 mm |
| Rotor: diameter | 127.0 mm |
| Rotor: bearings type and size | 6308 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |
| Rear roller: diameter | 152.0 mm |
| Rear roller: sheet thickness | 6.0 mm |
| Rear roller: bearings type and size | 1308 |
| Working pressure | 70 - 140 bar |
| Min./Max. Flow | 65 - 100 l/min |
| Hood length | 800.0 mm |
| Gross shipping weight | 286 kg |
| Package volume | 0.74 m3 |
| Packing sizes | 1000.0*930.0*800.0 mm |
