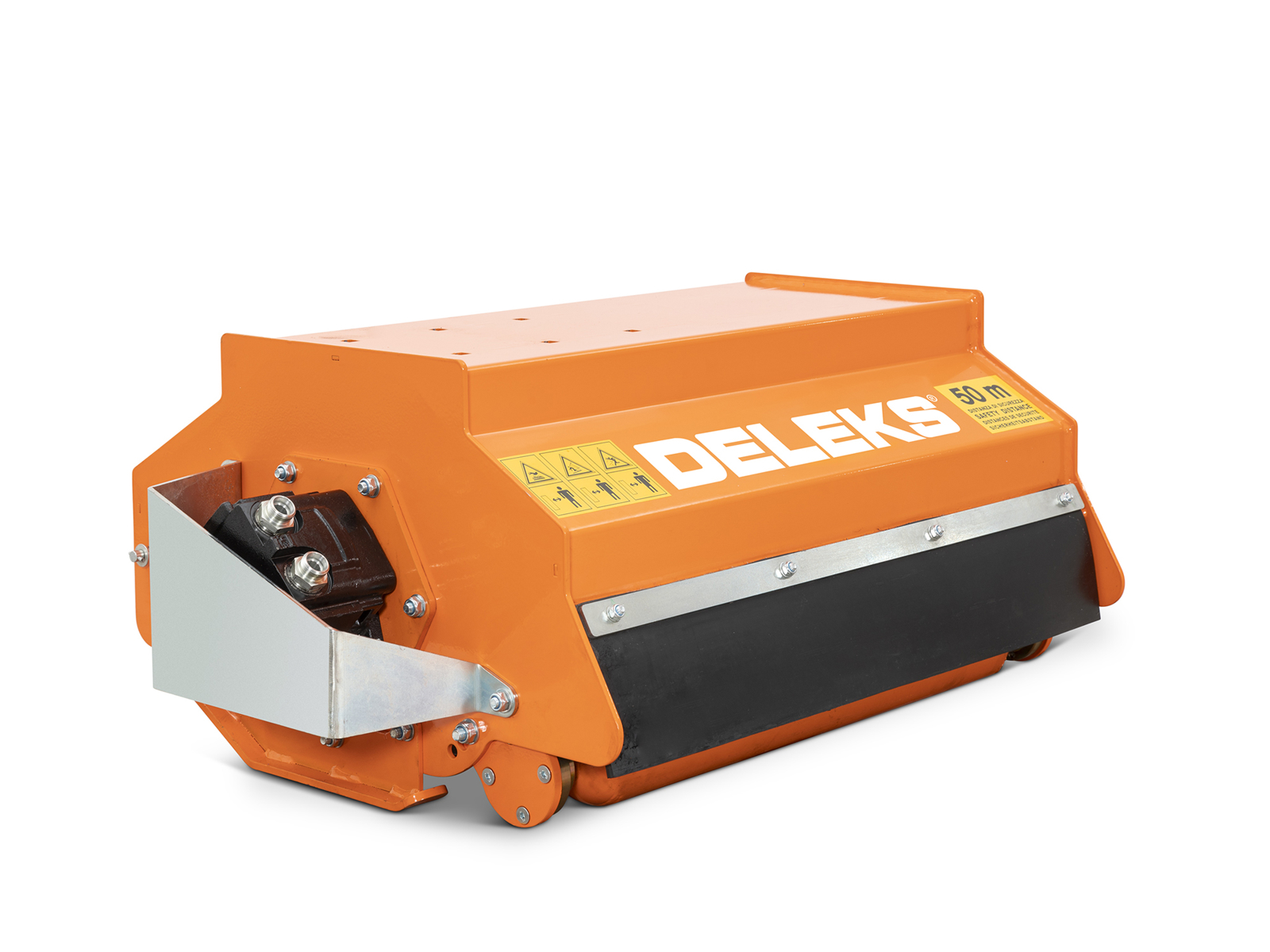

Forestry flail mower for mini diggers 80 cm (31 in) ARM-80, hydraulic hammer-flail head for 5 to 8 tonne excavators and tractor reach arms

Available
Code ARM80 - EAN 8053470238307
2.142,00€VAT incl.
Free shipping
Loading...
2.142,00€VAT incl.
Free shipping
View all details.
CUTTING WIDTH
80 100 120

reviews

2.142,00€VAT incl.
 REQUEST INFORMATION

DETAILS

Hydraulic forestry flail mower for mini diggers with a 80 cm (31 in) cut, the DELEKS® ARM-80: the hammer-flail head for 5 to 8 tonne excavators such as Bobcat, Takeuchi, Komatsu, Caterpillar and Hitachi, and for tractor-mounted reach arms. The electronically balanced rotor carries 16 hammer flails at 2,200 rpm and shreds grass, brambles, shrubs and stems up to 4 cm (1.6 in) thick along embankments, slopes and ditches and in undergrowth, where a tractor cannot reach. Casappa hydraulic motor, Made in Italy; the roller and skids set the cutting height from 10 to 50 mm (0.4 to 2 in). It runs on 65-100 l/min of oil at 70-140 bar and weighs 150 kg (331 lb). It is TÜV-certified, carries a 2-year warranty and comes with free delivery within the EU.


Which excavators it fits

The ARM-80 is built for 5 to 8 tonne excavators and diggers with an auxiliary hydraulic line: Bobcat, Takeuchi, Komatsu, Caterpillar, Neuson, Hitachi and JCB. With a 80 cm (31 in) cut and an overall width of 103 cm (40.6 in) it weighs 150 kg (331 lb). Always check the weight of the head against the lifting capacity of the arm at full reach. The same series also includes the ARM-100 (100 cm, 178 kg) and the ARM-120 (120 cm, 195 kg): on the same excavator, a narrower head weighs less and is easier to handle with the arm fully extended. For 5 to 10 tonne excavators there is the ARH series, for stems up to 5 cm (2 in). It also fits tractor-mounted reach arms that deliver 65-100 l/min of oil.

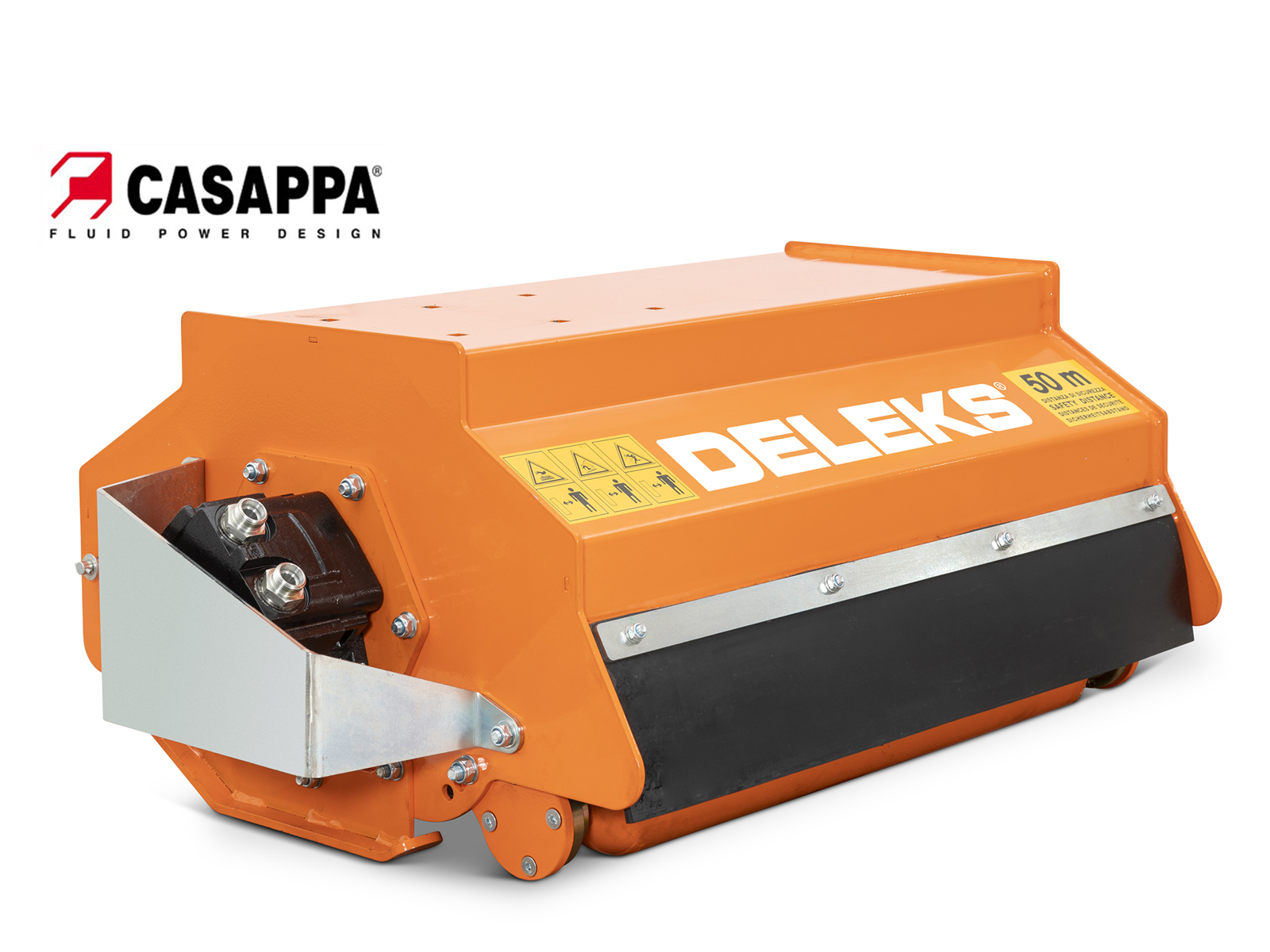

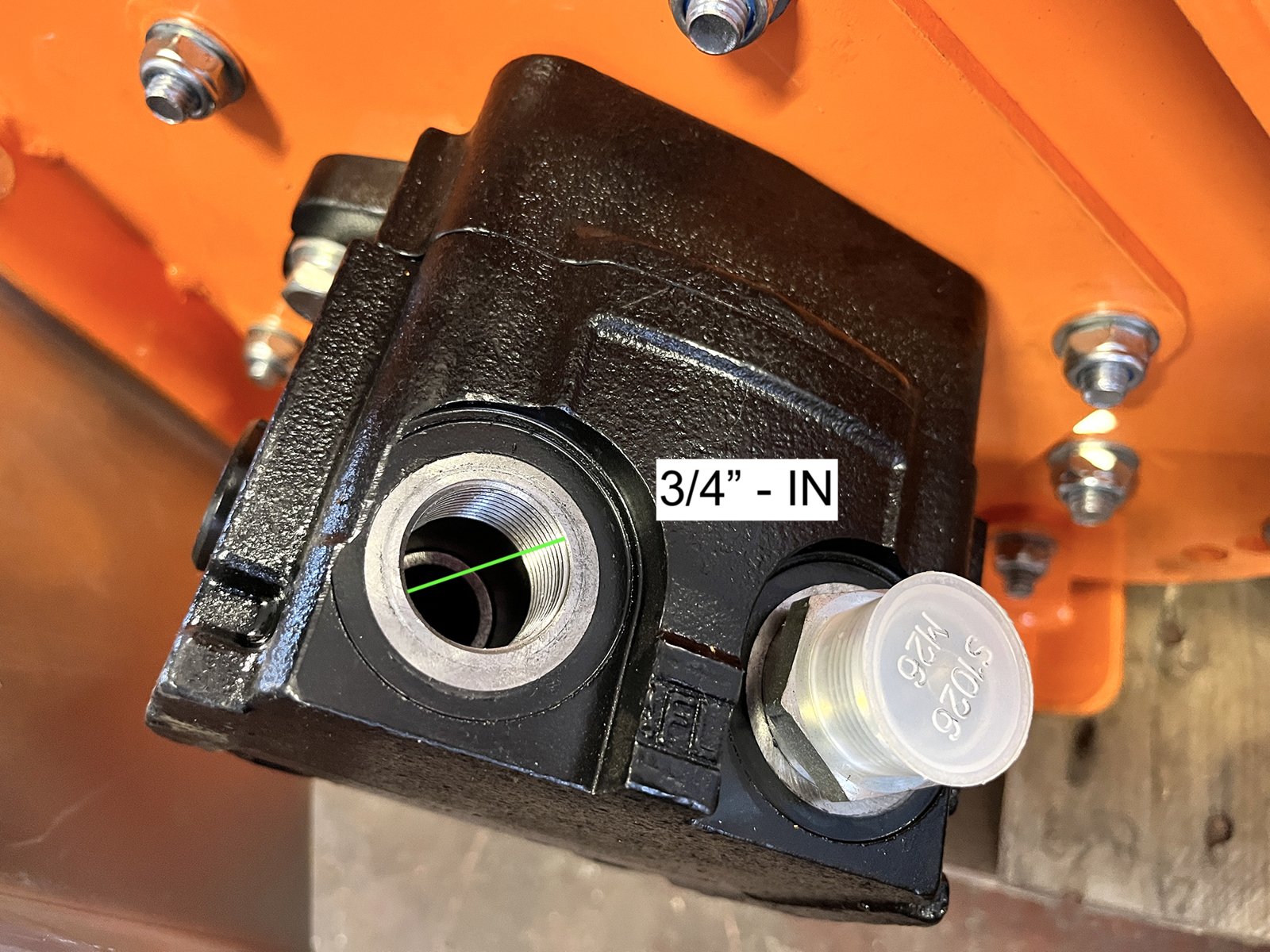

Hydraulic connection: flow, double-acting circuit and case drain

The ARM-80 runs on an oil flow of 65-100 l/min (14.3-22 UK gal/min) and a working pressure of 70 to 140 bar (1,020 to 2,030 psi). The hammer-flail rotor is bidirectional: a double-acting pedal control is required. The Casappa hydraulic motor, Made in Italy, has a third hose for the case drain, to be connected straight back to the tank. Ideally the excavator has two pumps, one for travel and one for the auxiliary services; a hydraulic oil cooler is also advisable. Before ordering, check the flow and pressure of your auxiliary line: if in doubt, just tell us the model of your excavator.

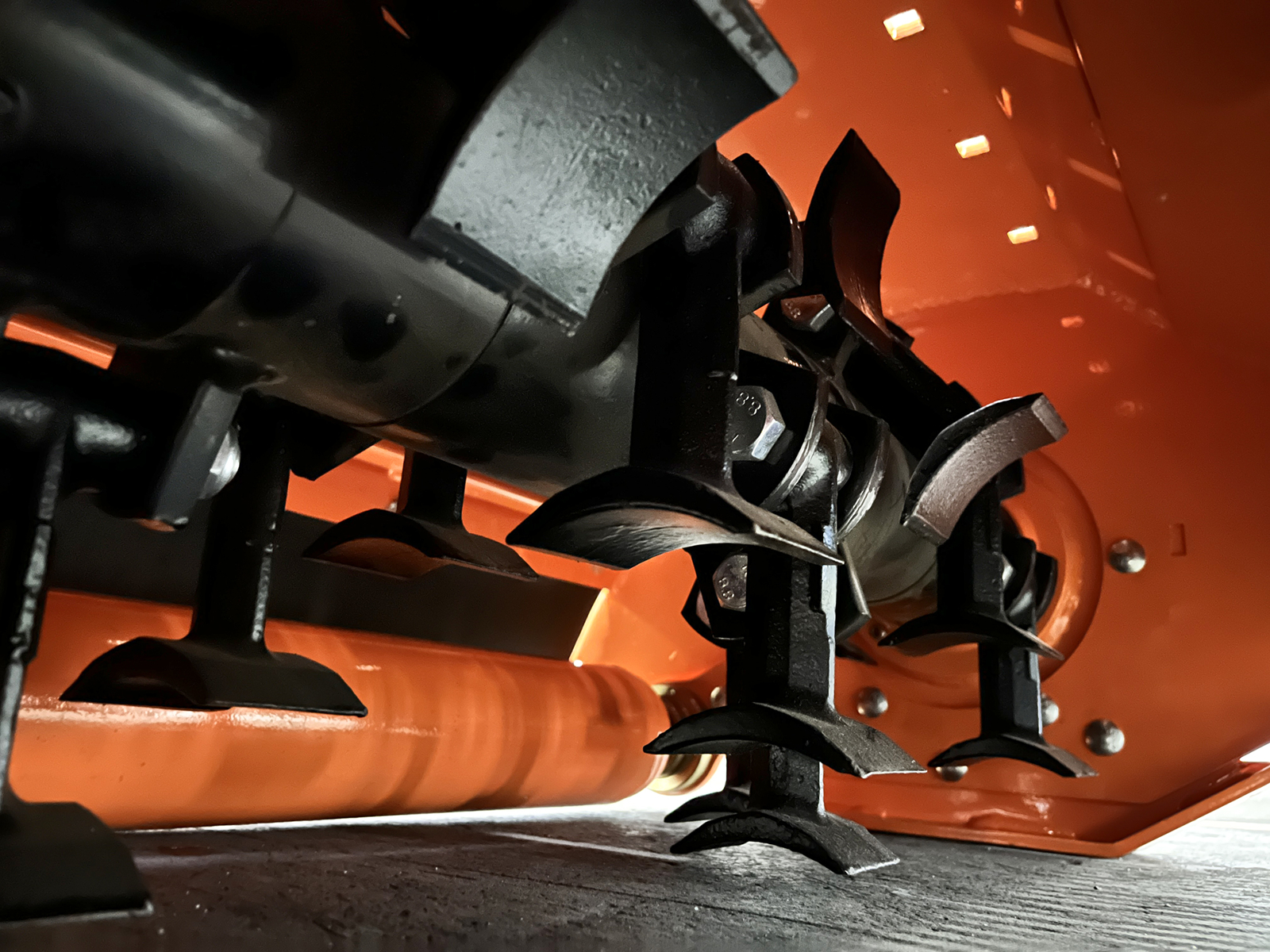

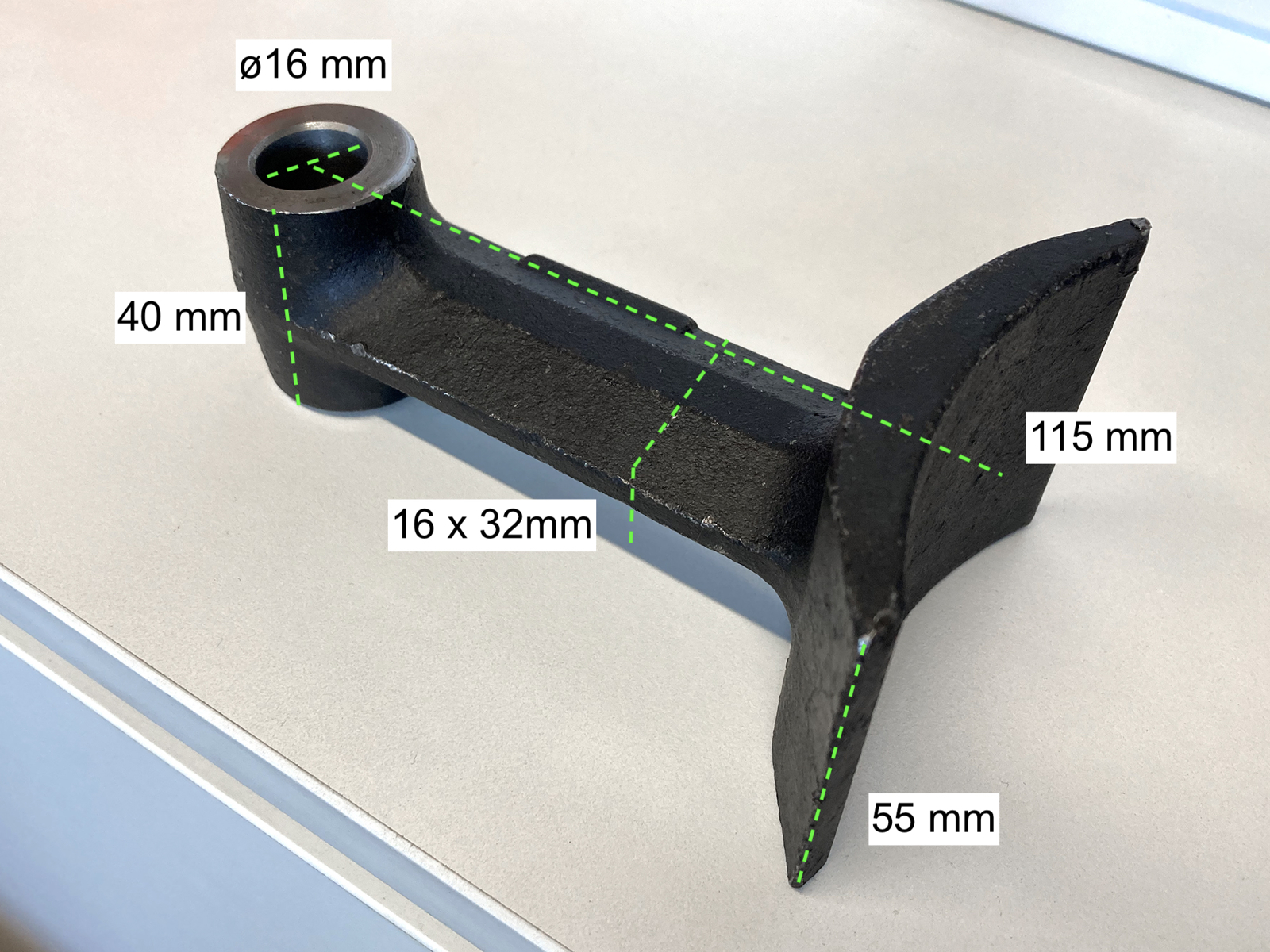

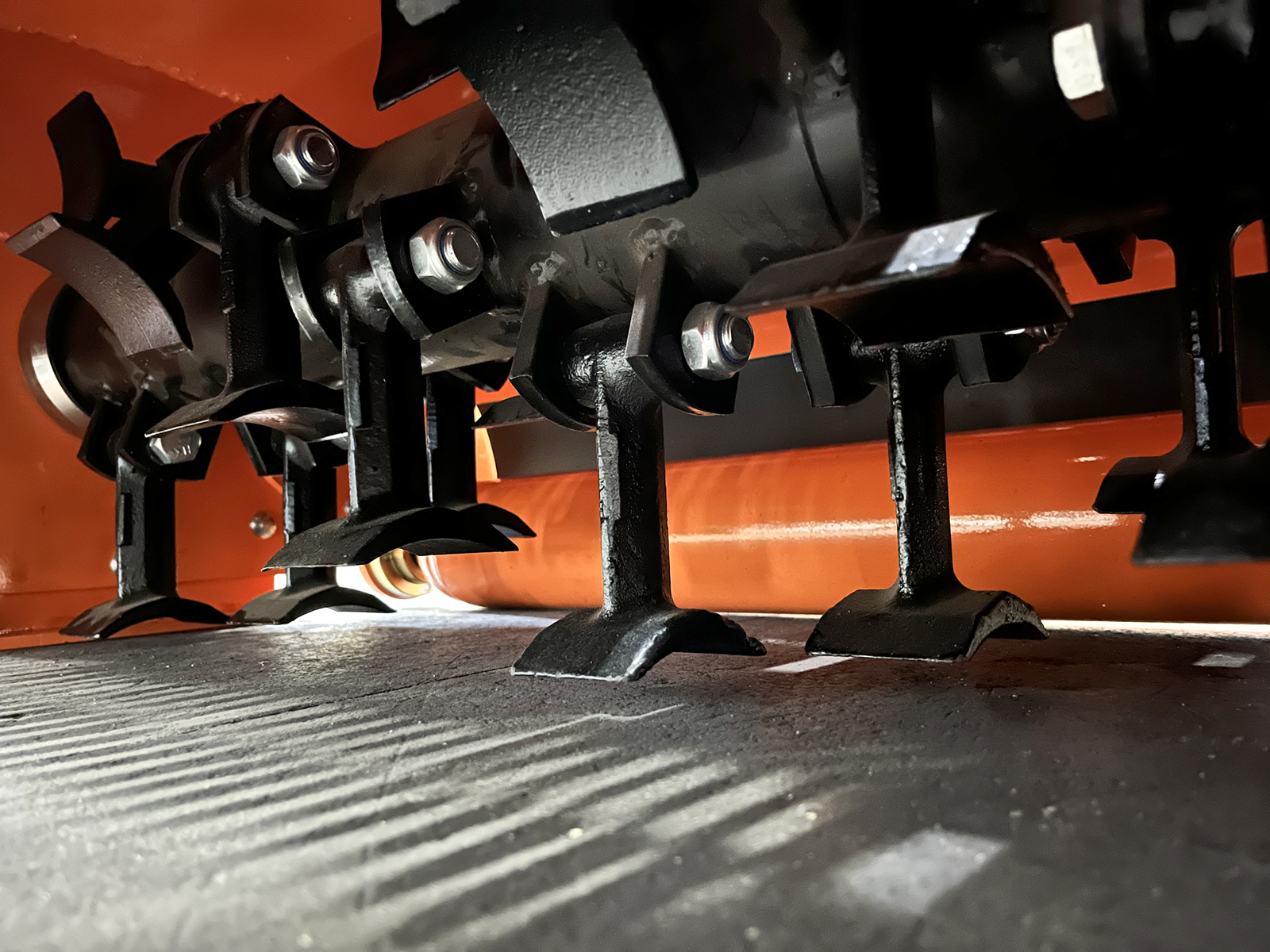

Rotor with 16 hammer flails

The rotor, 110 mm (4.3 in) in diameter and 8 mm thick, is electronically balanced and spins at 2,200 rpm. The 16 hammer flails have more mass than blades: they shred grass, brambles, shrubs, suckers and stems up to 4 cm (1.6 in) thick. The flails are replaced with the MAZZE10CONDOR kit.

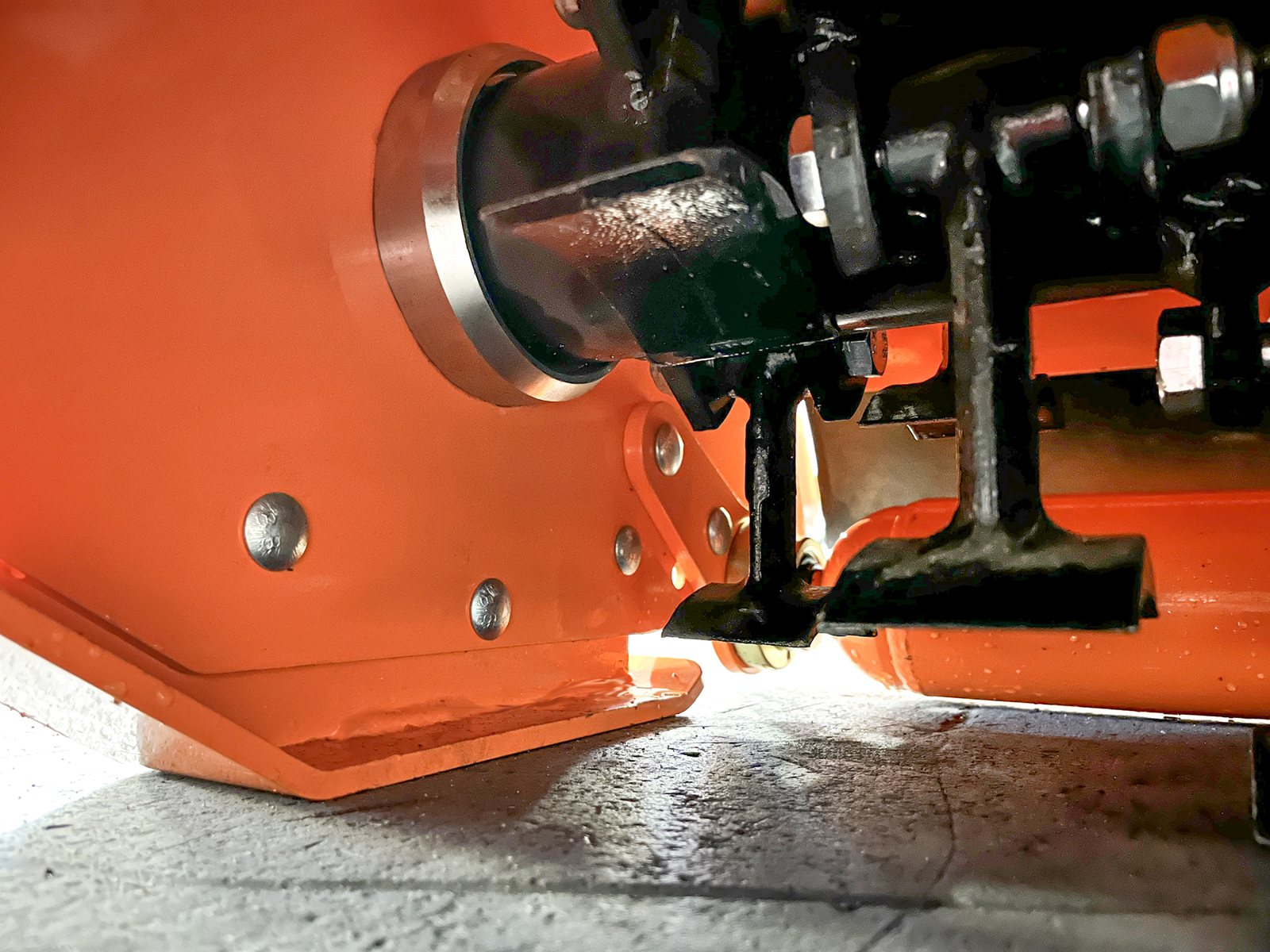

Roller, skids and cutting height

The rear roller, 100 mm (3.9 in) in diameter, and the skids are height-adjustable: the cutting height runs from 10 to 50 mm (0.4 to 2 in), low for a fine finish on grass, higher on stony or uneven ground.

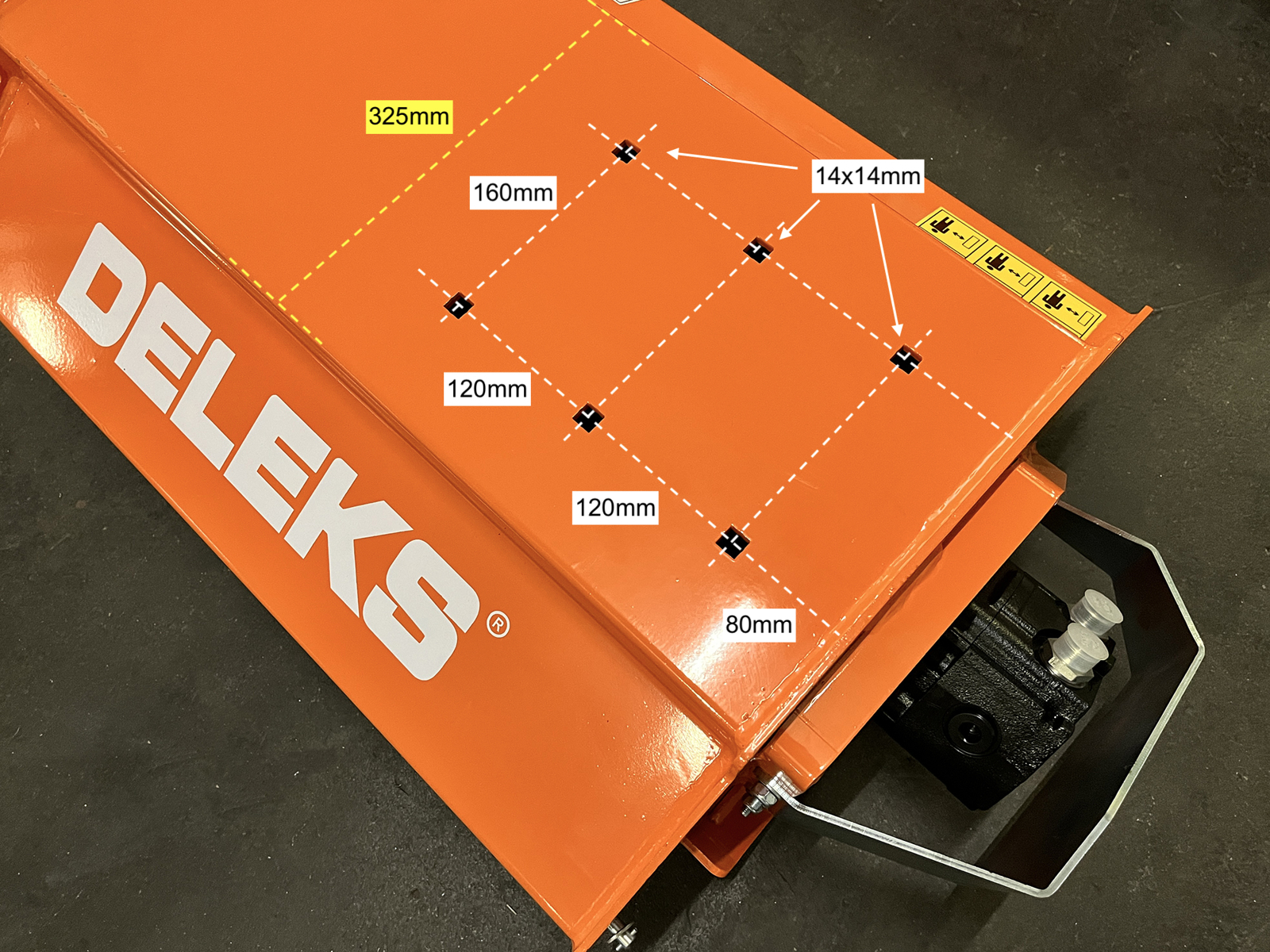

Hitch for the excavator arm

The dimensions of the standard hitch are shown in the product images: check them against the arm of your excavator. Alternatively you can order the optional Morin-type ACB+ M1 hitch or a hitch made to measure for your machine, at a surcharge.


Dimensions, weight and delivery

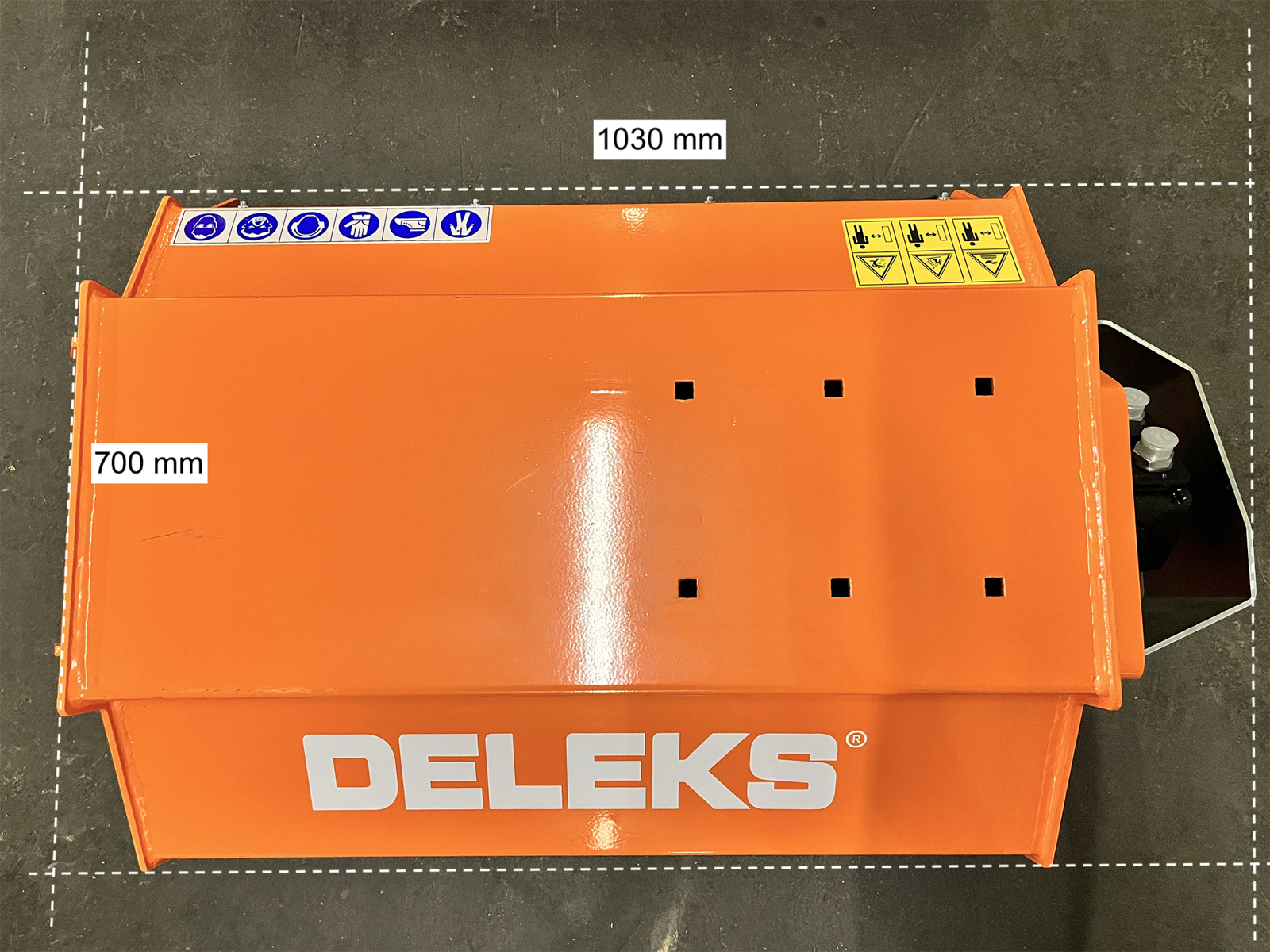

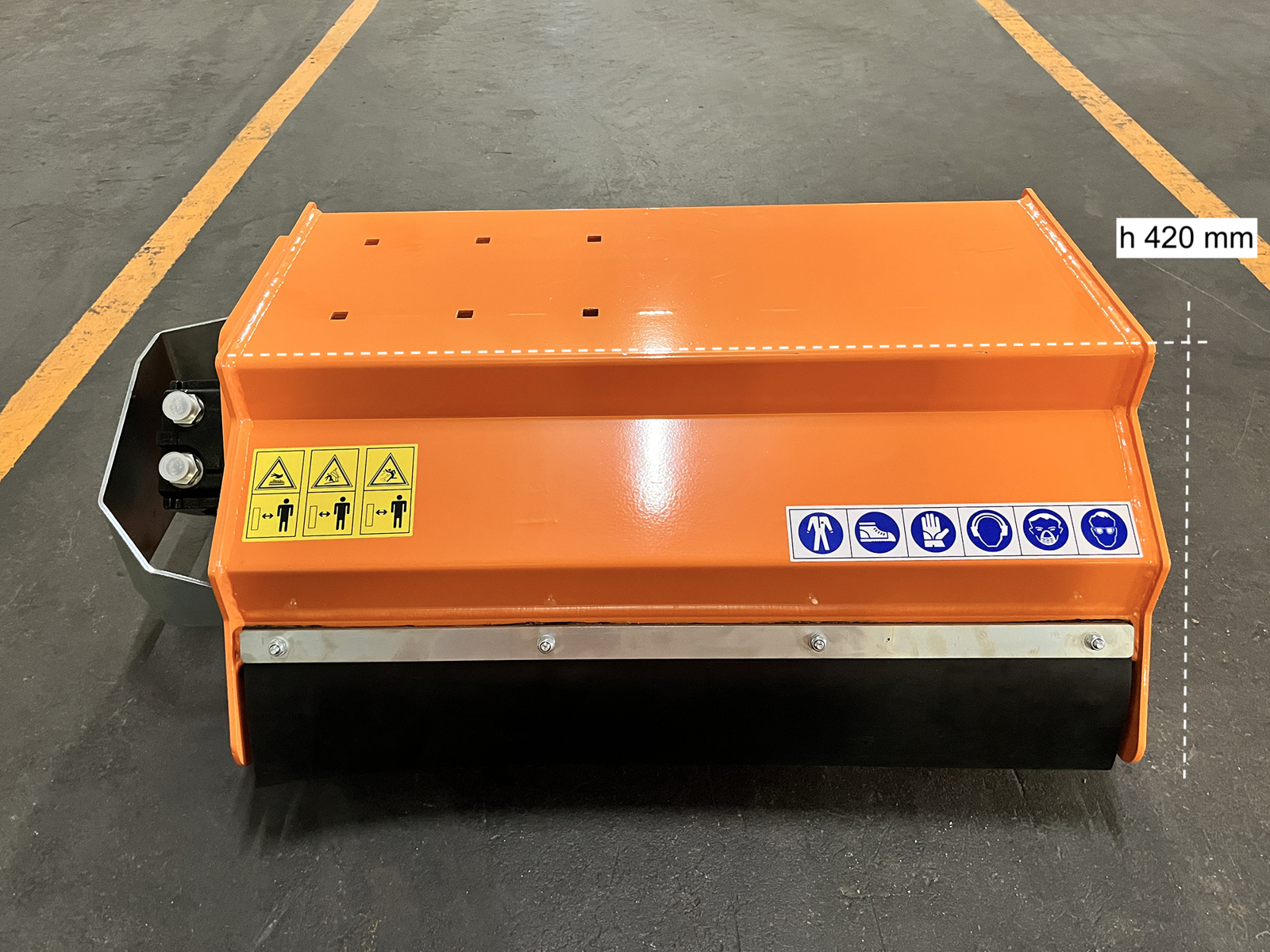

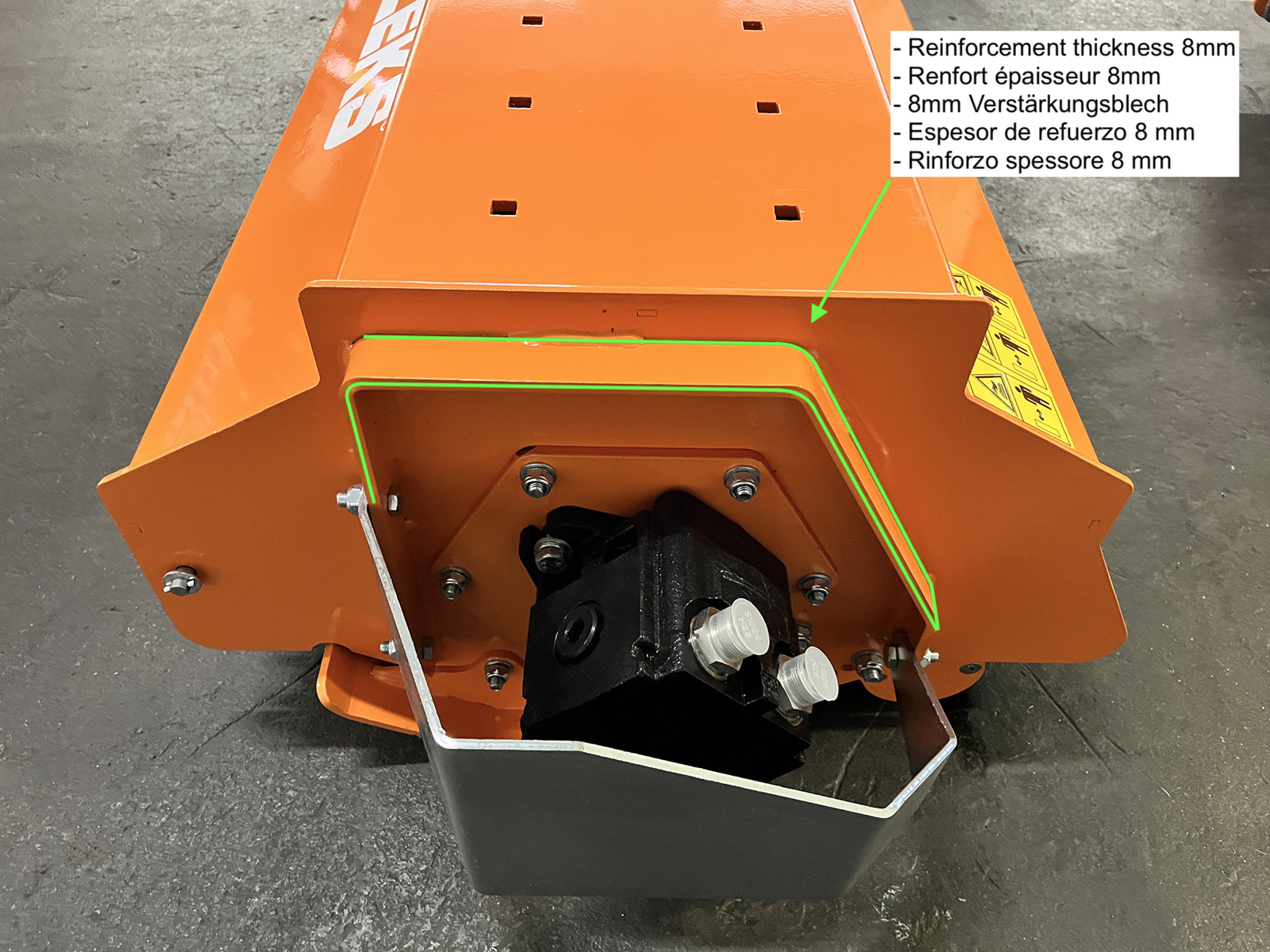

Working width 800 mm (31.5 in), overall width 1,030 mm (40.6 in), length 700 mm (27.6 in), height 420 mm (16.5 in), weight 150 kg (331 lb); 5 mm steel frame. It ships in a package of 105 × 70 × 50 cm (41 × 28 × 20 in), 168 kg (370 lb) gross and 0.37 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.


Where it works

  • Embankments, slopes and ditches: grass, reeds and brambles where a tractor cannot reach
  • Undergrowth and overgrown land: shrubs, suckers and stems up to 4 cm (1.6 in) thick
  • Roadsides, tracks and boundaries: clearing with the excavator arm
  • Site clearance before excavation work: brambles and scrub
  • 5 to 8 tonne excavators and diggers with an auxiliary hydraulic line and tractor-mounted reach arms

Options and spares

From this page you can add to your order the spare kit of 10 hammer flails (MAZZE10CONDOR). For mounting on the arm you can choose the Morin-type ACB+ M1 hitch (ATTACCOMORINM1ARM) and the made-to-measure hitch (ATTACCOARM). Other spares are identified on the exploded diagrams with our technical team.


FAQ

Which excavator does the ARM-80 suit?
5 to 8 tonne excavators and diggers with an auxiliary hydraulic line delivering 65-100 l/min. The head weighs 150 kg (331 lb): check it against the lifting capacity of the arm at full reach.

Is it suitable for a 6 tonne excavator?
Yes: the ARM series covers excavators from 5 to 8 tonnes, in three widths from 80 to 120 cm. For 5 to 10 tonne excavators there is also the heavier ARH series.

What oil flow does it need?
65 to 100 l/min, at a working pressure of 70 to 140 bar. A hydraulic oil cooler is advisable.

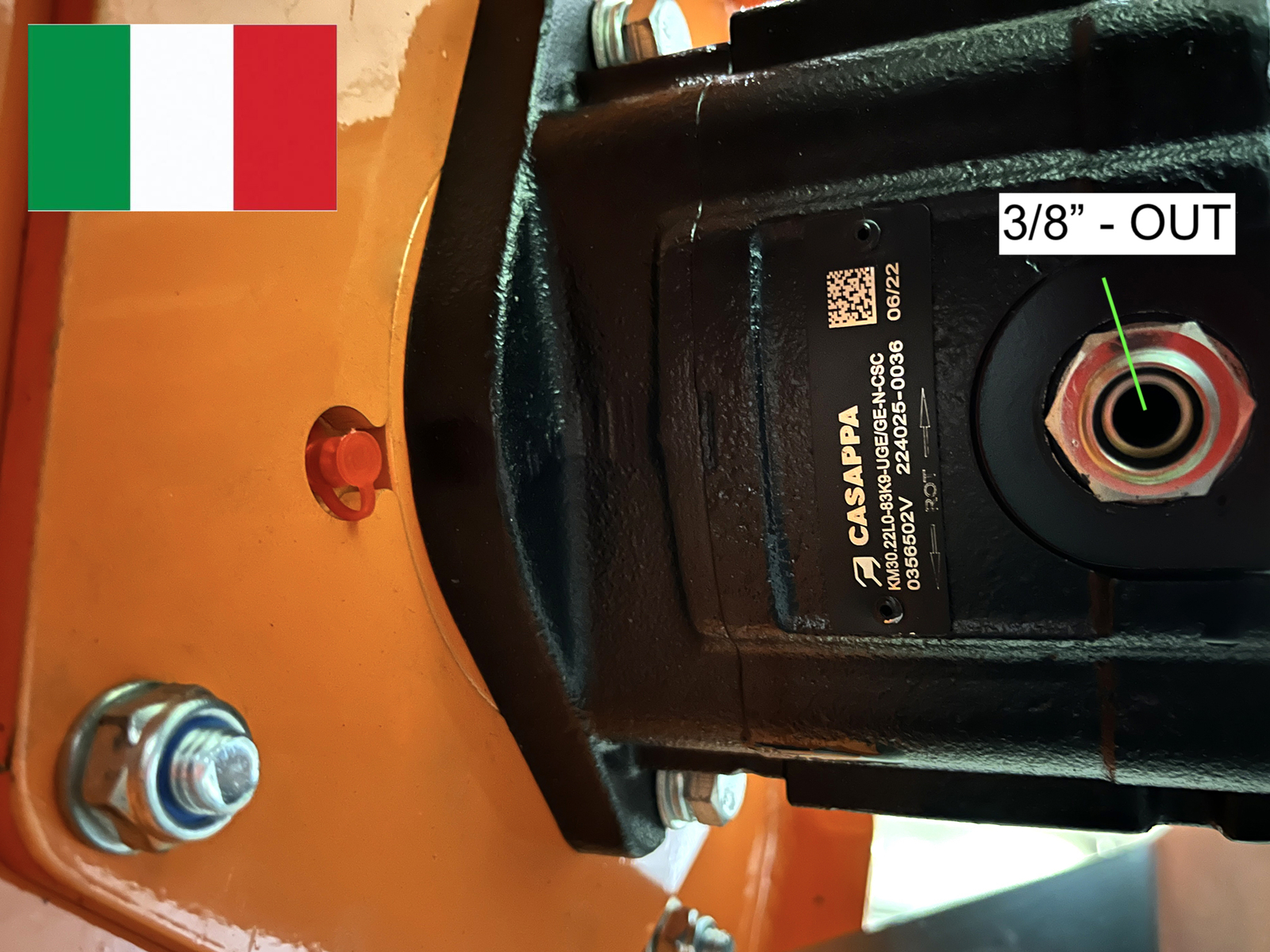

Does it need a case drain line?

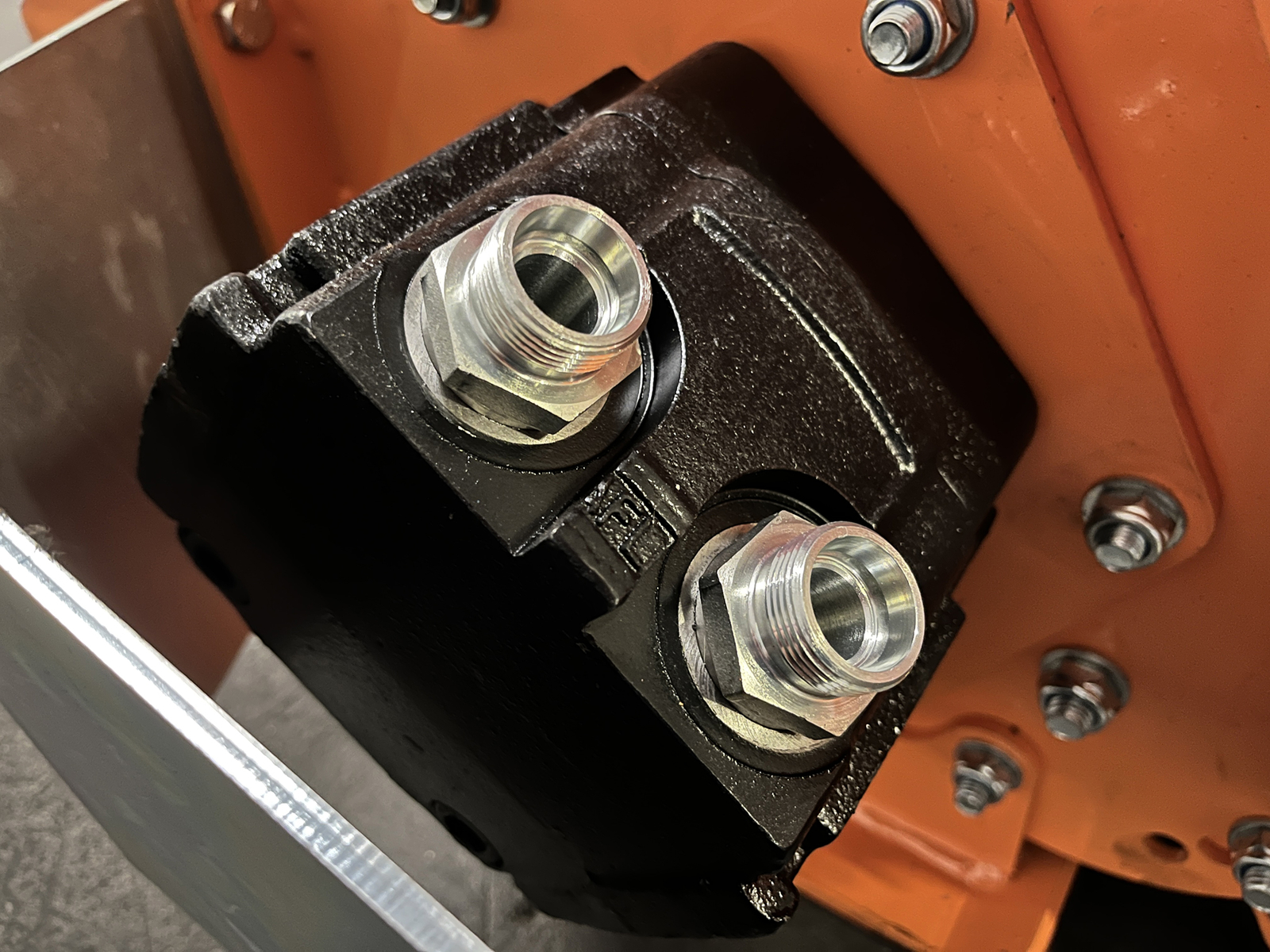

Yes: the Casappa motor has a third hose for the case drain, to be connected straight back to the tank. For excavators without a drain line there is the ARJ-80, with a Caproni motor.

Does it need a double-acting circuit?
Yes: the hammer-flail rotor is bidirectional and requires a double-acting pedal control.

What thickness of branch will it cut?
Grass, brambles, shrubs, suckers and stems up to 4 cm (1.6 in) thick. The ARH series handles 5 cm (2 in).

Does it fit a tractor reach arm as well?
Yes: the ARM-80 also suits tractor-mounted reach arms, provided the hydraulics deliver 65-100 l/min of oil.

How does it mount on the arm?
In place of the bucket, with the standard hitch (dimensions in the product images), one of the optional hitches or a made-to-measure hitch; the hoses connect to the auxiliary hydraulic line.

How do the ARM and ARH differ?
The ARM weighs from 150 to 195 kg, suits 5 to 8 tonne excavators and shreds up to 4 cm. The ARH weighs from 270 to 320 kg, carries 1,100 g hammer flails, suits 5 to 10 tonne excavators and handles 5 cm.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: blades, hammer flails, fixings, bearings, roller, hydraulic motor and hoses are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and a check that the head matches your excavator's hydraulics and hitch. The head comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric
Working width 800.0 mm
Overall width 1030.0 mm
Min / Max cutting height 10.0 - 50.0 mm
Weight 150.0 kg
Hood height 420.0 mm
Number of Hammers 16
Maximum cutting diameter 4.0 cm
Main hood thickness 5.0 mm
Transmission: RPM Rotor speed 2200 r/min
Rotor: diameter 110.0 mm
Rotor: bearings type and size 6008
Rotor: balancing Electronic
Rotor: sheet thickness 8.0 mm
Rear roller: diameter 100.0 mm
Rear roller: sheet thickness 4.0 mm
Rear roller: bearings type and size UC205
Working pressure 70 - 140 bar
Min./Max. Flow 65 - 100 l/min
Hood length 700.0 mm
Gross shipping weight 168 kg
Package volume 0.37 m3
Packing sizes 1050.0*700.0*500.0 mm

Technical charts

CASAPPA - Hydraulic motor specifications (pdf)   Download PDF
