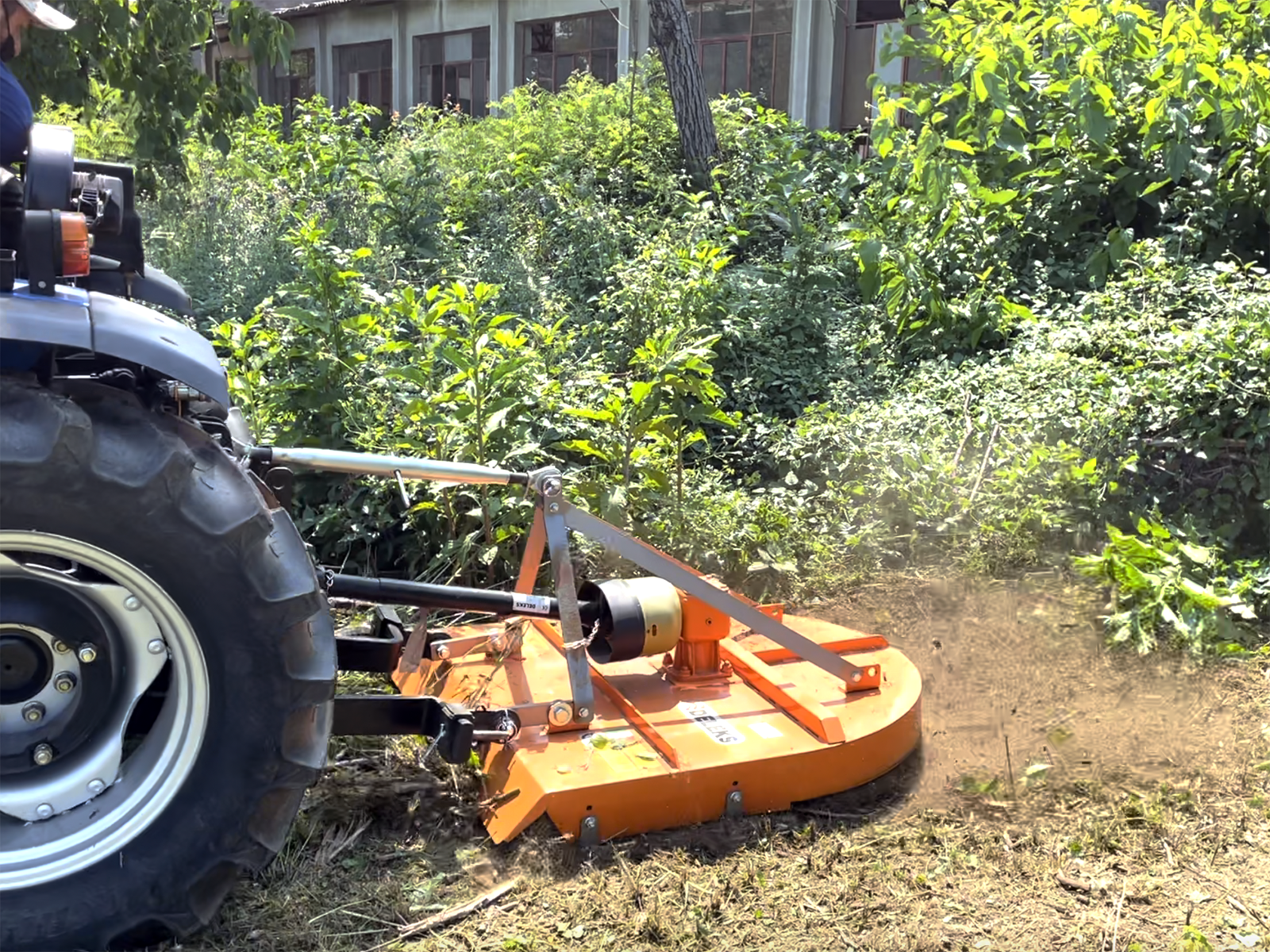

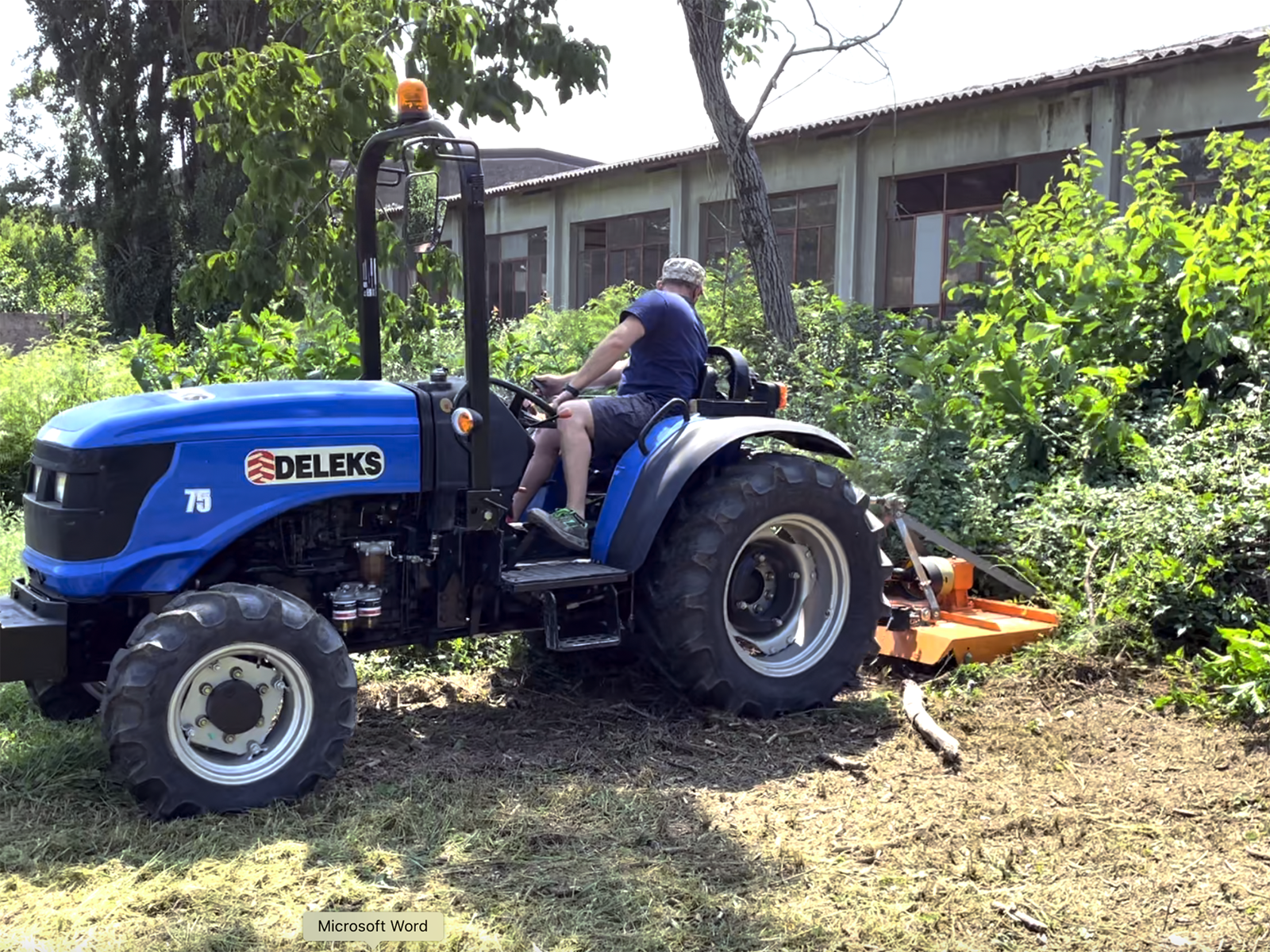

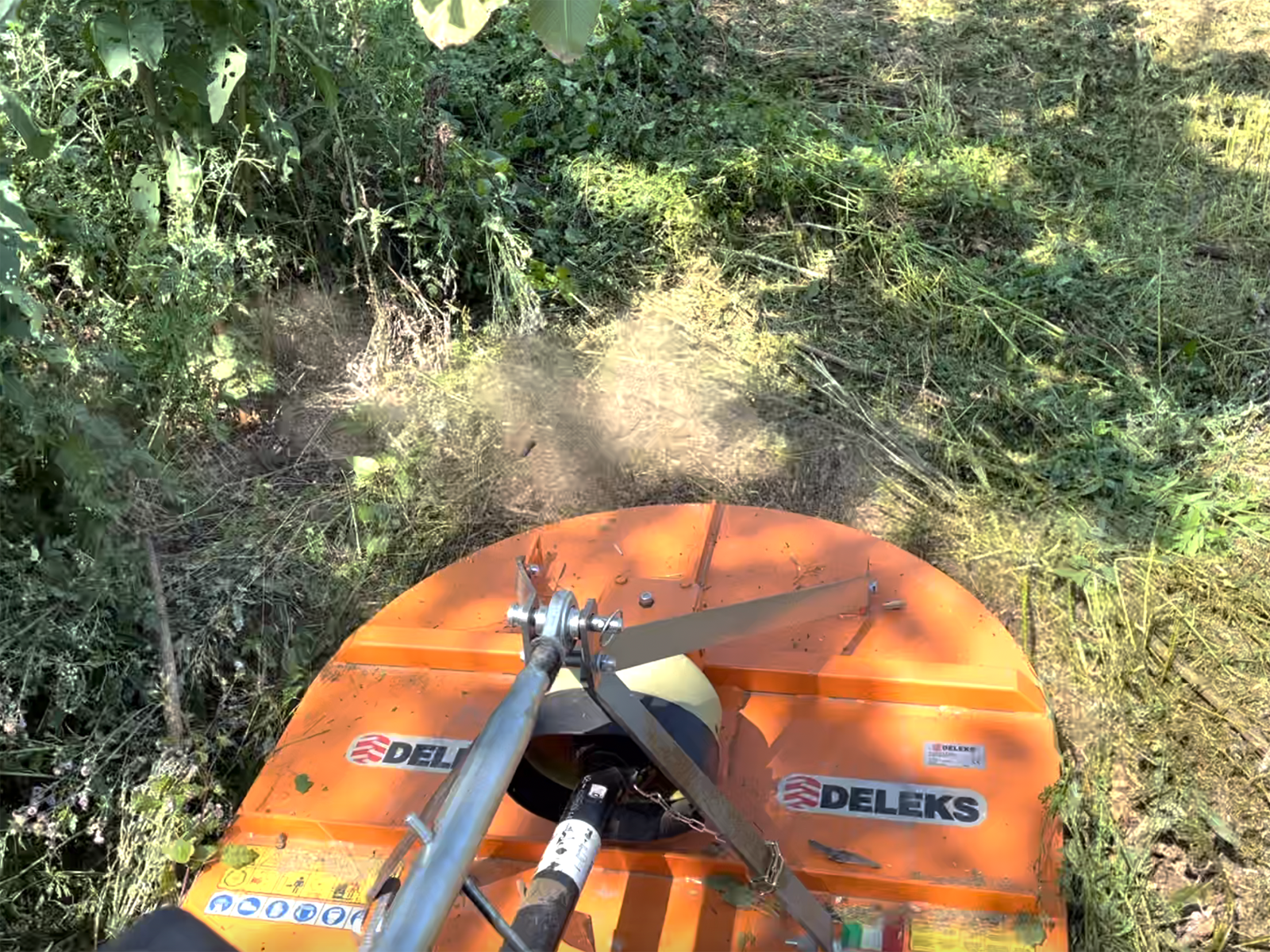

Chain mower for tractor 100 cm (39 in) BUGGY-100C, deck with 2 hardened-steel chains for rough and stony ground, also works as a front mower, for 25-75 hp tractors
DETAILS

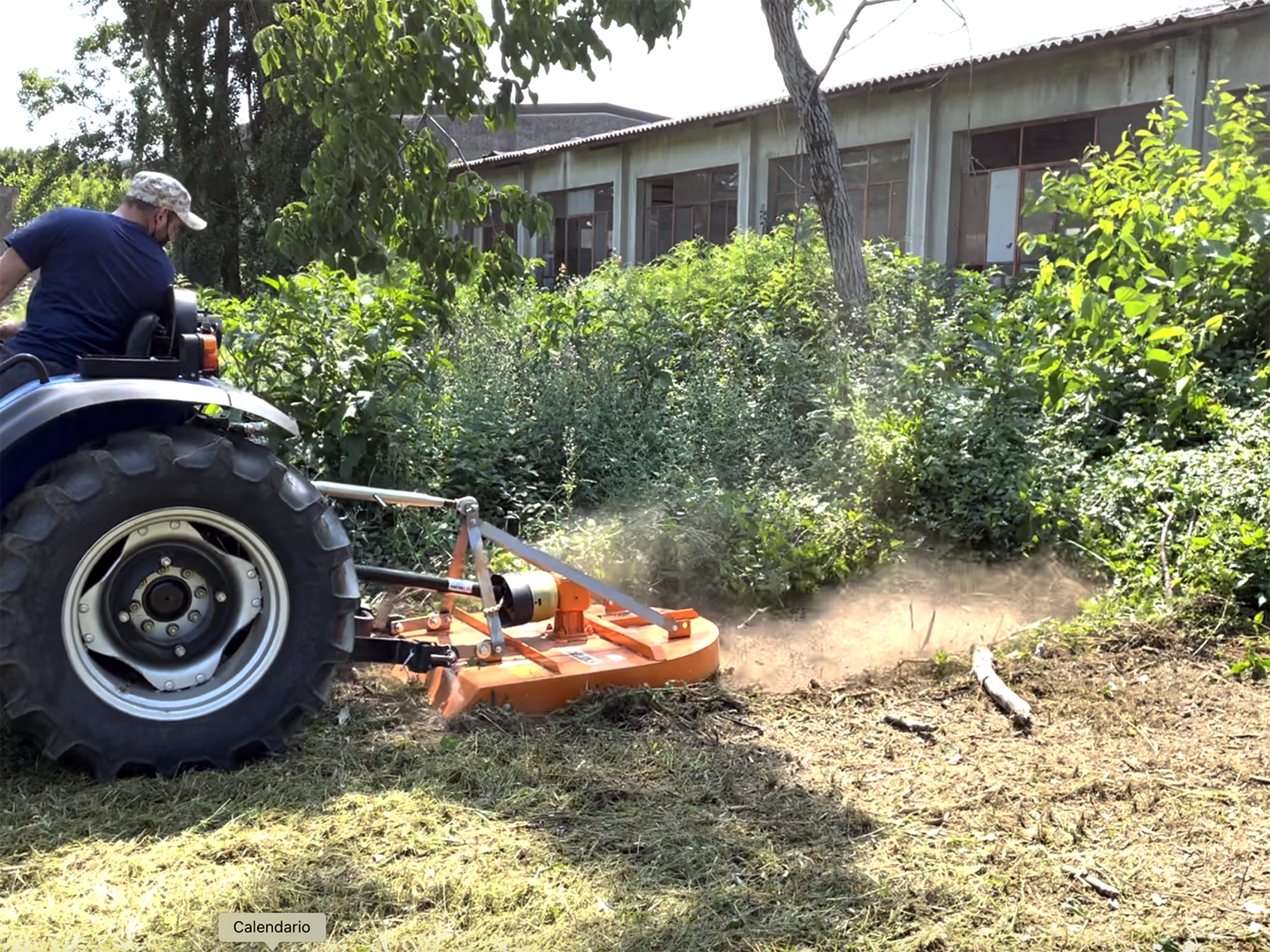

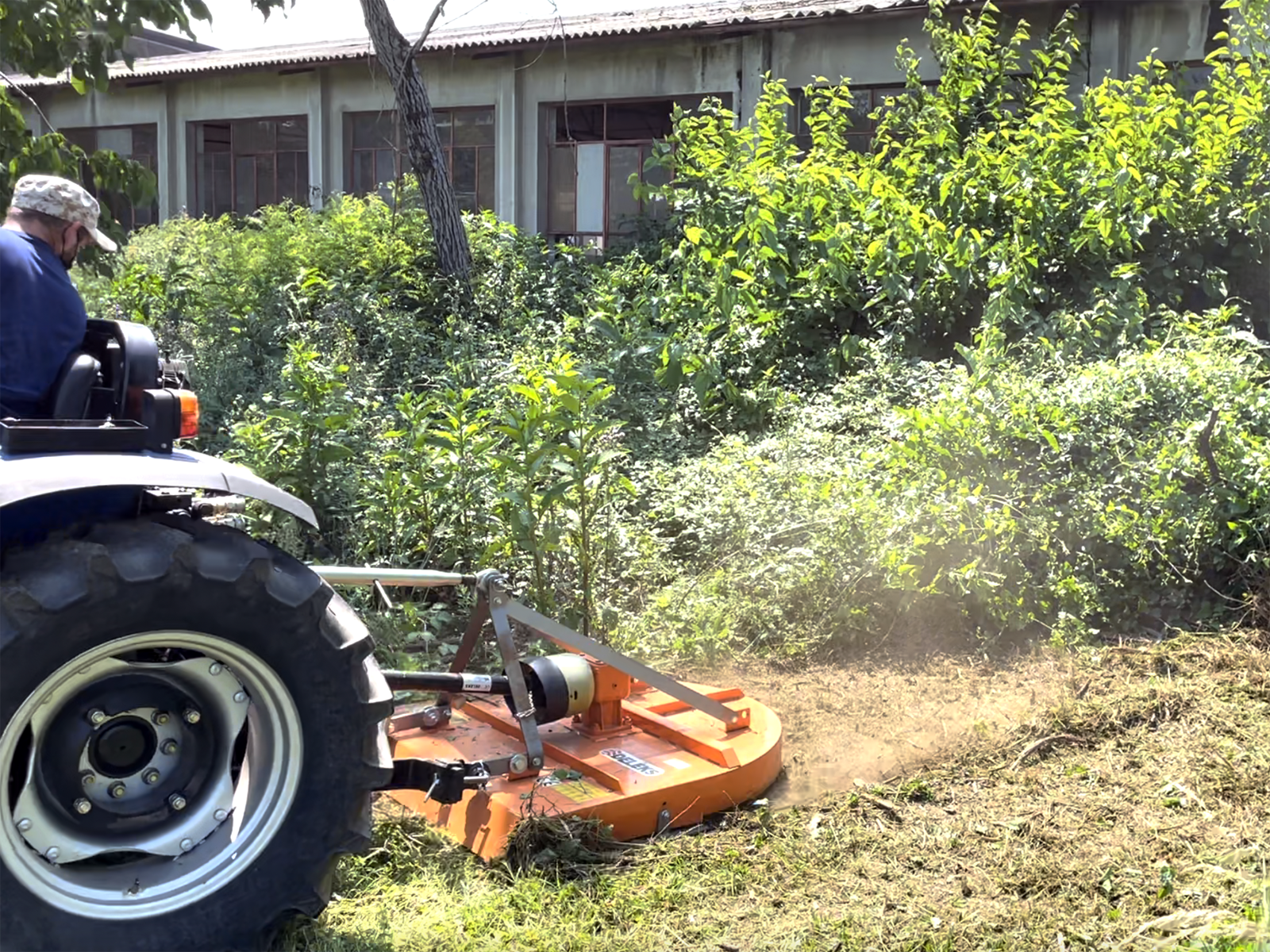

Chain mower for tractors with a 97 cm (38 in) cut: the DELEKS® BUGGY-100C is the chain deck for tractors from 25 to 75 hp, for clearing rough, stony ground with scrub, bushes and shrubs, where blades would get damaged. In place of the blades turn 2 grade 80 hardened-steel chains, 10x30 mm, which shred the vegetation; discharge is to the rear. Working height is set from 10 to 60 mm with the side skids. The deck is compact and, with the three-point headstock and the gearbox turned round, it also works as a front mower on reverse-drive tractors or on tractors with a front linkage and a 540 rpm front PTO. Frame in 3 mm Swedish SSAB steel, DELEKS® geared gearbox for a 540 rpm PTO with a 3-year warranty, weight 100 kg (220 lb). Made in Italy, built by DELEKS, it comes complete with a CE-approved PTO shaft with freewheel, a 2-year warranty and free delivery within the EU.
Which tractors it fits
The BUGGY-100C cuts 97 cm (38 in) and is built for tractors from 25 to 75 hp with a 540 rpm PTO and a category 1 three-point linkage (19-22 mm pins, lower link spacing from 450 to 720 mm): Kubota, John Deere, Carraro, Solis and equivalent tractors. The gearbox sits 340 mm (13.4 in) off the ground.

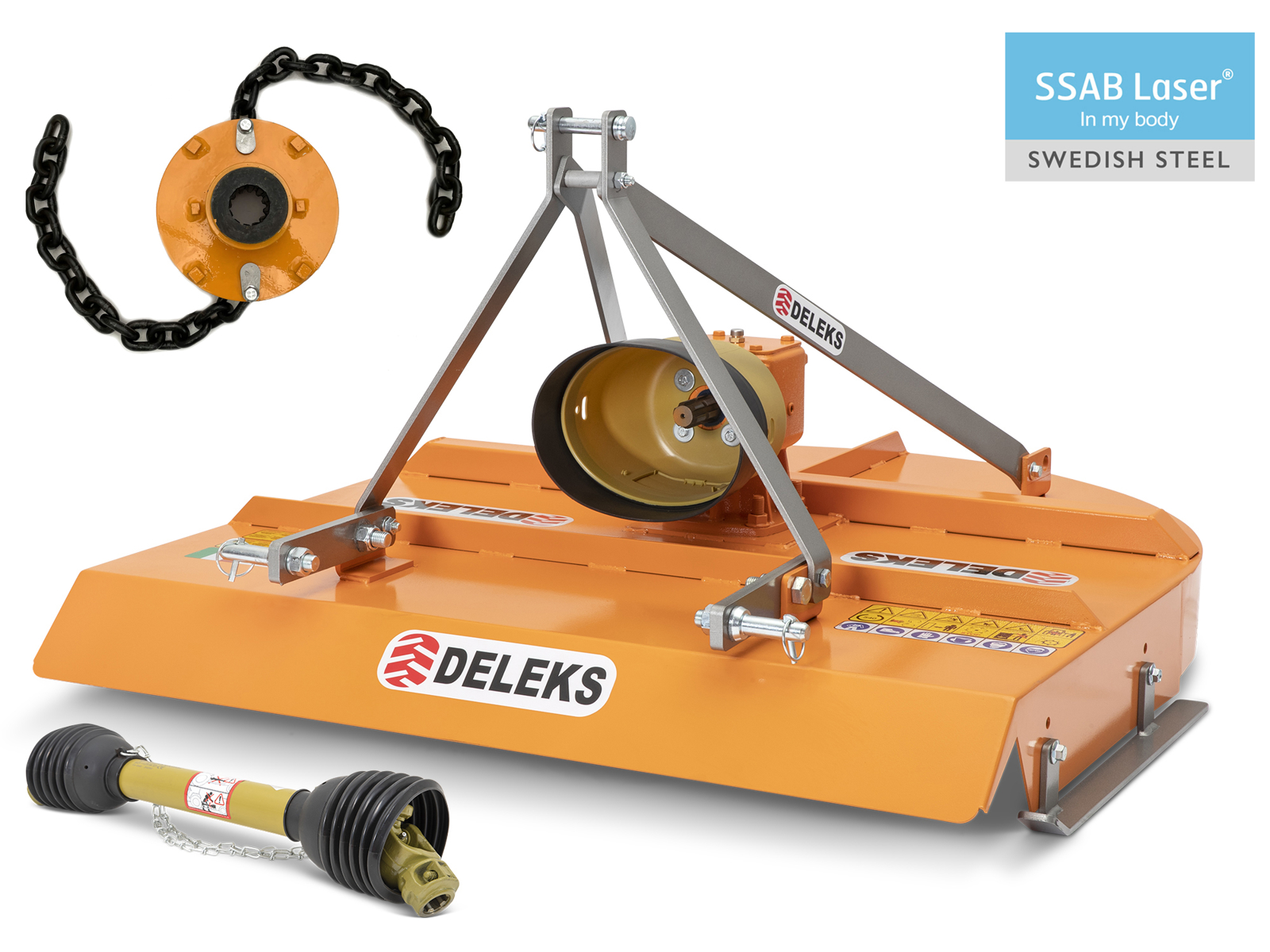

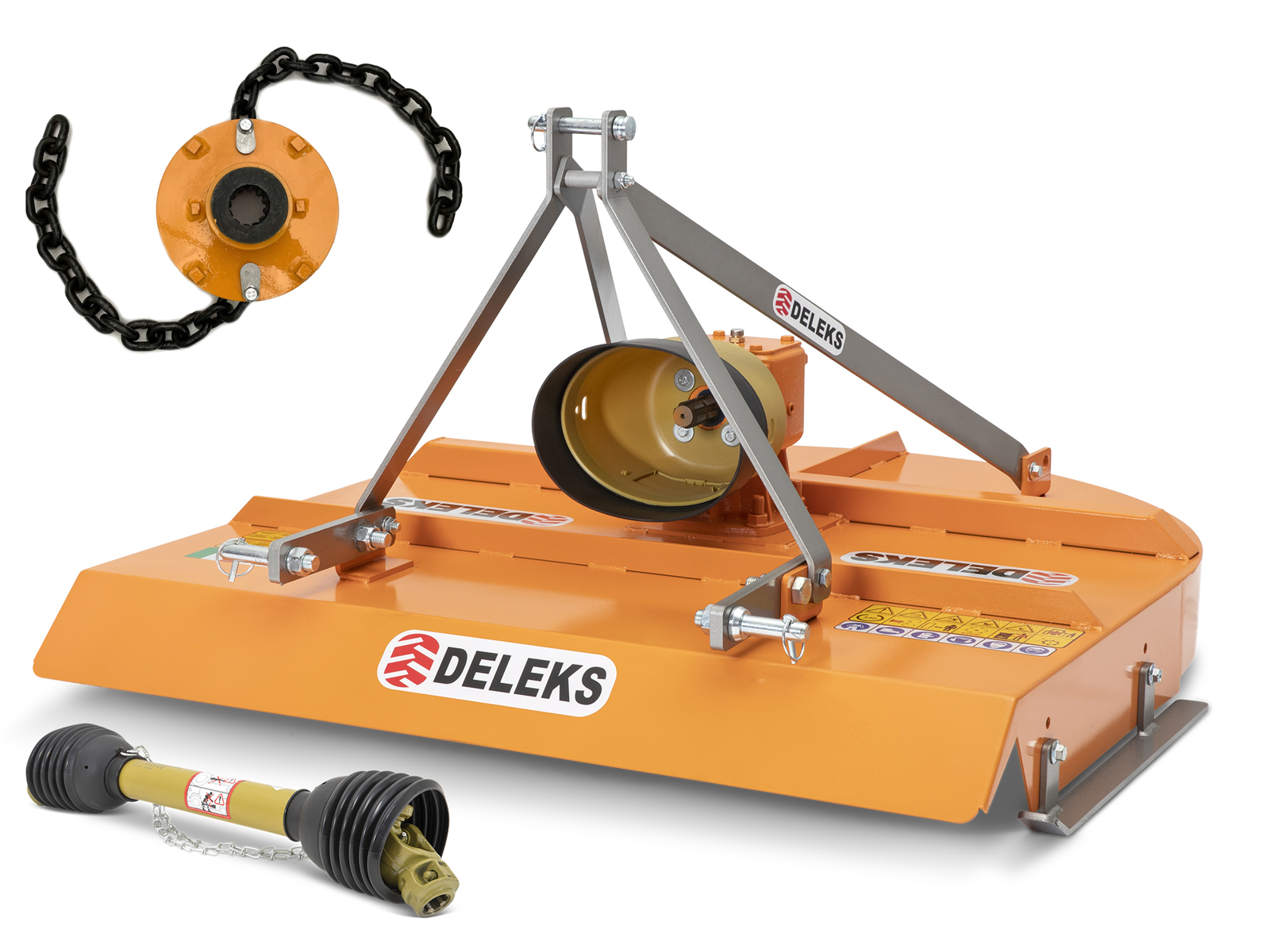

Two hardened-steel chains in place of the blades

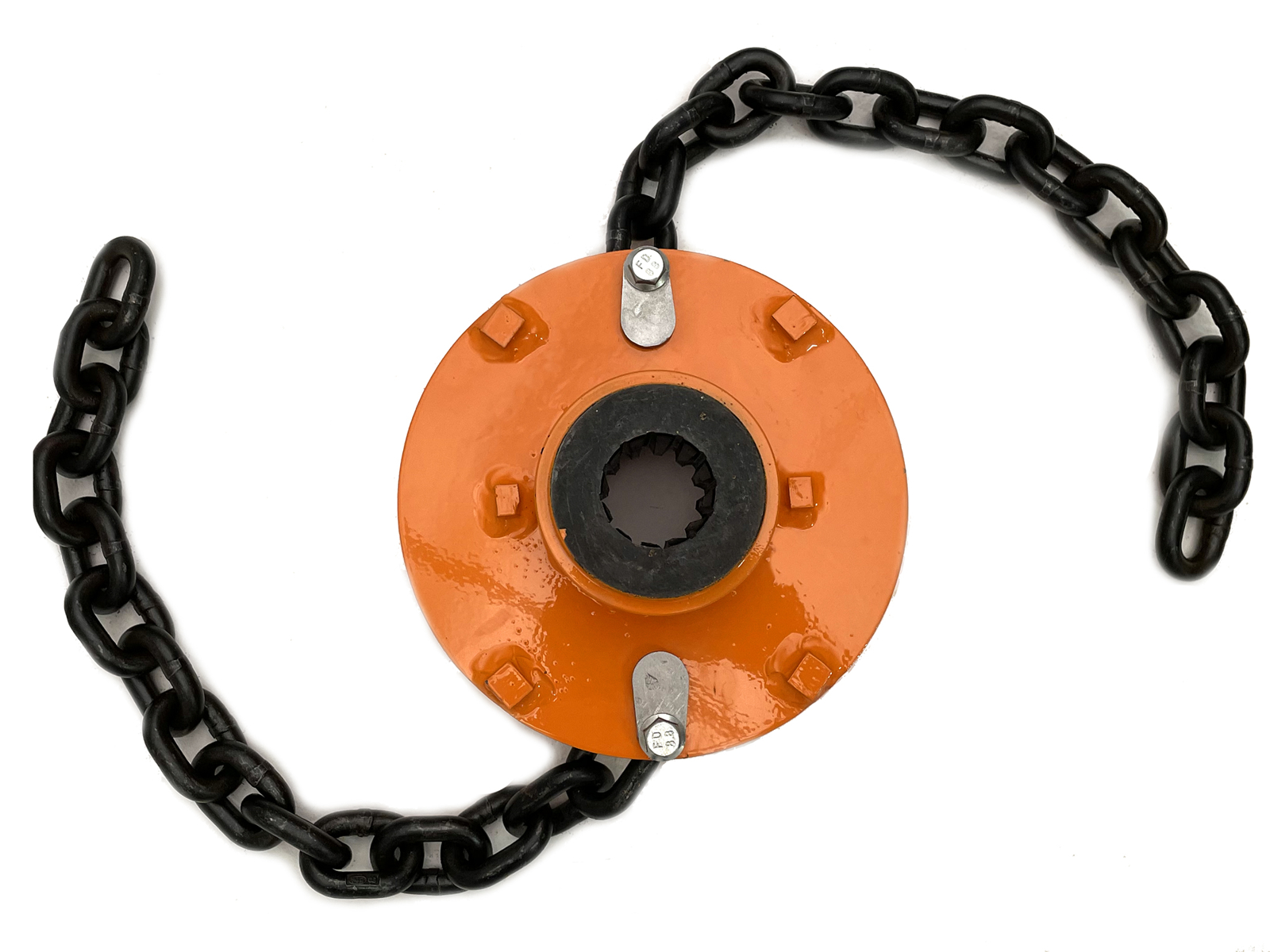

Under the deck turn 2 grade 80 hardened-steel chains, with 10x30 mm links, fixed to a central rotor. The chains shred tall grass, scrub, bushes and shrubs and stand up to stones and uneven ground, where blades would get damaged: the result is cleared ground, not a finished lawn. The material leaves through the rear discharge. To switch to blade cutting there is the blade bar with blades (ROTORBLADESBUGGY).
Working height from 10 to 60 mm and frame
Working height is set from 10 to 60 mm with the side skids. The frame is in 3 mm Swedish SSAB steel, with CE safety guards; the deck is compact: 1,070 mm overall width for 970 mm of cut. The BUGGY-100C is Made in Italy, built by DELEKS. For this product the sheet steel is bought in Italy and worked at a production plant in the European Union.
Reversible: it also works as a front mower

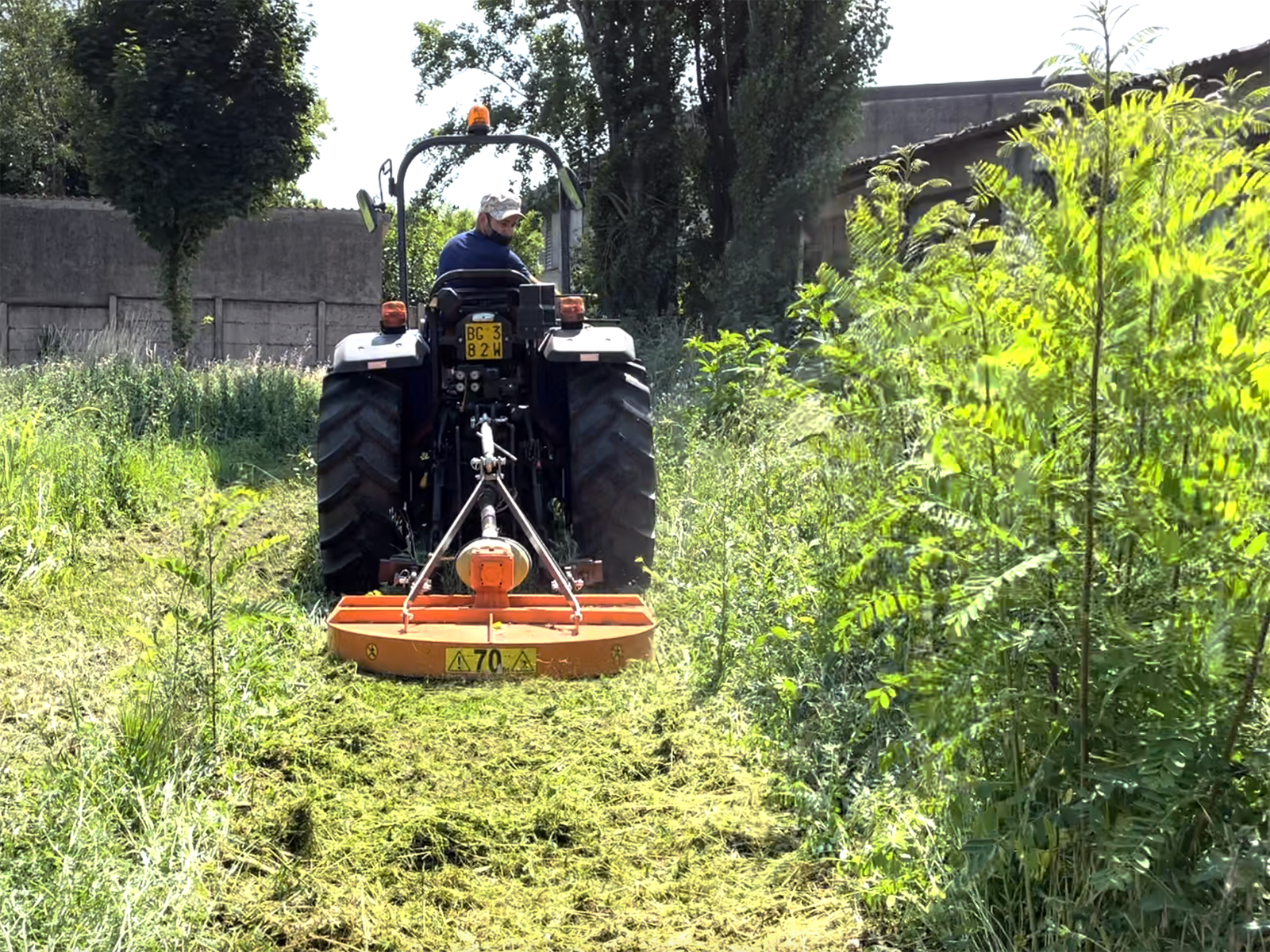

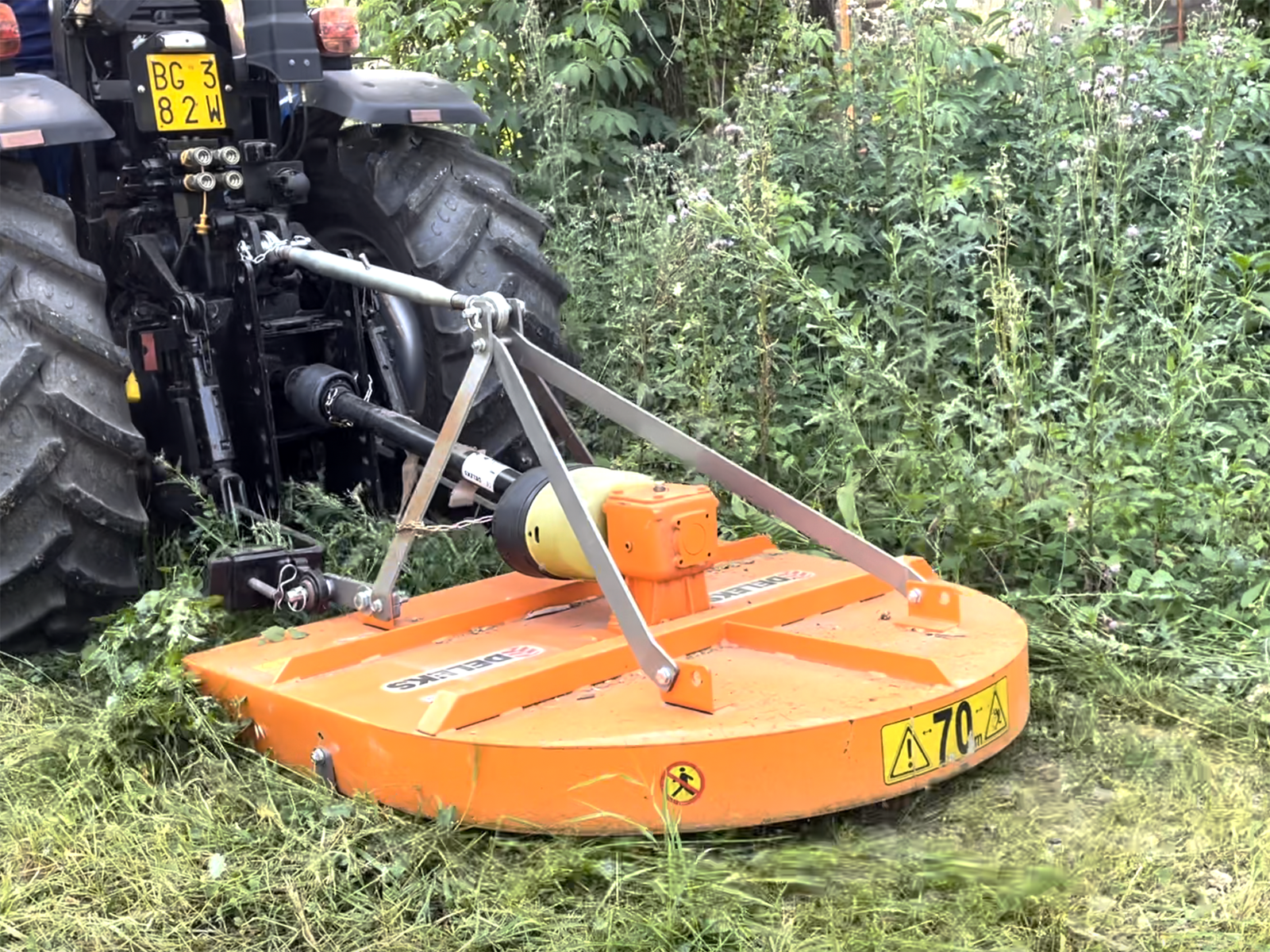

The BUGGY-100C hitches to the rear linkage, but it is reversible: with the three-point headstock and the gearbox turned round, it also works as a front mower on reverse-drive tractors or on tractors with a front linkage and a 540 rpm front PTO, with the deck always in view.
Geared gearbox and PTO shaft with freewheel
The drive is by gears: the DELEKS® gearbox for a 540 rpm PTO has a 3-year warranty. The CE-approved category 4 PTO shaft, 1,000 mm (39.4 in) long, with freewheel, is included: when you disengage the PTO the chains carry on turning under their own momentum and run down by themselves, without driving back through the tractor's transmission.
Dimensions, weight and delivery
Working width 970 mm (38.2 in), overall width 1,070 mm (42.1 in), length 1,100 mm (43.3 in), height 650 mm (25.6 in), weight 100 kg (220 lb). It ships on a pallet in packaging measuring 107 × 110 × 60 cm (42 × 43 × 24 in), 128 kg (282 lb) gross, 0.71 m³, with free delivery within the EU. It complies with the EC Machinery Directive and carries a 2-year warranty.
Where it works

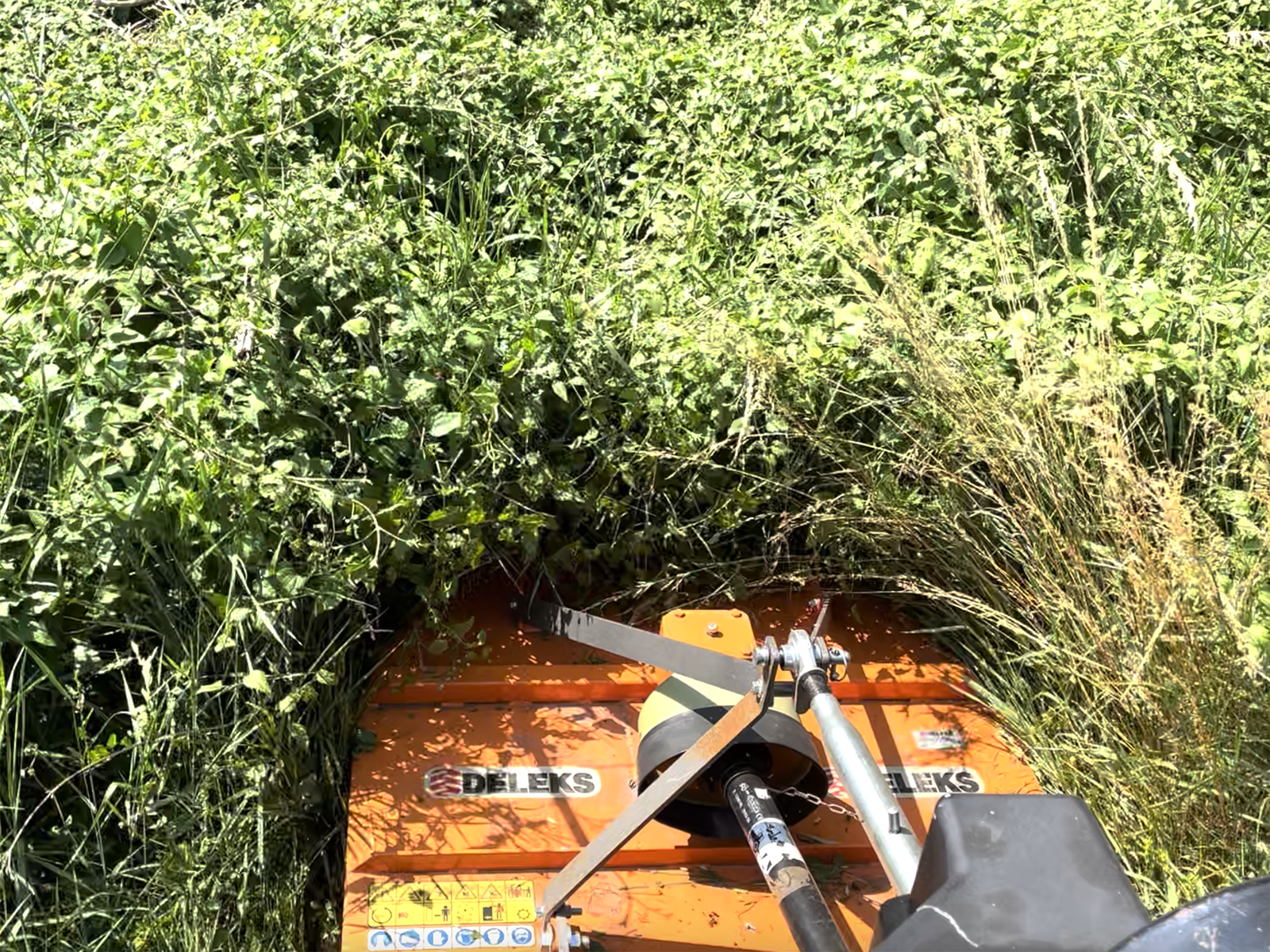

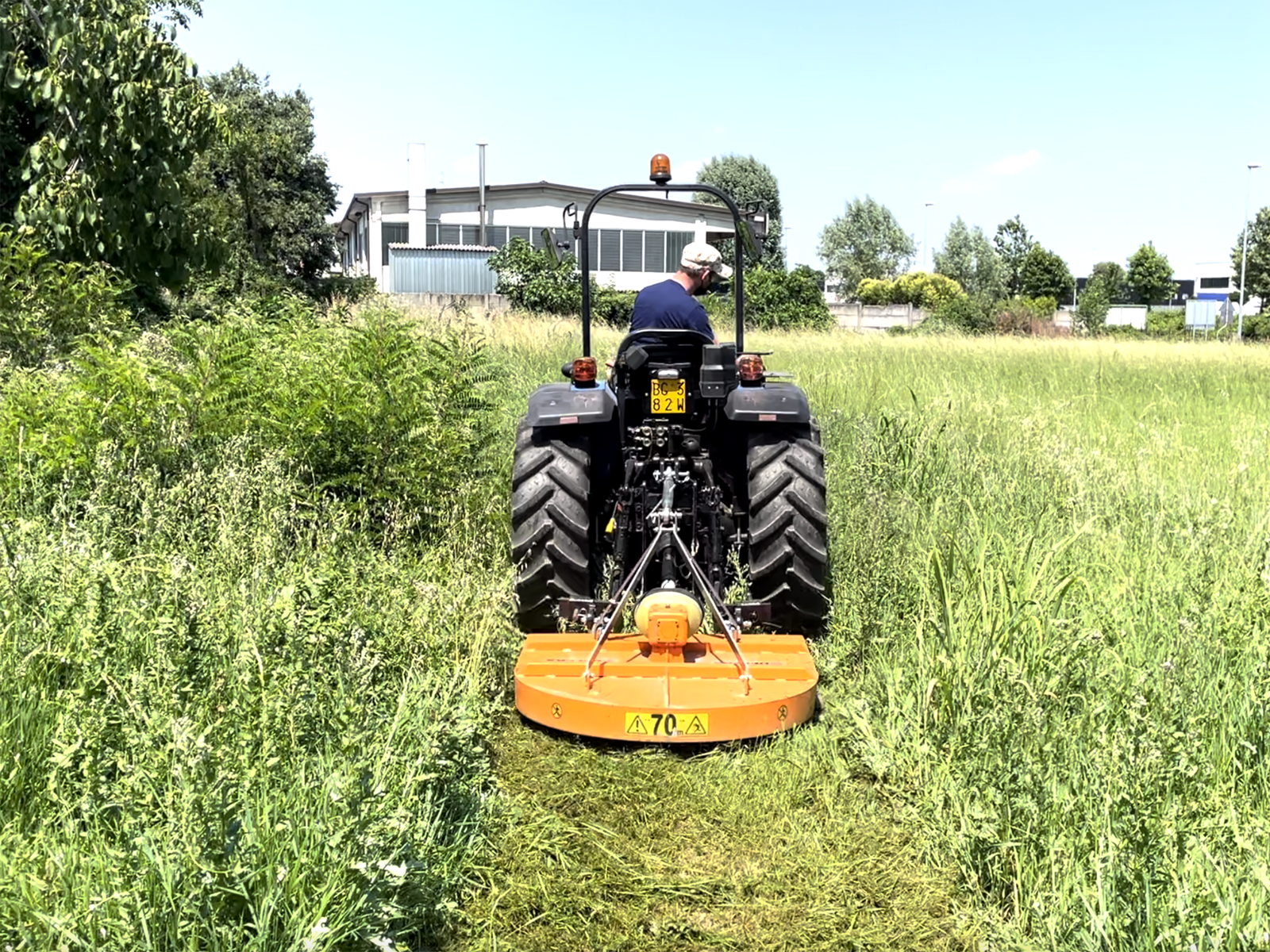

- Rough ground: tall grass, scrub, bushes and shrubs
- Stony and uneven ground, where blades would get damaged
- Field margins and land to be cleared
- Front use, with the three-point headstock and the gearbox turned round
- Tractors from 25 to 75 hp with a category 1 three-point linkage
Options and spares
From this page you can add to your order the spare set of 2 chains (CATENE2BUGGY100), the blade bar with blades, to switch to blade cutting (ROTORBLADESBUGGY) and the universal PTO adapter (RID1). Other spares are identified on the exploded diagrams with our technical team.
FAQ
What size tractor does the BUGGY-100C need?
From 25 to 75 hp, with a 540 rpm PTO and a category 1 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 100 kg (220 lb).
What does the chain mower cut?

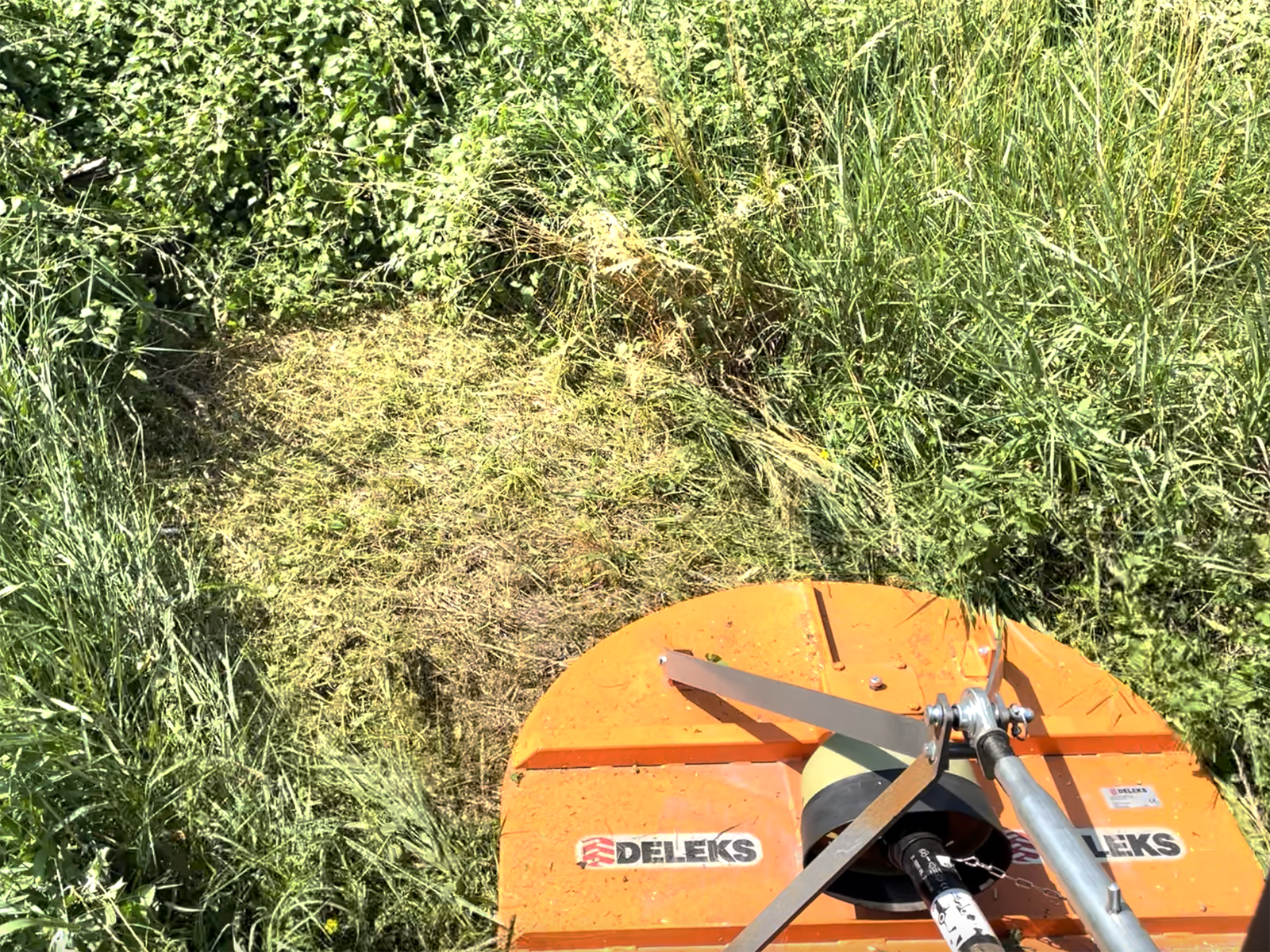

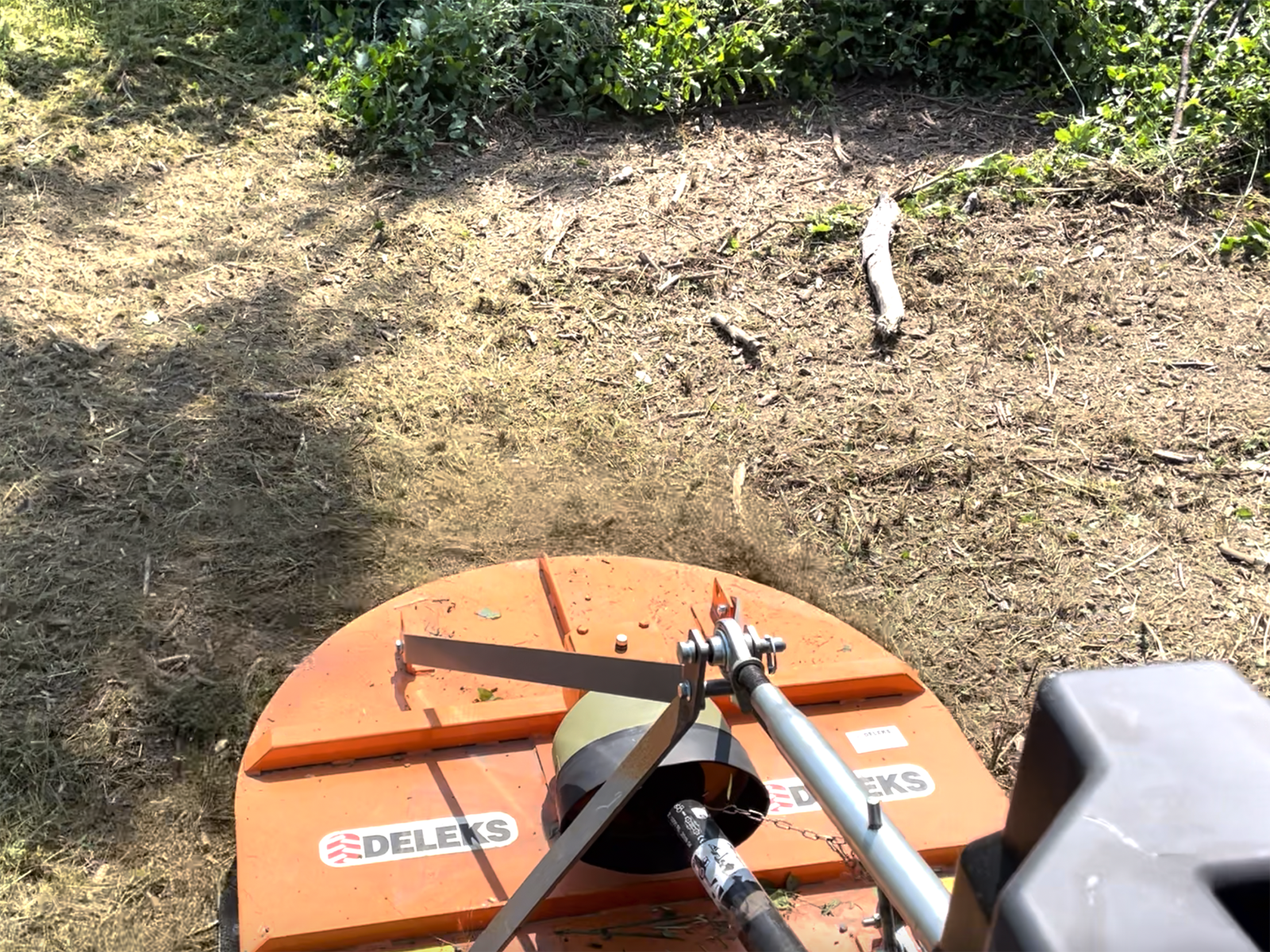

Tall grass, scrub, bushes and shrubs on rough and stony ground. The chains shred the vegetation: the result is cleared ground, not a finished lawn.
Chain mower or blade deck?
Blades give a clean cut on even lawns; chains stand up to stones and uneven ground. On the BUGGY-100C you can fit the blade bar with blades (ROTORBLADESBUGGY); the ready-made blade deck is the BUGGY-100.
Is it suitable for a 50 hp tractor?
Yes: it works with tractors from 25 to 75 hp with a category 1 three-point linkage.
Can the chains be replaced?
Yes: the spare set of 2 chains (CATENE2BUGGY100) can be ordered from this page.
What is the working height?
From 10 to 60 mm, adjustable with the side skids.
Can it be used at the front?
Yes, the mower is reversible: with the three-point headstock and the gearbox turned round, it also works as a front mower on reverse-drive tractors or on tractors with a front linkage and a 540 rpm front PTO.
Is the PTO shaft included?
Yes: a CE-approved category 4 PTO shaft, 1,000 mm (39.4 in) long, with freewheel.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: blades, chains, belts, bearings, wheels, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower deck and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 970.0 mm |
| Overall width | 1070.0 mm |
| Min / Max cutting height | 10.0 - 60.0 mm |
| Weight | 100.0 kg |
| Overall height | 650.0 mm |
| Tractor Power Range | 25-75 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Spacing between the 2 lower points | 450.0-720.0 mm |
| Overall length | 1100.0 mm |
| Distance between pto attachment and ground | 340.0 mm |
| Main hood thickness | 3.0 mm |
| Transmission: Drive method | Gear |
| Transmission: Gearbox | DELEKS (3 year warranty) |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Pto shaft | CE 4x1000 mm + freewheel |
| Gross shipping weight | 128 kg |
| Package volume | 0.71 m3 |
| Packing sizes | 1070.0*1100.0*600.0 mm |
