Tractor hedge cutter with 60 cm (24 in) flail head AIRONE-60, hydraulic side arm flail mower for 20 to 60 hp compact tractors
DETAILS

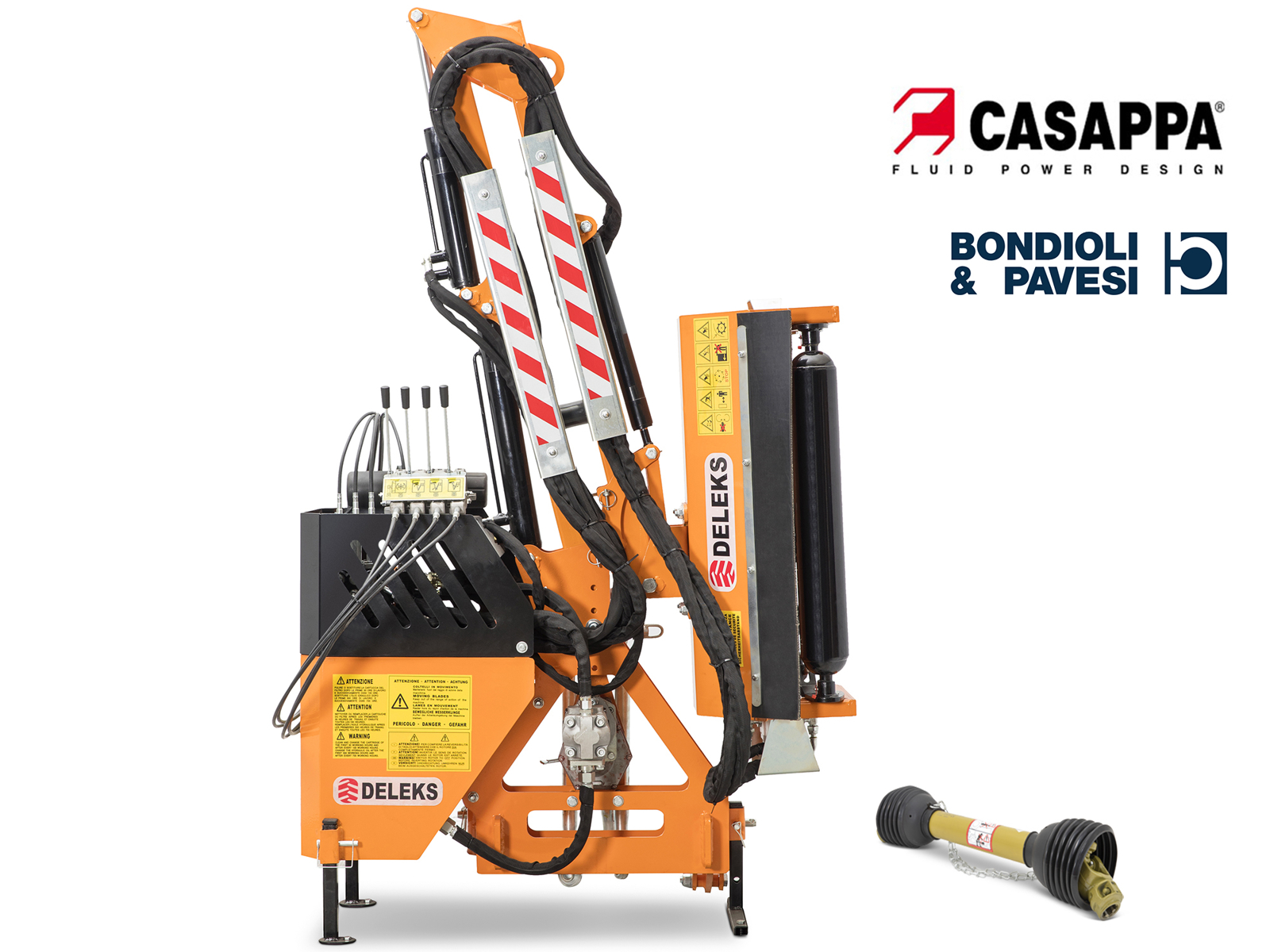

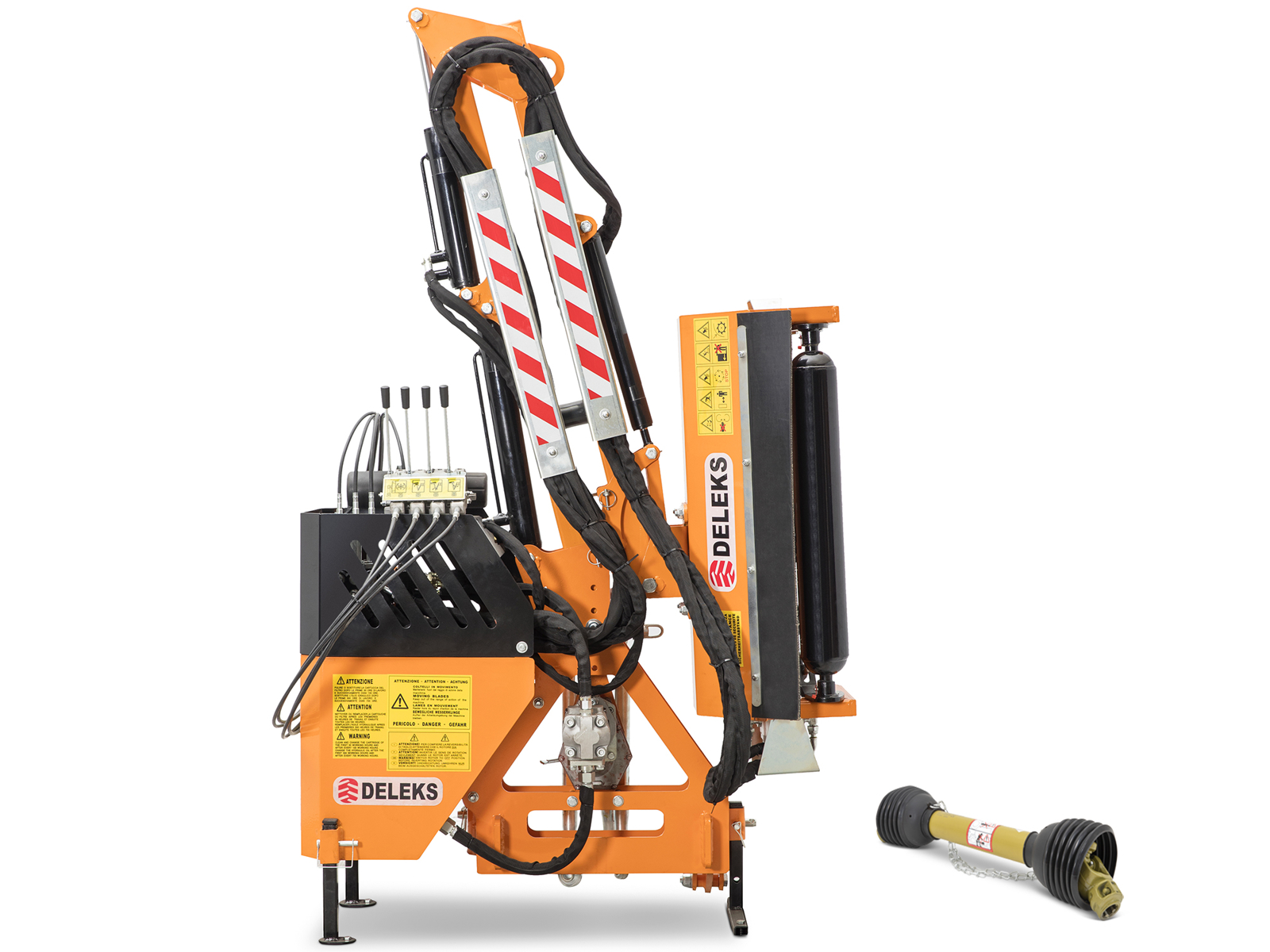

Hydraulic tractor hedge cutter with a 60 cm (24 in) flail head, the DELEKS® AIRONE-60: a side arm flail mower for 20 to 60 hp compact tractors with a category 1 three-point linkage, such as Kubota, Antonio Carraro, Goldoni, BCS and Pasquali. The hydraulic system is independent: a Casappa tandem pump driven by the PTO, a Bondioli & Pavesi control valve and a 55-litre (12.1 UK gal) tank, so the arm moves while the head is cutting. The 24-blade head shreds grass, plant residue, bushes, brambles and vine prunings on road verges, banks, ditches and slopes, with a reach of up to 2.71 m (8.9 ft); it works angled, upright or horizontally between the rows. CE-approved PTO shaft included. It is TÜV-certified, carries a 2-year warranty and comes with free delivery within the EU.
Which tractors it fits
The AIRONE-60 is built for 20 to 60 hp tractors with a 540 rpm PTO and a category 1 three-point linkage (19-22 mm pins, lower link spacing from 470 to 570 mm): Kubota B series, Antonio Carraro Tigre, Goldoni, BCS, Ferrari, Pasquali, New Holland, Landini and Valpadana. The tractor must weigh at least 1,200 kg (2,646 lb): with the arm stretched out to the side the centre of gravity shifts. The arm with its head weighs 265 kg (584 lb).

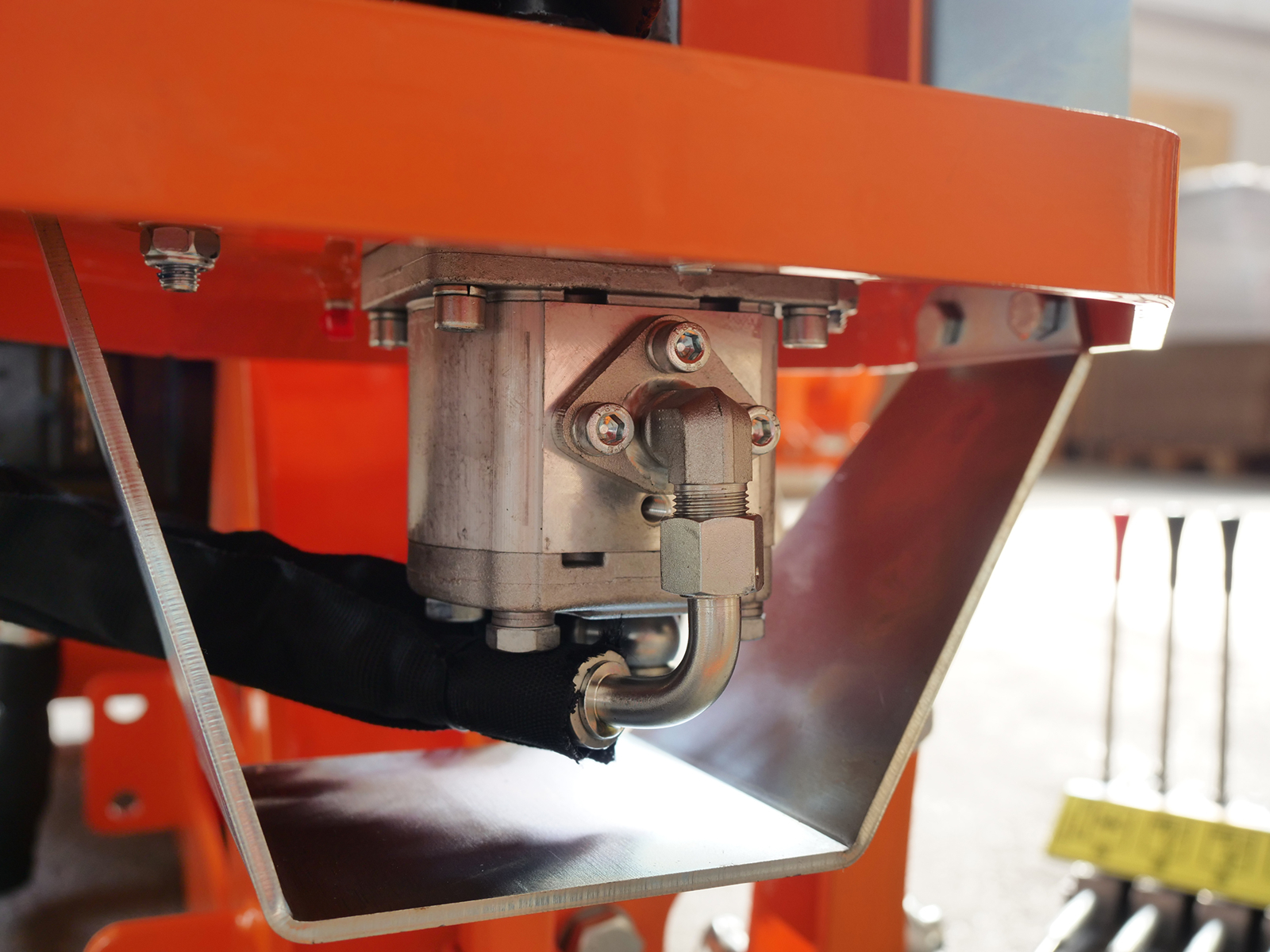

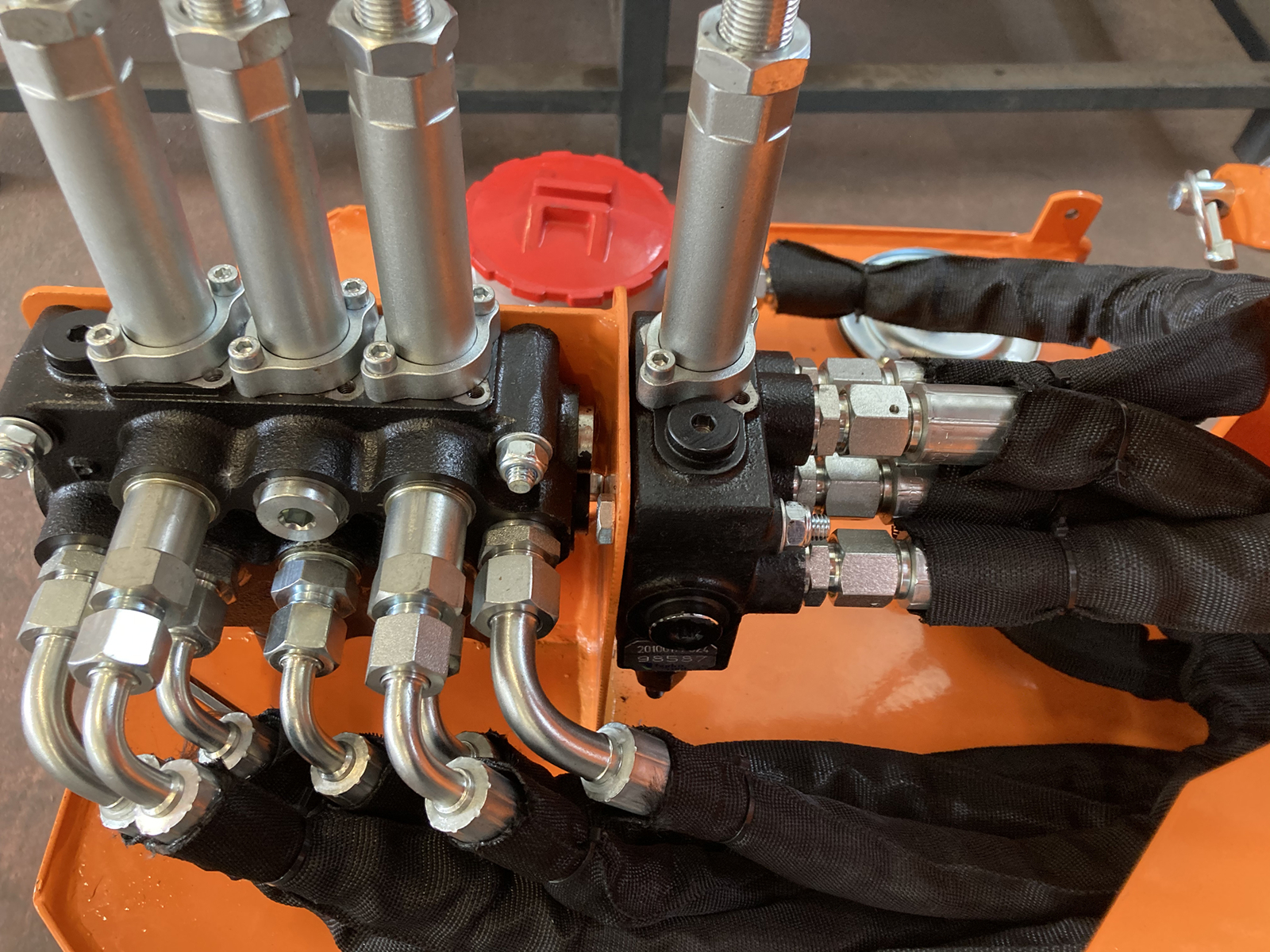

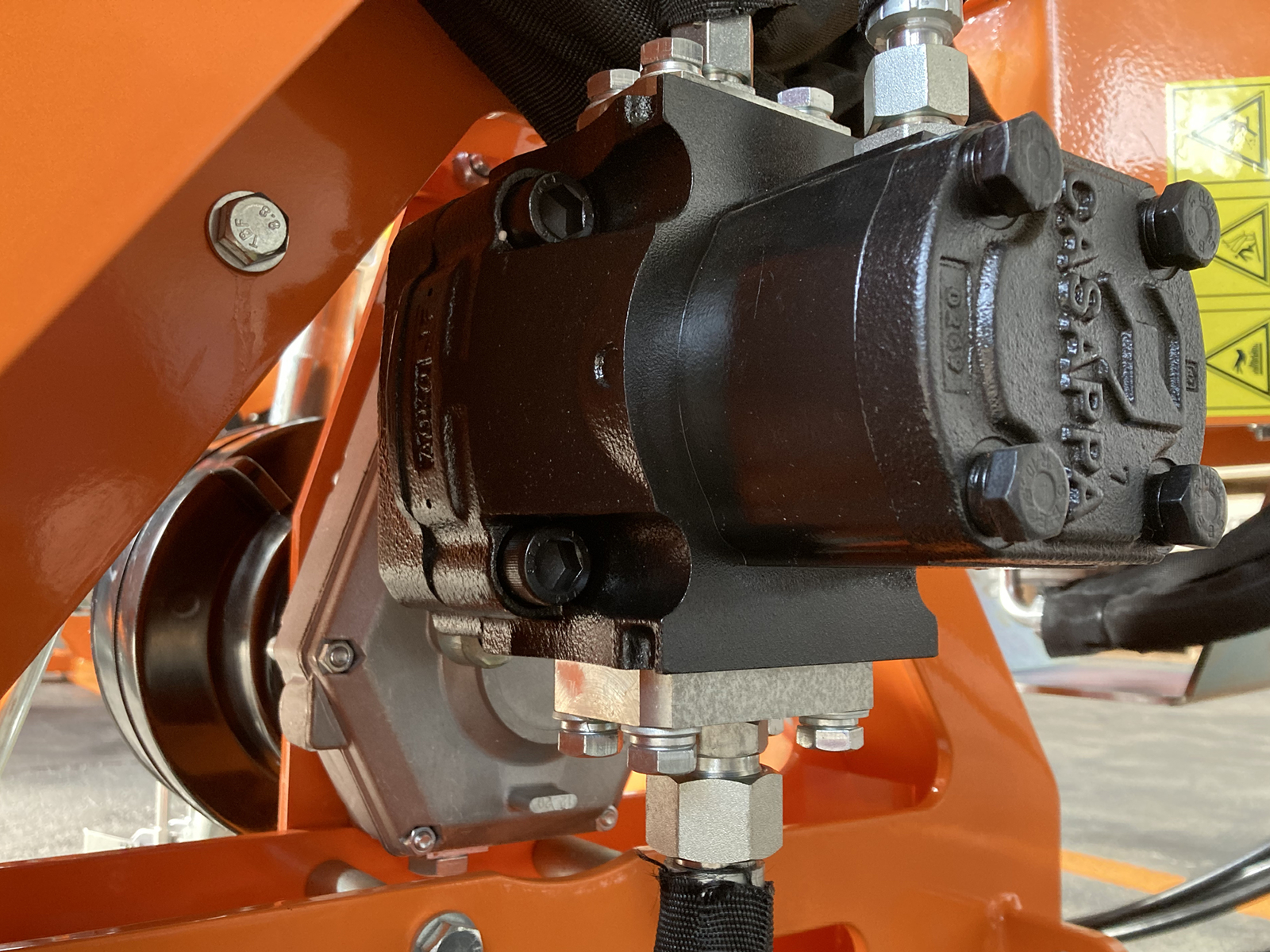

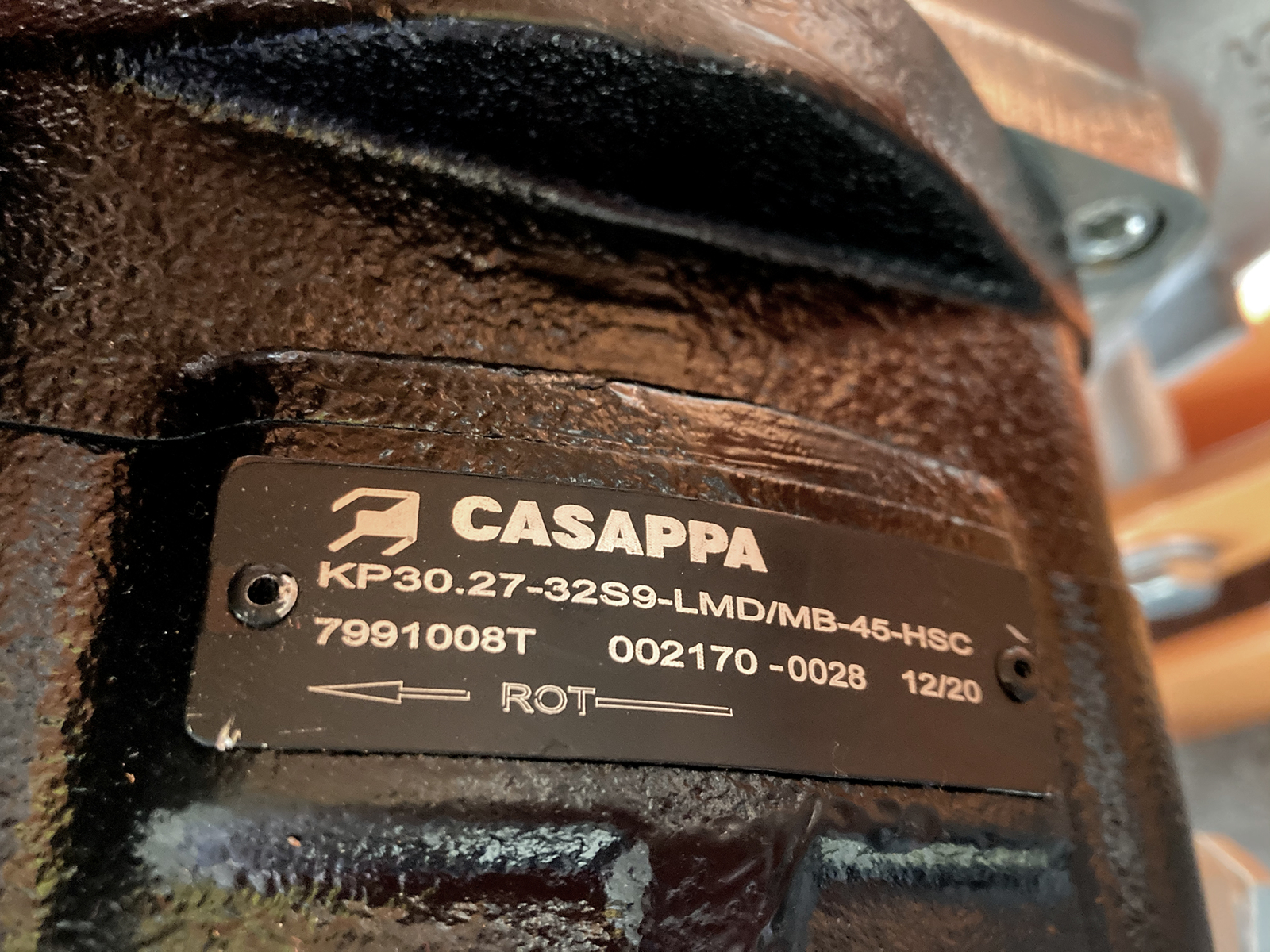

Independent hydraulic system

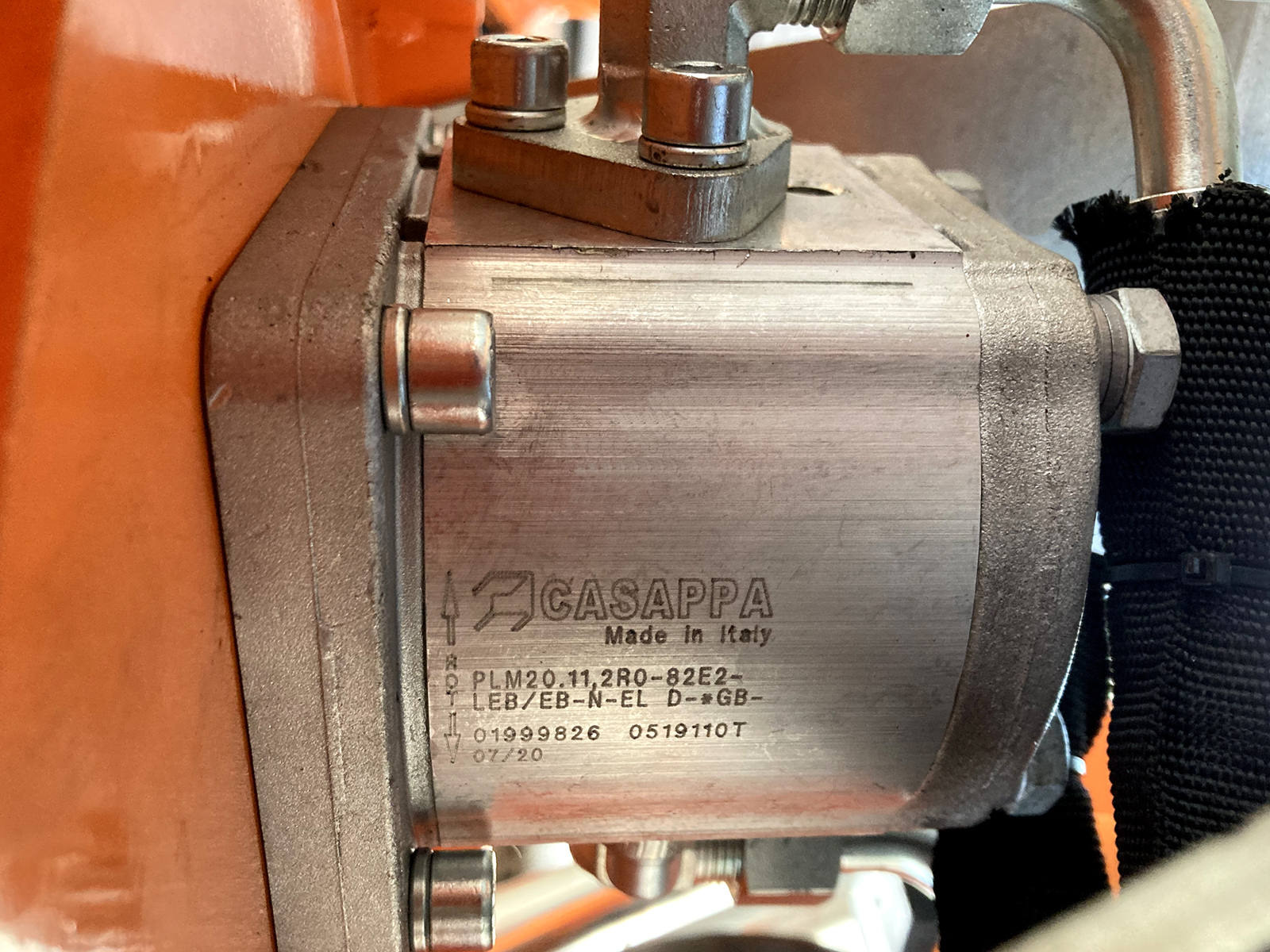

The hydraulic system is independent of the tractor: the Casappa tandem pump, Made in Italy, is driven by the PTO and lets you move the arm while the head is cutting, without using the tractor's spool valves. The control valve is by Bondioli & Pavesi and the head's hydraulic motor by Casappa, both Made in Italy. The 55-litre (12.1 UK gal) tank arrives filled to level with Shell Tellus S2 MX 46 oil. The remote control with 4 levers, connected by flexible hoses, mounts next to the driver's seat. The gearbox has a freewheel and the CE-approved category 4 PTO shaft, 700 mm (27.6 in) long, is included.

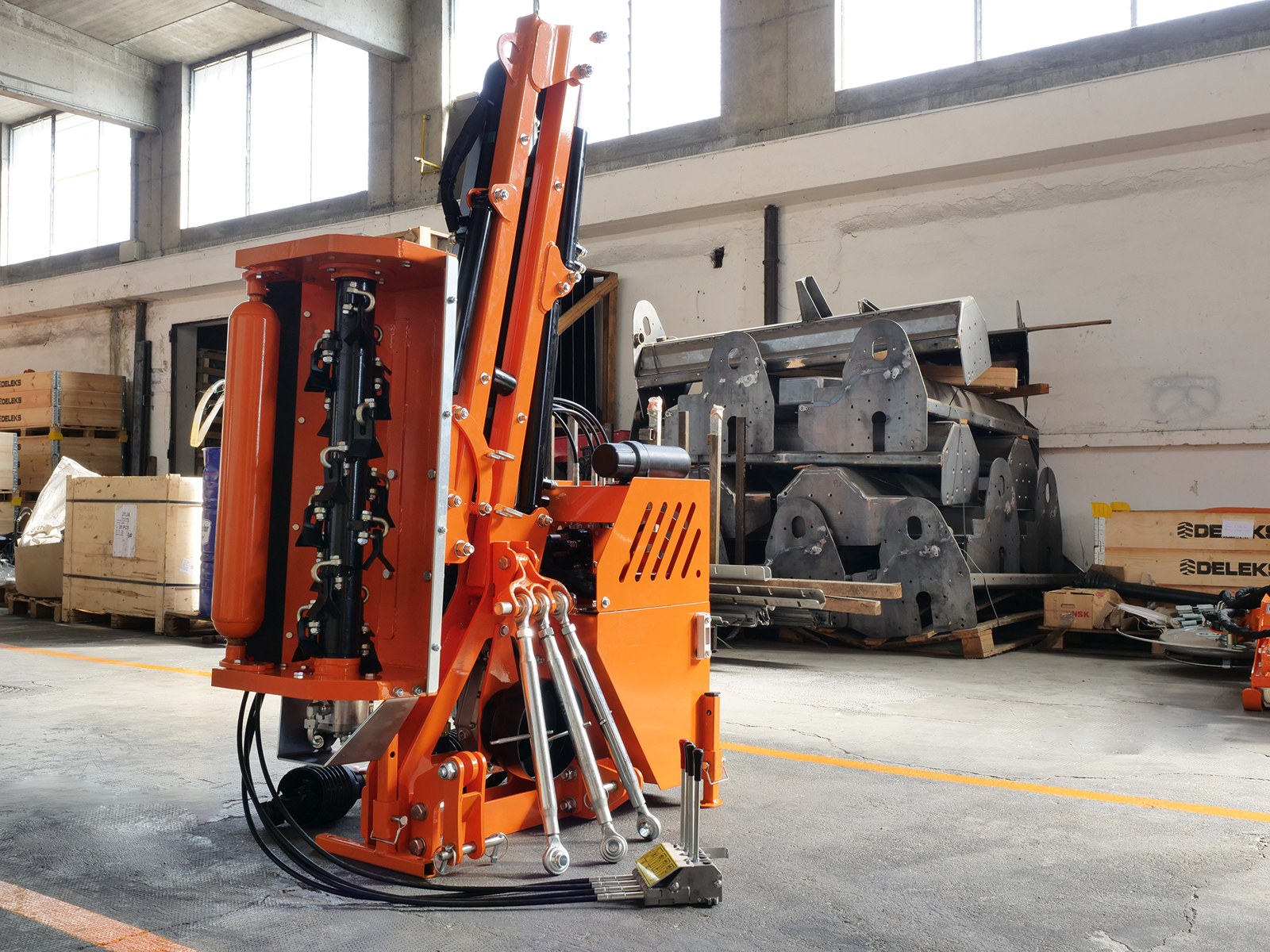

Flail head with 24 blades
The 60 cm (24 in) head has a 78 mm (3.1 in) rotor, electronically balanced, turning at 1,500 rpm with 24 blades of 130 g (4.6 oz). It shreds grass, plant residue, bushes, brambles and vine prunings up to 1.5 cm (0.6 in) thick. The 102 mm (4 in) rear roller sets the cutting height from 20 to 80 mm (0.8 to 3.1 in). Replacement blades come as the COLTELLI30AI set.

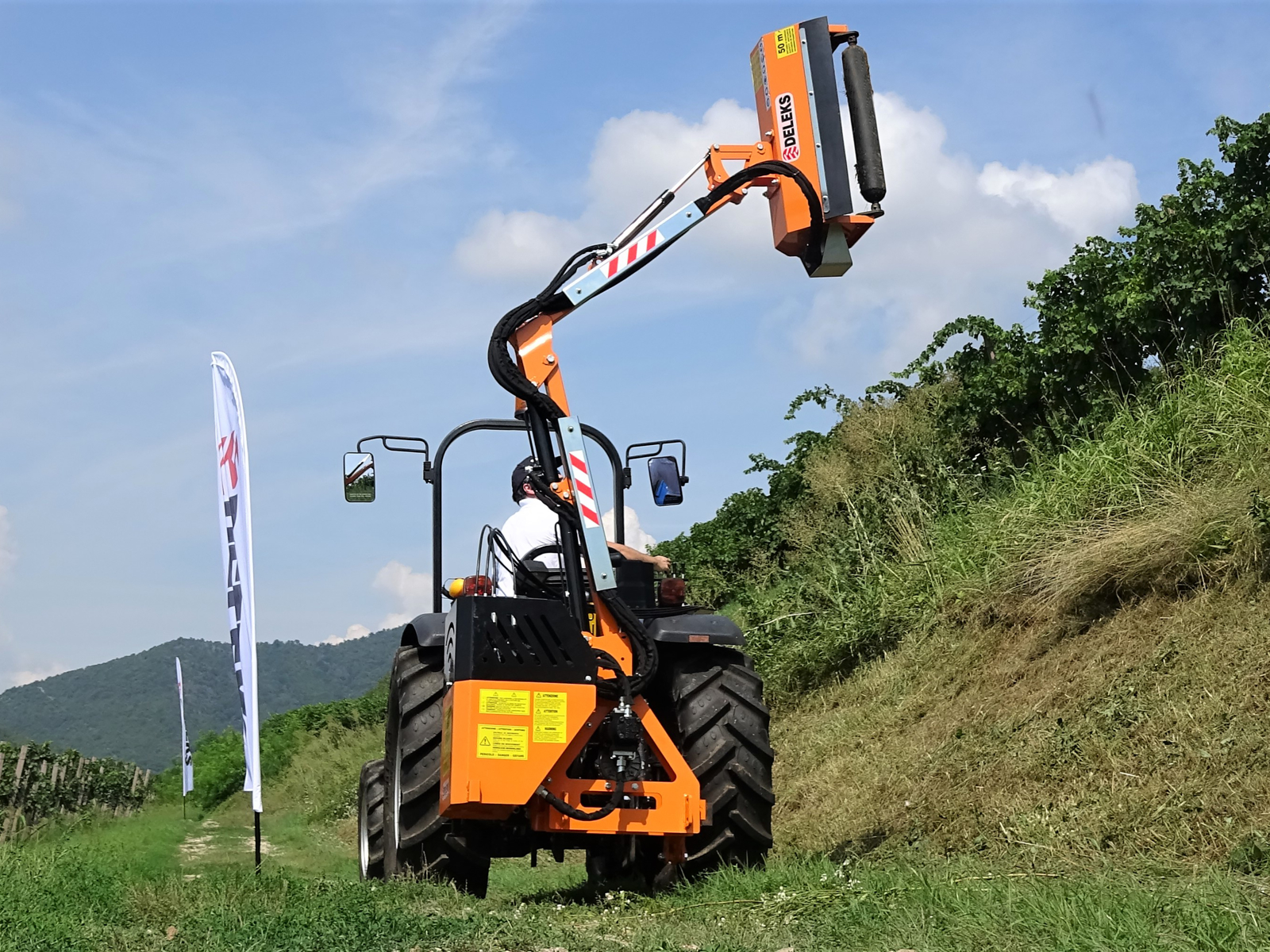

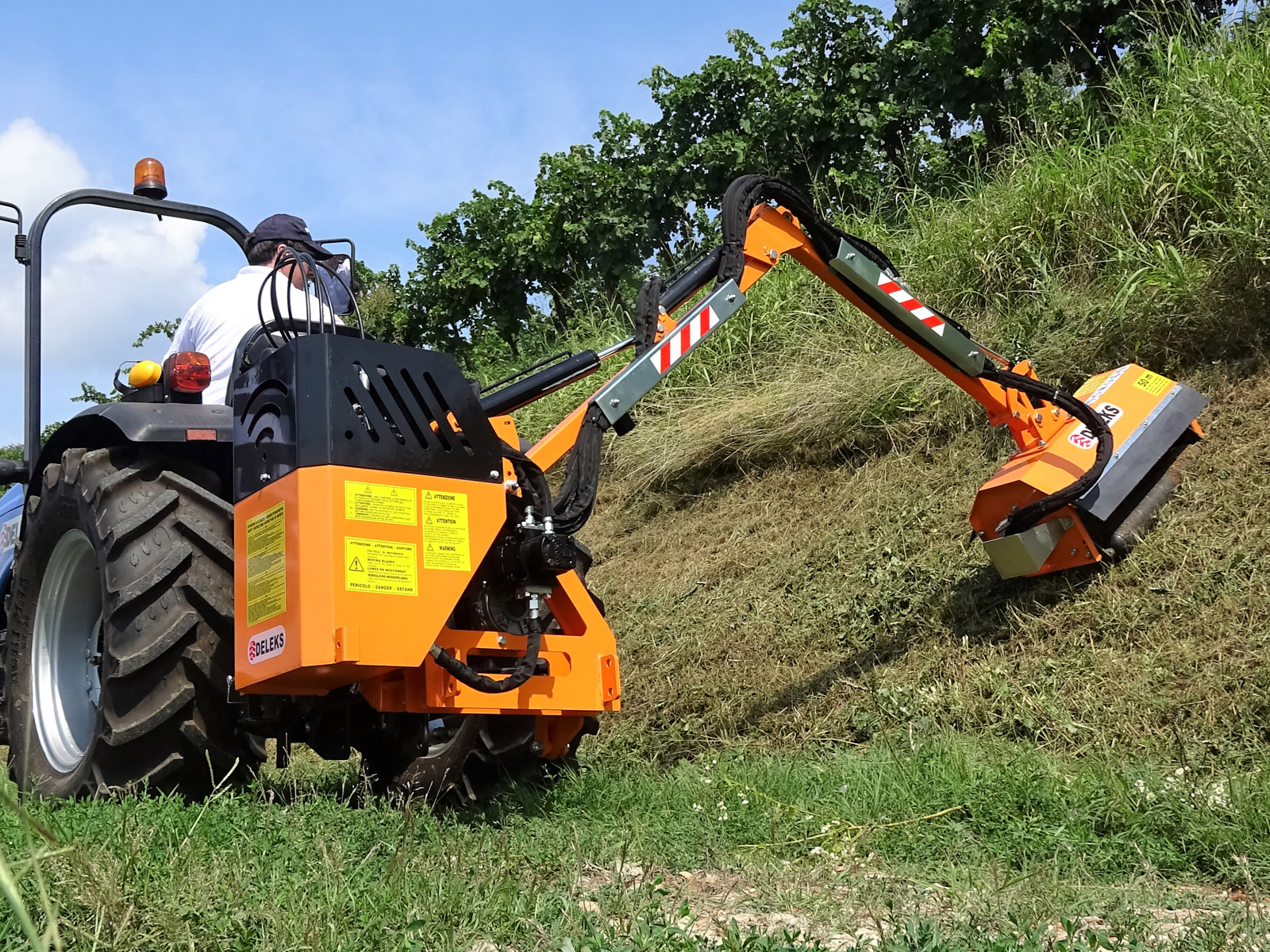

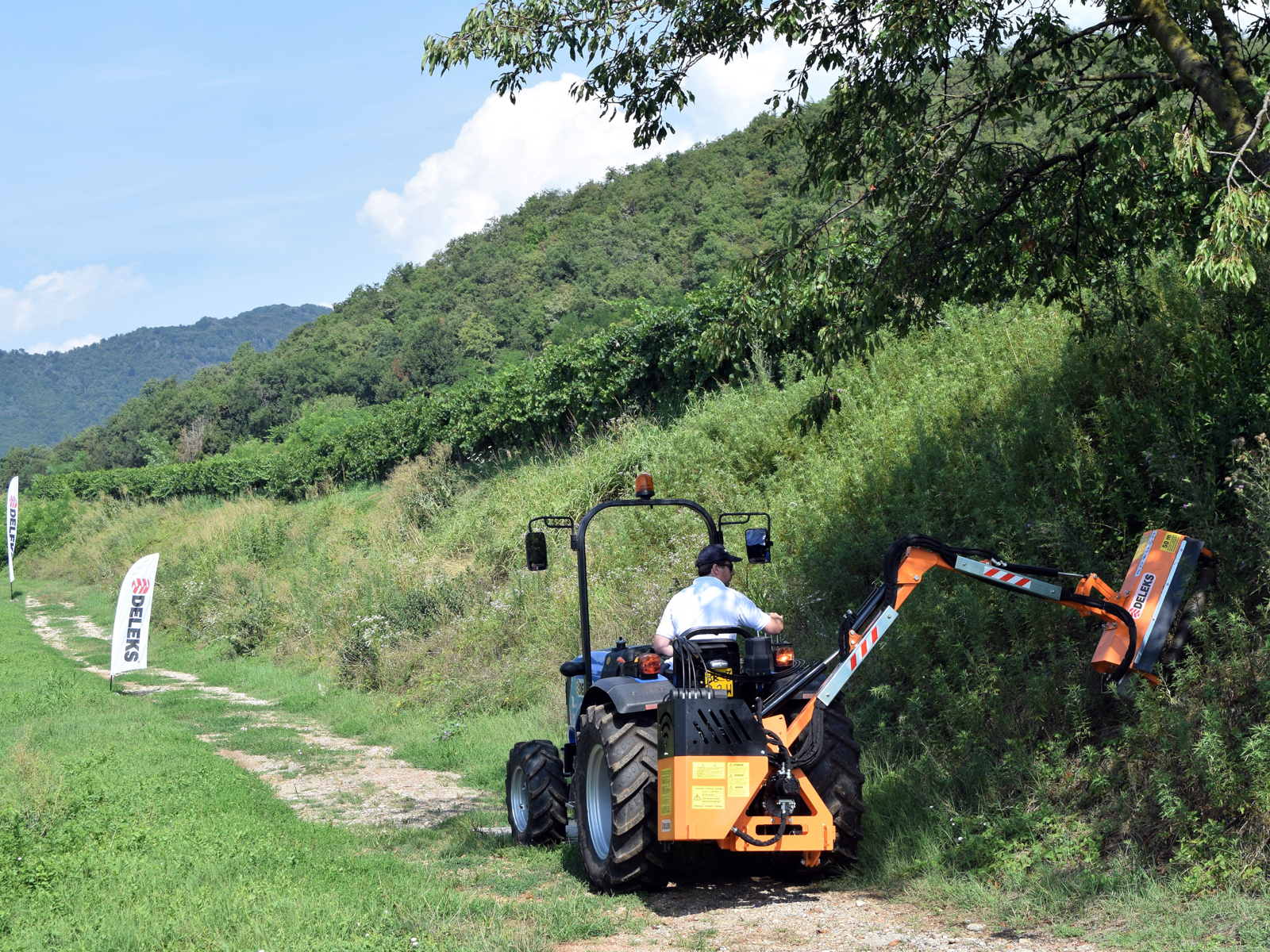

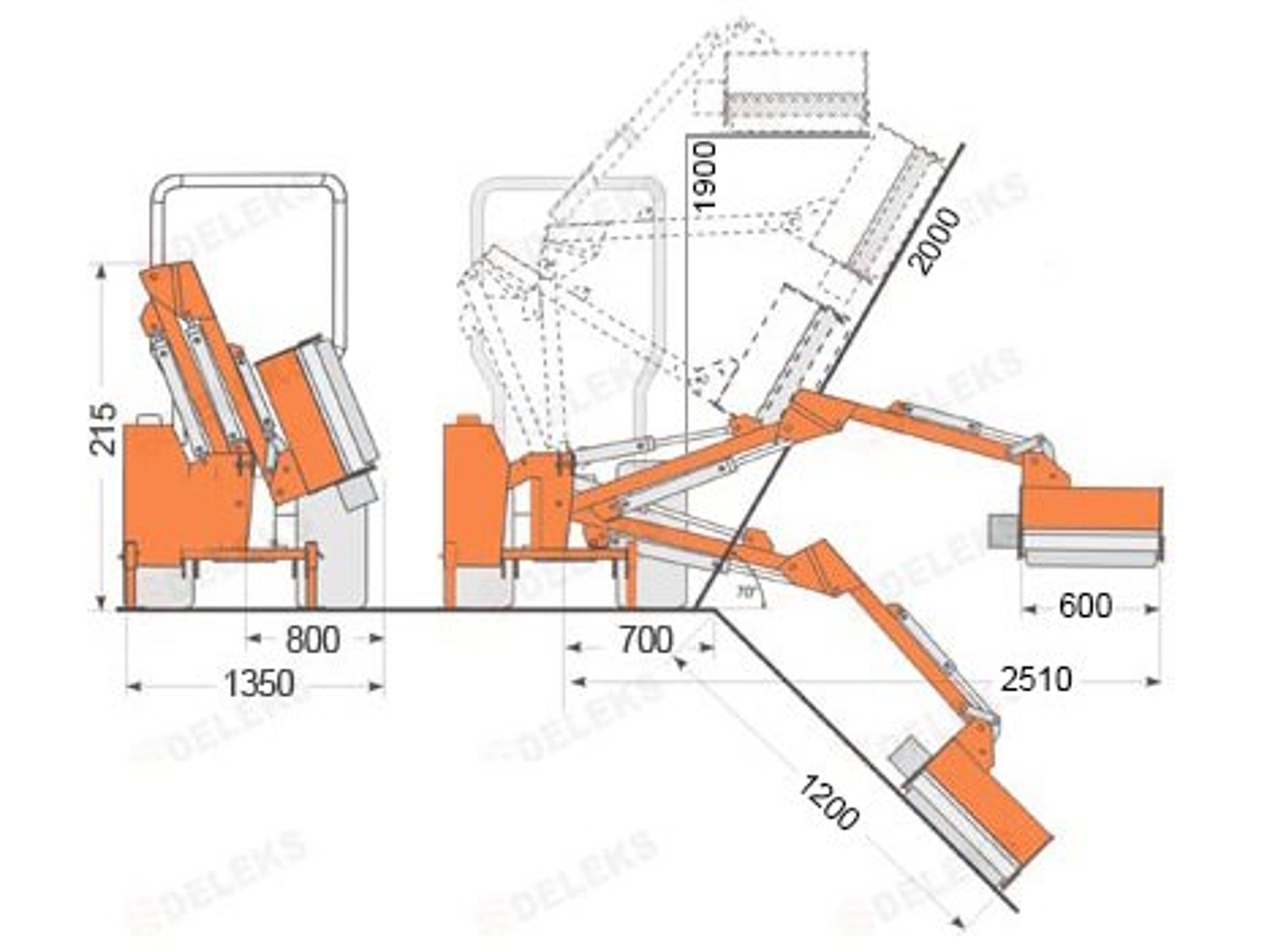

Working positions and reach
The arm takes the head out to a reach of 2.71 m (8.9 ft). Offset and angled, it clears road verges and banks; offset and upright, it cuts back bushes and hedges; horizontal, it works between the rows. Folded for transport it is 1,200 mm (47.2 in) wide and 2,010 mm (79.1 in) high.
Other heads and hedge cutter bars

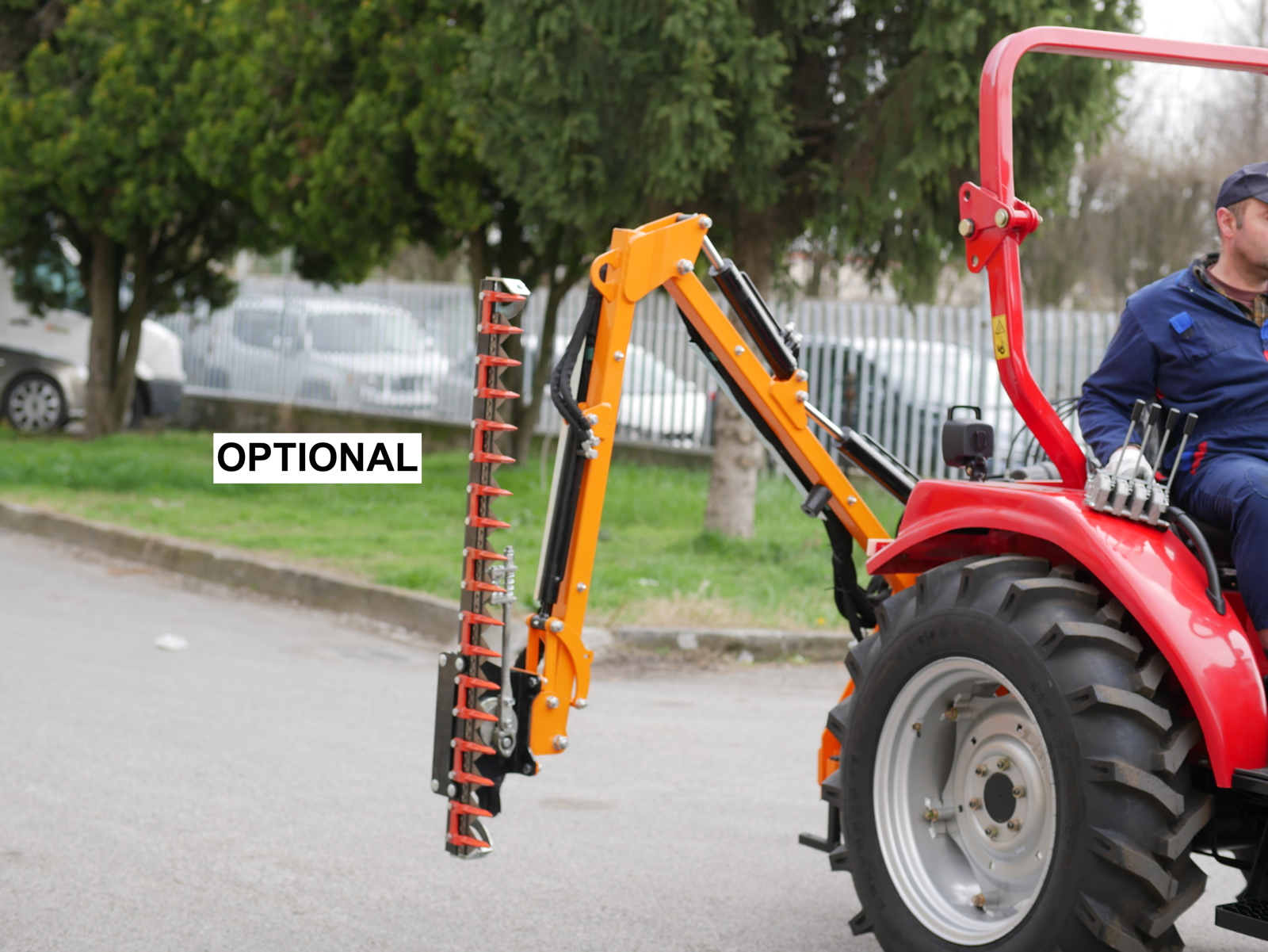

In place of the 60 cm head, the same arm takes the AR-80 and AR-100 flail heads, the HR, HR-S and HRD finger bar hedge cutters of 130, 160 and 180 cm (51, 63 and 71 in) and the HRDISC3 3-disc saw bar, for branches up to 9 cm (3.5 in): the same arm clears ditches in summer and trims hedges in winter.

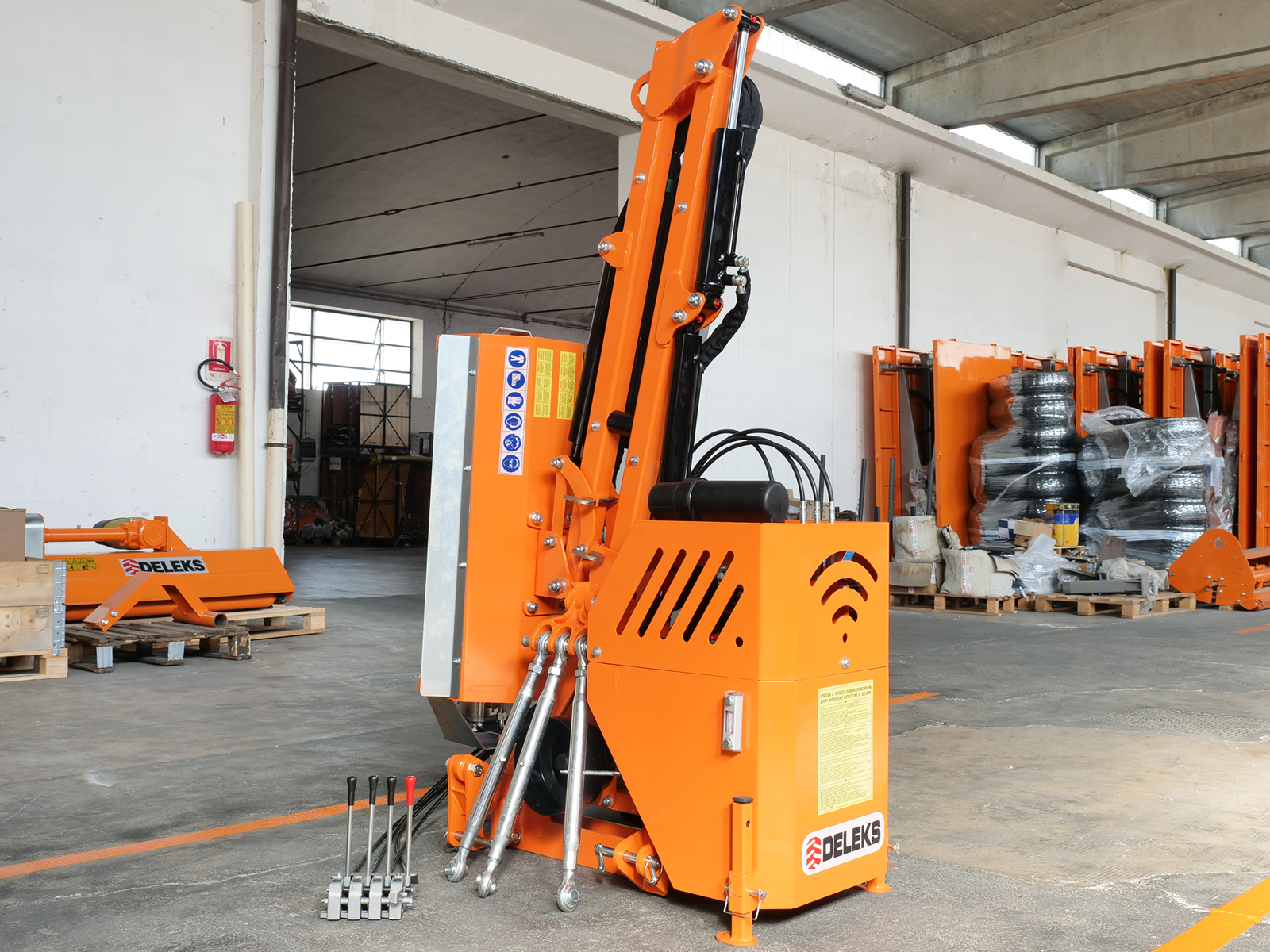

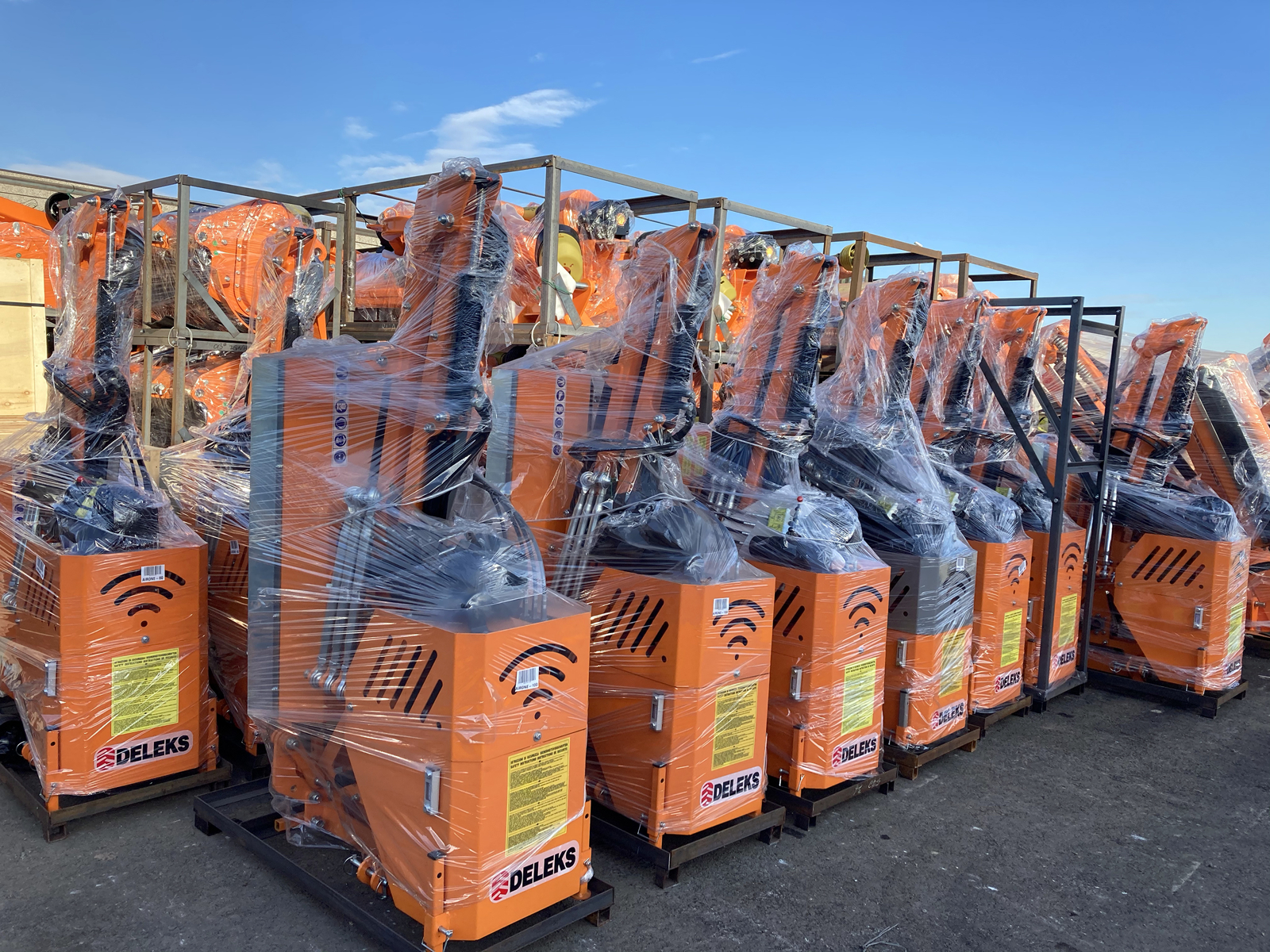

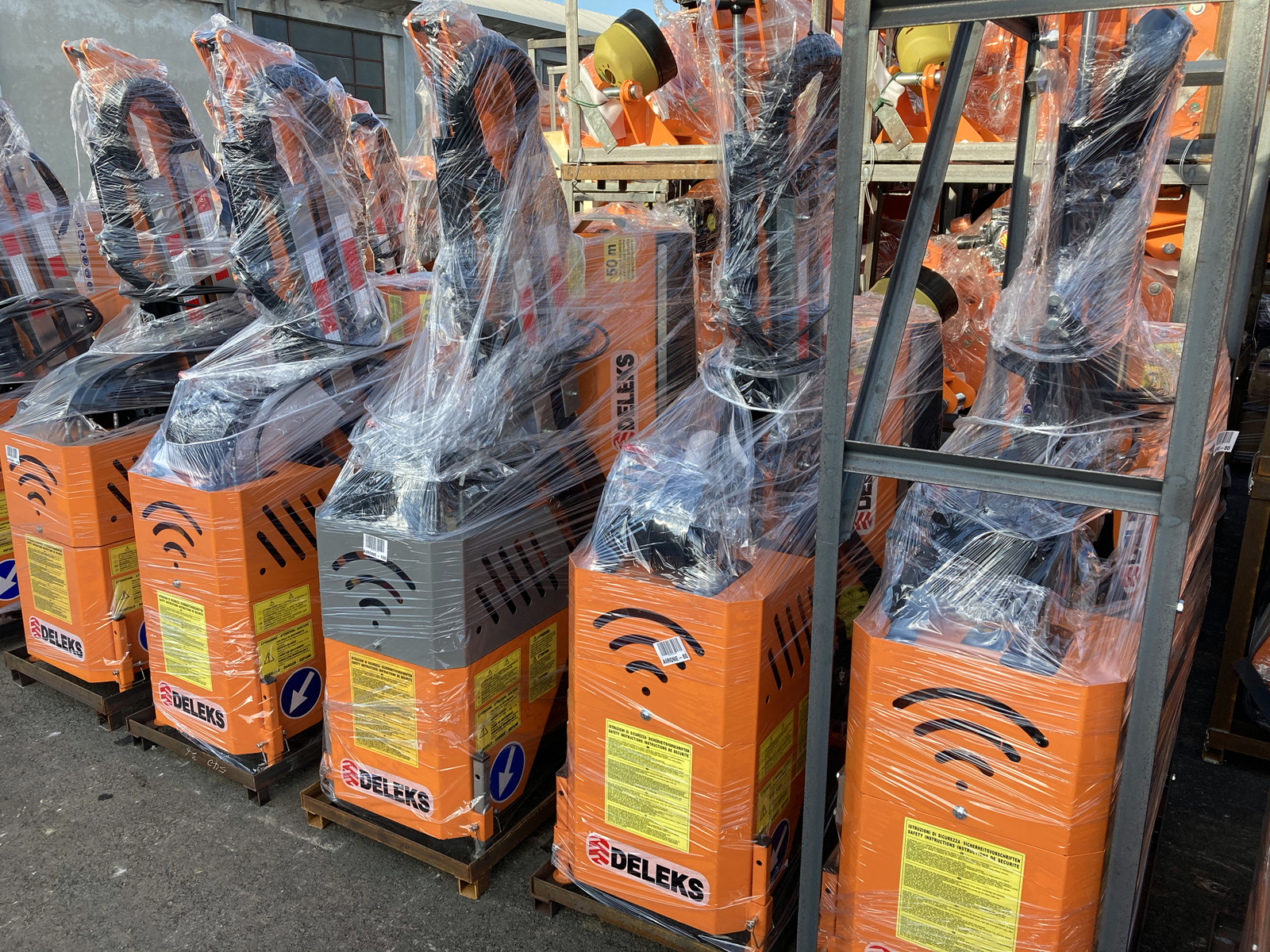

Dimensions, weight and delivery

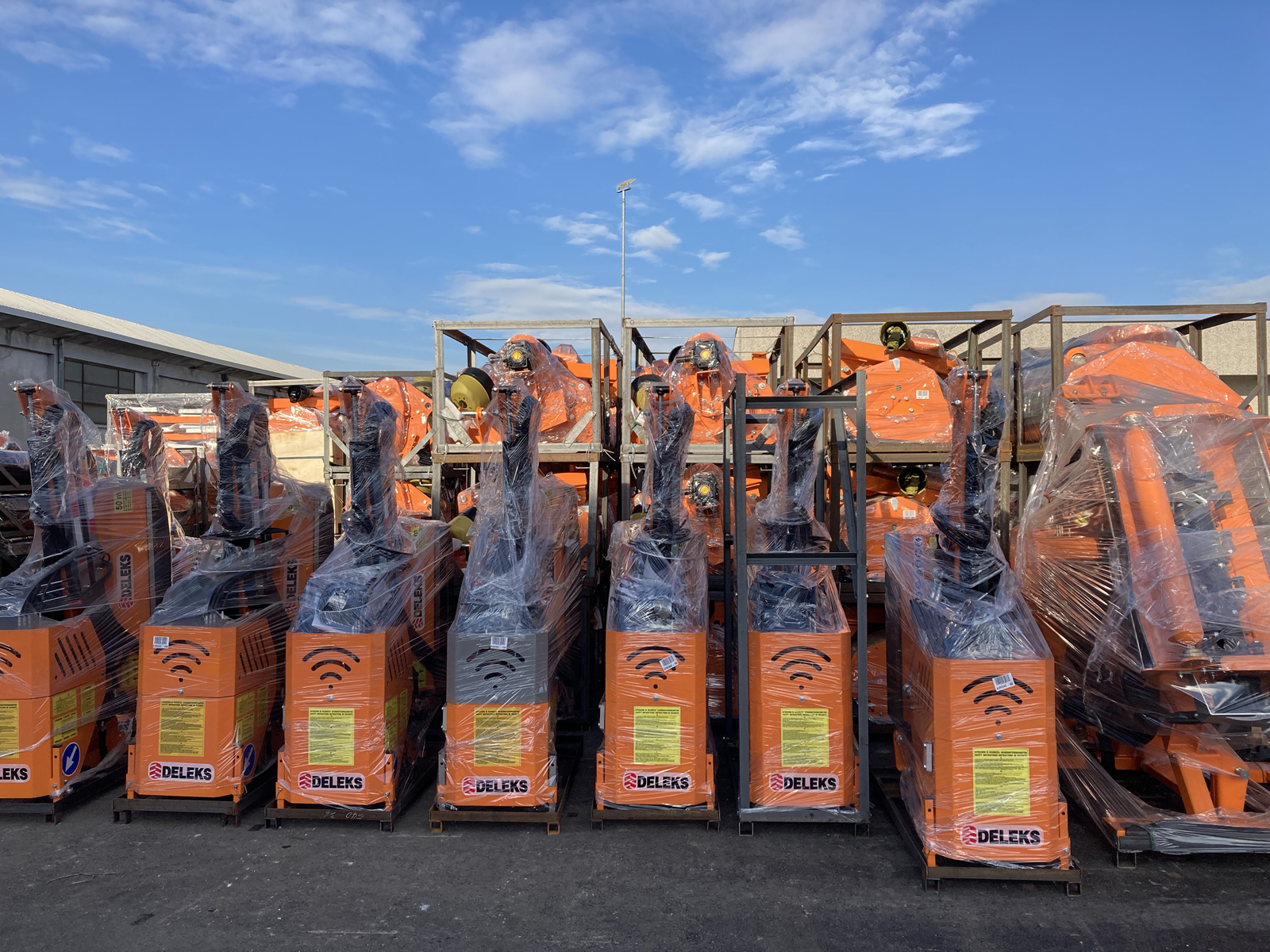

Working width 600 mm (23.6 in); folded: width 1,200 mm (47.2 in), length 1,070 mm (42.1 in), height 2,010 mm (79.1 in); weight 265 kg (584 lb). It ships in a package of 128 × 80 × 215 cm (50 × 31 × 85 in), 358 kg (789 lb) gross and 2.20 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.

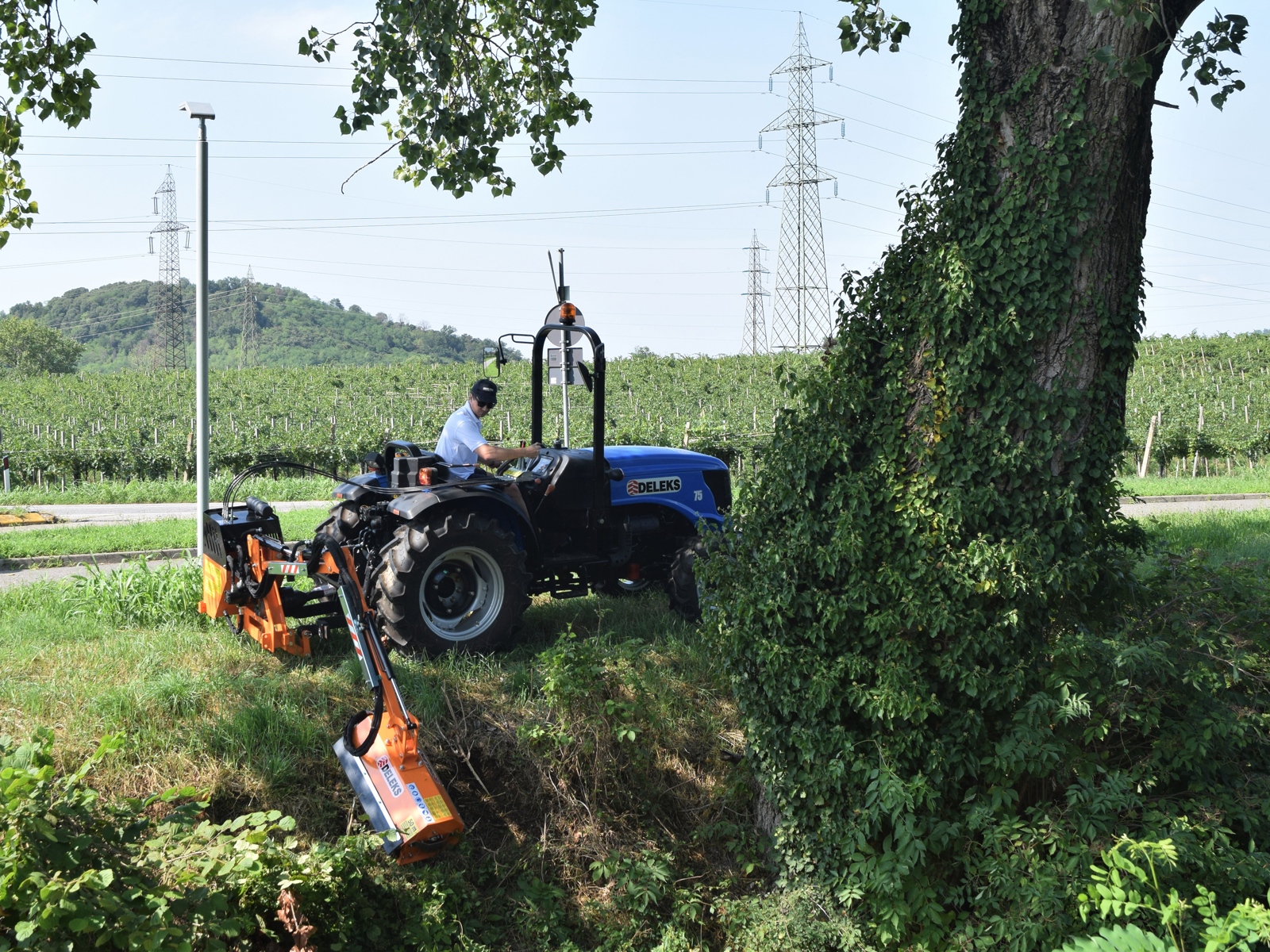

Where it works
- Road verges, central reservations and service tracks: cutting beyond the tractor's width
- Banks, ditches and slopes: grass, brambles and bushes with the head angled
- Hedges and bushes: cutting back with the head upright

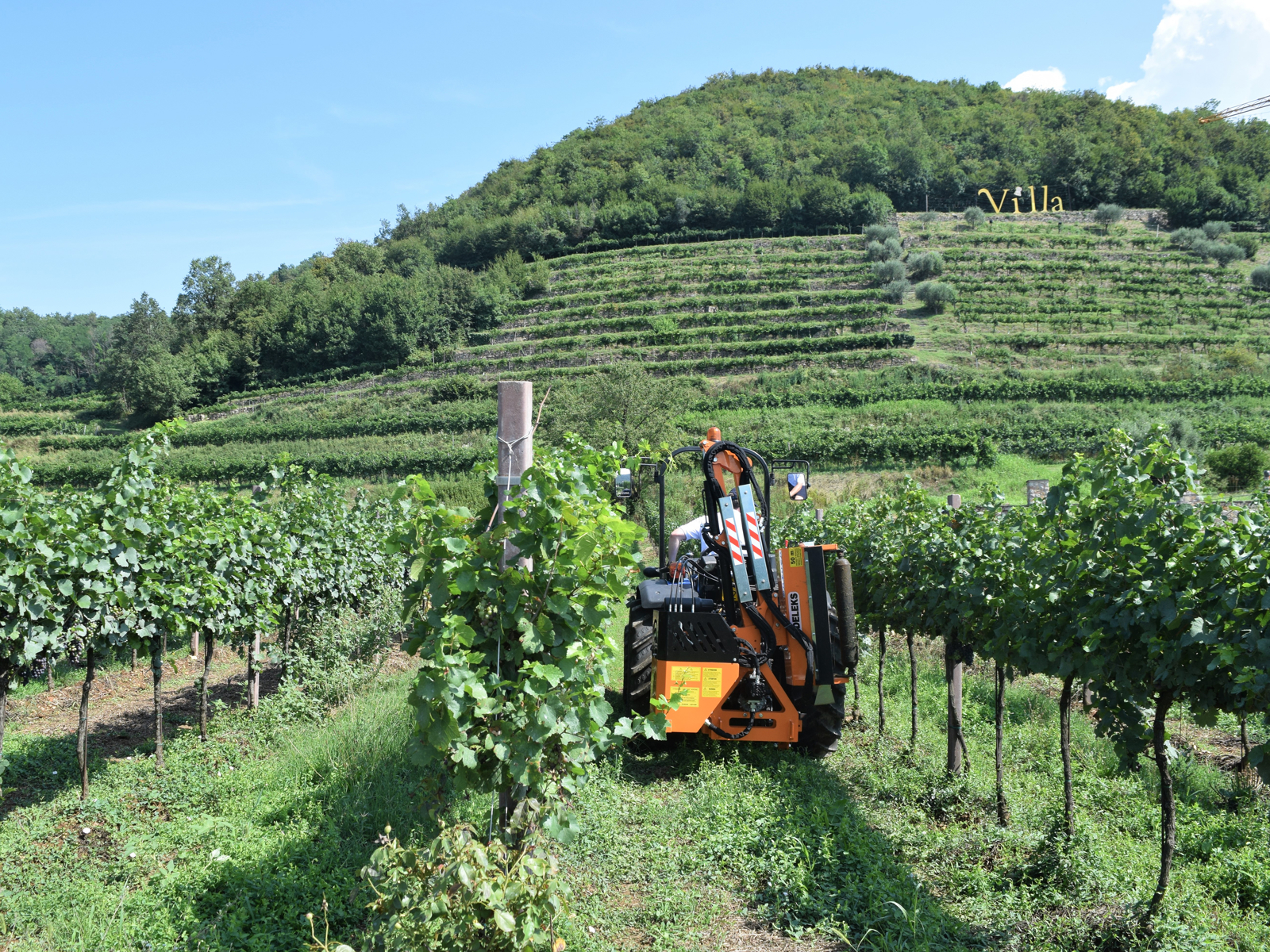

- Vineyards and orchards: working horizontally between the rows
- Land around houses, parks and recreation areas
Options and spares
From the product page you can add to your order the spare set of 30 blades with fixings (COLTELLI30AI), the 10 nuts and bolts with rings (DB10AI) and the universal PTO adapter (RID1). Extra cutting attachments are the AR-80 (AR80) and AR-100 (AR100) flail heads, the HR (HR130, HR160, HR180), HR-S (HR130S, HR160S, HR180S) and HRD (HRD130, HRD160, HRD180) hedge cutter bars and the 3-disc saw bar (HRDISC3). Other spares are identified on the exploded diagrams with our technical service.
FAQ
Which tractor suits the AIRONE-60?
Tractors from 20 to 60 hp weighing at least 1,200 kg (2,646 lb), with a 540 rpm PTO and a category 1 three-point linkage.
Is it suitable for a 25 hp tractor?
Yes, as long as the tractor weighs at least 1,200 kg (2,646 lb): that is the minimum weight required for working with the arm stretched out to the side.
Do I need a hydraulic spool valve on the tractor?
No: the arm has its own pump, driven by the PTO, and its own control valve; all it needs is a 540 rpm PTO and a three-point linkage.
How far does it reach?
Up to 2.71 m (8.9 ft), with the head angled, upright or horizontal.
What does it cut?
Grass, plant residue, bushes, brambles and vine prunings up to 1.5 cm (0.6 in) thick. For hedges and branches there are the hedge cutter bars, which fit the same arm.
Can I fit a hedge cutter bar?
Yes: the HR, HR-S and HRD finger bars of 130, 160 and 180 cm and the HRDISC3 3-disc saw bar. If you mostly use the bar, choose the AIRONE-TR, which has it as standard.
Hedge cutter arm or verge flail mower?
A verge flail mower covers long stretches of ditch quickly with a wide head; a hedge cutter arm reaches further, works on steep banks and can carry a finger bar hedge cutter.
Is the PTO shaft included?
Yes: a CE-approved category 4 PTO shaft, 700 mm (27.6 in) long.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: blades, cutter bar knives, fingers, bearings, hydraulic hoses, pump and arm components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right arm and cutting attachments for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 600.0 mm |
| Overall width | 1200.0 mm (closed) |
| Min / Max cutting height | 20.0 - 80.0 mm |
| Weight | 265.0 kg |
| Overall height | 2010.0 mm |
| Tractor Power Range | 20-60 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Hood height | 330.0 mm |
| Spacing between the 2 lower points | 470.0 - 570.0 mm |
| Maximum cutting diameter | 15.0 mm |
| Overall length | 1070.0 mm |
| Distance between pto attachment and ground | 400.0 mm |
| Main hood thickness | 4.0 mm |
| Transmission: Drive method | Hydraulic |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: RPM Rotor speed | 1500 r/min |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Rotor: diameter | 78.0 mm |
| Rotor: bearings type and size | GB276-6007 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 14.0 mm |
| Rear roller: diameter | 102.0 mm |
| Rear roller: sheet thickness | 4.0 mm |
| Rear roller: bearings type and size | φ25 |
| Hydraulic Hoses | WP 400 Bar |
| Pto shaft | CE 4x700 mm |
| Hood length | 650.0 mm |
| Number of Blades | 24 |
| Blades: Weight | 130.0 g |
| Blades: Diameter of the hole | 13.0 mm |
| Displacement | 2710.0 mm |
| Transmission: Oil in the tank | 55.0 lt |
| Blades: base width | 50.0 mm |
| Blades: Diagonal | 85.0 mm |
| Gross shipping weight | 358 kg |
| Package volume | 2.20 m3 |
| Packing sizes | 1280.0*800.0*2150.0 mm |
DETAILS
CLOSEHydraulic tractor hedge cutter with a 60 cm (24 in) flail head, the DELEKS® AIRONE-60: a side arm flail mower for 20 to 60 hp compact tractors with a category 1 three-point linkage, such as Kubota, Antonio Carraro, Goldoni, BCS and Pasquali. The hydraulic system is independent: a Casappa tandem pump driven by the PTO, a Bondioli & Pavesi control valve and a 55-litre (12.1 UK gal) tank, so the arm moves while the head is cutting. The 24-blade head shreds grass, plant residue, bushes, brambles and vine prunings on road verges, banks, ditches and slopes, with a reach of up to 2.71 m (8.9 ft); it works angled, upright or horizontally between the rows. CE-approved PTO shaft included. It is TÜV-certified, carries a 2-year warranty and comes with free delivery within the EU.
Which tractors it fits
The AIRONE-60 is built for 20 to 60 hp tractors with a 540 rpm PTO and a category 1 three-point linkage (19-22 mm pins, lower link spacing from 470 to 570 mm): Kubota B series, Antonio Carraro Tigre, Goldoni, BCS, Ferrari, Pasquali, New Holland, Landini and Valpadana. The tractor must weigh at least 1,200 kg (2,646 lb): with the arm stretched out to the side the centre of gravity shifts. The arm with its head weighs 265 kg (584 lb).
Independent hydraulic system
The hydraulic system is independent of the tractor: the Casappa tandem pump, Made in Italy, is driven by the PTO and lets you move the arm while the head is cutting, without using the tractor's spool valves. The control valve is by Bondioli & Pavesi and the head's hydraulic motor by Casappa, both Made in Italy. The 55-litre (12.1 UK gal) tank arrives filled to level with Shell Tellus S2 MX 46 oil. The remote control with 4 levers, connected by flexible hoses, mounts next to the driver's seat. The gearbox has a freewheel and the CE-approved category 4 PTO shaft, 700 mm (27.6 in) long, is included.
Flail head with 24 blades
The 60 cm (24 in) head has a 78 mm (3.1 in) rotor, electronically balanced, turning at 1,500 rpm with 24 blades of 130 g (4.6 oz). It shreds grass, plant residue, bushes, brambles and vine prunings up to 1.5 cm (0.6 in) thick. The 102 mm (4 in) rear roller sets the cutting height from 20 to 80 mm (0.8 to 3.1 in). Replacement blades come as the COLTELLI30AI set.
Working positions and reach
The arm takes the head out to a reach of 2.71 m (8.9 ft). Offset and angled, it clears road verges and banks; offset and upright, it cuts back bushes and hedges; horizontal, it works between the rows. Folded for transport it is 1,200 mm (47.2 in) wide and 2,010 mm (79.1 in) high.
Other heads and hedge cutter bars
In place of the 60 cm head, the same arm takes the AR-80 and AR-100 flail heads, the HR, HR-S and HRD finger bar hedge cutters of 130, 160 and 180 cm (51, 63 and 71 in) and the HRDISC3 3-disc saw bar, for branches up to 9 cm (3.5 in): the same arm clears ditches in summer and trims hedges in winter.
Dimensions, weight and delivery
Working width 600 mm (23.6 in); folded: width 1,200 mm (47.2 in), length 1,070 mm (42.1 in), height 2,010 mm (79.1 in); weight 265 kg (584 lb). It ships in a package of 128 × 80 × 215 cm (50 × 31 × 85 in), 358 kg (789 lb) gross and 2.20 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.
Where it works
- Road verges, central reservations and service tracks: cutting beyond the tractor's width
- Banks, ditches and slopes: grass, brambles and bushes with the head angled
- Hedges and bushes: cutting back with the head upright
- Vineyards and orchards: working horizontally between the rows
- Land around houses, parks and recreation areas
Options and spares
From the product page you can add to your order the spare set of 30 blades with fixings (COLTELLI30AI), the 10 nuts and bolts with rings (DB10AI) and the universal PTO adapter (RID1). Extra cutting attachments are the AR-80 (AR80) and AR-100 (AR100) flail heads, the HR (HR130, HR160, HR180), HR-S (HR130S, HR160S, HR180S) and HRD (HRD130, HRD160, HRD180) hedge cutter bars and the 3-disc saw bar (HRDISC3). Other spares are identified on the exploded diagrams with our technical service.
FAQ
Which tractor suits the AIRONE-60?
Tractors from 20 to 60 hp weighing at least 1,200 kg (2,646 lb), with a 540 rpm PTO and a category 1 three-point linkage.
Is it suitable for a 25 hp tractor?
Yes, as long as the tractor weighs at least 1,200 kg (2,646 lb): that is the minimum weight required for working with the arm stretched out to the side.
Do I need a hydraulic spool valve on the tractor?
No: the arm has its own pump, driven by the PTO, and its own control valve; all it needs is a 540 rpm PTO and a three-point linkage.
How far does it reach?
Up to 2.71 m (8.9 ft), with the head angled, upright or horizontal.
What does it cut?
Grass, plant residue, bushes, brambles and vine prunings up to 1.5 cm (0.6 in) thick. For hedges and branches there are the hedge cutter bars, which fit the same arm.
Can I fit a hedge cutter bar?
Yes: the HR, HR-S and HRD finger bars of 130, 160 and 180 cm and the HRDISC3 3-disc saw bar. If you mostly use the bar, choose the AIRONE-TR, which has it as standard.
Hedge cutter arm or verge flail mower?
A verge flail mower covers long stretches of ditch quickly with a wide head; a hedge cutter arm reaches further, works on steep banks and can carry a finger bar hedge cutter.
Is the PTO shaft included?
Yes: a CE-approved category 4 PTO shaft, 700 mm (27.6 in) long.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: blades, cutter bar knives, fingers, bearings, hydraulic hoses, pump and arm components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right arm and cutting attachments for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
CLOSE| Characteristic | Units metric |
|---|---|
| Working width | 600.0 mm |
| Overall width | 1200.0 mm (closed) |
| Min / Max cutting height | 20.0 - 80.0 mm |
| Weight | 265.0 kg |
| Overall height | 2010.0 mm |
| Tractor Power Range | 20-60 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Hood height | 330.0 mm |
| Spacing between the 2 lower points | 470.0 - 570.0 mm |
| Maximum cutting diameter | 15.0 mm |
| Overall length | 1070.0 mm |
| Distance between pto attachment and ground | 400.0 mm |
| Main hood thickness | 4.0 mm |
| Transmission: Drive method | Hydraulic |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: RPM Rotor speed | 1500 r/min |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Rotor: diameter | 78.0 mm |
| Rotor: bearings type and size | GB276-6007 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 14.0 mm |
| Rear roller: diameter | 102.0 mm |
| Rear roller: sheet thickness | 4.0 mm |
| Rear roller: bearings type and size | φ25 |
| Hydraulic Hoses | WP 400 Bar |
| Pto shaft | CE 4x700 mm |
| Hood length | 650.0 mm |
| Number of Blades | 24 |
| Blades: Weight | 130.0 g |
| Blades: Diameter of the hole | 13.0 mm |
| Displacement | 2710.0 mm |
| Transmission: Oil in the tank | 55.0 lt |
| Blades: base width | 50.0 mm |
| Blades: Diagonal | 85.0 mm |
| Gross shipping weight | 358 kg |
| Package volume | 2.20 m3 |
| Packing sizes | 1280.0*800.0*2150.0 mm |

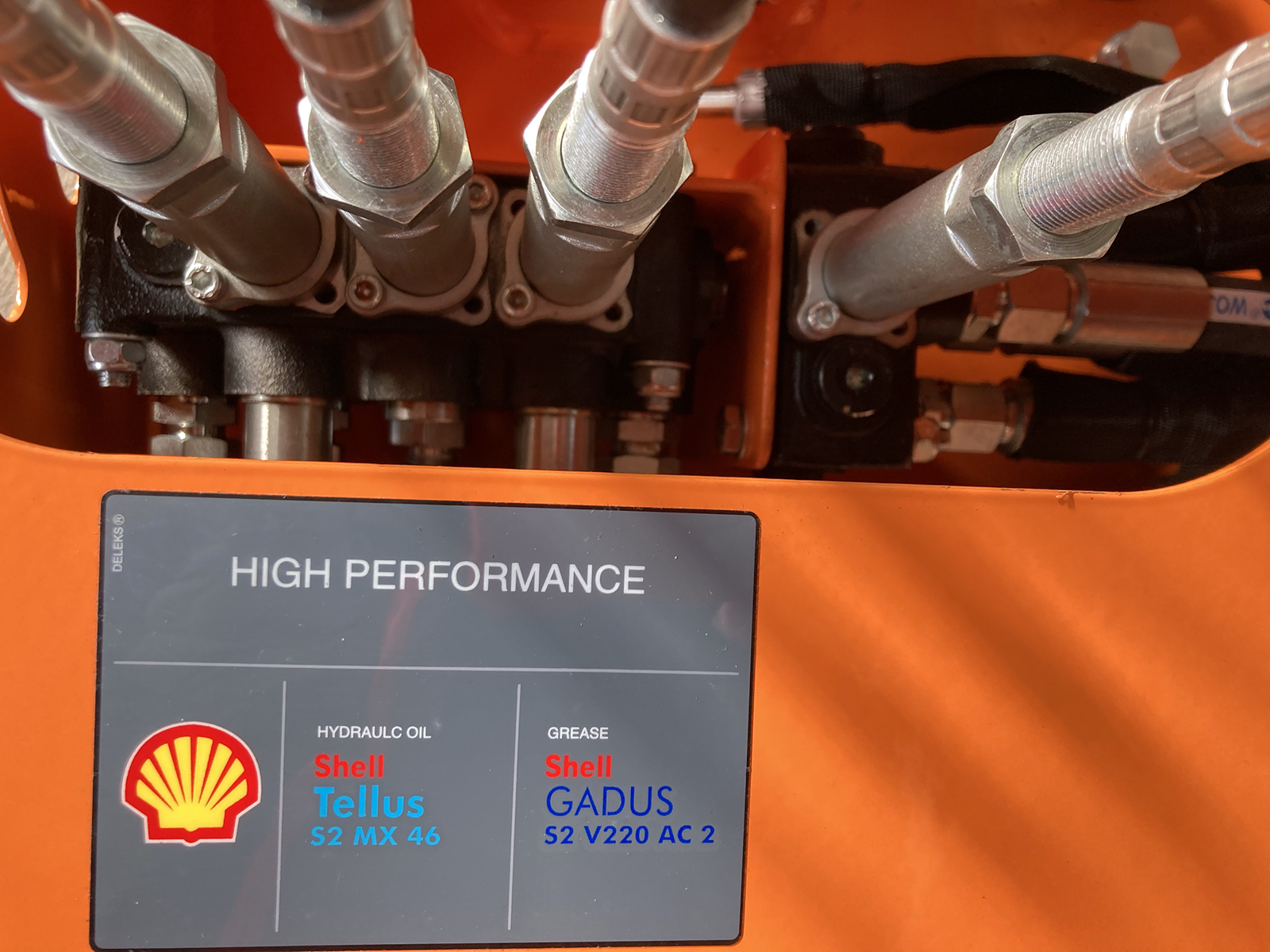

Technical charts
