Tractor hedge cutter arm MERLO with joystick, hydraulic arm for a flail head or a hedge cutter bar, 25 to 60 hp tractors

Available
Code MERLOPTO - EAN 8057724860054
3.315,00€VAT incl.
Free shipping
Loading...
3.315,00€VAT incl.
Free shipping
View all details.

4.6

1551 reviews

3.315,00€VAT incl.
 REQUEST INFORMATION

DETAILS

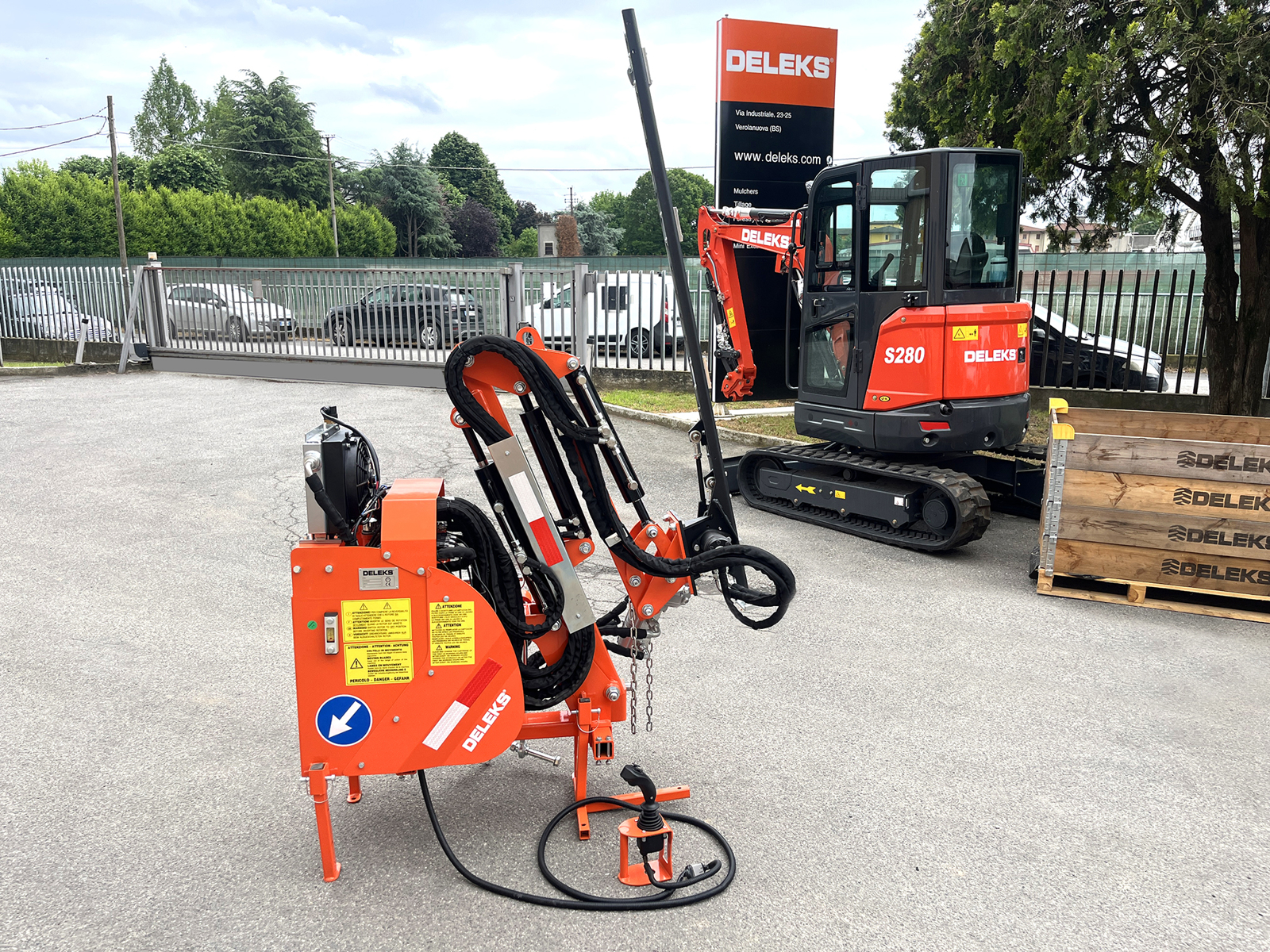

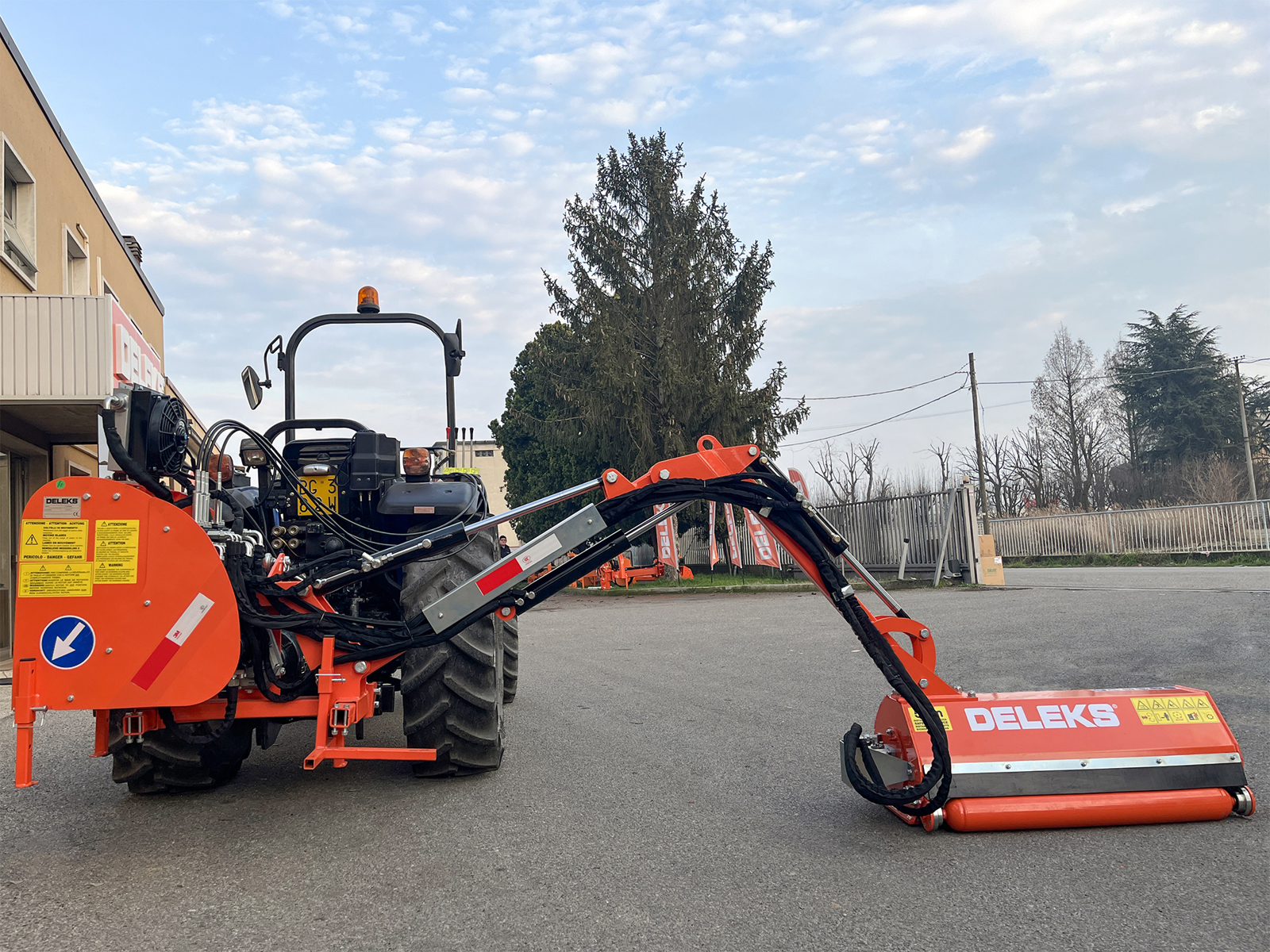

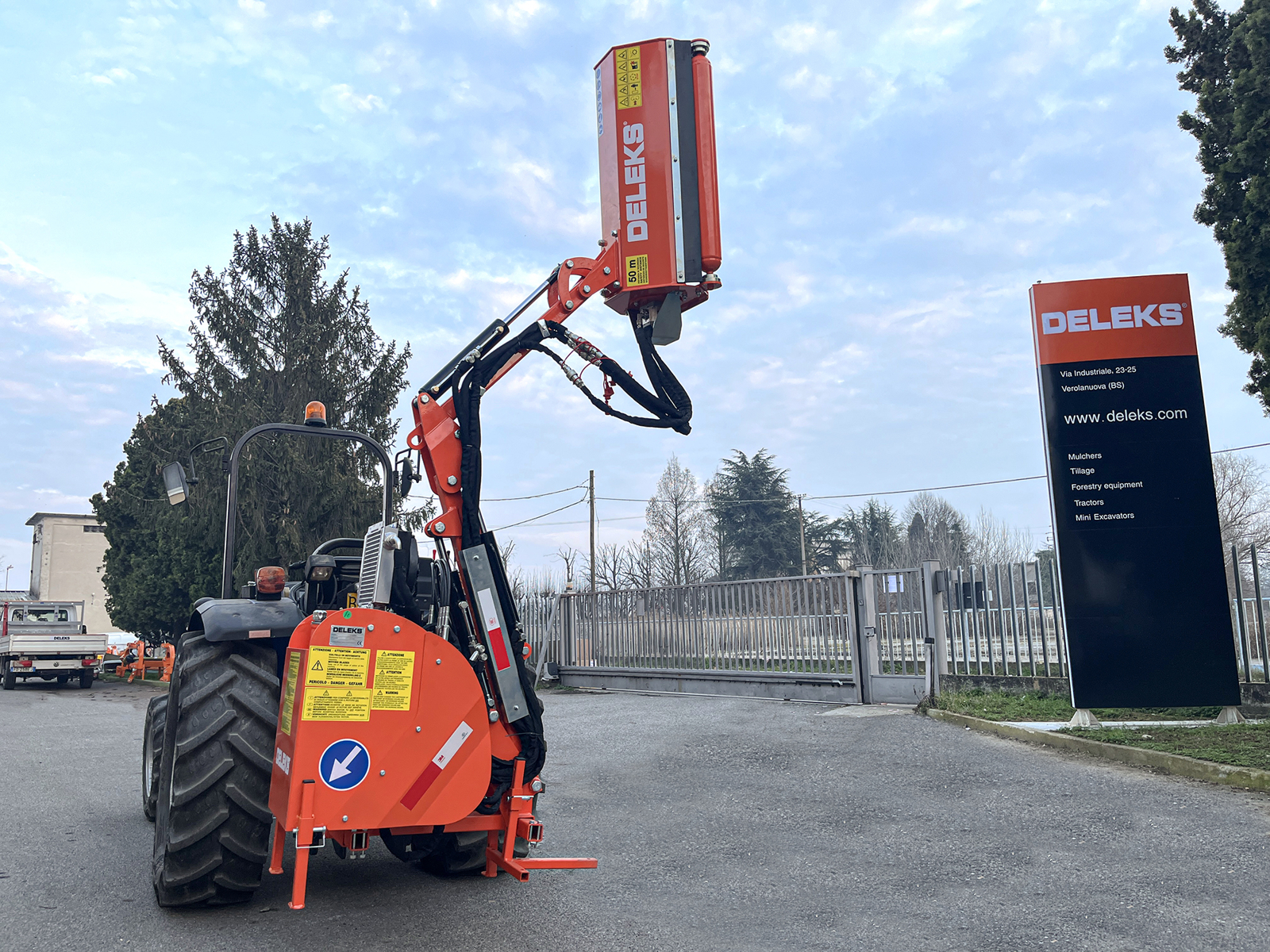

Hydraulic tractor hedge cutter arm with joystick, the DELEKS® MERLO: a multi-purpose arm for 25 to 60 hp tractors that takes an ARK flail head of 80, 100 or 110 cm (31, 39 or 43 in) or a hedge cutter bar of 130, 160 or 180 cm (51, 63 or 71 in). The electro-hydraulic control valve is worked from a joystick and the tandem pump, driven by the PTO, moves the arm while the attachment is working. With the flail head it clears road verges, banks, ditches and slopes; with the bar it trims hedges and branches. It is supplied as the base unit only, 300 kg (661 lb), with a 60-litre (13.2 UK gal) tank already filled to level: head and bar are chosen as options. It is certified by ECO Certificazioni, carries a 2-year warranty and comes with free delivery within the EU.

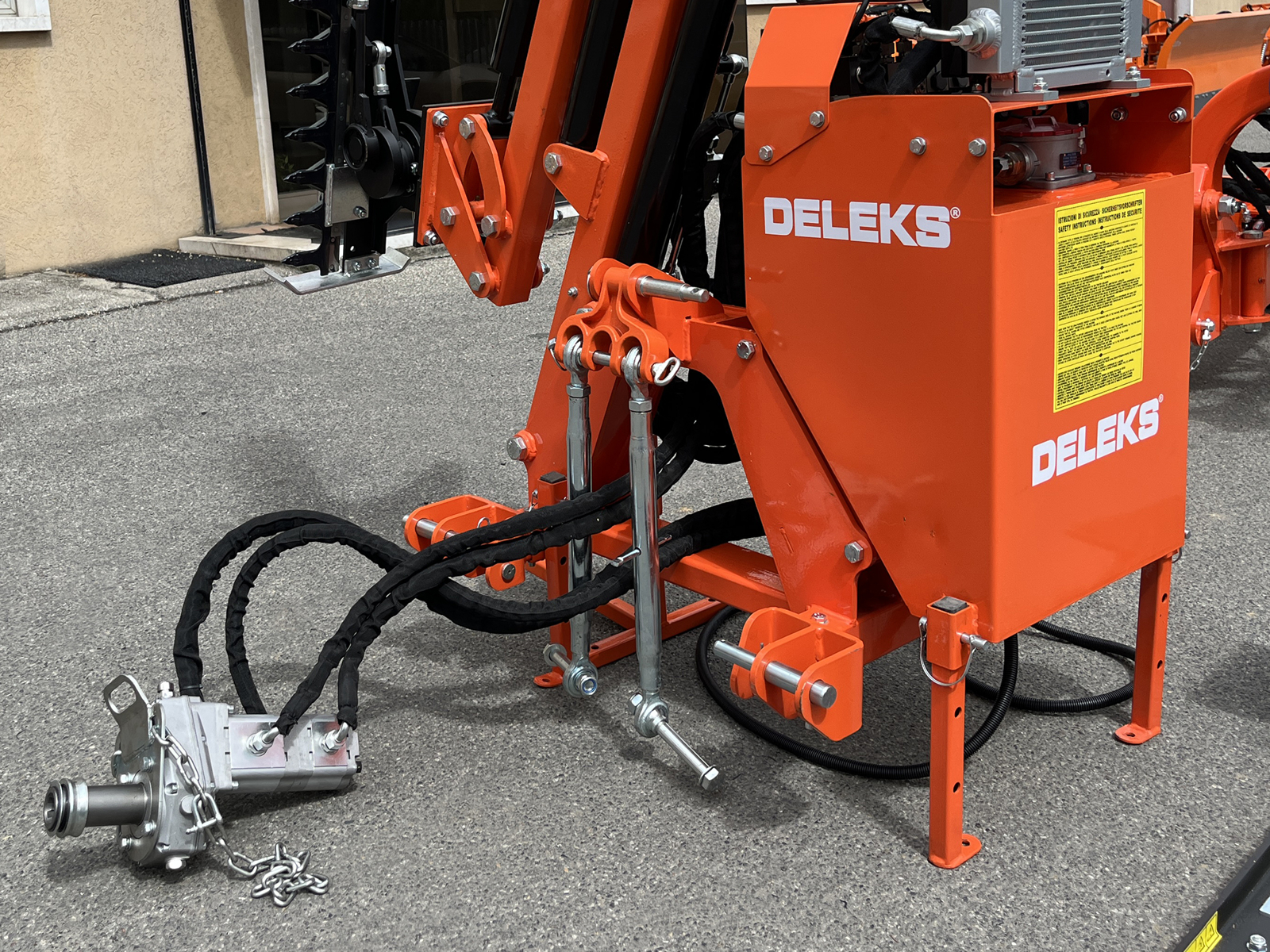

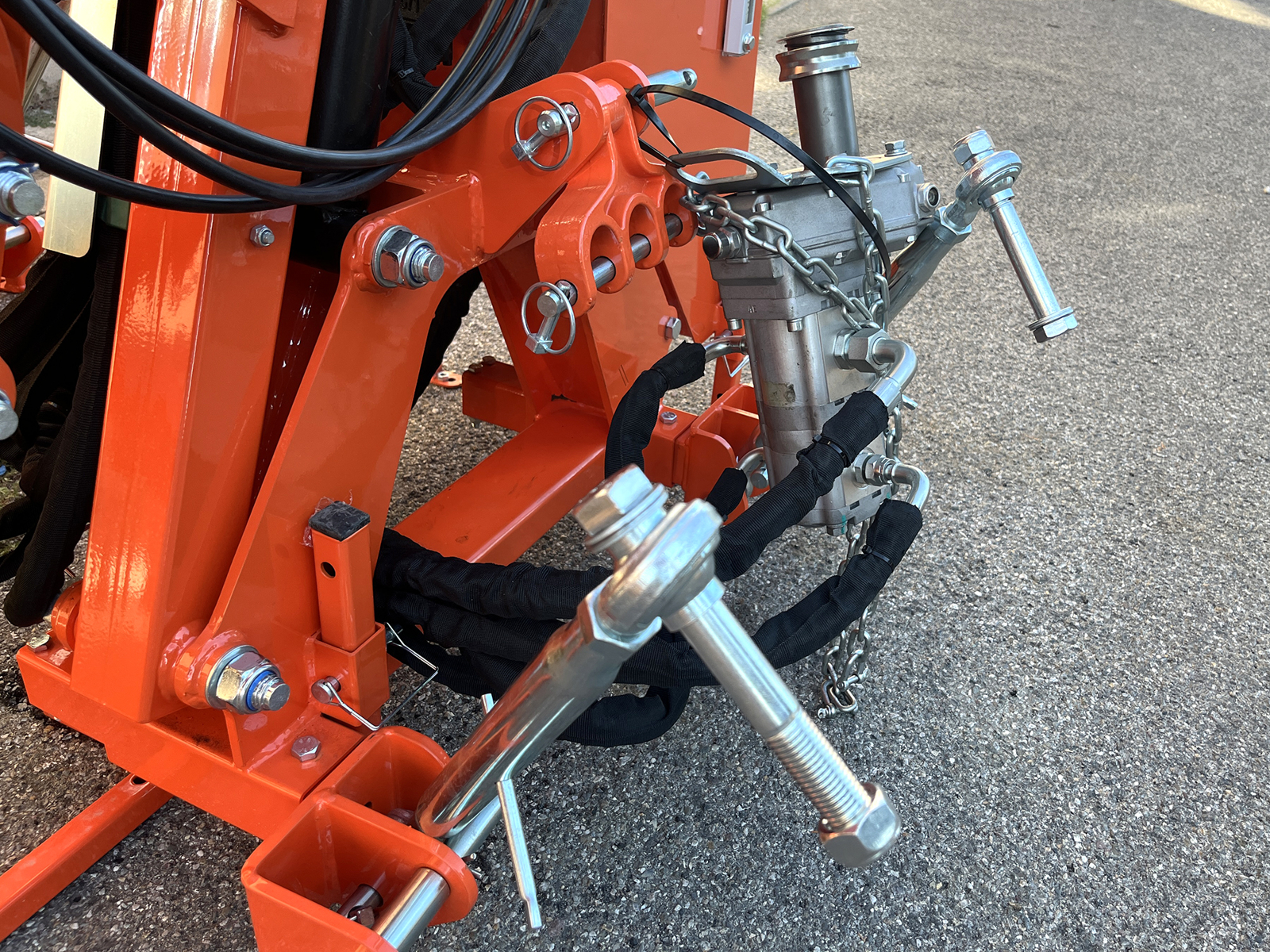

Which tractors it fits

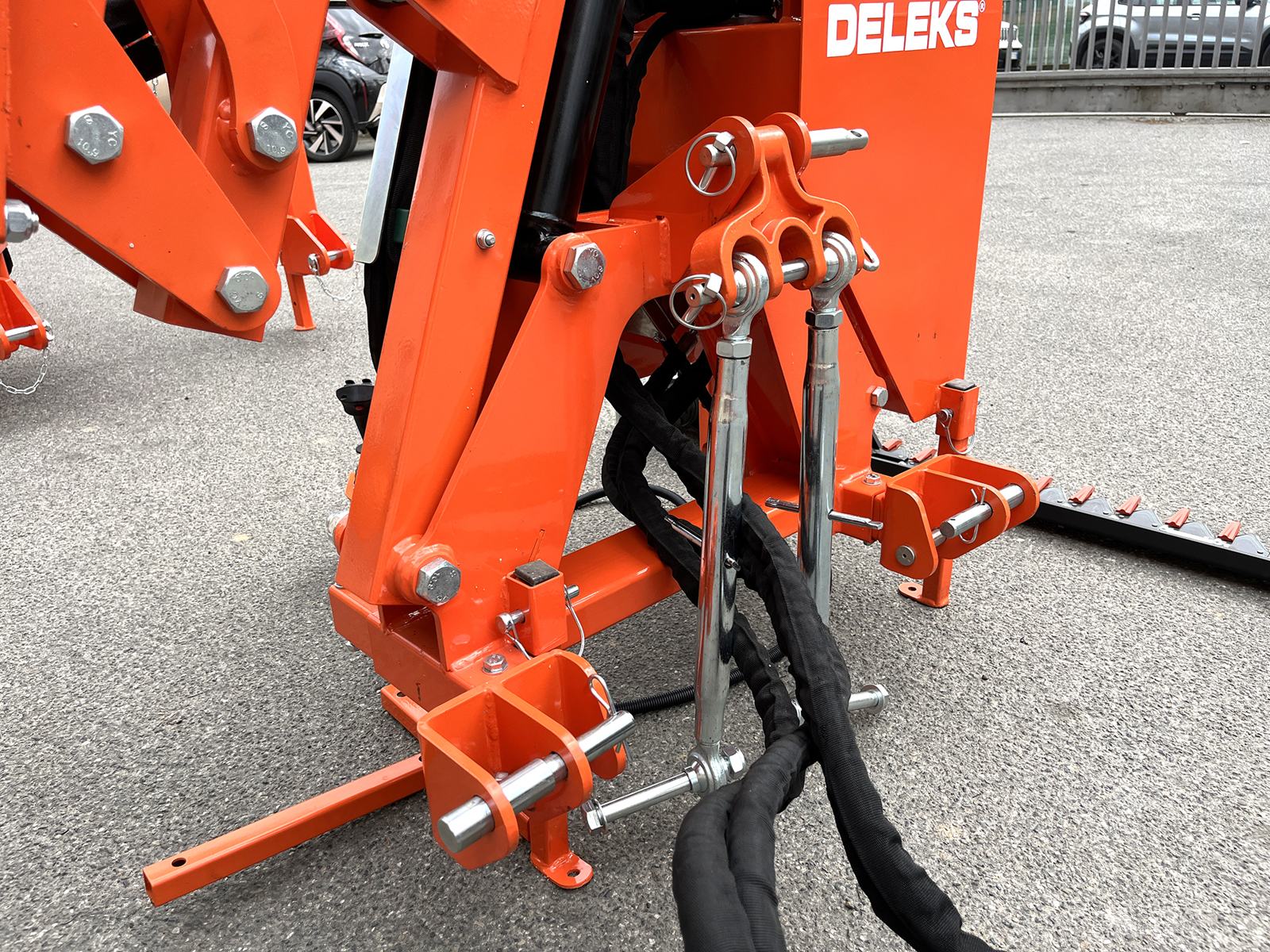

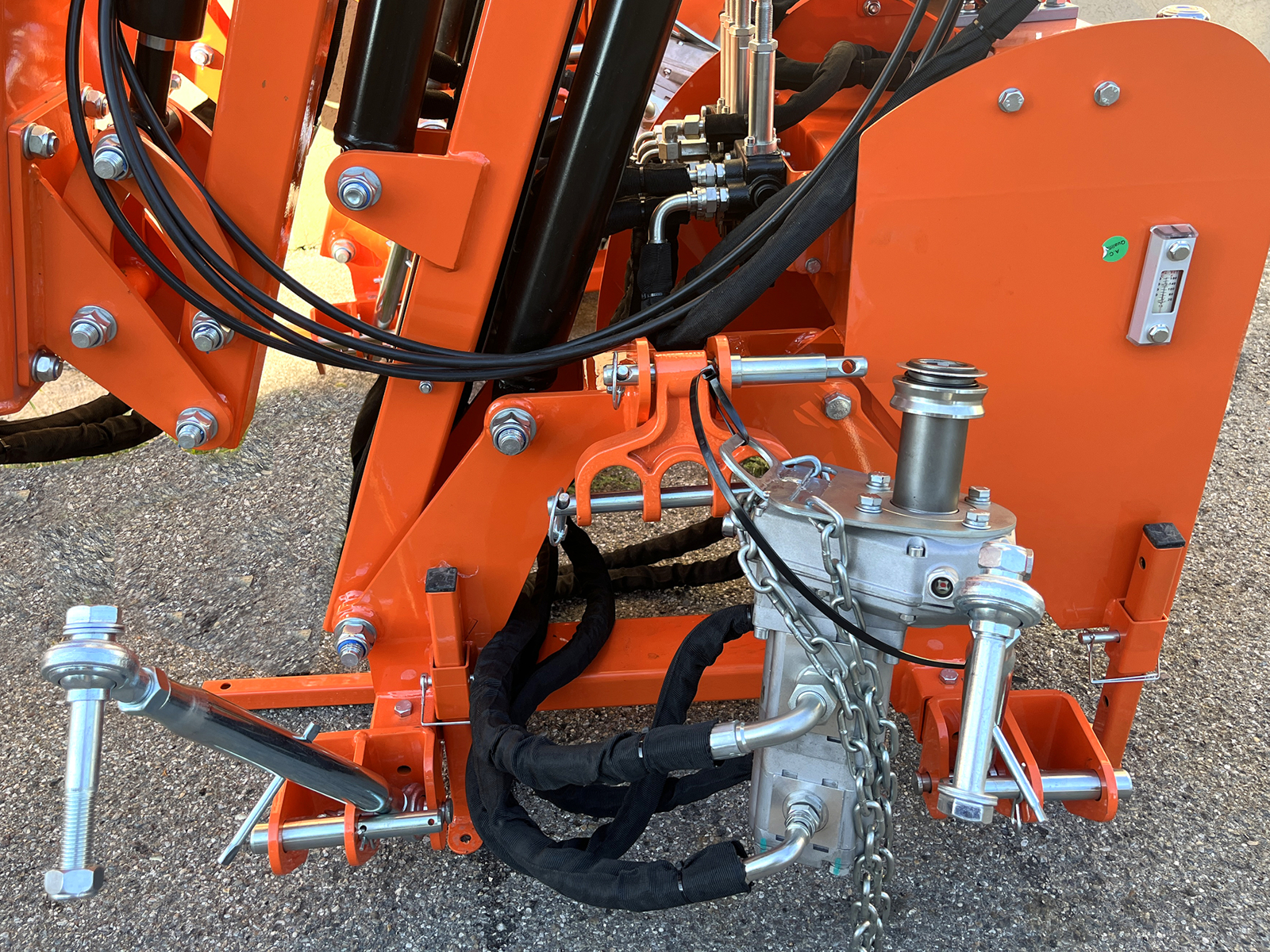

The MERLO is built for 25 to 60 hp tractors with a 540 rpm PTO and a category 1 or 2 three-point linkage (19-22 or 25-28 mm pins, lower link spacing from 390 to 780 mm): Kubota B series, Antonio Carraro Tigre, Goldoni, BCS, Ferrari, Pasquali, New Holland, Landini and Valpadana. The tractor must weigh at least 1,500 kg (3,307 lb): with the arm stretched out to the side the centre of gravity shifts. The base unit weighs 300 kg (661 lb) without the cutting attachment, plus about 60 kg (132 lb) of hydraulic oil.

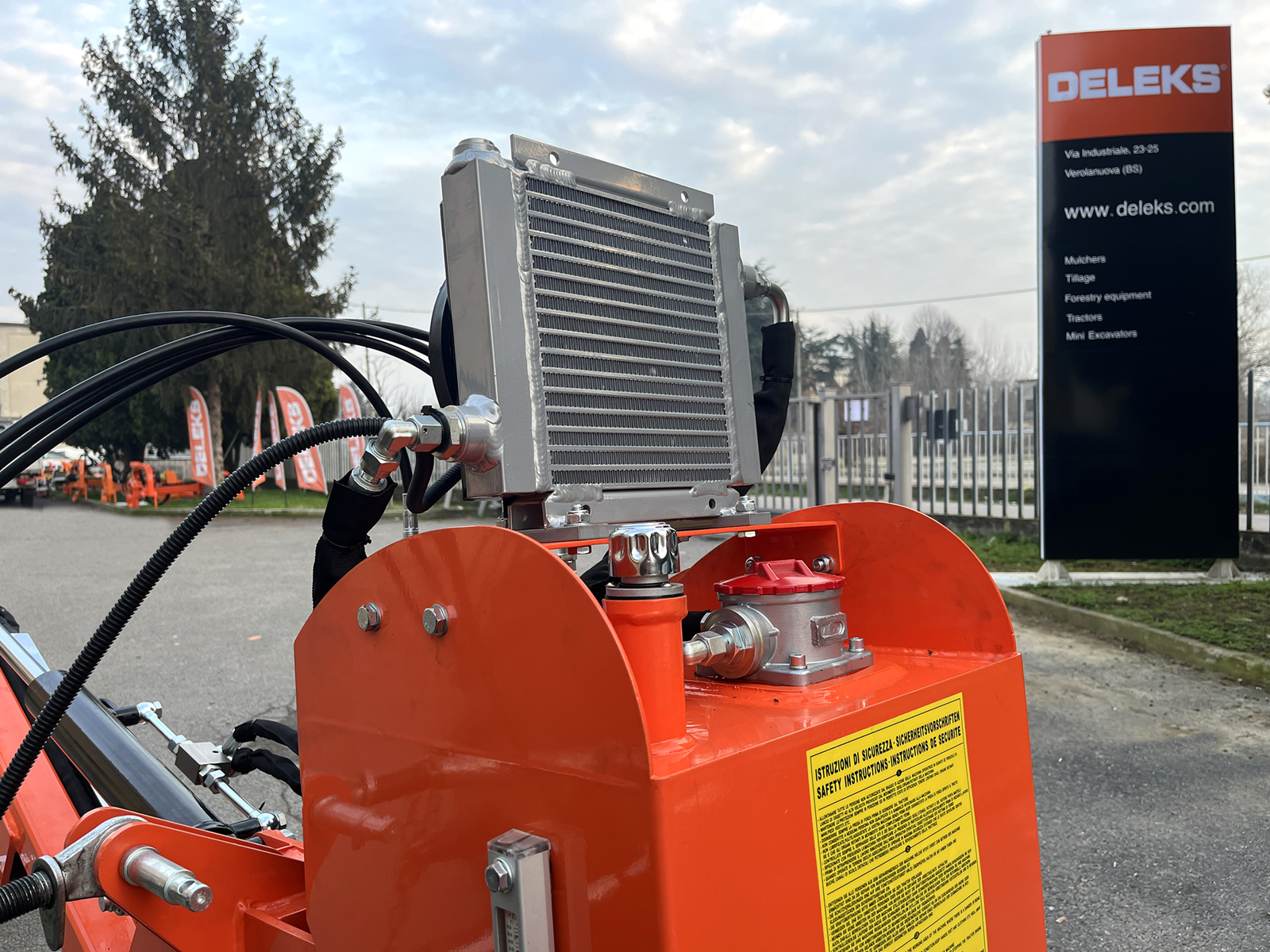

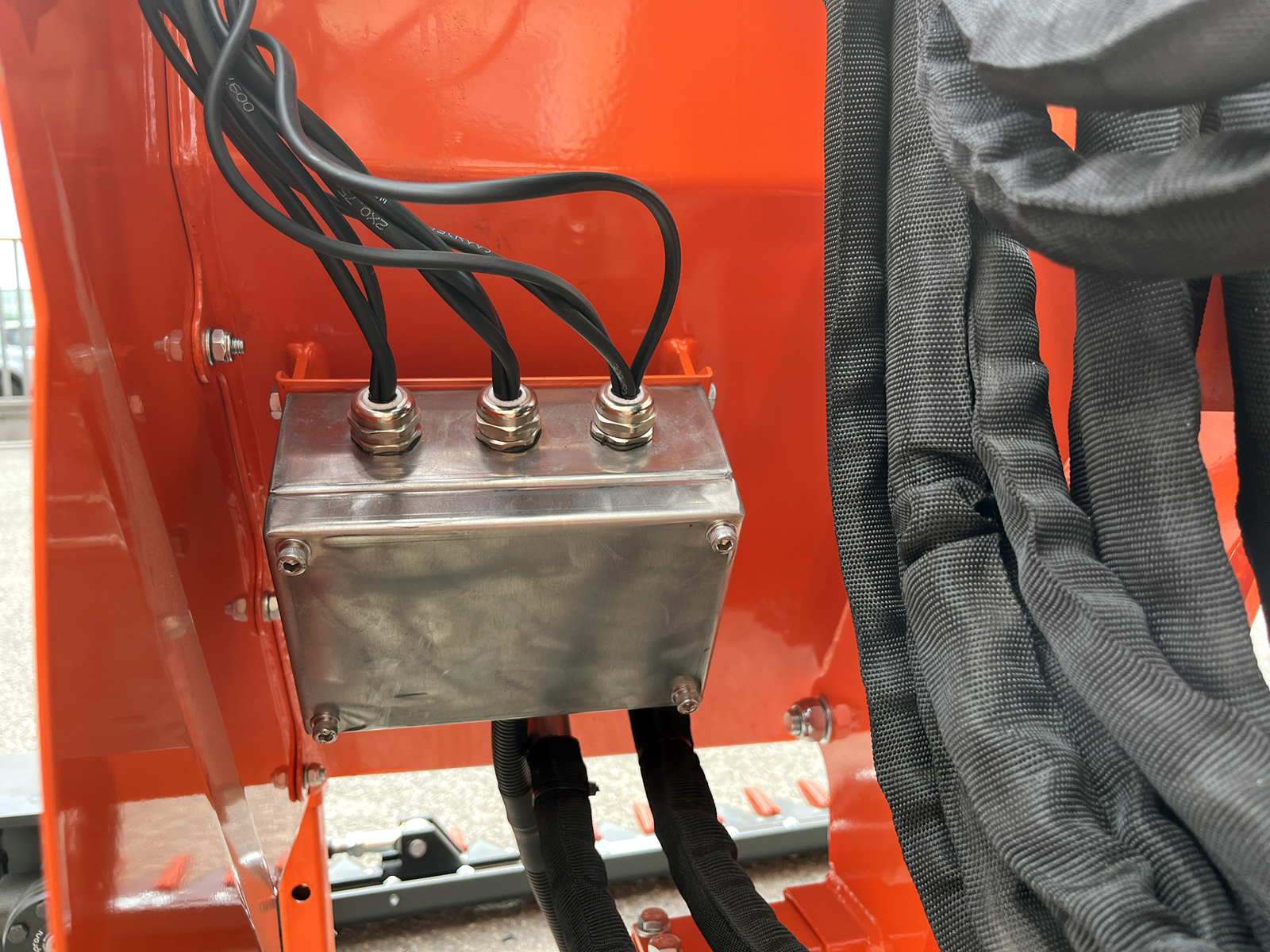

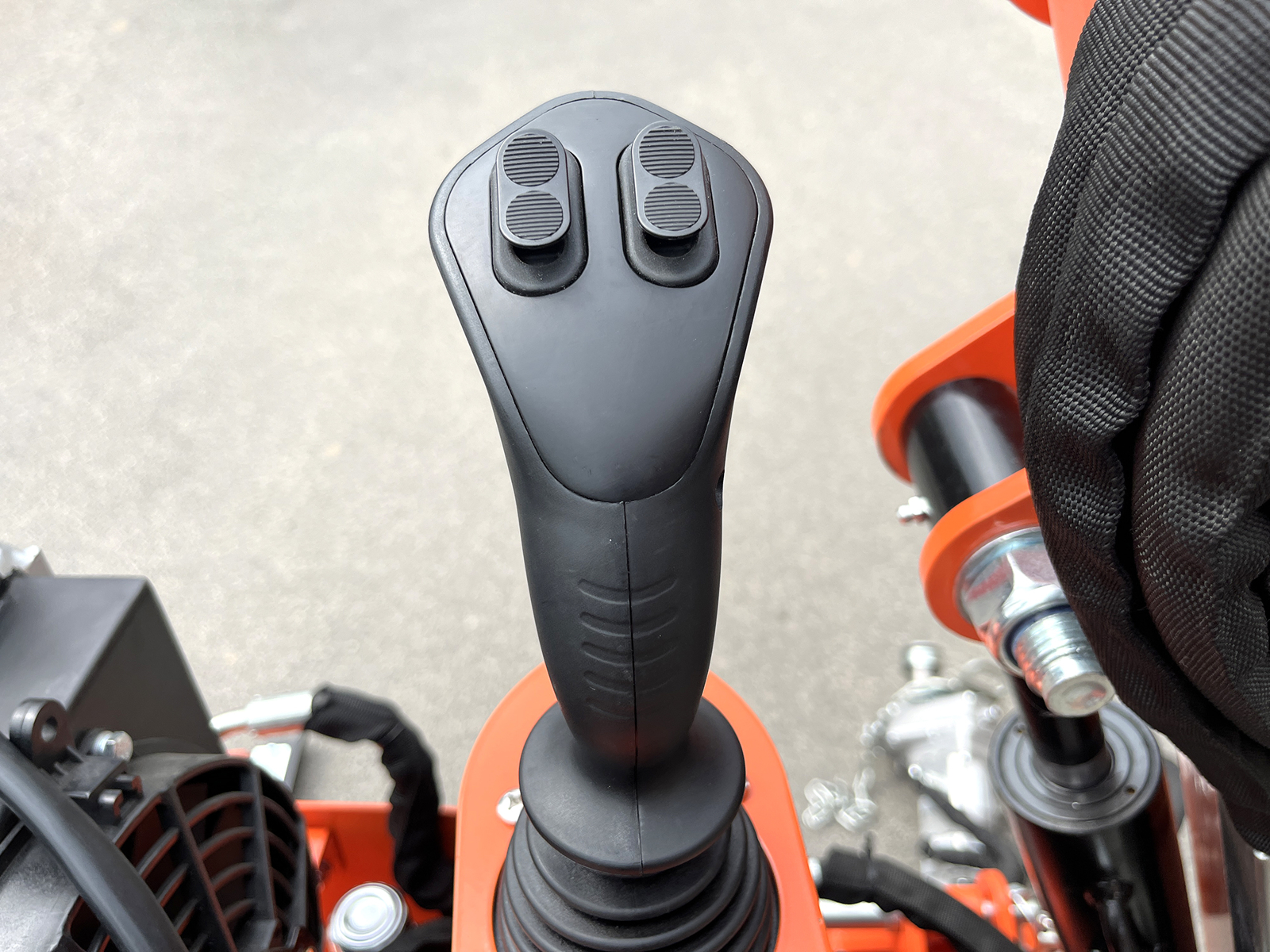

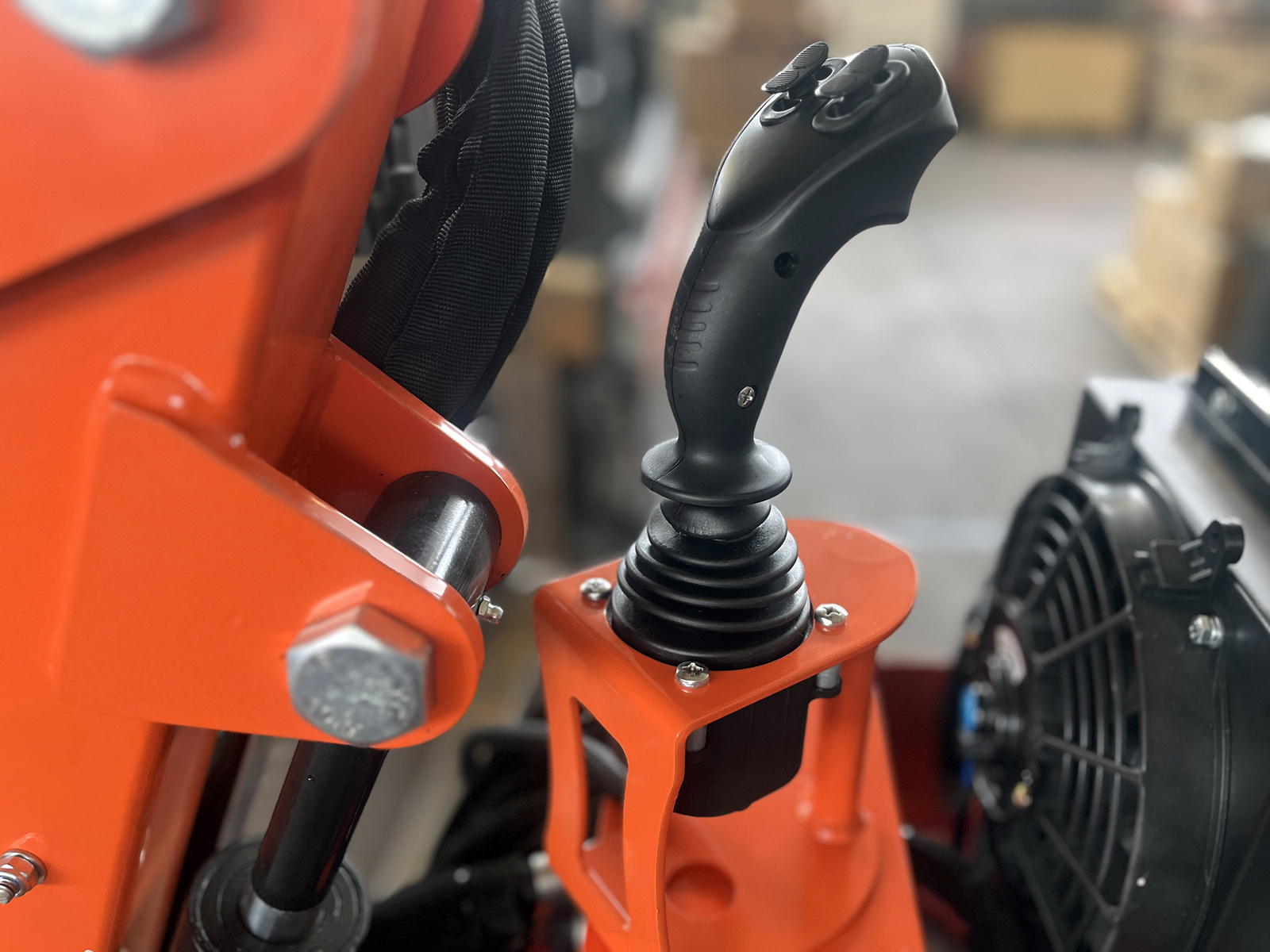

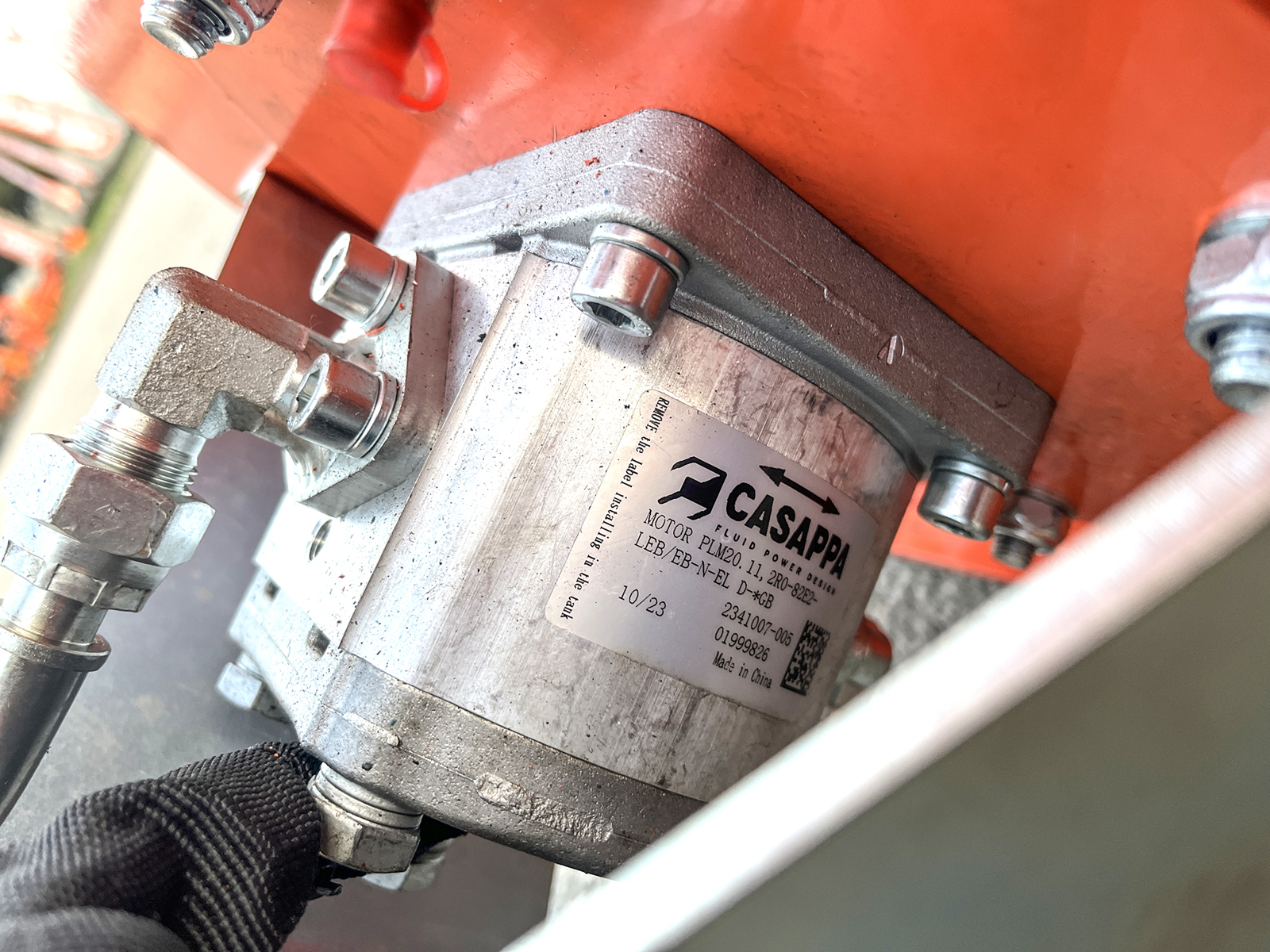

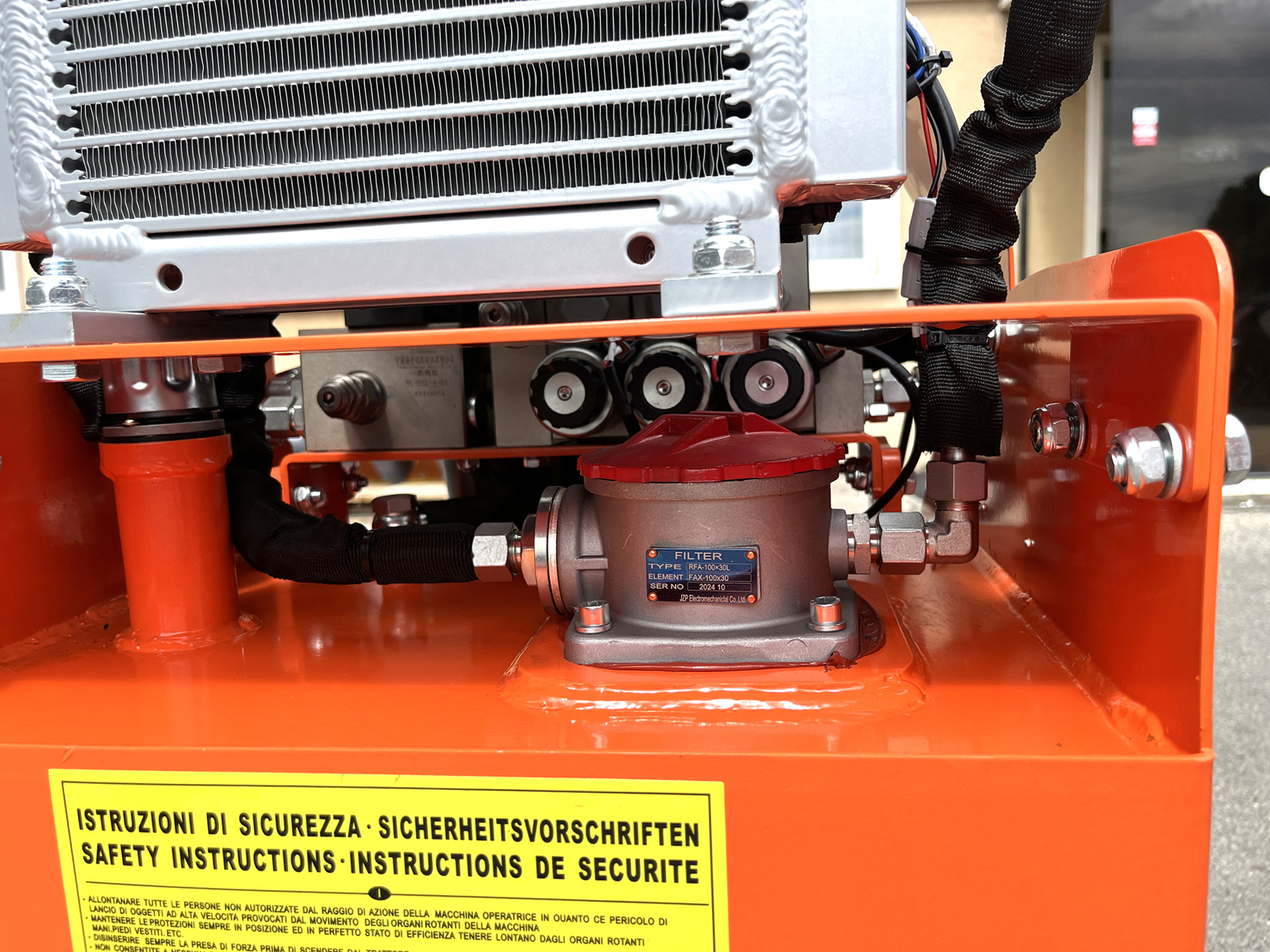

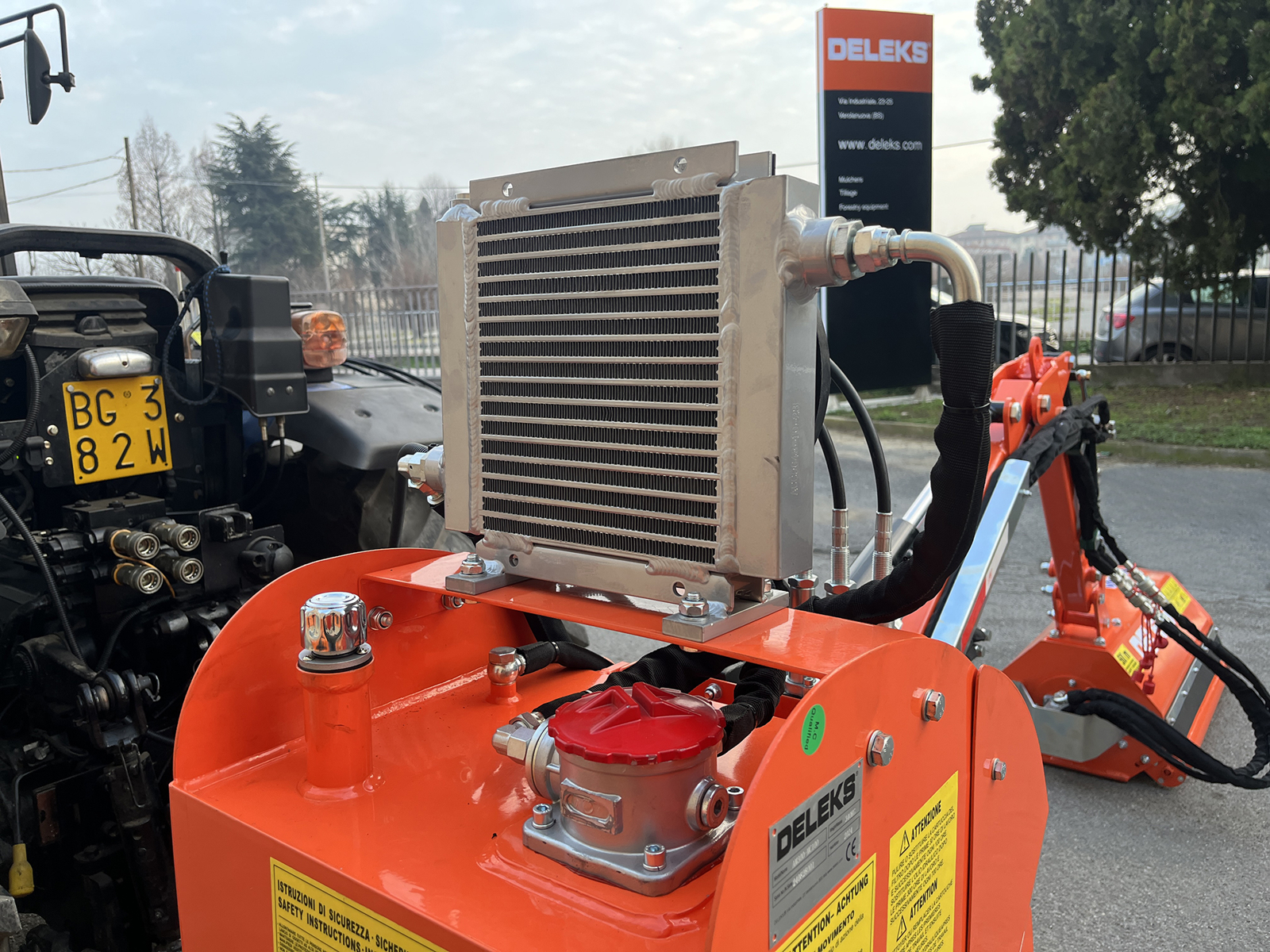

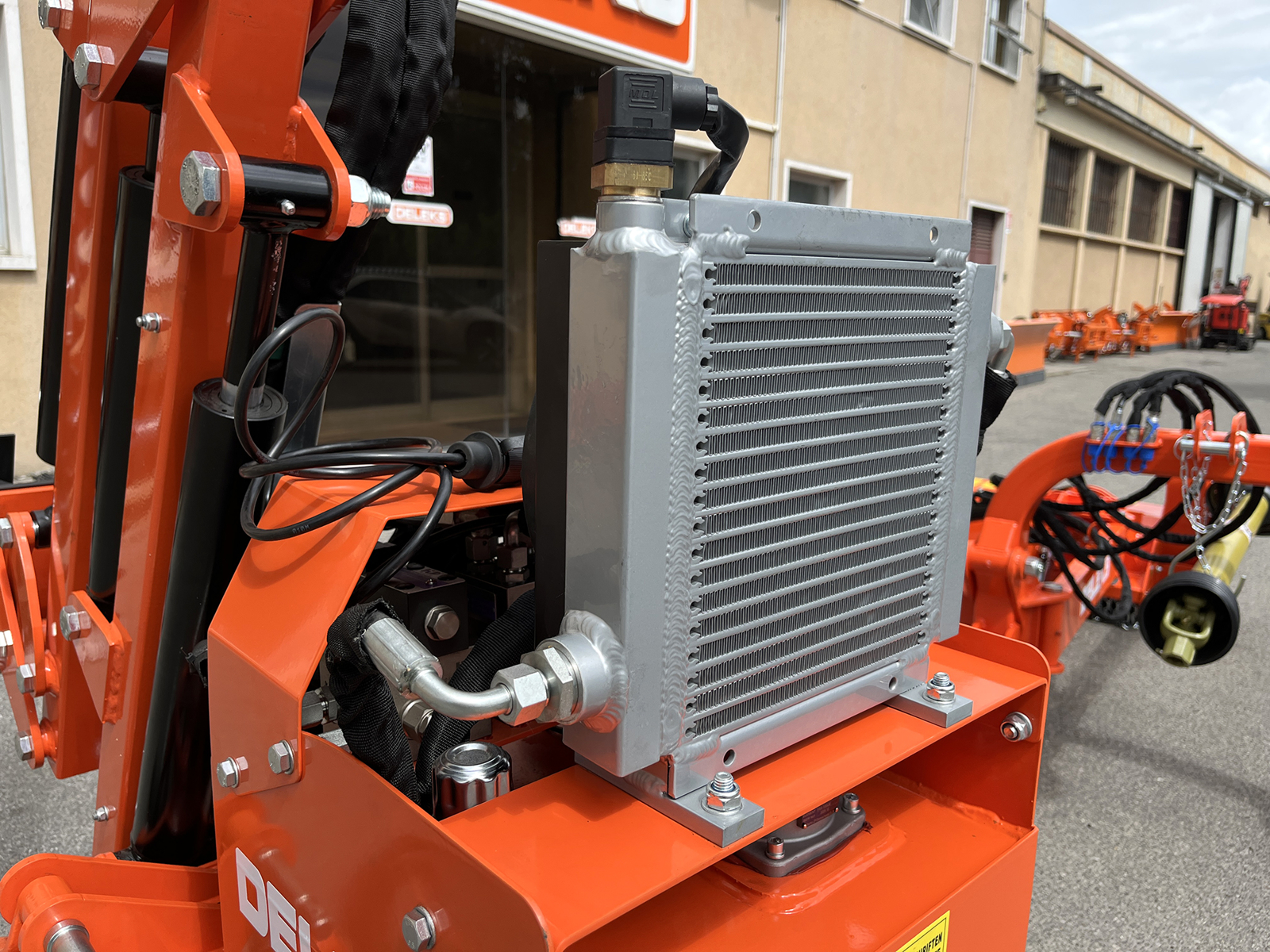

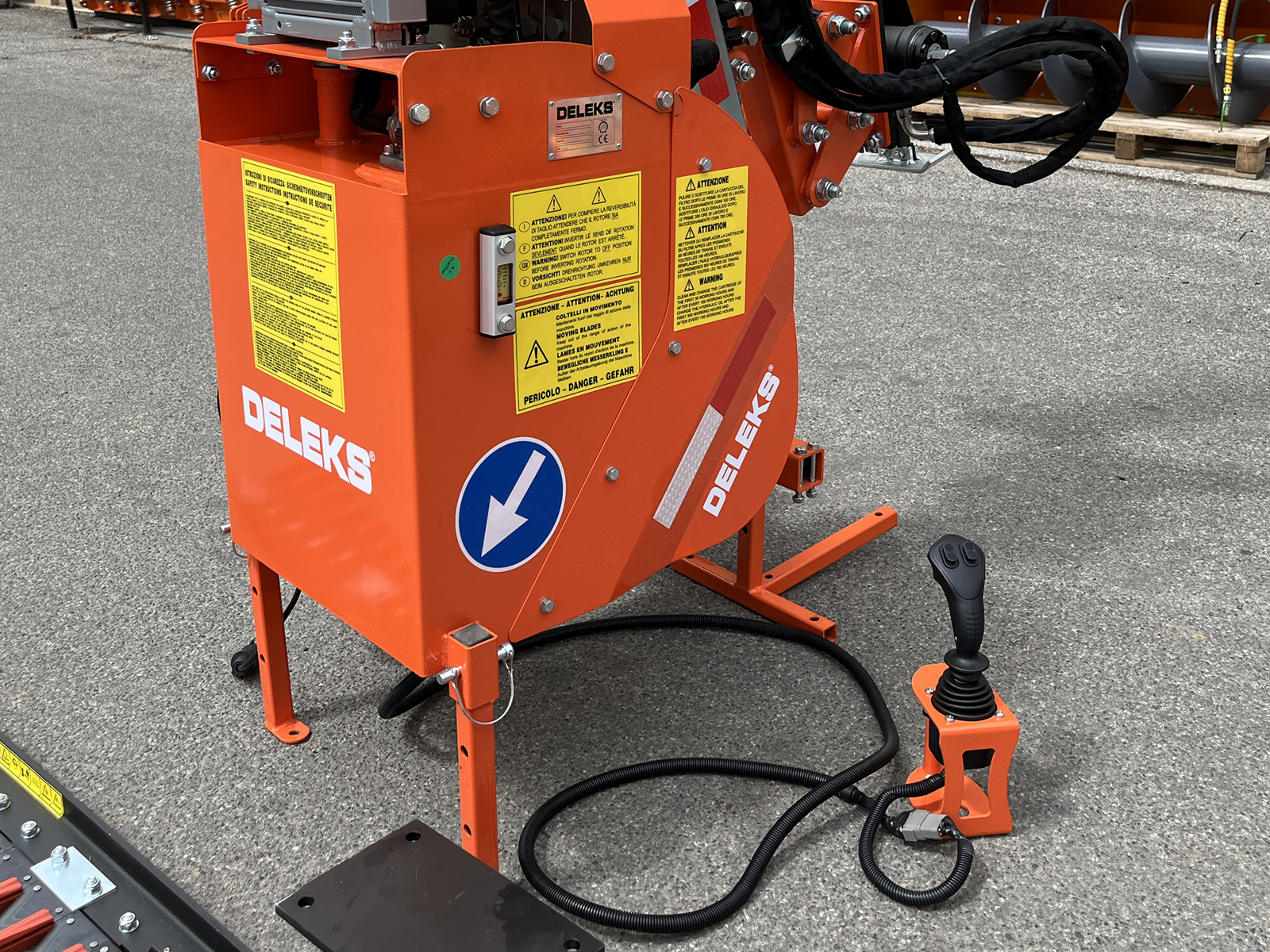

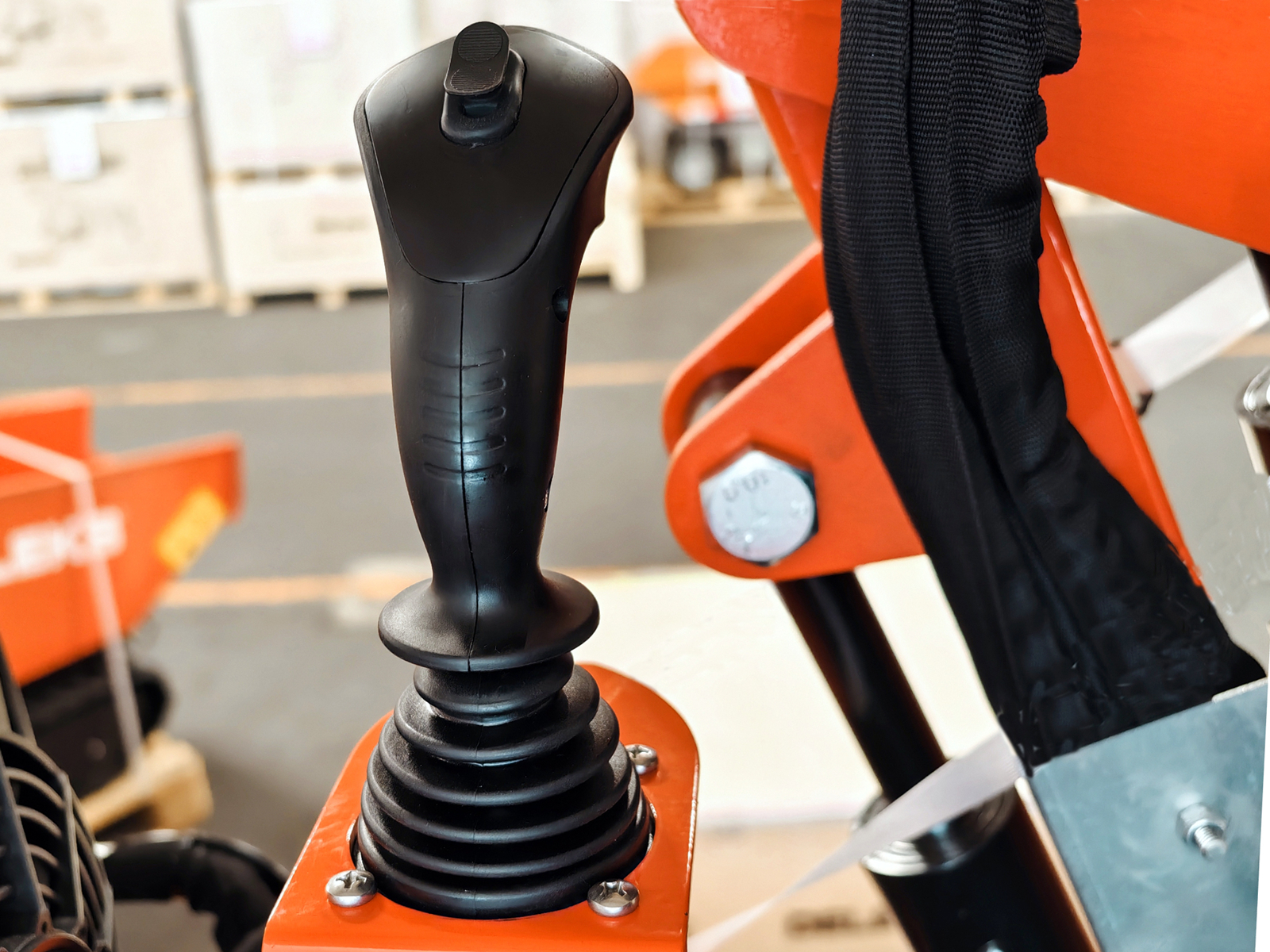

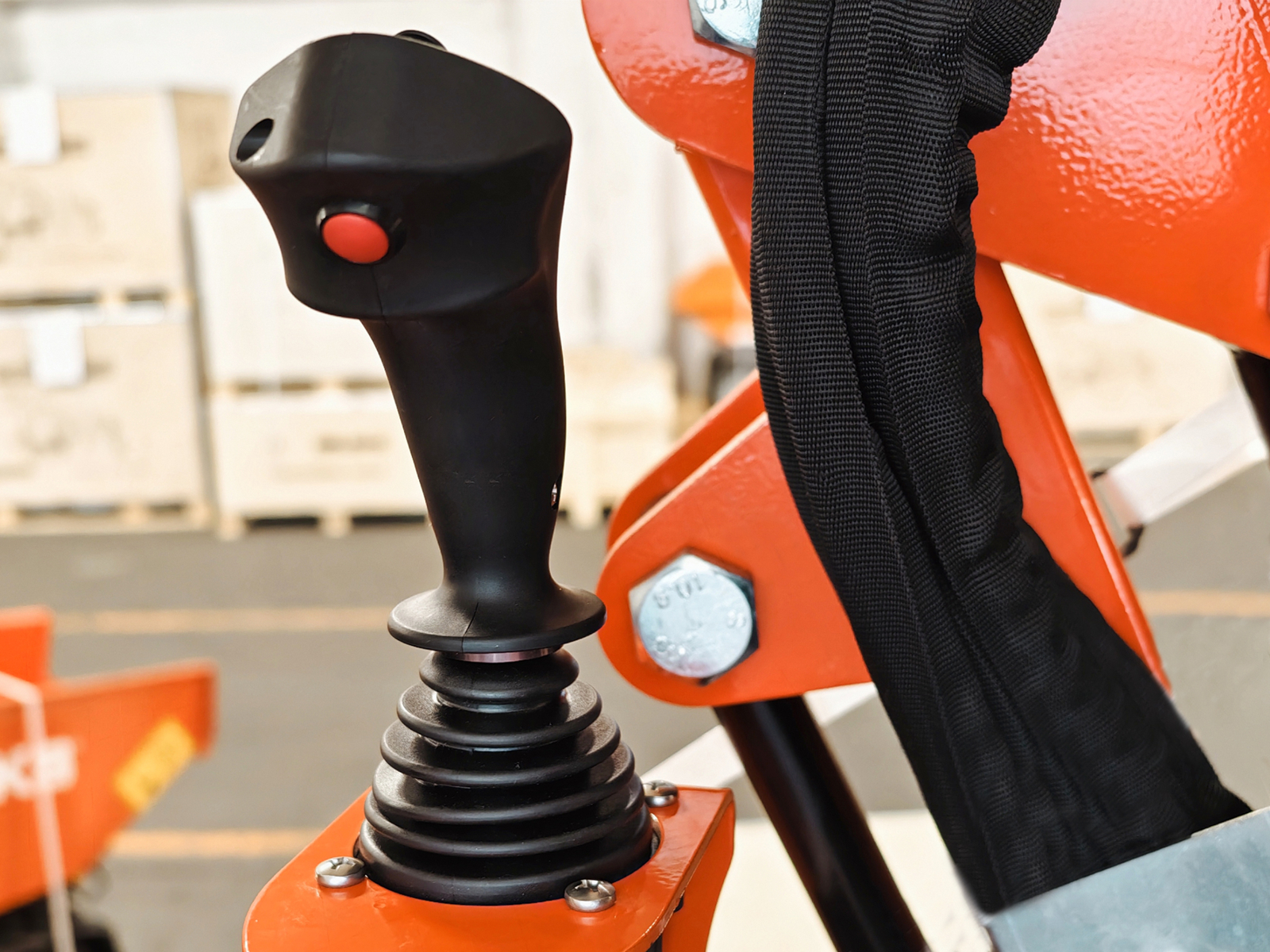

Joystick and independent hydraulic system

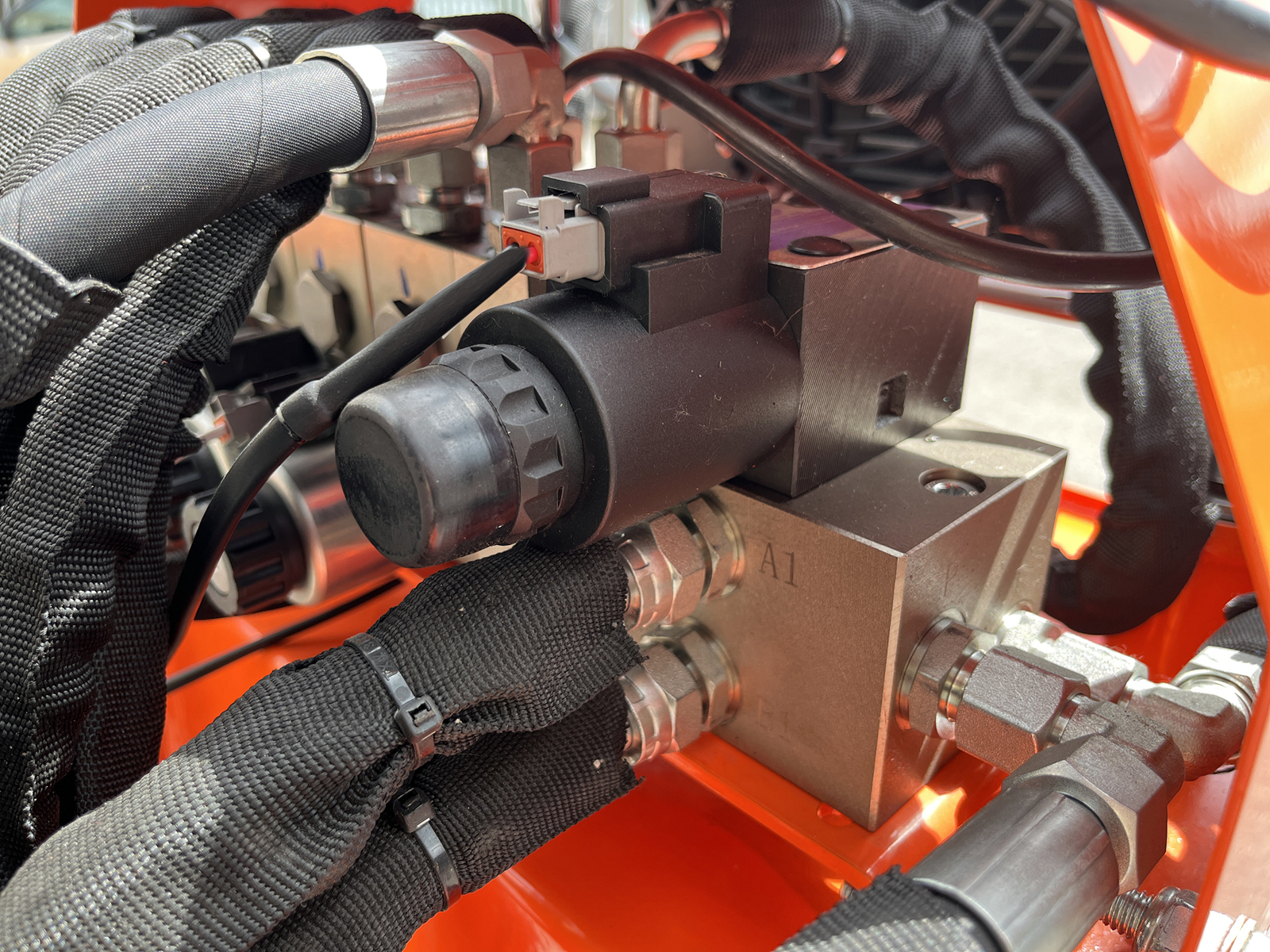

The electro-hydraulic control valve is worked from a joystick at the driver's seat. The system is independent of the tractor: the high-efficiency tandem hydraulic pump, driven by the PTO, lets you move the arm and cut at the same time, without using the tractor's spool valves. The 60-litre (13.2 UK gal) tank arrives filled to level with Shell Tellus S2 MX 46 oil; the gearbox has a freewheel.

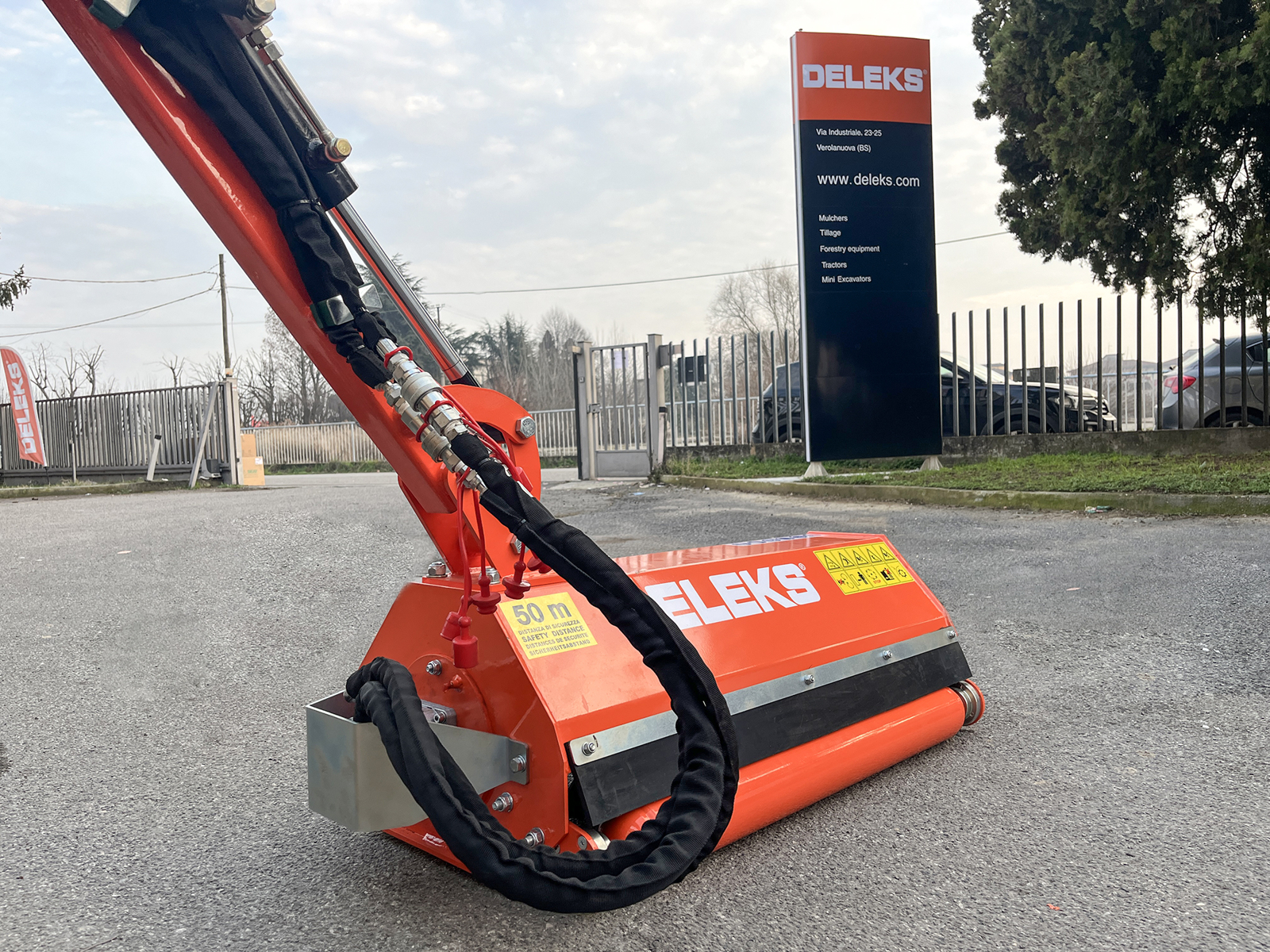

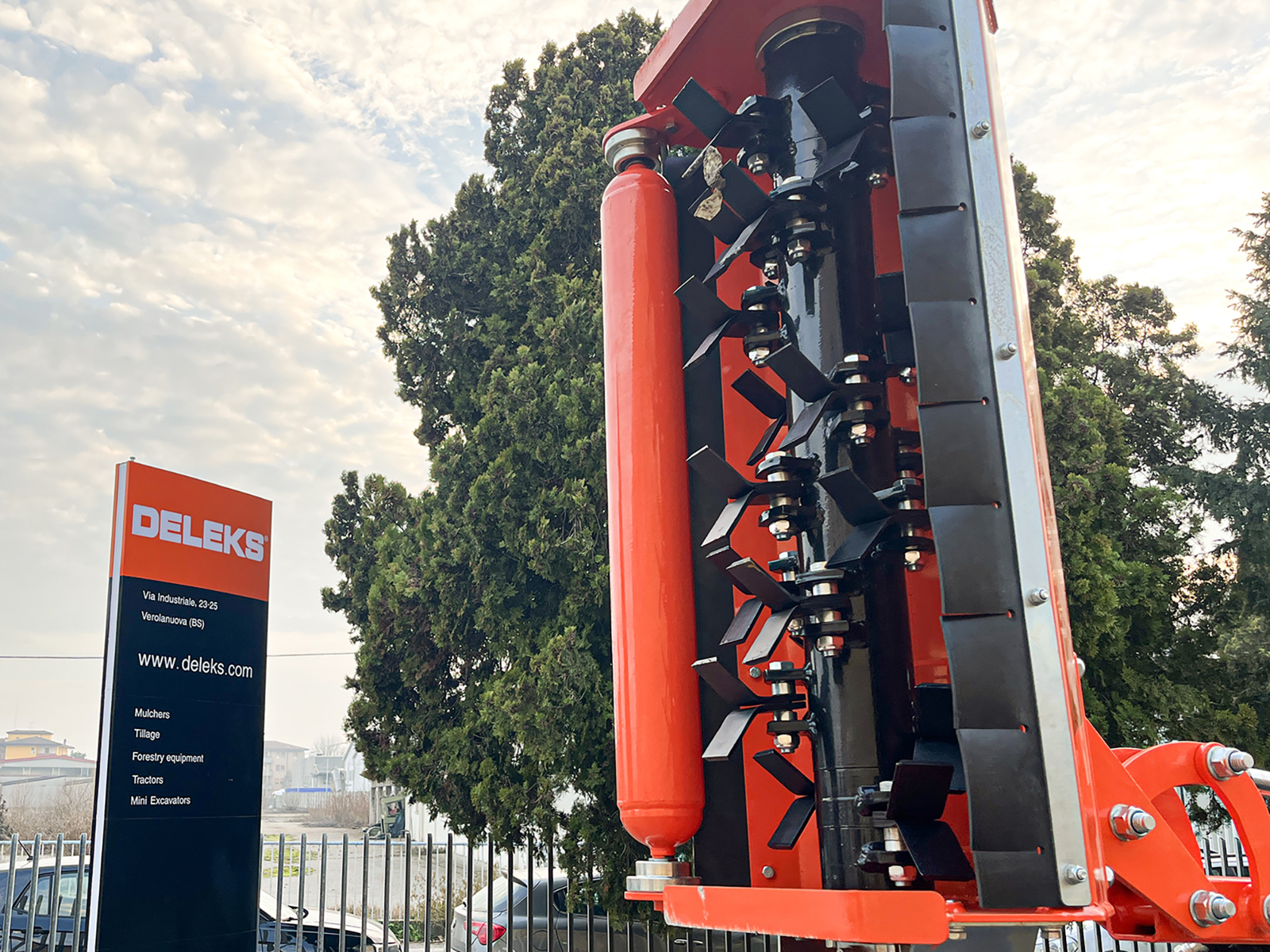

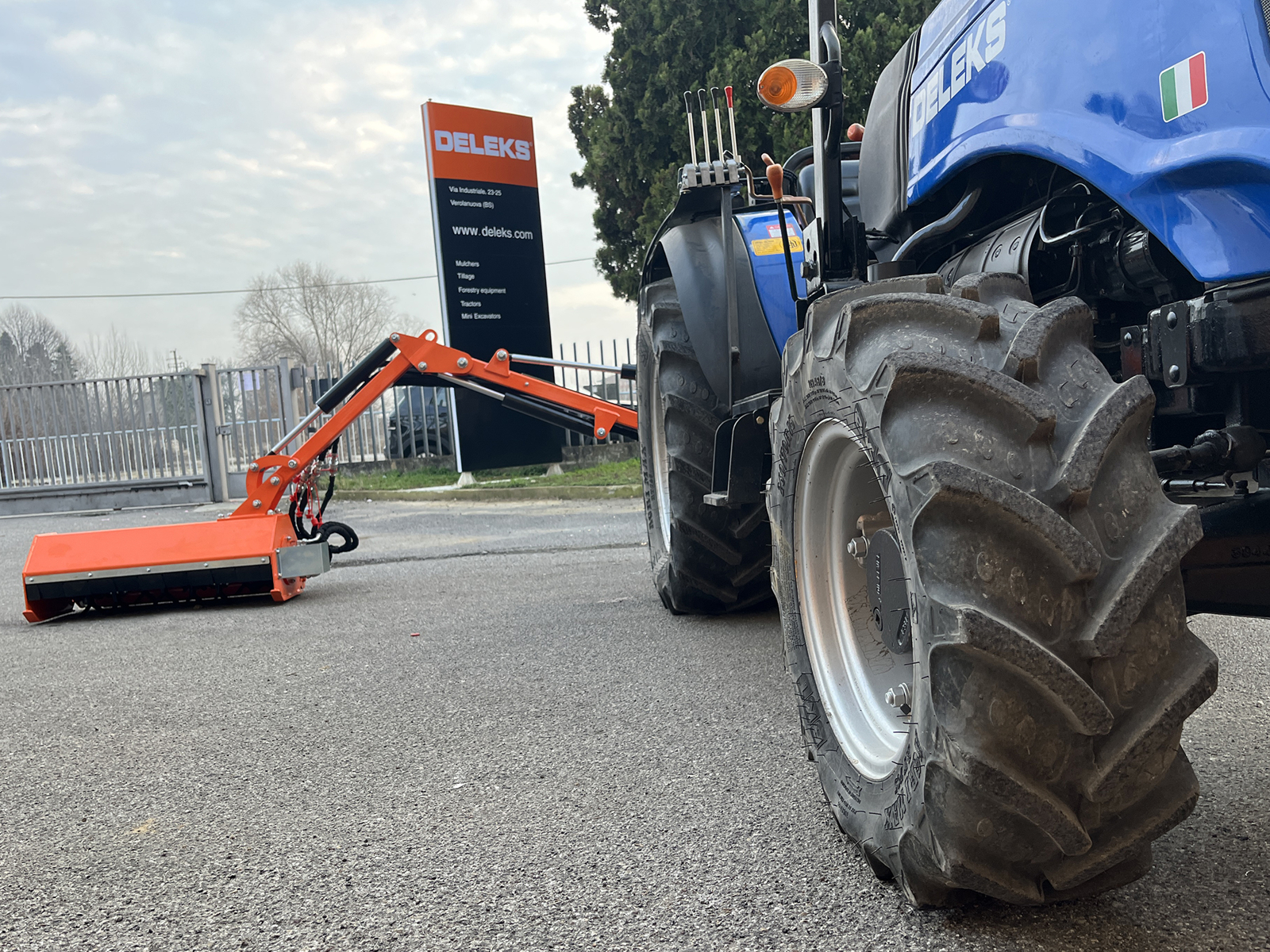

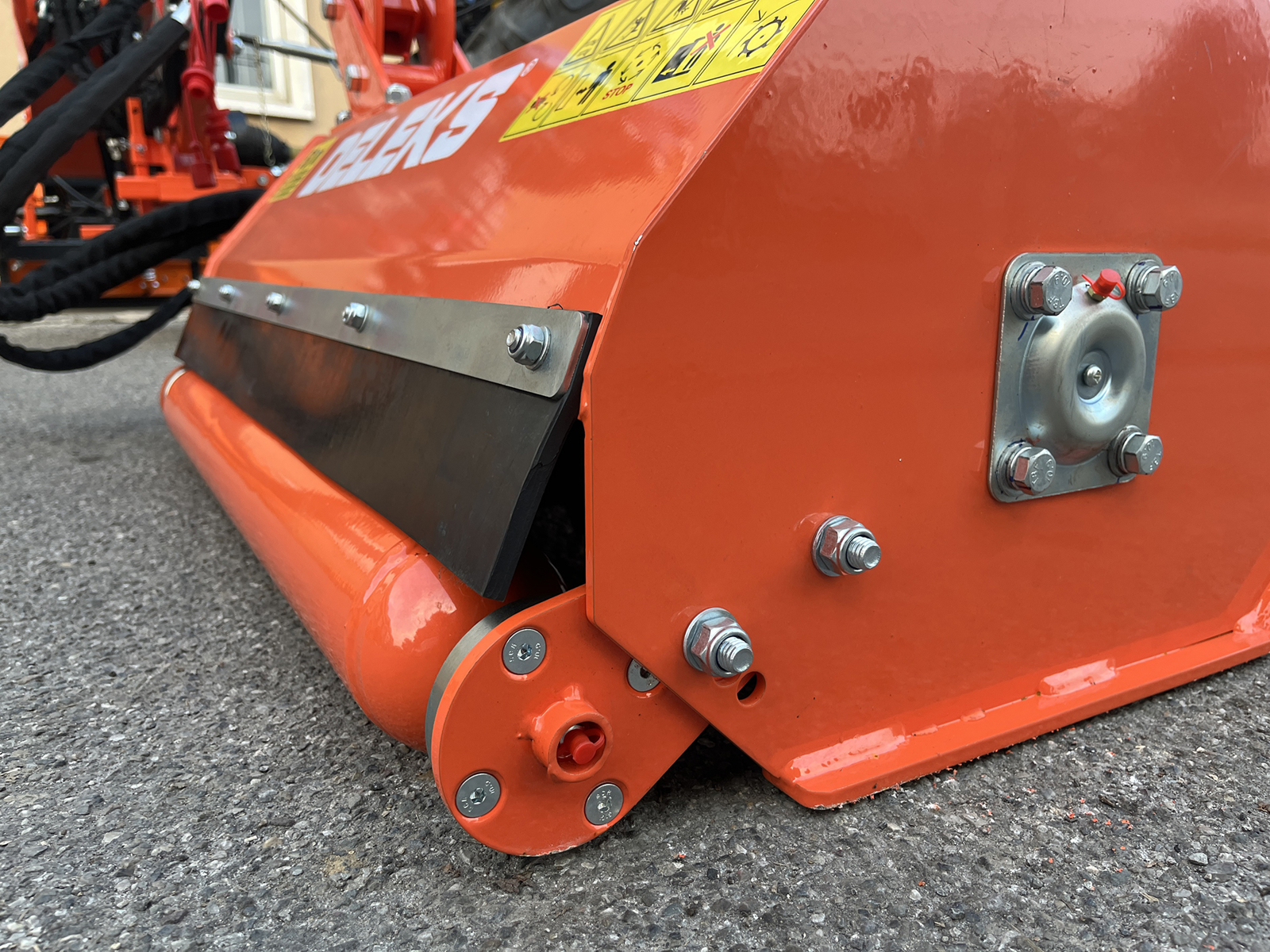

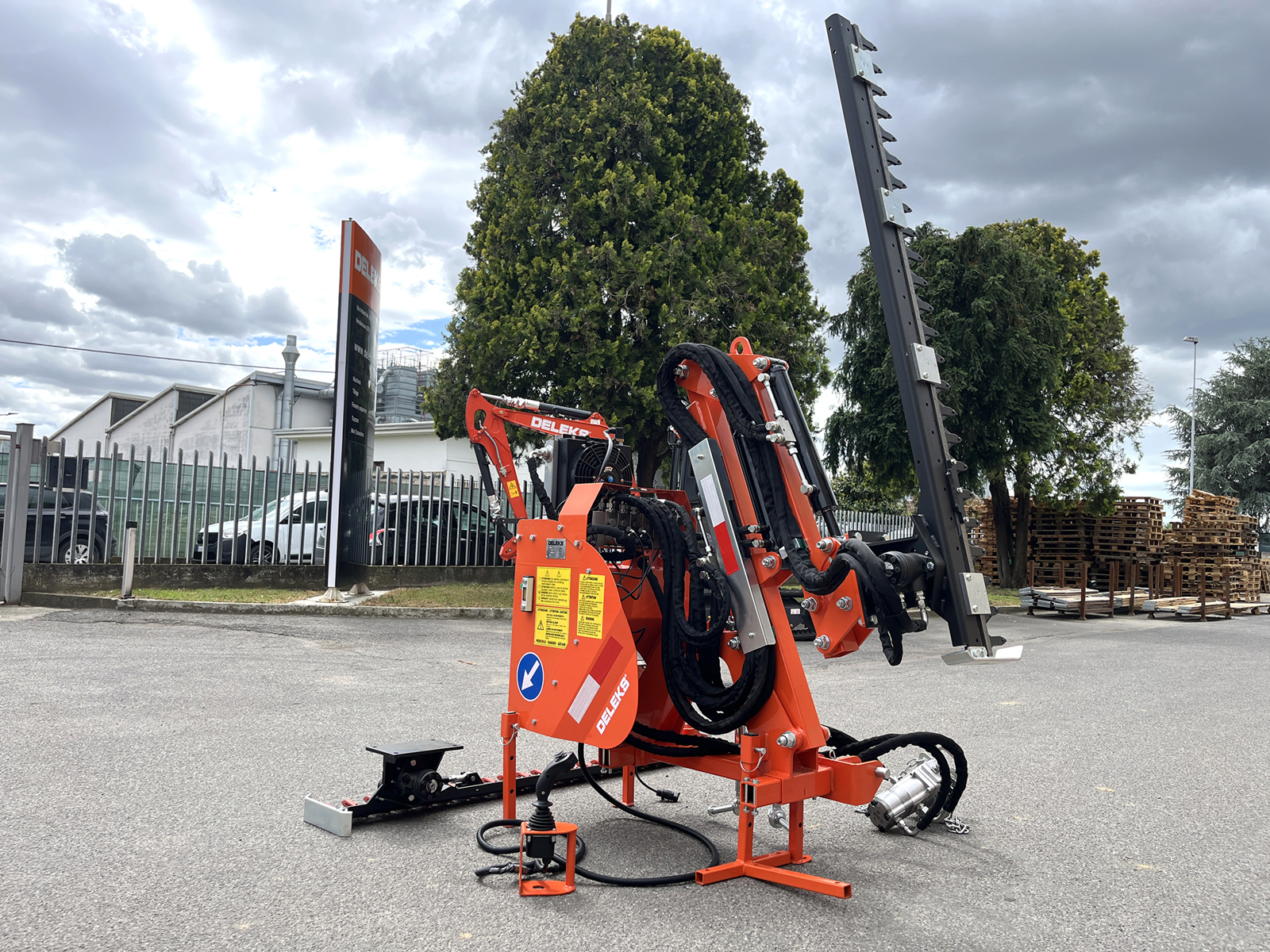

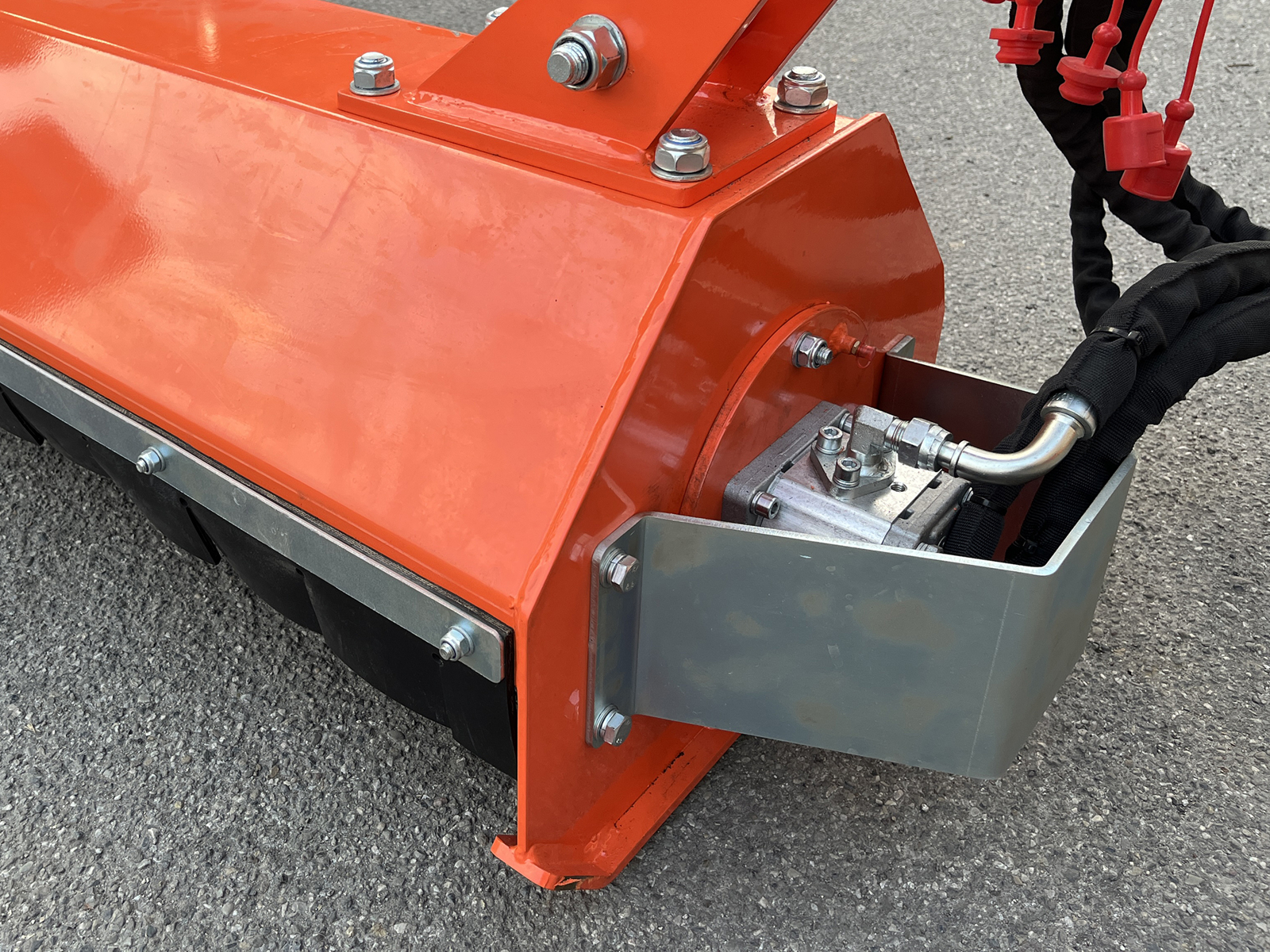

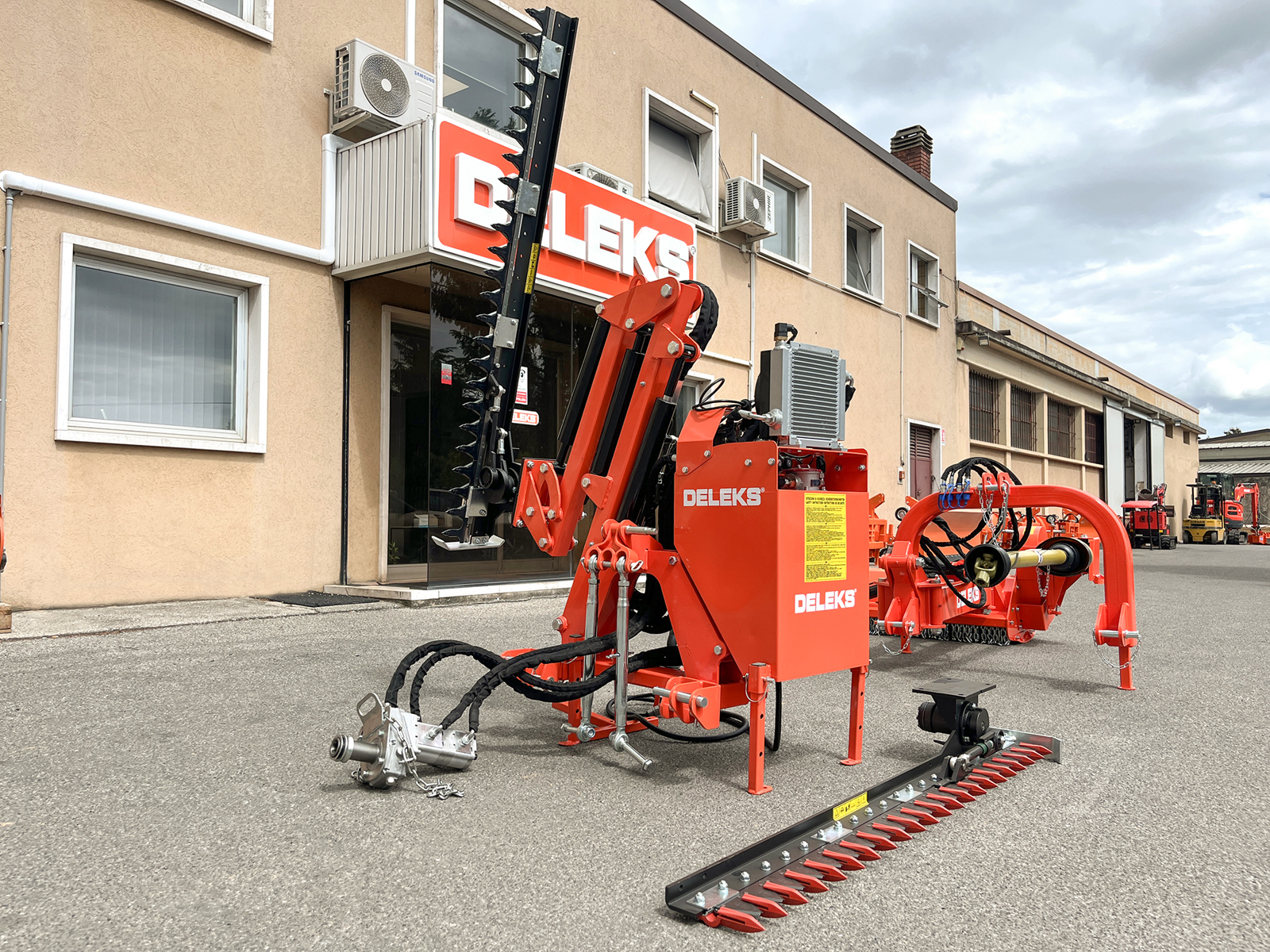

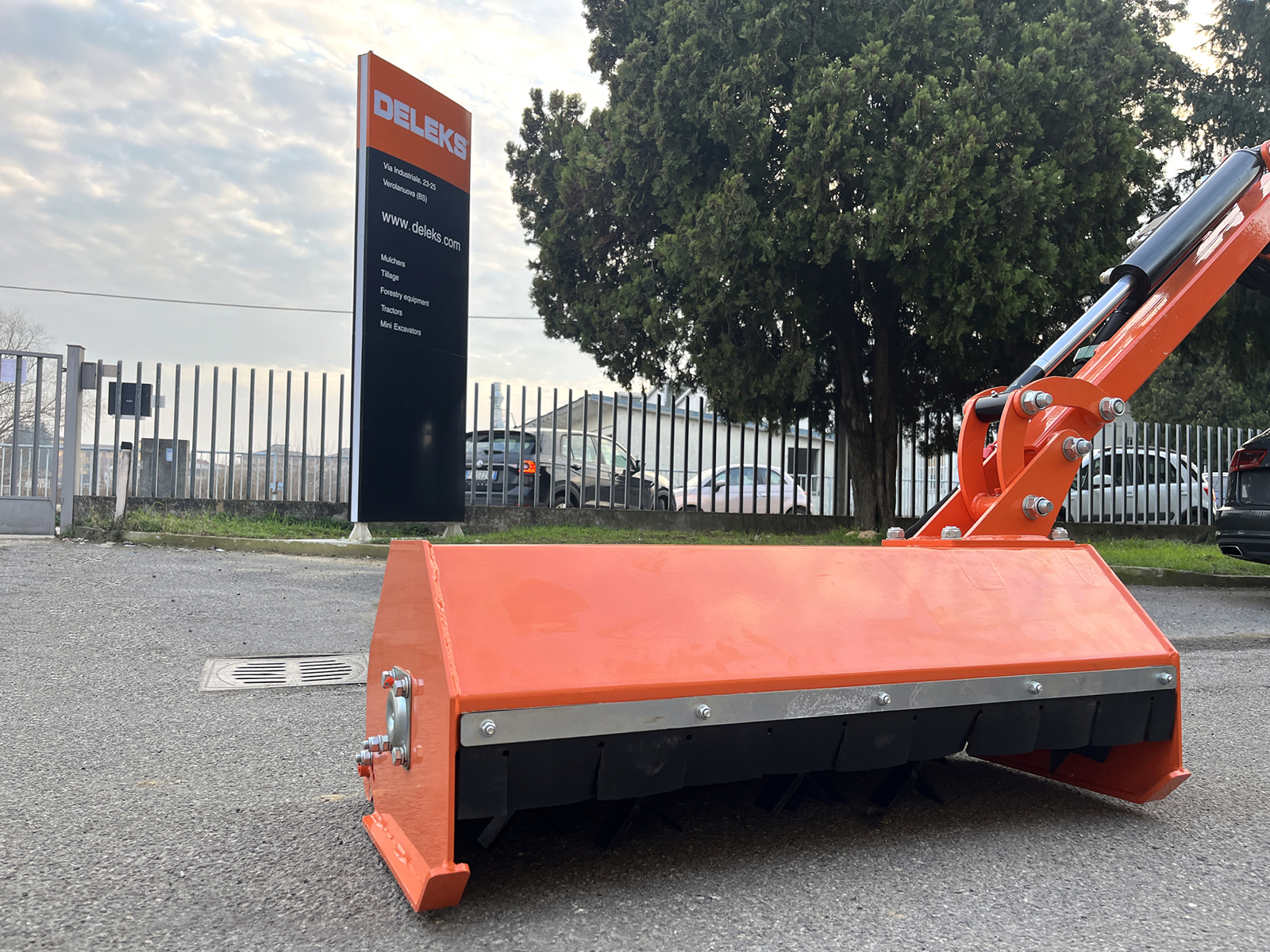

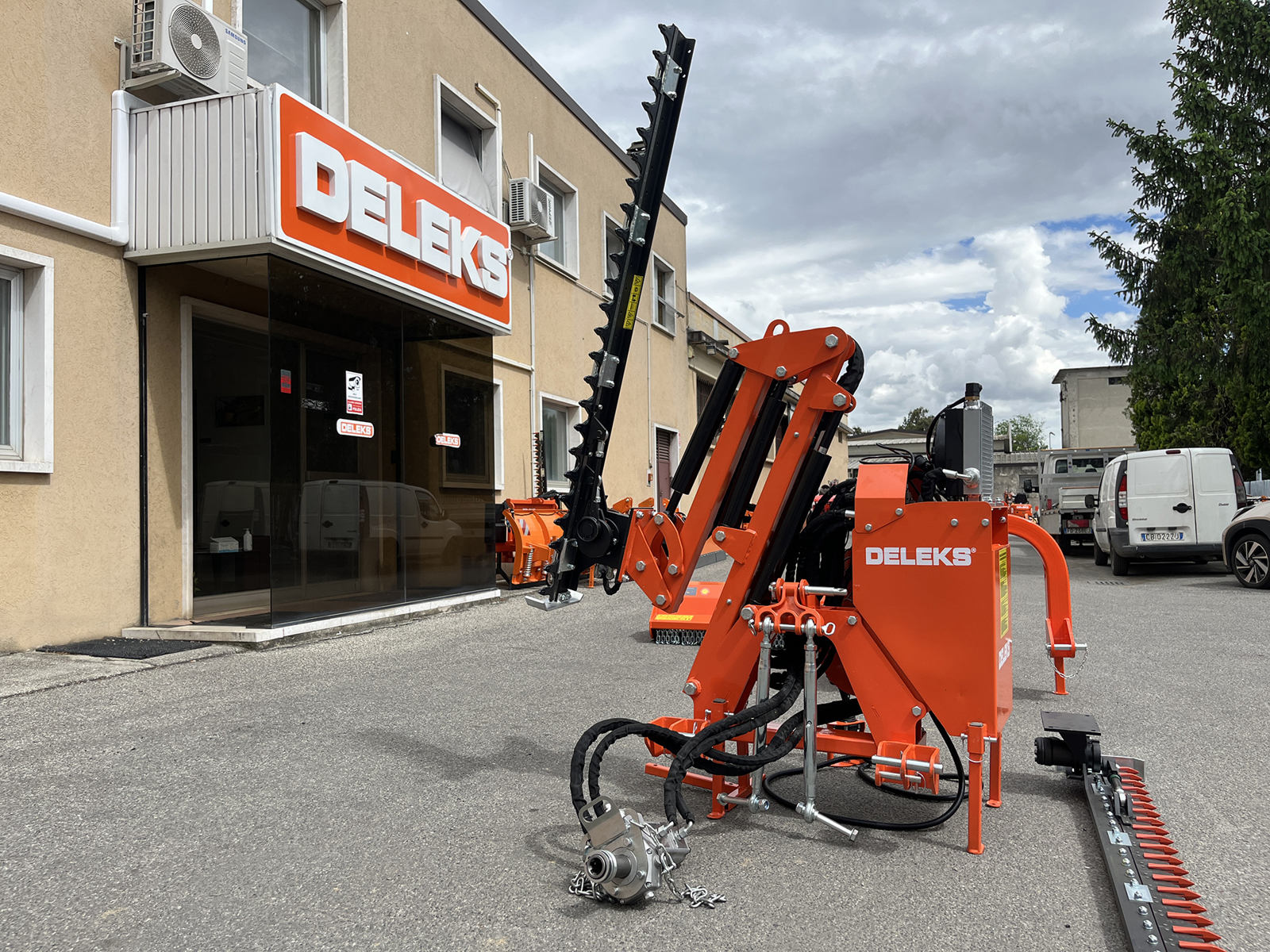

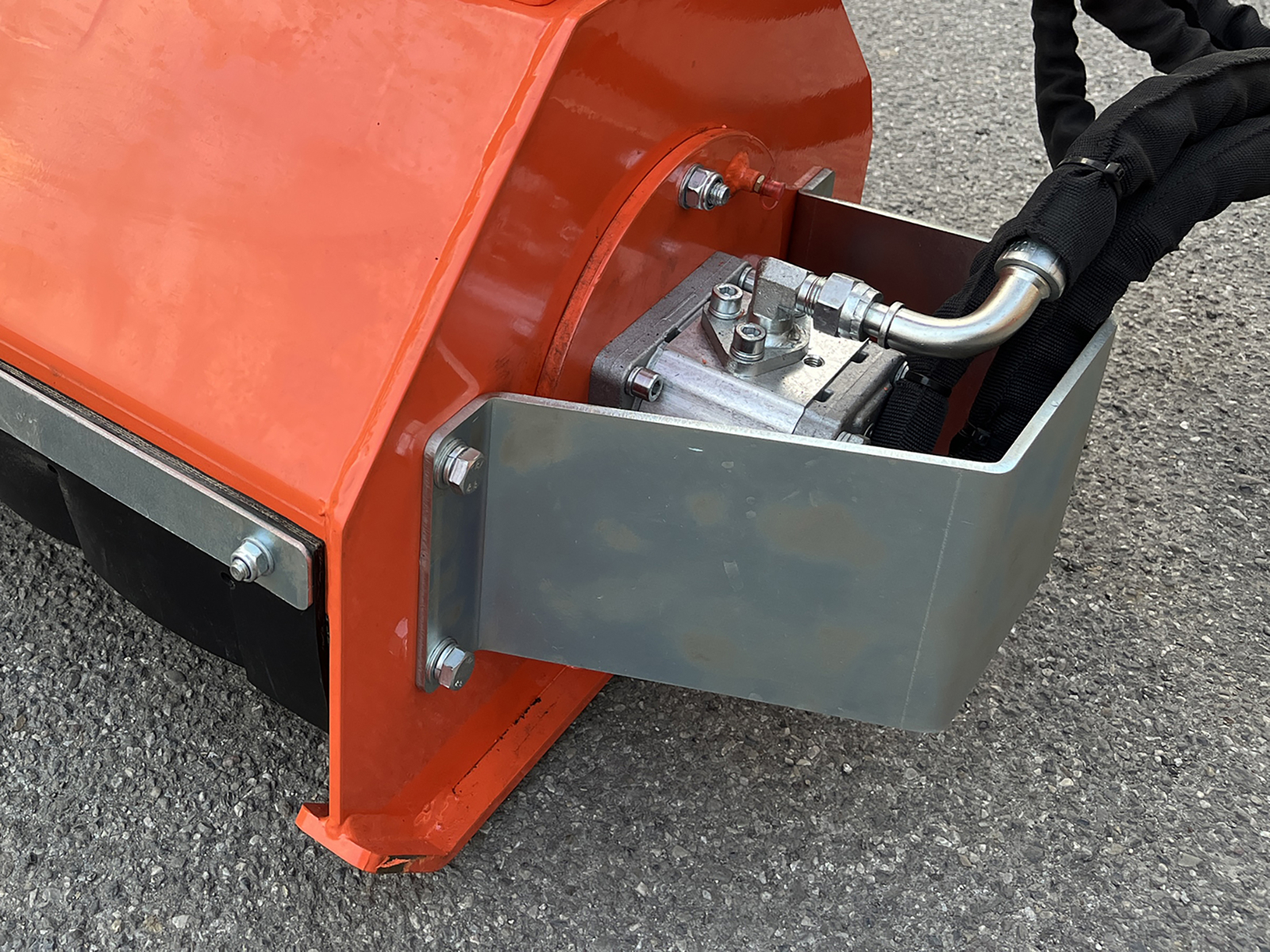

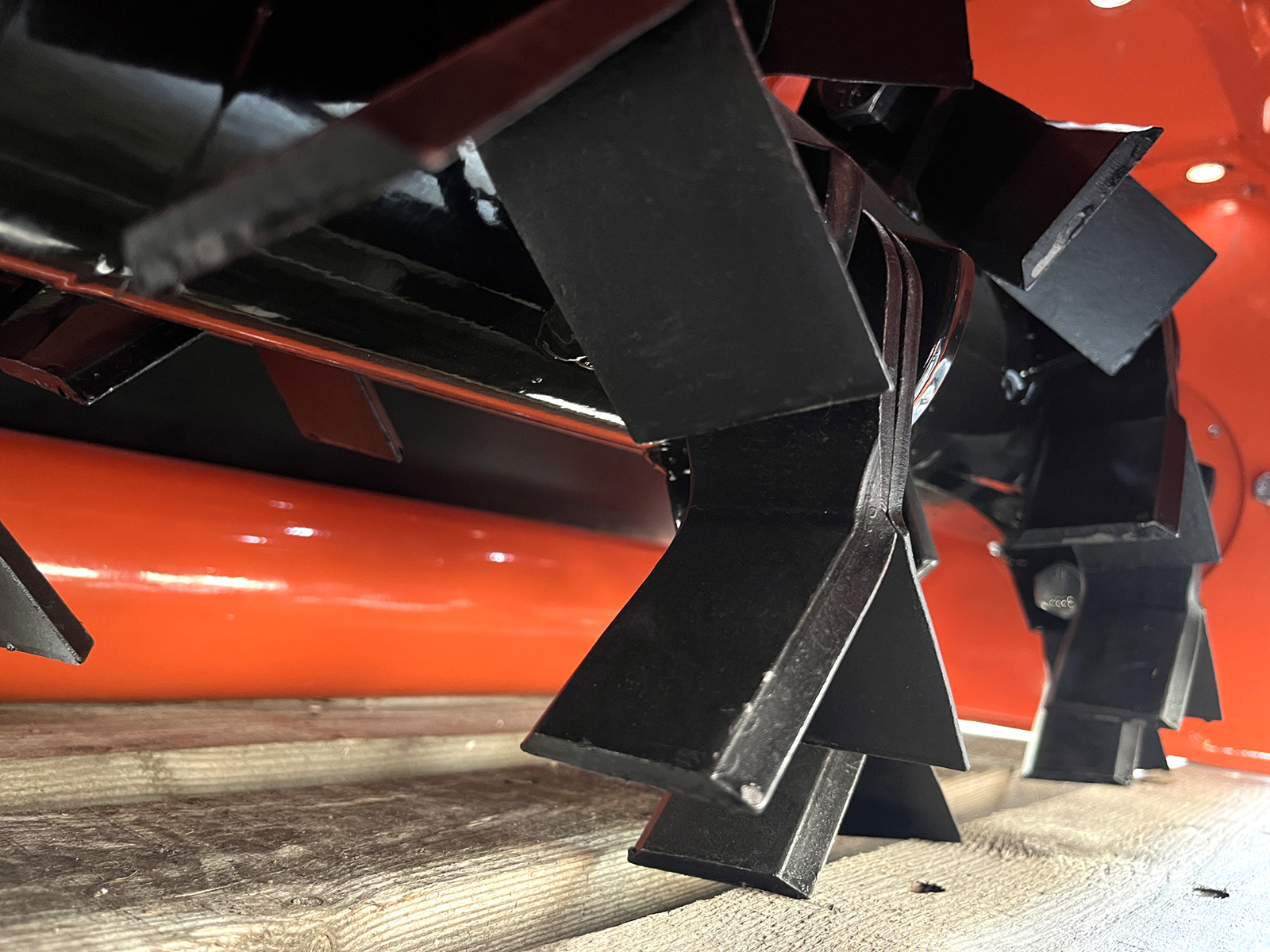

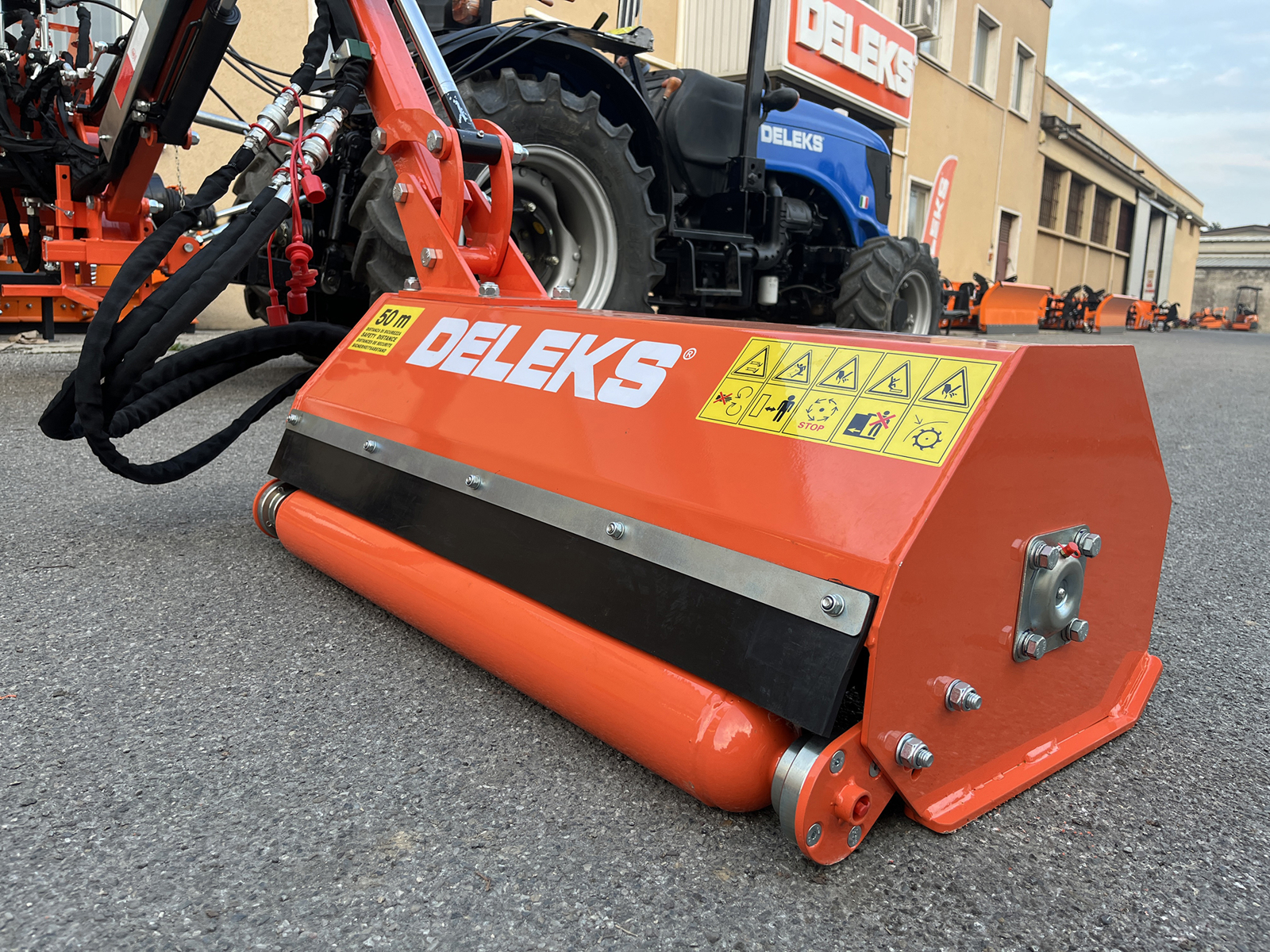

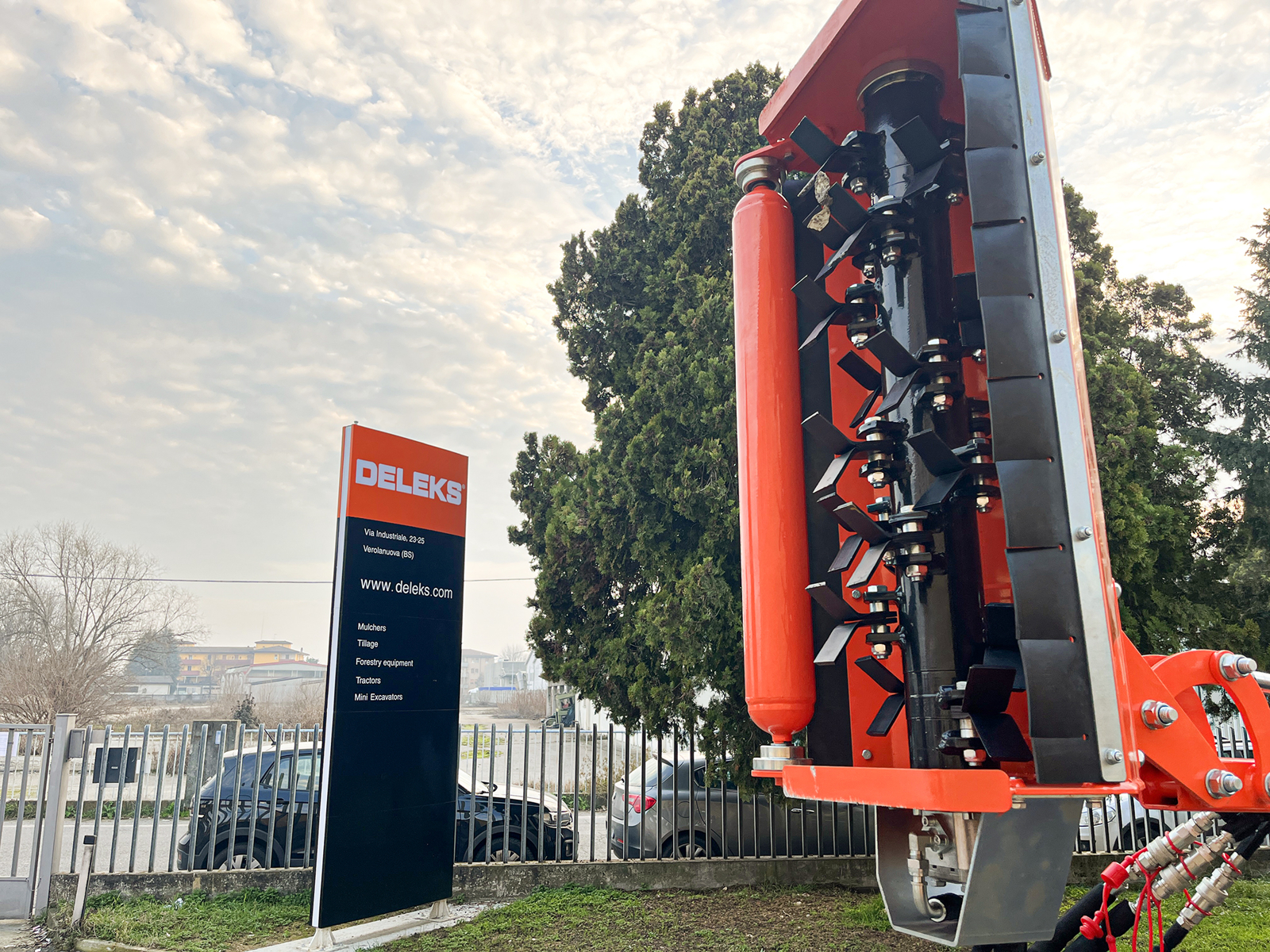

Flail head or hedge cutter bar

It is supplied as the base unit only; the cutting attachment is chosen as an option. With an ARK flail head of 80, 100 or 110 cm, with Y-blades, an electronically balanced rotor and a bidirectional Casappa hydraulic motor, Made in Italy, the MERLO clears growth from road verges, central reservations, banks, ditches and under trees, with branches up to 3 cm (1.2 in). With an HR-S hedge cutter bar of 130, 160 or 180 cm it trims hedges and branches up to 3 cm (1.2 in); with an HRD double-blade bar it does precise work on grass, hedges and thin branches, up to 2 cm (0.8 in). There is also the HRDISC3 3-disc saw bar, for branches up to 9 cm (3.5 in).

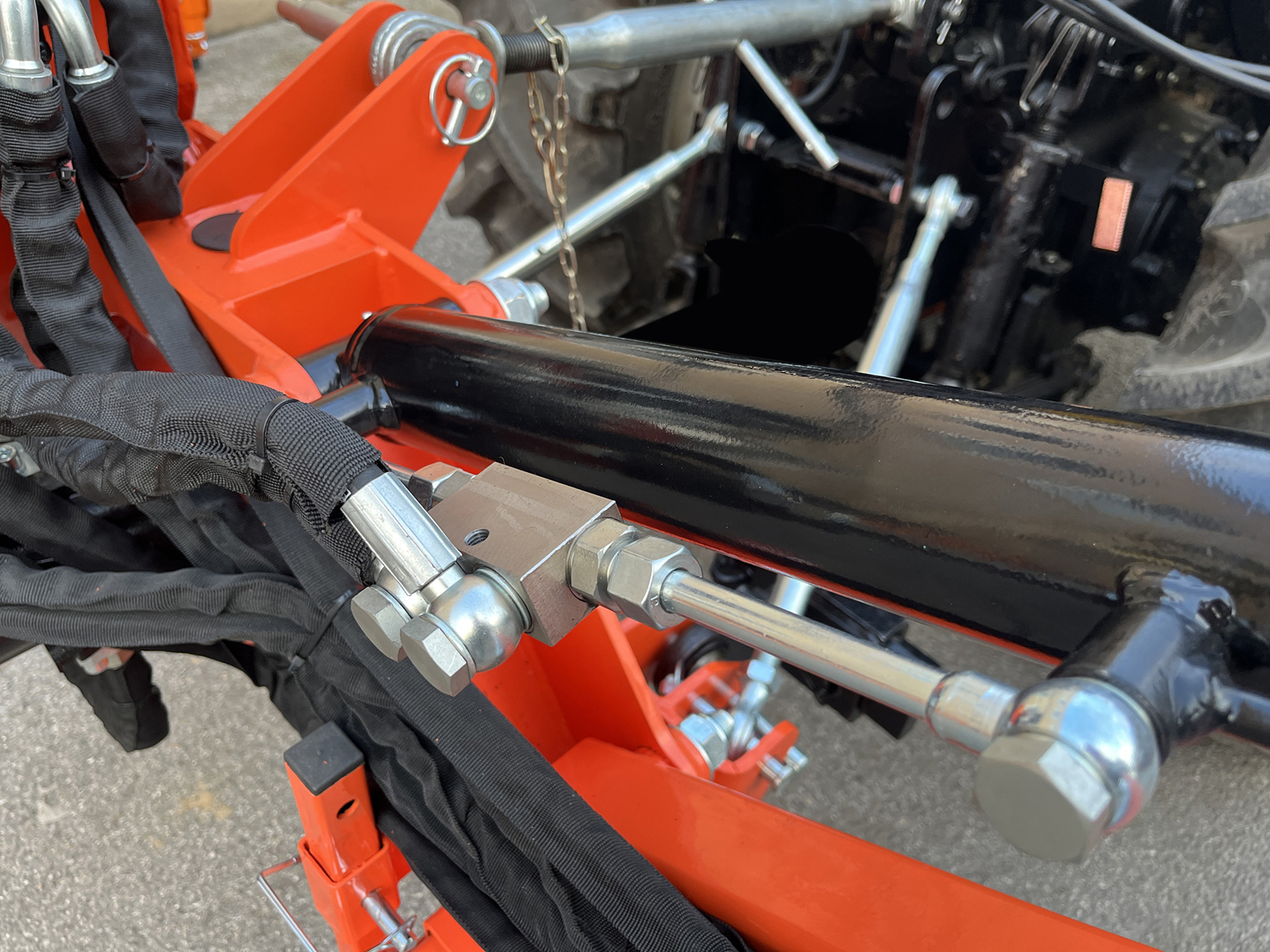

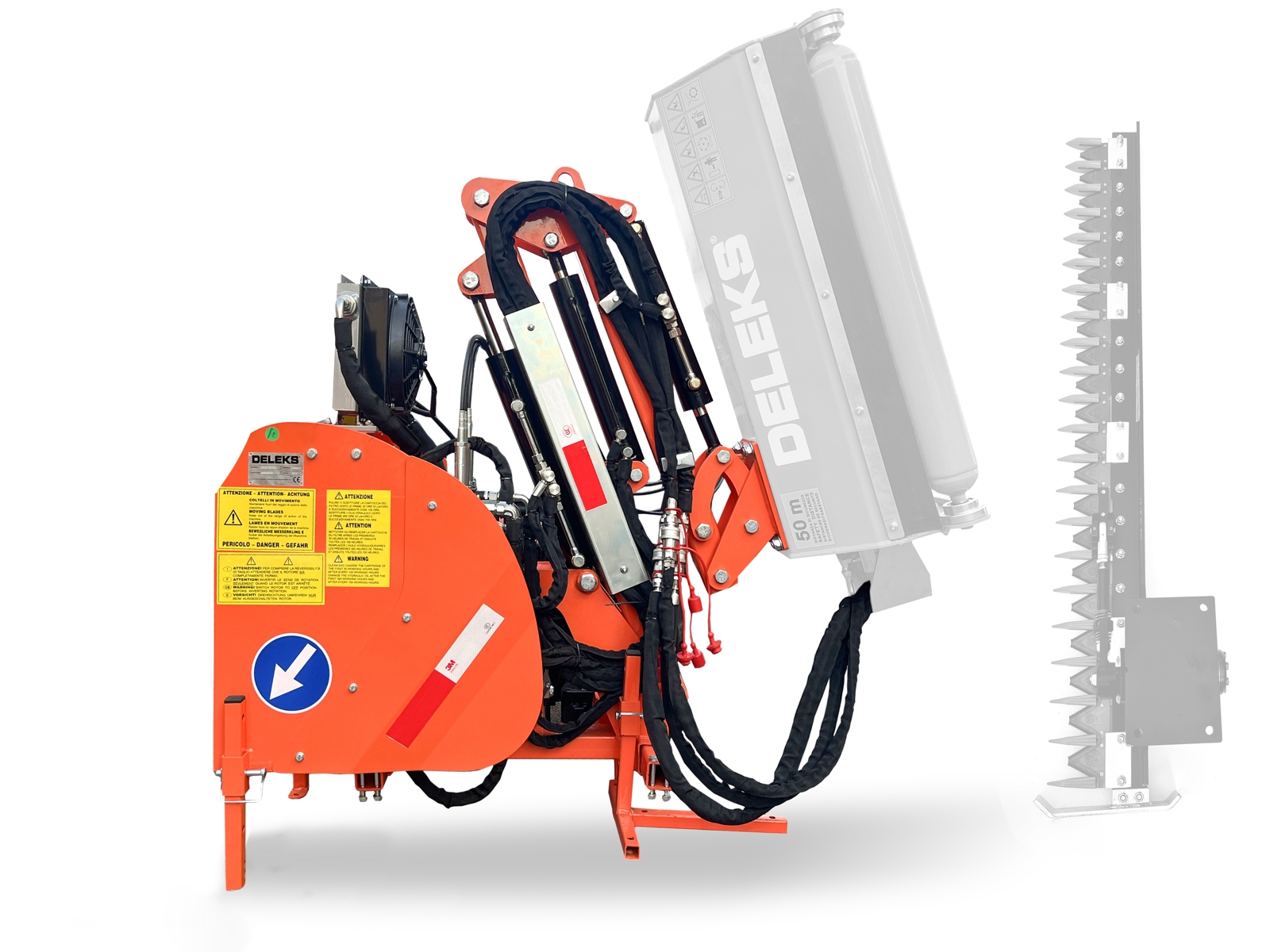

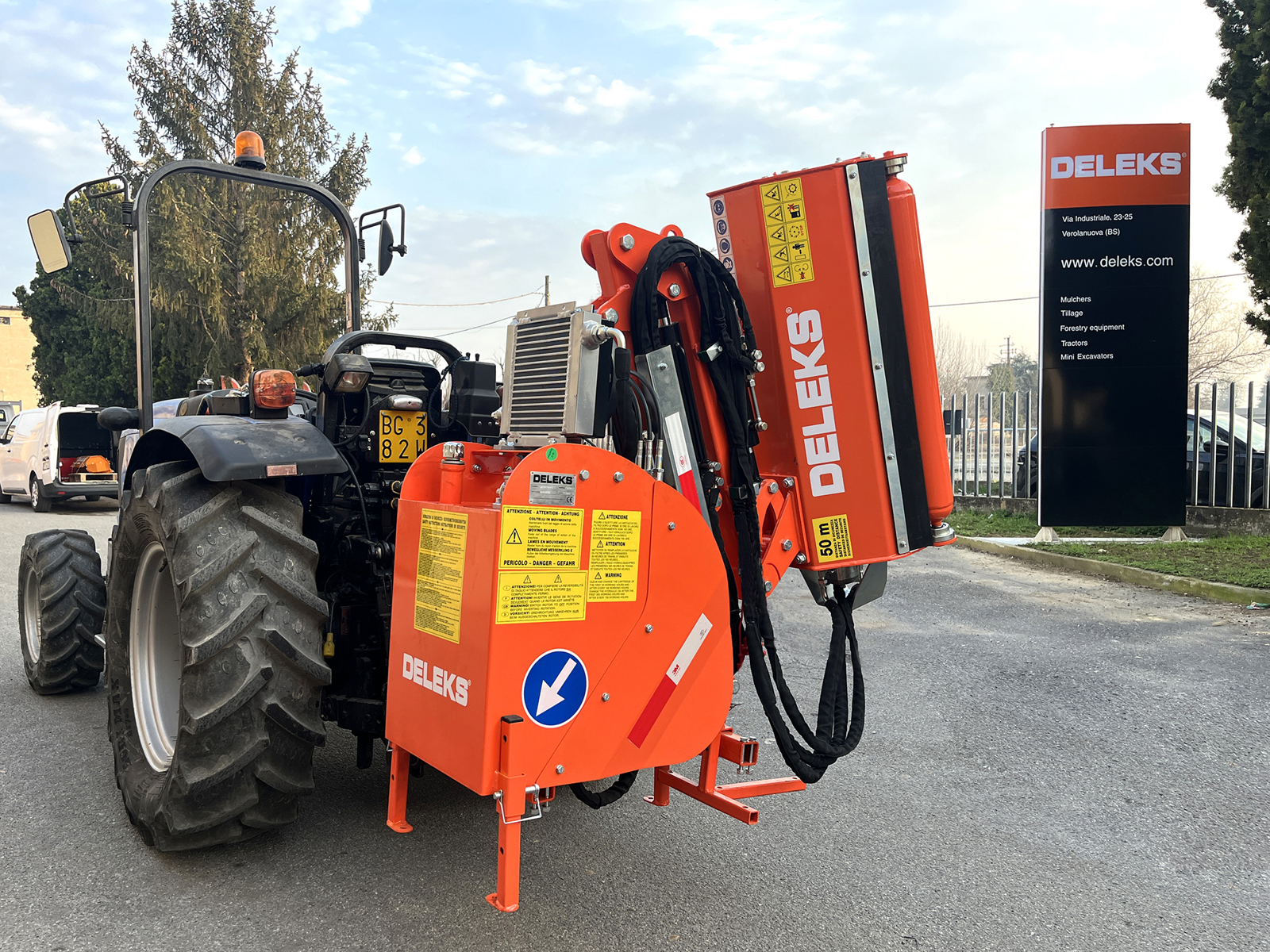

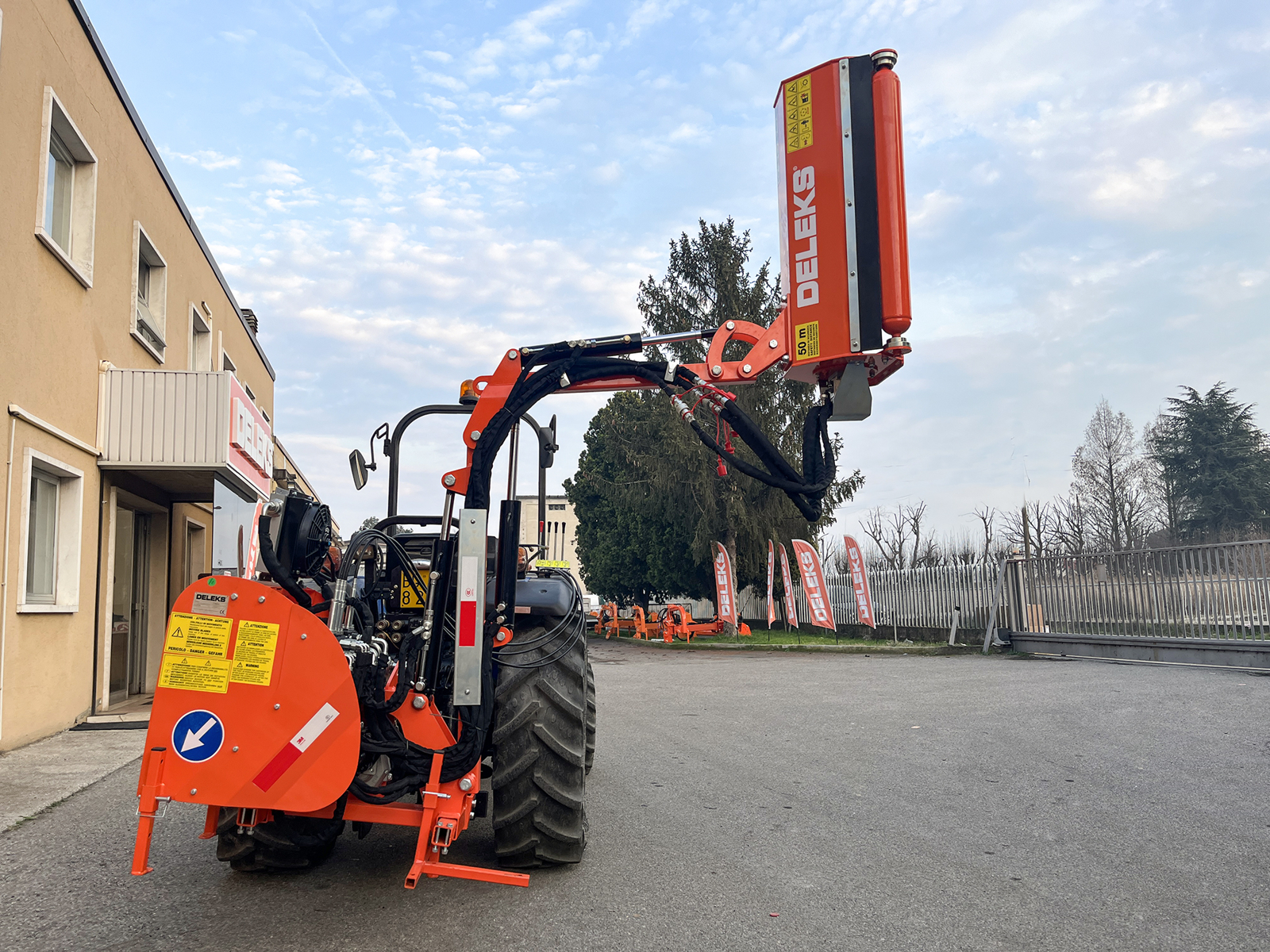

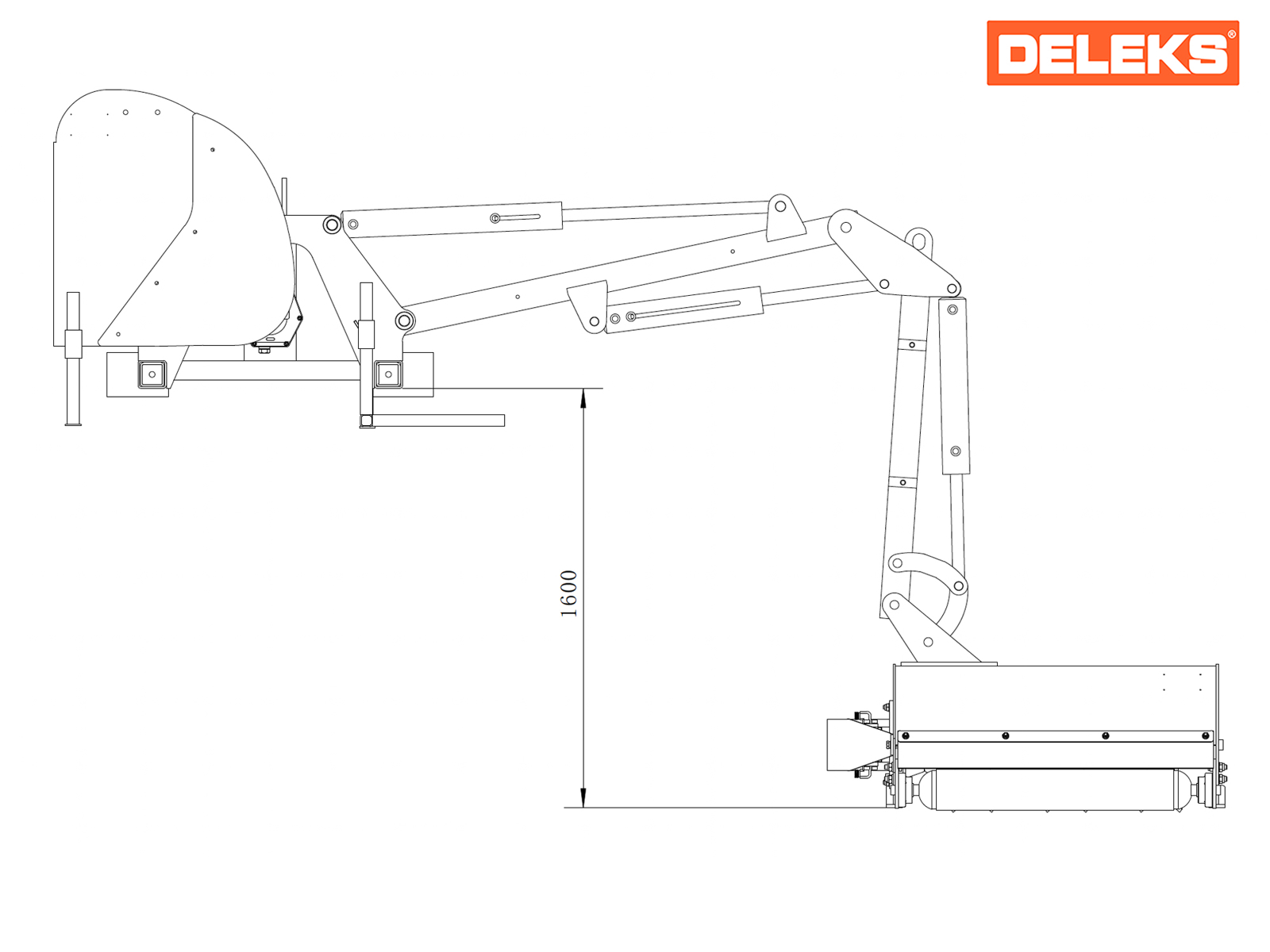

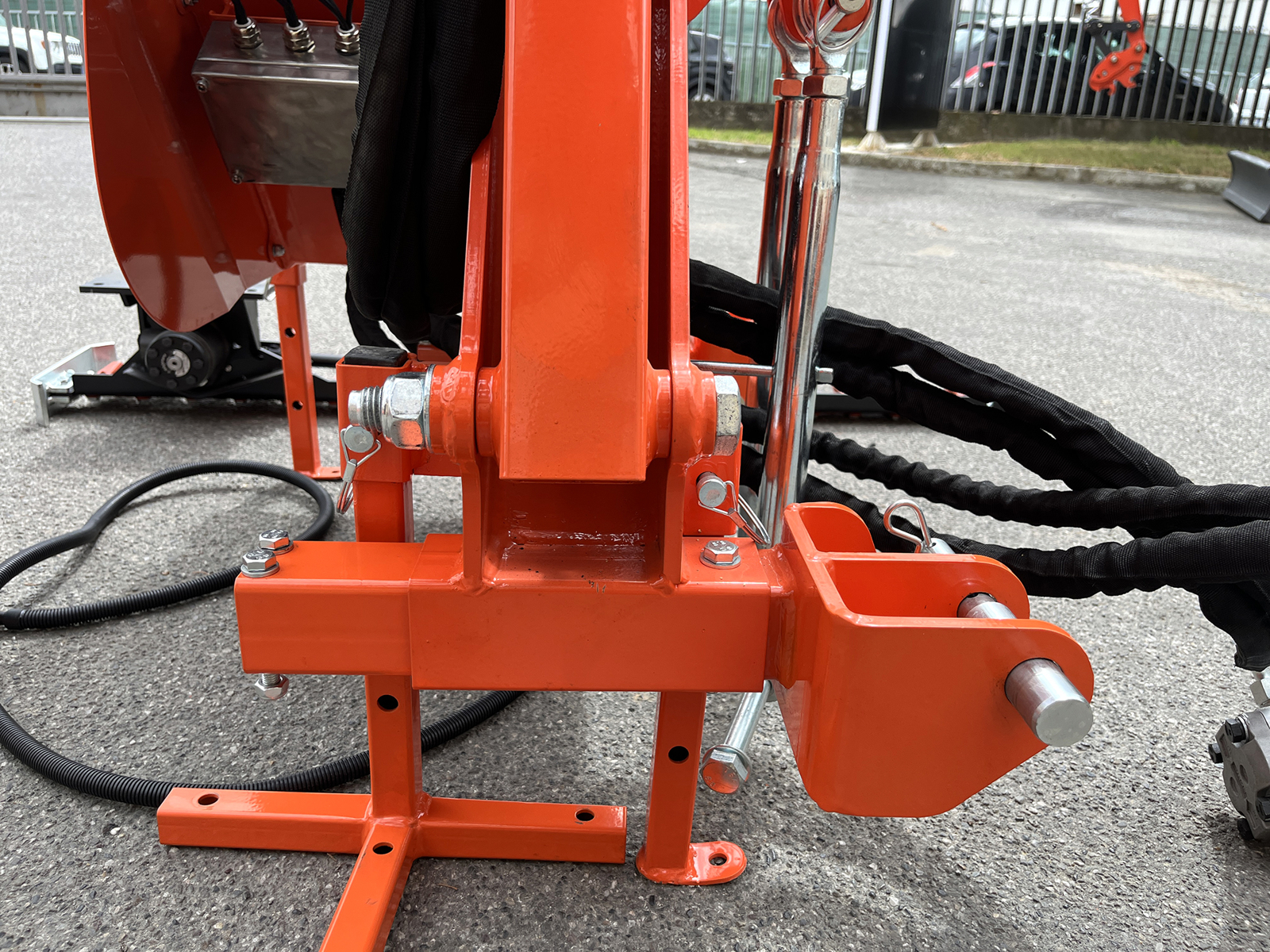

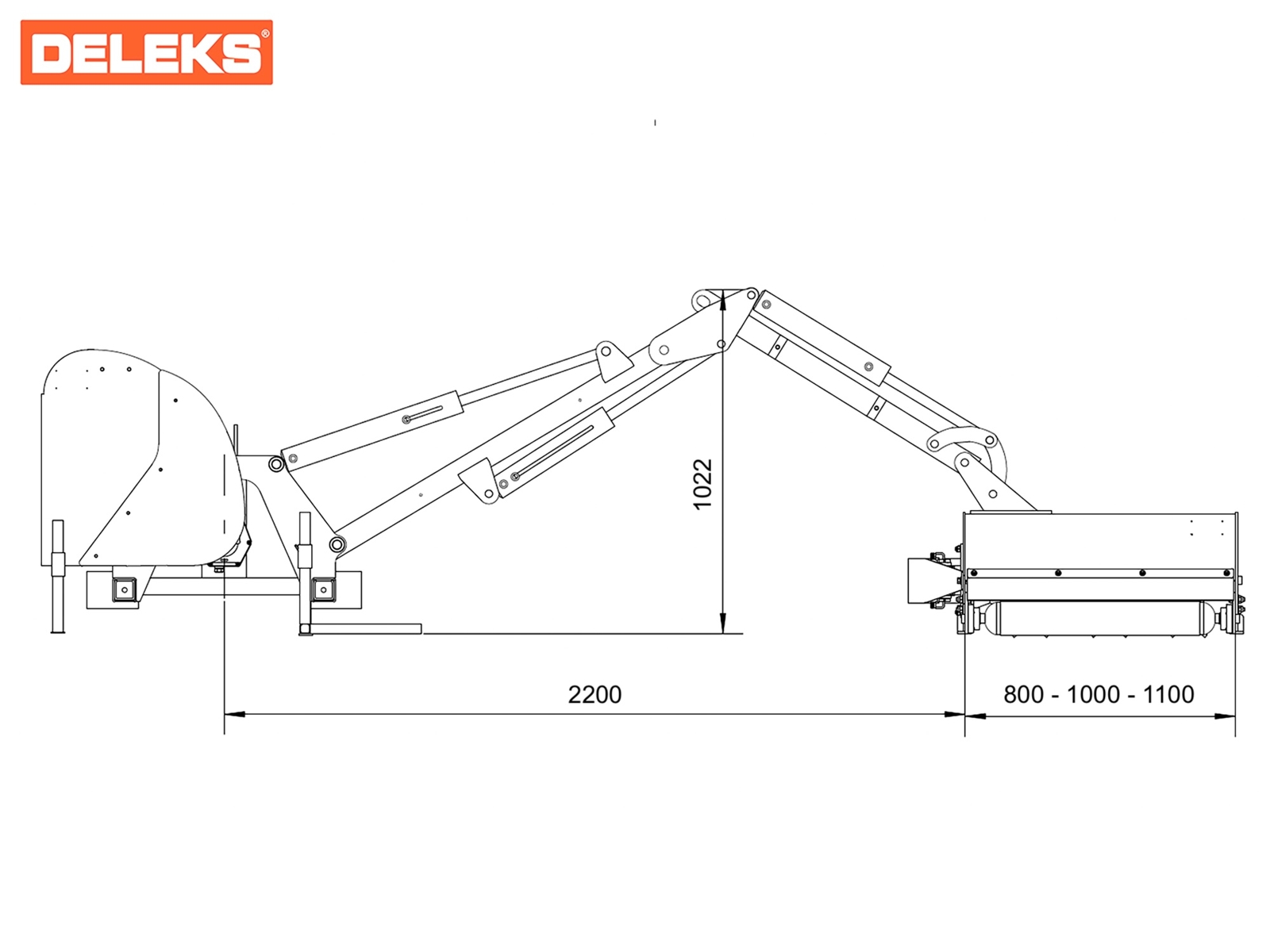

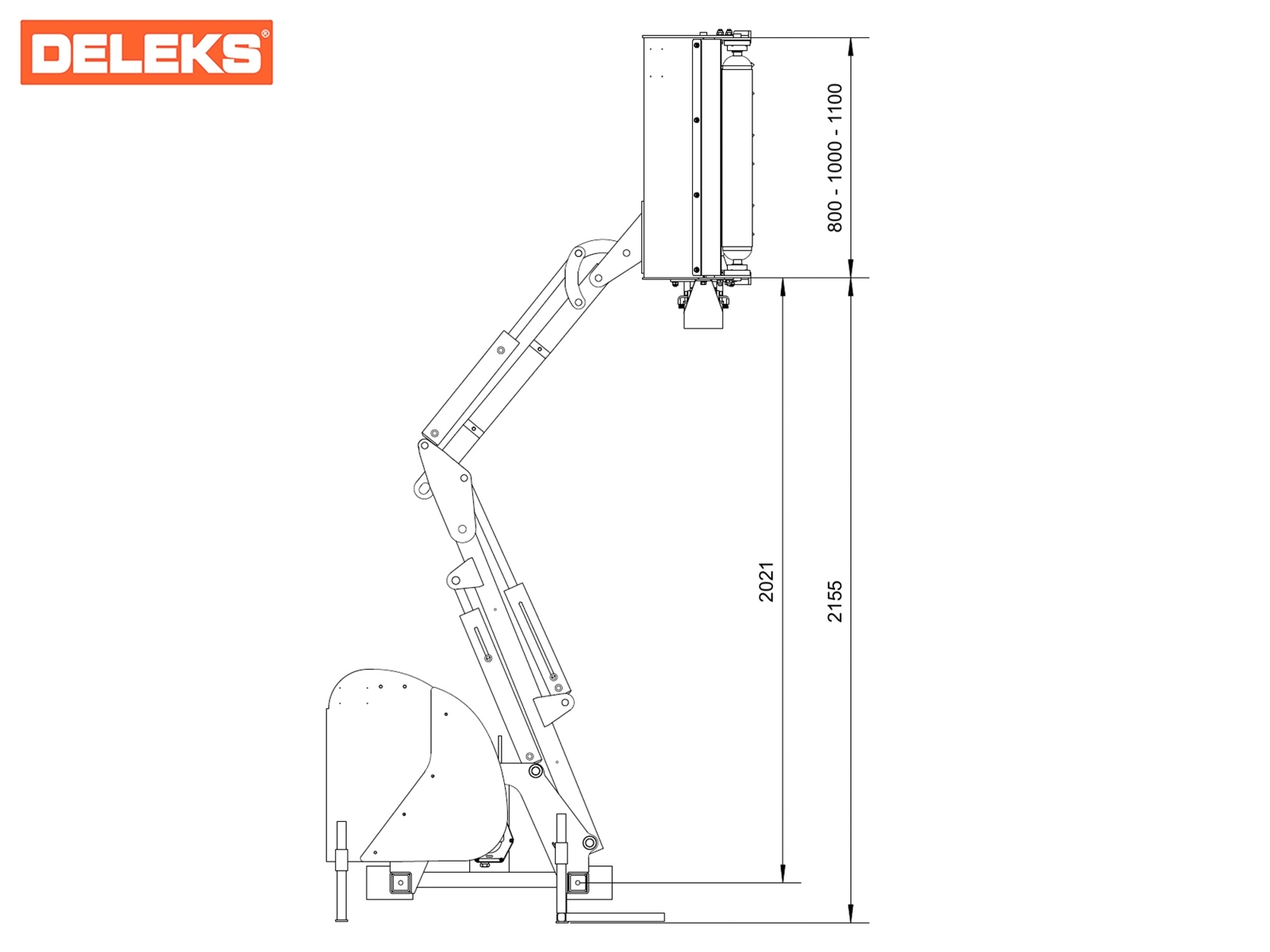

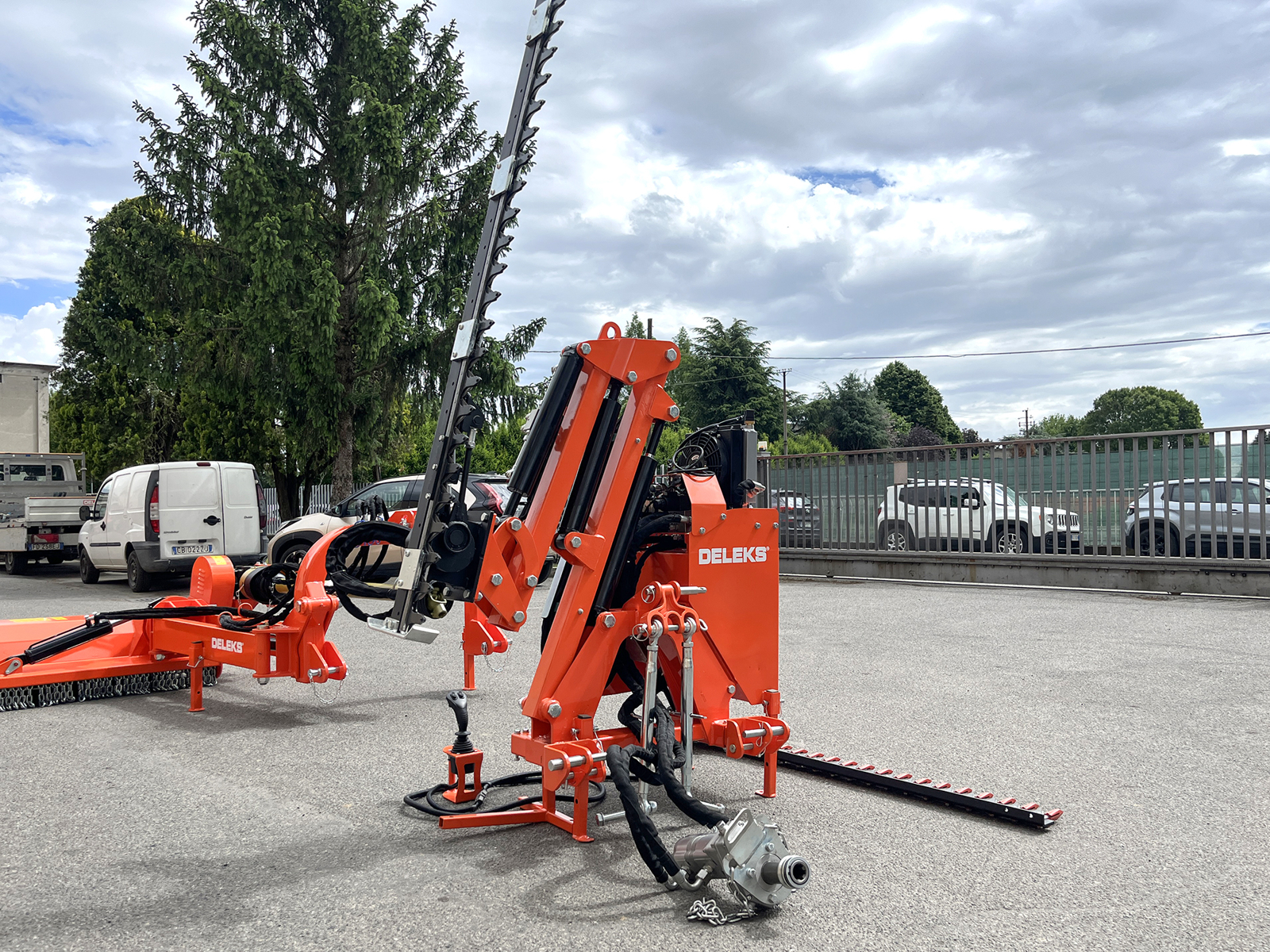

Box-section arm and working positions

The arm is made of 80 × 80 mm (3.1 × 3.1 in) box section and, when extended, stays low to pass under the trees. Its reach is 2.20 m (7.2 ft) plus the cutting width of the head fitted: from 3.00 m (9.8 ft) to 3.30 m (10.8 ft) with the ARK flail heads of 80 to 110 cm. Offset and angled, it clears road verges and banks; offset and upright, it cuts back bushes and hedges; horizontal, it works between the rows.

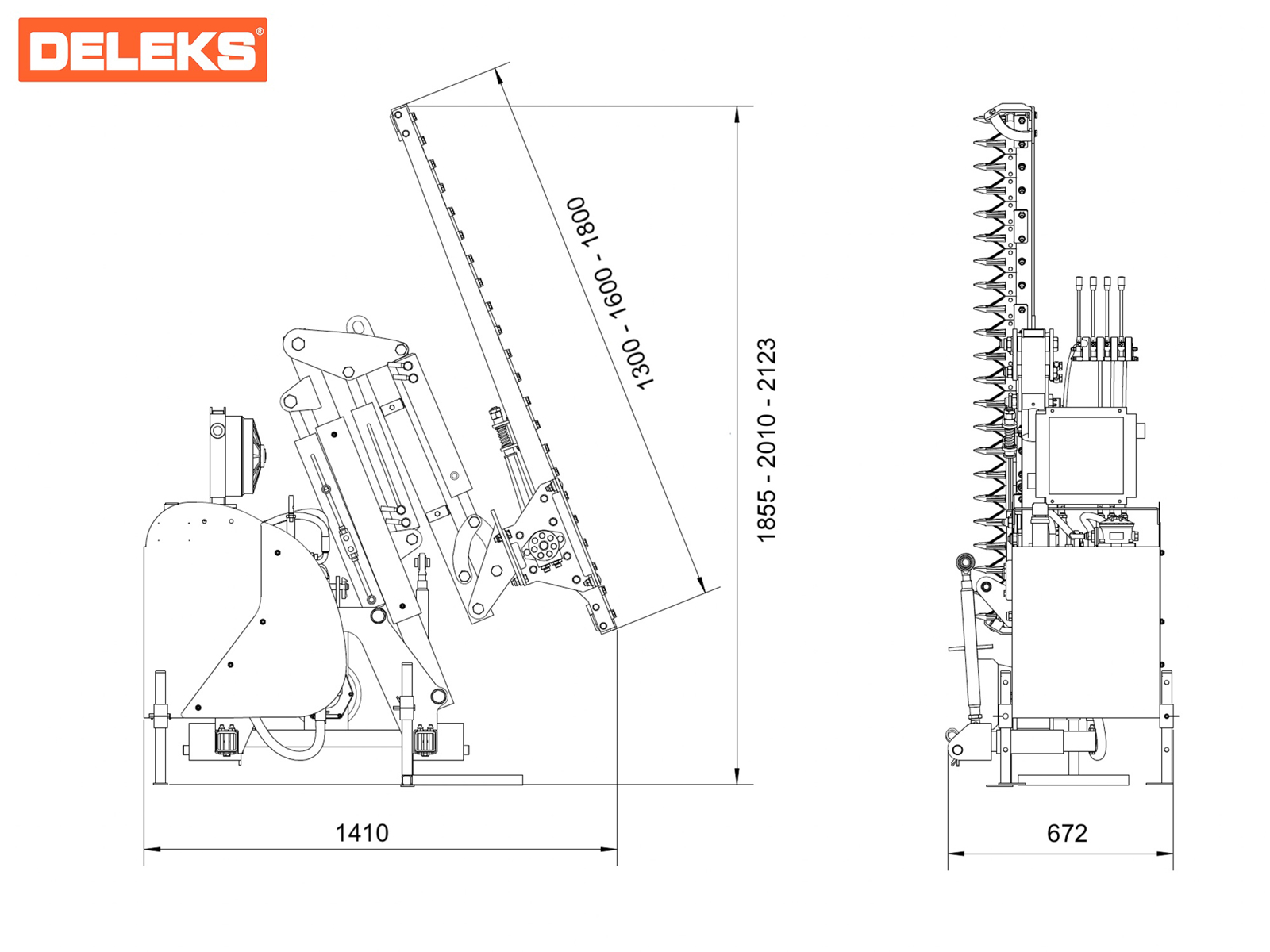

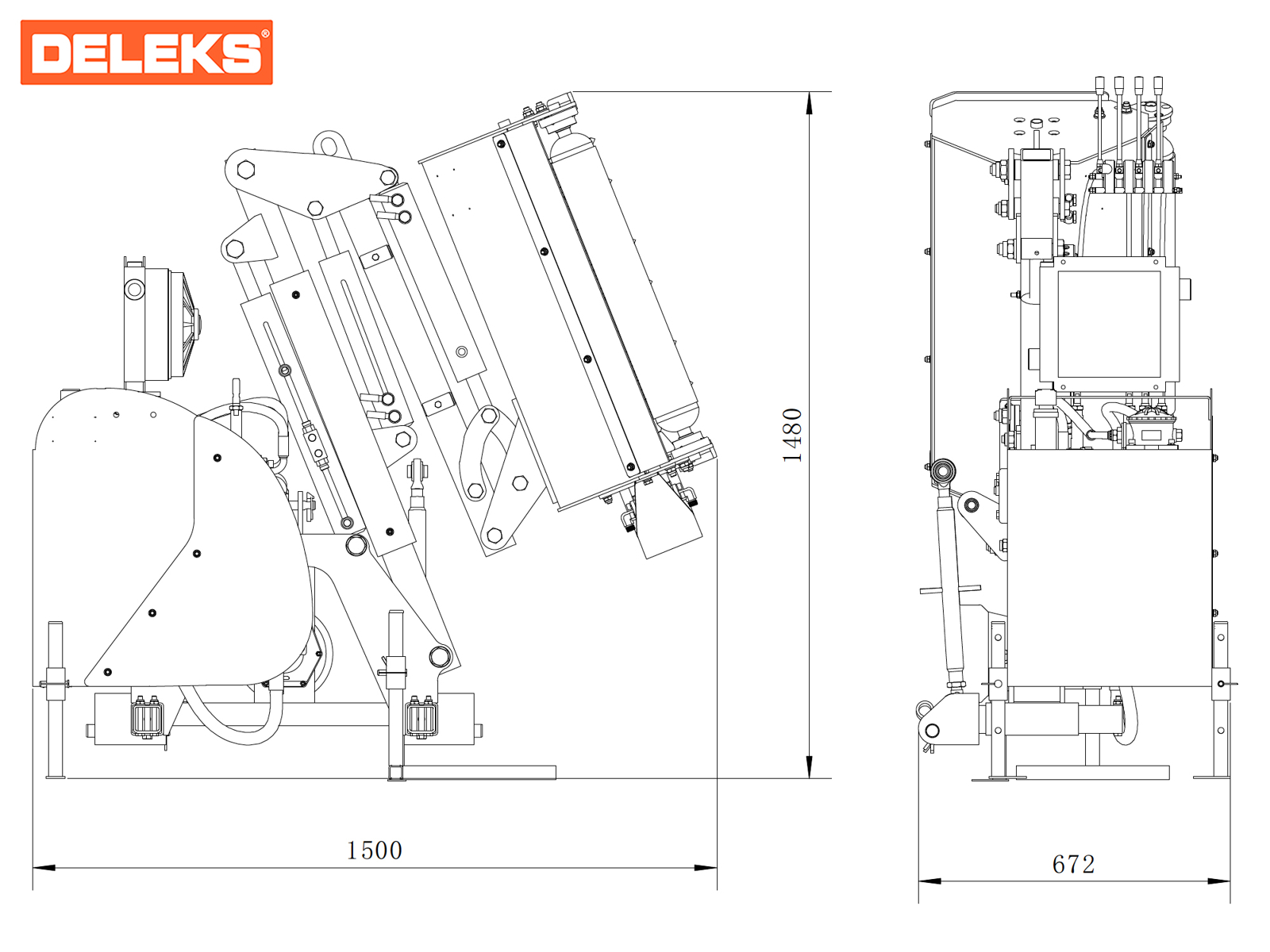

Dimensions, weight and delivery

Weight 300 kg (661 lb) without the cutting attachment. It ships in a package of 160 × 80 × 170 cm (63 × 31 × 67 in), 320 kg (705 lb) gross and 2.18 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is certified by ECO Certificazioni and carries a 2-year warranty.

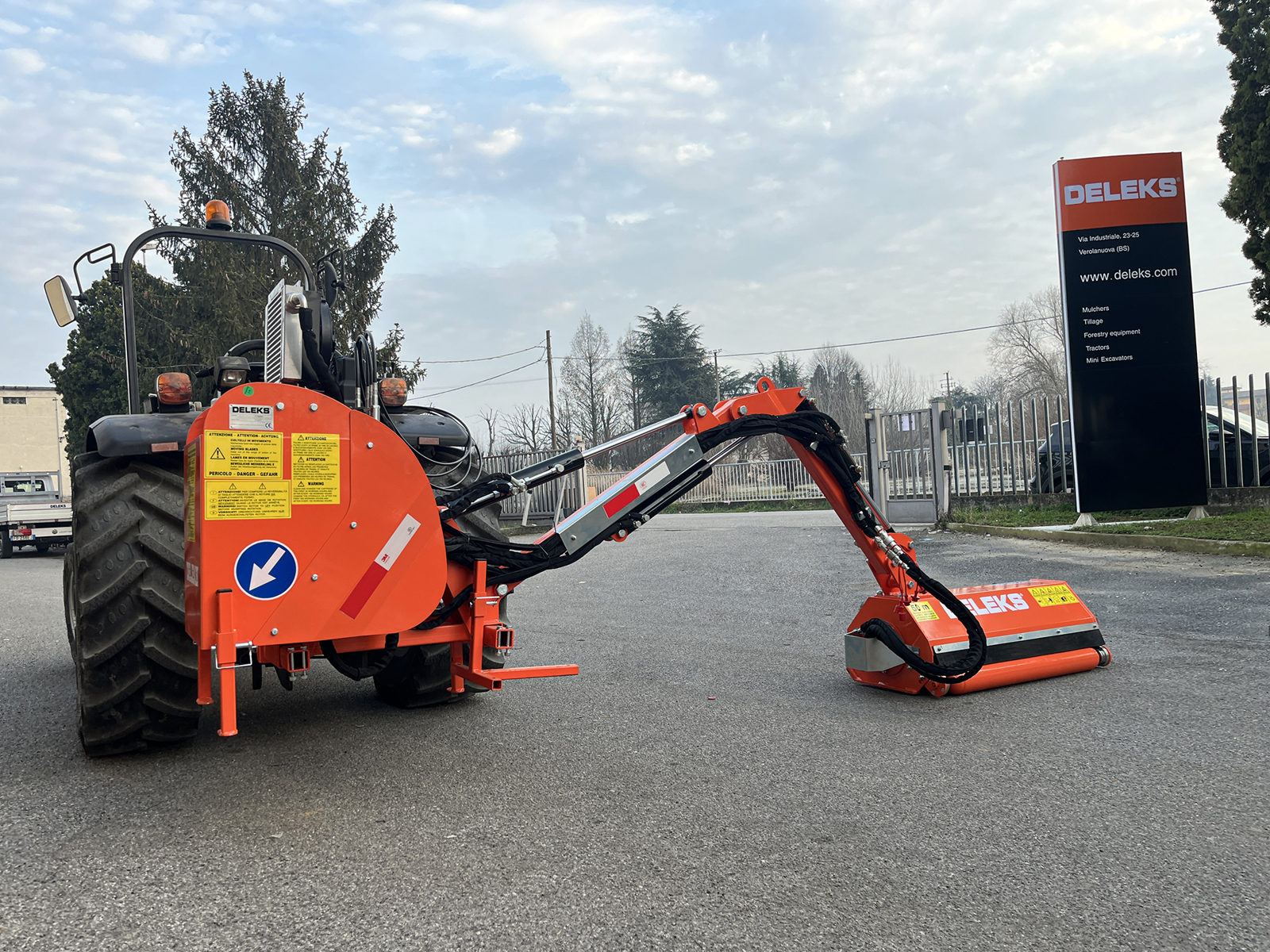

Where it works

  • Road verges, central reservations and service tracks, with the flail head
  • Banks, ditches and slopes: grass, brambles and branches up to 3 cm (1.2 in)
  • Hedges and tree lines: trimming with the hedge cutter bar
  • Under trees and between the rows, with the arm low when extended
  • Land around houses, parks and recreation areas

Options and spares

From the product page you choose the ARK-80 (ARK80), ARK-100 (ARK100) and ARK-110 (ARK110) flail heads, the HR-S hedge cutter bars (HR130S, HR160S, HR180S), the HRD double-blade bars (HRD130, HRD160, HRD180) and the 3-disc saw bar (HRDISC3). Spares for the ARK heads are the set of 20 pairs of Y-blades (COLTELLIDTH), the kit of 10 hammer flails (MAZZE10INT) and the 10 nuts and bolts (DB10A). Other spares are identified on the exploded diagrams with our technical service.


FAQ

Which tractor suits the MERLO?
Tractors from 25 to 60 hp weighing at least 1,500 kg (3,307 lb), with a 540 rpm PTO and a category 1 or 2 three-point linkage.

Is the flail head included?
No: it is supplied as the base unit only. The ARK flail head of 80, 100 or 110 cm, or a hedge cutter bar, is chosen as an option.

How is it controlled?
With a joystick at the driver's seat: the control valve is electro-hydraulic.

Do I need a hydraulic spool valve on the tractor?

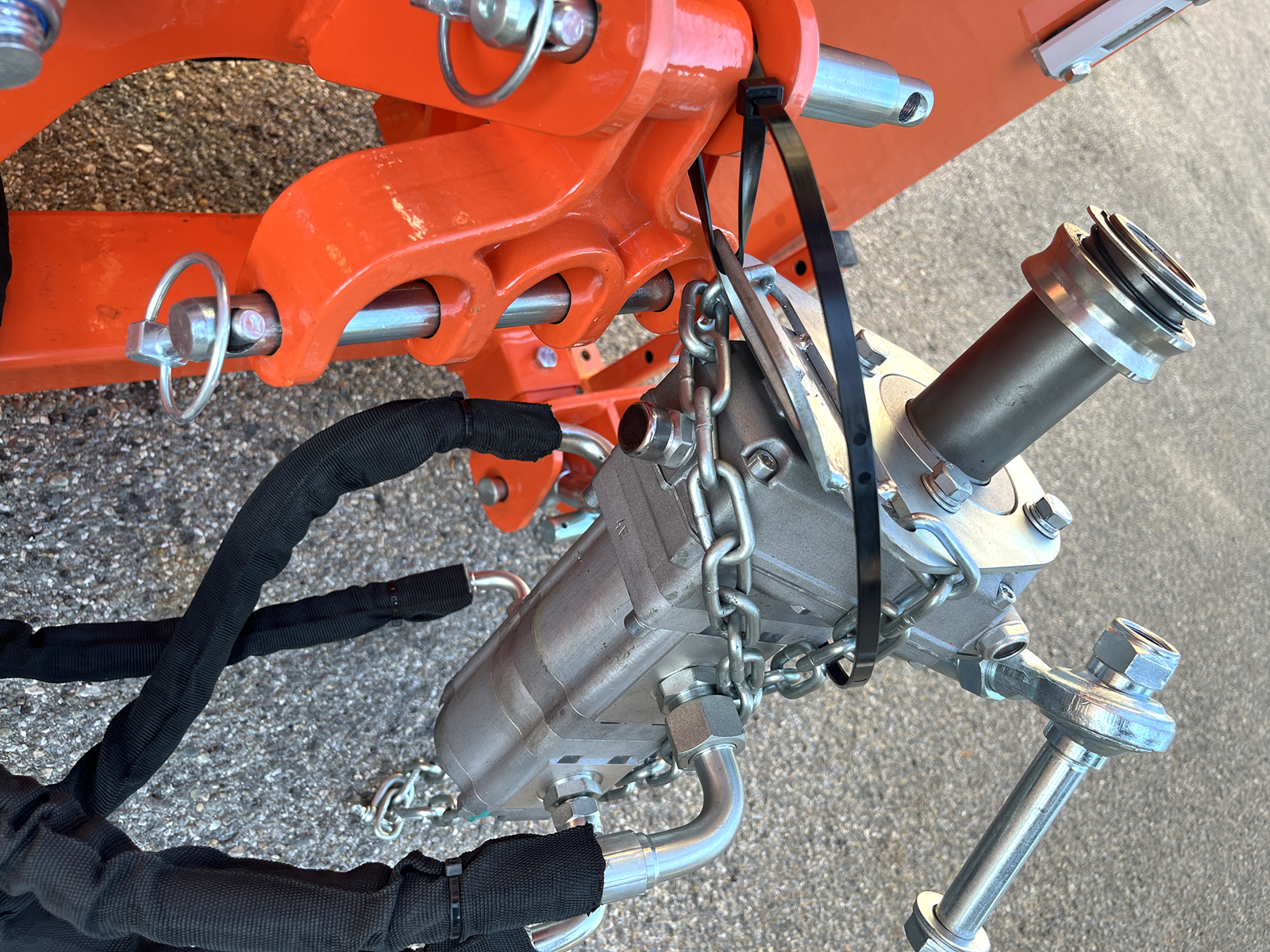

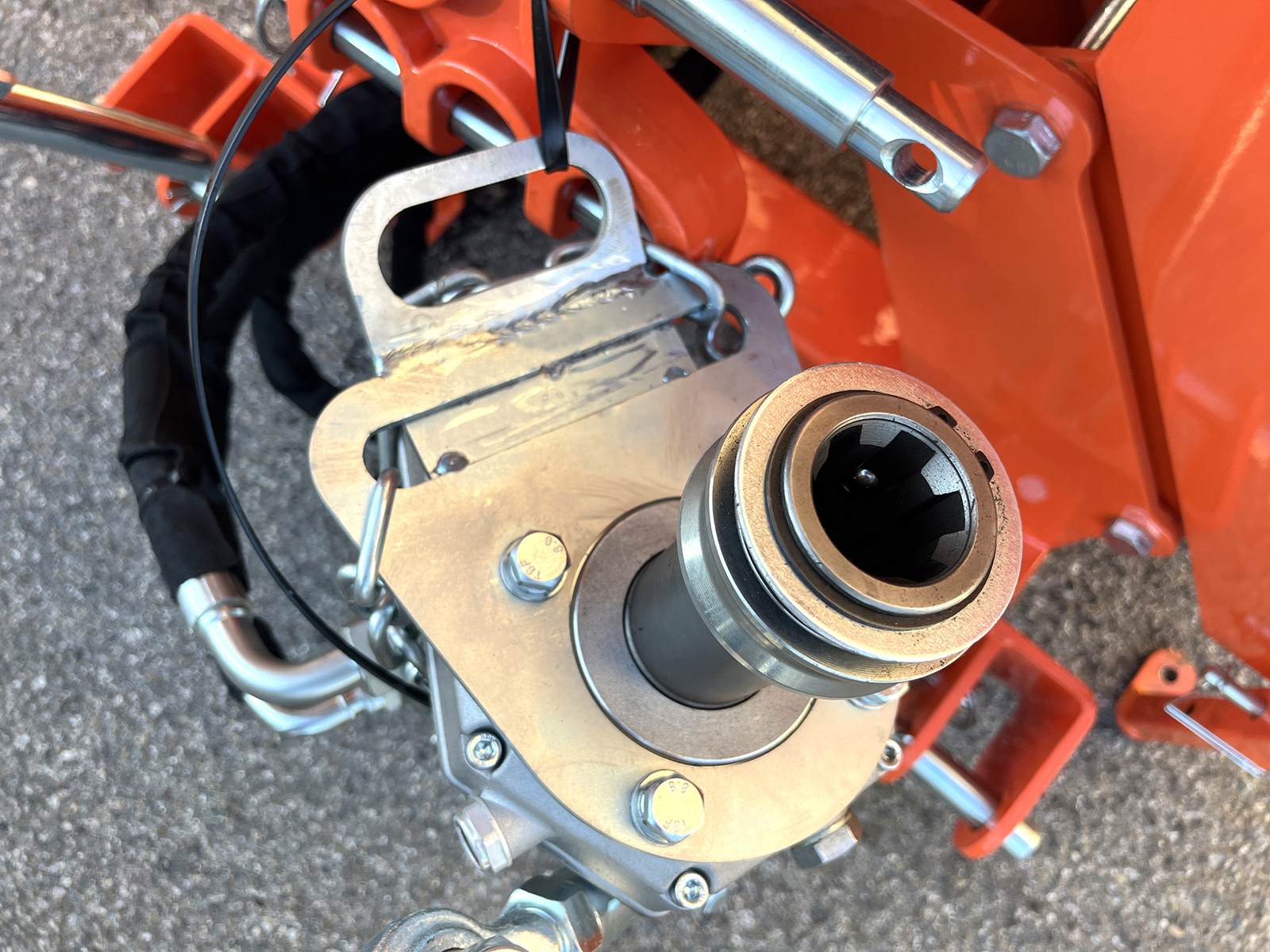

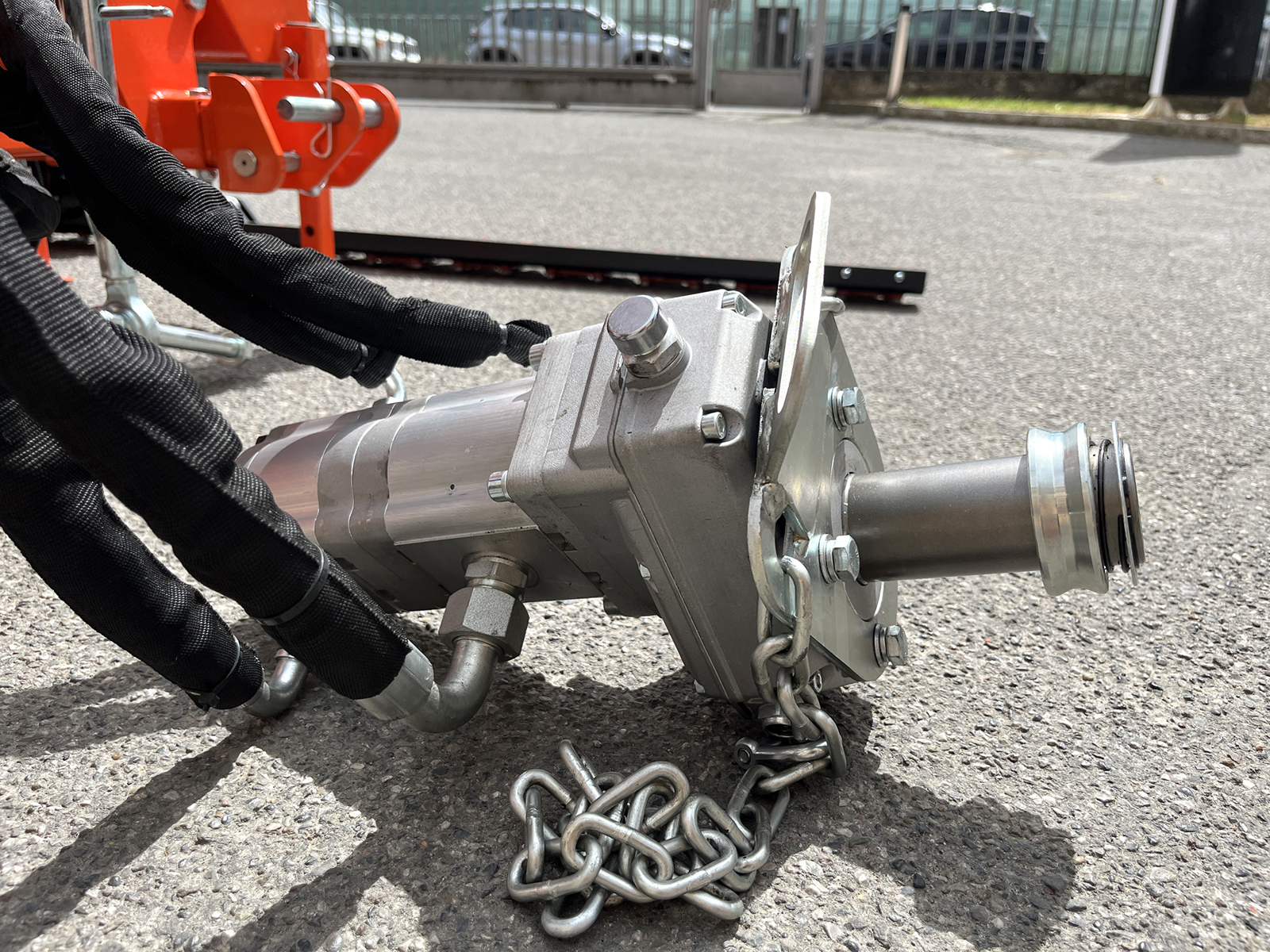

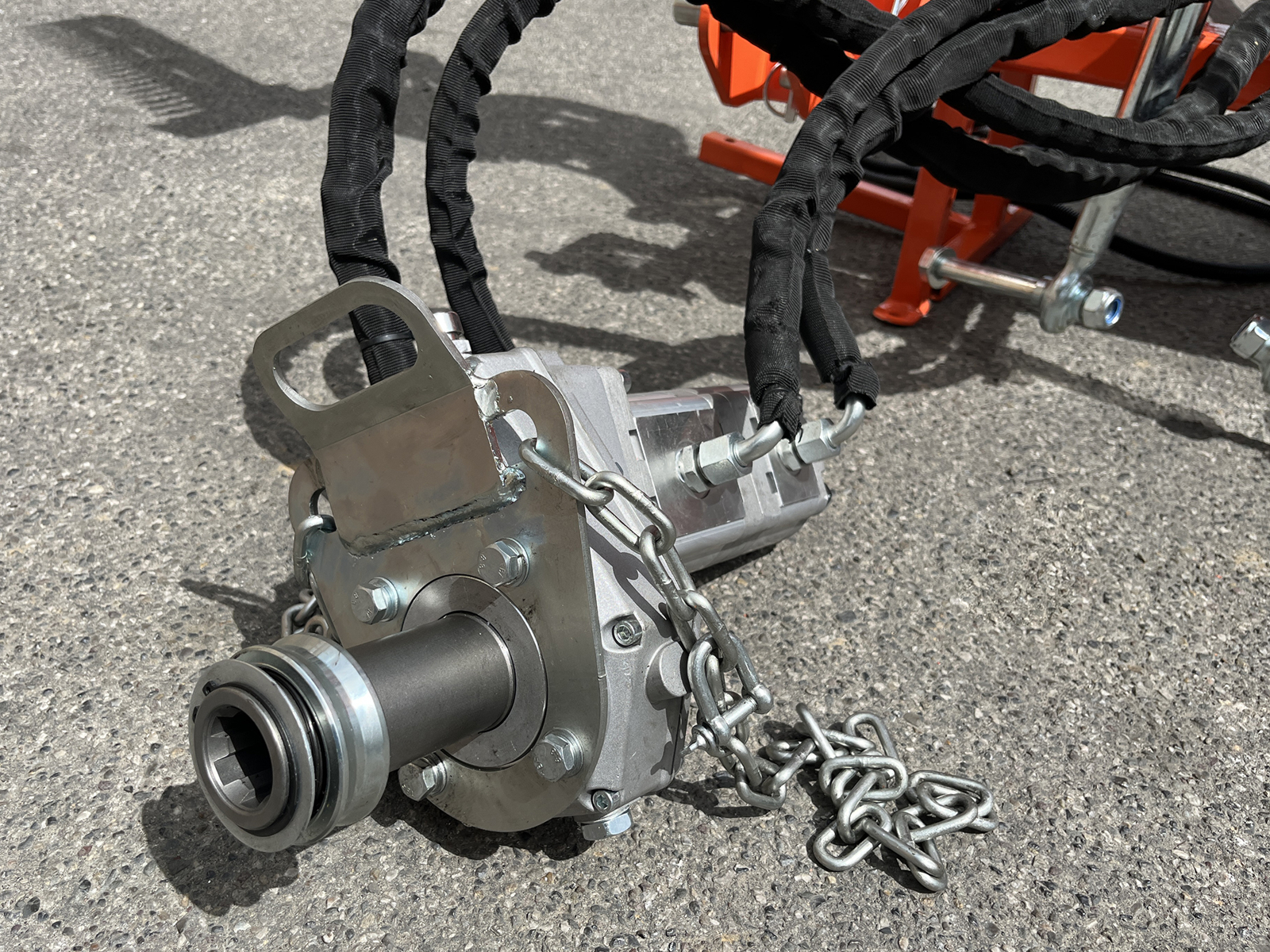

No: the arm has its own pump, driven by the PTO, and its own control valve; all it needs is a 540 rpm PTO and a three-point linkage.

What does it cut?
With the ARK head, grass, brambles and branches up to 3 cm (1.2 in); with the HR-S bar, hedges and branches up to 3 cm (1.2 in); with the HRD double-blade bar, grass and thin branches up to 2 cm (0.8 in); with the 3-disc saw bar, branches up to 9 cm (3.5 in).

What is the difference between the MERLO and the AIRONE?
The MERLO is joystick-controlled, takes the ARK heads of 80 to 110 cm, for branches up to 3 cm (1.2 in), and is supplied without a cutting attachment. The AIRONE arrives with the 60, 80 or 100 cm bladed head already fitted.

Hedge cutter arm or verge flail mower?
A verge flail mower covers long stretches of ditch quickly with a wide head; a hedge cutter arm reaches further, works on steep banks and can carry a finger bar hedge cutter.


DELEKS® spares and support

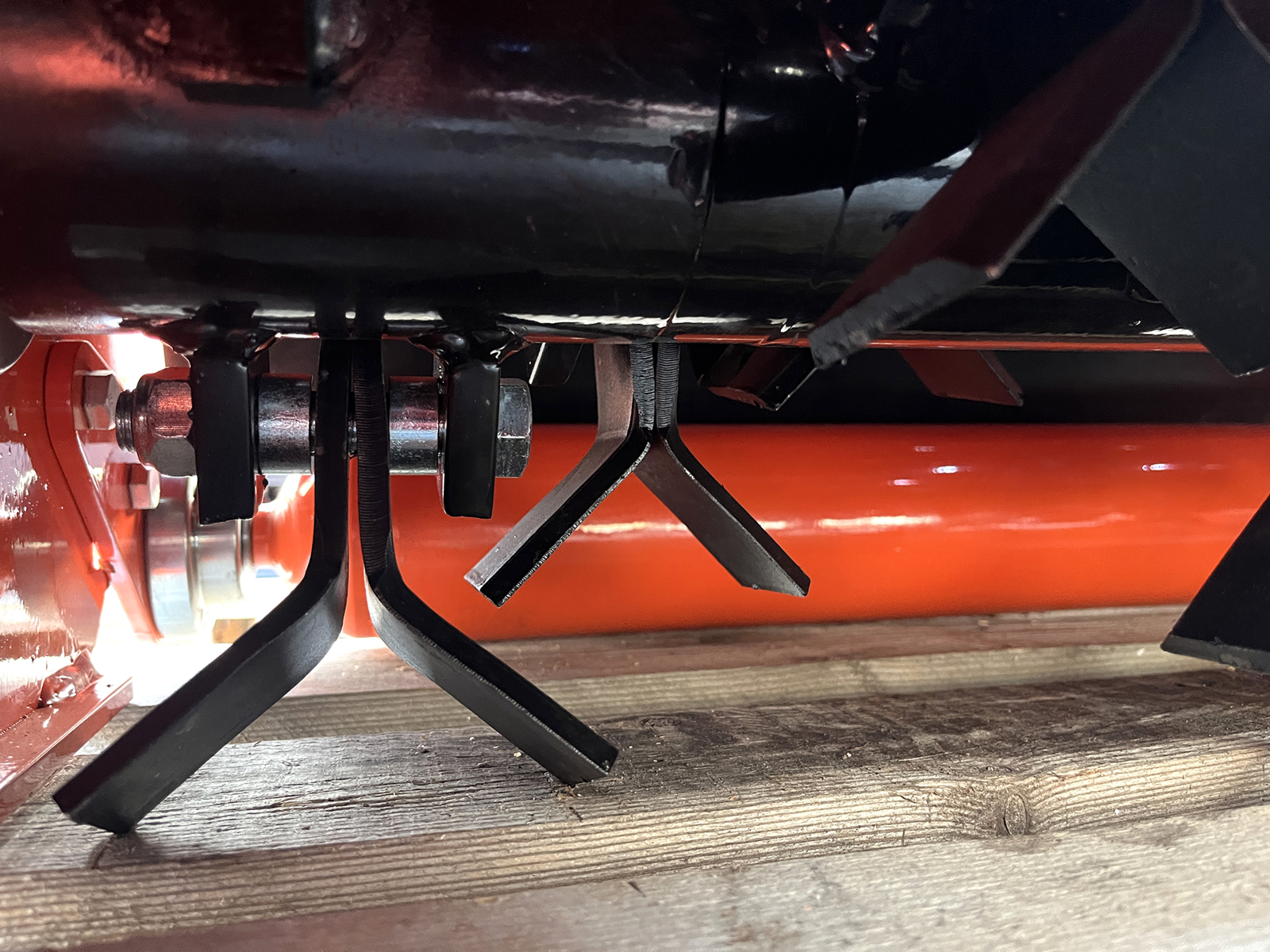

Genuine spares ship from DELEKS® warehouses in Europe: blades, cutter bar knives, fingers, bearings, hydraulic hoses, pump and arm components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right arm and cutting attachments for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric
Weight 300.0 kg
Tractor Power Range 25-60 Hp

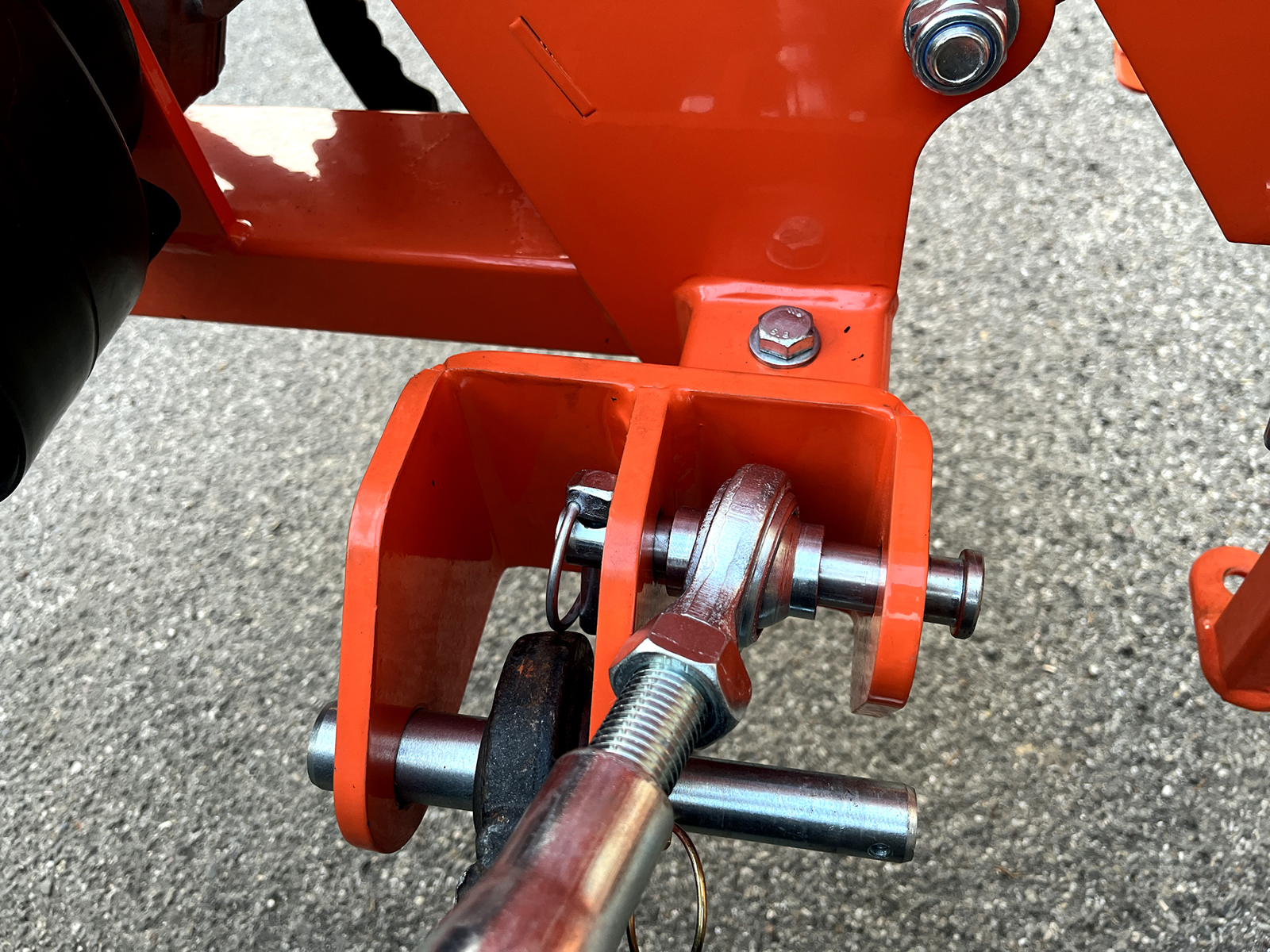

3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
Spacing between the 2 lower points 390.0 - 780.0 mm
Transmission: Drive method Hydraulic
Transmission: PTO 540 r/min
Transmission: Rotation of gearbox Right side
Transmission: Free wheel √
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925
Hydraulic Hoses WP 400 Bar

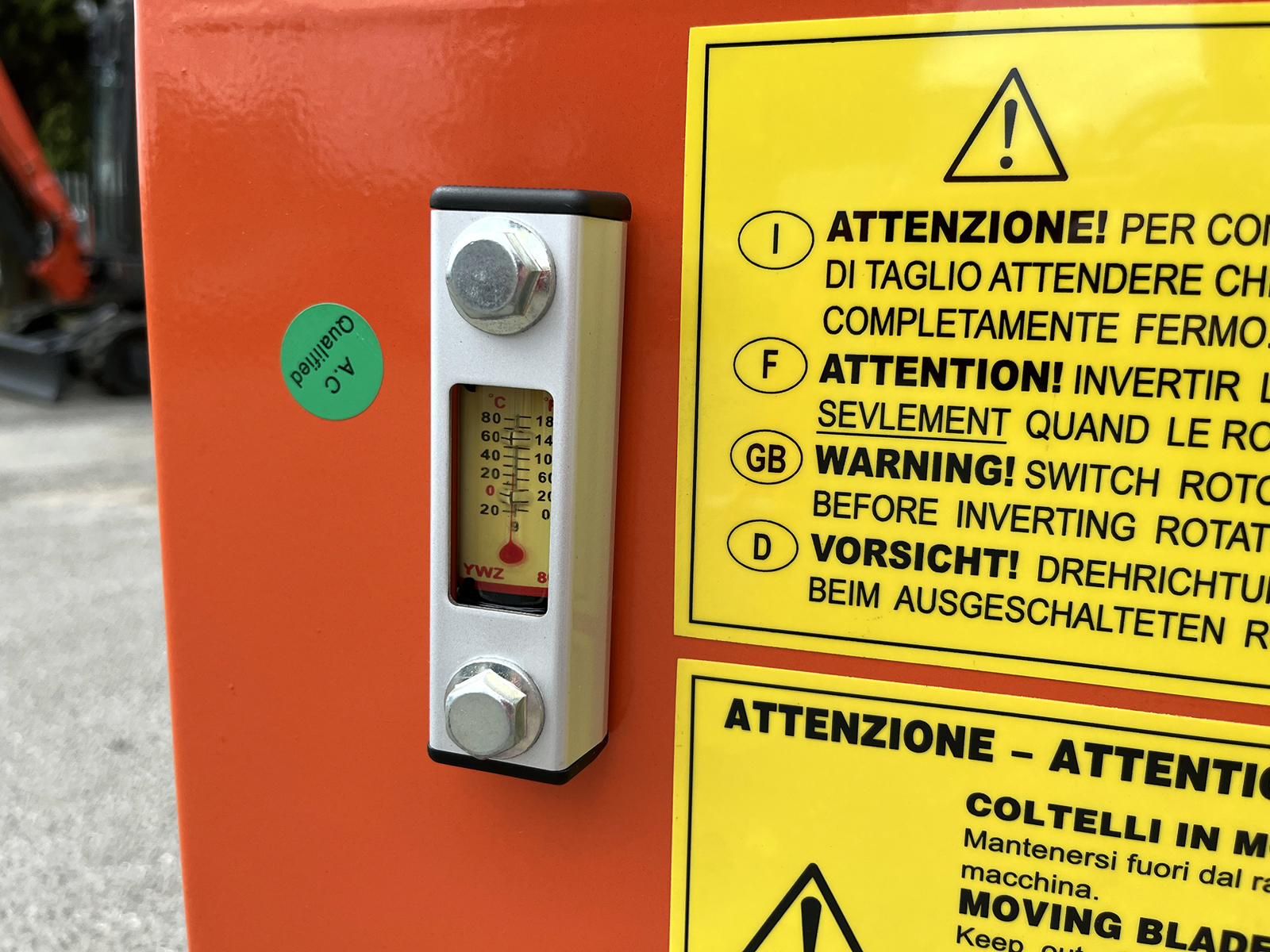

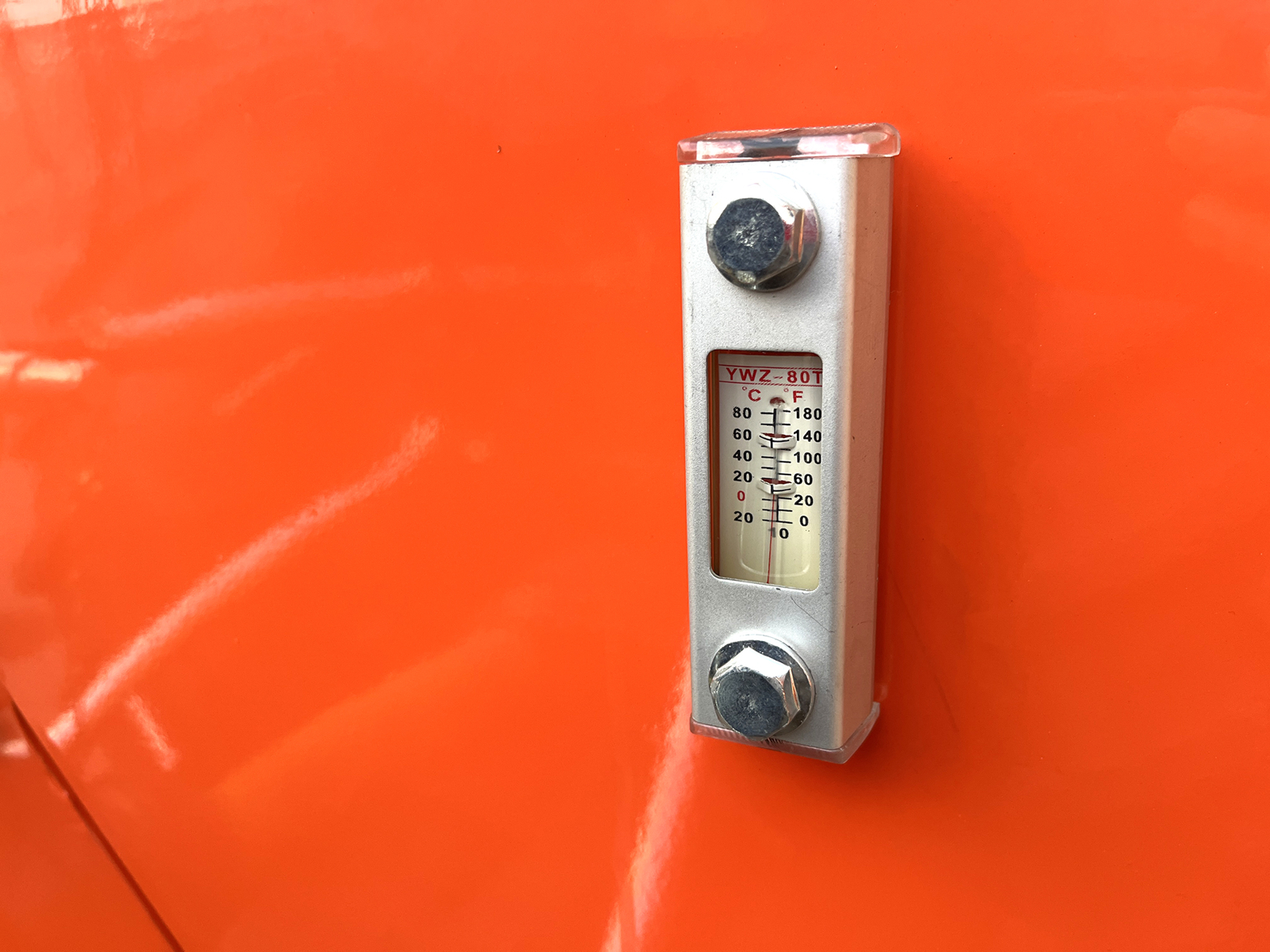

Transmission: Oil in the tank 60.0 L
Gross shipping weight 320 kg
Package volume 2.18 m3
Packing sizes 1600.0*800.0*1700.0 mm

Technical charts

Shell Tellus S2 MX 46: Specifications   Download PDF
DETAILS
CHARACTERISTICS
Technical charts

DETAILS

CLOSE

Hydraulic tractor hedge cutter arm with joystick, the DELEKS® MERLO: a multi-purpose arm for 25 to 60 hp tractors that takes an ARK flail head of 80, 100 or 110 cm (31, 39 or 43 in) or a hedge cutter bar of 130, 160 or 180 cm (51, 63 or 71 in). The electro-hydraulic control valve is worked from a joystick and the tandem pump, driven by the PTO, moves the arm while the attachment is working. With the flail head it clears road verges, banks, ditches and slopes; with the bar it trims hedges and branches. It is supplied as the base unit only, 300 kg (661 lb), with a 60-litre (13.2 UK gal) tank already filled to level: head and bar are chosen as options. It is certified by ECO Certificazioni, carries a 2-year warranty and comes with free delivery within the EU.


Which tractors it fits

The MERLO is built for 25 to 60 hp tractors with a 540 rpm PTO and a category 1 or 2 three-point linkage (19-22 or 25-28 mm pins, lower link spacing from 390 to 780 mm): Kubota B series, Antonio Carraro Tigre, Goldoni, BCS, Ferrari, Pasquali, New Holland, Landini and Valpadana. The tractor must weigh at least 1,500 kg (3,307 lb): with the arm stretched out to the side the centre of gravity shifts. The base unit weighs 300 kg (661 lb) without the cutting attachment, plus about 60 kg (132 lb) of hydraulic oil.


Joystick and independent hydraulic system

The electro-hydraulic control valve is worked from a joystick at the driver's seat. The system is independent of the tractor: the high-efficiency tandem hydraulic pump, driven by the PTO, lets you move the arm and cut at the same time, without using the tractor's spool valves. The 60-litre (13.2 UK gal) tank arrives filled to level with Shell Tellus S2 MX 46 oil; the gearbox has a freewheel.


Flail head or hedge cutter bar

It is supplied as the base unit only; the cutting attachment is chosen as an option. With an ARK flail head of 80, 100 or 110 cm, with Y-blades, an electronically balanced rotor and a bidirectional Casappa hydraulic motor, Made in Italy, the MERLO clears growth from road verges, central reservations, banks, ditches and under trees, with branches up to 3 cm (1.2 in). With an HR-S hedge cutter bar of 130, 160 or 180 cm it trims hedges and branches up to 3 cm (1.2 in); with an HRD double-blade bar it does precise work on grass, hedges and thin branches, up to 2 cm (0.8 in). There is also the HRDISC3 3-disc saw bar, for branches up to 9 cm (3.5 in).


Box-section arm and working positions

The arm is made of 80 × 80 mm (3.1 × 3.1 in) box section and, when extended, stays low to pass under the trees. Its reach is 2.20 m (7.2 ft) plus the cutting width of the head fitted: from 3.00 m (9.8 ft) to 3.30 m (10.8 ft) with the ARK flail heads of 80 to 110 cm. Offset and angled, it clears road verges and banks; offset and upright, it cuts back bushes and hedges; horizontal, it works between the rows.


Dimensions, weight and delivery

Weight 300 kg (661 lb) without the cutting attachment. It ships in a package of 160 × 80 × 170 cm (63 × 31 × 67 in), 320 kg (705 lb) gross and 2.18 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is certified by ECO Certificazioni and carries a 2-year warranty.


Where it works

  • Road verges, central reservations and service tracks, with the flail head
  • Banks, ditches and slopes: grass, brambles and branches up to 3 cm (1.2 in)
  • Hedges and tree lines: trimming with the hedge cutter bar
  • Under trees and between the rows, with the arm low when extended
  • Land around houses, parks and recreation areas

Options and spares

From the product page you choose the ARK-80 (ARK80), ARK-100 (ARK100) and ARK-110 (ARK110) flail heads, the HR-S hedge cutter bars (HR130S, HR160S, HR180S), the HRD double-blade bars (HRD130, HRD160, HRD180) and the 3-disc saw bar (HRDISC3). Spares for the ARK heads are the set of 20 pairs of Y-blades (COLTELLIDTH), the kit of 10 hammer flails (MAZZE10INT) and the 10 nuts and bolts (DB10A). Other spares are identified on the exploded diagrams with our technical service.


FAQ

Which tractor suits the MERLO?
Tractors from 25 to 60 hp weighing at least 1,500 kg (3,307 lb), with a 540 rpm PTO and a category 1 or 2 three-point linkage.

Is the flail head included?
No: it is supplied as the base unit only. The ARK flail head of 80, 100 or 110 cm, or a hedge cutter bar, is chosen as an option.

How is it controlled?
With a joystick at the driver's seat: the control valve is electro-hydraulic.

Do I need a hydraulic spool valve on the tractor?
No: the arm has its own pump, driven by the PTO, and its own control valve; all it needs is a 540 rpm PTO and a three-point linkage.

What does it cut?
With the ARK head, grass, brambles and branches up to 3 cm (1.2 in); with the HR-S bar, hedges and branches up to 3 cm (1.2 in); with the HRD double-blade bar, grass and thin branches up to 2 cm (0.8 in); with the 3-disc saw bar, branches up to 9 cm (3.5 in).

What is the difference between the MERLO and the AIRONE?
The MERLO is joystick-controlled, takes the ARK heads of 80 to 110 cm, for branches up to 3 cm (1.2 in), and is supplied without a cutting attachment. The AIRONE arrives with the 60, 80 or 100 cm bladed head already fitted.

Hedge cutter arm or verge flail mower?
A verge flail mower covers long stretches of ditch quickly with a wide head; a hedge cutter arm reaches further, works on steep banks and can carry a finger bar hedge cutter.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: blades, cutter bar knives, fingers, bearings, hydraulic hoses, pump and arm components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right arm and cutting attachments for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

CLOSE
Characteristic Units metric
Weight 300.0 kg
Tractor Power Range 25-60 Hp
3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
Spacing between the 2 lower points 390.0 - 780.0 mm
Transmission: Drive method Hydraulic
Transmission: PTO 540 r/min
Transmission: Rotation of gearbox Right side
Transmission: Free wheel √
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925
Hydraulic Hoses WP 400 Bar
Transmission: Oil in the tank 60.0 L
Gross shipping weight 320 kg
Package volume 2.18 m3
Packing sizes 1600.0*800.0*1700.0 mm

Technical charts

CLOSE
Shell Tellus S2 MX 46: Specifications   Download PDF

Optional

Miniexcavator Mulcher Head - 80cm - hydraulic shredder
Optional special price -166,90€ 1.669,00€VAT incl. 1.502,10€VAT incl.
Available


Bramble flail mower for mini diggers 100 cm (39 in) ARK-100, hydraulic flail head with Y-blades for 1 to 2 tonne mini excavators and tractor reach arms
Optional special price -177,20€ 1.772,00€VAT incl. 1.594,80€VAT incl.
Available


Bramble flail mower for mini diggers 110 cm (43 in) ARK-110, hydraulic flail head with Y-blades for 1 to 2 tonne mini excavators and tractor reach arms
Optional special price -182,00€ 1.820,00€VAT incl. 1.638,00€VAT incl.
Available


Hydraulic hedge cutter bar 130 cm (51 in) HR-130-S, single-blade finger bar for mini diggers and mini excavators of 1.3 to 1.8 tonnes and tractor hedge cutter arms
Optional special price -52,25€ 1.045,00€VAT incl. 992,75€VAT incl.
Available

Working width:

1300.0 mm

4.25 ft

Overall width:

1380.0 mm

4.50 ft

Weight:

58.0 Kg

128.0 lb

Hydraulic hedge cutter bar 160 cm (63 in) HR-160-S, single-blade finger bar for mini diggers and mini excavators of 1.3 to 1.8 tonnes and tractor hedge cutter arms
Optional special price -55,75€ 1.115,00€VAT incl. 1.059,25€VAT incl.
Available

Working width:

1600.0 mm

5.25 ft

Overall width:

1680.0 mm

5.50 ft

Weight:

62.0 Kg

136.0 lb

Hydraulic hedge cutter bar 180 cm (71 in) HR-180-S, single-blade finger bar for mini diggers and mini excavators of 1.3 to 1.8 tonnes and tractor hedge cutter arms
Optional special price -58,25€ 1.165,00€VAT incl. 1.106,75€VAT incl.
Available

Working width:

1800.0 mm

5.90 ft

Overall width:

1680.0 mm

5.50 ft

Weight:

62.0 Kg

136.0 lb

Double-blade hedge cutter bar 130 cm (51 in) HRD-130, hydraulic cutter bar for mini diggers and mini excavators of 1.3 to 1.8 tonnes and hedge cutter arms
Optional special price -62,25€ 1.245,00€VAT incl. 1.182,75€VAT incl.
Available

Working width:

1300.0 mm

4.25 ft

Overall width:

1380.0 mm

4.50 ft

Weight:

58.0 Kg

128.0 lb

Double-blade hedge cutter bar 160 cm (63 in) HRD-160, hydraulic cutter bar for mini diggers and mini excavators of 1.3 to 1.8 tonnes and hedge cutter arms
Optional special price -65,75€ 1.315,00€VAT incl. 1.249,25€VAT incl.
Available

Working width:

1600.0 mm

5.25 ft

Overall width:

1680.0 mm

5.50 ft

Weight:

62.0 Kg

136.0 lb

Double-blade hedge cutter bar 180 cm (71 in) HRD-180, hydraulic cutter bar for mini diggers and mini excavators of 1.3 to 1.8 tonnes and hedge cutter arms
Optional special price -78,25€ 1.565,00€VAT incl. 1.486,75€VAT incl.
Available

Working width:

1800.0 mm

5.90 ft

Overall width:

1680.0 mm

5.50 ft

Weight:

62.0 Kg

136.0 lb

10 Hammers INTERFILA 2020 / DTH
Optional special price -11,20€ 112,00€VAT incl. 100,80€VAT incl.
Available

INTERFILA (< 2020) / DTH

10 Bolts + nuts 10.9 ALCE-TORO-ARH-GRIZZLY
Optional special price -7,60€ 76,00€VAT incl. 68,40€VAT incl.
Available

ALCE-TORO-ARH-GRIZZLY

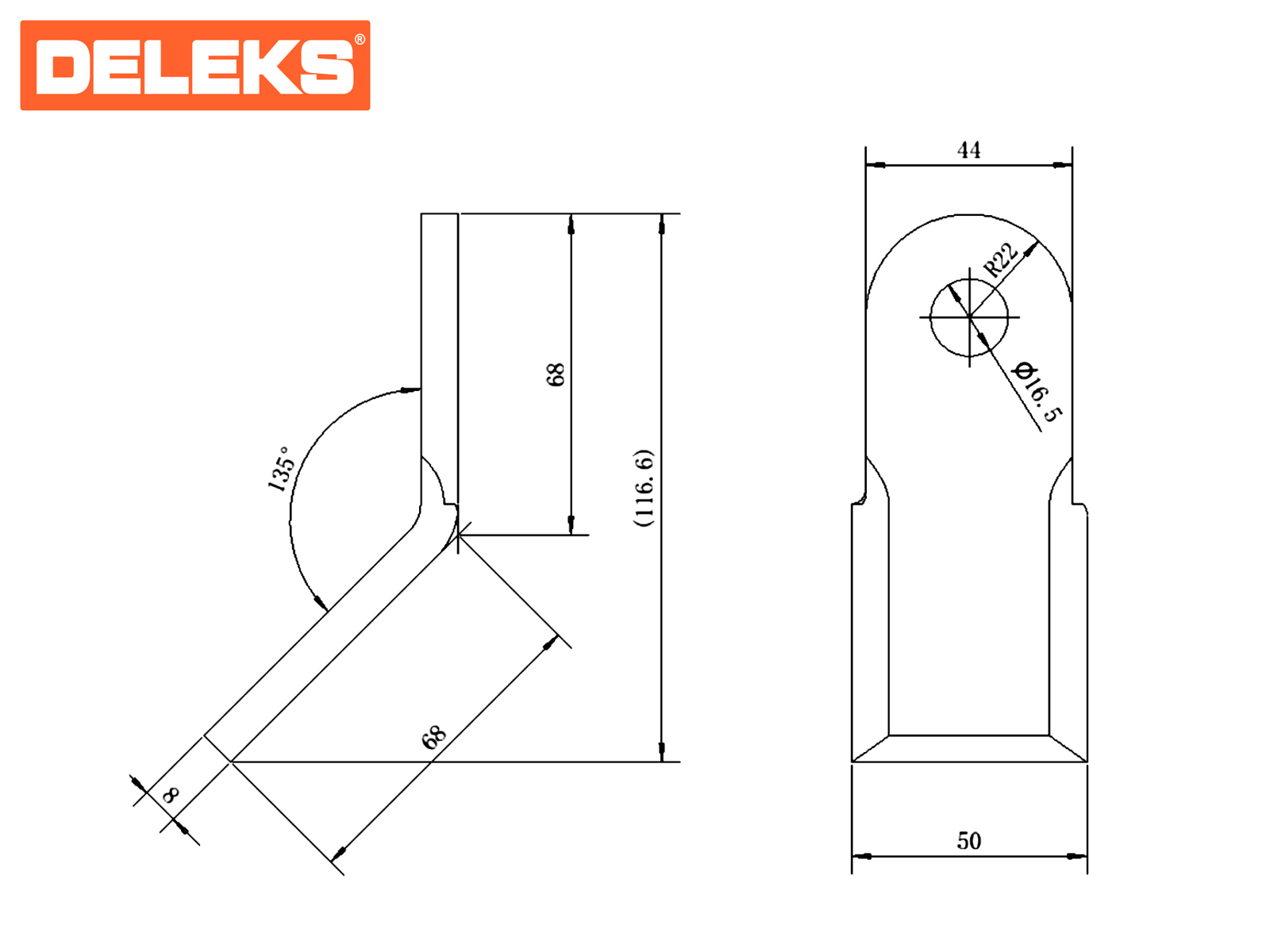

Set of 20 Y-Blades Ø16.5 mm with Bolts and Nuts
