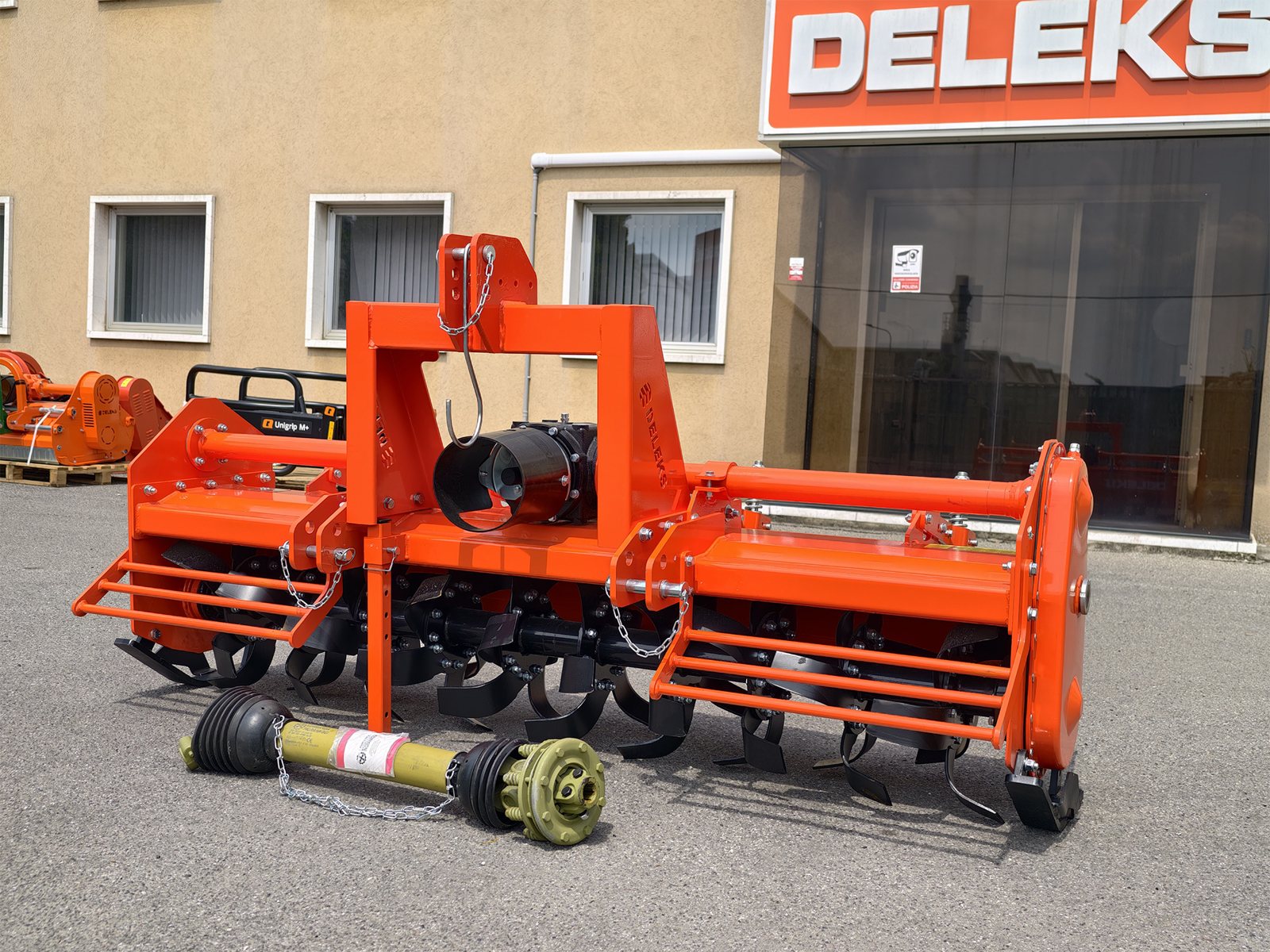

Heavy-duty rotavator for tractors 220 cm (86 in) DFH-220, heavy series 60-90 hp, Cat. 2 linkage
DETAILS
Heavy-duty rotavator for tractors with 220 cm (86.6 in) working width, from the DELEKS® heavy series: the rotary tiller for 60–90 hp orchard and field tractors with a Cat. 2 three-point linkage, such as New Holland T4 and T5, John Deere 5 series, Landini, Same, Deutz-Fahr, Massey Ferguson, Kubota M, Solis and most other 60–90 hp tractors. 560 kg (1,235 lb) frame with 8 mm side plates, side gear drive, DELEKS® 540 rpm gearbox with a three-year warranty, 60 forged helical tines on 10 flanges and an adjustable rear bonnet on four dampers. It works 16 to 20 cm (6.3–7.9 in) deep with the rotor at 210 rpm and comes complete with its CE PTO shaft with clutch; free delivery within the EU.
Which tractors it suits

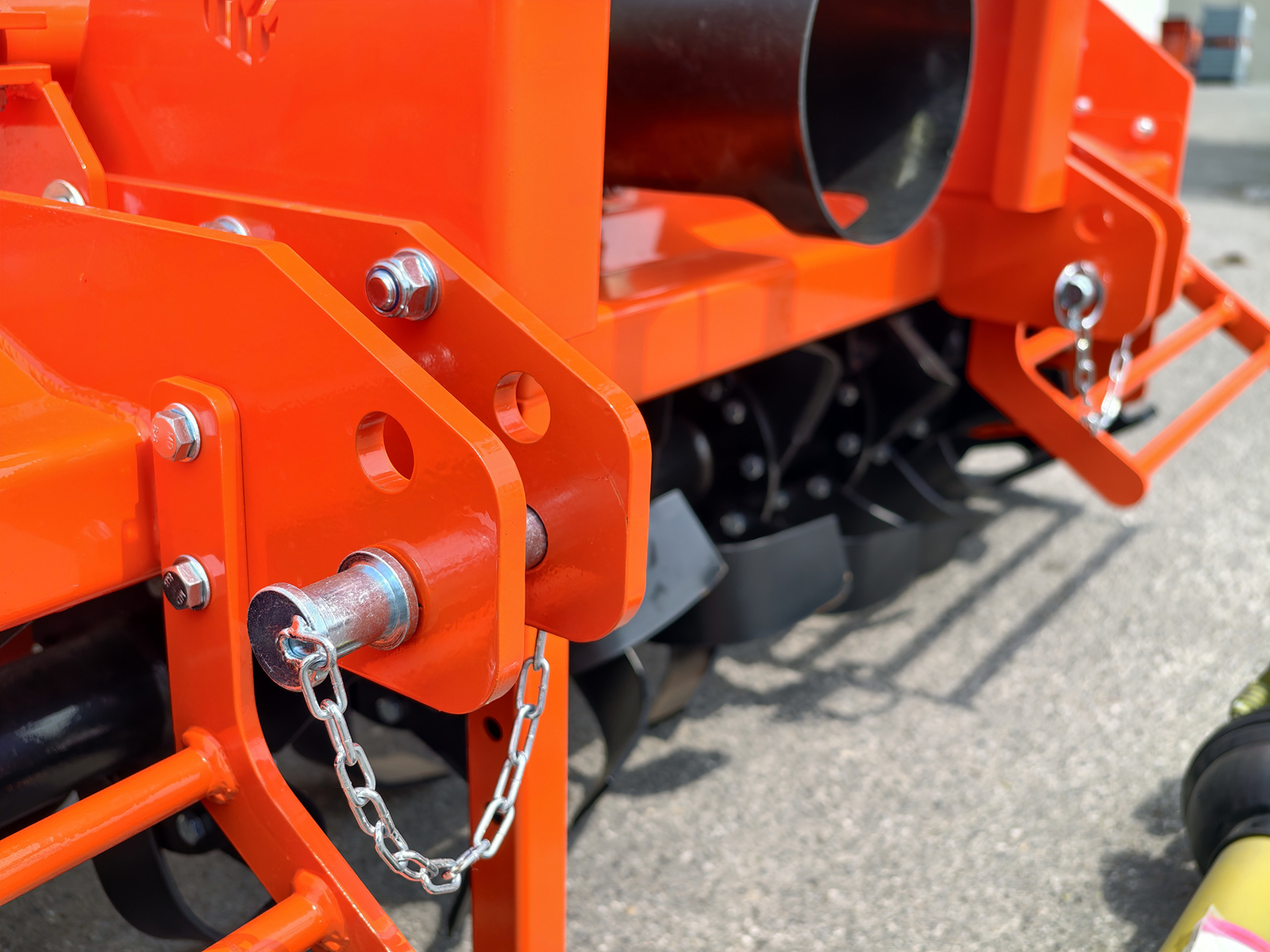

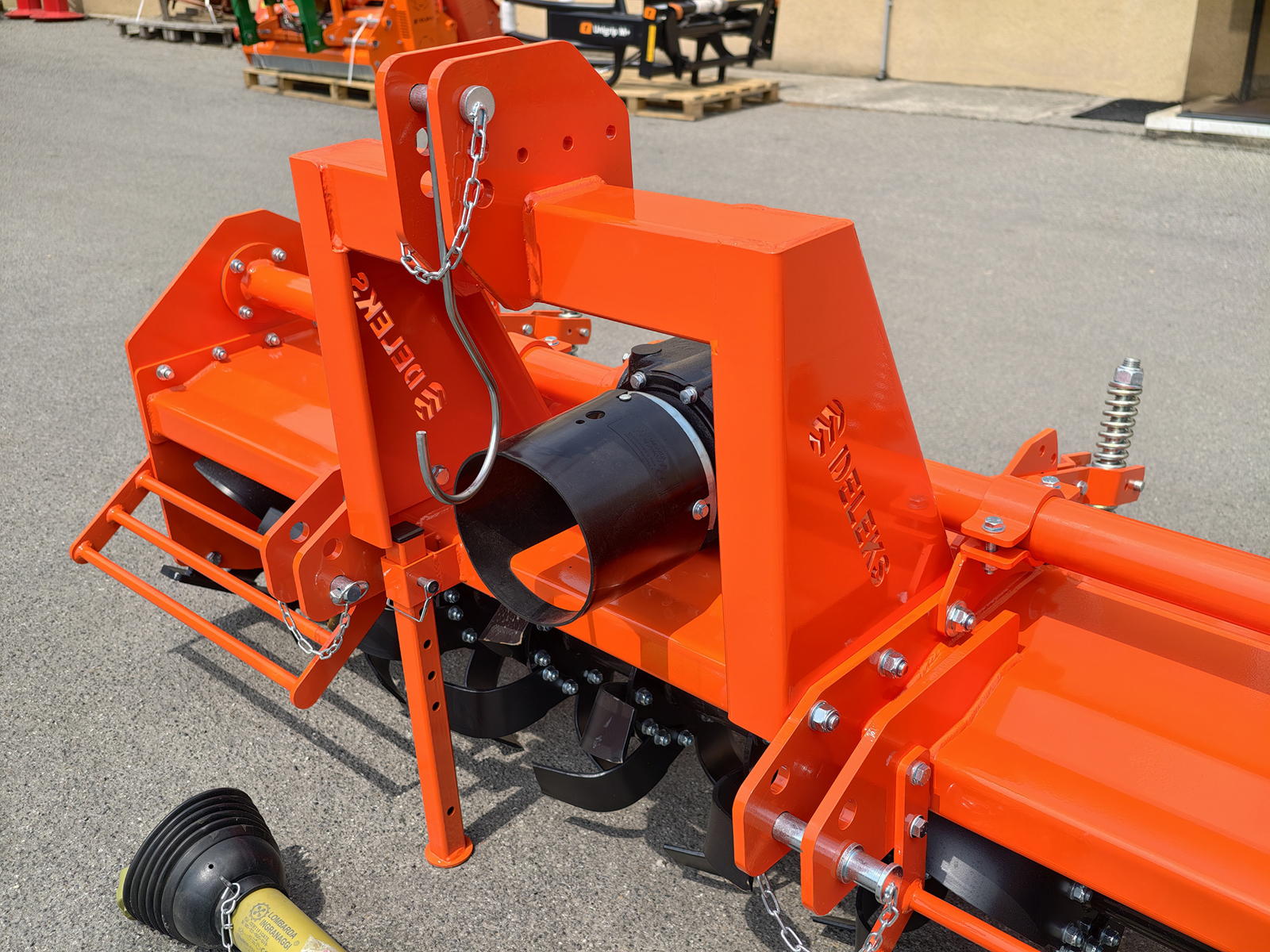

The DFH-220 works 220 cm (86.6 in) with 238 cm (93.7 in) overall: the rotavator for open field and wide-spaced orchards behind 60–90 hp tractors, preparing over two metres of seedbed per pass. At 560 kg (1,235 lb) it needs an adequate lift and, on lighter tractors, front ballast. The three-point linkage is fixed, with the gearbox in the centre, and is Cat. 2 (ø 25–28 mm pins); the PTO must run at 540 rpm. For 80–100 hp tractors and crawlers there is the DFTR-220, same width and 680 kg (1,499 lb).

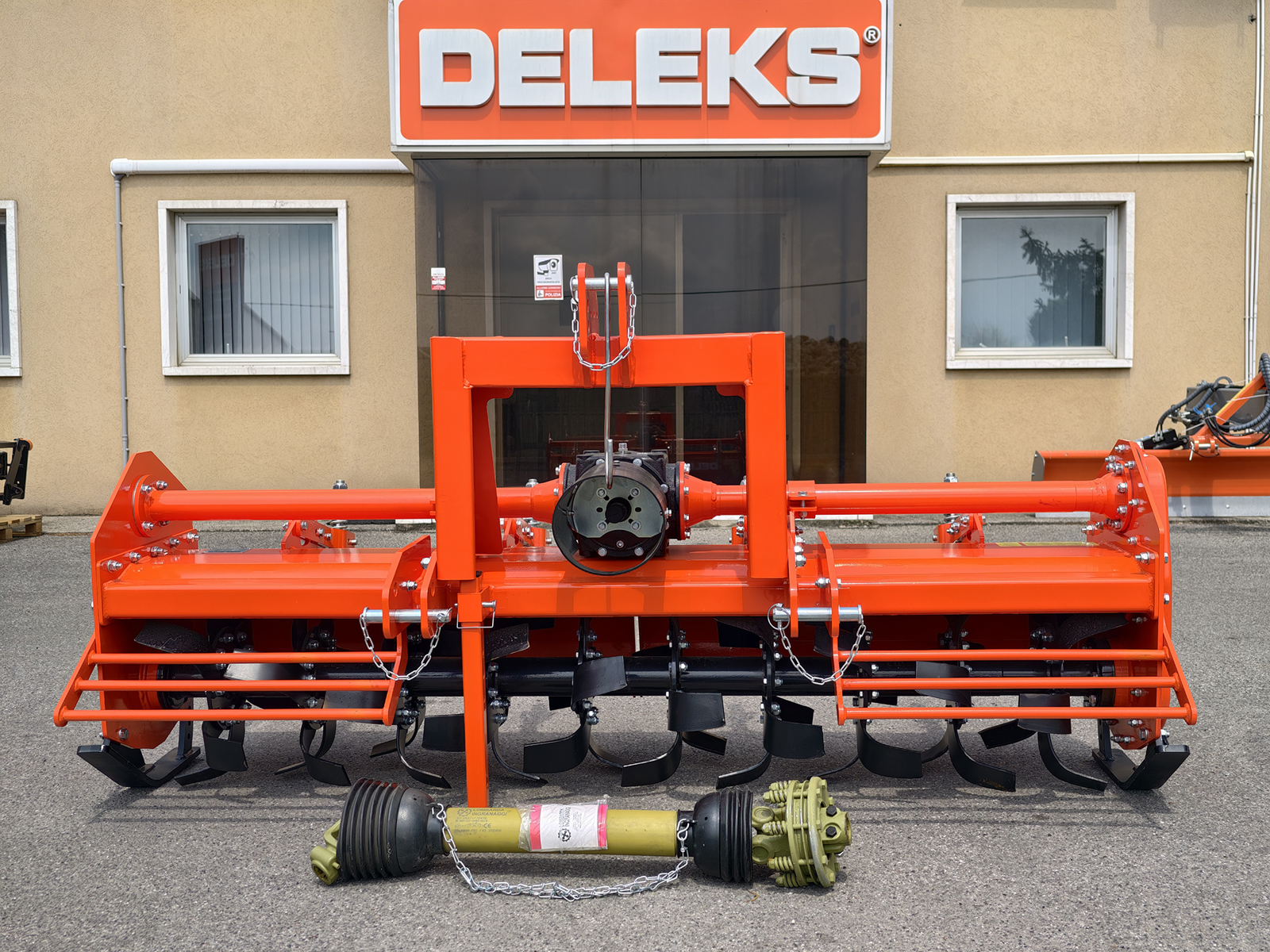

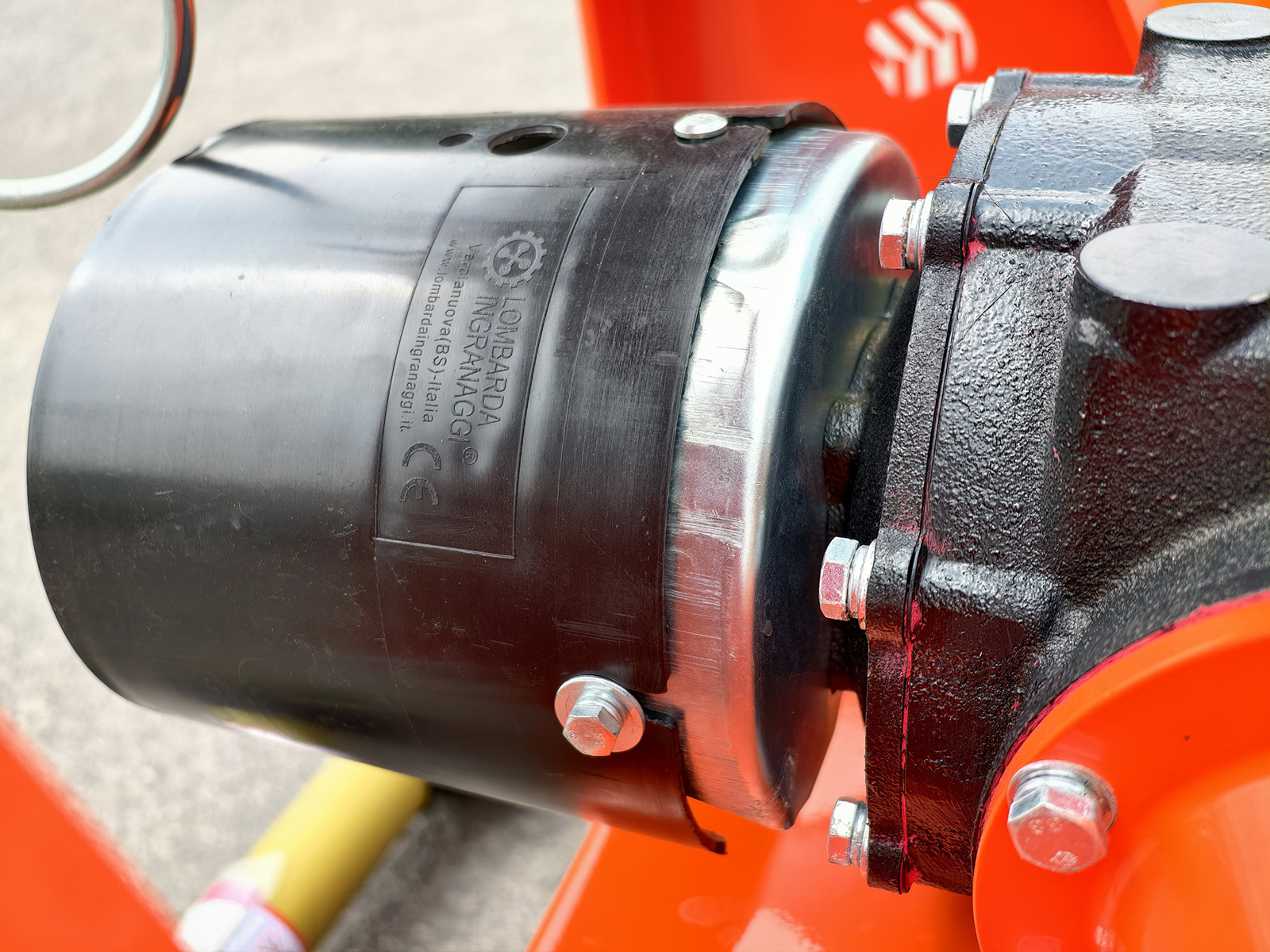

Gear drive and uprated gearbox

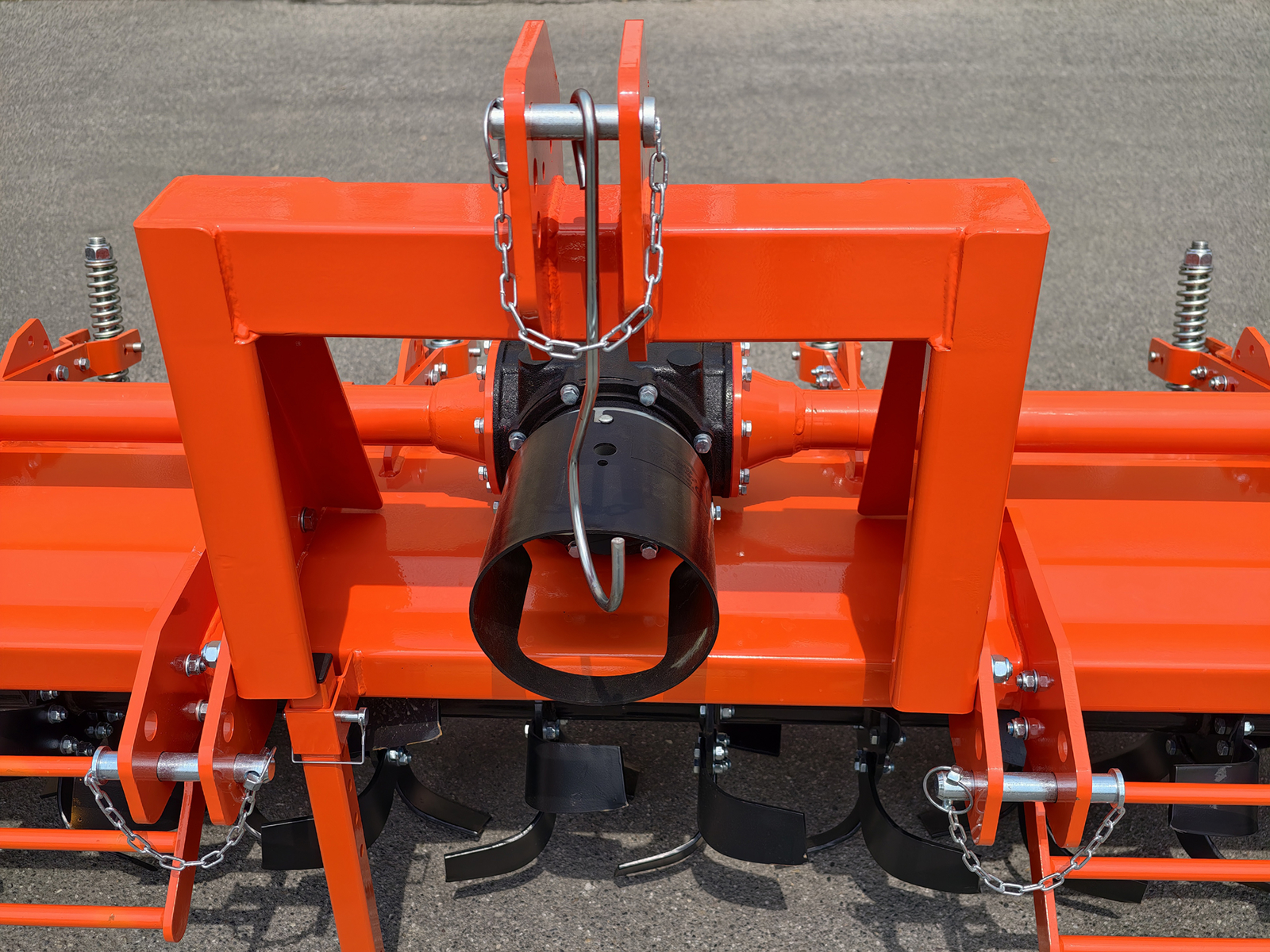

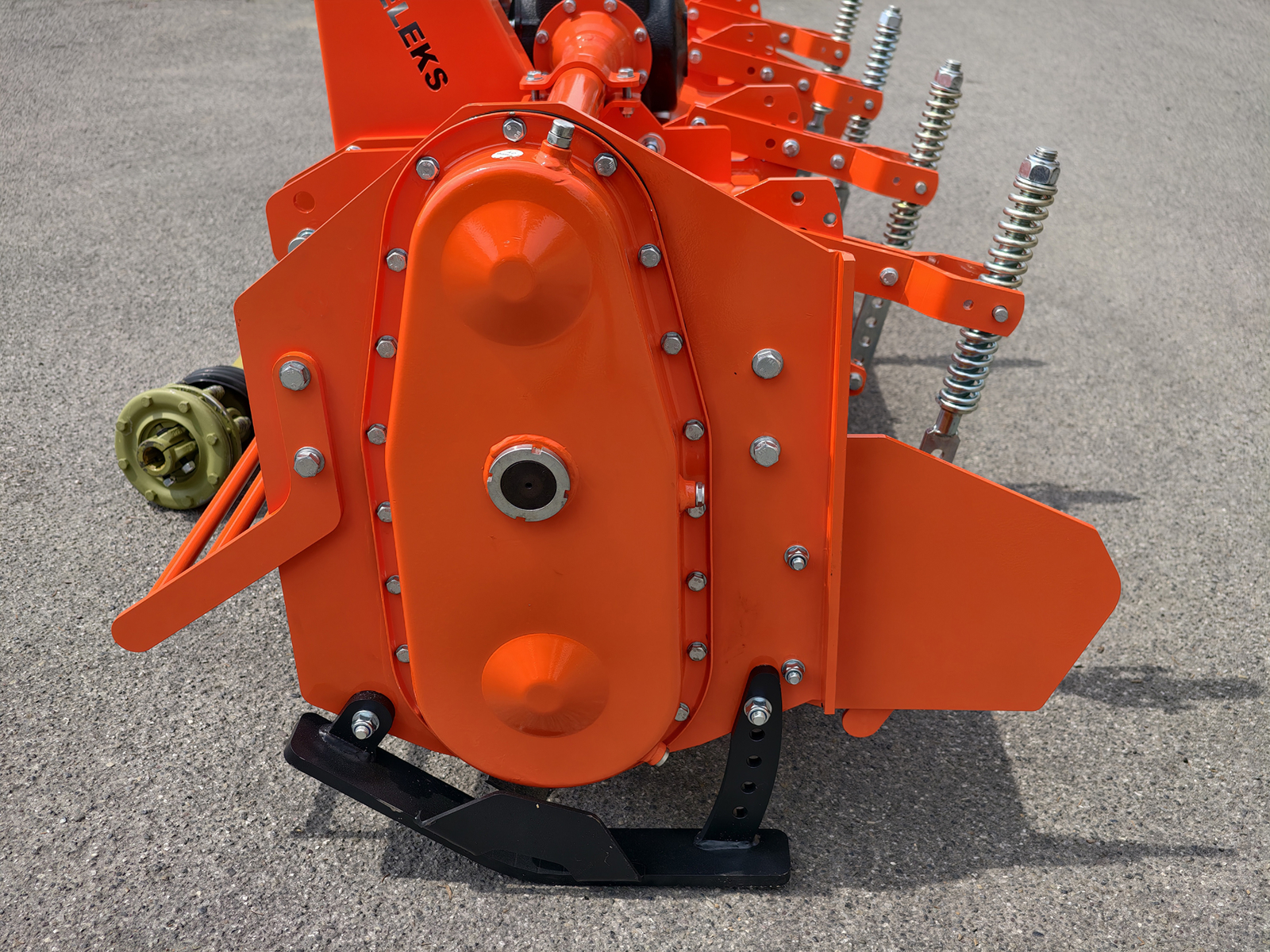

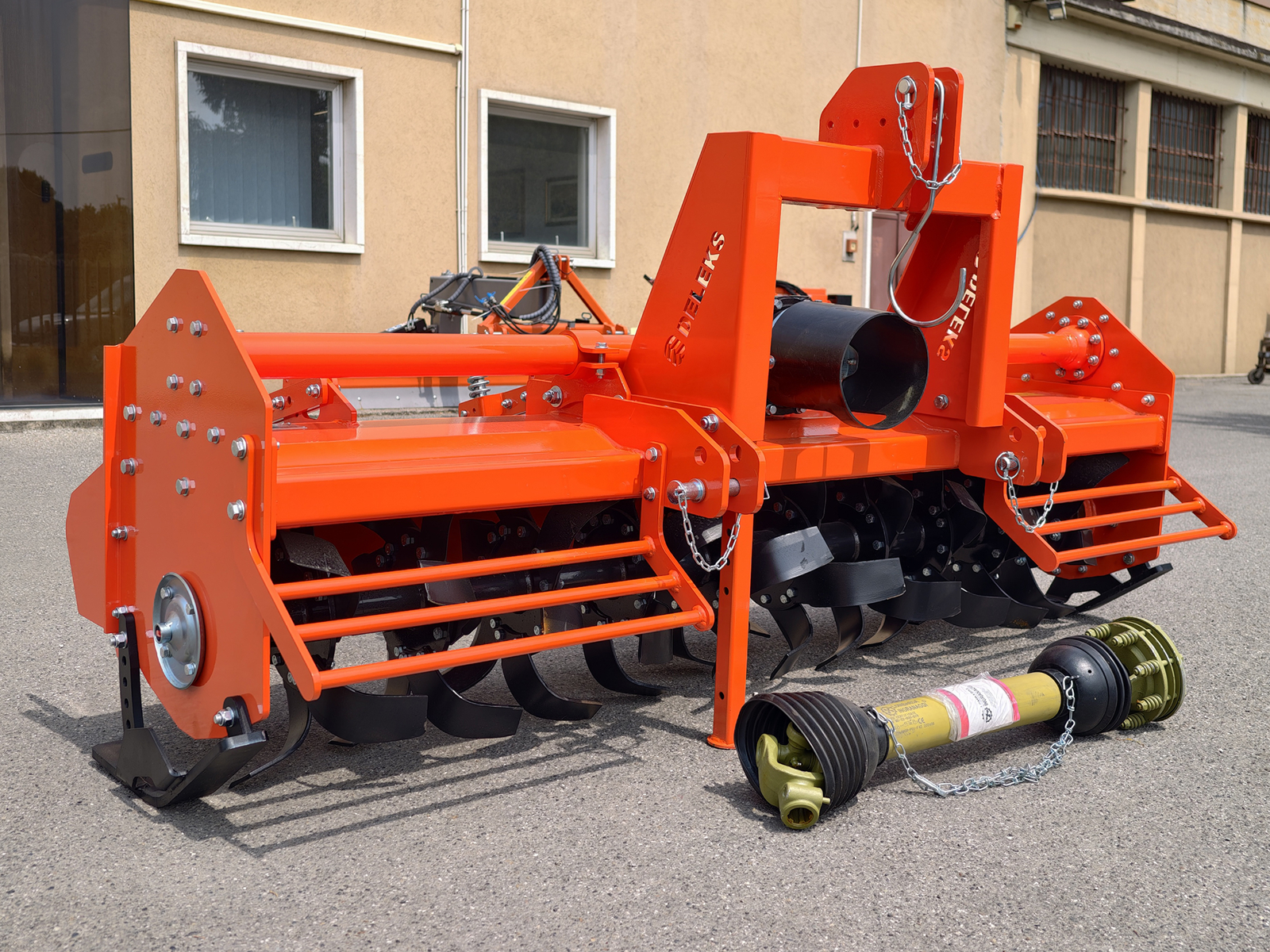

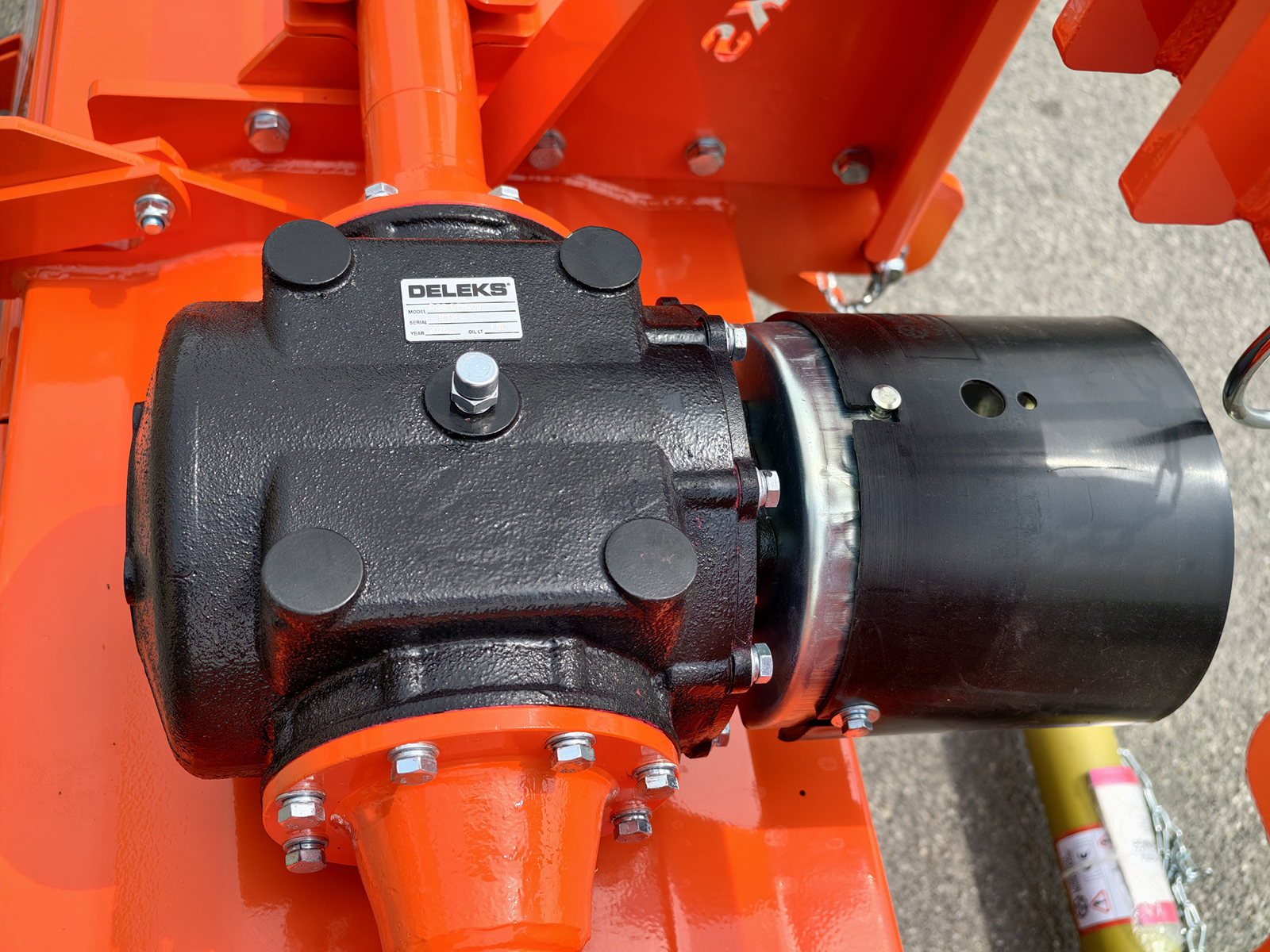

The DELEKS® 540 rpm gearbox is uprated for powers up to 90 hp, with a cast-iron housing, a three-year warranty and SAE 120 oil already in; a side gear drive, with no chain, takes the power from the gearbox to the rotor and is built for long hours and heavy ground. The rotor turns at 210 rpm, slower than on light rotavators: it puts more torque into every tine and cuts finer. The CE PTO shaft (category 6, 1,000 mm / 39 in) with twin-disc friction clutch Ø 180 mm (7.1 in) is included: the clutch protects rotavator and tractor when a tine meets a stone or a root, and is set to suit the tractor and the ground following the manual.

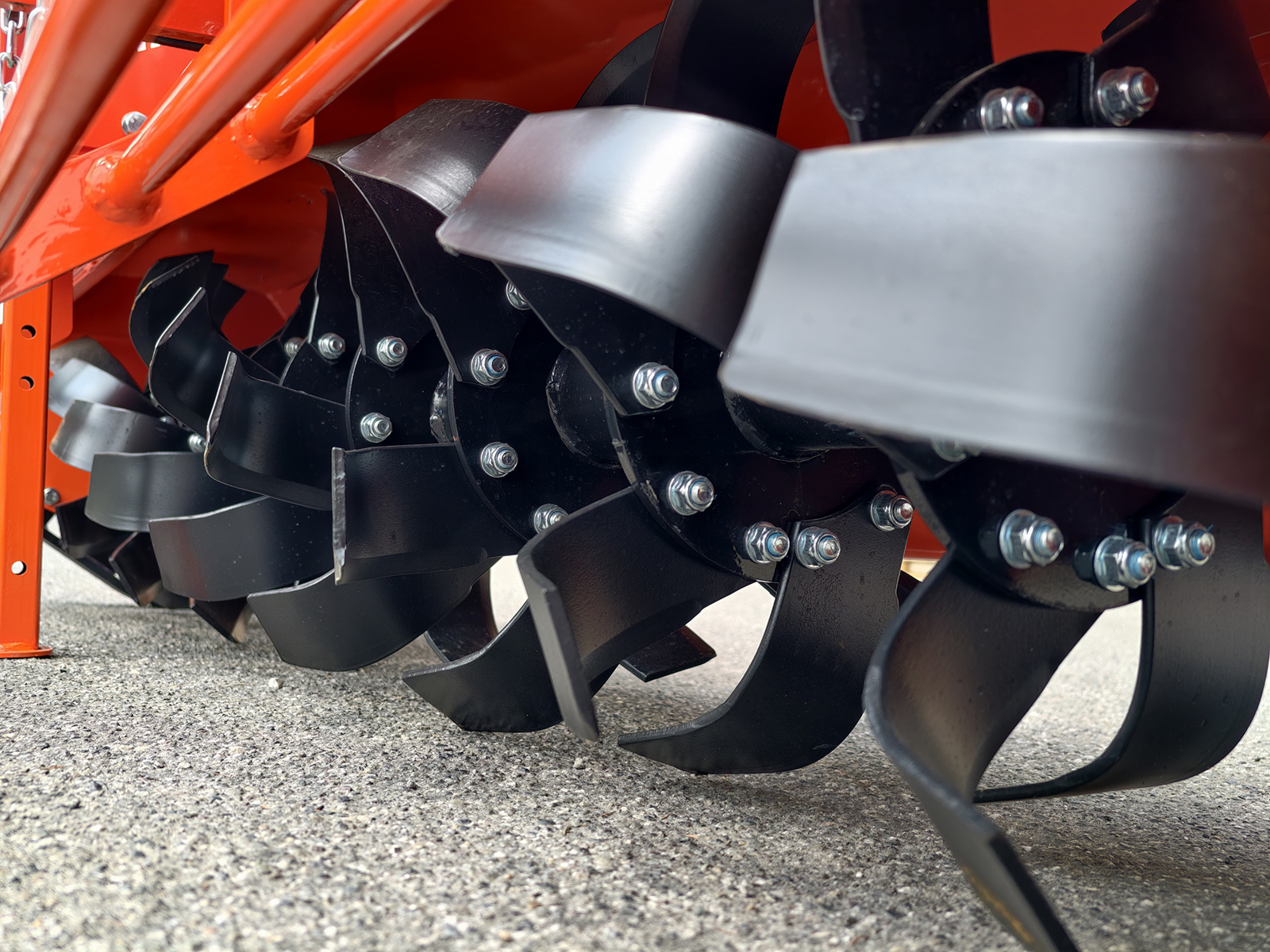

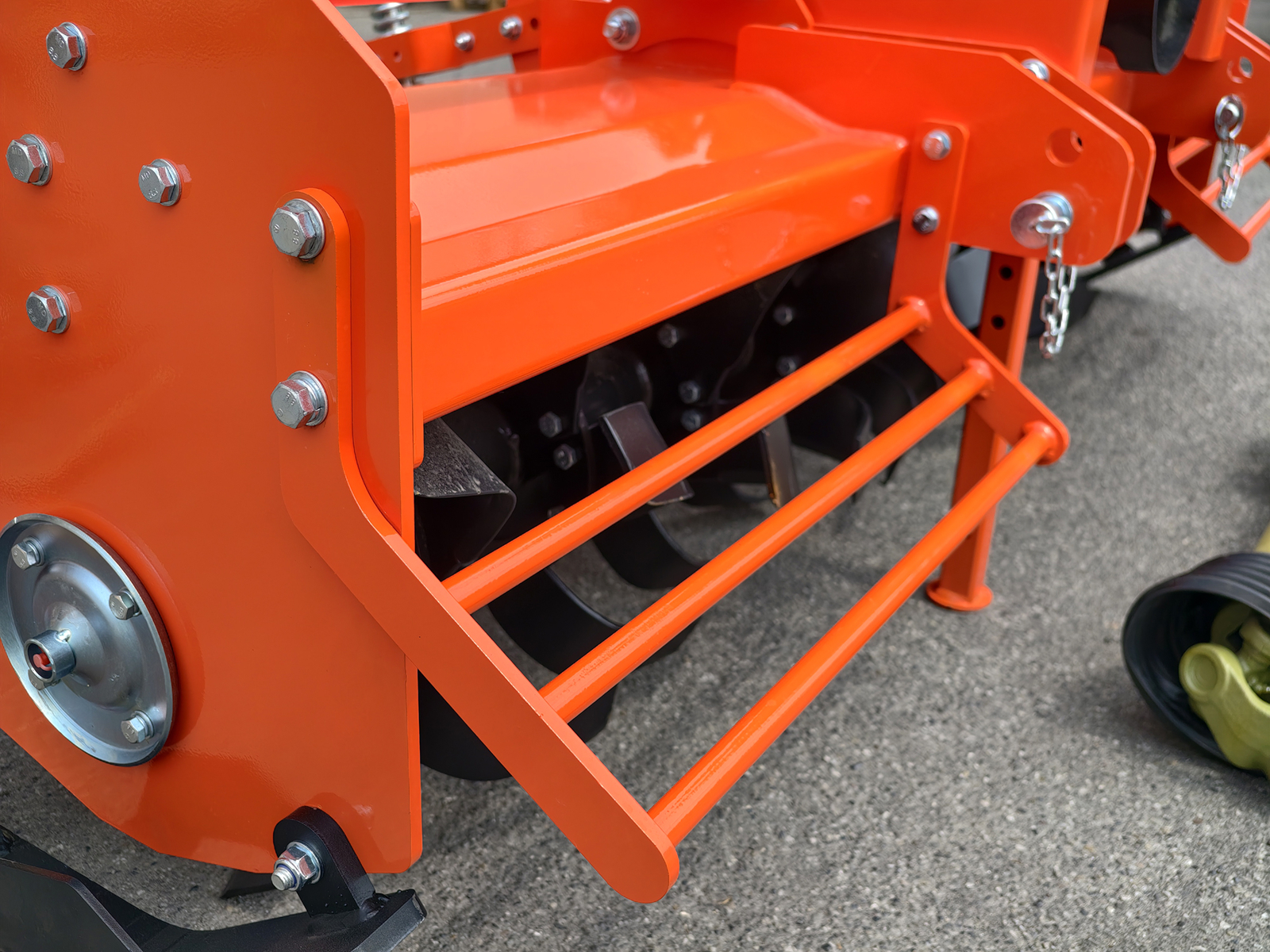

Rotor and forged helical tines
The rotor measures 480 mm (18.9 in) across with the tines fitted, on a 76 mm shaft with 6306 and 6309 bearings and 8 mm side plates. The 60 forged helical tines on 10 flanges (180 × 83 mm, 6 mm thick, 250 mm curve, 810 g each) enter the soil progressively, with less vibration and a finer cut than straight tines; they are held by two bolts each (ø 13 mm holes, 55 mm centres) and are changed one at a time, with the same spare for every DFH rotavator. Working depth 160 to 200 mm (6.3–7.9 in), set with the side skids.
Bonnet on four dampers and work on heavy ground

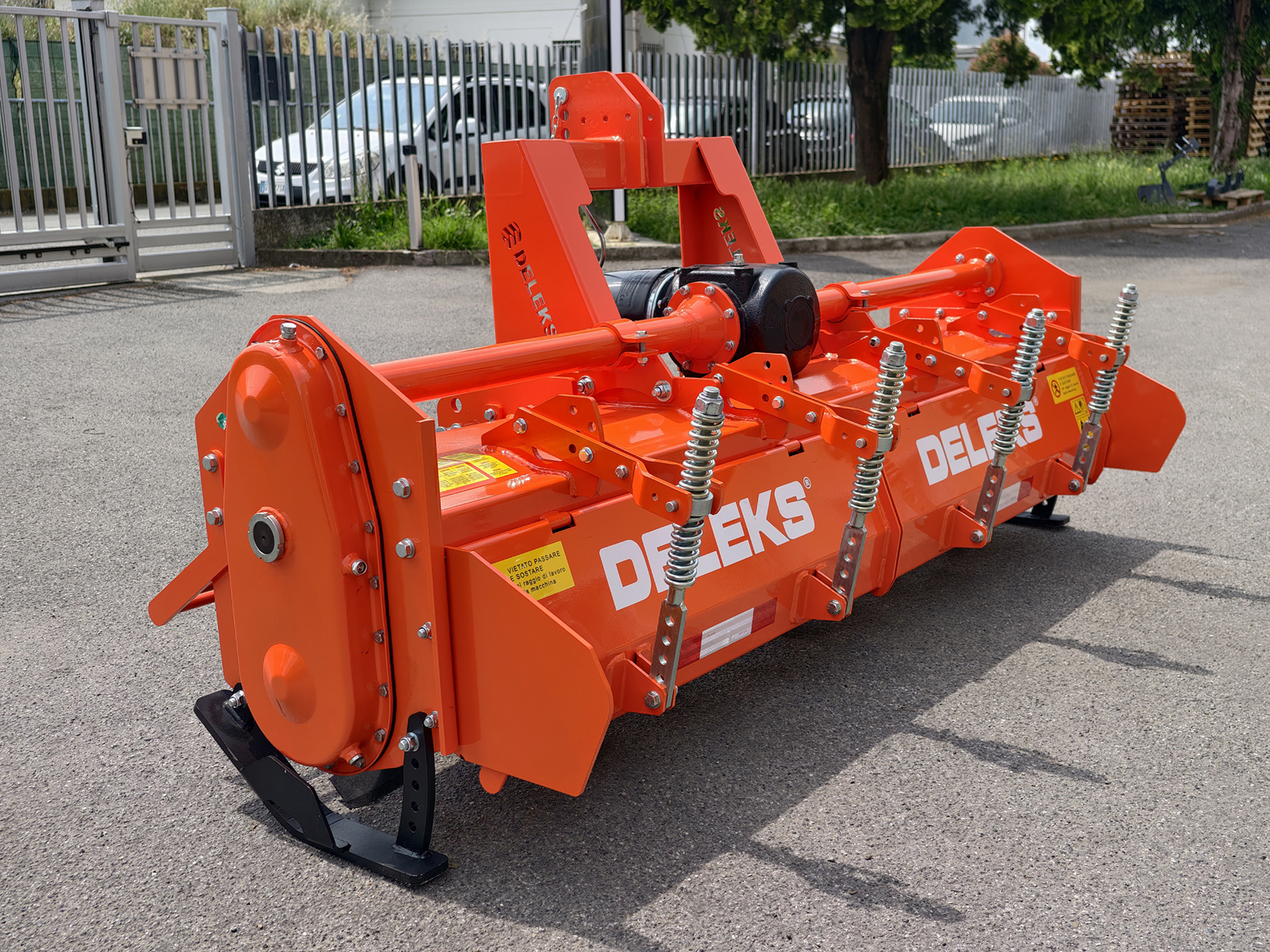

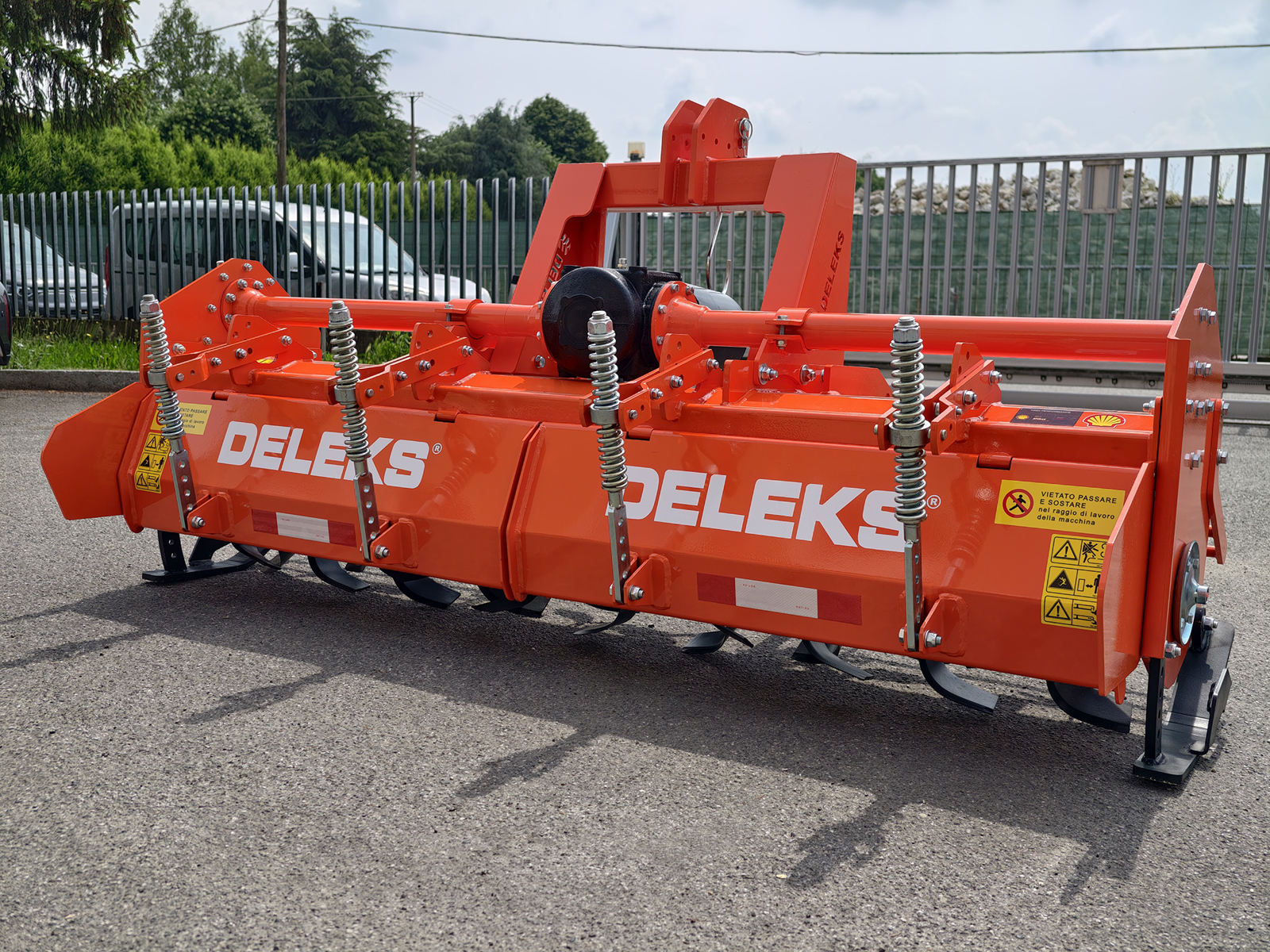

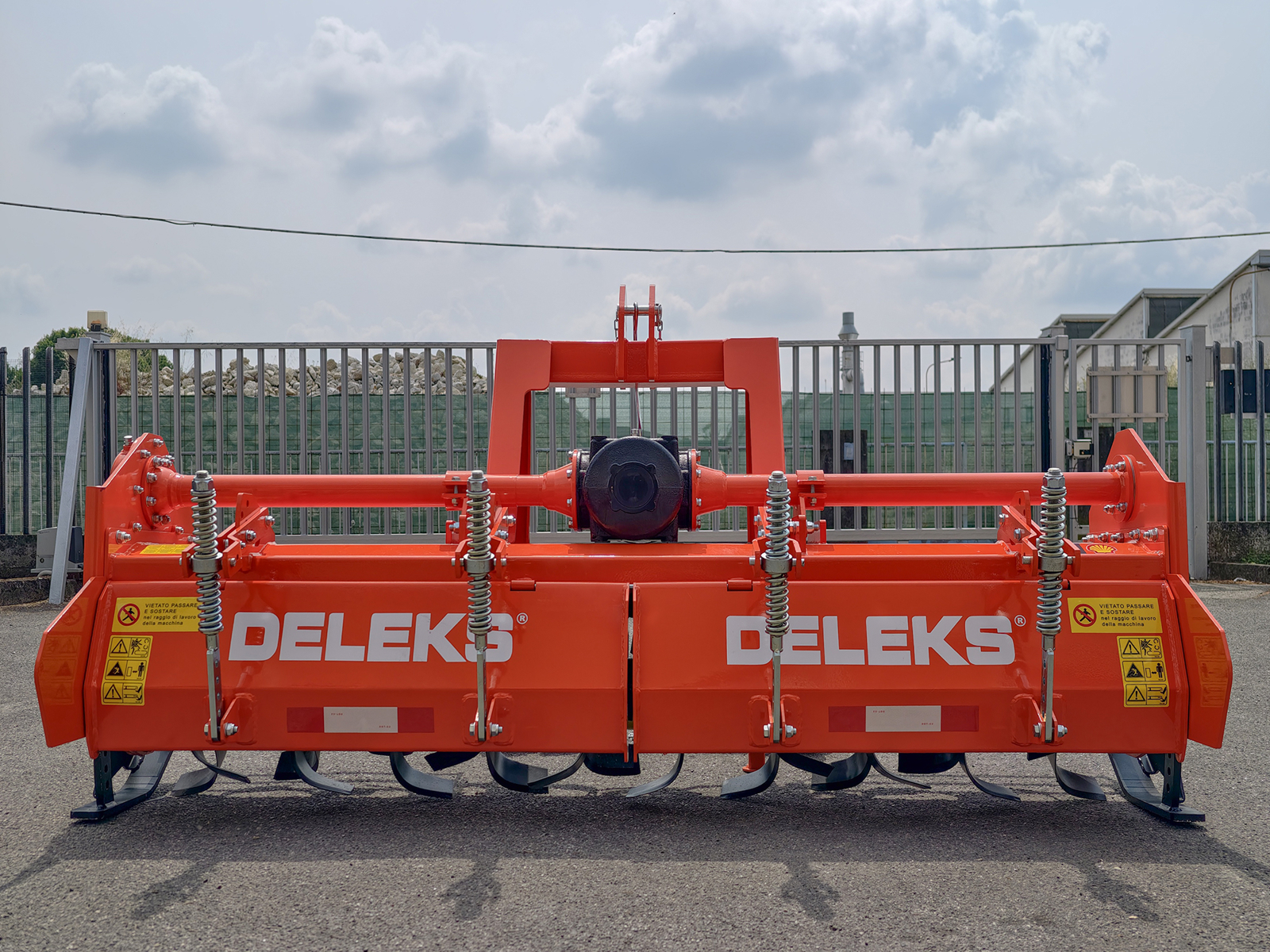

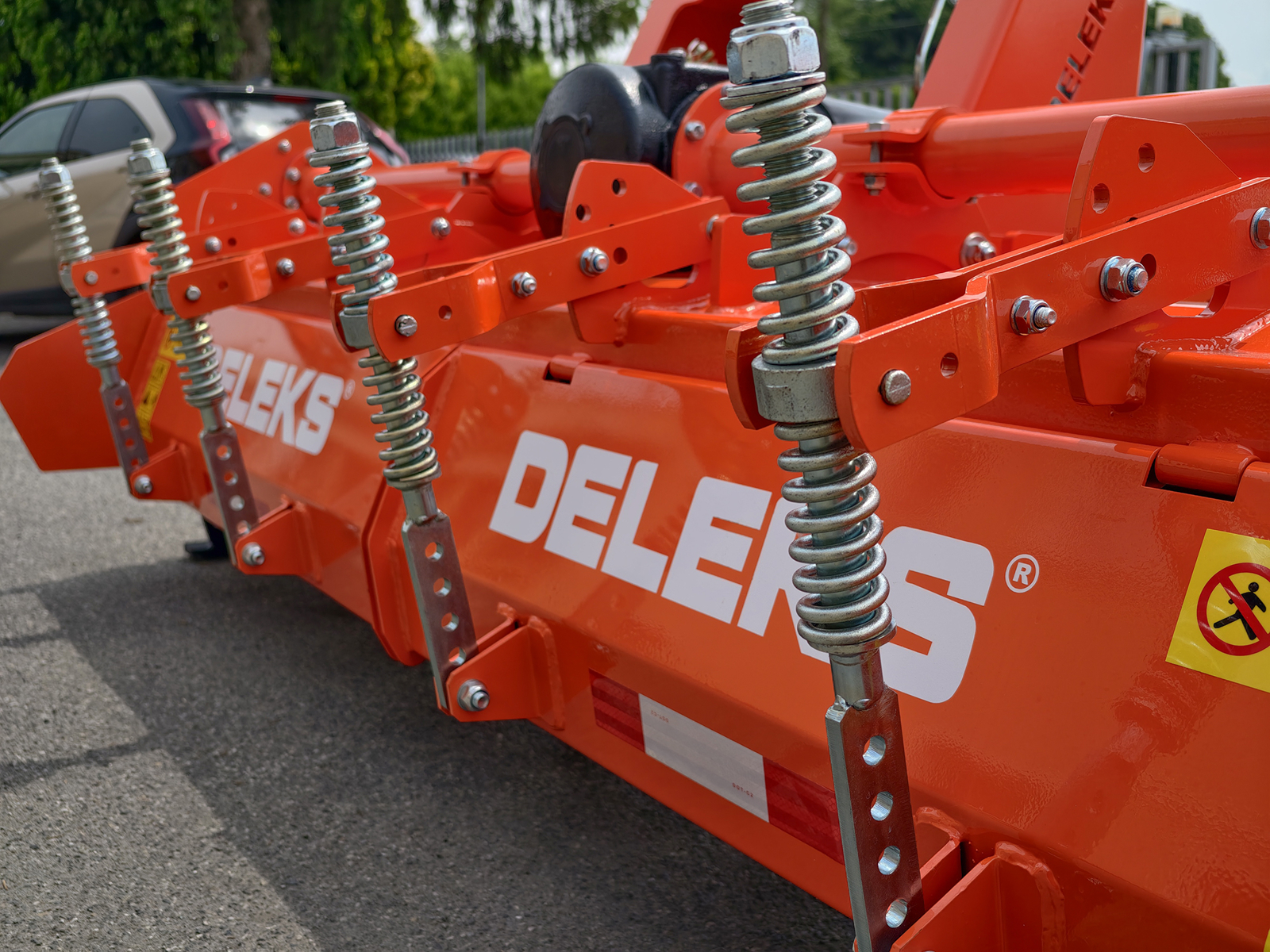

The rear bonnet is height-adjustable and carried on four dampers, so it follows the ground across the full 220 cm without slamming: closed it holds the soil between the tines and refines the seedbed, open it lets large clods and crop residues out. With 560 kg (1,235 lb) and the slow rotor the rotavator stays at depth even on clay and hard ground; on very stony ground a stone burier is the better choice.
Dimensions, weight and delivery

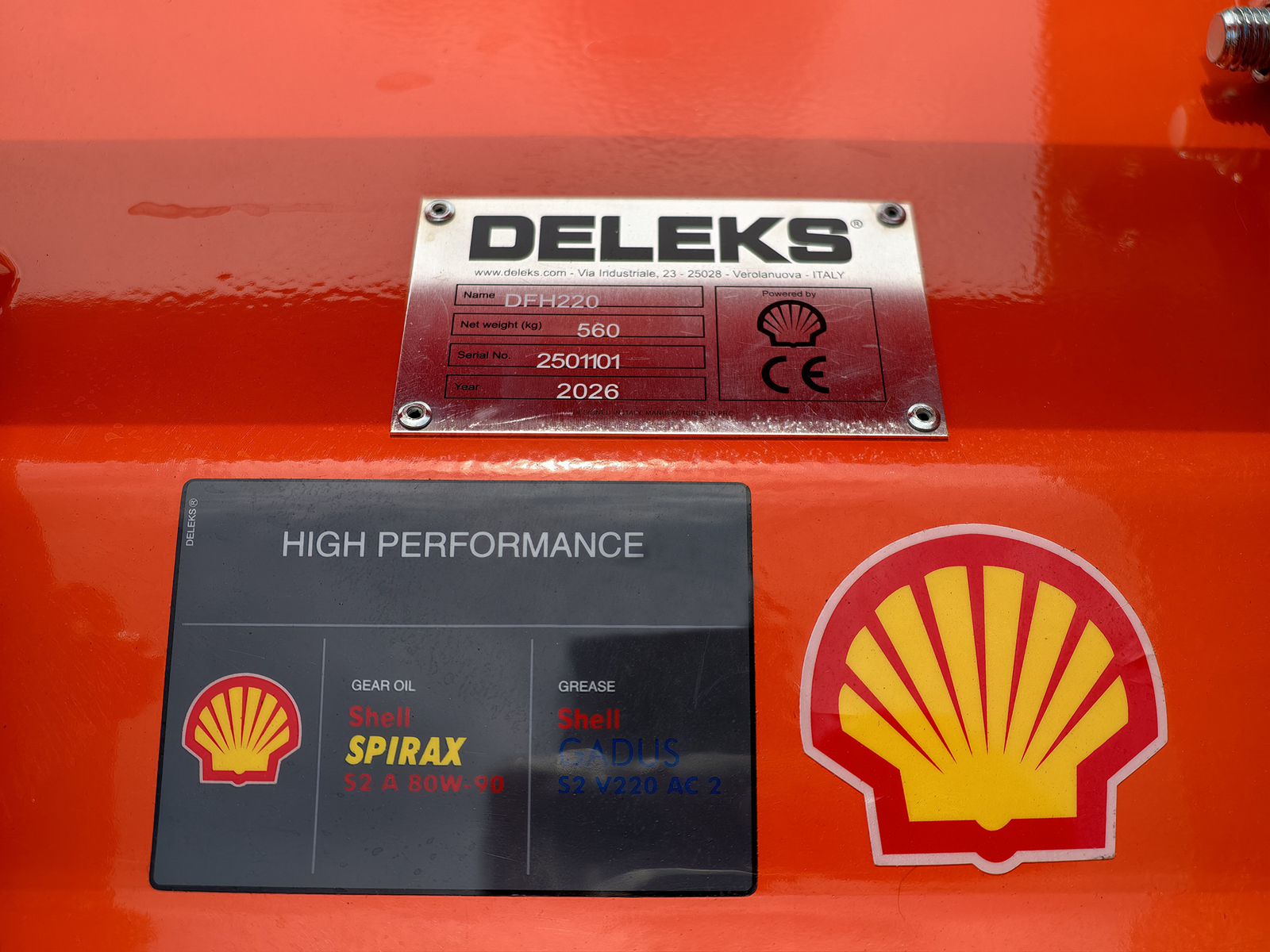

Working width 2200 mm (86.6 in), overall width 2380 mm (93.7 in), length 950 mm, height 1150 mm, weight 560 kg (1,235 lb); the gearbox sits 660 mm off the ground. It ships on a pallet of 110 × 245 × 95 cm (43 × 96 × 37 in), 660 kg (1,455 lb) gross, with free delivery within the EU: the delivery address must be reachable by an articulated lorry and unloading is down to the customer, with a forklift or the tractor's lift; delivery can take longer than standard, so it is worth speaking to our sales office before you order. The machine complies with the EC Machinery Directive, is TÜV Austria certified and comes with a two-year warranty.
Where it works
- Open field: seedbeds and planting beds over two metres wide per pass, working in fertiliser, green manure and stubble
- Wide-spaced orchards and vineyards with 60–90 hp tractors
- Clay and hard ground, worked several times a year
- Farms and contractors who want a wide rotavator without moving up to the reinforced series
Options and spares
On this page you will also find the set of 10 DFH helical tines, tine nuts and bolts, the PTO reduction adaptor and spare PTO shafts and clutches: order them with the rotavator or later on.
FAQ
How much power does a 220 cm rotavator need?
The DFH-220 works from 60 to 90 hp at the 540 rpm PTO: 60–70 hp is enough on medium soils already worked, on clay and at full depth you want 80 hp and more. For 80–100 hp tractors and crawlers there is the heavier DFTR-220 (680 kg / 1,499 lb).
What is the difference between the DFH-220 and the DFTR-220?
Same width, different build: the DFTR-220 weighs 680 kg (1,499 lb) instead of 560, has 12 mm side plates, a 90 mm rotor shaft, 1 kg tines and a standard rear mesh roller, and is made for 80–100 hp and for crawlers. The DFH-220 is the choice for 60–90 hp wheeled tractors.
Is the PTO shaft included? How is the clutch set?

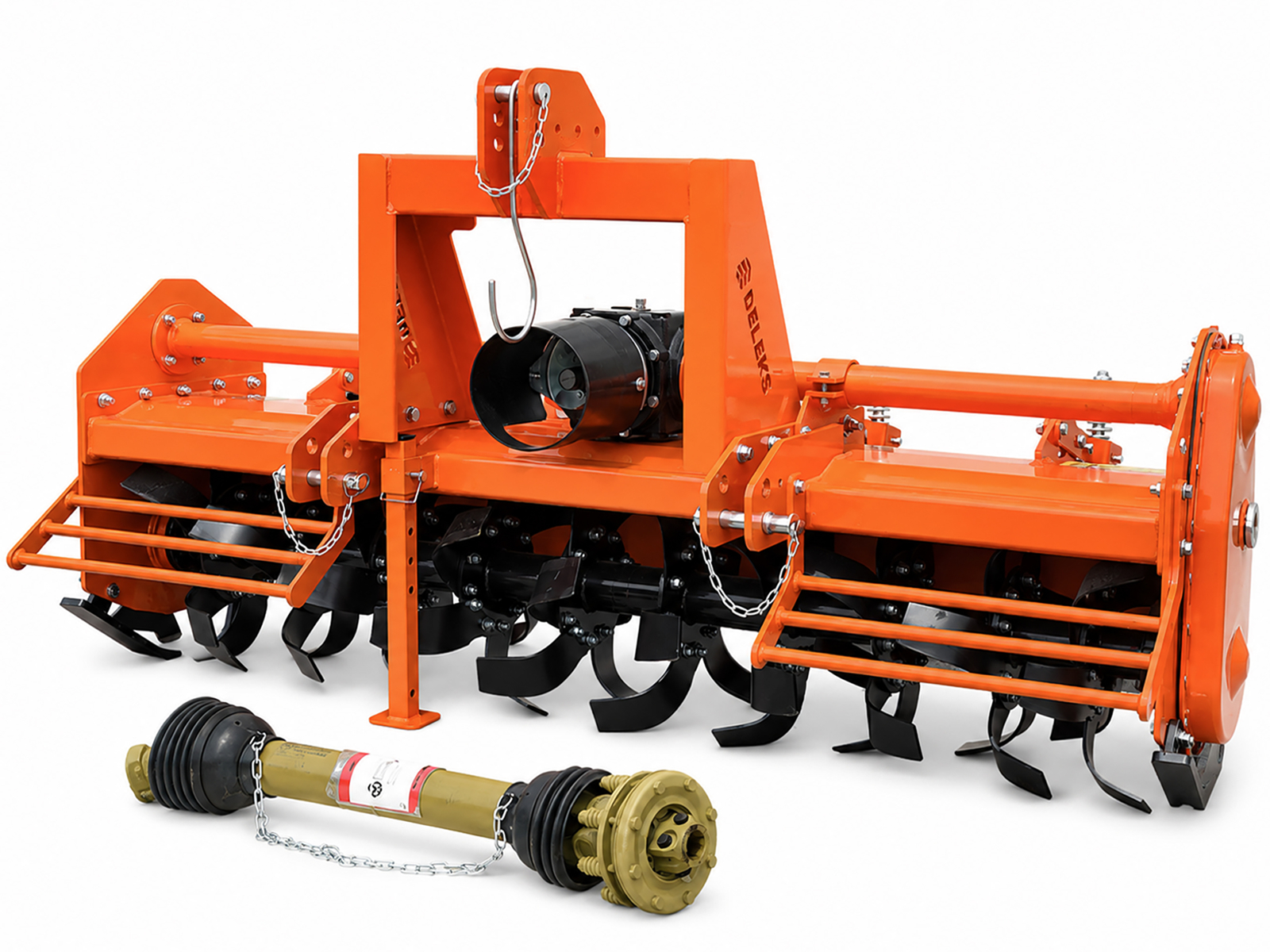

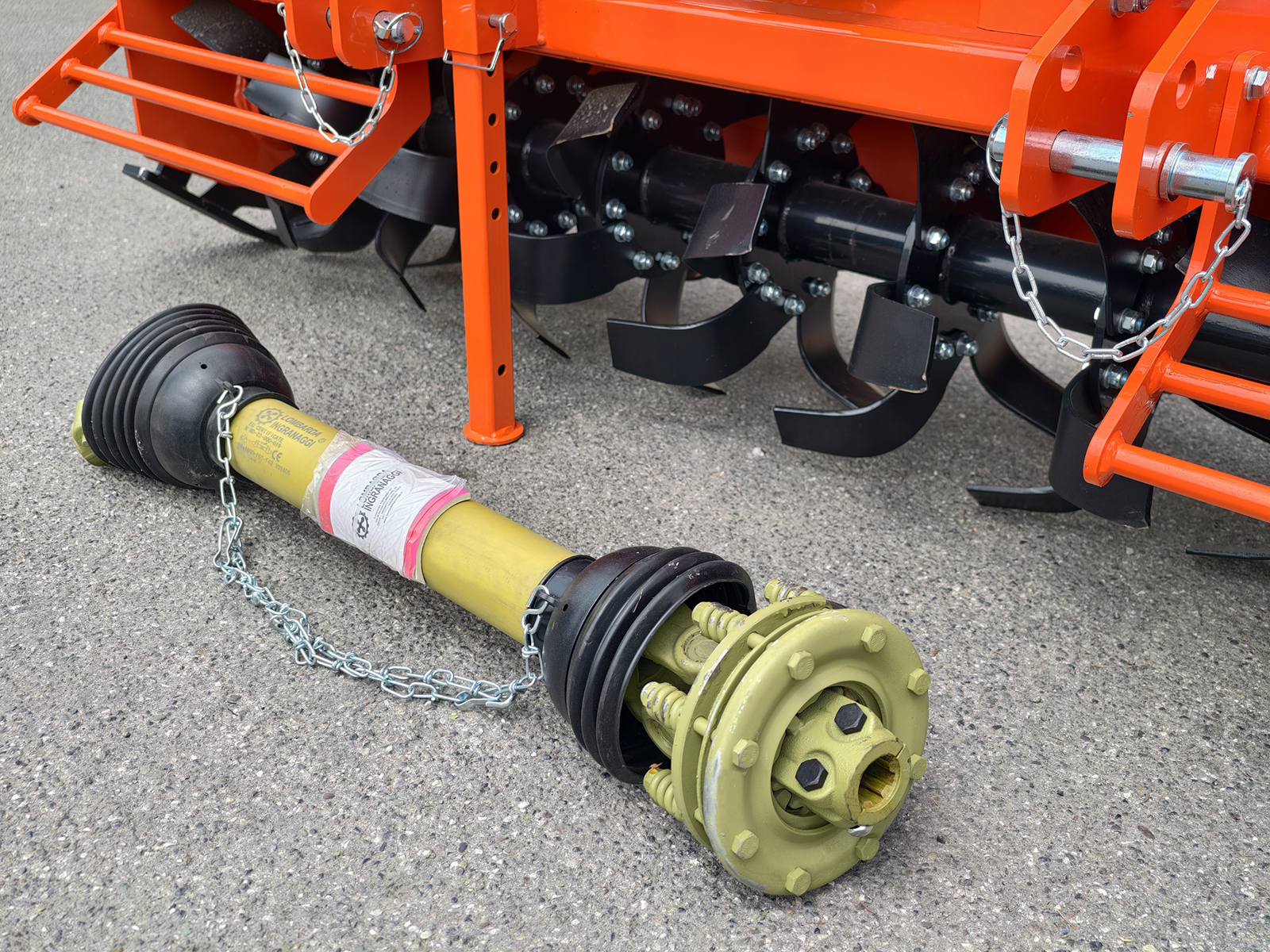

Yes: the CE PTO shaft (category 6, 1,000 mm / 39 in) with twin-disc friction clutch Ø 180 mm (7.1 in) is standard. The clutch is set to suit the tractor and the ground following the manual: too tight it does not protect the drive, too loose it slips and overheats.
What maintenance does it need?
At the start of the season check the gearbox oil level (SAE 120), tine wear and bolt tightness; before each use grease the points shown in the manual and check the PTO clutch. Worn tines are replaced with the set of 10.
How is a rotavator of 660 kg delivered?
On a pallet, with free delivery within the EU: the lorry is an articulated one, so the address must be reachable and unloading is done with a forklift or the tractor's lift. Delivery can take longer than standard: best to speak to our sales office before ordering.
DELEKS® spares and support
Genuine spares ship from the DELEKS® warehouses in Europe: tines, gears, pins, bearings, PTO shafts, clutches and the other wearing parts are normally in stock, for routine servicing and for repairs. The technical team helps you pick the right part from the exploded drawings, service the machine and choose the rotavator and the accessories that suit your tractor. The rotavator comes with the EC declaration of conformity, the invoice and the use and maintenance manual, also emailed when the order ships. Two-year warranty and free delivery within the EU.
