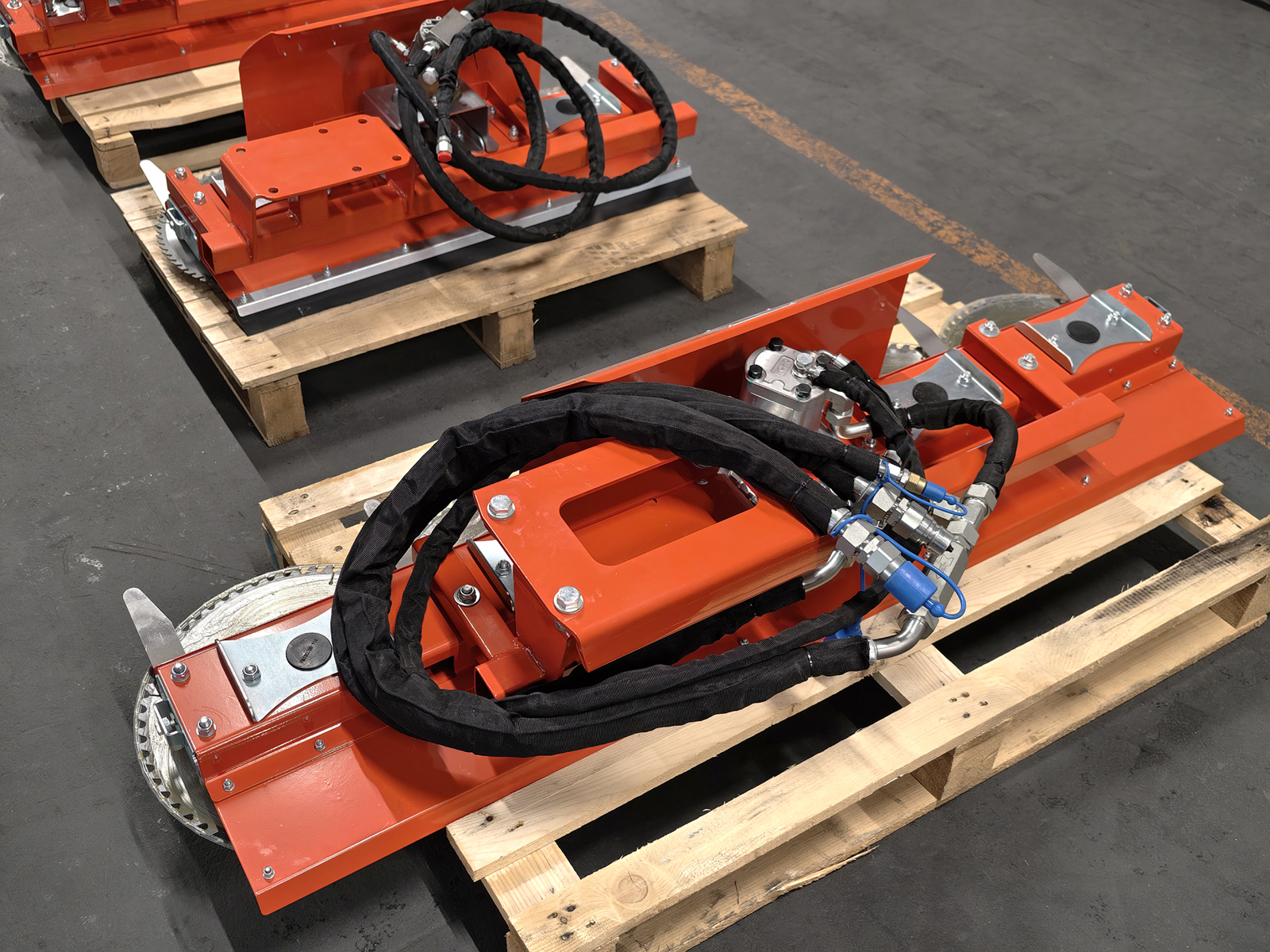

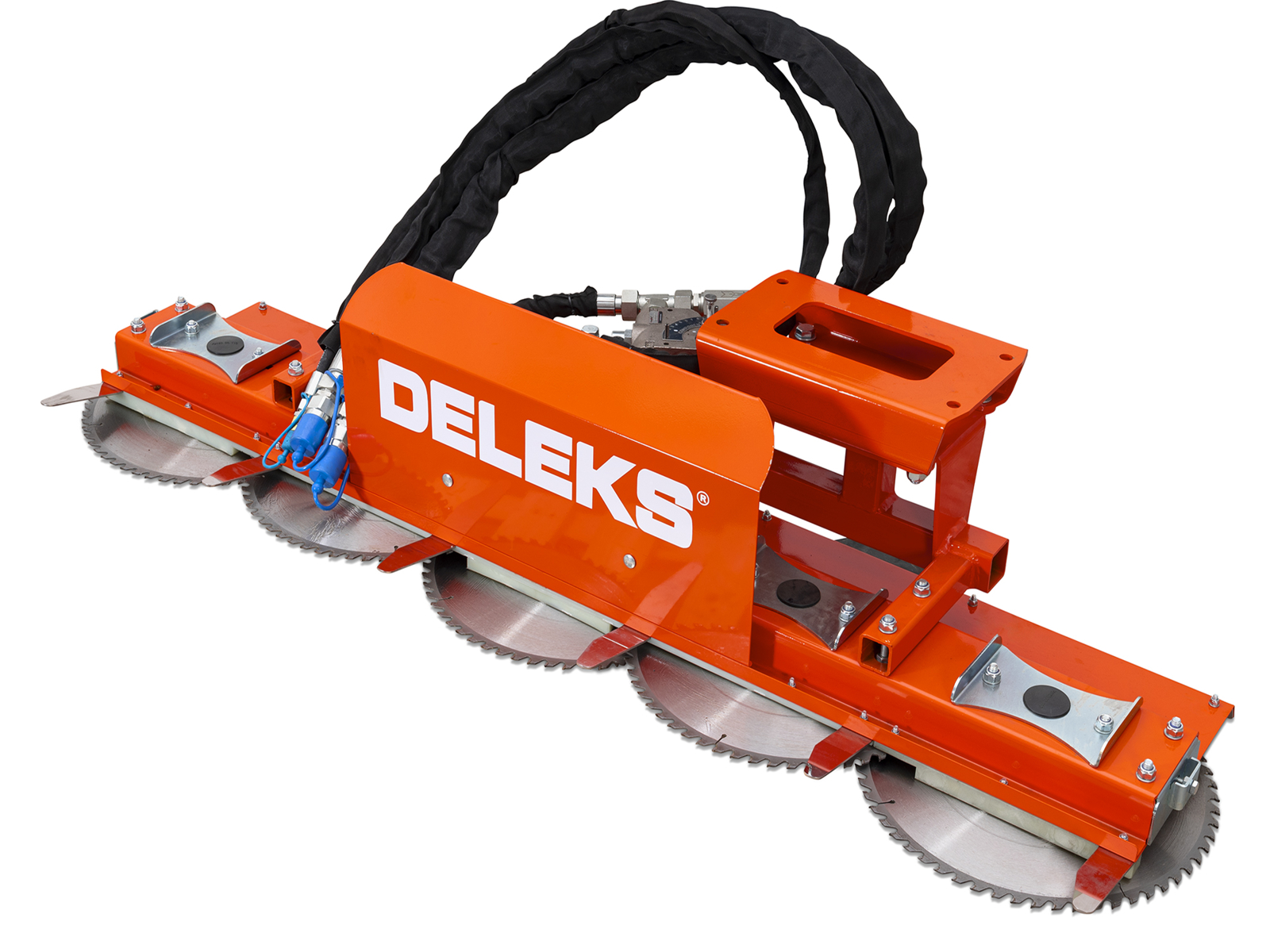

Hydraulic 5-disc saw bar 160 cm (63 in) HR-DISC-5, circular saw hedge cutter for excavators, mini diggers and hedge cutter arms

Not available  Notify me
Code HRDISC5 - EAN 8057724864212
1.595,00€VAT incl.
or 3 installments of 531,67 €
Free shipping
Loading...
1.595,00€VAT incl.
or 3 installments of 531,67 €
Free shipping
View all details.

reviews

1.595,00€VAT incl.

DETAILS

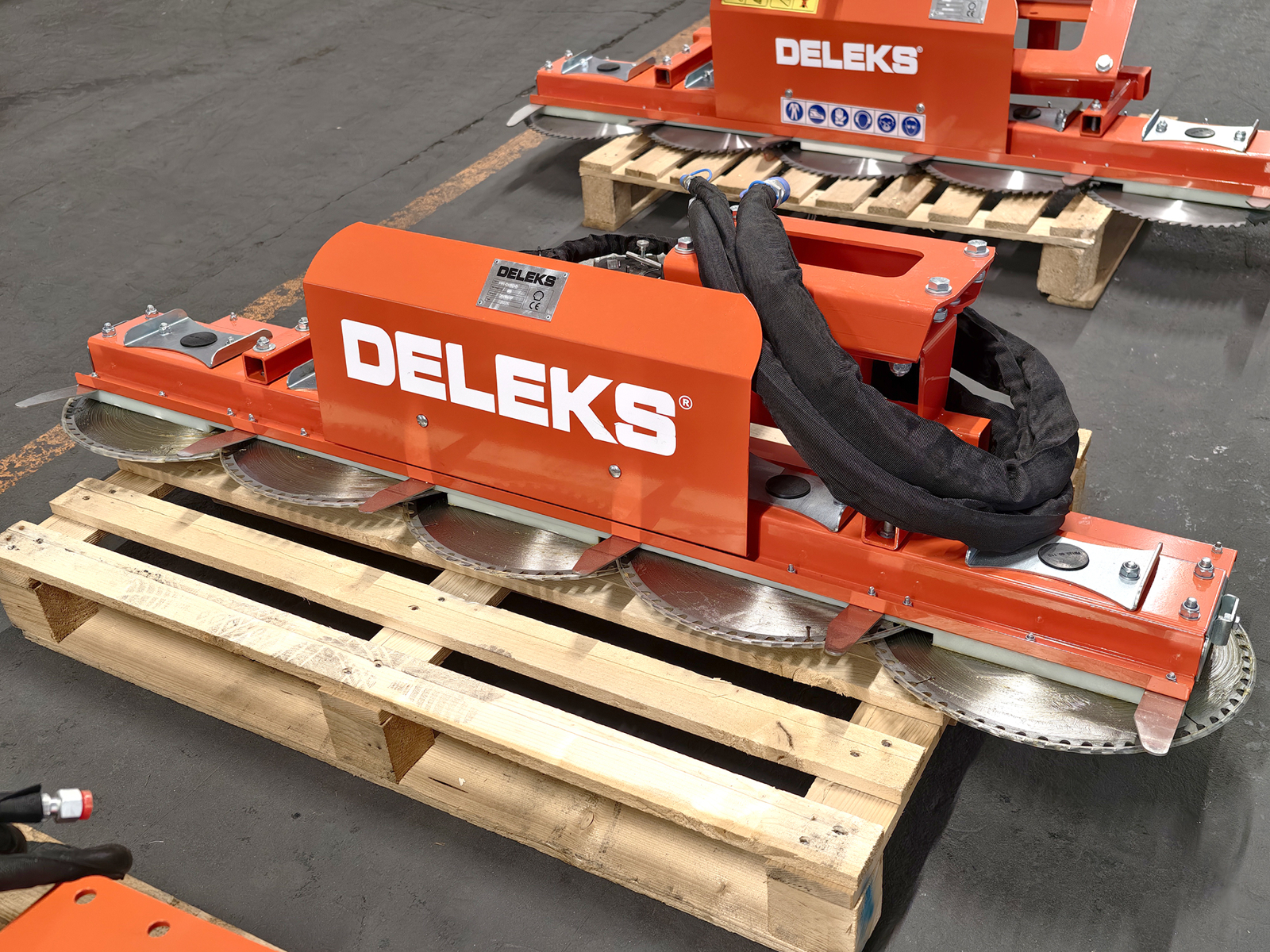

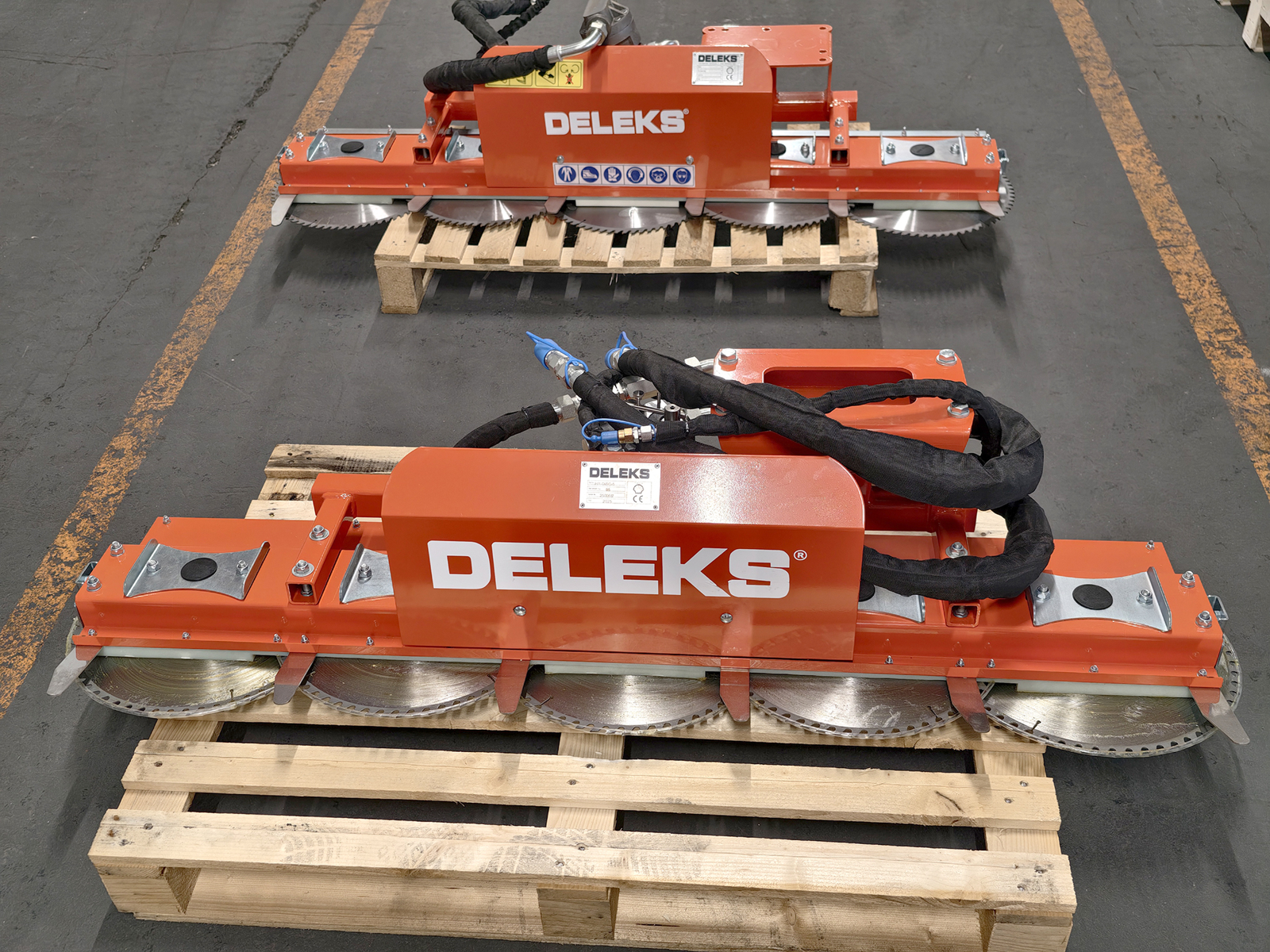

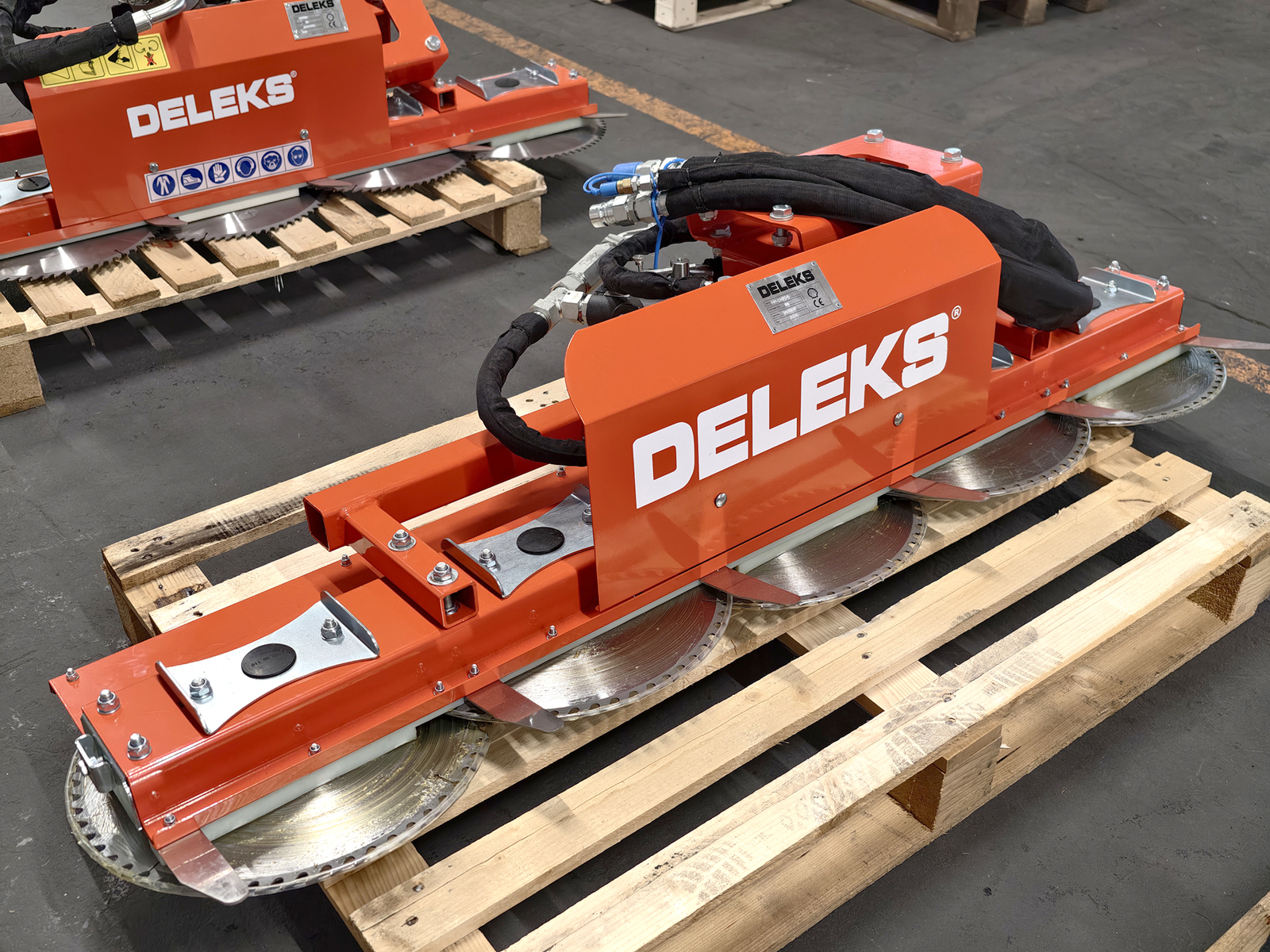

Hydraulic 5-disc saw bar with a 160 cm (63 in) cut, the DELEKS® HR-DISC-5: a circular saw hedge cutter for excavators, mini diggers and hedge cutter arms that cuts woody hedges and branches up to about 9 cm (3.5 in) thick. The 5 discs of 400 mm (15.7 in) have 60 teeth each, with tungsten-carbide tips, for a fast, clean cut without splitting when pruning hedges and tree lines, along road verges, banks and ditches, in orchards and vineyards. The hydraulic gear motor of 22 cc per revolution, bidirectional and with a case drain, drives the discs through 4 belts and runs on 35-50 l/min (7.7-11 UK gal/min) of oil at 120 to 160 bar (1,740 to 2,320 psi). It weighs 95 kg (209 lb). It is TÜV-certified, with a 2-year warranty and free delivery within the EU.


Which machines it fits

The HR-DISC-5 fits excavators, mini diggers and mini excavators with an auxiliary hydraulic line and tractor hedge cutter arms. On a tractor a hydraulic arm is needed: the bar does not connect directly to the three-point linkage. With a 160 cm (63 in) cut it weighs 95 kg (209 lb). For circuits with more flow and pressure there is the CUTTER-5, with a piston motor (70-90 l/min, 140-180 bar); with 3 discs and a 100 cm cut there are the HR-DISC-3 and the CUTTER3, at 60 and 58 kg.

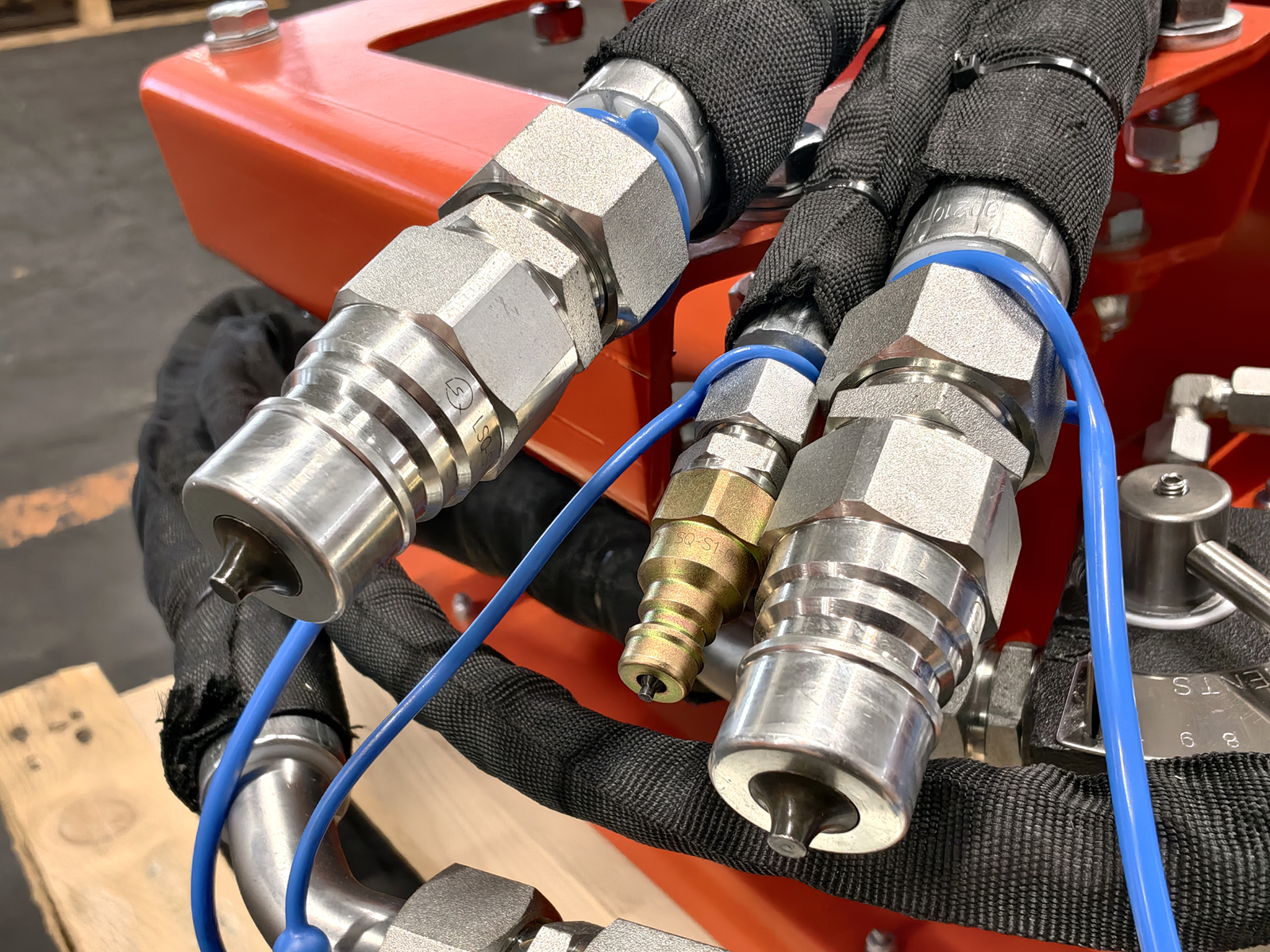

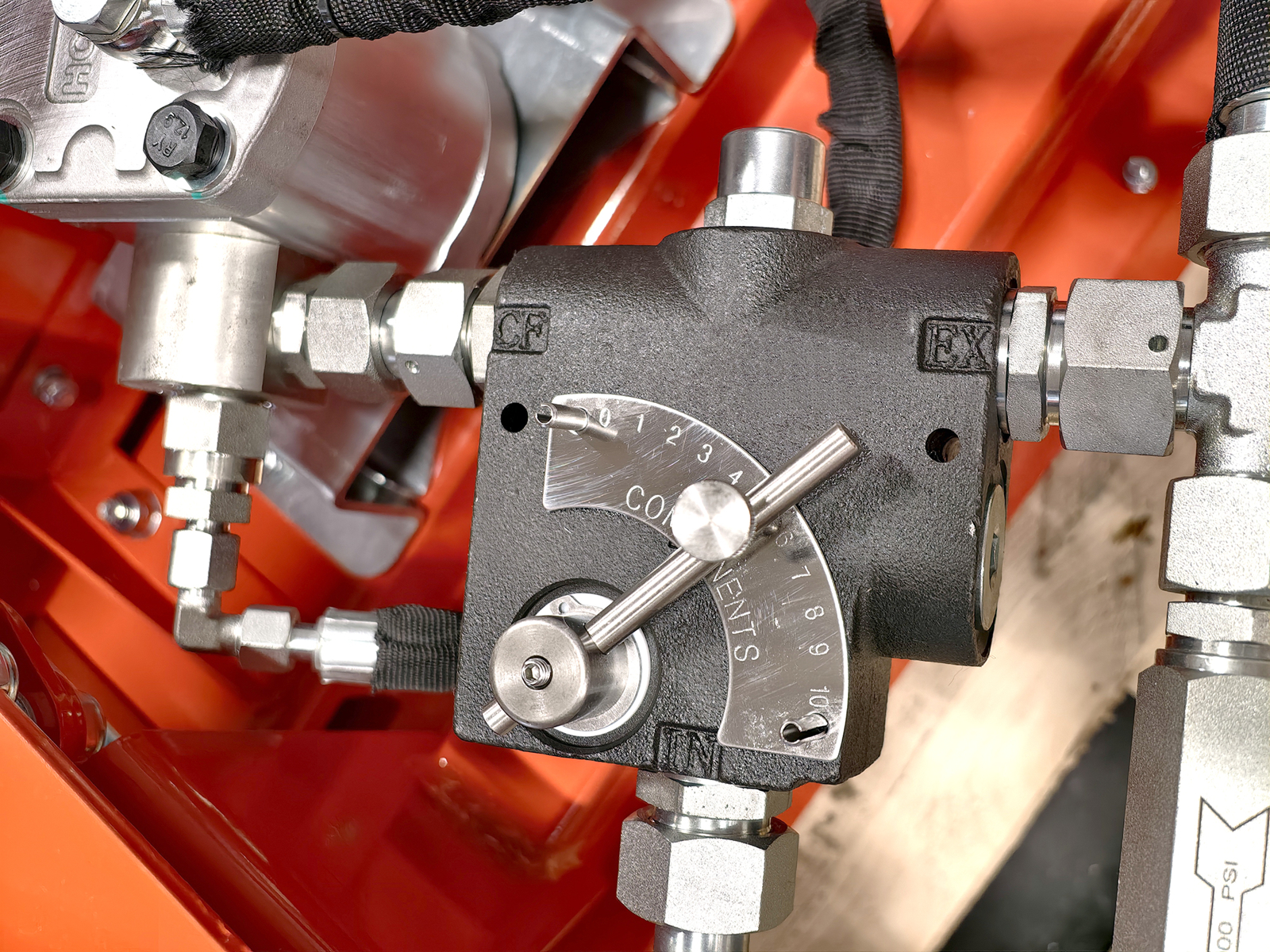

Hydraulic connection: flow, pressure and case drain

The HR-DISC-5 runs on an oil flow of 35-50 l/min (7.7-11 UK gal/min) and a working pressure of 120 to 160 bar (1,740 to 2,320 psi); the discs turn at 500 to 2,800 rpm. The motor is bidirectional and has a case drain, to be connected straight back to the tank. The machine must have a free oil return line: above a certain flow, the oil must be able to go straight back to the tank, without pressure build-up. Before ordering, check the flow and pressure of your hydraulic circuit: if in doubt, just tell us the model of your machine.

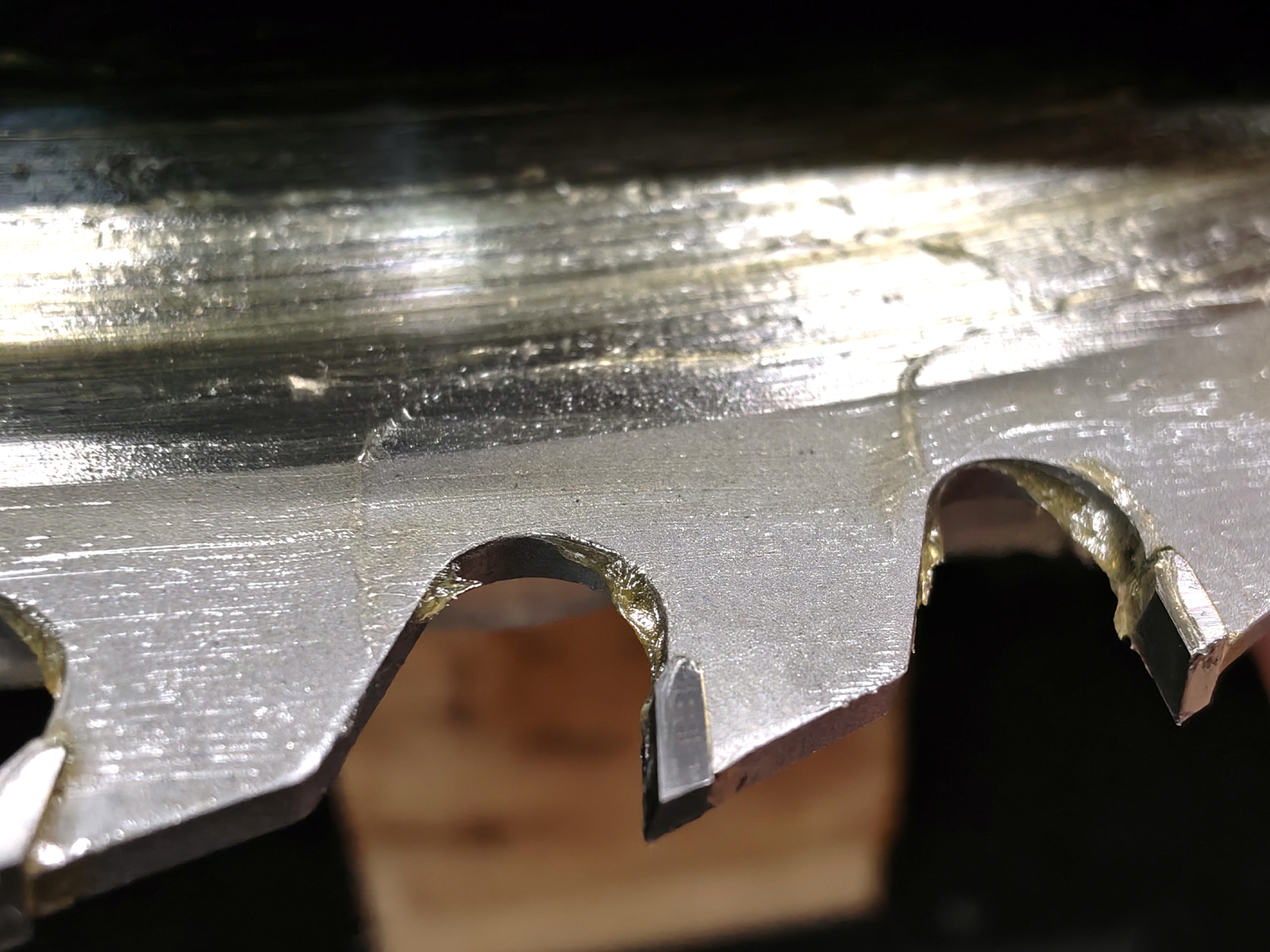

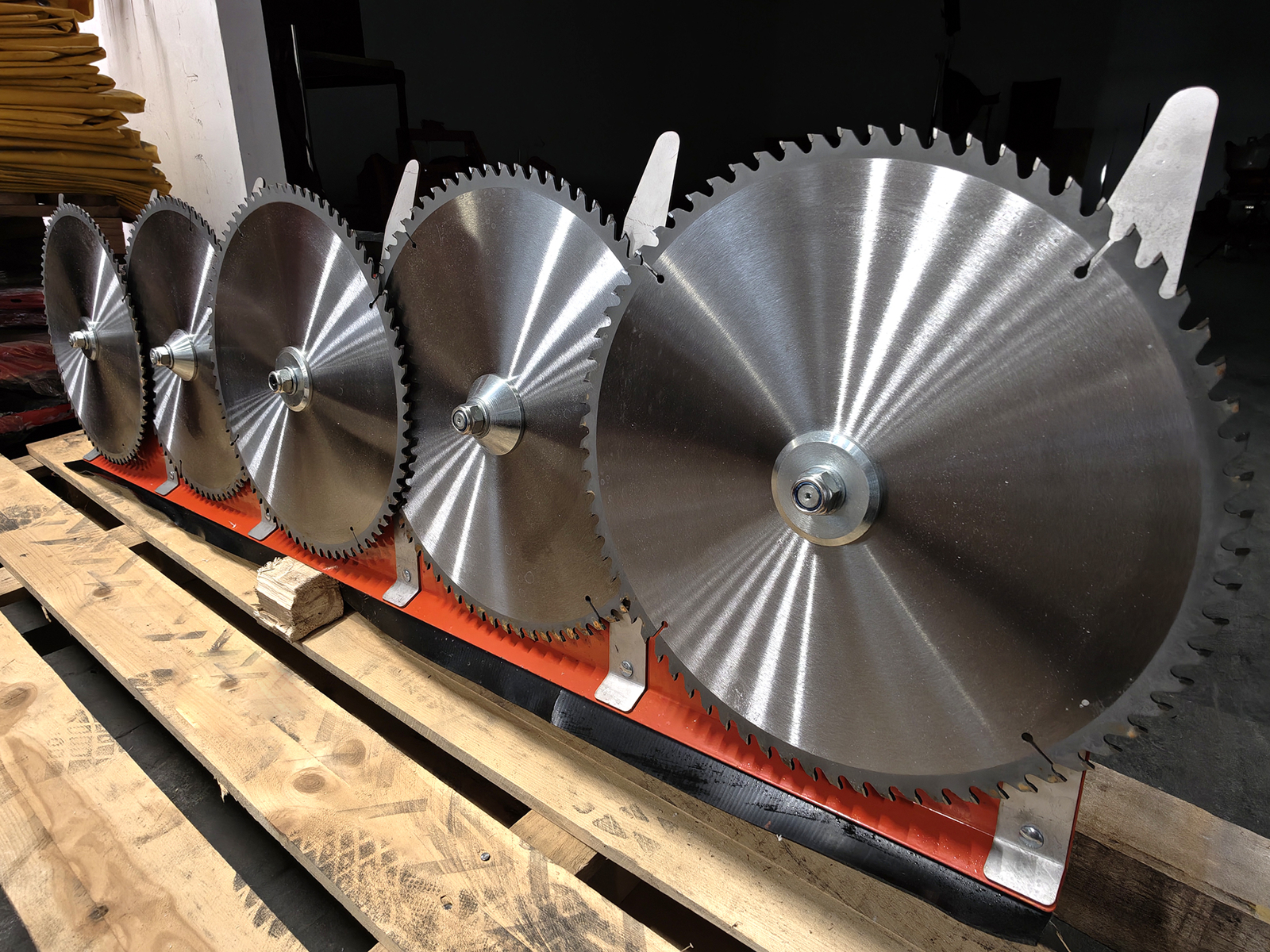

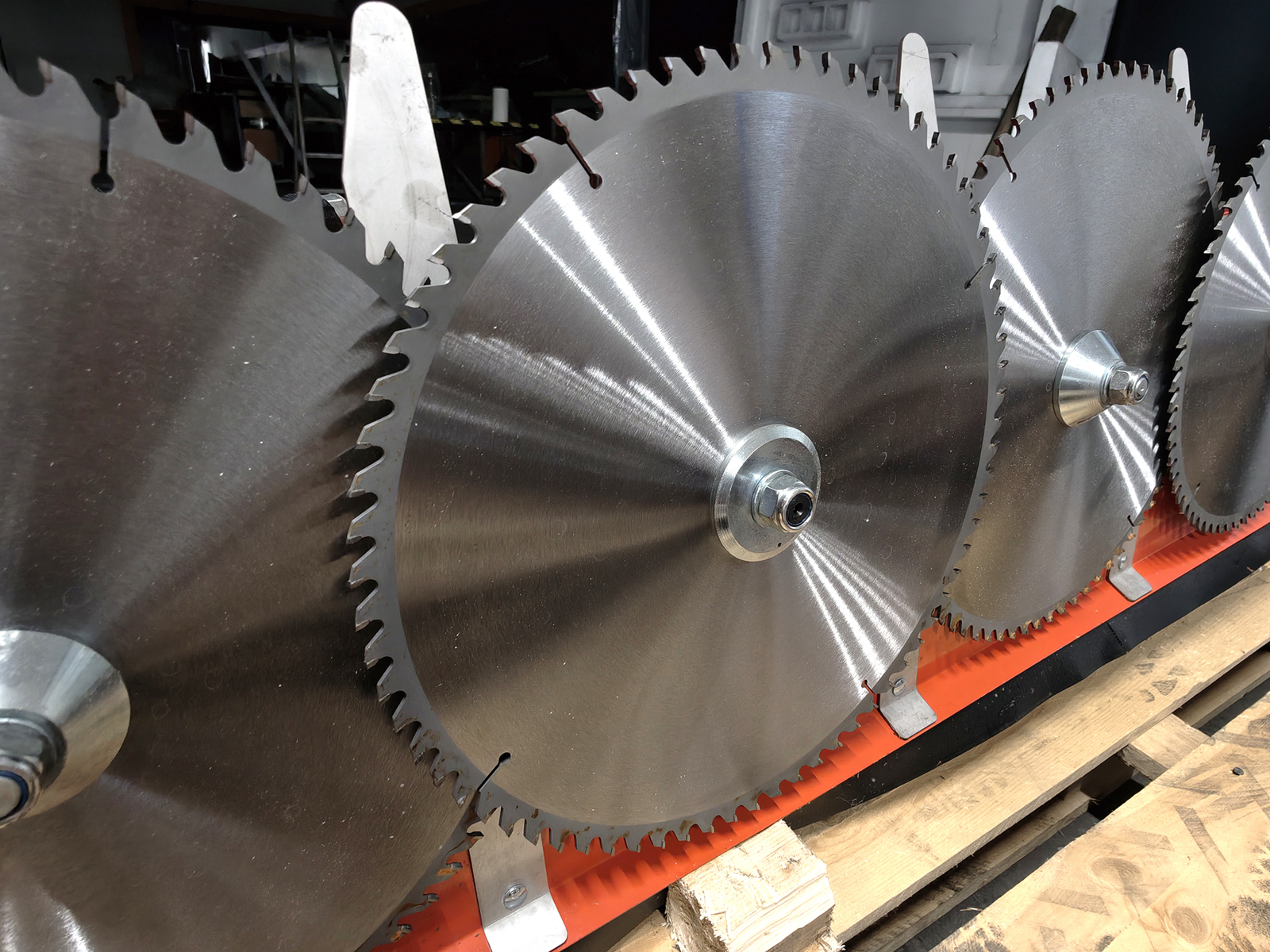

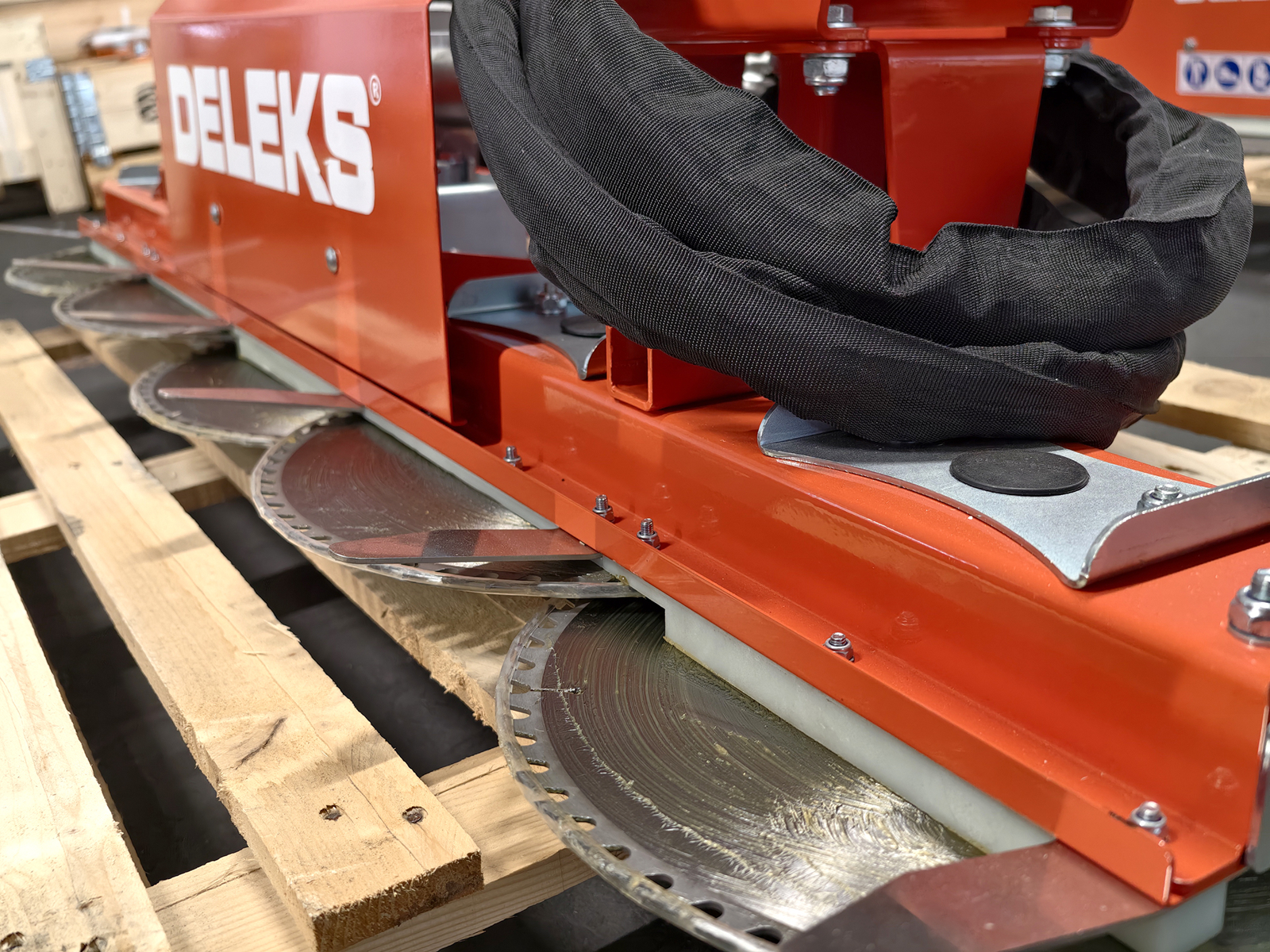

5 discs of 400 mm with 60 tungsten-carbide teeth

The 5 discs, 400 mm (15.7 in) in diameter, are made of high-strength carbon steel: 2.5 mm thick, with a 30 mm centre bore. Each disc has 60 teeth with tungsten-carbide tips, 3.2 mm thick: they cut woody hedges and branches up to about 9 cm (3.5 in) thick, with a fast, clean cut without splitting.

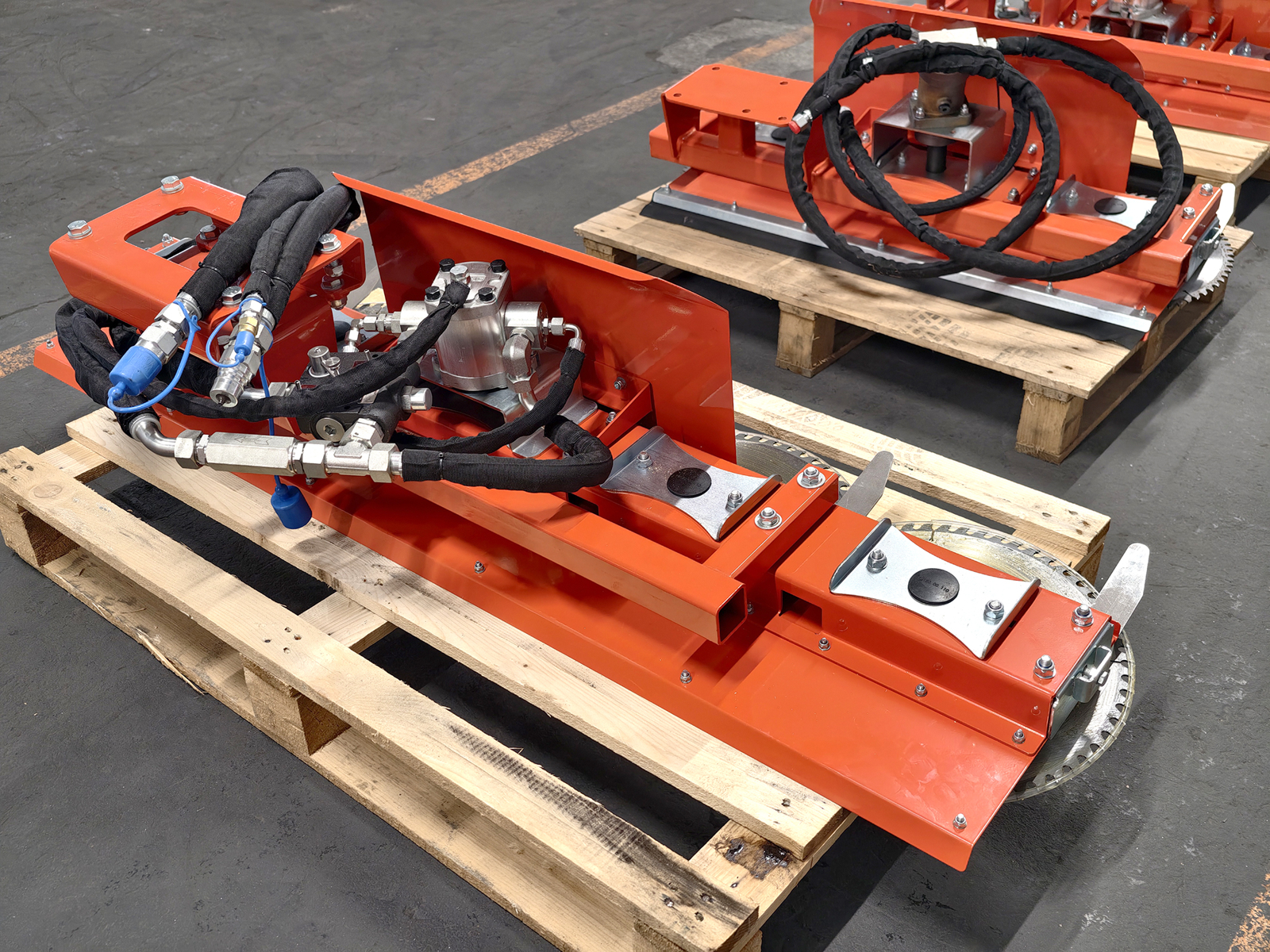

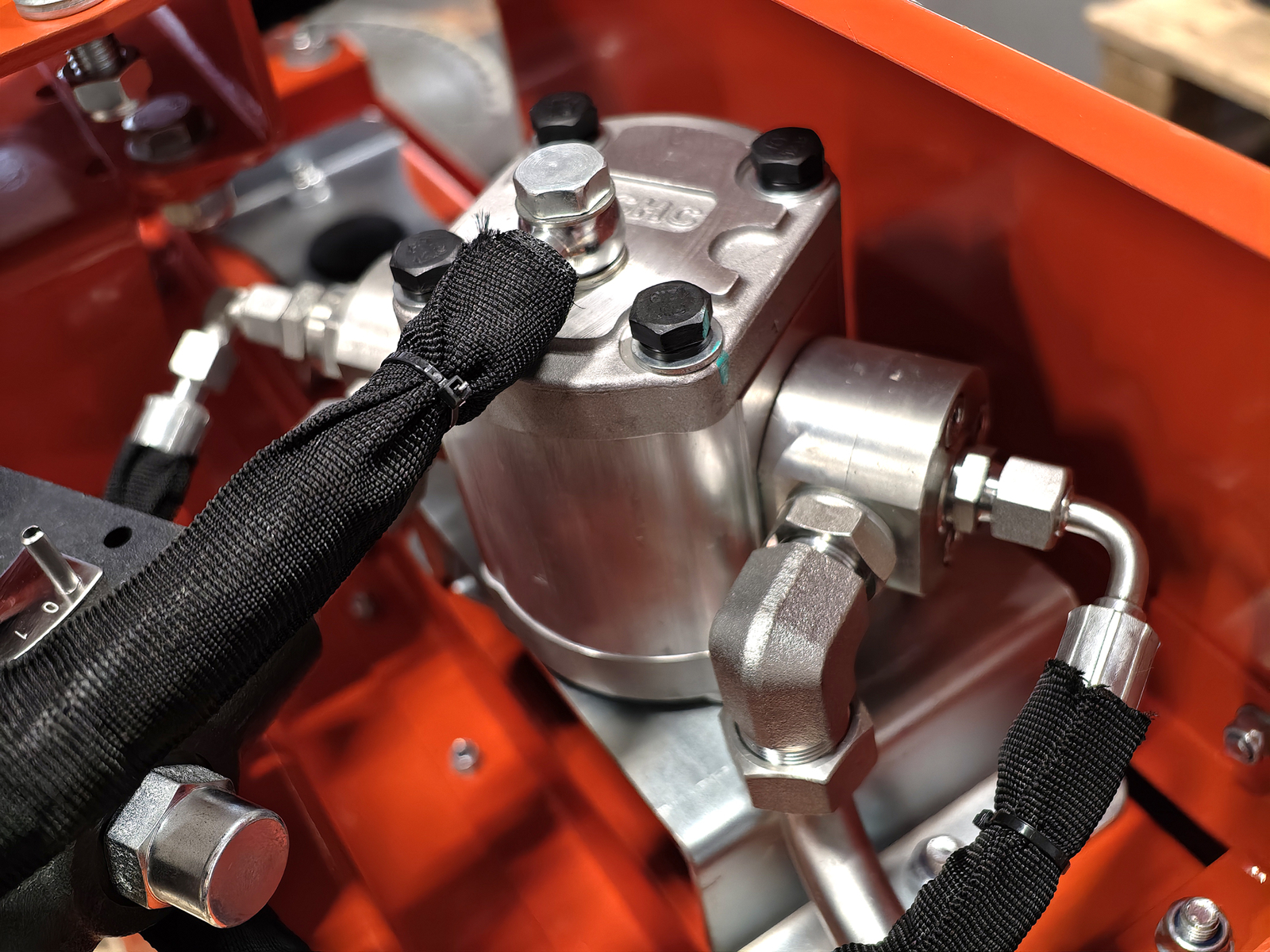

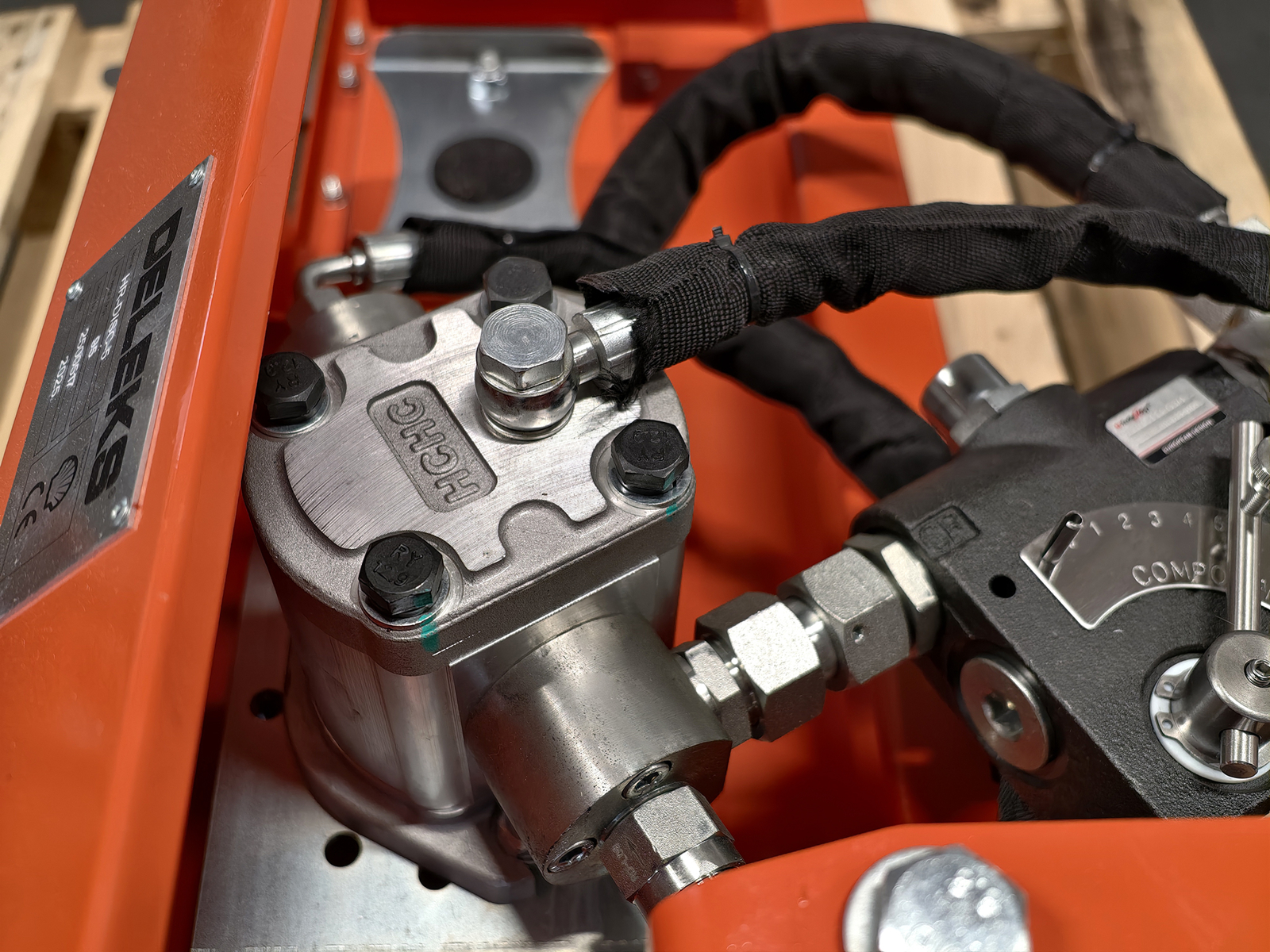

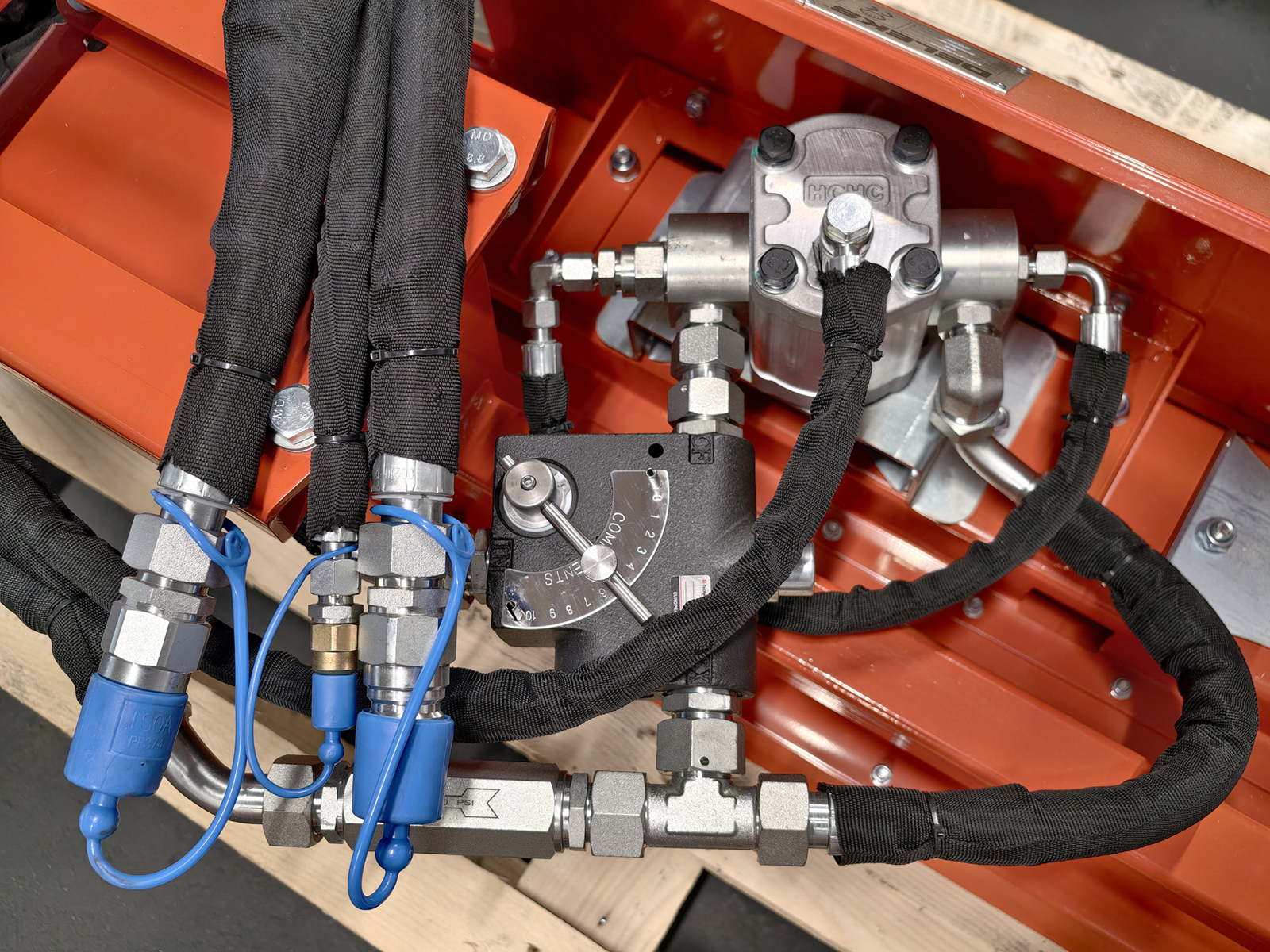

Gear motor and 4-belt drive

The hydraulic gear motor of 22 cc per revolution is bidirectional and has a case drain. Drive reaches the discs through 4 XPA907 belts, which absorb shock loads and reduce vibration. For circuits with more flow and pressure there is the CUTTER-5: the same cutting width and 400 mm discs, with a piston motor.

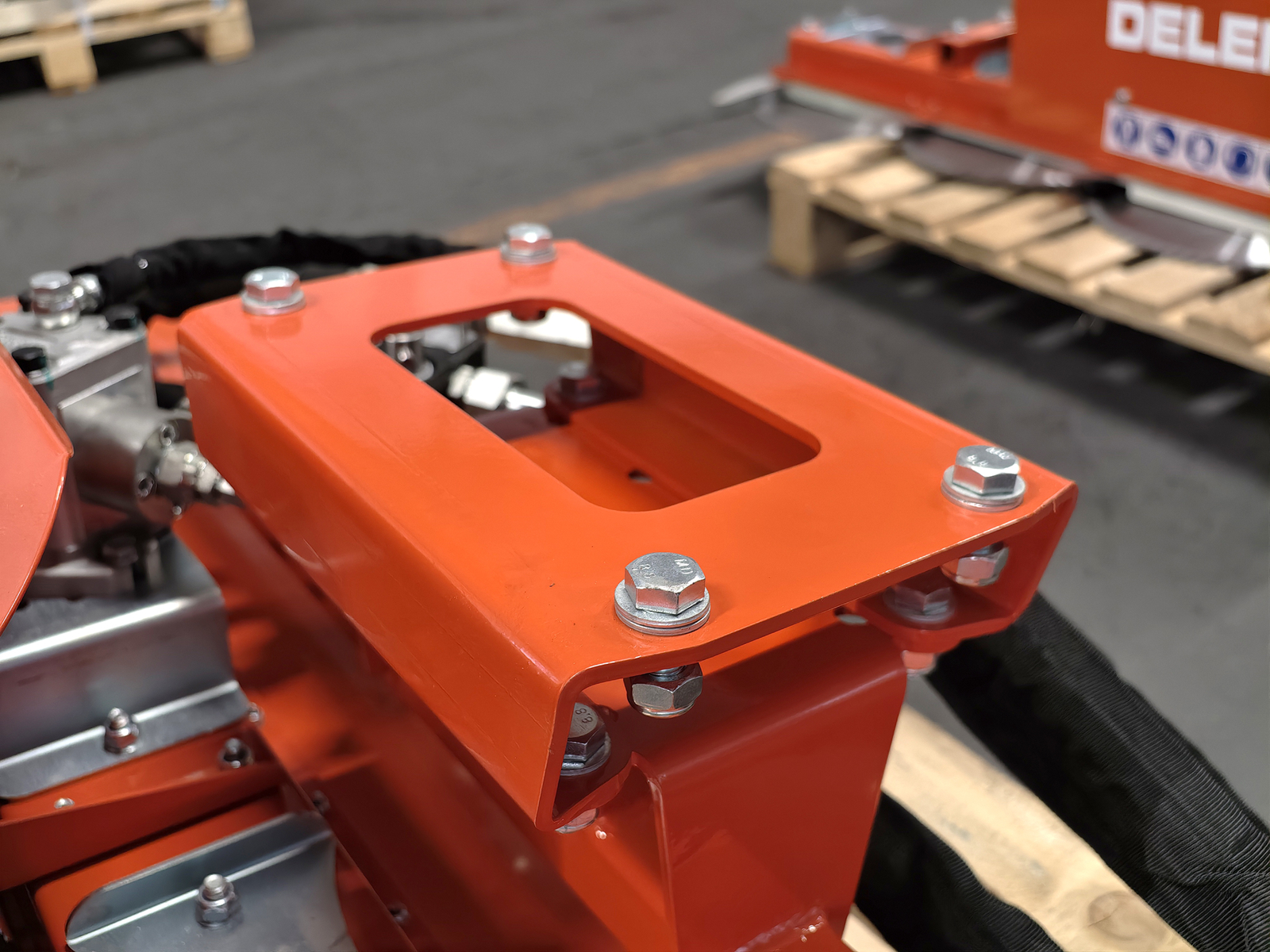

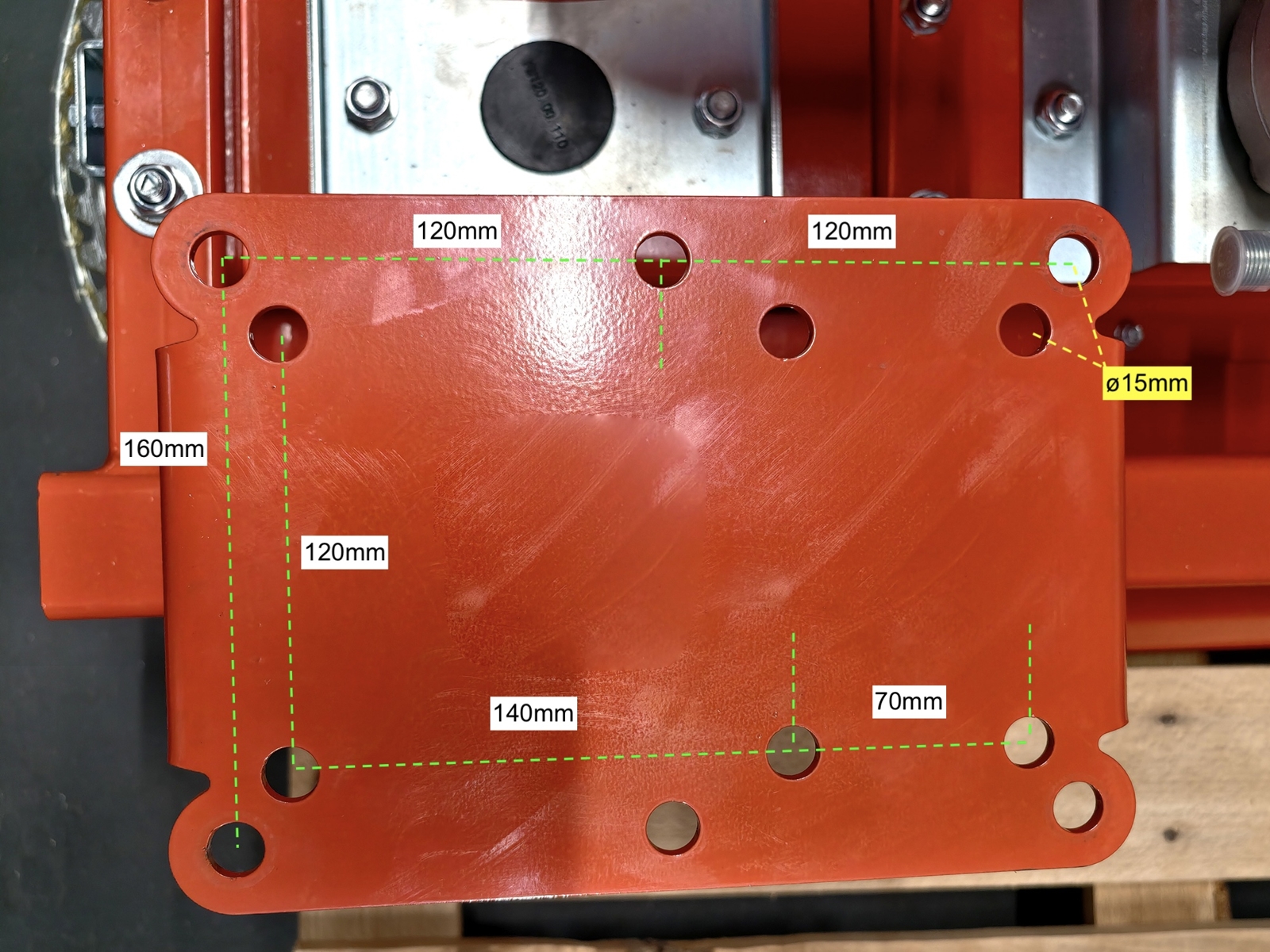

Mounting on the arm

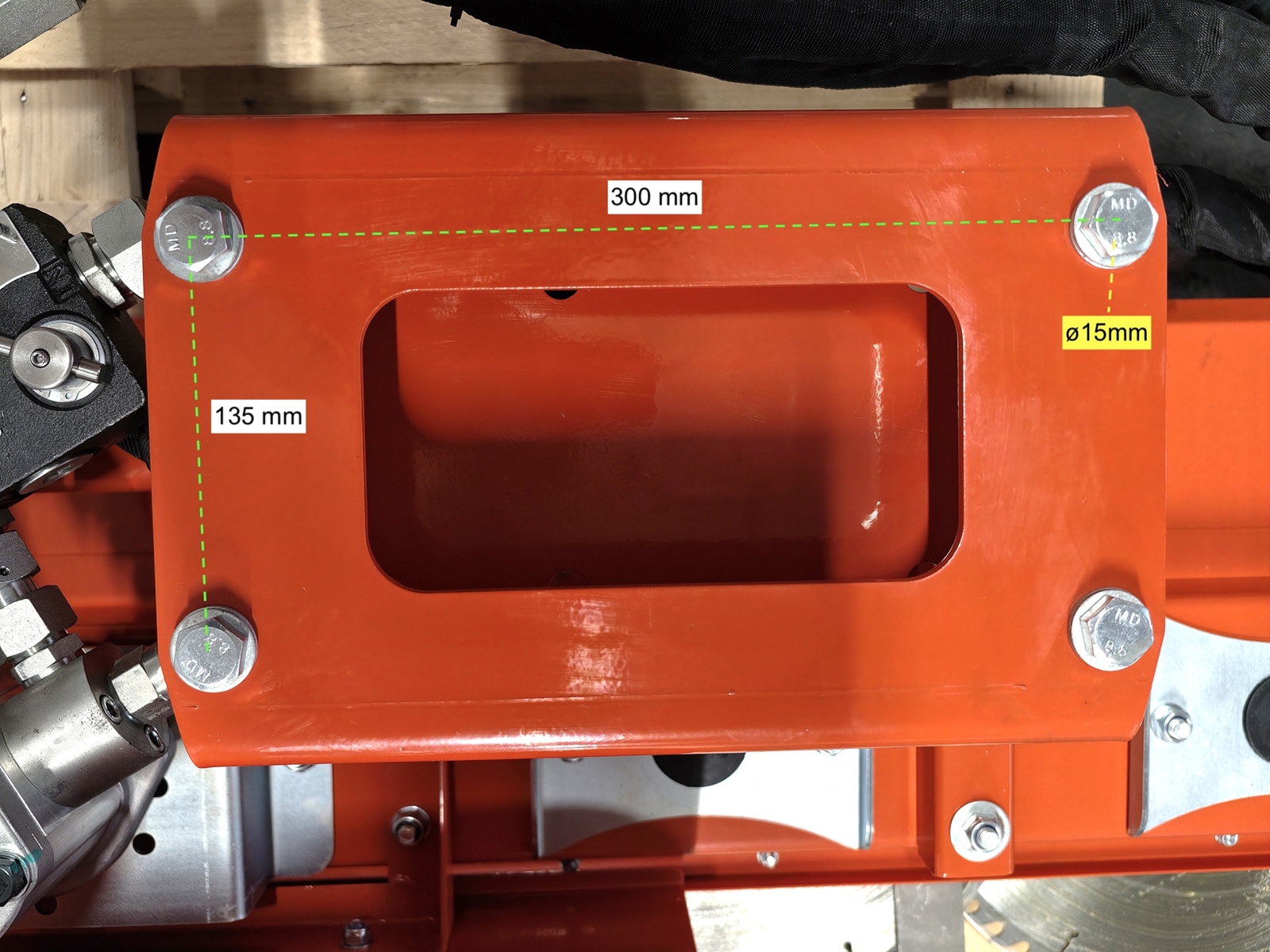

The dimensions of the mounting plate are in the product images, to check against the mounting of your arm or excavator. As options there are the Morin-type ACB+ M0 hitch and a hitch made to measure for your machine, at a surcharge.


Dimensions, weight and delivery

Cutting width 1,600 mm (63 in), weight 95 kg (209 lb). It ships in a package of 175 × 80 × 50 cm (69 × 31 × 20 in), 120 kg (265 lb) gross and 0.70 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.


Where it works

  • Woody hedges and tree lines: pruning branches up to 9 cm (3.5 in) thick
  • Road verges, banks and ditches: branches and growth overhanging the road
  • Orchards and vineyards: pruning and topping from the arm
  • Woodland edges and farm tracks: keeping branches and regrowth in check
  • Excavators, mini diggers and hedge cutter arms with an oil flow of 35-50 l/min

Options and spares

From this page you can add to your order the Morin-type ACB+ M0 hitch (ATTACCOMORINM0) and the made-to-measure hitch (ATTACCOARM). Discs, belts and other spares are identified on the exploded diagrams with our technical team.


FAQ

Which machines does the HR-DISC-5 fit?
Excavators, mini diggers and mini excavators with an auxiliary hydraulic line and tractor hedge cutter arms, with an oil flow of 35-50 l/min at 120-160 bar.

What oil flow does it need?
From 35 to 50 l/min (7.7 to 11 UK gal/min), at a working pressure of 120 to 160 bar (1,740 to 2,320 psi). For circuits with more flow there is the CUTTER-5, 70 to 90 l/min.

Does it need a case drain line?
Yes: the motor is bidirectional and has a case drain, to be connected straight back to the tank. The machine must also have a free oil return line.

What size branches does it cut?
Woody hedges and branches up to about 9 cm (3.5 in) thick. For hedges and small branches up to 3 cm (1.2 in), the HR-S and HR finger bar hedge cutters, 130 to 180 cm, are enough.

What is the difference between the HR-DISC-5 and the CUTTER-5?
The HR-DISC-5 has a gear motor and runs on 35-50 l/min at 120-160 bar; the CUTTER-5 has a piston motor, with more torque and better efficiency, and runs on 70-90 l/min at 140-180 bar. The cutting width is the same; the discs of the CUTTER-5 have 72 teeth, those of the HR-DISC-5 60.

3 or 5 discs?
With 3 discs the bar cuts 100 cm and weighs 60 kg (HR-DISC-3) or 58 kg (CUTTER3); with 5 discs it cuts 160 cm and weighs 95 kg (HR-DISC-5) or 86 kg (CUTTER-5), and needs more oil flow.

How does it mount on the arm?
With the mounting plate, whose dimensions are in the product images, with the optional Morin-type ACB+ M0 hitch or with a made-to-measure hitch.

Does it mount directly on a tractor?
No: on a tractor you need a hydraulic arm, such as a hedge cutter arm. The bar does not connect directly to the three-point linkage.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: blades, fingers, saw discs, belts, bearings, hydraulic motor and hitches are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and a check that the bar, the hydraulic circuit and the machine's mounting match. The bar comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric
Working width 1600.0 mm
Overall width 1600.0 mm
Weight 95.0 kg
Maximum cutting diameter 90.0 mm
Transmission: V-Belts quantity 4*XPA907
Working pressure 120 - 160 bar
Min./Max. Flow 35 - 50 l/min
Gross shipping weight 120 kg
Package volume 0.70 m3
Packing sizes 1750*800*500 mm
