Tractor hedge cutter with 130 cm (51 in) finger bar AIRONE-130-TR, hydraulic hedge trimmer arm for hedges and branches, 20 to 60 hp compact tractors

Available
Code AIRONE130TRPTO - EAN 8053470235924
D
H
M
S
-607,00€ 4.666,00€VAT incl.
4.059,00€VAT incl.
Free shipping
Loading...
D
H
M
S
-607,00€ 4.666,00€VAT incl.
4.059,00€VAT incl.
Free shipping
View all details.

4.6

1551 reviews

-607,00€ 4.666,00€VAT incl.
4.059,00€VAT incl.
 REQUEST INFORMATION

VIDEO
Field test
Field test
Review by Edd China (Wheeler Dealers)
Review by Edd China (Wheeler Dealers)

DETAILS

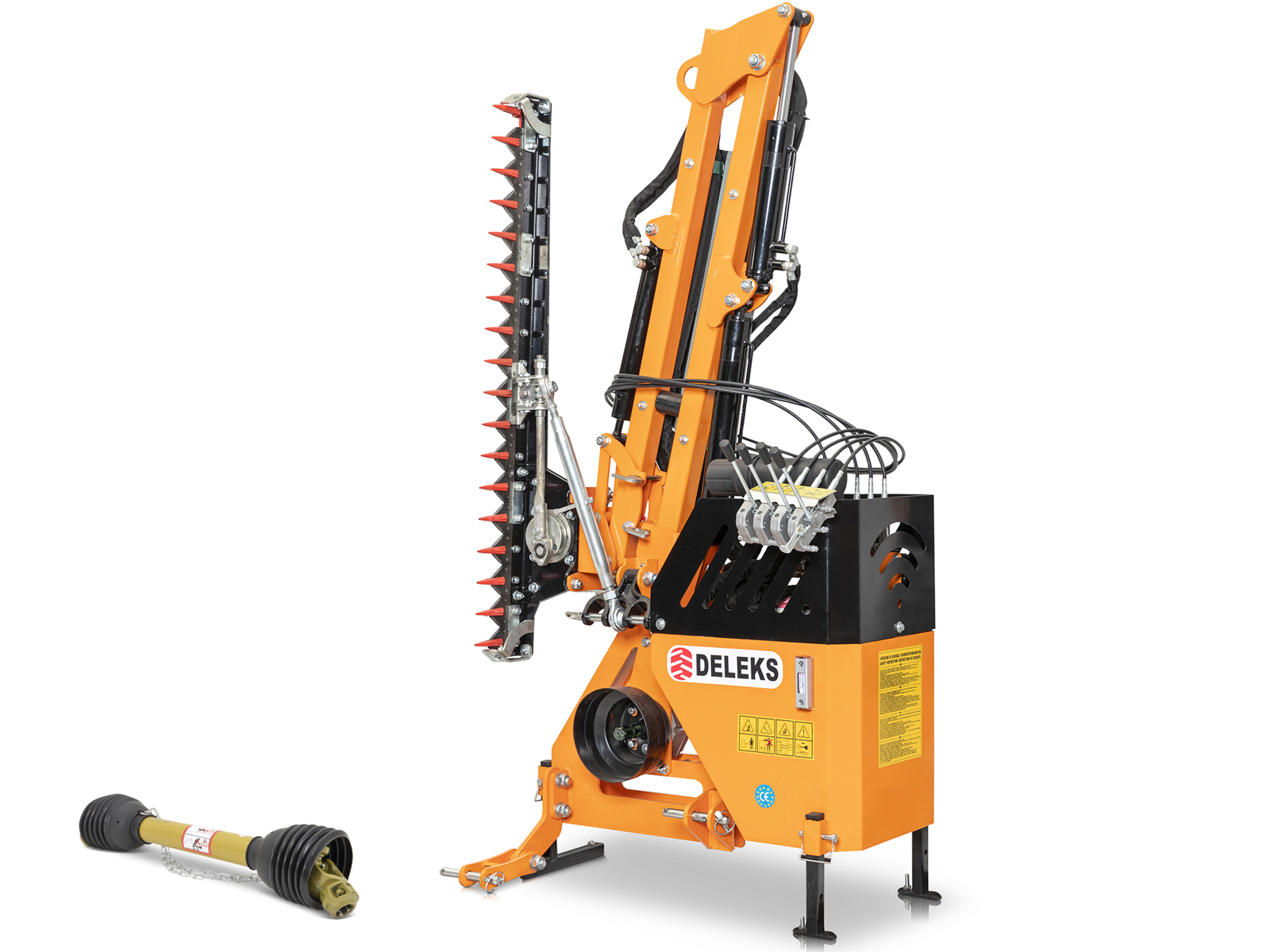

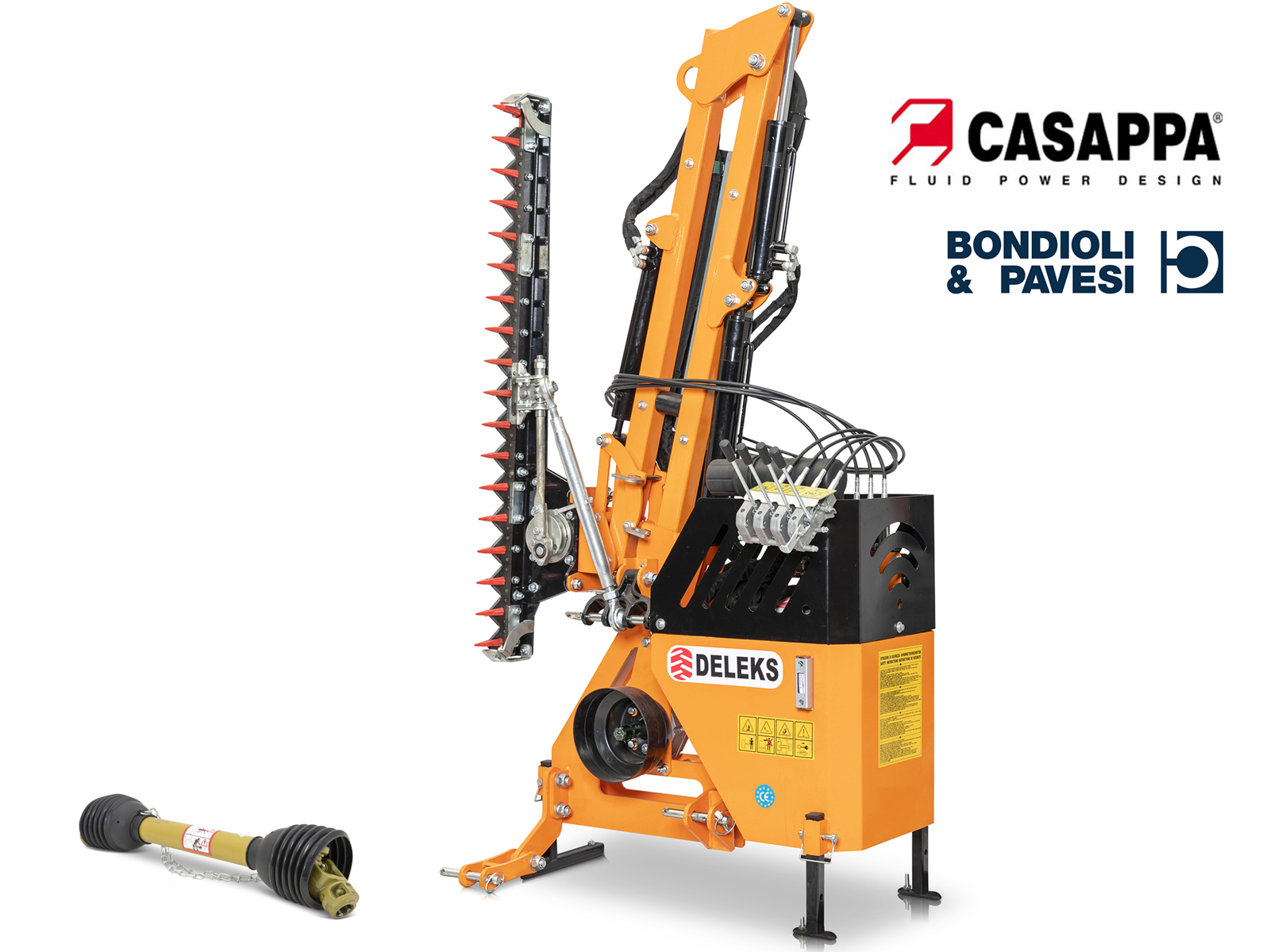

Hydraulic tractor hedge cutter with a 130 cm (51 in) finger bar, the DELEKS® AIRONE-130-TR: a hedge cutter arm with a 17-blade cutter bar for trimming hedges and trees, with branches up to 3 cm (1.2 in), for 20 to 60 hp compact tractors with a category 1 or 2 three-point linkage, such as Kubota, Antonio Carraro, Goldoni, BCS and Pasquali. The hydraulic system is independent: a Casappa tandem pump driven by the PTO, a Bondioli & Pavesi control valve and a 55-litre (12.1 UK gal) tank, so the arm moves while the bar is cutting. Three hydraulic movements, a remote 4-lever control at the driver's seat and a reach of up to 3.46 m (11.4 ft), to get over obstacles. CE-approved PTO shaft included. It is TÜV-certified, carries a 2-year warranty and comes with free delivery within the EU.


Which tractors it fits

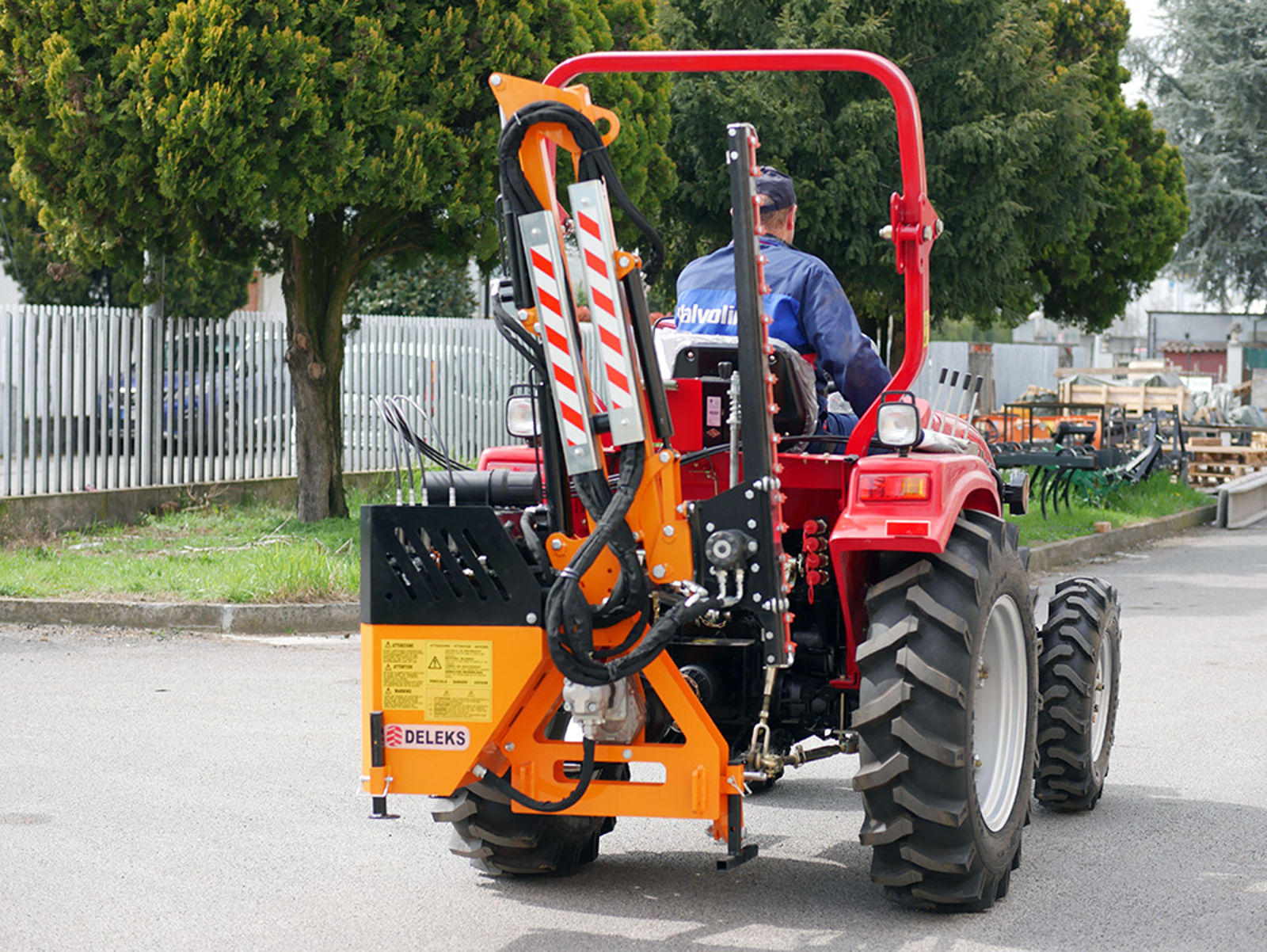

The AIRONE-130-TR is built for 20 to 60 hp tractors with a 540 rpm PTO and a category 1 or 2 three-point linkage (19-22 or 25-28 mm pins, lower link spacing from 470 to 570 mm): Kubota B series, Antonio Carraro Tigre, Goldoni, BCS, Ferrari, Pasquali, New Holland, Landini and Valpadana. The tractor must weigh at least 1,200 kg (2,646 lb): with the arm stretched out to the side the centre of gravity shifts. The frame is sturdy but light, 277 kg (611 lb) with the bar: it handles well even on low to medium-powered tractors.

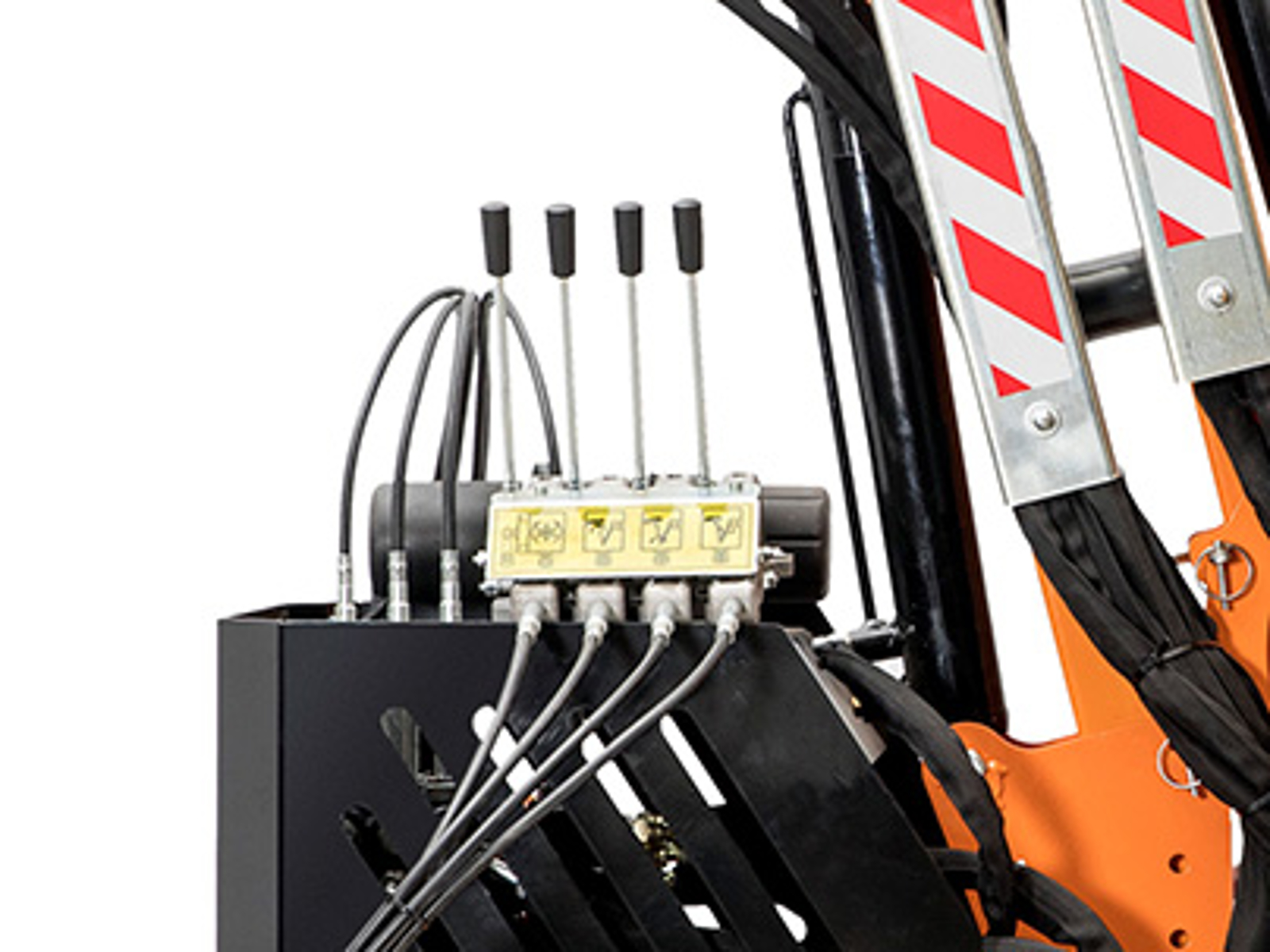

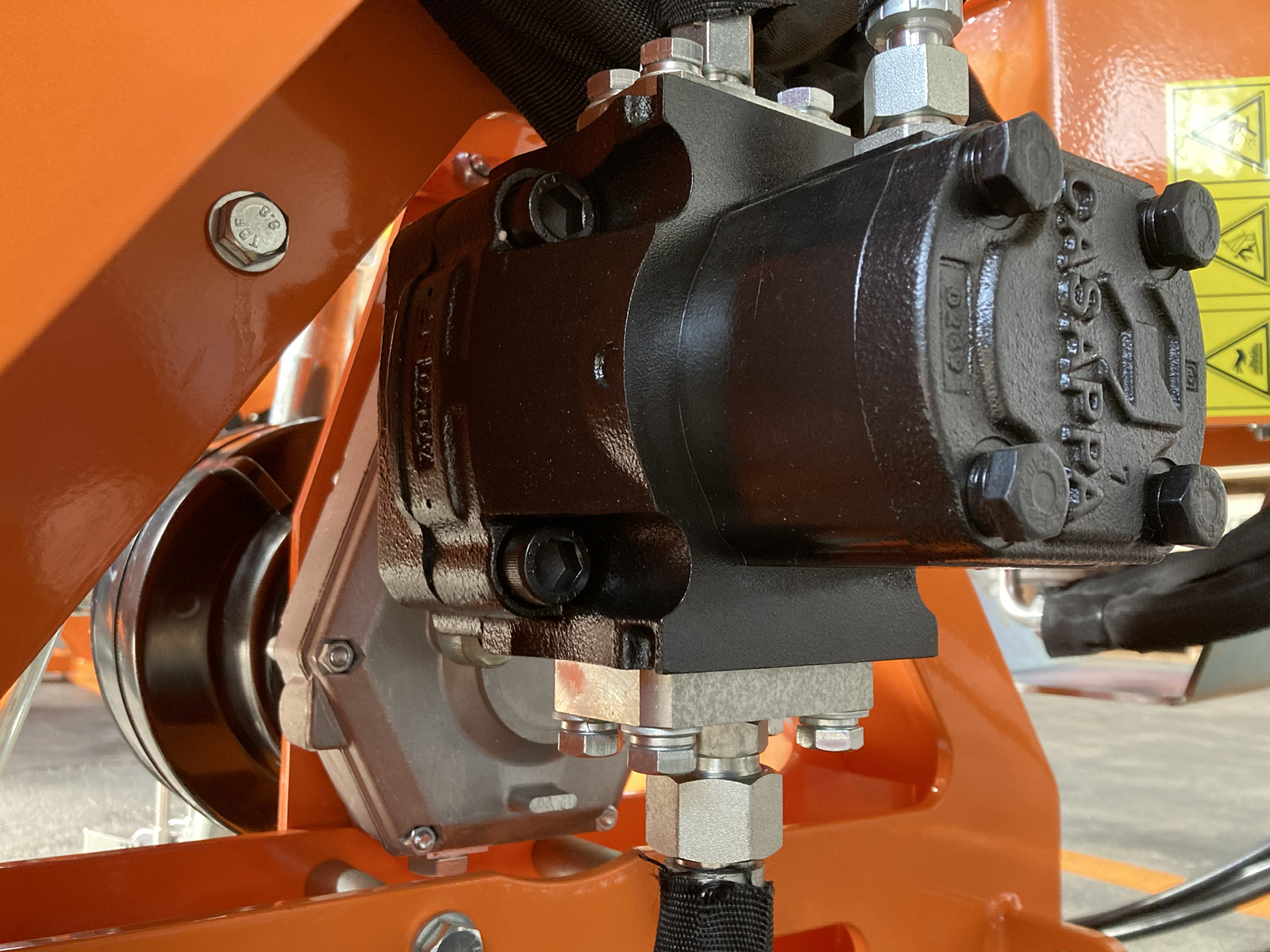

Independent hydraulic system and controls

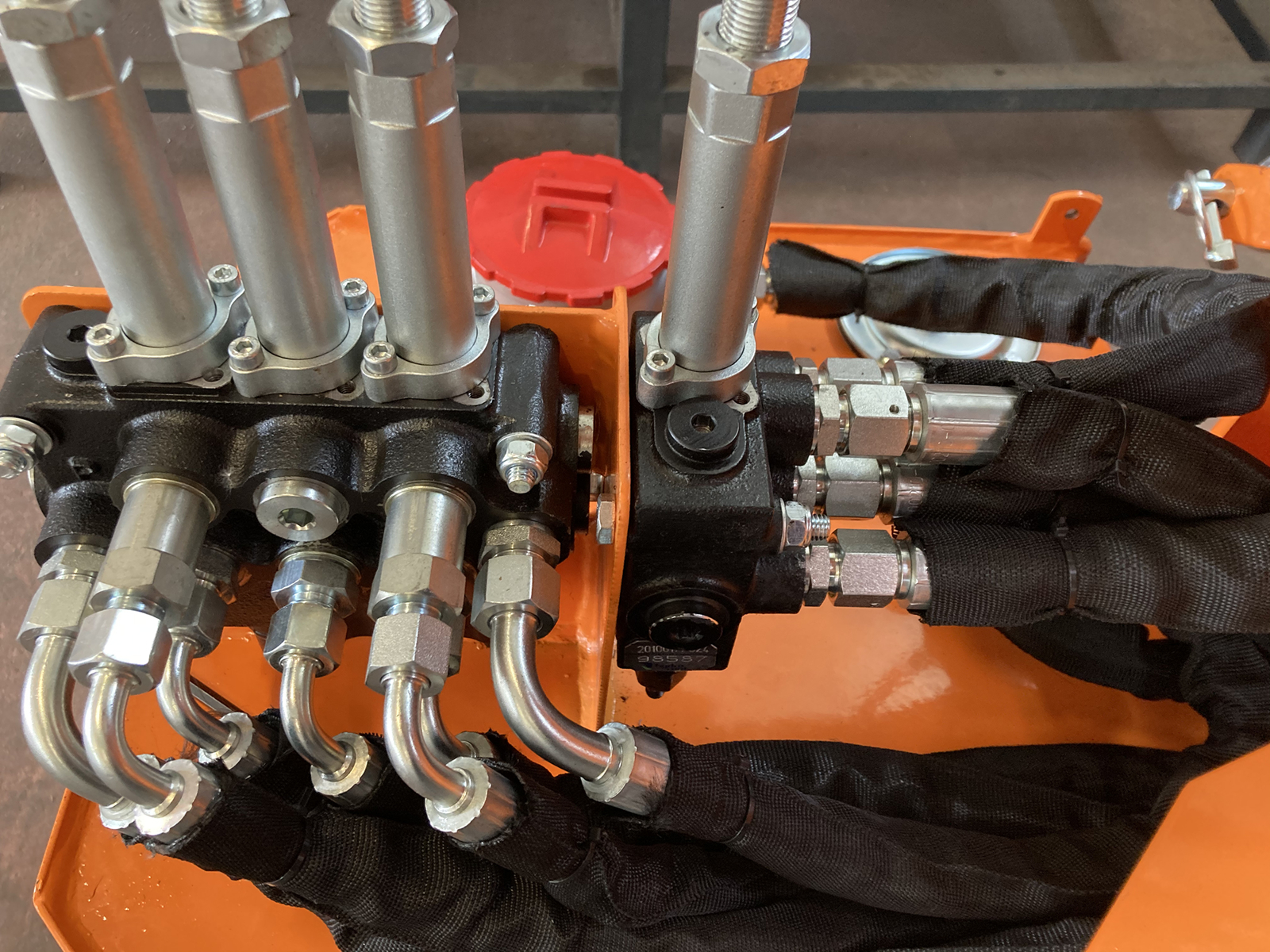

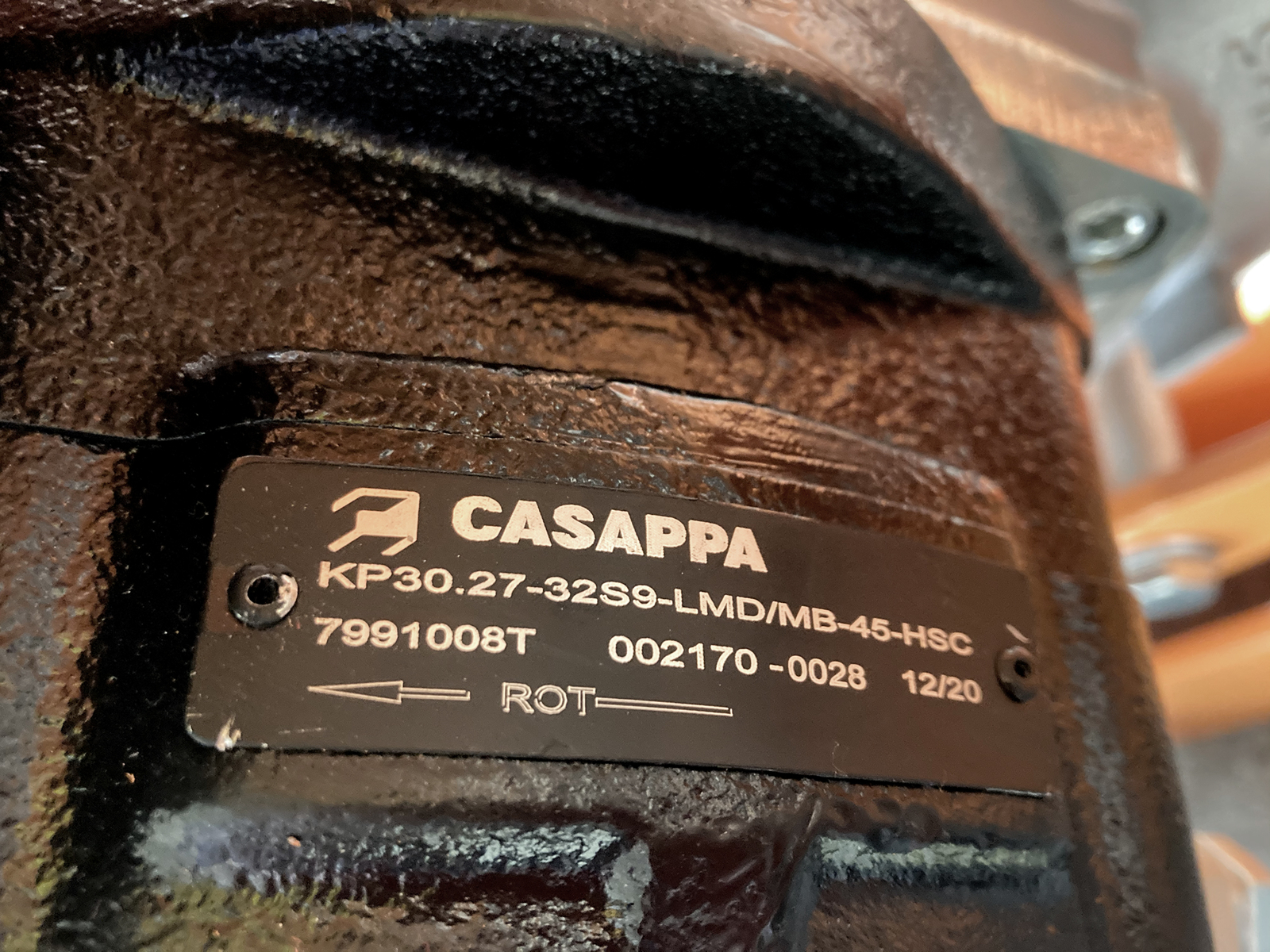

The hydraulic system is independent of the tractor: the Casappa tandem pump, Made in Italy, is driven by the PTO and lets you move the arm while the bar is cutting, without using the tractor's spool valves. The control valve is by Bondioli & Pavesi, Made in Italy, and the 55-litre (12.1 UK gal) tank arrives filled to level with Shell Tellus S2 MX 46 oil. The frame has 3 hydraulic movements and the remote control with 4 levers, connected by flexible hoses, mounts next to the driver's seat. The gearbox has a freewheel and the CE-approved category 4 PTO shaft, 700 mm (27.6 in) long, is included.

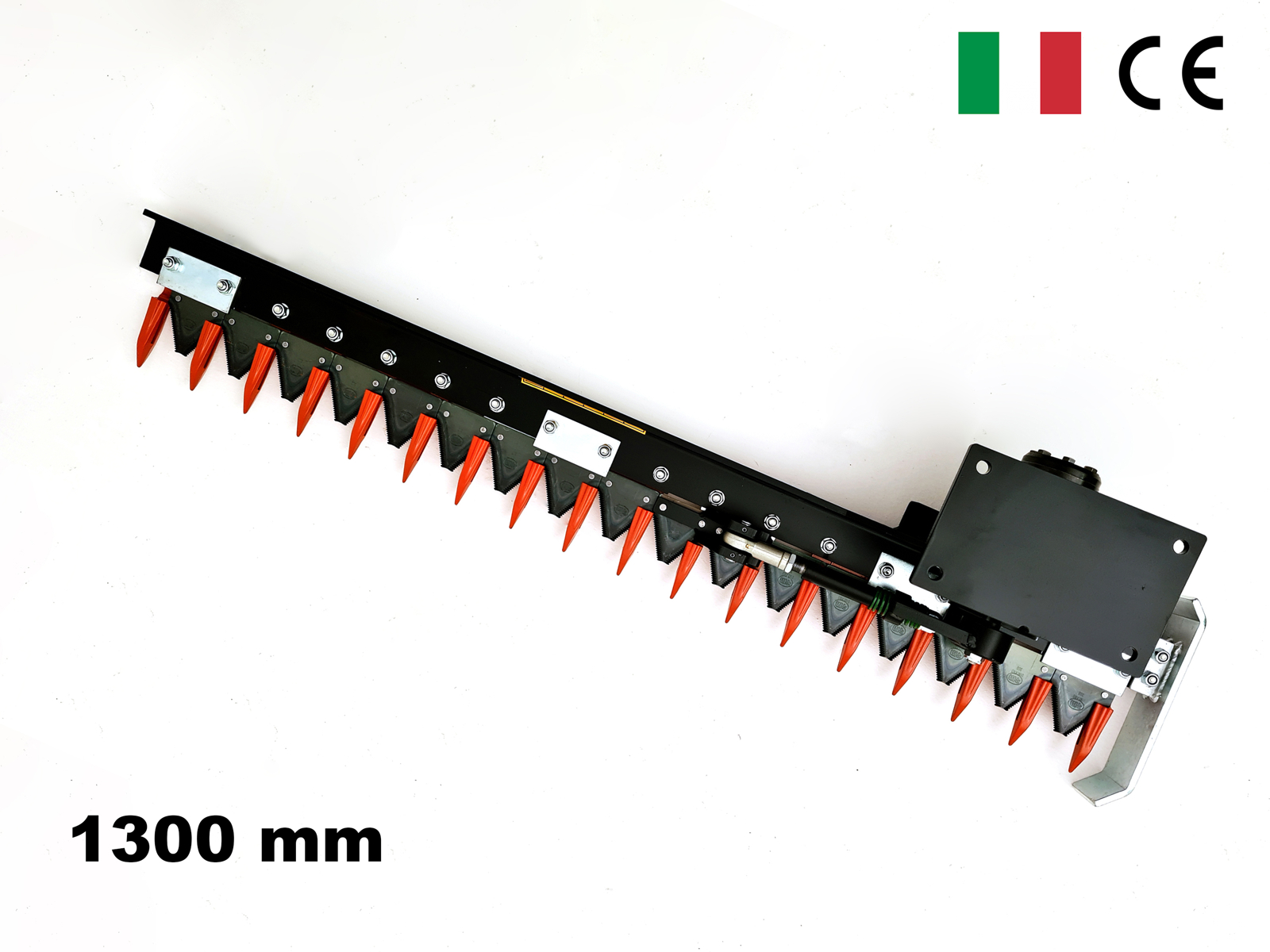

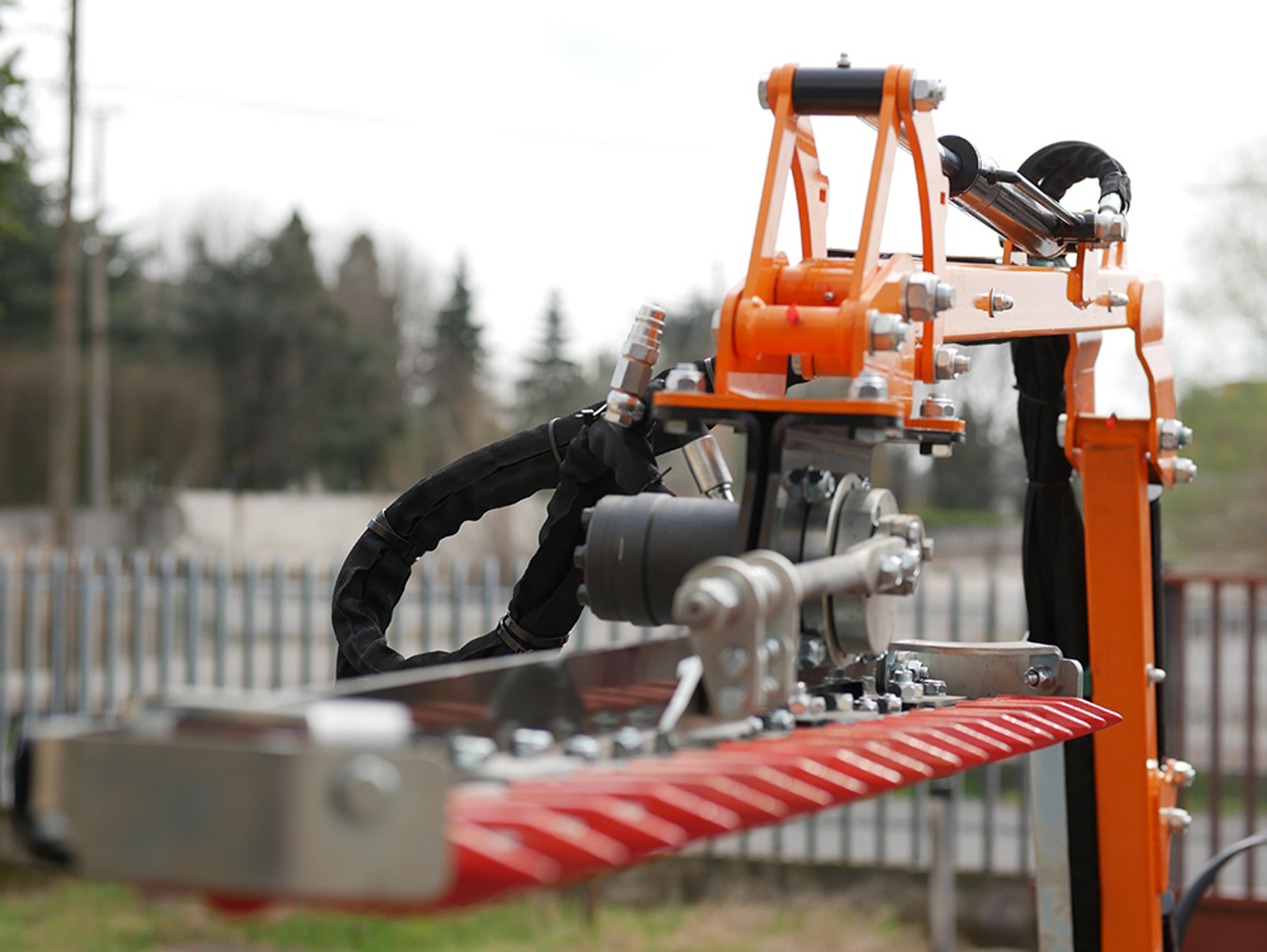

130 cm finger bar with 17 blades

The bar has an effective cut of 130 cm (51 in) and 17 blades: it cuts hedges and tree branches up to 3 cm (1.2 in) thick. The blades are a standard type, easy to find on the market or from DELEKS. Spares are the sets of 10 blades (COLTELLI10HRT and COLTELLI10HRTCA, depending on the year of the bar: check with our technical service before ordering) and the 5 double fingers (5DENTIDOPPIHR).

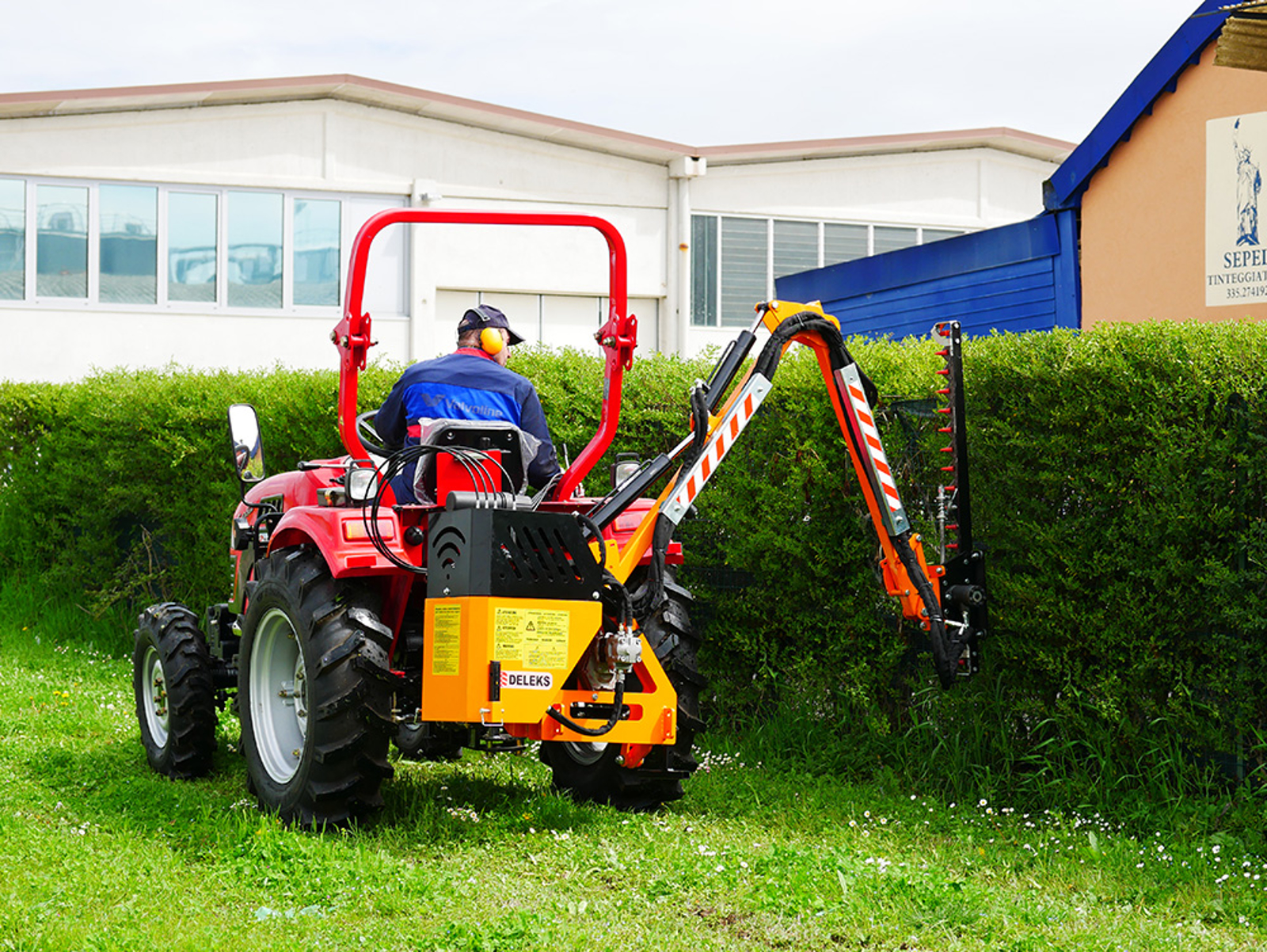

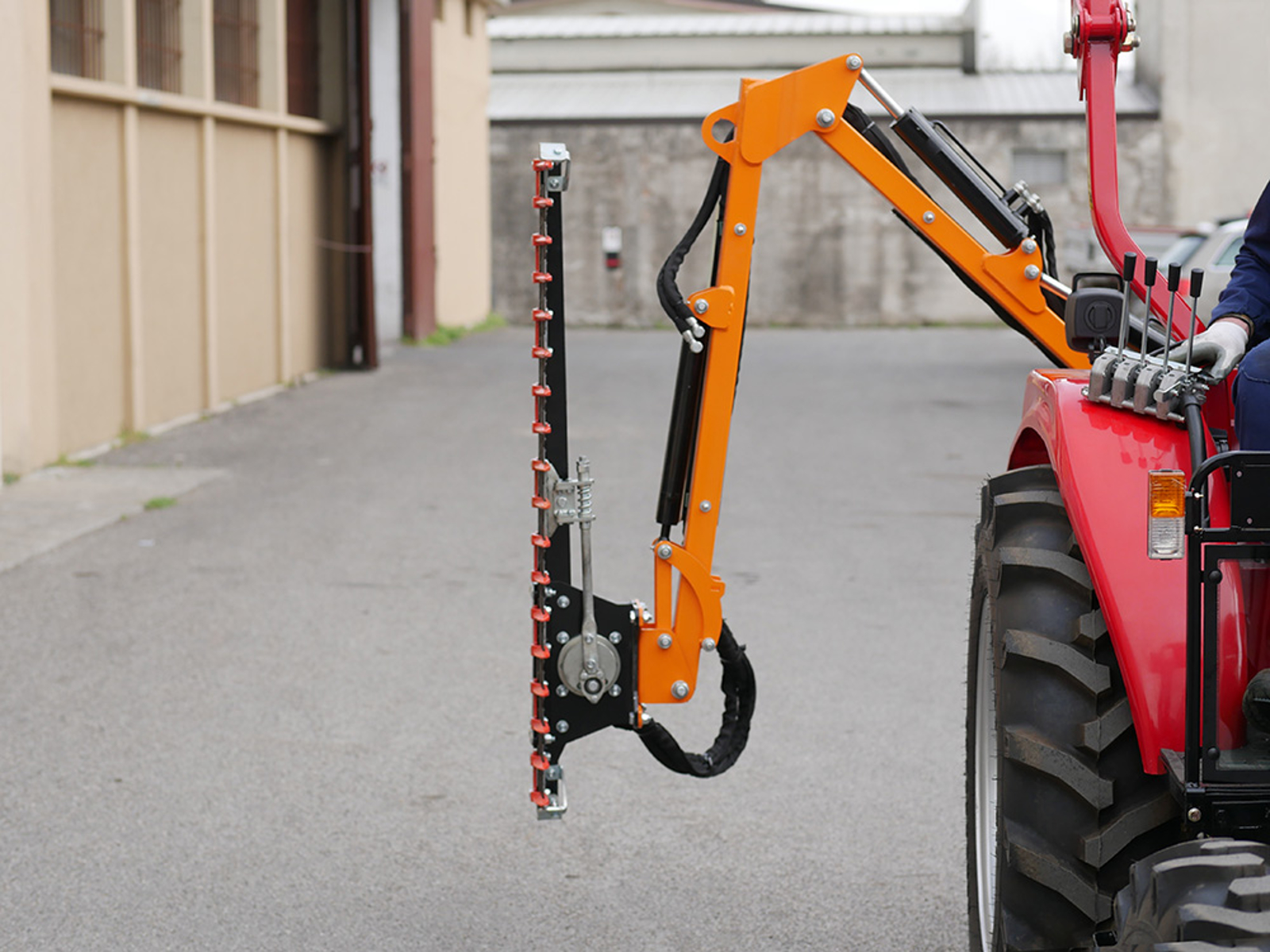

Reach and working positions

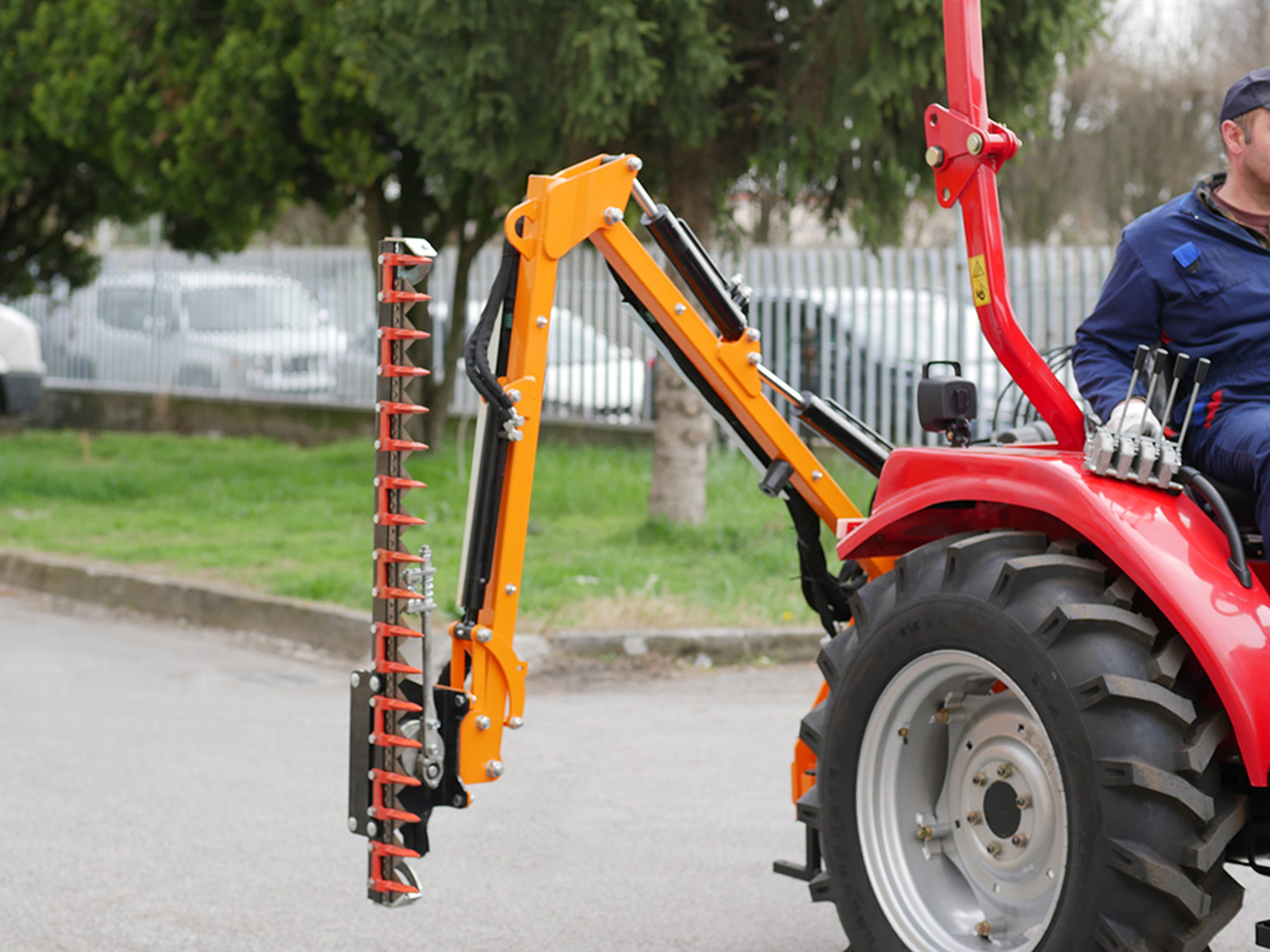

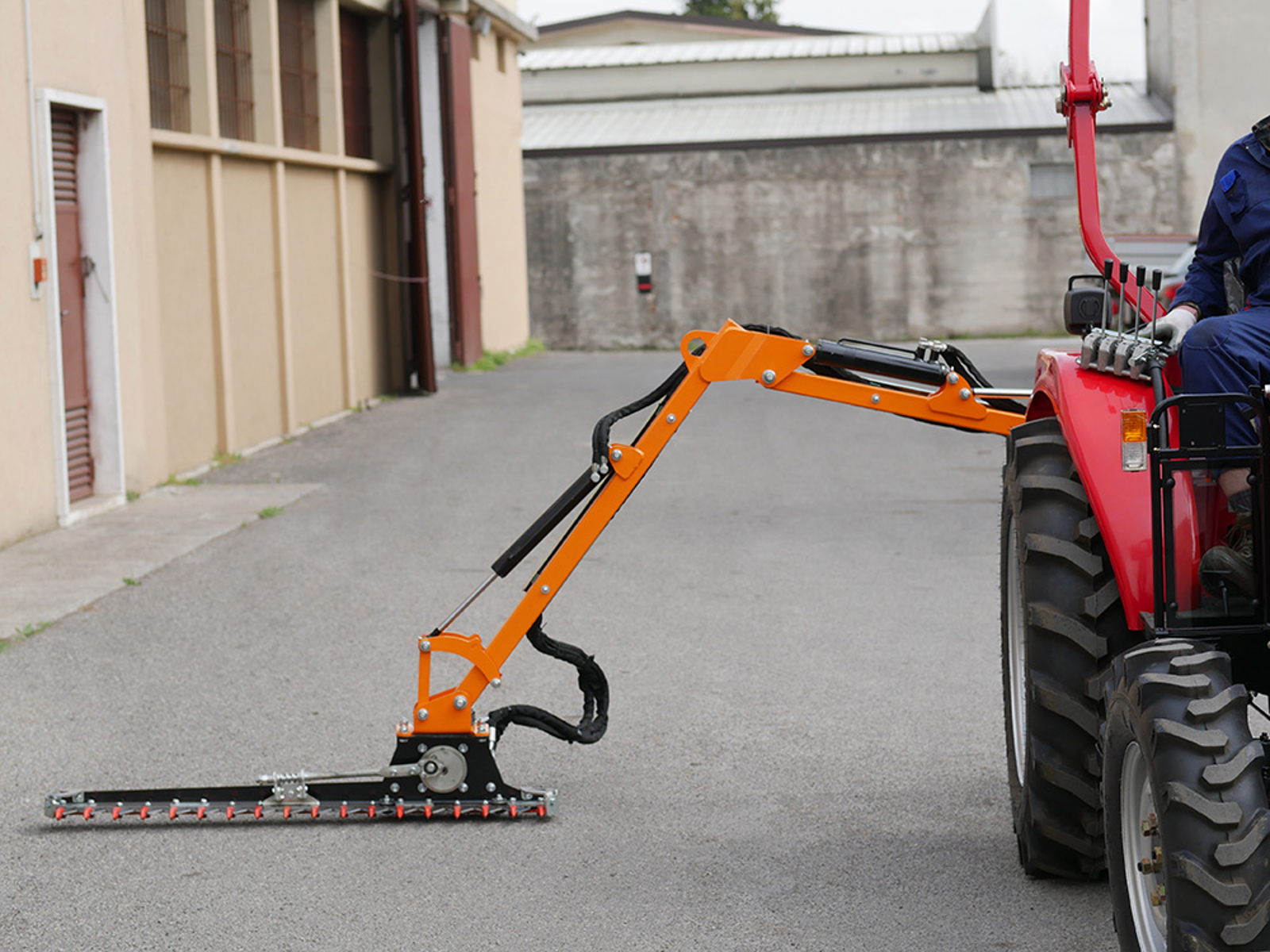

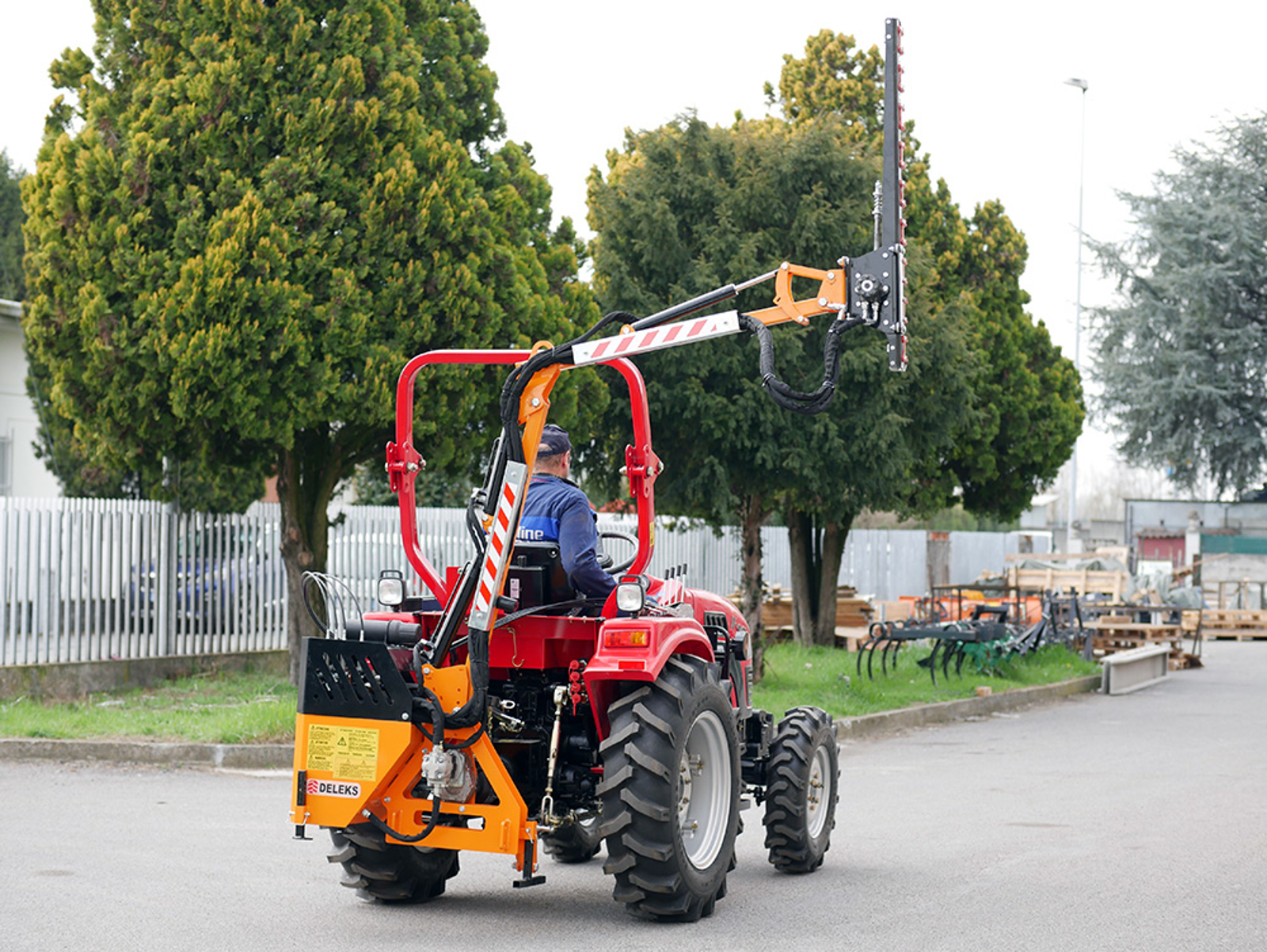

The arm takes the bar out to a reach of 3.46 m (11.4 ft) and lets you get over obstacles; with the three hydraulic movements the bar can be set upright, horizontal or angled. Folded for transport it is 1,200 mm (47.2 in) wide and 2,010 mm (79.1 in) high.


Flail heads and other bars

The same arm also takes the AR-60, AR-80 and AR-100 flail heads, for grass, brambles and bushes, the HR bars of 160 and 180 cm and the HRDISC3 3-disc saw bar, for branches up to 9 cm (3.5 in).

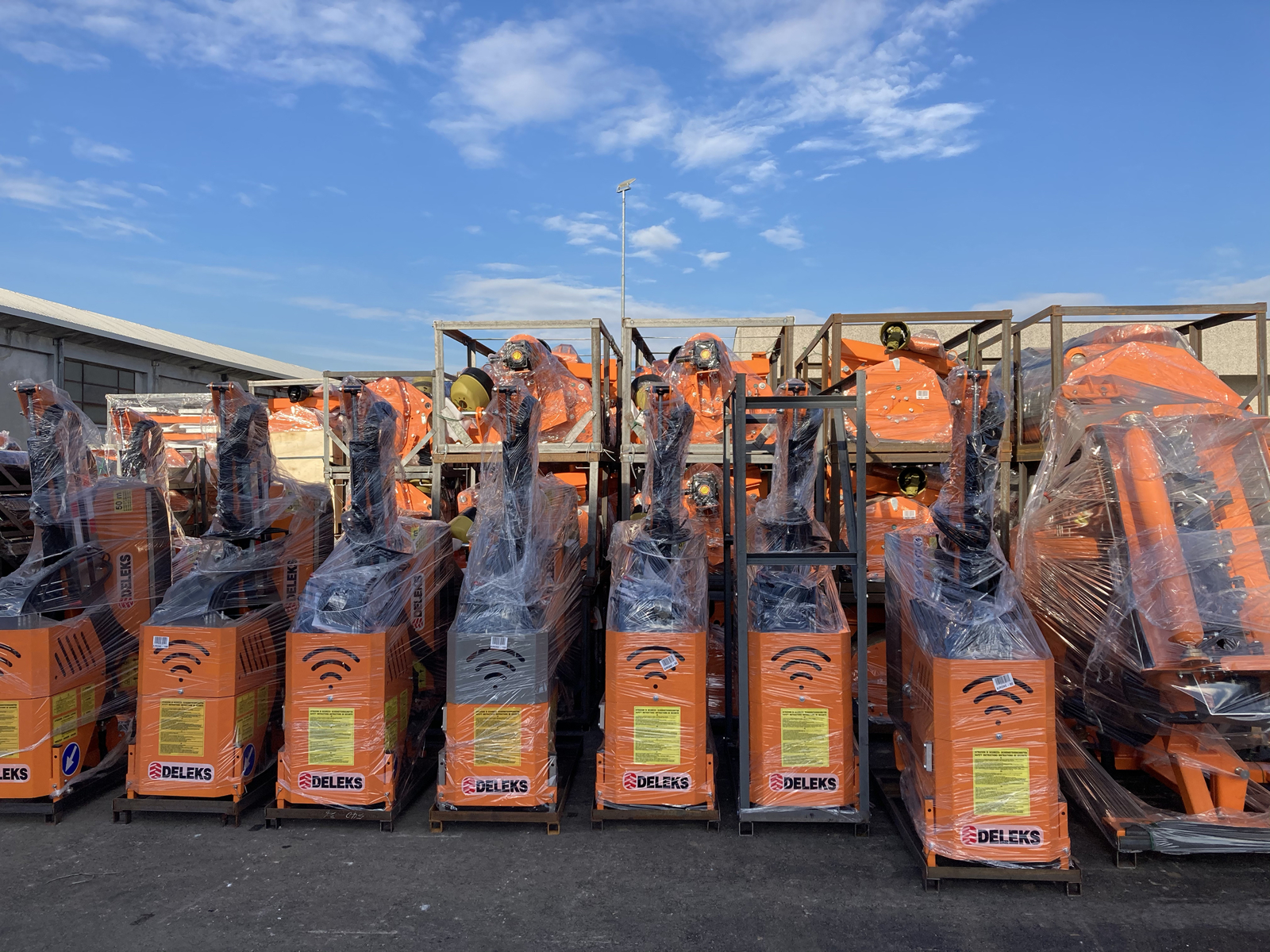

Dimensions, weight and delivery

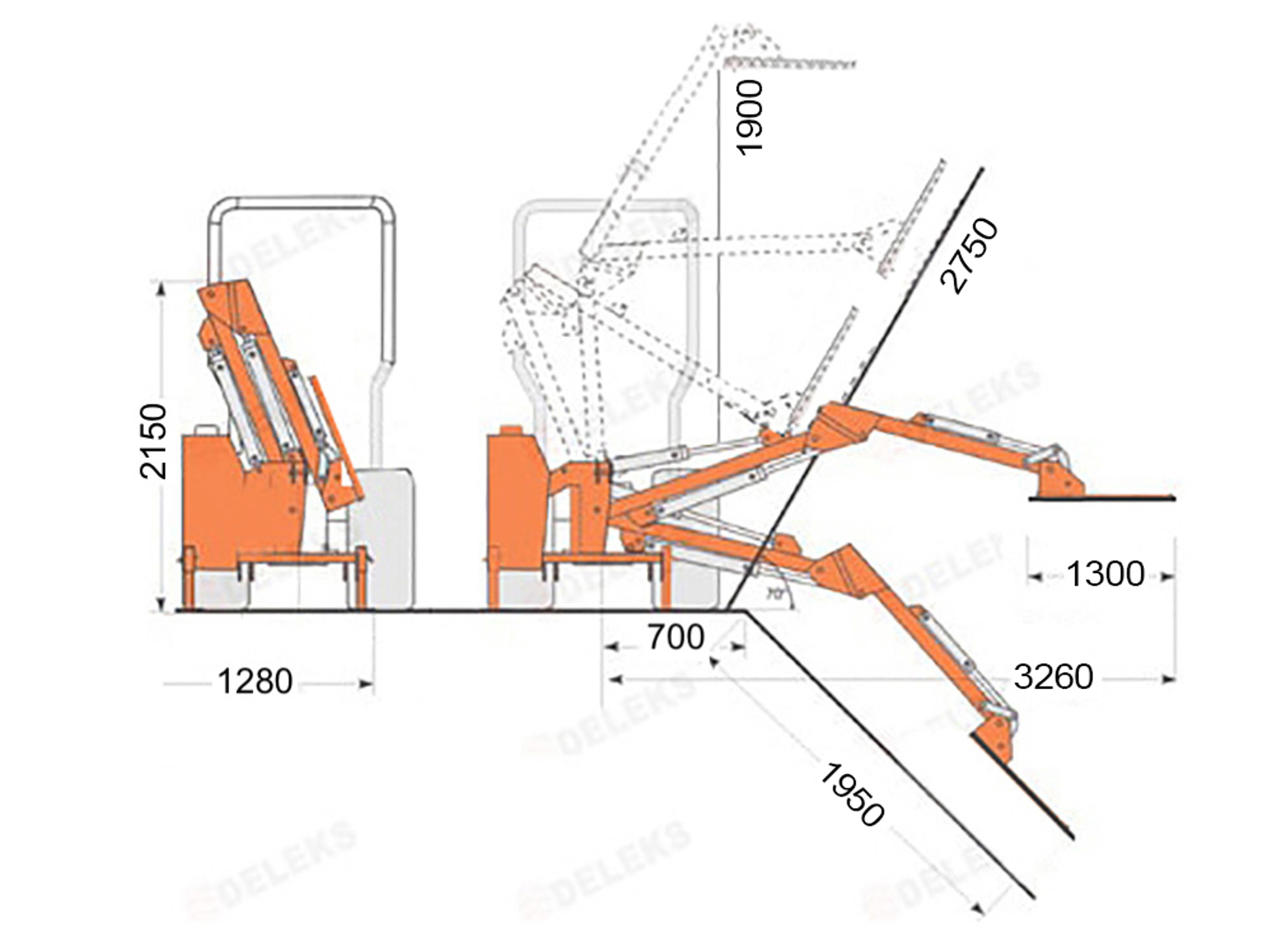

Working width 1,300 mm (51.2 in); folded: width 1,200 mm (47.2 in), length 1,070 mm (42.1 in), height 2,010 mm (79.1 in); weight 277 kg (611 lb). It ships in a package of 128 × 80 × 215 cm (50 × 31 × 85 in), 372 kg (820 lb) gross and 2.20 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.


Where it works

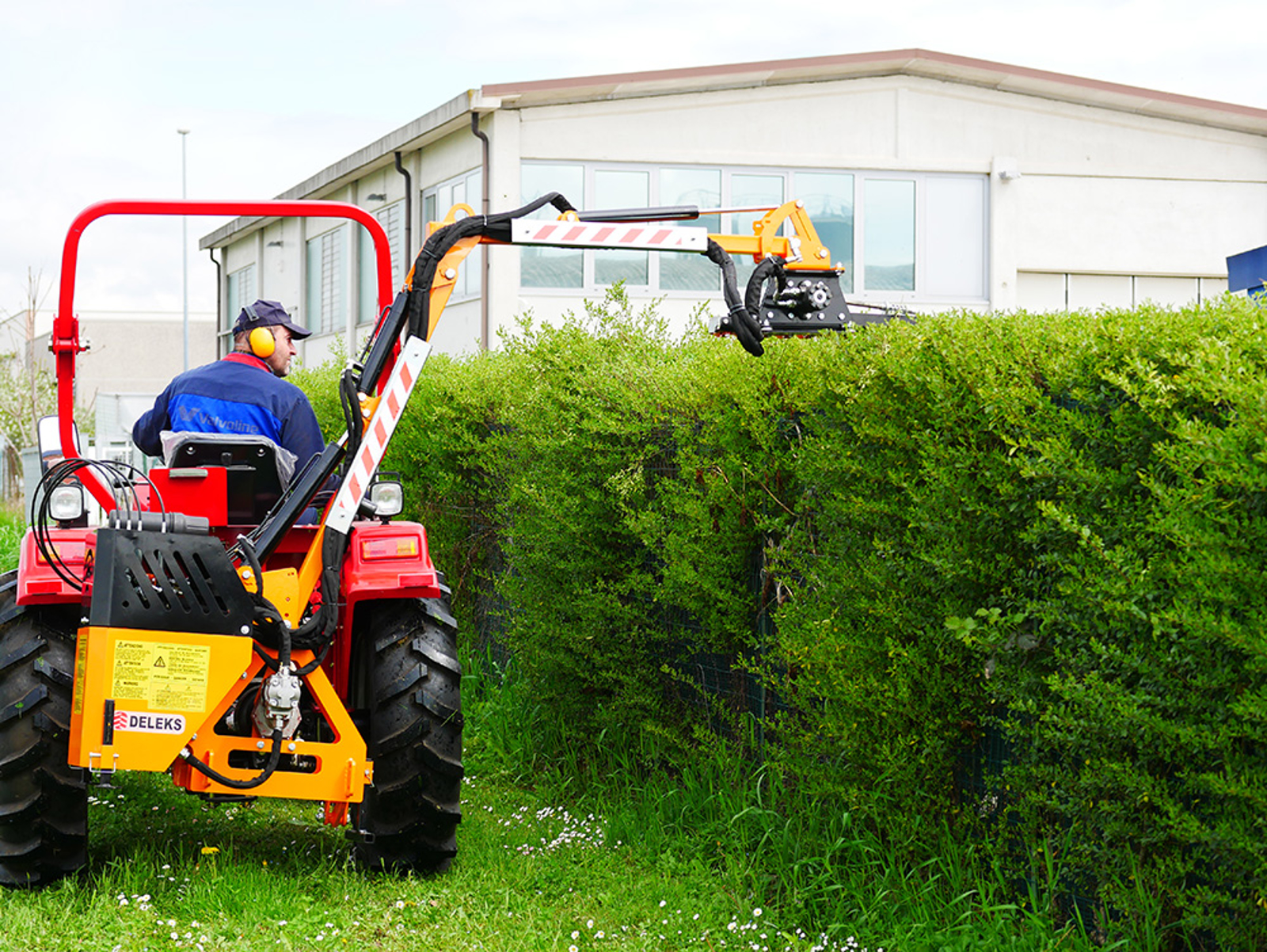

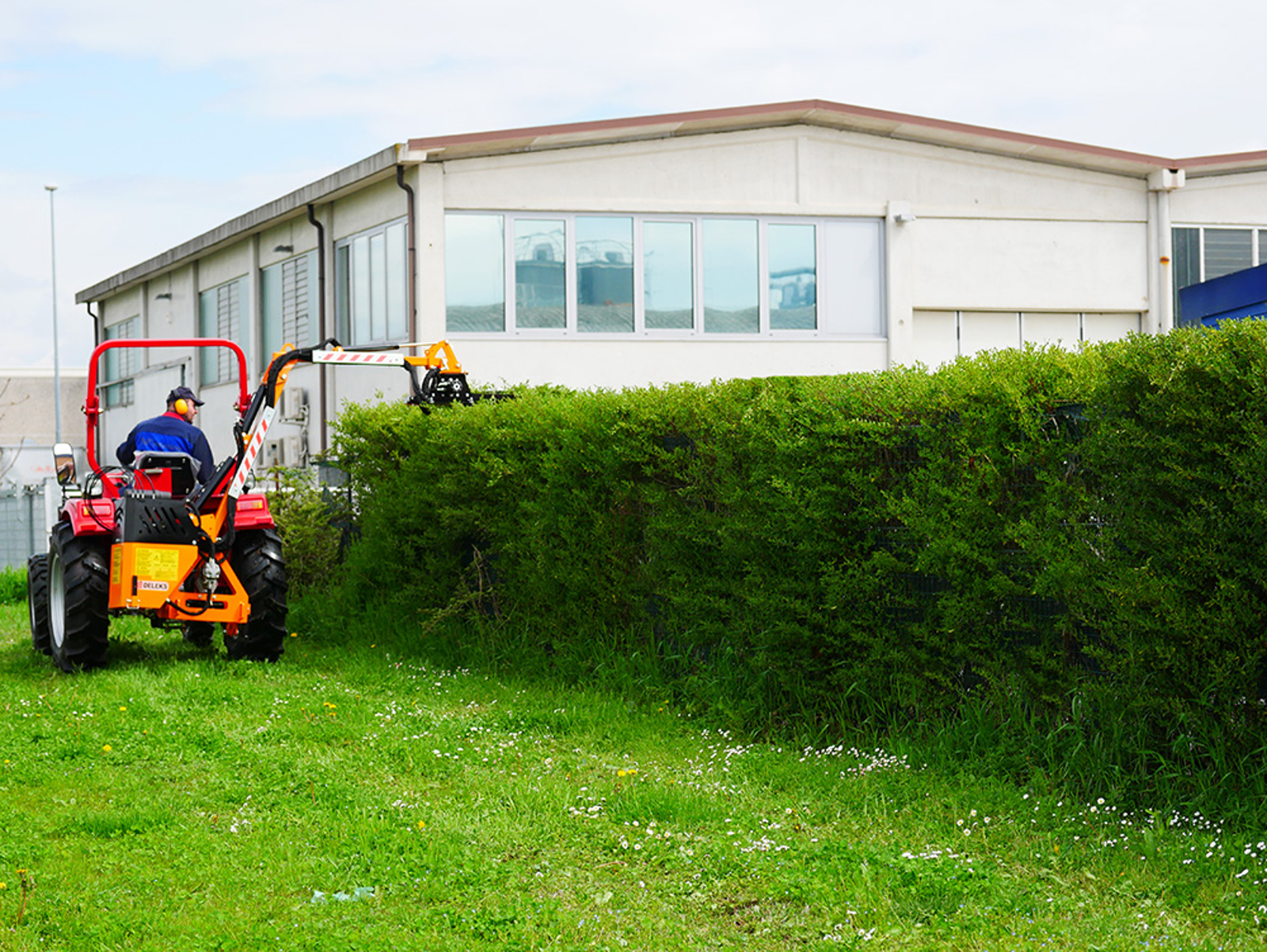

  • Boundary hedges and windbreaks: trimming the sides and the top
  • Drives, farm tracks and headlands: branches overhanging the way
  • Field edges, ditches and slopes: light growth and branches up to 3 cm (1.2 in)
  • Orchards and tree lines: pruning the lower branches
  • Tractors from 20 to 60 hp weighing at least 1,200 kg (2,646 lb)

Options and spares

From the product page you can add to your order the spare sets of 10 blades (COLTELLI10HRT, COLTELLI10HRTCA), the 5 double fingers (5DENTIDOPPIHR) and the universal PTO adapter (RID1). Extra cutting attachments are the AR-60 (AR60), AR-80 (AR80) and AR-100 (AR100) flail heads, the HR bars of 160 and 180 cm (HR160, HR180) and the 3-disc saw bar (HRDISC3). Other spares are identified on the exploded diagrams with our technical service.


FAQ

Which tractor suits the AIRONE-130-TR?
Tractors from 20 to 60 hp weighing at least 1,200 kg (2,646 lb), with a 540 rpm PTO and a category 1 or 2 three-point linkage.

Is it suitable for a 25 hp tractor?
Yes, as long as the tractor weighs at least 1,200 kg (2,646 lb): that is the minimum weight required for working with the arm stretched out to the side.

Do I need a hydraulic spool valve on the tractor?
No: the arm has its own pump, driven by the PTO, and its own control valve; all it needs is a 540 rpm PTO and a three-point linkage.

How is it controlled?

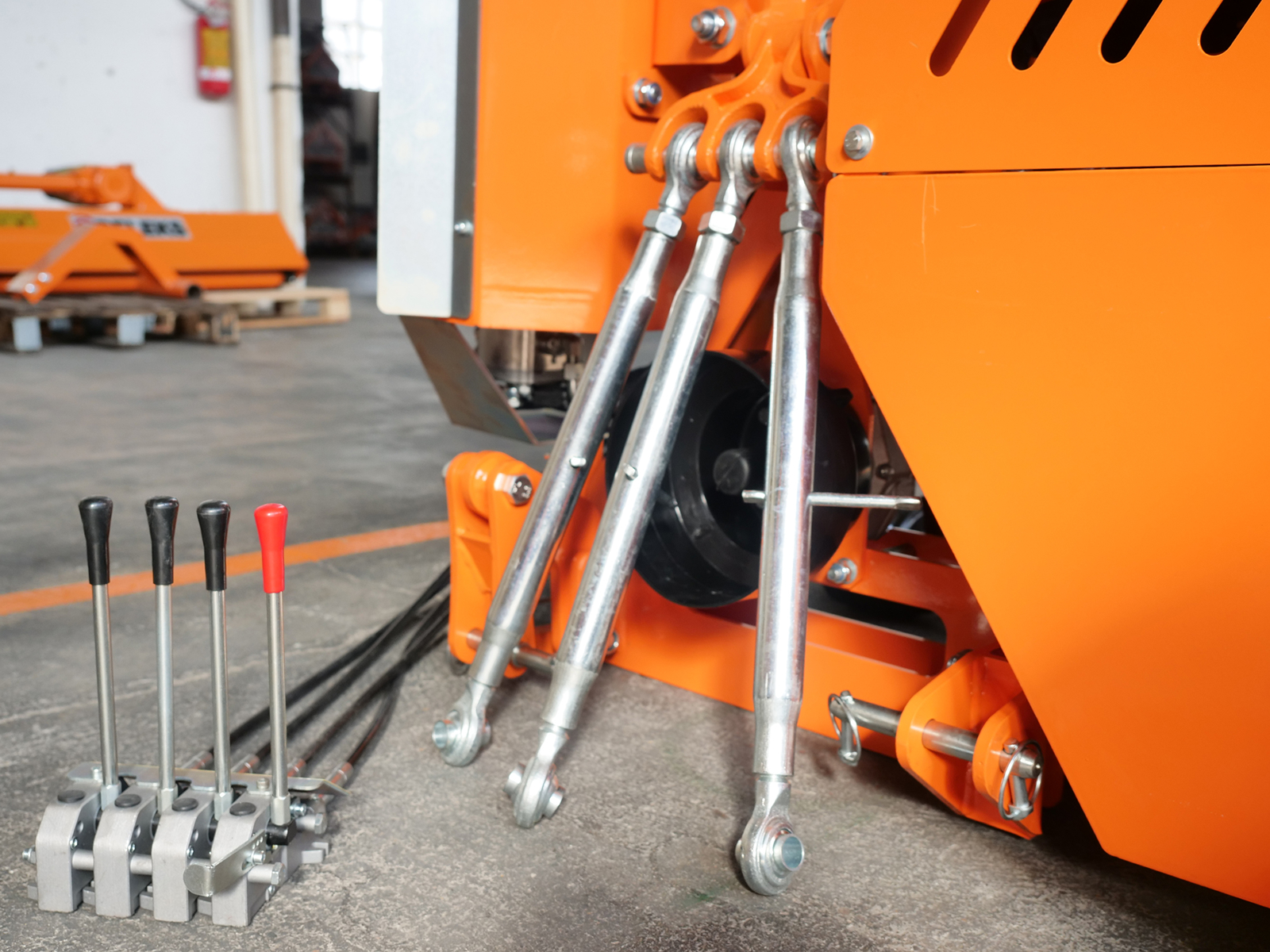

With a remote 4-lever control, connected by flexible hoses, which mounts next to the driver's seat.

How far does it reach?
Up to 3.46 m (11.4 ft), with the bar upright, horizontal or angled.

What size branches does it cut?
Hedges and branches up to 3 cm (1.2 in) thick. For branches up to 9 cm (3.5 in) there is the HRDISC3 3-disc saw bar, which fits the same arm.

Can I fit a flail head?
Yes: the AR-60, AR-80 and AR-100 heads, for grass, brambles and bushes. If you mostly use the flail head, choose the AIRONE-60, 80 or 100, which has it as standard.

Is the PTO shaft included?
Yes: a CE-approved category 4 PTO shaft, 700 mm (27.6 in) long.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: blades, cutter bar knives, fingers, bearings, hydraulic hoses, pump and arm components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right arm and cutting attachments for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric
Working width 1300.0 mm
Overall width 1200.0 mm (closed)
Weight 277.0 kg
Overall height 2010.0 mm
Tractor Power Range 20-60 Hp
3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
Spacing between the 2 lower points 470.0 - 570.0 mm
Maximum cutting diameter 25.0 mm
Overall length 1070.0 mm
Distance between pto attachment and ground 400.0 mm
Transmission: Drive method Hydraulic
Transmission: PTO 540 r/min
Transmission: Rotation of gearbox Right side
Transmission: Free wheel √
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925
Number of Blades 17
Hydraulic Hoses WP 400 Bar
Pto shaft CE 4x700 mm
Displacement 3460.0 mm
Transmission: Oil in the tank 55.0 lt
Gross shipping weight 372 kg
Package volume 2.20 m3
Packing sizes 1280.0*800.0*2150.0 mm

Technical charts

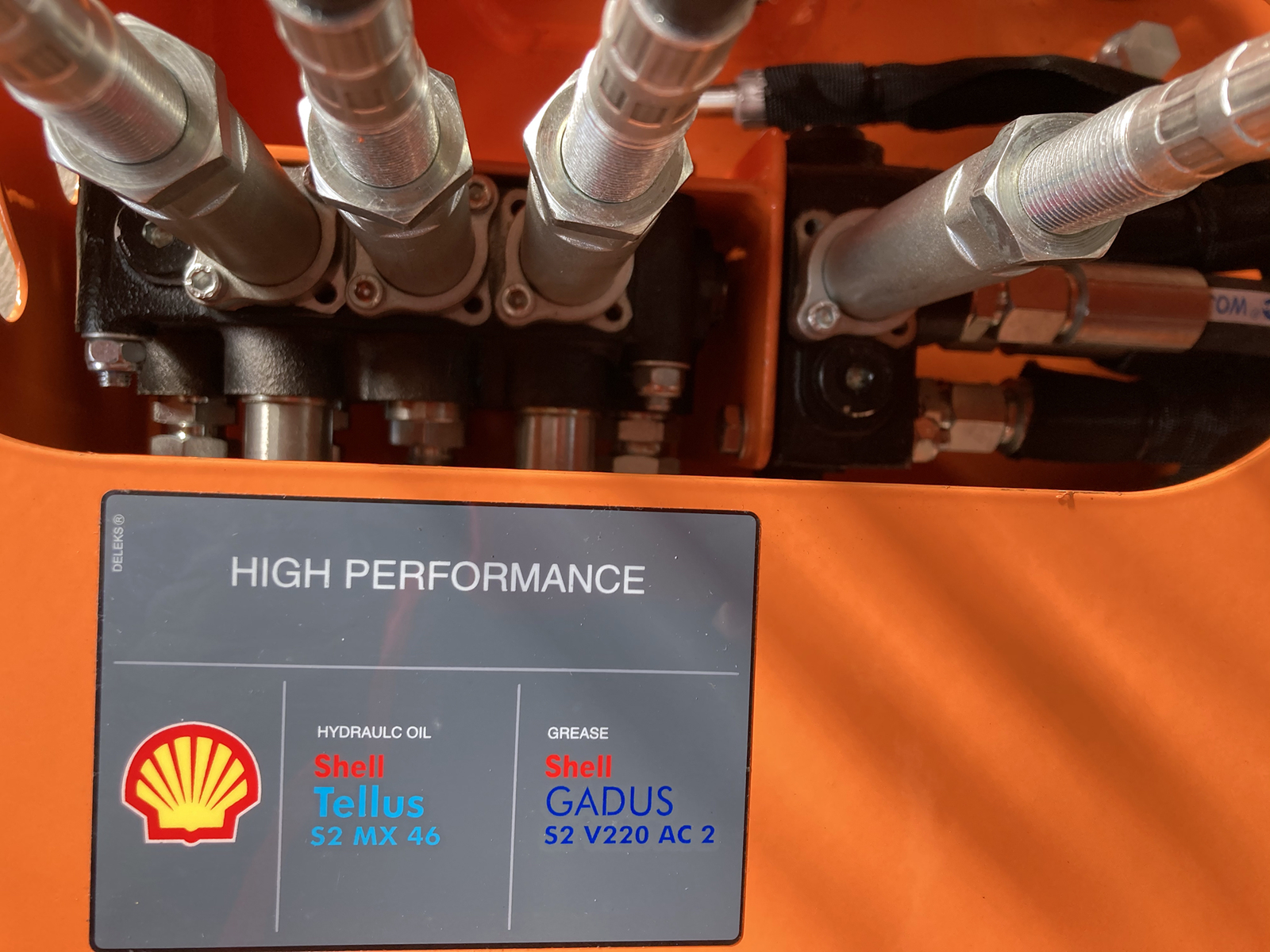

Shell Tellus S2 MX 46: Specifications   Download PDF
