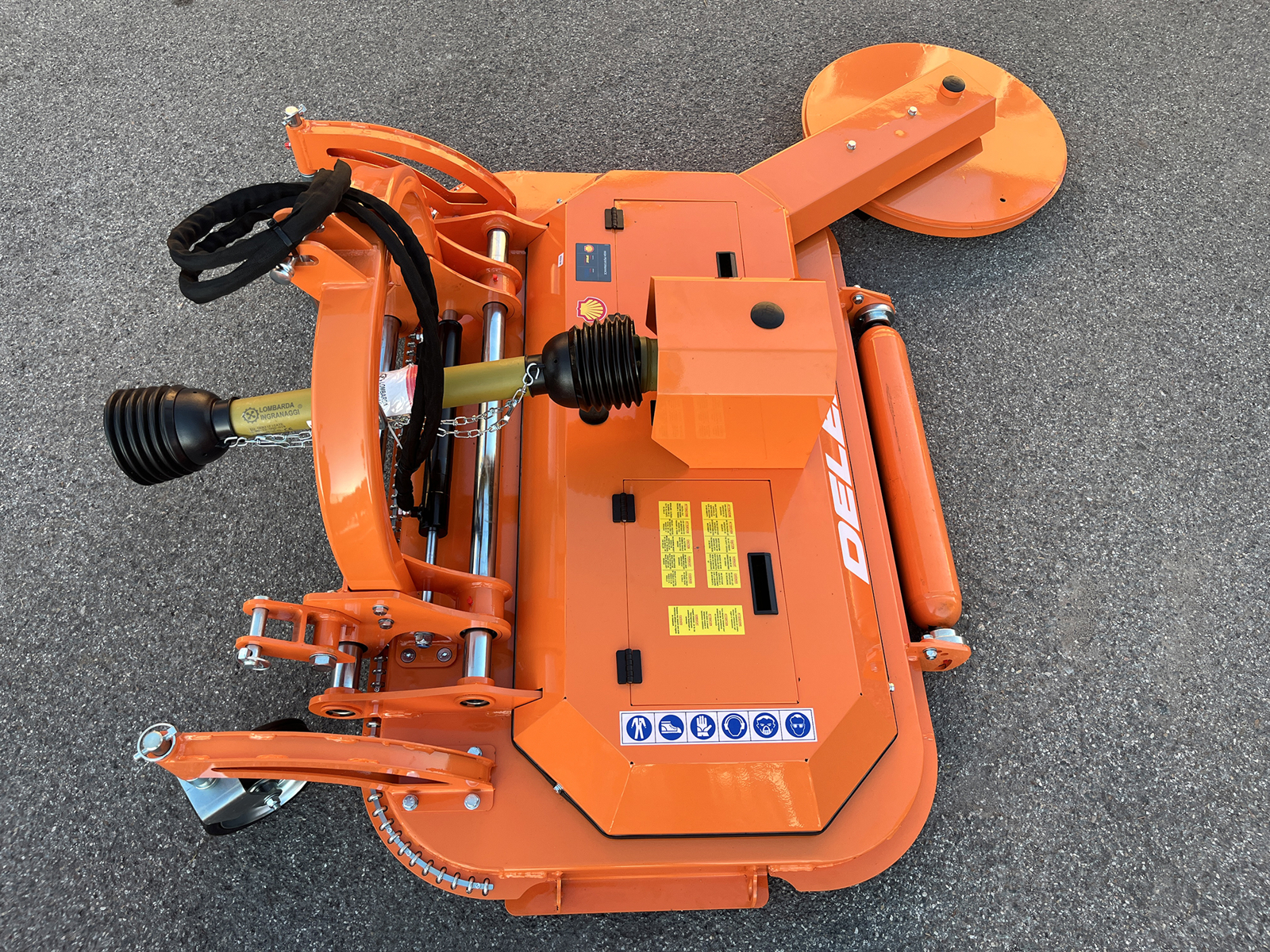

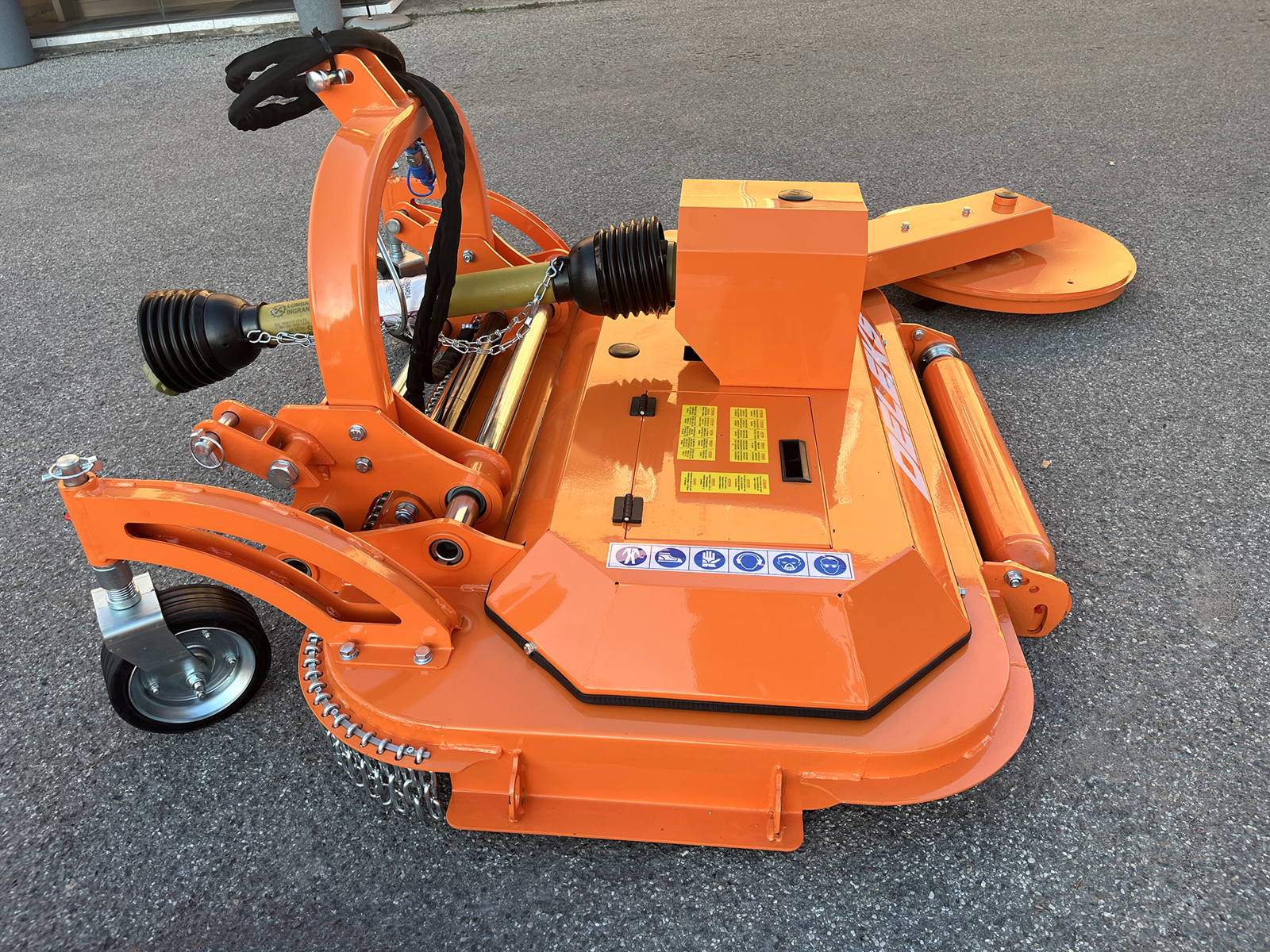

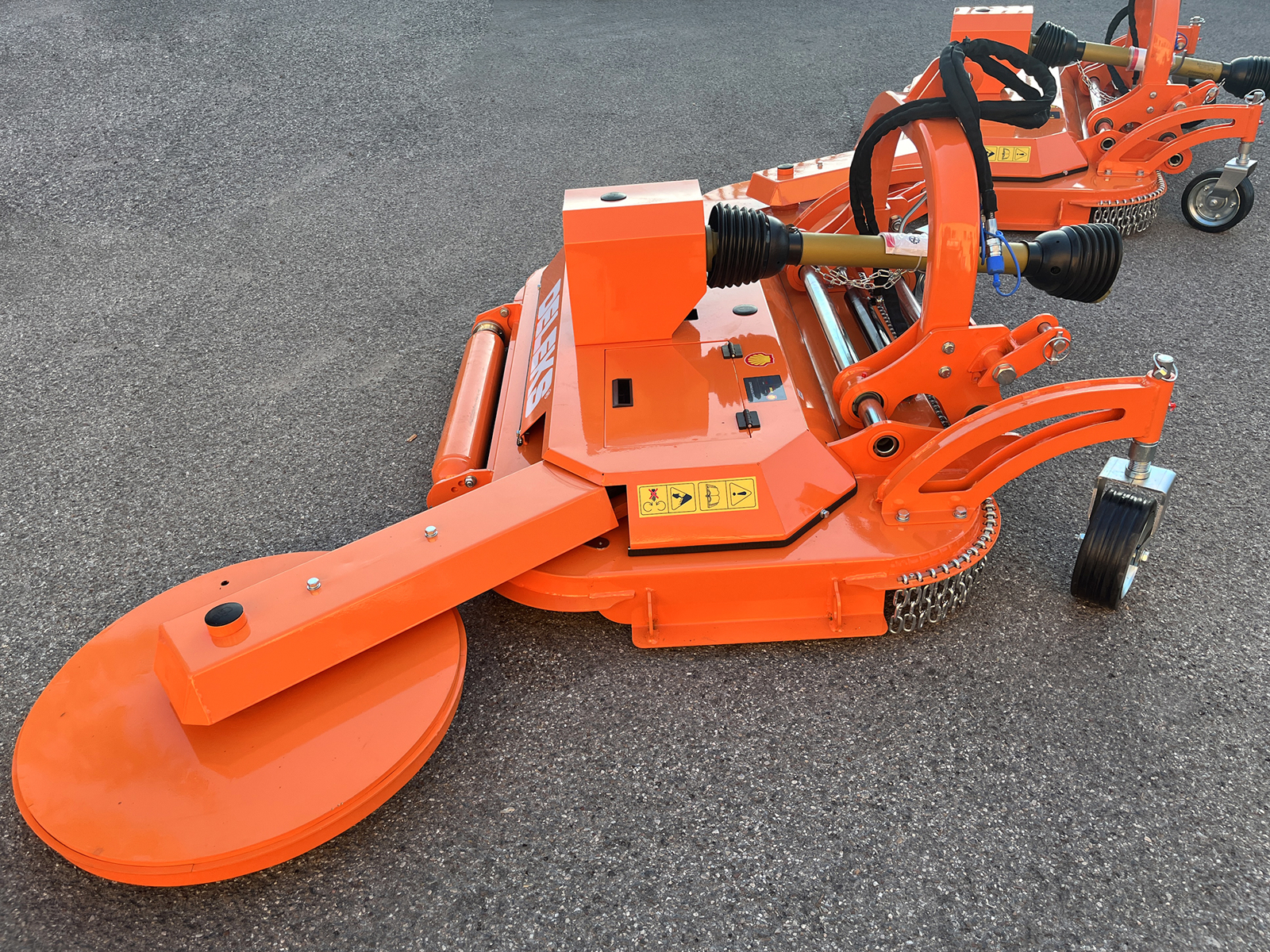

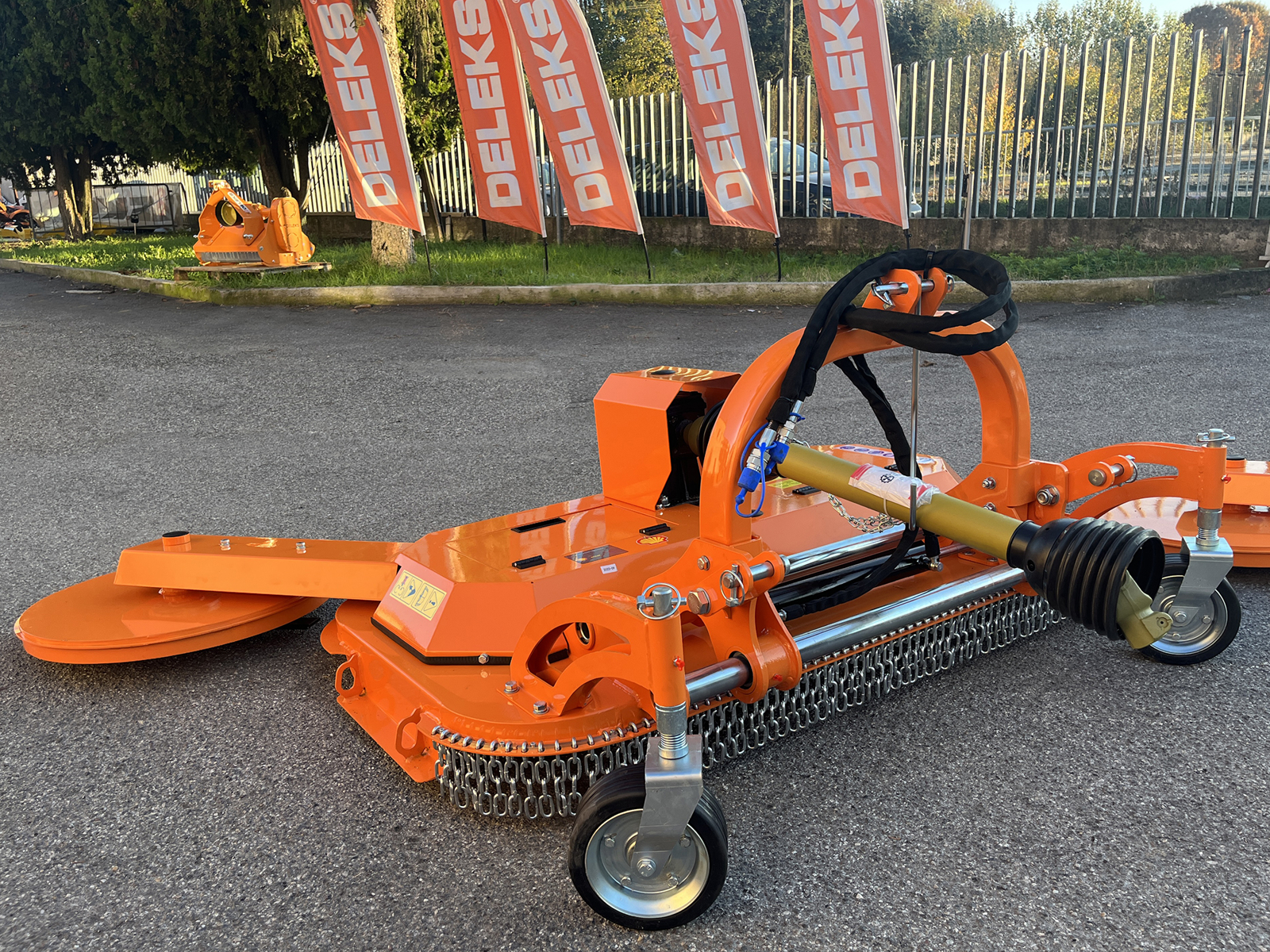

Finishing mower with inter-row disc 150 cm (59 in) DM150-INTERFILA, 8-blade mower deck with hydraulic side shift for vineyards and orchards, for 18-45 hp tractors

Not available  Notify me
Code DM150INTERFILAPTO - EAN 8057724860108
2.350,00€VAT incl.
Free shipping
Loading...
2.350,00€VAT incl.
Free shipping
View all details.
CUTTING WIDTH
150 180

reviews

2.350,00€VAT incl.

DETAILS

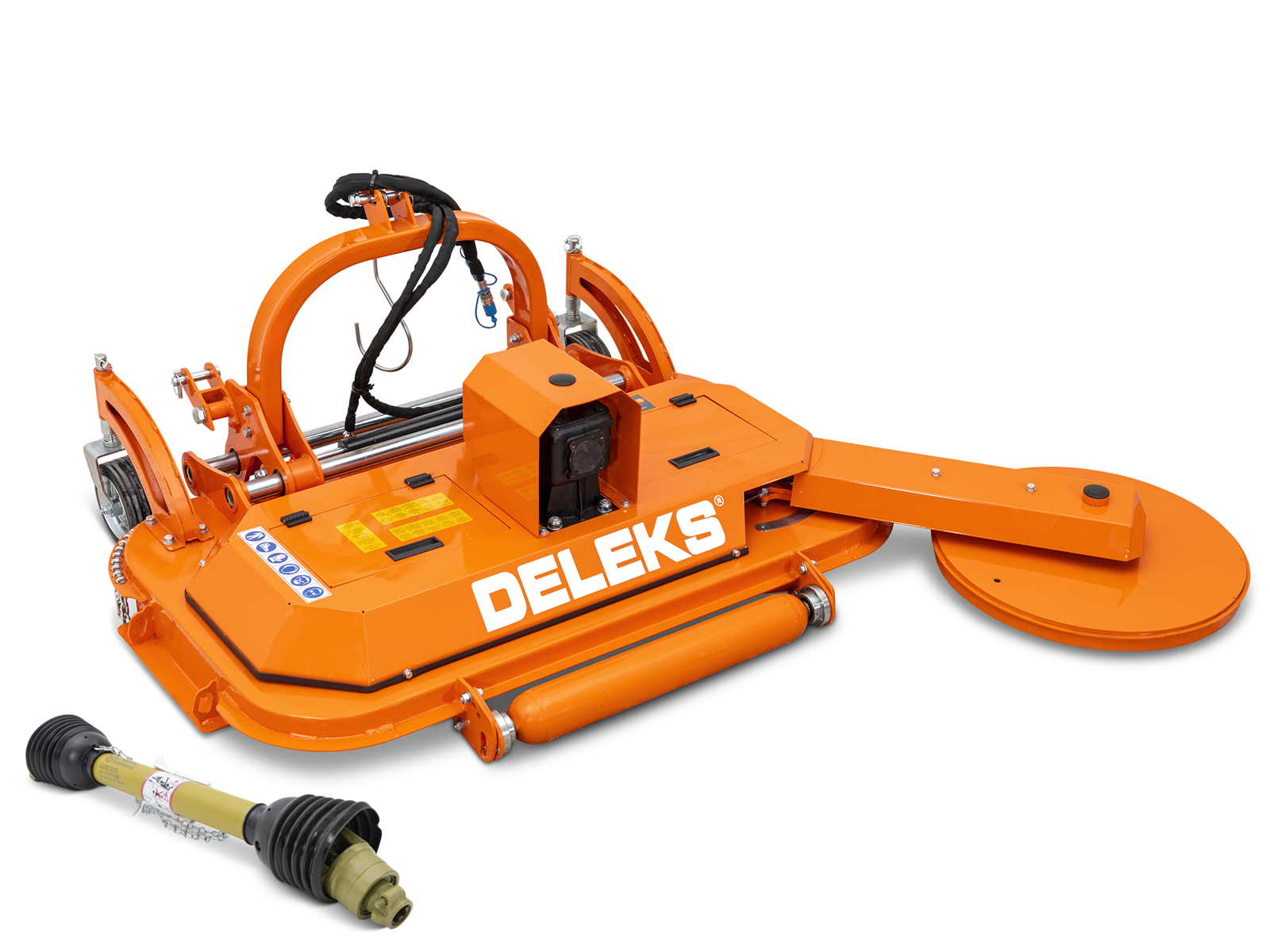

Inter-row mower for tractors: the DELEKS® DM150-INTERFILA combines a 150 cm (59 in) finishing mower deck with a 60 cm side disc, for a working width of 200 cm (79 in): in vineyards and orchards it cuts the grass between the rows and, with the disc, the grass between one plant and the next in the row. The 20 cm hydraulic side shift, worked from the driving seat, carries the deck out beyond the tractor's width and brings the disc up to the row. Eight horizontal blades turn at 2,780 rpm; two castor wheels and the rear roller keep the deck parallel to the ground and set the cutting height from 5 to 50 mm. Frame in 4 mm steel, 3-belt drive, DELEKS® gearbox for a 540 rpm PTO with a 3-year warranty, weight 210 kg (463 lb), for tractors from 18 to 45 hp. It is TÜV-certified and comes complete with a CE-approved PTO shaft with freewheel, a 2-year warranty and free delivery within the EU.


Which tractors it fits

The DM150-INTERFILA works across 200 cm (79 in) and fits tractors of every make from 18 to 45 hp with a 540 rpm PTO and a category 1 three-point linkage (19-22 mm pins, lower link spacing from 640 to 740 mm): New Holland Boomer, John Deere 2 and 3 Series, Kubota B Series, Same, Carraro, Goldoni, BCS, Solis and equivalent tractors. It is not suitable for quick hitches. The side shift needs one double-acting spool valve; the hydraulic hoses are supplied. The gearbox sits 450 mm (17.7 in) off the ground. It works on level ground and on slopes; it is not made for rough farmland.

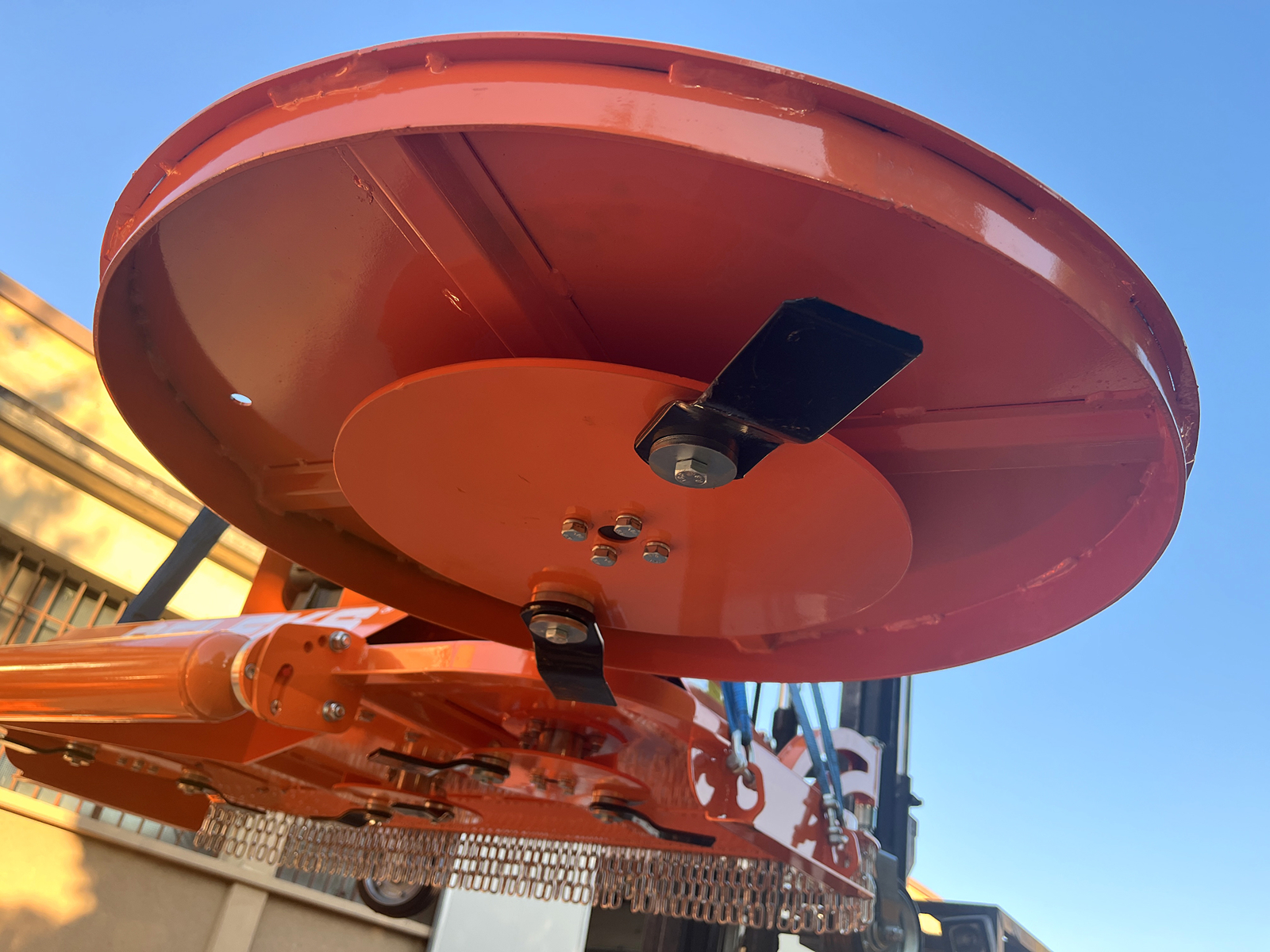

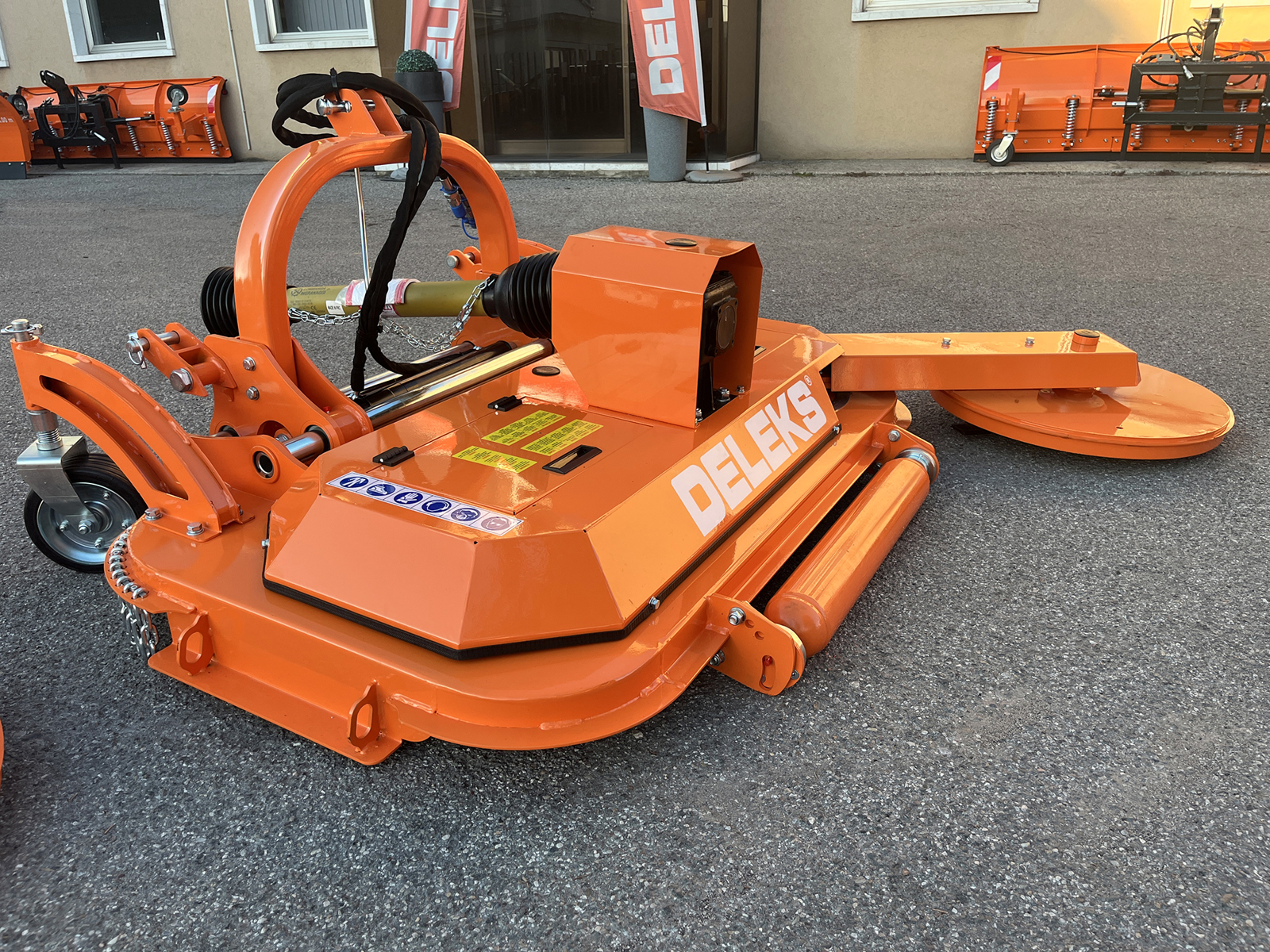

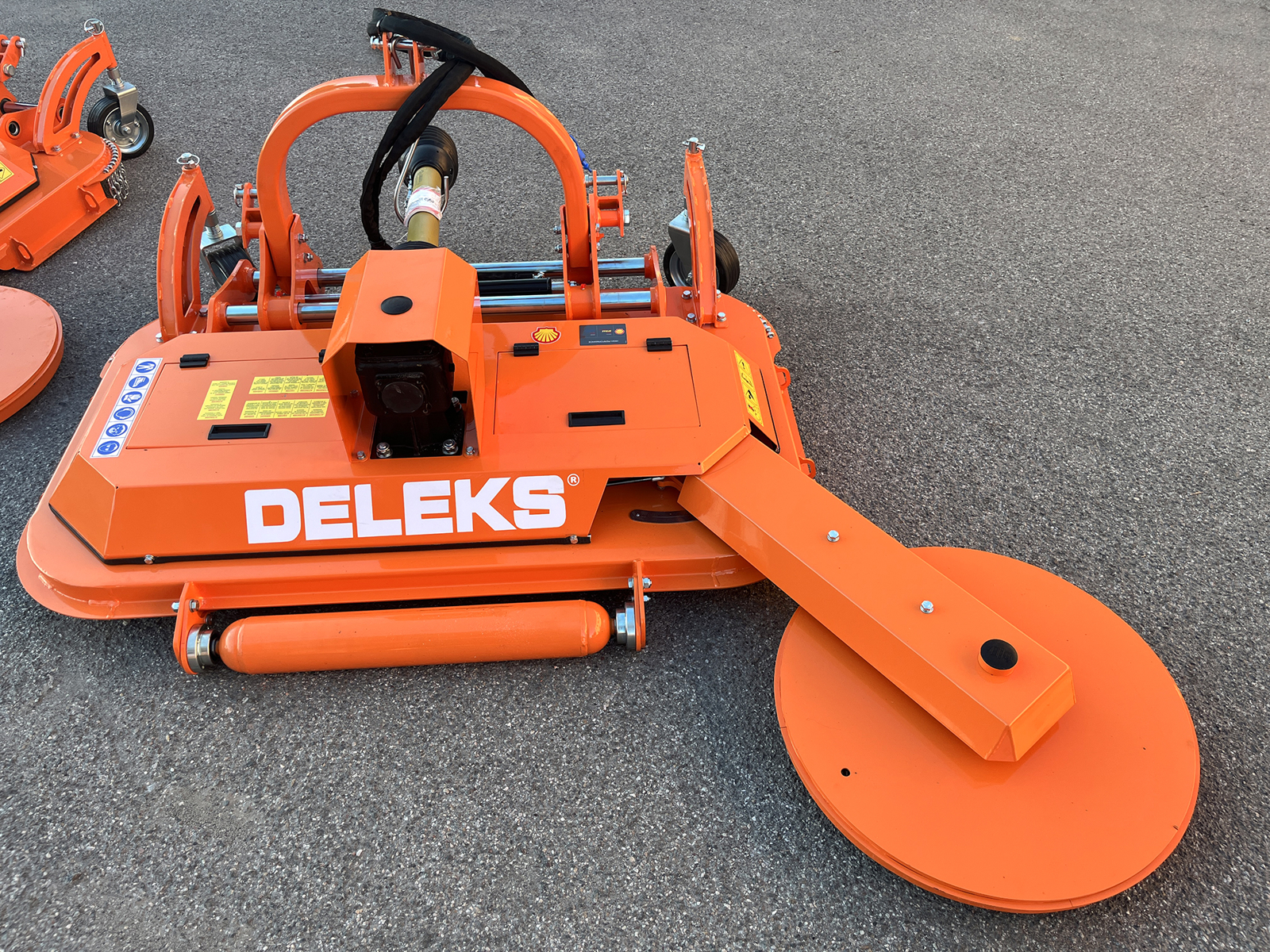

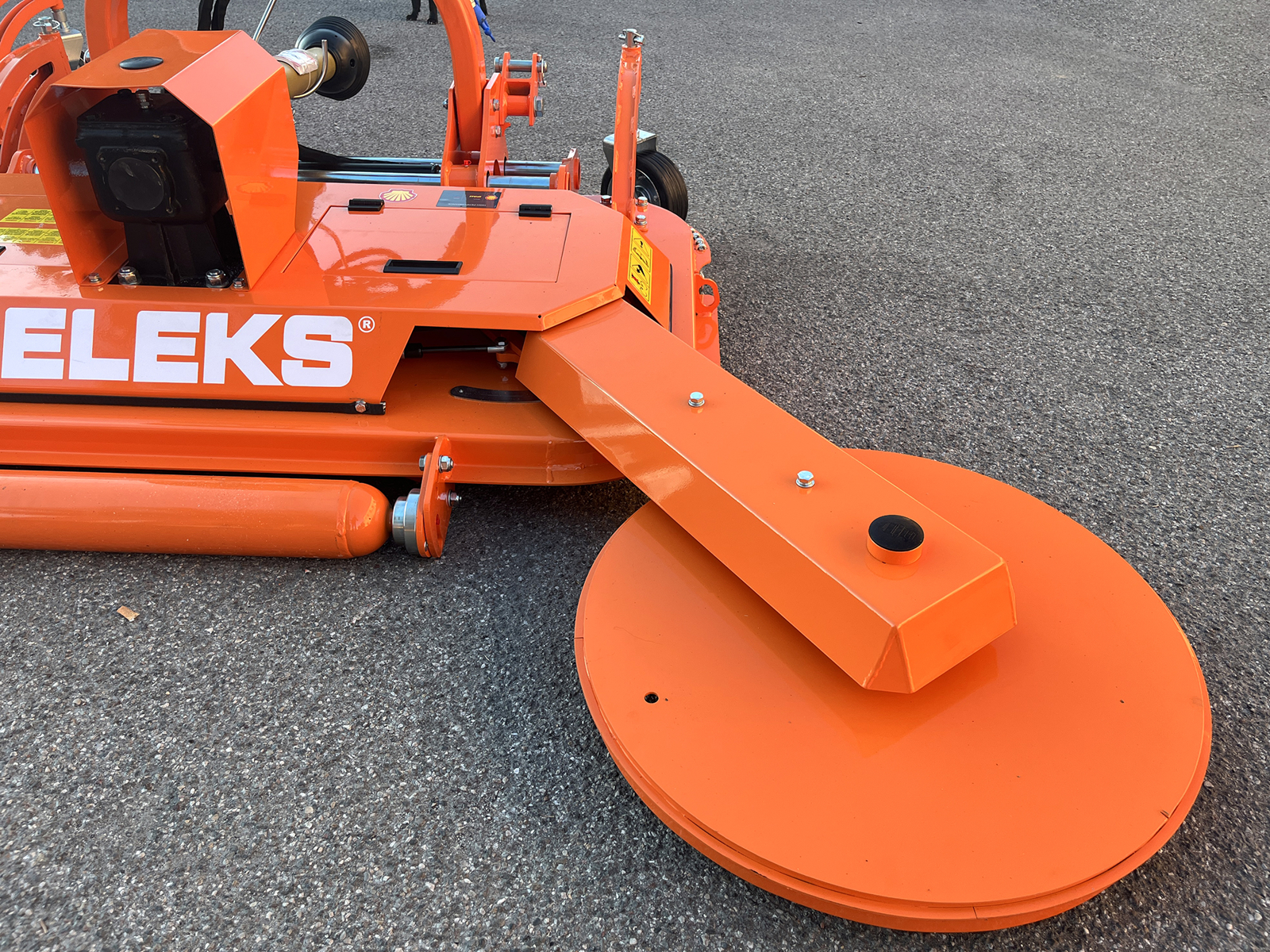

60 cm inter-row disc with twin blades

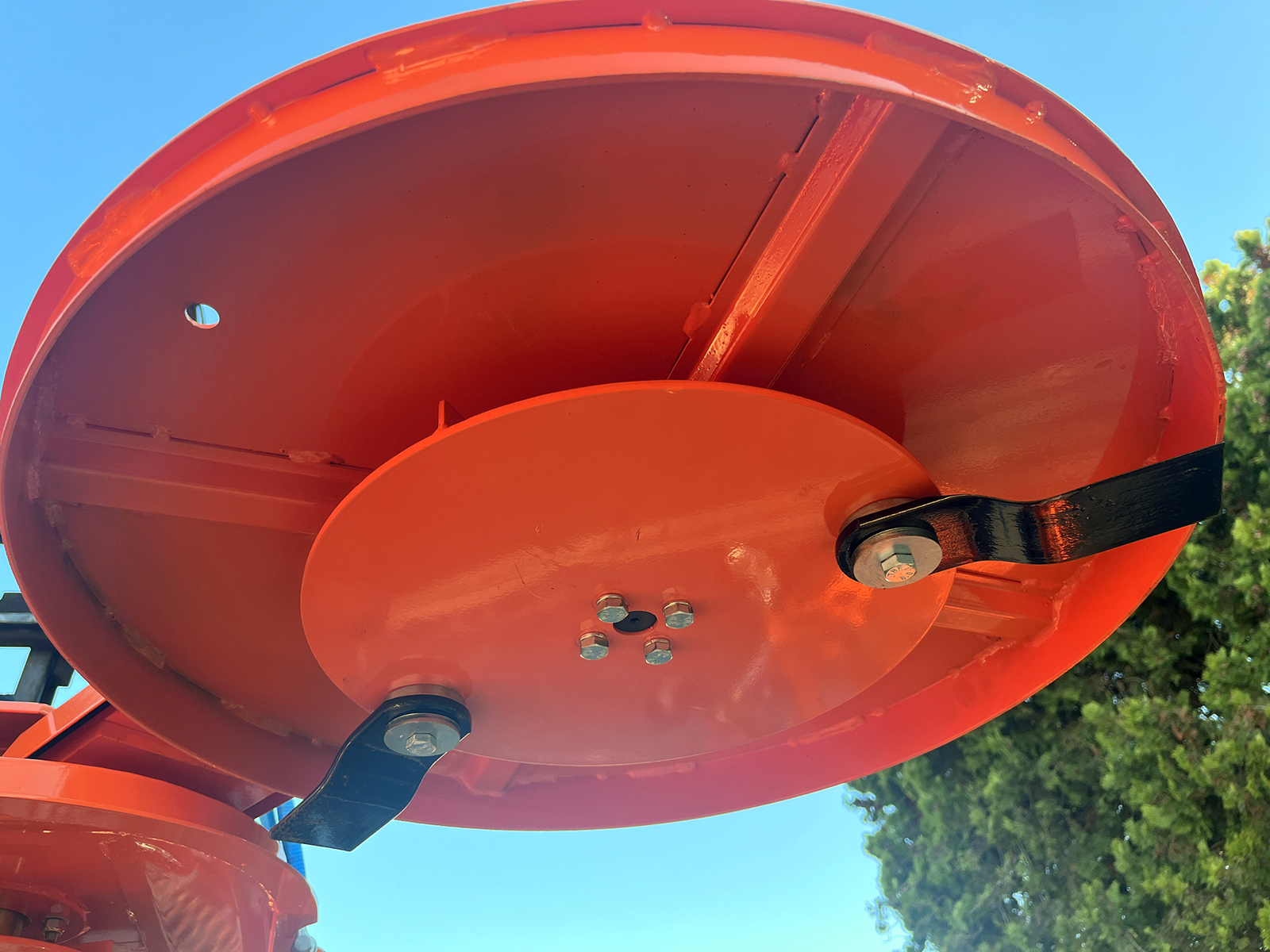

On the side of the deck an arm carries the inter-row disc: 60 cm, two swinging blades and a round guard. The disc projects beyond the deck and cuts the grass between one plant and the next in the row, where the deck cannot reach. The retraction is mechanical, with no sensor arm: when the disc touches the trunk it swings back, and a damper piston returns it to the outer position. With the disc the working width is 200 cm (79 in).

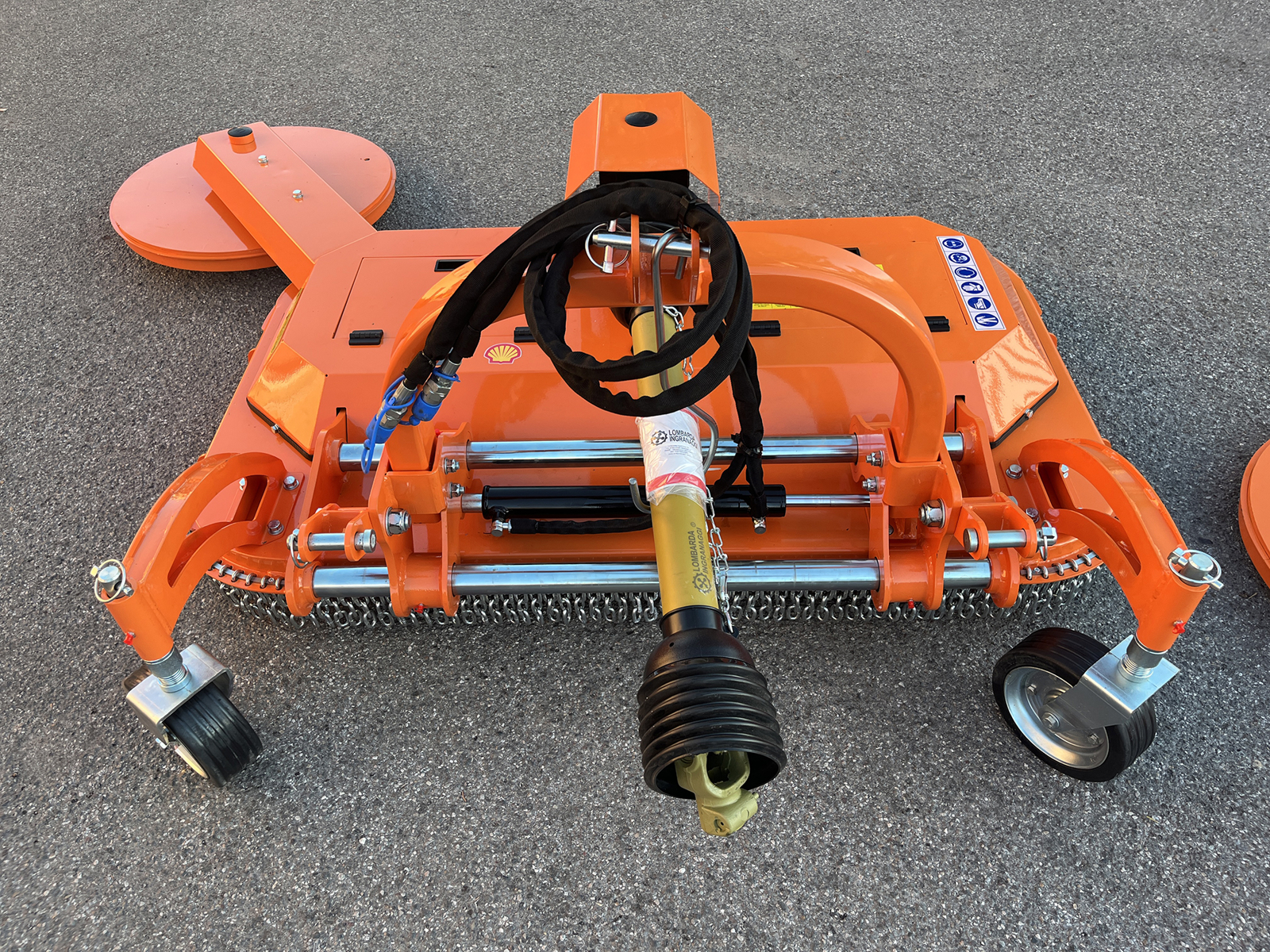

Hydraulic side shift of 20 cm

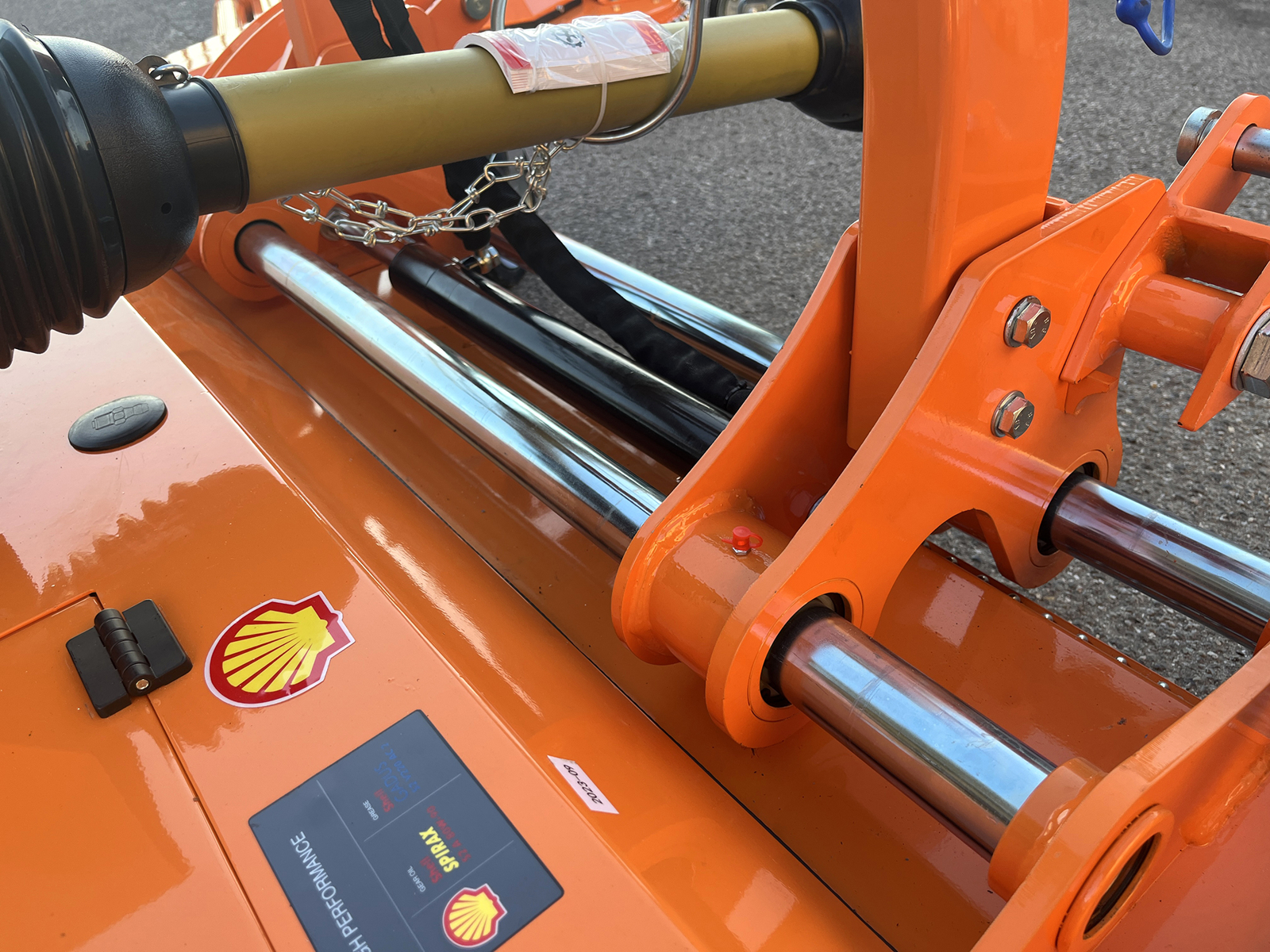

The hydraulic side shift is reinforced: a ram worked from the driving seat moves the deck 200 mm (7.9 in) sideways. The deck then works beyond the width of the tractor and the disc comes up to the row.

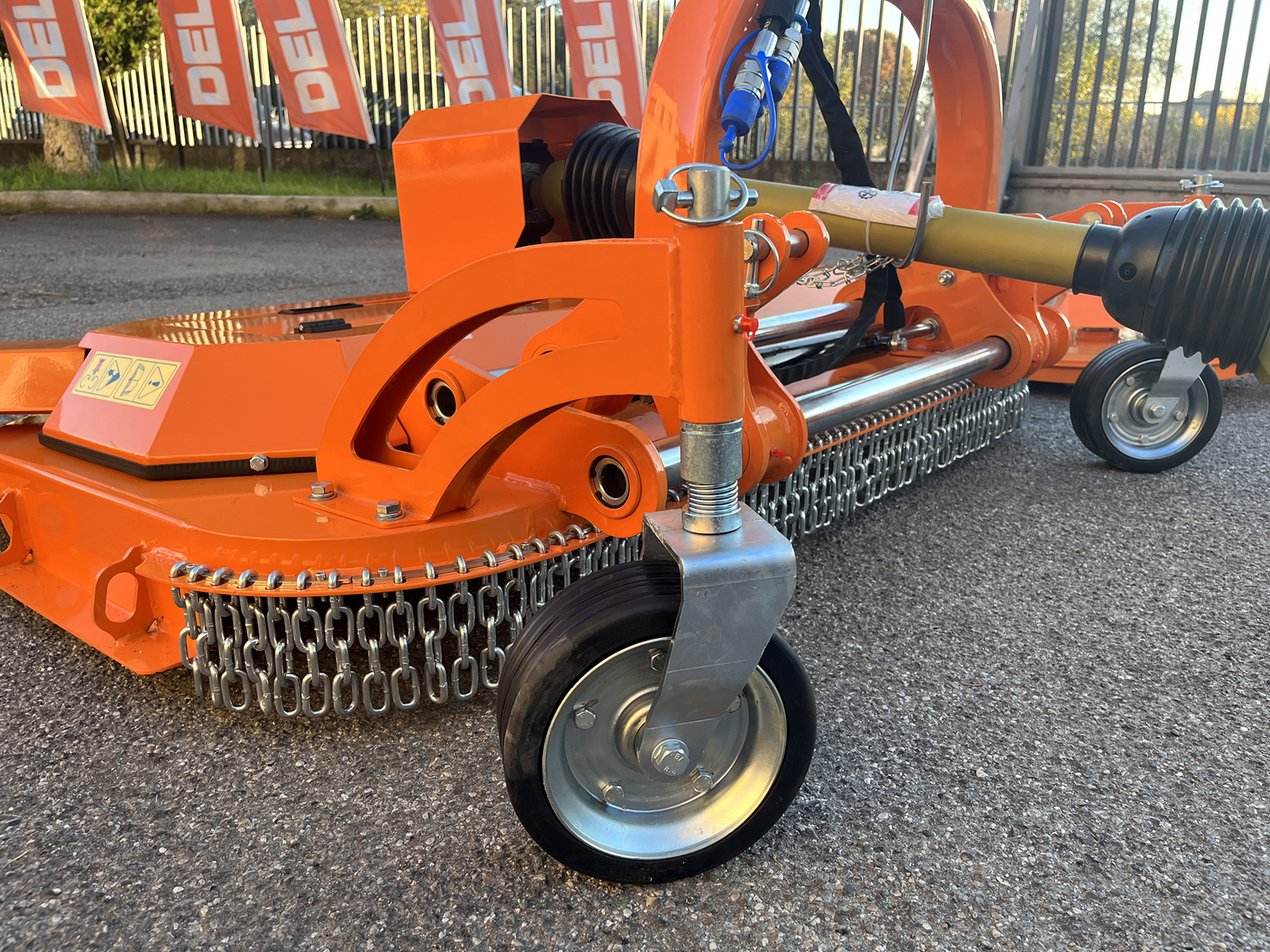

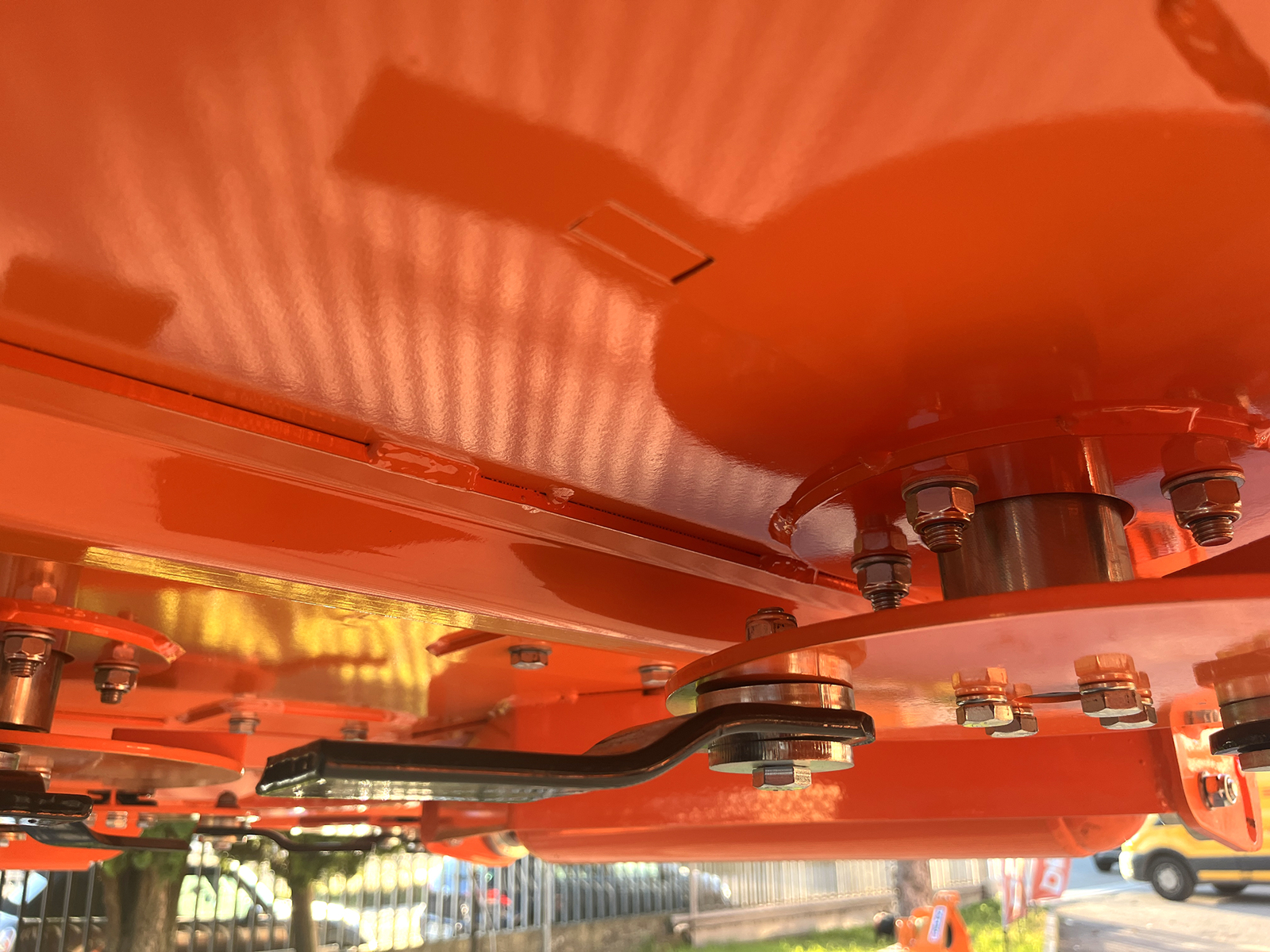

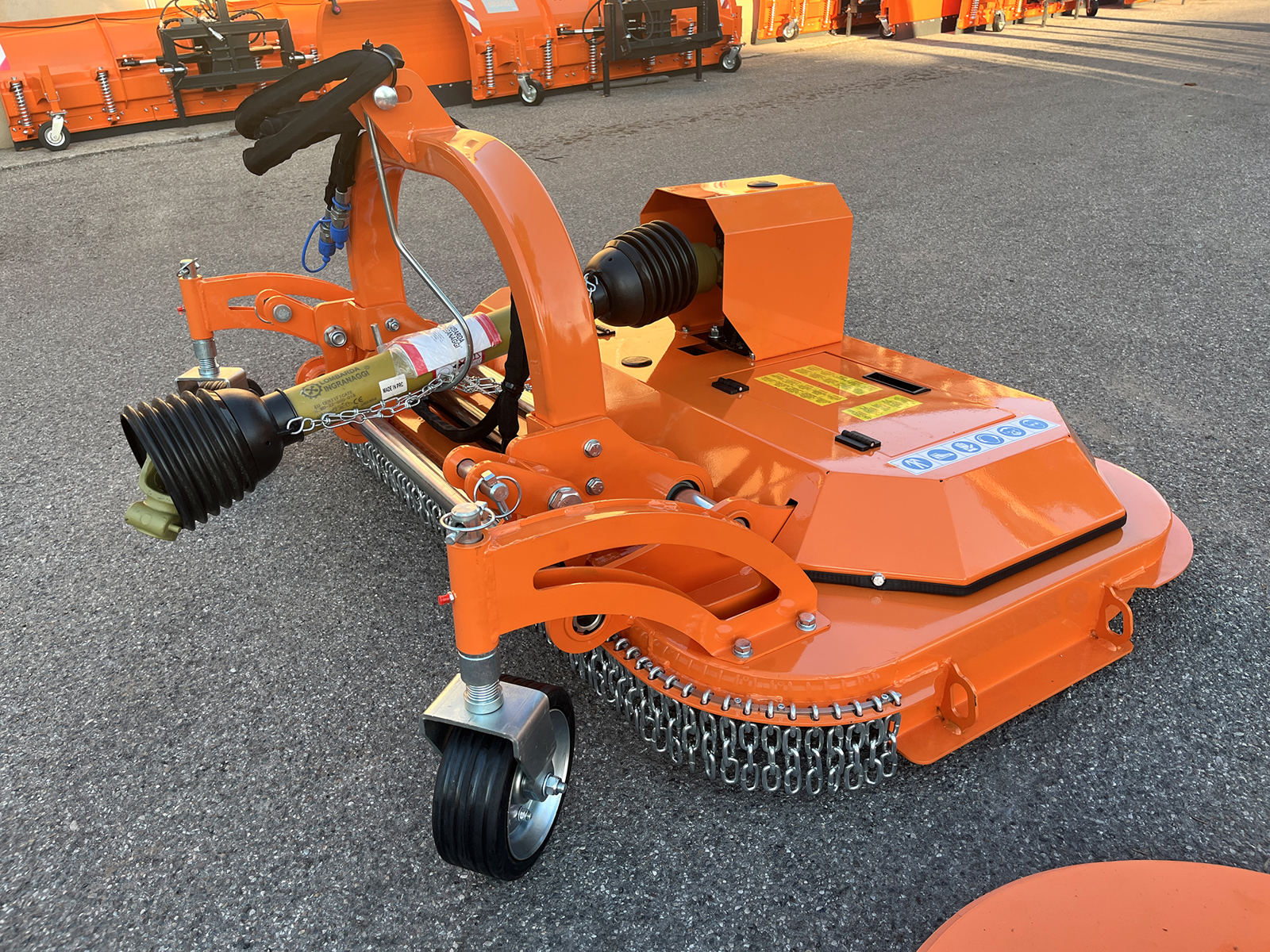

Eight blades, two castor wheels and rear roller

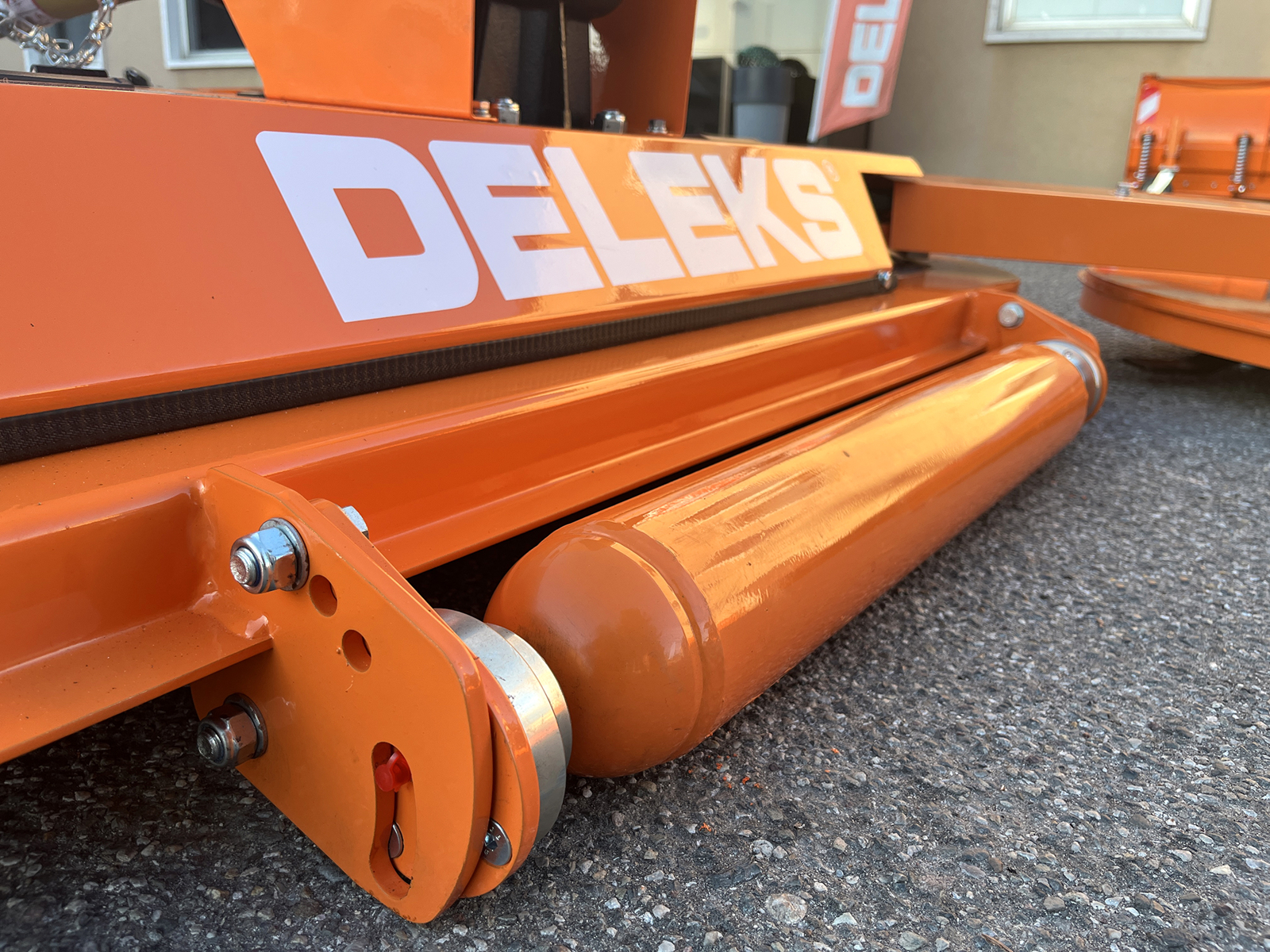

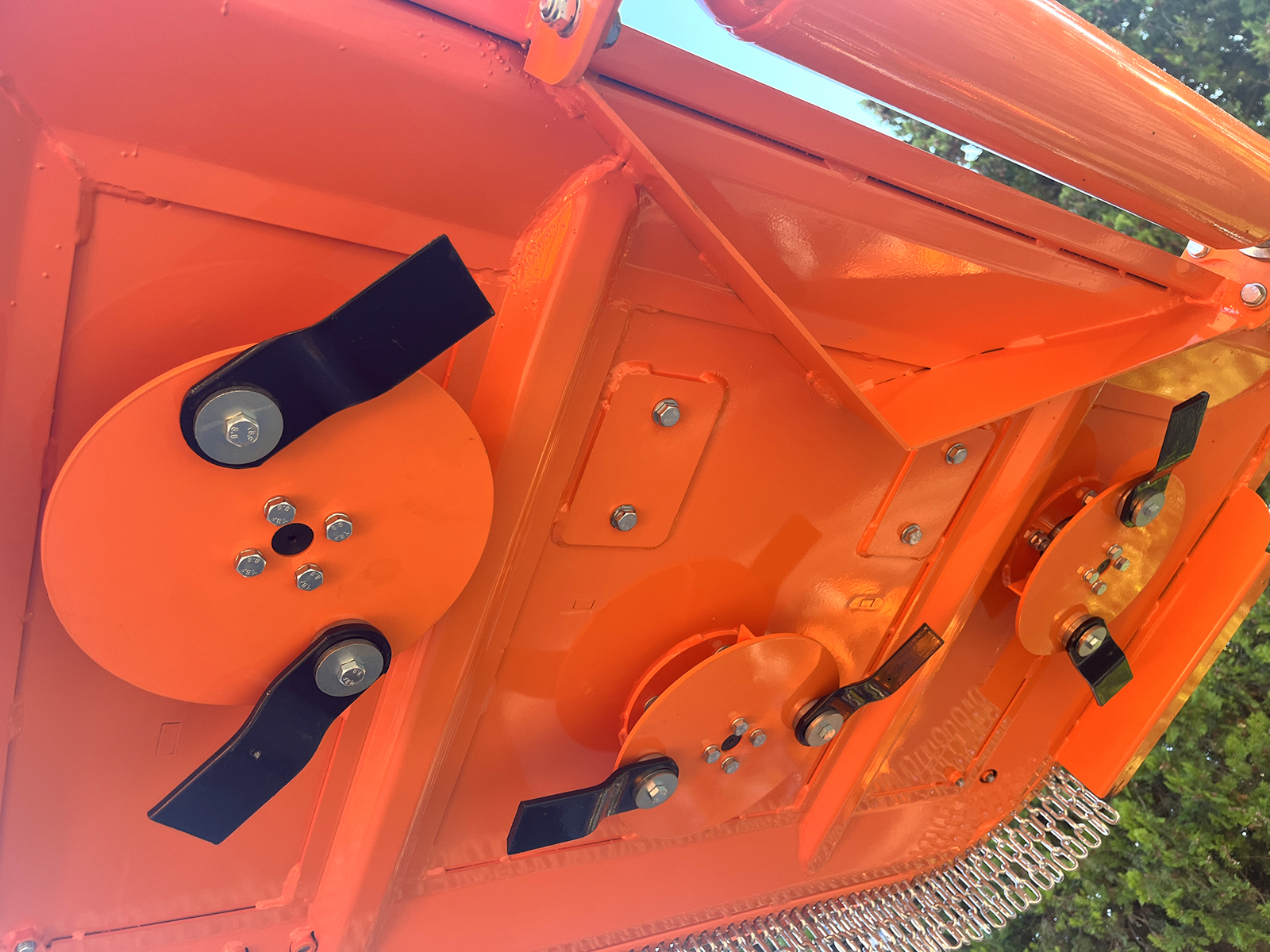

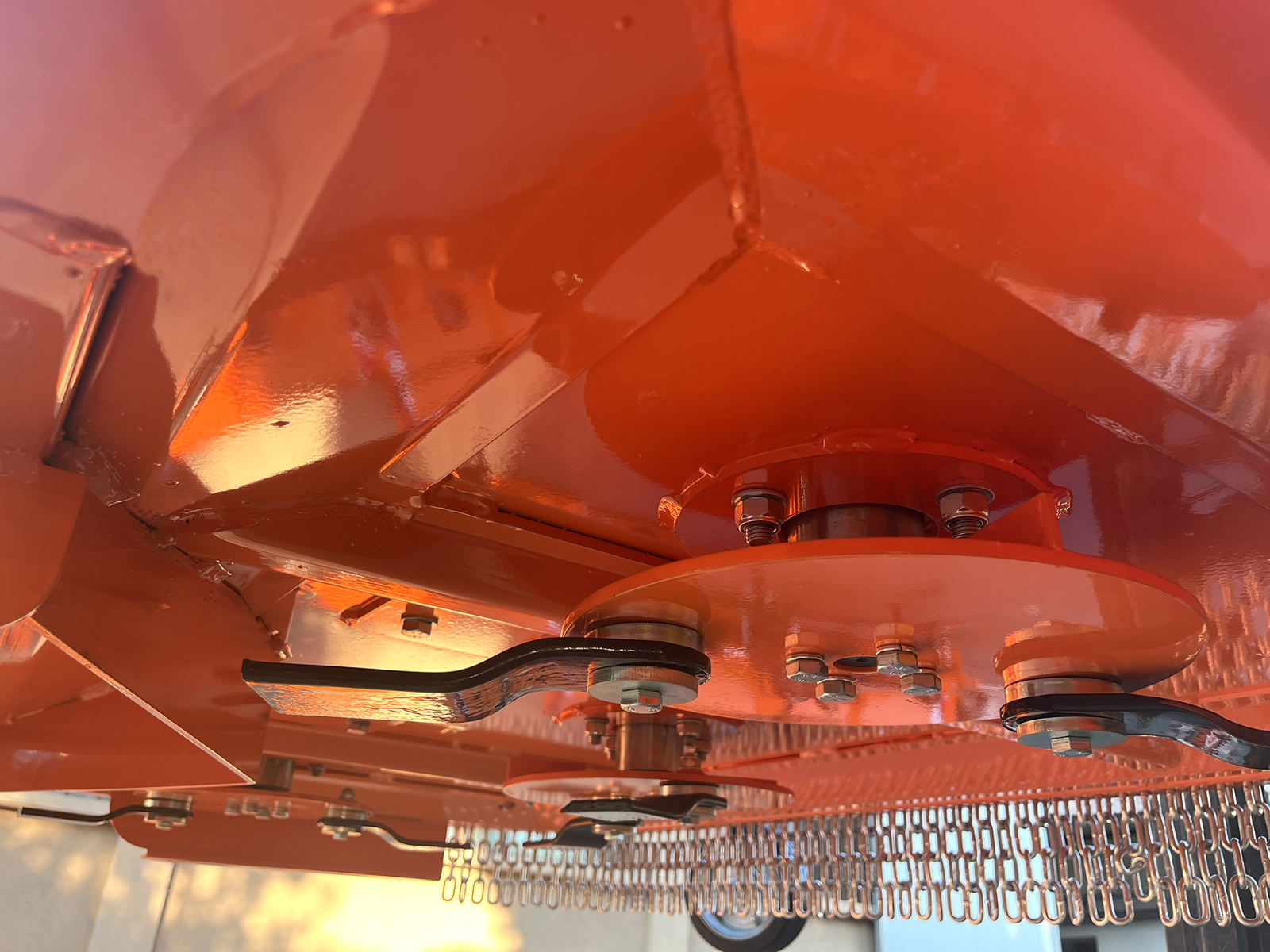

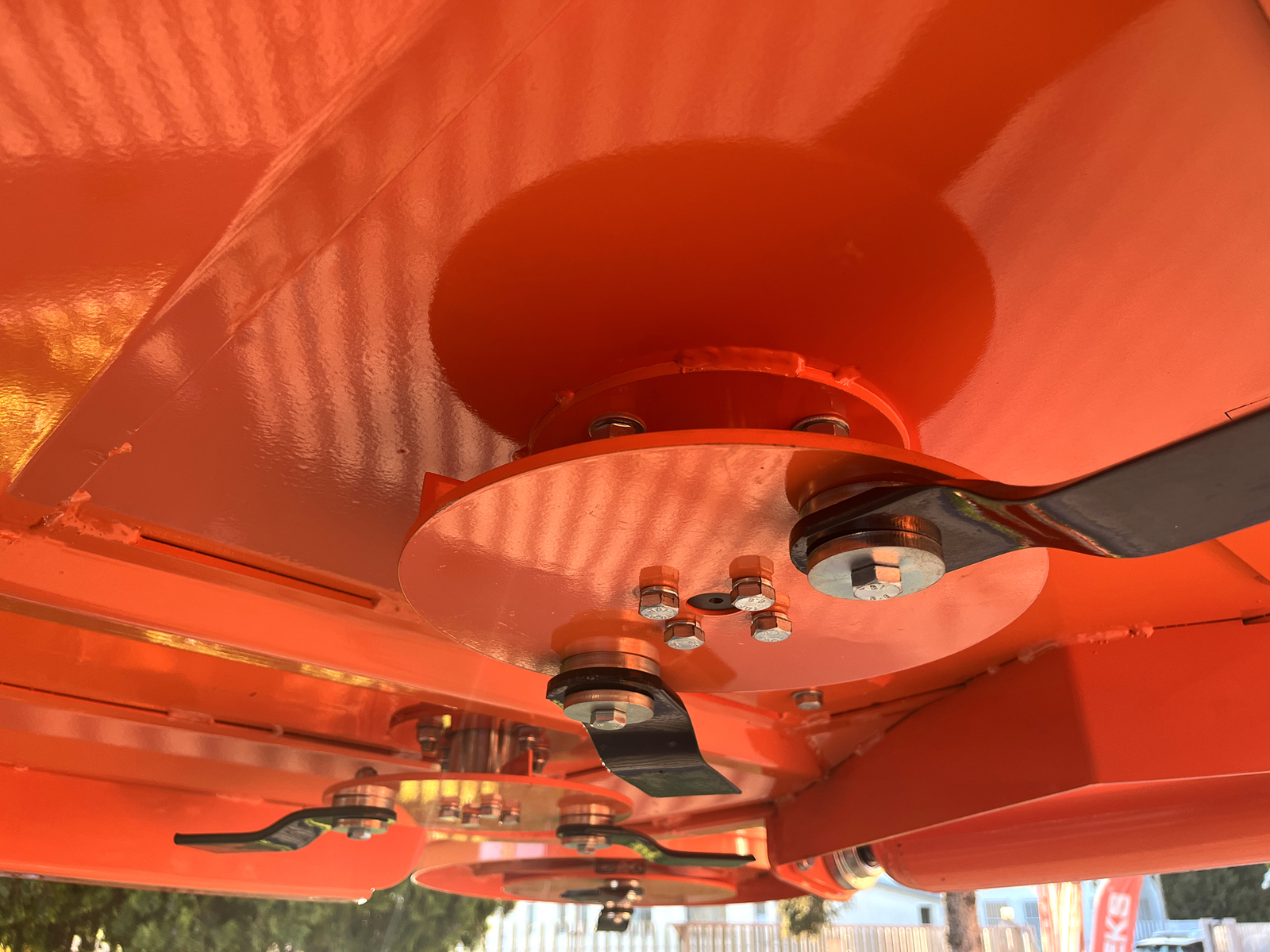

Under the deck three rotors carry two swinging blades each; with the two on the disc there are eight blades, turning at 2,780 rpm: they pulverise the grass, with rear discharge. Two castor wheels of 200 x 77 mm and the rear roller keep the deck parallel to the ground and set the cutting height from 5 to 50 mm.

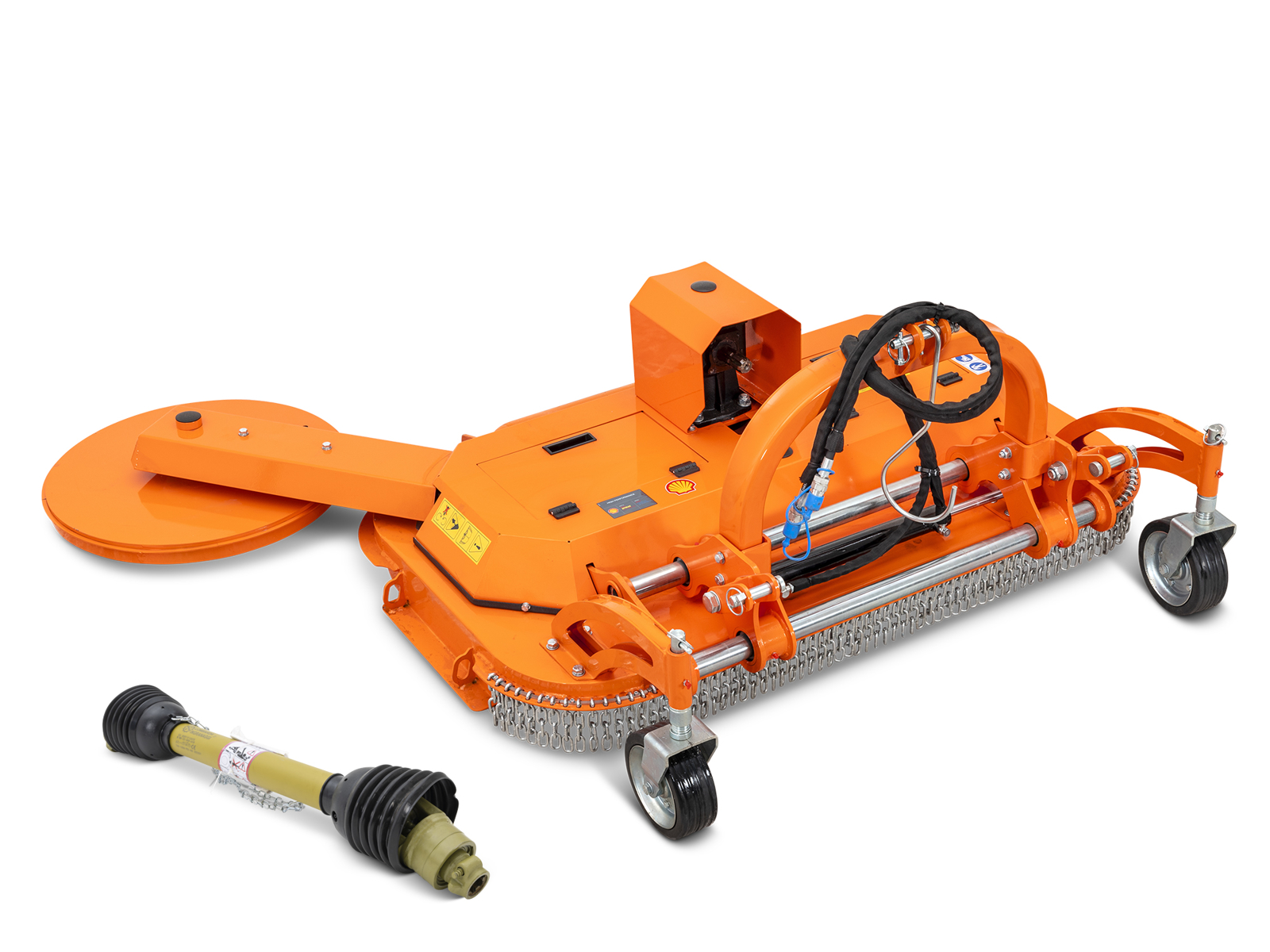

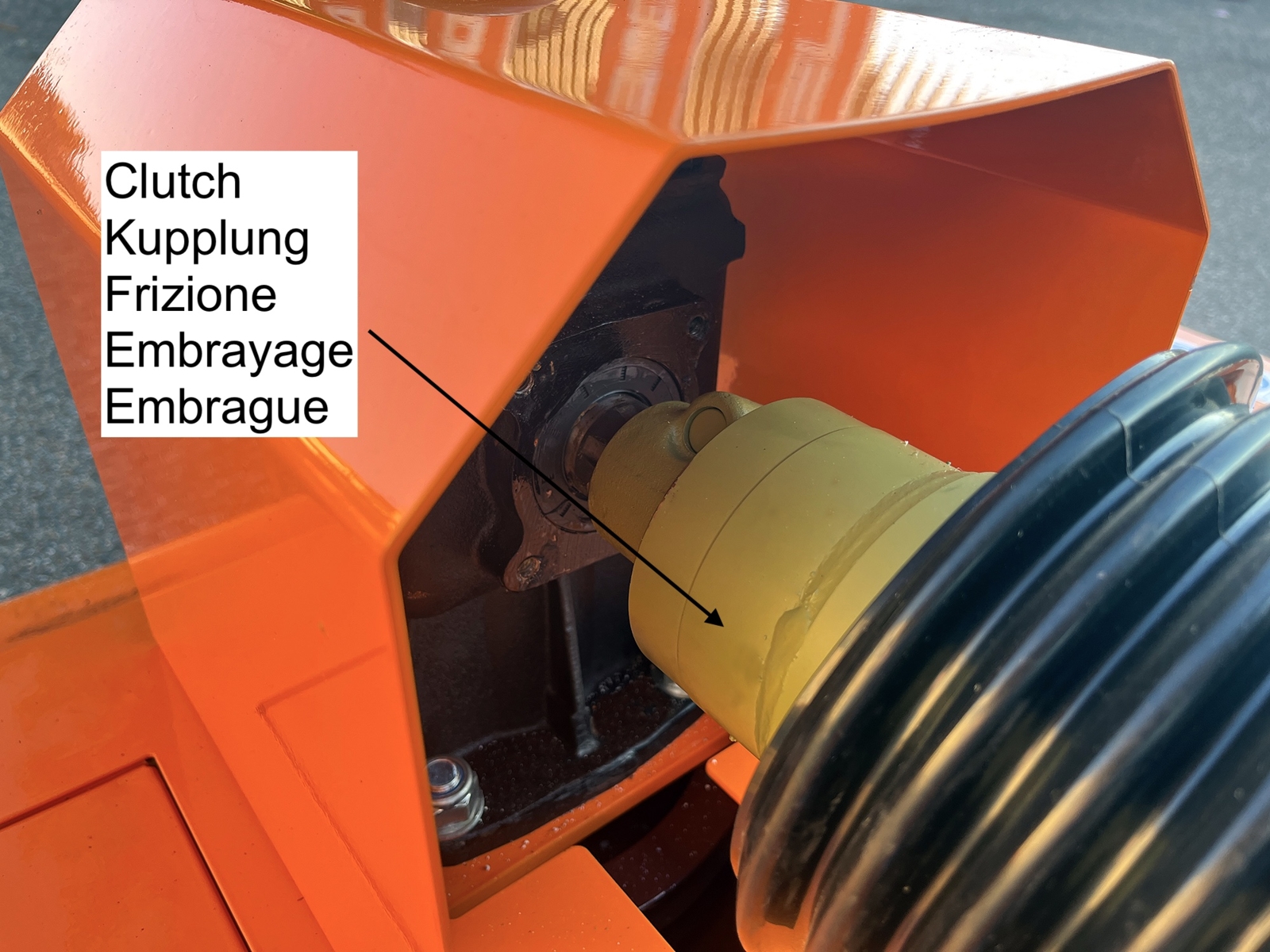

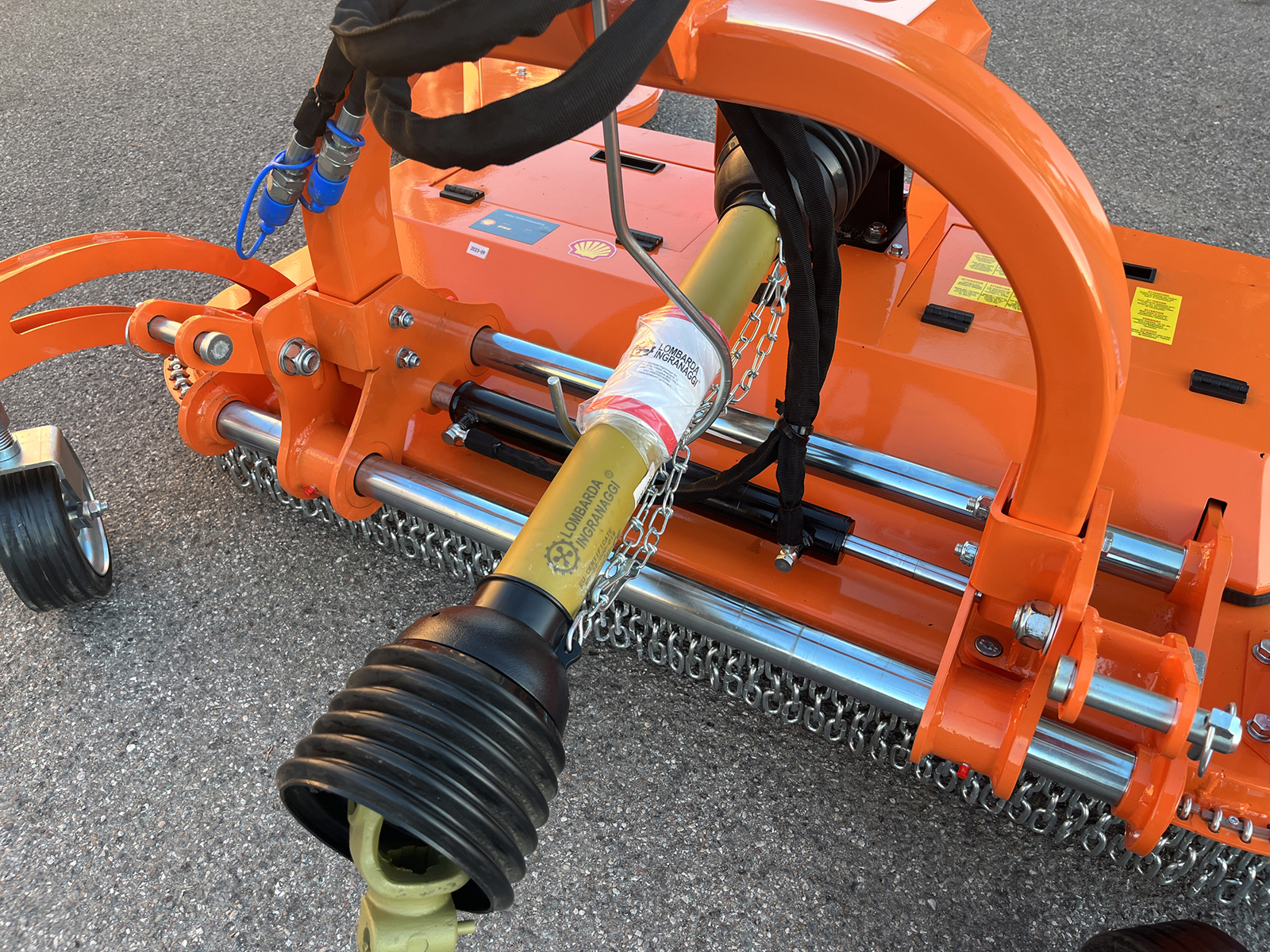

Gearbox, 3 belts and PTO shaft with freewheel

The DELEKS® gearbox for a 540 rpm PTO has a 3-year warranty; the drive reaches the blades through 3 V-belts, size B1905. The frame is in 4 mm sheet steel. The CE-approved category 4 PTO shaft, 1,000 mm (39.4 in) long, with freewheel, is included: when you disengage the PTO the blades carry on turning under their own momentum and run down by themselves, without driving back through the tractor's transmission.


Dimensions, weight and delivery

Working width 2,000 mm (78.7 in), overall width 2,050 mm (80.7 in), length 1,700 mm (66.9 in), height 750 mm (29.5 in), weight 210 kg (463 lb). It ships on a pallet in packaging measuring 165 × 120 × 60 cm (65 × 47 × 24 in), 1.19 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.


Where it works

  • Vineyards: grass between the rows and, with the side disc, between the vines
  • Orchards: cutting between the trees in the row
  • Parks and green areas in general
  • Work beyond the tractor's width with the 20 cm hydraulic side shift
  • Level ground and slopes, with tractors from 18 to 45 hp

Options and spares

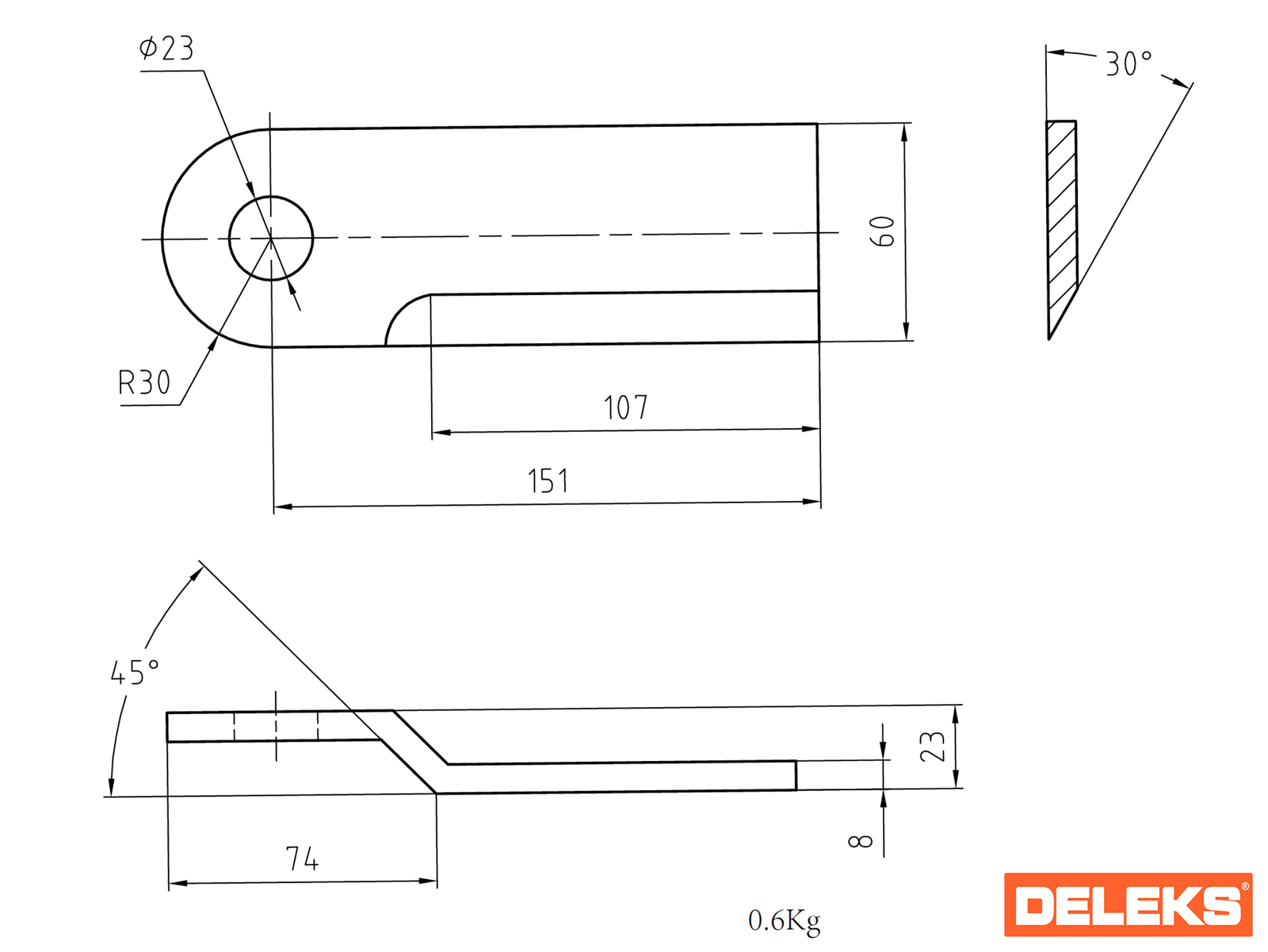

From this page you can add to your order the spare set of 2 blades (COLTELLI2DMINTERFILA). Other spares are identified on the exploded diagrams with our technical team.


FAQ

What size tractor does the DM150-INTERFILA need?
From 18 to 45 hp, with a 540 rpm PTO and a category 1 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 210 kg (463 lb).

How does the inter-row disc work?
It is a 60 cm side disc with two blades, mounted on an arm at the side of the deck: it cuts the grass between one plant and the next in the row. The retraction is mechanical, with no sensor arm: when the disc touches the trunk it swings back, and a damper piston returns it to the outer position.

How wide is the working width?
200 cm (79 in) in all: the 150 cm of the deck plus the side disc. The overall width of the machine is 2,050 mm (80.7 in).

How far does it shift sideways?
200 mm (7.9 in), with hydraulic control from the driving seat. The side shift needs one double-acting spool valve; the hydraulic hoses are supplied.

What is the cutting height?
From 5 to 50 mm, adjustable with the two castor wheels and the rear roller.

Can it be used with a quick hitch?
No: the DM150-INTERFILA is not suitable for quick hitches; it hitches to the category 1 three-point linkage.

Is the PTO shaft included?
Yes: a CE-approved category 4 PTO shaft, 1,000 mm (39.4 in) long, with freewheel.

How does it differ from the DM models without the disc?
The DM-120, DM-150 and DM-180 are 3-blade decks on 4 wheels, without side shift and without the disc, for lawns and parks. The DM150-INTERFILA adds the hydraulic side shift and the inter-row disc for working along the rows.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: blades, chains, belts, bearings, wheels, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower deck and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric
Working width 2000.0 mm
Overall width 2050.0 mm
Min / Max cutting height 5.0 - 50.0 mm
Weight 210.0 kg
Overall height 750.0 mm
Tractor Power Range 18-45 Hp
3 point linkage Cat. 1 (ø 19.0-22.0mm)
Spacing between the 2 lower points 640.0-740.0 mm
Overall length 1700.0 mm
Distance between pto attachment and ground 450.0 mm
Main hood thickness 4.0 mm
Transmission: Drive method V-Belts
Transmission: Gearbox DELEKS (3 years warranty)
Transmission: PTO 540 r/min
Transmission: Rotation of gearbox Right side

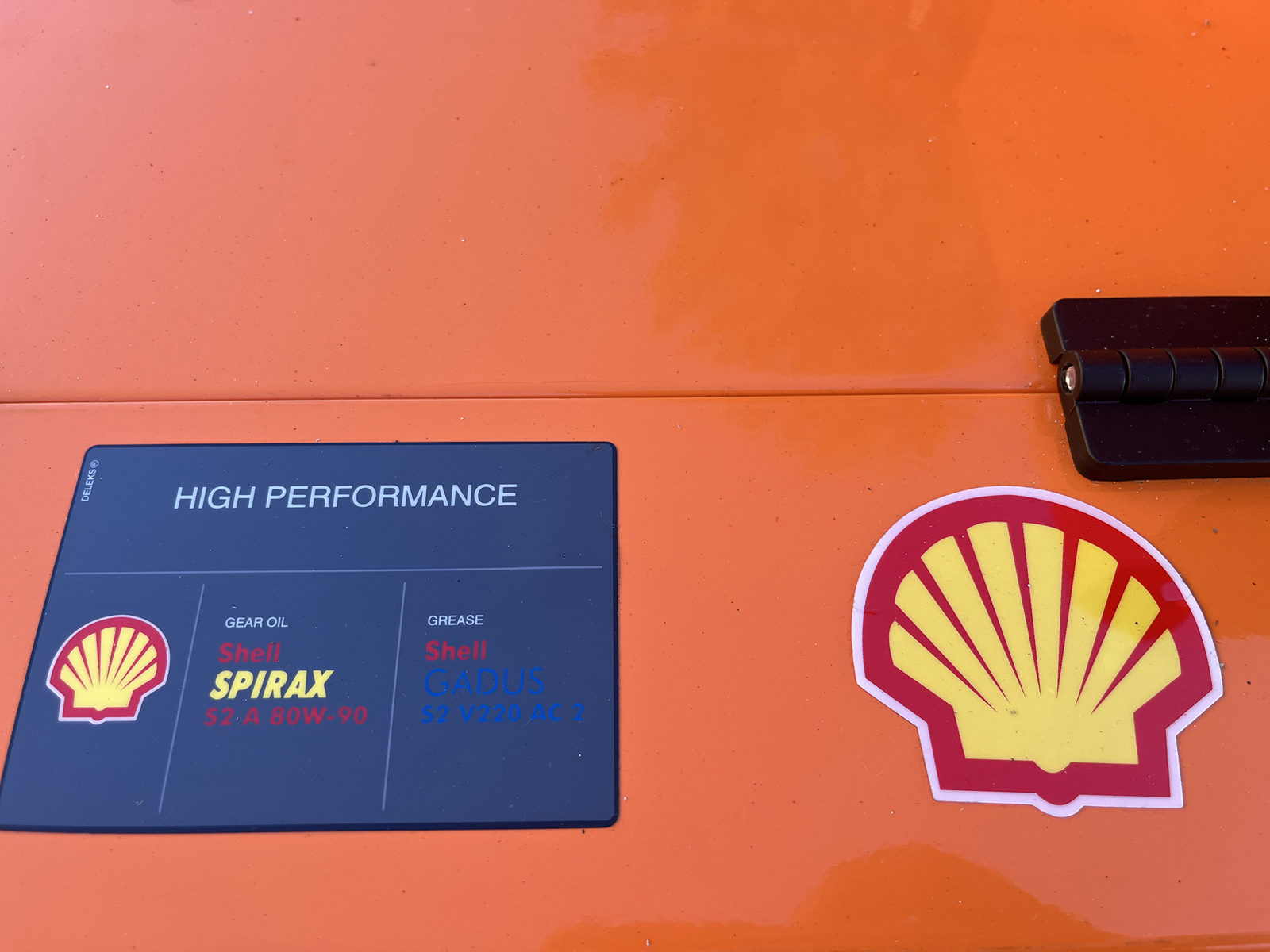

Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925
Transmission: V-Belts quantity 3
Transmission: V-Belts size B1905
Number of Blades 8
Transmission: RPM Blade speed 2780 r/min
Wheels: Quantity 2
Wheels: Diameter / Width 200.0/77.0 mm
Pto shaft CE 4x1000 mm + freewheel
Effective Displacement 200.0 mm
Gross shipping weight 392 kg
Package volume 1.19 m3
Packing sizes 1650.0*1200.0*600.0 mm
