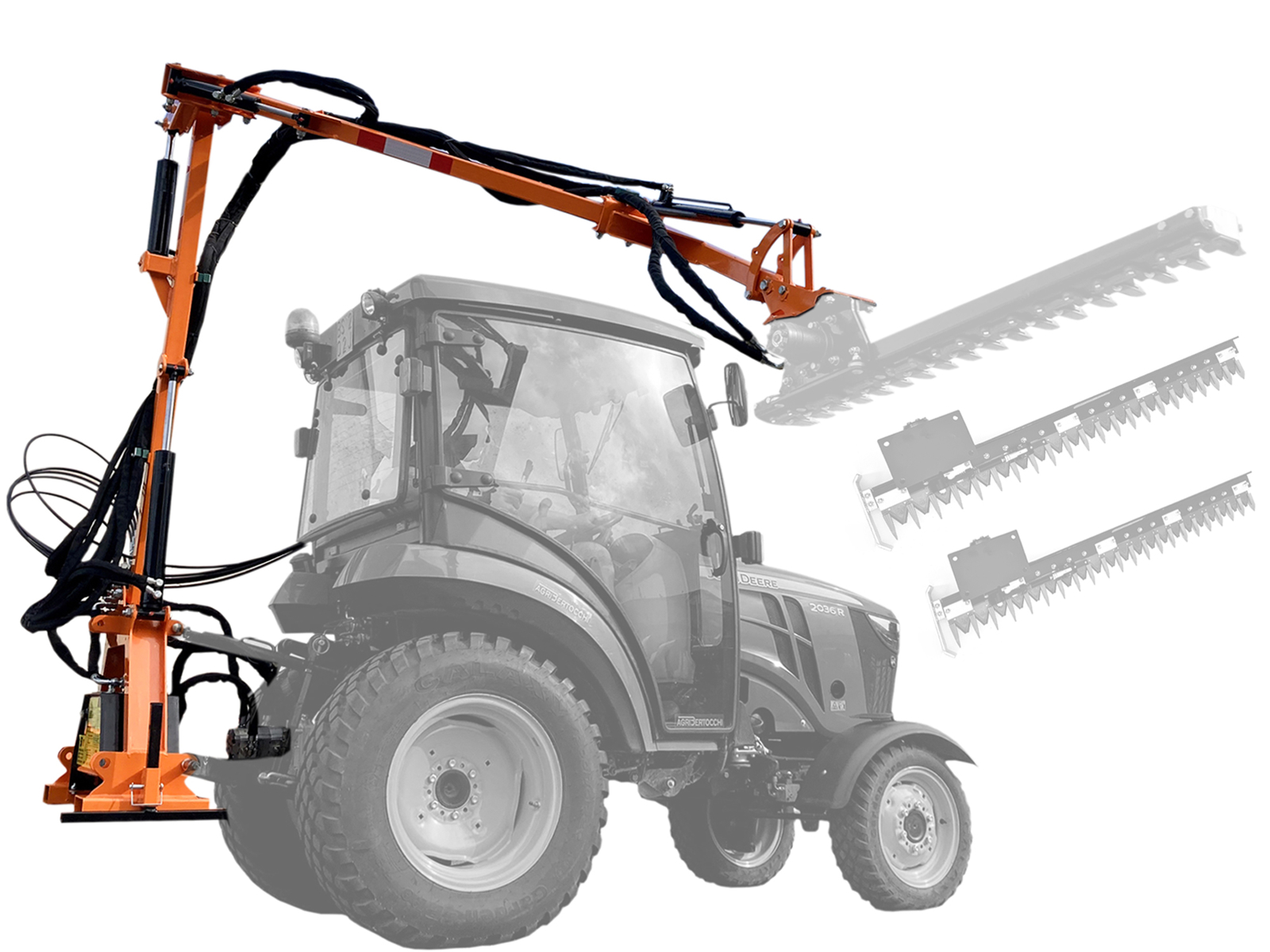

Hydraulic tractor hedge cutter arm FALCO-H, reversible Made in Italy hedge trimmer arm for 130 to 180 cm cutter bars, 20 to 60 hp tractors
DETAILS
Hydraulic tractor hedge cutter arm, the DELEKS® FALCO-H: a hedge cutter arm Made in Italy, built by DELEKS, for trimming hedges and trees with 20 to 60 hp tractors. The symmetrical structure and the double category 1 and 2 three-point linkage let it work on the right, on the left, in front of and behind the tractor, with no changes to the machine; the 3.5 m (11.5 ft) arm gets over obstacles and reaches 3.70 m (12.1 ft) in height and 3.20 m (10.5 ft) sideways. The FALCO-H has an extra ram that carries the second half of the arm forward: the cutting unit works beside the driver. The hydraulic system is independent, with a tandem pump on the PTO: the arm moves while the bar is cutting. It is supplied as the base unit only: the HR-S and HRD hedge cutter bars of 130, 160 and 180 cm (51, 63 and 71 in) are chosen as options. Frame in Swedish SSAB steel with HARDOX supports, 230 kg (507 lb), 2-year warranty and free delivery within the EU.
Which tractors it fits
The FALCO-H is built for 20 to 60 hp tractors with a 540 rpm PTO and a category 1 or 2 three-point linkage (19-22 or 25-28 mm pins, lower link spacing from 590 to 810 mm): Kubota B series, Antonio Carraro Tigre, Goldoni, BCS, Ferrari, Pasquali, New Holland, Landini and Valpadana. The tractor must weigh at least 800 kg (1,764 lb). The frame is sturdy but light, 230 kg (507 lb) without the bar: it handles well even on low to medium-powered tractors.
Right, left, front and rear

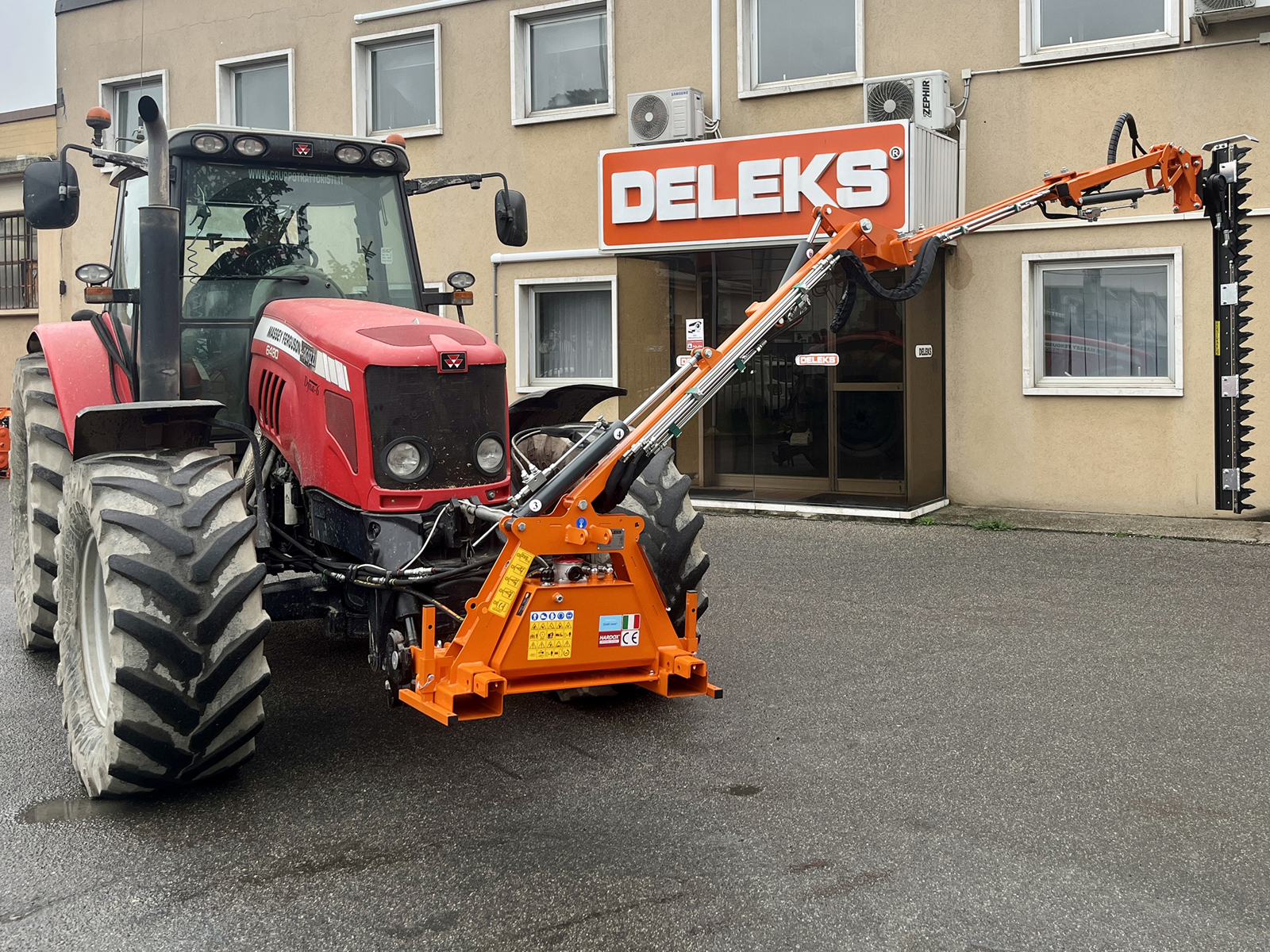

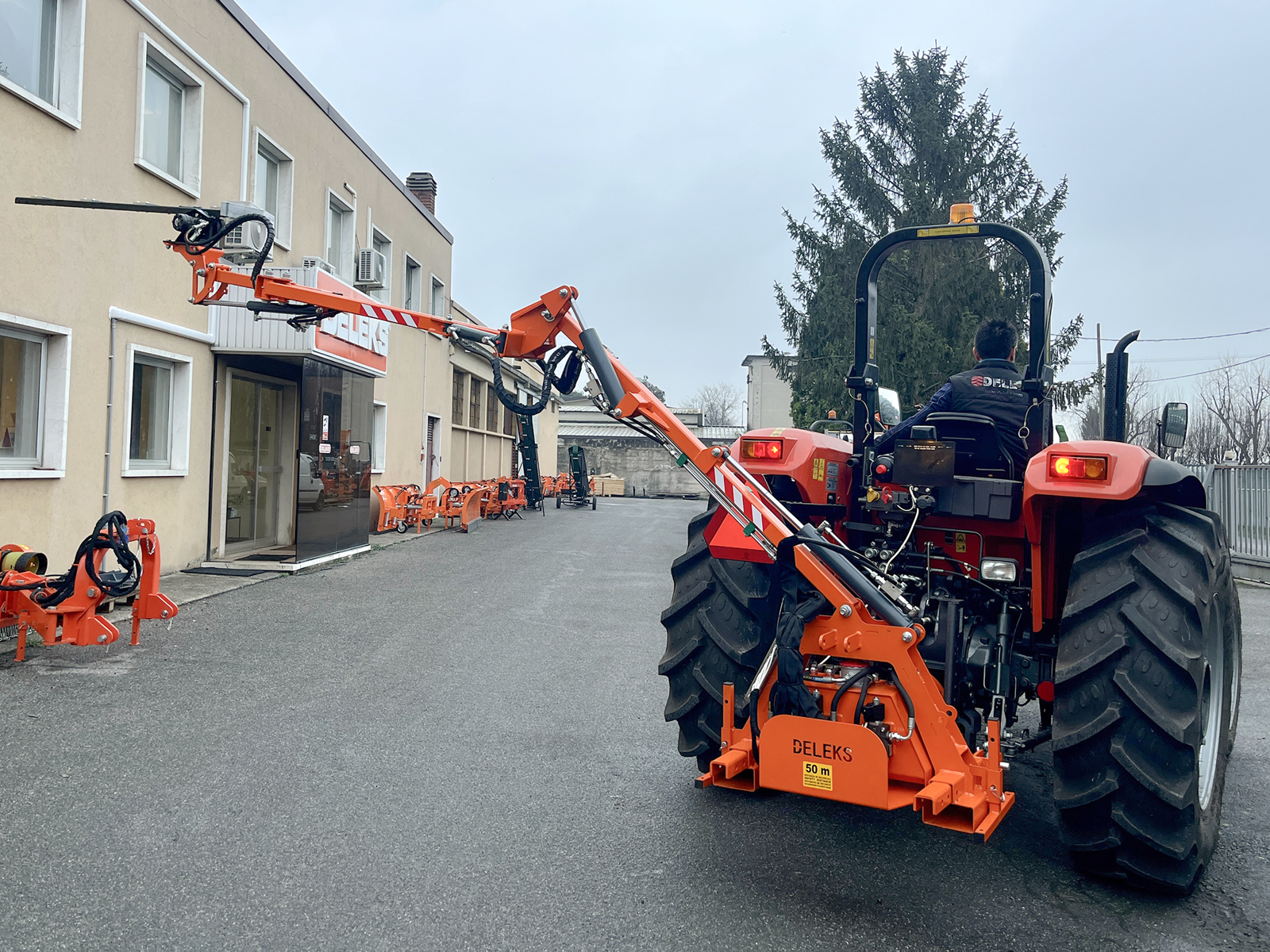

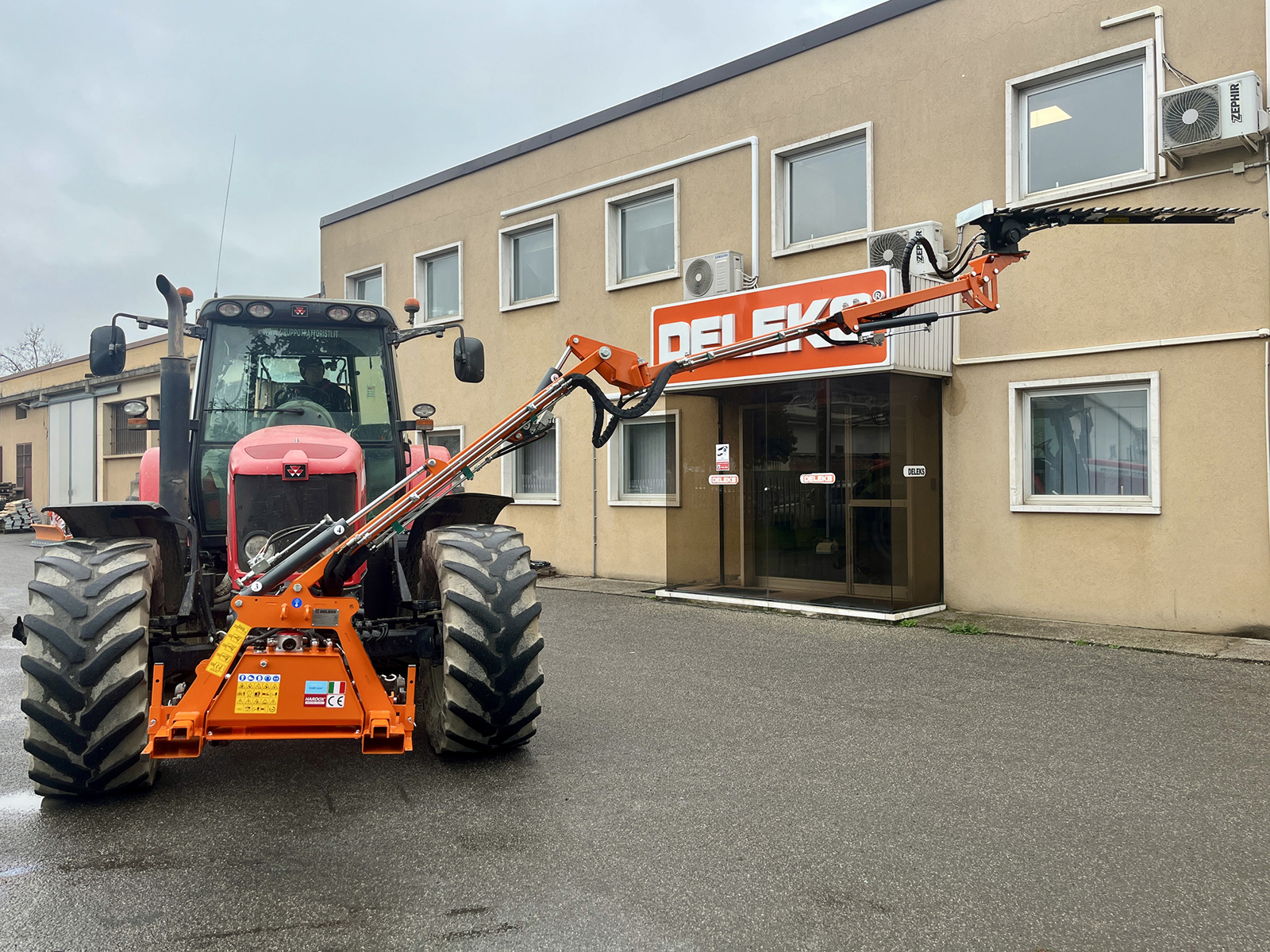

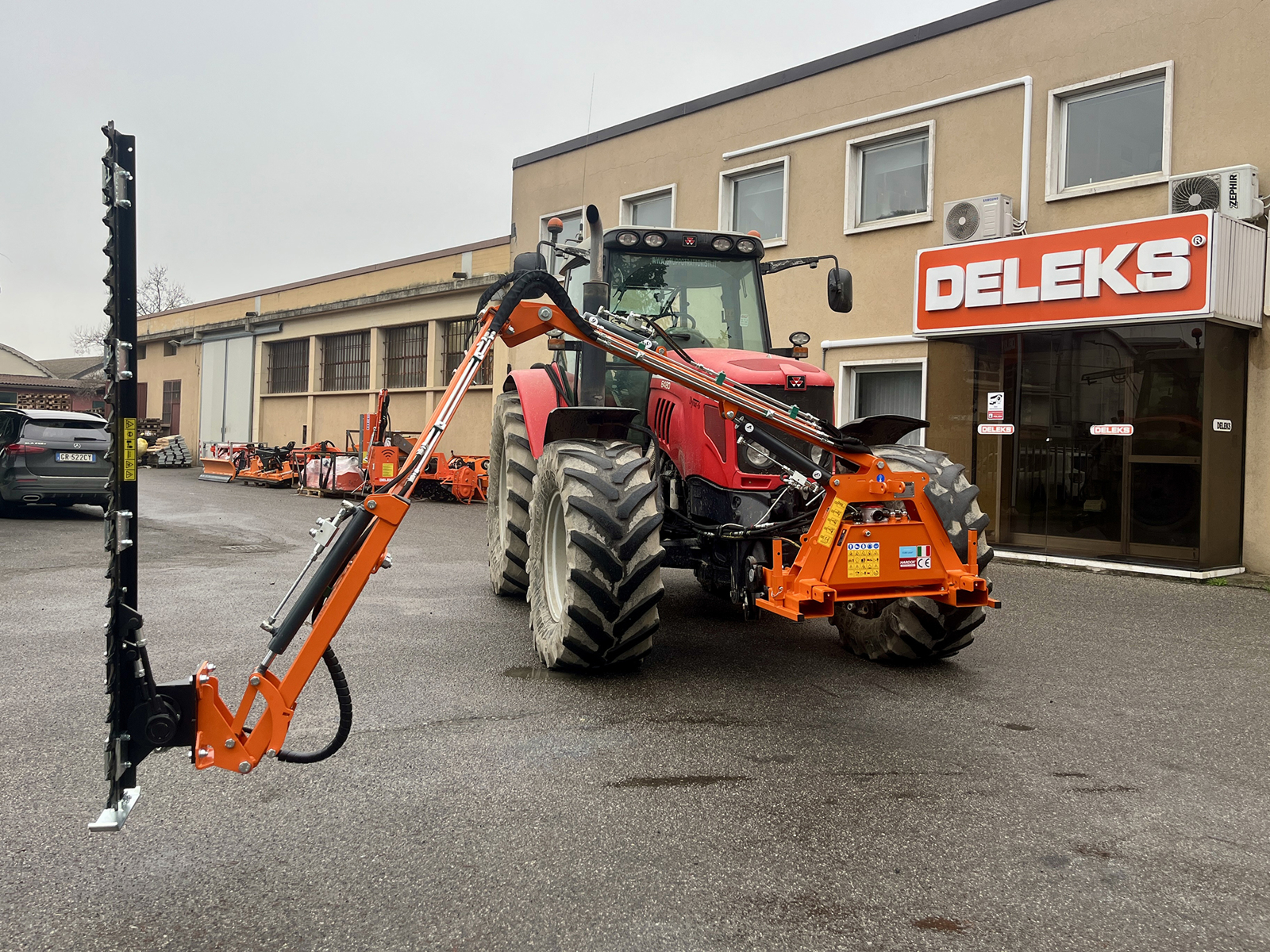

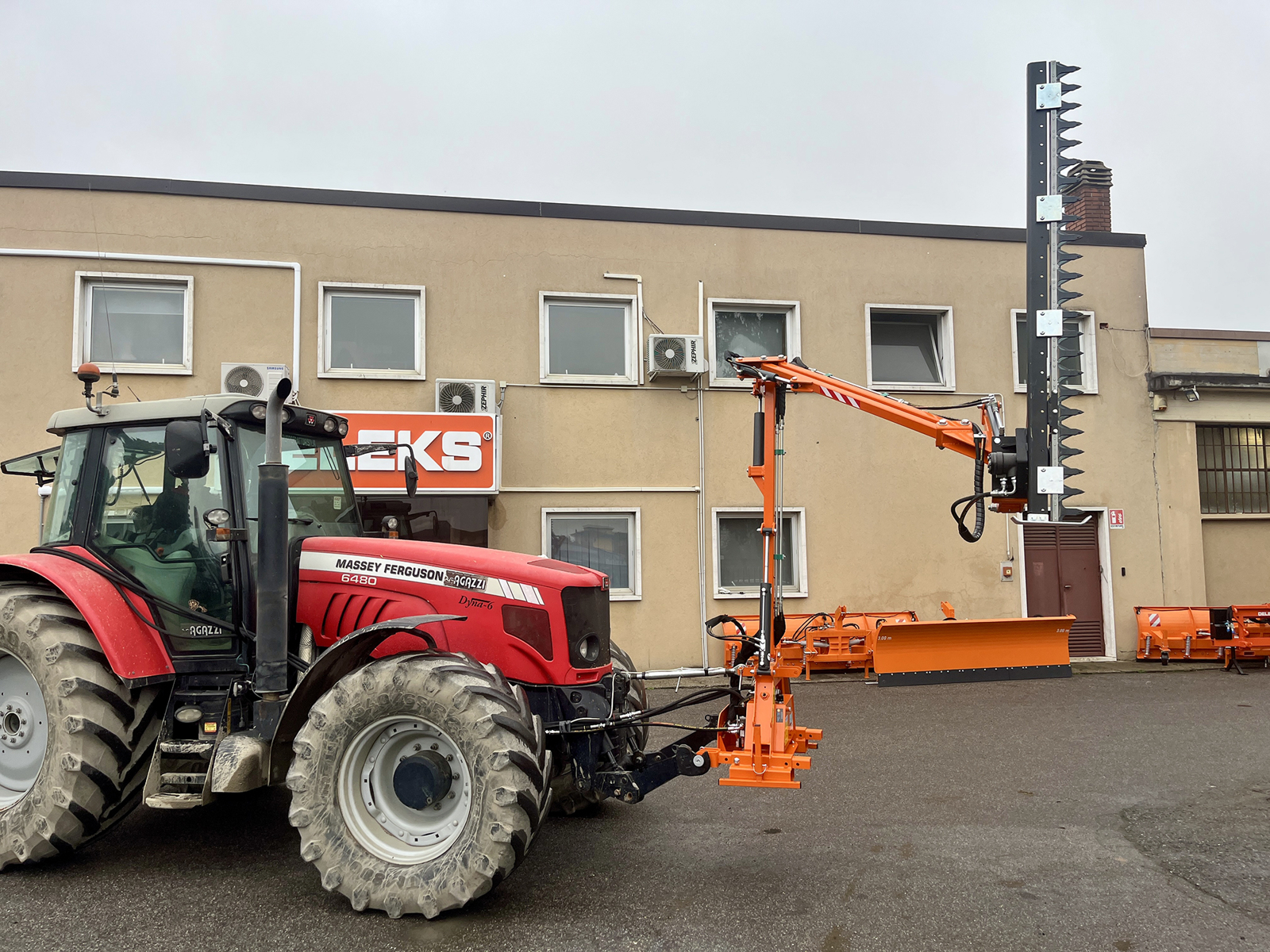

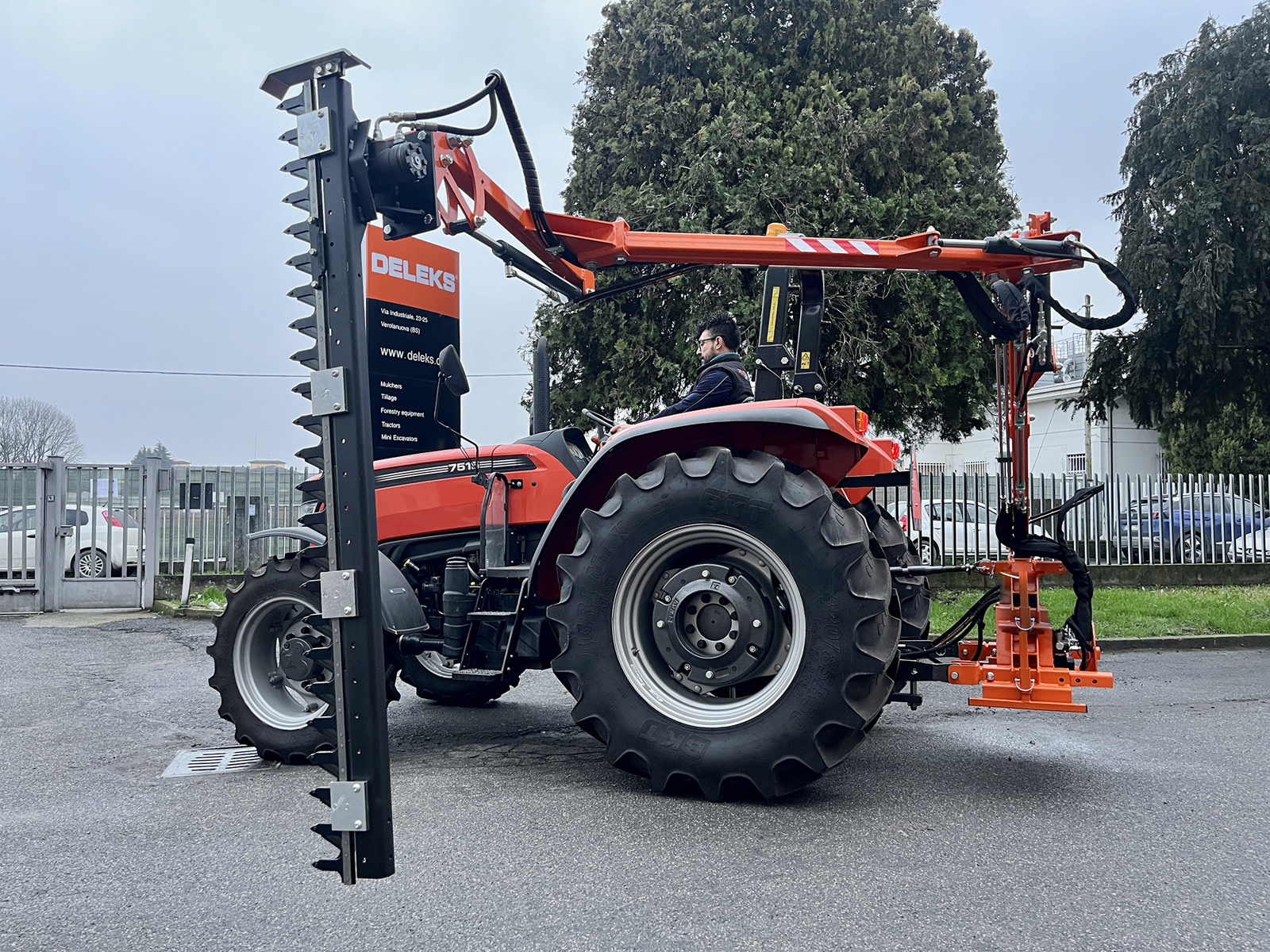

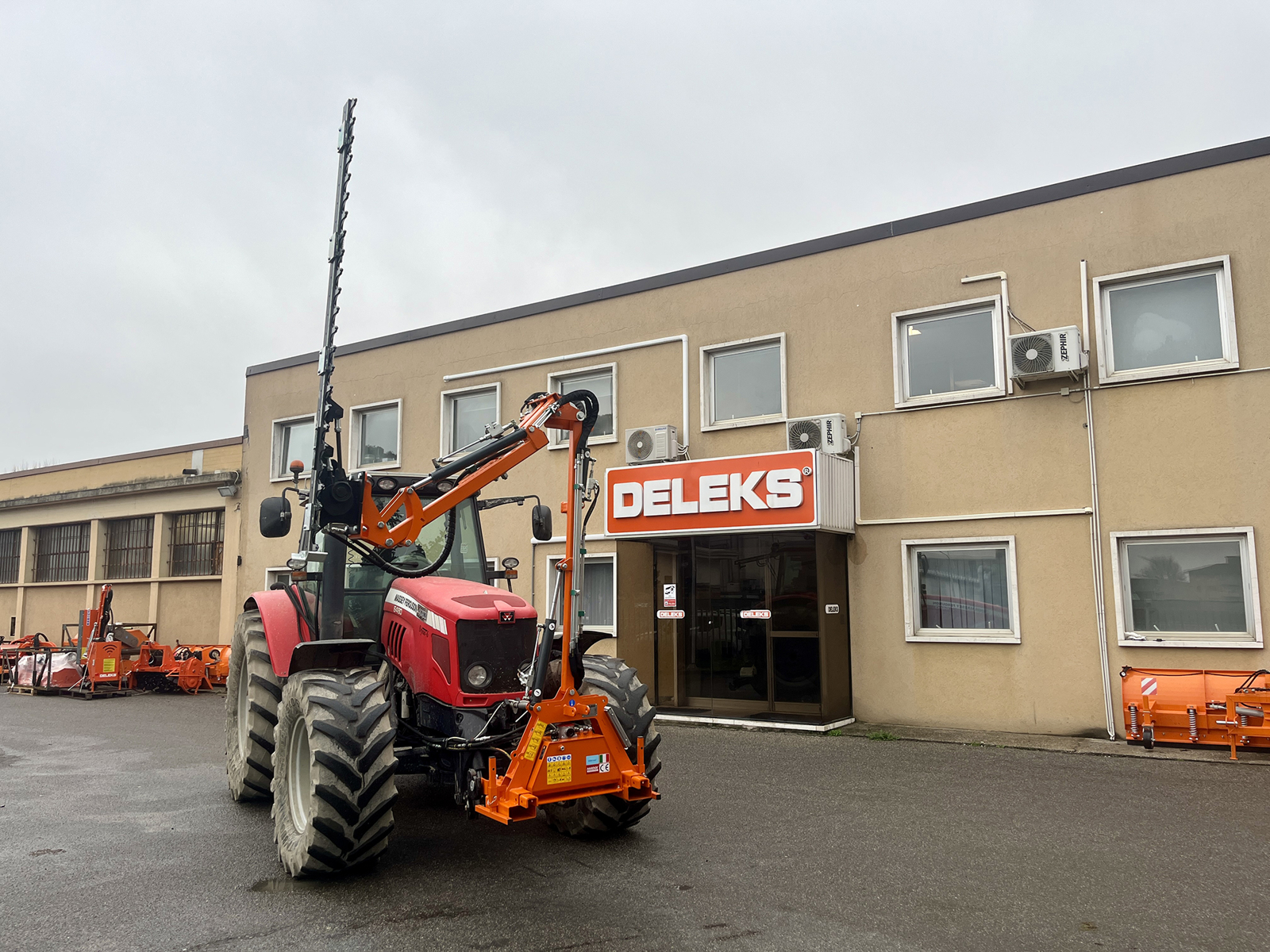

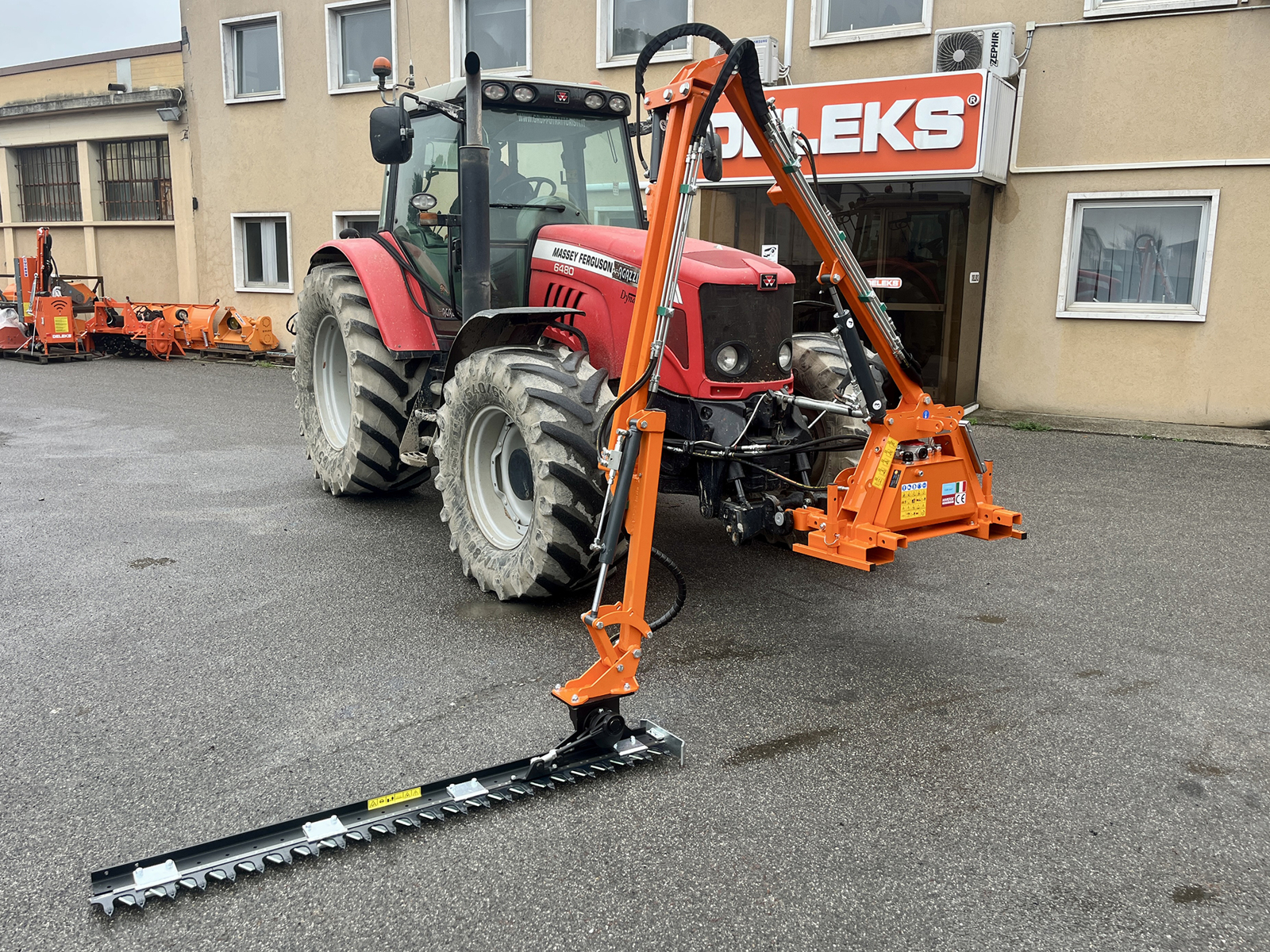

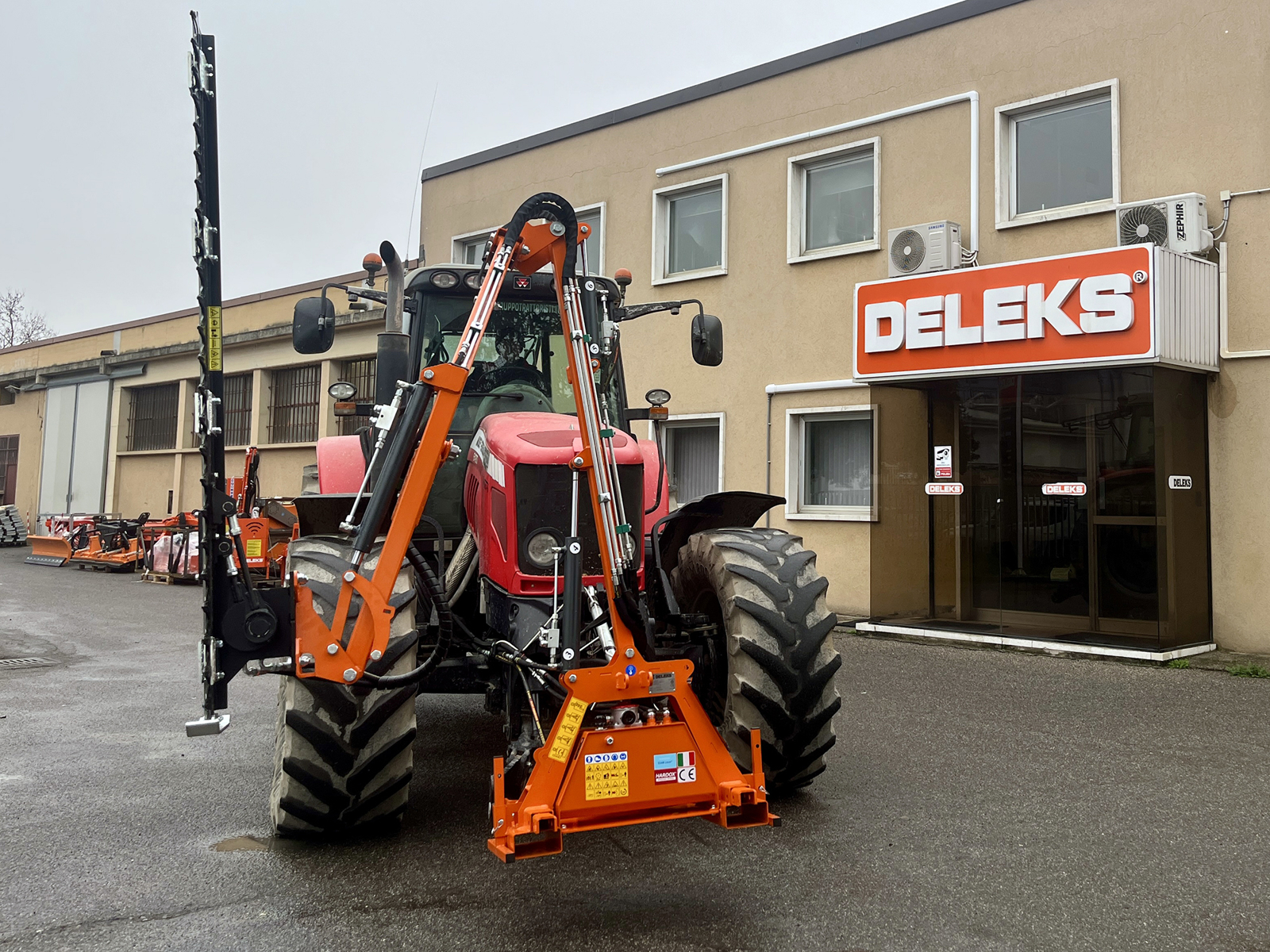

The structure is symmetrical and has a double three-point linkage: the FALCO-H cuts at any angle on both sides of the tractor and can be used on the rear linkage as well as on the front one, with no changes to the machine. The reversible frame has 3 hydraulic movements and the bar joint rotates through 270°. The FALCO-H has an extra ram that carries the second half of the arm forward: the cutting unit works beside the driver.

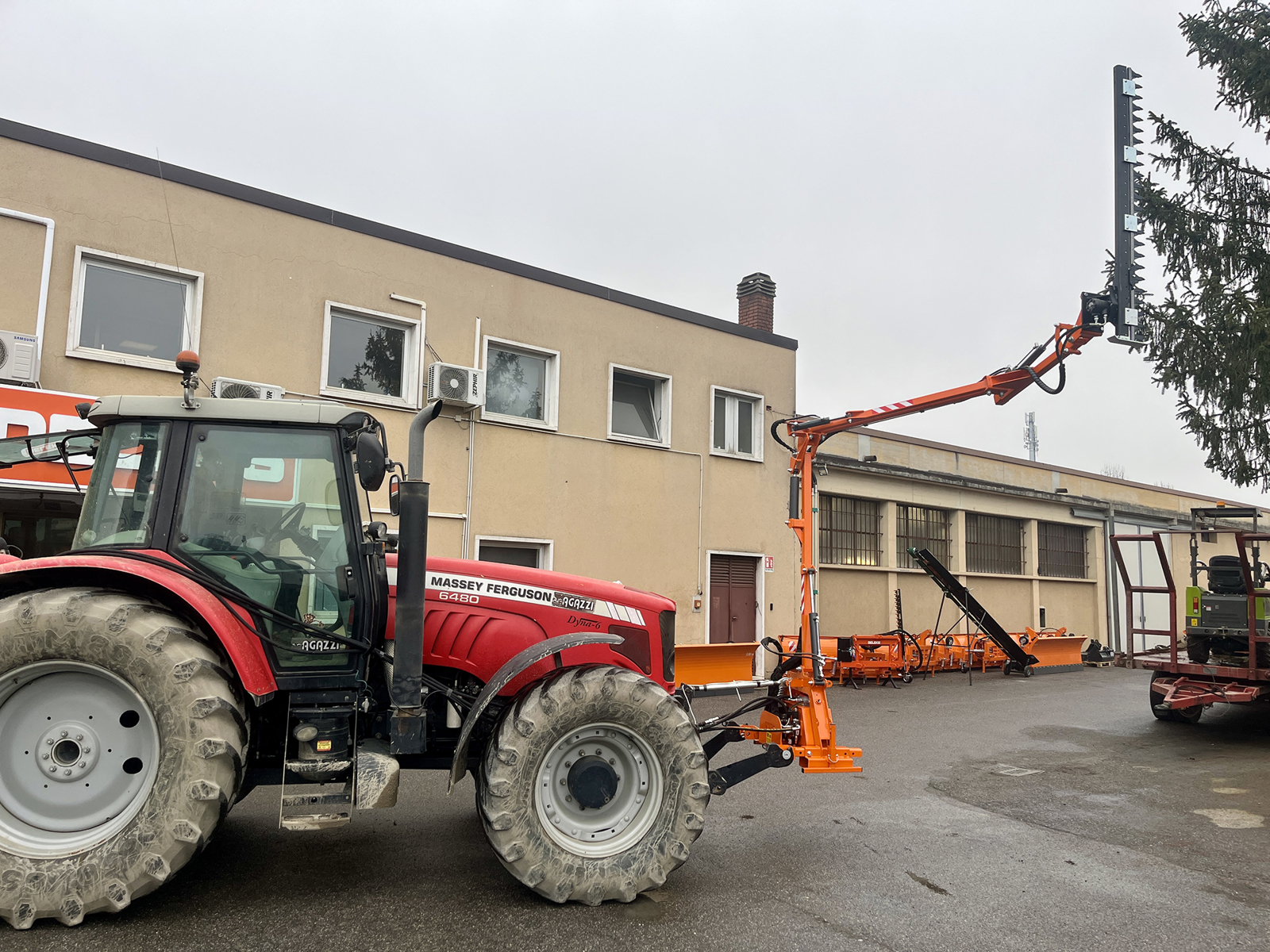

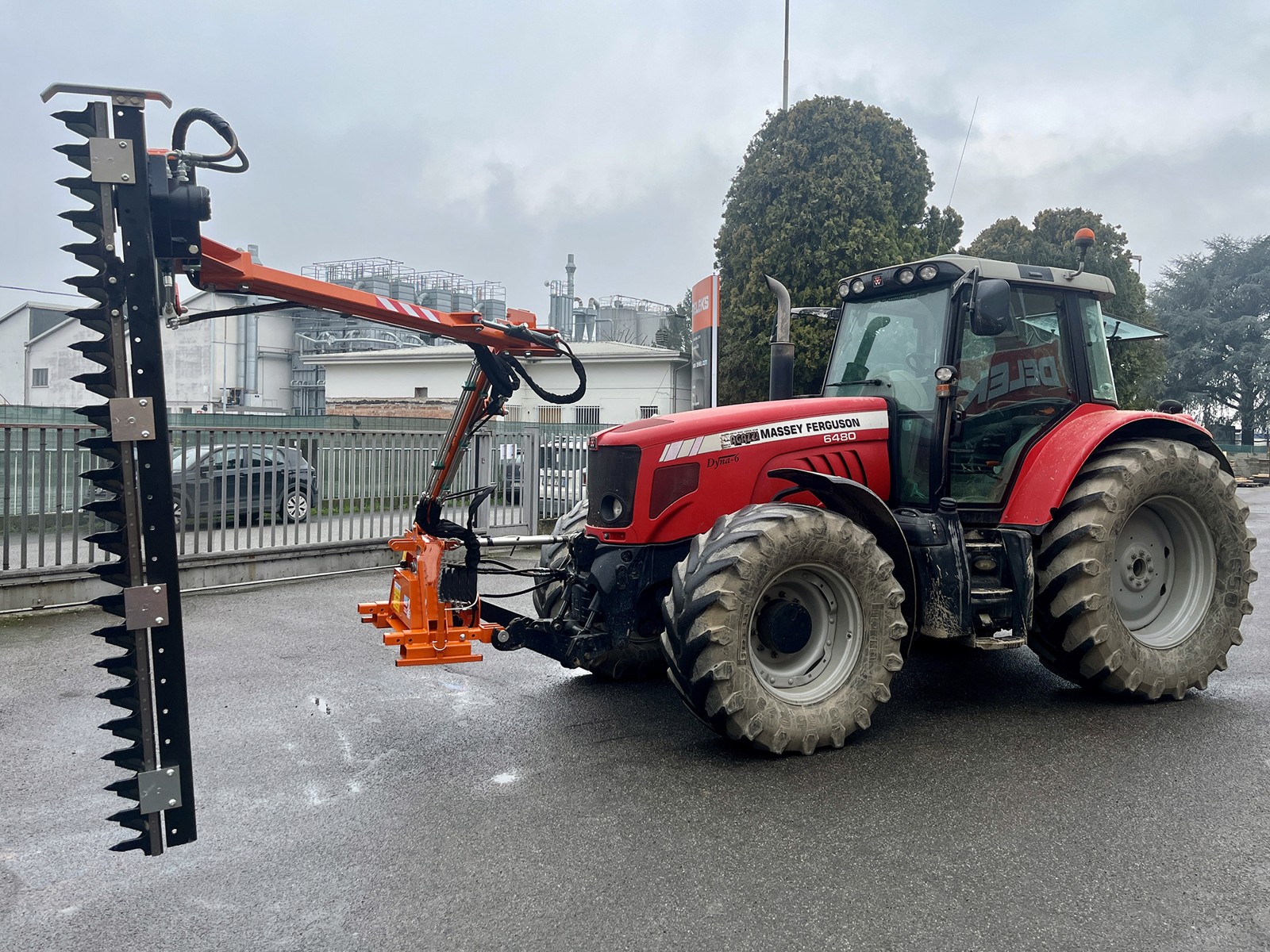

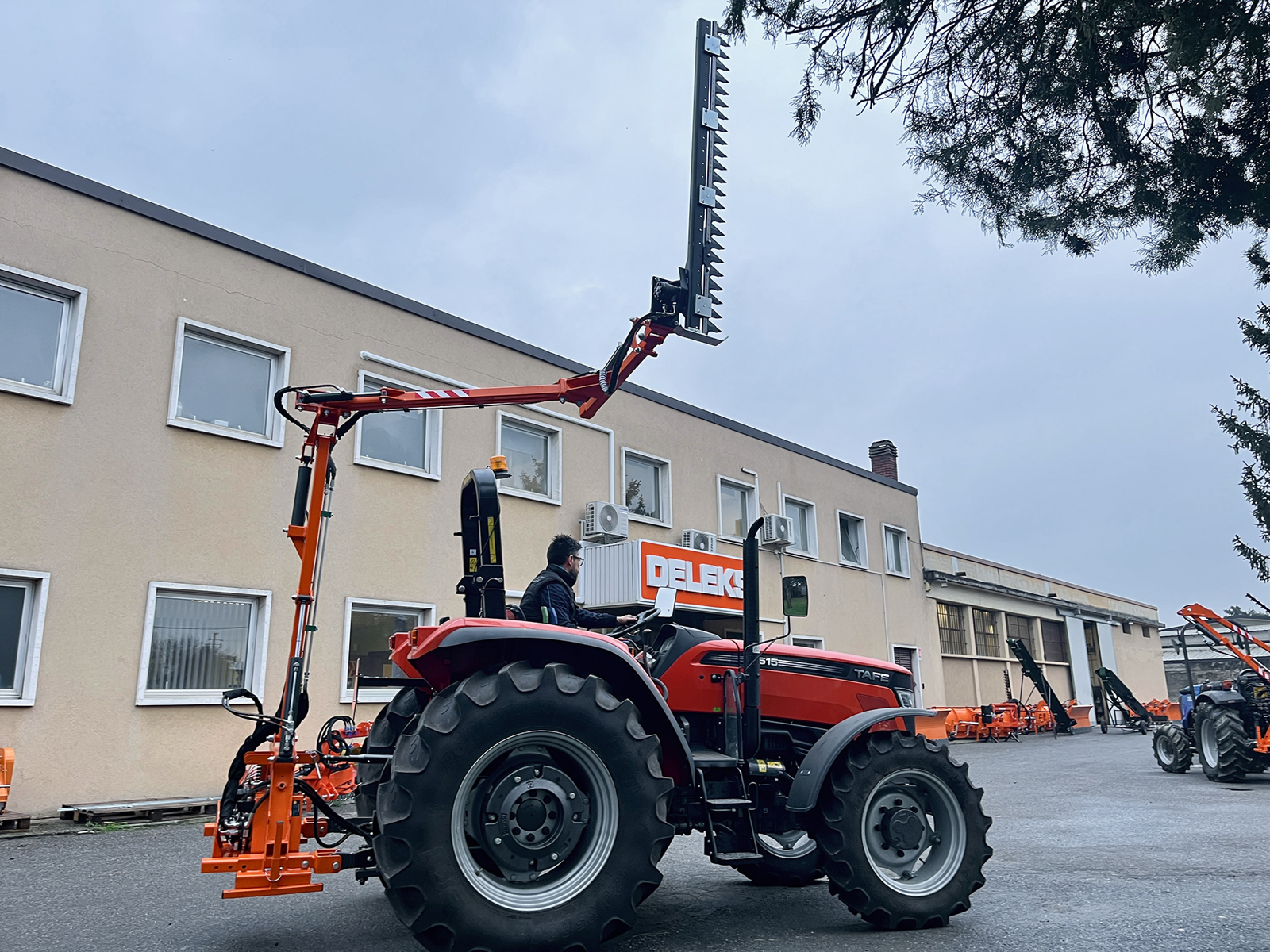

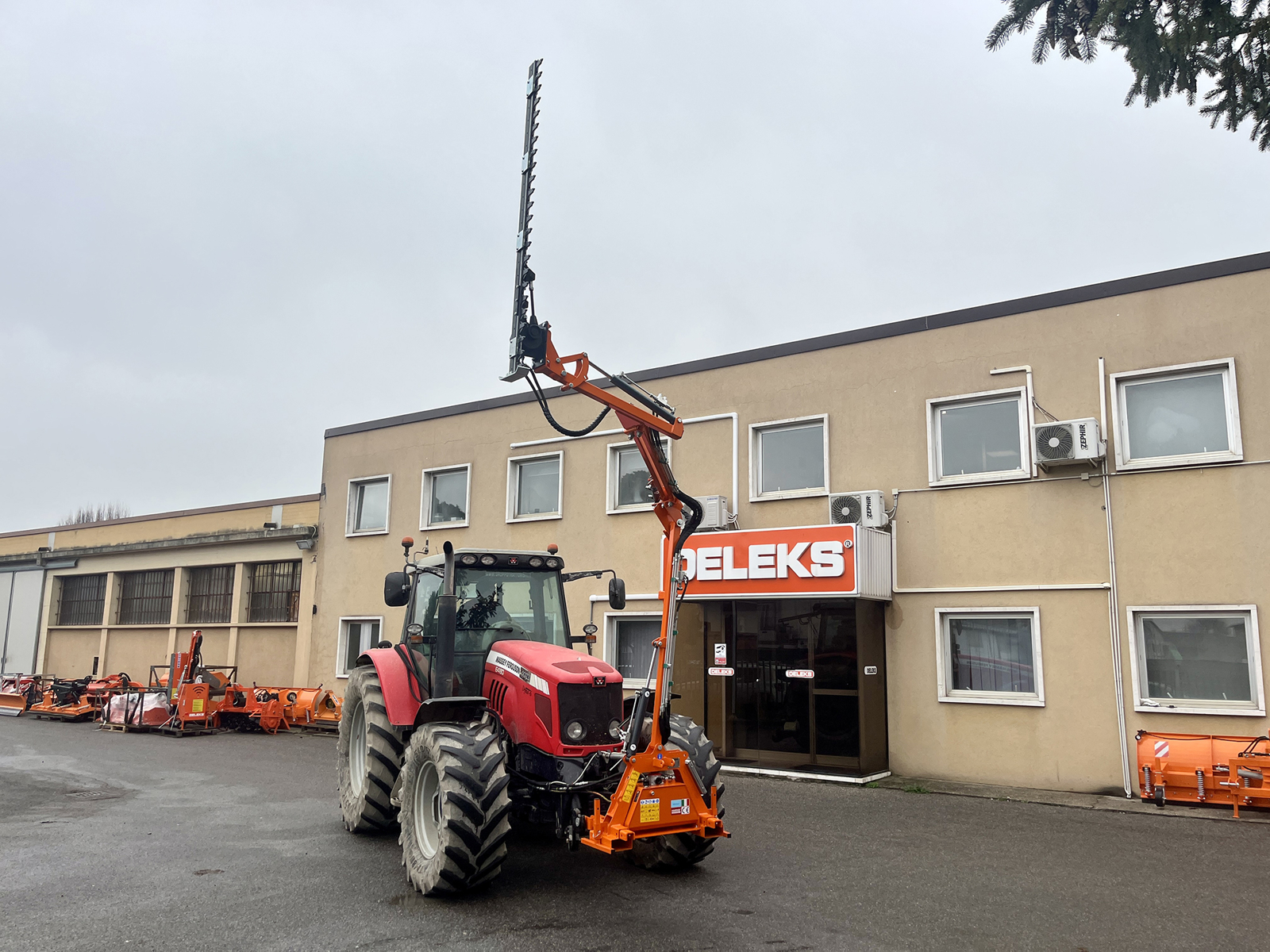

Reach: 3.70 m high, 3.20 m sideways

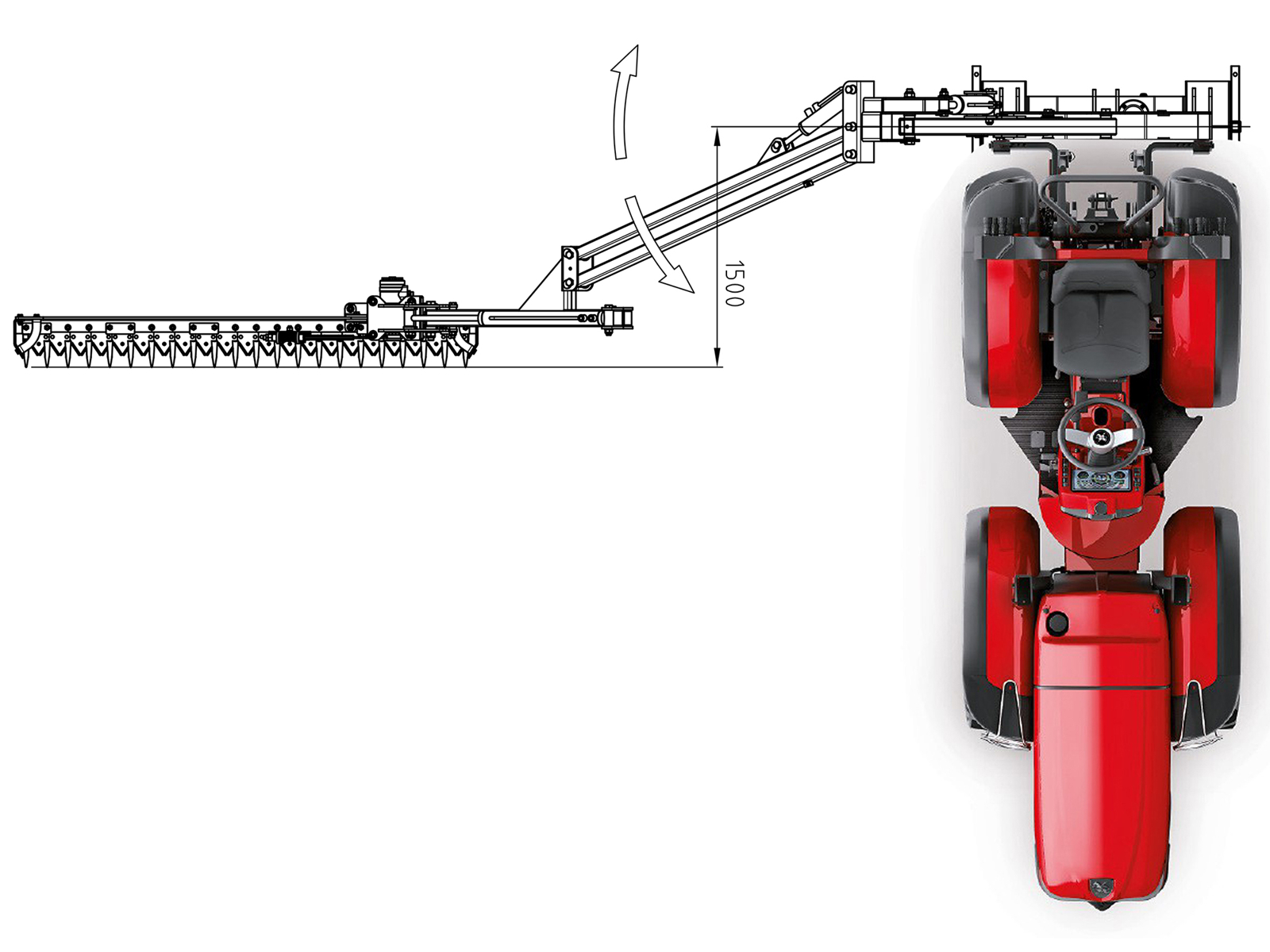

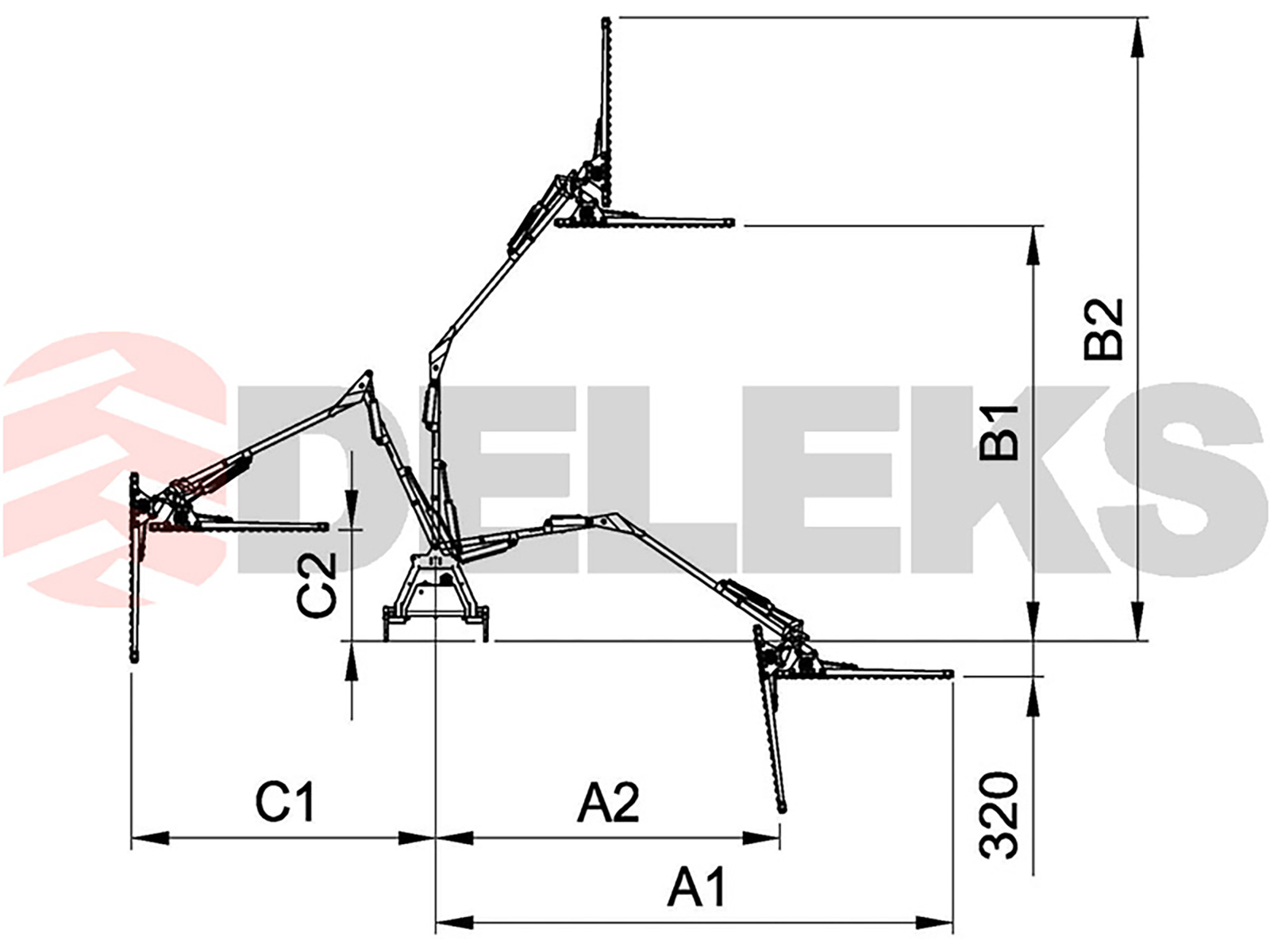

The 3.5 m (11.5 ft) arm lets you get over obstacles: it reaches 3.70 m (12.1 ft) in height and 3.20 m (10.5 ft) sideways. The full working dimensions, which change with the bar fitted, are in the chart among the product images (A1 4,500-4,700-4,900 mm, A2 3,200 mm, B1 3,700 mm, B2 5,200-5,400-5,600 mm, C1 2,800 mm, C2 1,000 mm).

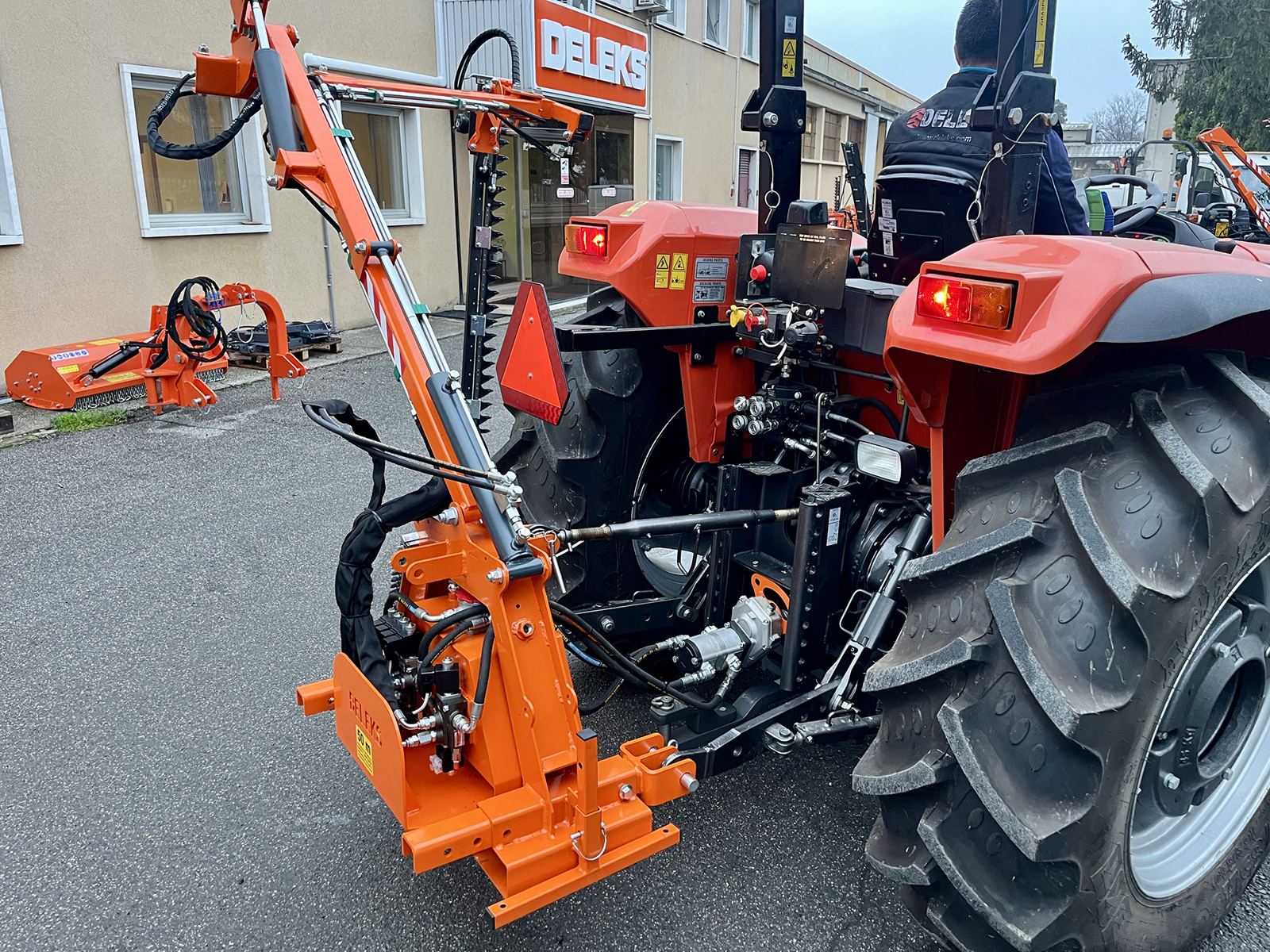

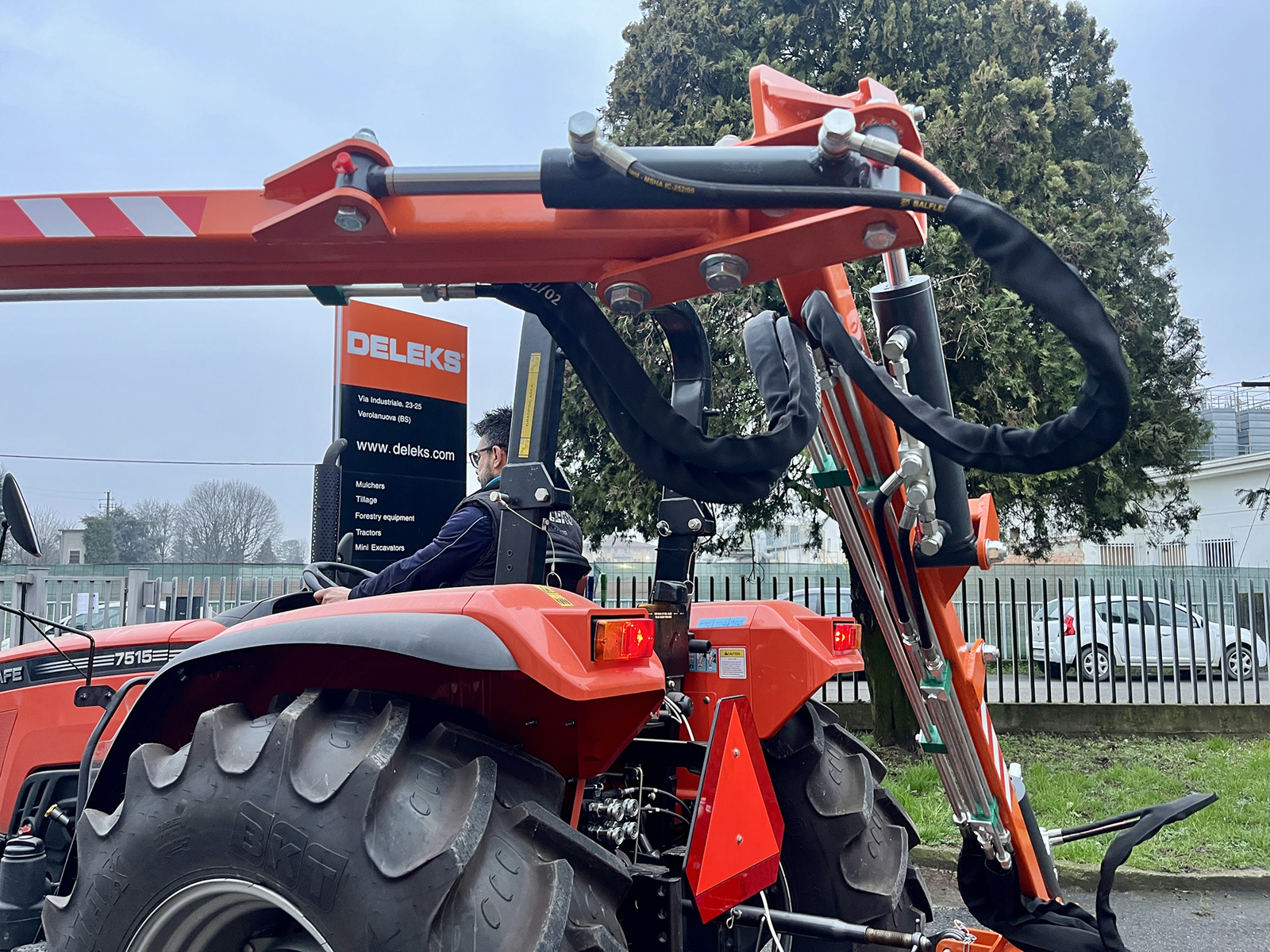

Independent hydraulic system and controls

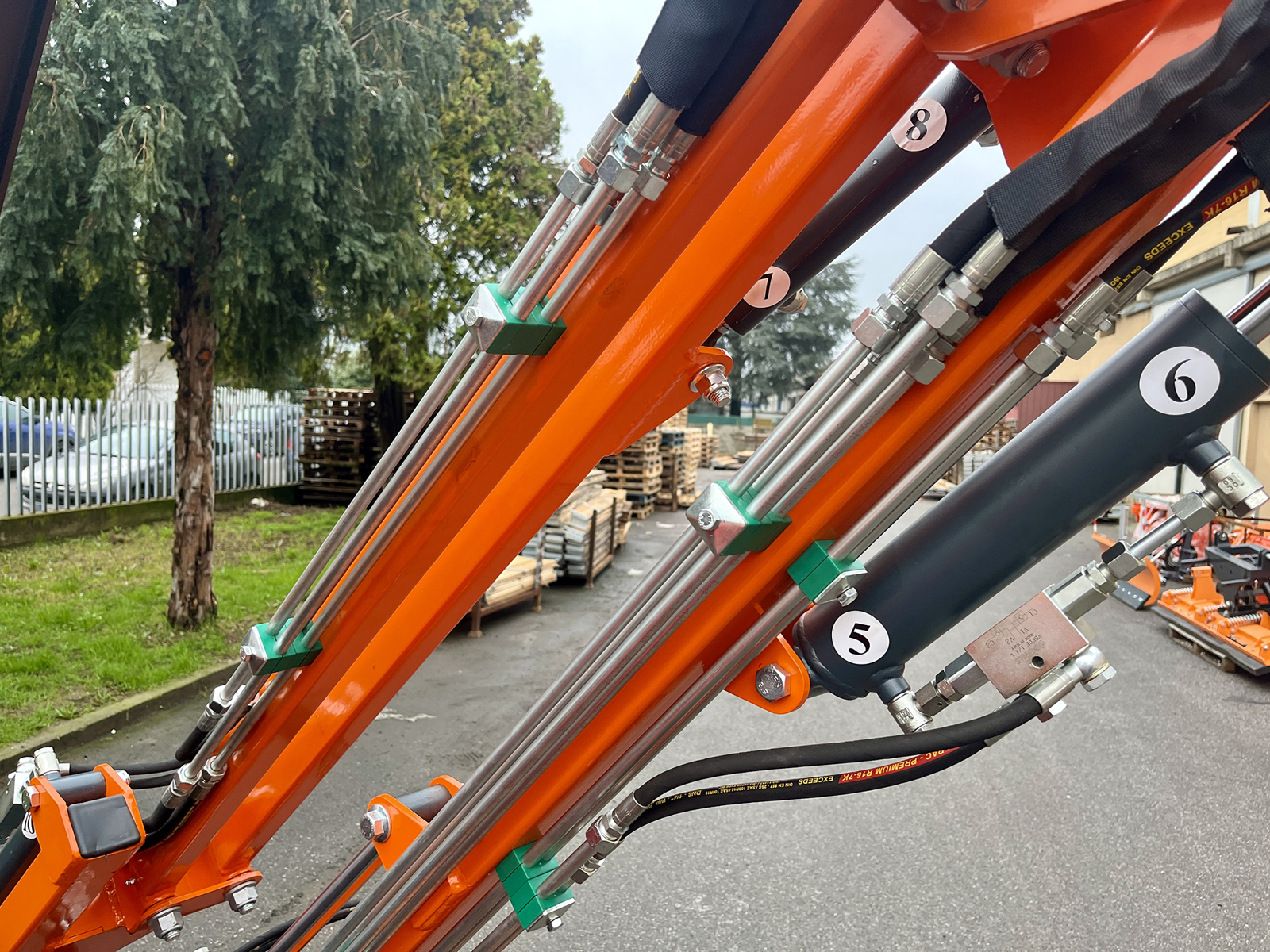

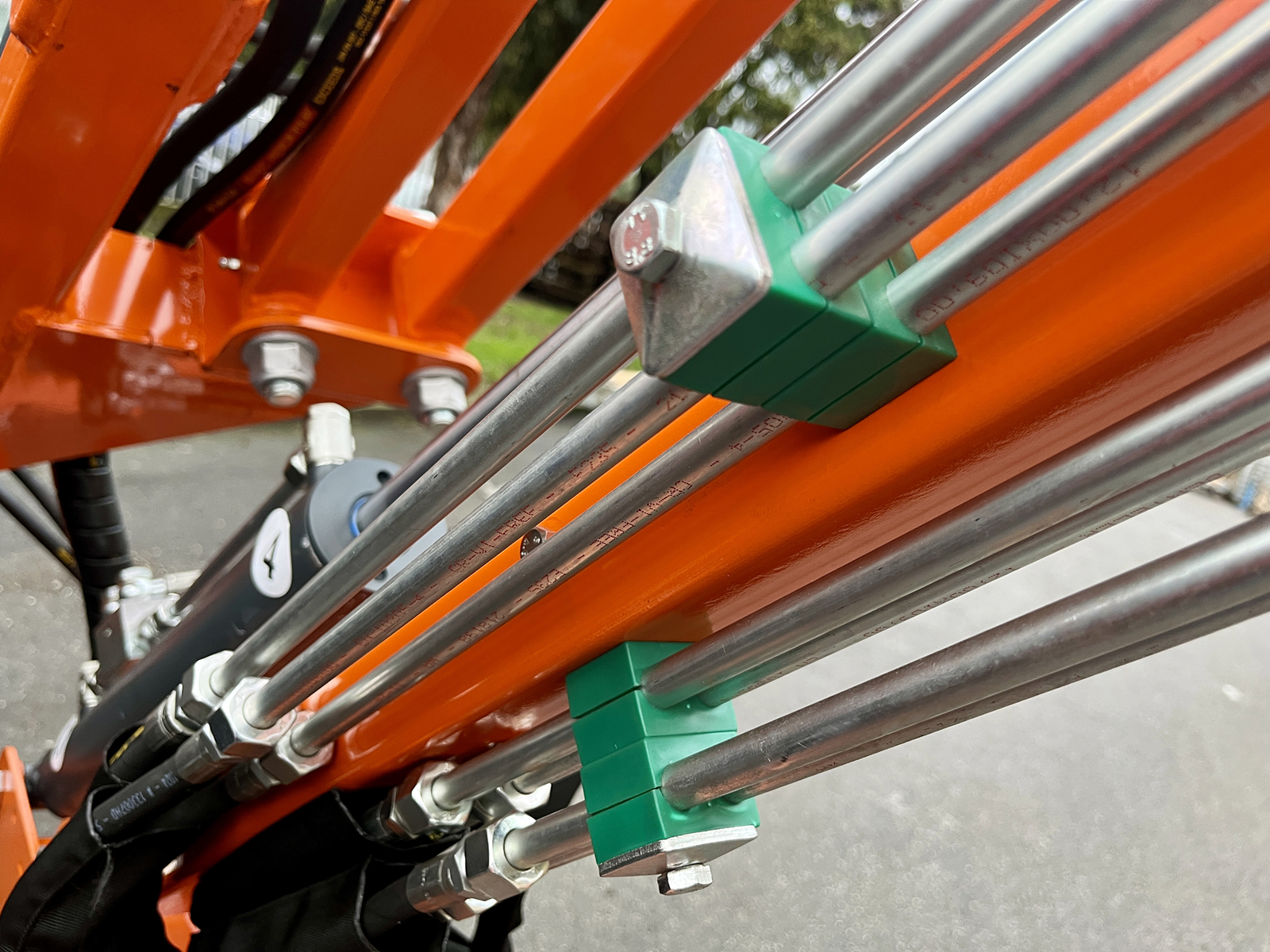

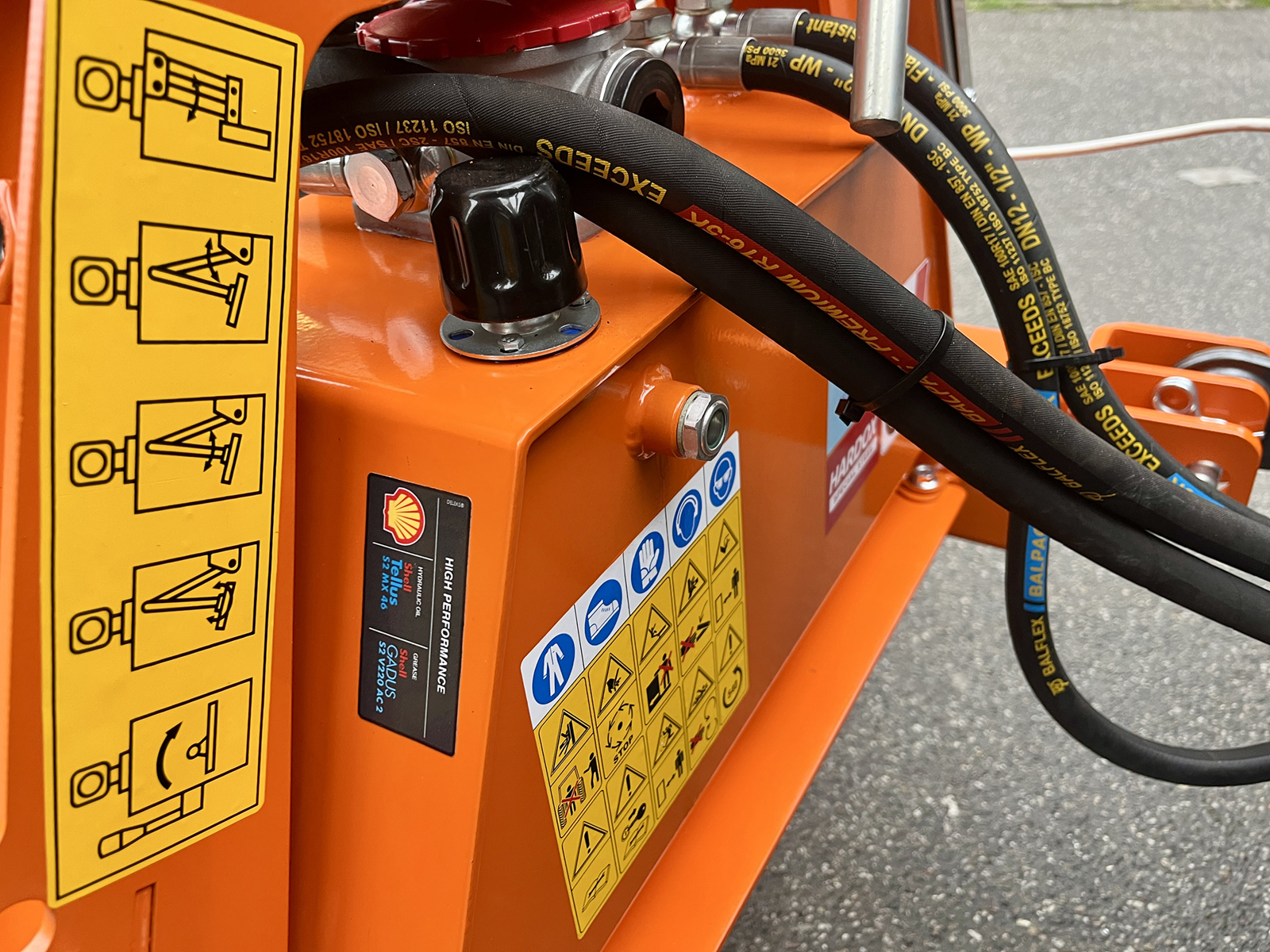

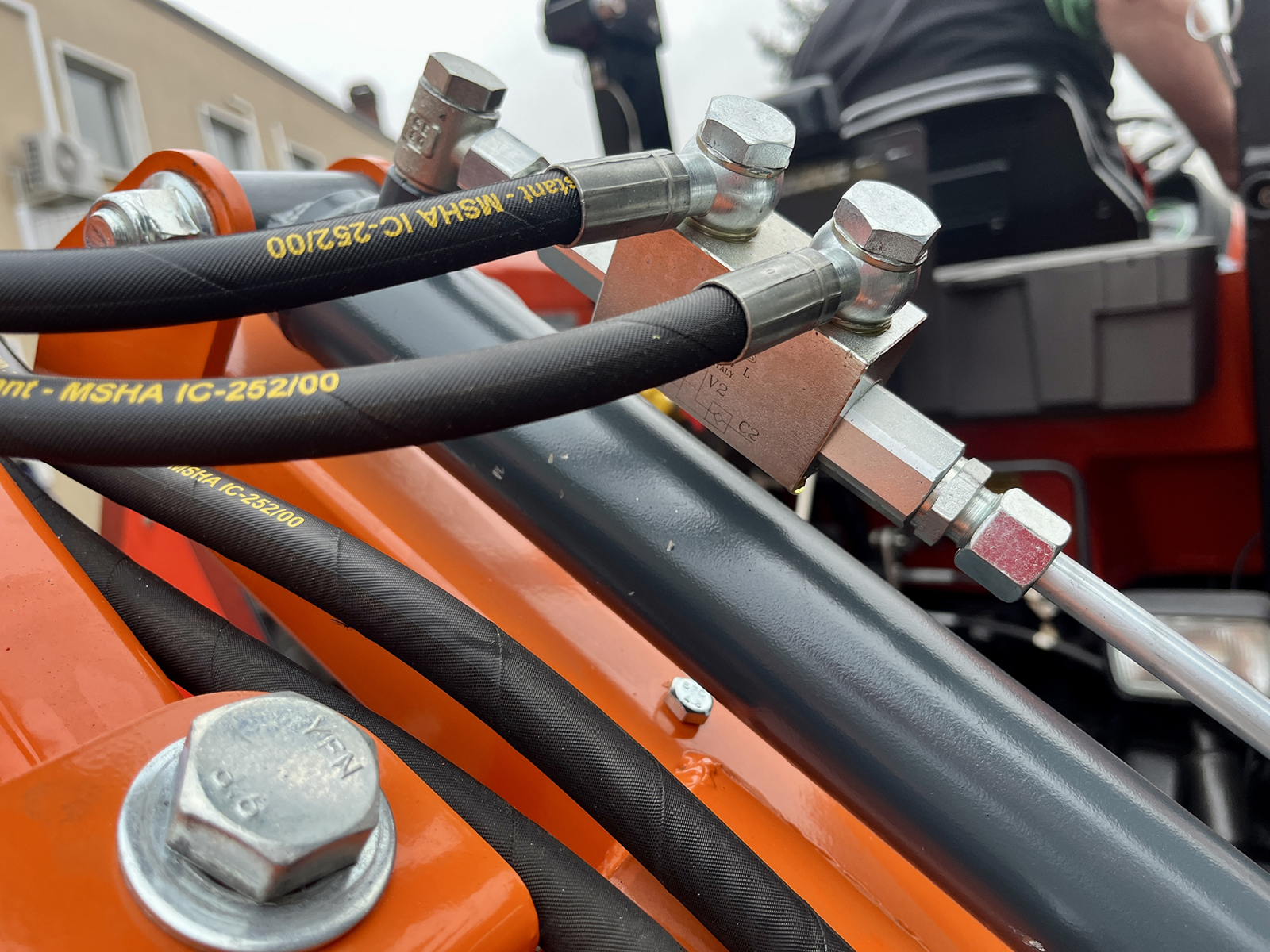

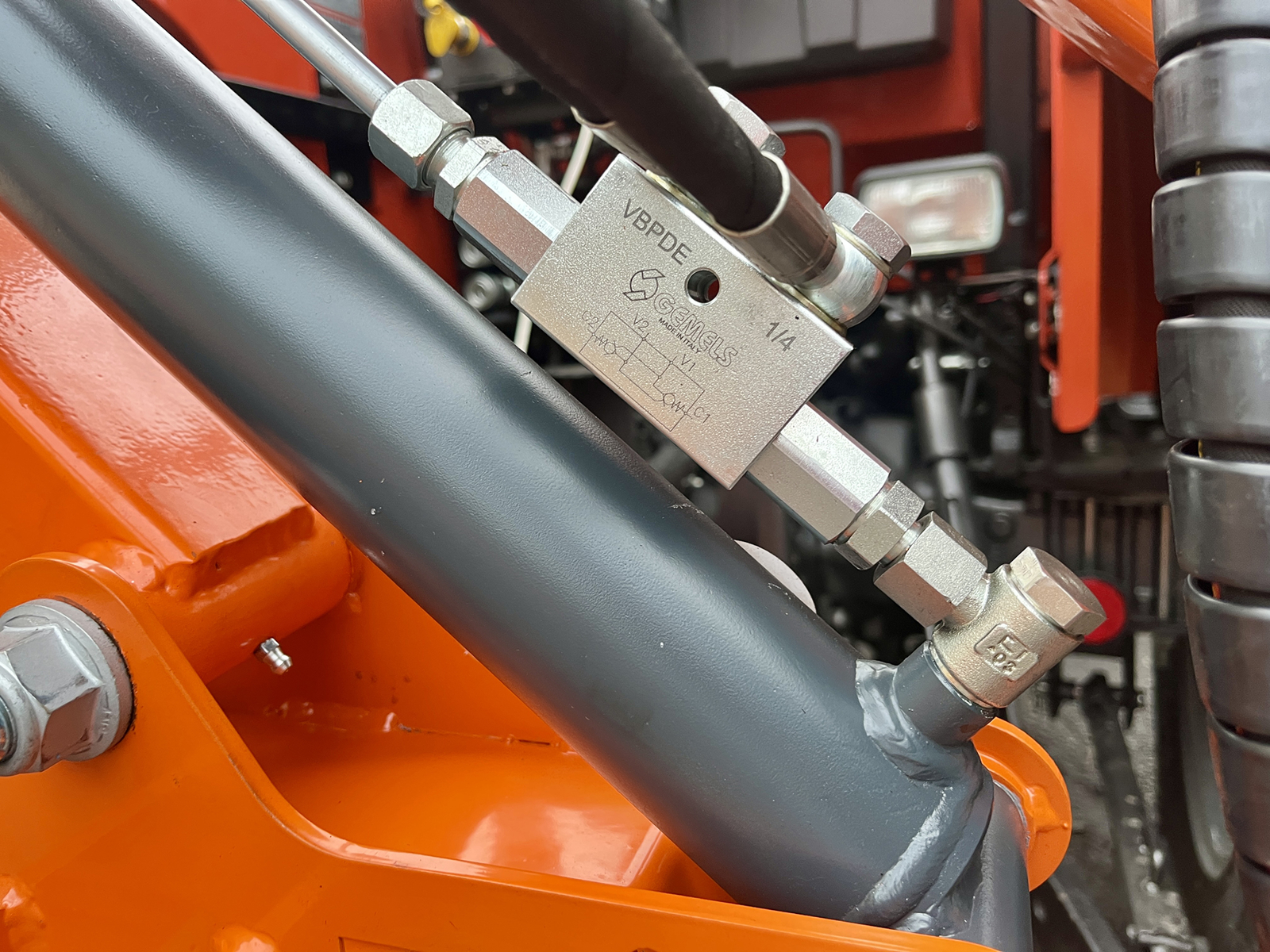

The hydraulic system is independent of the tractor: the tandem pump, mounted on the PTO, lets you move the arm while the bar is cutting, without using the tractor's spool valves. The 20-litre (4.4 UK gal) tank arrives filled to level. The remote lever control, with one more lever than the FALCO for the forward-reach ram, is connected by 2.5 m (8.2 ft) flexible hoses and mounts next to the driver's seat; the hoses to the pump are 0.9 m (3 ft) long. Working pressure from 120 to 150 bar (1,740 to 2,180 psi), flow from 18 to 22 l/min (4 to 4.8 UK gal/min).

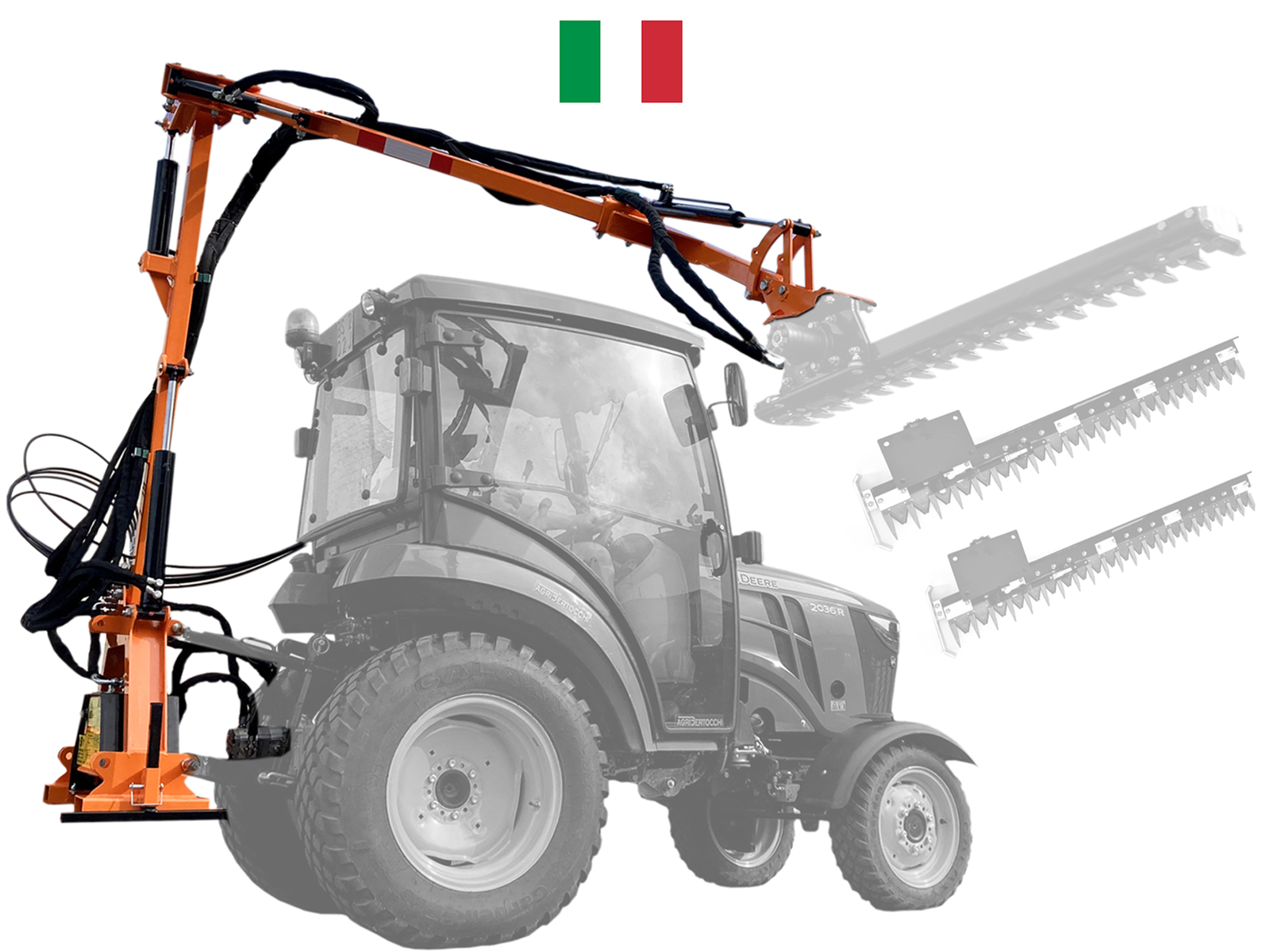

Hedge cutter bars: HR-S or HRD

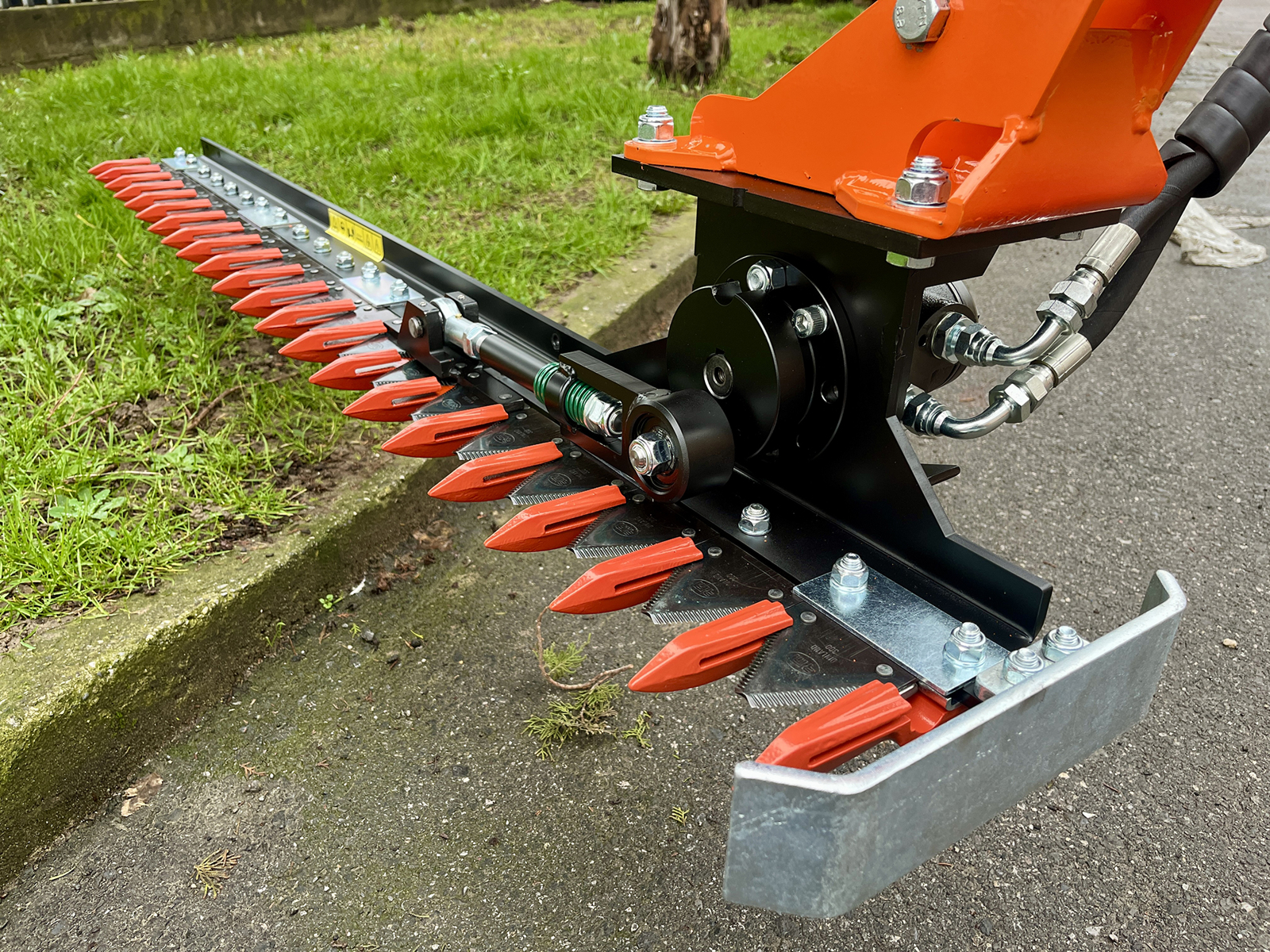

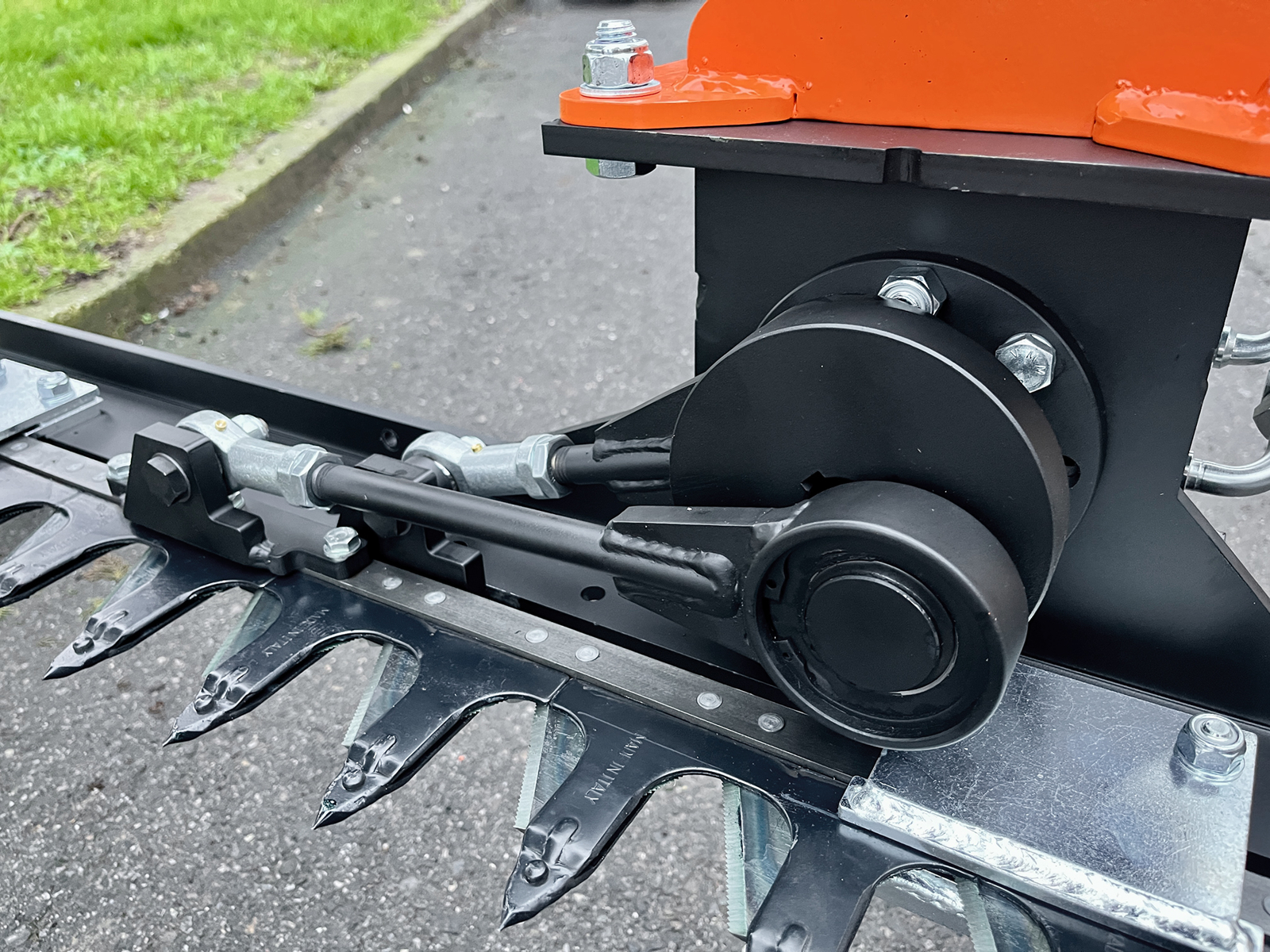

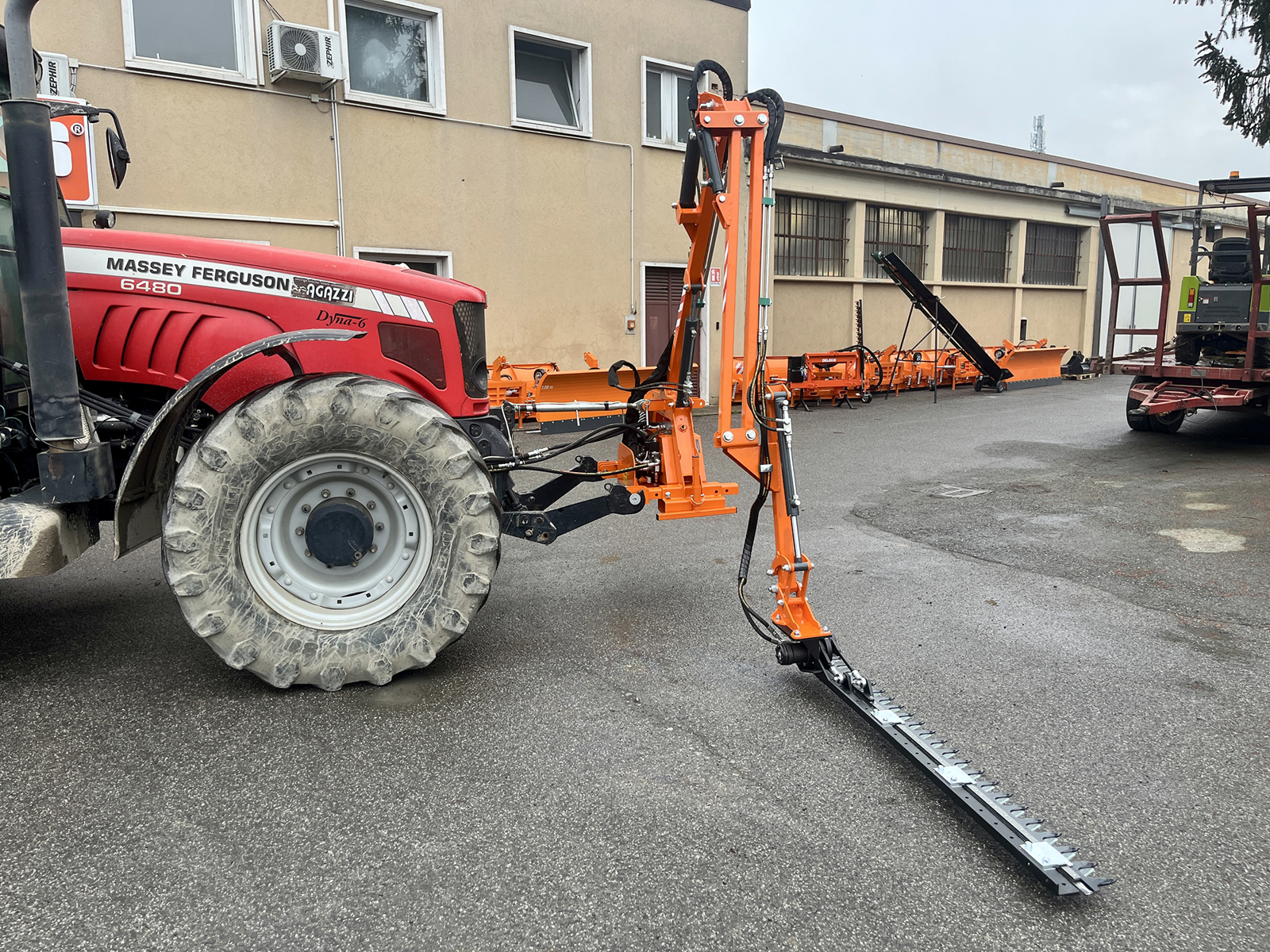

It is supplied as the base unit only; the bar is chosen as an option, 130, 160 or 180 cm. The HR-S bar is for hedges and tree branches up to 3 cm (1.2 in); the HRD double-blade bar is for grass and for precise work on hedges and trees with thin branches, up to 2 cm (0.8 in). The blades are a standard type, easy to find on the market or from DELEKS.

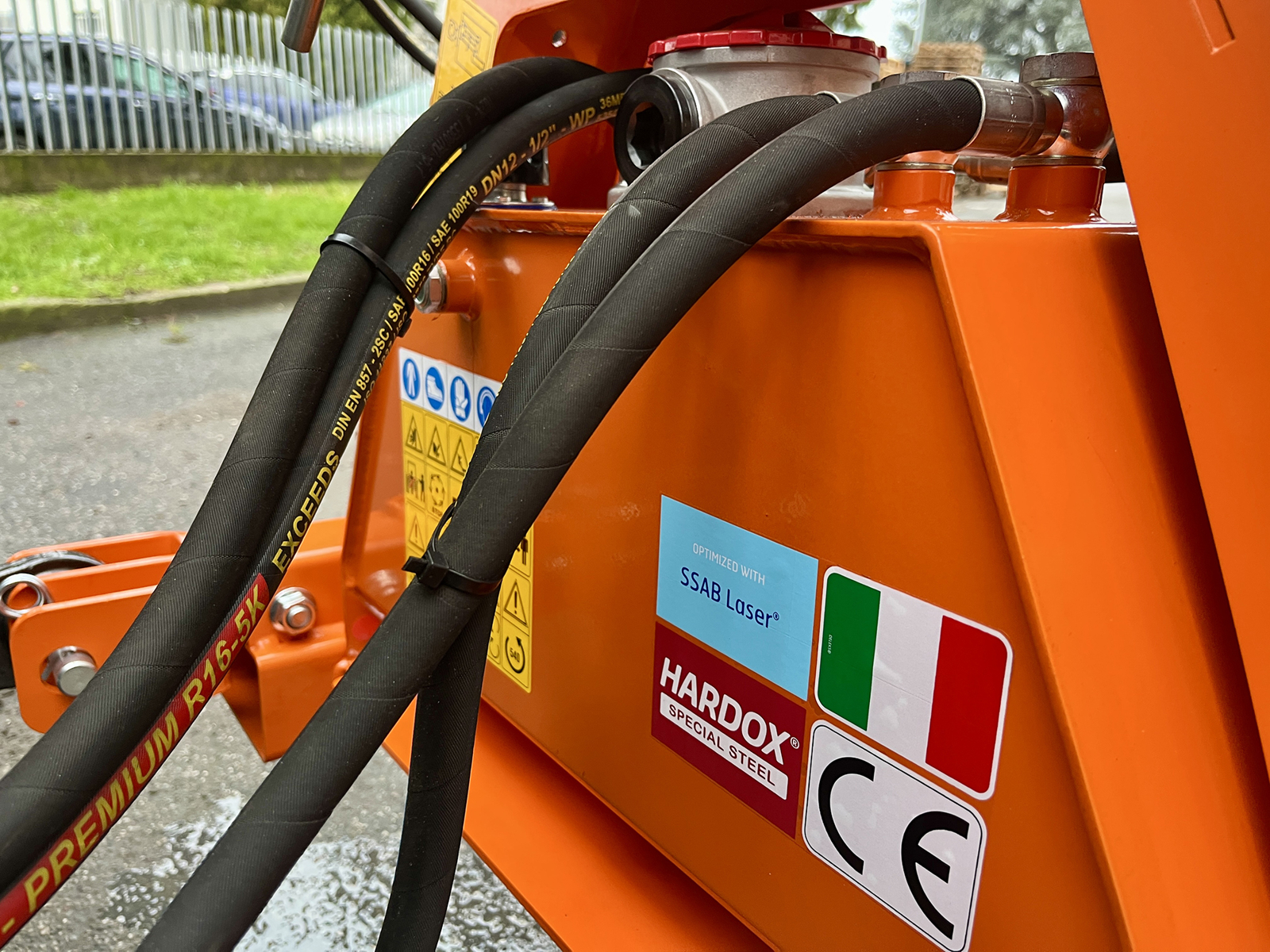

SSAB steel frame, Made in Italy
The frame is made entirely of Swedish SSAB steel, with HARDOX supports. The FALCO-H is Made in Italy, built by DELEKS.
Dimensions, weight and delivery

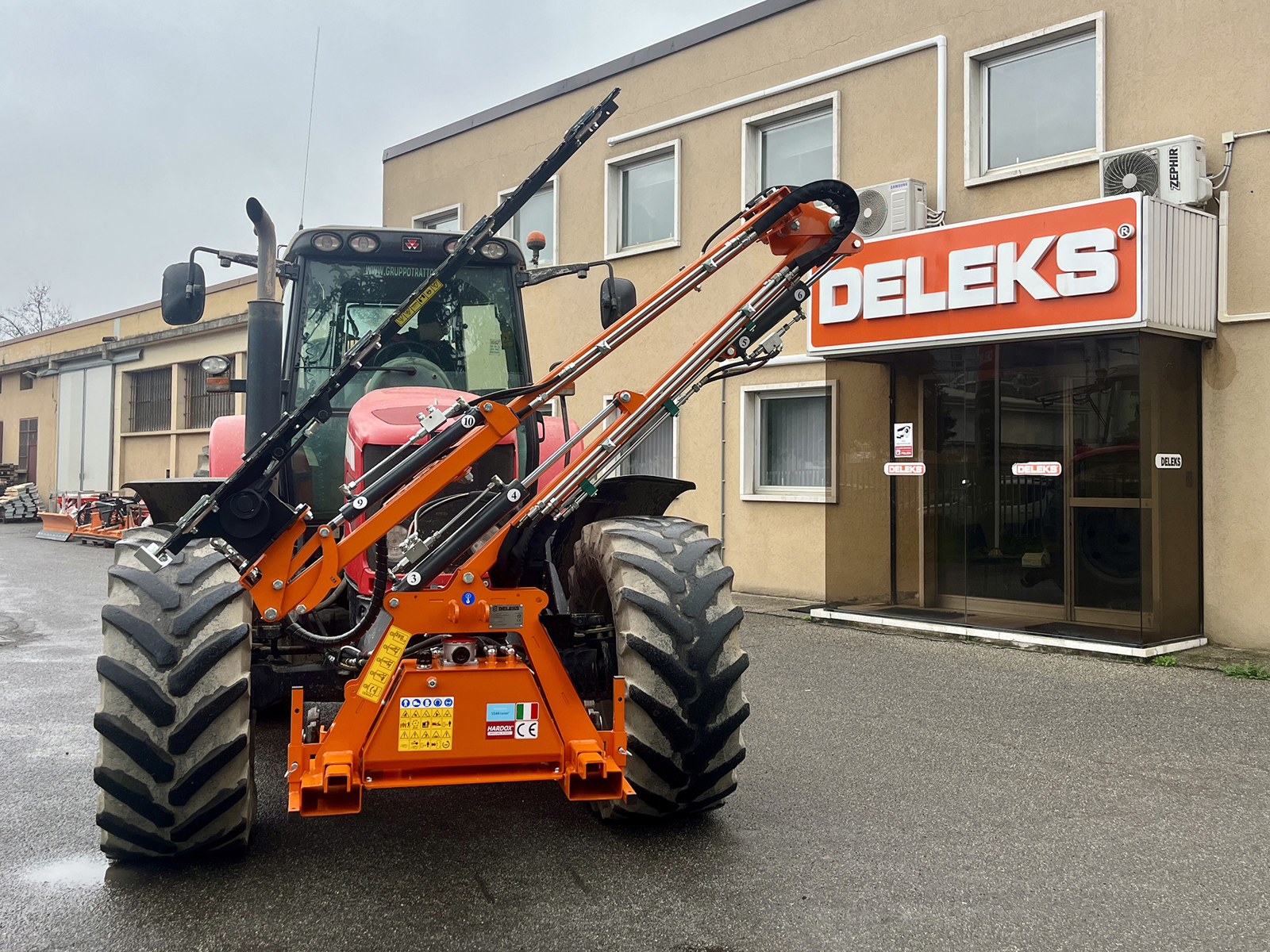

Folded: width 1,400 mm (55.1 in), length 400 mm (15.7 in), height 2,300 mm (90.6 in); weight 230 kg (507 lb) without the bar. It ships in a package of 150 × 80 × 200 cm (59 × 31 × 79 in), 272 kg (600 lb) gross and 2.40 m³, with free delivery within the EU. It complies with the EC Machinery Directive and carries a 2-year warranty.

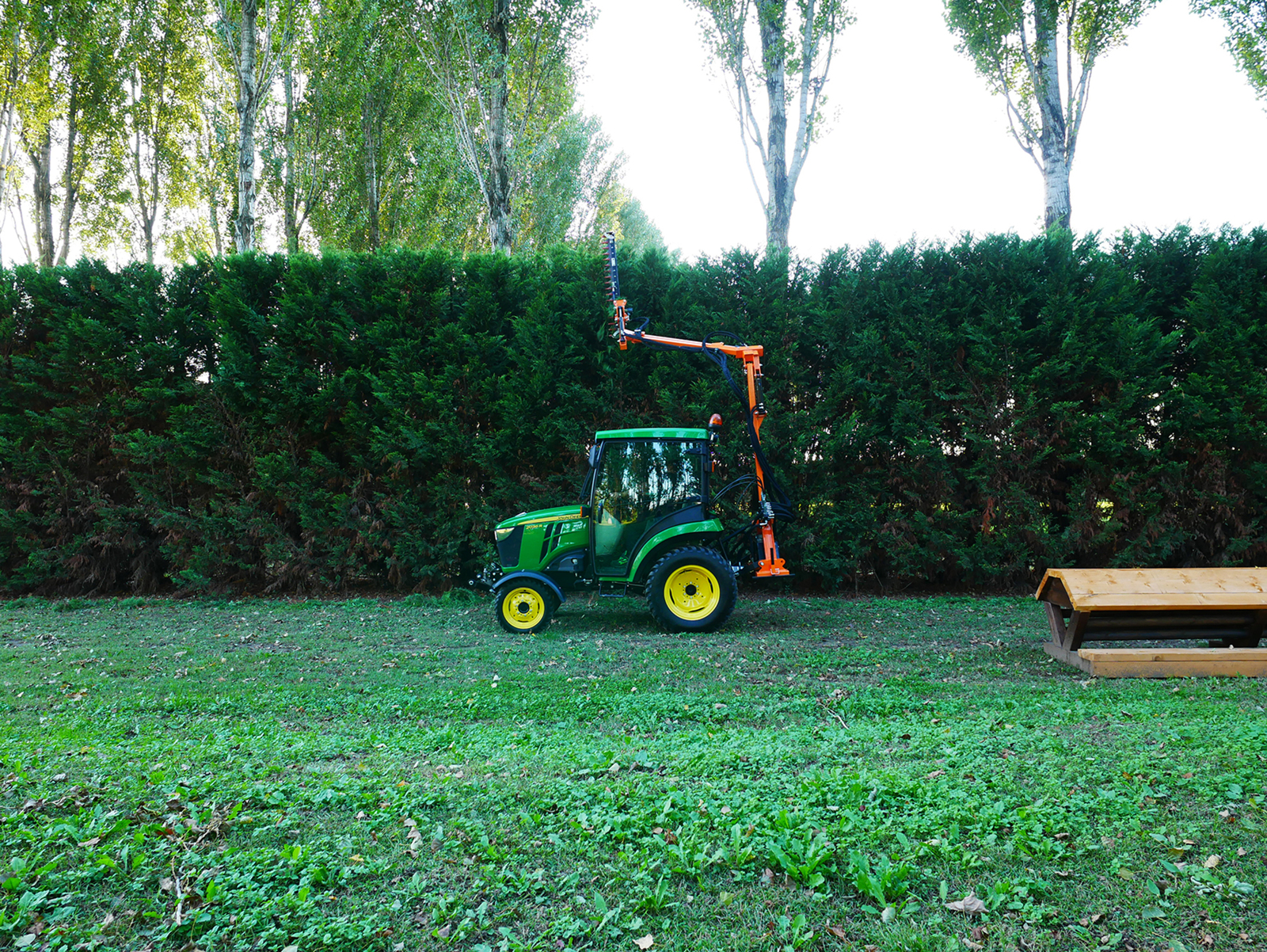

Where it works
- Boundary hedges and windbreaks: trimming the sides and the top
- Drives, farm tracks and headlands: branches overhanging the way
- Field edges, ditches and slopes: grass and light growth with the double-blade bar
- Orchards and tree lines: pruning up to 3.70 m (12.1 ft) high
- Tractors from 20 to 60 hp, including those with a front linkage
Options and spares
From the product page you choose the HR-S hedge cutter bars (HR130S, HR160S, HR180S) and the HRD double-blade bars (HRD130, HRD160, HRD180). Spares are the 10 blades (COLTELLI10HRTCA) and the 5 double fingers (5DENTIDOPPIHR) for the HR-S bars, the 10 blades (COLTELLI10HRD) and the 5 double fingers (5DENTIDOPPIHRD) for the HRD bars, plus the universal PTO adapter (RID1). Other spares are identified on the exploded diagrams with our technical service.
FAQ
Which tractor suits the FALCO-H?
Tractors from 20 to 60 hp weighing at least 800 kg (1,764 lb), with a 540 rpm PTO and a category 1 or 2 three-point linkage.
Is the bar included?
No: it is supplied as the base unit only. The HR-S hedge cutter bar or the HRD double-blade bar, 130, 160 or 180 cm, is chosen as an option.
Does it also work on the left and in front of the tractor?
Yes: the symmetrical structure and the double three-point linkage let it work on both sides and be mounted at the rear or at the front, with no changes.
How high does it reach?
Up to 3.70 m (12.1 ft) in height and 3.20 m (10.5 ft) sideways, with the 3.5 m (11.5 ft) arm.
Do I need a hydraulic spool valve on the tractor?
No: the arm has its own pump, driven by the PTO, and its own control valve; all it needs is a 540 rpm PTO and a three-point linkage.
How is it controlled?

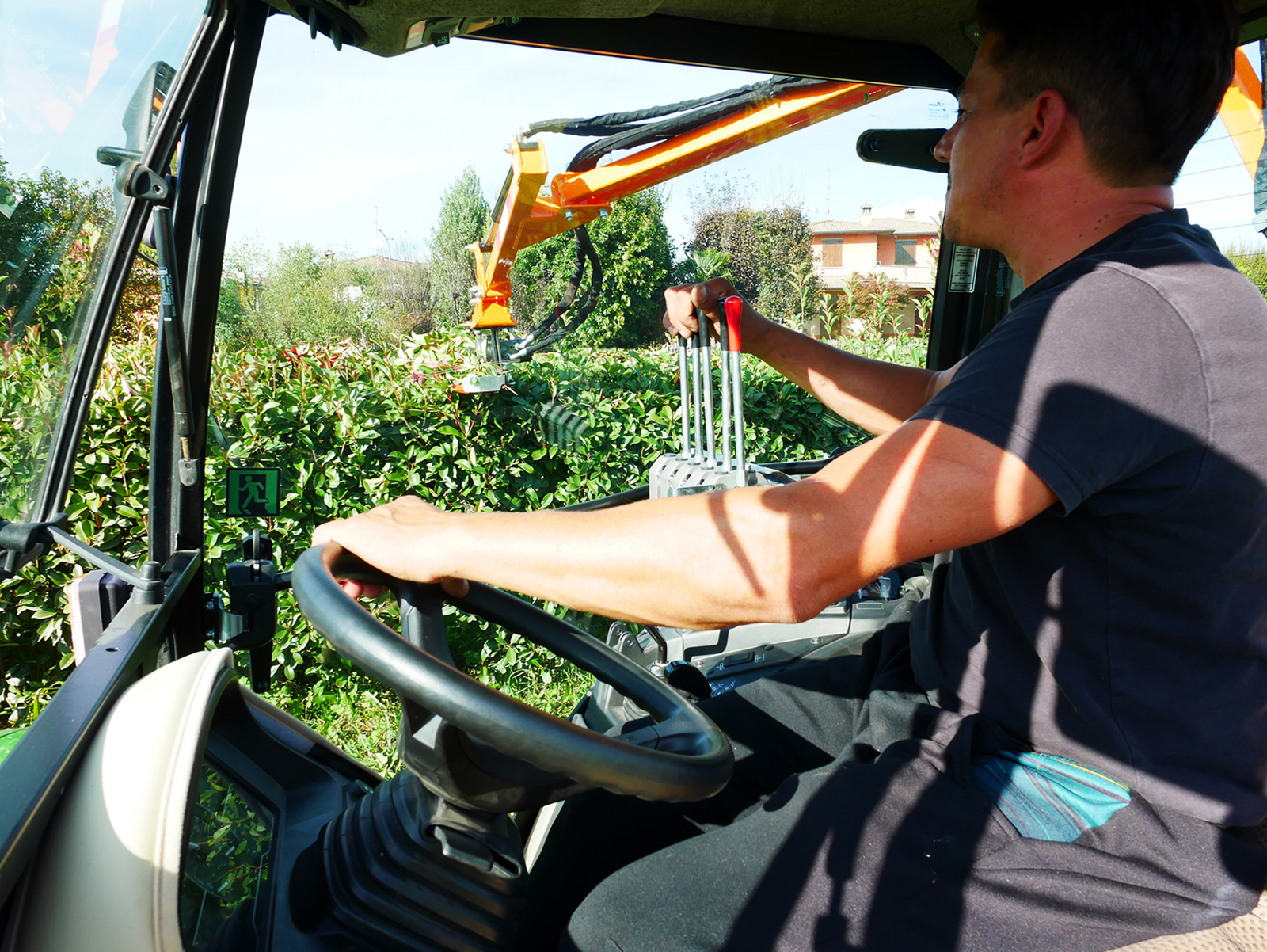

With a remote lever control, connected by 2.5 m (8.2 ft) flexible hoses, which mounts next to the driver's seat: it has one more lever than the FALCO, for the forward-reach ram.
What size branches does it cut?
With the HR-S bar, hedges and branches up to 3 cm (1.2 in); with the HRD double-blade bar, grass and thin branches up to 2 cm (0.8 in).
What is the difference between the FALCO and the FALCO-H?

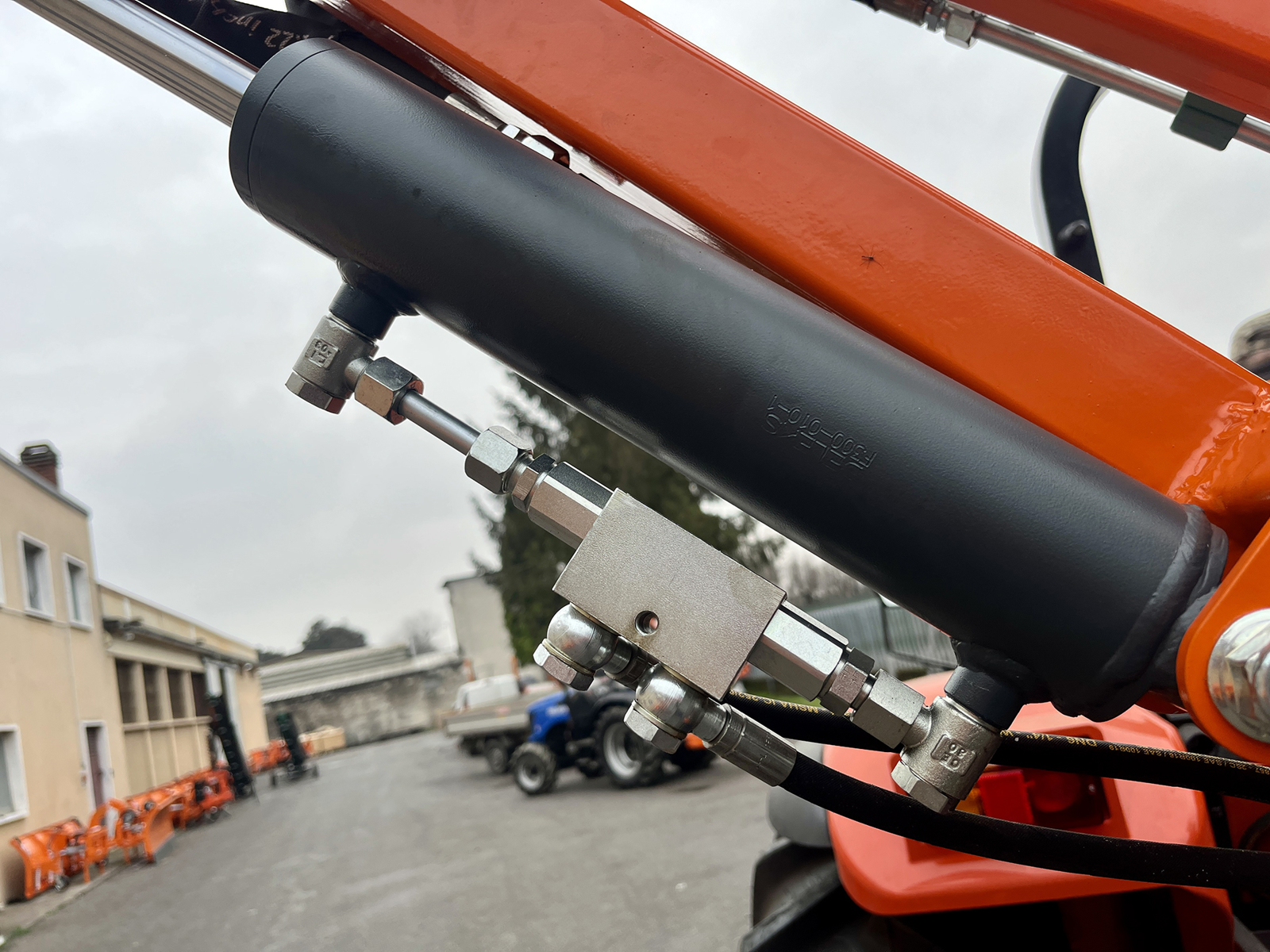

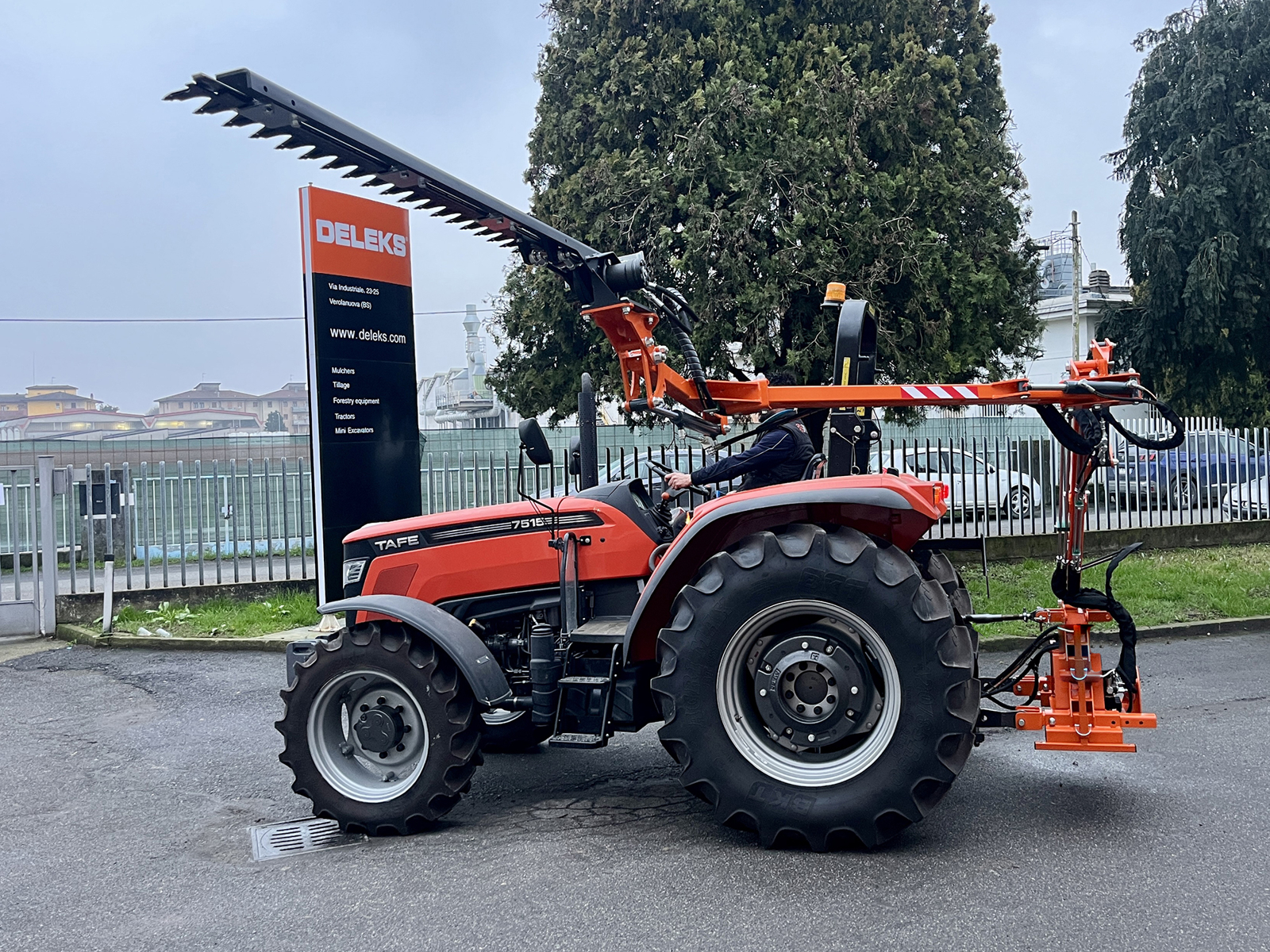

The FALCO-H has an extra ram, with its own control lever, that carries the second half of the arm forward: the cutting unit works beside the driver. It weighs 230 kg (507 lb); the FALCO weighs 210 kg (463 lb). Hydraulic system and bars are the same.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: blades, cutter bar knives, fingers, bearings, hydraulic hoses, pump and arm components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right arm and cutting attachments for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Overall width | 1400.0 mm (closed) |
| Weight | 230.0 Kg |
| Overall height | 2300.0 mm |
| Tractor Power Range | 20-60 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Spacing between the 2 lower points | 590.0 - 810.0 mm |
| Overall length | 400.0 mm |
| Transmission: Drive method | Hydraulic |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Working pressure | 120 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min |
| Hydraulic Hoses | WP 400 Bar |
| Gross shipping weight | 272 kg |
| Package volume | 2.40 m3 |
| Packing sizes | 1500.0*800.0*2000.0 mm |
