Hydraulic 5-disc saw head 160 cm (63 in) CUTTER-5 with piston motor, circular saw hedge cutter for excavators and hedge cutter arms

Not available  Notify me
Code CUTTER5 - EAN 8057724864229
1.750,00€VAT incl.
or 3 installments of 583,33 €
Free shipping
Loading...
1.750,00€VAT incl.
or 3 installments of 583,33 €
Free shipping
View all details.

reviews

1.750,00€VAT incl.

DETAILS

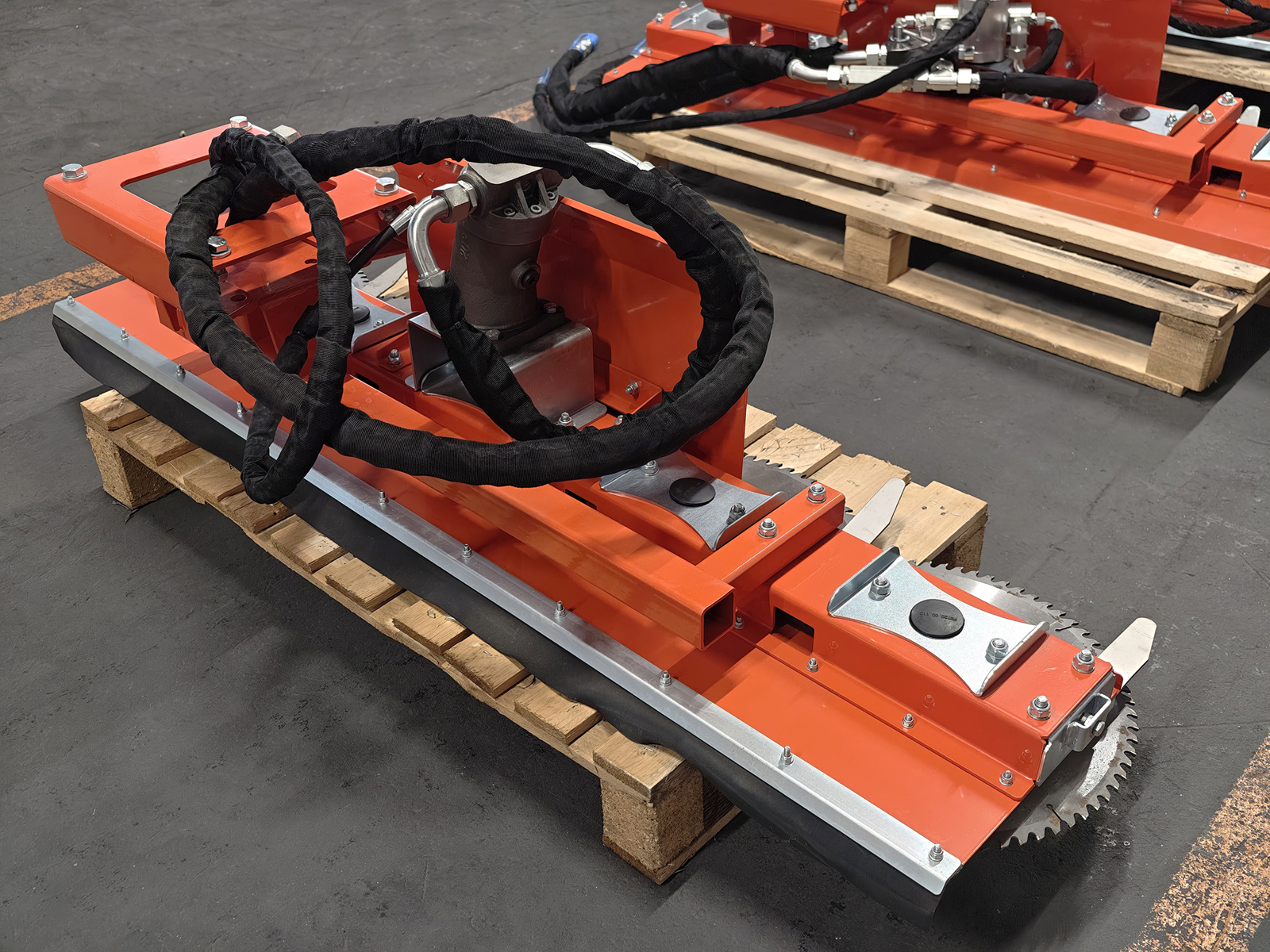

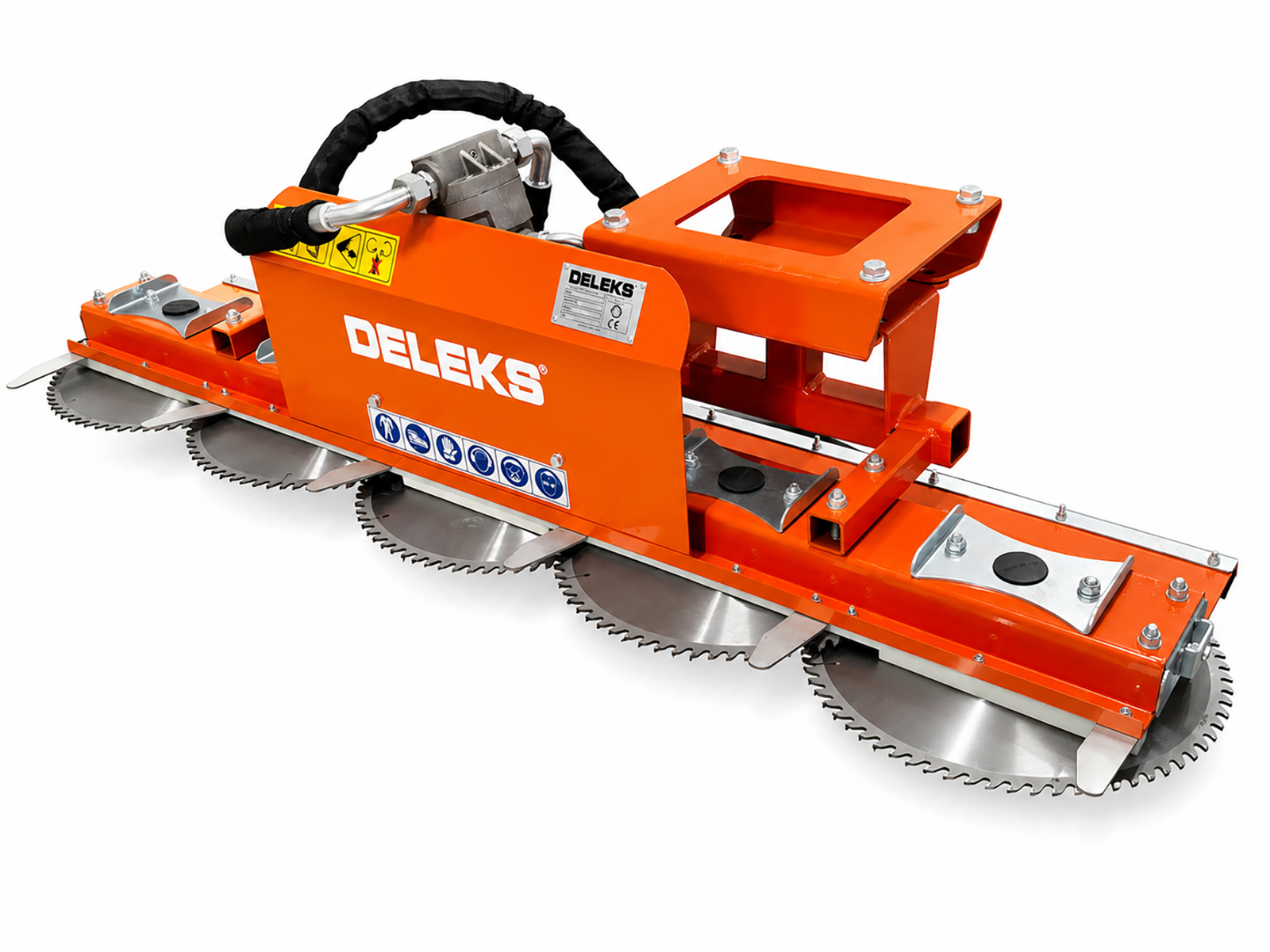

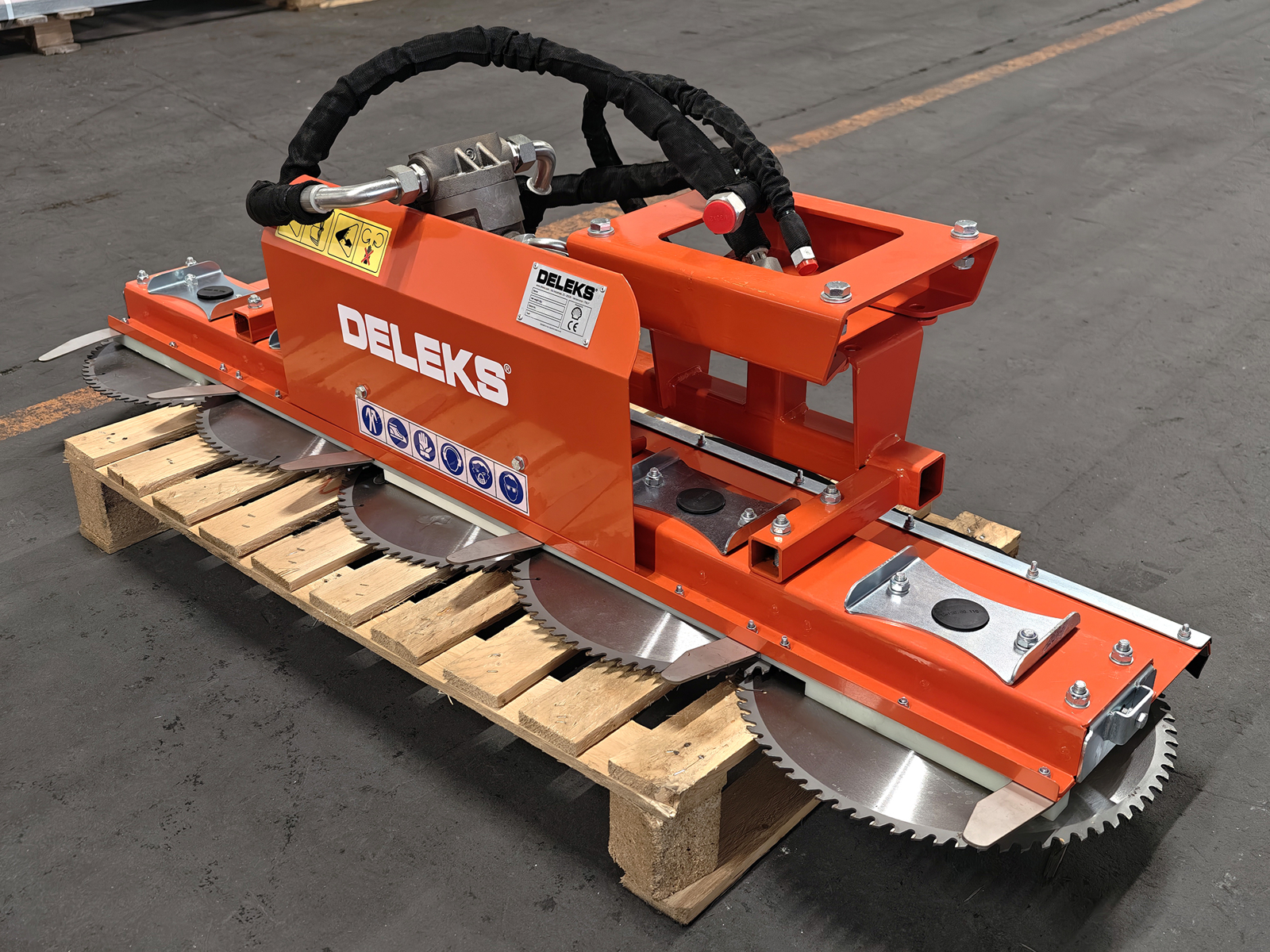

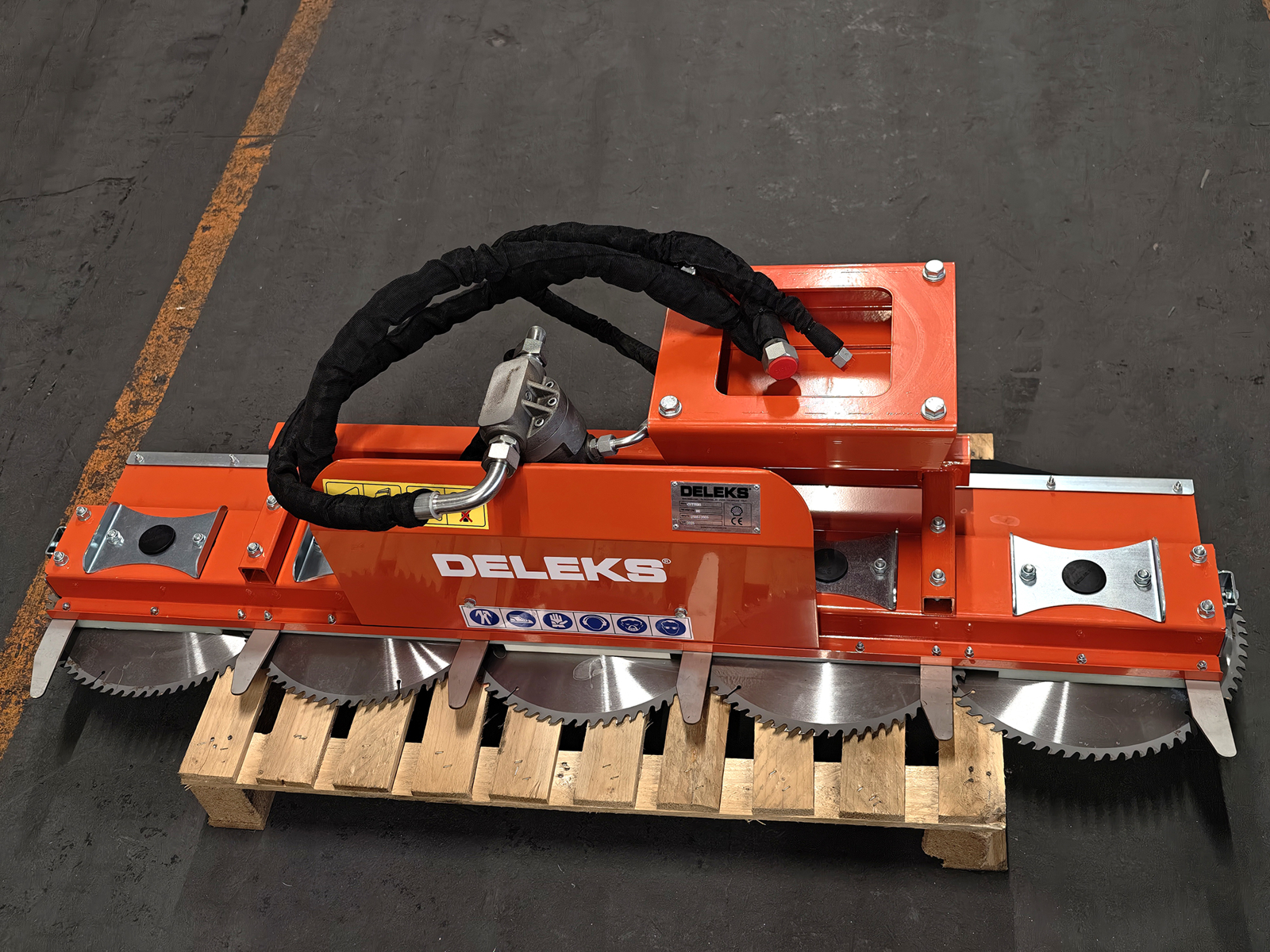

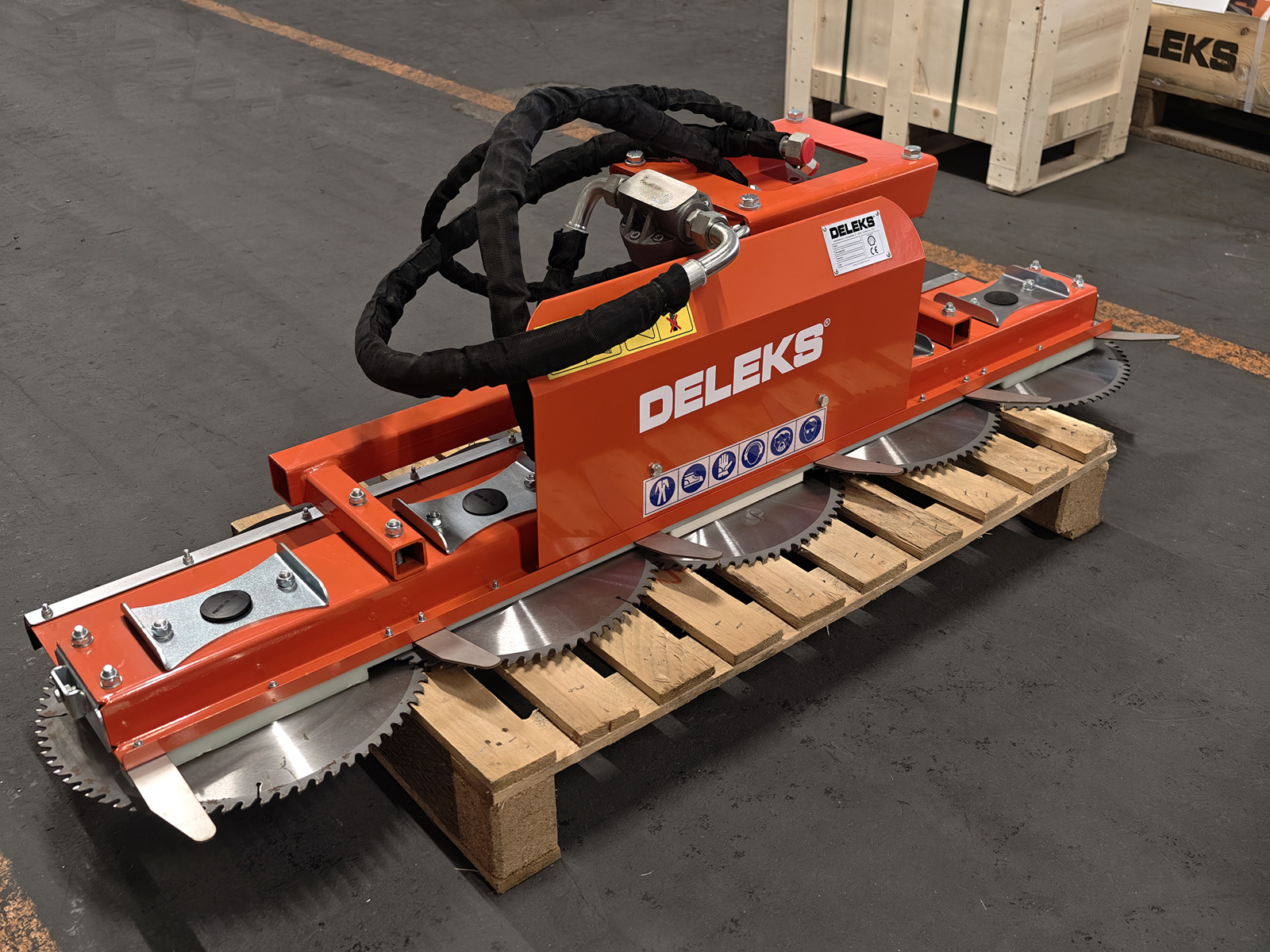

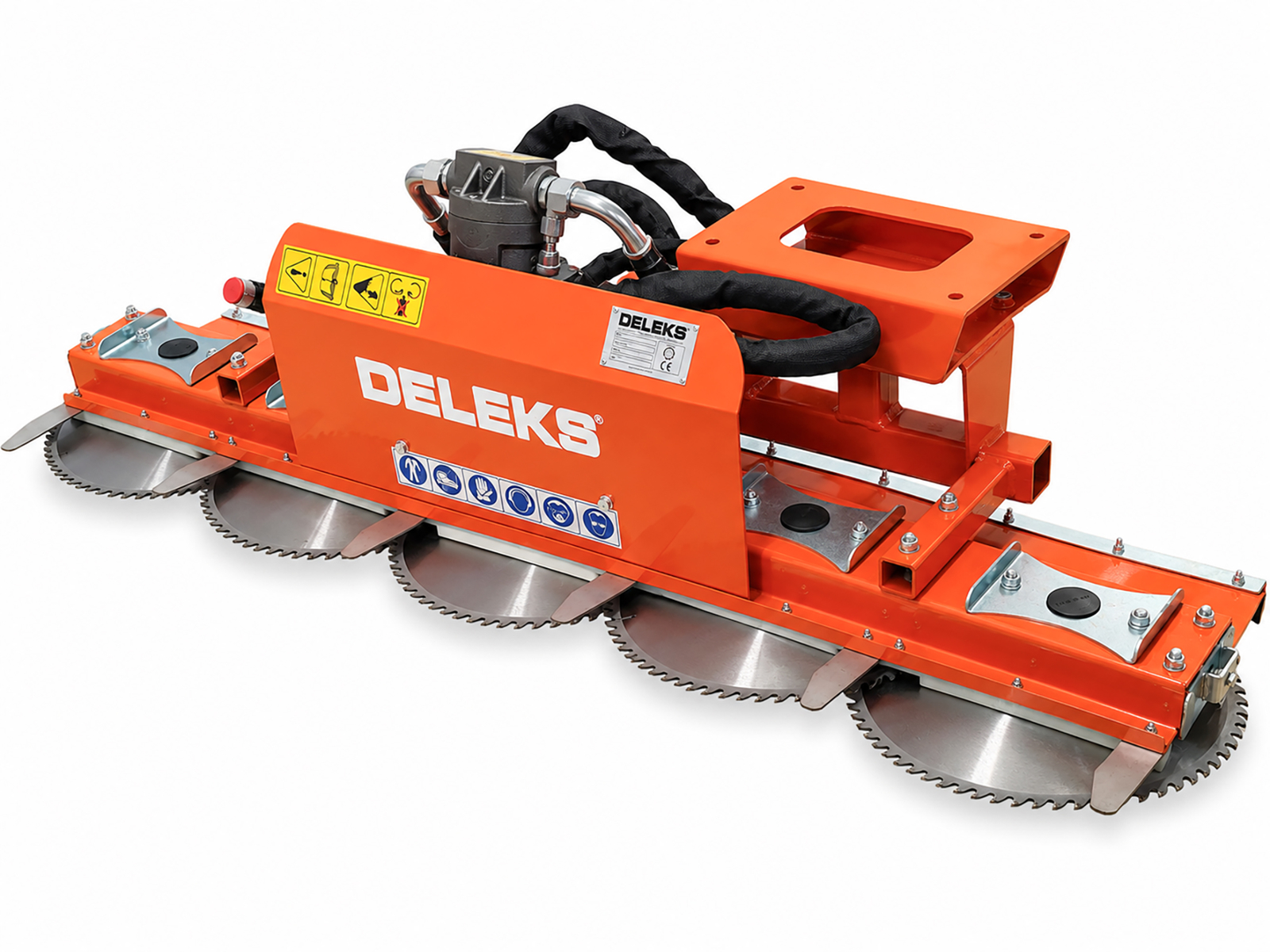

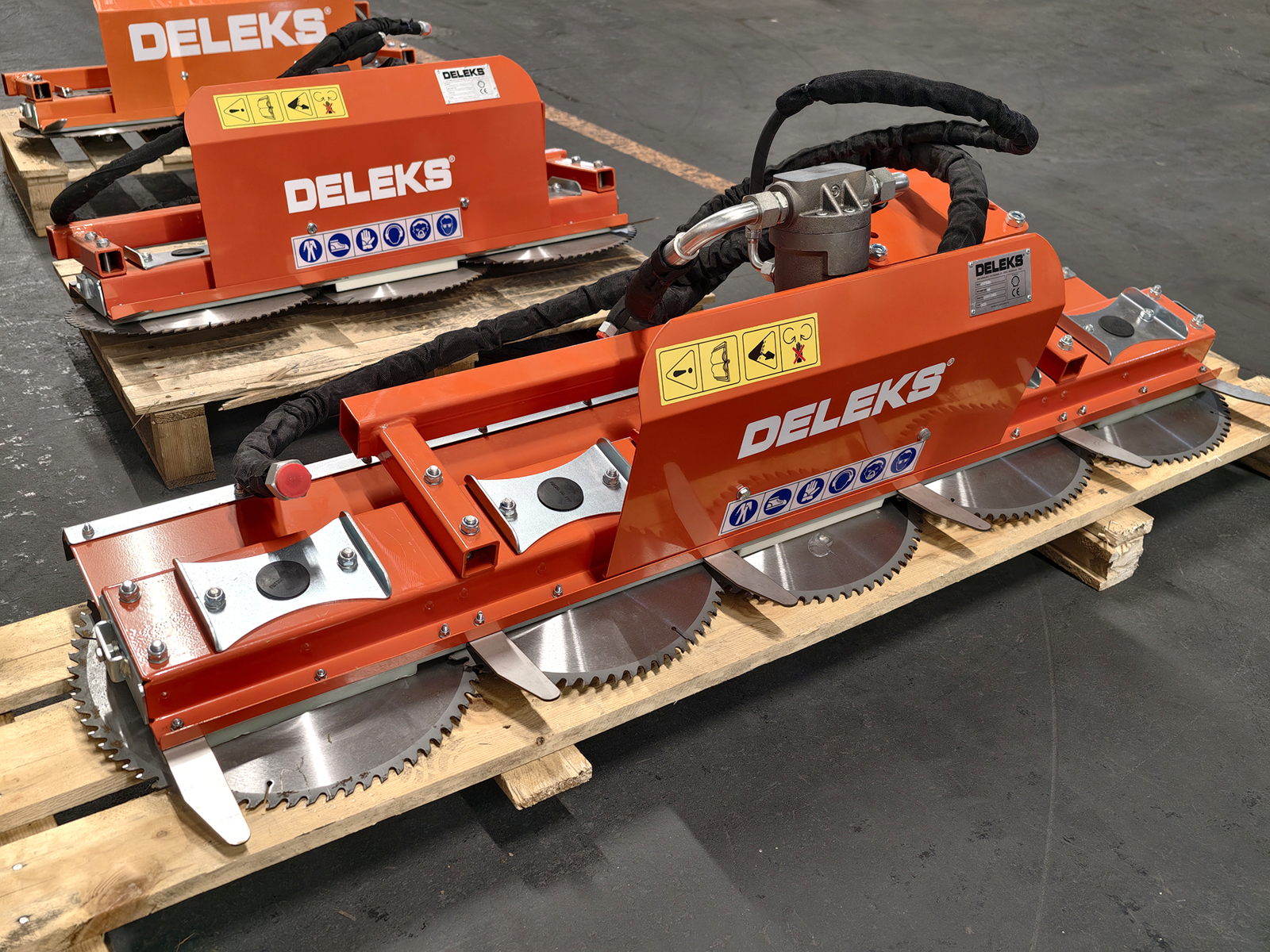

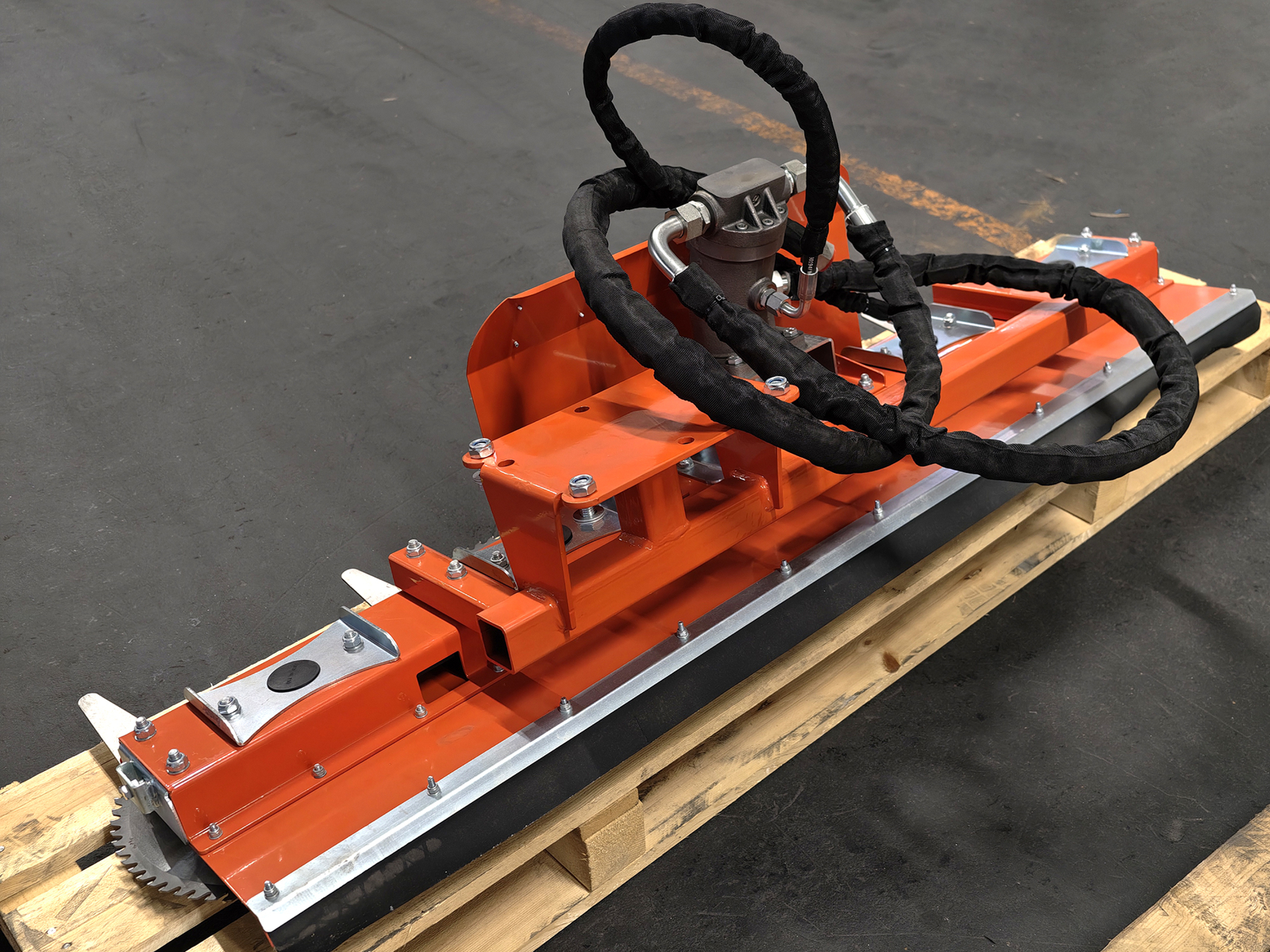

Hydraulic 5-disc saw head with piston motor and a 160 cm (63 in) cut, the DELEKS® CUTTER-5: a circular saw hedge cutter for excavators and hedge cutter arms that cuts woody hedges and branches up to about 9 cm (3.5 in) thick. The 5 discs of 400 mm (15.7 in) have 72 teeth each, with tungsten-carbide tips, for a fast, clean cut without splitting when pruning hedges and tree lines, along road verges, banks and ditches, in orchards and vineyards. The piston hydraulic motor of 23 cc per revolution, bidirectional and with a case drain, has more torque and better efficiency than an orbital motor and keeps up its performance under load: it drives the discs through 4 belts and runs on 70-90 l/min (15.4-19.8 UK gal/min) of oil at 140 to 180 bar (2,030 to 2,610 psi). It weighs 86 kg (190 lb). It is certified by ECO Certificazioni, with a 2-year warranty and free delivery within the EU.


Which machines it fits

The CUTTER-5 fits excavators with an auxiliary hydraulic line and tractor hedge cutter arms. Among the DELEKS® mini diggers and mini excavators, it fits the S280 and the S380: a case drain hose has to be fitted on the excavator, a service that is free of charge when the bar is bought together with the mini excavator. On a tractor a hydraulic arm is needed: the bar does not connect directly to the three-point linkage. With a 160 cm (63 in) cut it weighs 86 kg (190 lb). For circuits with less flow there is the HR-DISC-5, with a gear motor (35-50 l/min, 120-160 bar); with 3 discs and a 100 cm cut there are the HR-DISC-3 and the CUTTER3, at 60 and 58 kg.


Hydraulic connection: flow, pressure and case drain

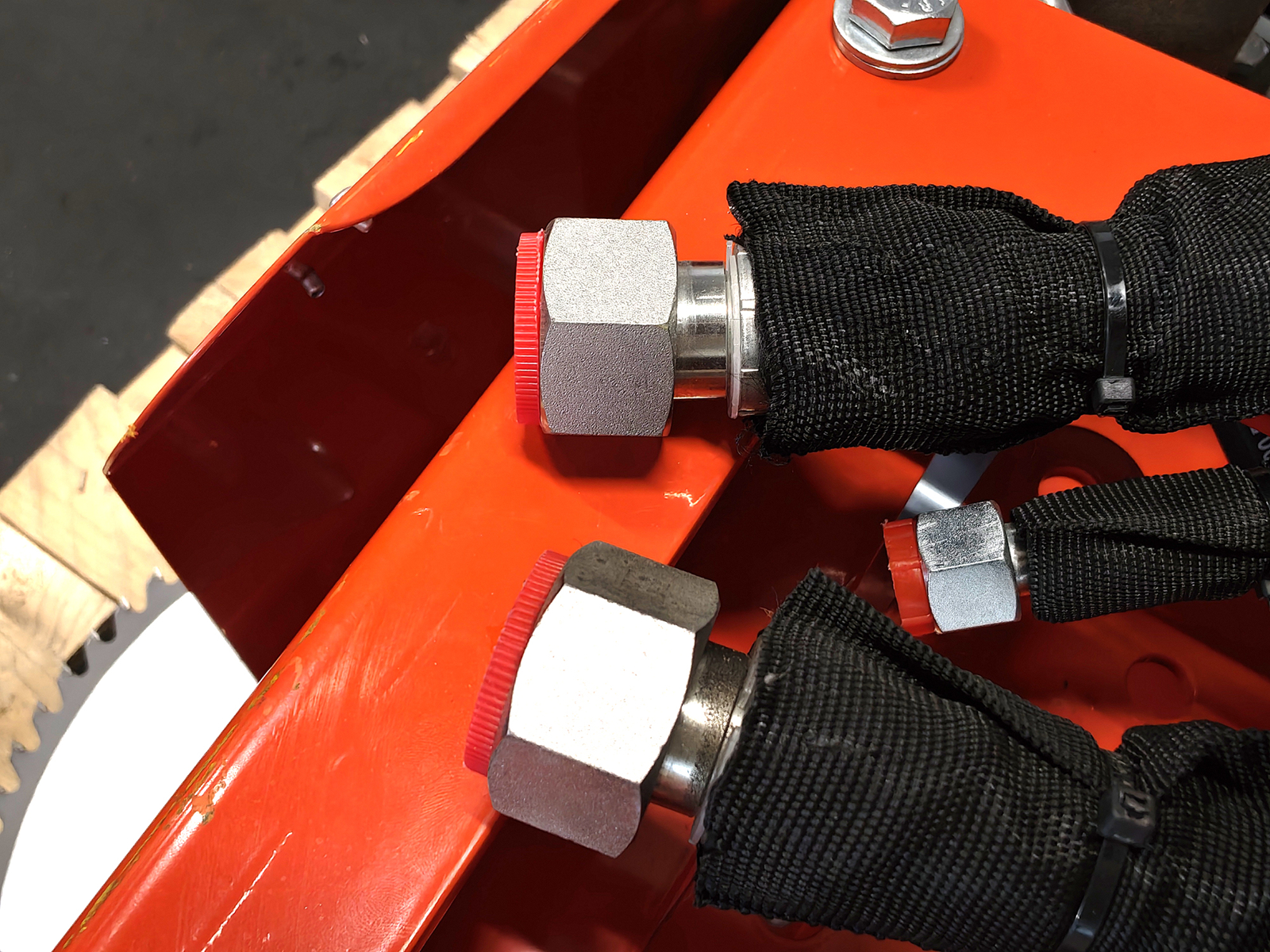

The CUTTER-5 runs on an oil flow of 70-90 l/min (15.4-19.8 UK gal/min) and a working pressure of 140 to 180 bar (2,030 to 2,610 psi); the discs turn at 500 to 2,800 rpm. The motor is bidirectional and has a case drain, to be connected straight back to the tank. The hydraulic hoses are included. The machine must have a free oil return line: above a certain flow, the oil must be able to go straight back to the tank, without pressure build-up. Before ordering, check the flow and pressure of your hydraulic circuit: if in doubt, just tell us the model of your machine.

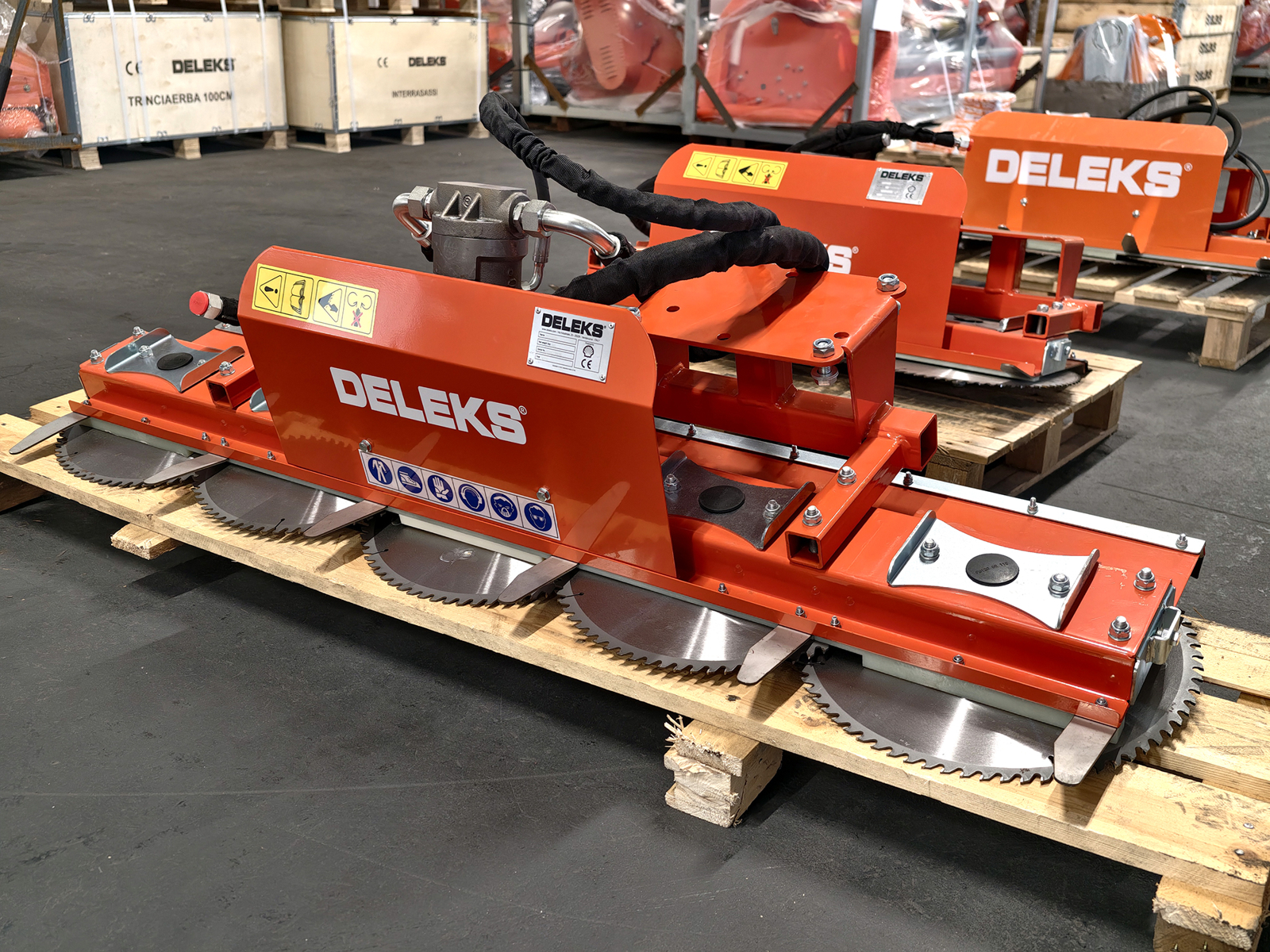

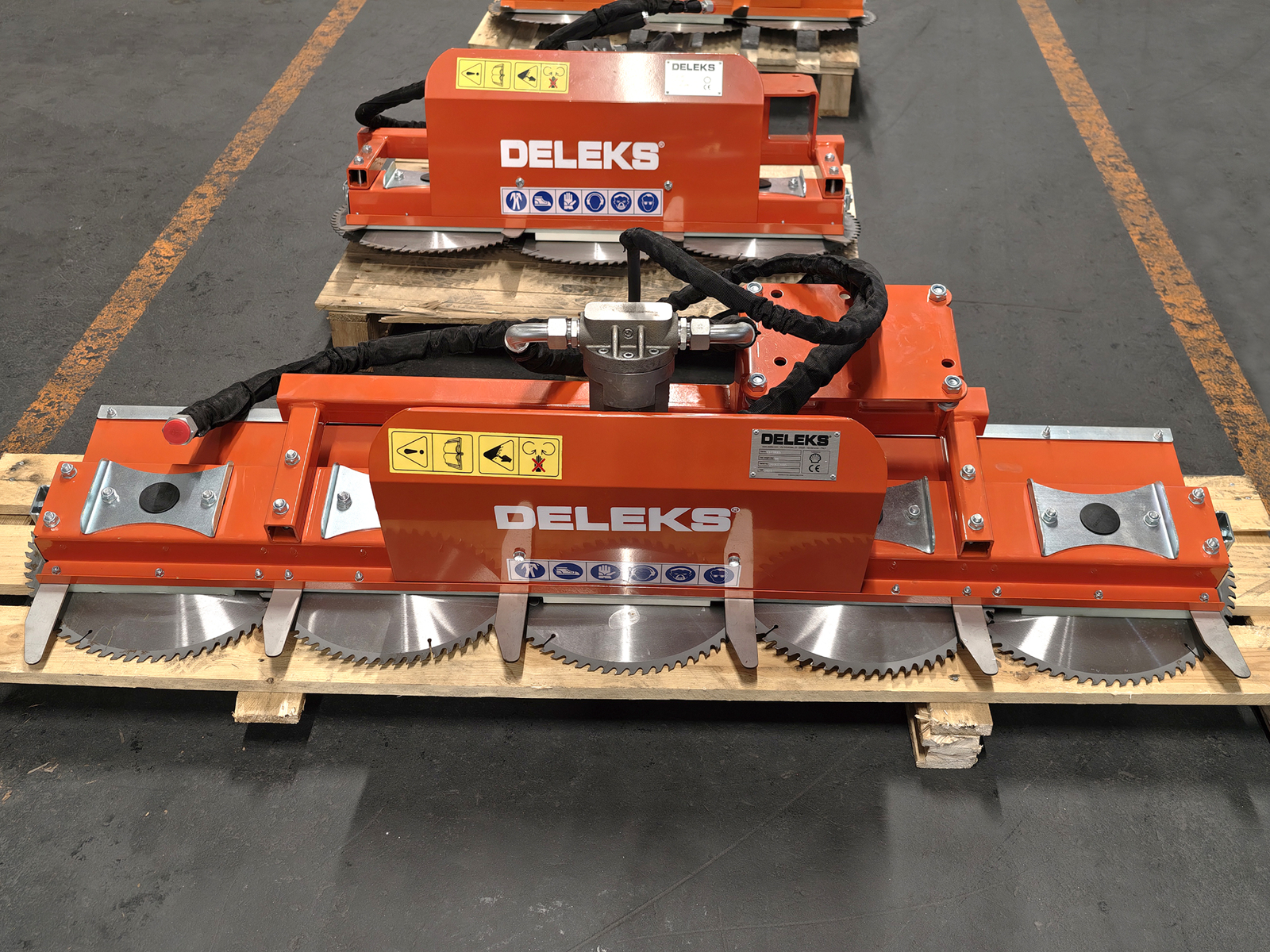

5 discs of 400 mm with 72 tungsten-carbide teeth

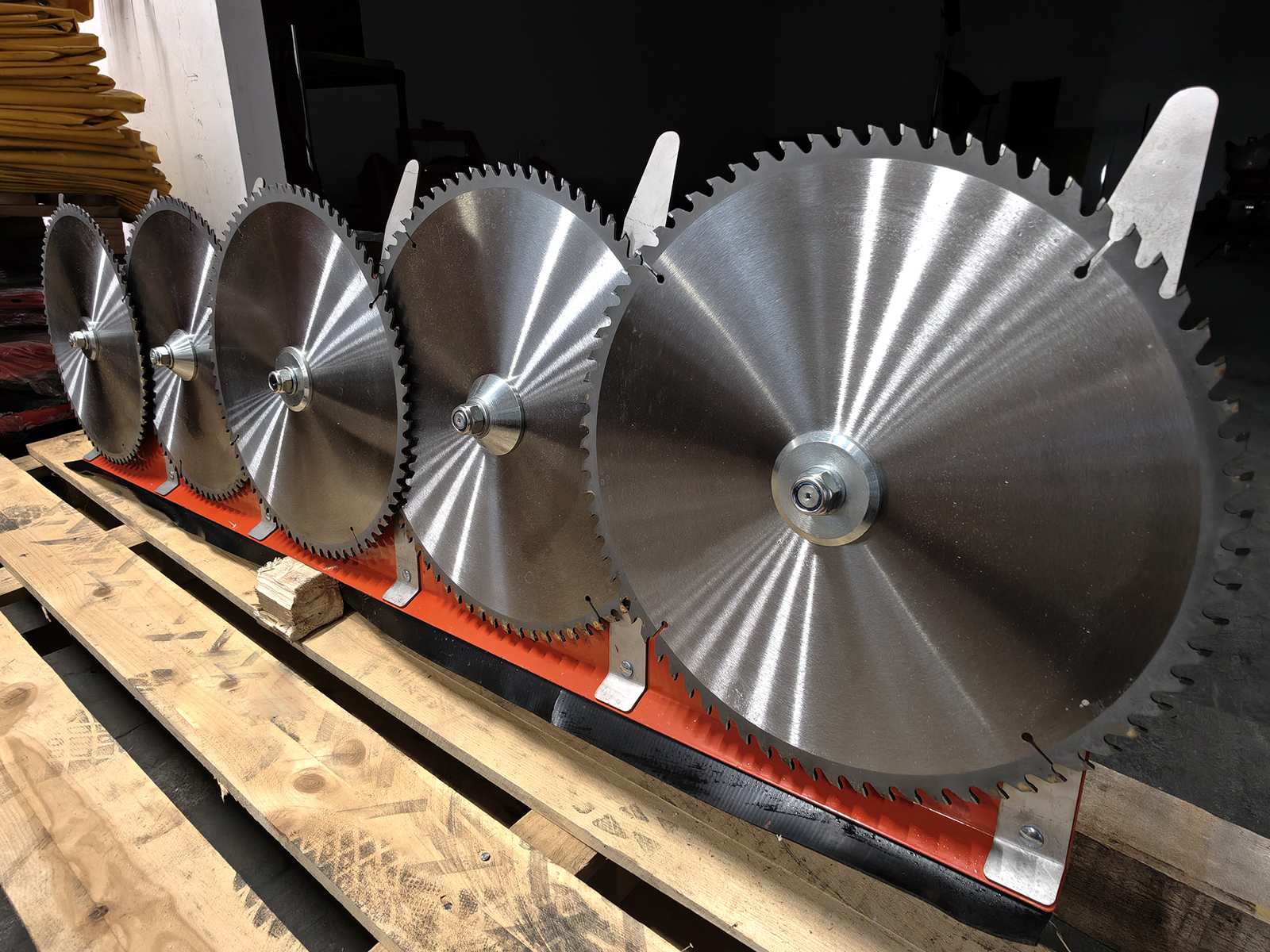

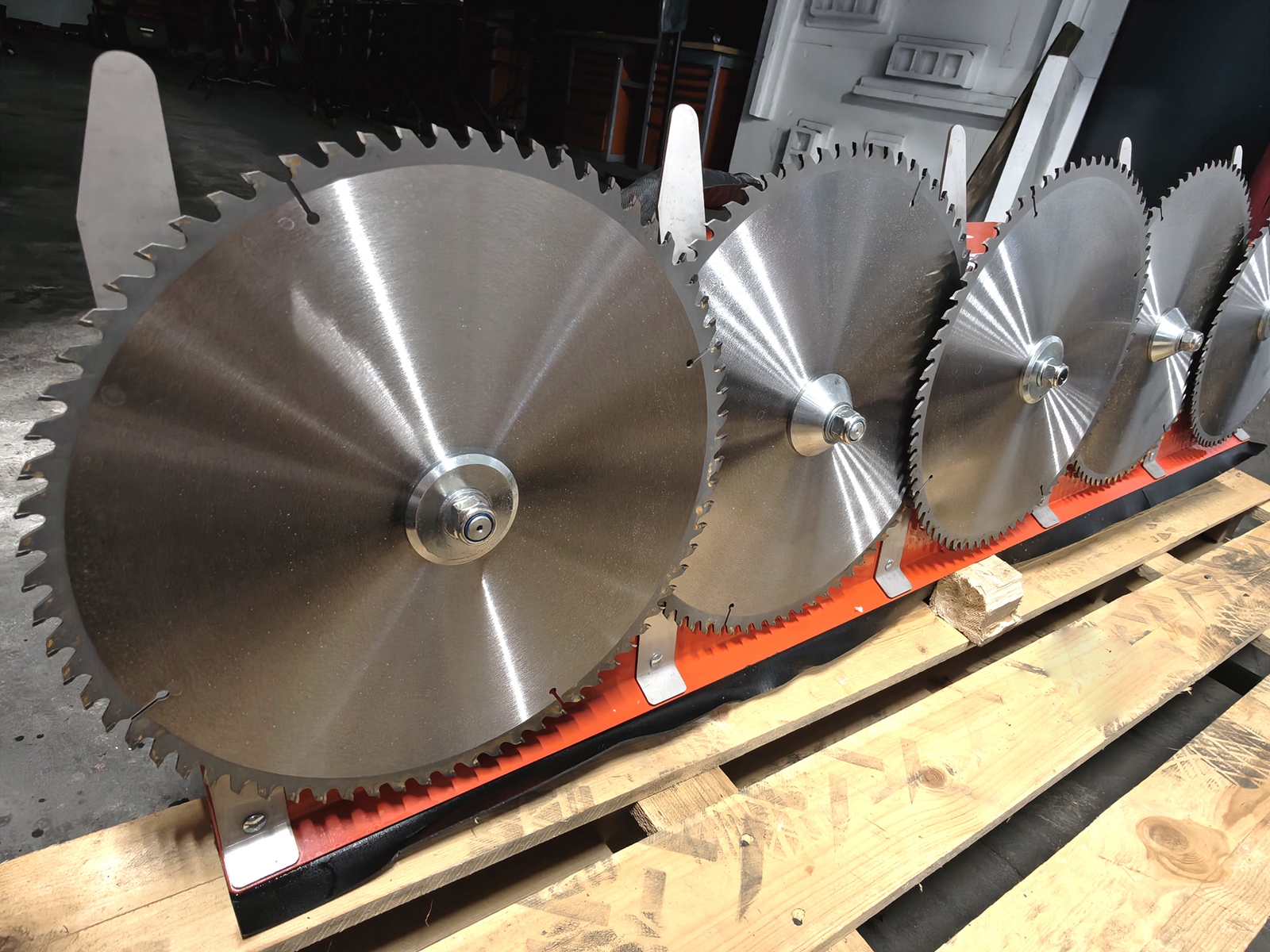

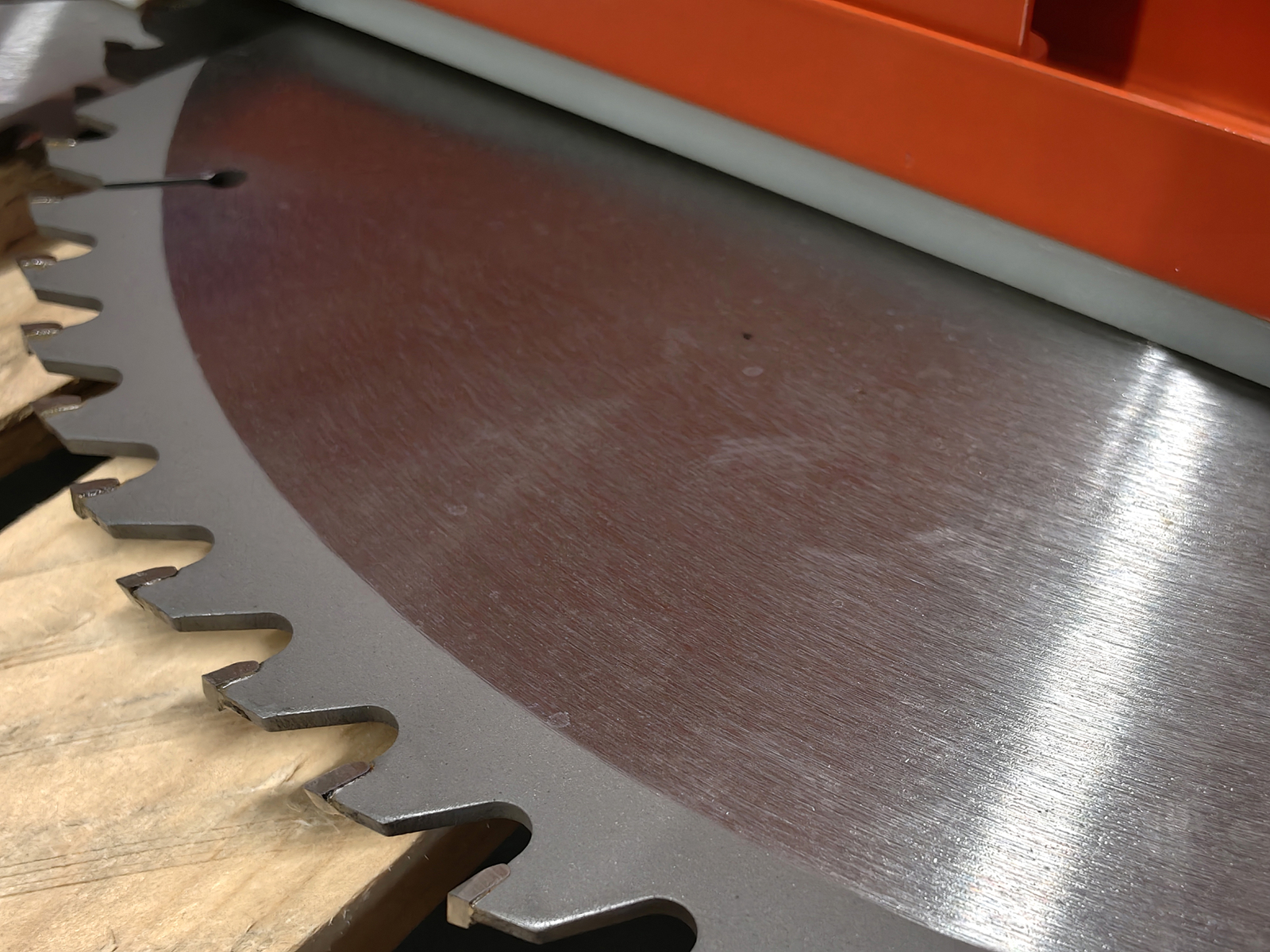

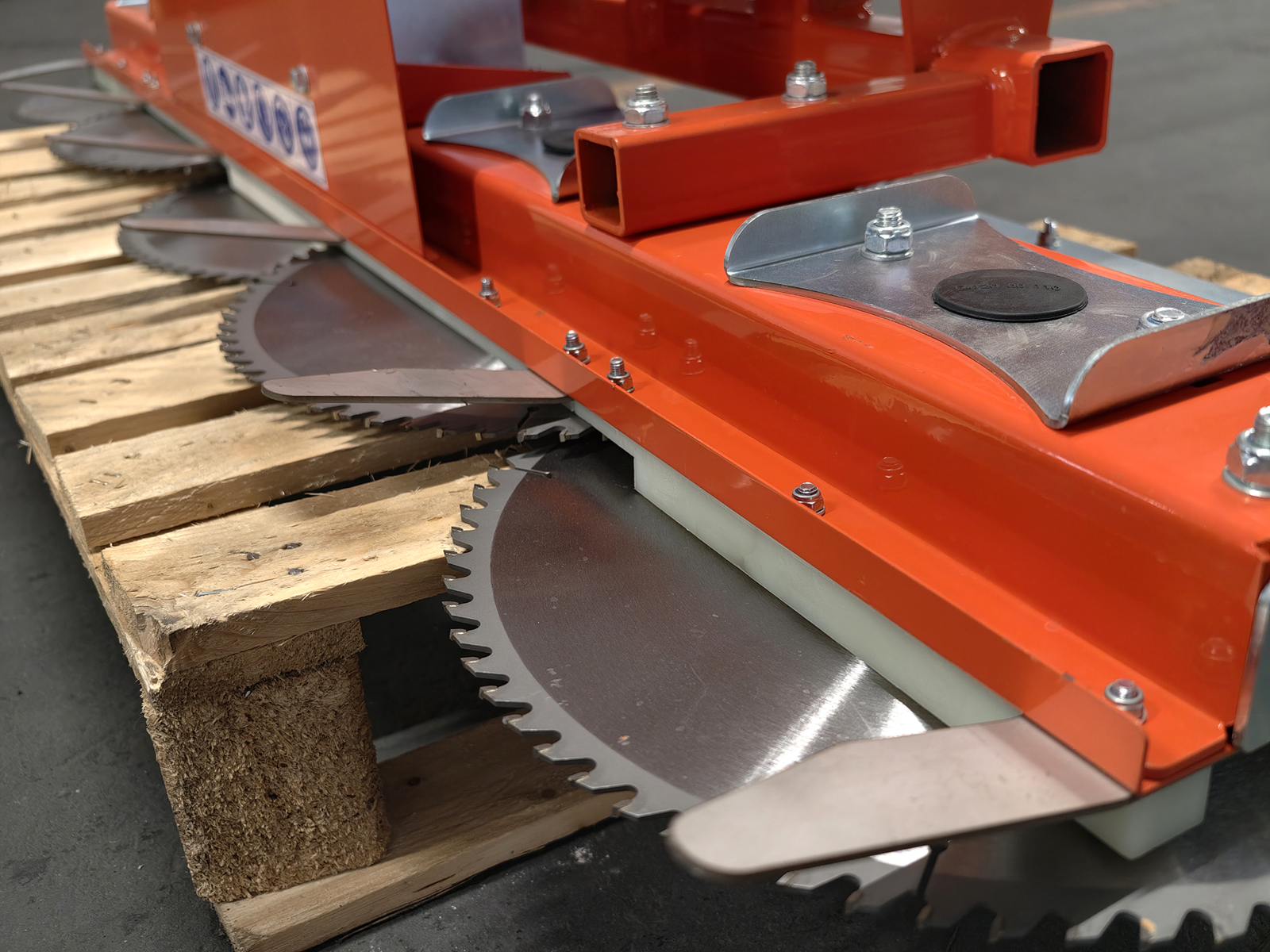

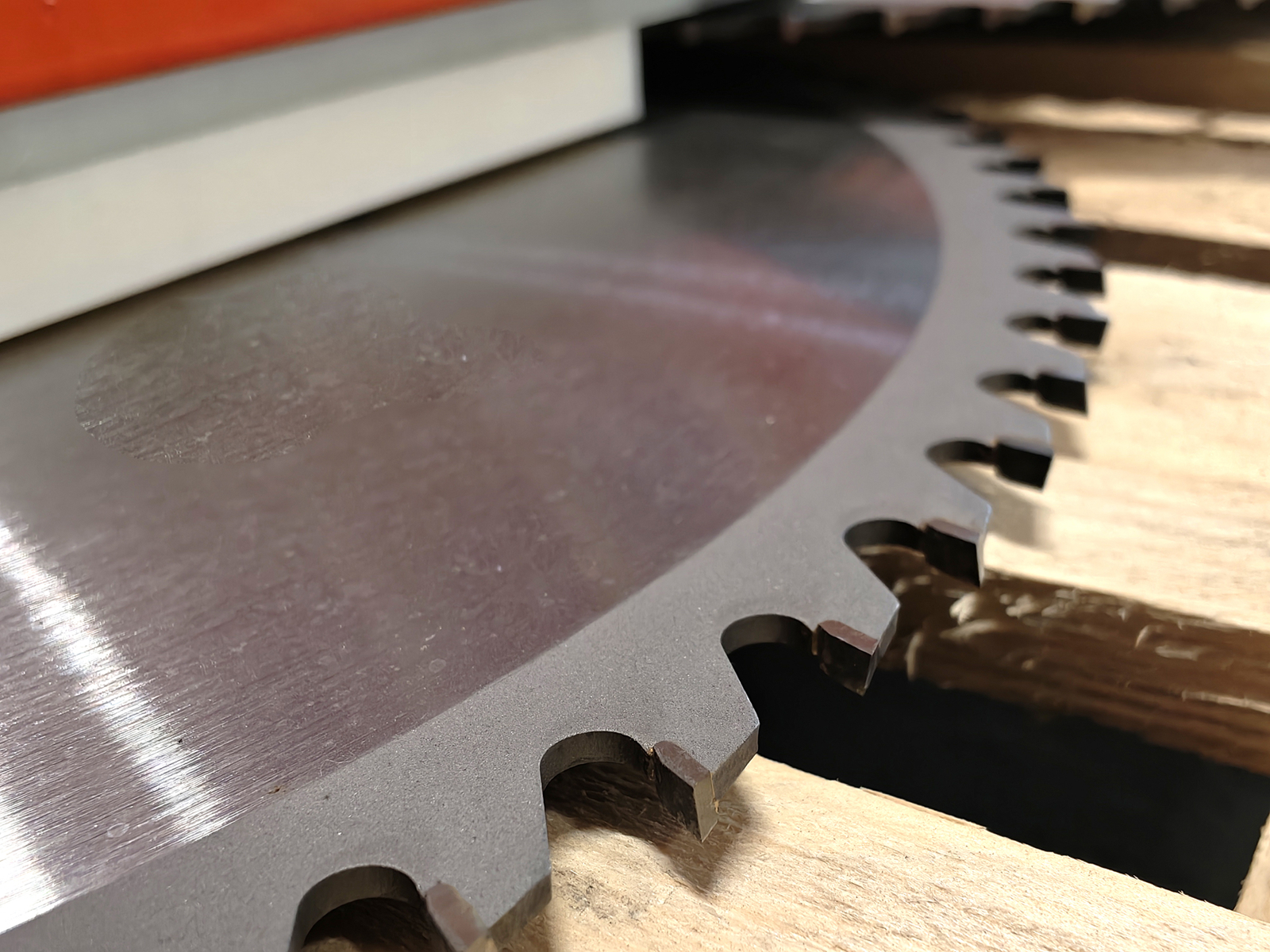

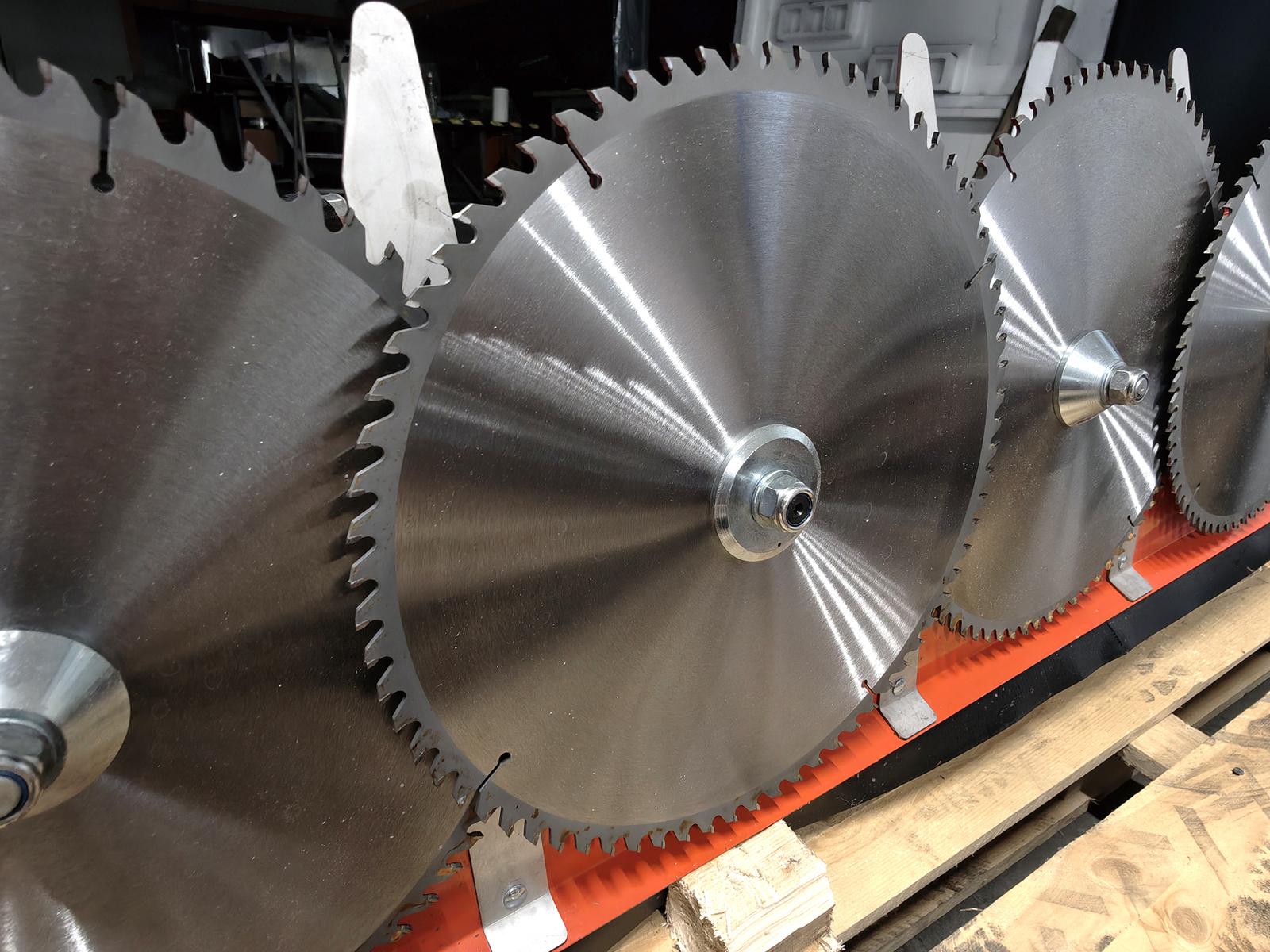

The 5 discs, 400 mm (15.7 in) in diameter, are made of high-strength carbon steel: 2.5 mm thick, with a 30 mm centre bore. Each disc has 72 teeth with tungsten-carbide tips, 3.2 mm thick: they cut woody hedges and branches up to about 9 cm (3.5 in) thick, with a fast, clean cut without splitting.


Piston motor and 4-belt drive

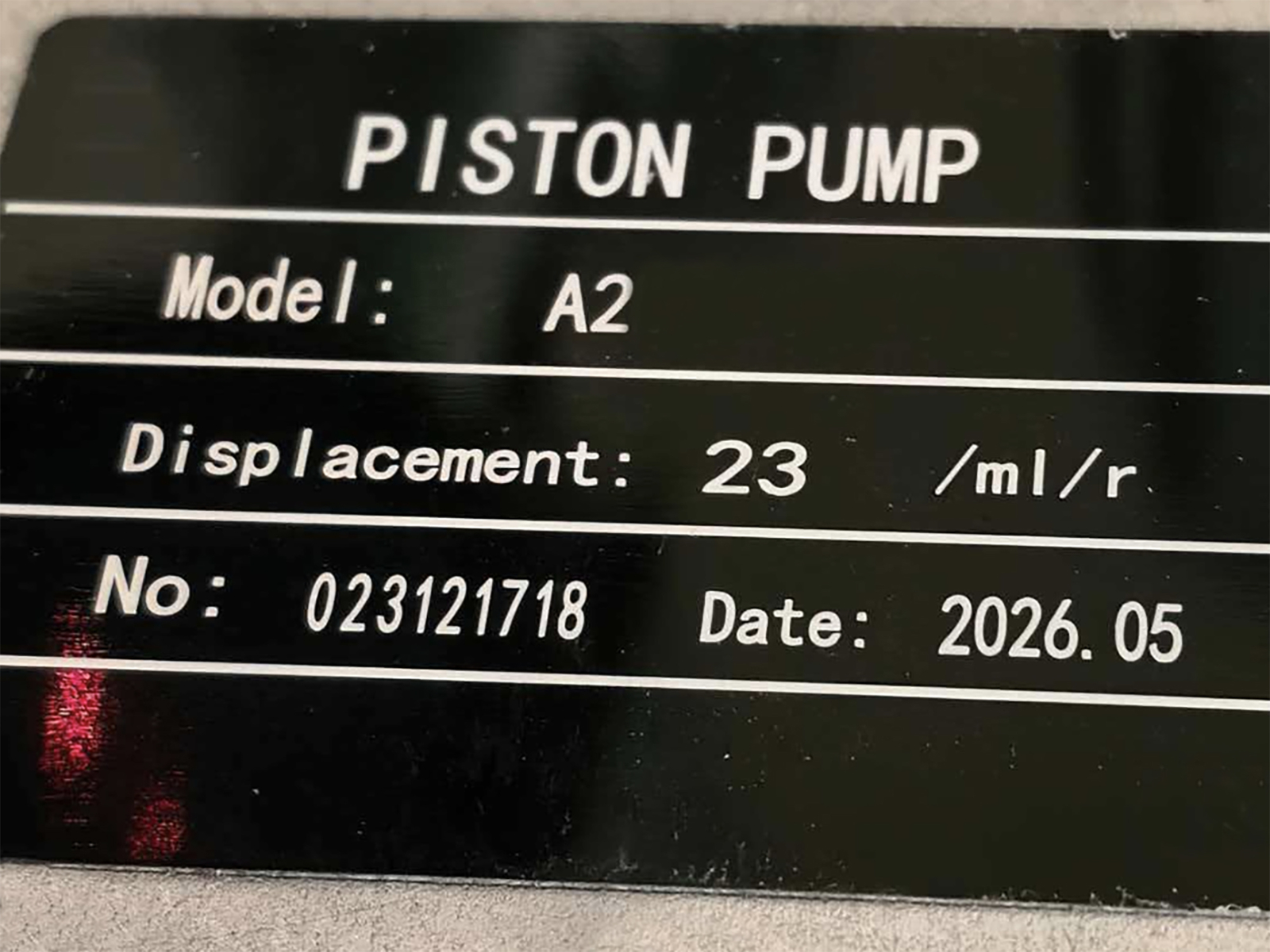

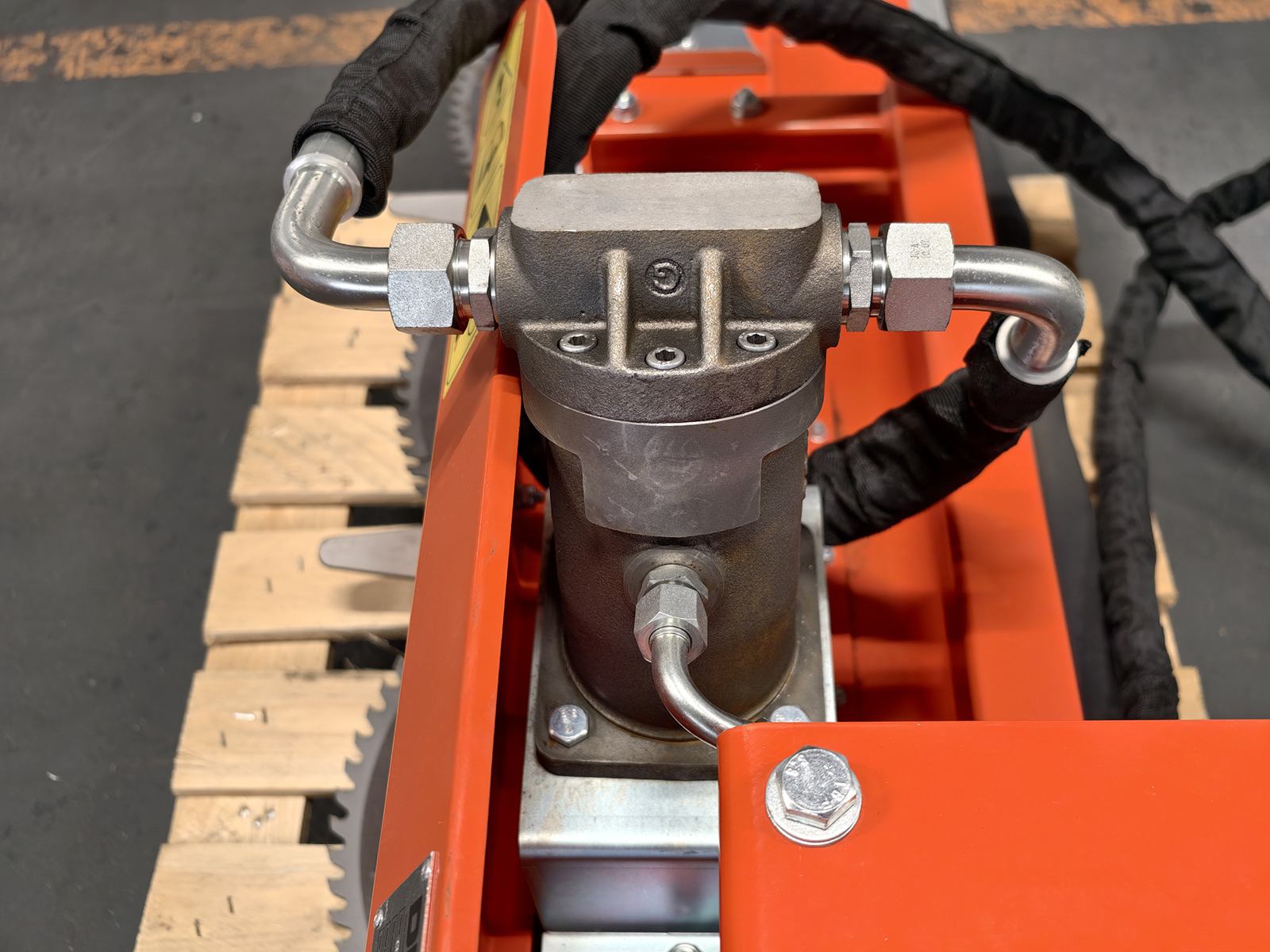

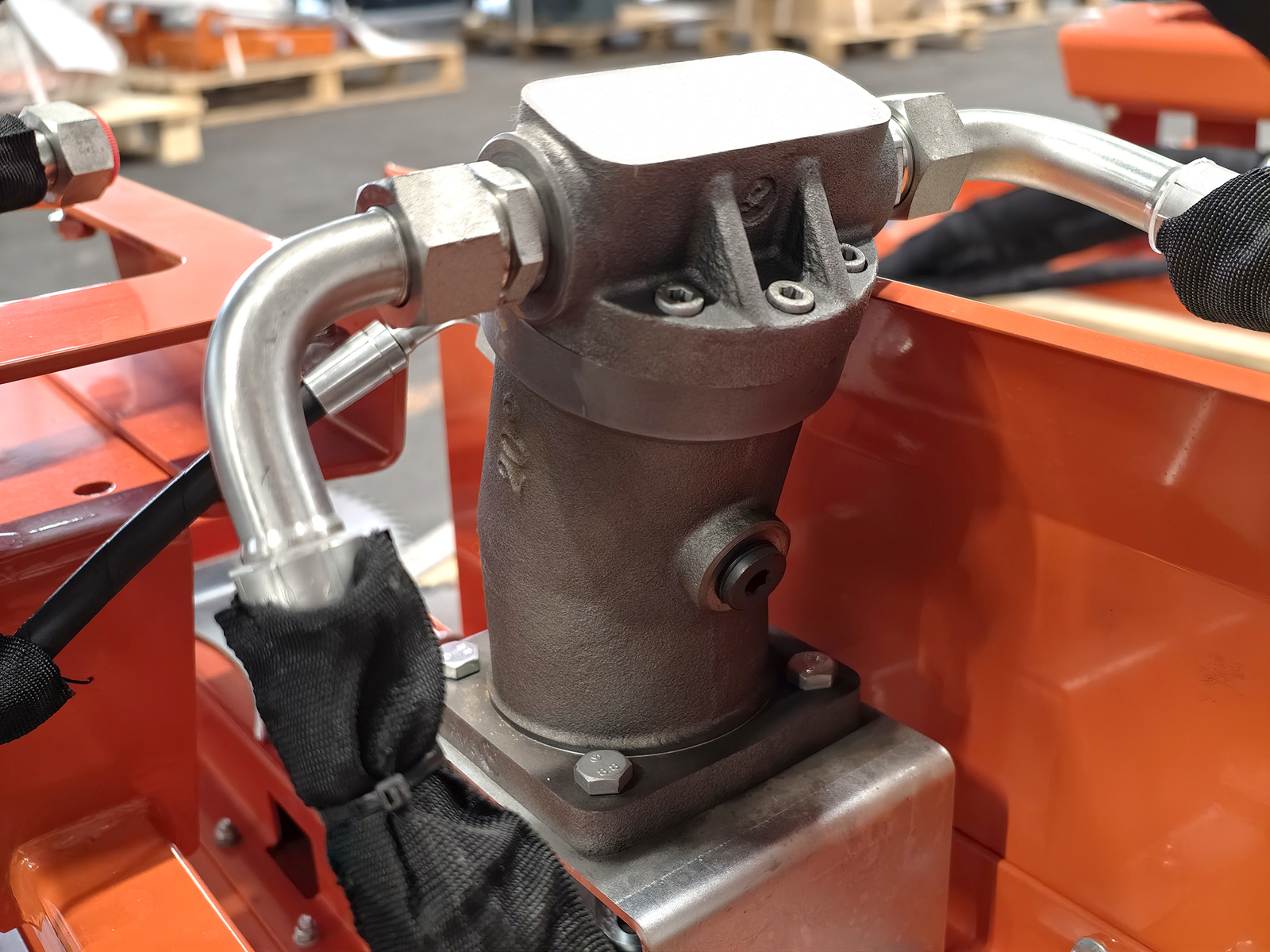

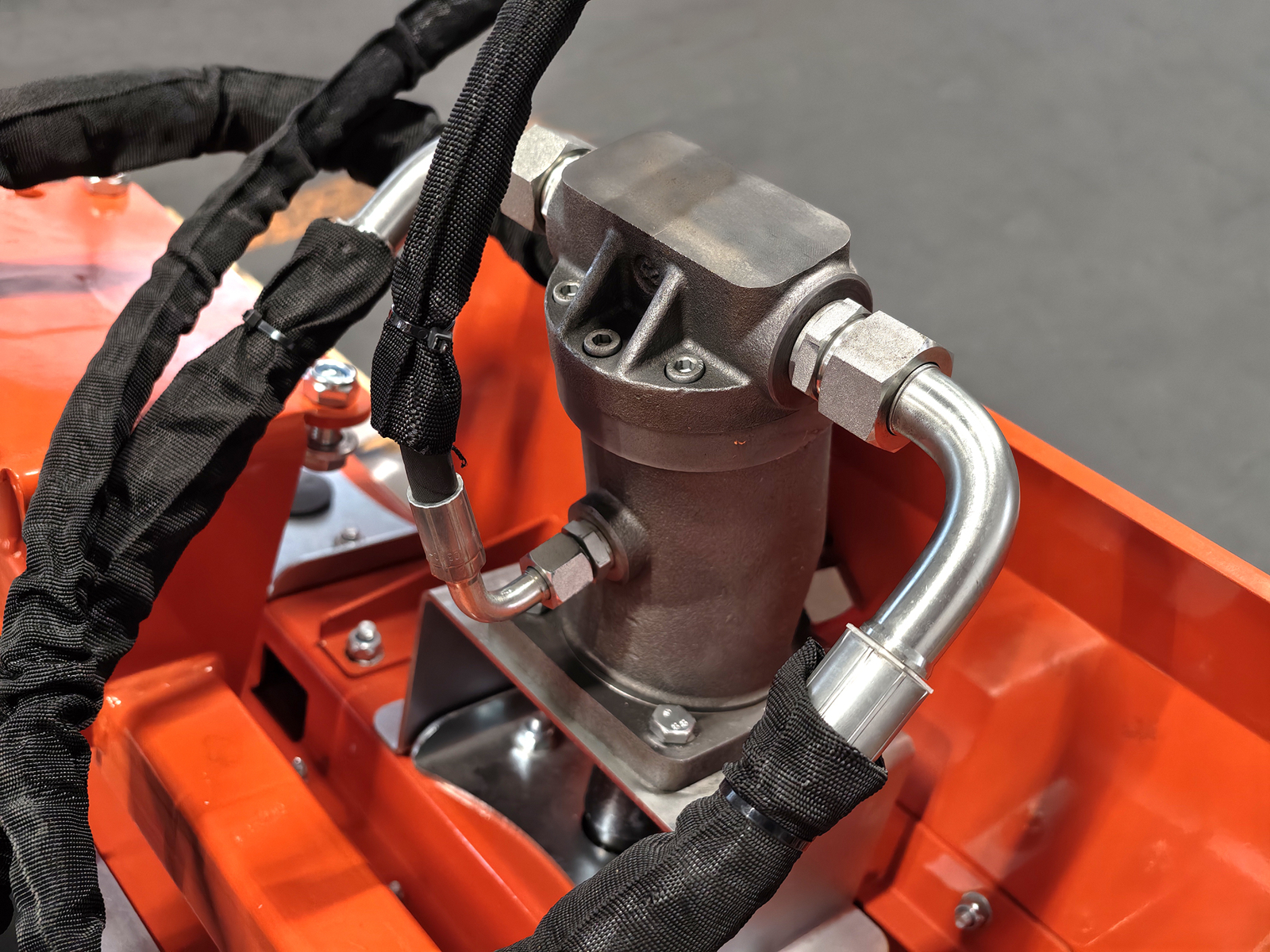

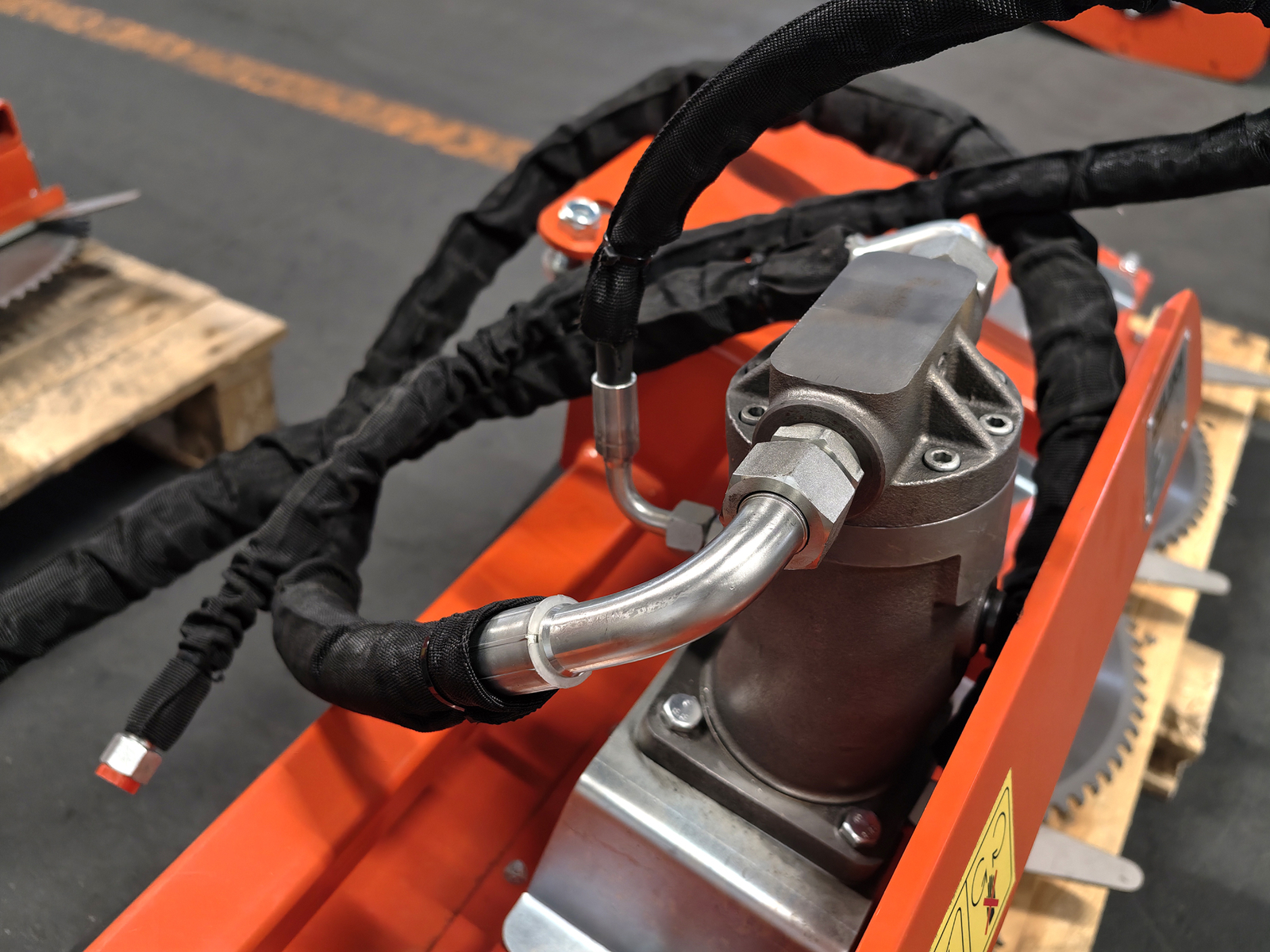

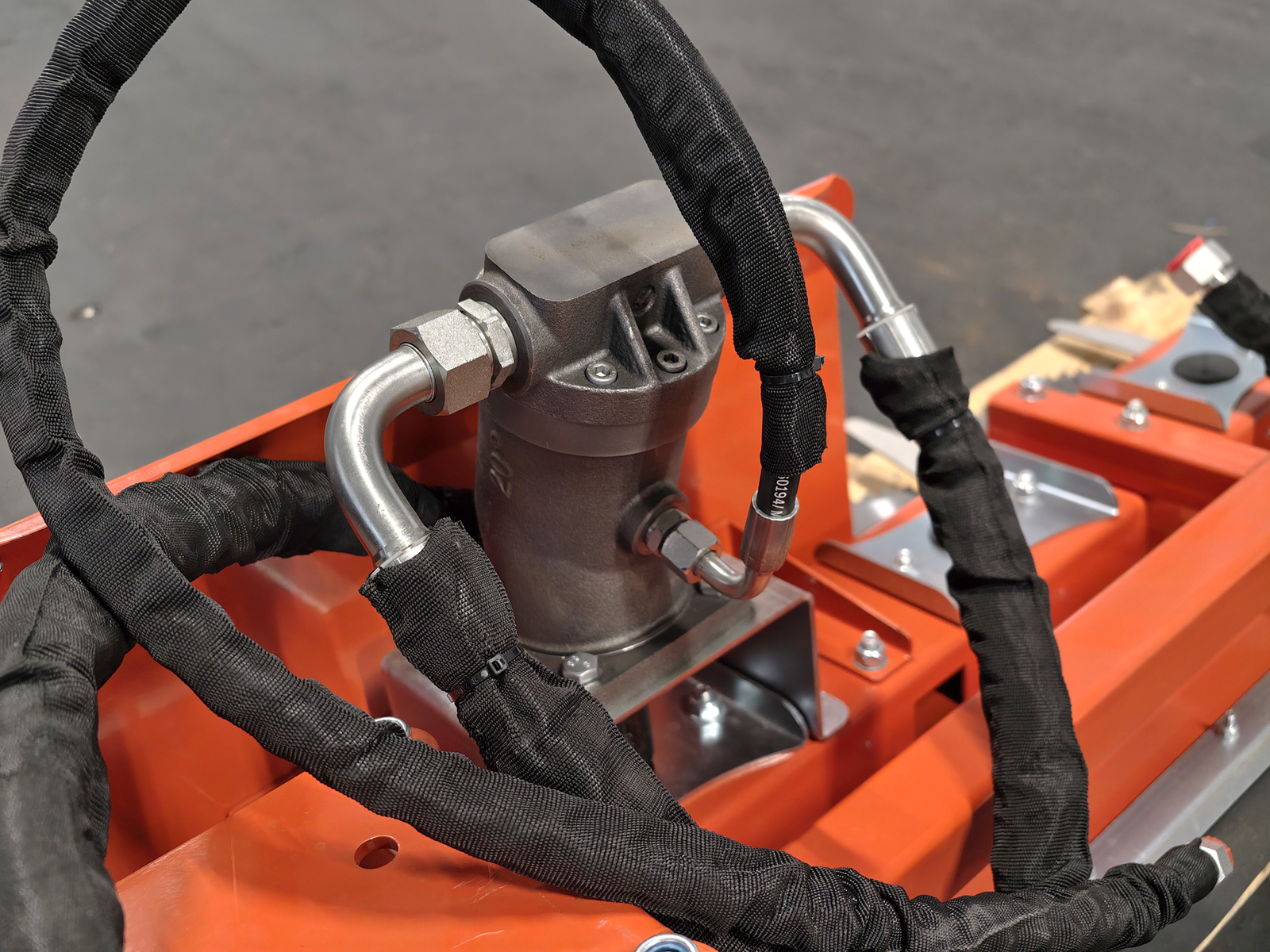

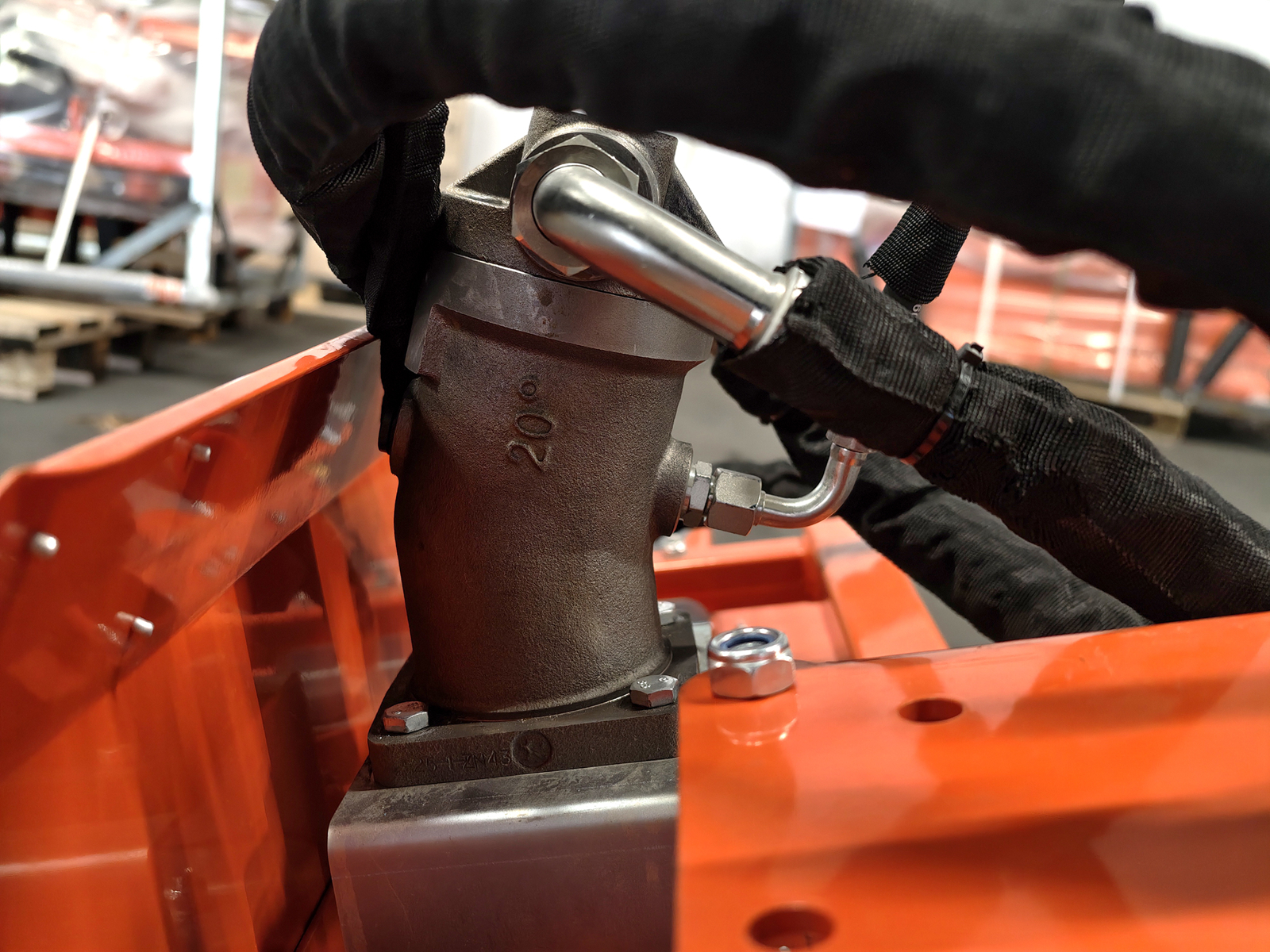

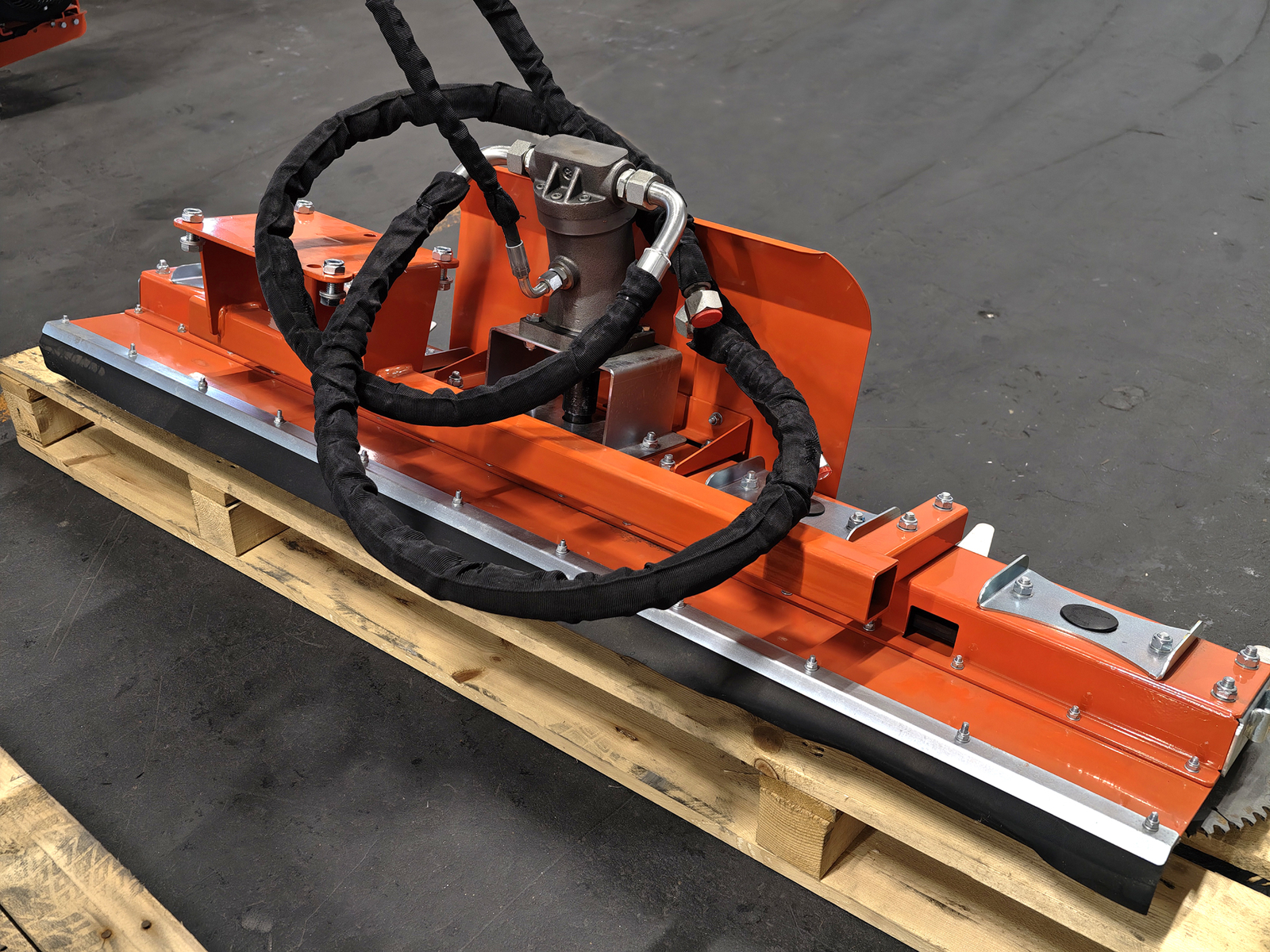

The piston hydraulic motor of 23 cc per revolution is bidirectional and has a case drain: compared with an orbital motor it has more torque and better efficiency, and keeps up its performance under load and in continuous use. Drive reaches the discs through 4 XPA907 belts, which absorb shock loads and reduce vibration.


Mounting on the arm

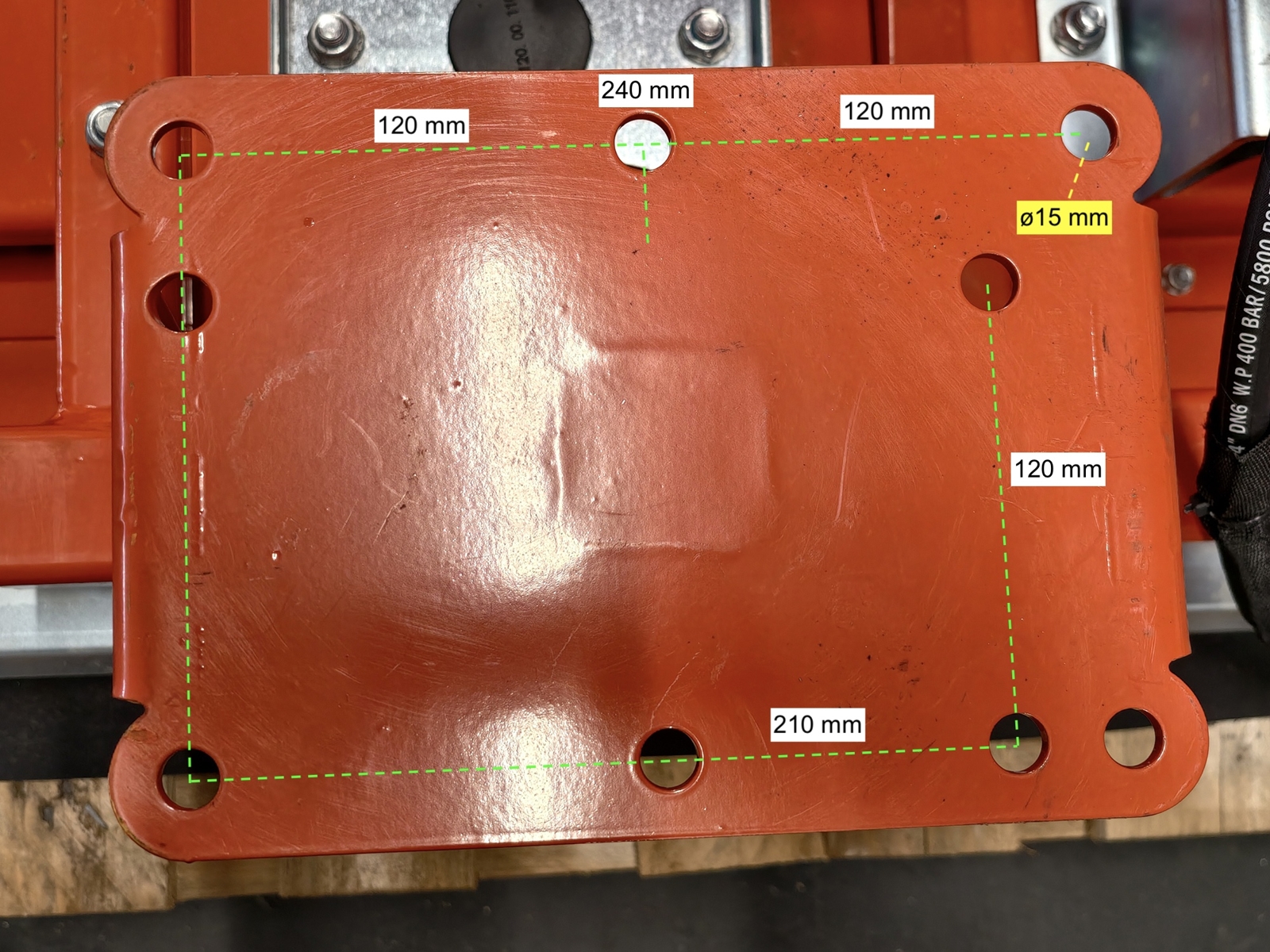

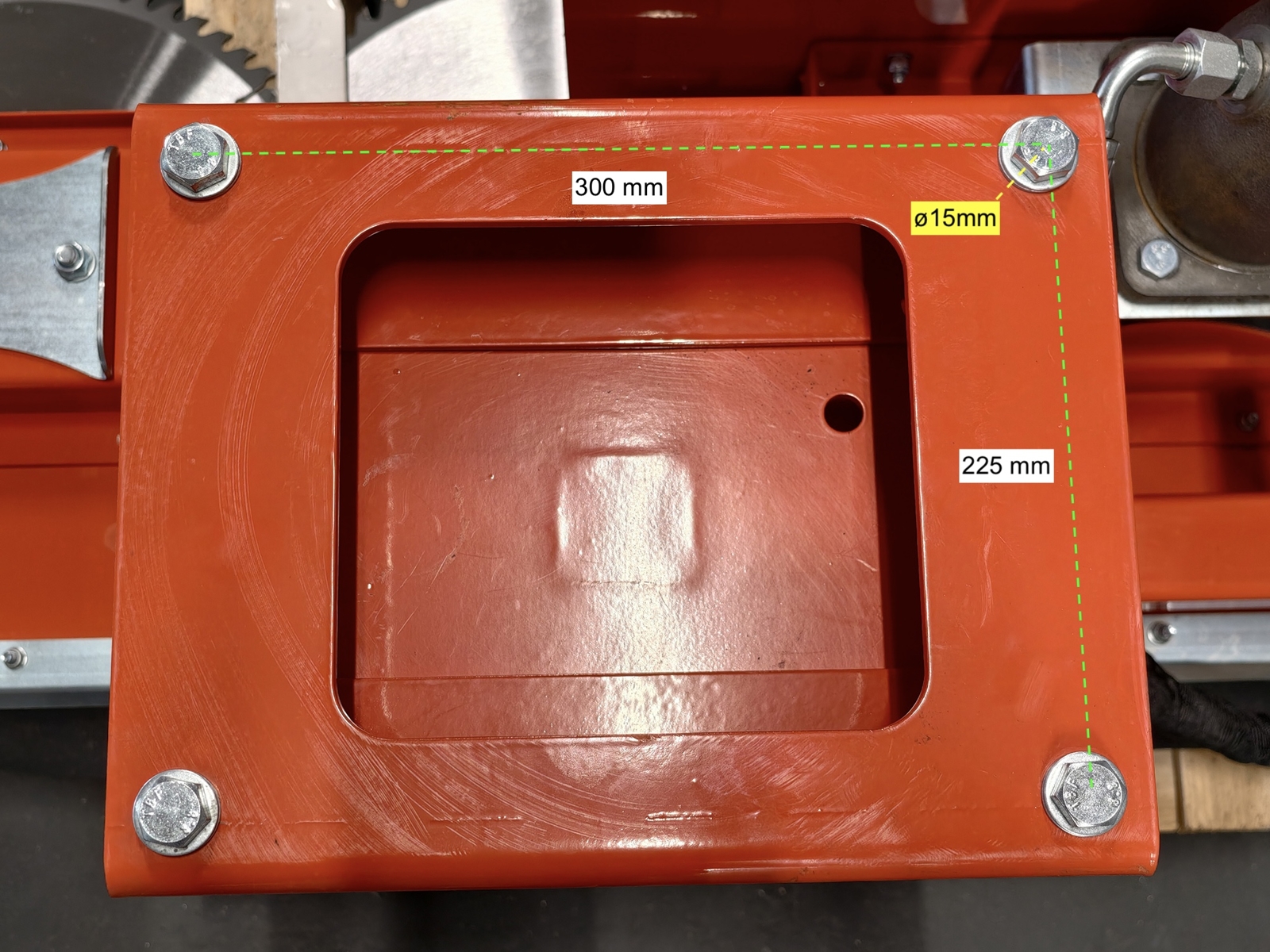

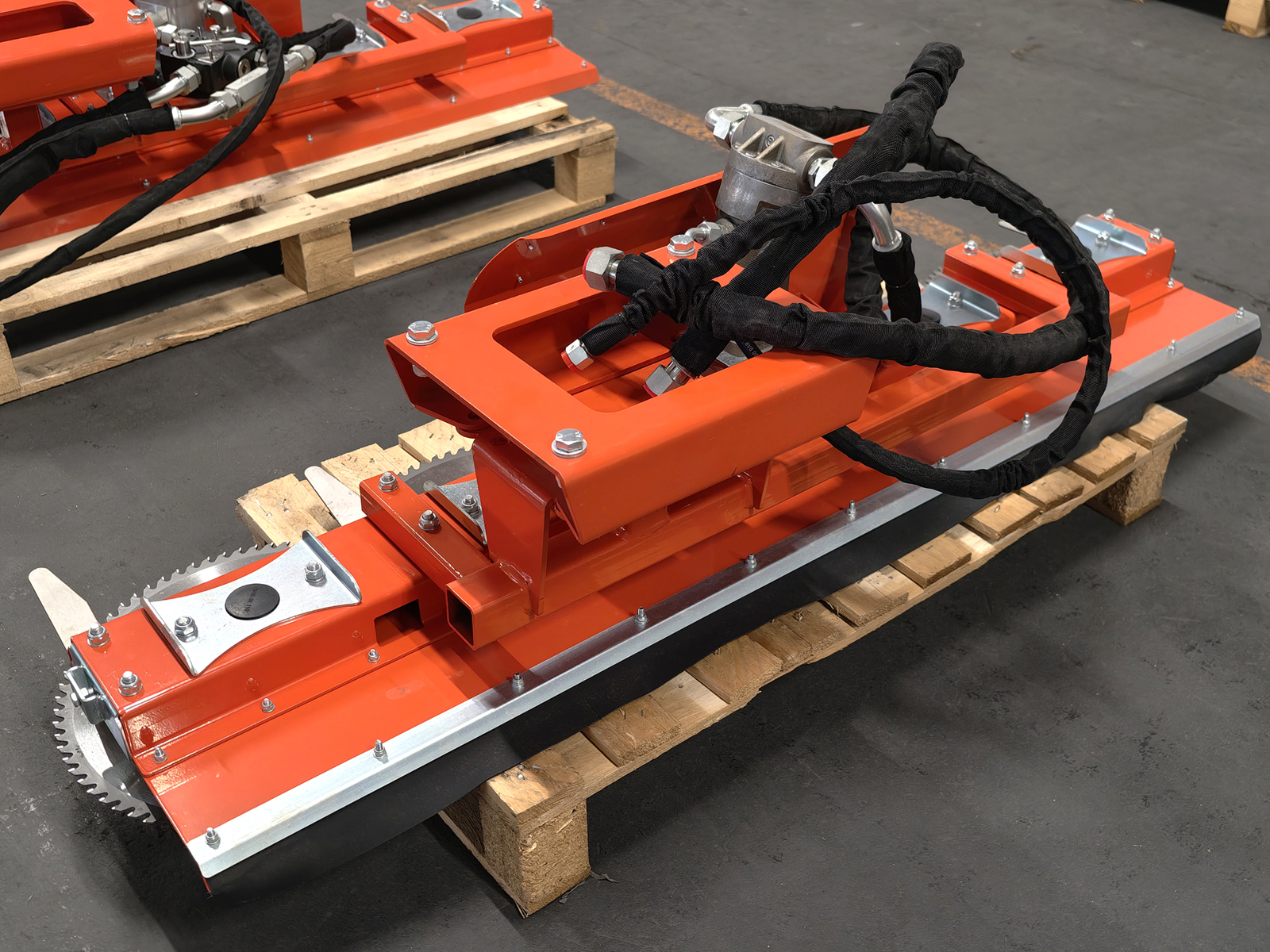

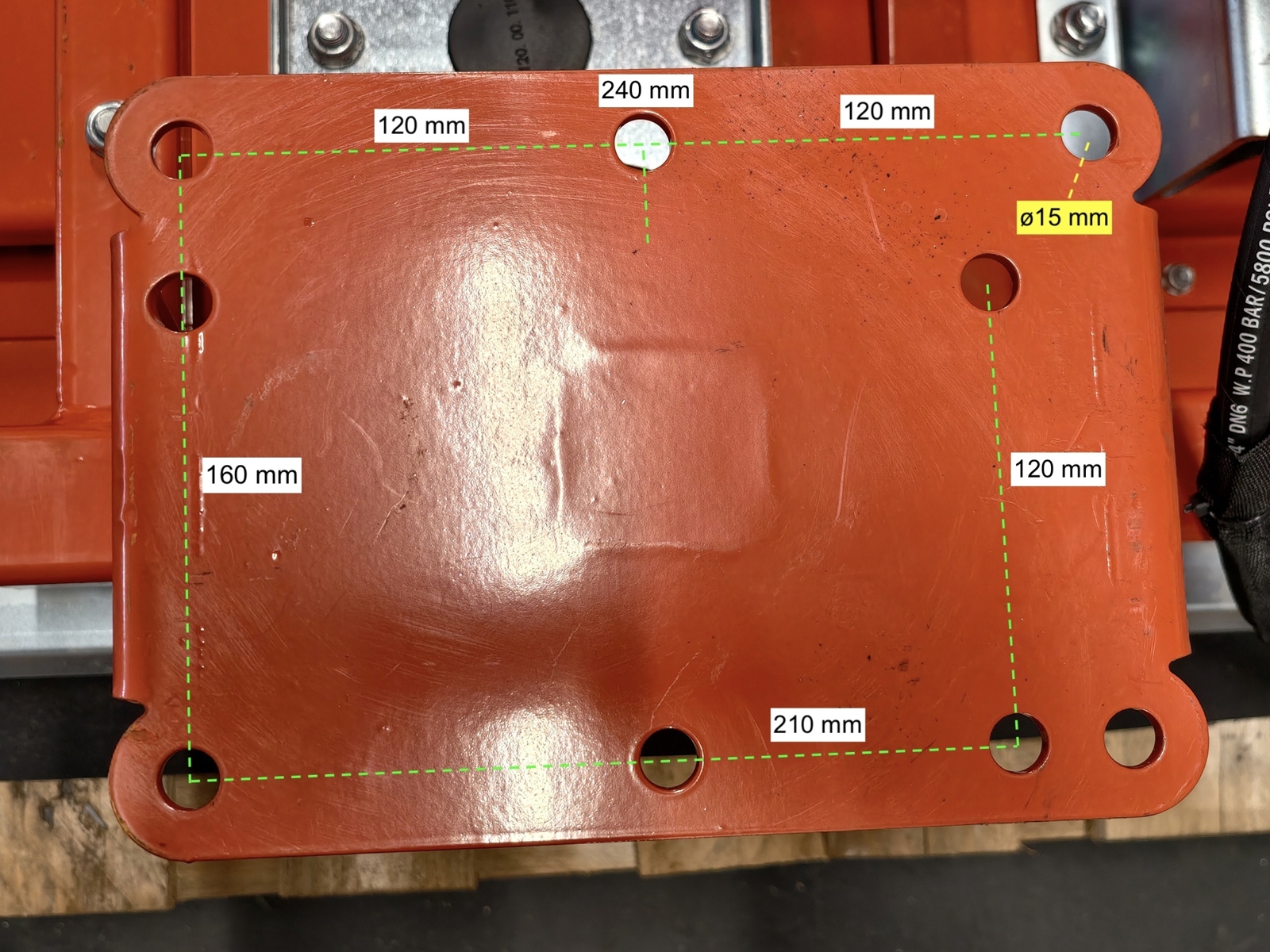

The dimensions of the mounting plate are in the product images, to check against the mounting of your arm or excavator. As options there are the Morin-type ACB+ M0 hitch and a hitch made to measure for your machine, at a surcharge.


Dimensions, weight and delivery

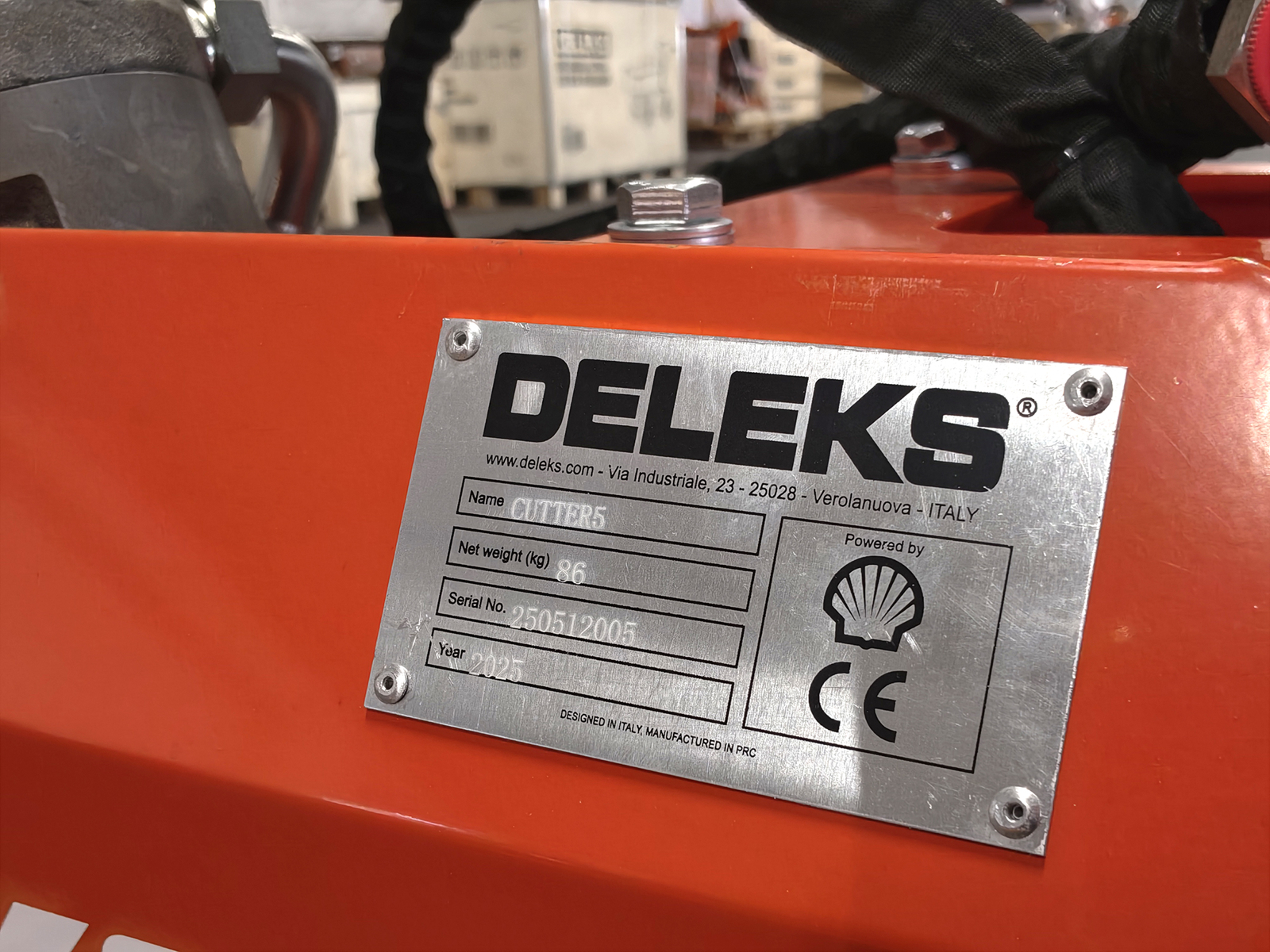

Cutting width 1,600 mm (63 in), weight 86 kg (190 lb). It ships in a package of 175 × 80 × 50 cm (69 × 31 × 20 in), 111 kg (245 lb) gross and 0.70 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is certified by ECO Certificazioni and carries a 2-year warranty.


Where it works

  • Woody hedges and tree lines: pruning branches up to 9 cm (3.5 in) thick
  • Road verges, banks and ditches: branches and growth overhanging the road
  • Orchards and vineyards: pruning and topping from the arm
  • Woodland edges and farm tracks: keeping branches and regrowth in check
  • Excavators and hedge cutter arms with an oil flow of 70-90 l/min

Options and spares

From this page you can add to your order the Morin-type ACB+ M0 hitch (ATTACCOMORINM0) and the made-to-measure hitch (ATTACCOARM). Discs, belts and other spares are identified on the exploded diagrams with our technical team.


FAQ

Which machines does the CUTTER-5 fit?
Excavators with an auxiliary hydraulic line and tractor hedge cutter arms, with an oil flow of 70-90 l/min at 140-180 bar. Among the DELEKS® mini diggers and mini excavators, it fits the S280 and the S380: a case drain hose has to be fitted on the excavator, a service that is free of charge when the bar is bought together with the mini excavator.

What oil flow does it need?
From 70 to 90 l/min (15.4 to 19.8 UK gal/min), at a working pressure of 140 to 180 bar (2,030 to 2,610 psi). For circuits with less flow there is the HR-DISC-5, 35 to 50 l/min.

Does it need a case drain line?
Yes: the motor is bidirectional and has a case drain, to be connected straight back to the tank. The machine must also have a free oil return line.

What size branches does it cut?
Woody hedges and branches up to about 9 cm (3.5 in) thick. For hedges and small branches up to 3 cm (1.2 in), the HR-S and HR finger bar hedge cutters, 130 to 180 cm, are enough.

What is the difference between the HR-DISC-5 and the CUTTER-5?
The HR-DISC-5 has a gear motor and runs on 35-50 l/min at 120-160 bar; the CUTTER-5 has a piston motor, with more torque and better efficiency, and runs on 70-90 l/min at 140-180 bar. The cutting width is the same; the discs of the CUTTER-5 have 72 teeth, those of the HR-DISC-5 60.

3 or 5 discs?
With 3 discs the bar cuts 100 cm and weighs 60 kg (HR-DISC-3) or 58 kg (CUTTER3); with 5 discs it cuts 160 cm and weighs 95 kg (HR-DISC-5) or 86 kg (CUTTER-5), and needs more oil flow.

How does it mount on the arm?
With the mounting plate, whose dimensions are in the product images, with the optional Morin-type ACB+ M0 hitch or with a made-to-measure hitch.

Does it mount directly on a tractor?
No: on a tractor you need a hydraulic arm, such as a hedge cutter arm. The bar does not connect directly to the three-point linkage.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: blades, fingers, saw discs, belts, bearings, hydraulic motor and hitches are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and a check that the bar, the hydraulic circuit and the machine's mounting match. The bar comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
